After Sales Technical Documentation
Appendix 3 – Transceiver THX–43
Chapter 3
QUICK GUIDE
Original, 09/94
THX–43
After Sales
Quick Guide
Technical Documentation
CHAPTER 3 – QUICK GUIDE
CONTENTS
Page No
Introduction 3–3
List of Keys 3–3
Display Indicators 3–6
Getting Started 3–7
The Memory 3–7
Using The Menu 3–8
Battery Information 3–10
Charging Times 3–10
Standby and Talk Times 3–10
List of Figures
Figure 1: THX–43 Transceiver 3–5
Original, 09/94Page 3–2
After Sales
THX–43
Technical Documentation
Introduction
This section provides a brief user guide and covers the following:
List of Keys
Display Indicators
Getting Started
The Memory
The Menu Method
List of Keys
Figure 1 showing the keys can be found overleaf.
Keys on side of phone:
Switches power on/off; press and hold to switch phone on or
off. In a call, pressing mutes the microphone.
Quick Guide
and Select earpiece volume (hold for continuous scrolling).
Keys on front of phone:
ABC Selects/deselects alpha mode. Press once to select alpha
mode (eg, to enter characters or view names), and press
again to deselect alpha mode and revert to number mode.
MEM Stores information in a memory location.
FCN Enters Menu A, B or C.
After a menu function is selected (by pressing FCN then a
number key, * or #), FCN may be used to view options in the
selected function, and select the displayed option.
C Clears last digit or character entered, and (when held down)
clears the entire entry. Exits the menu.
Dials the voicemail or ’favourite’ (predefined) number.
R Recalls information from a memory location.
If the display is full, shows hidden digits.
Dials a number. ie; originates a call).
In a call, sends DTMF.
Ends a call.
Original, 09/94 Page 3–3
THX–43
After Sales
Quick Guide
0 to 9,
* and # Enter numbers and characters.
After pressing R, * and # scroll the memory locations.
After pressing FCN, * and # scroll the functions in a selected
menu. (Hold * or # for continuous scrolling).
9, * and # are also used for one–touch dialling (of predefined
numbers); press and hold the key.
The * key scrolls to the previous memory location/menu
function (Y symbol). The # key scrolls to the next memory
location/menu function (B symbol).
* also produces the special characters, ’+’, ’p’ and ’w’:
’+’ may be used as an international dialling prefix, and for
memory linking. ’+’, ’p’ and ’w’ are used for DTMF dialling.
Technical Documentation
Original, 09/94Page 3–4
After Sales
THX–43
Technical Documentation

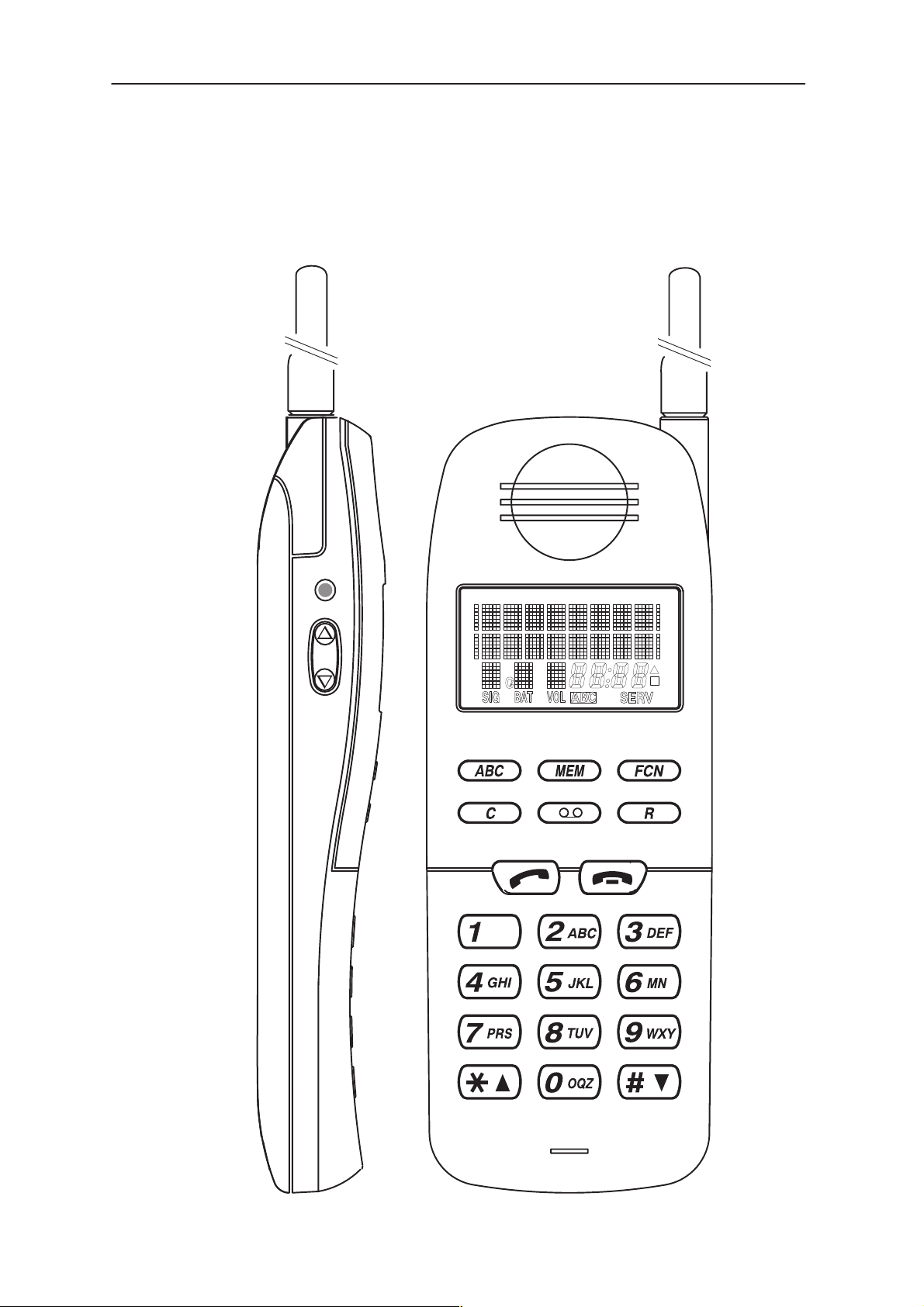

Figure 1: THX–43 Transceiver
Quick Guide
Original, 09/94 Page 3–5
THX–43
After Sales
Quick Guide

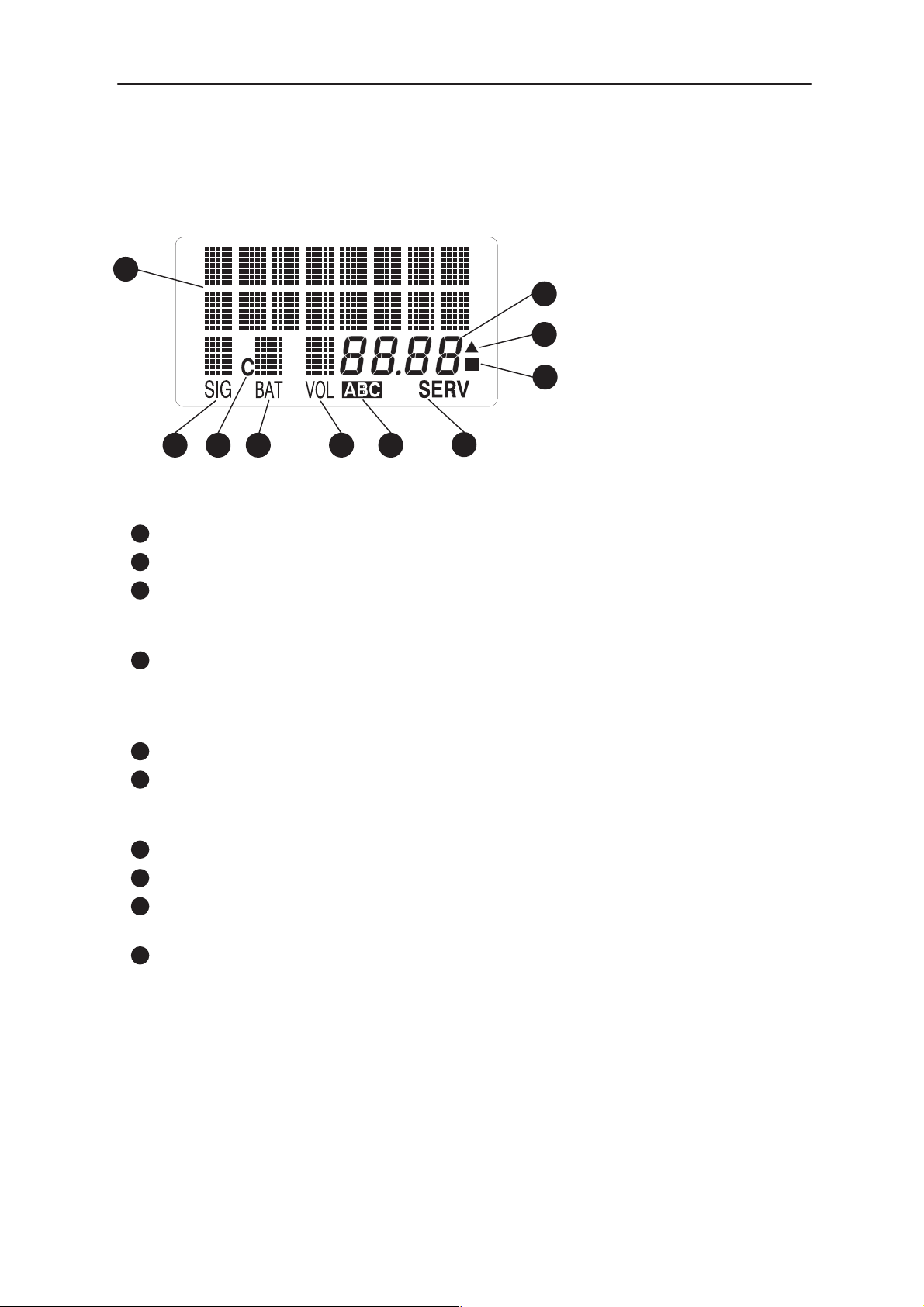

Display Indicators
1
2
3
4
1
Main text area Shows numbers, names and indicator messages.
5
Technical Documentation
10
9
8
6
7
2
Signal Indicator Shows approximate received signal strength.
3
Charging Indicator Steady C – charging is in progress.
Flashing C – charging is complete (only present
when charger is connected).
4
Battery Indicator Shows approximate capacity remaining. Scrolls
when charging is in progress.
Flashes to show that battery is too hot or too cold,
and will not be charged.
5
Volume Indicator Shows earpiece (or handsfree) volume level.
6
ABC Indicator Indicates that ALPHA input/viewing mode has been
selected; letters and names can be entered and
displayed.
7 SERV Indicator Indicates cellular service available.
8
In–call Indicator Indicates that a call is in progress.
9
ROAM Indicator Flashes to indicate inter–system roaming; steady for
inter–area roaming.
Index Area Shows call timer, or memory location number, or
10
menu/function number.
Original, 09/94Page 3–6
After Sales
THX–43
Technical Documentation
Quick Guide
Getting Started
Switch on/off Press and hold the key.
Make a call Key in the number (include area code if
necessary).
Press key.
Answer a call Press any key except or the volume
keys.
End a call Press key.
Clear digit Press C key.
Clear display Press and hold C key.
Last number redial
Adjust volume
Ensure display is clear, then press
key.
Press or key.
The Memory
Store a phone number Key in area code, number (and name if
required).
Press MEM key. Press MEM key again
to store the number in the first empty
memory location.
Speed dialling Enter the number of the memory
location containing the number to be
dialled (eg. 2).
Alternatively, press ABC key (to select
alpha mode), then enter the name
stored with the number to be dialled.
Press key.
Scroll for a number Press R then * or # to scroll all used
memory locations in numerical order.
Scroll for a name Press ABC key (to select alpha mode).
Press # to display the name which is first
in alphabetical order (of first letter), or
press * to display the name which is last.
To display the other stored names, press
* or # until you find the name you are
looking for. Press and hold the key to
scroll the locations. The number of the
memory location in which each
displayed name is stored will appear in
the lower right–hand corner of the
display.
Original, 09/94 Page 3–7
THX–43
After Sales
Quick Guide
Technical Documentation
Using The Menu
Select menu level Press FCN (press once for menu A,
twice for menu B or three times for C).
To access menu C, also enter your
[4–digit Lock Code].
Scrolling functions Press * or # (repeatedly) to view the
functions in the selected menu.
Scroll and select option Press FCN to scroll the options.
The option (remaining) on the display
will be the one selected.
Shortcut facility In any menu level, enter the number of
the menu function required eg, press 5 if
in menu A to reach Ring Vol (F:A5).
Refer to table below for menu function
numbers.
The main menu features available are listed in the table below:
Menu Name and Number Short Cut Description
NAM F:A1 FCN 1 Displays and selects
cellular number/network.
Lights F:A2 FCN 2 Selects operation of
display and keyboard
lights.
KeyTones F:A3 FCN 3 Selects keypad tones.
RingType F:A4 FCN 4 Selects the ringing tone
type.
Ring Vol F:A5 FCN 5 Selects volume of ringing
tone.
Activate DataMode F:A6 FCN 6 Selects data mode (in a
call).
Activate Key Lock F:A7 FCN 7 Locks/unlocks the
keyboard.
Send DTMF F:A8 FCN 8 Selects DTMF tones (in a
call).
Recall Last F:A9 FCN 9 Allows you to recall any of
the last (5) numbers
dialled.
Menu A/Next Menu F:A0 FCN 0 Provides entry to Menu B.
Clear Last F:B1 FCN FCN 1 Sets the last–called
numbers to be cleared or
retained when phone is
switched off.
Original, 09/94Page 3–8
After Sales
THX–43
Technical Documentation
DescriptionShort CutMenu Name and Number
Call Timers F:B2 FCN FCN 2 Displays length of calls.
Call Charges F:B3 FCN FCN 3 Displays Call Charges
AutoAnsr F:B4 FCN FCN 4 Set automatic answer on/
off.
Accessory Menu F:B5
to
F:B9
Menu B/Next Menu F:B0 FCN FCN 0 Initiates entry to Menu C.
Lock F:C1 FCN FCN FCN [4–digit
Mem Lock F:C2 FCN FCN FCN [4–digit
Barring F:C3 FCN FCN FCN [4–digit
FCN FCN then
number 5 to 9
Lock Code] 1
Lock Code] 2
Lock Code] 3
Controls accessories
connected to the phone.
Locks/unlocks the phone.
Sets memory access
restrictions.
Sets call restrictions.
Quick Guide
Em 9 Key F:C4 FCN FCN FCN [4–digit
Lock Code] 4
Change LockCode F:C5 FCN FCN FCN [4–digit
Lock Code] 5
Reset Timers F:C6 FCN FCN FCN [4–digit
Lock Code] 6
New PIN Code F:C7 FCN FCN FCN [4–digit
Lock Code] 7
System F:C8 FCN FCN FCN [4–digit
Lock Code] 8
Menu C/Next Menu F:C0 FCN FCN FCN [4–digit
Lock Code] 0
Sets the one–touch
dialling function for the
emergency key (9) to on
or off.
Allows you to change the
4–digit lock code (Lock
Code).
Resets the call timers.
Allows you to change the
TACS (authentication)
code (short cut only)
Selects roaming mode –
menu option only shown
when roaming enabled
(short cut only)
Provides entry to Menu A.
Original, 09/94 Page 3–9
THX–43
After Sales
Quick Guide
Technical Documentation
Battery Information
Charging Times
After the first use, the charging times depend on the type of battery fitted,
and charger used; approximate times are shown below.
Battery Type
Charger Type BTH–6L BTH–6S BTH–6SM BTH–6H BTH–6HM
Travel Charger
(ACH–3X)
Other charging
options ie LCH–2U,
ACH–4X, CHH–6 and
CHH–7.
Standby and Talk Times
1.5 hrs 1.5 hrs 2 hrs 10 m 5 hrs 5.5 hrs
30 mins 40 mins 60 mins 70 mins 100 mins
Approximate standby and talk times, for fully–charged batteries:
Battery Type Standby Time Talk Time
Light NiCd 300mAh (BTH–6L)* 9 hours 40 minutes
Standard NiCd 380mAh (BTH–6S) 11 hours 50 minutes
Standard NiMh 550mAh (BTH–6SM) 16 hours 70 minutes
Extended NiCd 800mAh (BTH–6H) 28 hours 110 minutes
Extended NiMh 1100mAh (BTH–6HM) 35 hours 150 minutes
* subject to availability
NOTE: You will obtain the standby time specified or
combination. Thus (for BTH–6S), 11 hours standby time or
talk time is approximately equivalent to 5.5 hours standby time and 25
minutes talk time.
the talk time specified, or a
50 minutes
Original, 09/94Page 3–10
