W32-70 INSTALLATION INSTRUCTIONS
UNIVERSAL WALL MOUNT
For 32” to 70” LCD range of flat screens
For mounting screens both in Landscape and Portrait
www.unicol.com www.unicol.de Page 1 necinstw3270/0809 www.nec-display-solutions.com
W32-70 Tilting Wall Mount
W32-70 INSTALLATION INSTRUCTIONS
INSPECT THE UNIT BEFORE INSTALLING
WARNING: Watch for pinch points. Do not put your fingers between movable parts.
1. Carefully inspect the Mount for shipping damage. If any damage is apparent, call your carrier claims agent and
do not continue with the installation until the carrier has reviewed the damage.
NOTE: Read all instructions before starting the installation.
2. Lay out components to ensure you have the required parts before proceeding (see Parts List below).
CAUTION: To prevent damage to the mount, study all instructions and illustrations before you begin the installation.
Failure to do so could render the Warranty for the mount and the equipment that attaches to it null and void. Pay
particular attention to the “Warnings” displayed in these Instructions.
WARNING: The W32-70 wall mount is designed to be only installed onto walls.
The maximum weight to be installed on the W32-70 wall mount is 100
Parts List:
Screws to fix mount to wall are not included.
We have supplied a Universal Screen Fixing Kit with this mount.
Consult the table in Step 2 for the correct number and size of fixings for your screen.
Wall Plate (A)
Kg (220 Lbs)
Screen Plate (B)
Each Wall Plate has 4 x M10 x 25 Hex head screws
(2 at each side) for securing Screen Plate.
Universal Screen Fixing Kit contains:
4 x M6 x 12 pozi pan head screws
www.unicol.com www.unicol.de Page 2 necinstw3270/0809 www.nec-display-solutions.com
1

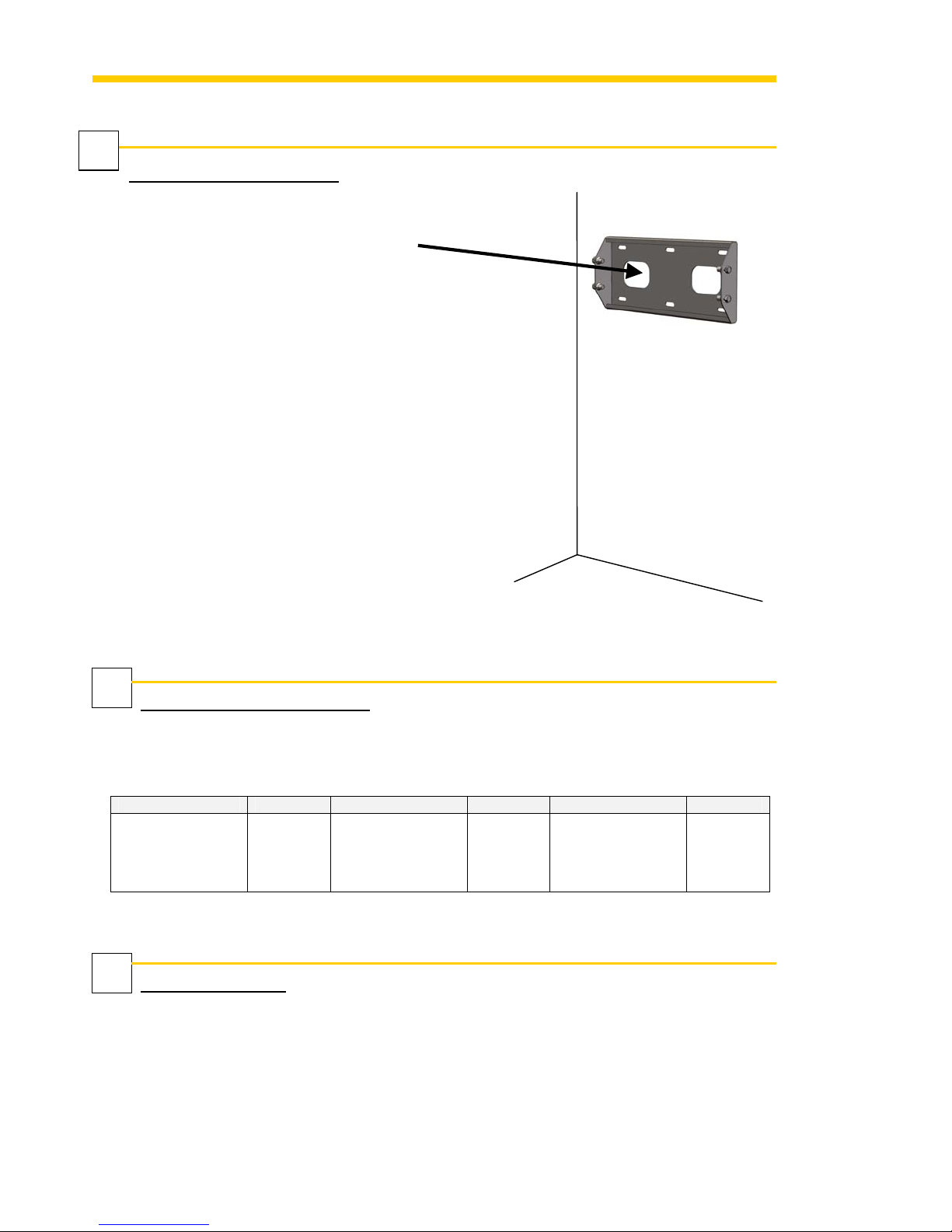

INSTALLING BACK PLATE (A)
1. Determine the exact mounting location on the wall prior to
installation. Consider where the cables are routed from the
W32-70 INSTALLATION INSTRUCTIONS
wall in relation to the holes in the back plate.
WARNING: Improper installation can result in serious personal
injury. Make sure that the structure can support a redundant
weight factor five times the total weight of the equipment: if not,
reinforce the structure before installing the mount.
2. Using the Wall Plate (A) as a template, mark, drill and plug
wall using all fixing slots, fix the Wall Plate to the wall
ensuring that the Plate is level.
CAUTION: We recommend installation by a Qualified
Tradesperson, using masonry plugs or other reliable fixings to
ensure safe installation. Consult your builder or architect if in
doubt.
2
INSTALLING SCREEN PLATE (B)
Fix the Screen Plate (B) to the screen using the fixing screws provided for your screen: Ensure the flat side of
the plate is against the screen and the plate is centred on the fixing points.
LCD model Fixing LCD model Fixing LCD model Fixing
M401
M461
M6 x 4
M6 x 4
P401
P461
P521
M6 x 4
M6 x 4
M6 x 4
X461HB
X461UN
M6 x 4
M6 x 4
3
SCREEN POSITIONS
There are 2 positions that the Screen Plate can mount to the Wall Plate; See next page. Position B places the screen
further from the wall than Position A, allowing larger screens enough room from the wall to be able to tilt. In general
Position A (closest the wall) can be used for most screen sizes other than a tilting 65” - 70” screen. However, if more
tilt is required then Position B can be used.
www.unicol.com www.unicol.de Page 3 necinstw3270/0809 www.nec-display-solutions.com
Position A
W32-70 INSTALLATION INSTRUCTIONS
Position B
Tilted at Position A
For larger screens and
more tilt at Position B
4

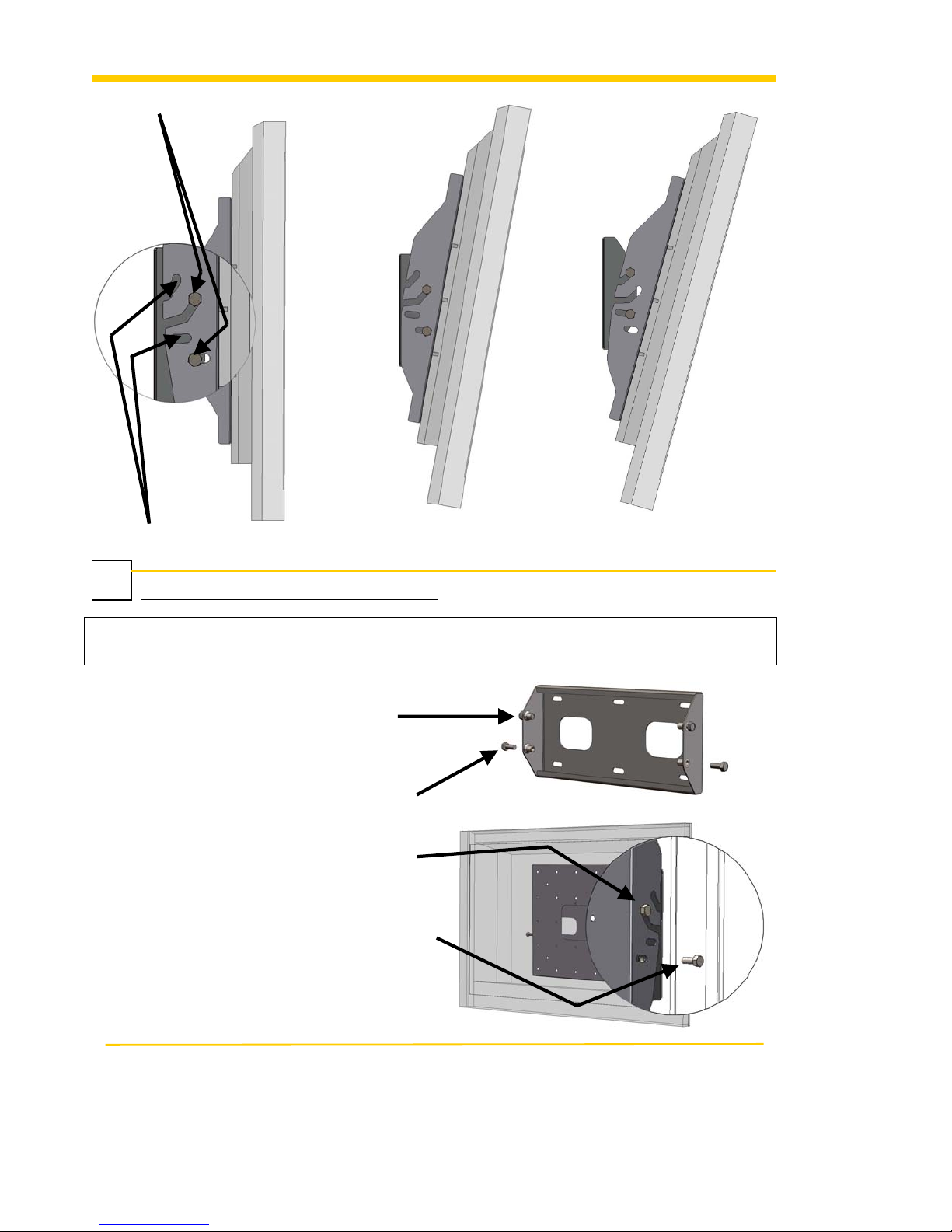

INSTALLING SCREEN ONTO WALL PLATE
WARNING: Screens are heavy. We recommend 2 persons lift the Screen when fitting to the Wall Plate.
1. Loosen the top 2 x M10 x 25 hex head screws
located in either side of the Wall Plate by
approximately 5mm.
2. Remove the remaining bottom 2 x M10 x 25 hex
head screws located in the sides of the Wall
Plate and keep available for use in next step.
3. With the assistance of another person, lift the
screen complete with Screen Plate attached and
hook onto the top 2 Hex head screws on the
sides of the wall plate.
4. Allow the screws to take the weight of the screen
and refit the bottom screws. Tighten these to the
desired tilt position and re-tighten top screws.
5. Connect and secure power/audio/video cable to
complete the installation.
If you have any questions regarding these instructions please contact UNICOL:
Europe: +49 (0) 9131 9405 800, info@unicol.de UK: +44 (0) 1865 767676, enquiries@unicol.com
