NEC VERSA S1300

Series

Electronic User’s Guide

1

Table of Contents	Page
Notebook Care	5
Introducing Your NEC VERSA	7
Introducing BIOS Setup for Windows Vista®	26
Windows Vista® Operating System Introduction	27
Notebook Components	34
Applications	35
Using Your NEC VERSA	44
Preparing for Travel	54
Using Peripheral Devices	56
Setting Up a Healthy Work Environment	59
Problem Checklist	65
Recovery Information for Windows Vista®	67
Frequently Asked Questions	72
Safety Notices	79
Glossary	86
License Agreement	87
Copyright	89
Trademarks	90
Official Name of the Software Used	91

2

About Your Electronic User’s Guide

The illustrations, colours and pictures shown are for descriptive purposes. They may vary slightly from country to country and the unit you purchase. Please refer to the finished product for final configurations. Specifications and model names are subject to change without notice.

Note

You may find that your notebook is not supplied with devices/accessories that can be used with your available slots/connections/ports. This is because the notebook you have purchased has been fitted with a wide range of slots/connections/ports, to allow you greater flexibility and options should you decide later on to use external or optional devices/accessories.

Text Setup

To make this document as easy to use as possible, additional texts will appear throughout. The following details the layout and meaning of these additional texts.

Note

Notes give particularly important information about an item being described.

CAUTION

Cautions indicate situations that can damage the notebook hardware or software.

WARNING

Warnings alert you to situations that could result in serious personal injury or even loss of life.

**For specific models only

Items marked with an asterisk (*) denotes optional items only supplied for specific models. If the items are not found in the packaging box, it means that they are not applicable to the notebook you have just purchased, hence they are not included for you in the notebook.

Electronic User’s Guide

This Electronic User’s Guide aims to help you familiarise yourself with your new notebook. It contains more information on your notebook, the devices and applications associated with it, setting up a healthy work environment, safety notices and Windows®.

Visit our website at www.nec-computers-ap.com regularly to download the most up-to-date Electronic User’s Guide and print it for your reference.

Note

We recommend that you print this documentation. It will then be easily accessible even when your notebook is shut down. To print the Electronic User’s Guide, click “File” on the top menubar, and then click “Print” from the dropdown menu. You must have a printer installed and connected to be able to print.

Print in small booklets using recycled paper. Make two-sided prints and copies using the “duplex” function, print multiple images/page per page, and print only the quantity you need at the time you need it. This gives you a handy way to store the booklet nearby and saves paper.

3

Basic Care and Handling Tips

Protect the notebook from extremely low or high temperatures. Let the notebook warm (or cool) to room temperature before using it.

Keep the notebook away from magnetised areas (some airline tray tables are magnetic; do not set your notebook on top of them). Doing so may damage the data on your hard drive.

Keep the notebook dry.

Do not wipe the notebook with a wet cloth or pour fluid onto it.

Protect the notebook from strong physical contact, such as being bumped or dropped.

Check the notebook for condensation.

If condensation is present, allow it to evaporate before switching on the notebook.

Keep the notebook away from dust, sand and dirt.

Note

For information on the specifications of your notebook, please refer to the System Configuration Label on the packaging box that comes with your system.

CAUTION

Before you connect or disconnect the power cords at the AC port of your notebook, please ensure that the power plug is disconnected from the AC power outlet.

WARNING

Do not place this notebook on your lap and/or allow it to be in contact with any part of your body while operating.

4

Notebook Care

Follow these guidelines to maintain the condition and performance of your notebook.

CAUTION

Immediately turn off and unplug the notebook under the following conditions:

•The power cord has been damaged or frayed.

•Liquid has spilled on or into the notebook.

•The notebook has been dropped or its casing has been damaged.

Precautions for Notebook Use

Take these precautions when using your notebook and AC adaptor:

•Be aware that your notebook may radiate heat when used for an extended period of time.

•Avoid dropping or bumping the notebook, or the AC adaptor.

•Do not stack heavy objects on the notebook, the AC adaptor, or the battery packs.

•Do not place items near the notebook that could block its air vents and cause overheating.

•Avoid moving the notebook during operation, especially while the hard disk, floppy disk, or optical disc drive is being accessed.

•When using the AC adaptor, make sure the power source falls within the notebook's compatibility range. Never use the AC adaptor if the voltage falls outside this range. Watch for this when travelling to other countries.

•Shut down the notebook before attaching or removing non-plug-and-play devices.

•Disconnect the notebook from its AC power outlet if it is not going to be used for a long time. This will avoid damage from transient over-voltage.

•Do not attempt to disassemble the notebook.

•Do not push any foreign objects into the notebook bays, connectors or slots.

•Keep the notebook away from magnetised areas (some airline tray tables are magnetic; do not set your notebook on top of them). Doing so may damage the data on your hard drive.

•Avoid using the notebook or AC adaptor for extended periods under direct sunlight.

•Do not use the notebook in humid or dusty environments.

•Keep liquids and food away from the notebook.

•Turn notebook power off before cleaning it.

•Avoid exposing the notebook or AC adaptor to extreme changes in temperature or humidity. If it is unavoidable, allow your notebook to adjust to room temperature before use.

•When cleaning the notebook, use a soft, clean, dry cloth. Avoid wiping the display surface with abrasive material, including rough fabric. Do not use a cleaning solution; this may damage the notebook's plastic surface.

•If the AC adaptor becomes extremely hot, unplug the adaptor and let it cool.

Be sure to follow these power cord safety tips:

•Unplug by gripping the plug only; do not pull on the cable.

•Place the power cord such that it cannot be tripped or stepped on, and do not place items directly on the power cord.

•Use an AC power outlet that is as close as possible to the notebook.

5

Storage Requirements

Store the notebook and AC adaptor in an environment that meets the following conditions:

Should the temperature of the notebook suddenly rise or fall (for example, when you move the notebook from a cold place to a warm place), vapour may condense inside the notebook. Turning on the notebook under such conditions can damage the internal notebook components.

Before turning on the notebook, wait until the notebook's internal temperature stabilises with the new environment and any internal moisture has evaporated.

•Operate and store your notebook within the recommended temperatures and humidity levels.

For more information, please refer to: Safety Notices → Product Storage		Page
		85
Environment Guidelines in this Electronic User’s Guide.

•Keep the storage area free from vibration and magnetic fields.

•Keep the notebook and its components away from organic solvents or corrosive gases.

•Avoid leaving the notebook and its components under direct sunlight or near heat sources.

Routine Cleaning

CAUTION

Never use harsh solutions, household cleaners, or spray cleaners that contain caustic materials on the notebook. These cleaners are usually high in alkalinity, making them very corrosive. Using these cleaners can cause the notebook’s plastic surface to crack or discolour.

Clean or dust your notebook as follows:

•LCD screen - carefully wipe the LCD screen with a soft cloth or special screen wipes designed for cleaning LCD screens. Special screen wipes are available from your local notebook dealer.

•Notebook case - we recommend that you carefully wipe the case with a slightly damp, soft cloth.

6

Introducing Your NEC VERSA

Getting to Know Your Notebook

WARNING

Prolonged or improper use of a computer workstation may pose a risk of serious injury. To reduce your risk of injury, set up and use your notebook in the manner described in the section on “Setting Up a Healthy Work Environment”.

	For more information, please refer to: Setting Up a Healthy Work	Page
	Environment in this Electronic User’s Guide.	59
To get started, do the following:

•Read the section on “Setting Up a Healthy Work Environment” for guidelines that help you use your notebook productively and safely. Information includes setting up and using your notebook while reducing your risk of developing nerve, muscle, or tendon disorders.

For more information, please refer to: Setting Up a Healthy Work	Page
Environment in this Electronic User’s Guide.	59

•Read through this Electronic User’s Guide to familiarise yourself with the notebook.

NEC VERSA

The notebook offers you a portable system filled with exciting resources for home, business or travel.

To settle in comfortably with your notebook, read the following sections and take a tour around your notebook!

7

The Front View of the Notebook

	Item	Description
		For recording video or taking pictures. The Logitech QuickCam webcam
A	Built-In Web
	Camera with	application can be launched with two methods. The first method is by
	LED	double-clicking its icon	from the Windows® desktop. The second
	Indicator	method is to click Start, select Logitech, then click Logitech
		QuickCam. The LED Indicator will light up in blue only when the web
		camera is turned on.
	(Array Mic)	For voice conferencing and voice recording.

BLCD Panel A high resolution colour LCD display.

CKeyboard Standard QWERTY key layout (models purchased may be shipped with

country-specific keyboard layouts).

D	Touchpad	Works like a standard computer mouse. Simply move your fingertip over
		the touchpad to control the position of the cursor.

8

Item Description

EShortcut The shortcut buttons give you quick access to frequently used or favourite

Buttons applications. The Shortcut Button I default application is a mail application. The Shortcut Button II default application is Windows® Internet Explorer.

				For more information, please refer to: Introducing Your				Page
				NEC VERSA →Shortcut Buttons in this Electronic User’s				16
				Guide.
		A panel of several LEDs which indicate various system conditions.
F	LED Panel
				For more information, please refer to: Introducing Your				Page
				NEC VERSA →LED Behaviour in this Electronic User’s				14
				Guide.
G	Power	Pressing this button switches on/off the notebook.
	Button with
	LED
	Indicator
H	Auto	A sensor that automatically adjusts the screen brightness based on
	Brightness	ambient light to improve visibility and performance. The sensor can be
	Sensor	toggled on/off by pressing the Fn+F7 keys.
					Note
					Bright ambient light will cause the screen’s brightness to
					increase. Dim ambient light will cause the screen’s
					brightness to decrease.

			Item	Description
				Provides sound for your multimedia presentations or listening pleasure.
	A		Speakers
				A panel of several LEDs which indicate various system conditions.
	B		LED Panel
					For more information, please refer to: Introducing Your		Page
					NEC VERSA →LED Behaviour in this Electronic User’s		14
					Guide.

CMemory Card This port allows you to read data from different types of memory cards: Reader MS/MS Pro, SD/SDHC and xD.

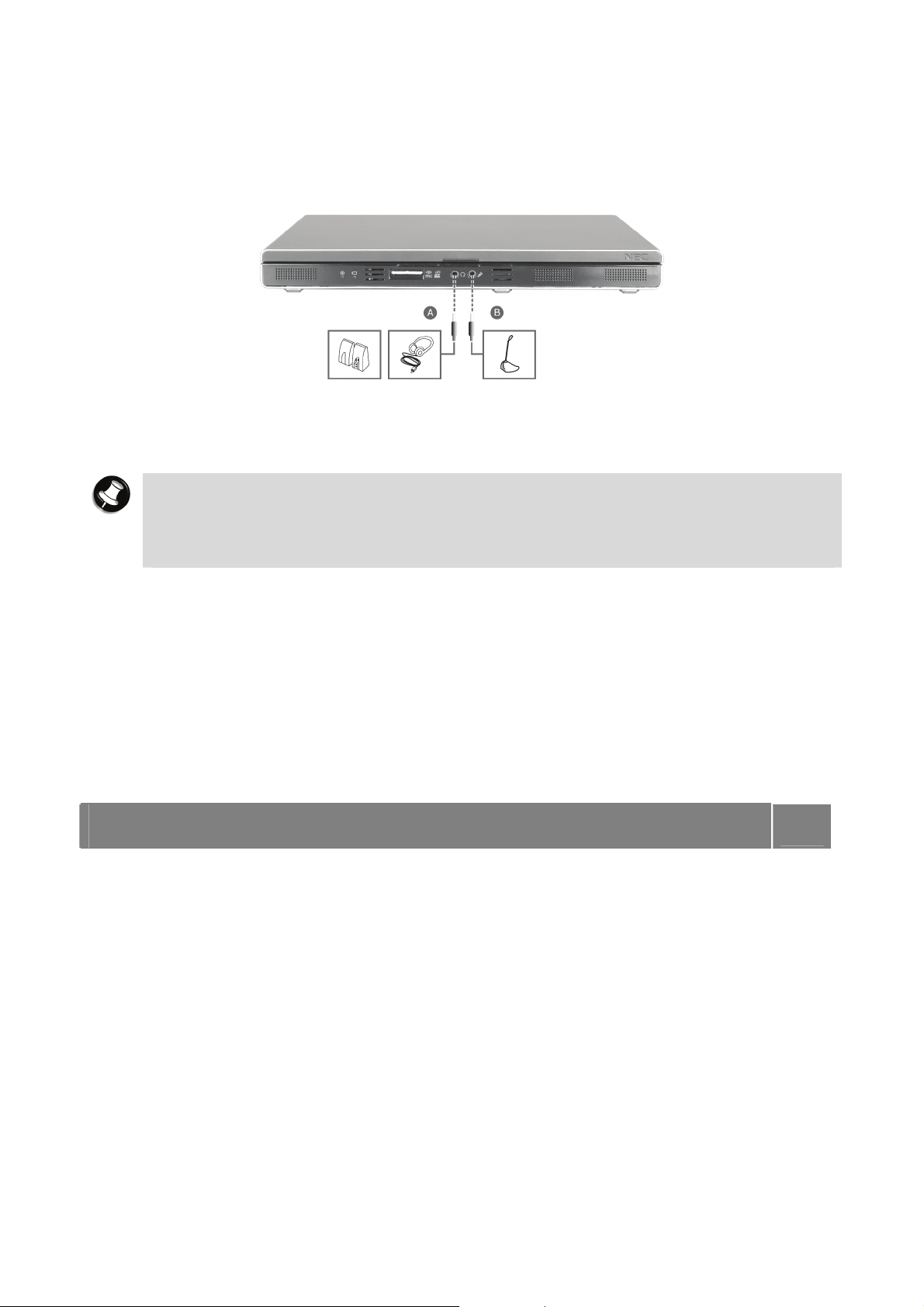

D	Headphones	Lets you plug in stereo headphones or external speakers. These will
	Out Jack	convert audio output from the notebook into sound or music, usually for
		multimedia enjoyment.
E	Microphone	Allows you to connect an external microphone. This will transmit sound to
	In Jack	your notebook, usually for recording or amplifying with speakers.

9

The Back View of the Notebook

	Item	Description
A	Battery Bay	Equipped with a rechargeable Lithium-Ion (Li-Ion) battery.

The Left Side View of the Notebook

	Item	Description
A	VGA Port	Use this 15-pin port to attach an external VGA or analogue monitor
		to your notebook.
B	Ventilator	This provides ventilation, to ensure your notebook’s temperature is
		optimal.
C	USB Port	Each USB port allows you to connect USB-equipped peripheral
		devices such as printers, monitors and scanners to your notebook.
D	USB Gadget	Allows you to charge devices that can be charged from a USB port
	Charger Port	such as portable media players and mobile phones.
E	Wireless LAN	Enables or disables a Wireless LAN connection, allowing your
	Switch	notebook to communicate with other devices over a wireless
		network, such as via the Internet.
F	ExpressCard®	Allows you to insert an ExpressCard®. This card is a hardware
	Slot	interface that replaces PC cards, allowing you to accept many types
		of external hardware such as external disk drives, TV tuner cards
		and additional memory.

10

The Right Side View of the Notebook

	Item	Description
A	Optical Drive	The optical drive that comes with your notebook depends on the
	with LED	configurations of the purchased notebook. Typically, your optical
	Indicator	drive should be able to access most common optical discs such as
		CDs and DVDs. The LED indicator flashes or lights up when the
		optical drive is in use.
B	USB Port	Each USB port allows you to connect USB-equipped peripheral
		devices such as printers, monitors and scanners to your notebook.
C	LAN Port	Connects to a network cable, allowing your notebook to
		communicate with other devices over a network, such as via the
		Internet.
D	Modem Port	Use this port to connect the notebook to an analogue telephone line
		for access to the internet.
E	AC Power Port	Lets you attach the notebook to the AC Power source using the AC
		adaptor that comes with your notebook. Keep the notebook
		connected to AC Power whenever possible.
F	Security Cable	This slot is for fitting a security cable device for extra protection of
	Slot	your notebook from theft, by physically securing it to a stationary
		object such as a table or grill.

11

The Bottom View of the Notebook

			Item		Description
	A		Battery Release		Releases the battery from the battery bay.
			Latch		For more information, please refer to: Introducing	Page
					Your NEC VERSA → Replacing the Battery in this	23
					Electronic User’s Guide.
	B		Battery Bay		Equipped with a rechargeable Lithium-Ion (Li-Ion) battery.
	C		Battery		Secures the battery inside the battery bay.
			Security Lock		For more information, please refer to: Introducing	Page
					Your NEC VERSA → Replacing the Battery in this	23
					Electronic User’s Guide.

12

Keyboard

The keyboard is equipped with many features. However the outlook of the keyboard may be slightly different from your actual unit. These include:

•Function Keys (A) - function keys are available on the notebook keyboard. These keys work together with the Fn key to activate special functions. Function keys are applicationdriven.

For more information, please refer to: Introducing Your NEC VERSA →		Page
		15
Function Keys in this Electronic User’s Guide.

•Numeric Keypad (B) - pressing Fn+Num Lock on the keyboard activates the numeric keypad numbers and functions printed in blue at the bottom right corner of the keys. The keypad lets you type numbers and mathematical operators (+, -) as you would on a calculator. The keypad is ideal for entering long lists of numbers. When you press Fn+Num Lock again, the keys revert to their normal functions as typewriter keys.

•Control Keys (C) - Ctrl, Alt, Fn and Shift are controls used in conjunction with other keys to change their functions. To use control keys, press and hold down the control key while pressing another key. For example, "Press Ctrl+c" means to hold down the Ctrl key and press the c key. Key combinations are specific to the application you are running.

•Windows® Keys (D) - use the following two keys to facilitate your work.

Shortcut/Application key - provides quick access to shortcut menus. (This key acts like a mouse’s right-click button.)

Floating Windows® key - displays the Start menu. (The outlook of the Floating Windows® key depends on the notebook you purchase.)

•Cursor Control Keys (E) - cursor control keys let you position the cursor on the screen. On the screen, the cursor is a blinking underline, block, or vertical bar depending on the application. The cursor indicates where the next typed character/text will be inserted.

13

LED Behaviour

			Item		Description
			Memory Card	Green	Indicates that the notebook is accessing the memory
			Reader LED		card reader.
			Indicator
			HDD Access	Green	Indicates that the notebook is accessing the hard
			LED Indicator		disk drive.
			Caps Lock	Green	Indicates that Caps Lock is activated.
			LED Indicator
			Scroll Lock LED	Green	Indicates that Scroll Lock is activated.
			Indicator
			Num Lock	Green	Indicates that Num Lock is activated.
			LED Indicator
			Wireless LAN	Off	Indicates that Wireless LAN switch is Off.
			LED Indicator
				Slowly	Indicates that the Wireless LAN switch is
				Blinks	On/Scanning.
				Green
				Rapidly	Indicates that the Wireless LAN is connected.
				Blinks
				Green
			Battery Charge	Amber	Indicates that the battery is charging.
			LED Indicator
				Blinks	Indicates that there is a battery error.
				Amber

Note

The battery may be overheating and therefore cannot start charging. Disconnect the AC adaptor from the wall outlet and allow both the notebook and battery to cool to room temperature.

			Power LED	White	Indicates that notebook is powered on.
			Indicator
				Blinks	Indicates that notebook is in suspend mode.
				White
				Amber	Indicates that notebook is running on battery
					charged at an estimated 8% capacity or less.
				Blinks	Indicates that notebook is in suspend mode and is
				Amber	running on battery charged at an estimated 8%
					capacity or less.
				Rapidly	Indicates that notebook is running or in suspend
				Blinks	mode on battery charged at an estimated 3%
				Amber	capacity or less.
			Note

Connect the AC adaptor cable into the power port on the notebook when the battery is in warning or low status.

CAUTION

Before you connect or disconnect the power cable at the AC port of your notebook, please ensure that the power plug is disconnected from the wall outlet.

	Power Button	White	Indicates that notebook is powered on.
	LED Indicator

14

Function Keys

Function keys are available on the notebook keyboard. These keys work together with Fn key to activate special functions. Function keys are application-driven.

The following function key combinations are pre-programmed for the notebook.

Keys	Function	Description
Fn + F1	Sound Mute /	Toggles Sound Mute / Release Mute. Sound Mute disables
	Release Mute	sound while Release Mute enables sound.
Fn + F3	Display Device	Switches between display devices, such as an external
		monitor or projector.
Fn + F4	Power	Changes the power management settings. When pressed,
	Management	a window will appear as below. Choose a mode from
	Settings	VERSA, Power saver, High performance and
		Balanced.
Fn + F5	Optical Drive	Toggles On/Off the optical drive.
	Power On/Off
Fn + F6	System Beep	Toggles On/Off the system speaker.
	On/Off
Fn + F7	Auto Brightness	Toggles On/Off Auto Brightness Control. When On, the
	Control	Auto Light Sensor detects ambient light and adjusts
		screen brightness automatically.
Fn + F8	Brightness Down	Lowers the brightness of your screen display. Each press
		lowers the brightness by one level.
Fn + F9	Brightness Up	Increases the brightness of your screen display. Each
		press increases the brightness by one level.
Fn + F10	Speaker Volume	Lowers the volume of your sound/audio system. Each
	Down	press lowers the volume by one level.
Fn + F11	Speaker Volume	Increases the volume of your sound/audio system. Each
	Up	press increases the volume by one level.

15

Shortcut Buttons

The shortcut buttons give you quick access to frequently used or favourite applications. The notebook has two shortcut buttons, Shortcut Button I and Shortcut Button II.

Shortcut Button I

When pressed, the default settings for this button will launch a window prompting you to select your mail application. Select and click OK to set the application.

Shortcut Button II

When pressed, the default settings for this button will launch the Windows® Internet Explorer application.

You can change the application linked to the Shortcut Buttons through the One-Touch Start Button Settings Wizard.

1.To do this, click Start, select All Programs, select One-Touch Start Button Settings then click One-Touch Start Button Settings.

16

2. Click Wizard, then click OK.

3.The Wizard will guide you through the steps needed to modify the applications linked to the Shortcut Buttons.

17

Power Button

Use the Power button in the following ways:

•Press the Power button to power on.

•Press and hold the Power button in place for 4 or more seconds to initiate power override (powers off the notebook). Only use this option if you cannot power off your notebook using the normal procedure.

For more information, please refer to: Windows Vista® Operating System	Page
Introduction → Managing System Power in this Electronic User’s Guide.	31

Optional Accessories

For more information on accessories, please refer to or contact to the local sales representative near you.

18

Using the Touchpad

The touchpad is an easy way to control the cursor with your finger. Lightly glide your finger across the touchpad and the cursor will replicate your movement on the screen.

To use the touchpad, you can:

•Single tap the touchpad, or single click on the left button, equivalent to a single click of the primary mouse button.

•Double tap the touchpad, or double click on the left button, equivalent to a double click of the primary mouse button.

•Click the left button and hold, then drag your finger across the touchpad, equivalent to a click and drag of the primary mouse button.

	Item	Description
A	Touchpad	This device replaces the mouse and is for positioning the cursor
		on a notebook display screen.
B	Left Click	This is the primary button. Clicking it usually selects the item
	Button	your cursor is pointing at.
C	Right Click	Clicking this button usually opens a menu of options available for
	Button	the item currently selected.

If you find the double tap difficult to use, go to the next section for general directions about adjusting the touchpad properties.

Note

If you install another mouse driver over the shipping default, the double-tap capability may be lost.

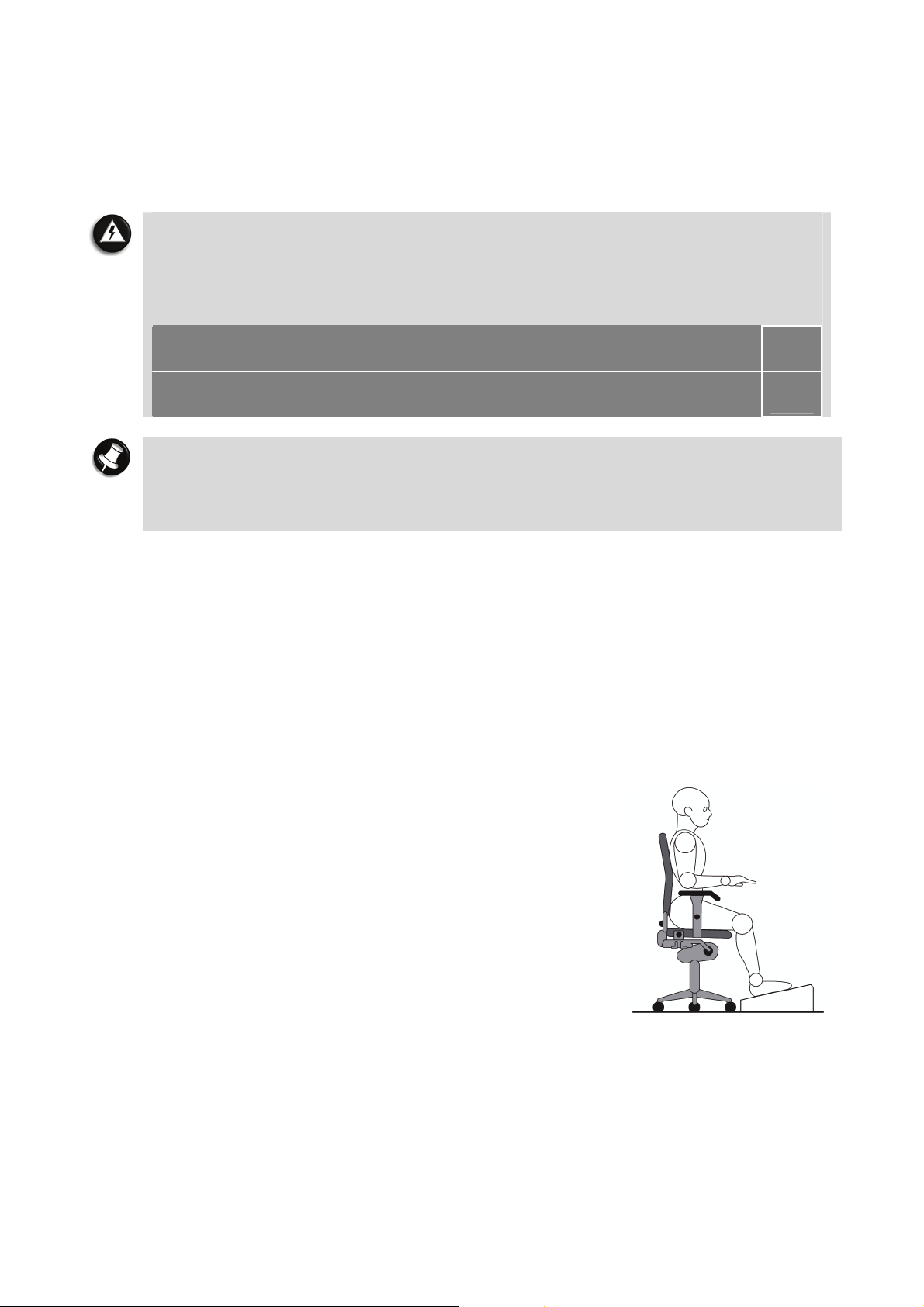

Touchpad Tips

Follow these basic ergonomic tips while working:

•Use a light touch on the touchpad surface.

•Set up the notebook with your keyboard and touchpad at a comfortable height. Keep your forearms parallel to the floor. Your wrists should be relaxed and straight.

•While using the keyboard and touchpad, keep your shoulders and arms as relaxed as possible.

•Take regular breaks from the notebook to rest your eyes. Perform stretching exercises to relax your fingers, hands, wrists, forearms and shoulders.

19

Power Sources

The notebook can be powered using two different sources, making it a truly portable system. Operate your notebook just about anywhere using one of the following power sources:

•The AC adaptor connected to an AC power outlet (usually on a wall).

•The battery pack.

	For more information, please refer to: Introducing Your NEC VERSA → Using	Page
	the Battery in this Electronic User’s Guide.	21
Read the following sections for specific information about using the power sources.

AC Adaptor

Use the AC adaptor and power cable that come with your notebook to run your notebook on AC power, or to recharge the battery pack. Use the AC adaptor whenever an AC power outlet is nearby.

Keep the adaptor connected whenever possible. The AC adaptor charges the battery when it is connected, whether the notebook is powered on or off.

Note

The power cable may vary from country to country.

Note

Consult your dealer or the local electrical authorities if you are unsure of the type of power cord to use in your country. Failure to use the correct power cord/cable may result in electrical shock.

WARNING

Do not attempt to disassemble the AC adaptor. The AC adaptor has no userreplaceable or serviceable parts inside. Dangerous voltage in the AC adaptor can cause serious personal injury or death. The AC adaptor is intended for use with a notebook and must meet EN609050 standards.

20

Connecting the AC Adaptor

Connect the AC adaptor as follows:

1.Connect the AC adaptor cable into the power port on the notebook.

2.Plug one AC adaptor cable into the adaptor.

3.Connect the AC adaptor cable to grounded 100or 240-volt, 50or 60-Hz AC power outlet.

CAUTION

•Do not cover or place objects on the AC adaptor. Keeping the adaptor clear of objects lets the adaptor cool properly during use.

•Only use the AC adaptor that comes with your notebook. Although other adaptors look similar, using them can damage your notebook.

CAUTION

This equipment uses an ungrounded power cable. Replace the cord if it becomes damaged. The cord must be rated for at least 250VAC at 10 amps, and must indicate international safety agency approval. The plug must be a type appropriate for the country where it is used. Check with your local dealer for HAR (Harmonisation certification mark) type 18 AWG (American Wire Gauge), 2 conductor cord, or better. Obtain replacement cords at an authorised service centre. The replacement must be of the same type and voltage rating as of the original cord.

Using the Battery

Note

Although the battery is fully charged at the factory, transit and shelf time may reduce the initial battery charge. We recommend that the first time you use your notebook, you connect it to AC power using the AC adaptor. This also recharges your battery.

When the battery capacity is low, always respond by immediately saving your data, and connecting your notebook to the AC adaptor. If an AC adaptor is not available, change the battery using the battery replacement procedure.

For more information, please refer to: Introducing Your NEC VERSA → Replacing	Page
the Battery in this Electronic User’s Guide.	23

If you do not take any action, the notebook will automatically go into Hibernation (Save To File) mode.

21

WARNING

To prevent accidental battery ignition or explosion, adhere to the following:

•Keep the battery away from extreme heat.

•Keep metal objects away from the battery terminals to prevent a short circuit.

•Make sure the battery is properly installed in the battery bay.

•Read the precautions printed on the battery (if any).

•Remember to unplug the AC adaptor cable from the power port on the notebook and from the grounded AC power outlet after your notebook is fully charged, when your notebook is not in use or when you know that your notebook will be unattended for long hours.

•Do not disassemble the battery.

Charging the Battery

Charge time depends on whether or not you are using the notebook.

For maximum battery performance, fully discharge the battery before recharging it. To do so, unplug the AC adaptor, turn off power management features (through BIOS Setup and Windows® power management), and turn on the notebook. Once the battery is fully discharged, plug in the AC adaptor and recharge the battery.

Precautions for Recharging the Battery

•Adhere to the following precautions when recharging the battery.

•Use only the battery charger designed for your notebook battery type. Different NEC VERSA models require different batteries and battery chargers.

•Charge the battery for the specified charge time only.

•During charging, keep the environmental temperature between 5°C and 35°C.

•Read the instructions that come with the battery charger before charging the battery.

Low Battery Power

When battery power gets low, connect your notebook to the AC adaptor.

If no AC adaptor is available, change the battery using the battery replacement procedure.

For more information, please refer to: Introducing Your NEC VERSA → Replacing	Page
the Battery in this Electronic User’s Guide.	23
Conserving Battery Power
The battery performance is affected by the following conditions:
• When it is new and fully charged.
• When no peripherals are connected to your notebook.
• When you have no options installed.

While on the road, it is important to be aware of the simple things you can do to extend the life of the notebook's main battery. For instance, turning down the screen brightness (specific function key) extends battery life.

Power Management Features

Enabling power management features increases battery life.

The Hibernate power management state, also known as Save-To-File (STF), saves the notebook's current working environment to the notebook's hard drive, then powers down the notebook to conserve battery power. You can configure your power management settings to enter hibernation when your notebook reaches a critical low battery stage.

For more information, please refer to: Windows Vista® Operating System	Page
Introduction → Managing System Power in this Electronic User’s Guide.	31

22

Battery Precautions

To prevent accidental battery ignition, rupture, or explosion, adhere to the following precautions.

WARNING

There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions.

To avoid personal injury and property damage, read these battery precautions on handling, charging and disposing batteries:

•Keep the battery away from heat sources including direct sunlight, open fires, microwave ovens and high-voltage containers. Temperatures over 60ºC may cause damage.

•Do not drop or impact the battery.

•Do not solder the battery.

•Do not puncture the battery.

•Do not use a battery that appears damaged or deformed, has any rust on its casing, is discoloured, overheats, or emits a foul odour.

•Keep the battery dry and away from water.

•Keep metal objects away from battery terminals. Metal objects in contact with the connectors can cause a short circuit and subsequently damage the battery.

If the battery leaks:

•If the battery leaks onto skin or clothing, wash the area immediately with clean running water. Battery fluid can cause skin rashes and damage fabric.

•If battery fluid gets into the eyes, DO NOT RUB. Rinse with clean water immediately and seek professional medical assistance.

•Take extra precautions to keep a leaking battery away from fire. There is a danger of ignition or explosion.

Replacing the Battery

This section describes how to remove and replace the primary battery.

WARNING

To prevent accidental battery ignition or explosion, strictly adhere to the following:

•Keep the battery away from extreme heat.

•Keep metal objects away from the battery terminals to prevent a short circuit.

•Make sure the battery is properly installed in the battery bay.

•Read the precautions printed on the battery (if any).

23

Removing the Battery in your Notebook

CAUTION

Be sure to save your data before replacing the battery pack or connecting the AC adaptor. Failure to do so can result in data loss.

Note

Place your notebook in this position and follow the steps stated to remove the battery.

	1	Save your files, exit Windows®, and turn
		off system power.
		Close the LCD panel and turn the
	2	system over.
		CAUTION
		Be extra careful to avoid damage to
		your notebook
	3	Unlock the battery security lock.
	4	Hold the latch to the "Unlock" position.
	5	Slide the battery outwards to remove
		the battery.

Installing the Battery in your Notebook

Insert the new battery as follows:

Note

Place your notebook in this position and follow the steps stated to install the battery.

		Turn the notebook over.
1		CAUTION
		Be extra careful to avoid damage to
		your notebook.
2		Make sure you unlock the battery
		security lock.
3		Align the battery with the battery bay
		slot and connector.
4		Place the battery into the battery bay.
		Carefully press and secure the battery
		into the battery bay.

5	Make sure you lock the battery
	security lock.

24

Handling the Battery

Review the following before handling the notebook battery.

CAUTION

Only use the type of battery specifically designed for the notebook. Using other NEC VERSA batteries, other manufacturer's batteries, or using a combination of very old and new batteries can cause battery and equipment performance to deteriorate.

Turn off the notebook power after use.

•Clean the battery connectors with a dry cloth if they get dirty.

•When not in use, store the battery in a cool dry area.

The following symptoms indicate that battery life is nearing an end. Discard batteries that display these symptoms:

•Shorter work times.

•Discolouration, warping.

•Hot to the touch.

•Strange odour.

Disposing of the Battery

Before disposing of the battery, put adhesive tape on the connectors. Contact your local waste management officials for information regarding environmentally sound collection, recycling and disposal of batteries.

25

Introducing BIOS Setup for Windows Vista®

A hardware program called BIOS Setup allows you to view and set system parameters. BIOS Setup also allows you to set password features that protect your notebook from unauthorised use.

Use BIOS Setup to:

•Set the current time and date.

•Customise your operating system to reflect your notebook hardware.

•Secure your notebook with a password.

•Balance your performance needs with power conservation.

Entering BIOS Setup

The BIOS Setup can be accessed during the startup or booting of your notebook. Just press <F2> when the following prompt appears.

“Press <F2> to run CMOS Setup or <F12> to Boot on Network”

When you press <F2> to enter BIOS Setup, the system interrupts the Power-On Self-Test (POST) and displays the current complementary metal-oxide semiconductor (CMOS) RAM settings.

If the system detects an error during POST, it prompts you with a double beep and the message: "Press <F1> to resume." If you press <F2>, the system enters BIOS Setup automatically. If you want to fix the error, carefully read the error message that appears above the prompt (taking notes if you want), and press <F2>. You will see this message if your system’s CMOS battery (which provides power to maintain system configuration settings) has become fully discharged.

BIOS Setup Menus

The BIOS Setup features five menus, which are listed on the menu bar at the top of the screen.

Main - use this menu for basic system configuration.

Advanced - use this menu to control system ports and components.

Security - use this menu to establish system passwords and protect the boot sector of the hard disk drive against infection by certain virus types.

Boot - use this menu to set the boot sequence.

Exit - use this menu to exit BIOS Setup with various save or discard options.

Use the keys listed in the legend bar on the bottom of the Setup menu to make the selections or exit the current menu.

The exact menu may be different from the notebook you purchase depending on the mainboard type.

26

Windows Vista® Operating System Introduction

The operating system is the most important program that runs on a computer. Every computer must have an operating system to run other programs. Operating systems perform basic tasks, such as recognising input from the keyboard, sending output to the display screen, keeping track of files and directories on the disk, and controlling peripheral devices such as disk drives and printers.

Windows Vista® Operating Systems

The Windows Vista® operating systems provide a means of running applications, navigating through your file structure, and using your notebook. Each operating system offers its own look and tools through an easy-to-use graphical interface.

Windows Vista® Operating System Setup

For Windows Vista® Operating system setup

When you switch on the notebook, the message “©Microsoft Corporation” will be displayed. Please wait a while for the First page of set up Windows® screen to be displayed.

Note

The procedure described below applies to systems featuring LAN capabilities. Some of these screens may otherwise not appear.

IMPORTANT NOTICE
For Hong Kong dual boot models (2 languages, that is in English and Traditional	Page
Chinese), please refer to: Windows Vista® Operating System Introduction →	28
Dual boot.

1: Initial Windows® setup screen.

Choose your appropriate Country or Region, Time and Currency, and Keyboard Layout. Then click the Next button at the lower right corner.

2: The End User License Agreement screen.

Carefully read the license agreement and click in the relevant check box to accept its terms. Click the Next button.

3: Username and picture selection screen.

Enter a username and password (optional) and also choose a picture at the bottom of the screen to represent your user account. Click the Next button.

4: Notebook name and desktop background selection screen.

Enter a notebook name then choose a desktop background from 6 options available at the bottom of the screen. Click the Next button.

5: Helping protect Windows® automatically screen.

There are 3 options available; read each description and click your preferred option.

6: Time and date settings screen.

Choose and set appropriate Time Zone, Date and Time. Click the Next button.

7: Notebook’s current location screen.

This page only appears if your notebook is connected to a network. There are 3 options available; read each description and click your preferred option.

8: Thank you! screen.

Click the Start button to complete the Windows Vista® operating system installation.

27

Dual Boot (2 languages – English and Traditional Chinese)

*For Hong Kong dual boot models only

There are 2 language versions of the Windows Vista® operating system available on this notebook, that is, in English and Traditional Chinese. When you start your notebook for the first time, you are required to choose either one of the operating system languages you prefer (please refer to the screen illustration below).

IMPORTANT

Please select the language you prefer carefully as this can only be done once.

You will see the message "©Microsoft Corporation” displayed on your screen. Please wait for a moment while the initial Windows® setup screen loads.

For more information, please refer to: Windows Vista® Operating System	Page
Introduction → Windows Vista® Operating System Setup in this Electronic	27
User’s Guide.
IMPORTANT
Windows® Language Selection
*This option is applicable to Hong Kong dual boot models only.

CAUTION

Once you have selected the language you prefer, your operating system will be installed with the selected language permanently. You will not be able to change this selection for the operating system language.

Referring to the guide provided above, please follow the on screen instructions accordingly.

28
