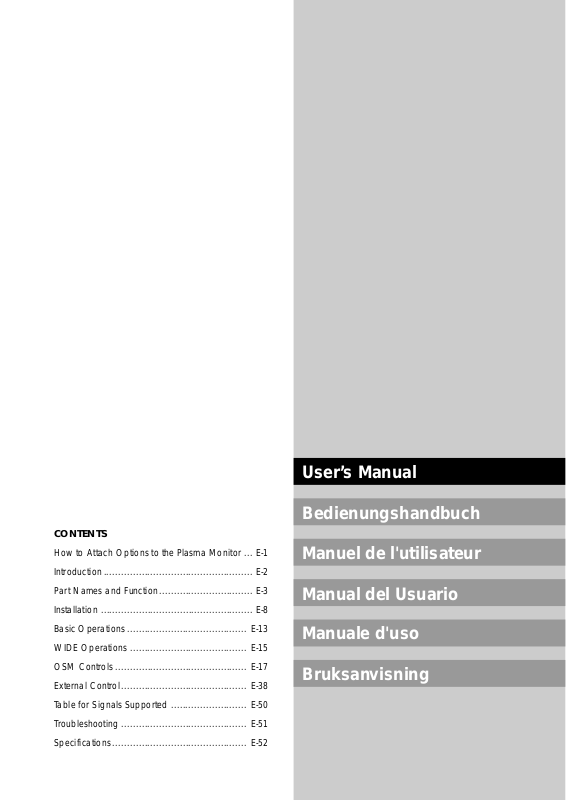

CONTENTS |
|
How to Attach Options to the Plasma Monitor |
... E-1 |
Introduction ................................................... |
E-2 |
Part Names and Function................................ |
E-3 |
Installation .................................................... |
E-8 |
Basic Operations ......................................... |
E-13 |
WIDE Operations ........................................ |
E-15 |
OSM Controls ............................................. |
E-17 |
External Control ........................................... |
E-38 |
Table for Signals Supported .......................... |
E-50 |
Troubleshooting ........................................... |
E-51 |
Specifications .............................................. |
E-52 |
User’s Manual
Bedienungshandbuch
Manuel de l'utilisateur
Manual del Usuario
Manuale d'uso
Bruksanvisning
Important Information
Precautions
Please read this manual carefully before using your NEC PlasmaSync - 50 inch Plasma Monitor PX-50M5G and keep the manual handy for future reference.
CAUTION |
RISK OF ELECTRIC SHOCK |
DO NOT OPEN |
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
This is a product of Class B. In case of any functionality disturbance in the usage, it is requested to ask the supplier for the appropriate treatment.
Warnings and Safety Precaution
The NEC Multimedia monitor PlasmaSync 5000W is designed and manufactured to provide long, troublefree service. No maintenance other than cleaning is required. Use a soft dry cloth to clean the panel. Never use solvents such as alcohol or thinner to clean the panel surface.
The plasma display panel consists of fine picture elements or pixels (cells). Although NEC produces plasma display panels with more than 99.99 percent active cells, there can be some cells that do not produce light or remain lit.
For operating safety and to avoid damage to the unit, read carefully and observe the following instructions.
To avoid shock and fire hazards:
1.Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install in a closed cabinet or shelves.
The unit is equipped with cooling fans. If you install the unit in a an enclosure, be sure there is adequate space at the top of the unit to allow hot air to rise and escape.
If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for the monitor to cool for 60 minutes. If the problem persists, contact your NEC dealer for service.
2.Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely inserted.
3.Do not expose unit to water or moisture.
4.Avoid damage to the power cord, and do not attempt to modify the power cord.
5.Unplug unit during electrical storms or if unit will not be used over a long period.
6.Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.
7.Do not attempt to service or repair the unit. NEC is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized NEC Service Centers.
To avoid damage and prolong operating life:
1.Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.
2.Handle the unit carefully when installing it and do not
drop.
3.Locate set away from heat, excessive dust, and direct sunlight.
4.Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the unit and have it serviced by an authorized NEC Service Center.
5.Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.
6.For correct installation and mounting it is strongly recommended to use a trained, authorized NEC dealer.
7.As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
Recommendations to avoid or minimize phosphor burn-in
Like all phosphor-based display devices and all other gas plasma displays, PlasmaSync monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this NEC PlasmaSync monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:
•Always enable and use your computer’s screen saver function during use with a computer input source.
•Display a moving image whenever possible.
•Always power down the monitor when you are finished using it.
If the PlasmaSync monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:
•Lower the Brightness and Contrast levels as much as possible without impairing image readability.
•Display an image with many colors and color gradations (ie. photographic or photo-realistic images).
•Create image content with minimal contrast between light and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.
•Avoid displaying images with few colors and distinct, sharply defined borders between colors.
Contact NEC affiliates on authorized dealer for other recommended procedures that will best suit your particular application needs.
Burn-in is not covered by the warranty.
Contents
How to Attach Options to the Plasma Monitor ....... |
E-1 |
Introduction ................................................... |
E-2 |
Introduction to the PlasmaSync 50–inch |
|
Plasma Monitor .................................................... |
E-2 |
The features you'll enjoy include: ........................... |
E-2 |
Contents of the Package ........................................ |
E-2 |
Part Names and Function ............................... |
E-3 |
Front View ........................................................... |
E-3 |
Rear View / Terminal Board .................................. |
E-4 |
Remote Controller ................................................. |
E-5 |
Battery Installation and Replacement ...................... |
E-6 |
Using the wired remote control mode ..................... |
E-7 |
Operating Range ................................................. |
E-7 |
Handling the remote controller .............................. |
E-7 |
Installation .................................................... |
E-8 |
Connecting Your PC Or Macintosh Computer ......... |
E-9 |
Connecting Your Document Camera ....................... |
E-9 |
Connecting Your VCR Or Laser Disc Player ............. |
E-9 |
Connecting Your DVD Player ................................. |
E-9 |
External Speaker Connections ............................. |
E-10 |
Mini D-Sub 15 Pin RGB Signal Composition ......... |
E-12 |
Basic Operations .......................................... |
E-13 |
POWER ............................................................. |
E-13 |
To turn the unit ON and OFF: ............................... |
E-13 |
VOLUME ........................................................... |
E-13 |
To adjust the volume: ............................................ |
E-13 |
MUTE ................................................................ |
E-13 |
To cancel the sound: .............................................. |
E-13 |
DISPLAY ............................................................. |
E-13 |
To check the settings: ............................................ |
E-13 |
VISUAL CONTROL ............................................. |
E-13 |
To adjust the picture's contrast: ............................. |
E-13 |
To adjust the picture's brightness: ......................... |
E-13 |
To adjust the picture's color: ................................. |
E-13 |
To adjust the picture's tint (NTSC only): .............. |
E-13 |
To adjust the picture's sharpness: .......................... |
E-13 |
OFF TIMER ......................................................... |
E-14 |
To set the off timer: ............................................... |
E-14 |
To check the remaining time: ................................ |
E-14 |
Canceling the off timer ......................................... |
E-14 |
WIDE Operations .......................................... |
E-15 |
Watching with a wide screen (manual) ................. |
E-15 |
When watching videos or high definition |
|
laser discs .............................................................. |
E-15 |
Watching computer images with a wide screen ..... |
E-16 |
OSM Controls ............................................... |
E-17 |
Menu Operations ............................................... |
E-17 |
Picture Settings Menu .......................................... |
E-19 |
Setting the picture mode according to the |
|
brightness of the room .......................................... |
E-19 |
Adjusting the picture ............................................. |
E-20 |
Setting the color temperature ................................ |
E-21 |
Adjusting the color to the desired quality ............. |
E-22 |
Reducting noise in the picture .............................. |
E-23 |
Sound settings menu ............................................. |
E-24 |
Adjusting the treble, bass and left/right balance ... |
E-24 |
Screen Settings Menu.......................................... |
E-25 |
Adjusting the position and size of the wide screen ... |
E-25 |
Adjusting the Position, Fine Picture, Picture Adj |
|
and Auto picture of the computer image ............... |
E-26 |
Adjusting the position of the menu display .......... |
E-28 |
Function Settings Menu ....................................... |
E-29 |
Setting the power management for computer images ... |
E-29 |
POWER/STANDBY indicator .............................. |
E-30 |
Setting a computer image to the correct RGB |
|
select screen .......................................................... |
E-31 |
Setting high definition image to the suitable |
|
screen size ............................................................. |
E-32 |
Setting the on-screen display ................................ |
E-32 |
Setting the gray level for the sides of the screen .. |
E-33 |
Setting the brightness level to the minimum ........ |
E-33 |
Setting the wide screen display ............................. |
E-34 |
Resetting to the default values .............................. |
E-34 |
Information Menu ............................................... |
E-35 |
Checking the frequencies and polarities |
|
of input signals ...................................................... |
E-35 |
Setting the language for the menus ....................... |
E-36 |
Setting the video signal format ............................. |
E-37 |
External Control .......................................... |
E-38 |
Table for Signals Supported .......................... |
E-50 |
Supported resolutions ......................................... |
E-50 |
Troubleshooting ........................................... |
E-51 |
Specifications ............................................... |
E-52 |
How to Attach Options to the Plasma Monitor
You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:
*As it is made upright. (See Drawing A)
*As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
•This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc)
*See page E-2.
•For correct installation and mounting it is strongly recommended to use a trained,authorized NEC dealer.
Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.
Product warranty does not cover damage caused by improper installation.
Drawing A
Drawing B
Ventilation Requirements for enclosure mounting
To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.
|
Wall |
|
|
50mm (2") |
|
50mm (2") |
(2") |
|
1340mm (52.8") |
|
|
|
|
|
|
|
|
|
Wall |
|
|
|
50mm |
|
|
|
866mm (34.1") |
|
|
|
50mm (2") |
E – 1
Introduction
Introduction to the PlasmaSync 50–inch Plasma Monitor
NEC's PlasmaSync is a seamless blend of cutting-edge visual technology and sophisticated design. At 50-inches, with a 16:9 aspect ratio, the PlasmaSync certainly makes a big impression. However, at a mere 4.2 inches/ 107mm thin, the monitor's sleek techno-art lines blend in well with your environment. PlasmaSync's crisp, vivid image quality will transform data from any graphic medium from PCs to DVD playersinto art. And weighing only 127.6 lbs/ 58.0 kg, it actually can be hung almost anywhere. NEC has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the PlasmaSync™ monitor.
The features you'll enjoy include:
•50-inch screen
•16:9 aspect ratio
•Capsulated Color Filter (CCF) and black matrix
•4.2 inch / 107 mm thin
•127.6 lbs/ 58.0 kg light
•High-resolution screen: 13652768 pixels
•160-degrees of off-axis viewing, horizontally and vertically.
•Flicker - and warp - free display provides excellent image geometry even in screen corners
•Not affected by magnetic fields, no color drift or edge distortion.
•VGA, SVGA, XGA, SXGA, computer signal compatibility
•NTSC, PAL, SECAM, composite and S-Video signal compatibility
•480P, 1080I, 720P and HDTV signal compatibility
•PCs, VCRs, Laser Disc and DVD player source compatibility
•Softscaling automatically converts VGA, SVGA and SXGA signals to the panel's native resolution
•RGB input(1), Video/S-Video input(1), DVD/ HD input(1), audio output(1), external control input(1)
•AccuColor control system provides user selectable onscreen color temperature settings
•New Drive Technology
•Component video input terminal for DVD, 15.75kHz (Y, CB, CR)
•NEC's OSM menu-driven on screen control system that makes image adjustments a snap
•Seven languages (English, German, French, Italian, Spanish, Swedish, and Japanese)
Note
These instructions are for both the standard (included) remote control unit and the optional LCD remote controller (PX-RC1E). For details on operating the LCD remote controller, refer to the operating instructions included with LCD remote controller.
Contents of the Package
MPlasmaSync 5000W plasma monitor
MPower cord
MRGB cable (Mini D-Sub 15-pin to Mini D-Sub 15pin connector)
MAdapter for Macintosh
MRemote control unit with two AA Batteries
MUser's manual
MWired remote cable
MFerrite core
*These are hooks for fastening the unit to a wall to prevent tipping due to external shock when using the stand (option). Pass ropes or chains through the hooks and fasten to a wall or pillar.
Options
•Wall mount unit
•Ceiling mount unit
•Tilt mount unit
•Tabletop stand
•LCD touch screen learning remote controler
(A multi function LCD Remote Control that makes operation of connected VCR, Laser Disc, and DVD possible from a single unit. It also has a "learning function" that turns it into a total remote control.)
• Others
E – 2
Part Names and Function
Front View
POWER/STANDBY
INPUT SELECT |
VOLUME |
|
POWER/STANDBY |
INPUT SELECT |
VOLUME |
1 2 5 3 4
1 Power
Turns the monitor's power on and off.
2 INPUT SELECT
Switches the input, in the following order:
→ VIDEO → DVD/HD → RGB
4 Remote sensor window
Receives the signals from the remote control unit.
5VOLUME and
Adjust the volume.
3 POWER/STANDBY indicator |
|
When the power is on ............................ |
Lights green. |
When the power is in the standby mode |
... Lights red. |
E – 3
Rear View/ Terminal Board
V |
S-VIDEO IN |
|
||
I |
VIDEO IN |
|
||
D |
|
|||
E |
(MONO) |
|
||
AUDIO IN |
|
L |
|
|
O |
|
R |
|
|
|
|
|
|
|
H |
|
|
Y/Y |
|
Pb/Cb |
|
|||
D |
|
|||
/ |
Pr/Cr |
|
||
D |
|
|
|
|
V |
AUDIO IN |
|
L |
|
D |
|
R |
|
|
A |
|
|
|
|
|
|
L |
|
|
DU AUDIO OUT |
|
|
||
I |
|
|
R |
|
O |
|
|
|
|
R |
RGB IN |
|
||
|
||||
G |
|
|
|
|
B |
(MONO) |
|
||
|
AUDIO IN |
|
L |
|
|
|
|
R |
|
|
EXTERNAL |
|
||
|
CONTROL |
|
||
|
|
|
|
|
|
REMOTE |
|
||
|
CONTROL |
|
R SPEAKERS L
G H
A VIDEO IN/AUDIO IN
Connect VCR's, DVD's or Laser Discs, etc. here.
BDVD/HD (Y/Y, CB/PB and CR/PR) IN/ AUDIO IN
Connect DVD's, high definition Laser Discs, etc. here.
CAUDIO OUT
Connect the external amplifier only for woofer. The output level depends on the volume setting.
D RGB IN/ AUDIO IN
Connect Computer Source here.
E REMOTE CONTROL
Connect the supplied remote cable here.
F EXTERNAL CONTROL
This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page 38 for external control.
G AC IN
Connect the included power cord here.
H EXT SPEAKER L and R
Connect speakers here.
|
|
|
|
|
|
V |
S-VIDEO IN |
|
|
I |
|
DVIDEO IN
E(MONO) L
O |
AUDIO IN |
||
|
|
|
R |
|
|
|
|
|
|
|
|
H |
|
Y/Y |
|
|
|
|
D |
|
CB/PB |
|||
/ |
|
CR/PR |
|||
D |
|
||||
|
|
|
|
||
V |
|
|
|
L |
|
D |
AUDIO IN |
|
|
R |
|
A |
|
|
|
||
|
|
|
|||
|
|
|
|
||
|
|
|
L |
||
U |
AUDIO OUT |
|
|
||
|
|
||||
D |
|
||||
I |
|
|
|
R |
|
|
|
|
|||
O |
(VARIABLE) |
||||
R |
RGB IN |
||||
|
|
|
|
||
G |
(MONO) |
|
|
||
B |
L |
||||
AUDIO IN |
|
||||
|
|
||||
|
|
|
|
R |
|
|
|
|
|
||
|
|
|
|
|
|
|
EXTERNAL |
||||
|
CONTROL |
||||
|
|
|
|
|
|
|
REMOTE |
||||
|
CONTROL |
A
B
C
D
F
E – 4
Remote Controller
I |
J |
1 POWER |
|
Turns the monitor's power on and off. |
|||
|
|
|
|
|
|
|
2 RGB/PC |
|
|
|
|
|
Press this button to select RGB/PC as the source. |
1 |
POWER |
|
|
RGB/PC can also be selected using the INPUT SELECT |
|
|
|
button on the monitor. The input switches as follows |
|||
|
|
|
|||
3 |
RGB/PC VIDEO DVD/HD |
|
|
each time the button is pressed: |
|
|
|
|
→ VIDEO → DVD/HD → RGB/PC |
||
2 |
|
|
|
|
|
|
|
|
|
|
|
4 |
|
POSITION / CONTROL |
|
|
|
|
|
|
MENU |
|
3VIDEO |
H |
|
|
5 |
Press this button to select VIDEO as the source. |
|
|
|
|
|
||
7 |
|
|
|
|
VIDEO can also be selected using the INPUT SELECT |
|
|
|
|
button on the monitor. The input switches as follows |
|
|
|
CURSOR |
OK |
6 |
each time the button is pressed: |
|
|
|
→ VIDEO → DVD/HD → RGB/PC |
||
|
|
|
|
|
|
8 |
|
VISUAL CONTROL |
|
|
4 DVD / HD |
|
|
|
|
||
|
|
|
|
|
Press this button to select DVD/HD as the source. |
|
CONTRAST BRIGHT COLOR TINT |
SHARPNESS |
|
DVD/HD can also be selected using the INPUT SE- |
|
|
|
|
|
|
|
9 |
|
|
|
B |
LECT button on the monitor. The input switches as fol- |
|
|
|
lows each time the button is pressed: |
||
0 |
|
|
|
A |
|
|
|
|
→ VIDEO → DVD/HD → RGB/PC |
||
|
VOLUME |
MUTE |
|
||
C |
|
|
|
D |
|
E |
WIDE |
DISPLAY |
OFF TIMER |
G |
5 MENU |
|
|
|
|||
|
|
|
|
|
Use this button to turn the main menu on/off. |
|
|
BACKLIGHT SYSTEM |
|
F |
|
REMOTE CONTROLLER |
6 OK |
|
RD-327 |
||
|
|
|
Use this button to approve selections and settings.
7 CURSOR (▲ / ▼ / § / ©)
Use these buttons to select items or settings and to adjust settings.
8 CONTRAST (▲ / ▼)
Adjusts the picture's contrast.
9 BRIGHT (▲ / ▼)
Adjusts the picture's brightness.
0 COLOR (▲ / ▼)
Adjusts the color density.
ATINT (▲ / ▼)
Adjusts the picture's tint.
B SHARPNESS (▲ / ▼)
Adjusts the picture's sharpness.
E – 5
CVOLUME (▲ / ▼)
Adjust the volume.
D MUTE
Mutes the sound.
EWIDE
The type of broadcast is detected automatically, and the recommended wide screen mode is set.
F DISPLAY
Displays the source settings on the screen.
G OFF TIMER
Activates the off timer for the unit.
H BACK LIGHT switch
Turns the back light on and off.
Turn on when using the remote control in dark rooms.
Note: The backlight key characters may not be visible in a bright-lit room. Make sure that the backlight switch is OFF when the remote control unit is not used. If no button operation is made within 30 seconds when the backlight is lit in the wireless condition, the backlight will go off automatically to conserve battery life. To turn the backlight on again, set the switch to the OFF position, then set it to the ON position.
I Remote Jack
Insert the plug of the supplied remote cable when using the supplied remote control unit in the wired condition.
Note: Connecting the monitor and the remote control unit with the supplied remote cable turns on the backlight independent of the backlight switch setting when the monitor is powered on.
J Remote control signal transmitter
Transmits the remote control signals.
Battery Installation and Replacement
Insert the 2 "AA" batteries, making sure to set them in with the proper polarity.
1. Press and pull.
2.Load the batteries in the direction indicated by the "+" and "–" marks in the case.
3. Put the lid back on.
E – 6
Using the wired remote control mode
Connect the included remote control cable to the remote
control unit's "REMOTE CONTROL" terminal.
When the cable is connected, the mode automatically
switches to wired remote control.
When the wired remote control mode is used, the remote
control unit can be operated even if no batteries are loaded.
Operating Range
*Use the remote controller within a distance of about 7 m
/ 23ft. from the front of the monitor's remote control sensor and at a horizontal angle of within 30°.
*The remote control operation may not function if the monitor's remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control unit.
V |
S-VIDEO IN |
|
I |
VIDEO IN |
|
D |
||
E |
(MONO) |
|
L |
||
O |
AUDIO IN |
|
|
R |
|
H |
Y/Y |
|
Pb/Cb |
||
D |
||
/ |
Pr/Cr |
|
D |
|
|
V |
L |
|
D |
AUDIO IN |
|
|
R |
|
A |
|
|
DU AUDIO OUT L |
||
I |
R |
|
O |
|
|
R |
RGB IN |
|
|
||
G |
|
|
B |
(MONO) |
|
|
L |
|
|
AUDIO IN |
|
|
R |
|
|
EXTERNAL |
|
|
CONTROL |
|
|
REMOTE |
|
RS L |
CONTROL |
|
|
||
EXTERNAL |
||
|
CONTROL |
|
|
REMOTE |
|
|
CONTROL |
Remote Control Cable
To Remote Jack
POWER
RGB/PC VIDEO DVD/HD
POSITION / CONTROL
|
MENU |
|
OK |
CURSOR |
|
VISUAL CONTROL |
|
CONTRAST BRIGHT COLOR TINT |
SHARPNESS |
VOLUME |
MUTE |
WIDE DISPLAY |
OFF TIMER |
BACKLIGHT SYSTEM
REMOTE CONTROLLER
RD-327
Note: When you connect a remote control cable to this monitor , attach the supplied ferrite core. If you do not do this, this monitor will not conform to mandatory CE(EN55022) C-Tick (AS/NZS3548) standards.
Attaching the ferrite core
Set the ferrite core on the end of the remote control cable(Monitor side).
Twist this cable around the ferrite core one time. Close the lid tightly until the clamp click.
|
POWER/STANDBY |
|
INPUT SELECT |
VOLUME |
|
|
|
Approx. |
|
30˚ |
7m/ 23ft |
|
30˚ |
Handling the remote controller
•Do not drop or mishandle the remote control unit.
•Do not get the remote control unit wet. If the remote gets wet, wipe it dry immediately.
•Avoid heat and humidity.
•When not using the remote control unit for a long period, remove the batteries.
•Do not use new and old batteries together, or use different types together.
•Do not take apart the batteries, heat them, or throw them into a fire.
•When using the remote control unit in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.
E – 7
Installation |
|
|
|
|
|
|
V |
S-VIDEO IN |
|
|
|
I |
VIDEO IN |
|
|
|
D |
||
|
|
E |
(MONO) |
L |
|
|
AUDIO IN |
||
|
|
O |
R |
|
|
|
|
|
|
|
|
H |
Y/Y |
|
|
|
Pb/Cb |
||
|
|
D |
||
|
|
/ |
Pr/Cr |
|
|
|
D |
|
|
|
|
V |
AUDIO IN |
L |
|
|
D |
R |
|
|
|
|
|
|
|
|
A |
|
L |
|
|
DU AUDIO OUT |
||
|
|
I |
|
R |
|
|
O |
|
|
|
|
R |
RGB IN |
|
|
|
G |
|
|
|
|
B |
(MONO) |
L |
|
|
|
AUDIO IN |
|
|
|
|
R |
|
|
|
|
|
|
|
|
|
EXTERNAL |
|
|
|
|
CONTROL |
|
|
|
|
REMOTE |
|
R |
SPEAKERS |
L |
CONTROL |
|
|
|
Document Camera
To video, S-video inputs on VIDEO the PlasmaSync 5000W
S-VIDEO IN
VIDEO IN
VCR or Laser Disc Player
AUDIO IN L (MONO)
AUDIO IN R
HD/DVD
DVD Player |
Y/Y |
|
|
CB/PB |
|
CR/PR |
|
AUDIO IN L |
Signal cable (supplied) |
AUDIO IN R |
|
|
To Mini D-Sub 15 pin connector |
AUDIO |
on the PlasmaSync 5000W |
AUDIO OUT L |
|
|
IBM VGA or Compatibles |
AUDIO OUT R |
|
|
|
RGB |
Macintosh or Compatibles |
|
(Desk top type) |
RGB IN |
|
|
Monitor adapter for |
AUDIO IN L |
(MONO) |
|
Macintosh (supplied) |
|
|
AUDIO IN R |
External |
EXTERNAL |
|
Control |
||
CONTROL |
||
|
||
|
REMOTE CONTROL |
E – 8
Connecting Your PC Or Macintosh Computer
Connecting your PC or Macintosh computer to your PlasmaSync 5000W will enable you to display your computer's screen image for an impressive presentation. The PlasmaSync 5000W supports the signals described on page 50.
To connect to a PC, Macintosh or compatible graphics adapter, simply:
1.Turn off the power to your PlasmaSync 5000W and computer.
2.If your PC does not support XGA/SVGA/VGA you will need to install an XGA/SVGA/VGA graphics board. Consult your computer's owner's manual for your XGA/SVGA/ VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.
3.The PlasmaSync 5000W provides signal compatibility up to VESA 128021024@85Hz (SXGA). However, some signals are only displayed in the normal mode (5:4). See page 50 for more details.
4.Use the signal cable that's supplied to connect your PC or Macintosh computer to the PlasmaSync 5000W. For Macintosh, use the supplied monitor adapter to connect to your computer's video port.
5.Turn on the PlasmaSync 5000W and the computer.
6.If the PlasmaSync 5000W goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the PlasmaSync 5000W.
When using a Macintosh with the PlasmaSync 5000W, the following four display standards are supported using the included Macintosh adapter :
13" fixed mode
16" fixed mode
19" fixed mode
21" fixed mode
The 19" fixed mode is recommended for the PlasmaSync 5000W.
Connecting Your Document Camera
You can connect your PlasmaSync 5000W to a document camera. To do so, simply:
1.Turn off the power to your PlasmaSync 5000W and document camera.
2.Use a standard video cable to connect your document camera to the Video input on your PlasmaSync 5000W.
3.Turn on the PlasmaSync 5000W and the document camera.
Note: Refer to your document camera's owner's manual for more information about your camera's video output requirements.
Connecting Your VCR Or Laser Disc Player
Use common RCA cables (not provided) to connect your VCR or laser disc player to your PlasmaSync 5000W. To make these connections, simply:
1.Turn off the power to your PlasmaSync 5000W and VCR or laser disc player.
2.Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your PlasmaSync 5000W. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your PlasmaSync 5000W (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.
3.Turn on the PlasmaSync 5000W and the VCR or laser disc player.
Note: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.
Connecting Your DVD Player
You can connect your PlasmaSync 5000W to a DVD player. To do so, simply:
1.Turn off the power to your PlasmaSync 5000W and DVD player.
2.Use a standard video cable to connect your DVD player to the Y, Cb, and Cr inputs on your PlasmaSync 5000W. Or use the DVD-player's S-Video output. Use a standard S-Video cable to connect to the S-Video input on the PlasmaSync 5000W.
3.Turn on the PlasmaSync 5000W and the DVD player.
E – 9
External Speaker Connections
|
|
|
|
V |
S-VIDEO IN |
|
|
|
|
|
I |
VIDEO IN |
|
R |
SPEAKERS |
L |
D |
|||
E |
(MONO) |
L |
||||
O |
AUDIO IN |
R |
||||
|
|
|||||
|
Y/Y |
|||||
|
|
|
|
H |
||
|
|
|
|
Pb/Cb |
||
|
|
|
|
D |
||
|
|
|
|
/ |
Pr/Cr |
|
|
|
|
|
D |
||
|
|
|
|
V |
AUDIO IN |
L |
|
|
|
|
D |
R |
|
|
|
|
|
|
|
|
|
|
|
|
A |
|
L |
|
|
|
|
DU AUDIO OUT |
||
|
|
|
|
I |
|
R |
|
|
|
|
O |
|
|
|
|
|
|
R |
RGB IN |
|
|
|
|
|
|
|
|
|
|
|
|
G |
|
|
|
|
|
|
B |
(MONO) |
L |
|
|
|
|
|
AUDIO IN |
|
|
|
|
|
|
R |
|
|
|
|
|
|
|
|
|
|
|
|
|
EXTERNAL |
|
|
|
|
|
|
CONTROL |
|
|
|
|
|
|
REMOTE |
|
|
R |
SPEAKERS |
L |
|
CONTROL |
|
|
|
|
|
External speakers may be connected to the PlasmaSync 5000W to reproduce sound from VIDEO, DVD or RGB signal sources.
External speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the audio outputs.
CAUTION: Unplug the PlasmaSync 5000W and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a power output rating of 7 watts or more.
To connect external speakers directly to the PlasmaSync 5000W:
1.Strip the ends of the speaker wires.
2.Press down the tabs below the SPEAKERS terminals, insert the speaker wire and release the tab to secure the speaker wire connection:
[a]Connect the right speaker (located at right side
of the monitor when viewed from the front) positive (+) wire to RIGHT +.
[b]Connect the right speaker negative (–) wire to RIGHT -.
[c]Connect the left speaker negative (–) wire to LEFT–.
[d]Connect the left speaker positive wire (+) to LEFT+.
E – 10
VIDEO |
|
|
|
HD/DVD |
|
|
|
|
|
V |
S-VIDEO IN |
|
|
I |
VIDEO IN |
|
|
D |
|
|
|
E |
(MONO) |
|
|
L |
|
|
|
O |
AUDIO IN |
|
|
|
R |
|
|
H |
Y/Y |
|
|
Pb/Cb |
|
|
|
D |
|
|
|
/ |
Pr/Cr |
|
|
D |
|
|
|
V |
L |
|
|
D |
AUDIO IN |
|
|
|
R |
|
|
A |
|
|
|
DU AUDIO OUT L |
|
|
|
I |
R |
|
|
O |
|
|
|
R |
RGB IN |
|
|
G |
|
|
|
B |
(MONO) |
|
|
|
L |
|
|
|
AUDIO IN |
|
|
|
R |
|
|
|
EXTERNAL |
|
|
|
CONTROL |
|
|
|
REMOTE |
R |
SPEAKERS |
L |
CONTROL |
|
|||
AUDIO |
|
|
|
AUDIO OUT |
|
|
|
L
R (VARIABLE)
RGB |
LINE OR |
LINE OR |
|
AUX INPUT |
AUX INPUT |
||
|
L R
STEREO AMP
To connect the PlasmaSync 5000W to stereo system speakers:
1.Connect AUDIO OUT L to the stereo amplifier AUX INPUT L.
2.Connect AUDIO OUT R to the stereo amplifier AUX INPUT R.
E – 11
Mini D-Sub 15 Pin RGB Signal Composition
Pin Assignments and Signal Levels for 15 pin RGB (Analog)
5 4 3 2 1
10 |
9 |
8 |
7 |
6 |
|
15 |
14 |
|
13 |
12 |
11 |
Pin No. |
Signal to be connected |
1 |
RED |
|
|
2 |
GREEN or Sync. on Green |
|
|
3 |
BLUE |
|
|
4 |
No Connection |
|
|
5 |
GND |
|
|
6 |
RED (GND) |
|
|
7 |
GREEN (GND) |
|
|
8 |
BLUE (GND) |
|
|
9 |
No Connection |
|
|
10 |
SYNC (GND) |
|
|
11 |
No Connection |
|
|
12 |
SDA |
|
|
13 |
H. sync |
|
|
14 |
V. sync |
15 |
SCL |
|
|
E – 12
Basic Operations
POWER
To turn the unit ON and OFF:
1.Plug the power cord into an active AC power outlet.
2.Press the POWER button (on the remote controller) to turn on.
The monitor’s POWER/STANDBY indicator will light up(green) when the unit is on.
3.Press the POWER button (on the remote controller or the unit) to turn off.
The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).
VOLUME
To adjust the volume:
1.Press and hold the VOLUME ▲ button (on the remote controller or the unit) to increase to the desired level.
2.Press and hold the VOLUME ▼ button (on the remote controller or the unit) to decrease to the desired level.
MUTE
To cancel the sound:
Press the MUTE button on the remote controller to cancel
sound; press again to restore.
DISPLAY
To check the settings:
1.The screen changes each time the DISPLAY button is pressed.
2.If the button is not pressed for approximately three seconds, the menu turns off.
VISUAL CONTROL
TO adjust the picture's contrast:
1, Press and hold the CONTRAST ▲ button for higher contrast.
2, Press and hold the CONTRAST ▼ button for lower contrast.
TO adjust the picture's brightness:
1, Press and hold the BRIGHT ▲ button for a brighter picture.
2, Press and hold the BRIGHT ▼ button for a darker picture.
TO adjust the picture's color: (except RGB mode)
1, Press and hold the COLOR ▲ button for more color saturation.
2, Press and hold the COLOR ▼ button for less color saturation.
TO adjust the picture's tint :(when NTSC or HD/ DVD input is selected)
1, Press and hold the TINT ▲ button for a greener tint.
2, Press and hold the TINT ▼ button for a redder tint.
TO adjust the picture's sharpness: (except RGB mode)
1, Press and hold the SHARPNESS ▲button for a sharper picture.
2, Press and hold the SHARPNESS ▼ button for a softer picture.
*If no key operation is made within five seconds, the OSM display will disappear.
E – 13
