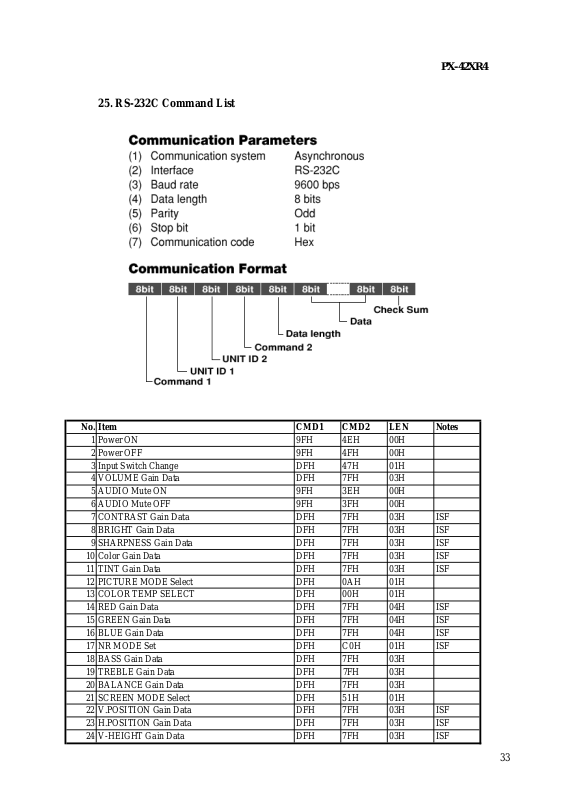

25. RS-232C Command List
PX-42XR4
No. Item CMD1 CMD2 LEN
1 Power ON 9FH 4EH 00H
2 Power OFF 9FH 4FH 00H
3 Input Switch Change DFH 47H 01H
4 VOLUME Gain Data DFH 7FH 03H
5 AUDIO Mute ON 9FH 3EH 00H
6 AUDIO Mute OFF 9FH 3FH 00H
7 CONTRAST Gain Data DFH 7FH 03H
8 BRIGHT Gain Data DFH 7FH 03H
9 SHARPNESS Gain Data DFH 7FH 03H
10 Color Gain Data DFH 7FH 03H
11 TINT Gain Data DFH 7FH 03H
12 PICTURE MODE Select DFH 0AH 01H
13 COLOR TEMP SELECT DFH 00H 01H
14 RED Gain Data DFH 7FH 04H
15 GREEN Gain Data DFH 7FH 04H
16 BLUE Gain Data DFH 7FH 04H
17 NR MODE Set DFH C0H 01H
18 BASS Gain Data DFH 7FH 03H
19 TREBLE Gain Data DFH 7FH 03H
20 BALANCE Gain Data DFH 7FH 03H
21 SCREEN MODE Select DFH 51H 01H
22 V.POSITION Gain Data DFH 7FH 03H
23 H.POSITION Gain Data DFH 7FH 03H
24 V-HEIGHT Gain Data DFH 7FH 03H
Notes
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
33
No. Item CMD1 CMD2 LEN
25 H-WIDTH Gain Data DFH 7FH 03H
26 AUTO PICTURE Select DFH 7FH 03H
27 PHASE Gain Data DFH 7FH 03H
28 CLOCK Gain Data DFH 7FH 03H
29 OSM ADJ. Gain Data DFH 1AH 02H
30 POWER MGT Select DFH 1AH 02H
31 GRAY LEVEL Set DFH C6H 01H
32 CINEMA MODE Set DFH C1H 01H
33 LONG LIFE Set DFH 6BH 03H
34 SCREEN WIPER Set DFH C8H 04H
35 ALL RESET 1FH 54H 00H
36 Audio Select Set DFH 70H 02H
37 DVD/HD1 INPUT DFH 8CH 01H
38 RGB Select DFH 8BH 01H
39 HD Select DFH 8AH 01H
40 LANGUAGE Select DFH 5BH 01H
41 COLOR SYSTEM Select DFH 5CH 01H
42 FREQUENCY Request 1FH 26H 00H
43 Input MODE Request 1FH 41H 00H
44 VIDEO ADJ Request 1FH 45H 00H
45 Audio Select Request 1FH 6FH 00H
46 Failure Mode Request 1FH 3FH 00H
47 MODEL NAME Request 1FH 17H 00H
48 D-SUB INPUT DFH 8DH 01H
49 LOW TONE --- --- --50 COLOR TUNE DFH 0DH 08H
51 GAMMA Gain Data DFH 13H 04H
52 Running Sense 1FH 88H 00H
53 OSM ORBITER DFH 5FH 01H
54 Input Skip 5FH 61H 01H
55 SERIAL No. Request 1FH 15H 00H
56 S1/S2 Select DFH 89H 01H
57 SOFT FOCUS Select DFH 65H 01H
58 BLACK LEVEL(HDMI SET UP) DFH 8FH 01H
59 Multi (Sprit) Screen Select DFH 07H 01H
SUB PICTURE DETECT
60
ZOOM NAVIGATION
61
PICTURE FREEZE
62
PAUSE(PICTURE FREEZE) COMMAND
63
OSM CONTRAST
64
65 CC(closed caption) DFH 3CH 01H
66 PICTURE MEMORY DFH 38H 01H
67 PICTURE MEMORY SETTING DFH 25H 01H
68 PICTURE MEMORY NOTE WRITE SETTING DFH 25H 02H
69 SET UP LEVEL DFH 35H 01H
DFH 7AH 01H
DFH 7BH 01H
DFH 7CH 01H
DFH 7DH 01H
DFH 37H 01H
Notes
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
34
No. Item CMD1 CMD2 LEN
70 BACK GROUND DFH 36H 01H
71 PDP SAVER AUTO select DFH 2CH 01H
72 AUDIO HDMI INPUT Request 1FH 3AH 00H
73 POWER ON MODE (INPUT) DFH 63H 04H
74 POWER ON MODE (VOLUME) DFH 0FH 01H
75 SUB PICTURE set DFH DAH 03H
76 SUB PICTURE set DFH DAH 03H
MULTI(SPLIT) SCREEN POWER ON MODE
77
78 REMOTE ID CODE DFH 2BH 01H
79 VOLUME REQUEST 1FH OEH 00H
DFH 33H 04H
Notes
35
26. RS-232C Command List
PX-50XR5
No. Item CMD1 CMD2 LEN
1 Power ON 9FH 4EH 00H
2 Power OFF 9FH 4FH 00H
3 Input Switch Change DFH 47H 01H
4 VOLUME Gain Data DFH 7FH 03H
5 AUDIO Mute ON 9FH 3EH 00H
6 AUDIO Mute OFF 9FH 3FH 00H
7 CONTRAST Gain Data DFH 7FH 03H
8 BRIGHT Gain Data DFH 7FH 03H
9 SHARPNESS Gain Data DFH 7FH 03H
10 Color Gain Data DFH 7FH 03H
11 TINT Gain Data DFH 7FH 03H
12 PICTURE MODE Select DFH 0AH 01H
13 COLOR TEMP SELECT DFH 00H 01H
14 RED Gain Data DFH 7FH 04H
15 GREEN Gain Data DFH 7FH 04H
16 BLUE Gain Data DFH 7FH 04H
17 NR MODE Set DFH C0H 01H
18 BASS Gain Data DFH 7FH 03H
19 TREBLE Gain Data DFH 7FH 03H
20 BALANCE Gain Data DFH 7FH 03H
21 SCREEN MODE Select DFH 51H 01H
22 V.POSITION Gain Data DFH 7FH 03H
23 H.POSITION Gain Data DFH 7FH 03H
24 V-HEIGHT Gain Data DFH 7FH 03H
Notes
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
33
No. Item CMD1 CMD2 LEN
25 H-WIDTH Gain Data DFH 7FH 03H
26 AUTO PICTURE Select DFH 7FH 03H
27 PHASE Gain Data DFH 7FH 03H
28 CLOCK Gain Data DFH 7FH 03H
29 OSM ADJ. Gain Data DFH 1AH 02H
30 POWER MGT Select DFH 1AH 02H
31 GRAY LEVEL Set DFH C6H 01H
32 CINEMA MODE Set DFH C1H 01H
33 LONG LIFE Set DFH 6BH 03H
34 SCREEN WIPER Set DFH C8H 04H
35 ALL RESET 1FH 54H 00H
36 Audio Select Set DFH 70H 02H
37 DVD/HD1 INPUT DFH 8CH 01H
38 RGB Select DFH 8BH 01H
39 HD Select DFH 8AH 01H
40 LANGUAGE Select DFH 5BH 01H
41 COLOR SYSTEM Select DFH 5CH 01H
42 FREQUENCY Request 1FH 26H 00H
43 Input MODE Request 1FH 41H 00H
44 VIDEO ADJ Request 1FH 45H 00H
45 Audio Select Request 1FH 6FH 00H
46 Failure Mode Request 1FH 3FH 00H
47 MODEL NAME Request 1FH 17H 00H
48 D-SUB INPUT DFH 8DH 01H
49 LOW TONE DFH 0CH 01H
50 COLOR TUNE DFH 0DH 08H
51 GAMMA Gain Data DFH 13H 04H
52 Running Sense 1FH 88H 00H
53 OSM ORBITER DFH 5FH 01H
54 Input Skip 5FH 61H 01H
55 SERIAL No. Request 1FH 15H 00H
56 S1/S2 Select DFH 89H 01H
57 SOFT FOCUS Select DFH 65H 01H
58 BLACK LEVEL(HDMI SET UP) DFH 8FH 01H
59 Multi (Sprit) Screen Select DFH 07H 01H
SUB PICTURE DETECT
60
ZOOM NAVIGATION
61
PICTURE FREEZE
62
PAUSE(PICTURE FREEZE) COMMAND
63
OSM CONTRAST
64
65 CC(closed caption) DFH 3CH 01H
66 PICTURE MEMORY DFH 38H 01H
67 PICTURE MEMORY SETTING DFH 25H 01H
68 PICTURE MEMORY NOTE WRITE SETTING DFH 25H 02H
69 SET UP LEVEL DFH 35H 01H
DFH 7AH 01H
DFH 7BH 01H
DFH 7CH 01H
DFH 7DH 01H
DFH 37H 01H
Notes
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
34
No. Item CMD1 CMD2 LEN
70 BACK GROUND DFH 36H 01H
71 PDP SAVER AUTO select DFH 2CH 01H
72 AUDIO HDMI INPUT Request 1FH 3AH 00H
73 POWER ON MODE (INPUT) DFH 63H 04H
74 POWER ON MODE (VOLUME) DFH 0FH 01H
75 SUB PICTURE set DFH DAH 03H
76 SUB PICTURE set DFH DAH 03H
MULTI(SPLIT) SCREEN POWER ON MODE
77
78 REMOTE ID CODE DFH 2BH 01H
79 VOLUME REQUEST 1FH OEH 00H
DFH 33H 04H
Notes
35
26. RS-232C Command List
PX-61XR4
No. Item CMD1 CMD2 LEN
1 Power ON 9FH 4EH 00H
2 Power OFF 9FH 4FH 00H
3 Input Switch Change DFH 47H 01H
4 VOLUME Gain Data DFH 7FH 03H
5 AUDIO Mute ON 9FH 3EH 00H
6 AUDIO Mute OFF 9FH 3FH 00H
7 CONTRAST Gain Data DFH 7FH 03H
8 BRIGHT Gain Data DFH 7FH 03H
9 SHARPNESS Gain Data DFH 7FH 03H
10 Color Gain Data DFH 7FH 03H
11 TINT Gain Data DFH 7FH 03H
12 PICTURE MODE Select DFH 0AH 01H
13 COLOR TEMP SELECT DFH 00H 01H
14 RED Gain Data DFH 7FH 04H
15 GREEN Gain Data DFH 7FH 04H
16 BLUE Gain Data DFH 7FH 04H
17 NR MODE Set DFH C0H 01H
18 BASS Gain Data DFH 7FH 03H
19 TREBLE Gain Data DFH 7FH 03H
20 BALANCE Gain Data DFH 7FH 03H
21 SCREEN MODE Select DFH 51H 01H
22 V.POSITION Gain Data DFH 7FH 03H
23 H.POSITION Gain Data DFH 7FH 03H
24 V-HEIGHT Gain Data DFH 7FH 03H
Notes
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
33
No. Item CMD1 CMD2 LEN
25 H-WIDTH Gain Data DFH 7FH 03H
26 AUTO PICTURE Select DFH 7FH 03H
27 PHASE Gain Data DFH 7FH 03H
28 CLOCK Gain Data DFH 7FH 03H
29 OSM ADJ. Gain Data DFH 1AH 02H
30 POWER MGT Select DFH 1AH 02H
31 GRAY LEVEL Set DFH C6H 01H
32 CINEMA MODE Set DFH C1H 01H
33 LONG LIFE Set DFH 6BH 03H
34 SCREEN WIPER Set DFH C8H 04H
35 ALL RESET 1FH 54H 00H
36 Audio Select Set DFH 70H 02H
37 DVD/HD1 INPUT DFH 8CH 01H
38 RGB Select DFH 8BH 01H
39 HD Select DFH 8AH 01H
40 LANGUAGE Select DFH 5BH 01H
41 COLOR SYSTEM Select DFH 5CH 01H
42 FREQUENCY Request 1FH 26H 00H
43 Input MODE Request 1FH 41H 00H
44 VIDEO ADJ Request 1FH 45H 00H
45 Audio Select Request 1FH 6FH 00H
46 Failure Mode Request 1FH 3FH 00H
47 MODEL NAME Request 1FH 17H 00H
48 D-SUB INPUT DFH 8DH 01H
49 LOW TONE DFH 0CH 01H
50 COLOR TUNE DFH 0DH 08H
51 GAMMA Gain Data DFH 13H 04H
52 Running Sense 1FH 88H 00H
53 OSM ORBITER DFH 5FH 01H
54 Input Skip 5FH 61H 01H
55 SERIAL No. Request 1FH 15H 00H
56 S1/S2 Select DFH 89H 01H
57 SOFT FOCUS Select DFH 65H 01H
58 BLACK LEVEL(HDMI SET UP) DFH 8FH 01H
59 Multi (Sprit) Screen Select DFH 07H 01H
SUB PICTURE DETECT
60
ZOOM NAVIGATION
61
PICTURE FREEZE
62
PAUSE(PICTURE FREEZE) COMMAND
63
OSM CONTRAST
64
65 CC(closed caption) DFH 3CH 01H
66 PICTURE MEMORY DFH 38H 01H
67 PICTURE MEMORY SETTING DFH 25H 01H
68 PICTURE MEMORY NOTE WRITE SETTING DFH 25H 02H
69 SET UP LEVEL DFH 35H 01H
DFH 7AH 01H
DFH 7BH 01H
DFH 7CH 01H
DFH 7DH 01H
DFH 37H 01H
Notes
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
ISF
34
No. Item CMD1 CMD2 LEN
70 BACK GROUND DFH 36H 01H
71 PDP SAVER AUTO select DFH 2CH 01H
72 AUDIO HDMI INPUT Request 1FH 3AH 00H
73 POWER ON MODE (INPUT) DFH 63H 04H
74 POWER ON MODE (VOLUME) DFH 0FH 01H
75 SUB PICTURE set DFH DAH 03H
76 SUB PICTURE set DFH DAH 03H
MULTI(SPLIT) SCREEN POWER ON MODE
77
78 REMOTE ID CODE DFH 2BH 01H
79 VOLUME REQUEST 1FH OEH 00H
DFH 33H 04H
Notes
35
