NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation
Ventilation Recommendations
Display Dimensions
Display Dimensions with stand
Optional Table Top Stand Dimensions
Optional Speaker Dimensions
Dimensions of Optional Wall Mount (WMK-3257)
Input Terminals
Control Codes
Browser Control
Product Description:
Type: LCD Display
Resolution: 1920 x 1080 Dimensions without stand: 72.3” (W) x 41.8” (H) x 3.4” (D)
Aspect Ratio: 16:9 Dimensions with stand: 72.3”(W) x 43.3”(H) x 23.9”(D)
FCC: Class B Weight without stand: 132.3 lbs
Power Consumption: 230W (typ) Weight with stand: 142.5 lbs
BTU’s: 784.79 BTU/hour
NOTES:
This document is intended to be used as a reference guide to supply useful information for a desi gn or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation:
Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in the landscape position.
Page 1
Page 2
Page 3-4
Page 5
Page 6
Page 7-8
Page 9
Page 10
Page 10
Page 11
MAXIMUM TILT ANGLE
www.necdisplay.com E805 Page 1 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0
Ventilation Recommendations:
Dimensions below are minimum required for proper ventilation.
NOTE:
The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other
means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.
www.necdisplay.com E805 Page 2 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0

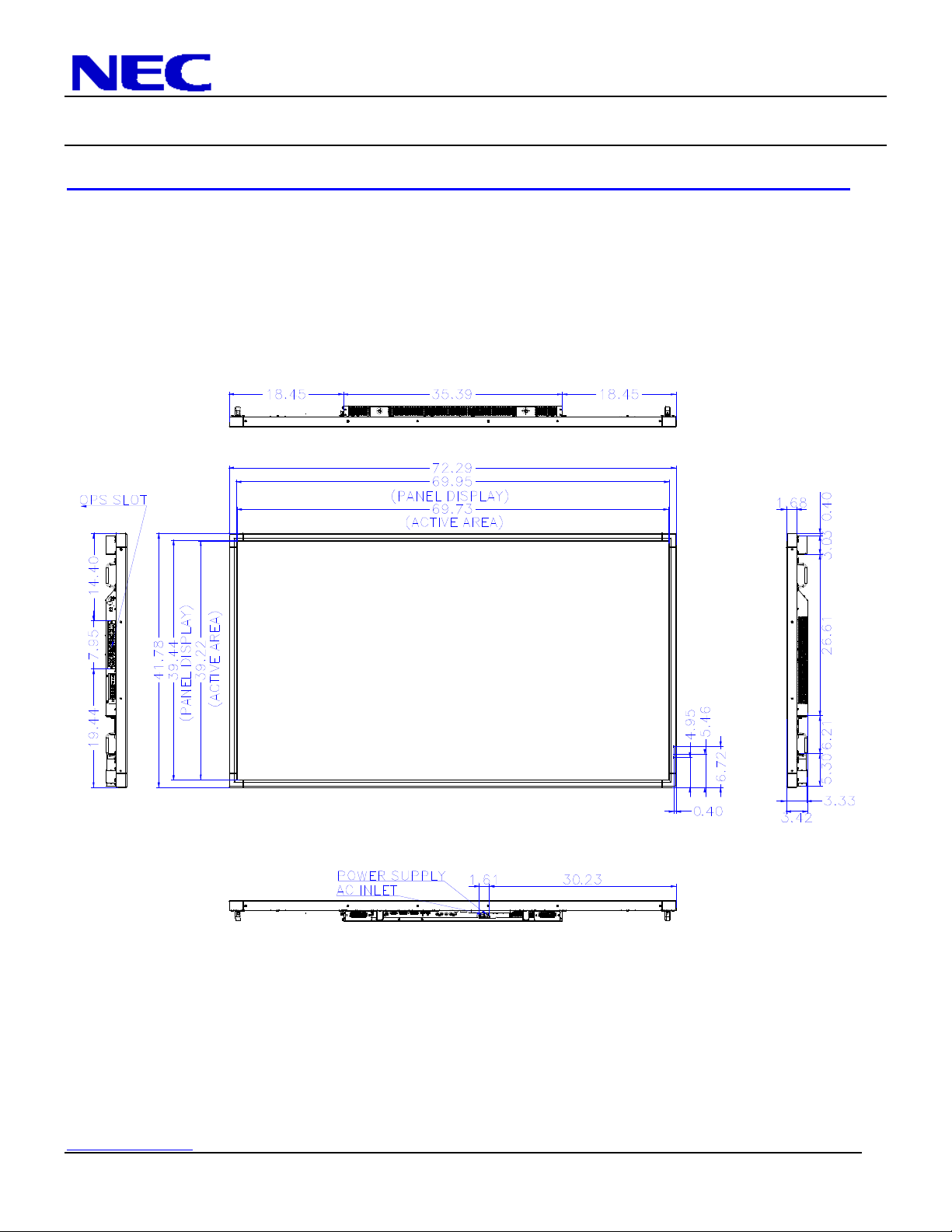

Display dimensions:
www.necdisplay.com E805 Page 3 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0

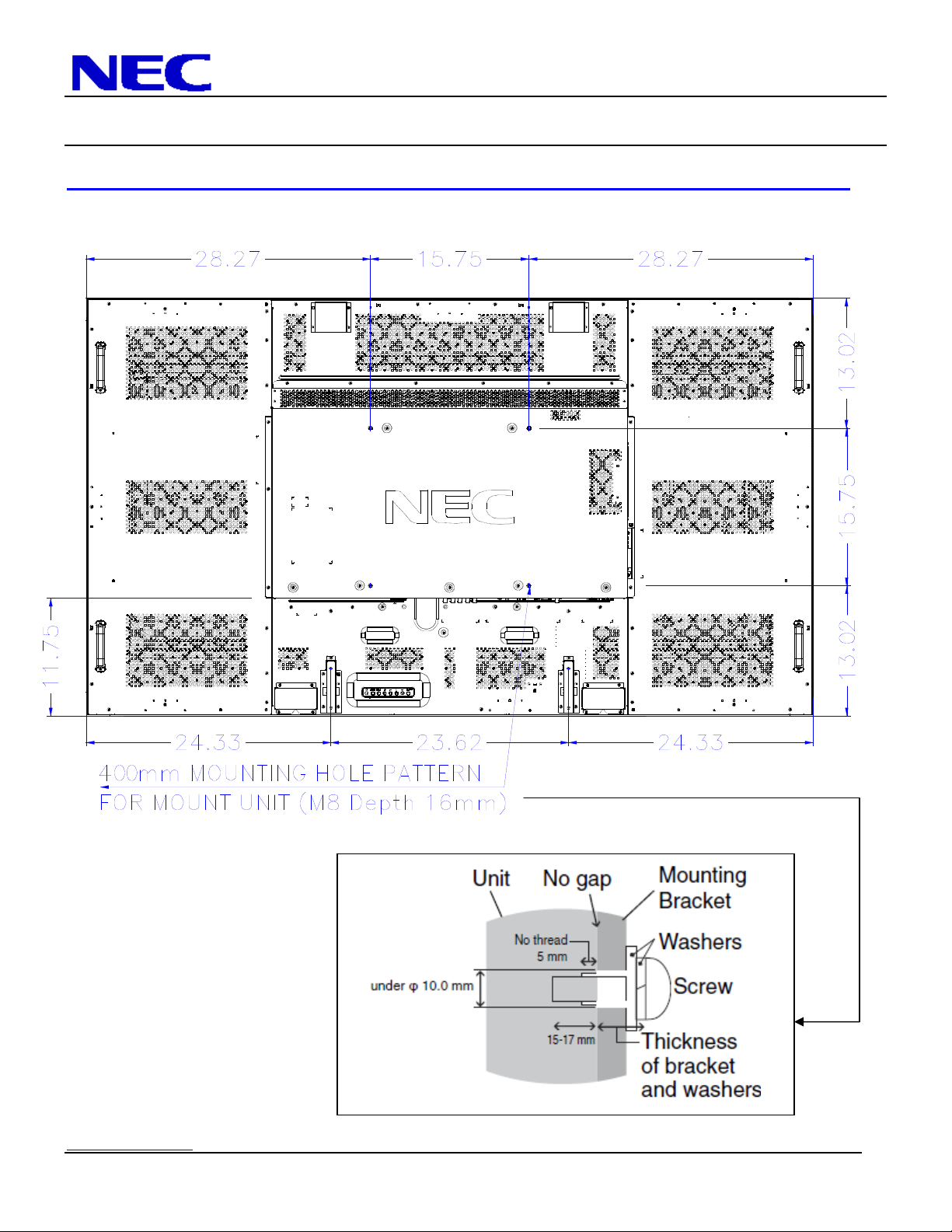

Display dimensions (cont.):
www.necdisplay.com E805 Page 4 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0

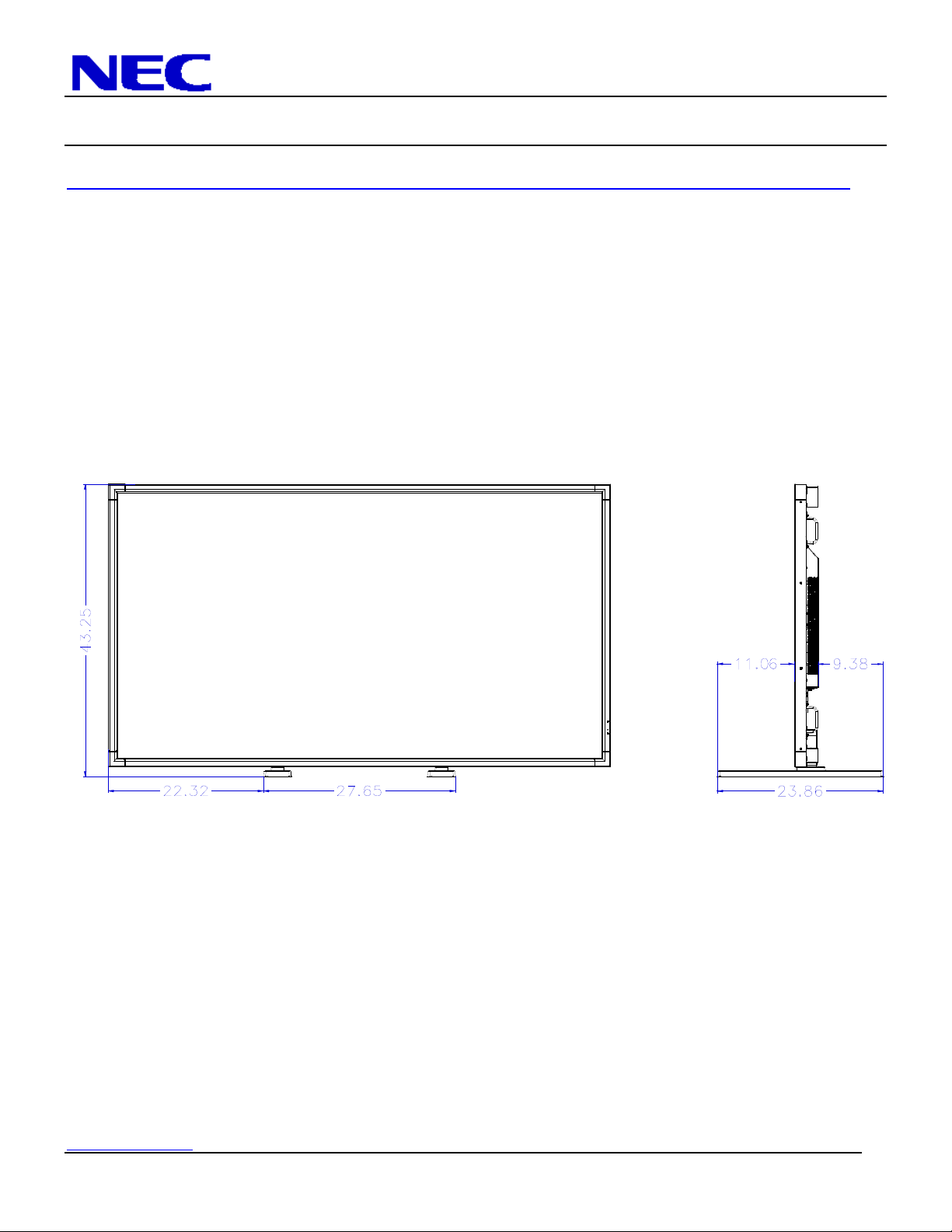

Display Dimensions (with ST-801 stand):
www.necdisplay.com E805 Page 5 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0
Table Top Stand Dimensions (ST-801):
www.necdisplay.com E805 Page 6 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0

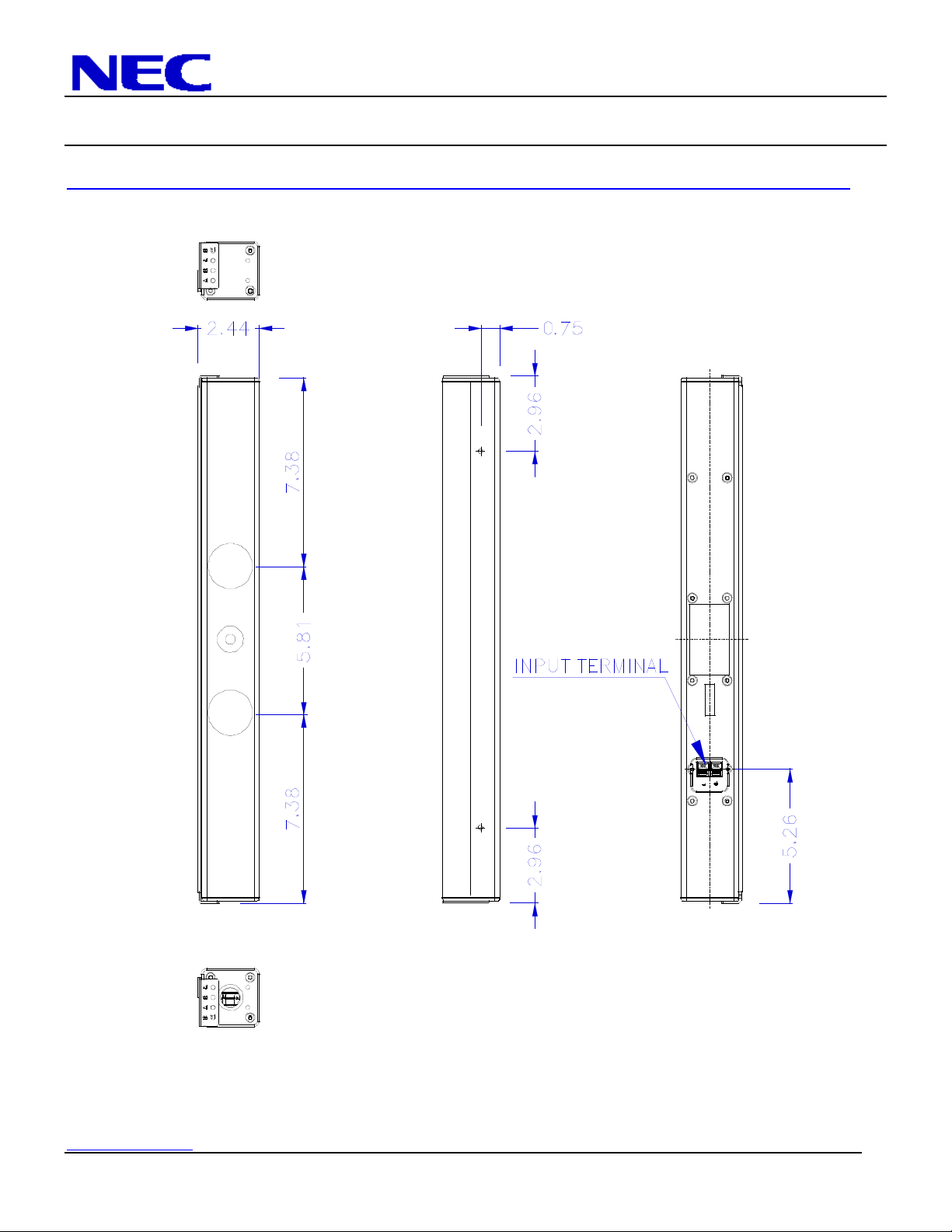

Dimensions of Optional Front-Firing Speaker (SP-TF1)
www.necdisplay.com E805 Page 7 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0
Optional Side-Firing Speaker Dimensions including holder (SP-RM1):
www.necdisplay.com E805 Page 8 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0

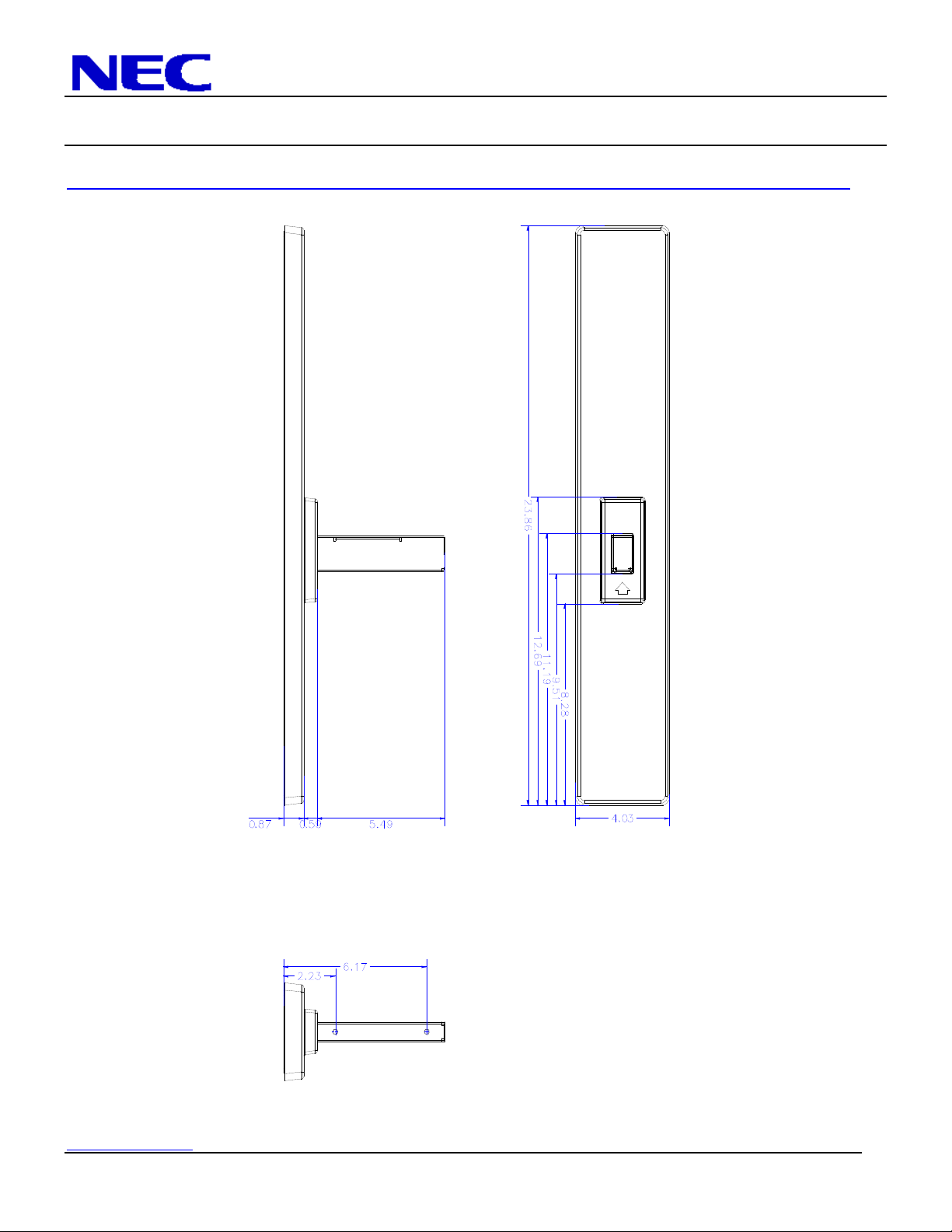

Dimensions with Optional Wall Mount Kit (WMK-3257):
www.necdisplay.com E805 Page 9 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0

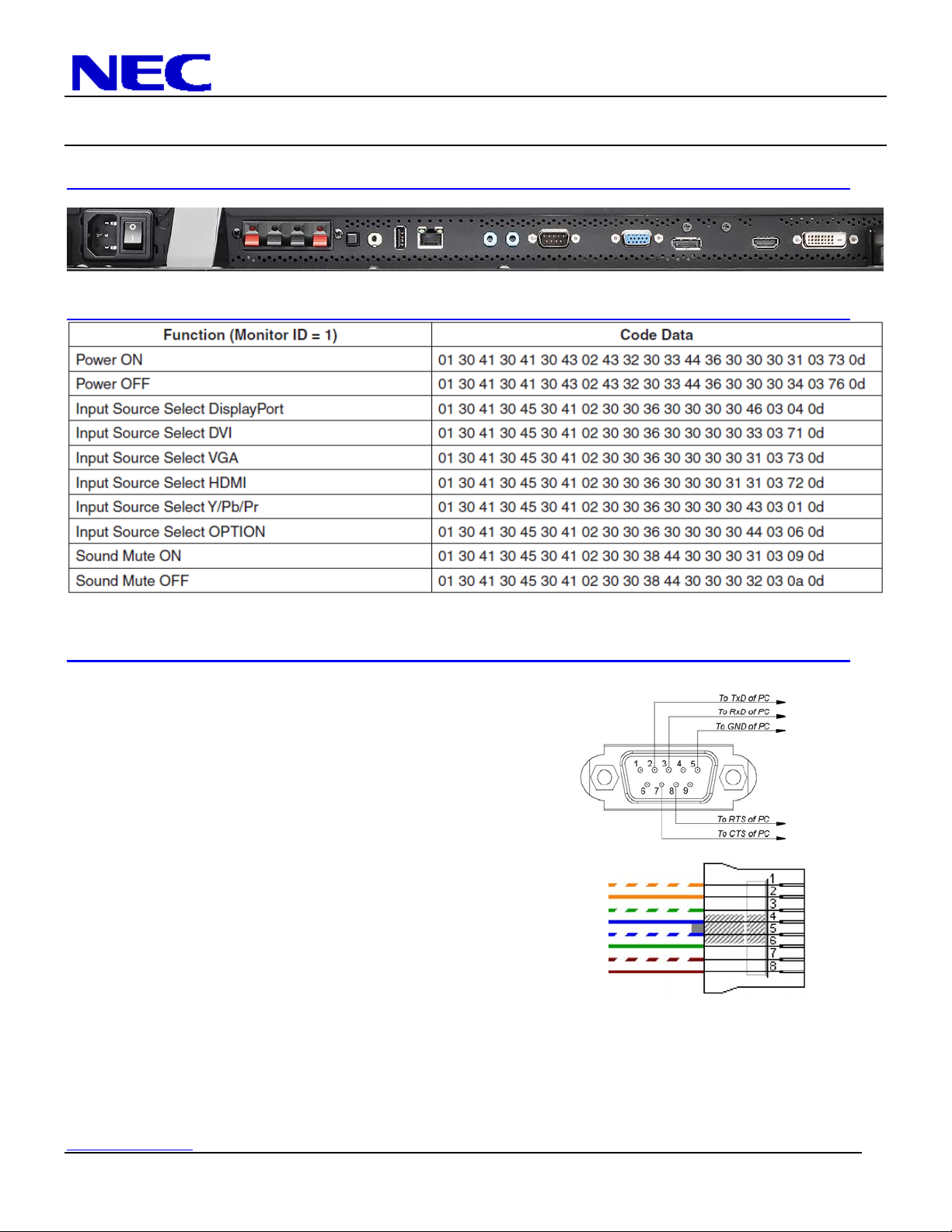

Input Panels:
Bottom:
Control Codes:
NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.
Cable Connection:
Communication Protocol:
Interface: RS-232C
Communication System: Asynchronous
Baud Rate: 9600 bps
Data Length: 8 bits
Parity: None
Stop Bit 1 bit
Communication Code: ASCII
Interface: Ethernet (CSMA/CD
Communication System: TCP/IP (Internet Protocol Suite)
Communication Layer: T r ansport layer (TCP)
IP Address: 192.168.0.10 (default out of box)
Port Number: 7142 (Fixed)
NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
These connections are not required. The only connections required are pins 2 (T xD), 3 (RxD) and 5 (GND).
Transmit Data+
Transmit DataReceive Data+
Not Used
Not Used
Receive DataNot Used
Not Used
www.necdisplay.com E805 Page 10 of 11
NEC Display Solutions of America, Inc.
E805 Installation Guide
80” LCD Display Rev 1.0

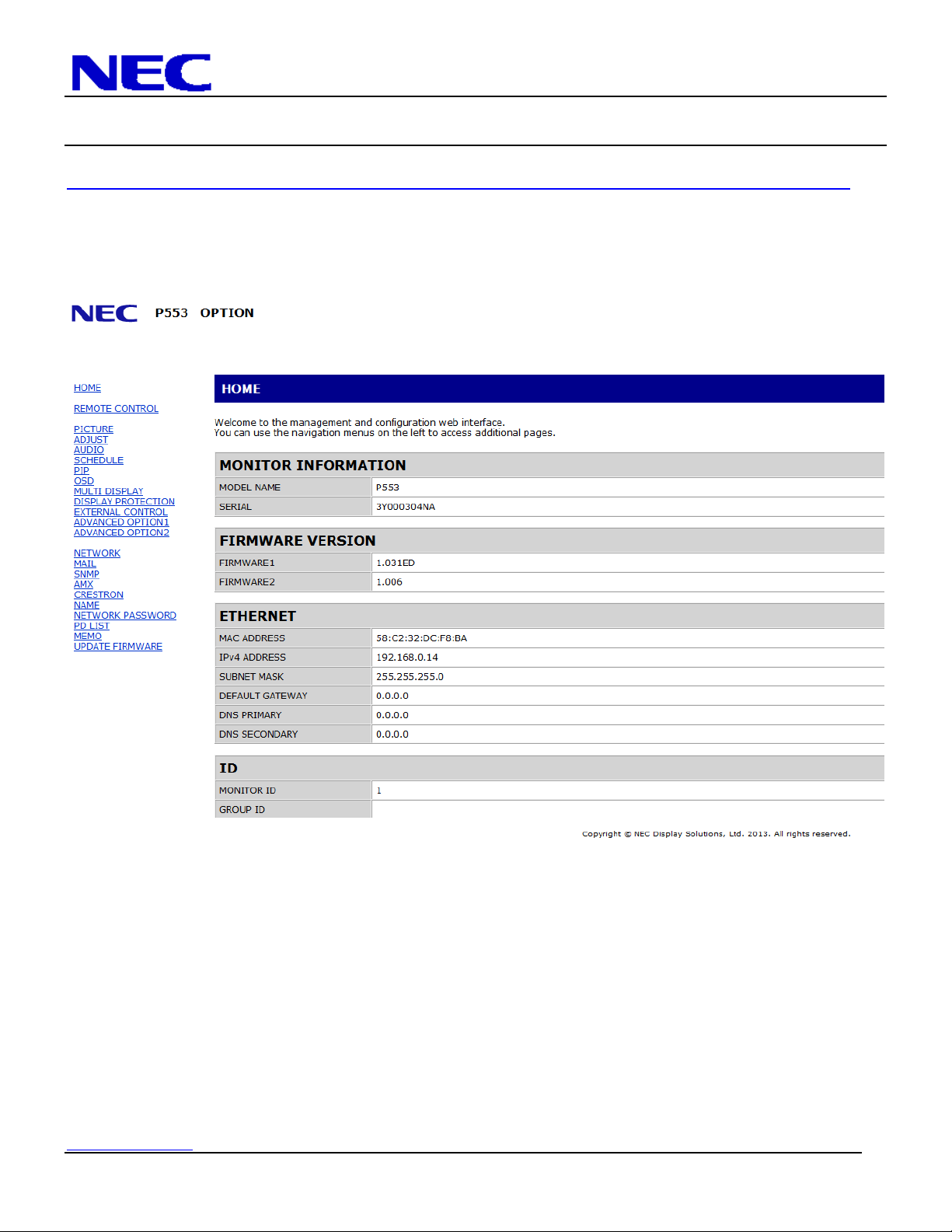

Browser Control
Information and control can also be available through the HTTP browser control menu.
In order to accomplish this, type: http://<the Monitor’s IP address>/pd_index.html
Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.
All displays are set to the IP address 192.168.0.10 out of the box
Communicating network PC needs to be on the same subnet as display that is being communicated with
NOTE:
Menus on the left side of the above screenshot can be altered to control the display
Menu above is consistent with the E805 even though it states P553 on top
www.necdisplay.com E805 Page 11 of 11
