User’s Manual
E553
E463
E423
E323
Index
Precautions And Reminders ���������������������������������������������������������������� English-1
Important Safety Instructions ��������������������������������������������������������������� English-2
Safety Instructions ������������������������������������������������������������������������������� English-5
Important Information �������������������������������������������������������������������������� English-6
Declaration Of Conformity ������������������������������������������������������������������� English-9
Preparation �����������������������������������������������������������������������������������������English-11

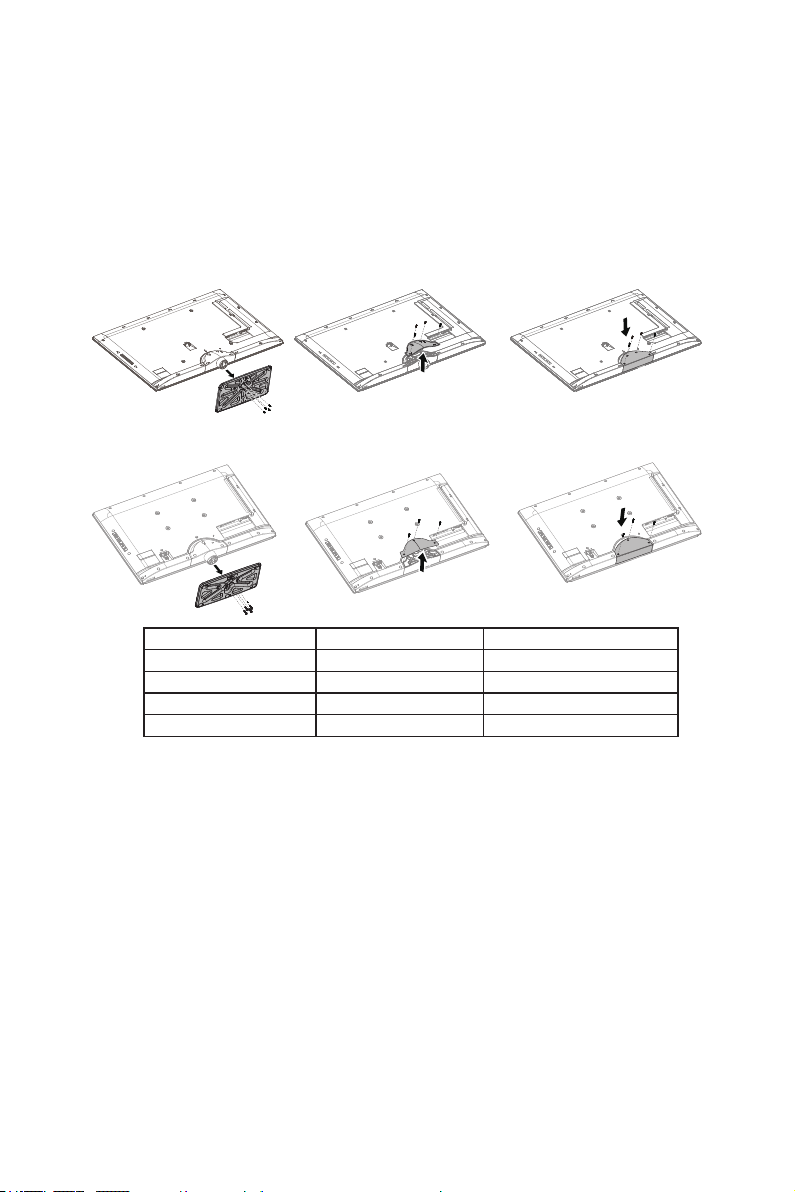

Attaching the Base �������������������������������������������������������������������English-11
Using Cable Clamper ���������������������������������������������������������������English-11
Preparing Your LCD Display For Wall Mounting(optional) ������ English-12
Place The Display On A Solid Surface ������������������������������������ English-13
Antenna Connection ���������������������������������������������������������������� English-13
Battery Installation and Replacement�������������������������������������� English-14

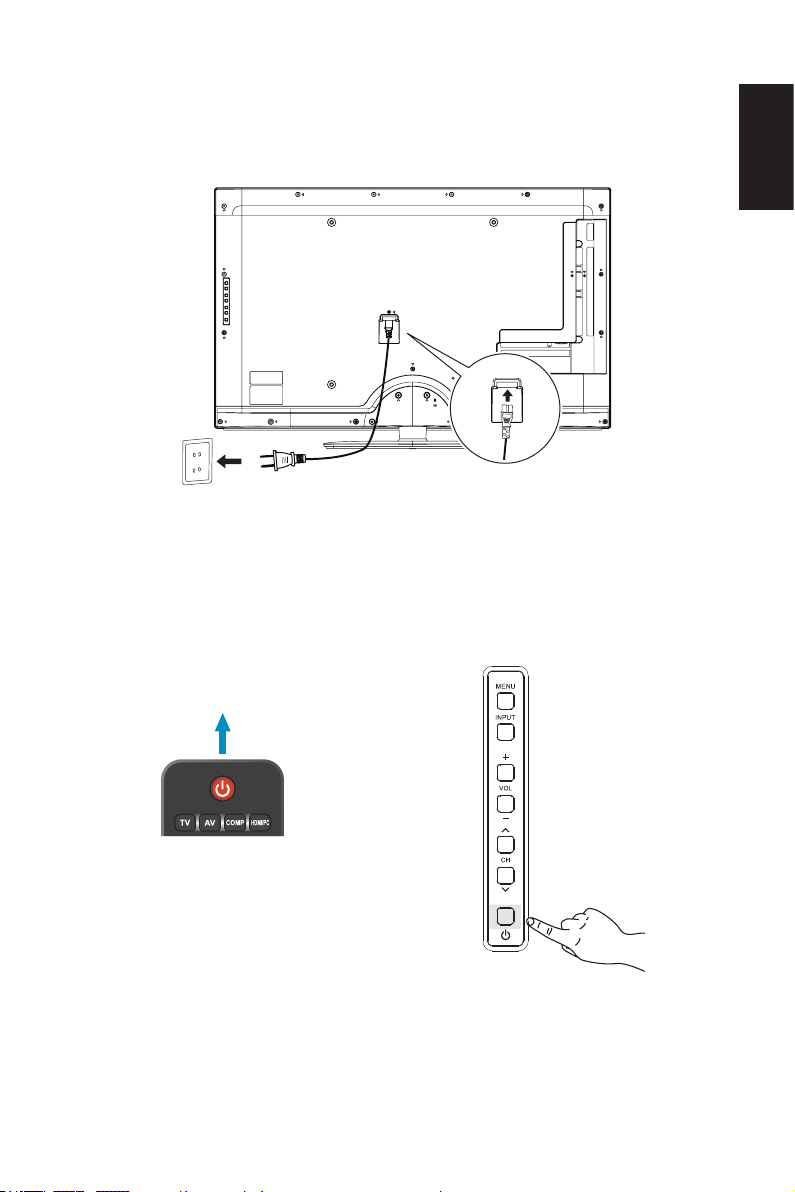

Connect To The Power Source ����������������������������������������������� English-15
Power On/Off Your New LCD Display ������������������������������������� English-15

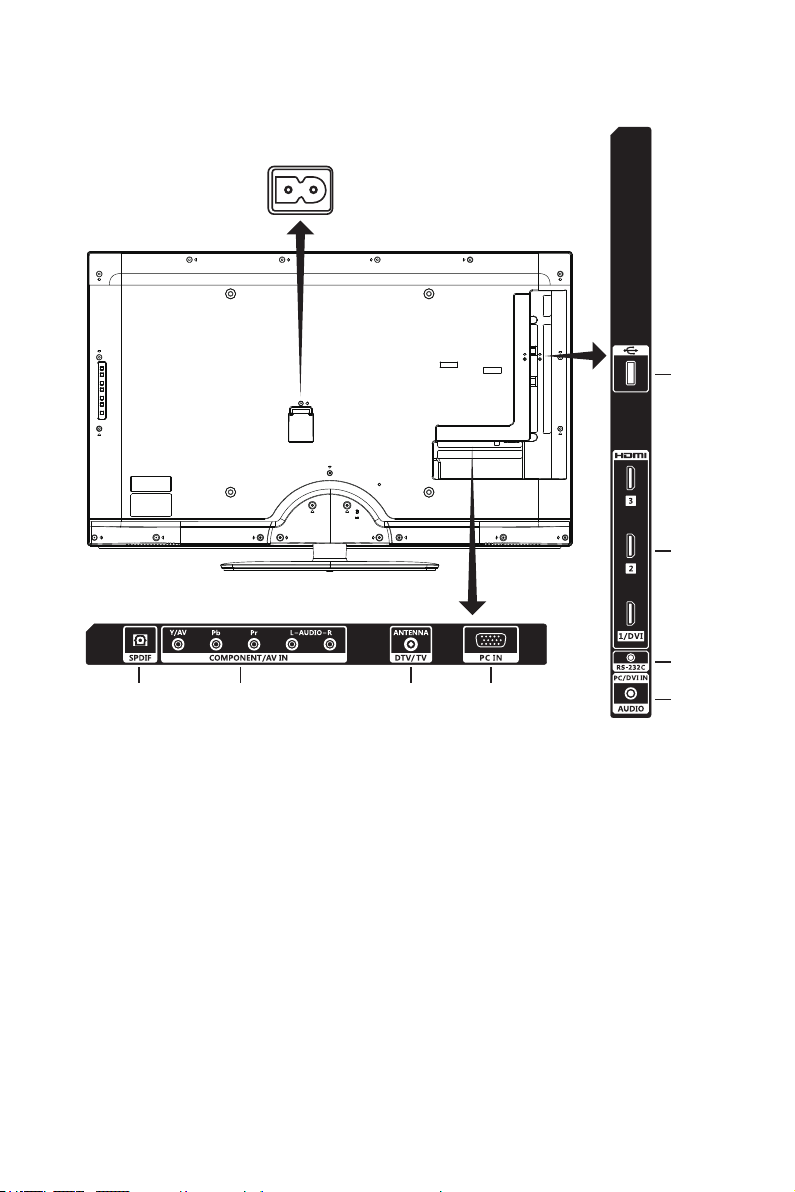

Source Connection Guide ������������������������������������������������������� English-16
RS-232C Port Specications ��������������������������������������������������� English-17
Power Mode Status ����������������������������������������������������������������� English-17
Operating Instructions ����������������������������������������������������������������������� English-18
Using The Side Panel Controls ����������������������������������������������� English-18
Using The Remote Control ������������������������������������������������������ English-19
Timing Table ���������������������������������������������������������������������������� English-20
Navigating The On-Screen Menu ������������������������������������������������������ English-21
Video Menu ����������������������������������������������������������������������������� English-21
Audio Menu ����������������������������������������������������������������������������� English-22
Channels Menu ����������������������������������������������������������������������� English-22
Setup Menu ����������������������������������������������������������������������������� English-23
Photos Menu ��������������������������������������������������������������������������� English-24
Tips ���������������������������������������������������������������������������������������������������� English-26
Care Of The Screen ���������������������������������������������������������������� English-26
Mobile Telephone Warning ������������������������������������������������������ English-26
End Of Life Directives�������������������������������������������������������������� English-26
License Notice and Trademark Acknowledgement ����������������� English-26
Product Specication ������������������������������������������������������������������������� English-27
Before Calling Service ����������������������������������������������������������������������� English-29
Glossary �������������������������������������������������������������������������������������������� English-30
Limited Warranty ������������������������������������������������������������������������������� English-31
References ���������������������������������������������������������������������������������������� English-32
www.necdisplaysolutions.com
Precautions And Reminders
Do not place the display
in conned spaces or in a
box when in use� Maintain
ample ventilation for the
display when in use�
Keep the display away
from direct sunlight, dust,
humidity, and smoke�
Unplug the AC cord from
the AC outlet before
cleaning� Do not use
liquid cleaners or aerosol
cleaners to clean the
display�
Do not open the display
cabinet�
Unplug immediately if any
foreign object is put in the
display or if the display
falls�
Do not place the display
near water such as a
bathtub, washbasin, sink,
laundry tub, swimming
pool, or a damp basement�
Call a NEC certied
service personnel for any
internal service needed
for your display�
Unplug immediately if
there is a display malfunction such as a loss of
audio/video, the presence
of smoke, or a bad odor
coming from the display�
Do not cover or block
any vents or openings�
Inadequate ventilation
may shorten the life of
the display and cause
overheating�
English
Place the unit on a sturdy,
even surface�
Do not insert any foreign
objects into the display
cabinet�
Notice for Remote Controller
Avoid Liquids
PRE CH
Ch-List
Avoid Aerosol Cleaners
PRE CH
Ch-List
English-1
Unplug the power cord
from the outlet when
the display is not in use
for long periods of time
(days)�
Avoid Dropping
PRE CH
Ch-List
Important Safety Instructions
Read before operating equipment
Follow all warnings and instructions marked on this display�
1� Read these instructions�
2� Keep these instructions�
3� Heed all warnings�
4� Follow all instructions�
5� Do not use this apparatus near water�
6� Clean only with dry cloth�
7� Do not block any ventilation openings� Install in accordance with
the manufacturer's instructions�
8� Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat�
9� Do not defeat the safety purpose of the polarized or grounding-
type plug� A polarized plug has two blades with one wider than the
other� A grounding type plug has two blades and a third grounding
prong� The wide blade or the third prong are provided for your
safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet�
10� Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus�
11� Only use attachments/accessories specied by the manufacturer.
12� Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus� When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over�
13� Unplug this apparatus during lightning storms or when unused for
S3125A
long periods of time�
14� Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped�
15� The display complies with the recommended safety standards
for stability� Do not put excessive force on the front or top of
the cabinet� This could cause the product to tip over and cause
damage and/or personal injury�
16� If monitor or glass is broken, do not come in contact with the liquid
crystal and handle with care�
17� Follow instructions for wall, shelf or ceiling mounting as
recommended by the manufacturer�
18� An outdoor antenna should not be located near overhead power
lines or any electrical circuits�
19� If an outside antenna is connected to the receiver, conrm that the
antenna system is grounded to protect against voltage surges and
built up static charges� Section 810 of the National Electric Code,
ANSI/NFPA No� 70-1984, provides information with respect to
proper grounding for the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit, size of grounding
connectors, location of antenna discharge unit, connection
to grounding electrodes and requirements for the grounding
electrode�
20� Rest your eyes periodically by focusing on an object at least 5 feet
away� Blink often�
21� Do not place any heavy objects on the power cord�
Damage to the cord may cause shock or re.
22� Do not use monitor in high temperature, humid, dusty, or oily
areas�
23� Do not bend, crimp or otherwise damage the power cord�
NOTE: To the display system installer: This reminder is provided
to call attention to Article 820-44 of the National Electric Code that
provides guidelines for proper grounding and, in particular, species
that the cable ground shall be connected to the grounding system of
the facility, as reasonably close to the point of cable entry as possible
English
English-3English-2
Power source
This LCD display operates on 120 volts 60 Hz, AC current� Insert the
power cord into a 120 volts 60 Hz outlet� The mains plug is used as
the disconnect device and shall remain readily operable�
To prevent electric shock from the display, do not use with an
extension cord, receptacle, or other outlet unless the blades and
ground terminal can be fully inserted to prevent blade exposure�
Never connect the LCD display to 50 Hz, direct current, or anything
other than the specied voltage.
CAUTION: Never remove the back cover of the LCD display as this
can expose you to very high voltages and other hazards� If the display
does not operate properly, unplug the LCD display and call your
authorized dealer or service center�
Adjust only those controls that are covered in the instructions, as
improper changes or modications not expressly approved by NEC
could void the user’s warranty�
Safety Instructions
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class II digital
device, pursuant to part 15 of the FCC Rules� These limits are designed to provide
reasonable protection against harmful interference in a residential installation� This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications� However, there is no guarantee that interference will not occur in a
particular installation� If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
1� Reorient or relocate the receiving antenna�
2� Increase the separation between the equipment and receiver�
3� Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected�
4� Consult the dealer or an experienced radio/TV technician for help�
FCC CAUTION
To assure continued compliance and possible undesirable interference, ferrite cores
may be used when connecting this LCD display to video equipment; and maintain at
least 400mm spacing to other peripheral device�
FCC warning
Changes or modications not expressly approved by the party responsible for
compliance with the FCC Rules could void the user’s authority to operate this
equipment�
English
Cables
Connections to this device must be made with shielded cables with metallic RF/EMI
connector hoods to maintain compliance with FCC Rules and Regulations�
Canadian notice
This Class II digital apparatus complies with Canadian ICES-003�
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada�
“Standard Television Receiving Apparatus-Appareil de reception télévision ordinaire,
Canada BETS-7 / NTMR-7”�
English-5English-4
Important Information
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE� ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG
WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE
PRONGS CAN BE FULLY INSERTED�
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE
COMPONENTS INSIDE�
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL�
CAUTION
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE
POWER CORD IS UNPLUGGED FROM WALL SOCKET� TO FULLY
DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT
THE POWER CORD FROM THE AC OUTLET� DO NOT REMOVE
COVER (OR BACK)� NO USER SERVICEABLE PARTS INSIDE�
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL�
This symbol warns user that uninsulated voltage within the unit may
have sufcient magnitude to cause electric shock. Therefore, it is
dangerous to make any kind of contact with any part inside this unit�
This symbol alerts the user that important literature concerning the
operation and maintenance of this unit has been included� Therefore, it
should be read carefully in order to avoid any problems�
CAUTION: Please use the power cord provided with this display in accordance with
the table below� If a power cord is not supplied with this equipment, please contact your
supplier�
Plug Type Plug Shape Region Voltage
North America U�S�A�/Canada AC 120 V
Apparatus shall not be exposed to dripping or splashing and no objects lled with
liquids, such as vases, shall be placed on the apparatus�
Batteries installed warning
Caution - Danger of explosion if batteries are incorrectly replaced� Replace only with
the same or equivalent type� The batteries shall not be exposed to excessive heat such
as sunshine, re or the like.
CAUTION:
These servicing instructions are for use by qualied service personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that contained in the
operating instructions unless you are qualied to do so.
Ventilation
The slots and openings in the display are provided for necessary ventilation� To ensure
reliable operation of the display and to protect it from overheating, these slots and
openings must never be blocked or covered�
Unless proper ventilation is provided, the display may gather dust and get dirty� For
proper ventilation, observe the following:
• Do not install the display face up, down or sideways�
• Do not install the display turned over or upside down�
• Never cover the slots and openings with a cloth or other materials�
• Never block the slots and openings by placing the display on a bed,
sofa, rug or other similar surface�
• Never place the display in a conned space, such as a bookcase or
built-in cabinet, unless proper ventilation is provided�
Leave some space around the display set as shown below� Otherwise, air-circulation
may be inadequate and will cause overheating, which may cause a re or damage to
the display set�
Install on the wall
English
4 inches
10 cm
11 7/8 inches
30 cm
4 inches
10 cm
English-7English-6
4 inches
10 cm
Leave at least this space
around the set.
Installed with stand
11 7/8 inches
30 cm
4 inches
10 cm
4 inches
10 cm
Leave at least this space
around the set.
4 inches
10 cm
Never install the display set where air-circulation is blocked�
Objects and ventilation holes
Never push objects of any kind into the display through the cabinet slots as they may
touch dangerous voltage points or short out parts that could result in a re or an electric
shock� Do not place any objects on the display�
Declaration Of Conformity
This device complies with Part 15 of FCC Rules� Operation is subject to the following
two conditions� (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation�
U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 500 Park Boulevard, Suite 1100
Itasca, Illinois 60143
Tel. No.: (630) 467-3000
Type of Product: Digital Signage Display
Equipment Classication: Class II Peripheral
Model: E553
E463
E423
E323
We hereby declare that the equipment specied above
conforms to the technical standards as specied in the FCC Rules.
Canadian Department of Communications Compliance Statement
DOC: This Class II digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations�
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations
according to CAN/CSA C22�2 No� 60065-03�
English
FCC Information:
1� Use the attached specied cables with the E323/E423/E463/E553 color
monitor so as not to interfere with radio and television reception�
(1) Please use the supplied power cord or equivalent to ensure FCC
compliance�
(2) Please use the supplied shielded video signal cable, Mini D-SUB 15
pin to Mini D-SUB 15 pin�
2� This equipment has been tested and found to abide by the limits of a
Class II digital device, pursuant to part 15 of the FCC Rules� These limits
are intended to provide reasonable security against harmful interference
in a residential deployment� This equipment generates, uses, and
can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications� However, there is no guarantee that interference will
not occur in a certain installation� If this equipment does cause damaging
interference to radio or television reception, which can be determined by
powering the equipment on and off, the user is encouraged to attempt
correcting the interference by one or more of the following procedures:
English-9English-8
3� following procedures:
®
• Reorient or relocate the receiving display�
• Increase the separation between the equipment and display�
• Connect the equipment into a different outlet than the receiver�
• Consult your dealer or an experienced radio/display technician for
assistance�
If necessary, the user should contact the dealer or an experienced radio/television
technician for additional suggestions. The user may nd the following booklet, prepared
by the Federal Communications Commission, helpful: “How to Identify and Resolve
Radio-display Interference Problems�” This booklet is available from the U�S�
Government Printing Ofce, Washington, D.C., 20402, Stock No. 004-000-00345-4.
Windows is a registered trademark of Microsoft Corporation�
NEC is a registered trademark of NEC Corporation�
All other brands and product names are trademarks or registered trademarks of their
respective owners�
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries�
Please keep the factory default settings as shipped, in which the product can meet
ENERGY STAR® requirements�
Preparation
IMPORTANT: Do not apply pressure to the screen display area which may compromise
the integrity of the display� The manufacturer’s warranty does not cover user abuse or
improper installations�
Attaching the Base
E553/E463/E423 E323
1� Place the display face down on a soft and at surface to prevent
scratching and damage�
2� Carefully align the base to the stand and fasten the screws with a cross-
head screwdriver�
CAUTION: The base of the stand is very heavy� Install with care to avoid injury such as
dropping the base onto one's foot�
English
Using Cable Clamper
Tie the cables together using the cable clamper�
English-11English-10
Preparing Your LCD Display For Wall
Mounting(optional)
We suggest that you keep your display at least 2�36 inches (60 mm) from the wall
to prevent cable interference� Before mounting your display on the wall, you need to
remove the base� For your safety, only mount with a UL listed wall mount bracket that
supports the weight of the display� (Please see page 28 �) To attach a wall mount
bracket to your display:
E553/E463/E423
E323
screen size (inches) required pitch (mm) require mounting bolts
32 200 x 100 4 x M4
42 400 x 400 4 x M6
46 400 x 400 4 x M6
55 400 x 400 4 x M6
1� Loosen the screws on the back of the stand-base, and remove the base�
2� Remove the screws that secure the cover, then remove the cover�
3� Secure the at stand cover to the back of your TV using the screws you
just removed�
4� Secure the wall mount bracket to the back of your display using four
M4 screws (for 32" TV only) or M6 screws(for 42"/46"/55" TV only)�
Note:
Wall mounting solution is not included with the unit and is sold separately� Contact your
NEC representative for details�
Place The Display On A Solid Surface
Ensure that the LCD display is placed
in a position to allow free ow of air. Do
not cover the ventilation openings on
the back cover� Do not place the display
near any open ames. Do not allow the
display to be placed in an environment
where it can be exposed to heat, direct
sunlight, or rain and water� Do not
expose the equipment to any liquid�
Min
1 m
Antenna Connection
Unless your LCD display is
connected to a cable TV system or
to a centralized antenna system, a
good outdoor color TV antenna is
recommended for best television
performance� However, if you are
located in an exceptionally good signal
area that is free from interference
and multiple image ghosts, an indoor
antenna may be sufcient.
When using a 75-Ohm coaxial cable system, connect the CATV coaxial cable to the
AIR/CABLE (75-Ohm) terminal� Or if you have an antenna, connect the coaxial cable to
the same AIR/CABLE terminal�
English
English-13English-12
Battery Installation and Replacement
The remote control is powered by two 1�5V AAA batteries� To install or replace batteries:
1� Open the battery cover of the remote control by pushing and pulling it in
the direction of the arrow�
2� Insert two new “AAA” size batteries for the remote control� When replacing
old batteries, push them towards the springs and lift them out�
3� Match the batteries to the (+) and (-) marks in the battery compartment�
4� Insert the bottom of the battery, the (-) side, into the battery compartment
rst, push towards the springs and insert the top of the battery, the (+)
side, into place� Do not force the battery into the battery compartment�
5� Close the battery cover making sure the tabs rest in the corresponding
holes and push down the cover until it clicks shut�
CAUTION: Incorrect usage of batteries can result in leaks or bursting�
NEC recommends the following battery use:
• Do not mix battery brands�
• Danger of explosion if battery is
incorrectly replaced� Replace only
with the same or equivalent type�
• Do not combine new and old
batteries� This can shorten the
battery life or cause liquid leakage
of the batteries�
• Remove dead batteries
immediately to prevent battery
acid from leaking into the battery
compartment�
• Do not touch exposed battery acid
as it may injure skin�
• Remove the batteries if you do not
intend to use the remote control for a long period of time�
Connect To The Power Source
The display should be installed close to an easily accessible power outlet� Fully
insert the prongs into the power outlet socket� A loose connection may cause image
degradation�
If there is power to the display, the front LED at the bottom of the display will be either
blue or red� A blue LED means the display is powered on� A red LED means the display
is in standby mode�
Power On/Off Your New LCD Display
Press the power key on the remote control or press the power button located on the side
of the display� The display will power on�
English
Power Key
or
English-15English-14
Source Connection Guide
AC POWER
❽
❼
❻
❶
❷ ❸ ❹
❺
1� SPDIF - Use a digital audio cable to connectstereo home theater system�
2� COMPONENT/AV IN – Connect digital video equipment to the Video
Green (Y), Blue (Pb), Red (Pr) jacks, and matching Audio White (L) and
Red (R) jacks�
3� ANTENNA/DTV/TV – Connect an RF antenna or Analog Cable system�
4� PC IN – Connect your PC video�
5� PC IN/AUDIO – CPC IN/AUDIO
6� RS-232C – Input from external equipment such as a PC or AV control
system in order to control RS-232C functions
7� HDMI (HDMI1/DVI, HDMI2, HDMI3) – Connect your HDMI devices�
8� USB PORT – Used for accessing JPEG photo les.
Once your AV device is connected, press the
select the relevant source to view� (ex: Press COMP button to select “Component” if you
have connected a source to the Component input�)
Source
button on the remote control to
RS-232C Port Specifications
PC control of the Display
Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-Sub
RS-232C for the connections�
Note: This operation system should be used by a person who is accustomed to using
computers�
Communication conditions
Set the RS-232C communication settings on the PC to match the display's
communication conditions�
The display's communication settings are as follows:
Baud rate: 9,600 bps
Data length: 8 bits
Parity bit: None
Stop bit: 1 bit
Communication procedure
Send the control commands from the PC via the RS- 232C connector�
The display operates according to the received command and sends a response
message to the PC�
Do not send multiple commands at the same time� Wait until the PC receives the
response before sending the next command�
Power Mode Status
Mode LED Status
On None
Standby Red
Warming
Power saving support automatically power on when signal appear�
Standby to power on by touch up remote or keypad power button�
up
Blinking Red
English
English-17English-16
Operating Instructions
Using The Side Panel Controls
1� MENU Press to open or exit the OSD (On-Screen Display) menu�
2� INPUT Press to select the input source�
3� VOL +
4� VOL -
5� CH
6� CH
7� Press to turn on / off (standby) the display�
Press to increase the volume�
Press this key to shift Right in the OSD menu�
Press to decrease the volume�
Press this key to shift Left in the OSD menu�
Press to increase the channel number�
Press this key to shift up in the OSD menu�
Press to decrease the channel number�
Press this key to shift down in the OSD menu�
Using The Remote Control
Power
Press to turn On/Off (standby) the
power� (Note: To completely turn off
the power, unplug the AC cord from
the power outlet�)
TV
Press to choose ATSC/NTSC tuner
source mode�
AV
Press to choose Composite source
mode�
COMP
Press to choose Component source
mode�
HDMI/PC
Press repeatedly to choose PC IN or
HDMI source mode�
0 ─ 9 / - number
Press to select channel (Press ‘-’ to
choose the sub-channel)�
PRE CH
Press to display the previous
channel�
Source
Press repeatedly to choose the
various input sources�
Mute
Switch the sound On/Off�
VOL+ / VOL-
Press + or - to adjust the volume�
CH+ / CH-
Press + or - to browse through the
channels�
Exit
Press to exit the OSD menu�
Display
Press to show the information about
the input source and tuner channel�
English
PRE CH
Ch-List
FAV
Press to display the Favorite List�
Menu
Press to open the OSD menu�
▲, ▼, ◄, ►, OK
Press to select or confirm the various
function items on the menu�
English-19English-18
Color buttons
Follow the on-screen instruction to
operate�
MTS
Press to activate the NTSC tuner
sounds such as Stereo, SAP, Monotone, and languages of the digital
tuner�
Audio
Press to choose sound mode:
Standard/ Movie/ Music/ News/
Custom/ Equalizer�
Ch-List
Press to display the Channel List�
C.C.
Press to activate the Closed Caption�
Wide
Press to choose the display aspect
ratio: Normal/Zoom/Wide/Cinema/
Auto (Ratio availability varies by
video inputs� Refer to the Picture
Format Table below for details�)
Press to choose the picture mode:
Dynamic/ Standard/ Energy Savings/
Theater/ Custom�
Timing Table
WXGA model FHD model Horizontal Vertical
Resolution VGA DVI VGA DVI
640x480@60Hz ● ● ● ● 31.469 _ 59.940 _ 25.175
720x400@70Hz ● ● ● ● 31.469 _ 70.087 + 28.322
800x600@60Hz ● ● ● ● 37.879 + 60.317 + 40.000
1024x768@60Hz ● ● ● ● 48.363 _ 60.004 _ 65.000
1280x720@60Hz ● ● ● ● 44.772 _ 59.855 + 74.500
1280x800 @60Hz ● ● ● ● 49.702 _ 59.810 + 83.500
1360x768@60Hz ● ● ● ● 47.712 + 60.015 + 85.500
1920x1080@60Hz ● ● 67.500 + 60.000 + 148.500
Nominal
Freq.
(KHz)
Polarity
Sync
Nominal
Freq.
(Hz)
Sync
Polarity
Nominal
Pixel
Clock (MHz)
WXGA model FHD model
Resolution HDMI Component HDMI Component
720x480i 59.94/60Hz ● ● ● ●
720x480P 59.94/60Hz ● ● ● ●
720P 59.94/60Hz ●(Native) ● ● ●
1080i 59.94/ 60Hz ● ● ● ●
1080P 24Hz ● ●
1080P 30Hz ● ●
1080P 60Hz ● ●(Native)
Navigating The On-Screen Menu
Press the Menu button to display and Exit to close the main menu�
Use the Navigation Ring to navigate,
select, adjust or conrm an item on the
OSD (On Screen Display) menu�
Note: Some features may only be
available in a particular source mode�
[Color Temperature]
Selects a choice of Cool, Normal,
or Warm�
[Noise Reduction]
Set to reduce video noise�
Video Menu
This menu adjusts video items�
Video
Audio
Channels
Setup
Photos
Adjust picture settings and customize picture quality
MOVE EXIT
MOVE SELECT RETURN
Picture Mode
Brightness
Contrast
Color
Advanced Video
Reset Video Settings
OK
Energy Savings
50
60
55
MENU
EXIT
[Tint]
Adjust the hue(Red,Yellow,Green)
of the picture from R50 ─ G50.
[Sharpness]
adjust object edges to optimize
picture detail from 0 ─ 100.
[Adaptive Contrast]
Set to automatically adjust the
picture detail and brightness�
[Aspect Ratio]
Adjust how the picture lls the
screen�
[Overscan (On/Off)]
1� Picture Mode
Enter this menu to select from
preset picture settings to optimize
your display’s performance:
Dynamic/ Standard/ Energy
Savings/ Theater/ Game(E553
only)/ Custom�
2� Brightness
Adjust picture brightness from 0
─ 100.
3� Contrast
Adjust picture contrast from 0 ─
100�
4� Color
Adjust picture color from 0 ─
Set "OFF" to show the full image
on the display when connecting a
computer�
Set "ON" to show the full
image on the display when not
connected with a computer�
[Backlight]
Set the backlight brightness�
[Motion 120Hz]
(E553 only)� Eliminates motion
blur with clear detail and smooth
motion�
6� Reset Video Settings
Reset Video settings to factory
default settings�
100�
5� Advanced Video
Select advanced video settings�
[Dynamic Backlight(DCR)]
Enhance the contrasts between
darkness and brightness to
optimization picture�
English
English-21English-20
Audio Menu
The Audio menu provides an audio
adjustment for user to modify the audio
setting�
Video
Audio
Channels
Setup
Photos
Adjust settings to affect sound quality.
MOVE SELECT RETURN EXIT
1� Sound Mode
Select preset audio modes�
The options are:Standard/
Movie/ Music/ News/ Custom/
Equalizer�
2� Balance
Adjust the audio balance for the
display's internal left and right
speakers from L50 ─ R50.
3� Advanced Audio
Select advanced audio settings�
[Bass]
Enhance the low frequencies�
[Treble]
Enhance the high frequencies�
[Equalizer]
Adjust the audio frequencies in
ve preset rangesranges:
400Hz,1�2KHz, 4KHz, 9�5KHz
[Internal Speakers]
Select "Off" if you don't need the
internal speakers�
[Digital Output]
Select optical output options:
RAW or PCM (available for
digital channel and HDMI)�
[Audio Source]
Select audio sources among
Stereo/ Mono/ SAP in analog
channels�
Sound Mode
Balance
Advanced Audio
Reset Audio Settings
OK
MENU
Standard
0
EXIT
130Hz,
�
[Audio Language ]
Select language options in digital
channels�
4� Reset Audio Settings
Reset Audio settings to factory
default settings�
Channels Menu
The channel menu sets your signal source
options�According to various requirements
in different source modes, certain features
could be hidden (disabled) on the menu�
Video
Audio
Channels
Setup
Photos
Adjust channel options.
MOVE SELECT RETURN EXIT
1� Auto Channel Scan
Automatically search the
available channels�
2� Signal Strength
Access signal strength meter to
help you adjust your antenna
installation to optimize signal
reception�(available for digital
channel)�
3� Add/Skip Channels
Manually add or skip channels to
the display's program list�
4� Favorite Channels
Add channels to create your
favorite list�
5� Channel Labels
Create labels to any channel�
6� Audio Only
Play the audio only with picture
turned off�Any press of the button
except the [POWER] button on
the remote control will turn on
the picture�
Auto Channel Scan
Signal Strength
Add/Skip Channels
Favorite Channels
Channel Labels
Audio Only
Auto Aspect
OK
MENU
Off
On
EXIT
7� Auto Aspect
Automatically adjust the picture
aspect ratio according to the TV
program�
Setup Menu
The Setup menu in TV mode is shown
below� According to various requirements
in different source modes, certain features
could be hidden (disabled) on the menu�
Video
Audio
Channels
Setup
Photos
Set various TV options.
MOVE SELECT RETURN EXIT
Video
Audio
Channels
Setup
Photos
Set various TV options.
MOVE SELECT RETURN EXIT
1� Menu Language
Select the menu display
language� (English/Español/
Français)
2� Parental Controls
Set TV parental controls� This
function blocks out the picture
and sound of the selected rating
levels�
The factory preset password
to enter the Parental Controls
feature is a 4-digit number 0000�
Menu Language
Parental Controls
Closed Caption
Sleep Timer
Input Labels
RGB Options
System Info
OK
OK
MENU
Input Labels
RGB Options
System Info
Energy Options Home
Monitor ID
Reset AV & Setup
MENU
English
Off
EXIT
OffSleep Timer
EXIT
[Panel Lock]
Lock or unlock all buttons on the
display's panel�
[Block Unrated TV]
Block or unblock the unrated
programs�
[US]
Set the parental control level
using the Movie or TV Rating�
[Canadian]
Set the parental control level
using the Canadian English or
Canadian French�
[Change Password]
Change the 4-digit password�
You will have to enter the new
password rst and then enter
again the new password to
conrm. Make sure to keep your
new password�
[Region 5]
Use Region 5 to block various
types of movies and television
programs based on ratings
systems used in the USA that
you feel may be inappropriate
due to its content� The Region
5 option will operate for Digital
Channels (ATSC) only�
[Reset Region 5]
Clear the downloaded RRT5
rating information and restore to
the factory default settings�
3� Closed Caption
Adjust the Closed Caption
settings�The options are: Caption
Display, Analog Captions, Digital
Captions, Digital Caption Options.
4� Sleep Timer
Select how long the display will
take to automatically turn intself
off� The options are: Off, 5, 10,
15, 30, 60, 90, 120, 180, and 240
minutes�
English
English-23English-22
5� Input Labels-- only for Non TV
input
Create labels for the devices
connected to your display�
6� RGB Options
Only available for VGA input, and
when there is VGA signal input�
[Auto Adjust]
Automatically adjusts the image
settings such as position�
[H-Position]
Adjusts horizontal position�
[V-Position]
Adjusts vertical position�
[Clock]
Sets to the minimum level if
noise occurs�
[Phase]
Eliminates icker and distortion.
[Reset RGB Options]
Reset RGB Options to factory
default settings�
7� System Info
Indicate the display information�
8� Energy Options
Select the power saving modes�
Home
The
mode is intended for
home use, and will save much
energy�
Retail
The
mode sets the display
to a more energy consuming
mode�
9� Monitor ID
Set the monitor ID number from
1-100, All or Group A-J.
10� Reset AV & Setup
Reset all Audio, Video, and
Setup settings to factory default
settings.
Photos Menu
You could easily browse images from
USB device�
Video
Audio
Channels
Setup
Photos
View files from a USB flash drive that is connected to the TV.
MOVE SELECT RETURN EXIT
If no USB device is detected, display
the message: “Please Insert USB ash
driver�"
1� Browse Photos
Find photos on the USB drive�
2� Favorite Photos
Select only your favorite photos
to show�
3� View Slideshow
View your photos in a slideshow
manner�
4� Settings
Change the slidwshow settings�
The options are:
Shufe/Speed/ Transition
To control while in photo folder:
• Press UP/DOWN/LEFT/RIGHT to
browse the photo les.
• Press OK to open a folder or a
photo le which will be viewed on
the full screen�
• Press MENU to return to USB
Main Menu�
• Press FAVORITE to add a photo
le to favorite list or delete from
favorite list�
Photos
OK
MENU
Repeat/
EXIT
�
To control while in full-screen
photo show:
• Press RIGHT to go to the next
image� Press LEFT to go to the
previous image�
• Press OK to rotate the image
clockwise� When press enter
to rotate the photo, the rotation
situation will change to Zoom Fill
style�
• Press Wide to zoom the image�
The zoom function will switch
between the 4 styles by cycle and
"x1" "x2" "x4" "Fill" info bar will
appear on the right/down corner
of screen(If the image resolution
over size will not aspect "x1")�
• Press MENU to return to the
Folder/Photo List View�
To control while in photo
slideshow:
• Press OK to play or pause
slideshow�
• Press MENU to stop the
slideshow and return to photo
browser�
CAUTION:
• USB photo viewer only supports
USB Mass storage class devices�
• A JPEG image modied with PC
may not be displayed�
• Partly degraded les might be
displayed at a reduced resolution�
• Not guaranteed to support all
USB devices�
• Do not use a USB Hub�
• Do not support multi-partition
USB�
NOTES:
• The folder and le names may be
different depending on the digital
camera used�
• Support USB 2�0 Type A
connector (DC5V, max� 500mA)�
For USB device over 500mA,
we suggest to use adaptor or
external power�
English
Data Format for USB Photo Viewer
Data format JPEG, JPG, JPE
Max. folder layer 9
Max. number of
photos
Max. number of
favorite photos
Min. image
resolution
Max. image
resolution
(Progressive DCT)
Max. image
resolution
(Baseline
Sequential DCT)
Supported le
system
1200
250
75 x 75 pixels
1024 x 768 pixels
15360 x 8640 pixels
FAT32
English-25English-24
Tips
®
Care Of The Screen
Do not rub or strike the screen with anything hard as this may scratch, mar, or even
damage the screen permanently� Unplug the power cord before cleaning the screen�
Dust the display by wiping the screen and the cabinet with a soft, clean cloth� If the
screen requires additional cleaning, use a clean, damp cloth� Do not use liquid cleaners,
aerosol cleaners, or solvents of any kind�
Mobile Telephone Warning
Keep your mobile telephone away from your display to avoid disturbances in the picture
or sound, possibly causing permanent damage to your display�
End Of Life Directives
In an effort to produce environmentally friendly products, your new display contains
materials that can be recycled and reused� At the end of your displays life, specialized
companies can minimize display waste by separating the reusable materials from
non-reusable materials� Please ensure you dispose of your display according to local
regulations�
License Notice and Trademark Acknowledgement
HDMI, the HDMI logo and High-Denition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries�
Manufactured under license from Dolby Labortories� Dolby and the double-D
symbol are trademarks of Dolby Laboratories�
Product Specification
This model complies with the specications listed below.
Reorient or relocate the receiving display�
Designs and specications are subject to change without notice.
This model may not be compatible with features and/or specications that may be
added in the future�
Model Name E323 E423 E463 E553
DISPLAY
Viewable 32” 42” 46” 55”
Television System NTSC Standard, ATSC Standard (8-VSB, Clear-QAM)
VHF: 2 through 13
UHF: 14 through 69
Channel Coverage
Connectors
Cable TV: Mild band (A - 8 through A - 1, A through I),
Super band (J through W),
Hyper band (AA through ZZ, AAA, BBB),
Ultra band (65 through 94, 100 through 125)
CONNECTIONS
Downward
AIR/CABLE
SPDIF DIGITAL OUT
Component and L/R Audio Input
Composite(share with component)
PC IN: D-SUB
Side
English
HDMI 1, HDMI 2, HDMI 3
PC IN: PC Audio
RS-232C(use earphone jack)
USB
WEIGHT & DIMENSIOIN
Dimensions w/ Stand
(W x H x D) (inch)
Dimensions w/o Stand
and Base (W x H x D)
(inch)
Weight w/ Stand (lbs) 20.26 30.79 36.34 56.59
Weight w/o Stand and
Base (lbs)
29.34 x 20.2 x 7.09 38.51 x 25.3 x 9.06 41.96 x 27.36 x 9.05 49.65 x 32.7 x 10.43
29.34 x 18.36 x 2.28 38.51 x 23.54 x 2.28 41.96 x 25.46 x 2.28 49.65 x 30.7 x 1.97
17.61 27.29 32.82 50.02
English-27English-26
Model Name E323 E423 E463 E553
WALL MOUNTING
VESA-compatible wall
bracket (W x H)
Screw type
200 x 100 mm 400 x 400 mm 400 x 400 mm 400 x 400 mm
Metric
4 x 18 mm
Metric
6 x 18 mm
Metric
6 x 18 mm
Metric
6 x 18 mm
POWER
Power Consumption 51 W 81 W 107 W 135 W
Standby < 1 W
Power AC 120V, 60Hz
AUDIO POWER
Power Consumption 2 x 10 W 2 x 10 W 2 x 10 W 2 x 10 W
OPERATING ENVIRONMENT
Temperature 0°C ─ 40°C / 32°F ─ 104°F
Humidity 10% ─ 85%
Height 3000m
STORAGE ENVIRONMENT
Temperature
Relative Humidity 5% ─ 85%
-10°C ─ 50°C / 14°F ─ 122°F
Absolute Air Humidity 1─25 g/m3
Max� Change of Temp� 0�5°C/min (max� 10°C/30min)
Air Pressure 700 ─ 1060 mbar (70─106Kpa)
Raditiation Solar Heat 700 W/m2
PACKAGE CONTENTS
1x Display
1x Power Cord
1x D-sub Cable
1x Stand Base
Supplied Accessories
1x Remote Control
1x Mini jack to D-sub(9 pin) cable
2x 1�5V AAA Size Batteries
4x Stand Screws
1x User Manual
1x cover stand
All specications, weights, and dimensions are subject to change without prior notice.
Please access www.necdisplay.com for detailed specications and dimensions for
custom installations�
Before Calling Service
Please make these simple checks before calling service� These tips may save you time
and money as charges for receiver installation and adjustments of customer controls are
not covered under your warranty�
Symptoms Items To Check And Actions To Follow
“Ghost ” or double
image when using the
tuner
No power
No picture
Good picture but no
sound
Good sound but poor
color
Poor picture
Snowy picture and
noise when using the
tuner
Presence of a horizontal
dotted line
Display not responding
via the remote control
• This may be caused by an obstruction to the
antenna due to high rise buildings or hills� Using a
highly directional antenna may improve the picture�
• Check to see if the display’s AC power cord is
plugged into the outlet�
• Unplug the display and after 60 seconds reinsert
the plug into the outlet and power on the display�
• At the rear of the display make sure the antenna
connection is properly attached�
• Check to see if there is a station broadcast problem
by trying multiple channels�
• Adjust the contrast and brightness settings�
• Check the Closed Caption settings as some text
modes may block the visibility of the images on the
display�
• Increase the VOLUME�
• Conrm that the display is not muted by pressing
the MUTE button on the remote control�
• Adjust the contrast, color and brightness settings�
• Poor picture quality may occur when an activated
S-VHS camera or camcorder is connected to your
display and another peripheral at the same time�
Switch off one of the peripherals�
• Check the antenna connection and signal�
• This may be caused by electrical interference (e�g�
hairdryer, nearby neon lights, etc�)�
• Power cycle the equipment by turning off and then
turning back on�
• Determine if the batteries are working and replace
batteries if necessary�
• Clean the remote control sensor lens on the
display�
• If necessary, utilize the buttons located on the side
of the display�
• Select the TV mode to ensure your remote control
is set in the TV mode�
English
English-29English-28
Glossary
HDTV
HDTV displays are technically defined as being capable of displaying a
minimum of 720p or 1080i active scan lines�
HDMI Inputs
High-Definition Multimedia Interface Audio / Video Inputs are located on the
rear of the receiver� These connectors are used for the input of audio and
video signals� Designed to receive higher picture resolution and offer sound
connection options�
Menu
An on-screen listing of features shown on the display screen is made available
for user adjustments�
MPAA
Motion Picture Association of America
Multichannel Television sound (MTS)
The broadcasting standard, which allows stereo sounds to be transmitted with
the display picture�
RF
Radio Frequency or modulated signal design used by the carrier for television
broadcasts�
Second Audio Program (SAP)
Another or additional audio channel provided for in the Multichannel Television
Sound (MTS) broadcast standard� A monaural soundtrack included within the
recorded or video signal (usually containing a second language translation for
the displayed program)�
Sleep Timer
You can set a time period for which the display will automatically turn off�
Limited Warranty
NEC Display Solutions of America, Inc� (hereinafter “NEC DISPLAY SOLUTIONS”)
warrants this Product to be free from defects in material and workmanship and,
subject to the conditions set forth below, agrees to repair or replace (at NEC DISPLAY
SOLUTIONS’ sole option) any part of the enclosed unit which proves defective for a
period of three (3) years from the date of rst consumer purchase. Spare parts are
warranted for ninety (90) days, Replacement parts of unit may be new or refurbished
and will meet specications of the original parts or unit. This warranty gives you specic
legal rights and you may also have other rights, which vary from state to state, this
warranty is limited to the original purchaser of the Product and is not transferable�
This warranty covers only NEC DISPLAY SOLUTIONS supplied components� Service
required as a result of third party components is not covered under this warranty� In
order to be covered under this warranty, the Product must have been purchased in
the U�S�A� or Canada by the original purchaser� This warranty only covers Product
distribution in the U�S�A� or Canada by NEC DISPLAY SOLUTIONS� No warranty
service is provided outside of the U�S�A� or Canada, Proof of Purchase will be required
by NEC DISPLAY SOLUTIONS to substantiate date of purchase� Such proof of
purchase must be an original bill of sale or receipt containing name and address of
seller, purchaser, and the serial number of the product�
It shall be your obligation and expense to have the Product shipped, freight prepaid,
or delivered to the authorized reseller from whom it was purchased or other facility
authorized by NEC DISPLAY SOLUTIONS to render the services provided hereunder in
either the original package or a similar package affording an equal degree of protection�
All Products returned to NEC DISPLAY SOLUTIONS for service MUST have prior
approval, which may be obtained by calling 1-800-632-4662� The Product shall not have
been previously altered, repaired, or serviced by anyone other than a service facility
authorized by NEC DISPLAY SOLUTIONS to render such service� The serial number
of the product shall not have been altered or removed� In order to be covered by this
warranty the Product shall not have been subjected to displaying of xed images for
long periods of time resulting in image persistence (afterimage effects), accident, misuse
or abuse or operated contrary to the instructions contained in the User’s Manual� Any
such conditions will void this warranty�
NEC DISPLAY SOLUTIONS SHALL NOT BE LIABLE FOR DIRECT, INDIRECT,
INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING
FROM THE USE OF ANY NEC DISPLAY SOLUTIONS PRODUCT OTHER THAN
THE LIABILITY STATED ABOVE� THESE WARRANTIES ARE IN LIEU OF ALL
OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE� SOME STATES DO NOT ALLOW THE EXCLUSION OF
IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR
INCIDENTAL OR WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS
OR LIMITATIONS MAY NOT APPLY TO YOU�
This Product is warranted in accordance with the terms of this limited warranty�
Consumers are cautioned that Product performance is affected by system conguration,
software, the application, customer data, and operator control of the system, among
other factors, While NEC DISPLAY SOLUTIONS Products are considered to be
compatible with many systems, specic functional implementation by the customers
of the Product may very. Therefore, suitability of a Product for a specic purpose or
application must be determined by consumer and is not warranted by NEC DISPLAY
SOLUTIONS�
For the name of your nearest authorized NEC Display Solutions of America, Inc� service
facility, contact NEC Display Solutions of America, Inc� at 1-800-632-4662�
English
English-31English-30
References
NEC Monitor Customer Service & Support
Customer Service and Technical Support
Parts and Accessories (800) 632-4662
(888) 634-4662 Fax (800) 695-3044
Warranty Information
www�necdisplay�com
Online Technical Support
www�necdisplay�com
Sales and Product Information
Sales information Line
(888) 632-6487
Canadian Customers
(866) 771-0266, Ext#: 4037
Government Sales
(800) 284-6320
Government Sales email
gov@necdisplay�com
Electronic Channels
http://www�necdisplay�com
Product Registration
http://www�necdisplay�com
Drivers and Downloads
http://www�necdisplay�com
Loading...
