Table of Contents

Telephone Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Entering the Programming Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Navigating through Telephone Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

IntraMail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DS-Series to DSX Program Cross Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

DS-Series to DSX Cross Reference Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

DSX Program List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

DSX Programmer’s Quick Reference

Table of Contents ◆ i

ii ◆

Table of Contents

DSX Programmer’s Quick Reference

Programming

Telephone

Programming

Telephone Programming

Entering the Programming Mode

From any DSX keyset:

Press

INTERCOM

Dial

#*#*

Enter the system password.

•

0000

•

9999

•

632379 (NECDSX)

Press

HOLD

See Navigating through Telephone Programming on the next page for more.

= System Administrator 1 (level 1) = System Administrator 2 (level 2)

= Installer (level 3)

DSX Programmer’s Quick Reference

Telephone Programming ◆ 1

2 ◆

Telephone Programming

Navigating through Telephone Programming

Use the following guidelines when using the DSX telephone programming.

Navigation

Option

22- and 34-Button Keyset

Soft Keys

Flashing Cursor

Super Display Keyset

Navigation (Line 1)

Use this line to select the program, option, port, extension, or table you want to customize. After entering the programming mode and selecting a program (e.g. 2104-01), Navigation (line 1) shows:

• The program (

• The port’s extension number - if any (

• The station, line, COS, or table number (

To advance to the option line (for editing data):

While the option is ﬂashing (e.g., 01 in the above example), press

• Pressing

Volume

To select another extension and advance to the option line (for entering data):

up and

2104

) and option number (

Navigation

Volume

down will scroll through the options for the selected port.

Ext-300

Sta-001

(Line 1)

[ ] = Soft Key

)

HOLD

twice.

While the option is ﬂashing (e.g., 01 in the above example), press

To navigate by extension or station instead of option:

While the option is ﬂashing (e.g., 01 in the above example), press

• Select either the extension number or station port.

Press

Volume Up

and

Volume Down

to scroll through the same option for stations or extensions, depending on

which you selected.

Press

[Select]

HOLD

[Select]

SPEAKER

[Back]

HOLD

to advance (drill down to) the option.

Key Options

Advance (drill down to) Options .

Sequentially back up (and out) of programming.

•

SPEAKER

normally ﬂashes green. In the data entry mode it ﬂashes red.

Sequentially back up (and out) of programming.

Telephone Programming

HOLD

+ Enter extension number +

[>>]

TRANSFER

DSX Programmer’s Quick Reference

HOLD

Navigation

Option

Telephone Programming

Programming

Telephone

22- and 34-Button Keyset

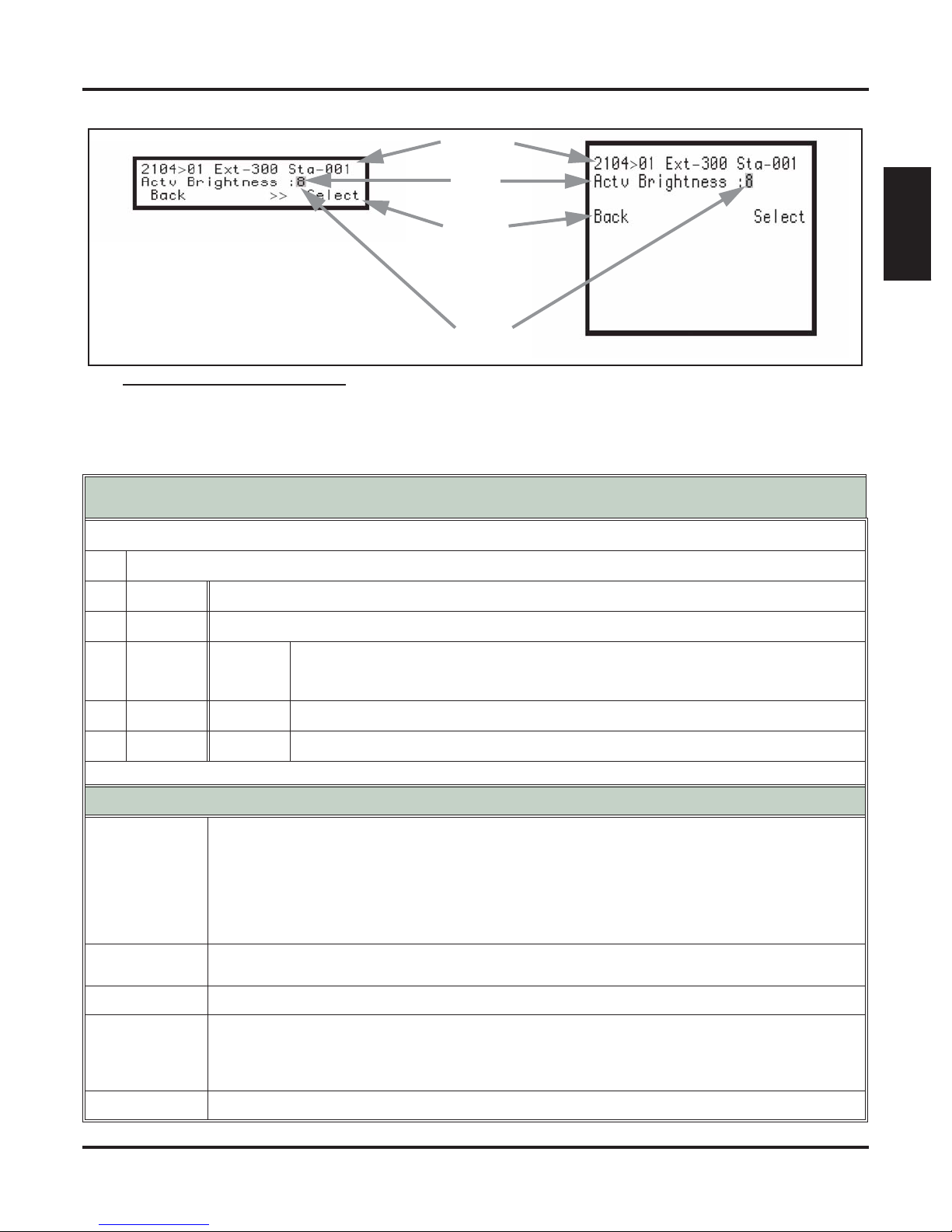

Option (Line 2)

Use this line to enter data for the option selected. Option (line 2) shows:

• The option selected (

• The current setting (

To enter new data for the option selected:

Do one of the following.

For alphanumeric entries (such as a timer value), enter the value +

For list (ﬁxed-choice) entries, do one of the following:

Press the Feature Key (if illuminated) for the option you want.

Actv Brightness

• The key for the currently programmed entry is green - all other selections are red.

• If there are more than 12 choices for an option, Feature Key selection is not available.

Soft Keys

Flashing Cursor

Option

(Line 2)

[ ] = Soft Key

Super Display Keyset

HOLD

[Select]

HOLD

[Enter]

SPEAKER

[Back]

CLEAR

CHECK

iii

Dial the entry number.

Press

Volume

up ot

Volume

to scroll through the available entries.

Key Options

Initially after entering data, it returns you to the same option. Subsequent presses do one of the following:

• If the option is selected in the Navigation line, advances to the next option.

- Subsequent presses eventually return you to the Navigation line for the program’s ﬁrst option.

• If a port, COS, or table is selected in the Navigation line, advances to the item of same type.

- Subsequent presses eventually return you to the ﬁrst port, COS, or table.

• If an extension is selected in the Navigation line, advances to the next extension.

- Subsequent presses eventually return you to the ﬁrst extension.

Sequentially back up (and out) of programming.

•

SPEAKER

normally ﬂashes green. In the data entry mode it ﬂashes red.

Sequentially back up (and out) of programming.

Does one of the following while editing alphanumeric entries:

• Clears character to the right (except at beginning and end of line).

• At beginning of line, erases entire entry.

• At end of line, becomes a backspace key

Restore the previous entry,

DSX Programmer’s Quick Reference

Telephone Programming ◆ 3

Telephone Programming

4 ◆

Telephone Programming

DSX Programmer’s Quick Reference

Features

Feature Description Programming

Account Codes

Attendant Position

Auto Redial

Operation:

Features

DSX Programmer’s Quick Reference - Features

Categorize and/or restrict outside calls.

General Account Code Programming

1551-02: 1551-01: 1551-03 2121-[01-24]: 26 for Account Code key 2402-[01-60]: 26

Forced Account Codes

2101-01: Extension Class of Service 1412-04: Enable Forced Account Codes 1412-06: Account Codes for Toll Calls Only 1551-04: Account Code Toll Restriction Level 3111-01: Disable Forced Account Codes per line

Veriﬁed Account Codes

2101-04: Extension Class of Service 1412-05: Enable Veriﬁed Account Codes 36xx: Veriﬁed Account Codes Table

Answer or place call + Acct Code [Acct] + Dial Code + Acct Code [Acct]

The system’s call processing focal point.

INTERCOM + Dial 0.

Auto Redial can periodically retry an outside number.

1501-01: Number of operators 1502-01: Operator 1 1502-02: Operator 2 1502-03: Operator 3 1502-04: Operator 4 2114-03: Station’s Operator Assignment

1602-06: Repeat Redial Timer 1602-07: Repeat Redial Busy Timer

Place call and hear busy + Auto Redial [Alnd]

(Page 1 of 19)

Account Codes in Speed Dial # to enter Account Code

: Hide Account Codes

for DSS Console Account Code key

Features

DSX Programmer’s Quick Reference

Features ◆ 5

Features

Feature Description Programming

Automatic Handsfree

Operation:

DSX Programmer’s Quick Reference - Features (Page 2 of 19)

Place or answer a call Handsfree by just pressing a key.

1512-01: Enable system-wide 2112-01: Enable for extension

Automatic when you press the key.

Background Music

Barge In

Call Coverage Keys

Call Forwarding

Call Forwarding Off Premises

Call Timer

Operation:

Broadcast music through the telephone speaker.

1521-03: Select music source 2111-02: Allow for extension

Press HOLD to turn BGM on and off.

In an emergency, get through to a coworker right away.

2102-01: Extension Class of Service 1402-02: Enable Barge In 1401-03: Enable Privacy to block Barge In

Call busy extension or line + Barge In [More + Barg]

Cover a co-worker’s calls from your own extension.

2121-[01-24]: 06 for Immediate Ring Call Coverage

key

2121-[01-24]: 07 for No Ring Call Coverage key 2121-[01-24]: 08 for Delay Ring Call Coverage key 2402-[01-60]: 06 for DSS Console Immediate Ring

Call Coverage key

2402-[01-60]: 07 for DSS Console No Ring Call

Coverage key

2402-[01-60]: 08 for DSS Console Delay Ring Call

Coverage key

1604-02: Call Cover Delay Ring Timer

Press key to answer or place call to covered extension.

Redirect calls to another extension. 2102-01: Extension Class of Service

1406-02: Enable Internal Call Forwarding 1601-03: Call Forward No Answer Timer 2102-04: Programming Access Level 2121-[01-24]: 27 for Call Forwarding key 2402-[01-60]: 27 for DSS Console Call Forwarding

key

INTERCOM + *3 + Select Type + Select Destination + 2 (all calls) or 8 (outside calls only)

A user can reroute their calls to an off-site location.

INTERCOM + *3 + 3 + Select, store or view + 2 (all calls) or 8 (outside calls only)

Keep track of time on the phone.

2102-01: Extension Class of Service 1406-01: Enable Call Forwarding Off-Premises 1406-02: Enable Internal Call Forwarding 2111-09: Enable Personal Speed Dial 3103-04: Enable Tandem Calls 215x: Enter Personal Speed Dial numbers

2121-[01-24]: 16+1 for Manual Call Timer key, 16+2 for Automatic Call Timer key

Starts automatically (automatic timer key) or press to start (manual timer key)

6 ◆ Features DSX Programmer’s Quick Reference

Feature Description Programming

Call Waiting / Camp-On

Operation:

Callback

Operation:

Caller ID

Operation:

Caller ID Logging

Operation:

DSX Programmer’s Quick Reference - Features (Page 3 of 19)

Helps users know when they have additional calls waiting.

2102-01: Extension Class of Service 1402-03: Camp-On to Busy Extension 1512-02: Call Waiting Tones (system-wide) 2116-01: Off Hook Signaling for incoming Inter-

com Calls

1401-03: Privacy blocks Camp On

Call busy extension + Dial 2

Leave a Callback request at a busy extension for a return call.

2102-01: Extension Class of Service 1402-03: Camp-On to Busy Extension 1512-02: Call Waiting Tones (system-wide) 2116-01: Off Hook Signaling for incoming Inter-

com Calls

1401-03: Privacy blocks Camp On

Call busy extension + Dial 2 + Hang up + Answer the Callback ring

Displays phone number and optional name for incoming outside call.

Basic Setup

3121-01: Set line’s Caller ID type 2102-01: Extension Class of Service 1404-01: Caller ID Display 1404-04: Caller ID Display Separator 3131:01: Pass Caller ID to Voice Mail

Second Call Caller ID

1404-02: Second Call Caller ID 2116-03: Off Hook Signaling for Incoming Outside

Calls

Third Party Caller ID

1404-03: Third Party Caller ID

Operation is automatic if enabled.

Store a caller’s name and number for each review and redialing.

Setting Up Caller ID Callbacks

3711-01: Caller ID Callback Route Type 3711-01: Caller ID Callback Route, or 3711-01: Caller ID Callback Group 3712-01: Initialize Caller ID Dial Treatment Tables 3713-[01-16]: Home Area Code Table

Caller ID Logging Types

2117-01: Caller ID Logging Type 2117-01: Caller ID Log Size 2117-01: Caller ID Log Group 3112-[01-08]: Caller ID Group Membership 3701-[01-08]: Caller ID Logging Group Size

Local Calling and Exception Lists

3712-02: 10-Digit Local Calls 3712-03: Home Area Code Exception List Type 3714-[01-96]: 3715-[01-96]: Foreign Area Code Exception List

Home Area Code Exception List Table

Table

Additional Options

9013-01: Initialize Caller ID Logs 2102-01: Extension Class of Service

Calls xx [CLxx] + Follow soft keys

Features

DSX Programmer’s Quick Reference Features ◆ 7

Features

Feature Description Programming

Central Ofﬁce Calls, Answering

Central Ofﬁce Calls, Placing

Class of Service

Operation:

DSX Programmer’s Quick Reference - Features (Page 4 of 19)

Outside calls ring and can be answered at system extensions.

Basic Programming

3101-01: Line Type 3101-03: DTMF Dialing 3103-03: Loop Length 2131-[01-64]: Line Access 2132-[01-64]: Line Ringing

Setting Up Line and Loop Keys

2121-[01-24]: 01 for Switched Loop key 2121-[01-24]: 02 + Line Group for Fixed Loop key 2121-[01-64]: 03 + Line number (1-64) for line key 2402-[01-64]: 03 + Line number (1-64) for DSS

Console line key

Setting Up Transmit and Receive Gain

3103-01: Transmit Gain 3103-02: Receive Gain

Lift handset + (Without Ringing Line Preference) Press ﬂashing line or loop key

Place outside calls from a keyset using a variety of methods.

Basic Programming

3101-01: Line Type 3101-03: DTMF Dialing 3103-03: Loop Length 2131-[01-64]: Line Access

Access Code Options

1301-09: Setting up single (9) or 2-digit (90-98)

access

2113-01: Dial 9 Group for extensions 2111-06: Line Dial Up (#9 + line number) 2102-01: Extension Class of Service 1402-06: Direct Line Access

Line and Loop Keys

2121-[01-24]: 01 for Switched Loop key 2121-[01-24]: 02 + Line Group for Fixed Loop key 2121-[01-64]: 03 + Line number (1-64) for line key 2402-[01-64]: 03 + Line number (1-64) for DSS

Setting Up Transmit and Receive Gain

3103-01: Transmit Gain 3103-02: Receive Gain

Press line key, INTERCOM then line extension number (101-164), INTERCOM then 9 (or 90-

98), or INTERCOM then #9 and line extension number (101-164)

Customize features and options for extensions and outside lines.

140x: Extension Class of Service options 141x: Line Class of Service options

None

Delayed Ringing

Operation:

Dial Tone detection

Operation:

8 ◆ Features DSX Programmer’s Quick Reference

Helps co-workers cover each other’s calls.

None

Set up the system to detect CO dial tone.

None

2132-[01-64]: Line Ringing 1604-01: Delayed Ring Timer

3111-03: Dial Tone Detection

Feature Description Programming

Direct Inward Dialing

Operation:

Direct Inward Line

Operation:

Direct Line Access

Operation:

DSX Programmer’s Quick Reference - Features (Page 5 of 19)

Directly dial system extensions from outside the system.

Basic Programming

3101-01: Line type 3101-03: DTMF Dialing 3301-01: Number of DID Digits 3302-01: Incoming DID Digits 3302-01: Day Translation Destination 3302-01: Night Translation Destination 2102-01: Class of Service 1401-08: Receive DID Calls 3121-01: Caller ID Type 3121-02: ANI/DNIS Format 3121-03: ANI/DNIS Delimiter 3121-04: Number of ANI Digits

DID Overﬂow, Camp-On, and Intercept Options

3112-02: Enable Day Overﬂow 3112-03: Day Overﬂow Destination 3112-05: Enable Night Overﬂow 3112-06: Night Overﬂow Destination 2115-02: DID Station Intercept Destination 2115-02: DID Station Intercept Type 1601-02: DIL No Answer Timer 2102-01: Class of Service 1401-09: Receive DID Camp On

None

Lets employees know which calls are just for them.

Basic Programming

3101-01: Line Type 3101-03: DTMF Dialing 3112-01: Direct Termination in the Day 3112-04: Direct Termination at Night 2121-[01-24]: 18 + CLEAR for System night key 2121-[01-24)]: 18 + UCD master for UCD night key 2102-01: Class of Service 4102-05: Activate Night Mode

DIL Overﬂow

3112-02: Enable Day Overﬂow 3112-03: Day Overﬂow Destination 3112-05: Enable Night Overﬂow 3112-06: Night Overﬂow Destination 1601-02: DIL No Answer Timer 1601-01: Line No Answer Timer

Setting Up Line and Loop K

2121-[01-24]: 01 for Switched Loop key 2121-[01-24]: 02 + Line Group for Fixed Loop key 2121-[01-64]: 03 + Line number (1-64) for line key 2402-[01-64]: 03 + Line number (1-64) for DSS

Console line key

Lift handset to answer Press DND to put your DIL in the night mode

Access lines directly for priority users and testing.

INTERCOM + 1 + Line number (01-64)

2102-01: Class of Service 1402-06: Direct Line Access

Features

eys

DSX Programmer’s Quick Reference Features ◆ 9

Features

Feature Description Programming

Direct Station Selection (DSS)

Direct Station Selection (DSS) Console

Directed Call Pickup

Directory Dialing

Distinctive Ringing

Operation:

DSX Programmer’s Quick Reference - Features (Page 6 of 19)

Quickly place and transfer calls to co-workers.

INTERCOM + DSS key to call INTERCOM + DSS key + TRANSFER to Transfer

One-touch access to extensions, lines, and system features.

2111-03: Enable DSS/BLF 2114-01: Do not enable Intercom Prime Line 2123-[01-24]: DSS/BLF Key Assignments

1202-01: 2401-01: DSS Owner 2402-[01-60]: DSS Console Keys

Primary Station Port Assignment (301-304)

See Feature Handbook.

Allows co-workers to answer each

2131-[01-64]: Line Access not required

other’s calls.

INTERCOM + ** + Dial extension number

Place Intercom and Speed Dial calls from a displayed list of names.

INTERCOM + 34 (Intercom), 37 (Personal Speed Dial), or 32 (System Speed Dial)

Users can customize their telephone’s ringing.

2101-02: Station Name 2151: Personal Speed Dial 1702: System Speed Dial 2201-01: Ring Group Name 2301-01: UCD Group Name 2121-[01-24]: 21 for Directory Dialing key 2402-[01-60]: 21 for Directory Dialing key

Distinctive Ring Conﬁguration

2102-01: Class of Service 1405-01: Ring Type Conﬁguration 2103-04: Station’s Intercom Ring Tone 2103-05: Station’s Ring Group Ring Tone 2103-06: Station’s Recall Ring Tone 2103-07: Station’s Ring “A” Tone 2103-08: Station’s Ring “B” Ring Tone 2103-09: Station’s Ring “C” Ring Tone

Line Override

3112-02: Day Ring Type 3112-03: Night Ring Type 3112-04: Delay Ring Type

Extension Ring Override

2102-01: Class of Service 1405-02: Station Ring Override 2103-01: Day Ring Type 2103-02: Night Ring Type 2103-02: Delay Ring Type

ey Ring Override

2102-01: Class of Service 1405-03: Key Ring Override 2122: Ring Override

Ring and UC D Group Unique Ringing

2201-02: Ring Group Incoming Ring Type 2301-02: UCD Group Incoming Ring Type

Initialize Distinctive Ringing

9014-01: Initialize Ring Tones

Program [Prog] + Ring + Assign [Asgn], Key, or Conﬁg [Cnfg]

10 ◆ Features DSX Programmer’s Quick Reference

Feature Description Programming

Do Not Disturb

Do Not Disturb Override

Door Box

Operation:

Features

DSX Programmer’s Quick Reference - Features (Page 7 of 19)

An extension user can work undisturbed by incoming calls and announcements.

DND + Type (0=Cancel, 1=External, 2=Intercom, 3=All)

Override a co-worker’s DND. 2102-01: Class of Service

Call DND extension + DND Override [Ovrd]

Remotely Monitor an entrance door. Basic Door Box Programming

At Door Box: Press Call button and speak. At keyset: Lift handset to answer chimes + (Optional) Open or Close to control door strike

2111-01: Allow Do Not Disturb

1401-07: DND Override

2113-02: Ring Group (1-8) 2101-04: Door Chime Selection (0-3)

2PGDAD Module Door Box Setup

1203-01: Secondary Station Port Assignment

Plug 2PGDAD into digital station port

1605-03: Door Relay Unlock Timer

DSX-40 “Built-In” Door Box Setup

2101-06: Door Relay Assignment (Door 1 = 326,.

Door 2=327)

Features

Extended Ringing

Extension Hunting

Extension Locking

Operation:

Lets call ring longer than usual for co-worker’s that can’t readily get to their phones.

2102-01: Class of Service 1401-02: Extended Ring 1603-03: Extended Ringing Timer

None

Automatically routes calls to coworkers that work closely together.

Circular and Terminal Hunting

2115-01: Hunt Type (1-4) 2115-01: Hunt Destination 1601-03: Call Forward No Answer Timer 1603-01: Transfer Recall Timer 1601-02: DIL No Answer Timer

UCD Hunting

2115-01: Hunt Type (5) 2115-01: UCD Group Master Number 2302-01: UCD Group Overﬂow Destination 1601-04: UCD No Answer Timer 1601-03: Call Forward No Answer Timer

To remove/reinstall your extension from your UCD Group: INTERCOM + *5 + 4 (to reinstall) or

Secure your telephone to prevent unauthorized use.

6 (to remove) + SPEAKER

2102-01: Class of Service 1412-03: Station Locking 2102-04: User Programming Access Level (4 or 5) 2102-05: Station PIN Code

To lock: INTERCOM + ##5 To enter or change you PIN: INTERCOM + ##6 To unlock an extension from the attendant: INTERCOM + ##3

DSX Programmer’s Quick Reference Features ◆ 11

Features

Feature Description Programming

DSX Programmer’s Quick Reference - Features (Page 8 of 19)

Feature Keys

Flash

Flexible Numbering Plan

Forced Line Disconnect

Group Call Pickup

Group Listen

Operation:

Simplify telephone operation. 2121-[01-24]: Feature Keys

2115-05: Key Access for Outside Lines (for line

keys)

See Feature Handbook.

Access CO and PBX features by interrupting line loop current.

FLASH

1612-04: PBX/Centrex Flash Timer 2102-01: Class of Service 1403-01: Flash for Single Line Set

At SLT: Hookﬂash + #3

Change the digits users dial for coworkers and other features.

1301-01: Function Type 1301-01: Expected Number of Digits 1313-01: Line Extension Number 1315-01: UCD Group Master Extension Number 1314-01: Ring Group Master Extension Number

None

Disconnect a co-worker’s outside call in an emergency.

2102-01: Class of Service 1402-01: Forced Line Disconnect 2131-[01-64]: Line Access (option 2 or 3)

Press busy line key + #

Easily answer a call ringing your Pickup Group.

2113-03: Pickup Group 3113-03: Pickup Group Assignment 2131-[01-64]: Line Access (option 1 or 3) 2132-[01-64]: Line Ringing 2121-[01-24]: 09 + Pickup Group (1-8) for Immedi-

ate Ring Group Call Pickup key

2121-[01-24]: 10 + Pickup Group (1-8) for No Ring

Group Call Pickup key

2121-[01-24]: 11 + Pickup Group (1-8) for Delay

Ring Group Call Pickup key

2402-[01-60]: 09 + Pickup Group (1-8) for DSS

Console Immediate Ring Group Call Pickup key

2402-[01-60]: 10 + Pickup Group (1-8) for DSS

Console No Ring Group Call Pickup key

2402-[01-60]: 11 + Pickup Group (1-8) for DSS

Console No Ring Group Call Pickup key

Press Group Call Pickup key or INTERCOM + *#.

Have your co-workers listen in on an

2112-02: Headset Mode (must be No)

important call.

While on a handset call, press SPEAKER twice (but do not hang up).

12 ◆ Features DSX Programmer’s Quick Reference

Feature Description Programming

Group Ring

Operation:

DSX Programmer’s Quick Reference - Features (Page 9 of 19)

Call a group of co-workers simultaneously.

Basic Programming

2113-02: Ring Group 2201-01: Ring Group Name 2201-02: Ring Group Incoming Ring Type

Setting Up Ring Group DILs

3112-01: Direct Termination in the Day 3112-02: Enable Day Overﬂow 3112-03: Day Overﬂow Destination 3112-04: Direct Termination at Night 3112-05: Enable Night Overﬂow 3112-06: Night Overﬂow Destination 2121-[01-24]: 03 + Line number (01-64) for keyset

line key

2402-[01-60]: 03 + Line number (01-64) for DSS

Console line key

Adjusting Ring Group Timers

1601-01: Line No Answer Timer 1601-02: DIL No Answer Timer 1601-01: Line No Answer Timer

To call: INTERCOM + Ring Group number To Transfer: INTERCOM + Ring Group master number + TRANSFER To answer: Lift handset To answer for another group: INTERCOM + ** + Ring Group number

Features

Handsfree and Handsfree Answerback

Operation:

Headset Compatibility

Operation:

Hold

Operation:

Talk over the phone using the built-in speaker and microphone.

1513-01: Intercom Voice Announcements 2112-03: Voice Announcements Through Speaker 1513-02: 2112-05: 3103-03: Loop Length

Handsfree Reply (Handsfree Answerback) Handsfree Replay (Handsfree Answerback)

Handsfree: Press SPEAKER Handsfree Answerback: Speak toward phone

Have the privacy of a handset call without having to hold the handset.

2121-[01-24]: 28 for Headset key. 2112-02: Headset Mode 2112-04: Voice Announcements in Headset Mode

To turn headset on or off: Press Headset key or #HS To use: Press line key or INTERCOM. Press SPEAKER to hang up

Have a call wait on Hold, then pick it up to continue the conversation.

2102-01: Class of Service 1411-03: Automatic Hold 1603-02: Hold Recall Timer 1603-03: Exclusive Hold Recall Timer 1601-01: Line No Answer Timer

Keyset: Press HOLD once for System Hold, twice for Exclusive Hold SLT: Hookﬂash +

*7 + Hangup for Exclusive Hold

DSX Programmer’s Quick Reference Features ◆ 13

Features

Feature Description Programming

Hotline

Operation:

DSX Programmer’s Quick Reference - Features (Page 10 of 19)

Hotline provides partner extensions with one-button calling and Transfer.

2121-[01-24]: 05 2402-[01-60]: 05 + Partner extension for DSS Con-

+ Partner extension for Hotline key

sole Hotline key

2116-02: Off Hook Signaling for Calls from Hot-

line Partner

2102-01: Class of Service 1401-13: Hotline Automatic Transfer

To call: Press Hotline key To Transfer call: Press Hotline key +

TRANSFER

Interactive Soft Keys

Intercom

Key Ring

Operation:

Just press a soft key for advanced features without remembering codes.

2102-01: Class of Service 1401-05: Soft Keys

Automatic when option enabled.

Call any co-worker. 1513-01: Intercom Voice Announcements

2112-03: Voice Announcements Through Speaker

INTERCOM + Dial co-worker’s extension

Unanswered calls automatically ring co-worker’s extensions.

1513-02: 2112-05: 1602-01: Interdigit Timer

2132-[01-64]: Line Ringing 3112-01: Direct Termination in the Day (CLEAR) 3112-04: Direct Termination at Night (CLEAR) 1604-01: Delay Ring Timer 3112-02: Enable Day Overﬂow 3112-03: Day Overﬂow Destination 3112-05: Enable Night Overﬂow 3112-06: Night Overﬂow Destination 1601-01: Line No Answer Time 1603-01: Transfer Recall Timer

Handsfree Reply (Handsfree Answerback) Handsfree Reply (Handsfree Answerback)

Operation is automatic.

Language Selection

Set up a telephone to show displays and soft keys in English or Spanish.

Operation:

Last Number Redial

Operation:

N/A

Quickly redial the last number dialed. 2131-[01-64]: Line Access

REDIAL + Select number + SPEAKER to redial

14 ◆ Features DSX Programmer’s Quick Reference

2102-01: Class of Service 1401-11: Language Programming 2101-03: Station Display Language 1541-03: SMDR Language

2102-01: Class of Service 1411-04: Enhanced Last Number Redial

Feature Description Programming

Line Group Routing

Operation:

Line Groups

Operation:

Line Keys

Operation:

Line Queuing / Line Callback

Operation:

Loop Keys

Operation:

DSX Programmer’s Quick Reference - Features (Page 11 of 19)

Dial a single code to place a call over the ﬁrst available line.

INTERCOM + 9 + Dial outside number

Dial codes to access Line Groups for outgoing calls.

INTERCOM + Line Group code (90-98) + Dial outside number

Press a line key for one-touch access to an outside line.

2113-01: Dial 9 Group 3201-[01-64]: Line Group 2131-[01-64]: Line Access 2133-[01-64]: Line Group Access 1301-09: Function Type 1301-09: Expected Number of Digits

3201-[-1-64]: Line Group 2131-[01-64]: Line Access 2133-[01-64]: Line Group Access 1301-01: Function Type 1301-01: Expected Number of Digits

2121-[01-64]: 03 + Line number (1-64) for keyset 2402-[01-64]: 03 + Line number (1-64) for DSS 2111-05: Key Access for Outside Lines 2131-[01-64]: Line Access (1, 2, or 3) 2132-[01-64]: Line Ringing (2, 3, or 4) 1604-01: Delay Ring Timer

Press line key to place or answer outside call

When all lines are busy:

• Line Queuing lets you wait in line for a line to become free.

2102-01: Class of Service 1411-01: Camp-On to Busy Lines 1411-02: Line Queue Priority

• Line Callback will automatically call you back when a line is free.

Access busy line + Dial 2 + Hang up or wait for line to become free

Loop keys simplify answering and placing outside calls.

2121-[01-24]: 01 for Switched Loop key 2121-[01-24]: 02 + Line Group for Fixed Loop key 3201-[01-64]: Line Group 2131-[01-64]: Line Access (1 or 3) 2132-[01-64]: Line Ringing (2, 3 or 4) 1604-01: Delay Ring Timer

To answer: Press loop key. To place: Press key (Fixed Loop) or Press key + Line Group 90-98 (Switched Loop)

Features

Meet-Me Conference

Operation:

Message Waiting

Operation:

DSX Programmer’s Quick Reference Features ◆ 15

Set up a multiple-party telephone conversation.

Make or hear Page to announce Conference + Meet Me nn [MTnn]

Without voice mail, leave a Message Waiting request for a return call.

To leave: V-MAIL (or 8) To Answer: INTERCOM + V-MAIL (or 8)

605-02: Meet Me Conference Join Timer

4101-01: Voice Mail Type (0) 2102-01: Class of Service 1403-03: Special Dial Tone for Single Line Set 1403-04: High Voltage Message Waiting Lamp for

Single Line Set.

1403-05: FSK Message Waiting Lamp for Single

Line Set

Features

Feature Description Programming

Monitor / Silent Monitor

DSX Programmer’s Quick Reference - Features (Page 12 of 19)

Silently monitor a co-worker’s phone.

2102-01: Class of Service 1402-04: Silent Monitor

Operation:

Music On Hold

Operation:

Names for Extensions and Lines

Operation: Program + Name [Prog + MORE + MORE + Name]

Night Service / Night Ring

Operation:

Call busy co-worker + 6

Callers can listen to music while they wait on Hold.

1521-01: Enable Music on Hold 3103-05: Music on Hold Source 1521-05: Audio Input 1 Gain Setting 1521-06: Audio Input 2 Gain Setting 1521-02: Music on Hold for Transferred Calls

N/A

Names help identify lines and extensions.

2102-01: Class of Service 1401-10: Name Programming 2102-04: User Programming Access Level 1011-01: System Name 1702-[1-100]: System Speed Dial Bin Name 2101-02: Station Name 2151-[01-20]: Personal Speed Dial Bin Name 2201-02: Ring Group Name 2301-01: UCD Group Name 2501-[01-16]: Selectable Display messages 3101-02: Line Name 4111-01: Voice Mail Port Name

Reroute calls after hours. 2102-01: Class of Service

1402-05: Activate Night Mode 2121-[01-24]: 18+ CLEAR for System night key 2402-[01-60]: 18+ CLEAR for DSS Console System

night key

2132-[01-64]: Line Ringing 1604-01: Delay Ring Timer

To activate or deactivate: Press System night key To answer a call over the Paging speakers: INTERCOM + *0

Off-Hook Signaling

Operation:

16 ◆ Features DSX Programmer’s Quick Reference

Helps important callers get through. 2116-01: Off Hook Signaling for Incoming Inter-

N/A

com Calls

2116-02: Off Hook Signaling for Calls from Hot-

line Partner

2116-03: Off Hook Signaling for Incoming Outside

Calls

Features

DSX Programmer’s Quick Reference - Features (Page 13 of 19)

Feature Description Programming

Paging

Park

PBX / Centrex Compatibility

Operation:

Broadcast announcements or quickly locate co-workers.

Basic Programming

2113-05: Page Group (Zone) 2112-06: Paging Through Speaker 2102-01: Class of Service 1407-01: Make All Call Page 1407-02 through 08: Make Page Into Zones 1-7 1605-01: Page Duration Timer 2121-[01 to 24]: 13 + Zone number for Page key 2402-[01-60]: 13 + Zone number for DSS Console

Page key

Page Relay Control

2101-06: Door Relay Assignment

External Paging Options

1531-01: External Page Ring Type 1532-[01-64]: External Page Line Ringing 1604-01: Delay Ring Timer 1531-03: External Page Ring Volume 1531-05: External Page Gain 1531-02: Extension Ring Over External Page 1531-04: Door Chime Over External Page 2101-04: Door Chime Selection 1521-04: Background Music over External Page

INTERCOM

Park a call in orbit so a co-worker can pick it up.

+ *1 + Page zone (1-7 or 0 for All Call)

1603-04: Park Orbit Recall Timer 2121-[01 to 24]: 04 + Orbit for Park Orbit key 2402-[01 to 60]: 04 + Orbit for DSS Console Park

Orbit key

System: TRANSFER + * + Orbit (60-69) Personal: TRANSFER + ** + Extension number

Provides unique features when connected to a PBX or Centrex.

3101-04: PBX Line 3401-01: PBX Access Code Digits

Features

Operation:

Prime Line Preference

N/A

Get dial tone for a new outside or Intercom call just by lifting the handset.

Operation:

Privacy

Lift handset

Prevent interruptions at high priority extensions.

Operation:

Privacy Release Groups

N/A

Quickly join a co-worker’s outside call.

To join call: Press busy line key

Operation:

To prevent a member from joining your call: Place or answer call on a line key + Press line key until it turns green.

DSX Programmer’s Quick Reference Features ◆ 17

2114-01: Prime Line Type 2114-01: Prime Line Key 2114-01: Prime Line Line 2114-01: Prime Line Group

2102-01: Class of Service 1401-03: Privacy

2113-04: Privacy Group 2131-[01-64]: Line Access

Features

Feature Description Programming

Private Line

Programmable Idle Menu Soft Keys

Operation:

DSX Programmer’s Quick Reference - Features (Page 14 of 19)

Have a line reserved exclusively for your own use.

2131-[01-64]: 2132-[01-64]: Line Ringing 1604-01: Delay Ring Timer

Line Access

Press Private Line key to place or answer call,

Customize the Super Display Tele-

2124-[01-12]: Idle Menu Soft Key Assignments

phone idle menu soft keys.

Operation:

Pulse to Tone Conversion

Operation:

Regional Defaults

Removing Lines and Extensions from Service

Operation:

Reverse Voice Over

Operation:

Ringdown Extension

Operation:

Ringing Line Preference

#SM + Press soft key + HOLD + INTERCOM + Volume Up or Volume Down to select option + CONF + SPEAKER

Use special services (such as telephone banking) over dial pulse lines.

3101-01: Line Type 3103-03: DTMF Dialing

Place call + Wait six seconds + Dial additional DTMF digits

See Language Selection, Station Message Detail Recording, and Toll Restriction for more.

Temporarily remove problem extensions and lines from service.

INTERCOM

#40

+ Station or line extension number + 6 to remove or 4 to return +

Privately call a co-worker while you’re busy on your handset.

2102-01: Class of Service 1402-06: Direct Line Access

SPEAKER

2121-[01 to 24]: 23 + Partner extension number for

Reverse Voice Over key

While on a handset call, press Reverse Voice Over key to talk to partner, then release to return to your initial call.

Call an extension, group, or Voice Mail by just lifting the handset.

2114-02: Station Ring Down Type 2114-02: Station Ring Down Destination

Lift handset

Just lift the handset to answer a ring-

2111-04: Ringing Line Preference

ing call.

Operation:

Lift handset

Save Number Dialed

Save the number you just dialed for quick redialing.

Operation:

Selectable Display Messaging

Operation:

Single Line Telephones

Operation:

To save: Press Save key To redial saved number: Press Save key

Co-worker’s calling your extension receive personalized text messages.

Program + Call Forward + Message [Prog + Cfwd + MORE + Msg]

Connect analog single line telephones and fax machines.

See the DSX Telephone Feature Handbook.

18 ◆ Features DSX Programmer’s Quick Reference

2121-[01 to 24]: 25 for Save key 2402-[01-60]: 25 for DSS Console Save key

2102-01: Class of Service 1406-02: Internal Call Forwarding 2501-[01-16]: Selectable Display Messages

2102-01: Class of Service 1403-02: Single ring for Single Line Set 1403-06: Loop Disconnect for Single Line Set

Feature Description Programming

Speed Dial

Operation:

Split (Alternate)

Station Instruments

Operation:

Station Message Detail Recording

Operation:

System Identiﬁcation

Operation:

System Programming Password Protection

Features

DSX Programmer’s Quick Reference - Features (Page 15 of 19)

Store telephone numbers and feature codes for quick access

#SP + Bin + HOLD + Line, Line Group, or INTERCOM + HOLD + Enter number to store + HOLD + Enter name + HOLD + SPEAKER

Switch between active calls without Conferencing the calls together.

Outside calls: First call + INTERCOM + Set up second call + Split Feature Key

The system offers 22-Button, 34-Button, and Super Display keyset telephones.

See the DSX Telephone Feature Handbook.

Provides a record of your calls. 1541-01: SMDR Port

N/A

Store the site name and telephone number in the system data base.

N/A

Control access to system programming.

Setting Up Personal Speed Dial

2111-09: Personal Speed Dial 2131-[10-64]: Line Access 3201-[01-64]: Line Group 2151: Personal Speed Dial Bin Assignment

Setting Up System Speed Dial

2102-01: Class of Service 1401-01: System Speed Dial Access 2102-04: User Programming Access Level (4 or 5) 1701-01: Number of System Speed Dial Bins 1702-System Speed Dial Assignment

Setting Up Speed Dial Feature Keys

2121-[01-24]: 15+ bin for Personal Speed Dial key, 14+bin for System Speed Dial key 2402-[01-60]: 15+ bin for DSS Console Personal

Speed Dial key, 14+bin for DSS Console System Speed Dial key

Additional Speed Dial Options

1602-04: Dial Pause Timer 1612-04: PBX/Centrex Flash Timer 1602-03: Dialtone Detect Timer

2121-[01-24]: 20 for Split key 2402-[01-60]: 20 for DSS Console Split key

2101-01: Station Type 2104-01: Backlight Brightness While Active 2104-02: Backlight Brightness While Idle 1605-05: Backlight Idle Timer 2104-03: Dial Pad Illumination

1101-01: Baud Rate 1541-02: SMDR Headers 3111-06: Station Message Detail Recording 1541-03: SMDR Language

1011-01: System Name 1011-02: Telephone Number

1031-01: New Password

Features

Operation:

N/A

DSX Programmer’s Quick Reference Features ◆ 19

Features

Feature Description Programming

DSX Programmer’s Quick Reference - Features (Page 16 of 19)

T1 Lines

Operation:

Tandem Calls / Unsupervised Conference

Operation:

Tie Lines

Operation:

Time and Date

Operation:

In DSX-80/160, provides for connection to advanced digital lines.

3101-01: Line Type 3101-03: DTMF Dialing 1213-01: Number of PCM Channels 1213-02: Clock Control 1213-03: Transmit Pulse Amplitude 1213-04: Framer Type 1213-05: Zero Suppression 1213-06: Loopback Mode 3121-01: Caller ID Type 3121-02: ANI/DNIS Format 3121-03: ANI/DNIS Delimiter 3121-04: Number of ANI Digits

N/A

Join two callers in Conference, leave the call and let their conversation continue.

3103-04: Tandem Calls 2102-01: Class of Service 1411-05: Unsupervised Conference

Set up ﬁst call + CONF + Set up second call + CONF + Hang up

In DSX-80/160, link two systems together for inter-system Intercom calling and other features.

3101-01: Line Type 3101-03: DTMF Dialing 3142-02: Tie Line Caller’s Operator Extension 3141-01: Tie Line Caller’s Outbound Dial 9 Group 3142-[01-64]: Tie Line Caller’s Outbound Line

Access

3143-[01-64]: Tie Line Caller’s Outbound Line

Group Access

3102-01: Line Class of Service 14xx: Class of Service 3102-02: Line Toll Level 35xx: Toll Restriction

See the DSX Telephone Feature Handbook.

Time and Date shows on telephone displays and prints on system reports.

1021-01: System Time 1021-02: System Date 1022-01: Automatic Daylight Savings Time Setting 1511-02: Clock Display Format 2102-04: Programming Access Level 5

N/A

20 ◆ Features DSX Programmer’s Quick Reference

Feature Description Programming

Toll Restriction

Operation:

Transfer

Operation:

DSX Programmer’s Quick Reference - Features (Page 17 of 19)

Control the costs of outgoing long distance calls.

Basic Setup

3501-01: Toll Restriction Country Type 2102-02: Station Toll Level (Day) 2102-03: Station Toll Level (Night) 3511-01: Active Dial Pad 3512-04: Allow N11 Dialing 3512-01: Allow 0 + XXX Operator Assisted Dial-

ing

3512-02: Allow 011 + XXX International Dialing

Equal Access Dialing Restrictions

3512-03: Allow 101x Equal Access Dialing 352x: 1010 + XXX Equal Access Dialing

1 + Long Distance Dialing Restrictions

353x: 1 + NPA/NXX Dialing 3-Digit Table 354x: 1 + NPA + NXX Dialing 6-Digit Table

Long Distance Dialing Restrictions

355x: NPA/NXX Dialing 3-Digit Table 356x: NPA + NXX Dialing 6-Digit Table

N/A

Send your outside to a co-worker. Transfer Recall

1603-01: Transfer Recall Timer 1601-03: Call Forward No Answer Timer 1601-01: Line No Answer Timer 1601-04: UCD No Answer Timer

Music on Hold for Transferred Callers

1521-01: Enable Music on Hold 1521-02: Music on Hold for Transferred Calls 3101-05: Music on Hold Source

Hotline Automatic Transfer

2102-01: Class of Service

1401-13: Hotline Automatic Transfer

TRANSFER + Call co-worker or press V-MAIL

Features

User Programmable Features

Operation:

DSX Programmer’s Quick Reference Features ◆ 21

Extension users can set up their telephones to suit their needs.

See the DSX Telephone Feature Handbook.

2102-04: User Programming Access Level

Features

Feature Description Programming

DSX Programmer’s Quick Reference - Features (Page 18 of 19)

Voice Mail

Voice Over

Operation:

Ends the frustration and cost of missed calls.

Basic Programming IntraMail:

Automatically install 2141-01:

Station Mailbox Type (to add more)

UltraMail:

Automatically installs

NVM-Series:

1202: Primary Station Ports 1203: Secondary Station Ports (Digital

VANGARD only)

4101-01: Voice Mail Type

Automated Attendant Answering

3112-01: Direct Termination in the Day 2121-[01 to 24]: 18 + 700 for Voice Mail UCD night

key

2402-[01-60]: 18 + 700 for DSS Console Voice Mail

UCD night key

3112-04: Direct Termination at Night 2121-[01 to 24]: 18 + CLEAR for System night key 2402-[01-60]: 18 + CLEAR for DSS Console Sys-

tem night key

2102-01: Class of Service 1402-05: Activate Night Mode

Voice Mail Overﬂow

3112-02: Enable Day Overﬂow 3112-03: Day Overﬂow Destination 1601-04: UCD No Answer Timer 3112-05: Enable Night Overﬂow 3112-06: Night Overﬂow Destination 1601-02: DIL No Answer Timer 2302-01: UCD Group Overﬂow Destination

Conversation Record

2102-01: Class of Service 1401-06: Conversation Record 2121-[01-24]: 17 + Extension for Conversation

Record key

2402-[01-60]: 17 + Extension for DSS Console

Conversation Record key

Message Center

2121-[01-24]: 24 + Message Center Mailbox num-

ber for Message Center key

2402-[01-60]: 24 + Message Center Mailbox num-

ber for DSS Console Message Center key

To call your mailbox: V-MAIL See the DSX Telephone Feature Handbook for more.

Get through to a co-worker busy on a handset call without interrupting their call.

2116-01: Off Hook Signaling for Incoming

Intercom Calls

2116-02: Off Hook Signaling for Calls From

Hotline Partner

To place: Call busy co-worker + Hear busy/ring tone + Voice Over [Vovr] To respond: MUTE

22 ◆ Features DSX Programmer’s Quick Reference

Feature Description Programming

Volume and Contrast Controls

DSX Programmer’s Quick Reference - Features (Page 19 of 19)

Easily adjust the volume of ringing,

2111-07: Retain Line Volume Setting

Paging, and other features.

Features

Walking Class of Service

Operation:

Press Volume Up or Volume Down

Temporarily use your Toll Restriction and Class of Service options at a coworker’s phone.

2102-01: Class of Service 1412-01: Walking Class of Service (Day) 1412-02: Walking Class of Service (Night) 2102-05: Station PIN Code

To enable: INTERCOM + ##0 + Your extension + Your PIN + HOLD To enter your PIN: INTERCOM + ##6 + Enter PIN + HOLD + Reenter PIN + Exit To change your PIN: INTERCOM + ##6 + Enter old PIN + HOLD + Enter new PIN + HOLD + Reenter new PIN + Exit

Features

DSX Programmer’s Quick Reference Features ◆ 23

Features

24 ◆ Features DSX Programmer’s Quick Reference

IntraMail

Feature Description Programming

Start-up Conﬁguration

Start-up Programming

IntraMail

DSX Programmer’s Quick Reference - IntraMail (Page 1 of 10)

IntraMail automatically assigns a mailbox to each extension in the number plan.

• By default in DSX-40, only the ﬁrst 8 (300-307) Subscriber Mailboxes are active/

enabled.

• By default in DSX-80/160, only the ﬁrst 16 (300-315) subscriber mailboxes are

active/enabled.

• The IntraMail Automated Attendant does not answer outside calls.

Enable mailboxes for installed extensions.

Set up the Automated Attendant to answer outside calls during the day.

Set up the Automated Attendant to answer outside calls at night.

Check each line’s Answer Table assignment.

Leave these programs at their default settings.

2141-01: Mailbox Type (1 for Subscriber)

3112-01: Direct Termination in the Day (700)

3112-04: Direct Termination at Night (700)

3131-02: IntraMail Answer Table Assignment (ini-

tially leave at 1)

1312-01: Voice Mail Extension Number (500-507) 4101-02: Voice Master Master Number (700) 4111-01: Voice Mail Port Name (VM PORT #) 4112-02: Operator’s Extension (300)

IntraMail

DSX Programmer’s Quick Reference IntraMail ◆ 25

IntraMail

DSX Programmer’s Quick Reference - IntraMail (Page 2 of 10)

Feature Description Programming

Review the Default Automated Attendant Setup

DIL to Voice Mail

Master (700)

● 3112-01: Direct Termination (Day)

● 3112-04: Direct Termination (Night)

Announcement Mailbox

Answer Schedule Override

Operation:

Lines Route to Answer Table 1

All Lines

Use Answer

Table 1

● 3131-02: Answer Table

Answer Table 1

Schedule 1 or Default Mailbox

Play a pre-recorded announcement to callers.

Automated Attendant Answering (Default)

● 421x-Answer Table

Calls always route to Call Routing Mailbox 001

- Schedule 1 active M-F 8:30AM-5:00PM.

- Default Mailbox active all other times.

● 423x: Dial Action Tables

Call Routing Mailbox 001

Which Chooses Call

Routing Mailbox 001.

● 4212: Schedule

●

4211-01: Default Mailbox

● 422x: Routing Mailboxes (001)

Dial Action

able 1

4221-01: Routing Mailbox Type 4223-01: Repeat Count

To record a new Instruction Menu

Message (from Extension 300):

Automated Attendant

V-MAIL + SA + I + 001

Built-In Automated Attendant

#AG + 001

And Dial Action

Table 1

4223-02: Hang Up After 4223-03: Next Call Routing Mailbox 4201-02: Subscriber Message Length

To record from admin mailbox: SA + A + Mailbox number

Enables an alternate greeting and dialing options.

4211-02: Answer Schedule Override 4211-03: Override Mailbox

From admin mailbox: SA + O + Answer Table + O

Dial Action Table 1

Dialing Options

Dial an extension number, or

0 for the operator

With these

dialing options

26 ◆ IntraMail DSX Programmer’s Quick Reference

Feature Description Programming

Answer Tables

Operation:

Auto Attendant Do Not Disturb

DSX Programmer’s Quick Reference - IntraMail (Page 3 of 10)

Determines how the Automated Attendant answers calls on each line.

Basic Setup

3131-02: IntraMail Answer Table Assignment 3112-01: Direct Termination in the Day 2121-[01-24]: 18 + 700 for Voice Mail UCD night

key

2402-[01-60]: 18 + 700 for DSS Console Voice Mail

UCD night key

3112-04: Direct Termination at Night 2121-[01-24]: 18 + CLEAR for System night key 2402-[01-60]: 18 + CLEAR for DSS Console Sys-

tem night key

4211-01: Default Mailbox 4211-02: Answer Schedule Override 4211-03: Override Mailbox 4211-04: Next Answer Table

Type 1 (Day of Week Schedule)

4212-[01-10]: Schedule Type (1) 4212-[01-10]: Routing Mailbox Number 4212-[01-10]: Schedule Start Day 4212-[01-10]: Schedule Start Time 4212-[01-10]: Schedule End Time

Type 2 (Range of Days) Schedule

4212-[01-10]: Schedule Type (2) 4212-[01-10]: Routing Mailbox Number 4212-[01-10]: Schedule Start Day 4212-[01-10]: Schedule End Day 4212-[01-10]: Schedule Start Time 4212-[01-10]: Schedule End Time

Type 3 (Date) Schedule

4212-[01-10]: Schedule Type (3) 4212-[01-10]: Routing Mailbox Number 4212-[01-10]: Schedule Run Day 4212-[01-10]: Schedule Start Time 4212-[01-10]: Schedule End Time

N/A

Automated Attendant calls go

2144-01: Auto Attendant Do Not Disturb

directly to a user’s mailbox.

IntraMail

Operation:

Auto Erase or Save

G + Select Greeting + O

After a user listens to a new message and exits, IntraMail will either save or erase the message automatically.

Operation:

Auto Time Stamp

N/A

Automatically hear the time and date a message was left.

Operation:

OP + AT + O

DSX Programmer’s Quick Reference IntraMail ◆ 27

2143-02: Auto Erase/Save of Messages

2143-03: Auto Time Stamp

IntraMail

Feature Description Programming

Automated Attendant

Operation:

Automatic Routing for Rotary Dial Callers

DSX Programmer’s Quick Reference - IntraMail (Page 4 of 10)

Automatically answers the telephone system’s incoming calls.

3131-02: IntraMail Answer Table 3112-01: Direct Termination in the Day 2121-[01-24]: 18 + 700 for Voice Mail UCD night

key

2402-[01-60]: 18 + 700 for DSS Console Voice Mail

UCD night key

3112-04: Direct Termination at Night 2121-[01-24]: 18 + CLEAR for System night key 2402-[01-60]: 18 + CLEAR for DSS Console Sys-

tem night key

4201-02: Subscriber Message Length 4201-01: Non-Subscriber Message Length

After answer, voice prompts tell the caller the options to dial.

Automatically route Automated

4231: Dial Action Table Digit Assignments

Attendant callers that don’t dial.

Operation:

Call Forward to a Mailbox

Operation:

Call Routing Mailbox

Operation:

Call Screening

Operation:

Caller ID and Voice Mail

Operation:

Centrex Transfer

Operation:

N/A

An extension user can forward calls

1601-03: Call Forward No Answer Timer

to their mailbox.

INTERCOM + *3 + Select Type + V-MAIL + 2 (all calls) or 8 (outside calls only)

Speciﬁed dialing options and announcements for Automated Attendant callers.

4221-01: Routing Mailbox Type 4222-01: Dial Action Table 4222-02: Time Limit for Dialing Commands 4201-01: Non-Subscriber Message Length

To record Instruction Menu Message from admin mailbox: SA + I + Mailbox number

A users can screen messages as they are being left in their mailbox.

2102-01: Class of Service 1401-12: Call Screening

To screen the message: Screen [Scrn], then,

V-MAIL to intercept the call

Do nothing to continue listening

Exit to exit Call Screening and record the message privately

Provides the caller’s number and optional name.

3121-01: Caller ID Type 1611-06: Caller ID Detection Timer 3131-01: Pass Caller ID to Voice Mail 3711-01: Caller ID Callback Route Type 3711-01: Caller ID Callback Line 3711-01: Caller ID Callback Group

N/A

The Automated Attendant can transfer a caller from a Centrex line to an outside number using the features of that Centrex line.

4222-01: Dial Action Table 4231: Dial Action Table Digit Assignments 1702: System Speed Dial Assignment 1612-04: PBX/Centrex Flash Timer 1602-04: Dial Pause Timer 3103-04: Tandem Calls

N/A

28 ◆ IntraMail DSX Programmer’s Quick Reference

Feature Description Programming

Conversation Record

Operation:

DSX Programmer’s Quick Reference - IntraMail (Page 5 of 10)

A user can record a conversation as a message in their mailbox.

2102-01: Class of Service 1401-06: Conversation Record 2121-[01-24]: 17 + Extension for Conversation

Record key

2402-[01-60]: 17 + Extension for DSS Console

Conversation Record key

2143-05: Recording Conversation Beep 4201-02: Subscriber Message Length

To start recording: V-MAIL, Record [MORE + Rec], or record key To stop recording: V-MAIL or record key

IntraMail

Dial Action Table

Operation:

Directory Dialing

Operation:

Directory Dialing Mailbox

Deﬁnes the dialing options for Automated Attendant callers.

4222-01: Dial Action Table 4231: Dial Action Table Digit Assignments 4222-02: Time Limit for Dialing Commands

N/A

Automated Attendant caller can reach an extension by dialing the person’s name.

Basic Setup

4221-01: Routing Mailbox (3) 2144-05: Directory List Number 4224-01: Directory List Number to Use 4201-02: Subscriber Message Length

Extension Name Programming and Routing

1511-02: Name Format 2101-02: Station Name 4224-04: Extension Name Match 4224-05: Minimum Number of Letters Required 4224-06: Transfer Options 4224-03: Screened Transfer Timeout 4224-02: Time Limit for Dialing Commands

Additional Options

4224-08: Fax Detection 4224-09: Fax Transfer Extension 4224-07: Next Call Routing Mailbox

To record a Directory Dialing message from admin mailbox: SA + I + Directory Dialing Mailbox

The mailbox type required for Direc-

4221-01: Routing Mailbox Type (3)

tory Dialing.

IntraMail

Operation:

See Directory Dialing.

Extension Hunting to Voice Mail

Operation:

DSX Programmer’s Quick Reference IntraMail ◆ 29

Automatically sends unanswered calls to an extension’s mailbox.

N/A

2115-01: Hunt Type 2115-01: Hunt Destination (700) 1603-01: Transfer Recall Timer 1601-02: DIL No Answer Timer 1601-03: Call Forward No Answer Timer 4222-03: Screened Transfer Timeout

IntraMail

Feature Description Programming

External Transfer

Operation:

DSX Programmer’s Quick Reference - IntraMail (Page 6 of 10)

An Automated Caller can automatically route to an outside telephone number.

4222-01: Dial Action Table 4231: Dial Action Table Digit Assignment 1702: System Speed Dial Assignment 3103-04: Tandem Calls

N/A

Fax Detection

Operation:

Flexible Answering Schedules

Operation:

Flexible Mailbox Numbering Plan

Operation:

Forced Unscreened Transfer

Operation:

Automatically transfers incoming fax calls to a fax machine.

N/A

The Automated Attendant can answer outside calls with different announcements and dialing options, depending on the time of day and day of week.

N/A

If telephone extension numbers are customized, set up IntraMail mailbox numbers to match.

N/A

Automatically converts Automated Attendant Screened Transfers to Unscreened Transfers.

N/A

For Call Routing Mailboxes

4222-04: Fax Detection 4222-08: Fax Transfer Extension

For Directory Dialing Mailboxes

4224-08: Fax Detection 4224-09: Fax Transfer Extension

3131-02: IntraMail Answer Table Assignment

1301-01: Function Type 1301-01: Expected Number of Digits 1311-01: Station Extension Number 4231: Dial Action Table Digit Assignments

2144-02: Forced Unscreened Transfer

Go to a Mailbox

An Automated Attendant caller can dial a digit and route directly into a

4231: Dial Action Table Digit Assignments (GOTO

mailbox, XXX, or IXXX)

mailbox.

Operation:

Greeting

Outside caller follows Instruction Menu

A user can record a Greeting for their mailbox callers to hear.

4201-02: Subscriber Message Length

Enabling Remote Greeting

4231: Dial Action Table Digit Assignment

(LOGON to mailbox, N, XXX, or IXXX.

Operation:

G + Select Greeting

30 ◆ IntraMail DSX Programmer’s Quick Reference

Feature Description Programming

Group Mailbox

Guest Mailbox

Operation:

DSX Programmer’s Quick Reference - IntraMail (Page 7 of 10)

Subscribers in the same group can share a Group Mailbox.

Programming a Ring Group Mailbox

2113-02: Ring Group 2141-01: Station Mailbox Type

For a Subscriber Mailbox

2211-01: Mailbox Type (1) 221x: Subscriber Mailbox options

For a Routing Mailbox

2211-01: Mailbox Type (2) 2211-01: Routing Mailbox Number 422x: Routing Mailbox Options

Programming a UCD Group Mailbox Set up UCD Hunting For a Subscriber Mailbox

2311-01: UCD Group Mailbox Type (1) 23xx: Subscriber Mailbox options

For a Routing Mailbox

2311-01: Mailbox Type (2) 2311-01: 422x: Routing Mailbox Options

UCD Group Routing Mailbox Number

N/A

An outside party can have their own mailbox for receiving and sending

2141-01: Station Mailbox Type (1)

See Subscriber Mailbox for more.

messages.

See Subscriber Mailbox for more.

IntraMail

Hang Up

Operation:

Listening to Messages

Operation:

Log Onto Voice Mail

Operation:

Make Call

Operation:

An automated Attendant option that immediately hangs up the outside call.

N/A

While or after listening to a message, an extension user has many message handling options from which to choose.

Log onto your mailbox + L

An extension user can press V-MAIL to go onto (access) their mailbox.

V-MAIL

or INTERCOM + *8

A Subscriber Mailbox user can dial MC

to return a call without knowing

their caller’s number.

Log onto your mailbox + L + MC

4231: Dial Action Table Digit Assignments

4201-03: Message Backup/Go Ahead Time

Remotely Logging Onto a Mailbox through the Automated Attendant

4231: Dial Action Table Digit Assignments

(LOGON + mailbox, N, XXX, or IXXX)

DSX Programmer’s Quick Reference IntraMail ◆ 31

IntraMail

Feature Description Programming

Message Length

Message Notiﬁcation

Message on Hold

Operation:

DSX Programmer’s Quick Reference - IntraMail (Page 8 of 10)

Set the maximum length of a message that can be left in a user’s mailbox.

4201-02: Subscriber Message Length 4201-01: Non-Subscriber Message Length

N/A

Dials a telephone number to let the recipient know there are new messages in their mailbox.

Programming that Applies to All Types of Message Notiﬁcation

4112-01: Outgoing Dial 9 Group 4111-02: Voice Mail Port Class of Service 4111-03: Voice Mail Port Toll Restriction Level

(Day)

4114-04: Voice Mail Port Toll Restriction Level

(Night)

4113: Voice Mail Port Outgoing Line Access 4114: Outgoing Line Group Access 4202-06: Number of Callout Attempts 2143-04: Message Waiting Lamp (Yes)

Unique Programming for Non-pager Message Notiﬁcation

4202-01: Wait Between Non-Pager Callout

Attempts

4202-03: Wait Between Busy Non-Pager Callout

Attempts

4202-04: Wait Between RNA Non-Pager Callout

Attempts

4202-05: Wait for Answer Non-Pager Callout

Attempts

Unique Programming for Digital Pager Message Notiﬁcation

4202-08: Digital Pager Callback Number 4202-09: Delay in Dialing Digital Pager Callback

Number

4202-02: Wait Between Digital Pager Callout

Attempts

4202-07: Send Pager Callout Until Acknowledged

Log onto mailbox + OP + N

A prerecorded message can play to callers while they wait on Hold.

3103-05: Music on Hold Source (5) 4201-02: Subscriber Message Length

To record from admin mailbox: SA + 1

Message Playback Direction

An extension user can listen to their messages in either LIFO (last-in-ﬁrstout) or FIFO (ﬁrst-in-ﬁrst-out) order.

Operation:

Message Retention

N/A

Automatically deletes a mailbox’s messages after a preset time.

Operation:

Message Storage Limit

N/A

Sets how many messages a mailbox can store.

Operation:

N/A

32 ◆ IntraMail DSX Programmer’s Quick Reference

2143-01: Message Playback Order

2142-02: Message Retention

2142-01: Number of Messages

Feature Description Programming

Message Waiting Lamp

Operation:

DSX Programmer’s Quick Reference - IntraMail (Page 9 of 10)

The Ring/Message Lamp ﬂashes when

2143-04: Message Waiting Lamp

the user has new messages waiting in their mailbox.

N/A

IntraMail

Multiple Company Greetings

Next Call Routing Mailbox

Quick Message

Operation:

By assigning a unique Answer Table

3131-02: IntraMail Answer Table Assignment

to each line, a single IntraMail system can provide individual greetings and dialing options for several companies.

N/A

Provides callers with additional dialing options after they leave a message in an extension’s mailbox (depending on the setting of the Next Call Routing Mailbox Dial Mode).

Programming Subscriber Mailboxes

2144-04: Next Call Routing Mailbox 2144-03: Dialing Option

Programming Announcement Mailboxes

4223-03: Next Call Routing Mailbox 4223-01: Repeat Count 4223-02: Hang Up After

N/A

Automated Attendant callers can dial a digit followed by an extension number to leave a message directly in a

4231: Dial Action Table Digit Assignments (REC1

or REC2)

4201-01: Non-Subscriber Message Length

user’s mailbox.

To leave a Quick Message: Dial * + Leave message

IntraMail

Screened Transfer

Similar to telephone system screened transfers in which the transferring

4231: Dial Action Table Digit Assignment (1) 4222-03: Screened Transfer Timeout

party controls the transfer.

Operation:

Subscriber Mailbox

Operation:

System Administrator System Administrator Mailbox

Operation:

System Re-initialization

N/A

The mailbox type normally used for telephone system extensions.

N/A

The extension user that has IntraMail system administration capabilities.

Log onto admin mailbox + SA

Re-initializing IntraMail returns all programmed options to their default

2141-01: Station Mailbox Type (1) 2143-04: Message Waiting Lamp 4201-02: Subscriber Message Length 4201-01: Non-Subscriber Message Length

2142-03: System Administrator

9011: System Initialization

values.

Operation:

To initialize: INTERCOM + #*#* + NECDSX + 9011 + HOLD + 1 + HOLD

DSX Programmer’s Quick Reference IntraMail ◆ 33

IntraMail

Feature Description Programming

DSX Programmer’s Quick Reference - IntraMail (Page 10 of 10)

Transfer to a UCD Group

Operation:

Undeﬁned Routing

Operation:

Unscreened Transfer

Operation:

Voice Mail Overﬂow

Operation:

The Automated Attendant can transfer outside callers to UCD Group master numbers.

N/A

A dial pad digit for which the Automated Attendant has no routing deﬁned.

N/A

Similar to telephone system unscreened transfers in which the transferring party immediately extends the call.

N/A

Insures that IntraMail will pick up calls that don’t go through.

N/A

4231: Dial Action Table Digit Assignment (1 or 2

to master number).

4231: Dial Action Table Digit Assignment (0)

4231: Dial Action Table Digit Assignment (2) 1603-01: Transfer Recall Time

Setting Up Group Ring DIL Overﬂow

3112-01: Direct Termination in the Day (e.g., 600) 3112-04: Direct Termination at Night (e.g., 600) 3112-02: Enable Day Overﬂow (Ye s) 3112-03: Day Overﬂow Destination (700) 3112-05: Enable Night Overﬂow (Ye s) 3112-06: Night Overﬂow Destination (700) 1601-02: DIL No Answer Timer

Setting Up UCD Group Overﬂow See Group Mailbox

Setting Up DIL Overﬂow

3112-02: Enable Day Overﬂow (Ye s) 3112-03: Day Overﬂow Destination (700) 3112-05: Enable Night Overﬂow (Ye s) 3112-06: Night Overﬂow Destination (700) 1601-02: DIL No Answer Timer

Setting Up K

3112-01: Direct Termination in the Day (CLEAR) 3112-02: Enable Day Overﬂow (Ye s) 3112-03: Day Overﬂow Destination (700) 3112-04: Direct Termination at Night (CLEAR) 3112-05: Enable Night Overﬂow (Ye s) 3112-06: Night Overﬂow Destination (700) 1601-01: Line No Answer Timer

ey Ring Overﬂow

34 ◆ IntraMail DSX Programmer’s Quick Reference

DS-Series to DSX Program

Cross Reference

Cross Reference From DS-Series to DSX

DS-Series to DSX Cross Reference Chart

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

0101 Class of Service Option

Off Premise Call Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1406-01

Barge-in (intrusion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1402-02

Camp-On to Busy Extension. . . . . . . . . . . . . . . . . . . . . . . . . . . 1402-03

Internal Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1406-02

System Speed Dial Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-01

Extended Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-02

Privacy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-03

Trunk (Line) Queuing Priority . . . . . . . . . . . . . . . . . . . . . . . . . 1411-02

Forced Trunk Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1402-01

Camp-On to Busy Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1411-01

Initiate All Call Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-01

Access Page Zone 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-02

Access Page Zone 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-03

Access Page Zone 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-04

Access Page Zone 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-05

Access Page Zone 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-06

Access Page Zone 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-07

Access Page Zone 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1407-08

Silent Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1402-04

Flash for Single Line Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1403-01

ACD Supervisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-04

Single Ring for Single Line Sets . . . . . . . . . . . . . . . . . . . . . . . . 1403-02

Reference

Cross

DS-Series to DSX Program Cross Reference 35

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

View System Alarms

Automatic Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1411-03

Activate Night Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1402-05

Direct Trunk Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1402-06

Remote Call Forwarding/Alternate Attendant

Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-05

Conversation Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-06

CLID Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1404-01

2nd Call CLID (Extension Level Call Waiting Caller ID) . . . . 1404-02

3rd Party Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1404-03

CLID Display Separator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1404-04

Forced Account Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1412-04

Verify Account Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1412-05

Forced Account Codes for Toll Calls Only . . . . . . . . . . . . . . . . 1412-06

Ring Type Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1405-01

Extension Ring Override. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1405-02

Key Ring Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1405-03

SLT Special Dial Tone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1403-03

SLT High Voltage Message Waiting . . . . . . . . . . . . . . . . . . . . . 1403-04

SLT FSK Message Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1403-05

SLT Loop Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1403-06

Enhanced LND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1411-04

Day Walking Class of Service . . . . . . . . . . . . . . . . . . . . . . . . . . 1412-01

Night Walking Class of Service . . . . . . . . . . . . . . . . . . . . . . . . 1412-02

Extension Locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1412-03

DND Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-07

Unsupervised Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1411-05

Allow DID Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-08

DID Camp On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-09

Outgoing ANI Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1404-05

Caller ID Alert Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1404-06

Allow Name Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-10

Allow Language Programming . . . . . . . . . . . . . . . . . . . . . . . . . 1401-11

Call Screening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1401-12

0201 Tenant Option Programming

36 DS-Series to DSX Program Cross Reference

Call Waiting (Camp-On) Tone. . . . . . . . . . . . . . . . . . . . . . . . . . 1512-02

Handsfree Reply on Intercom Calls . . . . . . . . . . . . . . . . . . . . . 1513-02

Voice Announced Intercom Calls . . . . . . . . . . . . . . . . . . . . . . . 1513-01

Automatic Handsfree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1512-01

Music On Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1521-01

MOH on Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1521-02

Background Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1521-03

Enable Account Codes in Speed Dial . . . . . . . . . . . . . . . . . . . . 1541-02

# Key to Enter Account Codes . . . . . . . . . . . . . . . . . . . . . . . . . 1541-01

Account Code Toll Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1541-04

View Account Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1541-03

Name Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1511-01

CPRU Relay CPRU Relay Page Zone Assignment

Door1 Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2101-06

Door1 Relay Page Zone Assignment

Door2 Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2101-06

Door2 Relay Page Zone Assignment

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

0202 Ring Over External Page Options

Background Music Over External Page . . . . . . . . . . . . . . . . . . 1521-04

Door Chime Over External Page. . . . . . . . . . . . . . . . . . . . . . . . 1531-04

Page Ring Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1531-03

External Page Ring Source (Type?) . . . . . . . . . . . . . . . . . . . . . 1531-01

Extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1531-02

0203 UNA Ringing Over External Page

Trunk Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1532-01

UNA Ringing Option

0301 System Options (Part 1)

Number of Operators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1501-01

Operator 1 Extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1502-01

Operator 2 Extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1502-02

Operator 3 Extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1502-03

Operator 4 Extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1502-04

Number of Digits in a System Speed Dial Code. . . . . . . . . . . . 1701-01

A-Law Companding

CPU Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1111-01

Fixed Baud Rate Modem Installed

SMDR Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1541-01

Print SMDR Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1541-02

SMDR Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1541-03

0302 System Identiﬁcation

Company Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1011-01

Company Phone Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1011-02

System Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1001-01

Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1001-02

Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1021-01

Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1021-02

Daylight Savings Time Adjustment. . . . . . . . . . . . . . . . . . . . . . 1022-01

Time and Date Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1511-02

Reference

Cross

0401 System Timers

DS-Series to DSX Program Cross Reference 37

Park Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1603-04

Modem Reserve

Transfer Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1603-01

Intercom Inter-digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602-01

Meet-Me Conference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1605-02

Dialing Pause. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602-04

Page Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1605-01

Door Unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1605-03

DIL No Answer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1601-02

Trunk Revert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1601-01

Trunk Delay Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1604-01

Trunk Overﬂow Centrex Type Feature Key Delay

ACD/UCD Overﬂow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1601-04

Number of Password Attempts

Program Lockout Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/A

Force Program Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1605-04

Auto Redial Retry Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602-06

Auto Redial Busy Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602-07

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

0402 Trunk Timers

Camp-On

Line Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602-02

Dial Tone Detect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602-03

PBX/Centrex Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1612-04

Flash Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1612-05

Force Idle (Trunk Guard Time) . . . . . . . . . . . . . . . . . . . . . . . . . 1602-05

PBX Pause

Minimum Ring Detection Timer. . . . . . . . . . . . . . . . . . . . . . . . 1611-01

DP Make Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1612-02

DP Break Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1612-01

DP Interdigit Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1612-03

Manual DTMF Tone On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1111-01

Manual DTMF Tone Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1111-02

Speed Dial DTMF Tone On . . . . . . . . . . . . . . . . . . . . . . . . . . . 1111-03

Speed Dial DTMF Tone Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 1111-04

Loop Current Detection Time . . . . . . . . . . . . . . . . . . . . . . . . . . 1613-01

Far End Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1613-02

Minimum Single Ring Detection Timer . . . . . . . . . . . . . . . . . . 1611-02

Minimum Double Ring Detection Off Timer . . . . . . . . . . . . . . 1611-03

Maximum Double Ring Detection Off Timer . . . . . . . . . . . . . . 1611-04

Ringing Signal End Detect Timer . . . . . . . . . . . . . . . . . . . . . . . 1611-05

Caller ID Detection Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1611-06

Ground Start Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1612-06

Pause Timer

DP Mute Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1612-07

P.F. Recovery Detect Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1613-03

0403 Station Timers

Hold Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1603-02

Exclusive Hold Recall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1603-03

Camp-On

Call Forward Ring No Answer . . . . . . . . . . . . . . . . . . . . . . . . . 1601-03

Call Waiting Tone Interval

Call Coverage Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1604-02

Hoof Flash Transfer Hook Flash Disconnect

Number of Extended Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1604-03

Drop Pulse Send DTMF Detect Ring No Answer Hunt

0404 Analog Station Timers

Loop Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1613-01

Ringing Frequency

Minimum Break Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-01

Maximum Break Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-02

Minimum Make Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-03

Maximum Make Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-04

Minimum Hookﬂash Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-05

Maximum Hookﬂash Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-06

Minimum Ground Flash Time

Minimum Off-Hook Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-07

Off-Hook Guard Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-09

38 DS-Series to DSX Program Cross Reference

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

Dial Pulse Guard Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621-08

Loop Disconnect Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1622-01

Ring/MW Wait Period Time . . . . . . . . . . . . . . . . . . . . . . . . . . . 1622-02

0405 T1/E1 Trunk Timers

Loop Detection Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1631-01

Pause Timer

Transmit Dial Pulse Break Time . . . . . . . . . . . . . . . . . . . . . . . . 1632-01

Transmit Dial Pulse Make Time . . . . . . . . . . . . . . . . . . . . . . . . 1632-02

Transmit Dial Pulse Interdigit Time . . . . . . . . . . . . . . . . . . . . . 1632-03

Receive Dial Pulse Minimum Make Time . . . . . . . . . . . . . . . . 1631-04

Receive Dial Pulse Maximum Make Time . . . . . . . . . . . . . . . . 1631-05

Receive Dial Pulse Minimum Break Time . . . . . . . . . . . . . . . . 1631-02

Receive Dial Pulse Maximum Break Time . . . . . . . . . . . . . . . . 1631-03

Transmit Answer Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1651-03

Receive Minimum Answer Time. . . . . . . . . . . . . . . . . . . . . . . . 1652-05

Receive Maximum Answer Time . . . . . . . . . . . . . . . . . . . . . . . 1652-06

Receive Clear Signal Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1631-08

Transmit Flash Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1632-04

Receive Flash Minimum Time . . . . . . . . . . . . . . . . . . . . . . . . . 1631-06

Receive Flash Maximum Time . . . . . . . . . . . . . . . . . . . . . . . . . 1631-07

0406 T1 Trunk Timers

Mimimum Ring Detection Time . . . . . . . . . . . . . . . . . . . . . . . . 1641-01

Single Ring Minimum Detection Time. . . . . . . . . . . . . . . . . . . 1641-02

Double Ring Minimum Off Time . . . . . . . . . . . . . . . . . . . . . . . 1641-03

Double Ring Maximum Off Time . . . . . . . . . . . . . . . . . . . . . . . 1641-04

Ring Stop Detection Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1641-05

Transmit Wink Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1642-01

Receive Wink Minimum Time . . . . . . . . . . . . . . . . . . . . . . . . . 1642-02

Receive Wink Maximum Time . . . . . . . . . . . . . . . . . . . . . . . . . 1642-03

Transmit Remove Ring Time

Reference

Cross

0407 E1 Trunk Timers

0408 E1 MFC Timers

DS-Series to DSX Program Cross Reference 39

Forced Release Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1651-04

Transmit Double Answer Time . . . . . . . . . . . . . . . . . . . . . . . . . 1651-06

Receive Double Answer Minimum Time . . . . . . . . . . . . . . . . . 1652-09

Receive Double Answer Maximum Time . . . . . . . . . . . . . . . . . 1652-10

Transmit Seize Acknowledge Time. . . . . . . . . . . . . . . . . . . . . . 1651-01

Receive Seize Acknowledge Minimum Time . . . . . . . . . . . . . . 1652-01

Receive Seize Acknowledge Maximum Time. . . . . . . . . . . . . . 1652-02

Transmit Digit Acknowledge Time . . . . . . . . . . . . . . . . . . . . . . 1651-02

Receive Digit Acknowledge Time

Receive Digit Acknowledge Minimum Time . . . . . . . . . . . . . . 1652-03

Receive Digit Acknowledge Maximum Time . . . . . . . . . . . . . . 1652-04

Receive Meter Pulse Minimum Time . . . . . . . . . . . . . . . . . . . . 1652-07

Receive Meter Pulse Maximum Time . . . . . . . . . . . . . . . . . . . . 1652-08

Receive Line Block Minimum Time . . . . . . . . . . . . . . . . . . . . . 1652-11

Receive Line Block Recover Time . . . . . . . . . . . . . . . . . . . . . . 1652-12

Transmit Clear Signal Time . . . . . . . . . . . . . . . . . . . . . . . . . . . 1632-05

Transmit Seize Signal Time

Group A Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1654-01

Group A Tone Complete Time . . . . . . . . . . . . . . . . . . . . . . . . . 1654-02

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

Group B Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1654-03

Group B Tone Complete Time . . . . . . . . . . . . . . . . . . . . . . . . . 1654-04

Group C Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1654-05

Group C Tone Complete Time . . . . . . . . . . . . . . . . . . . . . . . . . 1654-06

Group I Signal Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1653-01

Group I Tone Complete Time . . . . . . . . . . . . . . . . . . . . . . . . . . 1653-02

Group II Signal Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1653-03

Group A Pulse Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1653-04

0501 Numbering Plan

Digit 0 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 3 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 4 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 5 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 6 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 7 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 8 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Digit 9 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1301-01

Single Digit Access

0502 Station Extension Assignments . . . . . . . . . . . . . . . . . . . . 1311-01

0503 Trunk Extension Assignments . . . . . . . . . . . . . . . . . . . . . 1313-01

0505 Extension Swap Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9031-01

0510 ACD/UCD Master Extension Numbers and Names

Group Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1315-01

Hunt Group Master Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 1315-01

Overﬂow Destination. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2302-01

Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2301-01

Hunt Group Ring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2301-02

0511 Ring Group Master Extension Numbers and Names

Group Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1314-01

Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2201-01

Extension Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1314-01

Ring Group Ring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2201-02

0601 Conﬁgure Toll Level Options

Program Toll Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9012-01

Initialize Toll Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9012-01

Toll Restriction Level

Active Dial Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3511-01

N11 Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3512-04

0+ Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3512-01

International (011) Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3512-02

Equal Access (101X + XXX) Dialing. . . . . . . . . . . . . . . . . . . . 3512-03

0602 1010 + XXX Equal Access Dialing . . . . . . . . . . . . . . . . . . 3521-01

0603 1 + NPA/NXX Dialing 3-Digit Table. . . . . . . . . . . . . . . . . . . 3531-01

0604 1 + NPA + NXX Dialing 6-Digit Table . . . . . . . . . . . . . . . . . 3541-01

40 DS-Series to DSX Program Cross Reference

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

0605 NPA/NXX Dialing 3-Digit Table. . . . . . . . . . . . . . . . . . . . . . 3551-01

0606 NPA + NXX Dialing 6-Digit Table . . . . . . . . . . . . . . . . . . . . 3561-01

0610 PBX Access Codes Table . . . . . . . . . . . . . . . . . . . . . . . . . 3401-01

0801 Selectable Display Messages . . . . . . . . . . . . . . . . . . . . . . 2501-01

1001 Trunk Port Description

Trunk Circuit Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3101-01

Trunk Extension Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1313-01

Trunk Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3101-02

Trunk Transmit Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3103-01

Trunk Receive Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3103-02

Trunk Class of Service Assignment . . . . . . . . . . . . . . . . . . . . . 3102-01

PBX Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3101-04

Disable Forced Account Codes . . . . . . . . . . . . . . . . . . . . . . . . . 3111-01

Loop Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3103-03

Trunk Toll Restriction Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 3102-02

Override Extension Toll Restriction . . . . . . . . . . . . . . . . . . . . . 3111-02

Print SMDR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3111-06

Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3121-01

ANI/DNIS (DS2000 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3121-02

ANI Delimiter (DS2000 Only) . . . . . . . . . . . . . . . . . . . . . . . . . 3121-03

Number of ANI digits (DS2000 Only) . . . . . . . . . . . . . . . . . . . 3121-04

Voice Mail Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3122-XX

Dial Tone Detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3111-03

E1 Signaling Type (DS2000 Only) . . . . . . . . . . . . . . . . . . . . . . 3101-05

MFC Dialing Type (DS2000 Only) . . . . . . . . . . . . . . . . . . . . . . 3101-06

Enable MFC GB (DS2000 Only) . . . . . . . . . . . . . . . . . . . . . . . 3111-04

Store and Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3111-05

1002 Trunk Groups

Trunk Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3201-XX

Order Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3201-XX

Reference

Cross

1003 Trunk Options

Call Pickup Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3113-01

Direct Termination (Day) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3112-01

Activate Overﬂow during the Day. . . . . . . . . . . . . . . . . . . . . . . 3112-02

Day Overﬂow Destination. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3112-03

Direct Termination (Night) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3112-04

Activate Overﬂow at Night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3112-05

Night Overﬂow Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . 3112-06

Day Ring Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3113-02

Night Ring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3113-03

Delay Ring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3113-04

MOH Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3103-05

Tandem Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3103-04

Answer Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3131-02

Dial 9 Group (DS2000 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . 2113-01

Extension's Operator (DS2000 Only) . . . . . . . . . . . . . . . . . . . . 2114-03

1004 Line Group Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2133-XX

1005 Trunk Caller ID Logging Group . . . . . . . . . . . . . . . . . . . . . 3122-XX

DS-Series to DSX Program Cross Reference 41

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

1006 Trunk Line Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3142-01

1101 System Speed Dial Numbers

System Speed Dial Bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1702-XX

Line/Group/ICM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1702-XX

System Speed Dial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 1702-XX

System Speed Dial Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1702-XX

1201 Veriﬁed Account Codes Table . . . . . . . . . . . . . . . . . . . . . . 3601-XX

1301 Caller ID Group Conﬁguration . . . . . . . . . . . . . . . . . . . . . 3701-XX

1302 Caller ID Outbound Line/Group . . . . . . . . . . . . . . . . . . . . 3711-01

10 Digit Local Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3712-02

1303 Home Area (HPNA) Codes. . . . . . . . . . . . . . . . . . . . . . . . . 3713-XX

1304 Home Area (HPNA) Exception List. . . . . . . . . . . . . . . . . . 3714-XX

1305 Foreign Area (FPNA) Exception List Data . . . . . . . . . . . . 3715-XX

1401 Number of DID Digits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3301-01

1402 DID Translation Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3302-01

1403 DID MFC Dialing Category. . . . . . . . . . . . . . . . . . . . . . . . . 3302-01

1701 Programmable Function Key Assignments

Undeﬁned . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-00

Switched Loop Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-01

Fixed Loop Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-02

Line Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-03

Park Orbit Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-04

Hotline Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-05

Call Coverage Immediate Ring . . . . . . . . . . . . . . . . . . . . . . . . . 2121-06

Call Coverage No Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-07

Call Coverage Delay Ring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-08

Group Pickup Immediate Ring . . . . . . . . . . . . . . . . . . . . . . . . . 2121-09

Group Pickup No Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-10

Group Pickup Delay Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-11

Page Zone Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-13

System Speed Dial Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-14

Personal Speed Dial Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-15

Call Timer Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-16

Voice Mail Record Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-17

Night Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-18

Data Key

Split Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-20

ICM Directory Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-21

ACD Log On Key

Reverse Voice Over Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-23

Message Center Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-24

Save Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-25

Account Code Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-26

Call Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-27

Headset Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2121-28

42 DS-Series to DSX Program Cross Reference

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

1702 Personal Speed Dial Key

Personal Speed Dial Bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2151-XX

Personal Speed Dial Number . . . . . . . . . . . . . . . . . . . . . . . . . . 2151-XX

Personal speed Dial Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2151-XX

1703 DSS Key Assignment

Key Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-XX

BLF Extension Assignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-XX

1704 DSS Console Key Assignment

Undeﬁned . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-00

Line Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-03

Park Orbit Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-04

Hotline Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-05

Call Coverage Immediate Ring . . . . . . . . . . . . . . . . . . . . . . . . . 2402-06

Call Coverage No Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-07

Call Coverage Delay Ring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-08

Group Pickup Immediate Ring . . . . . . . . . . . . . . . . . . . . . . . . . 2402-09

Group Pickup No Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-10

Group Pickup Delay Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-11

Page Zone Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-13

System Speed Dial Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-14

Personal Speed Dial Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-15

Voice Mail Record Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-17

Night Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-18

Data Key

Split Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-20

ICM Directory Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-21

ACD Log On Key

Reverse Voice Over Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-23

Message Center Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-24

Save Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-25

Account Code Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-26

Call Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-27

Headset Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2402-28

Reference

Cross

1705 Soft Key Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . 2124-XX

1801 Extension Port Description

DS-Series to DSX Program Cross Reference 43

Extension Circuit Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2101-01

Extension Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1311-01

Extension Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2101-02

DSS Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1202-01

DSS Block Number

Door Chime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2101-04

Relay Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2101-06

Extension Class of Service Assignment . . . . . . . . . . . . . . . . . . 2102-01

Extension Toll Level Day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2102-02

Extension Toll Level Night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2102-03

Access Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2102-04

DID Station Intercept Destination. . . . . . . . . . . . . . . . . . . . . . . 2115-02

DID Station Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2115-02

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

1802 Extension Options (Part 1)

Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-01

Ring Group Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2113-02

Call Pickup Group Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2113-03

Privacy Release Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2113-04

Off-Hook Signaling for Intercom Calls. . . . . . . . . . . . . . . . . . . 2116-01

Off-Hook Signaling for CO Calls . . . . . . . . . . . . . . . . . . . . . . . 2116-03

Handsfree Reply on Intercom Calls . . . . . . . . . . . . . . . . . . . . . 2112-05

Automatic Handsfree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2112-01

Busy Lamp Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-03

Line Dial Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-06

Station's Dial 9 Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2113-01

Retain Trunk Volume Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-07

Key Access to Outbound Lines . . . . . . . . . . . . . . . . . . . . . . . . . 2111-05

Page Zone Member . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2113-05

BGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-02

Extension's Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2114-03

Ring Down Destination. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2114-02

Speed Dial Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-09

Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-08

Outgoing ANI ID (DS2000 Only)

1803 Extension Line Access Assignments

Access Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2131-01

1804 Extension Trunk Group Access

Trunk Group Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2133-01

1805 Ring Assignments

Ring Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2132-01

1806 Ring Type Conﬁguration

Day Ring Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2103-01

Night Ring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2103-02

Delay Ring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2103-03

Initialize Ring Type

1807 Extension Features (Part 2)

Station Voice Announced Icm Calls . . . . . . . . . . . . . . . . . . . . . 2112-03

Headset Voice Announced Icm Calls. . . . . . . . . . . . . . . . . . . . . 2112-04

Paging Through Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2112-06

Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2112-02

Ringing Line Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2111-04

Hunt Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2115-01

Hunt Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2115-01

Hunt master Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2115-01

Prime Line Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2114-01

Prime Line Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2114-01

Prime Line Trunk/Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2114-01

PIN Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2102-05

Walking Class of Service Security Code. . . . . . . . . . . . . . . . . . 1412-xx

Caller ID Log Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2117-01

Caller ID Personal Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2117-01

Caller ID Logging Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2117-01

Display Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2101-03

44 DS-Series to DSX Program Cross Reference

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

1808 IntraMail Subscriber Mailbox Options

Extension Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1312-01

Mailbox Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2141-01

Mailbox Active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2141-01

Number of Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2142-01

Message Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2143-01

Auto Erase/Save of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 2143-02

Message Retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2142-02

Recording Conversation Beep. . . . . . . . . . . . . . . . . . . . . . . . . . 2143-05

Message Waiting Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2143-04

Auto Attendant Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . 2144-01

Forced Unscreened Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . 2144-02

Auto Time Stamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2143-03

System Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2142-03

Dialing Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2144-03

Next Call Routing Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2144-04

Directory List Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2144-05

8001 Voice Mail Setup

Voice Mail Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4101-01

Voice Mail Master Extension No. . . . . . . . . . . . . . . . . . . . . . . . 4101-02

8002 Voice Mail Options (Part 1)

Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4111-01

Class of Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4111-02

Toll Restriction Level (Day) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4111-03

Toll Restriction Level (Night) . . . . . . . . . . . . . . . . . . . . . . . . . . 4111-04

Operator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4112-02

Dial 9 Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4112-01

Outgoing Trunk Group Access . . . . . . . . . . . . . . . . . . . . . . . . . 4114-XX

8003 Voice Mail Options (Part 2)

Trunk Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4113-XX

Trunk Access Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4113-XX

8004 IntraMail System Options

Subscriber Message Length . . . . . . . . . . . . . . . . . . . . . . . . . . . 4201-02

Non-Subscriber Message Length . . . . . . . . . . . . . . . . . . . . . . . 4201-01

Message Backup/Go Ahead Time . . . . . . . . . . . . . . . . . . . . . . . 4201-03

Fax Extension

Digital Pager Callback Number . . . . . . . . . . . . . . . . . . . . . . . . 4202-08

Delay in Dialing Digital Pager Callback Number. . . . . . . . . . . 4202-09

Wait Between Digital Pager Callout Attempts . . . . . . . . . . . . . 4202-02

Wait Between Non-Pager Callout Attempts . . . . . . . . . . . . . . . 4202-01

Wait Between Busy Non-Pager Callout Attempts. . . . . . . . . . . 4202-03

Wait Between RNA Non-Pager Callout Attempts. . . . . . . . . . . 4202-04

Wait for Answer Non-Pager Callout Attempts . . . . . . . . . . . . . 4202-05

Number of Callout Attempts . . . . . . . . . . . . . . . . . . . . . . . . . . . 4202-06

Send Pager Callout Until Acknowledged . . . . . . . . . . . . . . . . . 4202-07

Reference

Cross

DS-Series to DSX Program Cross Reference 45

Cross Reference From DS-Series to DSX

DS to DSX Programming Cross Reference

DS Program DS Program Description DSX Program

8005 IntraMail Master Mailbox Options

Mailbox Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4101-02

Mailbox Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4101-01

Mailbox ACtive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4101-01

Minimum Number of Letters Required. . . . . . . . . . . . . . . . . . . 4224-05

Directory List Number to Use. . . . . . . . . . . . . . . . . . . . . . . . . . 4224-01

Extension Name Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4224-04

Unscreened or Screened Transfer . . . . . . . . . . . . . . . . . . . . . . . 4224-06

Screened Transfer Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4224-03

Time Limit for Dialing Commands. . . . . . . . . . . . . . . . . . . . . . 4224-02

Fax Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4224-08

Next Call Routing Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4224-07

8006 IntraMail Routing Mailboxes

Mailbox Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4221-01

Mailbox Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4221-02

Mailbox Active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4221-01

Dial Action Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4222-01

Screened Transfer Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4222-03

Time Limit for Dialing Commands. . . . . . . . . . . . . . . . . . . . . . 4222-02

Fax Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4222-04

Next Call Routing Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4223-03

Repeat Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4223-01

Hang Up After. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4223-02
