SSoopphhiissttiiccaattiioonn SSiimmpplliiffiieedd
IInnnnoovvaattiivvee
communications more efficient, profitable, and enjoyable.
Superior ergonomic styling offers a slim, sleek, compact design with a quality feel that is an attractive addition
to any work environment. All models feature the same thin, floating design, have a built-in speakerphone,
two-position angle adjustment for effortless viewing of the large LCD display, and built-in wall mounting.
Enhanced models also offer a backlit display and illuminated dial pad.
Innovations don’t stop with the DSX telephones. Right out of the box, the system has a built-in Automated
Attendant which can answer incoming calls, play a greeting, and allow callers to dial extensions and
departments directly without operator assistance or additional equipment.
DSX is sized right – starting with the economical DSX-40, progressing to the DSX-80, and reaching maximum
system capacity with the DSX-160. To maintain the value of your investment, all the circuitry of a DSX-80 can
be migrated to the DSX-160. Even when growing from the DSX-40, your investment in programming,
telephones, and other station equipment is retained.
AAffffoorrddaabbllee
install and
easy to use, the expenses of configuration, programming, and post-installation training are minimized.
RReelliiaabbllee
features are mature,
assurance and state-of-the-art circuit design, you are assured that DSX will be your reliable business partner
for years to come.
NEC takes the
NEC designed the DSX with affordability and scalability in mind. Since DSX is simple to
Over a decade of intense feature development ensures that the core DSX call processing
efficient, and reliable – yet intuitive and easy to use. Combined with end-to-end quality
lead with state-of-the-art innovations sure to make your business
PPuutt OOuurr TTeecchhnnoollooggyy ttoo WWoorrkk ffoorr YYoouu
IInnttrraaMMaaiill//IInnttrraaMMaaiill PPrroo
requires a compact flash card to activate. IntraMail is a full-featured Voice Mail Auto Attendant
system that will greet and transfer incoming callers and record voice mail messages.
Some of the advanced features of IntraMail include:
Message Center – Notify groups of extensions of important messages with
visual indication using a message center key.
Directory Dialing – Dial a name instead of a number to reach your party.
Message on Hold – Record your own informative company message.
Caller ID – Caller information is verbally provided with a voice mail message.
Message Notification – You can receive a call - anywhere - when a new message arrives.
Conversation Record – Save and record your conversation into a predetermined mailbox with the touch
of a button.
Live Call Screening – Listen as callers are leaving you a message and pick up only the calls you want to answer.
Park and Page – Allows a caller to page you without operator assistance. You can pick up the call from
any extension.
The IntraMail Pro supports all of the features of the IntraMail and also offers
Email Integration – Receive notification of a new voice mail message to your
inbox or Email device. In addition, the sent notification can optionally include the
recorded message as a .WAV file attachment. With this option, if you have the
ability to access your Email, you can also have the ability to listen to your voice
mail messages without having to call your office.
The ability to add voice mail is built into the system and only
BBuuiilltt--iinn CCaalllleerr IIDD
The capability for Caller ID is inherent in every
DSX system. With Caller
ID, you can identify incoming callers before the call is answered. The caller’s name and number (if available)
will appear simultaneously in the display.
Logging – Stores the name, number and time/date
of outside calls. This allows for easy review, save
and redial of received calls.
Checking – A manager can have the capability
to view Caller ID information associated with
Return Call – Easily return a call without manually
re-entering the caller’s number.
To Analog Ports – Caller ID information can be
sent to analog single line ports for use with
customer-provided Caller ID accessories.
a co-worker's line or extension.
OO ff ffiicc ee AAddmmiinniissttrraattoorr PPCC PPrrooggrraamm
basic system features from their PC with the windows
TM
-based Office Administrator. This includes the Time and
An office supervisor can quickly customize
Date options, important extension feature and voice mail options, and Speed Dial numbers. These features
can also be programmed from an office administrator’s phone.
CCuussttoommiizzee YYoouurr CCoommmmuunniiccaattiioonn SSoolluuttiioonn
Advanced telephone features include:
Backlit Display and Illuminated Dial Pad* for easy viewing in low light areas.
Interactive Soft Keys that change function as you use your phone, allowing
you access to advanced features by just pressing a key.
User Programmable Feature Keys for one-button access to co-workers,
features, and outside lines.
Dual color (red/green) LEDs make it easy to distinguish between your
calls and those of co-workers.
Desk Stand is adjustable for two different positions.
Wall Mount is built-in for low-profile wall mounting capability.

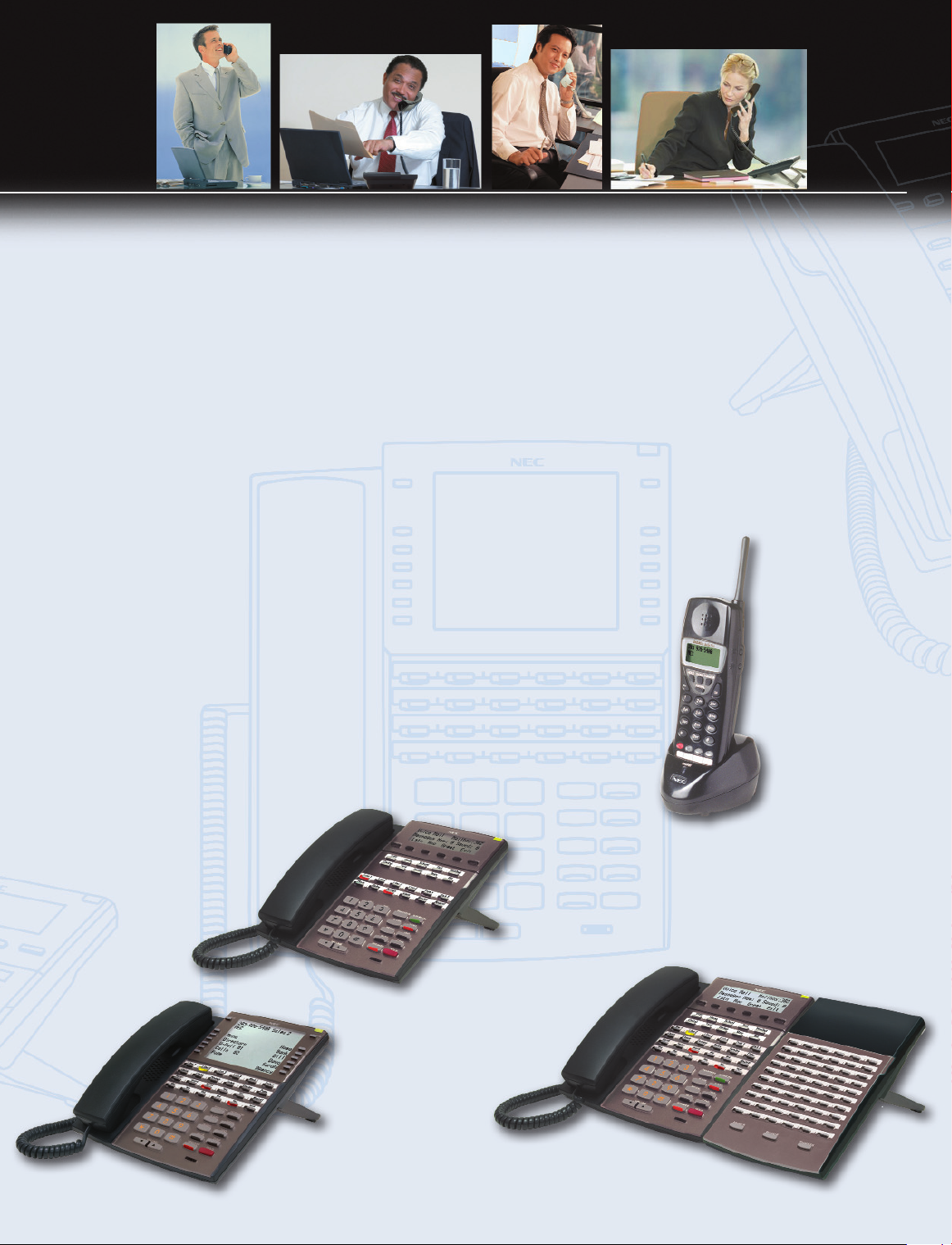

22-Button Display
Offers a large display,
programmable keys, and
a built-in speakerphone –
making this the most
economical option
without sacrificing
convenience.
34-Button Display
Offers all the same features as the
22-Button Display, plus additional
programmable keys, and is enhanced
with a backlit display and illuminated
dial pad. It is ideal for a stand-alone
application or as an answering
position (as pictured below).
Cordless
Offers many standard
features of the wired
telephone including
4 fully programmable
feature keys with
LEDs, and an
easy-to-read display
with the advantage
of mobility.
DSS Console
Provides 60 dual color
programmable keys
for one-button access
to extensions, lines,
and selected system
features.
34-Button Super Display
Has all the features of the
34-Button Display and offers
our largest, most interactive
display for advanced users
and busy executives.
Unique light sensor
automatically adjusts
the phone’s brightness
based on the level of
ambient lighting in the room.
* Select Models
DSX telephones and console are available in black or white. Cordless available in black only.
Specifications
1
DSX-40 Base Max
Digital Stations 8 24
Analog Stations 2 18
Lines 4 8
Door Box Ports 2 2
DSX-80
Slots 4
Digital Stations 32
Analog Stations 32
Lines 64
DSX-160
Slots 8
Digital Stations 96
Analog Stations 96
Lines 64
IntraMail
Voice Mail Ports 4 or 8
Storage Hours 8, 16, or 32
Subscriber Mailboxes 128
3
General
One Pair Wiring
USB 2.0 (Full Speed)
10/100 BASE-TX Ethernet, Auto-MDIX
RS-232 Serial Port
DSX Features
2-Position Telephone Angle Adjustment
Account Codes
Alphanumeric Display
Ambient Light Sensor
Attendant Call Queuing
Attendant Position
Auto Redial
Auto Attendant (Built-in)
Automatic Daylight Savings Time Adjustment
Automatic Handsfree
Automatic Ring Down
Background Music
Backlit Display (selected models)
Barge In (Intrusion)
Battery Backed-up Memory
Built-In Modem
Call Coverage Keys
Call Forwarding
Call Forwarding Off Premises
Call Timer
Call Waiting / Camp-On
Callback
Caller ID
Caller ID Logging (CID with Return Call)
Caller ID to Single Line Telephones
Class of Service
Conference (up to 8 parties per conference)
Conference, Meet-Me
Conference, Unsupervised
Cordless Telephone
Delayed Ringing
Dial Number Preview
Dial Tone Detection
1
Direct Inward Dialing (with ANI/DNIS)
Direct Station Selection (DSS)
Direct Station Selection (DSS) Console
Directed Call Pickup
Directory Dialing (Company, Personal, Ext.)
Distinctive Ring (ICM, CO, Ring Grp, Recall)
Do Not Disturb
Do Not Disturb Override
Door Box (Analog)
Extended Ringing
Extension Hunting (Circular, Terminal, UCD)
Extension Locking
Flash
Flexible Numbering Plan
Forced Line Disconnect
Group Call Pickup
Group Listen
Group Ring
Handsfree and Handsfree Answerback
Headset Compatibility
Hold (with Recall Display)
Hotline
Illuminated Dial Pad (selected models)
Interactive Soft Keys
Intercom
Internet Time Service
ISDN/PRI
2
Language Selection
Last Number Redial
Line Groups
Line Keys
Line Queuing / Callback
Loop Keys
Meet-Me Conference
Message Waiting
Microphone Mute
Monitor / Silent Monitor
Music on Hold
Names for Extensions and Lines
Night Service / Night Ring
Off-Hook Signaling
Office Administrator PC Program
Paging (Internal and External)
Park (with Recall Display)
PBX / Centrex Compatibility
PC Program (System Administrator)
Prime Line Preference
Privacy
Privacy Release Groups
Private Line
PRI/ISDN
2
Pulse to Tone Conversion
Remote Programming
Removing Lines and Extensions From Service
Reverse Voice Over
Ring Groups
Ring/Message Lamp
Ringdown Extension
Ringing Line Preference
Room Monitor
Save Number Dialed
Selectable Display Messaging
2
Silent Monitor
Single Line Telephones
Speakerphone
Speed Dial
Split (Alternate)
Station Message Detail Recording
System Programming Backup and Restore
System Programming Password Protection
T1 Lines
Tie Lines
2
2
Time and Date
Toll Restriction
Transfer (with Recall Display)
User Programmable Features
Voice Mail
Voice Over
Volume and Contrast Controls
Walking Class of Service
Wall Mount/Desk Stand (Built-in)
IntraMail Features
Announcement Message
Answering Machine Emulation/Call Screen
Auto Time and Date Stamp
Automated Attendant
Broadcast Message
Caller ID with Return Call
Centrex Transfer
Conversation Record
Directory Dialing
Distribution Lists
Email Integration
External Transfer
Fax Detection
Flexible Answering Schedules
Interactive Soft Keys
Message Center Mailbox
Message Notification
Message on Hold
Multiple Company Greeting (8)
Number of Messages Displayed
Park and Page
Personal Greeting (3)
Remote Message Notification
Security Code
Single Digit Dialing
System Administrator
Voice Mail Overflow
Voice Prompting Messages
Volume Control
1
Capacities listed are system maximums and
may be limited by system configuration.
2
DSX-80/160 only.
3
Requires IntraMail Pro.
3
©NEC Unified Solutions, Inc. 11/07
6555 N. State Hwy 161, Irving, Texas 75039
DSX is a trademark of NEC Infrontia Corporation.
Some features may be optional or available at a future date.
Recording of phone calls is subject to varying state and federal laws.
The information herein is subject to change without notice at the sole discretion of NEC.
(1093060)
Rev. 1, 11/07
Printed in U.S.A.
To find out more about the DSX and how NEC’s
powerful and versatile technology platforms can
work for you, contact your local NEC dealer, visit our
web site at www.necdsx.com, or call 800-365-1928.
