NAD T512, T532 User Manual

T532/T512

DVD / CD / MP3 Player

Owner’s Manual

Introduction

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE

CAUTION

THIS DVD RECEIVER EMPLOYS A LASER SYSTEM.

TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER’S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE, SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION WHEN OPEN THE ENCLOSURE. DO NOT STARE INTO BEAM.

THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

WARNING : CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PAR TY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT)

The model and serial number of your new DVD player are located on the back of the DVD player cabinet. For your future convenience, we suggest that you record these numbers here:

MODEL NO. ____________________________ SERIAL NO. ____________________________

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

TABLE OF CONTENTS

Introduction

INTRODUCTION

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Identification of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Front Panel/Display window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Preparing the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operating with the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CONNECTIONS

Connecting to Surround Sound System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-11

Enjoying Dolby Digital Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Enjoying Dolby Pro Logic Surround Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Enjoying 2 Channel Digital Stereo Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Enjoying DTS Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting to an Stereo System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INITIAL SETTINGS

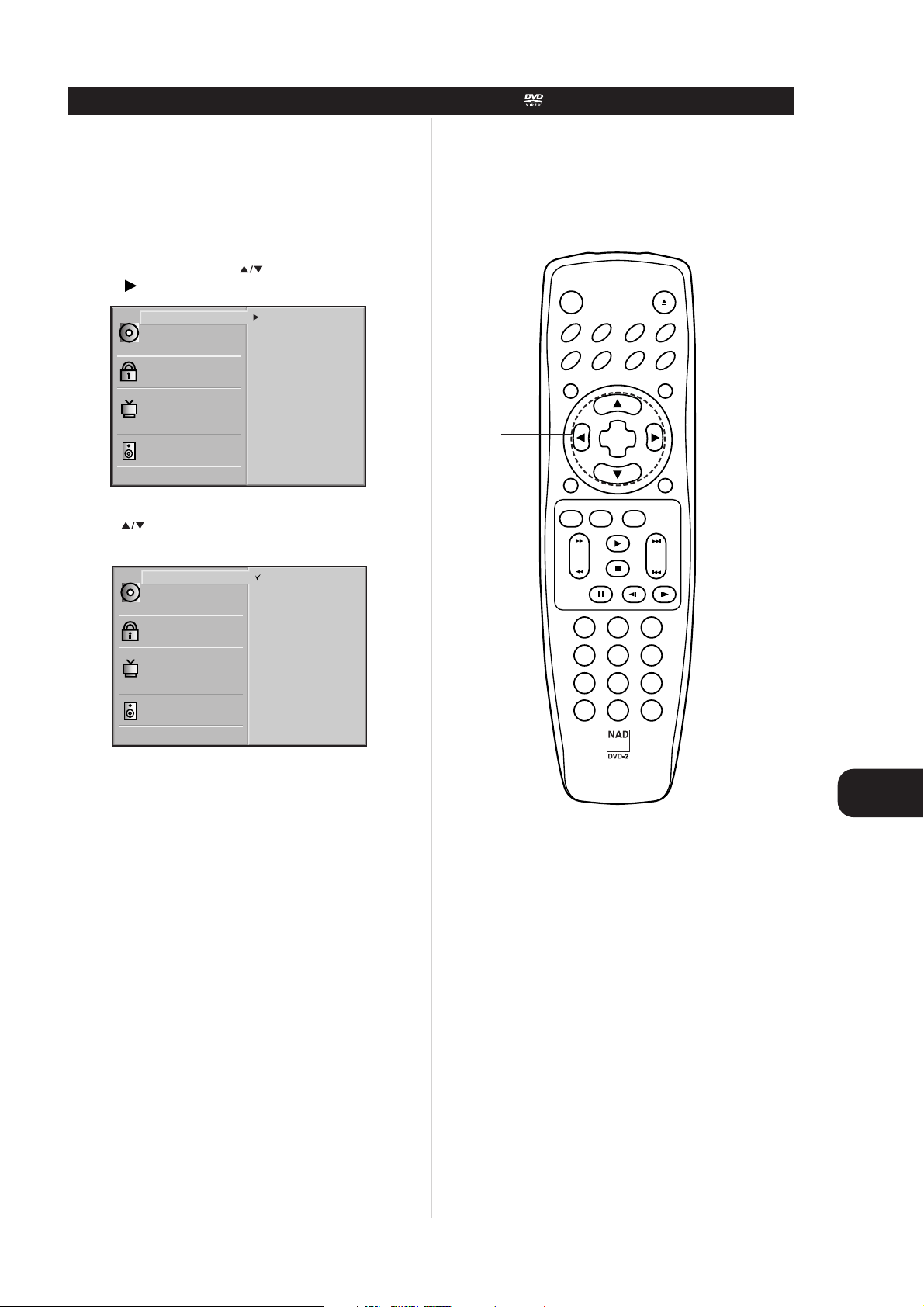

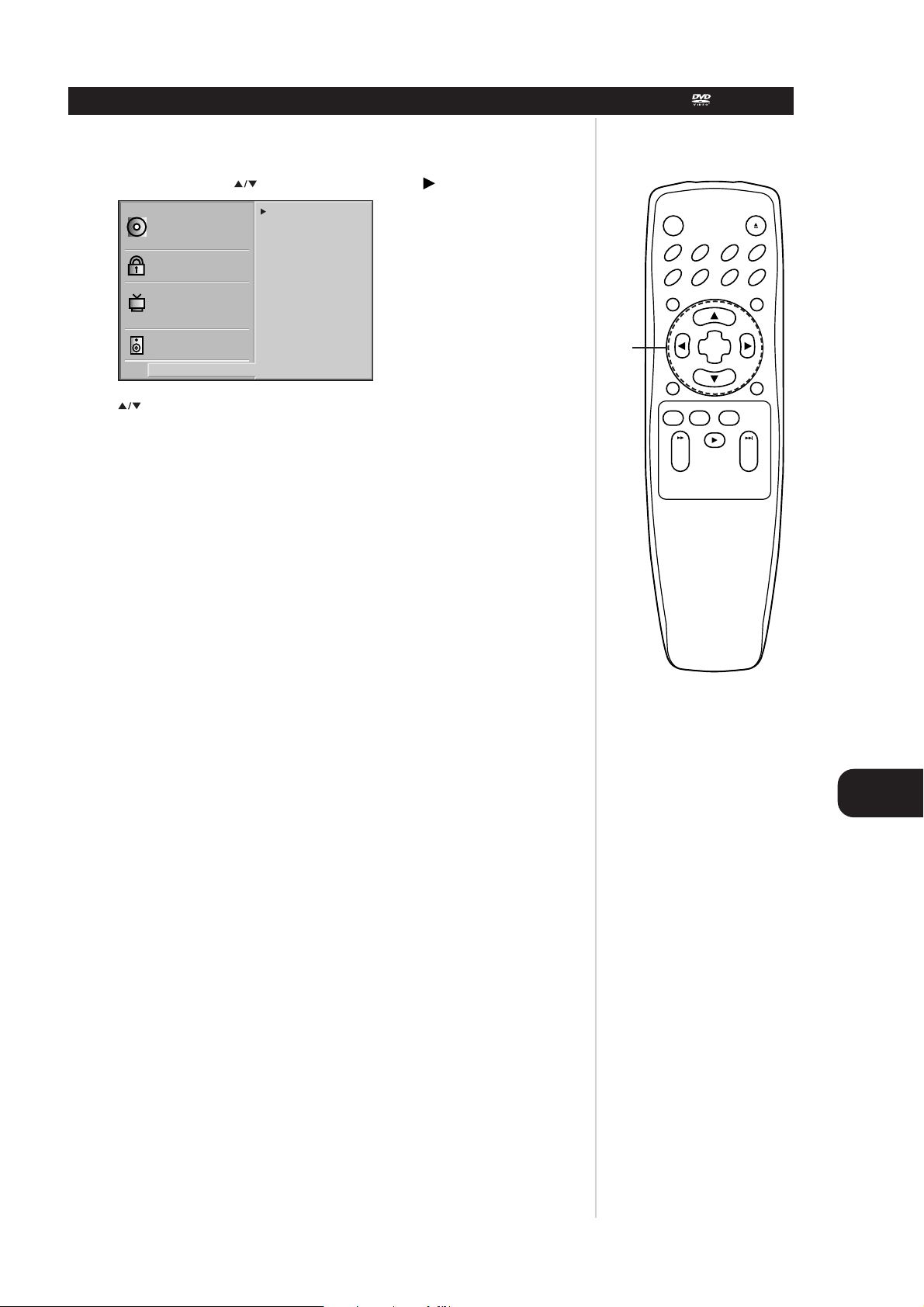

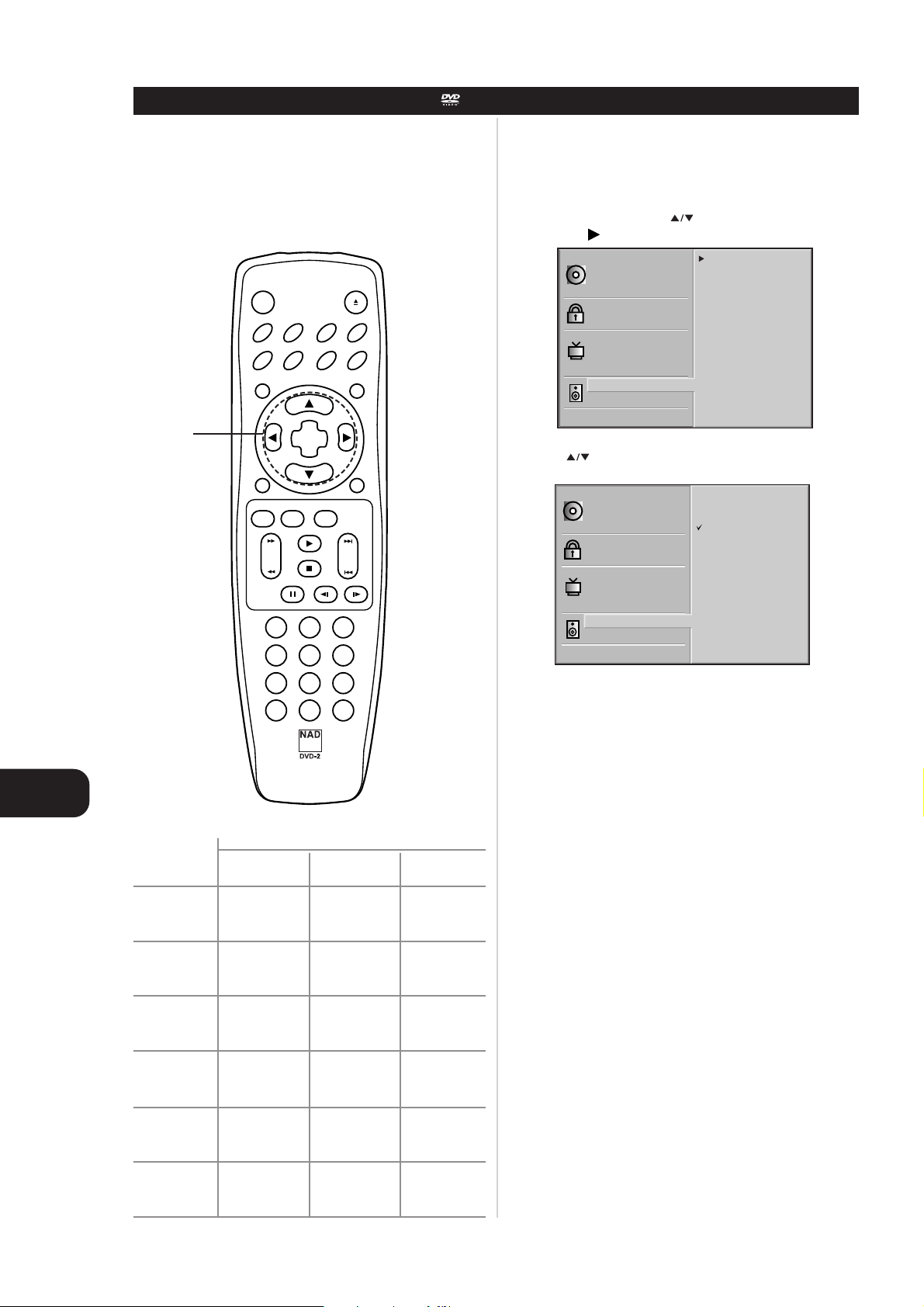

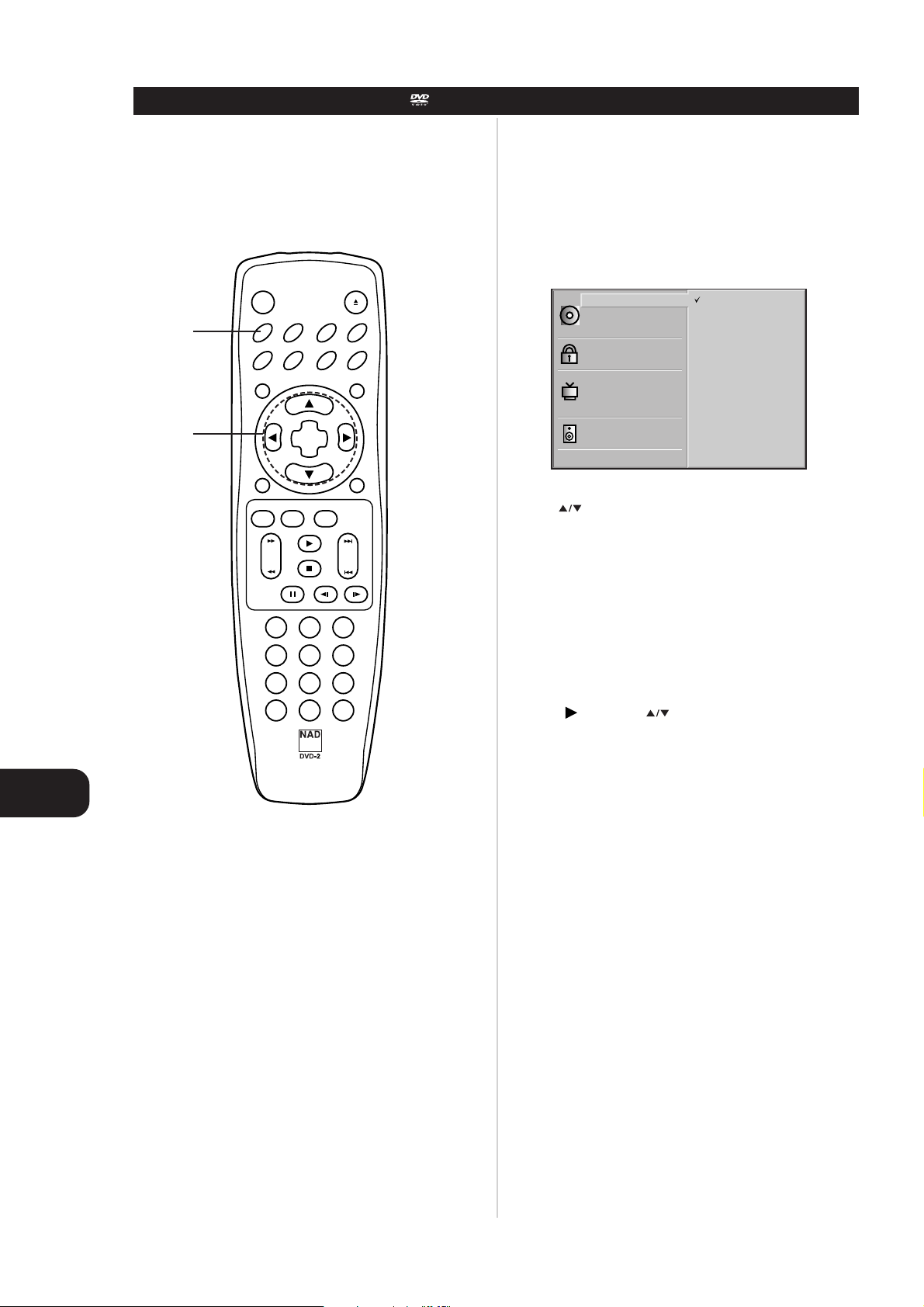

Selection of initial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting disc Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Selecting rating level and password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17

Selecting Country Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

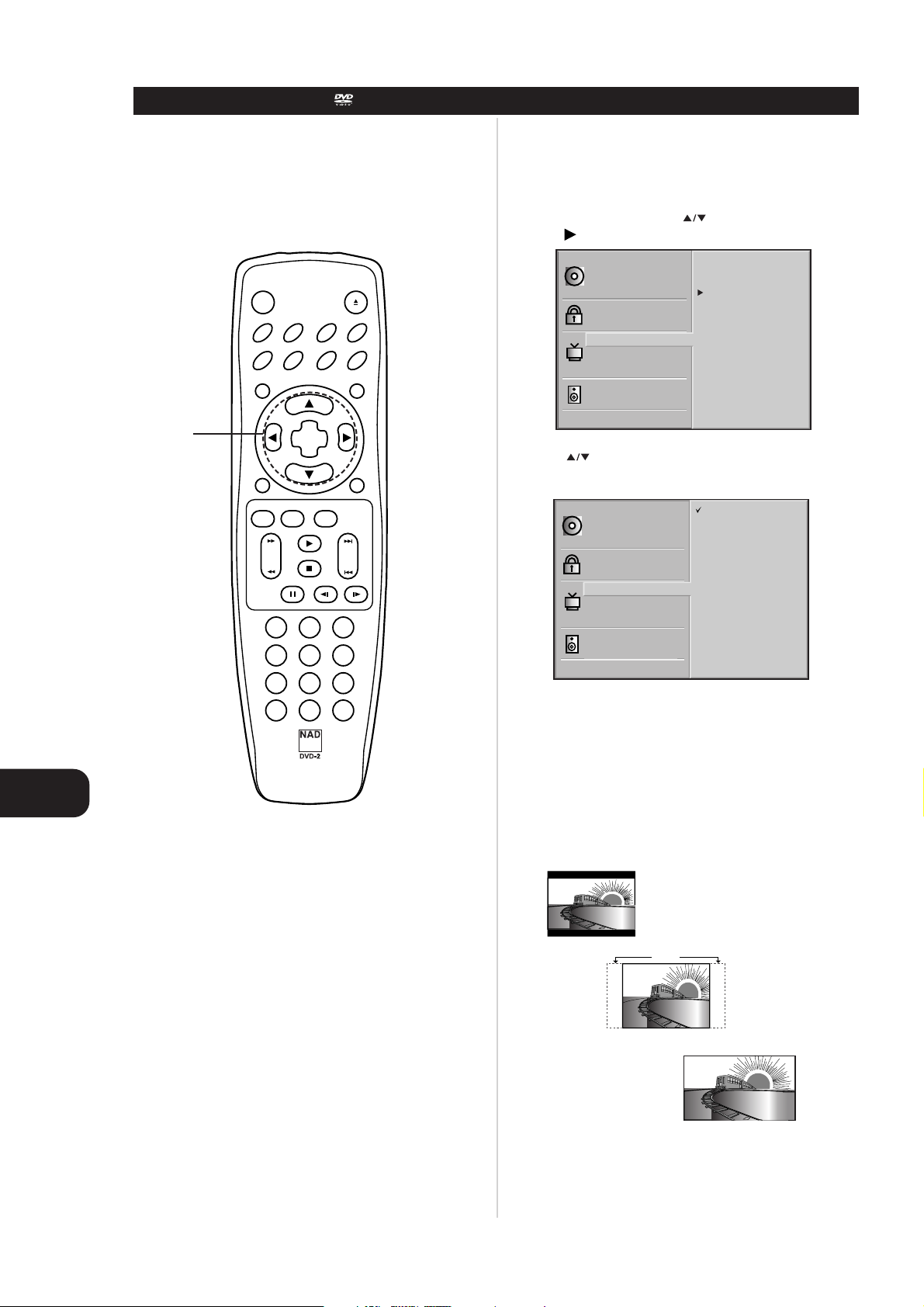

Selecting TV Aspect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Selecting Digital Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table of Languages and Their Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table of Country Codes and Their Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

BASIC OPERATIONS

Basic Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24

Special Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26

Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Frame Advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

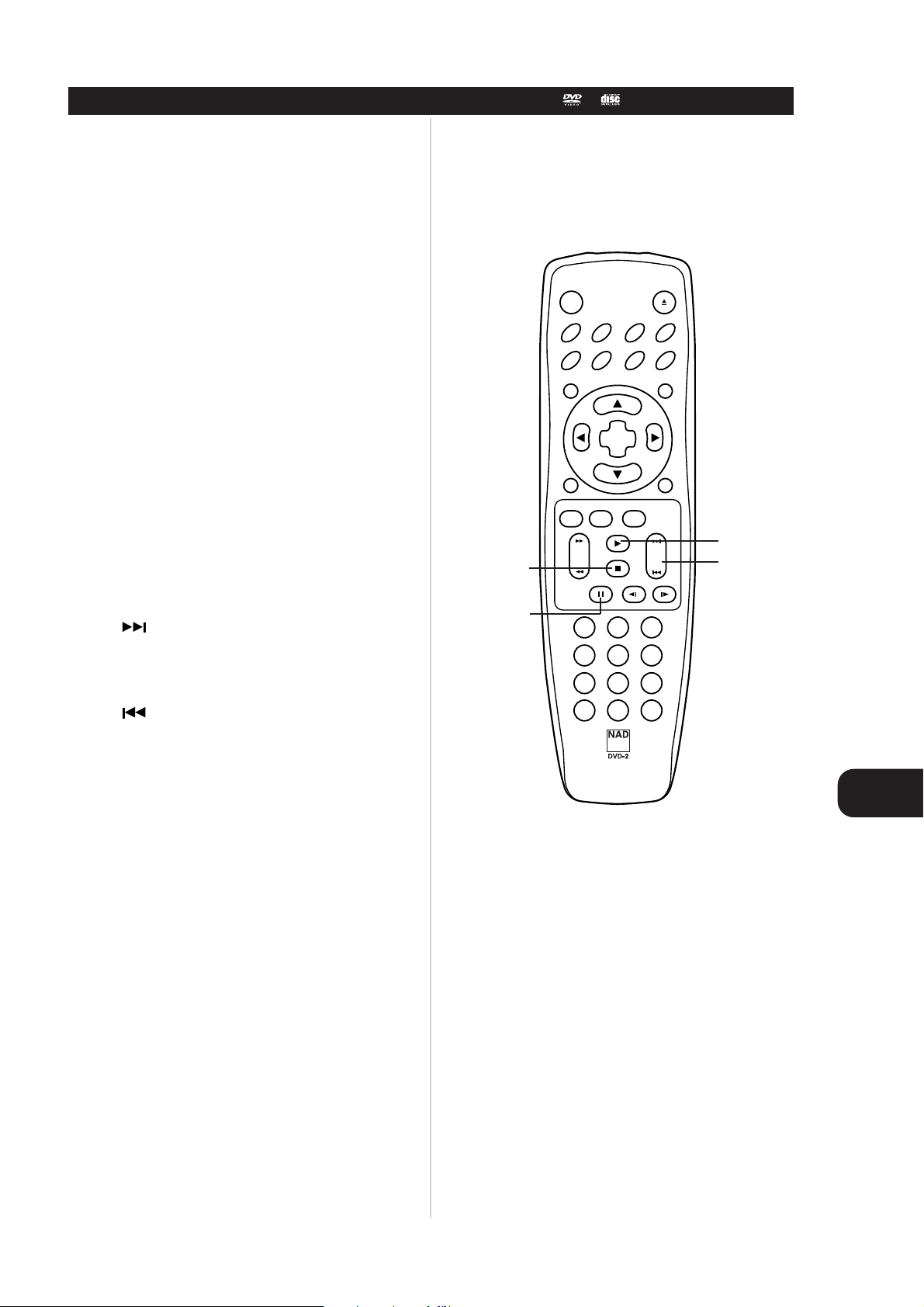

Skipping chapters and tracks forward or back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

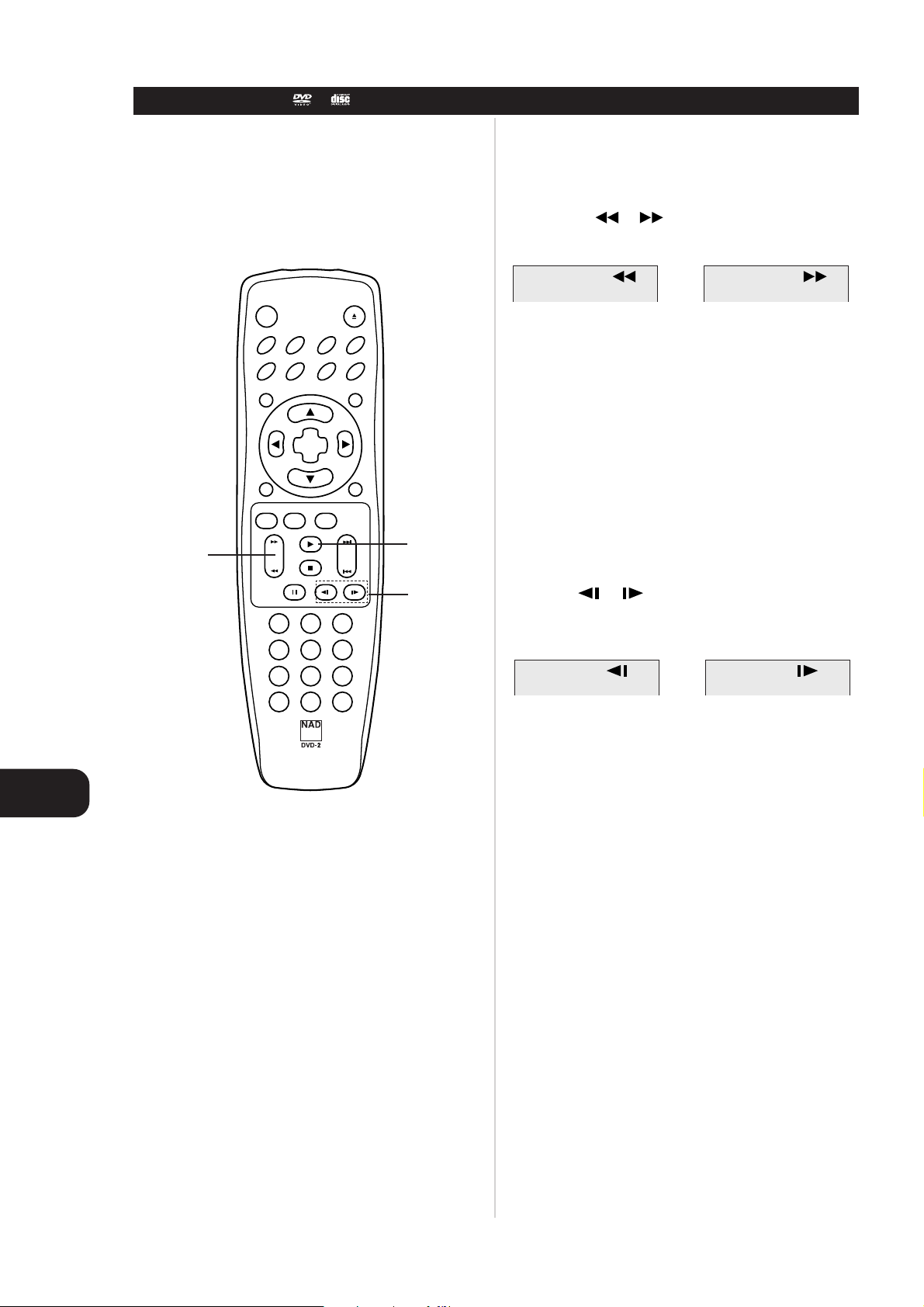

Scanning at High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Playing in Slow-Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

OPERATION USING (GRAPHICAL USER INTERFACE) MENU ICONS

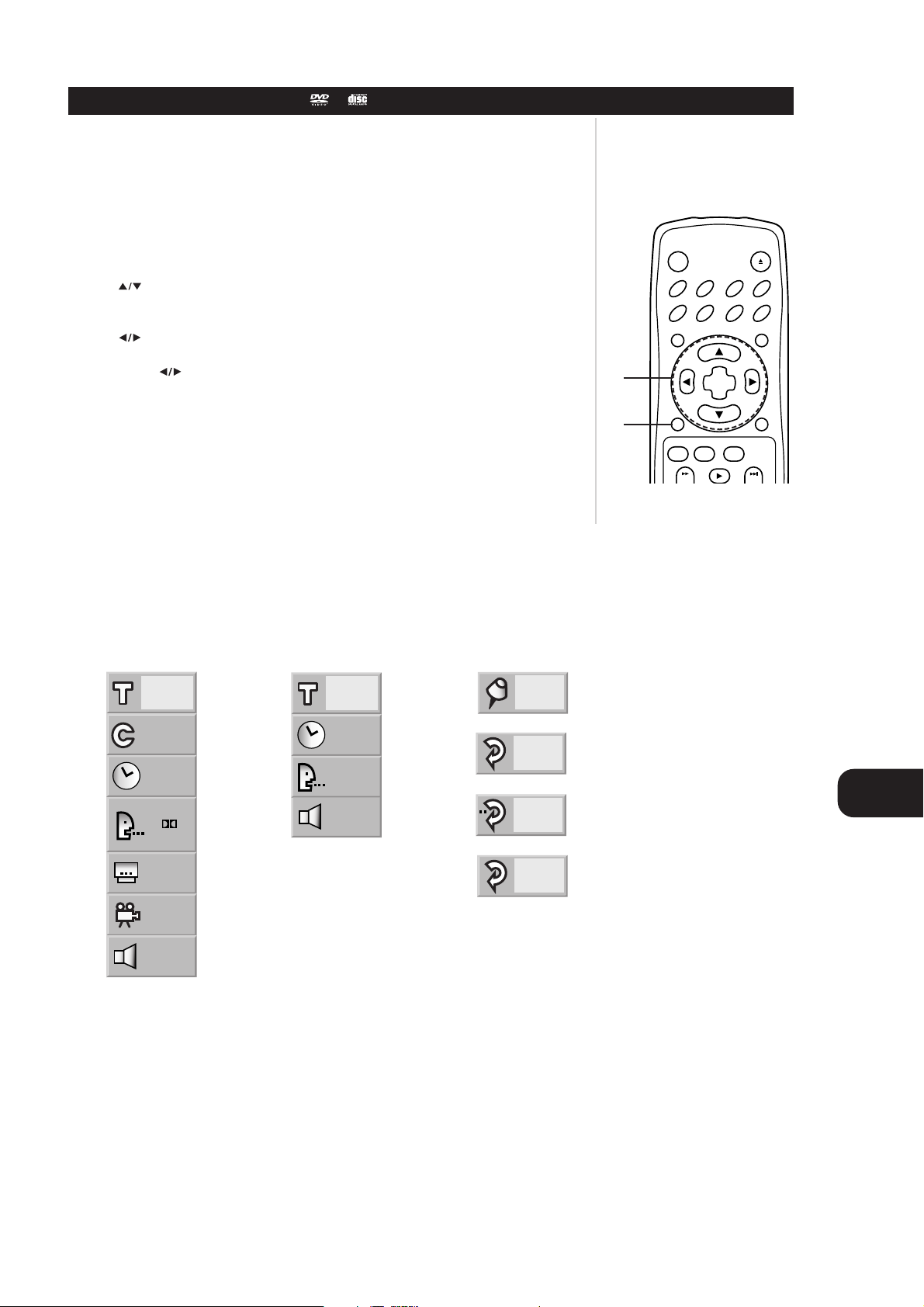

General Information about GUI menu icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

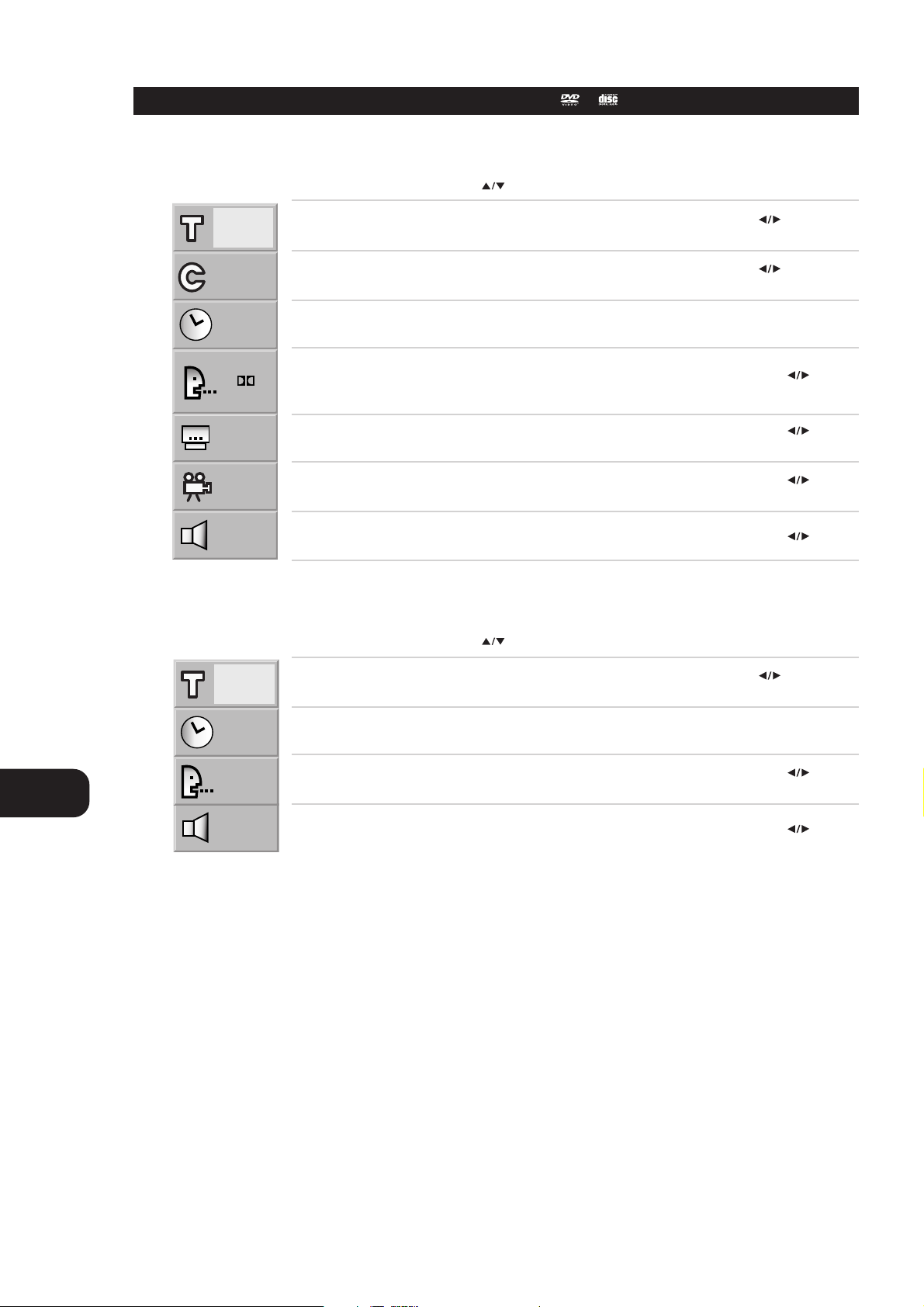

Detailed description of each GUI menu icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

ADVANCED OPERATION

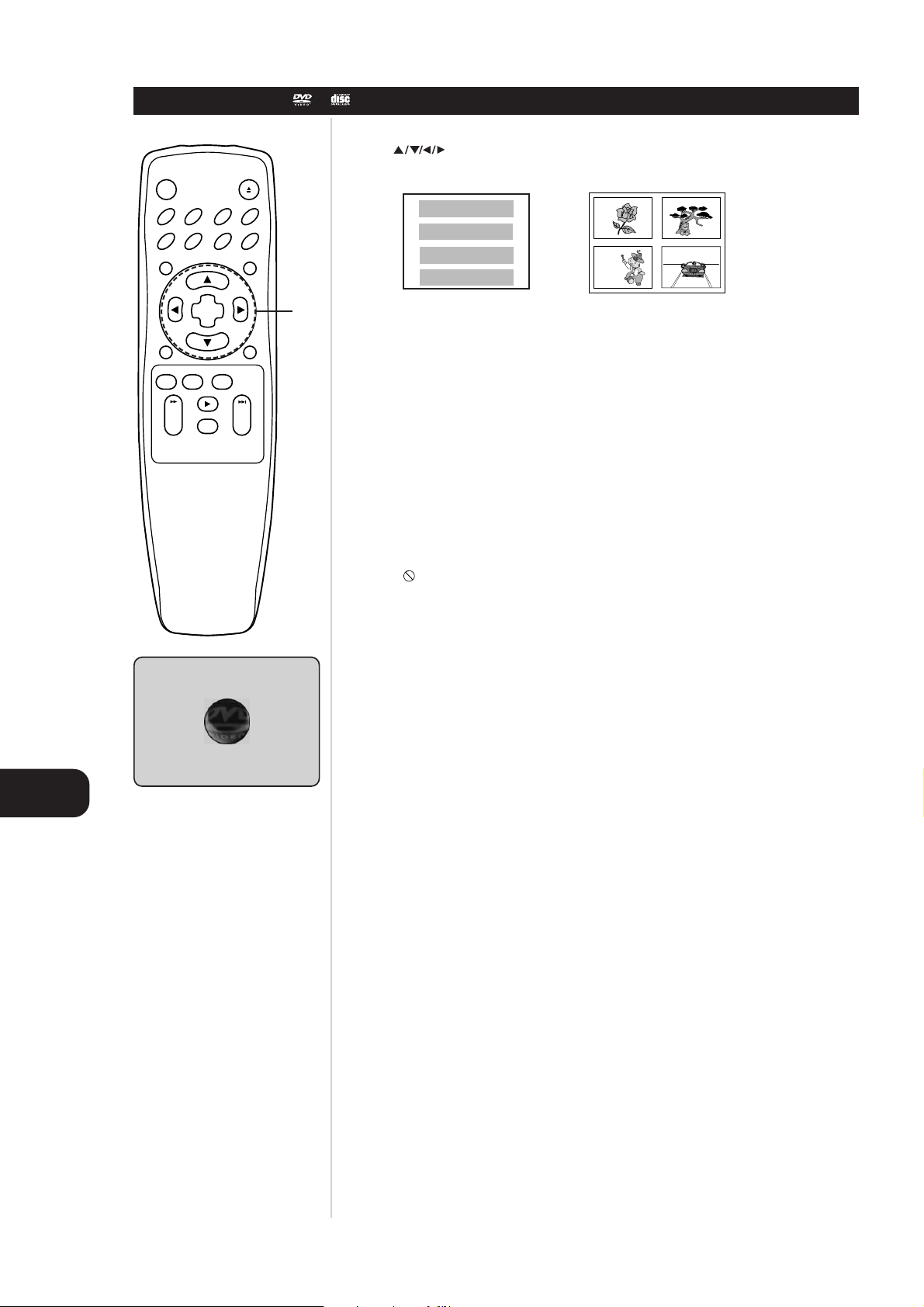

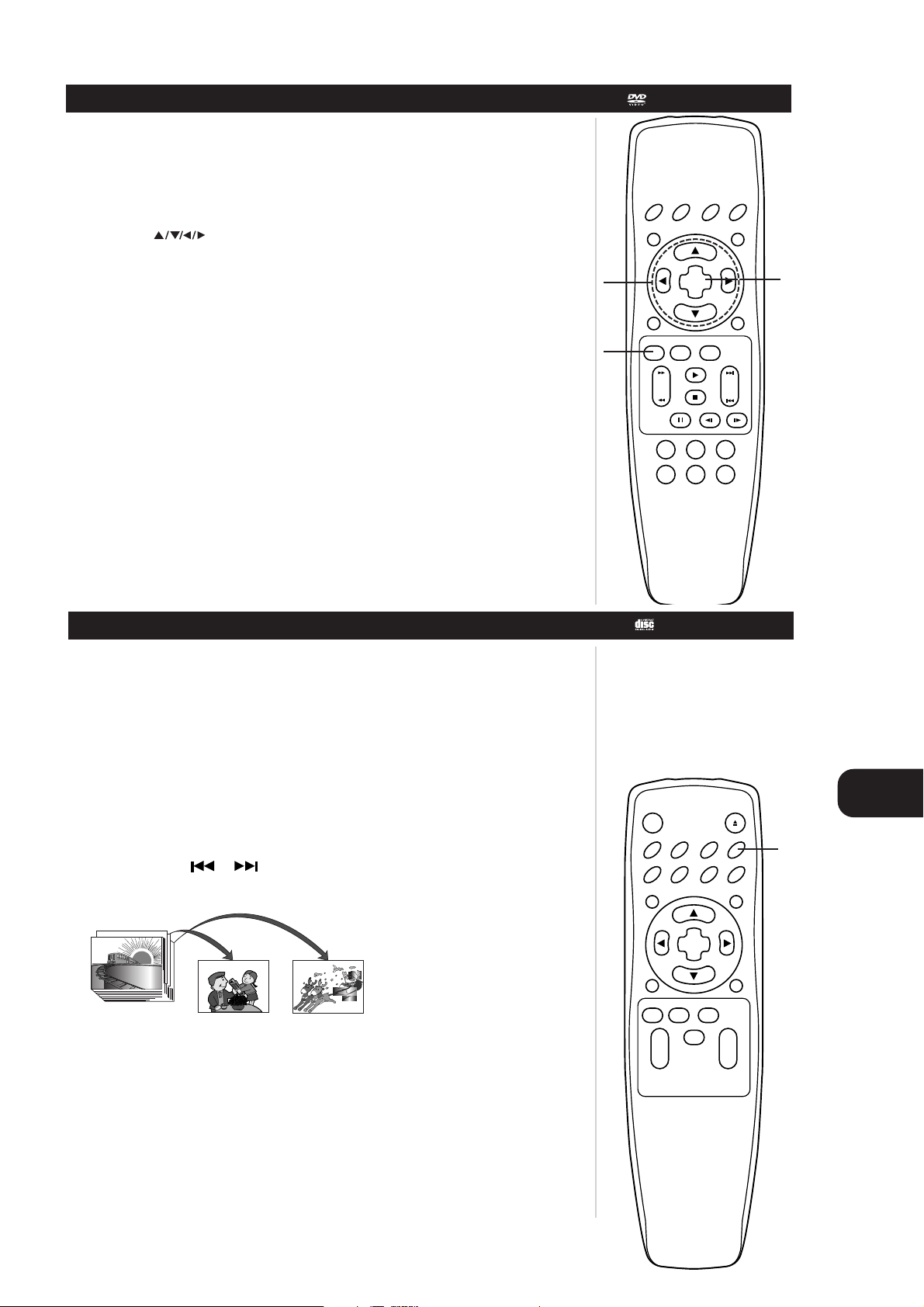

Using a title menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using a DVD menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Memorizing Settings for Viewed DVDs (Last Condition Memory) . . . . . . . . . . . . . . . . . . . . . 30

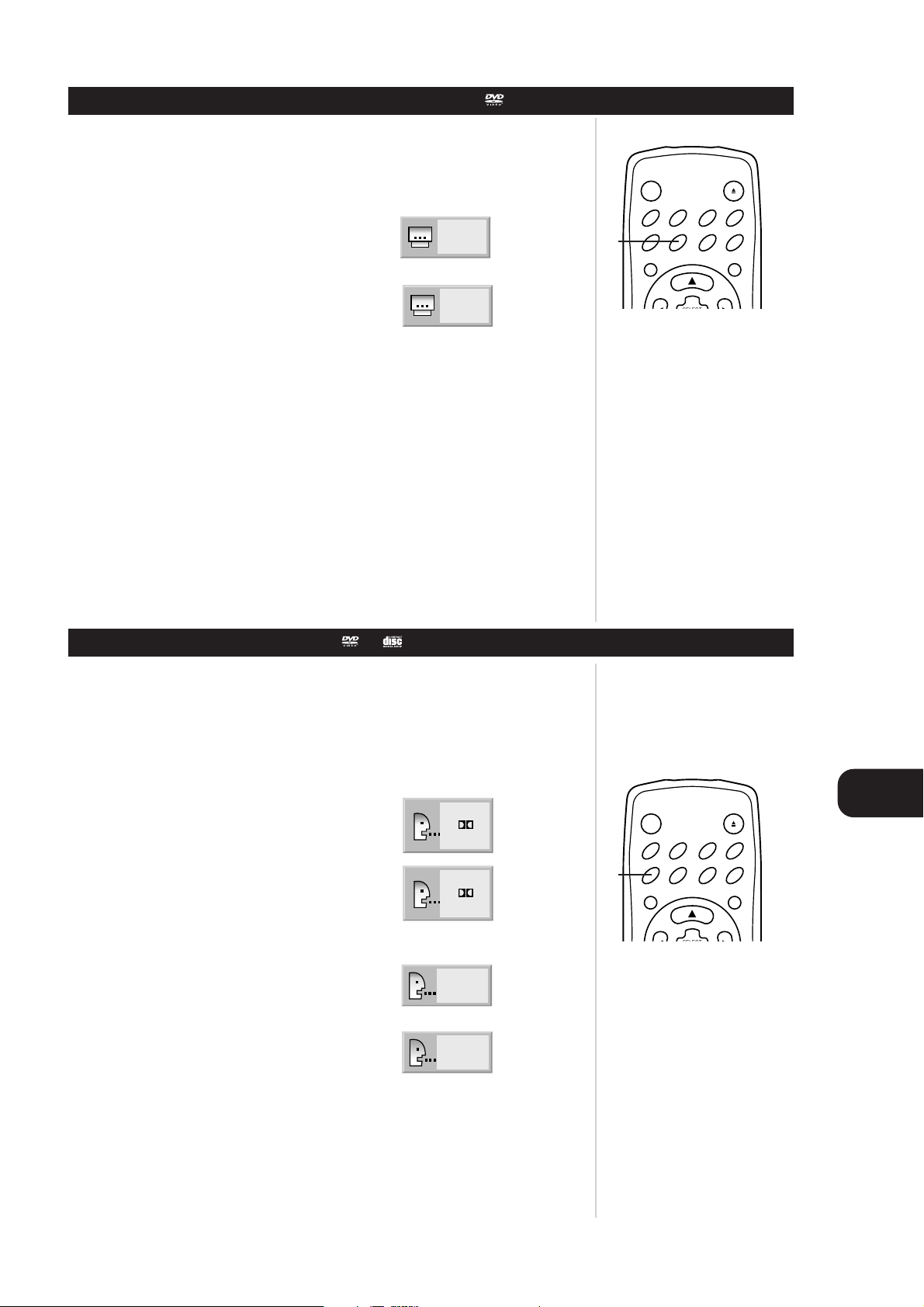

Changing subtitle language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Changing audio soundtrack language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Viewing from another angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Producing a 3D Surround effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Storing markers in memory to be viewed (listened to) again . . . . . . . . . . . . . . . . . . . . . . . . 34

Zoom Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Random Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

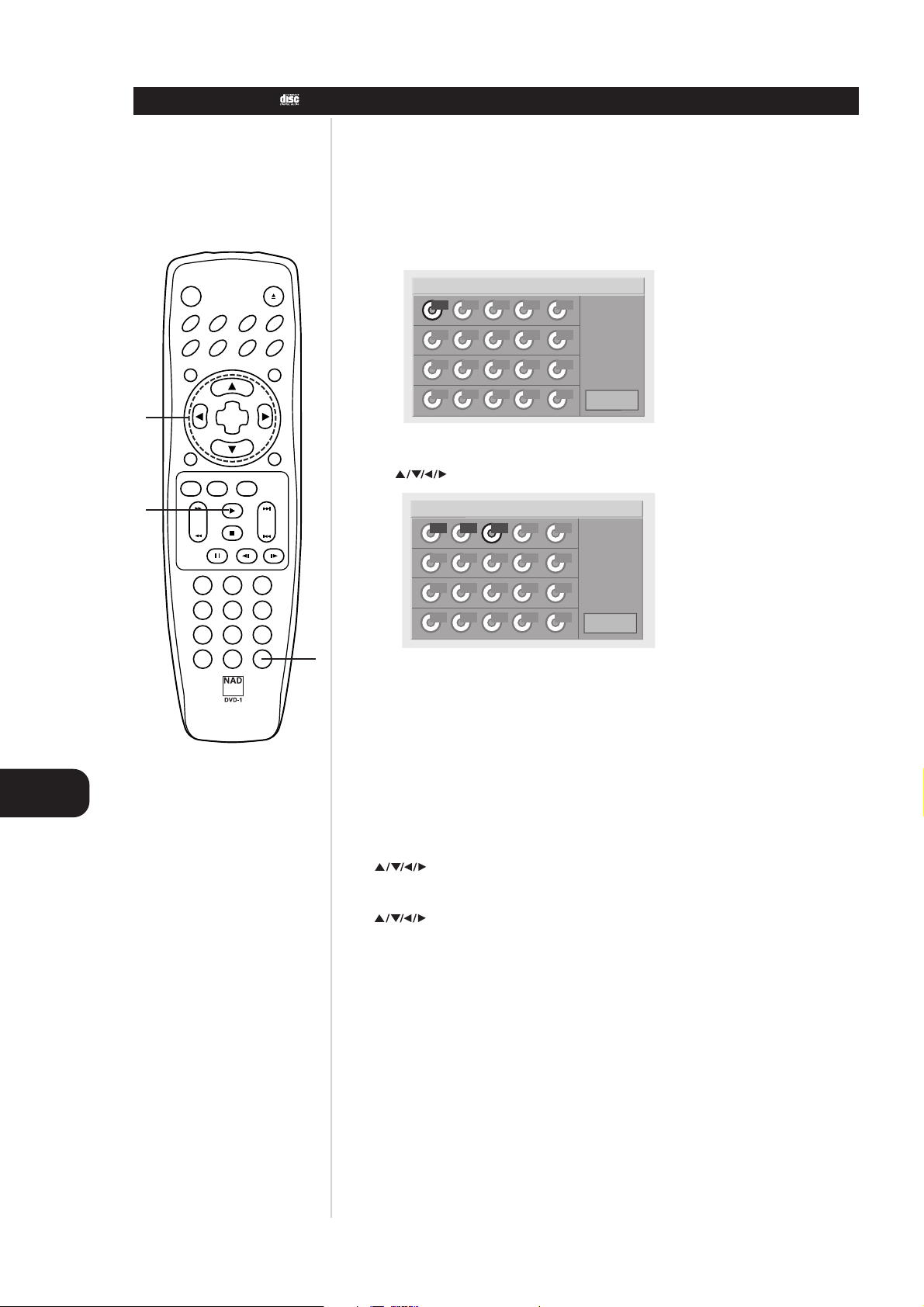

Program Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

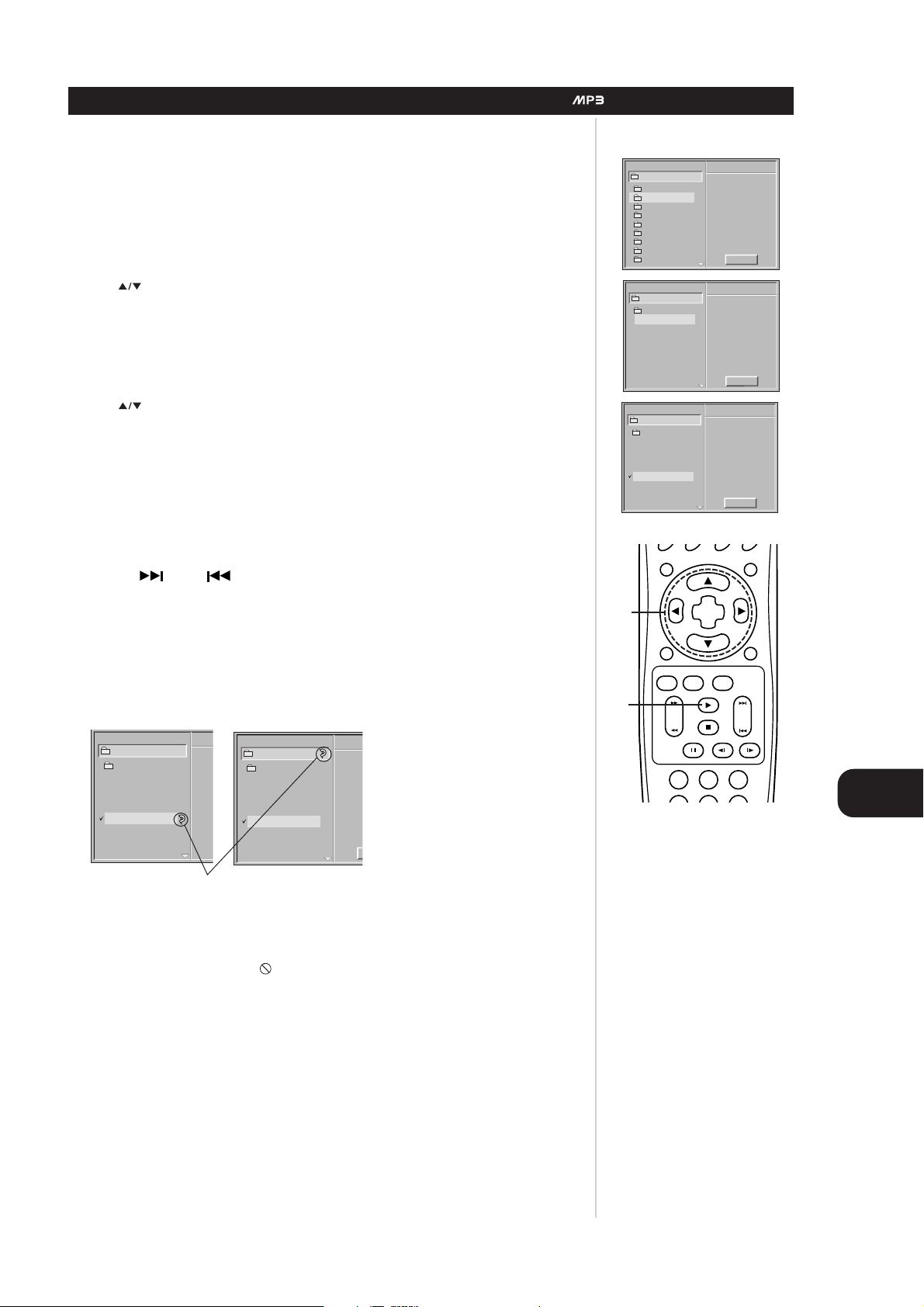

Playback with MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-38

REFERENCE

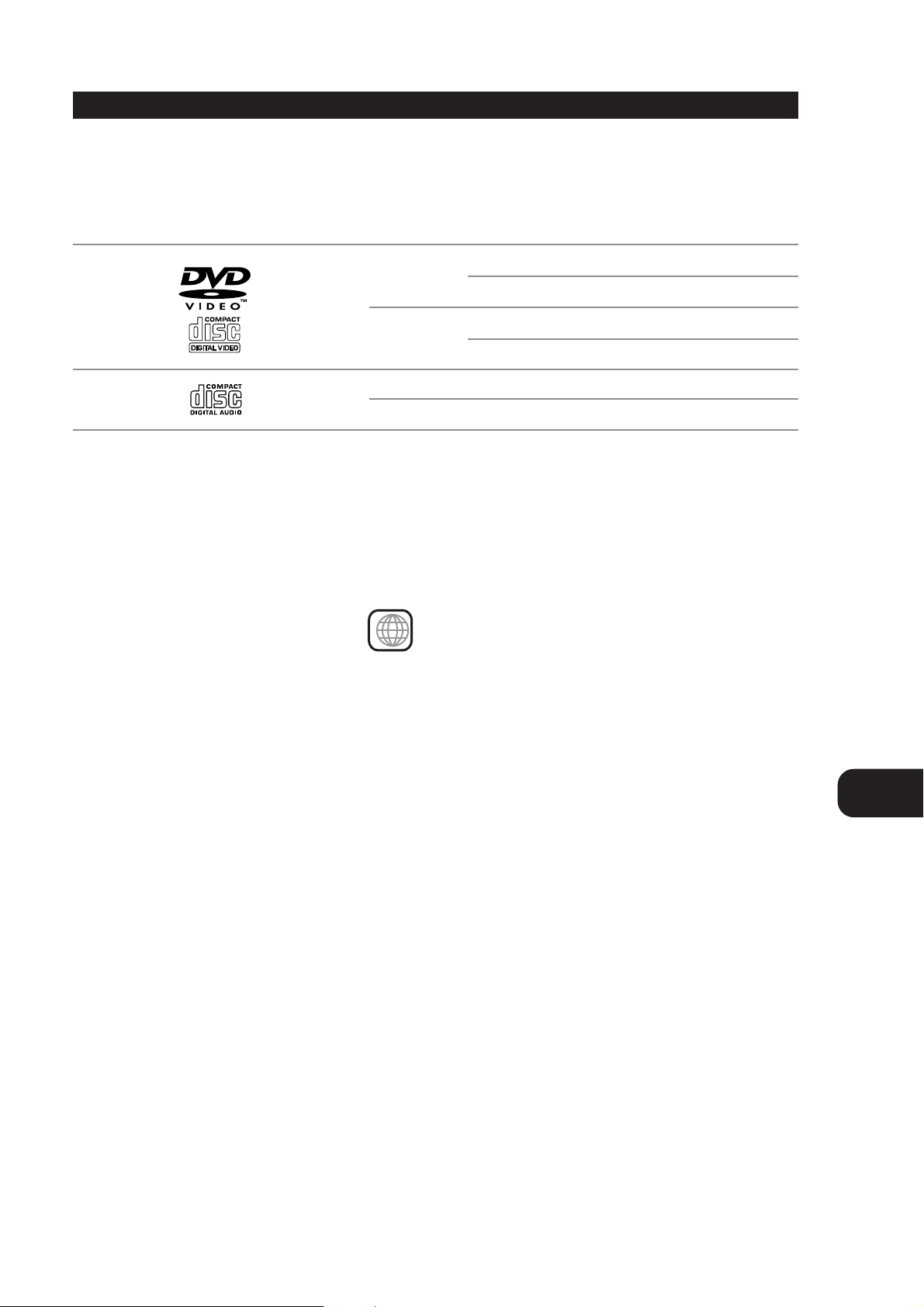

Disc Requirements/Copyright Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Before Calling Service Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Introduction

IDENTIFICATION OF CONTROLS

FRONT PANEL

POWER button and indicator

Display window

Disc tray

Remote sensor

OPEN / CLOSE button

PAUSE button

PLAY button

STOP button

MENU button

SKIP buttons

SCAN buttons

ARROW buttons

SELECT / ENTER button

DISPLAY WINDOW

Operating status indicator

DVD indicator

CD indicator

MP3 indicator

Angle icon indicator

Chapter/Track number indicator

Title number indicator

PROGRAM indicator

RANDOM indicator

Repeat playback mode indicators

Total playing time / elapsed time indicators

REAR PANEL

VIDEO OUTPUT SELECT Switch

OPTICAL DIGITAL AUDIO OUT jack

Connect the optical digital cable (not supplied)

firmly so that the configurations of both the

cable and connector match.

COMPONENT/PROGRESSIVE SCAN VIDEO ( T532 ONLY )

Introduction

IDENTIFICATION OF CONTROLS

COAXIAL DIGI

TAL AUDIO OUT jack

SCART/RGB

COMPONENT

VIDEO OUT

PROGRESSIVE

SCAN

S-VIDEO OUT jack

AUDIO OUT (L/R) jacks

12 V TRIGGER IN (T532 only) By connecting this DVD player to another NAD audio component or system controller equipped with a 12V trigger output, you can remotely operate the T532 power ON/OFF.

VIDEO OUT jack

Connect to an AC 110-240V, 50/60Hz outlet only.

POWER CORD

Introduction

IDENTIFICATION OF CONTROLS

REMOTE CONTROL

You will find instructions for each of the remote control function in the appropriate sections of this instruction manual

POWER button OPEN/CLOSE button

REPEAT button

SETUP button

SUBTITLE button

AUDIO button

*** TITLE button

SELECT/ENTER button

DISPLAY button

ZOOM button

FWD/REV SCAN button

STOP button

PAUSE/SETUP button

Number buttons

CLEAR button

POWER OPEN/CLOSE

SETUP REPEAT RANDOM

AUDIO SUBTITLE SOUNDANGLE

TITLE MENU

DISPLAY

ZOOM MARKER – SEARCH

SCAN SKIP

PAUSE/STEP

SELECT

ENTER

PLAY

STOP

A-B

SLOW

123

CLEAR PROGRAM

A-B button

RANDOM button

ANGLE button

SOUND button

* MENU button

** ARROW buttons

RETURN button

RETURN

MARKER-SEARCH button

PLAY button

FWD/REV SKIP button

SLOW button

PROGRAM button

*MENU BUTTON

Use the MENU button to display the menu screen included on DVD video discs. To operate a menu screen, follow the instructions in Using a DVD Menu (page 29).

** DIRECTIONAL ARROW BUTTONS

(up, down, left, right) for use in high-lighting a selection on a GUI menu screen, TITLE and MENU screen.

***TITLE BUTTON

Use the TITLE button to display the title screen included on DVD video discs. To operate a menu screen, follow the instructions in Using a Title Menu (page 29).

IDENTIFICATION OF CONTROLS

PREPARING THE REMOTE CONTROL

Insert the batteries into the remote control so you can use it to operate the DVD player.

1 Open the battery cover

2 Insert batteries (AAA size)

• Make sure to match the + and - on the batteries to the marks inside the battery compartment.

3 Close the cover

NOTES ON BATTERIES

• Improper use of batteries may cause battery leakage and corrosion.

•To operate the remote control correctly, follow the instructions.

• Do not insert the batteries into the remote control in the wrong direction.

• Do not charge, heat, open, or short-circuit the batteries.

• Do not throw the batteries into fire.

• Do not leave dead or exhausted batteries in the remote control.

• Do not use different types of batteries together, or mix old and new batteries.

• If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

• If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

•If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

• The batteries should last about one year with normal use.

Introduction

OPERATING WITH THE REMOTE CONTROL

This section shows you how to use the remote control.

Point the remote control at the remote control sensor and press the buttons.

30° 30°

23 ft (7m)

POWER OPEN/CLOSE

SETUP REPEAT RANDOM

A-B

AUDIO SUBTITLE SOUNDANGLE

TITLE MENU

SELECT ENTER

Distance: About 23 ft (7 m) from the front of the remote sensor Angle: About 30 in each direction of the front of the remote sensor

• Do not expose the remote sensor of the DVD player to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the DVD player with the remote control.

NOTES ON THE REMOTE CONTROL

• Point the remote control at the remote sensor on the DVD player.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or humid place.

• Do not spill water or put anything wet on the remote control.

• Do not disassemble the remote control.

Introduction

NOTES ON DISCS

This section shows you how to handle, clean and store discs.

ON HANDLING DISCS

• Do not touch the playback side of the disc.

• Do not attach paper or tape to discs.

ON CLEANING DISCS

• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outward with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

• Do not use any type of solvents such as thinner, benzine, commercially available cleaners or anti-static spray for vinyl LPs. They may damage the disc.

ON STORING DISCS

• Do not store discs in a place subject to direct sunlight or near heat sources.

• Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

ABOUT THIS OWNER’S MANUAL

This owner’s manual explains the basic instructions of this DVD player. Some DVD video discs have functions that may not be explained in this owner’s manual. Therefore, some instructions may differ from this owner’s manual, and there may be extra instructions. In this case, follow the instructions displayed on the TV screen or package.

may appear on the TV screen during operation. This icon means the function explained in this

owner’s manual is not available on that specific DVD video disc.

Connections

NOTES

• Refer to the owner’s manual of your audio equipment as well.

• When you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

•The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

•Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

CONNECTING TO THE SURROUND SOUND SYSTEM

ENJOYING DOLBY DIGITAL SOUND

You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic and 2 Channel Digital Stereo.

DOLBY DIGITAL

Dolby Digital is the surround sound technology used in theatres showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs by connecting the DVD player to a 5.1 channel receiver equipped with a Dolby Digital decoder or Dolby Digital processor.

To DIGITAL OUT

(COAXIAL OR OPTICAL)

75 ohm coaxial cable or

optical cable

To S-VIDEO OUT or VIDEO OUT

S-Video cable or Video cable

Receiver equipped

with a Dolby

Digital decoder.

To digital audio input.

Connection example

Front speaker (left)

To S-video input or Video input

Centre speaker

Front speaker (right)

Subwoofer

Rear Speaker (right surround)

Rear speaker

(left surround)

To enjoy Dolby Digital sound from this DVD player you need the following:

• DVD recorded in Dolby Digital

5.1

• 5.1 channel receiver equipped with a Dolby Digital decoder, or Dolby Digital processor and power amplifier

•5 speakers and 1 sub woofer

To enjoy Dolby Digital sound

You need to select Dolby Digital on the SETUP menu

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

DIGITAL

OUT

OPTICAL

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO

S-VIDEO

OUTPUT

OUT

COMPONENT

VIDEO OUT

PROGRESSIVE

SCAN

AUDIO

OUT

VIDEO

OUT

Connections

CONNECTING TO THE SURROUND SOUND SYSTEM

ENJOYING DOLBY PRO LOGIC SURROUND SOUND

If your A/V receiver has a Dolby Pro Logic decoder, refer to the following connection diagram.

COMPONENT

VIDEO OUT

DIGITAL

OPTICAL

DIGITAL

OUT

S-VIDEO

COMPONENT

VIDEO

OUTPUT

COAXIAL

S-VIDEO

OUT

PROGRESSIVE

SCAN

AUDIO

OUT

VIDEO

OUT

Connect one or two rear speakers.

Note: The surround effect is greatly enhanced by using two surround speakers

Connection example

Front Speaker (left) Front speaker

To VIDEO OUT

Video cable

Receiver equipped with

Dolby Pro Logic Surround

To video input

To AUDIO OUT

Audio cable

To audio input

Centre speaker

(right)

Rear speaker (left)

Rear speaker (right)

WITH A RECEIVER EQUIPPED WITH DOLBY DIGITAL

Connect the equipment the same way as described in Enjoying Dolby Digital Sound on page 9. Refer to that receiver’s owner’s manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound.

WARNING

Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital Audio Output on page 20).

Connections

CONNECTING TO THE SURROUND SOUND SYSTEM

ENJOYING 2 CHANNEL DIGITAL STEREO SOUND

You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a digital audio input and speaker system (right and left front speakers).

Connection example

75 ohm coaxial cable or optical cable

To S-video input

or Video input

To digital audio input

Receiver equipped with a digital audio input.

AUDIO

OUT

VIDEO

OUT

S-Video cable

or Video cable

Front speaker

(left)

To DIGITAL OUT

(COAXIAL or OPTICAL)

DIGITAL

OUT

OPTICAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

DIGITAL

COAXIAL

S-VIDEO

To S-VIDEO OUT

or VIDEO OUT

COMPONENT

VIDEO OUT

OUT

PROGRESSIVE

SCAN

ENJOYING DTS SOUND

Your A/V Receiver or processor must be equipped with a DTS Decoder The digital output (see selecting digital output page 20) must be set to “stream”. The disc must have a DTS soundtrack

Connection example

75 ohm coaxial cable or optical cable

To digital audio input

Rear speaker

(left surround)

To DIGITAL OUT

(COAXIAL or OPTICAL)

DIGITAL

OUT

TO TV

OPTICAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

DIGITAL

COAXIAL

S-VIDEO

OUT

To S-VIDEO OUT

or VIDEO OUT

COMPONENT VIDEO OUT

AUDIO

OUT

VIDEO

OUT

PROGRESSIVE

SCAN

To S-video input

or Video input

S-Video cable or

Video cable

Front speaker (left)

Receiver equipped with a DTS decoder.

Centre speaker

Rear speaker (right surround)

Front speaker (right)

Sub woofer

NOTES

• Refer to the owner’s manual of your receiver as well.

• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

•Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

DTS and DTS Digital Out are trademarks of Digital Theater Systems Inc.

Connections

CONNECTING TO A STEREO SYSTEM

DIGITAL

OUT

OPTICAL

To AUDIO OUT (L/R)

S-VIDEO

COMPONENT

VIDEO

OUTPUT

DIGITAL

COAXIAL

S-VIDEO

COMPONENT

VIDEO OUT

PROGRESSIVE

SCAN

AUDIO

OUT

VIDEO

OUT

TO S-VIDEO OUT

S-video cable

If the TV has an S-video input, connect the DVD player with the S-video cable.

To VIDEO OUT

To S-video input

Video cable (supplied)

To audio inputs of

the amplifier

To video input

TV or monitor with

audio/visual inputs

Audio cable (supplied)

Audio system

NOTES

• Refer to the owner’s manual of your audio system as well.

• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD player away from the tuner and radio.

• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

•Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

WARNING

DIGITAL

OPTICAL

Connections

CONNECTING TO A TV

VIDEO OUTPUT SELECT switch

COMPONENT

VIDEO OUT

DIGITAL

OUT

S-VIDEO

COMPONENT

VIDEO

OUTPUT

COAXIAL

S-VIDEO

OUT

PROGRESSIVE

SCAN

AUDIO

OUT

VIDEO

OUT

For using COMPONET signal, set the VIDEO OUTPUT switch to COMPONENT or for using S-VIDEO OUT jack, set the VIDEO OUTPUT switch to S-VIDEO

To S-VIDEO OUT

To AUDIO (L/R)/VIDEO OUT

Audio/Video cable (supplied)

To video input

To audio input

If the TV has an S-video input, connect the DVD player with the

To S-video input

TV or monitor with

audio/video inputs

S-video cable.

NOTES

• Refer to the owner’s manual of your TV as well.

• Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

• Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted because DVD video discs are copy protected.

• In case of the TV set corresponding to RGB signal, the RGB signal is automatically selected in the TV (Only when the VIDEO OUTPUT Switch is set to COMPONENT on the Rear Panel).

WARNING

+ 29 hidden pages

NAD T512, T532 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
