MS-6580
Version 50B
Title Page
D D
INTEL (R) Brookdale Chipset
Willamette/Northwood 478pin mPGA-B Processor Schematics
Cover Sheet
Block Diagram
Voltage Distribution 3
CPU:
Willamette/Northwood mPGA-478B
Processor
mPGA478-B INTEL CPU Sockets
Clock ICS952611BF
INTEL Brookdale-GE GMCH -- North Bridge
DDR DIMM1&2 and DDR Terminator Resistor
System Brookdale
Chipset:
C C
INTEL GMCH (North Bridge)
+ INTEL ICH4 (South
Bridge)
On Board Chipset:
INTEL ICH4 -- South Bridge
ATA100 IDE 1& 2
AGP Slot
LPC I/O -- W83627THF
PCI SLOT 1 & 2 & 3
PCI SLOT 4 & 5
FWH & CNR
BIOS -FWH
USB Connectors
AC'97 Codec ALC655 & Connectors
IO Connectors
AC'97 Codec -ALC655
B B
FAN Control
MS7 ACPI Controller
VRM10.0 -- CPU Power
LPC Super I/O -W83627THF
D_LED & OVER VOLTAGE
Front Panel & ATX Connectors
LAN RTL8100C
Clock Generation -ICS952611BF
Manual Parts
General SPEC
REVISION AND HISTORY
1
2
4-5
6
7-9
10-11
12-13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
LAN -RTL8100C
A A
Expansion Slots:
PCI2.2 SLOT * 5
8
MSI
Title
Size Document Number Rev
7
6
5
4
3
Date: Sheet of
MICRO-STAR INT'L CO.,LTD.
Cover Sheet
MS-6580
2
1 31Wednesday, November 19, 2003
1
50B
DDR333
8
7
6
5
4
3
2
1
D D
Processor
VR
BLOCK DIAGRAM
478-PIN P4 PROCESSOR
CTRL
ADDR
DATA
CK_408
AGTL+ BUS
DATA
CTRL
ADDR
VGA
Connector
C C
Connector
IDE Primary
AGP
UDMA/100
GMCH
BROOKDALE
DDR400
Modules
PCI CNTRL
PCI CONN 3
PCI CONN 4
PCI CON N 2
PCI CONN 1
PCI CONN 5
IDE Secondary
ICH4
USB PORT 1-6
USB2.0
B B
USB
PCI ADDR/DATA
LAN
RTL8100C
FirmWare Hub
AC'97 LINK
AC'97
CODEC
SIO
A A
8
7
Floppy
6
Keyboard
Mouse
5
Serial 1
Parallel
4
MSI
Title
Size Document Number Rev
3
Date: Sheet of
MICRO-STAR INT'L CO.,LTD.
Block Diagram
MS-6580
2
2 31Wednesday, November 19, 2003
1
50B
8
7
6
5
4
3
2
1
Power Delivery Map
ATX P/S
with 1A Stby current
5VSB
D D
C C
B B
A A
+/-5%
5V 3.3V 12V -12V
+/-5% +/-5% +/-5% +/-10%
8
VID voltage
regulator
VRM 10/0
1.5V regulator
2.5V regulator
2.5V Standby
regulator
1.25V regulator
1.5V Standby
regulator
3.3V Standby
regulator
CNR Connector
5V
3.3V
12V
3.3Vaux
-12V
5VDual 0.5A
7
6
1.0A
1.0A
0.5A
1.0A
0.1A
PCI Slot (per slot)
5V
3.3V
12V
3.3Vaux
-12V
5.0A
7.6A
0.5A
0.375A
0.1A
5
AGP Slot
5V 2.0A
3.3V
12V
3.3Vaux
0.375A
1.5V
6.0A
1.0A
2.0A
4
Processor
VCCVID
1.2V
30mA
VccCORE/Vtt
1.15V-1.75V
60A
Memory
Vdd/Vddq
2.5V
5.92A
Vtt
1.25V
2.1A
USB
Vdd
5V
2.0A
BG GMCH
VccCORE
VccAGP
1.15V-1.75V
VccGPIO
Vcca_DAC
VccCORE
Vccsus1_5
V_CPU_IO
1.15V-1.75V
Vcc3_3
Vccsus3_3
CK-408
LPC Super I/O
3
1.5V
2.46A
1.5V
370mA
VccHI
1.5V
90mA
VttFSB
2.4A
VccSM
2.5V
2.8A
3.3V
30mA
1.5V
65mA
ICH4
1.5V
970mA
VccHI
1.5V
90mA
1.5V
85mA
45mA
3.3V
610mA
3.3V
70mA
Vcc
3.3V
280mA
Vdd
3.3V
25mA
FWH
Vdd
3.3V
67mA
MSI
Title
Size Document Number Rev
Date: Sheet of
MICRO-STAR INT'L CO.,LTD.
Power Delivery Map
MS-6580
2
3 31Wednesday, November 19, 2003
1
50B
8
7
6
5
4
3
2
1
CPU GTL REFERNCE VOLTAGE BLOCKCPU SIGNAL BLOCK
AD26
AC26
ITP_CLK1
ITP_CLK0
D10#
D9#
G22
B25
C24
HD#8
HD#9
HD#10
VID5
AE1
AD2
AD3
VID5#
VIDPWRGD
D8#
D7#
D6#
C23
B24
D22
HD#7
HD#6
CPU_VIDGD
VID3
VID2
VID4
AE2
AE3
VID4#
VID3#
D5#
D4#
C21
A25
HD#3
HD#4
HD#5
VID1
AE4
VID2#
VID1#
D3#
D2#
A23
HD#2
VID0
AE5
VID0#
LINT0/INTR
D1#
B22
HD#1
GTLREF3
GTLREF2
GTLREF1
GTLREF0
BPM5#
BPM4#
BPM3#
BPM2#
BPM1#
BPM0#
REQ4#
REQ3#
REQ2#
REQ1#
REQ0#
TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8
TESTHI7
TESTHI6
TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI1
TESTHI0
BCLK1#
BCLK0#
RS2#
RS1#
RS0#
AP1#
AP0#
BR0#
COMP1
COMP0
DP3#
DP2#
DP1#
DP0#
ADSTB1#
ADSTB0#
DSTBP3#
DSTBP2#
DSTBP1#
DSTBP0#
DSTBN3#
DSTBN2#
DSTBN1#
DSTBN0#
LINT1/NMI
D0#
ZIF-SOCKET478
{Priority}
B21
HD#0
VID[5..0] 25,26
AA21
AA6
F20
F6
AB4
AA5
Y6
AC4
AB5
AC6
HREQ#4
H3
HREQ#3
J3
HREQ#2
J4
HREQ#1
K5
HREQ#0
J1
AD25
A6
Y3
W4
U6
AB22
AA20
AC23
AC24
AC20
AC21
AA2
AD24
AF23
AF22
HRS#2
F4
HRS#1
G5
HRS#0
F1
V5
AC1
HBR#0
H6
P1
R37 49.9R1%
R75 49.9R1%
L24
L25
K26
K25
J26
R5
L5
W23
P23
J23
F21
W22
R22
K22
E22
E5
D1
GTLREF
BPM#5
BPM#4
BPM#3
BPM#2
R45 49.9R1%
R43 49.9R1%
R77 49.9R1%
R42 49.9R1%
R76 49.9R1%
CPUCLK# 6
CPUCLK 6
HBR#0 7
* Short trace
HADSTB#1 7
HADSTB#0 7
HDSTBP#3 7
HDSTBP#2 7
HDSTBP#1 7
HDSTBP#0 7
HDSTBN#3 7
HDSTBN#2 7
HDSTBN#1 7
HDSTBN#0 7
NMI 12
INTR 12
HREQ#[0..4] 7
VCCP
HRS#[2..0] 7
with in
1"~2"
0.62*Vccp
GTLREF
C220P50N
Every pin put one 220pF cap near
it.
Trace Width 7mils, Space
10mils.
Keep the voltage divider within
1.5" of the GETREF pin.
C1U16Y0805
C40 C41
CPU STRAPPING RESISTORS
PROCHOT#
CPU_GD
HBR#0
CPURST#
HINIT#
CPU_VIDGD
RN5
1 2
3 4
5 6
7 8
8P4R-56R
R23 62R
R79 300R
R36 51R
R78 51R
R44 X_300R
R19 X_150R
R16 X_75R
R17 X_39R
R18 X_680R
R15 X_27R
VCC_VID
R437
1KR
Q901
BPM#5
BPM#4
BPM#3
BPM#2
ALL COMPONENTS CLOSE TO CPU
ITP_TDI
ITP_TD O
ITP_TMS
ITP_TRST#
ITP_TC K
VCC_VID24
N-MMBT3904_SOT23
VCCP
R438
1KR
VCCP
R73
100R1%
R72
169R1%
VCCP
VCCP
VID_GD# 24,25
HA#[31..3]7
HA#4
L21
HA#9
HD#24
HA#8
A9#
D24#
D26
HD#23
HA#7
A8#
D23#
F26
HD#22
HA#6
A7#
D22#
E25
HD#21
HA#5
A6#
D21#
F24
HD#20
A5#
D20#
F23
HD#19
HA#3
A4#
D19#
G23
HD#18
A3#
D18#
E24
HD#17
AE25A5A4
D17#
D16#
H22
D25
HD#16
DBR#
D15#
HD#15
J21
HD#14
D14#
D23
HD#13
VCC_SENSE
VSS_SENSE
D13#
D12#
D11#
C26
H21
HD#12
HD#11
HA#30
HA#26
HA#27
HA#25
HA#29
T25
HD#45
A30#
D45#
T26
HD#44
HA#28
A29#
D44#
R24
HD#43
A28#
D43#
R25
HD#42
A27#
D42#
P24
HD#41
A26#
D41#
R21
HD#40
HA#24
A25#
D40#
N25
HD#39
A24#
D39#
N26
HD#38 HA#23
A23#
D38#
D D
CPU_TMPA16
HINV#0
HINV#1
HINV#2
HINV#3
HINIT#
ITP_TDI
ITP_TD O
ITP_TM S
ITP_TRST#
ITP_TCK
PROCHOT#
CPU_GD
CPURST#
HD#63
HD#62
HD#61
HD#60
HD#59
HD#58
HD#57
HD#56
HD#55
HD#54
HINV#[3..0]7
FERR#12
STPCLK#12
HINIT#12
HDBSY#7
HDRDY#7
HTRDY#7
HADS#7
HLOCK#7
HBNR#7
HIT#7
HITM#7
C C
B B
HBPRI#7
HDEFER#7
CP5 X_COPPER
VAGND16
TRMTRIP #12
PROCHOT#13
IGNNE#12
HSMI#12
A20M#12
SLP#12
BOOT25
BSEL06,7
CPU_GD13
CPURST#7
HD#[63..0]7
U4A
E21
DBI0#
G25
DBI1#
P26
DBI2#
V21
DBI3#
AC3
IERR#
V6
MCERR#
B6
FERR#
Y4
STPCLK#
AA3
BINIT#
W5
INIT#
AB2
RSP#
H5
DBSY#
H2
DRDY#
J6
TRDY#
G1
ADS#
G4
LOCK#
G2
BNR#
F3
HIT#
E3
HITM#
D2
BPRI#
E2
DEFER#
C1
TDI
D5
TDO
F7
TMS
E6
TRST#
D4
TCK
B3
THERMDA
C4
THERMDC
A2
THERMTRIP#
AF26
GND/SKTOCC#
C3
PROCHOT#
B2
IGNNE#
B5
SMI#
C6
A20M#
AB26
SLP#
A22
RESERVED0
A7
RESERVED1
AE21
RESERVED2
AF24
RESERVED3
AF25
RESERVED4
AD1
BOOTSELECT
AE26
OPTIMIZED/COMPAT#
AD6
BSEL0
AD5
BSEL1
AB23
PWRGOOD
AB25
RESET#
AA24
D63#
AA22
D62#
AA25
D61#
Y21
D60#
Y24
D59#
Y23
D58#
W25
D57#
Y26
D56#
W26
D55#
V24
D54#
D53#
V22
HD#53
HA#31
AB1Y1W2V3U4T5W1R6V2T4U3P6U1T2R3P4P3R2T1N5N4N2M1N1M4M3L2M6L3K1L6K4K2
A35#
A34#
A33#
A32#
A31#
D52#
D51#
D50#
D49#
D48#
D47#
D46#
U21
V25
U23
U24
U26
T23
T22
HD#51
HD#49
HD#46
HD#50
HD#48
HD#47
HD#52
HA#22
M26
HD#37
HA#21
A22#
D37#
N23
HD#36
HA#20
A21#
D36#
M24
HD#35
HA#19
A20#
D35#
P21
HD#34
HA#18
A19#
D34#
N22
HD#33
HA#17
A18#
D33#
M23
HD#32
HA#16
A17#
D32#
H25
HD#31
HA#15
A16#
D31#
K23
HD#30
HA#14
A15#
D30#
J24
HD#29
HA#13
A14#
D29#
L22
HD#28
HA#12
A13#
D28#
M21
HD#27
HA#11
A12#
D27#
H24
HD#26
HA#10
A11#
D26#
G26
HD#25
A10#
D25#
A A
MSI
Title
Size Document Number Rev
8
7
6
5
4
3
Date: Sheet of
MICRO-STAR INT'L CO.,LTD.

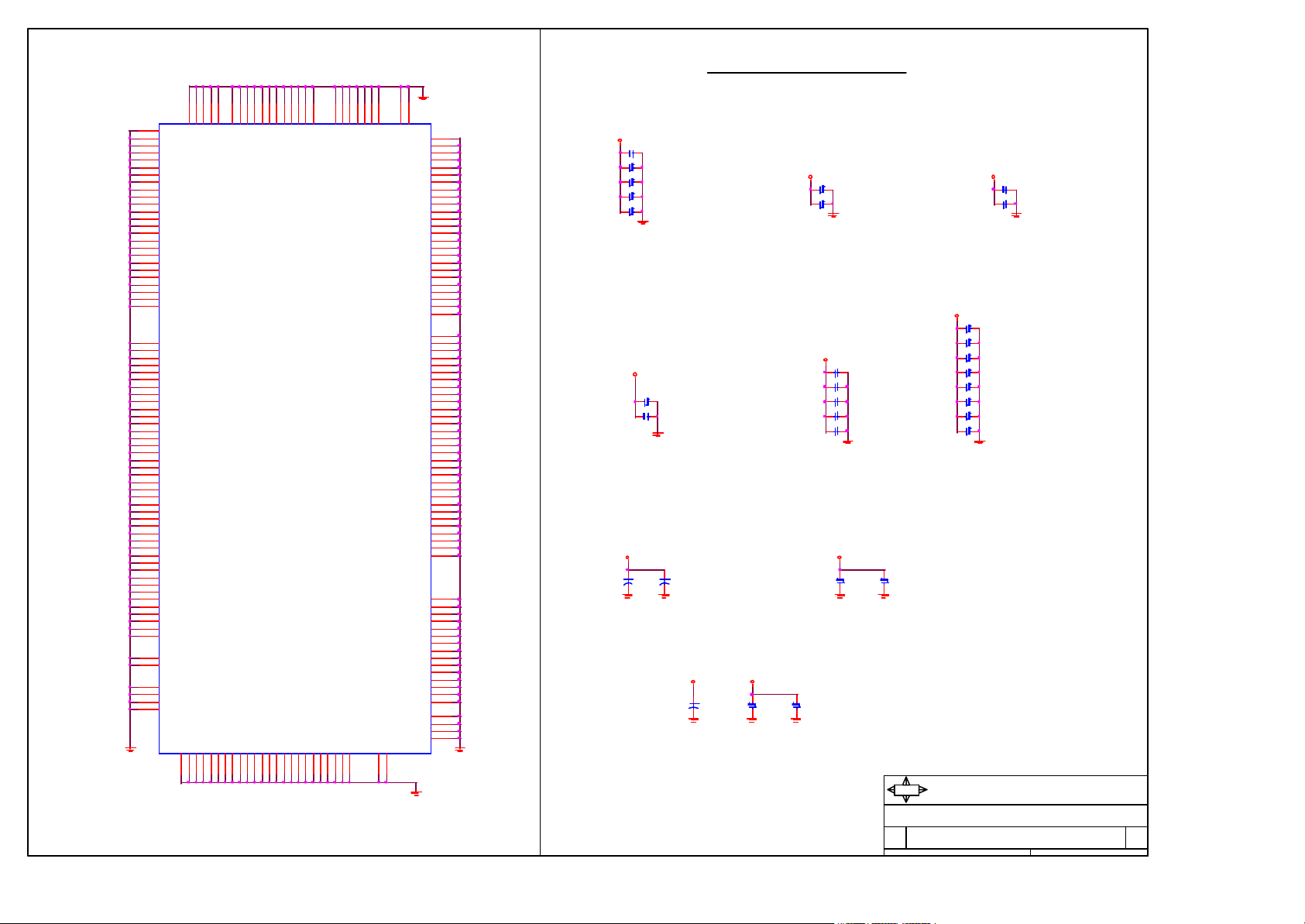

mPGA478-B INTEL CPU SOCKET Part1
MS-6580
2
4 31Wednesday, November 19, 2003
1
50B
8
VCCP
D D
C C
ZIF-SOCKET478
B B
D10
A11
A13
A15
A17
A19
A21
A24
A26
A3
A9
AA1
AA11
AA13
AA15
AA17
AA19
AA23
AA26
AA4
AA7
AA9
AB10
AB12
AB14
AB16
AB18
AB20
AB21
AB24
AB3
AB6
AB8
AC11
AC13
AC15
AC17
AC19
AC2
AC22
AC25
AC5
AC7
AC9
{Priority}
A10
A12
A14
A16
A18
A20A8AA10
VCC
VSS
AD14
VCC
VSS
AD16
VCC
VSS
AD18
VCC
VSS
VCC
VSS
AD21
VCC
VSS
AD23
AD4
AA12
VCC
VSS
AD8
U4B
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AD10
AD12
AA14
VCC
VSS
AE11
AA16
VCC
VSS
AE13
VCC
VSS
AA18
VCC
VSS
AE15
AA8
VCC
VSS
AE17
AB11
VCC
VSS
AE19
7
AB13
VCC
VSS
AE22
AB15
VCC
VSS
AE24
AB17
VCC
VSS
AE7
AB19
VCC
VSS
AE9
AB7
AF1
AB9
VCC
VSS
AF10
AC10
VCC
VSS
AF12
VCC
VSS
AC12
VCC
VSS
AF14
AC14
VCC
VSS
AF16
AC16
VCC
VSS
AF18
CPU VOLTAGE BLOCK
AC18
AC8
AD11
AD13
AD15
AD17
AD19
AD7
AD9
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AF20
AF6
AF8
B10
B12
B14
B16
B18
B20
AE10
VCC
VSS
B23
6
AE12
AE14
VCC
VSS
B26B4B8
AE16
VCC
VSS
AE18
VCC
VSS
C11
VCC
VSS
AE20
VCC
VSS
C13
AE6
C15
AE8
VCC
VSS
C17C2C19
AF11
VCC
VSS
AF13
VCC
VSS
AF15
VCC
VSS
C22
VCC
VSS
AF17
AF19
AF2
AF21
AF5
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
C25C5C7C9D12
AF7
VCC
VSS
D14
AF9
VCC
VSS
D16
5
B11
B13
B15
B17
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
D18
D20
D21D3D24D6D8E1E11
B19B7B9
VCC
VSS
VCC
VSS
VCC
VSS
VCC
VSS
C10
C12
VCC
VSS
C14
VCC
VSS
E13
VCC
VSS
C16
E15
C18
VCC
VSS
E17
C20C8D11
VCC
VCC
VSS
VSS
E19
E23
VCC
VSS
E26
D13
VCC
VSS
E4
D15
D17
VCC
VCC
VSS
VSS
E7E9F10
D19D7D9
VCC
VCC
VSS
VSS
F12
VCC
VSS
F14
4
E10
VCC
VSS
F16
E12
E14
VCC
VCC
VSS
VSS
F18F2F22
VCC
VSS
E16
E18
VCC
VCC
VSS
VSS
F25F5F8
E20E8F11
VCC
VCC
VSS
VSS
F13
VCC
VSS
G21G6G24
F15
F17
F19
VCC
VCC
VCC
VSS
VSS
VSS
G3H1H23
F9
VCC
VSS
VCC
VSS
H26H4J2
AF4
VCC-VID
VSS
VSS
AD20
AF3
VCC-IOPLL
VCC-VIDPRG
VSS
VSS
VSS
VSS
J22
J25J5K21
3
AE23
VSS
VSSA
VCCA
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AD22
Y5
Y25
Y22
Y2
W6
W3
W24
W21
V4
V26
V23
V1
U5
U25
U22
U2
T6
T3
T24
T21
R4
R26
R23
R1
P5
P25
P22
P2
N6
N3
N24
N21
M5
M25
M22
M2
L4
L26
L23
L1
K6
K3
K24
2
VCC_VID 24
C21
C0.1U25Y
C10U10Y1206
Keep the 22uF cap within 0.6"
of the CPU pin.
Trace Width 12mils, Space 10mils.
C43
L8 10U100m_0805
CP9
X_COPPER
L7 X_10U100m_0805
C42
X_C10U10Y1206
1
It support DC current if 100mA.
DC voltage drop should
be less than 70mV.
VCCP
CPU DECOUPLING CAPACITORS
VCCP
CB56
X_C10U10Y1206
CB72
X_C10U10Y1206
CB24
X_C10U10Y1206
CB44
A A
X_C10U10Y1206
CB32
X_C10U10Y1206
Place 14 pcs 1206 size cap
north side of processor
8
VCCP
7
VCCP VCCP
CB33
CB60
C100U2SP
C10U10Y1206
CB58
X_C10U10Y1206
PLACE CAPS WITHIN CPU CAVITY
6
CB38
X_C10U10Y1206
CB63
C10U10Y1206
5
VCCP
CB26
C10U10Y1206
CB31
C10U10Y1206
CB42
C10U10Y1206
CB54
C10U10Y1206
4
MSI
Title
Size Document Number Rev
3
Date: Sheet of
MICRO-STAR INT'L CO.,LTD.
mPGA478-B INTEL CPU Part2
MS-6580
2
5 31Wednesday, November 19, 2003
1
50B
8
CP8 X_COPPER
VCC3
CB236
C0.1U25Y
D D
C C
B B
Use 2 VIA hole on BEAD both side
VCC3
Use 2 VIA hole on BEAD both side
X_80L3_100_0805
FB13
CP10 X_COPPER
FB14 X_80L3_100_0805
SMBDATA10,13,18,24
SMBCLK10,13,18,24
+
EC9
C10U16EL
ALE
7
VCC3V
CB171
C0.1U25Y
CB172
C0.1U25Y RN43
C0.1U25Y
CB147
X_C0.1U25Y
CB155
X_C0.1U25Y
C99
C0.1U25Y
C89
C0.1U25Y
CB161
CB154
C0.1U25Y
X_C0.1U25Y
SMBDATA
SMBCLK
U9
41 39
CPU_VDD CPU0#
44
CPU_GND
35
SRC_VDD
38
SRC_GND
28
3V66_VDD
10
PCI_VDD1
11
PCI_GND1
17
PCI_VDD2
18
PCI_GND2
25
48_VDD
24
48_GND
3
REF_VDD
6
REF_GND
48
VDD
47
GND
33
SDATA
32
SCLK
ICS952611_SSOP48
CK_RST#
6
CPU1#
SRCCLKT
SRCCLKC
3V66_0
3V66_1
3V66_2
3V66_3/VCH3V66_GND
*FS_2/PCI_F0
*FS_4/PCI_F1
PCI_F2
*Turbo#
*SEL24_48#/24_48
*FS_3/48MHZ_0
**FS_1/REF_0
**FS_0/REF_1
* 150k Pull-up
* * 150k Pull-down
XOUT
VTT_PWRGD/PD#
RESET#
CPU0
CPU1
PCI0
PCI1
PCI2
PCI3
PCI4
PCI5
PCI6
IREF
XIN
40
43
42
37
36
31
30
27
2629
7
8
9
12
13
14
15
16
19
20
21
22
23
1
2
4
5
34
45
R143 475R1%
46
Iref = 2.32mA
CK_RST# 27
5
*Trace less 0.5"
RN87
R448
7 8
5 6
3 4
1 2
1 2
3 4
5 6
7 8CB148
8P4R-33R
7 8
5 6
3 4
1 2
8P4R-33R
MCHCLK#
MCHCLK
CPUCLK#
MCH_66
ICH_66
AGPCLK
R7 33R
RN54 8P4R-33R
33R
C18P50NC88
C18P50NC85
VCC3
Q902
MCH_CLK
MCH_CLK#
CPU_CLK
CPU_CLK# CPUCLK
MCH66
ICH66
AGP_CLK
ICHPCLK
FWHPCLK
SIOPCLK
PCI_CLK4
PCI_CLK3
PCI_CLK1
PCI_CLK2
PCI_CLK5 PCICLK5
LAN_PCLK
SIO48
ICH48
R175 33R
R159 33R
FS_1
R145 33R
FS_0
R361 33R
X2
14.318MHZ32P_D
CG_PWRGD
CK_RST#
R138 X_1KR
X_N-MMBT3904_SOT 23
RN53 8P4R-33R
7 8
5 6
3 4
1 2
PCICLK3
PCICLK1
PCICLK2
LANPCLK
SIO_48
ICH_48
4
MCHCLK# 7
MCHCLK 7
CPUCLK# 4
CPUCLK 4
MCH_66 7
ICH_66 13
AGPCLK 15
ICH_PCLK
FWH_PCLK
SIO_PCLK
PCICLK0
PCICLK4PCI_CLK0
PCICLK3 18
PCICLK1 17
PCICLK2 17
PCICLK5 18
LANPCLK 28
TUR# 16
SIO_48 16
ICH_48 13
ICH_14 13
AUDIO_14 21
VCC3
R453 10KR
R458 X_10KR
R459 X_220R
Q903
X_N-MMBT3904_SOT 23
ICH_PCLK 12
FWH_PCLK 19
SIO_PCLK 16
PCICLK0 18
PCICLK4 18
VCCP
3
Shut Source Termination
Resistors
CPUCLK
CPUCLK#
MCHCLK
0
0
0
0
FWHPCLK
ICHPCLK
FS_3
0
0
0
0
TUR#
PCI_CLK0
SIO48
ICH48
FS_0
FS_1
MCHCLK#
FS_2 FS_1
0
0
0
Trace less
0.2"
49.9ohm for 50ohm M/B
impedance
FS_4 CPU
SIO is 48MHz
(FS_3)
(FS_4)
(FS_2)
(FS_0)
FS_0
0
1
1001
R443 X_10KR
R172 2.2KR
R446 10KR
R447 10KR
RN13
1 2
3 4
5 6
7 8
8P4R-8.2KR
R131 49.9R1%
R132 49.9R1%
R128 49.9R1%
R133 49.9R1%
0
100
1
200
0
133.3
166.7
R173 1KR
2
BSEL0 4
VCC3V
1
Pull-Down
Capacitors
CPUCLK
CPUCLK#
MCHCLK
MCHCLK#
AGPCLK
ICH_66
MCH_66
ICH_PCLK
FWH_PCLK
SIO_PCLK
PCICLK0
PCICLK3
PCICLK1
PCICLK2
PCICLK5
ICH_14
SIO_48
ICH_48
AUDIO_14
LANPCLK
EMC HF filter capacitors, located close to PLL
used only for EMI issue
Trace less
0.2"
VCC5 VCC3
X_C10P50NC75
X_C10P50NC76
X_C10P50NC78
X_C10P50NC77
CN9
2
4
6
8
X_8P4C-10P50N
CN13
2
4
6
8
X_8P4C-10P50N
CN12
7
8
5
6
3
4
1
2
X_8P4C-10P50N
X_C10P50NC74
X_C10P50NC79
X_C10P50NC96
X_C10P50NC212
X_C10P50NC22
Ioh=6*Iref
Voh=0.71V
C278
X_C0.1U25Y
1
3
5
7
1
3
5
7
A A
MSI
Title
Size Document Number Rev
8
7
6
5
4
3
Date: Sheet of
MICRO-STAR INT'L CO.,LTD.
Clock ICS952611
MS-6580
2
6 31Wednesday, November 19, 2003
1
50B
5
Y28
HA#[31..3]4 HD#[63..0] 4
* Length must be matched
within +/-0.1"of the Strobe
Signals
D D
HBR#04
HBNR#4
HBPRI#4
HLOCK#4
C C
B B
Trace 10 mils & 7mils space <
0.5"
A A
HADS#4
HREQ#[4..0]4
HIT#4
HITM#4
HDEFER#4
HTRDY#4
HRS#[2..0]4
HDBSY#4
HDRDY#4
HADSTB#04
HADSTB#14
HDSTBN#04
HDSTBP#04
HDSTBN#14
HDSTBP#14
HDSTBN#24
HDSTBP#24
HDSTBN#34
HDSTBP#34
HINV#[3..0]4
MCHCLK6
MCHCLK#6
HL[5..0]12
HL_STB12
HL_STB#12
5
HA#3
HA#4
HA#5
HA#6
HA#7
HA#8
HA#9
HA#10
HA#11
HA#12
HA#13
HA#14
HA#15
HA#16
HA#17
HA#18
HA#19
HA#20
HA#21
HA#22
HA#23
HA#24
HA#25
HA#26
HA#27
HA#28
HA#29
HA#30
HA#31
HREQ#0
HREQ#1
HREQ#2
HREQ#3
HREQ#4
HRS#0
HRS#1
HRS#2
HINV#0
HINV#1
HINV#2
HINV#3
R93 24.9R1%
R111 24.9R1%
HL0
HL1
HL2
HL3
HL4
HL5
U7A
W31
HA3#
AA33
HA4#
AB30
HA5#
V34
HA6#
Y36
HA7#
AC33
HA8#
Y35
HA9#
AA36
HA10#
AC34
HA11#
AB34
HA12#
Y34
HA13#
AB36
HA14#
AC36
HA15#
AC31
HA16#
AF35
HA17#
AD36
HA18#
AD35
HA19#
AE34
HA20#
AD34
HA21#
AE36
HA22#
AF36
HA23#
AE33
HA24#
AF34
HA25#
AG34
HA26#
AG36
HA27#
AE31
HA28#
AH35
HA29#
AG33
HA30#
AG31
HA31#
U33
BREQ0#
T34
BNR#
M34
BPRI#
T35
HLOCK#
T36
ADS#
V36
HREQ0#
AA31
HREQ1#
W33
HREQ2#
AA34
HREQ3#
W35
HREQ4#
P36
HIT#
M36
HITM#
N36
DEFER#
V30
HTRDY#
R36
RS0#
U34
RS1#
P34
RS2#
U31
DBSY#
U36
DRDY#
AB35
HAD_STB0#
AF30
HAD_STB1#
N31
HD_STBN0#
L31
HD_STBP0#
G33
HD_STBN1#
J34
HD_STBP1#
C30
HD_STBN2#
E29
HD_STBP2#
D25
HD_STBN3#
E25
HD_STBP3#
N33
DINV_0#
C35
DINV_1#
B33
DINV_2#
C26 H30
DINV_3# HD_VREF0
K30
HCLKP
J31
HCLKN
V35
HY_RCOMP
B28
HX_RCOMP
AA7
HI0
AB8
HI1
AC7
HI2
AC5
HI3
AD8
HI4
AF4 AD3
HI5 HI_REF
AD4
HI_STBS
AC4
HI_STBF
G15
BLUE
H16
BLUE#
E15
GREEN
F16
GREEN#
C15
RED
D16
RED#
T28
VTTFSB
HOST
HUB LINK
VGA
M28
K26
VTTFSB
VTTFSB
K22
K20
VTTFSB
VTTFSB
K18
AD28
VTTFSB
VTTFSB
VTTFSB
DDCA_DATA
4
VCCP
T30
HD0#
R33
HD1#
R34
HD2#
N34
HD3#
R31
HD4#
L33
HD5#
L36
HD6#
P35
HD7#
J36
HD8#
K34
HD9#
K36
HD10#
M30
HD11#
M35
HD12#
L34
HD13#
K35
HD14#
H36
HD15#
G34
HD16#
G36
HD17#
J33
HD18#
D35
HD19#
F36
HD20#
F34
HD21#
E36
HD22#
H34
HD23#
F35
HD24#
D36
HD25#
H35
HD26#
E33
HD27#
E34
HD28#
B35
HD29#
G31
HD30#
C36
HD31#
D33
HD32#
D30
HD33#
D29
HD34#
E31
HD35#
D32
HD36#
C34
HD37#
B34
HD38#
D31
HD39#
G29
HD40#
C32
HD41#
B31
HD42#
B32
HD43#
B30
HD44#
B29
HD45#
E27
HD46#
C28
HD47#
B27
HD48#
D26
HD49#
D28
HD50#
B26
HD51#
G27
HD52#
H26
HD53#
B25
HD54#
C24
HD55#
B23
HD56#
B24
HD57#
E23
HD58#
C22
HD59#
G25
HD60#
B22
HD61#
D24
HD62#
G23
HD63#
AE7
GCLKIN
AJ31
RSTIN#
D22
CPURST#
E7
PWROK
H24
HD_VREF1
D27
HD_VREF2
AD30
HA_VREF
P30
HCC_VREF
Y30
HY_SWNG
H28
HX_SWNG
AE4
HI6
AE5
HI7
AF3
HI8
AE2
HI9
AF2
HI10
AD2
HI_SWING
AC2
HL_RCOMP
C7
D7
DDCA_CLK
B7
HSYNC
C6
VSYNC
D14
DREFCLK
B16
REFSET
Intel-RG82845PE(SL6Q3QD75/)-B1
4
HD#0
HD#1
HD#2
HD#3
HD#4
HD#5
HD#6
HD#7
HD#8
HD#9
HD#10
HD#11
HD#12
HD#13
HD#14
HD#15
HD#16
HD#17
HD#18
HD#19
HD#20
HD#21
HD#22
HD#23
HD#24
HD#25
HD#26
HD#27
HD#28
HD#29
HD#30
HD#31
HD#32
HD#33
HD#34
HD#35
HD#36
HD#37
HD#38
HD#39
HD#40
HD#41
HD#42
HD#43
HD#44
HD#45
HD#46
HD#47
HD#48
HD#49
HD#50
HD#51
HD#52
HD#53
HD#54
HD#55
HD#56
HD#57
HD#58
HD#59
HD#60
HD#61
HD#62
HD#63
X_C10P50NC114
HSWNG
HL6
HL7
HL8
HL9
HL10
HUB_MREF
HI_SWING
R161 68.1R1%
MCH_66 6
PCIRST#1 24
CPURST# 4
PWR_GD 24
VCC_AGP
HL[10..6] 12
BSEL04
3
VCC_AGP MEM_STR
VCCA_SM VCCQ_SM
VCC_AGP
VCC3
CB157 C0.1U25Y
C256
X_C1U10Y
3
U7C
A3
VCC_AGP
A7
C1
D4
D6
G1
K6
L1
L9
P6
R1
R9
W9
V6
AD6
AC9
AC1
AE3
W19
Y19
AA19
W20
U21
W21
AA21
A9
B9
C9
D9
E9
B10
C10
D10
F10
H10
A11
B11
C11
D11
E11
G11
J11
B12
C12
D12
F12
H12
G13
J13
H14
J15
AA17
W18
W17
V19
U19
U17
AG2 AT20
AG1
A15
B14
A13
C14
B15
B6
Y3
R155
10KR
Y2
AA2
AA4
AA3
AA5
W7
Y4
Y8
A37
AB2
AB3
POWER
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_HI
VCC_HI
VCC_HI
VCC_HI
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCCA_SM VCCQ_SM
VCCA_SM
VCCA_DAC
VCCA_DAC
VCCA_DPLL
VSSA_DAC
VSSA_DAC
VCC_GPIO
M10
GND
GND
T10
Other
GND
GND
GND
GND
Y10
AH16
AH20
AH24
AH28
GND
AF28
PSBSEL
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
TESTIN#
RSVD
2
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VCCA_FSB
VCCQ_SM
VCCQ_SM
VTT_DECAP
VTT_DECAP
VTT_DECAP
VTT_DECAP
VTT_DECAP
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
GND
GND
GND
GND
GND
GND
Intel-RG82845PE(SL6Q3QD75/)-B1
AB28
V28
P28
K24
K28
2
AH8
AK8
AG9
AJ9
AL9
AM22
AJ23
AL37
AU9
AK10
AJ11
AL11
AU25
AM26
AU13
AM14
AJ27
AJ1
AL1
AJ15
AP15
AU29
AH2
AJ2
AK2
AL2
AM30
AH3
AJ3
AK3
AL3
AH4
AJ4
AK4
AL4
AU17
AJ5
AL5
AU5
AM18
AJ19
AK32
AU33
AH6
AK6
AP20
AG7
AJ7
AL7
AP7
B18
C18
D18
H18
B19
C19
D19
E19
G19
J19
B20
C20
D20
F20
H20
F18
A17
AT21
AU21
G37
L37
R37
AC37
A31
Place <0.1"
A2
A36
AH34
AJ35
AT1
AT37
AU1
AU2
AU36
AU37
B1
B37
VCCA_FSB
CB107 C0.1U25Y
CB109 C0.1U25Y
CB110 C0.1U25Y
CB108 C0.1U25Y
CB115 C0.1U25Y
VCCP
1
GMCH REFERENCE BLOCK
+
C100
C0.01U50X
C98
C0.01U50X
MS-6580
0.82U30m
L13
C73
I=30mA
C22U10Y1206
80L3_100_0805
L16
CT20
I=500mA
CD100U25EL11
0.68U150m_0805
L12
C72
I=150mA
C4.7U10Y0805
R119
1R1%
VCCP
R103
301R1%
R106
C71
150R1%
C0.01U50X
VCCP
R107
100R1%
R108
169R1%
C69
C0.1U25Y
VCC_AGP
C92
C0.1U25Y
C101
C0.1U25Y
1
C60
C0.01U50X
R176
226R1%
R180
100R1%
R179
100R1%
7 31Tuesday, November 25, 2003
VCC_AGP
VCC_AGP
MEM_STR
VCCA_FSB
VCCA_SM
VCCQ_SM
Place 0.01uF Cap. as Close as possible to
GMCH< 0.25"
Trace width 12 mils & 10mils space
MSI
Title
Size Document Number Rev
Date: Sheet of
CB134
C0.1U25Y
CB168
C0.1U25Y
CB128
C0.1U25Y
HSWNG
HVREF
Place Cap. as Close as possible to
, Trace width 12 mils & 10mils space
GMCH
Keep the voltage divider within 3" of the
GMCH pin.
HI_SWINGHVREF
HUB_MREF
MICRO-STAR INT'L CO.,LTD.
Brookdale GMCH-1 (HOST & HI)
50B
5
AH10
AH12
AH14
AH18
AH22
VCCSM
DDR
AGP
VCC_AGP
VCC_AGP
VCC_AGP
K12
K14
K16
VCCSM
VCCSM
VCCSM
VCC_AGP
VCC_AGP
VCC_AGP
P10
V10
AH26
VCCSM
VCCSM
SCMDCLK_0#
SCMDCLK_1#
SCMDCLK_2#
SCMDCLK_3#
SCMDCLK_4#
SCMDCLK_5#
SMX_RCOMP0
VCC_AGP
VCC_AGP
AB10
AD10
VCC_AGP
AN4
AN2
AR4
AR6
AR10
AP10
AT11
AT13
AT14
AT10
AR12
AR14
AP14
AT15
AP16
AT18
AT19
AR16
AT16
AP18
AR20
AR22
AP22
AP24
AT26
AT22
AT23
AT25
AR26
AP26
AT28
AR30
AP30
AT27
AR28
AT30
AT31
AR32
AT32
AR36
AP35
AP32
AT33
AP34
AT35
AN36
AM36
AK36
AJ36
AP36
AM35
AK35
AK34
AK24
AL23
AP2
AT3
AP5
AP3
AT4
AT5
AT9
AT6
AP6
AT8
AP8
V4
V2
W4
W5
U5
U4
U2
V3
T2
T3
T4
R2
R5
R7
T8
P3
P8
K4
K2
J2
M3
L5
L4
H4
G2
K3
J4
J5
J7
H3
K8
G4
R4
N4
M2
H2
U7B
SDQ0
SDQ1
SDQ2
SDQ3
SDQ4
SDQ5
SDQ6
SDQ7
SDQ8
SDQ9
SDQ10
SDQ11
SDQ12
SDQ13
SDQ14
SDQ15
SDQ16
SDQ17
SDQ18
SDQ19
SDQ20
SDQ21
SDQ22
SDQ23
SDQ24
SDQ25
SDQ26
SDQ27
SDQ28
SDQ29
SDQ30
SDQ31
SDQ32
SDQ33
SDQ34
SDQ35
SDQ36
SDQ37
SDQ38
SDQ39
SDQ40
SDQ41
SDQ42
SDQ43
SDQ44
SDQ45
SDQ46
SDQ47
SDQ48
SDQ49
SDQ50
SDQ51
SDQ52
SDQ53
SDQ54
SDQ55
SDQ56
SDQ57
SDQ58
SDQ59
SDQ60
SDQ61
SDQ62
SDQ63
SRCVEN_OUT#
SRCVEN_IN#
G_AD0
G_AD1
G_AD2
G_AD3
G_AD4
G_AD5
G_AD6
G_AD7
G_AD8
G_AD9
G_AD10
G_AD11
G_AD12
G_AD13
G_AD14
G_AD15
G_AD16
G_AD17
G_AD18
G_AD19
G_AD20
G_AD21
G_AD22
G_AD23
G_AD24
G_AD25
G_AD26
G_AD27
G_AD28
G_AD29
G_AD30
G_AD31
G_C/BE0#
G_C/BE1#
G_C/BE2#
G_C/BE3#
K10
MDQ0
MDQ1
MDQ2
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
MDQ8
R360 X_0R
5
MDQ9
MDQ10
MDQ11
MDQ12
MDQ13
MDQ14
MDQ15
MDQ16
MDQ17
MDQ18
MDQ19
MDQ20
MDQ21
MDQ22
MDQ23
MDQ24
MDQ25
MDQ26
MDQ27
MDQ28
MDQ29
MDQ30
MDQ31
MDQ32
MDQ33
MDQ34
MDQ35
MDQ36
MDQ37
MDQ38
MDQ39
MDQ40
MDQ41
MDQ42
MDQ43
MDQ44
MDQ45
MDQ46
MDQ47
MDQ48
MDQ49
MDQ50
MDQ51
MDQ52
MDQ53
MDQ54
MDQ55
MDQ56
MDQ57
MDQ58
MDQ59
MDQ60
MDQ61
MDQ62
MDQ63
C91 C0.1U25Y
GAD0
GAD1
GAD2
GAD3
GAD4
GAD5
GAD6
GAD7
GAD8
GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31
GC_BE#0
GC_BE#1
GC_BE#2
GC_BE#3
D D
C C
Trace lengh
must as short
as possible
for SRCVEN
Trace width 12
mil with 12 mil
space for
SM_VREF.
B B
A A
DDR_VREF
GAD[31..0]15
GC_BE#[3..0]15
MEM_STR
SMA0
SMA1
SMA2
SMA3
SMA4
SMA5
SMA6
SMA7
SMA8
SMA9
SMA10
SMA11
SMA12
SMAB1
SMAB2
SMAB4
SMAB5
SDQS0
SDQS1
SDQS2
SDQS3
SDQS4
SDQS5
SDQS6
SDQS7
SDM0
SDM1
SDM2
SDM3
SDM4
SDM5
SDM6
SDM7
SCKE0
SCKE1
SCKE2
SCKE3
SCS0#
SCS1#
SCS2#
SCS3#
SCMDCL_K0
SCMDCLK_1
SCMDCLK_2
SCMDCLK_3
SCMDCLK_4
SCMDCLK_5
SBA_0
SBA_1
SRAS#
SCAS#
SWE#
SMY_RCOMPSM_VREF
G_FRAME#
G_IRDY#
G_TRDY#
G_DEVSEL#
G_STOP#
G_PAR
G_REQ#
G_GNT#
SBA0
SBA1
SBA2
SBA3
SBA4
SBA5
SBA6
SBA7
SB_STB
SB_STB#
ST0
ST1
ST2
AD_STB0
AD_STB0#
AD_STB1
AD_STB1#
PIPE#
RBF#
WBF#
AGP_VREF
AGP_RCOMP
4
DDRMAA0
AL25
DDRMAA1
AN25
DDRMAA2
AP23
DDRMAA3
AK20
DDRMAA4
AL19
DDRMAA5
AL17
DDRMAA6
AP19
DDRMAA7
AP17
DDRMAA8
AN17
DDRMAA9
AK16
DDRMAA10
AK26
DDRMAA11
AL15
DDRMAA12
AN15
AP25
AN23
AN19
AK18
MSDQS0
AR2
MSDQS1
AT7
MSDQS2
AT12
MSDQS3
AT17
MSDQS4
AR24
MSDQS5
AT29
MSDQS6
AT34
MSDQS7
AL36
MSDM0
AP4
MSDM1
AR8
MSDM2
AP12
MSDM3
AR18
MSDM4
AT24
MSDM5
AP28
MSDM6
AR34
MSDM7
AL34
MSCKE0
AP13
MSCKE1
AN13
MSCKE2
AK14
MSCKE3
AL13
AL29
AP31
AK30
AN31
AL21
AK22
AN11
AP11
AM34
AL33
AP21
AN21
AP9
AN9
AP33
AN34
AN27
AP27
AK28
AN29
AP29
SMX
AF10
SMY
AJ34AM2
M4
N7
N5
N2
P2
P4
D5
B5
SBA0
C3
SBA1
C2
SBA2
D3
SBA3
D2
SBA4
E4
SBA5
E2
SBA6
F3
SBA7
F2
F4
E5
ST0
C4
ST1
B4
ST2
B3
V8
U7
M8
L7
H8
G7
G5
CB167 C0.1U25Y
W2
R170 40.2R1%
L2
Intel-RG82845PE(SL6Q3QD75/)-B1
4
DDRMAA[12..0] 10,11
DDRMAB1 10,11
DDRMAB2 10,11
DDRMAB4 10,11
DDRMAB5 10,11
MSCKE[3..0] 10,11
MSCS0# 10,11
MSCS1# 10,11
MSCS2# 10,11
MSCS3# 10,11
DCLK0 10
DCLK0# 10
DCLK1 10
DCLK1# 10
DCLK2 10
DCLK2# 10
DCLK3 10
DCLK3# 10
DCLK4 10
DCLK4# 10
DCLK5 10
DCLK5# 10
MSBS0 10
MSBS1 10
MRAS# 10,11
MCAS# 10,11
MWE# 10,11
GFRAME# 15
GIRDY# 15
GTRDY# 15
GDEVSEL# 15
GSTOP# 15
GPAR 15
GREQ# 15
GGNT# 15
SBA[7..0] 15
SB_STB 15
SB_STB# 15
ST[2..0] 15
GAD_STB0 15
GAD_STB#0 15
GAD_STB1 15
GAD_STB#1 15
PIPE# 15
RBF# 15
WBF# 15
AGPREF 15
Place < 0.5"
3
Trace width 12 mil
with 10 mil space.
Place 0.1uF <1" to GMCH
MEM_STR
R167
60.4R1%
R166
60.4R1%
C52
C0.1U25Y
3
R88
60.4R1%
R86
60.4R1%
C93
C0.1U25Y
2
1
DDR SERIAL RESISTORS
DDRMD1
RN49 8P4R-10R
DDRMD[63..0]10,11
DDRMD5
DDRMD4
DDRMD0
DDRMD3
DDRMD7
DDRMD6
DDRMD2
DDRMD13
DDRMD12
DDRMD9
DDRMD8
DDRMD11
DDRMD10
DDRMD15
DDRMD14
DDRMD21
DDRMD17
DDRMD16
DDRMD20
DDRMD23
DDRMD19
DDRMD22
DDRMD18
DDRMD25
DDRMD29
DDRMD28
DDRMD24
DDRMD31
DDRMD27
DDRMD30
DDRMD26
DDRMD37
DDRMD33
DDRMD36
DDRMD32
DDRMD35
DDRMD39
DDRMD38
DDRMD34
DDRMD41
DDRMD45
DDRMD44
DDRMD40
DDRMD47
DDRMD43
DDRMD46
DDRMD42
DDRMD53
DDRMD52
DDRMD49
DDRMD48
DDRMD51
DDRMD50
DDRMD55
DDRMD54
DDRMD57
DDRMD61
DDRMD56
DDRMD60
DDRMD59
DDRMD63
DDRMD58
DDRMD62
MSDM0 SDM0
MSDM1
MSDM2
MSDM3
MSDM4
MSDM5
MSDM6
MSDM7
MSDQS0
MSDQS1
MSDQS2
MSDQS3
MSDQS4
MSDQS5
MSDQS6
MSDQS7
2
7 8
5 6
3 4
1 2
RN46 8P4R-10R
7 8
5 6
3 4
1 2
RN42 8P4R-10R
7 8
5 6
3 4
1 2
RN40 8P4R-10R
7 8
5 6
3 4
1 2
RN38 8P4R-10R
7 8
5 6
3 4
1 2
RN35 8P4R-10R
7 8
5 6
3 4
1 2
RN32 8P4R-10R
7 8
5 6
3 4
1 2
RN29 8P4R-10R
7 8
5 6
3 4
1 2
RN22 8P4R-10R
7 8
5 6
3 4
1 2
RN20 8P4R-10R
7 8
5 6
3 4
1 2
RN18 8P4R-10R
7 8
5 6
3 4
1 2
RN16 8P4R-10R
7 8
5 6
3 4
1 2
RN15 8P4R-10R
7 8
5 6
3 4
1 2
RN11 8P4R-10R
7 8
5 6
3 4
1 2
RN9 8P4R-10R
7 8
5 6
3 4
1 2
RN6 8P4R-10R
7 8
5 6
3 4
1 2
R156 10R
R125 10R
R109 10R
R91 10R
R80 10R
R61 10R
R53 10R
R49 10R
R153 10R
R134 10R
R113 10R
R92 10R
R81 10R
R60 10R
R52 10R
R47 10R
Title
Size Document Number Rev
Date: Sheet of
MDQ1
MDQ5
MDQ4
MDQ0
MDQ3
MDQ7
MDQ6
MDQ2
MDQ13
MDQ12
MDQ9
MDQ8
MDQ11
MDQ10
MDQ15
MDQ14
MDQ21
MDQ17
MDQ16
MDQ20
MDQ23
MDQ19
MDQ22
MDQ18
MDQ25
MDQ29
MDQ28
MDQ24
MDQ31
MDQ27
MDQ30
MDQ26
MDQ37
MDQ33
MDQ36
MDQ32
MDQ35
MDQ39
MDQ38
MDQ34
MDQ41
MDQ45
MDQ44
MDQ40
MDQ47
MDQ43
MDQ46
MDQ42
MDQ53
MDQ52
MDQ49
MDQ48
MDQ51
MDQ50
MDQ55
MDQ54
MDQ57
MDQ61
MDQ56
MDQ60
MDQ59
MDQ63
MDQ58
MDQ62
SDM0 11
SDM1 11
SDM2 11
SDM3 11
SDM4 11
SDM5 11
SDM6 11
SDM7 11
SDQS[7..0] 10,11
MICRO-STAR INT'L CO.,LTD.
MSI
SDM1
SDM2
SDM3
SDM4
SDM5
SDM6
SDM7
SDQS0
SDQS1
SDQS2
SDQS3
SDQS4
SDQS5
SDQS6
SDQS7
Brookdale GMCH-2 (DDR & AGP)
MS-6580
8 31Wednesday, November 19, 2003
1
50B
AA18
AL31
AR31
AU31
AB32
AD32
AF32
AH32
AR19
AM32
AJ33
AN33
AR33
AA20
AM20
AJ21
AR21
AM4
AG5
AM6
W34
GMCH DECOUPLING CAPACITOR
C17
D17
E17
G17
J17
V17
AH30
C31
AC3
AG3
AM3
AN3
AR3
AU3
AB4
AG4
Y17
AJ17
AR17
AR9
AM10
AR23
AU23
F24
AM24
VSS
VSS
VSS
AM16
A25
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
Intel-RG82845PE(SL6Q3QD75/)-B1
B17
N35
R35
U35
AA35
AC35
AE35
AG35
AL35
AN35
AR35
AU35
B36
W36
AF8
AM8
G9
J9
N9
U9
AA9
AE9
A23
C23
D23
J23
AH36
AT36
C37
E37
J37
U37
AA37
AE37
AG37
AJ37
C25
AN37
AR37
AR11
AU11
J25
AJ25
AR25
F26
AK12
AM12
B13
C13
D13
E13
A27
C27
J27
AJ13
AR13
F14
AL27
AR27
AU27
F28
AM28
E1
J1
N1
U1
AA1
AE1
AN1
AR1
B2
D15
AR15
AU15
N37
C16
VCC_AGP
C125
Pin A5
C0.01U50X
CB163
Pin E1
C0.1U25Y
CB164
Pin J1
X_C0.1U25Y
CB165
Pin N1
C0.1U25Y
CB166
Pin U1
C0.1U25Y
Place decoupling cap
close to GMCH AGP
Interface < 0.1"
VCC_AGP
CB162
C0.1U25Y
C83
X_C0.01U50X
Place decoupling cap
close to GMCH Core
Logic Interface <
0.1"
VCC_AGP
+
+
CT22
CT27
CD1000U6.3EL15
CD1000U6.3EL15
Place Bulk cap for Core Logic,
AGP & Hub Link Interface
MEM_STR
+
CT5
CD1000U6.3EL15
Place Bulk cap between
GMCH & DIMM slot
Place decoupling cap
close to GMCH
Hub-Link Interface<
0.1"
Place decoupling cap
close to GMCH CPU
Interface < 250mil
in the Vtt corridor
MEM_STR
C222
X_C1U16Y0805
VCC_AGP
C223
X_C1U16Y0805
VCCP
VCCP
CB169
C0.1U25Y
CB170
C0.1U25Y
CB129
X_C0.1U25Y
CB127
C0.1U25Y
CB131
X_C0.1U25Y
CB126
X_C0.1U25Y
CB132
X_C0.1U25Y
CB125
X_C10U10Y1206
Pin AA1
Pin AE1
CB130
X_C10U10Y1206
VCC_AGP
C80
Pin B14
C0.01U50X
CB175
Pin A15
X_C0.1U25Y
Place decoupling cap
close to GMCH DAC
Interface< 0.1"
MEM_STR
CB105
Pin AL37
C0.1U25Y
CB113
Pin AU5
X_C0.1U25Y
CB117
Pin AU9
C0.1U25Y
CB122
Pin AU13
X_C0.1U25Y
CB135
Pin AU17
X_C0.1U25Y
CB143
Pin AU25
C0.1U25Y
CB152
Pin AU29
X_C0.1U25Y
CB160
Pin AU33
C0.1U25Y
Place decoupling cap
close to GMCH Memory
Interface < 0.1", with
18 mil trach width
U7D
U18
VSS
V18
VSS
Y18
F32
H32
K32
M32
P32
T32
V32
Y32
AN5
AR5
A33
C33
M6
AB6
AF6
U20
V20
Y20
A21
B21
C21
D21
E21
G21
J21
D34
A35
E35
G35
J35
L35
AN7
AR7
AU7
V21
Y21
F22
H22
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
A5
VSS
C5
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
F6
VSS
H6
VSS
VSS
T6
VSS
Y6
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
B8
VSS
C8
VSS
D8
VSS
F8
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
A29
C29
J29
L29
N29
U29
R29
W29
AA29
AC29
AE29
AG29
AJ29
AR29
F30
AT2E3G3J3L3N3R3U3W3
MSI
Title
Size Document Number Rev
Date: Sheet of
MICRO-STAR INT'L CO.,LTD.
Brookdale GMCH(VSS)
MS-6580
9 31Wednesday, November 19, 2003
50B
Loading...
