MSI MS-6380LE, KT3 Ultra, MS-6380E User Manual

i

MSI

Version 1.3

G52-MA00598

MS-6380E (v1.X) ATX Mainboard

KT3 Ultra2 Series

MICRO-STAR INTERNATIONAL

ii

Manual Rev: 1.3
Release Date: June 2002

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLA TION AVANT DE RACCORDER AU
RESEAU.

Micro-Star International MS-6380E

T ested to comply
with FCC Standard

For Home or Office Use

iii

Edition

June 2002

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes

without notice.

Trademarks

All trademarks are the properties of their respective owners.
AMD, Athlon and Duron are registered trademarks of AMD Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 98/2000/NT/ME/XP are registered trademarks of Microsoft
Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix T echnologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

1 .3 Modify chipset and USB June 2002

connectors

Add JBT2

iv

1. Always read the safety instructions carefully.
2 . Keep this User’ s Manual for future reference.
3 . Keep this equipment away from humidity.
4 . Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6 . Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

1 0 . Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

z The power cord or plug is damaged
z Liquid has penetrated into the equipment
z The equipment has been exposed to moisture
z The equipment has not work well or you can not get it work according

to User’s Manual.

z The equipment has dropped and damaged
z If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERA TURE ABOVE 600 C (1400F), IT
MA Y DAMAGE THE EQUIPMENT .

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

CONTENTS

Chapter 1. Getting Started ........................................................................ 1-1

Mainboard Specification ......................................................................1-2

Mainboard Layout ...............................................................................1-4

Quick Components Guide ....................................................................1-6

MSI Special Features ........................................................................... 1-7

PC Alert™ III ................................................................................. 1-7

Fuzzy Logic™ 4 ............................................................................. 1-8

Live BIOS™/Live Driver™ ............................................................1-9

D-Bracket™ 2(Optional) .............................................................. 1-10

S-Bracket (Optional) .................................................................... 1-12

MSI DVD (5.1 Channel) ............................................................... 1-13

CPU Thermal Protection .............................................................. 1-15

Chapter 2. Hardware Setup ....................................................................... 2-1

Central Processing Unit: CPU ..............................................................2-2

CPU Installation Procedures .........................................................2-2

CPU Core Speed Derivation Procedure .........................................2-4

CPU Clock Frequency Selection through BIOS.............................2-4

Memory................................................................................................2-5

Introduction to DDR SDRAM.......................................................2-5

DIMM Module Combination.........................................................2-6

Installing DDR Modules ...............................................................2-6

Power Supply ....................................................................................... 2-7

ATX 20-Pin Power Connector: JWR1 ............................................2-7

Back Panel ............................................................................................2-8

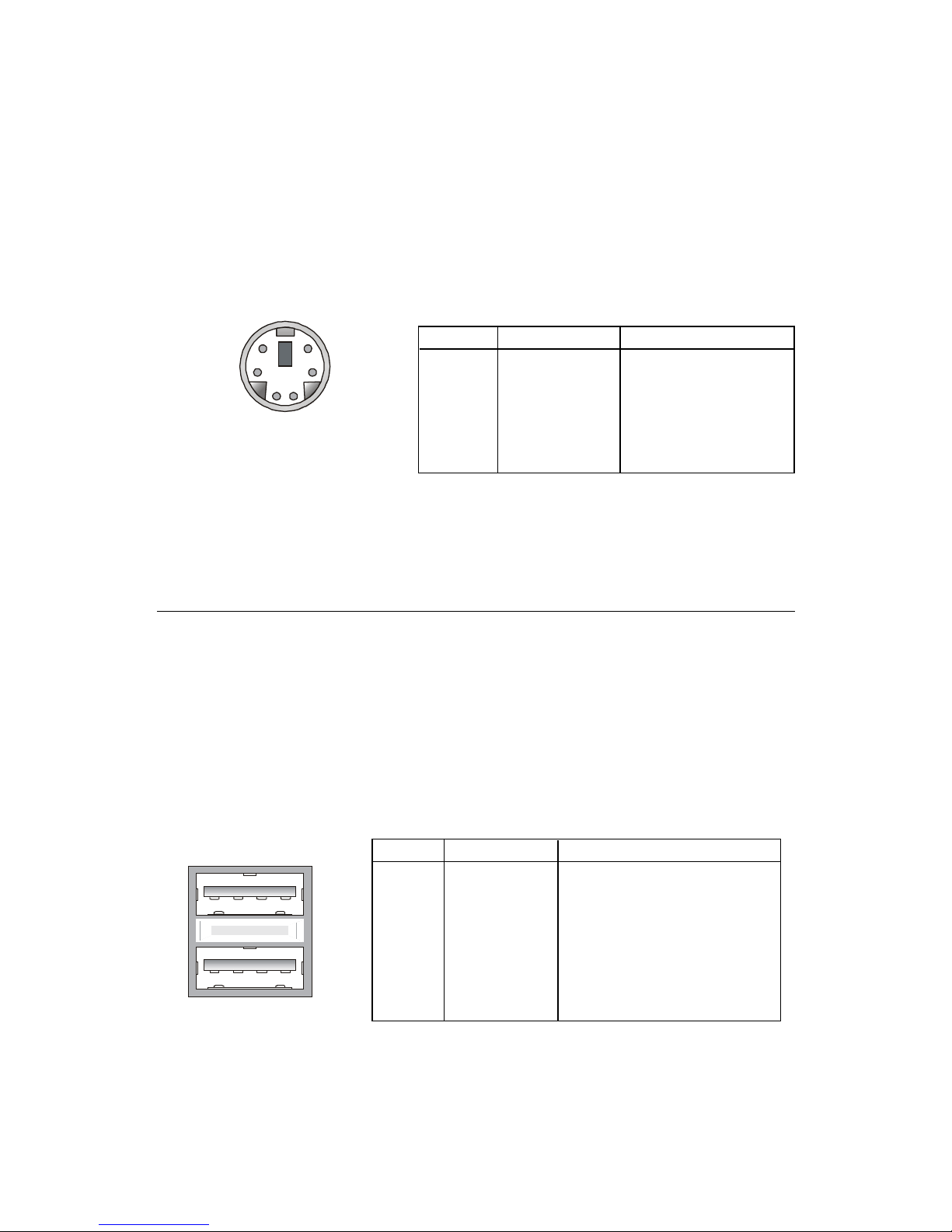

Mouse Connector ......................................................................... 2-8

Keyboard Connector ..................................................................... 2-9

USB Connectors ............................................................................ 2-9

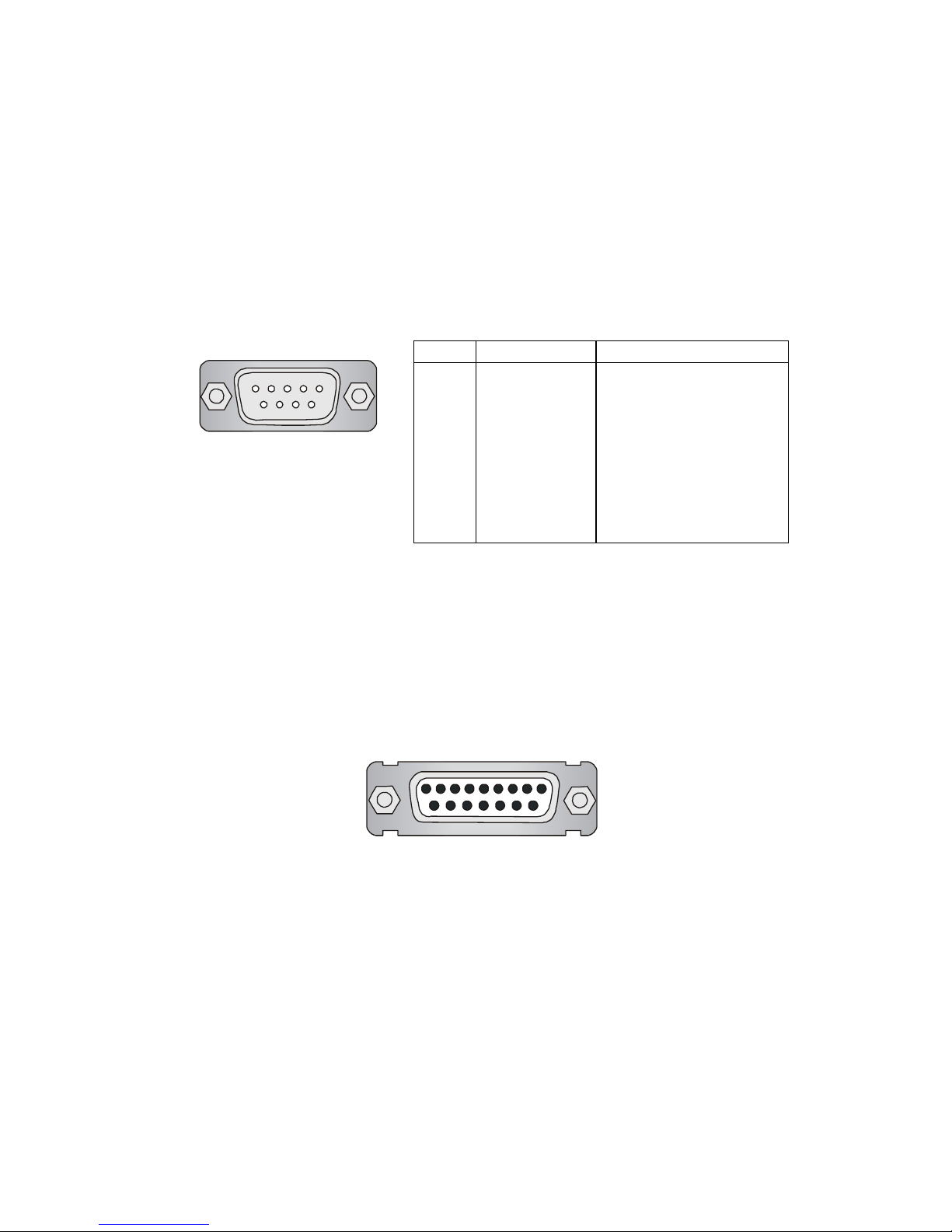

Serial Port Connectors: COM A & COM B..................................2-10

Joystick/Midi Connector ............................................................. 2-10

vi

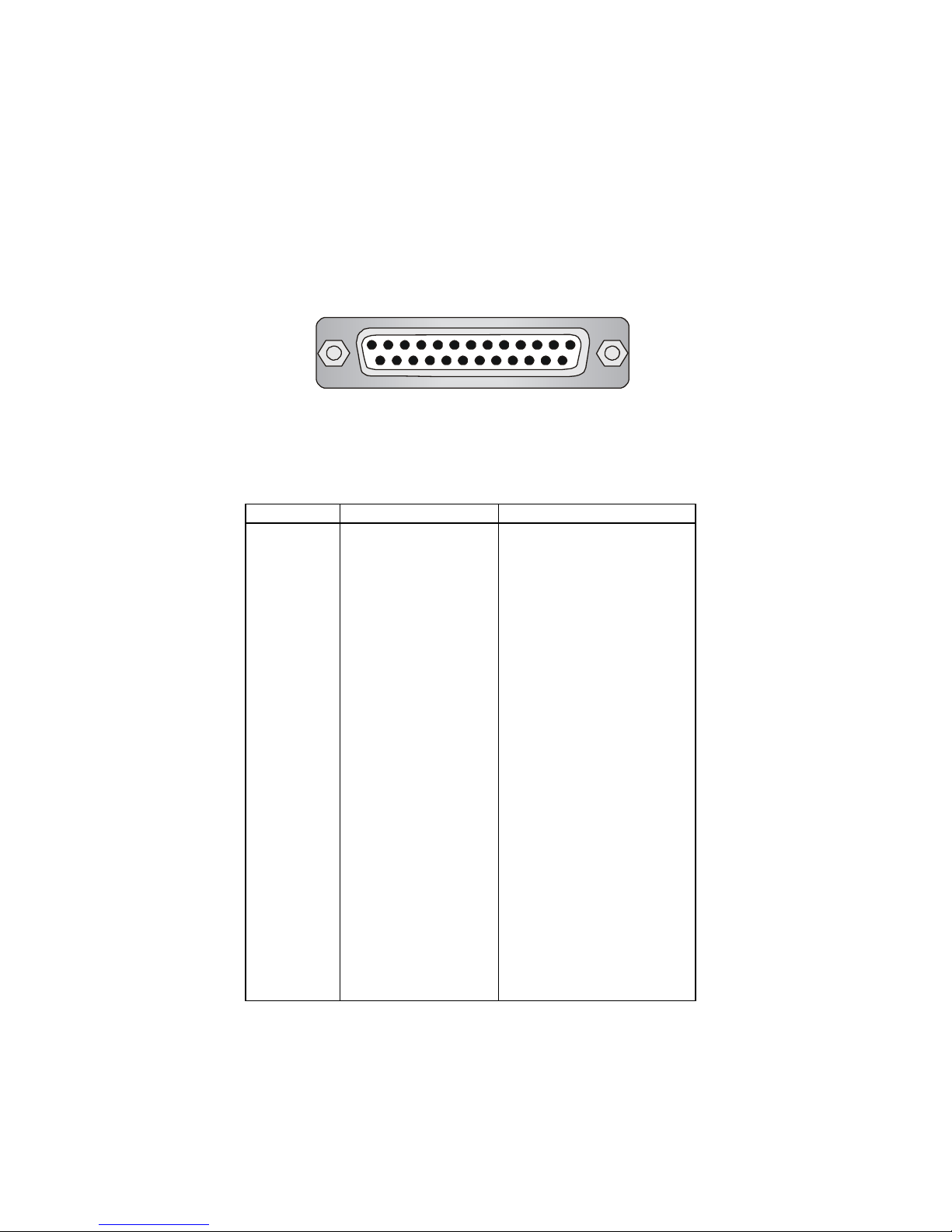

Parallel Port Connector: LPT1...................................................... 2-11

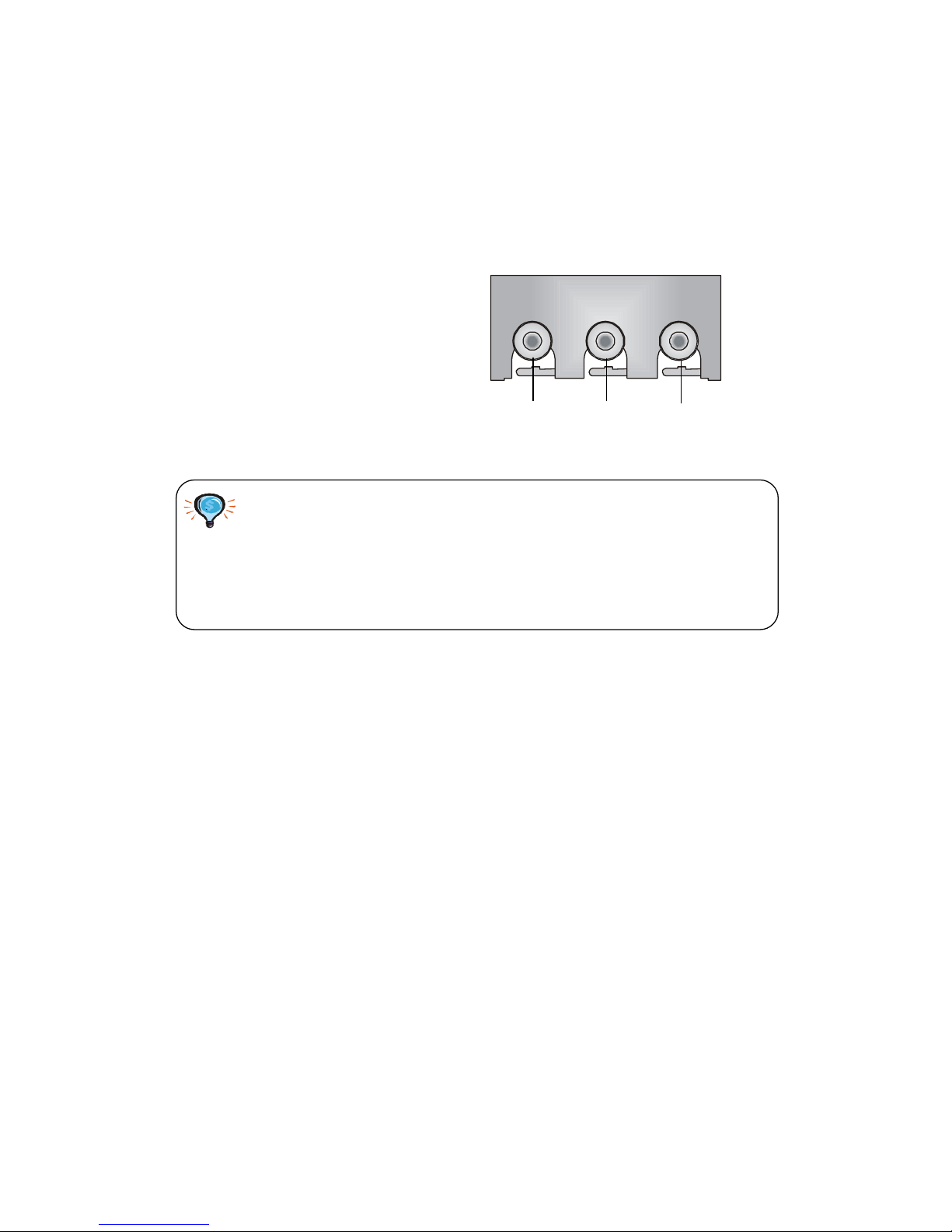

Audio Port Connectors ............................................................... 2-12

Connectors......................................................................................... 2-13

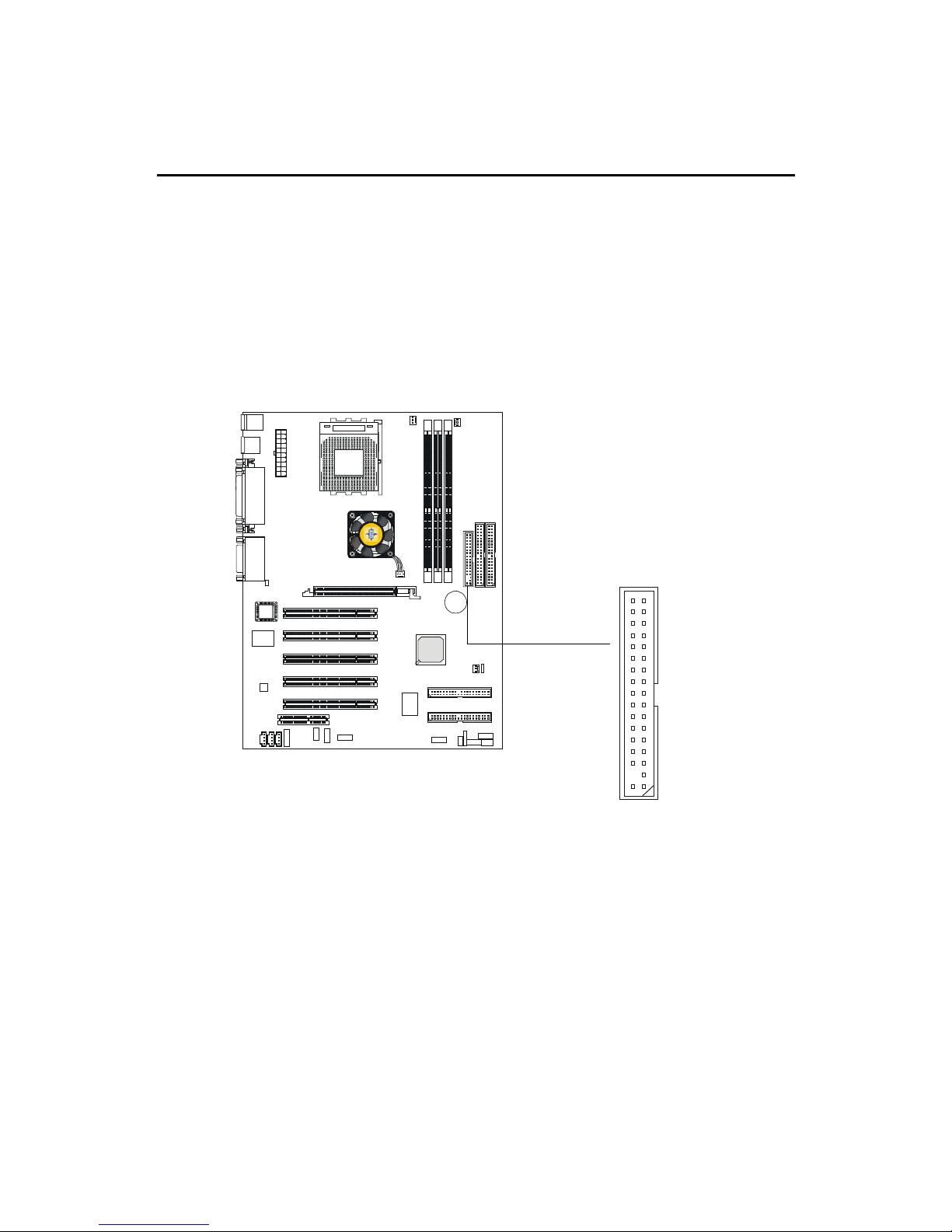

Floppy Disk Drive Connector: FDD1...........................................2-13

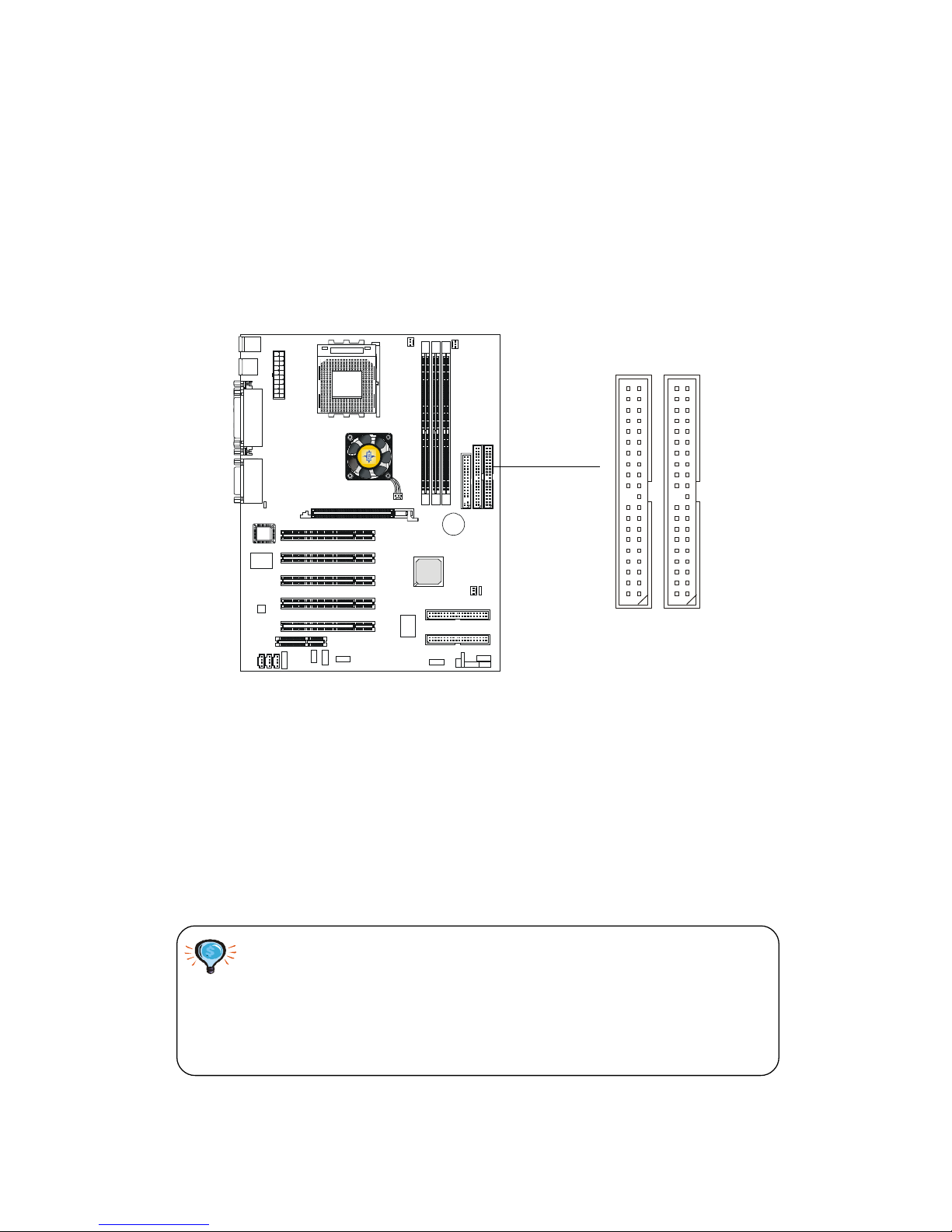

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-14

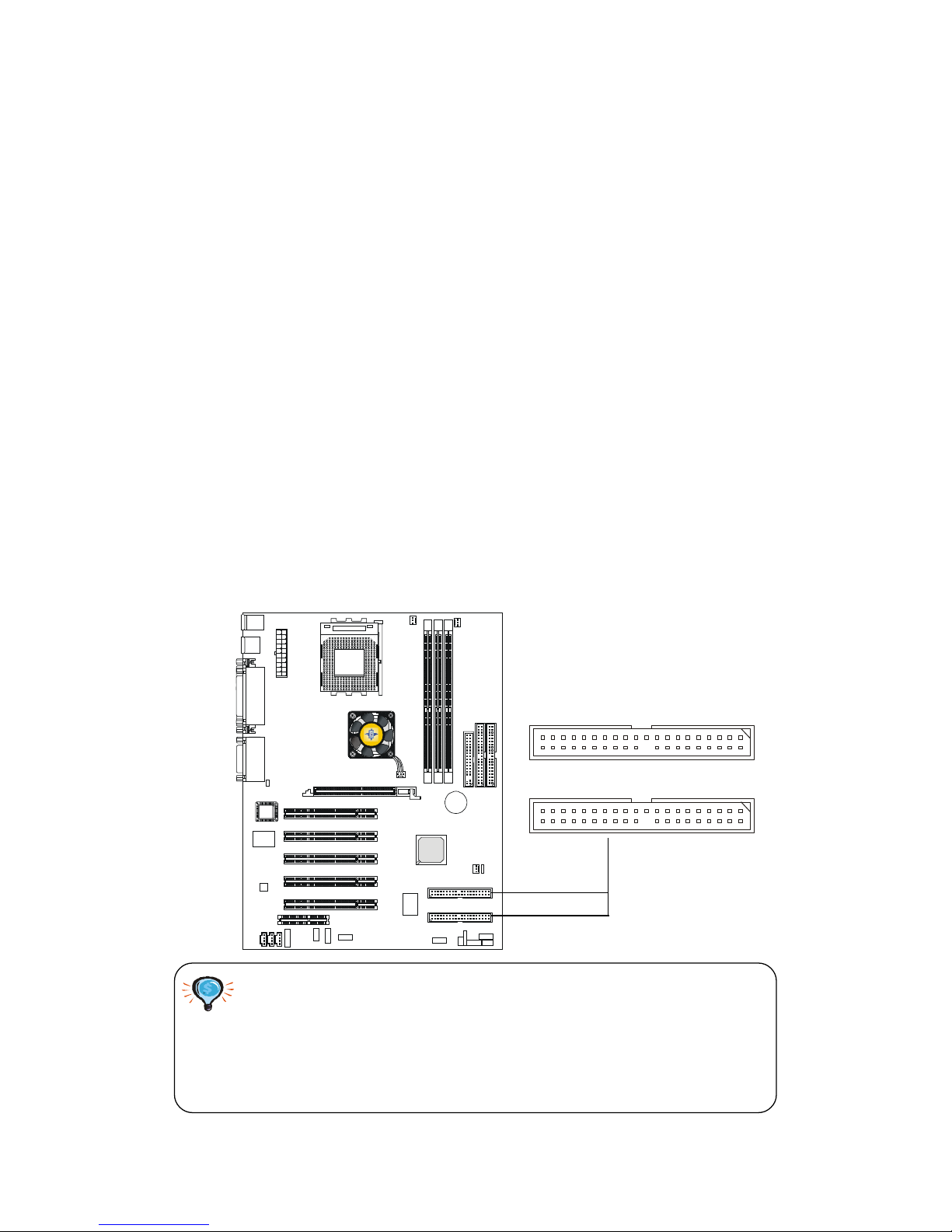

AT A133 RAID Connectors: IDE3 & IDE4 ................................... 2-15

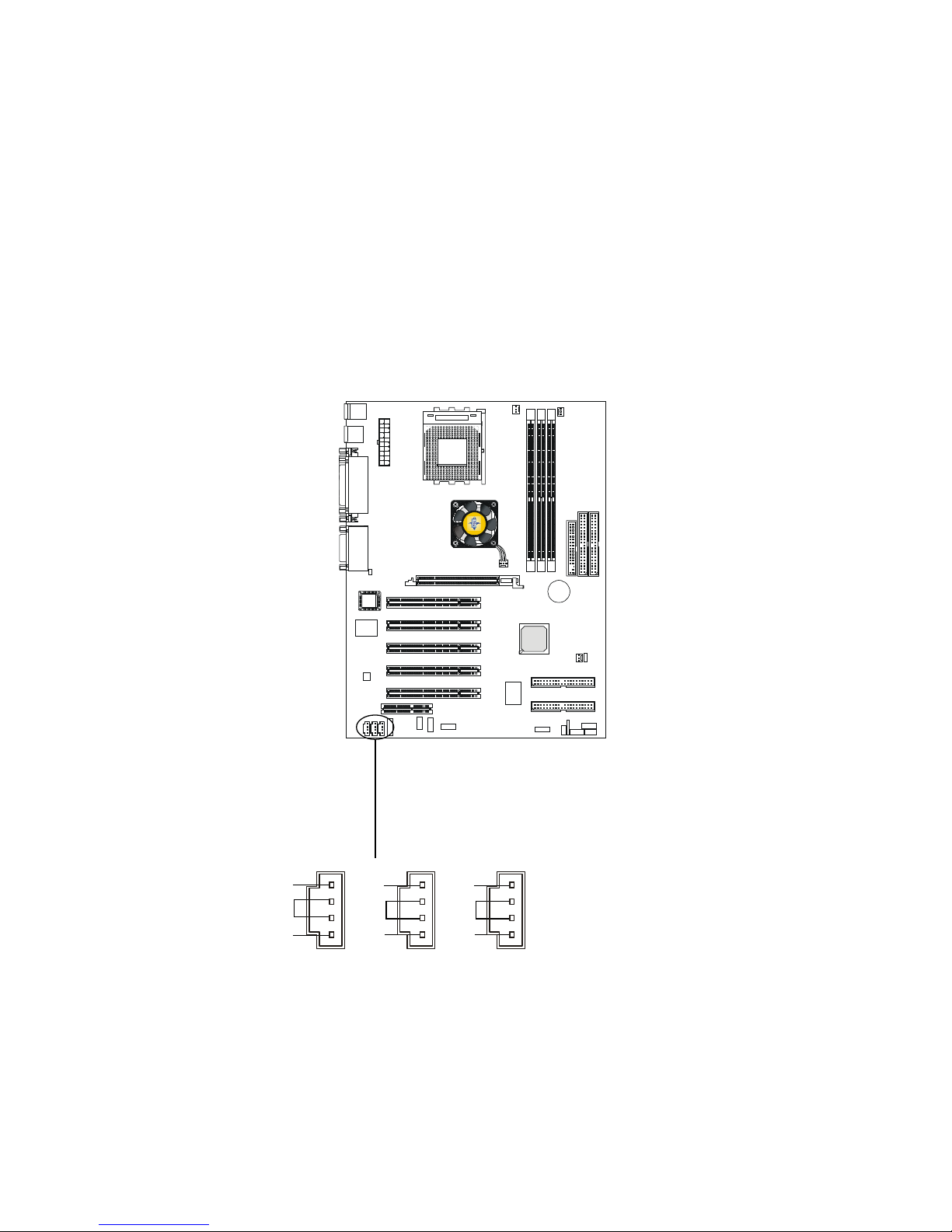

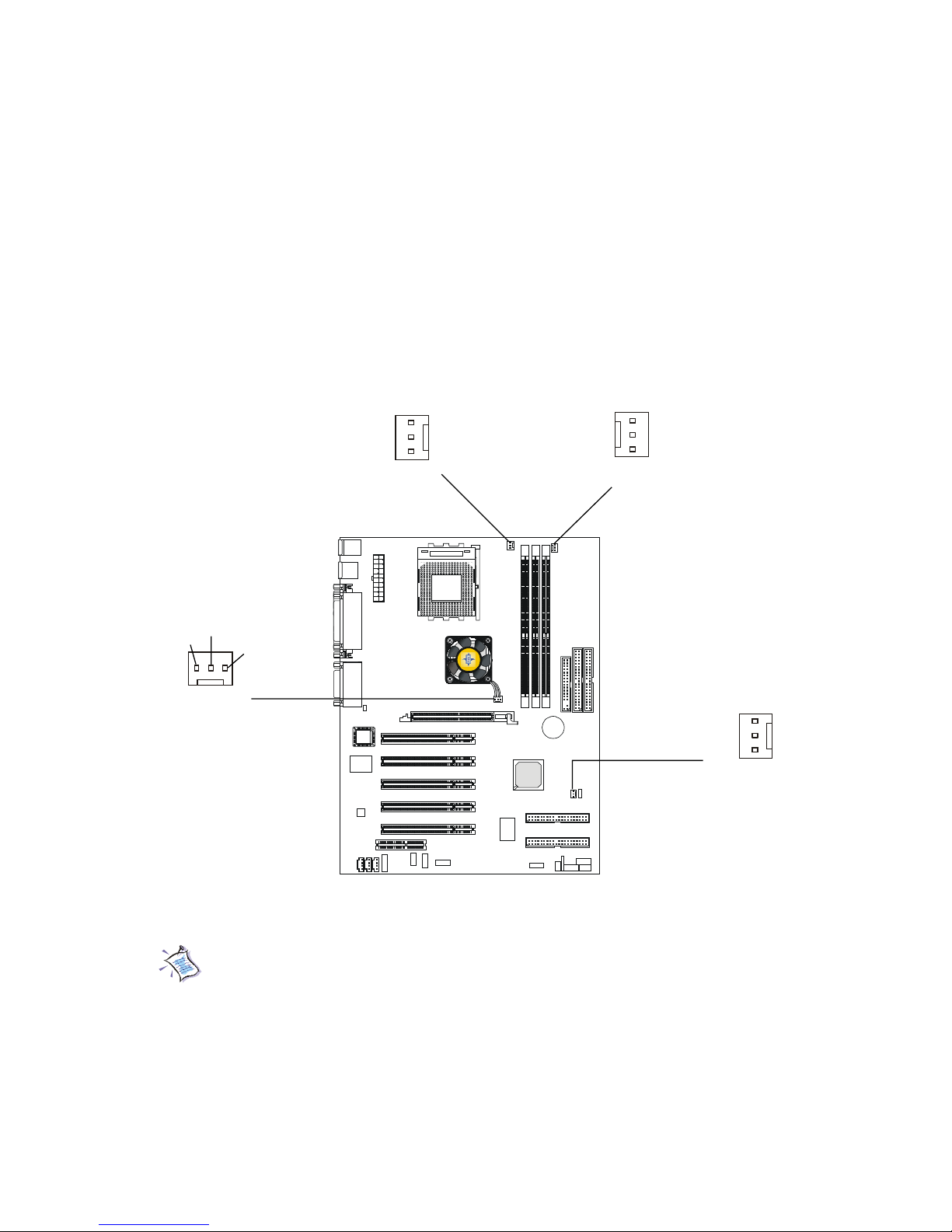

Fan Power Connectors: CF AN1/SF AN1/PSF AN1/NBF AN1........ 2-16

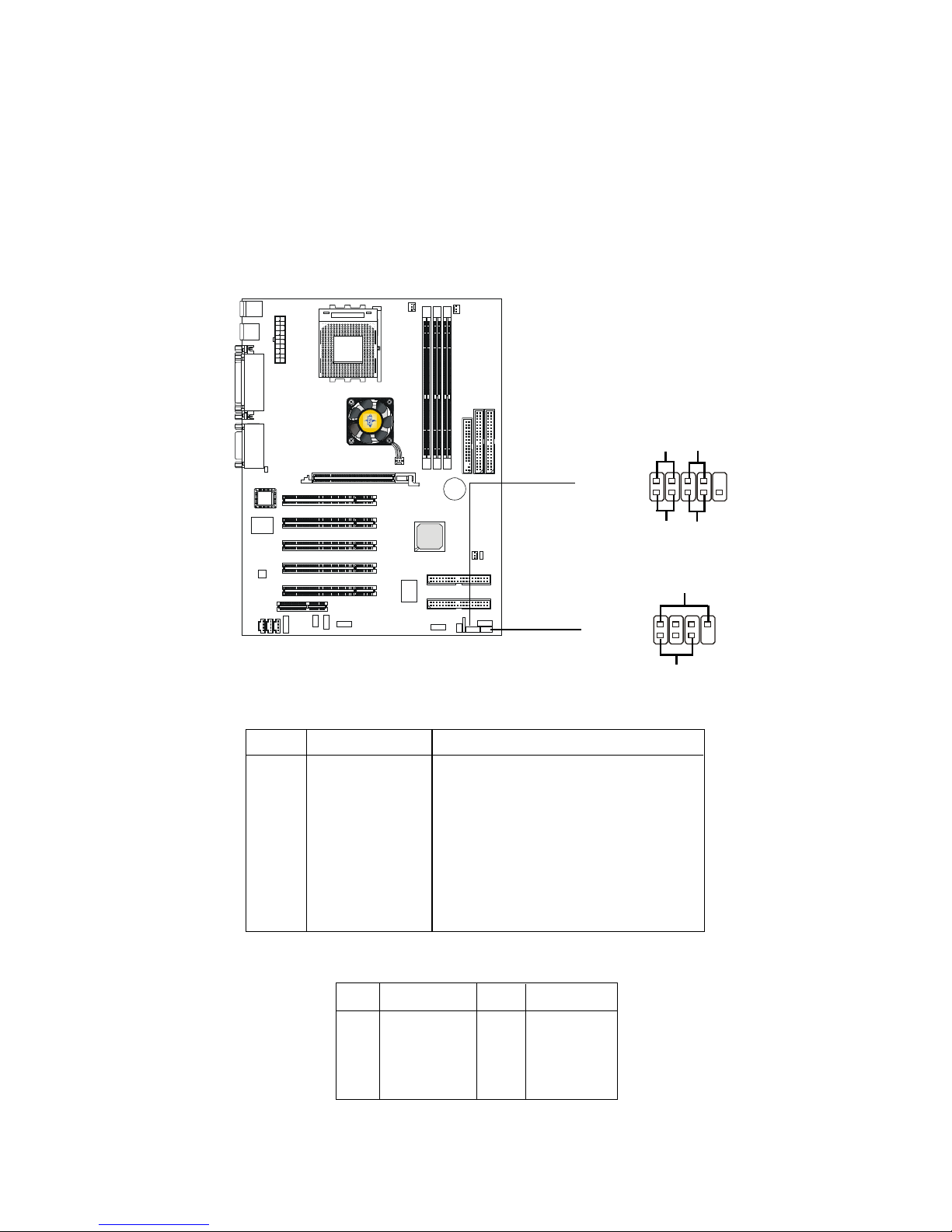

Front Panel Connectors: JFP1 & JFP2 ......................................... 2-17

Front Panel Audio Connector: JAUD1 ........................................ 2-18

Front USB Connectors: JUSB2/3 ................................................. 2-19

CD-In Connector: JCD................................................................. 2-21

Aux Line-In Connector: JAUX (optional).................................... 2-21

Modem-In Connector: JMDM (optional) .................................... 2-21

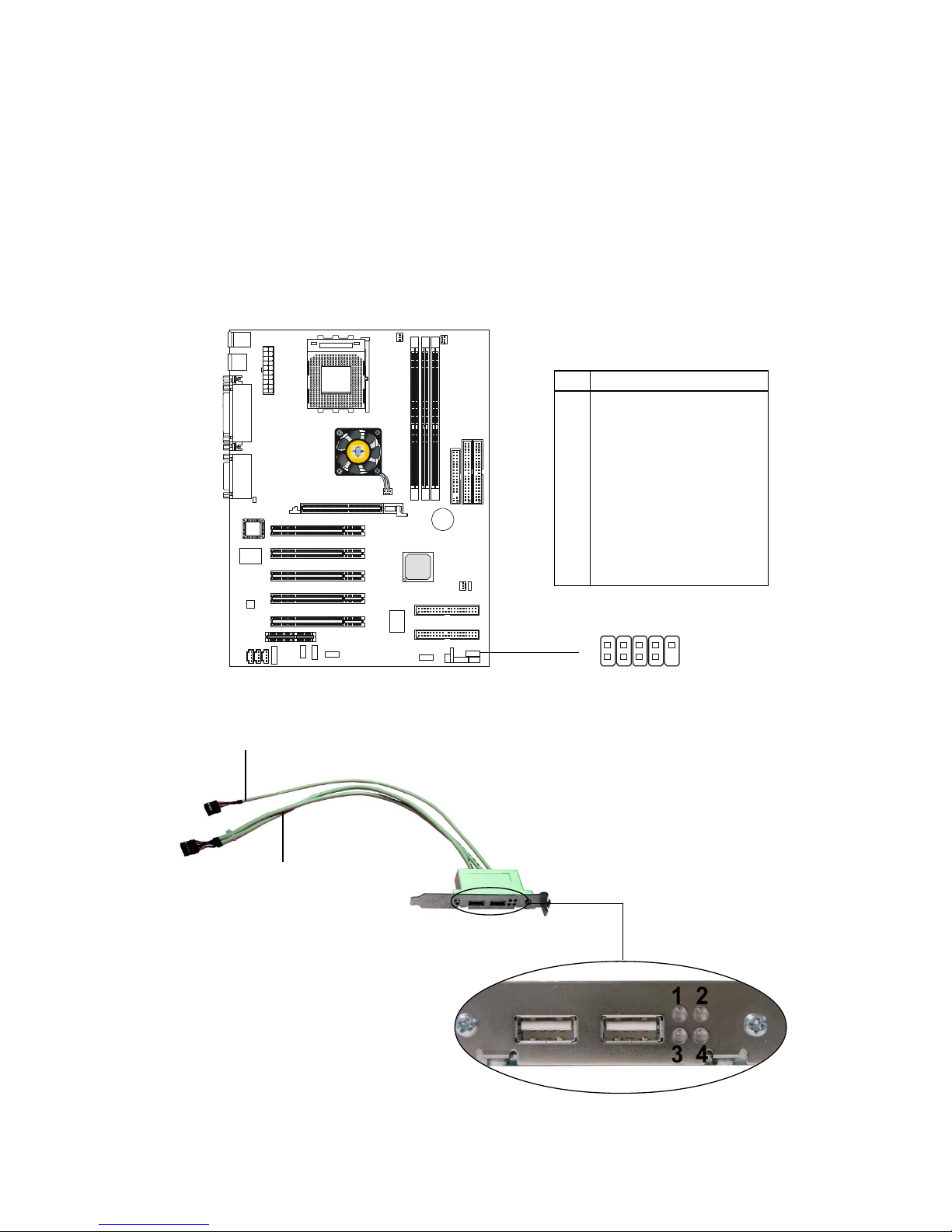

D-Bracket™ Connector: JLED ..................................................... 2-22

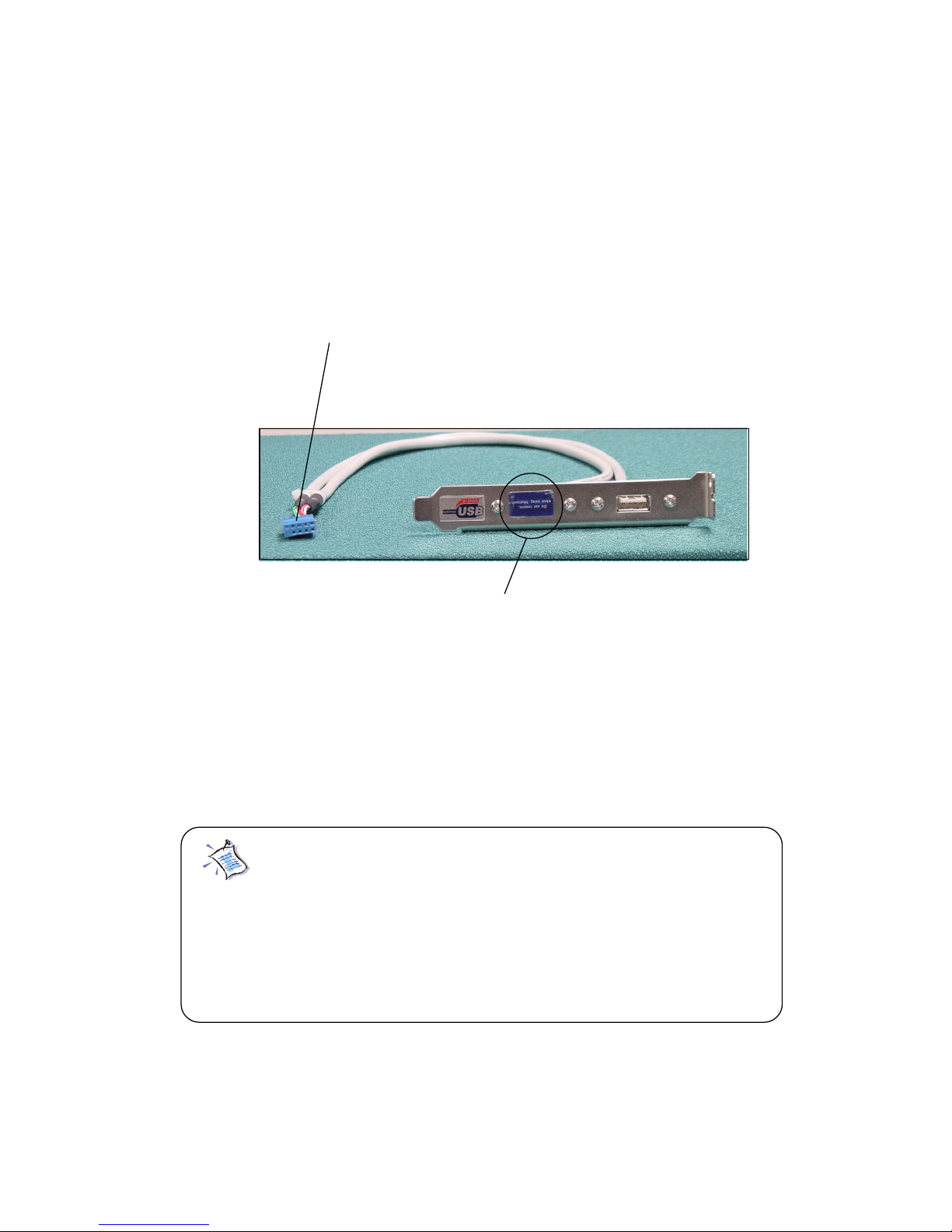

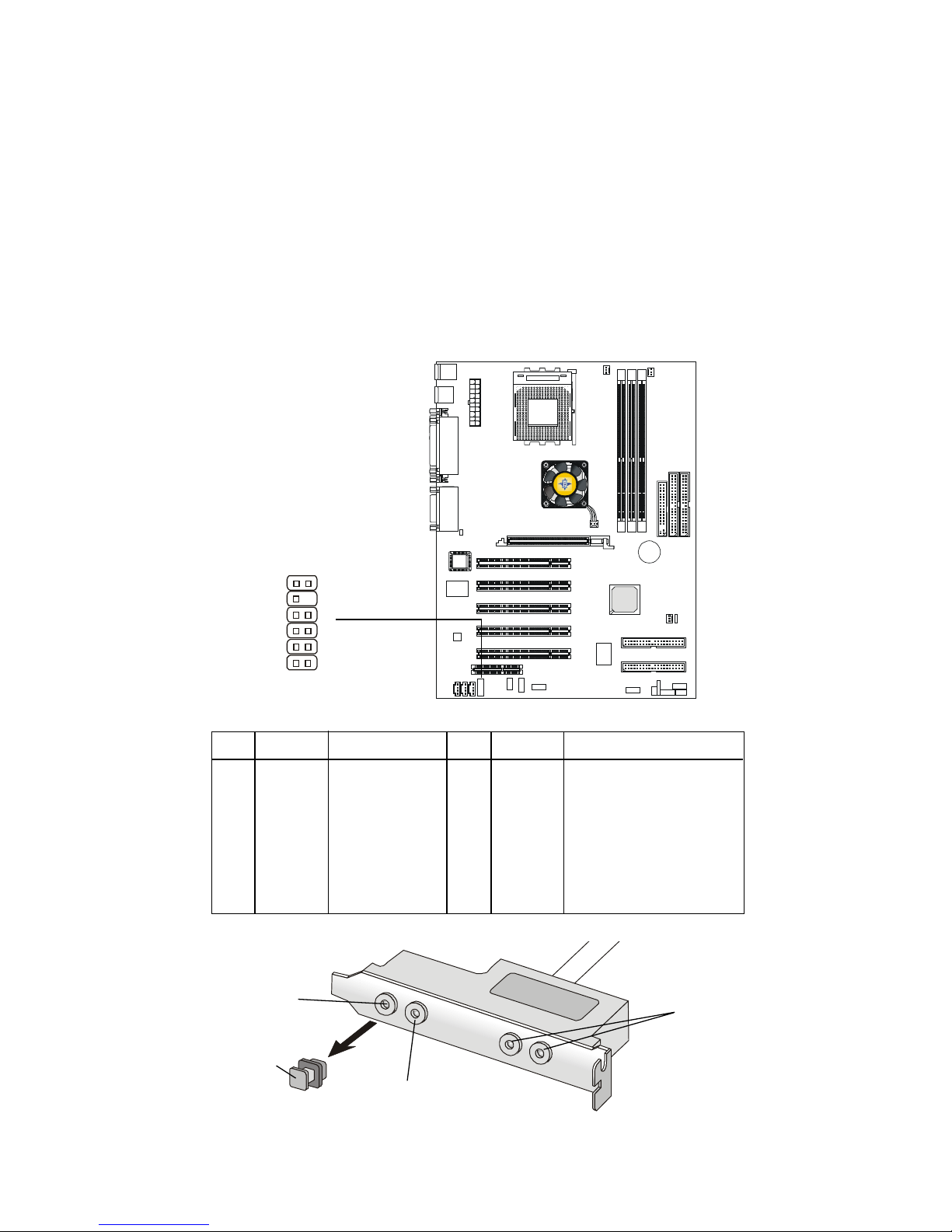

S-Bracket Connector: JSP3 .......................................................... 2-23

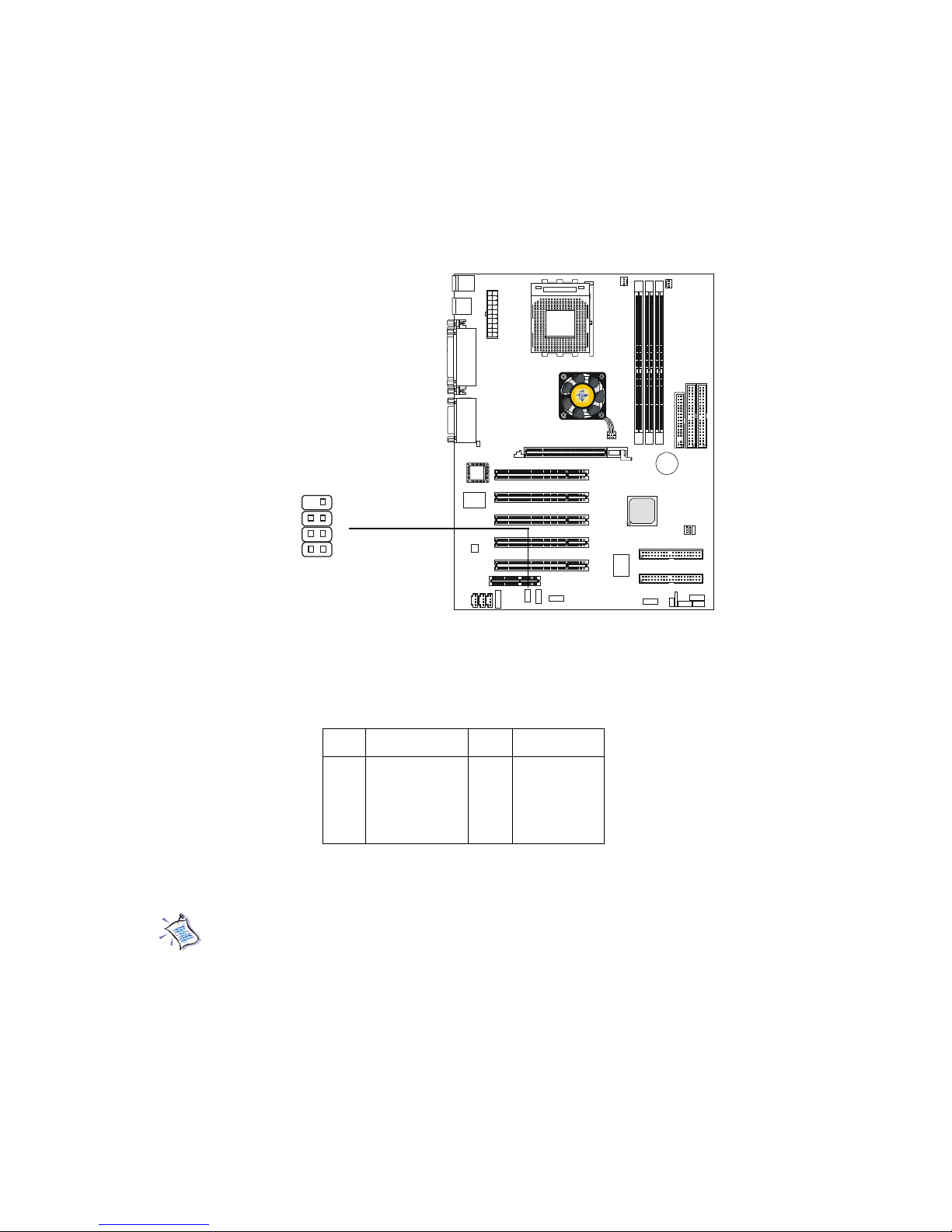

IrDA Infrared Module Header: JIR1 ............................................ 2-24

Chassis Intrusion Switch Connector: J3...................................... 2-24

Wake On Ring Connector: JMDM1 ............................................. 2-25

Bluetooth Connector: JBT2 (optional) ........................................ 2-26

Jumpers .............................................................................................. 2-27

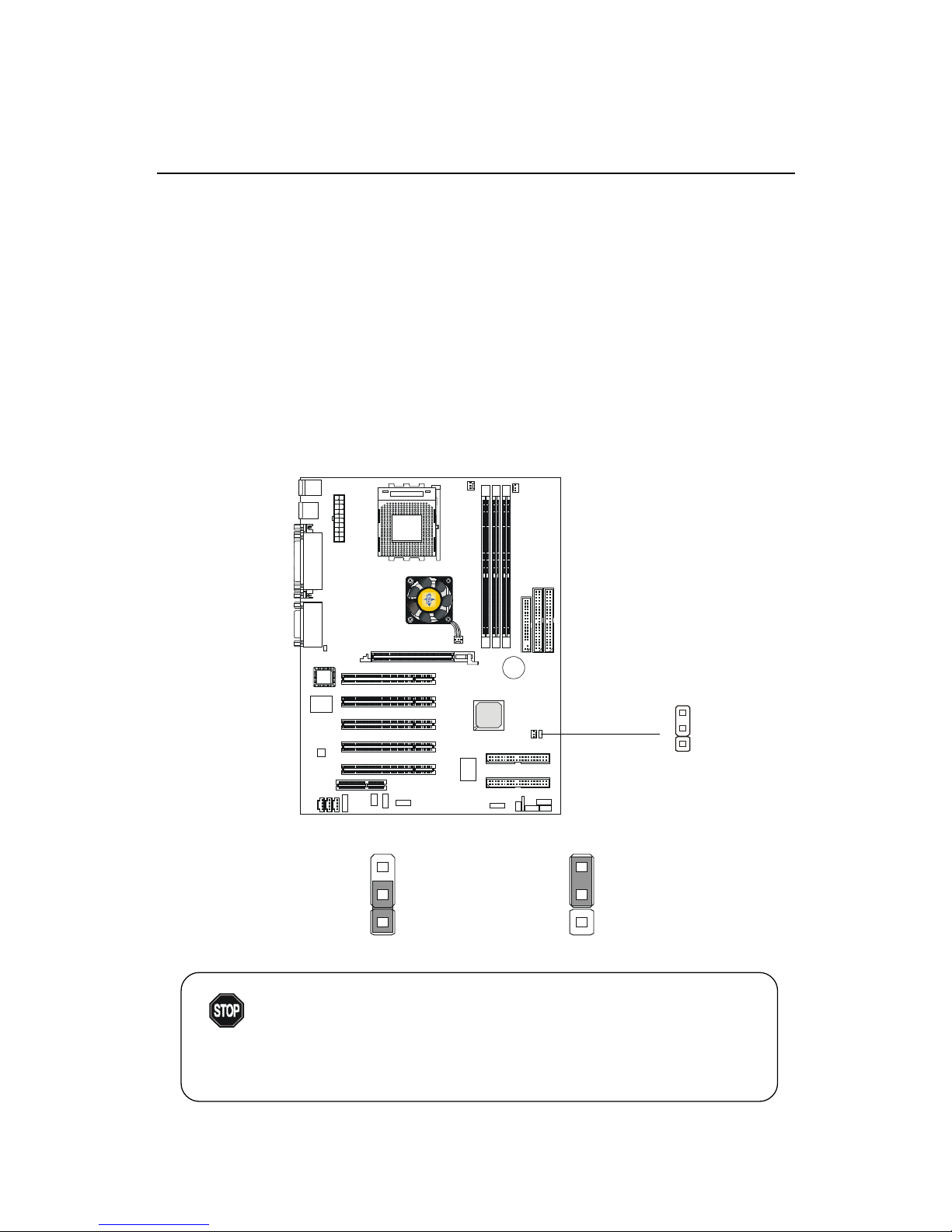

Clear CMOS Jumper: JBA T1........................................................ 2-27

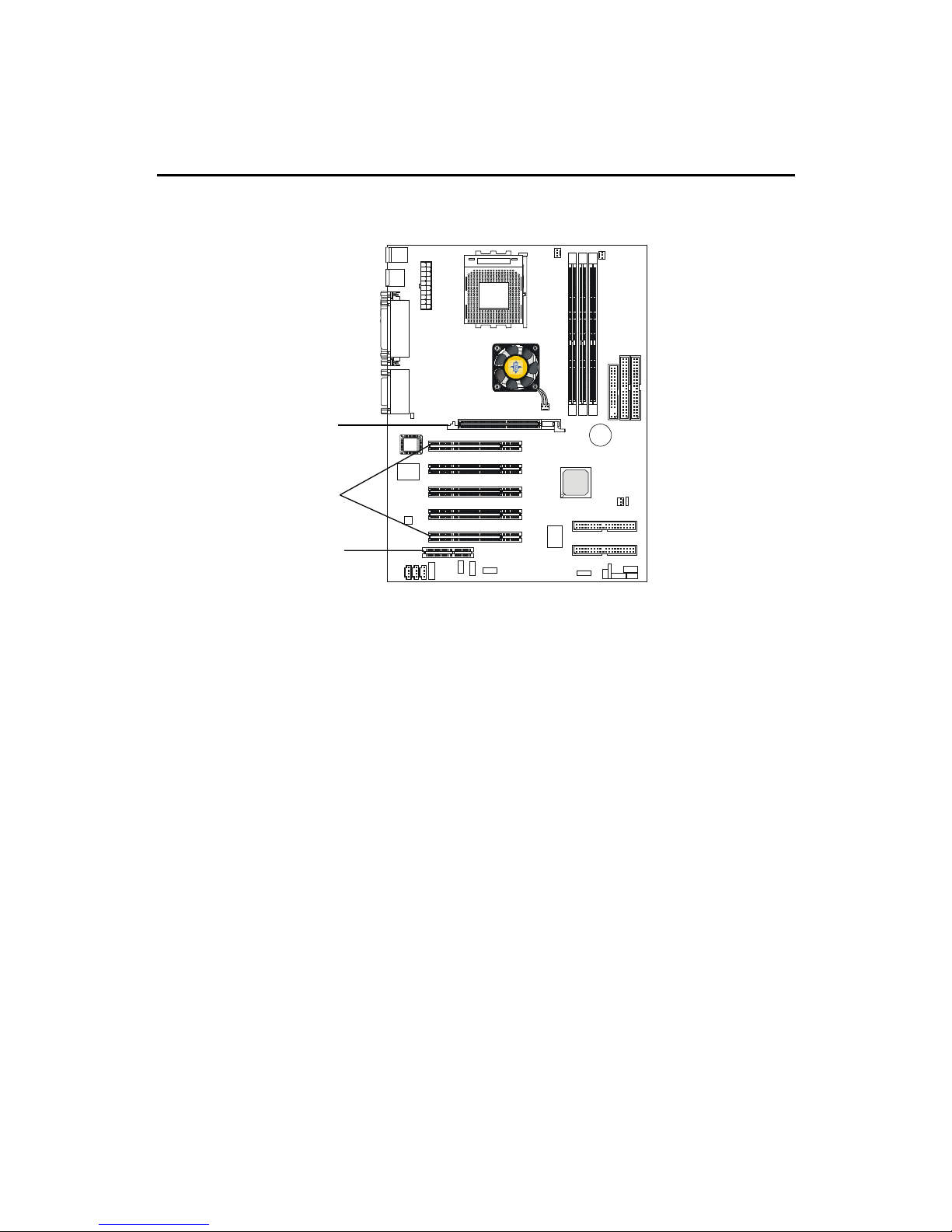

Slots ................................................................................................... 2-28

AGP (Accelerated Graphics Port) Slot......................................... 2-28

PCI Slots...................................................................................... 2-28

CNR (Communication Network Riser) Slot .................................. 2-28

PCI Interrupt Request Routing .................................................... 2-29

Chapter 3. BIOS Setup.............................................................................. 3-1

Entering Setup......................................................................................3-2

Selecting the First Boot Device .....................................................3-2

Control Keys ................................................................................. 3 -3

vii

Getting Help .................................................................................. 3-3

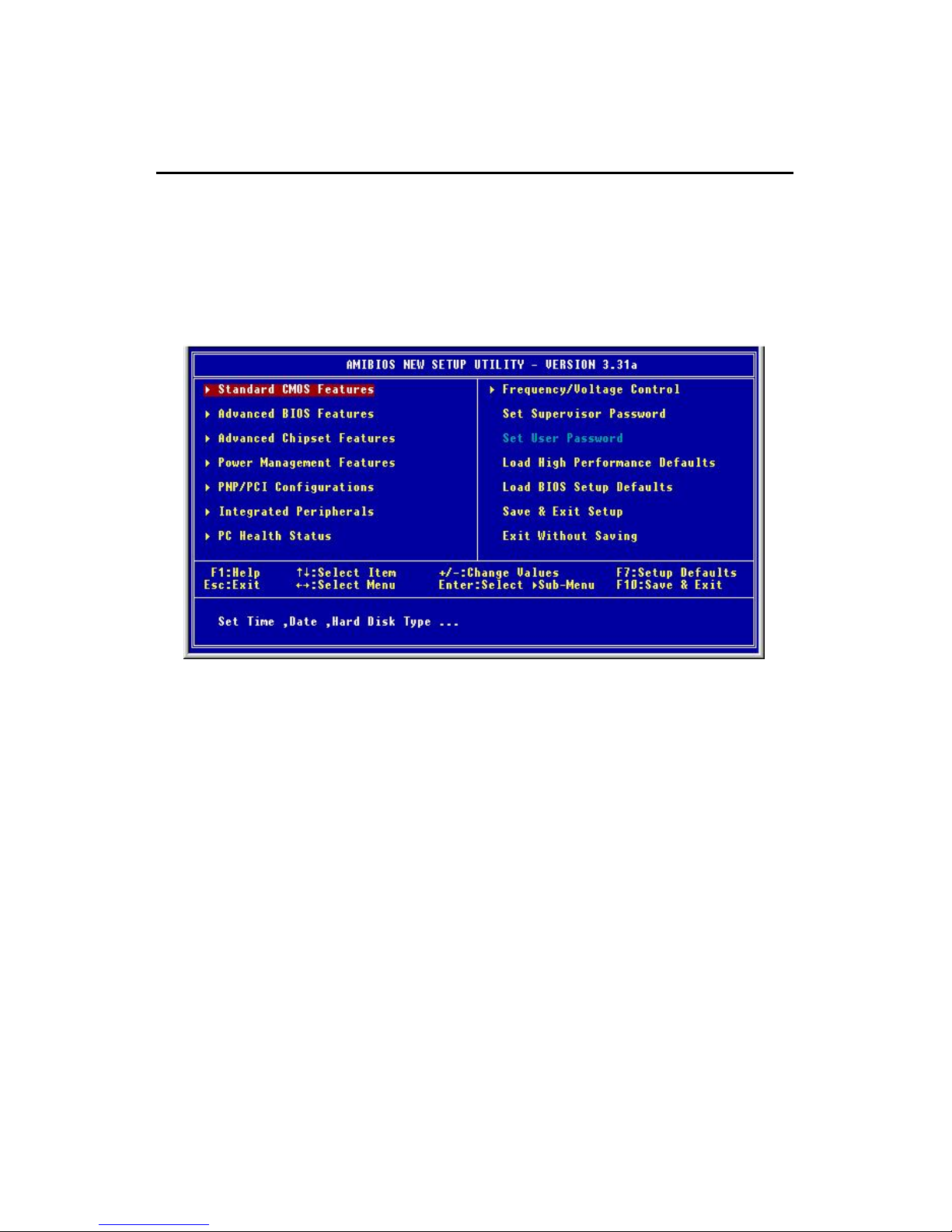

The Main Menu ...................................................................................3-4

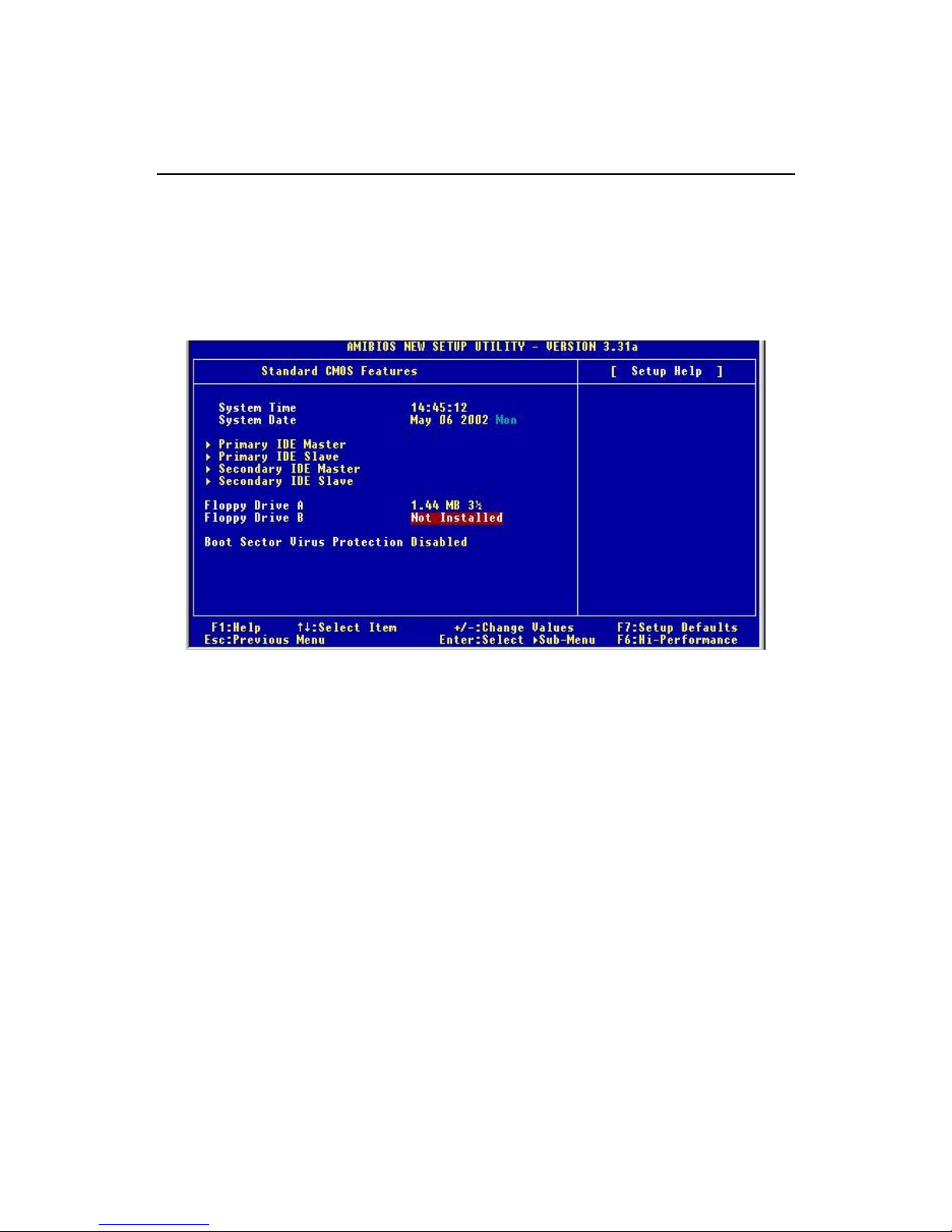

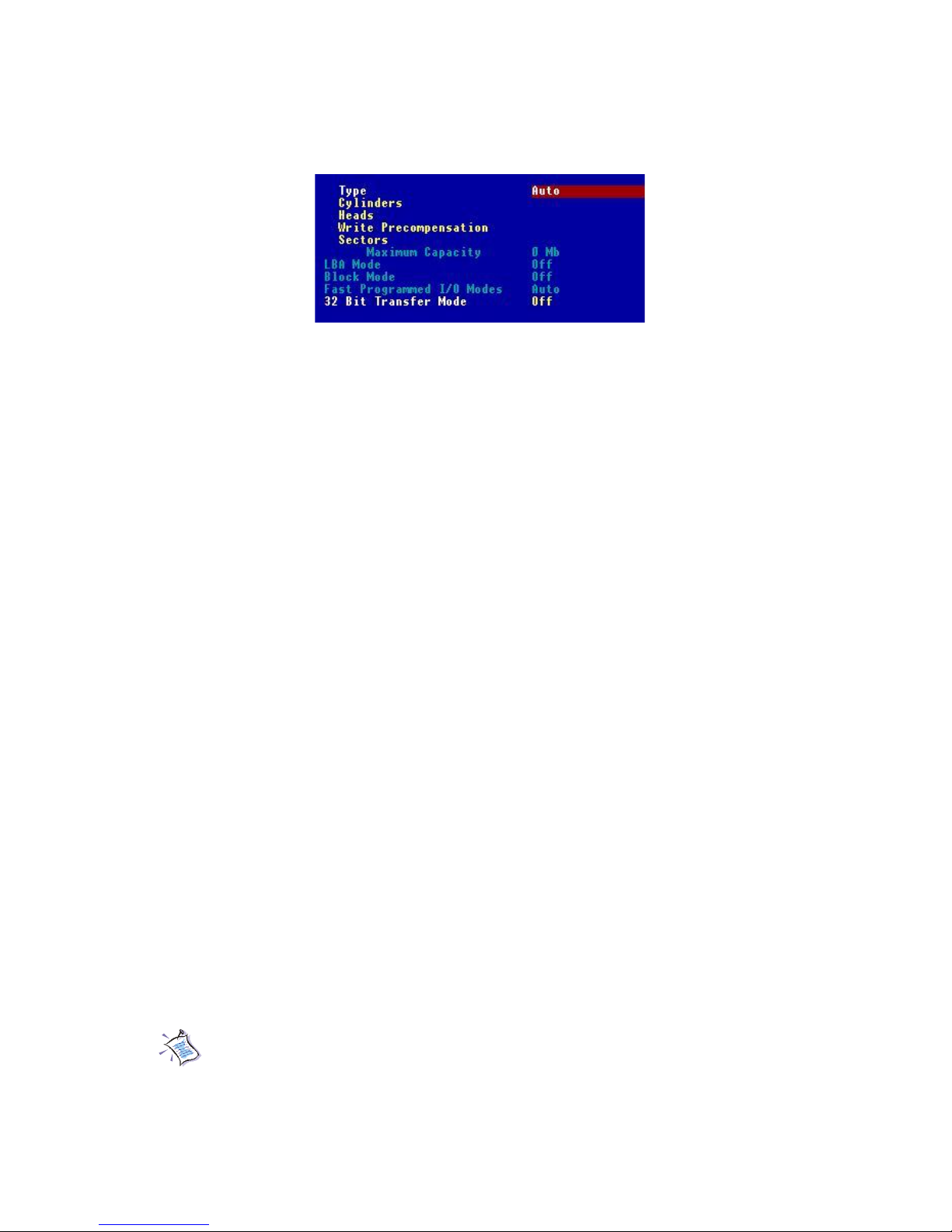

Standard CMOS Features ....................................................................3-6

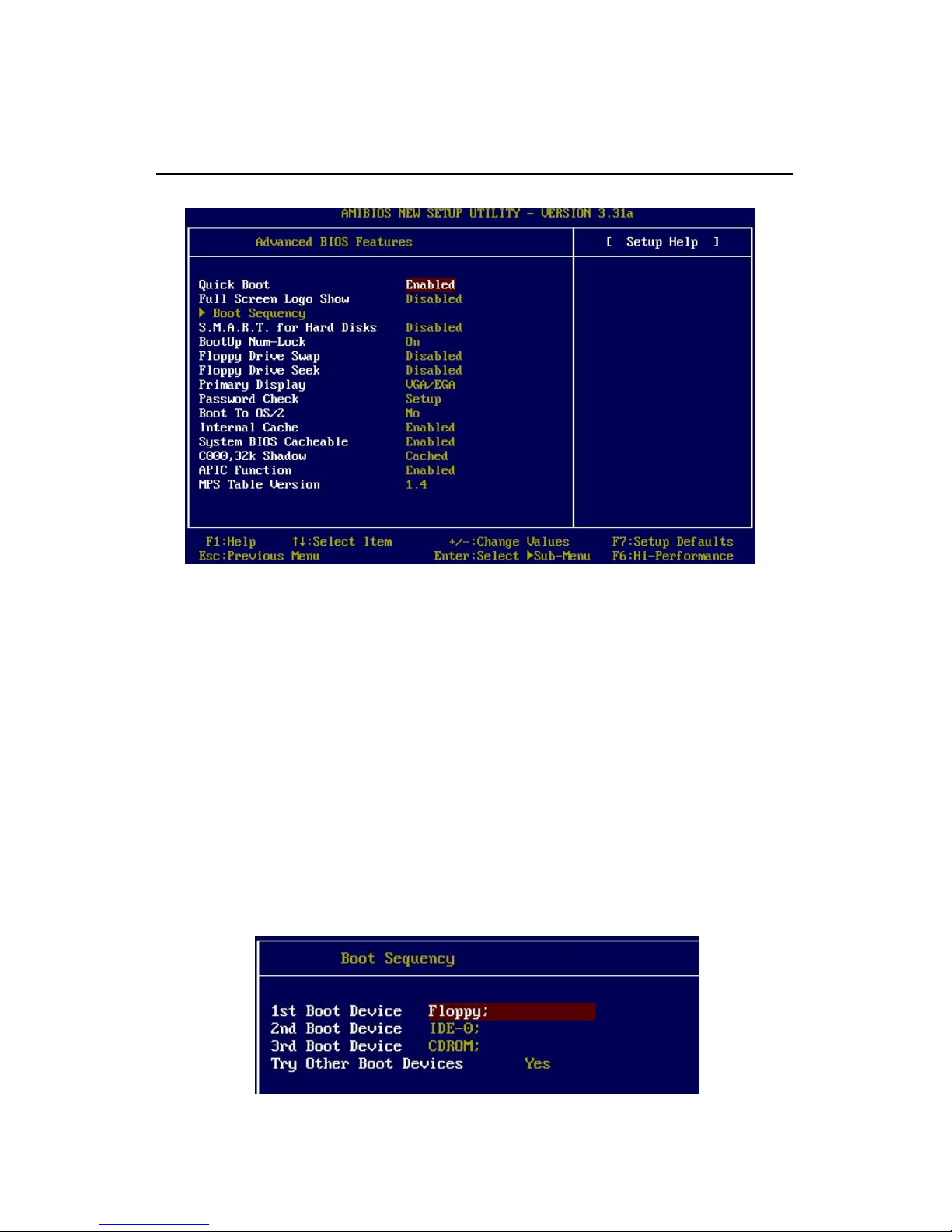

Advanced BIOS Features ....................................................................3-8

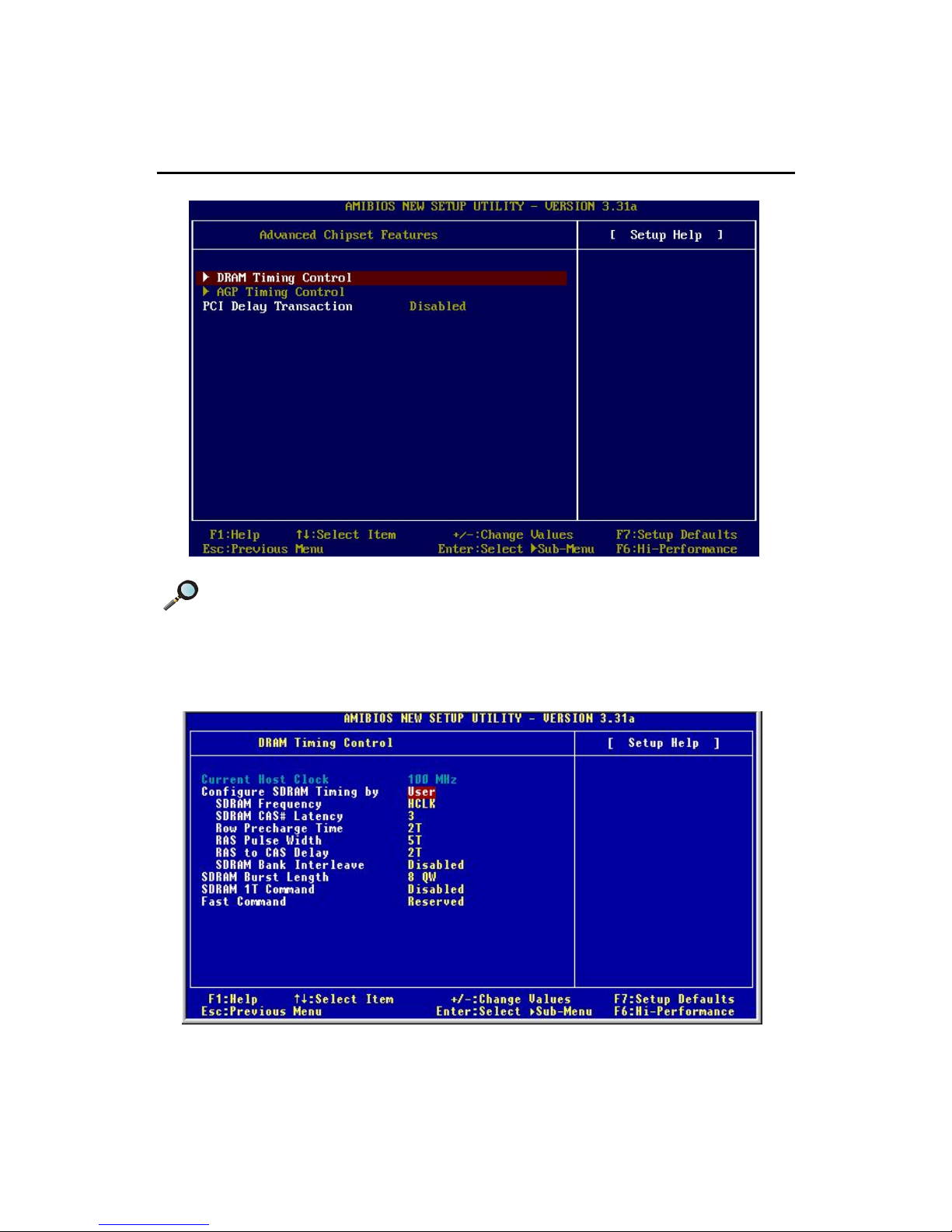

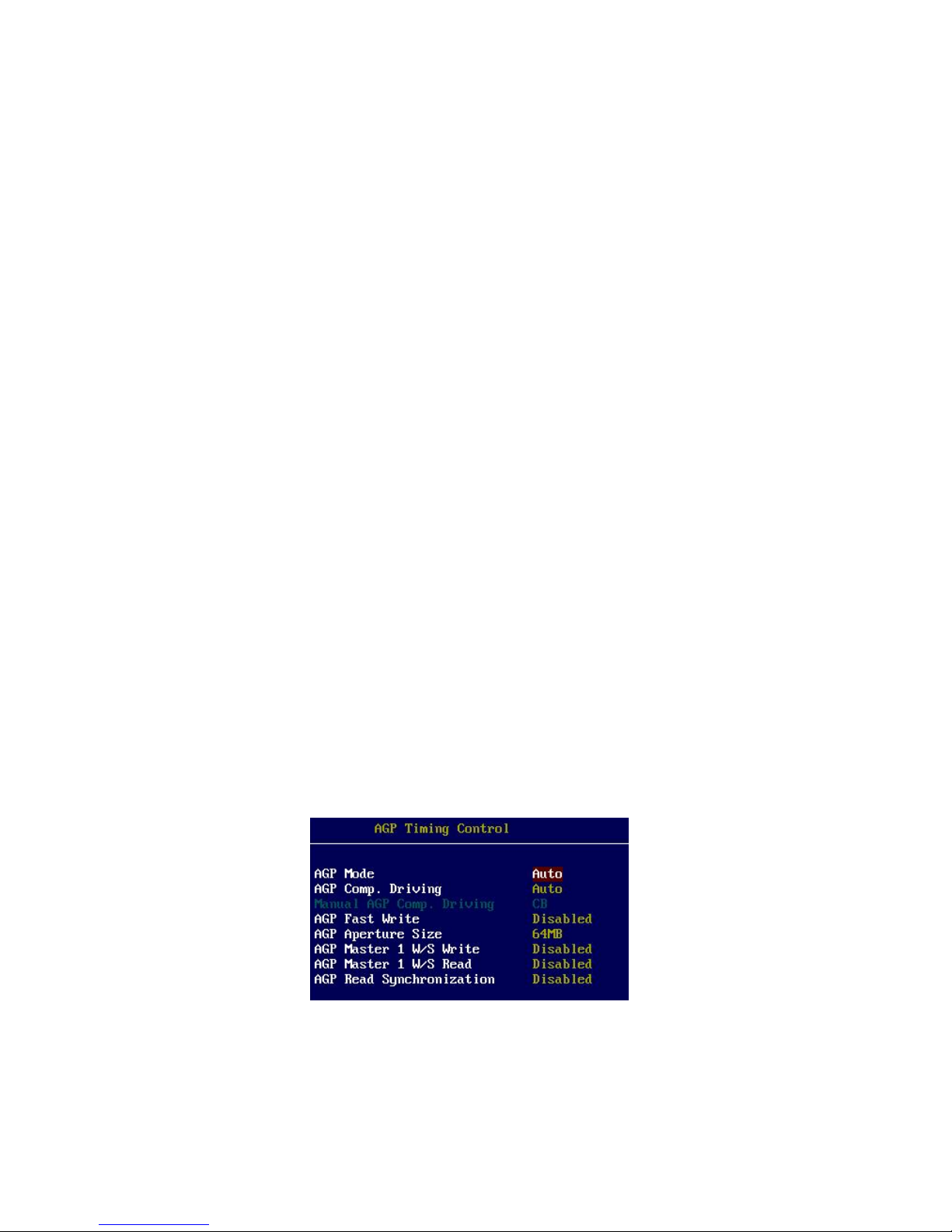

Advanced Chipset Features...............................................................3-13

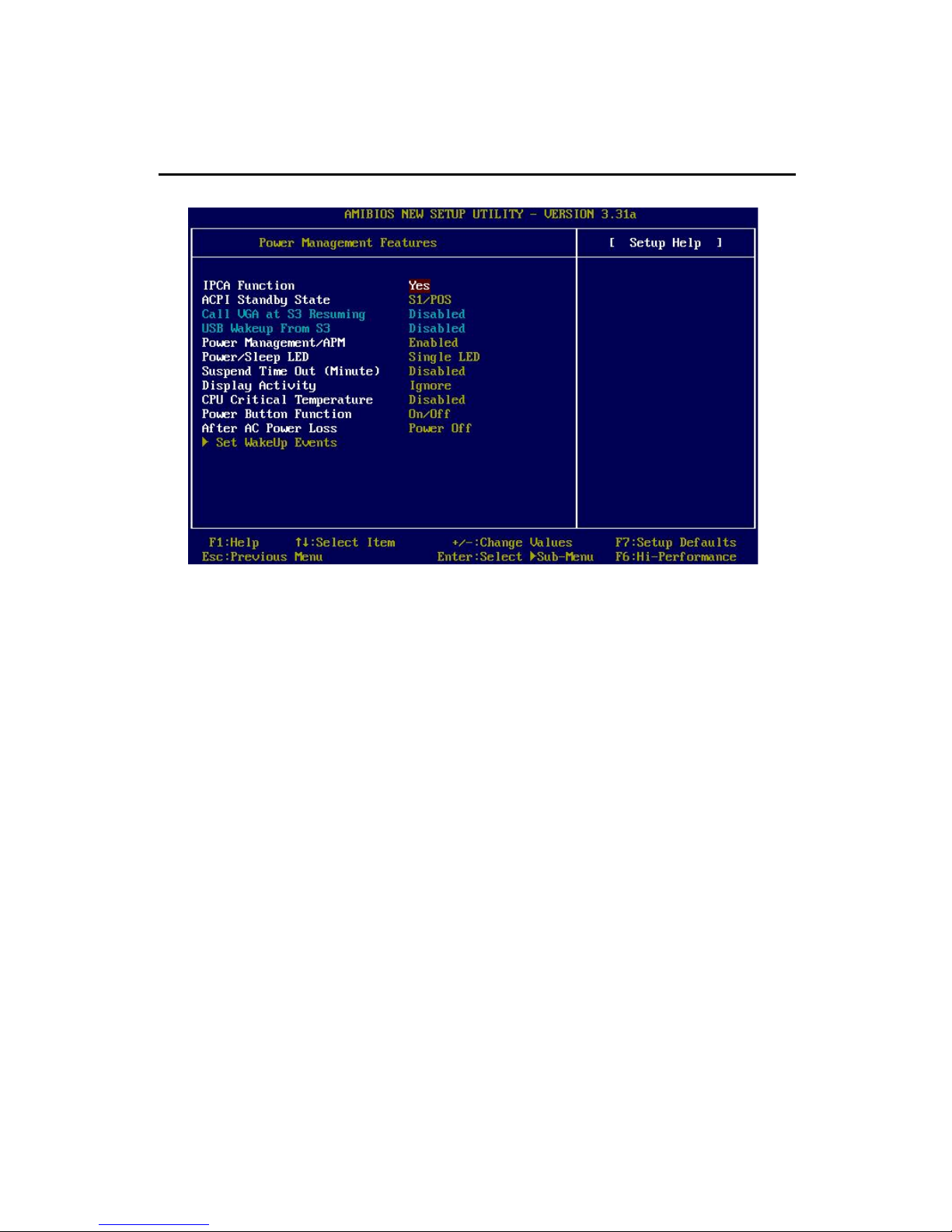

Power Management Features............................................................. 3-18

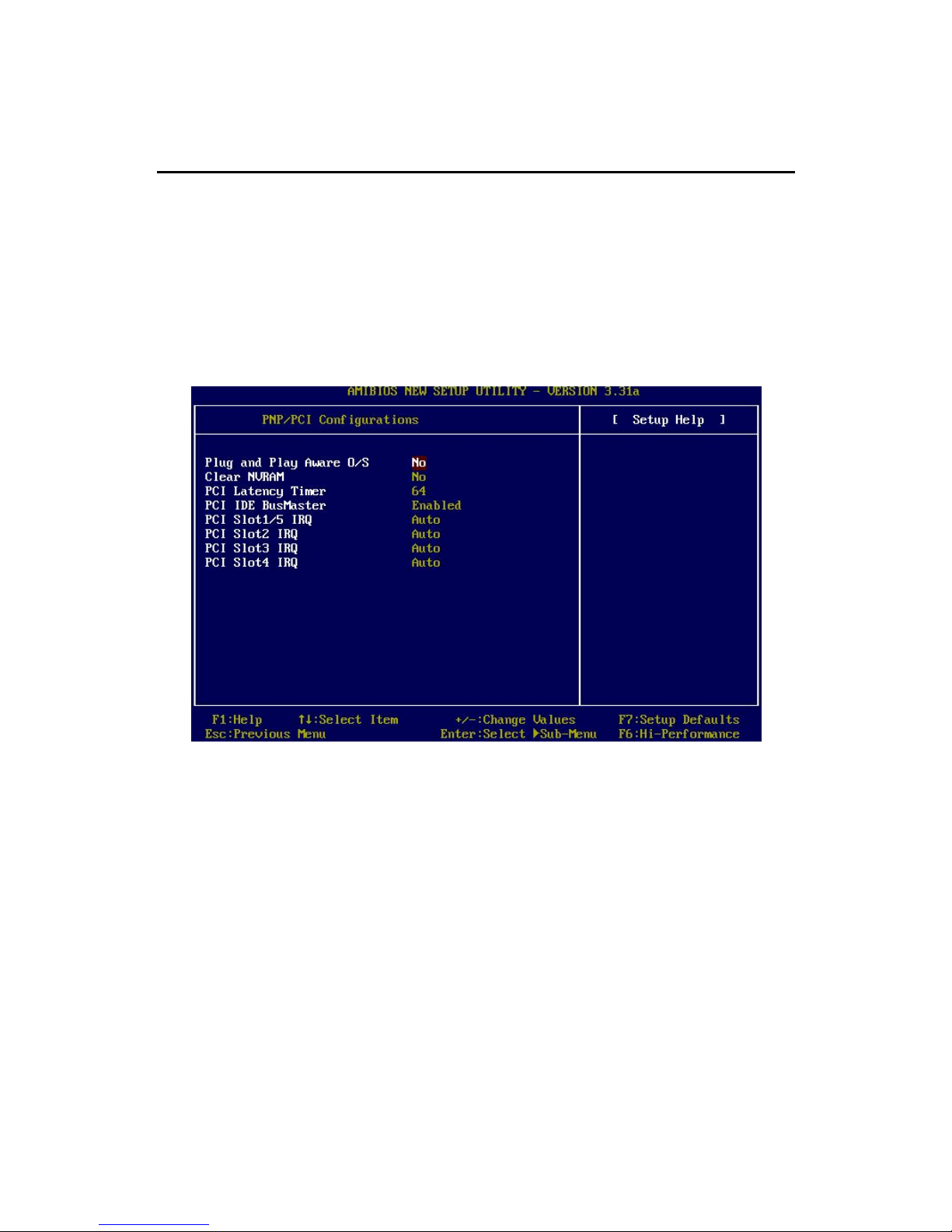

PNP/PCI Configurations..................................................................... 3-22

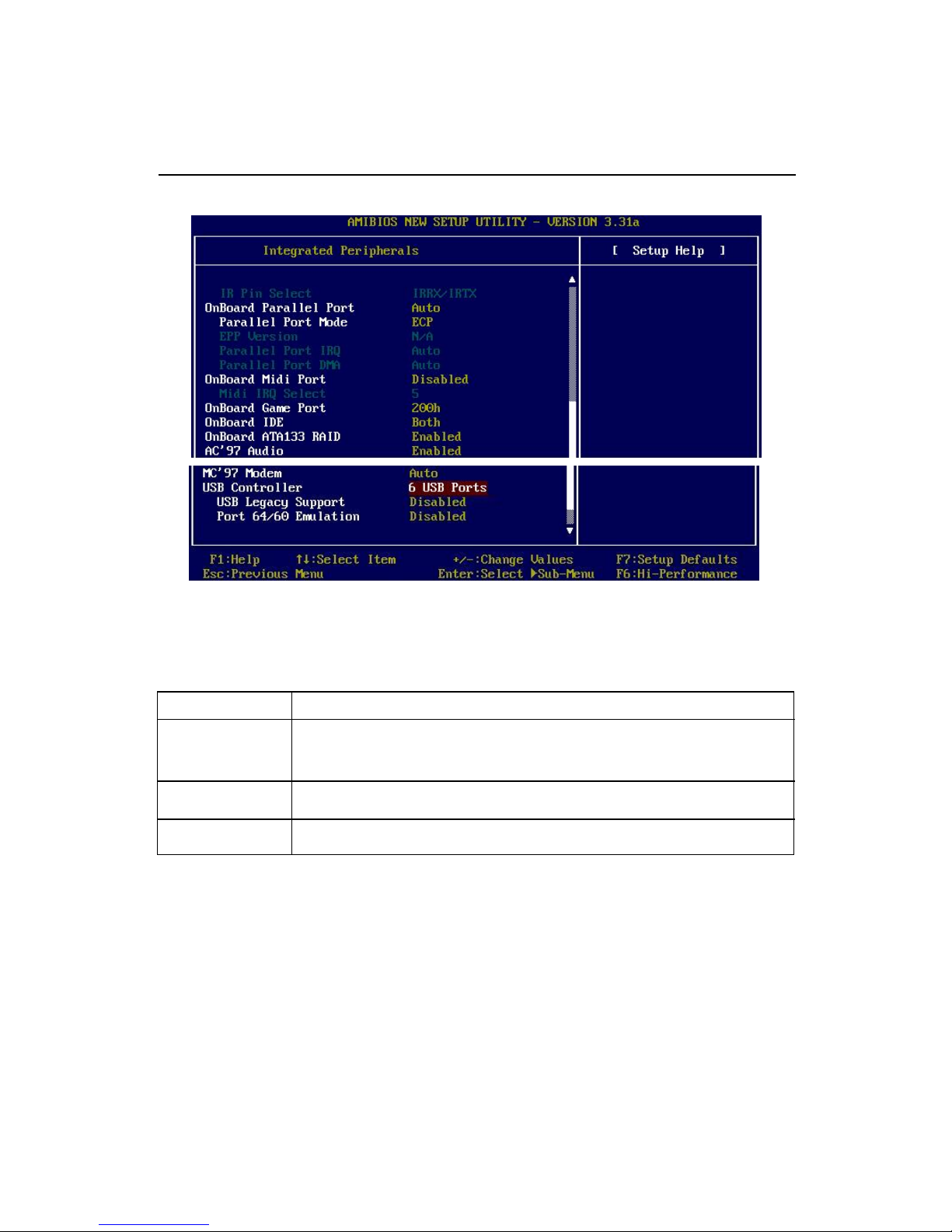

Integrated Peripherals ........................................................................ 3-24

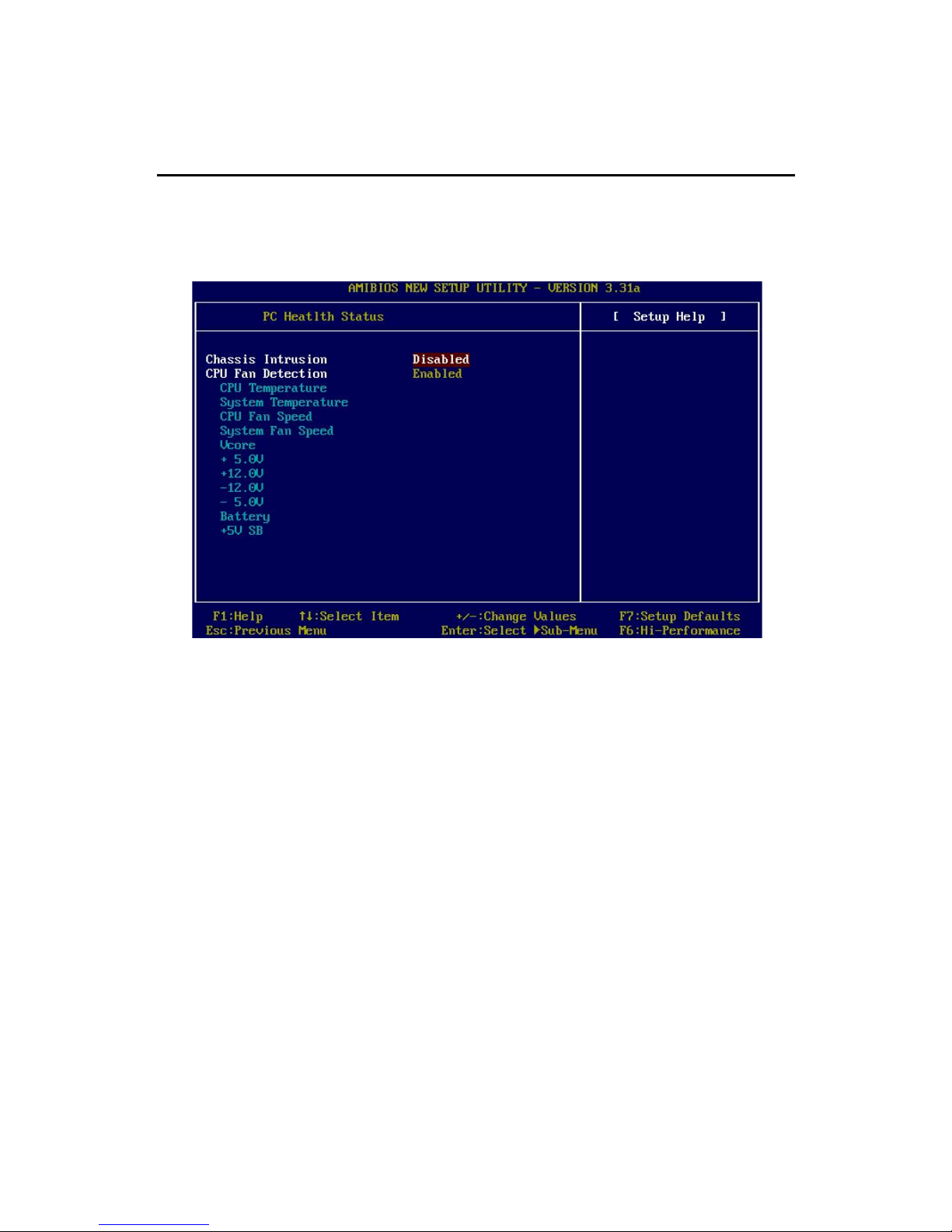

PC Health Status ................................................................................ 3-27

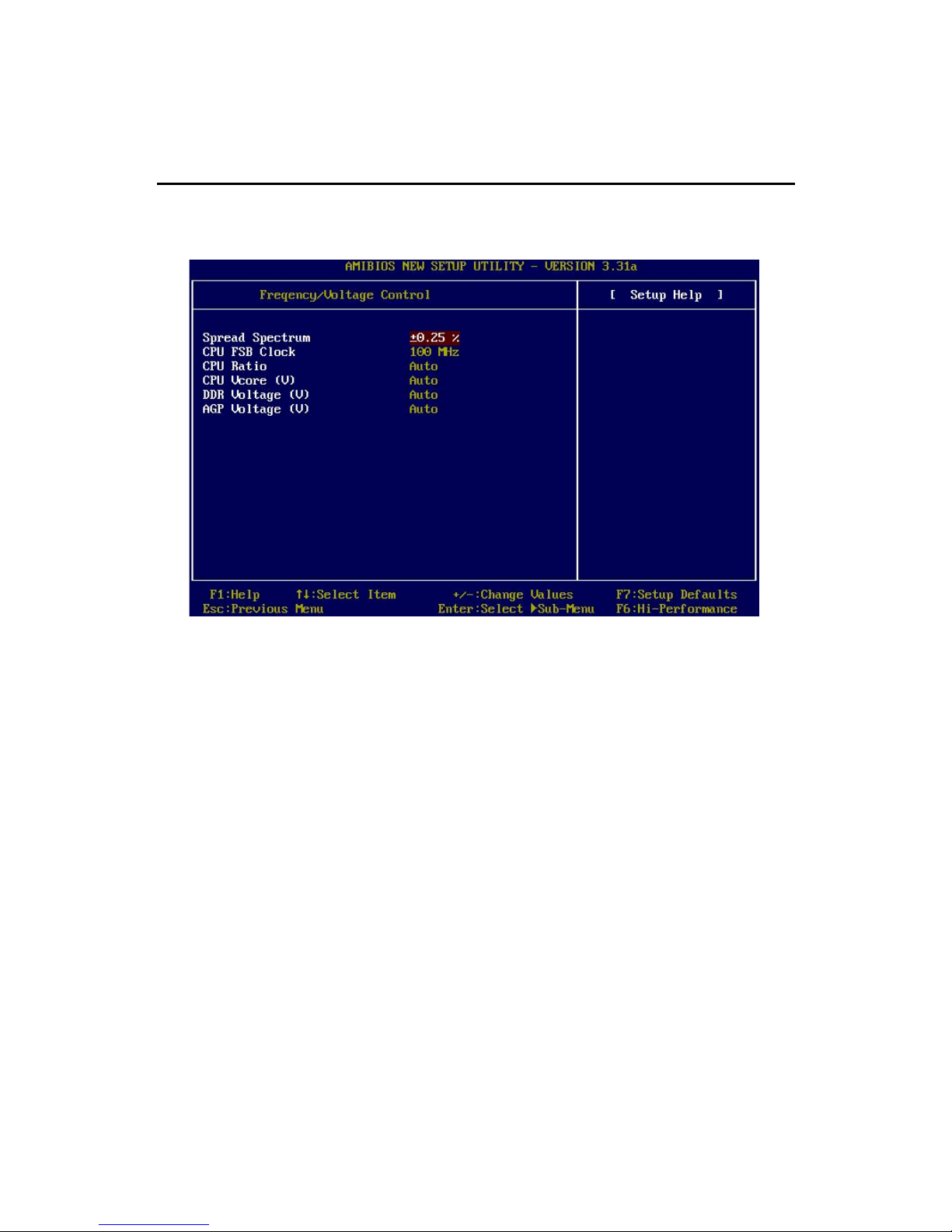

Frequency/Voltage Control ................................................................ 3-28

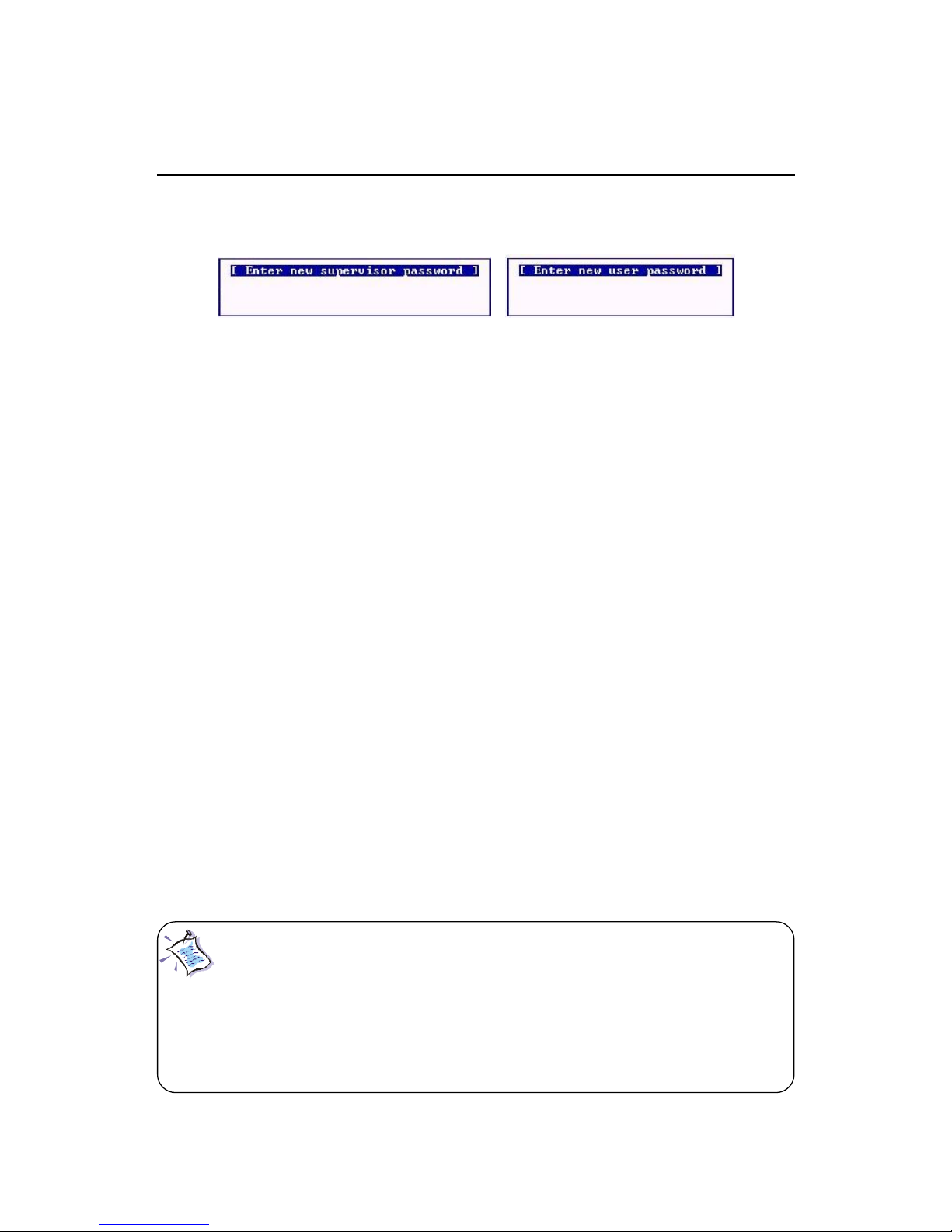

Set Supervisor/User Password........................................................... 3-30

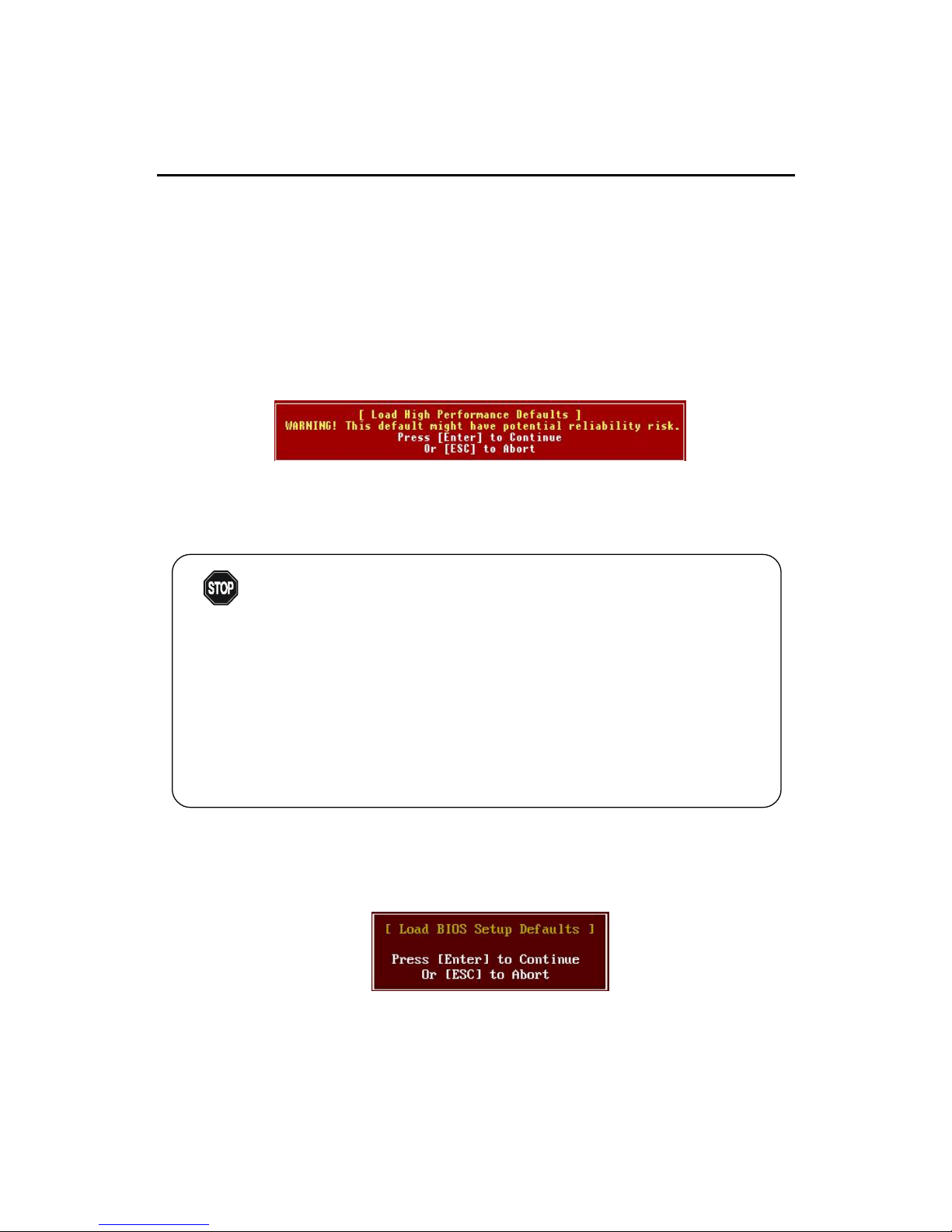

Load High Performance/BIOS Setup Defaults....................................3-31

Appendix. Using 4- or 6-Channel Audio Function ....................................A-1

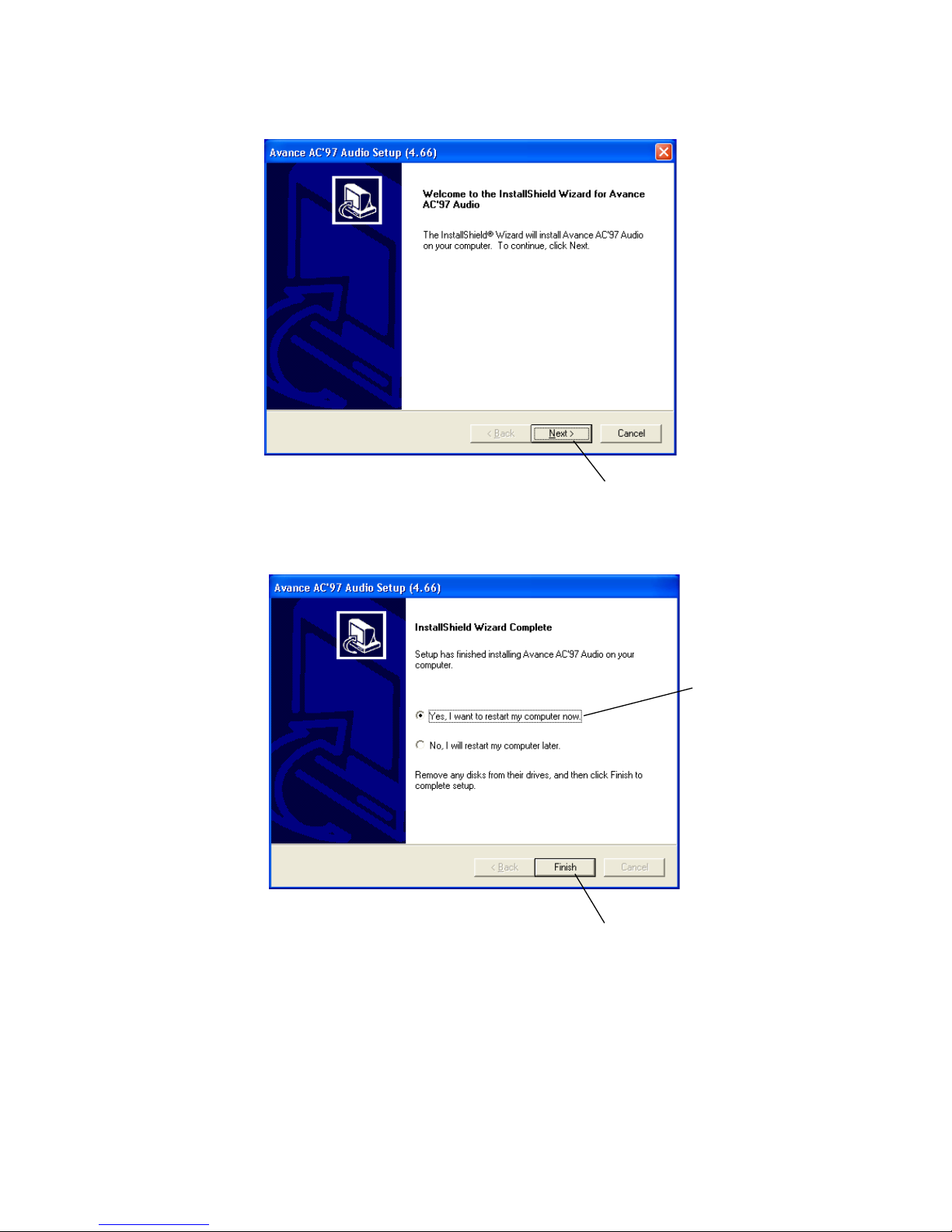

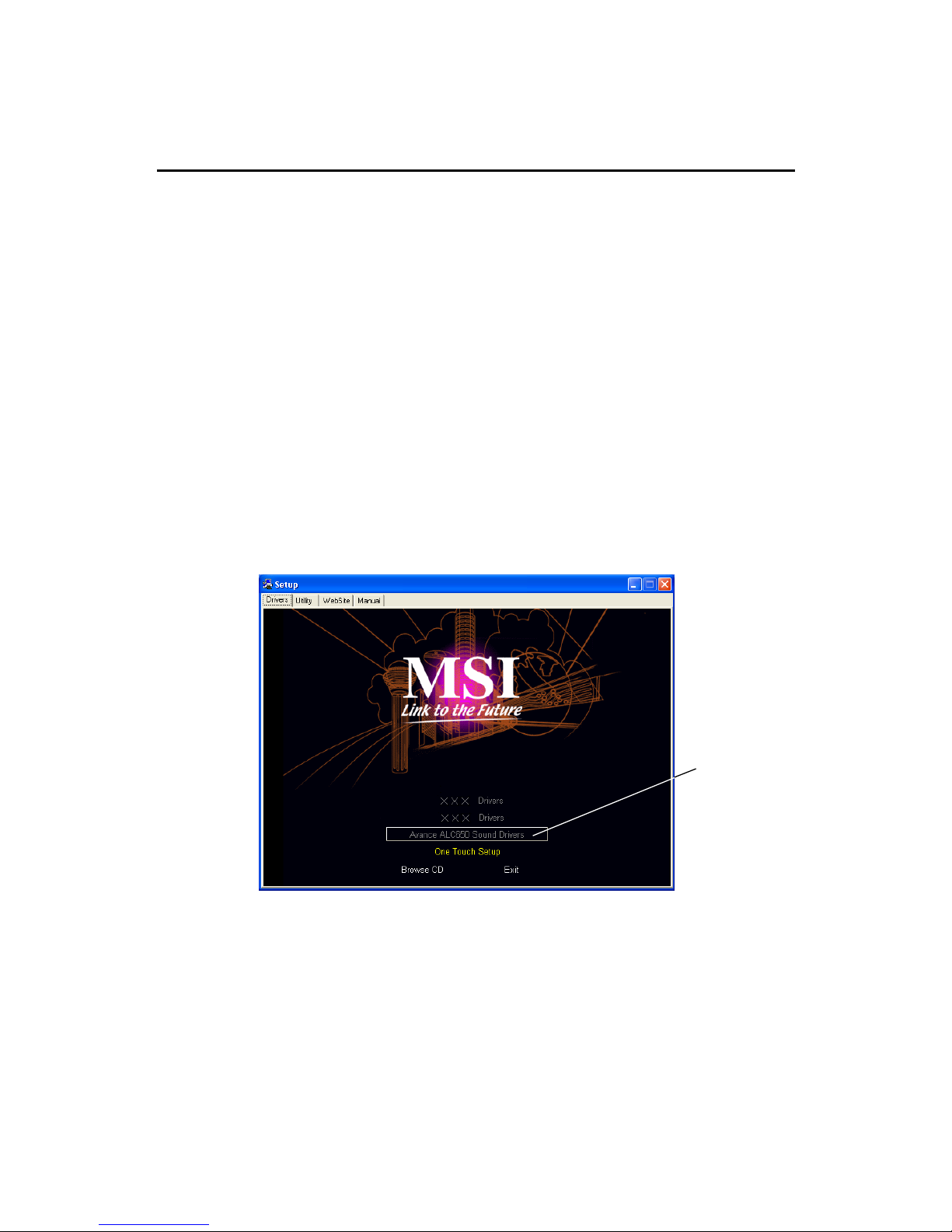

Installing the Audio Driver .................................................................A-2

Installation for Windows 98SE/ME/2000/XP................................A-2

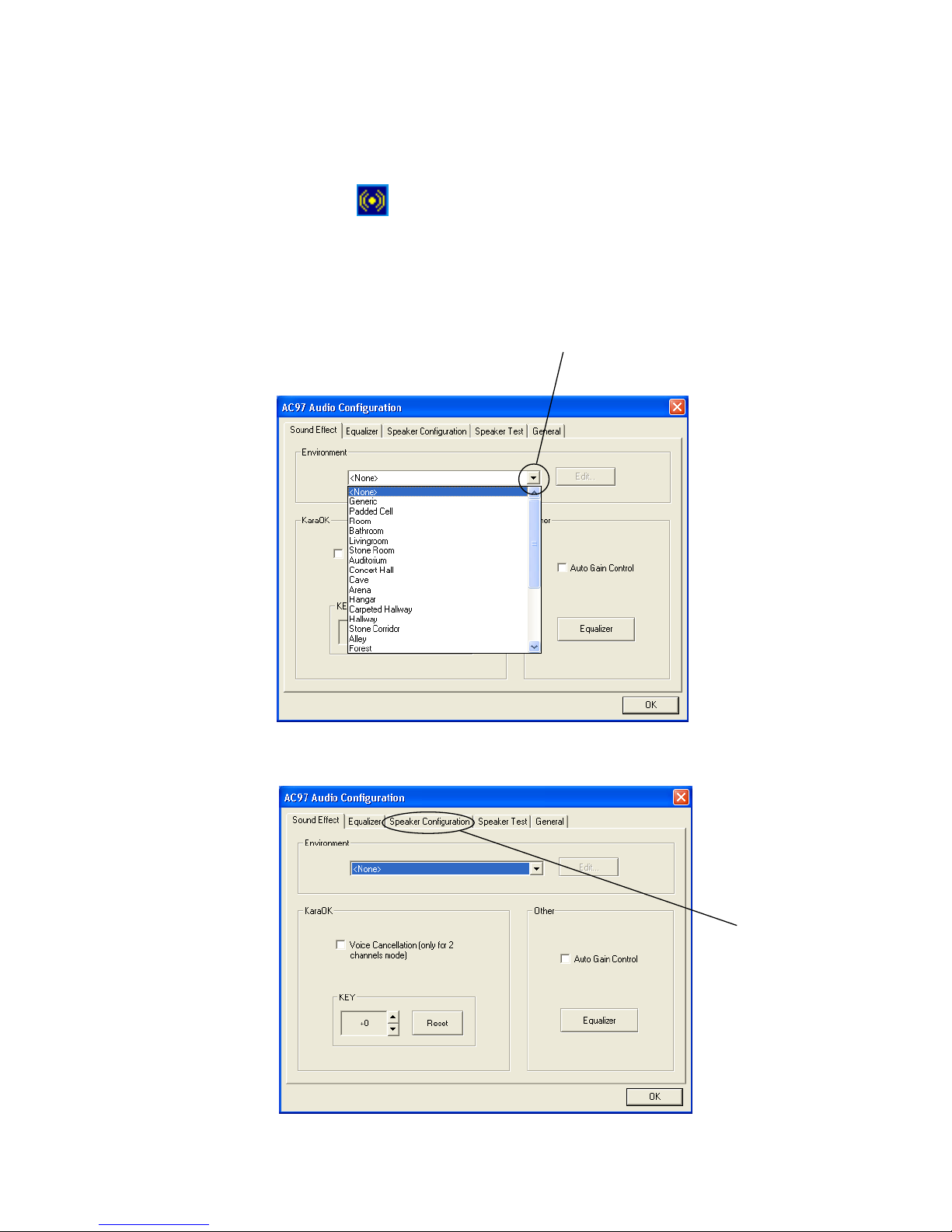

Using 4- or 6-Channel Audio Function ...............................................A-4

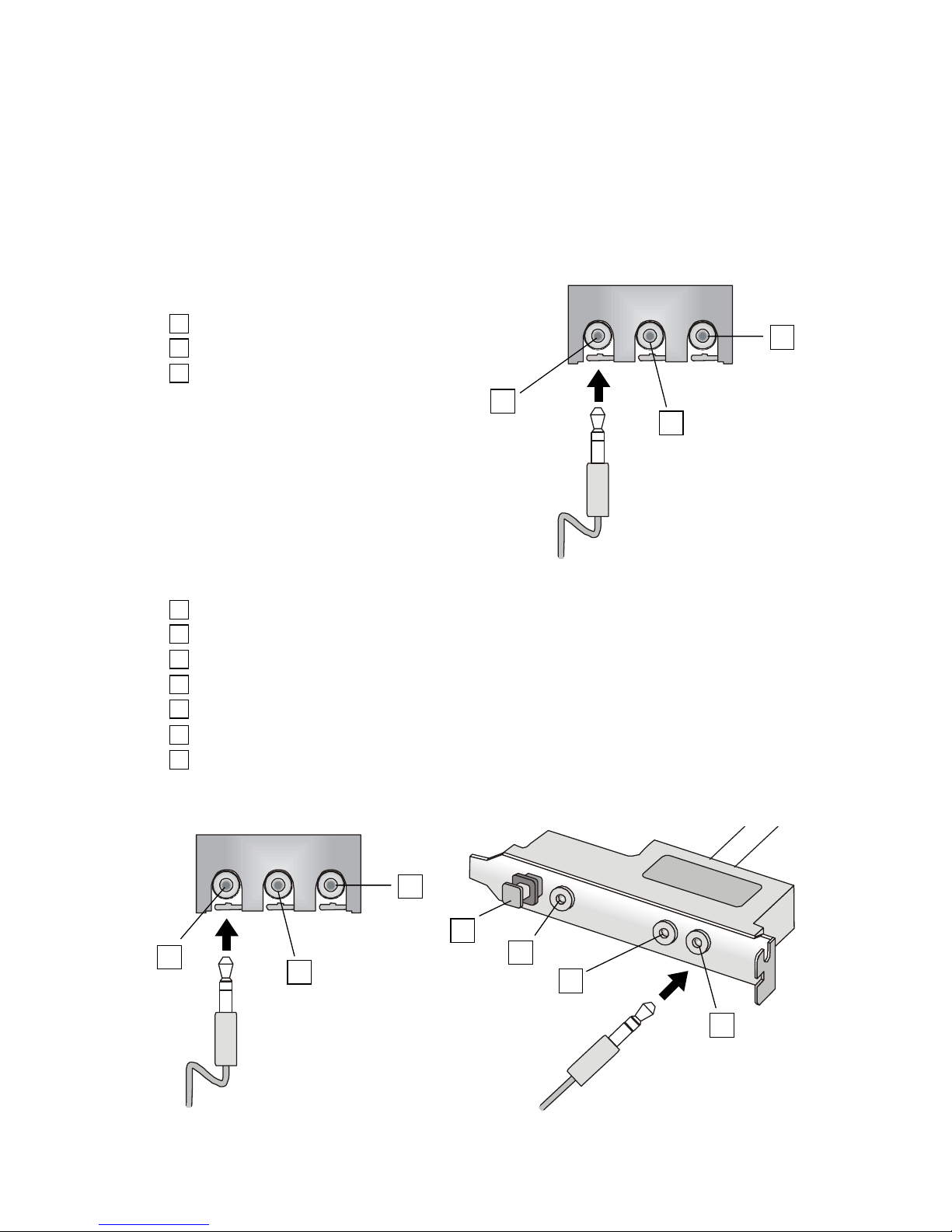

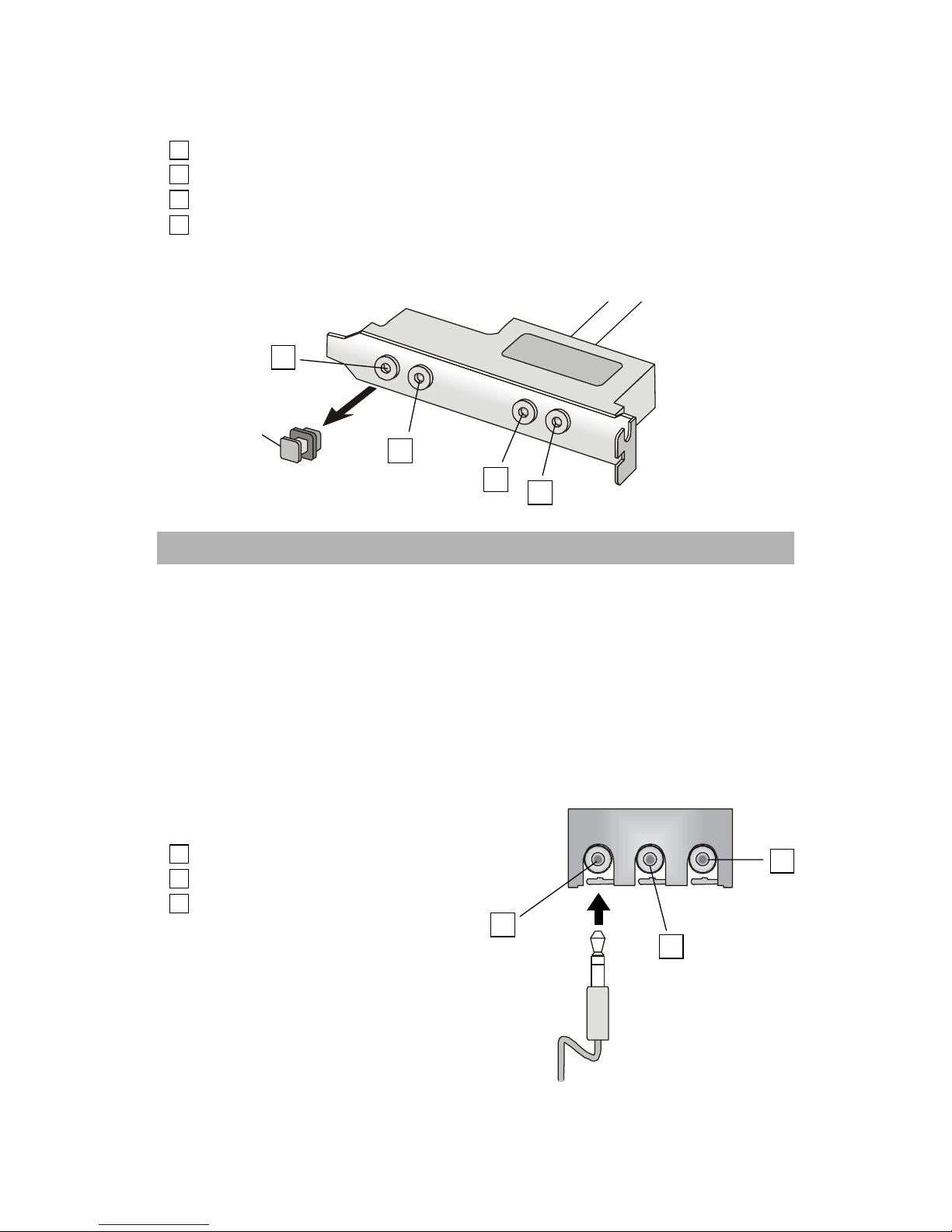

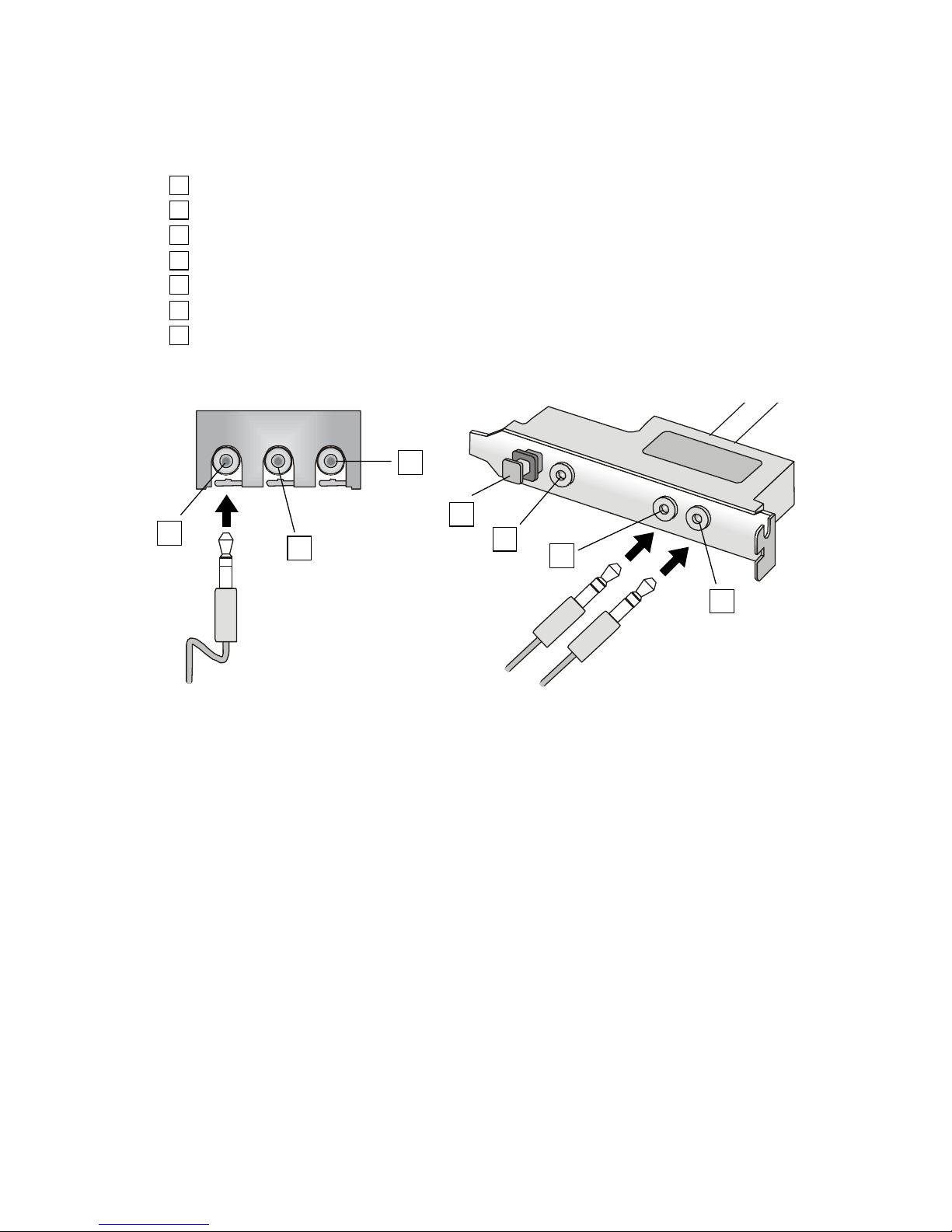

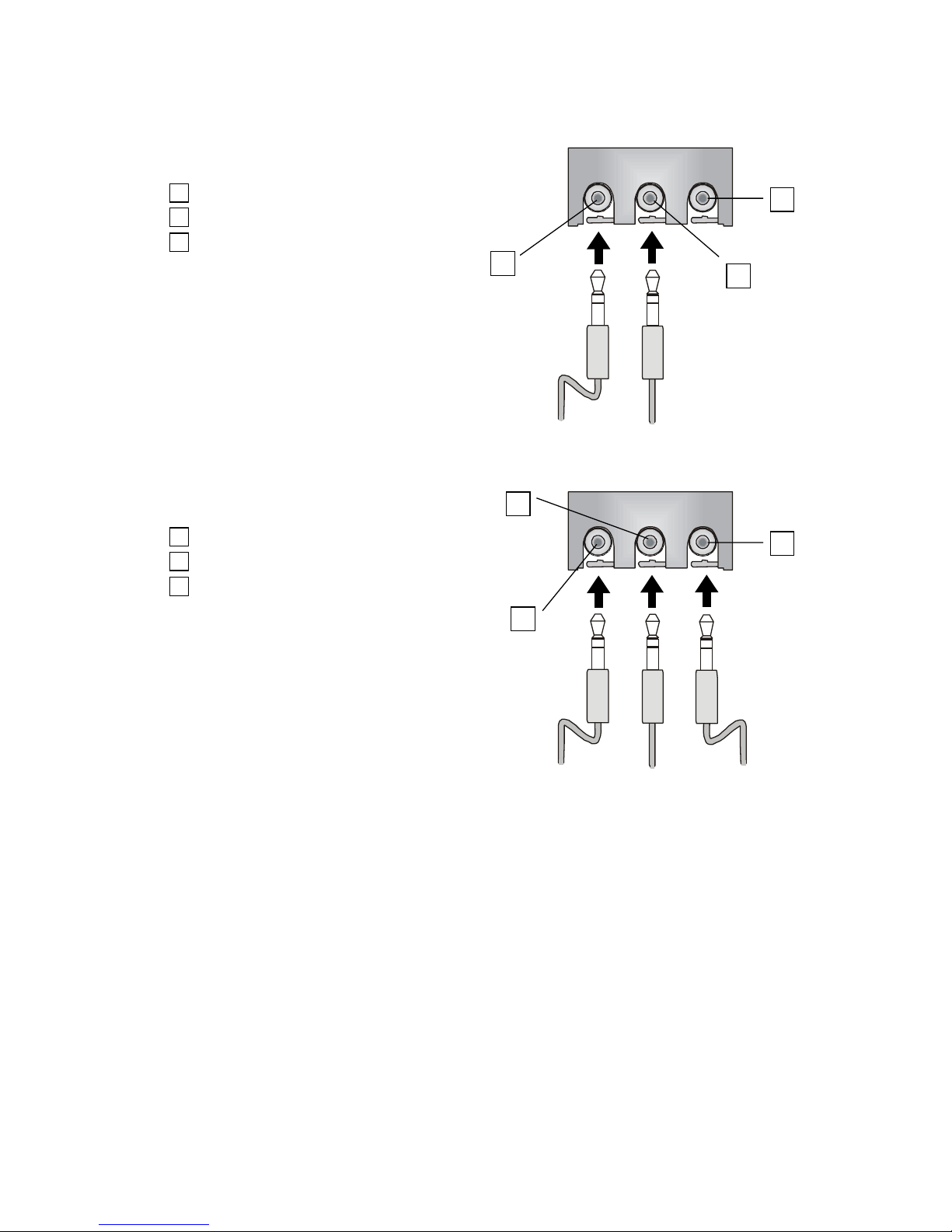

Attaching Speakers ......................................................................A-4

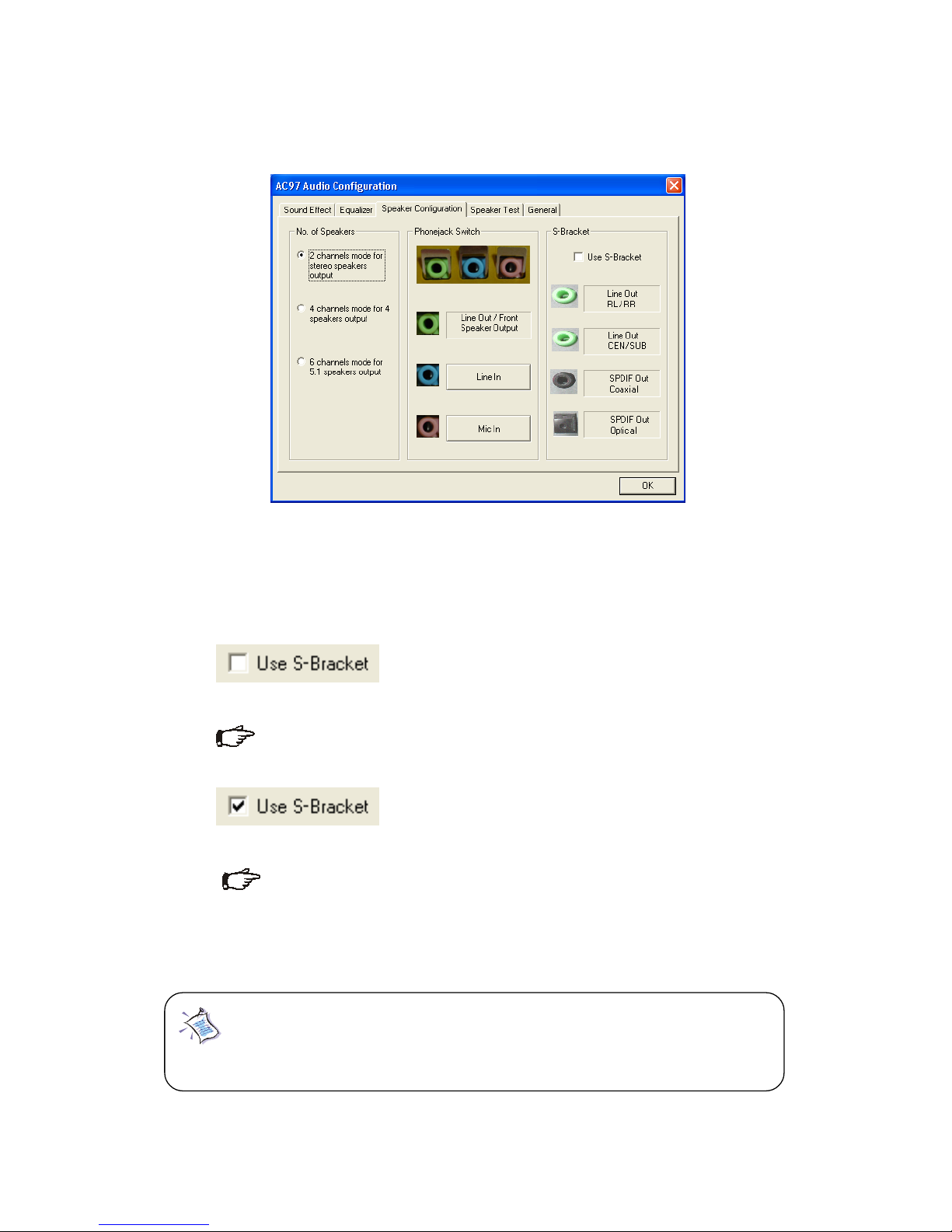

Selecting 4- or 6-Channel Setting .................................................A-9

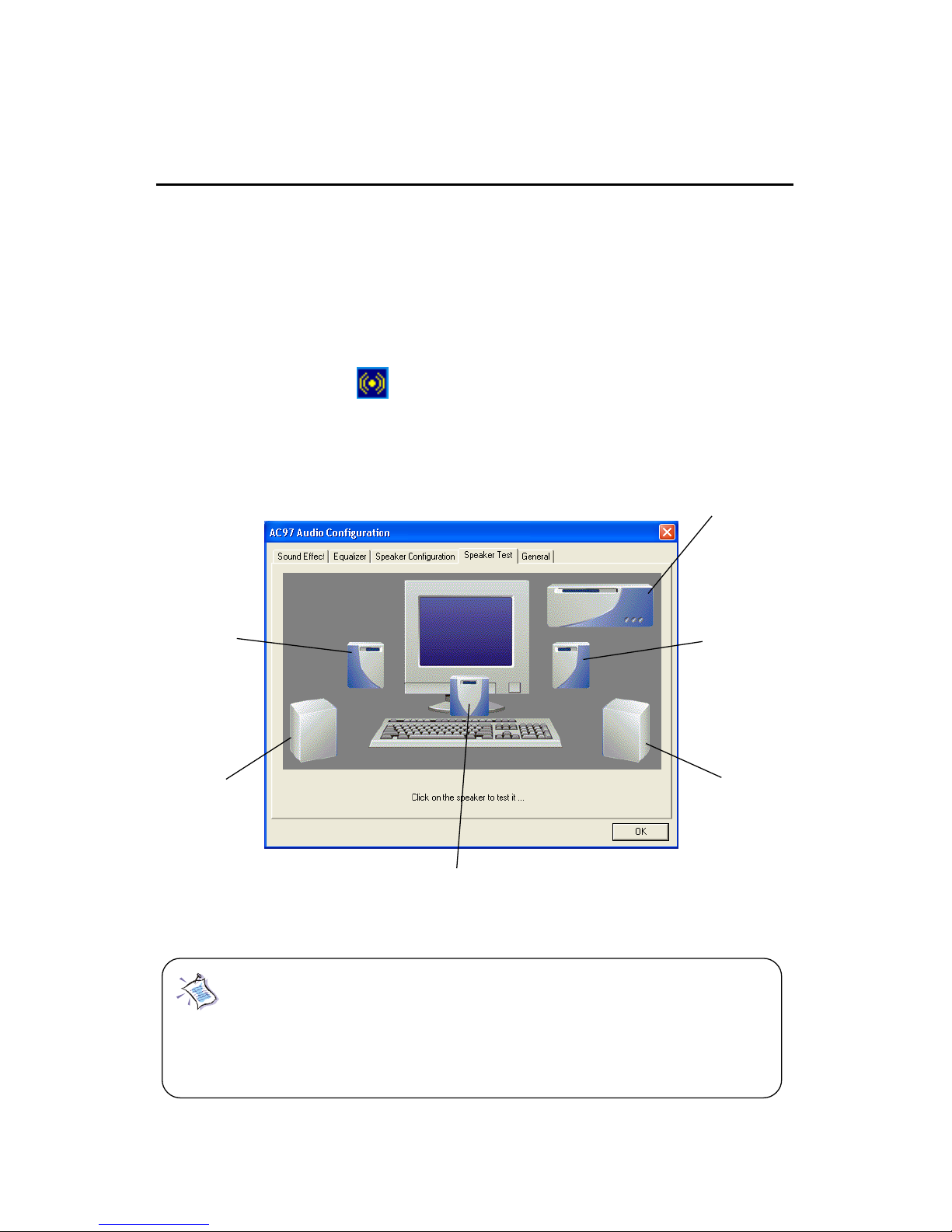

Testing the Connected Speakers....................................................... A-11

T esting Each Speaker: ................................................................A-11

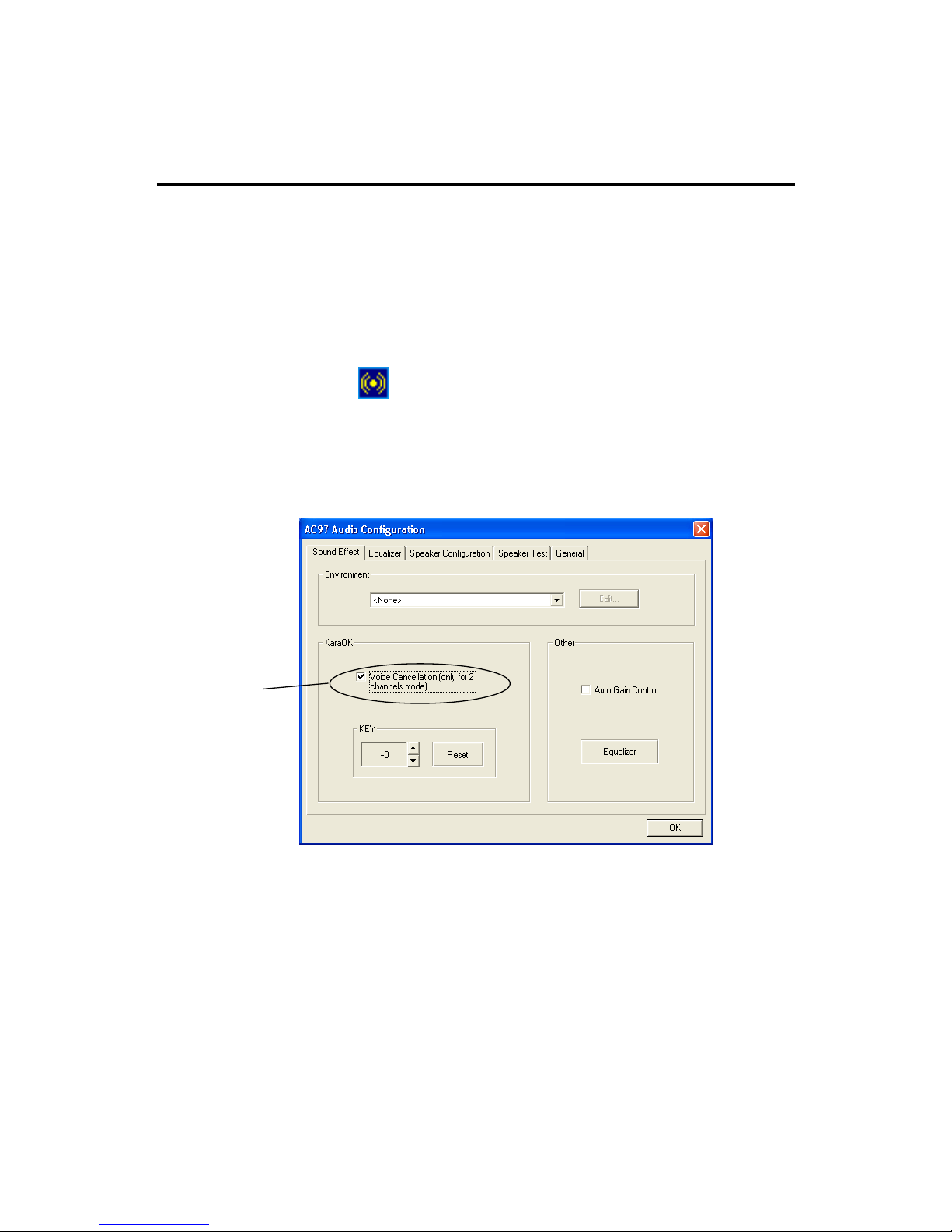

Playing KaraOK ................................................................................ A-12

Playing KaraOK: ......................................................................... A-12

Glossary ....................................................................................................G-1

Getting Started

1-1

Chapter 1. Getting Started

Thank you for purchasing KT3 Ultra2 (MS-6380E v1.X) series
motherboard. The KT3 Ultra2 (MS-6380E v1.X) series ATX mainboard is a
high-performance computer mainboard based on VIA® Apollo KT333 &

VT8235 chipsets and designed for the AMD® Athlon™, Athlon™ XP or
Duron™ (PGA) processor for value business/personal desktop markets.

There are two models available for KT3 Ultra2 series mainboards.
They are KT3 Ultra2 and KT3 Ultra2-R. KT3 Ultra2 is the standard version
with common features most motherboards have. As for KT3 Ultra2-R, it
integrates ATA133 RAID on the board in addition to the standard features.

1

Getting Started

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

MSI Special Features 1-6

Chapter 1

1-2

CPU

Supports Socket A (Socket-462) for AMD® Athlon™/Athlon™ XP /Duron™
processor
Supports 800MHz up to 1.8GHz (Athlon™ XP 2200+) processor

Chipset

VIA® KT333 chipset

- FSB @200/266 MHz

- AGP 4X and PCI Advanced high performance memory controller
VIA® VT8235 chipset

- Integrated Direct Sound AC97 audio

- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller

- ACPI

- Integrated USB 2.0 controller

Clock Generator

100/133 MHz clocks are supported.

Main Memory

Supports six memory banks using three 184-pin DDR DIMMs
Supports a maximum memory size up to 3GB
Supports 2.5V DDR SDRAM DIMM

Slots

One AGP slot

- AGP (Accelerated Graphics Port) specification compliant

- Supports AGP 2.0 1x/2x/4x
Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)
One CNR (Communication Network Riser) slot

On-Board IDE

An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA133/100/66/33 operation modes
Can connect up to four IDE devices

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

Mainboard Specification

Getting Started

1-3

2.88Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 1 IrDA connector for SIR/ASKIR/HPSIR

- 1 audio/game port

- 1 D-Bracket™ pinheader

- 1 S-Bracket pinheader

Promise 20276 On-Board (KT3 Ultra2-R)

Supports ATA133 RAID 0 or 1
The two ATA133 RAID connectors support hard disk drives only

Note: Only two hard disk drives will adopt the RAID function.

USB Interface

Supports USB 2.0 and downward compatible with USB 1.1

Bluetooth

1 bluetooth connector for wireless connection (bluetooth module
optional)

Audio

Realtek ALC650 6-channel audio

- SPDIF out (through S-Bracket only)

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the pe­ripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.

Dimension

ATX Form Factor: 30.4 cm (L) x 23.5 cm (W)

Mounting

6 mounting holes

Others

Modem (External/Internal) Ring Wake Up Function
PCI 2.2 LAN Wake Up Function

Chapter 1

1-4

Mainboard Layout

KT3 Ultra2 (MS-6380E) ATX Mainboard

BATT

+

VT8235

K333T

D

D

R

1

D

D

R

2

D

D

R

3

J3

A

T

X

P

o

w

e

r

S

u

p

p

l

y

JUSB2

JAUD1

SOCKET 462

BIOS

PCI Slot 5

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

I

D

E

1

I

D

E

2

CNR

JBAT1

JLED

JFP2JFP1

JMDM1

J

I

R

1

USB

ports

To p : P ara l lel Po rt

Bottom:

COM A

COM B

Top : mo use
Bottom: keyboard

JMDM

(optional)

CFAN1

NBFAN1

PSFAN1

SFAN1

Winbond

W83697HF

ALC650

Codec

JCD

To p :
Game port

Bottom:
Line-Out
Line-In
Mic

F

D

D

1

AGP Slot

JSP3

JBT2

Getting Started

1-5

KT3 Ultra2-R (MS-6380E) ATX Mainboard

BATT

+

VT8235

VT333

D

D

R

1

D

D

R

2

D

D

R

3

J3

A

T

X

P

o

w

e

r

S

u

p

p

l

y

JUSB2

JBT2

JUSB3

JAUD1

SOCKET 462

BIOS

PCI Slot 5

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

I

D

E

1

I

D

E

2

CNR

PROMISE

PDC20276

JBAT1

JLED

JFP2JF P1

JMDM1

J

I

R

1

USB
ports

To p : Pa ra ll el Po rt

Bottom:
COM A
COM B

Top : mou se
Bottom: keyboard

JMDM

(optional)

CFAN1

NBFAN1

IDE 3

IDE 4

PSFAN1

SFAN1

Winbond

W83697HF

Codec

JCD

JSP3

JAUX

(optional)

To p :
Game port

Bottom:
Line-Out
Line-In
Mic

F

D

D

1

AGP Slot

Chapter 1

1-6

Quick Components Guide

Component Function Reference

JWR1 ATX 20-pin power connector See p. 2-7

JKBMS1 Mouse connector See p. 2-8

JKBMS1 Keyboard connector See p. 2-9

COM A & COM B Serial port connector See p. 2-10

LPT1 Parallel port connector See p. 2-11

FDD1 Floppy disk drive connector See p. 2-13

IDE1~ IDE2 Hard disk connectors See p. 2-14

IDE3~ IDE4 ATA133 RAID connectors See p. 2-15

CFAN1/SFAN1/PSFAN1/ Fan power connectors See p. 2-16

NBFAN1

JFP1 & JFP2 Front panel connectors See p. 2-17

JAUD1 Front panel audio connector See p. 2-18

JUSB2 & JUSB3 Front USB connectors See p. 2-19

JCD/JAUX/JMDM CD-in/Aux Line-in/Modem-in See p. 2-21

JLED D-Bracket 2 connector See p. 2-22

JSP3 S-Bracket connector See p. 2-23

JIR1 IrDA infrared module connector See p. 2-24

J3 Chassis intrusion switch See p. 2-24

JMDM1 Wake on ring connector See p. 2-25

JBT2 Bluetooth connector See p. 2-26

JBAT1 Clear CMOS jumper See p. 2-27

AGP/PCI/CNR Connecting expansion cards See p. 2-28

Getting Started

1-7

PC Alert™ III

The PC AlertTM III is a utility you can find in the CD-ROM disk. The

utility is just like your PC doctor that can de­tect the following PC hardware status during
real time operation:

* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion

If one of the items above is abnormal,

the program main screen will be immediately
shown on the screen, with the abnormal item
highlighted in red. This will continue to be
shown until user disables the warning.

Note: Items shown on PC Alert III vary depending on your system’s

status.

MSI Special Features

Chapter 1

1-8

The Fuzzy Logic™ 4 utility is a user friendly tool that allows users to
view and adjust the current system status. To overclock the CPU FSB (Front
Side Bus) frequency under the Windows operating system, click FSB and use
the right and left arrow keys to select the desired FSB, and then click Apply to
apply the new setup value. To enable the system running at the specified FSB
every time when you click Turbo, click Save to save the desired FSB first. If
you want to know the maximal CPU overclocking value, click Auto to start
testing. The CPU FSB will automatically increase the testing value until the PC
reboots. After rebooting, click Turbo to apply the test result. Click Default to
restore the default values.

Features:

z MSI Logo links to the MSI Web site
z CPU Speed allows users to adjust the CPU speed through CPU

Multiplier and FSB

z Voltage allows user to adjust the voltage of CPU/Memory/AGP
z MSI Info provides information about the mainboard, BIOS and OS
z CPU Info provides detailed information about the CPU
z CPU Fan Speed shows the current running speed of CPU Fan
z CPU Temp. shows the current CPU temperature

Note: To adjust the options under CPU Speed and Voltage, use the
right and left arrow keys to select the desired value and then click

Apply to run the setup value.

Fuzzy Logic™ 4

Getting Started

1-9

Live BIOS™/Live Driver™

The Live BIOS™/Live Driver™ is a tool used to detect
and update your BIOS/drivers online so that you don’t need
to search for the correct BIOS/driver version throughout the
whole Web site. To use the function, you need to install the
“MSI Live Update Series 2” application. After the installation,
the “MSI Live Update Series 2” icon (as shown on the right)
will appear on the screen.

Double click the “MSI Live Update Series 2” icon, and the following
screen will appear:

Five buttons are placed on the leftmost pane of the screen. Click the desired
button to start the update process.

zz

zz

z Live BIOS – Updates the BIOS online.

zz

zz

z Live Driver – Updates the drivers online.

zz

zz

z Live VGA BIOS – Updates the VGA BIOS online.

zz

zz

z Live VGA Driver – Updates the VGA driver online.
zz

zz

z Live Utility – Updates the utilities online.

If the product you purchased does not support any of the functions listed
above, a “sorry” message is displayed. For more information on the update
instructions, insert the companion CD and refer to the “Live Update Series
Guide” under the “Manual” Tab.

Chapter 1

1-10

D-Bracket™ 2 (optional)

D-Bracket™ 2 is an external USB bracket integrating four Diagnostic
LEDs, which use graphic signal display to help users understand their system.
The LEDs provide up to 16 combinations of signals to debug the system. The
4 LEDs can debug all problems that fail the system, such as VGA, RAM or
other failures. This special feature is very useful for the overclocking users.
These users can use the feature to detect if there are any problems or failures.

D-Bracket™ 2 supports both USB 1.1 & 2.0 spec.

D-Bracket™ 2

D-BracketTM2 Description

System Power ON

- The D-LED will hang here if the processor is damaged or

not installed properly.

Early Chipset Initialization

Memory Detection Test

- Testing onboard memory size. The D-LED will hang if

the memory module is damaged or not installed properly.

Decompressing BIOS image to RAM for fast booting.

Initializing Keyboard Controller.

Testing VGA BIOS

- This will start writing VGA sign-on message to the screen.

1 2

3 4

Red

Green

Getting Started

1-11

D-BracketTM2 Description

Processor Initialization

- This will show information regarding the processor (like

brand name, system bus, etc…)

Testing RTC (Real Time Clock)

Initializing Video Interface

- This will start detecting CPU clock, checking type of video

onboard. Then, detect and initialize the video adapter.

BIOS Sign On

- This will start showing information about logo, processor

brand name, etc….

Testing Base and Extended Memory

- Testing base memory from 240K to 640K and extended

memory above 1MB using various patterns.

Assign Resources to all ISA.

Initializing Hard Drive Controller

- This will initialize IDE drive and controller.

Initializing Floppy Drive Controller

- This will initializing Floppy Drive and controller.

Boot Attempt

- This will set low stack and boot via INT 19h.

Operating System Booting

1 2

3 4

Chapter 1

1-12

S-Bracket (Optional)

S-Bracket is a bracket which provides 2 SPDIF jacks for digital audio
transmission and 2 analog Line-Out connectors for additional 4-channel ana­log audio output. With the S-Bracket, your system will be able to perform 6­channel audio operation for wonderful surround sound effect, or connect to
Sony & Philips Digital Interface (SPDIF) speakers for audio transmission with
better quality.

The S-Bracket offers two types of SPDIF connectors: one for optical
fiber and the other for coaxial connection. Select the appropriate one to meet
your own need. For more information on S-Bracket, refer to Appendix. Using
4- or 6-Channel Audio Function.

S-Bracket

SPDIF jack (optical)

SPDIF jack (coaxial)

Analog Line-Out jacks

Getting Started

1-13

MSI DVD (5.1 Channel)

The motherboard comes with MSI DVD application which supports 5.1
channel (6-channel audio) operation. The accompanying MSI DVD is a conve­nient tool to meet increasing demands for home entertainment.

To play DVD with 6-channel audio output, you must configure both the
MSI DVD application and the audio codec’s software utility. Otherwise, the 6­channel audio function will not work properly. For information on how to
select 6-channel mode in the audio software utility, refer to Appendix. Using 4-
or 6-Channel Audio Function.

Follow the procedures below to enable 6-channel support with MSI DVD:

1. Click on this button from the control panel of MSI DVD.

2. Click the Audio tab.

3. Select 6 speaker mode (5.1 channel).

Note: MSI DVD supports Dolby Digital format only. To view DTS-

formatted video, you should convert it to Dolby Digital format first.

Chapter 1

1-14

4. Click OK.

For more information about MSI DVD, you can refer to the online help coming
with the application.
To enter the online help:

1. Click on the icon at the bottom-right corner of the control panel.

2. The following window appears.

3. Click MSIDVD FAQ.

Click here

Getting Started

1-15

CPU Thermal Protection

Aimed to prevent the CPU from overheating, MSI has developed a CPU
Thermal Protection mechanism for AMD Athlon XP CPU platform. This CPU
Thermal Protection mechanism works on a thermal signal sensor. If the mecha­nism senses an abnormal temperature rise, it will automatically shut down the
system and the CPU temperature will then drop down and resume normal. With
this unique feature, users can better protect their CPU. Please note that this
feature is for AMD Athlon XP CPU only.

Hardware Setup

2-1

Chapter 2. Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the compo­nents and follow the installation procedures. For some components, if you
install in the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

TOPICS

Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7
Back Panel 2-8
Connectors 2-13
Jumpers 2-27
Slots 2-28

2

Hardware Setup

Chapter 2

2-2

Central Processing Unit: CPU

The mainboard supports AMD® Athlon™, Athlon™ XP and Duron™
processors in the 462 pin package. The mainboard uses a CPU socket called
Socket A for easy CPU installation. When you are installing the CPU, make

sure the CPU has a heat sink and a cooling fan attached on the top to prevent
overheating. If you do not find the heat sink and cooling fan, contact your

dealer to purchase and install them before turning on the computer.

1. Pull the lever sideways away

from the socket. Then, raise
the lever up to a 90-degree
angle.

2. Look for the cut edge. The

cut edge should point to­wards the lever pivot. The
CPU will only fit in the correct
orientation.

3. Hold the CPU down firmly, and

then close the lever to com­plete the installation.

CPU Installation Procedures

Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.

WARNING!

Open Lever

Cut edge

Sliding

Plate

Close
Lever

Hardware Setup

2-3

As processor technology pushes to faster speeds and higher performance,
thermal management becomes increasingly crucial when building computer
systems. Maintaining the proper thermal environment is key to reliable
operation. As such, the processor must be maintained in the specified thermal
requirements.

AMD Athlon™/Duron™/Athlon™ XP processor with a speed of 600MHz
and above requires LARGER heatsink and fan. You also need to add thermal
grease between the CPU and heatsink to improve heat dissipation. Then, make
sure that the CPU and heatsink are securely fastened and in good contact with
each other. These are needed to prevent damaging the processor and ensur­ing reliable operation. If you want to get more information on the proper
cooling, you can visit AMD’ s website for reference.

WARNING! Thermal Issue for CPU

Chapter 2

2-4

CPU Clock Frequency Selection through BIOS

The hardware configuration for CPU clock frequency of the motherboard
is set to 100MHz by default. Therefore, to make a 133MHz CPU run at 133MHz
when it is installed on the board, you have to adjust the CPU clock frequency
in the BIOS setup utility.

To set the clock frequency for the installed CPU, refer to Frequency/
Voltage Control in Chapter 3. BIOS Setup.

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 7

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 7
= 700MHz

WARNING!

Replacing CPU

While replacing the CPU, always turn off the ATX
power supply or unplug the power supply’s power cord
from grounded outlet first to ensure the safety of CPU.

Overclocking

This motherboard is designed to support overclocking.
However, please make sure your components are able
to tolerate such abnormal setting, while doing
overclocking. Any attempt to operate beyond prod­uct specifications is not recommended. We do not

guarantee the damages or risks caused by inadequate
operation or beyond product specifications.

Hardware Setup

2-5

The mainboard provides 3 sockets for 184-pin DDR SDRAM DIMM
(Double In-Line Memory Module) modules and supports the memory size up
to 3GB. Y ou can install PC2700/DDR333, PC2100/DDR266 or PC1600/DDR200
modules on the DDR DIMM slots (DIMM 1~3).

Memory

DDR DIMM Slots

(DIMM 1~3)

Introduction to DDR SDRAM

DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod­ules rather than 168-pin DIMM modules used by SDR SDRAM. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta­tions and servers.

Chapter 2

2-6

Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double­sided modules to meet your own needs.

Memory modules can be installed in any combination as follows:

DIMM Module Combination

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in until the golden finger on the memory module is deeply inserted
in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

TIP: You can barely see the golden finger if the module is properly

inserted in the socket.

Volt

notch

Slot Memory Module Total Memory

DIMM 1
(Bank 0 & 1)

S/D 64MB~1GB

DIMM 2
(Bank 2 & 3)

S/D 64MB~1GB

DIMM 3
(Bank 4 & 5)

S/D 64MB~1GB

Maximum System Memory Supported

64MB~3GB

S: Single Side D: Double Side

Hardware Setup

2-7

Power Supply

A TX 20-Pin Power Connector: JWR1

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.

The mainboard supports ATX power supply for the power system. Be­fore inserting the power supply connector, always make sure that all compo­nents are installed properly to ensure that no damage will be caused.

JWR1

10

1

20

11

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
1 8 -5V
19 5V
20 5V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

JWR1 Pin Definition

Chapter 2

2-8

The Back Panel provides the following connectors:

Back Panel

Mouse Connector: JKBMS1

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin assignments are as follows:

PIN SIGNAL DESCRIPTION

1 Mouse DAT A Mouse DAT A
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

Pin Definition

PS/2 Mouse (6-pin Female)

2

1

3

4

5

6

Mouse

Keyboard USB

Parallel

COM A COM B L-out L-in MIC

Midi/Joystick
