123456789012345678901234567890121234567890123456789012345678901212345678901234

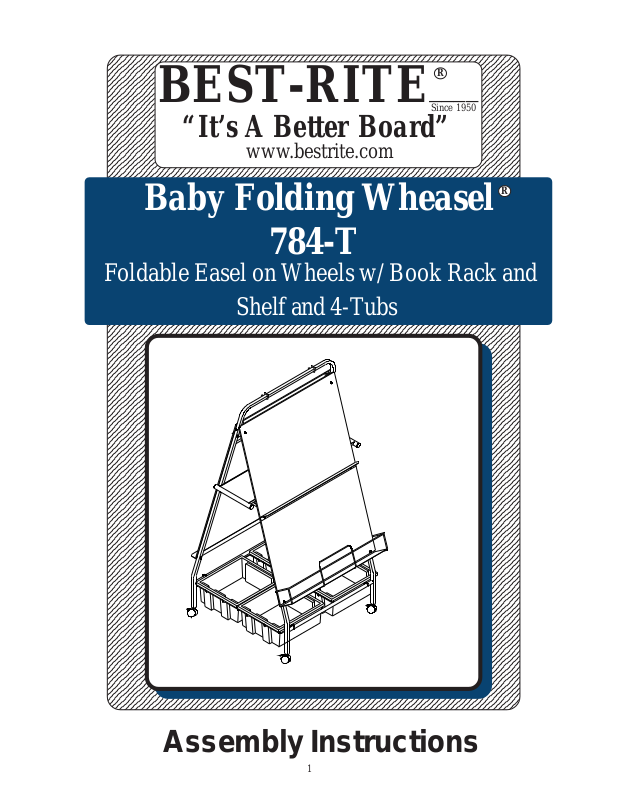

BEST-RITE

Foldable Easel on Wheels w/ Book Rack and

Baby Folding Wheasel

“It’s A Better Board”

www.bestrite.com

784-T

Shelf and 4-Tubs

Assembly Instructions

____

Since 1950

WOW

Baby Folding Wheasel

Part Drawing Description Qty

P-1 Leg (wide) 1 EA

P-2 Leg (narrow) 1 EA

(Foldable Easel on Wheels)

Hardware List

A 2” Socket Screw 2 EA

B 1 1/4” Socket Screw 4 EA

C 5/8” Socket Screw 12 EA

P-3 Side Hinge 2 EA

P-4 Board Tray 2 EA

P-5 Marker Board (wide leg) 1 EA

P-6 Marker Board (narrow leg) 1 EA

P-7 Top Shelf 1 EA

P-8 Tubs Rack 1 EA

D Screw Post 12 EA

E Flat Washer 6 EA

F Lock Nut 6 EA

G 2” Locking Caster 4 EA

H Allen Wrench 2 EA

I Caster Wrench 1 EA

Tool required: Adjustable Crescent Wrench

Should you require assistance

during assembly, please call our

Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

P-9 Wire Book Rack 1 EA

P-10 Flip Chart Hook 2 EA

1-800-749-2258

Part Drawing Description Qty

P-1 1 Tubs 4 EA

Baby Folding Wheasel w/tubs

Assembly Instructions

EAD THROUGH INSTRUCTIONS FROM BEGINNING

END

To Assemble:

Identify and Separate all the

BEFORE

STARTING TO ASSEMBLE UNIT

Parts and Hardware. Assemble Legs (P-1) and (P-2) at the top by using

2. 2” Socket Screws (A). Place the Flat Washer (E) in between the legs and tighten the Lock Nut (F). Hold with the Adjustable Crescent W rench and rotate the Socket Screw (A) with Allen W rench (H). See illustrations #1 and #1a.

P-1

P-3

P-1

Illustration # 1

P-1

Illustration # 1a

P-2

P-3

Illustration # 2

Assemble Casters (G) by turning the unit to it’ s

P-2

side and fasten by using Caster W rench (I). See illustrations #3.

Assemble Side Hinges (P-3) by using 1 1/4”

3. Socket Screw (B). Place the Flat Washer (E) in between the Side Hinge (P-3) and legs and fasten

from inside with Lock Nut (F). T ighten by holding the Lock Nut (F) with the Adjustable Crescent W rench and turn the 1 1/4” Socket Screw (B) with Allen W rench (H). See illustrations #2.

Illustration # 3

Assemble Marker Board (P-5) by insert-

5. ing 5/8” Socket Screw (C) through the

Marker Board (P-5) and through the Board T ray (P-4). Insert board and tray through the Leg (P-1). Use the Screw Post (D) from the back of the Leg (P-1) and tighten by using Allen W renches (H). See illustrations #4.

P-1

P-5

P-4

P-2

P-4

P-2

Illustration # 5

Fold the legs slightly by folding the Side

P-9

Hinges (P-3) Place the T ubs Rack (P-8) over cross bars on the Legs (P-1) and (P-2) bottom cross bars. Seperate the legs until the four hooks of the T ubs Rack (P-8)

P-6

Illustration # 4

Assemble Marker Board (P-6) by inserting 5/8”

6. Socket Screw (C) through the Marker Board (P-6), and Board T ray (P-4). Insert board and tray through the Leg (P-2) in the mid section of the Board. At the bottom, slide the Wire Book Rack (P-9) in between the Leg (P-2) and the Board (P-6) and insert 5/8” Socket Screws (C) through. Fasten from the back of the leg by using Screw Posts (D) and tighten with Allen Wrench (H) . See illustrations #5.

P-3

P-7

P-1

P-11

P-10

P-3

P-8

Illustration # 7

P-1

cross bar

P-8

Illustration # 6

Place the Top Shelf (P-7) by simply turning the

P-2

shelf and sliding through the legs. T op Shelf (P-7) should rest over the Side Hinges (P-3). To place the Flip Chart Hooks (P-10) simply set the hooks over the top of the Leg (P-1) tube. Place the T ubs (P-11) over the T ub Racks (P-8). See illustrations #7.

cross bar
