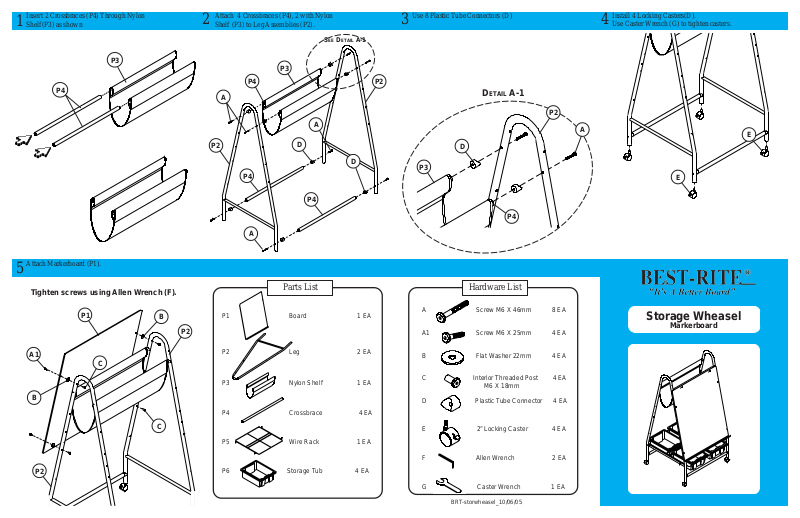

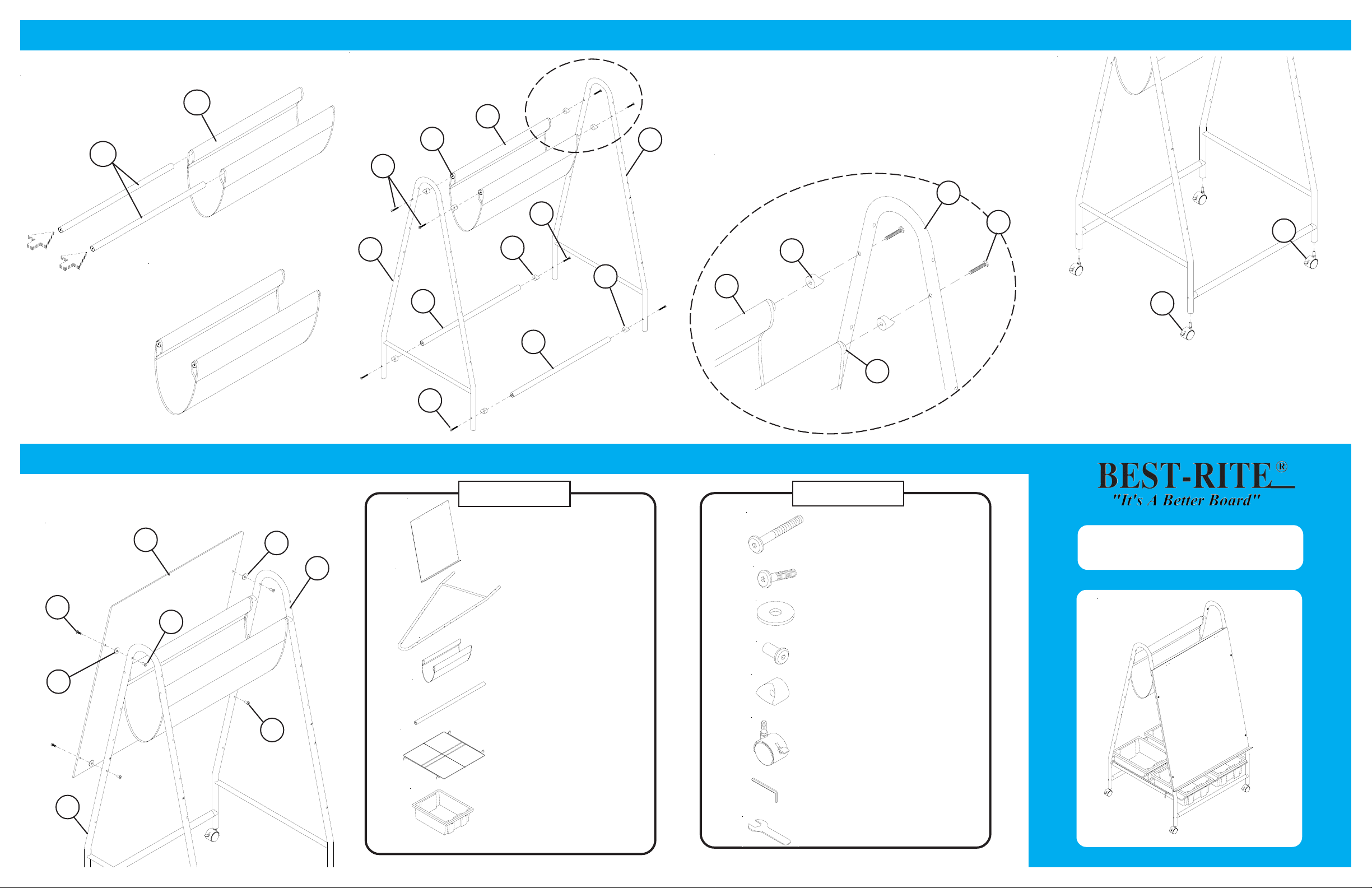

Page 1
Insert 2 Crossbraces (P4) Through Nylon
1
Shelf(P3) as shown
P3
Attach 4 Crossbraces (P4), 2 with Nylon
2
Shelf (P3) to Leg Assemblies (P2).
P3
SEE DETAIL A-1
Use 8 Plastic Tube Connectors (D)
3
Install 4 Locking Casters(D).
4
Use Caster Wrench (G) to tighten casters.
P4
Attach Markerboard (P1).
5
P2
P4
A
A
D
D
P4
P4
A
P2
P3
DETAIL A-1
P2
A
D
E
P4
E
Tighten screws using Allen Wrench (F).
P1
A1
C
B
P2
B
C
P2
Parts List
P1 Board 1 EA
P2 Leg 2 EA
P3 Nylon Shelf 1 EA
P4 Crossbrace 4 EA
P5 Wire Rack 1 EA
P6 Storage Tub 4 EA
Hardware List
A Screw M6 X 46mm 8 EA
Storage Wheasel
Markerboard
A1 Screw M6 X 25mm 4 EA
B Flat Washer 22mm 4 EA
C Interior Threaded Post 4 EA
M6 X 18mm
D Plastic Tube Connector 4 EA
E 2” Locking Caster 4 EA
F Allen Wrench 2 EA
G Caster Wrench 1 EA
BRT-storwheasel_10/06/05

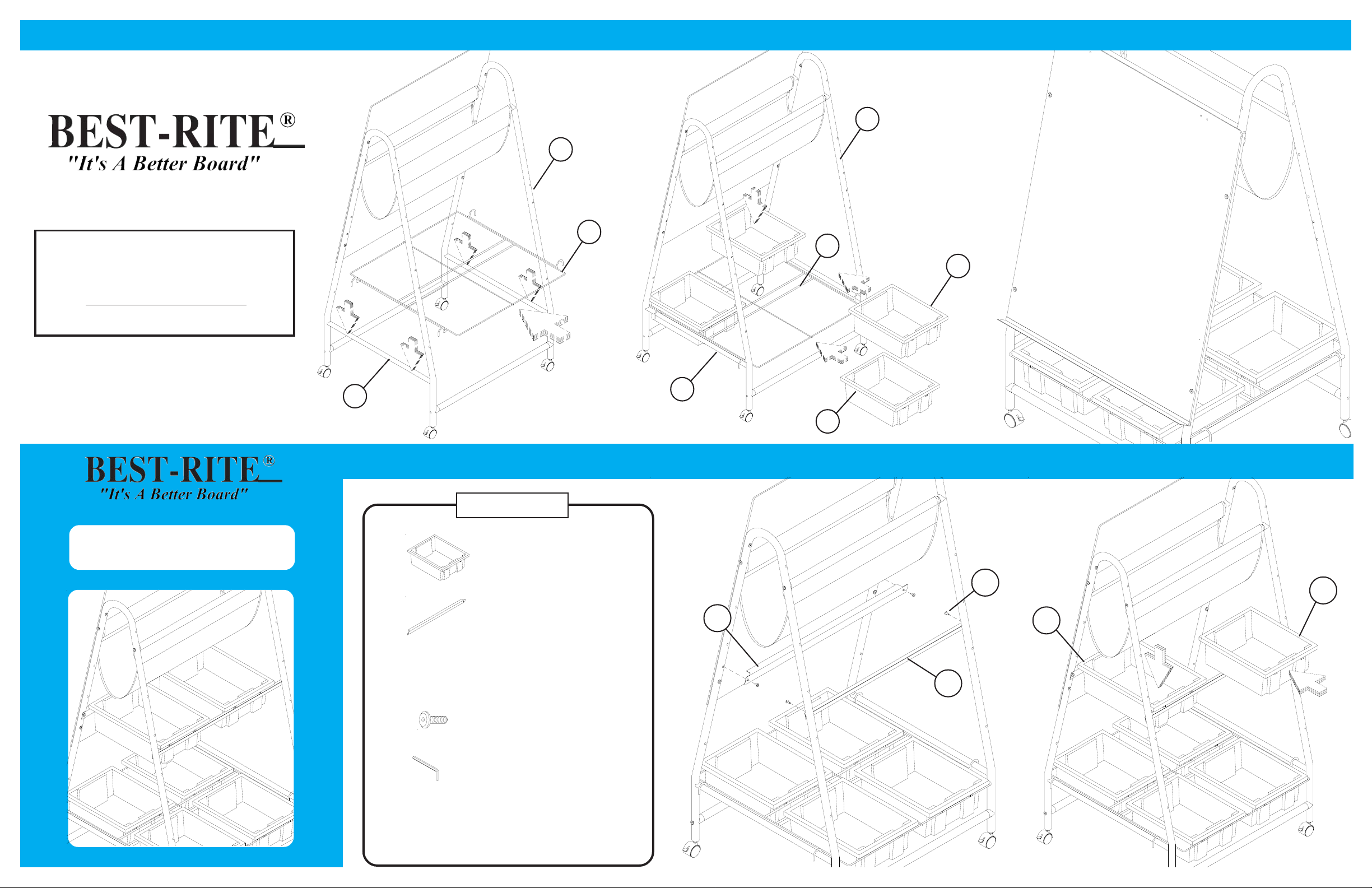

Page 2
Attach Wire Rack (P5).
6
Insert 4 StorageTubs (P6).
7
Missing Parts or UPS Damaged Parts
For Your Convenience you can
EMAIL us at
24HOURS 7 DAYS A WEEK
P2
P2
P5
P2
P5
P6
P2
P6
Should you require
assistance during assembly,
please call our Customer
Service Department
Monday - Friday 8 a.m. - 5
p.m. Central Standard Time
Toll-Free Customer
1-800-749-2258
Service
OPTIONAL STORAGE TUBS
Storage Wheasel
Parts List
OP1 Storage Tub 2 EA
OP2 Metal Rail 2 EA
OA Screw M6 X 18mm 4 EA
OB Allen Wrench 1 EA
Attach Metal Rails (OP2).
1
Tighten Screws using Allen Wrench (OB).
OP2
OP2
OA
Insert 2 Storage Tubs (OP1).
2
OP1
OP1

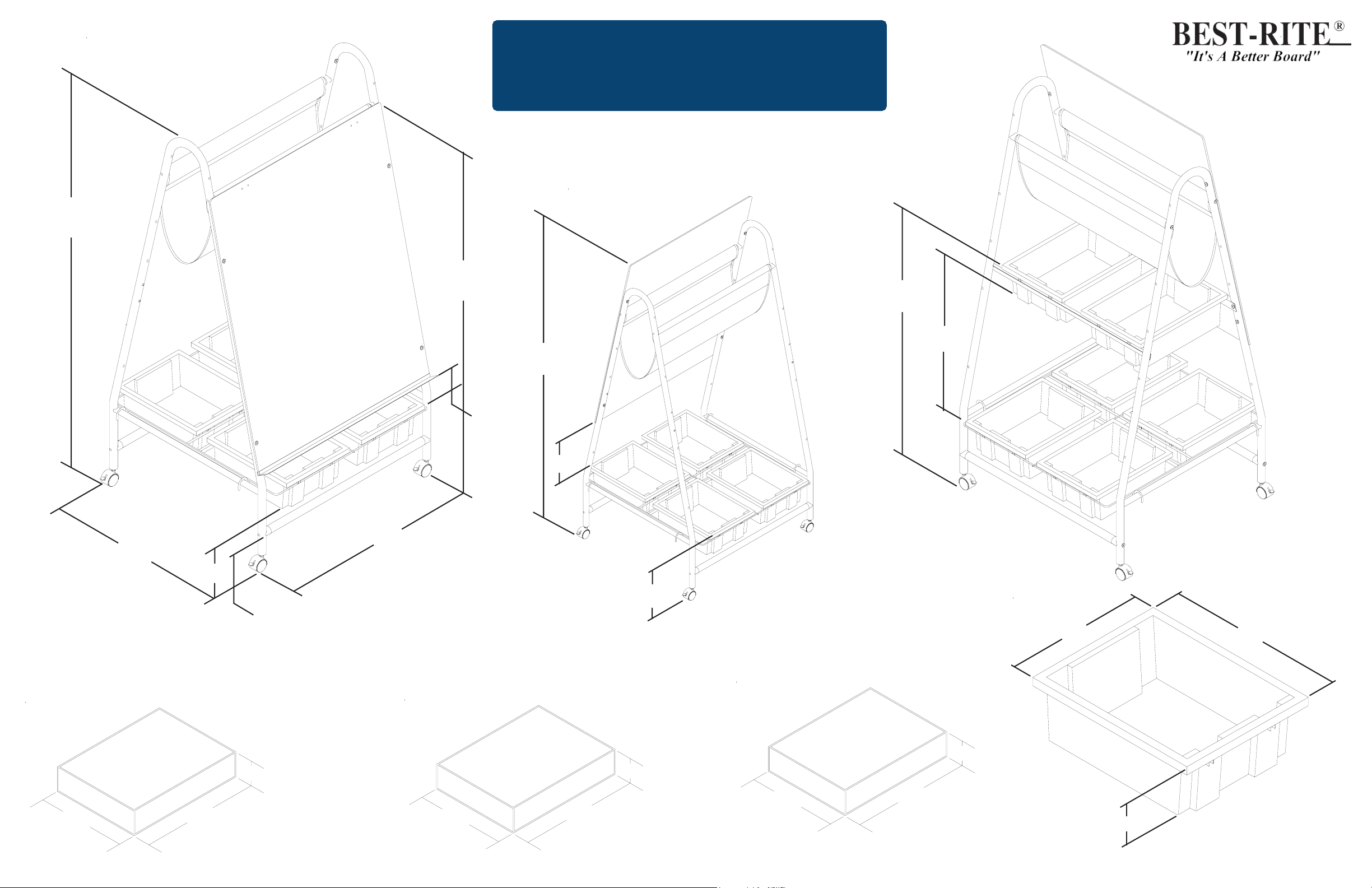

Page 3
59½
Storage Wheasel
w/markerboard in
lower position.
Writing Surface
29 X 41
54½
Storage Wheasel
Mobile Easel with Storage Tubs
Storage Wheasel
w/markerboard in
upper position.
66½
For more information
1-800-749-2258
Storage Wheasel
w/Optional Tubs
37½
19
28½
Shipping Information
Markerboard/Frame
4.8 Cubic Feet
60 lbs.
2½
14½
28½
6
12
5
Shipping Information
4 Tubs
1.8 Cubic Feet
8 lbs.
12½
Shipping Information
Optional Tubs/rails
1.8 Cubic Feet
7 lbs.
15
31”
59”
4½”
15”
16”
13”
14”
9”
31”
6
