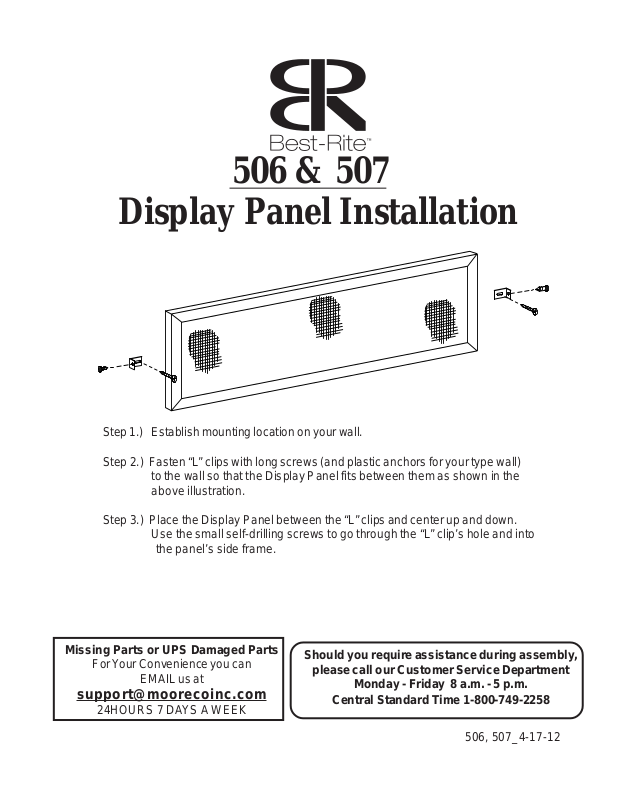

506 & 507
Display Panel Installation
Step 1.) Est ablish mounting location on your wall.
Step 2.) Fasten “L” clip s with long screws (and plastic anchors for your type wall)
to the wall so that the Display Panel fits between them as shown in the
above illustration.
Step 3.) Place the Display Panel between the “L” clip s and center up and down.
Use the small self-drilling screws to go through the “L” clip’s hole and into
the panel’s side frame.
Missing Parts or UPS Damaged Parts
For Y our Convenience you can
EMAIL us at
24HOURS 7 DA YS A WEEK
Should you require assistance during assembly,
please call our Customer Service Department
Monday - Friday 8 a.m. - 5 p.m.
Central Standard Time 1-800-749-2258
506, 507_4-17-12
