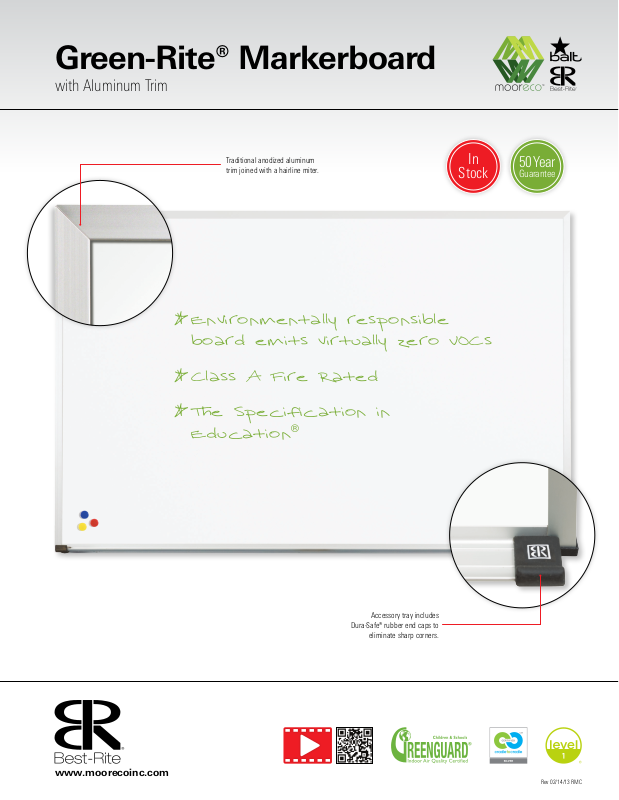

Page 1
Green-Rite® Markerboard
with Aluminum Trim
Traditional anodized aluminum
trim joined with a hairline miter.
* Environmentally responsible
board emits virtually zero VOCs
* Class A Fire Rated
* The Specification in
Education
®
In
Stock
50 Year
Guarantee
www.moorecoinc.com
Accessory tray includes
Dura-Safe® rubber end caps to
eliminate sharp corners.
Rev 02/14/13 RMC
Page 2
Green-Rite® Markerboard with Aluminum Trim
▪ Green-Rite®, an environmentally responsible magnetic porcelain steel dry
erase surface, is featured with traditional aluminum trim.
▪ Includes full-length accessory tray with Dura-Safe® end caps.
▪ Cradle to Cradle CertifiedCM Silver, GREENGUARD Indoor Air Quality Certified®
and GREENGUARD Children & Schools Certified
conform to the ANSI/BIFMA e3 Furniture Sustainability Standard.
▪ Certified boards incorporate material healthfulness, material reutilization,
renewable energy use, water stewardship and social responsibility.
▪ Designed for Environment (DfE) Green-Rite® products contain between 40%
and 55% rapidly renewable materials. Green-Rite® products are also durable,
and can be easily remanufactured or refurbished with different frame and
attachment features to provide a lifetime of stylish use. Aluminum frame and
attachment materials are recyclable.
▪ Surface provides superior writability, and is virtually indestructible.
▪ Class A Fire Rated board. A full test report copy is available upon request.
▪ Made in the USA. 50 year guarantee. TAA compliant.
A. Green-Rite® Markerboard - Aluminum Trim
Part No. Dimensions Ship Wt.
n E2H2AA-NM* 1 1⁄2'H x 2'W 8 lbs
n E2H2AB-NM* 2'H x 3'W 14 lbs
n E2H2AC-NM** 3'H x 4'W 26 lbs
n E2H2AD-NM 4'H x 4'W 55 lbs
n E2H2AE-NM 3'H x 5'W 56 lbs
n E2H2AF-NM 4'H x 5'W 70 lbs
n E2H2AG-NM 4'H x 6'W 74 lbs
n E2H2AH-NM 4'H x 8'W 92 lbs
n E2H2AK-NM 4'H x 10'W 112 lbs
n E2H2AM-NM 4'H x 12'W 153 lbs
n E2H2AP-NM 4'H x 16'W 204 lbs
Made in the USA.
*Ships UPS **Ships UPS OS1
Due to shipping restrictions, boards listed as 3'H x 4'W actually measure 33 3⁄4"H x 48"W.
Cradle to Cradle CertifiedCM is a certification mark licensed by the Cradle to Cradle Products
Innovation Institute.
SM
, and level® 1 certified to
Technical Specifications
▪ Multipurpose magnetic surface with superior writability and erasability
for dry erase markers. Superior contrast and reduced surface light
distortion minimizes glare for optimum eye comfort.
▪ A precisely balanced porcelain enamel ground coat is furnace-fused to
both sides of 28 gauge (standard) or 24 gauge (custom) steel.
▪ The first furnace fuses a ground coat of enamel that is heat-softened at
approximately 1450º F. The second furnace firing fuses a coat of enamel
to the ground coat enamel. Color Fusion ceramic top coat is applied
providing the desired surface color.
▪ A fade resistant waterproof resin glue bonds the porcelain to an MDF
core and .005" polyester foil backer sheet. Also available with upgraded
sheet aluminum backer. Custom sizes are available. Off-white is
standard.
Balt® & Best-Rite® are brand divisions of
MooreCo Inc.
2885 Lorraine Ave | Temple, TX 76501
p: 800.749.2258 | f: 800.697.6258
www.moorecoinc.com
Page 3
www.moorecoinc.com
Green-Rite® Markerboard
with Deluxe Aluminum Trim
Full-length map rail with
natural cork insert.
* Environmentally responsible
board emits virtually zero VOCs
* Class A Fire Rated
* The Specification in
Education
®
In
Stock
50 Year
Guarantee
Accessory tray includes
Dura-Safe® rubber end caps to
eliminate sharp corners.
Rev 02/14/13 RMC
Page 4
Balt® & Best-Rite® are brand divisions of
MooreCo Inc.
2885 Lorraine Ave | Temple, TX 76501
p: 800.749.2258 | f: 800.697.6258
www.moorecoinc.com
Green-Rite® Markerboard with Deluxe Aluminum Trim
▪ Green-Rite®, an environmentally responsible magnetic porcelain steel dry
erase surface, is featured with deluxe aluminum trim.
▪ Includes full-length accessory tray with Dura-Safe® end caps and a full-length
map rail with natural cork insert.
▪ Cradle to Cradle CertifiedCM Silver, GREENGUARD Indoor Air Quality Certified®
and GREENGUARD Children & Schools Certified
conform to the ANSI/BIFMA e3 Furniture Sustainability Standard.
▪ Certified boards incorporate material healthfulness, material reutilization,
renewable energy use, water stewardship and social responsibility.
▪ Designed for Environment (DfE) Green-Rite® products contain between 40%
and 55% rapidly renewable materials. Green-Rite® products are also durable,
and can be easily remanufactured or refurbished with different frame and
attachment features to provide a lifetime of stylish use. Aluminum frame and
attachment materials are recyclable.
▪ Surface provides superior writability, and is virtually indestructible.
▪ Class A Fire Rated board. A full test report copy is available upon request.
▪ Made in the USA. 50 year guarantee. TAA compliant.
A. Green-Rite® Markerboard - Deluxe Aluminum Trim
Part No. Dimensions Ship Wt.
n E2H2AA* 1 1⁄2'H x 2'W 8 lbs
n E2H2AB* 2'H x 3'W 14 lbs
n E2H2AC** 3'H x 4'W 26 lbs
n E2H2AD 4'H x 4'W 55 lbs
n E2H2AE 3'H x 5'W 56 lbs
n E2H2AF 4'H x 5'W 70 lbs
n E2H2AG 4'H x 6'W 74 lbs
n E2H2AH 4'H x 8'W 92 lbs
n E2H2AK 4'H x 10'W 112 lbs
n E2H2AM 4'H x 12'W 153 lbs
n E2H2AP 4'H x 16'W 204 lbs
SM
, and level® 1 certified to
Technical Specifications
▪ Multipurpose magnetic surface with superior writability and erasability
for dry erase markers. Superior contrast and reduced surface light
distortion minimizes glare for optimum eye comfort.
▪ A precisely balanced porcelain enamel ground coat is furnace-fused to
both sides of 28 gauge (standard) or 24 gauge (custom) steel.
▪ The first furnace fuses a ground coat of enamel that is heat-softened at
approximately 1450º F. The second furnace firing fuses a coat of enamel
to the ground coat enamel. Color Fusion ceramic top coat is applied
providing the desired surface color.
▪ A fade resistant waterproof resin glue bonds the porcelain to an MDF
core and .005" polyester foil backer sheet. Also available with upgraded
sheet aluminum backer. Custom sizes are available. Off-white is
standard.
Made in the USA.
*Ships UPS **Ships UPS OS1
Due to shipping restrictions, boards listed as 3'H x 4'W actually measure 33 3⁄4"H x 48"W.
Cradle to Cradle CertifiedCM is a certification mark licensed by the Cradle to Cradle Products
Innovation Institute.
