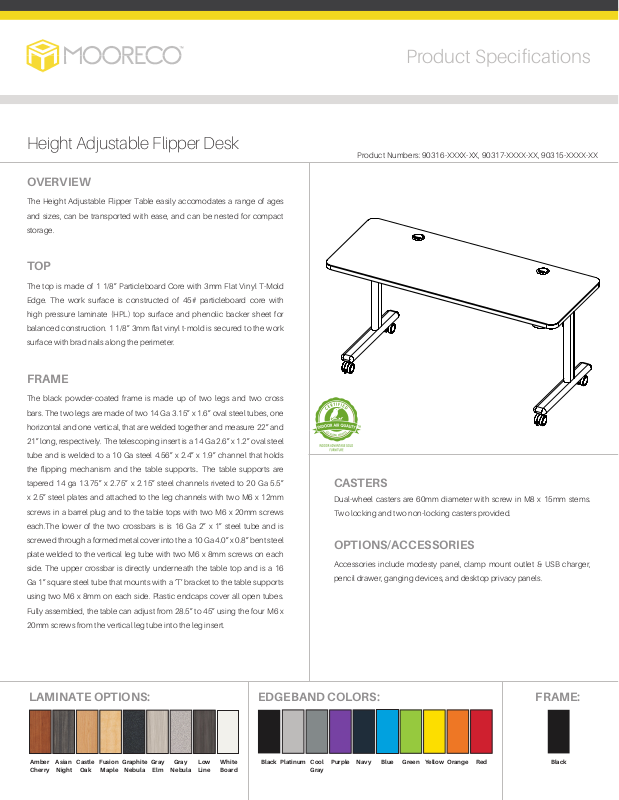

Page 1
Product Specifications
Height Adjustable Flipper Desk
Product Numbers: 90316-XXXX-XX, 90317-XXXX-XX, 90315-XXXX-XX
28.5" - 45”
23.6"
48"
24"
OVERVIEW
The Height Adjustable Flipper Table easily accomodates a range of ages
and sizes, can be transported with ease, and can be nested for compact
storage.
TOP
The top is made of 1 1/8” Particleboard Core with 3mm Flat Vinyl T-Mold
Edge. The work surface is constructed of 45# particleboard core with
high pressure laminate (HPL) top surface and phenolic backer sheet for
balanced construction. 1 1/8” 3mm flat vinyl t-mold is secured to the work
surface with brad nails along the perimeter.
FRAME
The black powder-coated frame is made up of two legs and two cross
bars. The two legs are made of two 14 Ga 3.15” x 1.6” oval steel tubes, one
horizontal and one vertical, that are welded together and measure 22” and
21” long, respectively. The telescoping insert is a 14 Ga 2.6” x 1.2” oval steel
tube and is welded to a 10 Ga steel 4.56” x 2.4” x 1.9” channel that holds
the flipping mechanism and the table supports.. The table supports are
tapered 14 ga 13.75” x 2.75” x 2.15” steel channels riveted to 20 Ga 5.5”
x 2.5” steel plates and attached to the leg channels with two M6 x 12mm
screws in a barrel plug and to the table tops with two M6 x 20mm screws
each.The lower of the two crossbars is is 16 Ga 2” x 1” steel tube and is
screwed through a formed metal cover into the a 10 Ga 4.0” x 0.8” bent steel
plate welded to the vertical leg tube with two M6 x 8mm screws on each
side. The upper crossbar is directly underneath the table top and is a 16
Ga 1” square steel tube that mounts with a ‘T’ bracket to the table supports
using two M6 x 8mm on each side. Plastic endcaps cover all open tubes.
Fully assembled, the table can adjust from 28.5” to 45” using the four M6 x
20mm screws from the vertical leg tube into the leg insert.
CASTERS
Dual-wheel casters are 60mm diameter with screw in M8 x 15mm stems.
Two locking and two non-locking casters provided.
OPTIONS/ACCESSORIES
Accessories include modesty panel, clamp mount outlet & USB charger,
pencil drawer, ganging devices, and desktop privacy panels.
LAMINATE OPTIONS:
Amber
Cherry
Asian
Night
Fusion
Castle
Oak
Maple
Graphite
Nebula
Gray
Elm
Gray
Nebula
Low
Line
White
Board
EDGEBAND COLORS: FRAME:
Black
Platinum
Cool
Gray
Navy Blue Green Yellow Orange RedPurple
Black
Page 2
2"
28.5" - 45”
23.6"
48"
48"
24"
48.3"
2"
28.5" - 45”
23.6"
72"
24"
48.3"
23.6"
90316/90317 90315
24"
24"
DIMENSIONS
Base Model No. Description Width X Depth Height Adjustment Range
90316-XXXX-XX Height Adjustable Sit/Stand Flipper Table - 6024 60"W X 24"D 28.5”-45”
90317-XXXX-XX Height Adjustable Sit/Stand Flipper Table - 7224 72"W X 24"D 28.5”-45”
90315-XXXX-XX Height Adjustable Sit/Stand Flipper Table - Half Round 48"W X 24"D 28.5”-45”
ACCESSORIES
Base Model No. Description
66626 Height Adjustable Flipper Table Modesty Panel – 6024 Table
66627 Height Adjustable Flipper Table Modesty Panel – 7224 Table
66675 Clamp Mount Outlet & USB Charger
66640 Ganging Device for Training Tables (set of 2)
60"/72”
48"
MooreCo, Inc.
2885 Lorraine Avenue | Temple, TX 76501
p: 800.749.2258 | f: 866.888.7483
www.moorecoinc.com
Rev 08/05/20 CJE
Page 2 of 2
