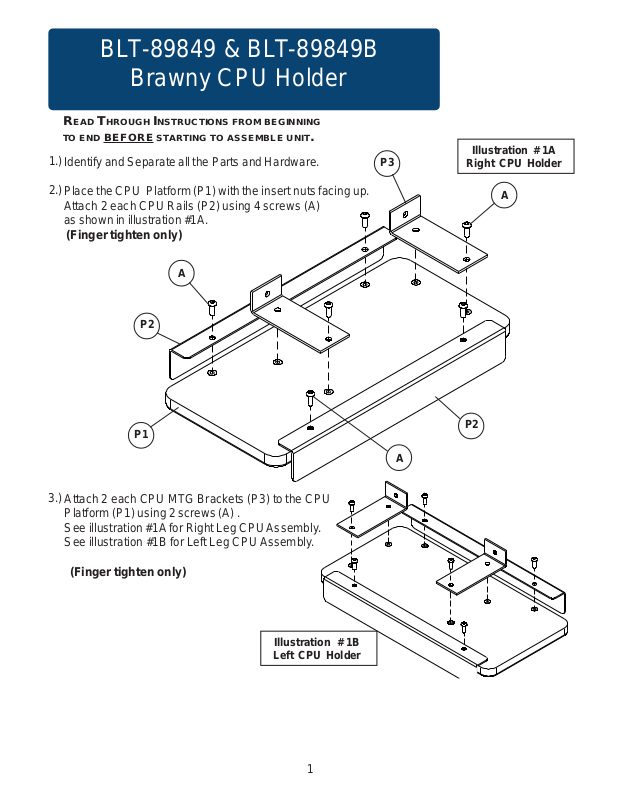

BLT-89849 & BLT-89849B
Brawny CPU Holder
R
EAD THROUGH INSTRUCTIONS FROM BEGINNING
TO END
1.)
Identify and Separate all the Parts and Hardware.
2.)
Place the CPU Platform (P1) with the insert nuts facing up.
Attach 2 each CPU Rails (P2) using 4 screws (A)
as shown in illustration #1A.
(Finger tighten only)
BEFORE
STARTING TO ASSEMBLE UNIT
A
P2
.
P3
Illustration # 1A
Right CPU Holder
A
P1
3.)
Attach 2 each CPU MTG Brackets (P3) to the CPU
Platform (P1) using 2 screws (A) .
See illustration #1A for Right Leg CPU Assembly .
See illustration #1B for Left Leg CPU Assembly .
(Finger tighten only)
Illustration # 1B
Left CPU Holder
P2
A
1
#89849
Part Drawing Description Qty
P1 CPU Platform 1 EA
P2 CPU Rail 2 EA
P3 CPU MTG Bracket 2 EA
4.)
Attach 1 each CPU Assembly to the top of
Leg Insert on Brawny 60x30 or 36x30 using 2
Screws (A) and 2 Screws (B) as shown in
illustration #2.
Part Drawing Description Qty
Hardware List
A Screw M6x15MM 8 EA
B Screw M6x45MM 2 EA
C Allen Wrench 1 EA
B
CPU Assembly
P3
B
A
A
5.)
Tighten all the screws at this time using
Allen Wrench (E).
Brawny T able
(Left Leg)
Brawny T able
(Right Leg)
Illustration # 2
89849 & 89849B-\_7-7-14
2
