Mitel 430, 415, 470 System Manual

Download

Page 1

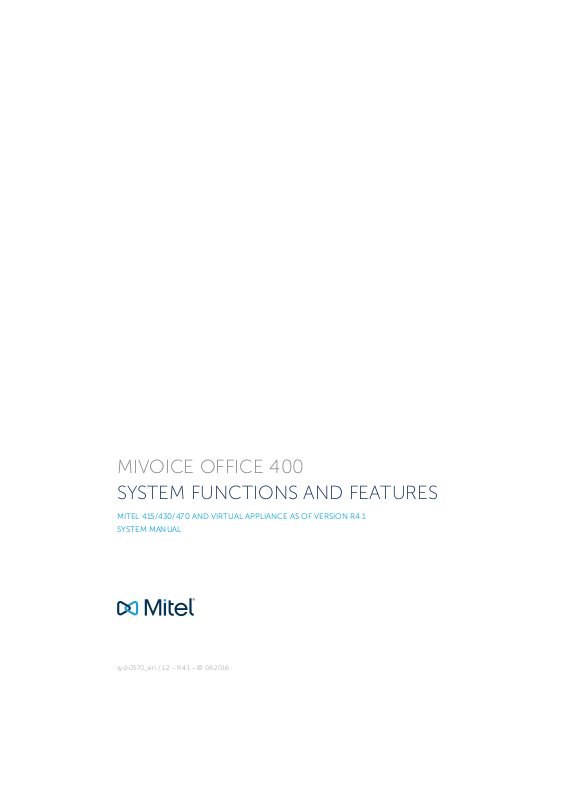

MIVOICE OFFICE 400

SYSTEM FUNCTIONS AND FEATURES

MITEL 415/430/470 AND VIRTUAL APPLIANCE AS OF VERSION R4.1

SYSTEM MANUAL

syd-0570_en / 1.2 – R4.1 – © 08.2016

Page 2

NOTICE

The information contained in this document is believed to be accurate in all respects but is not warranted by Mitel Networks Corporation. The information is subject to change without notice and should not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document. Revisions of this document or new editions of it may be issued to incorporate such changes.

No part of this document can be reproduced or transmitted in any form or by any means - electronic or mechanical - for any purpose without written permission from Mitel Networks Corporation.

TRADEMARKS

The trademarks, service marks, logos and graphics (collectively “Trademarks”) appearing on Mitel's Internet sites or in its publications are registered and unregistered trademarks of Mitel Networks Corporation (MNC) or its subsidiaries (collectively "Mitel") or others. Use of the Trademarks is prohibited without the express consent from Mitel. Please contact our legal department for additional information:

legal@mitel.com

For a list of the worldwide Mitel Networks Corporation registered trademarks, please refer to the website: http://www.mitel.com/trademarks.

Mitel’s Power Over Ethernet (PoE) Powered Device (PD) products are covered by one or more of the U.S. patents (and any foreign patent counterparts thereto) identified at Mitel’s website: www.mitel.com/patents

For more information on the PD patents that are licensed, please refer to.

www.cmspatents.com

PATENT NOTE ON POWER OVER ETHERNET

System functions and features as of R4.1

syd-0570/1.2 – 08.2016

®, ™ Trademark of Mitel Networks Corporation

Page 3

Content

1 Product and Safety Information . . . . . . . . . . . . . . . . 13

1. 1 About Mitel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1. 2 Product information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1. 3 Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1. 4 Data protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1. 5 About this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1. 6 Limited Warranty (Australia only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2 System interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2. 1 Network Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2. 1. 1 Basic Access Variants. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2. 1. 1. 1 Basic rate interface BRI-T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2. 1. 1. 2 Basic rate interfaces BRI-S external . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2. 1. 1. 3 Point-to-Point and Point-to-Multipoint Connections . . . . . . . . . . . . . . 26

2. 1. 2 Primary rate interface PRI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

2. 1. 2. 1 Clock synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

2. 1. 2. 2 Digital down-circuit connection with QSIG . . . . . . . . . . . . . . . . . . . . . 32

2. 1. 2. 3 Direct Dialling Out (DDO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

2. 1. 3 SIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

2. 1. 3. 1 What is SIP? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

2. 1. 3. 2 Security aspects with VoIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

2. 1. 3. 3 SIP in MiVoice Office 400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

2. 1. 3. 4 SIP RFCs supported by MiVoice Office 400 . . . . . . . . . . . . . . . . . . . . 41

2. 1. 3. 5 SIP access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

2. 1. 4 Analogue Network Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

2. 1. 4. 1 Analogue down-circuit connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

2. 1. 4. 2 Attenuation on analogue network interfaces . . . . . . . . . . . . . . . . . . . . 46

2. 2 Terminal interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

2. 2. 1 Digital user-network interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

2. 2. 1. 1 Terminal interface BRI-S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

2. 2. 1. 2 DSI terminal interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

2. 2. 1. 3 IP terminal interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

2. 2. 2 Analogue terminal interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

2. 3 Special Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

2. 3. 1 Ethernet interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

2. 3. 2 Interface for door intercom system . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

2. 3. 3 Interface for General Bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

3 Numbering plan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

3. 1 Numbering Plan Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

3. 2 The System's Numbering Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 4

3. 2. 1 Categories in the Numbering Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

3. 2. 2 Exchange Access Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

3. 2. 3 Category for abbreviated dialling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

3. 2. 4 Category for emergency number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

3. 2. 5 Category for users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

3. 2. 5. 1 Internal users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

3. 2. 5. 2 Integrating mobile and external phones . . . . . . . . . . . . . . . . . . . . . . . 61

3. 2. 5. 3 Mitel Mobile Client / Mitel Mobile Client Controller . . . . . . . . . . . . . . . 64

3. 2. 5. 4 Virtual terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

3. 2. 6 PISN users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

3. 2. 7 Separate Regional Prefix Category . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

3. 2. 8 Shared Numbering Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

3. 2. 9 PISN with different Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

4 Identification elements. . . . . . . . . . . . . . . . . . . . . . . .71

4. 1 Internal and External Ringing Patterns . . . . . . . . . . . . . . . . . . . . . . . . 71

4. 2 Displaying Numbers (CLIP) and Names (CNIP) . . . . . . . . . . . . . . . . . 73

4. 2. 1 Displaying the CLIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

4. 3 CLIP with Incoming Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

4. 3. 1 Analysing and Editing the CLIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

4. 3. 2 Presentation of the CLIP on the Terminal . . . . . . . . . . . . . . . . . . . . . . 77

4. 3. 3 Replicating the Name Display in the Communication Server . . . . . . . 77

4. 3. 4 Flow charts for name identification (CNIP) . . . . . . . . . . . . . . . . . . . . . 78

4. 4 CLIP with Outgoing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

4. 4. 1 Creating the CLIP in the communication server . . . . . . . . . . . . . . . . . 80

4. 4. 2 Entering a fixed CLIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

4. 4. 3 Suppressing CLIP / COLP (CLIR / COLR) . . . . . . . . . . . . . . . . . . . . . 81

4. 4. 4 CLIP flowcharts for Outgoing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

4. 4. 5 CLIP Display with a Virtual Network PISN User . . . . . . . . . . . . . . . . . 84

4. 5 Display for Call Forwarding Unconditional . . . . . . . . . . . . . . . . . . . . . 84

4. 5. 1 Information displayed to the called user . . . . . . . . . . . . . . . . . . . . . . . 84

4. 5. 1. 1 Outgoing call with local call forwarding . . . . . . . . . . . . . . . . . . . . . . . . 85

4. 5. 1. 2 Incoming call with CDE overflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

4. 5. 1. 3 Incoming call that is already redirected . . . . . . . . . . . . . . . . . . . . . . . . 85

4. 5. 2 Information displayed to the calling user . . . . . . . . . . . . . . . . . . . . . . . 86

4. 5. 2. 1 Incoming call with local call forwarding . . . . . . . . . . . . . . . . . . . . . . . . 86

4. 5. 2. 2 Incoming call with CDE overflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

4. 5. 2. 3 Outgoing call with non-local redirection. . . . . . . . . . . . . . . . . . . . . . . . 87

4. 6 CLIP / COLP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

4. 6. 1 Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

4. 6. 2 PISN user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

4. 6. 3 Trunk group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

4. 6. 4 CLIP/CLIR settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

4. 6. 5 Numbering plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

4. 7 Examples of CLIP Displays in the PISN . . . . . . . . . . . . . . . . . . . . . . . 93

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 5

4. 7. 1 PISN-Internal Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

4. 7. 2 Outgoing Calls to the Public Network . . . . . . . . . . . . . . . . . . . . . . . . . 96

4. 7. 3 Incoming calls from the public network . . . . . . . . . . . . . . . . . . . . . . . . 99

4. 7. 4 CLIP format for transit connections in networks . . . . . . . . . . . . . . . . 102

4. 8 CLIP on analogue exchange accesses . . . . . . . . . . . . . . . . . . . . . . . 102

5 Routing elements . . . . . . . . . . . . . . . . . . . . . . . . . . .103

5. 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

5. 2 Trunk groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

5. 2. 1 Trunk Groups of Network Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . 108

5. 2. 2 Routing Functions of the Trunk Group for Incoming Calls. . . . . . . . . 110

5. 2. 3 Trunk Group Identification Functions. . . . . . . . . . . . . . . . . . . . . . . . . 110

5. 2. 4 Other Trunk Group Functions and Settings. . . . . . . . . . . . . . . . . . . . 111

5. 3 Route. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

5. 3. 1 The Route’s Routing Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

5. 3. 2 Routing an Outgoing Call to a Trunk Group . . . . . . . . . . . . . . . . . . . 114

5. 3. 3 Other Routing Functions for Outgoing Calls . . . . . . . . . . . . . . . . . . . 115

5. 4 Direct Dialling Plan (DDI plan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

5. 5 Call Distribution Element (CDE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

5. 5. 1 Call destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

5. 5. 2 Routing Functions for Incoming Calls . . . . . . . . . . . . . . . . . . . . . . . . 126

5. 5. 3 Routing Functions for Outgoing Calls . . . . . . . . . . . . . . . . . . . . . . . . 127

5. 5. 4 Other Functions and Settings of the CDE . . . . . . . . . . . . . . . . . . . . . 127

5. 6 Switch Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

5. 7 User group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

5. 7. 1 Ordinary user groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

5. 7. 1. 1 Elements of a User Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

5. 7. 1. 2 Call distribution in the member group . . . . . . . . . . . . . . . . . . . . . . . . 134

5. 7. 2 Large user groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

5. 7. 3 User Groups for Voice Mail and Other Applications . . . . . . . . . . . . . 139

5. 7. 3. 1 User Groups 14, 15 and 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

5. 7. 3. 2 User group 14, 15 and 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

5. 7. 3. 3 User groups 30 - 99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

5. 7. 3. 4 Application example for a user group . . . . . . . . . . . . . . . . . . . . . . . . 141

5. 8 User Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

5. 8. 1 Routing Functions for Incoming Calls . . . . . . . . . . . . . . . . . . . . . . . . 142

5. 8. 2 Routing Functions for Outgoing Calls . . . . . . . . . . . . . . . . . . . . . . . . 143

5. 9 Operator phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

5. 9. 1 Routing Functions for Incoming Calls . . . . . . . . . . . . . . . . . . . . . . . . 144

5. 9. 2 Routing Functions for Outgoing Calls . . . . . . . . . . . . . . . . . . . . . . . . 145

5. 9. 3 Two-company system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

5. 9. 4 Capolinea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

5. 10 General bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

5. 11 Key Telephones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

5. 11. 1 Using Terminals as Key Telephones. . . . . . . . . . . . . . . . . . . . . . . . . 149

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 6

5. 11. 2 KT lines and Line Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

5. 11. 3 Incoming Calls via a KT Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

5. 11. 4 Outgoing Calls via a KT Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

5. 11. 4. 1 Application Examples for Key Telephones . . . . . . . . . . . . . . . . . . . . 156

5. 11. 4. 2 Destination KT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

5. 12 Queue with announcement (Number in Queue) . . . . . . . . . . . . . . . . 159

5. 13 ACD Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

6 Call routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

6. 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

6. 2 Internal traffic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

6. 2. 1 Internal Destinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

6. 2. 2 Dialling internal destinations via external call numbers . . . . . . . . . . . 164

6. 2. 3 Internal digit Barring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

6. 2. 4 Internal ringing duration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

6. 3 Incoming traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

6. 3. 1 Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

6. 3. 1. 1 Call from the Public Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

6. 3. 1. 2 Call from the Private Leased-Line Network . . . . . . . . . . . . . . . . . . . . 172

6. 3. 2 CLIP-based routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

6. 3. 2. 1 Blacklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

6. 3. 2. 2 CLIP based routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

6. 3. 3 Personal call routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

6. 3. 4 Call Forwarding Unconditional if no answer . . . . . . . . . . . . . . . . . . . 178

6. 3. 4. 1 CDE Alternative Destinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

6. 3. 4. 2 Default call forwarding per user. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

6. 3. 5 Response if busy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

6. 3. 5. 1 Response if the call destination is busy . . . . . . . . . . . . . . . . . . . . . . 180

6. 3. 5. 2 Forwarding a call if busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

6. 3. 5. 3 Not Forwarding a Call if busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

6. 3. 5. 4 Release Destination if Incoming Dialling is Incomplete . . . . . . . . . . . 185

6. 3. 6 Response if unobtainable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

6. 3. 7 Emergency Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

6. 3. 7. 1 Routing if the Call Destination is busy. . . . . . . . . . . . . . . . . . . . . . . . 188

6. 3. 7. 2 Release Destination if Dialling is Incomplete . . . . . . . . . . . . . . . . . . 189

6. 3. 8 Automatic reject of collect calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

6. 4 Outgoing traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

6. 4. 1 Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

6. 4. 2 Digit barring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

6. 4. 3 Call to the Public Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

6. 4. 3. 1 Routing the call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

6. 4. 3. 2 Call to the public Network via a Key Telephone . . . . . . . . . . . . . . . . 200

6. 4. 3. 3 Call to the public Network via an operator console . . . . . . . . . . . . . . 201

6. 4. 3. 4 Call to the public network with external numbering plan . . . . . . . . . . 201

6. 4. 3. 5 Call to a virtual Network PISN User . . . . . . . . . . . . . . . . . . . . . . . . . 201

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 7

6. 4. 3. 6 Exchange access authorization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

6. 4. 3. 7 Priority exchange allocation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

6. 4. 4 Call to the private Leased-Line Network . . . . . . . . . . . . . . . . . . . . . . 205

6. 4. 5 Call to a DSS1 terminal equipment on the S Bus (DDO) . . . . . . . . . 206

6. 5 Least Cost Routing (LCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

6. 5. 1 Direct or indirect selection of the network provider . . . . . . . . . . . . . . 207

6. 5. 2 LCR function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

6. 5. 3 Allocating the internal routing table (LCR table) . . . . . . . . . . . . . . . . 212

6. 5. 4 Selecting the Network Provider (Routing Tables) . . . . . . . . . . . . . . . 215

6. 5. 4. 1 Time zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

6. 5. 4. 2 Alternative Routing (Fallback Routing) . . . . . . . . . . . . . . . . . . . . . . . 216

6. 5. 4. 3 Restricted scope of performance by a Network Provider . . . . . . . . . 217

6. 5. 5 Conversion and Routing (Network Provider Table) . . . . . . . . . . . . . . 217

6. 5. 6 Bypassing LCR manually (Forced Routing) . . . . . . . . . . . . . . . . . . . 220

6. 5. 7 LCR with Key Telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

6. 5. 8 LCR in the private Leased-line Network . . . . . . . . . . . . . . . . . . . . . . 221

6. 5. 9 Call logging and Data Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

6. 5. 10 Examples of LCR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

6. 5. 11 Higher-Level LCR Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

6. 6 Exchange-to-Exchange Connection . . . . . . . . . . . . . . . . . . . . . . . . . 224

6. 6. 1 Exchange-to-Exchange Connections . . . . . . . . . . . . . . . . . . . . . . . . 224

6. 6. 1. 1 Setting up Exchange-to-Exchange Connections . . . . . . . . . . . . . . . . 226

6. 6. 1. 2 Clearing down Exchange-to-Exchange Connections . . . . . . . . . . . . 226

6. 6. 1. 3 Possible Exchange-to-Exchange Connections . . . . . . . . . . . . . . . . . 228

6. 6. 2 Transferring Call Forwarding Unconditional to the Exchange . . . . . . 231

6. 6. 3 Three-Party Connections in the Exchange . . . . . . . . . . . . . . . . . . . . 234

6. 7 Transit Routing in the Private Leased-Line Network . . . . . . . . . . . . . 237

6. 7. 1 From the Public Network to the Private Leased-Line Network . . . . . 238

6. 7. 2 From the private leased-line network into the public network . . . . . . 241

6. 7. 3 From the private leased-line network into the private leased-line

network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

6. 8 Testing overflow routing in the PISN . . . . . . . . . . . . . . . . . . . . . . . . . 246

6. 8. 1 Overflow routing within the private leased-line network . . . . . . . . . . 247

6. 8. 2 Overflow routing via the public network. . . . . . . . . . . . . . . . . . . . . . . 248

6. 9 Break-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

7 Data service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255

7. 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255

7. 2 Data-service connections and destination tables . . . . . . . . . . . . . . . 255

7. 3 Routing in the private leased-line network. . . . . . . . . . . . . . . . . . . . . 259

7. 4 User-to-user signalling (UUS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

7. 5 Fax service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

8 Call logging (CL) . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

8. 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 8

8. 2 Individual charge counting or ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

8. 2. 1 Cumulative counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

8. 2. 2 Surcharge calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

8. 2. 3 ICC reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

8. 3 Call logging for outgoing calls (OCL). . . . . . . . . . . . . . . . . . . . . . . . . 271

8. 3. 1 General OCL settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

8. 3. 2 Surcharge calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

8. 3. 3 Data protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

8. 3. 4 Cost centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

8. 3. 5 Charge management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

8. 3. 6 Virtual charges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

8. 4 Call logging for incoming calls (ICL) . . . . . . . . . . . . . . . . . . . . . . . . . 278

8. 5 Call data output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

8. 5. 1 Output types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

8. 6 Printer faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

8. 7 Output formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

8. 7. 1 Structure of the PC5 output format . . . . . . . . . . . . . . . . . . . . . . . . . . 283

8. 7. 2 Data fields of the PC format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

8. 7. 2. 1 Explanation of the data fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

8. 7. 3 Examples of the PC5 output on a stand-alone communication

server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

8. 7. 3. 1 Outgoing calls to the public network . . . . . . . . . . . . . . . . . . . . . . . . . 293

8. 7. 3. 2 Incoming calls from the public network . . . . . . . . . . . . . . . . . . . . . . . 293

8. 7. 4 Examples of PC5 output in a PISN . . . . . . . . . . . . . . . . . . . . . . . . . . 299

8. 7. 5 Protocol format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

8. 7. 6 Invoice format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

8. 7. 7 Output formats PC1 to PC4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

8. 7. 7. 1 PC1 format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

8. 7. 7. 2 PC2 format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

8. 7. 7. 3 PC3 format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312

8. 7. 7. 4 PC4 format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

9 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

9. 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

9. 1. 1 Description categories and terminology . . . . . . . . . . . . . . . . . . . . . . 316

9. 1. 2 Information about the system phones . . . . . . . . . . . . . . . . . . . . . . . . 317

9. 1. 3 Terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318

9. 2 Network services, authorizations and operation . . . . . . . . . . . . . . . . 318

9. 2. 1 ISDN services supported by the system . . . . . . . . . . . . . . . . . . . . . . 318

9. 2. 1. 1 External services and internal features . . . . . . . . . . . . . . . . . . . . . . . 318

9. 2. 1. 2 ISDN supplementary services supported . . . . . . . . . . . . . . . . . . . . . 320

9. 2. 2 Notifications supported by the system. . . . . . . . . . . . . . . . . . . . . . . . 322

9. 2. 3 SIP-RFC supported by MiVoice Office 400 . . . . . . . . . . . . . . . . . . . . 323

9. 2. 4 Features in the private network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323

9. 2. 4. 1 Networking with QSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 9

9. 2. 4. 2 Virtual Networking in the ISDN Network . . . . . . . . . . . . . . . . . . . . . . 324

9. 2. 5 Features in the up-circuit communication server. . . . . . . . . . . . . . . . 324

9. 2. 6 Features operated via QSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

9. 2. 6. 1 User-unrelated features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

9. 2. 6. 2 User-related features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

9. 2. 7 User-related authorizations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326

9. 2. 8 Exchange access authorizations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326

9. 2. 9 Operating the features on the terminal . . . . . . . . . . . . . . . . . . . . . . . 327

9. 2. 9. 1 Feature activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

9. 2. 9. 2 Configurable keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328

9. 2. 10 Languages supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329

9. 3 One number concept and personal call routing. . . . . . . . . . . . . . . . . 331

9. 4 Call Forwarding Unconditional functions . . . . . . . . . . . . . . . . . . . . . . 333

9. 4. 1 Call Forwarding Unconditional (CFU) . . . . . . . . . . . . . . . . . . . . . . . . 333

9. 4. 1. 1 Call Forwarding Unconditional to exchange . . . . . . . . . . . . . . . . . . . 336

9. 4. 1. 2 Wait for connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

9. 4. 1. 3 Examples of Call Forwarding Unconditional . . . . . . . . . . . . . . . . . . . 337

9. 4. 2 Follow me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339

9. 4. 3 Call Forwarding on No Reply (CFNR) . . . . . . . . . . . . . . . . . . . . . . . . 340

9. 4. 4 Deflecting a call during the ringing phase (CD) . . . . . . . . . . . . . . . . . 342

9. 4. 5 Reject call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344

9. 4. 6 Twin Mode / Twin Comfort. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345

9. 4. 7 Do not disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347

9. 4. 8 Substitution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348

9. 4. 9 DECT Follow Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

9. 4. 9. 1 DECT Follow Me in a Network with 2, 3 or 4 Systems . . . . . . . . . . . 350

9. 4. 10 Organising absences on the workstation. . . . . . . . . . . . . . . . . . . . . . 351

9. 5 Connections involving several users . . . . . . . . . . . . . . . . . . . . . . . . . 353

9. 5. 1 Music on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353

9. 5. 2 Hold (enquiry call) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356

9. 5. 3 Enquiry call with return to initial call. . . . . . . . . . . . . . . . . . . . . . . . . . 357

9. 5. 4 Brokering (switching back and forth between two calls) . . . . . . . . . . 358

9. 5. 5 Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359

9. 5. 5. 1 Variable and preconfigured conference. . . . . . . . . . . . . . . . . . . . . . . 360

9. 5. 5. 2 Three-party conference from an enquiry call. . . . . . . . . . . . . . . . . . . 362

9. 5. 5. 3 Conference bridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363

9. 5. 6 Call transfer (switching). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366

9. 5. 6. 1 Call transfer with prior notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366

9. 5. 6. 2 Call transfer without prior notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

9. 5. 6. 3 Call transfer if busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

9. 5. 7 Recall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371

9. 5. 8 Call acceptance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 372

9. 6 Added features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

9. 6. 1 Voice mail system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

9. 6. 1. 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 10

9. 6. 1. 2 Voice memory capacity and voice channels . . . . . . . . . . . . . . . . . . . 374

9. 6. 1. 3 Operation of the voice mail functions . . . . . . . . . . . . . . . . . . . . . . . . 375

9. 6. 1. 4 Recording greetings with the PC and uploading them onto the

communication system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376

9. 6. 1. 5 Audio guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377

9. 6. 1. 6 Auto-Attendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377

9. 6. 1. 7 Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380

9. 6. 1. 8 Access concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382

9. 6. 1. 9 System configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382

9. 6. 1. 10 Functions in prefix dialling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383

9. 6. 1. 11 Suffix dialling functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

9. 6. 2 Dialling by name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

9. 6. 3 End-of-selection signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

9. 6. 4 Call waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

9. 6. 5 Intrusion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

9. 6. 6 Silent intrusion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

9. 6. 7 Normal announcement to one or more users . . . . . . . . . . . . . . . . . . 394

9. 6. 8 Emergency announcement to one or more users . . . . . . . . . . . . . . . 399

9. 6. 9 Duplex mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400

9. 6. 10 Charge recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402

9. 6. 11 Picking up a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

9. 6. 12 Hotline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

9. 6. 13 Sending and reading text messages . . . . . . . . . . . . . . . . . . . . . . . . . 407

9. 6. 14 Message function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

9. 6. 15 Leave message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

9. 6. 16 Text messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411

9. 6. 17 Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

9. 6. 17. 1 Local call parking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

9. 6. 17. 2 Central call parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

9. 6. 17. 3 Call parking function of the key telephone . . . . . . . . . . . . . . . . . . . . 415

9. 6. 17. 4 Call parking function on the operator console . . . . . . . . . . . . . . . . . . 416

9. 6. 18 Callback if user busy / free . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

9. 6. 18. 1 Callback if user busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

9. 6. 18. 2 Callback to free user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

9. 6. 18. 3 Wait until free . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419

9. 6. 19 Team functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

9. 6. 20 Locking and unlocking terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

9. 6. 20. 1 Locking / unlocking terminals (telephone lock) . . . . . . . . . . . . . . . . . 422

9. 6. 20. 2 Unlocking the terminal for each call . . . . . . . . . . . . . . . . . . . . . . . . . 423

9. 6. 21 Making calls with your own settings on a third-party phone . . . . . . . 425

9. 6. 22 Private calls with PIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426

9. 6. 23 Appointment call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427

9. 6. 24 Acceptance of a call or data connection:. . . . . . . . . . . . . . . . . . . . . . 428

9. 6. 24. 1 Preliminaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428

9. 6. 24. 2 Accepting the connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 11

9. 6. 25 Take (taking a call) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

9. 6. 26 Fast Take (pick up a call or a call connection) . . . . . . . . . . . . . . . . . 431

9. 6. 27 Room monitoring (Baby surveillance) . . . . . . . . . . . . . . . . . . . . . . . . 433

9. 6. 27. 1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

9. 6. 27. 2 Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

9. 6. 27. 3 Active room monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

9. 6. 27. 4 Passive room monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437

9. 6. 28 Call recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

9. 7 Special features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441

9. 7. 1 Coded ringing on general bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441

9. 7. 1. 1 Answer general bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

9. 7. 1. 2 General bell on analogue terminal interface FXS . . . . . . . . . . . . . . . 443

9. 7. 2 Announcement service (announcement prior to answering) . . . . . . . 443

9. 7. 3 Queue with announcement (Number in Queue) . . . . . . . . . . . . . . . . 449

9. 7. 4 Clear configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451

9. 7. 5 LCR Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452

9. 7. 6 Emergency numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452

9. 7. 7 Suppression of the call number display. . . . . . . . . . . . . . . . . . . . . . . 454

9. 7. 8 Record malicious calls (MCID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455

9. 7. 9 User group: Logging in and logging out. . . . . . . . . . . . . . . . . . . . . . . 457

9. 7. 10 Home alone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458

9. 7. 11 Switching switch groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460

9. 7. 12 Switch control outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 462

9. 7. 13 Door function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463

9. 7. 13. 1 Door bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463

9. 7. 13. 2 Open door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465

9. 7. 13. 3 Dial door intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466

9. 7. 14 System time and system date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467

9. 7. 15 Free seating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 469

9. 7. 16 Dual Homing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470

9. 8 Remote control features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472

9. 8. 1 Remote controlling features from within the system . . . . . . . . . . . . . 474

9. 8. 2 Remote controlling features from outside the system . . . . . . . . . . . . 475

9. 8. 3 Time-controlled functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 475

9. 9 Hospitality/Hotel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

9. 9. 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478

9. 9. 2 Configuration and operating concept. . . . . . . . . . . . . . . . . . . . . . . . . 479

9. 9. 3 Network printer and Mitel 400 Print Spooler . . . . . . . . . . . . . . . . . . . 481

9. 9. 4 Function codes in prefix dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 481

9. 9. 5 Setting up phone booths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 484

9. 10 PIN telephony with Mitel OpenCount. . . . . . . . . . . . . . . . . . . . . . . . . 487

9. 11 Message and Alarm Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 489

9. 11. 1 Internal messaging system for system phones . . . . . . . . . . . . . . . . . 489

9. 11. 2 Expanded messaging system with 9d-DECT phones . . . . . . . . . . . . 489

9. 11. 3 External messaging and alarm systems . . . . . . . . . . . . . . . . . . . . . . 490

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 12

9. 11. 3. 1 Message handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490

9. 11. 3. 2 Alarm handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491

9. 11. 3. 3 Alarm trigger with ATAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491

9. 11. 3. 4 Alarm trigger with ATAS/ATASpro . . . . . . . . . . . . . . . . . . . . . . . . . . 494

9. 11. 3. 5 Functions with Mitel Alarm Server. . . . . . . . . . . . . . . . . . . . . . . . . . . 495

9. 11. 3. 6 Interface descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 498

10 Features overview . . . . . . . . . . . . . . . . . . . . . . . . . . 498

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 13

Product and Safety Information

1 Product and Safety Information

Here you will find information relating to safety, data protection and legal matters besides product and documentation information.

Please read through the product and safety information carefully.

1. 1 About Mitel

Mitel (Nasdaq:MITL) (TSX:MNW) is a global leader in business communications that easily connect employees, partners and customers - anywhere, anytime and over any device, for the smallest business to the largest enterprise. Mitel offers customers maximum choice with one of the industry’s broadest portfolios and the best path to the cloud. With more than US$1 billion in combined annual revenue, 60 million customers worldwide, and #1 market share in Western Europe, Mitel is a clear market leader in business communications. For more information, go to www.mitel.com.

1. 2 Product information

Purpose and function

MiVoice Office 400 is an open, modular and comprehensive communication solution for the business sector with several communication servers of different performance and expansion capacity, an extensive telephone portfolio and a multitude of expansions. They include an application server for unified communications and multimedia services, an FMC controller for mobile phone integration, an open interface for application developers, and a multitude of expansion cards and modules.

The business communication solution with all its elements was designed to cover the full spectrum of communication requirements of businesses and organizations in a user and maintenance-friendly way. The individual products and parts are co-ordinated and cannot be used for other purposes or replaced by outside products or parts (except to connect up other authorized networks, applications and phones to the interfaces certified for that purpose).

User groups

The phones, soft phones and PC applications of the MiVoice Office 400 communication solution are particularly user friendly in design and can be used by all end users without any specific product training.

The phones and PC applications for professional applications, such as the PC operator consoles or call centre applications, do require training of the personnel.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 14

Product and Safety Information

Specialist knowledge of IT and telephony is assumed for the planning, installation, configuration, commissioning and maintenance. Regular attendance at product training courses is strongly recommended.

User information

MiVoice Office 400 products are supplied with safety and product information, quick user guides and user guides.

These and all other user documents such as system manuals are available for download from the MiVoice Office 400 DocFinder as individual documents or as a documentation set. Some user documents are accessible only via a partner login.

It is your responsibility as a specialist retailer to keep up to date with the scope of functions, the proper use and the operation of the MiVoice Office 400 communication solution and to inform and instruct your customers about all the user-related aspects of the installed system:

• Please make sure you have all the user documents required to install, configure and

commission an MiVoice Office 400 communication system and to operate it efficiently and correctly.

• Make sure that the versions of the user documents comply with the software level of

the MiVoice Office 400 products used and that you have the latest editions.

• Always read the user documents first before you install, configure and put an

MiVoice Office 400 communication system into operation.

• Ensure that all end users have access to the User Guides.

Download the MiVoice Office 400 documents from the internet: www.mitel.com/DocFinder

Conformity

Mitel Schweiz AG hereby declares, that the MiVoice Office 400 products

• comply with the basic requirements and other stipulations of Directives EMC

(2014/30/EU) and LVD (2014/35/EU).

• are manufactured in conformity with RoHS according to Directive 2011/65/EU.

You can find the product specific declarations of conformities under www.mi-

tel.com/regulatory-declarations.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 15

Product and Safety Information

Use of third party software

MiVoice Office 400 products comprise, or are partially based on, third-party software products. The licence information for these third-party products is listed in the user's guide of the MiVoice Office 400 product in question.

Exclusion of Liability

(Not valid for Australia. See the chapter "Limited Warranty (Australia only)", page 20 for the limited guarantee in Australia.)

All parts and components of the MiVoice Office 400 communication solution are manufactured in accordance with ISO 9001 quality guidelines. The relevant user information has been compiled with the utmost care. The functions of the MiVoice Office 400 products have been tested and approved after comprehensive conformity tests. Nonetheless errors cannot be entirely excluded. The manufacturers shall not be liable for any direct or indirect damage that may be caused by incorrect handling, improper use, or any other faulty behaviour. Potential areas of particular risk are signalled in the appropriate sections of the user information. Liability for loss of profit shall be excluded in any case.

Environment

MiVoice Office 400 products are delivered in recycled, chlorine-free corrugated cardboard packaging. The parts are also wrapped inside a protective fleece made of polyethylene foam fleece or polyethylene film for added protection during shipping. The packaging is to be disposed of in accordance with the guidelines stipulated under current legislation.

MiVoice Office 400 products contain plastics based on a pure ABS, sheet steel with an aluminium-zinc or zinc finish, and epoxy resin-based PCBs. These materials are to be disposed of in accordance with the guidelines stipulated under current legislation.

MiVoice Office 400 products are disassembled exclusively using detachable screwed connections.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 16

Product and Safety Information

1. 3 Safety Information

Reference to hazards

Hazard warnings are affixed whenever there is a risk that improper handling may put people at risk or cause damage to the MiVoice Office 400 product. Please take note of these warnings and follow them at all times. Please also take note in particular of hazard warnings contained in the user information.

Operating safety

MiVoice Office 400 communication servers are operated on 115 or 230 VAC mains power. Communication servers and all their components (e.g. telephones) will not operate when mains power fails. Interruptions in the power supply will cause the entire system to restart. A UPS system has to be connected up-circuit to ensure an uninterruptible power supply. Up to a specific performance limit a Mitel 470 communication server can also be powered redundantly using an auxiliary power supply. For more information please refer to your communication server's system manual.

When the communication server is started for the first time, all the configuration data is reset. You are advised to backup your configuration data on a regular basis as well as before and after any changes.

Installation and operating instructions

Before you begin with the installation of the MiVoice Office 400 communication server:

• Check that the delivery is complete and undamaged. Notify your supplier immedi-

ately of any defects; do not install or put into operation any components that may be faulty.

• Check that you have all the relevant user documents at your disposal.

• During the installation follow the installation instructions for your MiVoice Office 400

product and observe to the letter the safety warnings they contain.

Any servicing, expansion or repair work is to be carried out only by technical personnel with the appropriate qualifications.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 17

Product and Safety Information

1. 4 Data protection

Protection of user data

During operation the communication system records and stores user data (e.g. call data, contacts, voice messages, etc.). Protect this data from unauthorised access by using restrictive access control:

• For remote management use SRM (Secure IP Remote Management) or set up the IP network in such a way that from the outside only authorised persons have access to the IP addresses of the MiVoice Office 400 products.

• Restrict the number of user accounts to the minimum necessary and assign to the user accounts only those authorisation profiles that are actually required.

• Instruct system assistants to open the remote maintenance access to the communication server only for the amount of time needed for access.

• Instruct users with access rights to change their passwords on a regular basis and keep them under lock and key.

Protection against listening in and recording

The MiVoice Office 400 communication solution comprises features which allow calls to be monitored or recorded without the call parties noticing. Inform your customers that these features can only be used in compliance with national data protection provisions.

Unencrypted phone calls made on the IP network can be recorded and played back by anyone with the right resources:

• Use encrypted voice transmission whenever possible.

• For WAN links used for transmitting calls from IP or SIP phones, use as a matter of preference either the customer's own dedicated leased lines or VPN encrypted connection paths.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 18

Product and Safety Information

1. 5 About this document

This document describes the system functions and features of communication servers of the MiVoice Office 400 series. The expansion stages, system capacity, installation, configuration, the operation and maintenance, the technical data, the DECT planning, and the possibilities for networking several systems into a private network (PISN) or an Mitel Advanced Intelligent Network (AIN) are not part of this Manual. They are described in separate documents.

The document is intended for planners, installers and system managers of phone systems. Basic knowledge of telephony, especially of ISDN and IP technology, is needed to understand the content.

The system manual is available in Acrobat Reader format and can be printed out if necessary. Navigation in PDF format is based on the bookmarks, table of contents, cross references and index. All these navigation aids are linked, i.e. a mouse click takes you directly to the corresponding places in the Manual. We have also ensured that the page numbering in the PDF navigation corresponds to the page numbering of the Manual, making it much easier to jump to a particular page.

Referenced menu entries and parameters appearing on terminal displays or on the user interfaces of the configuration tools are highlighted in italics and in colour for a clearer orientation.

Document information

• Document number: syd-0570

• Document version: 1.2

• Valid as of / based on: R4.1 / R4.1

• In PDF viewer, click on this link to download the latest version of this document:

https://pbxweb.aastra.com/doc_finder/DocFinder/syd-0570_en.pdf?get&DNR=syd-0570

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 19

Product and Safety Information

Hazard alert messages

Special hazard alert messages with pictograms are used to signal areas of particular risk to people or equipment.

Hazard:

Failure to observe information identified in this way can put people and hardware at risk through electrical shock or short-circuits respectively.

Warning:

Failure to observe information identified in this way can cause a defect of the product or to a module.

Note:

Failure to observe information identified in this way can lead to equipment faults or malfunctions or affect the performance of the system.

General Considerations

Special symbols for additional information and document references.

Note

Failure to observe information identified in this way can lead to equipment faults or malfunctions or affect the performance of the system.

Tip

Additional information on the handling or alternative operation of equipment.

1. 6 Limited Warranty (Australia only)

The benefits under the Mitel Limited Warranty below are in addition to other rights and remedies to which you may be entitled under a law in relation to the products.

In addition to all rights and remedies to which you may be entitled under the Competition and Consumer Act 2010 (Commonwealth) and any other relevant legislation, Mitel warrants this product against defects and malfunctions in accordance with Mitel's authorized, written functional specification relating to such products during a one (1) year period from the date of original purchase ("Warranty Period"). If there is a defect or malfunction, Mitel shall, at its option, and as the exclusive remedy under this limited warranty, either repair or replace the product at no charge, if returned within the warranty period.

Exclusions

Mitel does not warrant its products to be compatible with the equipment of any particular telephone company. This warranty does not extend to damage to products resulting from improper installation or operation, alteration, accident, neglect, abuse, misuse, fire or natural causes such as storms or floods, after the product is in your possession. Mitel will not accept liability for any damages and/or long distance charges, which result from unauthorized and/or unlawful use.

To the extent permitted by law, Mitel shall not be liable for any incidental damages, including, but not limited to, loss, damage or expense directly or indirectly arising from your use of or inability to use this product, either separately or in combination with other equipment. This paragraph, however, is not intended to have the effect of excluding, restricting or modifying the application of all or any of the provisions of Part 5-4 of Schedule 2 to the Competition and Consumer Act 2010 (the ACL), the exercise of a right conferred by such a provision or any liability of Mitel in relation to a failure to comply with a guarantee that applies under Division 1 of Part 3-2 of the ACL to a supply of goods or services.

This express warranty sets forth the entire liability and obligations of Mitel with respect to breach of this express warranty and is in lieu of all other express or implied warranties other than those conferred by a law whose application cannot be excluded, restricted or modified. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 21

Product and Safety Information

Repair Notice

To the extent that the product contains user-generated data, you should be aware that repair of the goods may result in loss of the data. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. If it is necessary to replace the product under this limited warranty, it may be replaced with a refurbished product of the same design and colour.

If it should become necessary to repair or replace a defective or malfunctioning product under this warranty, the provisions of this warranty shall apply to the repaired or replaced product until the expiration of ninety (90) days from the date of pick up, or the date of shipment to you, of the repaired or replacement product, or until the end of the original warranty period, whichever is later. Proof of the original purchase date is to be provided with all products returned for warranty repairs.

Warranty Repair Services

Procedure: Should the product fail during the warranty period and you wish to make a claim under this express warranty, please contact the Mitel authorized reseller who sold you this product (details as per the invoice) and present proof of purchase. You will be responsible for shipping charges, if any.

Limitation of liability for products not of a kind ordinarily acquired for personal, domestic or household use or consumption (e.g. goods/services ordinarily supplied for businessuse).

Limitation of liability

1.1 To the extent permitted by law and subject to clause 1.2 below, the liability of Mitel to you for any non-compliance with a statutory guarantee or loss or damage arising out of or in connection with the supply of goods or services (whether for tort (including negligence), statute, custom, law or on any other basis) is limited to:

a) in the case of services:

i) the resupply of the services; or

ii) the payment of the cost of resupply; and

b) in the case of goods:

i) the replacement of the goods or the supply of equivalent goods; or

ii) the repair of the goods; or

iii) the payment of the cost of replacing the goods or of acquiring equivalent goods; or

iv) the payment of the cost of having the goods repaired.

1.2 Clause 1.1 is not intended to have the effect of excluding, restricting or modifying:

a) the application of all or any of the provisions of Part 5-4 of Schedule 2 to the Competition and Consumer

Act 2010 (the ACL); or

b) the exercise of a right conferred by such a provision; or

c) any liability of Mitel in relation to a failure to comply with a guarantee that applies under Division 1 of Part

3-2 of the ACL to a supply of goods or services.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 22

Product and Safety Information

After Warranty Service

Mitel offers ongoing repair and support for this product. If you are not otherwise entitled to a remedy for a failure to comply with a guarantee that cannot be excluded under the Australian Consumer Law, this service provides repair or replacement of your Mitel product, at Mitel's option, for a fixed charge. You are responsible for all shipping charges. For further information and shipping instructions contact:

Manufacturer:

Mitel South Pacific Pty Ltd ("Mitel") Level 1, 219 Castlereagh Street Sydney, NSW2000, Australia Phone: +61 2 9023 9500

Note:

Repairs to this product may be made only by the manufacturer and its authorized agents, or by others who are legally authorized. Unauthorized repair will void this express warranty.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 23

System interfaces

2 System interfaces

This chapter features the different types of digital and analogue network and terminal interfaces and points out a number of configuration particularities. The chapter ends with special interfaces for door intercoms and general bells.

Tab. 1 System interfaces and channels

Ter m Explanation

B channel User information channel: Each connection occupies one user information

D channel Control and signalling channel: Channel for control and signalling as well as

2B+D / 30B+D 2 B channels and 1D channel / 30B channels and 1D channel

Ports Physical connection points on the communication server for network inter-

Network interfaces Network-side connection possibilities for the communication server

• Basic rate interface BRI-T Digital network interface 2B+D

• Basic rate interface BRI-S

• Primary rate interface PRI Digital network interface 30B+D

• SIP access via the Ethernet interface on the basic system

• Analogue network interface (FXO network interface)

Terminal interfaces Terminal-side connection possibilities for the communication server

• ISDN terminal interface (Terminal interface BRI-S)

• Digital user-network interfaces (DSI terminal interface)

• IP terminal interface (via Ethernet Interface)

• Analogue terminal interfaces (FXS terminal interface)

Special interfaces Other connection possibilities for the communication server

• Ethernet interface on the basic system

• Door Intercom Systems Special interface for connecting door intercom systems

• General Bell Special interface for general bell

CAS (channel-associated signalling) is also used in some countries (e.g. Brazil).

external

channel, e.g. 2 user information channels (connections) can be occupied simultaneously using one basic access.

for packet data transfer.

faces and terminal interfaces

Digital network interface 2B+D: A terminal interface S configured as BRI-S external.

For connection to one or more SIP providers. An SIP access contains a maximum of 30 channels.

An analogue network connection has 1 user information channel.

Digital terminal interface 2B+D: Connection for Euro ISDN terminals, Terminal Adapters and ISDN PC cards.

A maximum of 2 digital system phones or one DECT radio unit can be operated on a proprietary DSI bus.

Digital terminal interface for linking up IP system phones and SIP phones (softphones and desk phones).

An analogue terminal connection has 1 user information channel.

Central interface for connecting WebAdmin, a CTI server, IP system phones, SIP terminals, for the network-side connection to an SIP service provider, or to implement a private network, etc.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 24

System interfaces

2. 1 Network Interfaces

The system supports the following types of network interfaces:

• Basic rate interface BRI-T for connection to

– the public ISDN network – the private leased-line network

• Basic access BRI-S

– the private leased-line network – a terminal with its own direct dialling plan (DDO)

• Primary rate access PRI for connection to

– the public ISDN network – the private leased-line network

• SIP access via the Ethernet interface on the basic system for connection to SIP provider.

• Analogue network interface FXO for connection to the public analogue network

external for connection to

2. 1. 1 Basic Access Variants

A basic access is a digital network interface for connection to the public network or to the private leased-line network. It can be set for the protocols DSS1 (public ISDN network) and QSIG / PSS1 (private leased-line network).

A basic access has two 64 kbit/s user information channels and one 16 kbit/s control and signalling channel (2B+D). One call or data connection can be set up on each bearer channel (B channel) simultaneously and independently of the other B channel.

A basic access can be barred for outgoing calls ( Outgoing barred).

Basic accesses for connecting the communication server to the public network can be operated as point-to-point and, with some network providers, also as point-to-multipoint (multiple subscriber number) access.

There are two types of basic access:

• Basic rate interface BRI-T

• Basic rate interface BRI-S

external

2. 1. 1. 1 Basic rate interface BRI-T

Basic access T is suitable for connection to both the public ISDN network and the private-leased-line network.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 25

System interfaces

PINX 1 PINX 2

BRI-T

extern

451 ... 455

222 224 51 ... 222 224 55

Communication server

Device with DDI

evaluation

BRI-TBRI-T

external

2. 1. 1. 2 Basic rate interfaces BRI-S external

The basic access S external is a BRI-S interface configured as external (setting Pro-

tocol BRI-S) in the interface configuration).

The basic access BRI-S

• For connection to the private leased-line network or

• For connecting DSS1 terminal equipment, which evaluates the DDI number sent by the communication server and routes the call accordingly (e.g.an external fax server, see also "Direct Dialling Out (DDO)", page 33

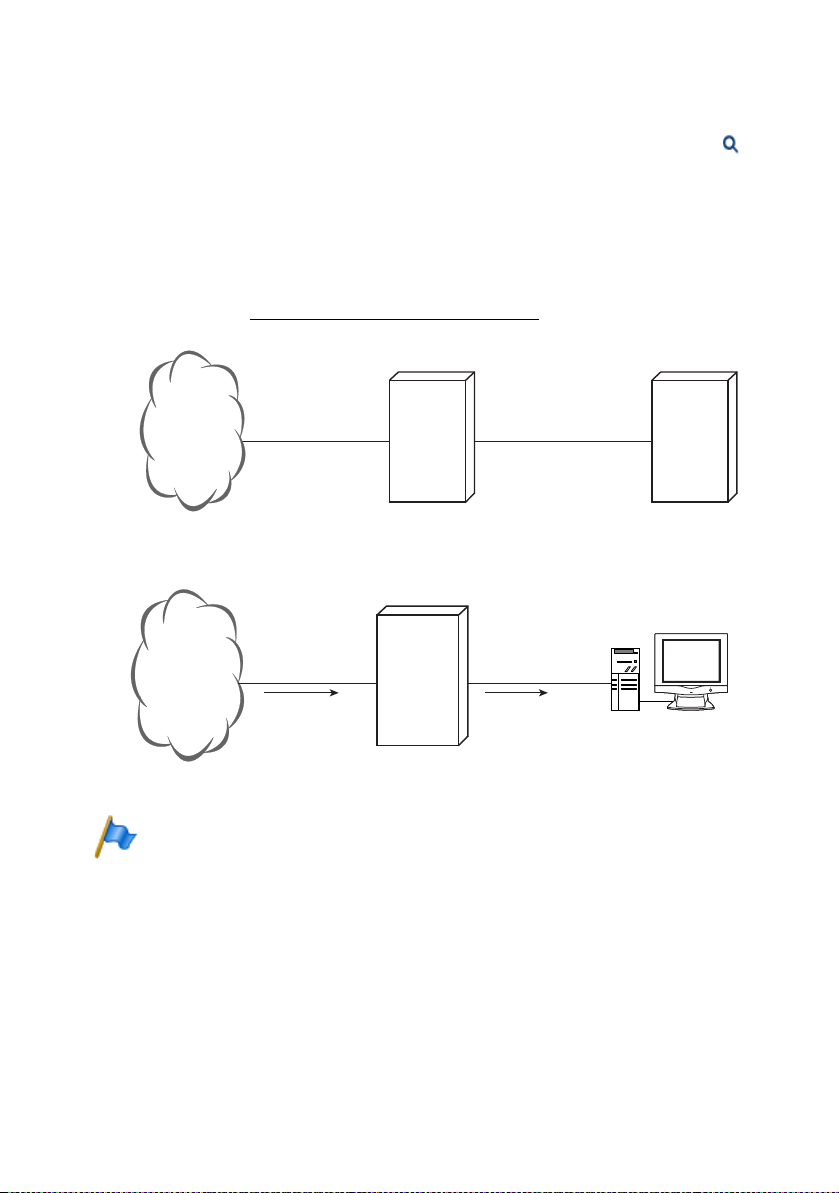

Fig. 1 BRI-S external in a private leased-line network: PINX-PINX connection

external is designed for the following purposes:

Fig. 2 BRI-S

external in a DDI configuration

Note:

An BRI-S interface configured as external is a fully-fledged network interface and is no longer available as a user-network interface. A basic access BRI-S nection to the public ISDN network.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

external cannot be used as a con-

Page 26

System interfaces

2. 1. 1. 3 Point-to-Point and Point-to-Multipoint Connections

Basic accesses can be configured as point-to-point or as point-to-multipoint ( TEI

Management setting in the configuration of the network interfaces).

Point-to-Multipoint Connection without a communication server

The basic access in point-to-multipoint configuration allows a selective dial-up of the terminals connected in parallel using MSN, the Multiple Subscriber Number. Here the network itself provides a kind of direct dialling, so to speak.

061 061 061

NT1: Network Termination MSN: Multiple Subscriber Number

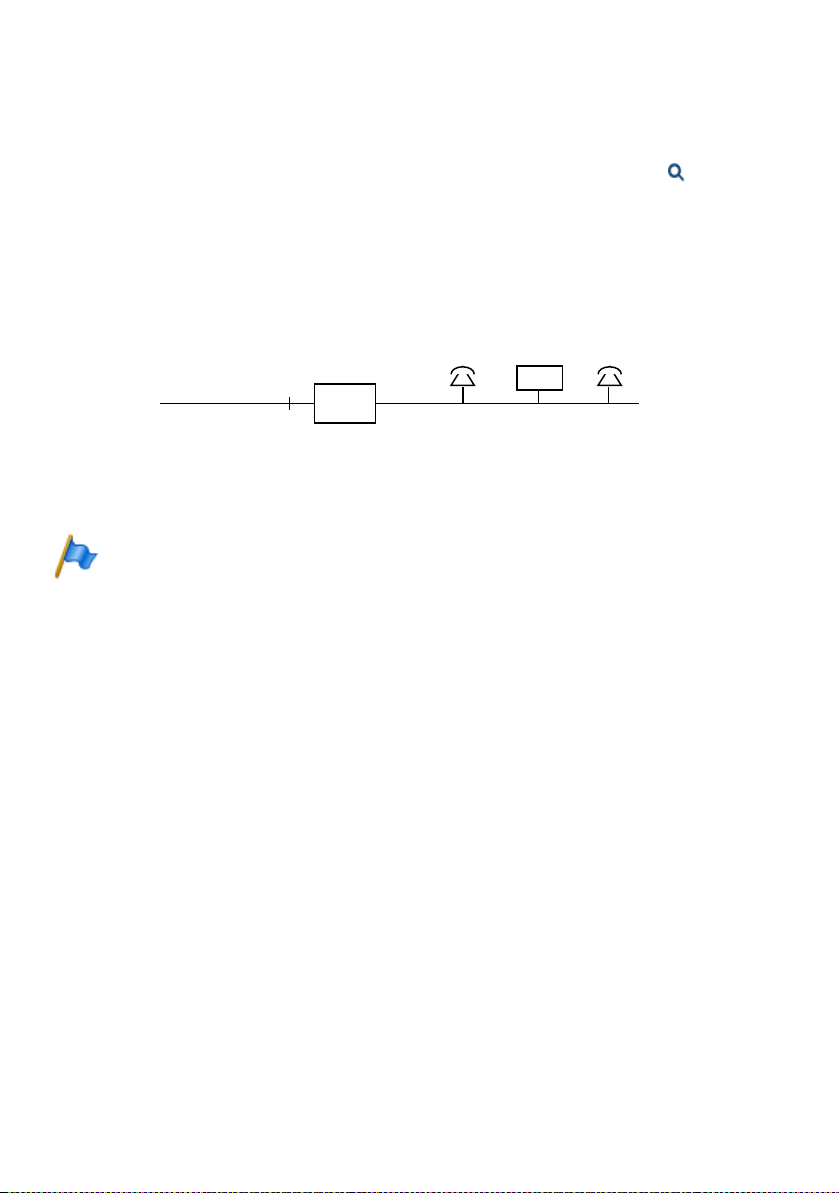

Fig. 3 Single basic access in point-to-multipoint configuration

17

061 061 061

Note:

The fax with ISDN connection is implemented as a fax card in a PC.

Default setting: Digital network interfaces are set on point-to-point configuration.

)D[

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 27

System interfaces

MSN 2 -> 34 MSN 3 -> 45

MSN 1

MSN 1: 653 12 33 MSN 2: 653 12 34 MSN 3: 653 13 45

FXS

DSIU

NT1

Fax

BRI-T

Communication server

Point-to-Multipoint Connection with communication server

If a communication server is connected using point-to-multipoint, a direct dial number must be created for each MSN number, with all the digits of the MSN number.

NT1: Network Terminal MSN: Multiple Subscriber Number U/T: ISDN reference point DSI: Digital user-network interfaces FXS: Analogue terminal interface

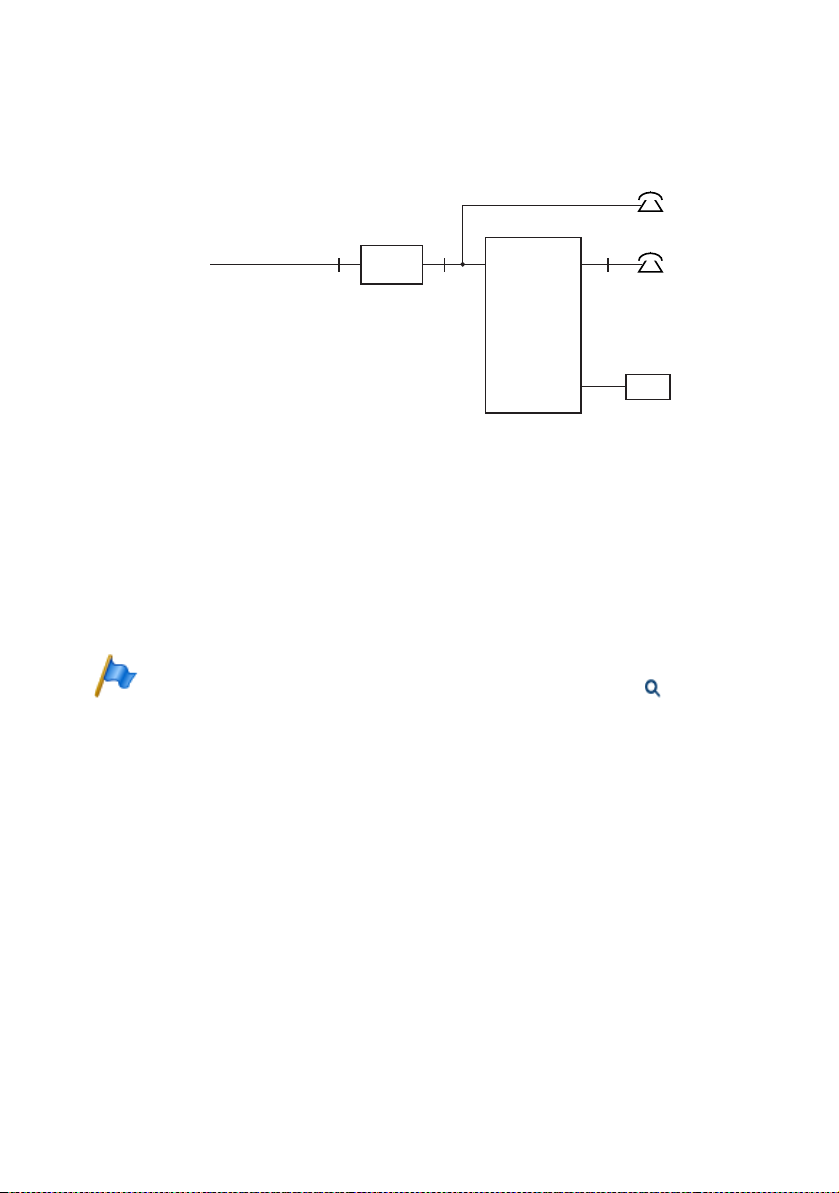

Fig. 4 Basic rate interface in point-to-multipoint configuration, with single-digit direct dial and par-

Combinations are also possible in the case of several lines, e.g. one line in point-tomultipoint configuration and the remaining in point-to-point configuration.

allel terminal

Note:

If terminals (e.g. MSN1) are connected in parallel on the BRI-T interface, “ Collision detec-

tion” has to be activated as the communication server and the terminal influence each other.

This also applies in cases where analogue connections are used on NT1.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 28

System interfaces

NT1

FXS

BRI-S

DSI

403 03 10

Communication server

Line group

BRI-T

Point-to-Point Connection without Direct Dial

Without direct dialling in, only one call number is available. The individual internal users can only be reached indirectly via the number.

This variant is suitable above all for systems with primarily outgoing traffic.

NT1: Network Terminal U/T: ISDN reference point DSI: Digital user-network interfaces BRI-S: ISDN terminal interface FXS: Analogue terminal interface

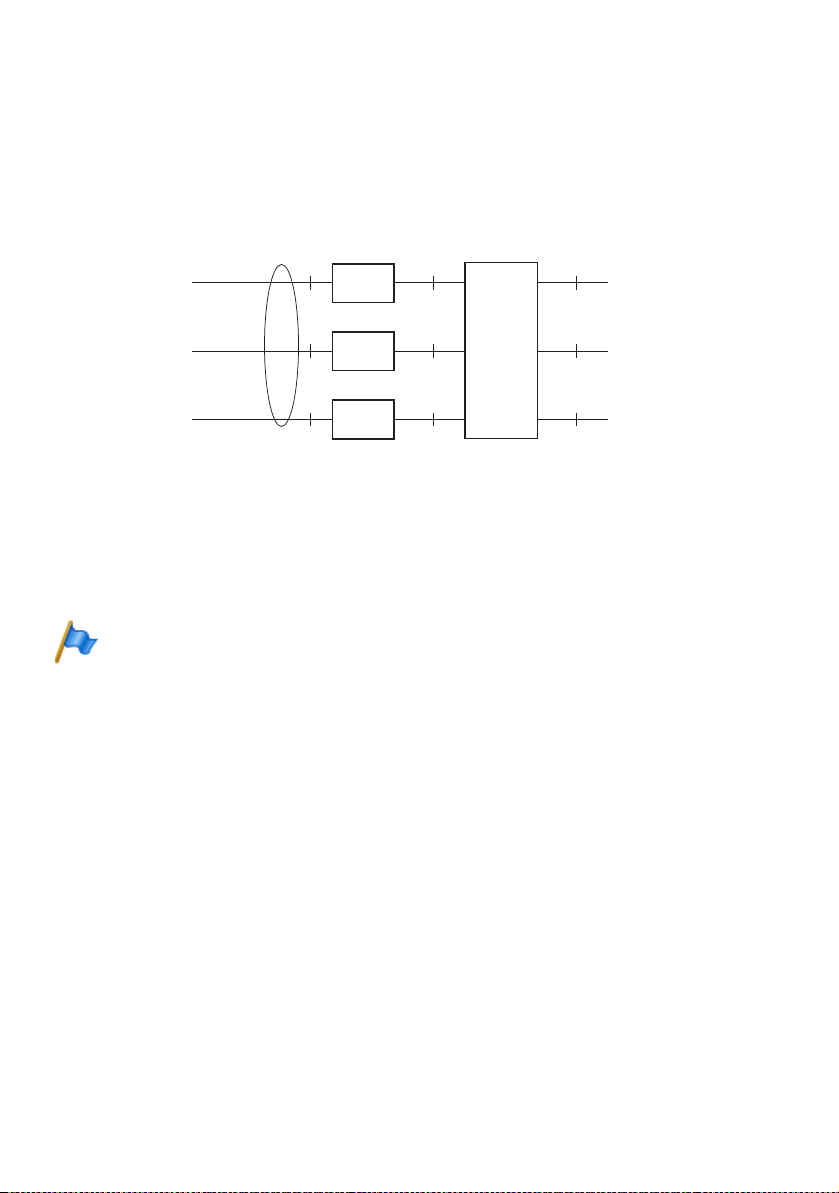

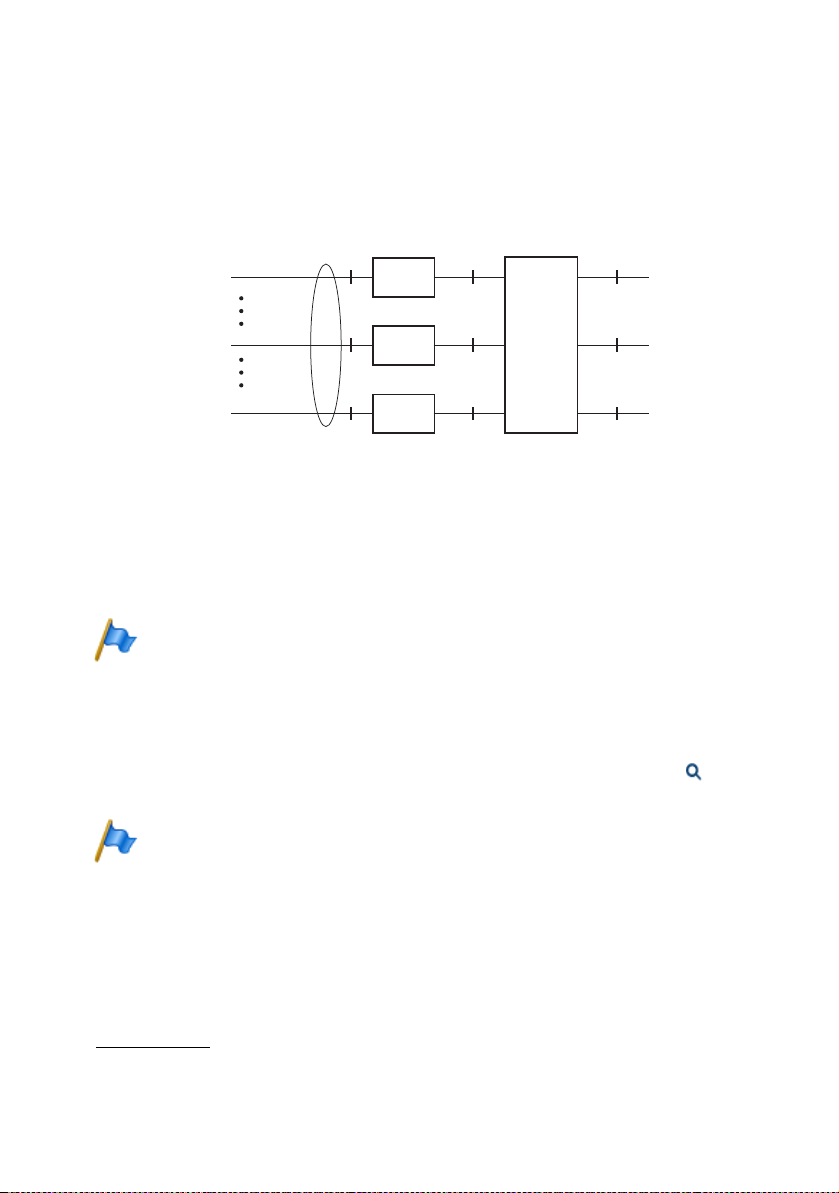

Fig. 5 Several basic accesses with line group in point-to-point configuration, without direct dial

number

Note:

Do not connect any terminals between the NT1 and the communication server.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 29

System interfaces

FXS

BRI-S

DSI

403 20 99

403 20 00

NT1

Communication server

BRI-T

Line group with DDI

DDI No.

Point-to-Point Connection with Direct Dial

With direct dial the individual communication server users can be reached directly via their direct dial number.

NT1: Network Terminal DDI: Direct dialling U/T: ISDN reference point DSI: Digital user-network interfaces BRI-S: ISDN terminal interface FXS: Analogue terminal interface

Fig. 6 Several basic accesses with line group in point-to-point configuration, with direct dial number

Note:

Do not connect any terminals between the NT1 and the communication server.

Periodic Reactivation of Layer 2 on the BRI-T Interface

Layer 2 of the BRI-T network interface can be reactivated periodically every three minutes so that incoming calls are not rejected already at the local exchange after potential temporary interruptions in the U interface. To do so, set the parameter Layer2

activation of the BRI-T network interface to Special.

Note:

In some countries BRI-T network interfaces are deactivated once a certain amount of time has elapsed without traffic, and are only reactivated when the communication server once again requests a connection.

1)Only in Germany and Austria.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 30

System interfaces

FXS

BRI-S

DSI

2B+D

30B+D

Communication server

Channels

PRI

BRI-T

NT1

PINX 1 PINX 2

PRI

2. 1. 2 Primary rate interface PRI

A primary rate access is a digital network interface for connection to the public network or the private leased-line network. It can be set for the protocols DSS1 (public ISDN network) and QSIG / PSS1 (private leased-line network).

A primary rate access has thirty 64 kbit/s user information channels and one 64 kbit/s control and signalling channel (30B+D). One call or data connection can be set up on each bearer channel (B channel) simultaneously and independently of the other B channel.

Notes:

Primary rate accesses can only be used as point-to-point connections.

NT1: Network Terminal U2/U/T2/T: ISDN reference points 30B+D: Primary rate access channels 2B+D: Basic access channels DSI: Digital user-network interfaces BRI-S: ISDN terminal interface FXS: Analogue terminal interface

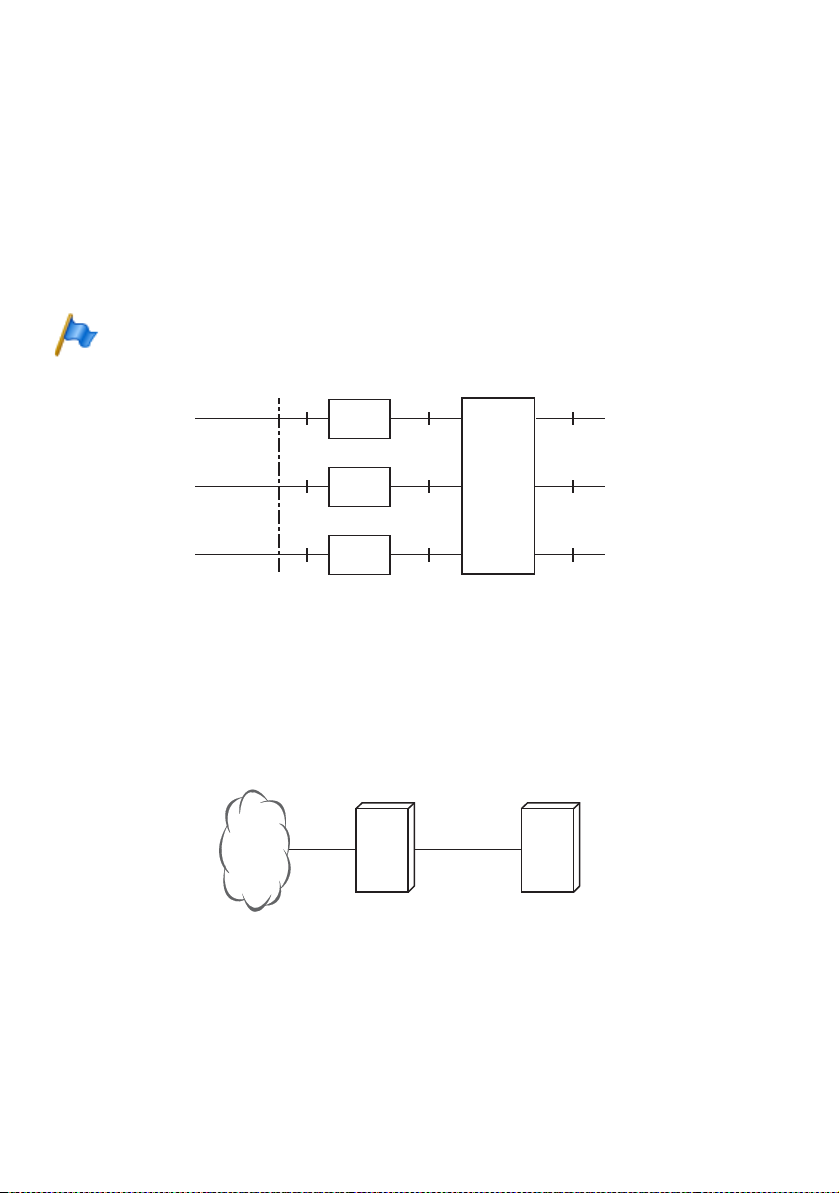

Fig. 7 System with basic and primary rate accesses

Fig. 8 Primary rate access in a private leased-line network: PINX-PINX connection

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 31

System interfaces

CAS on the primary rate interface

CAS (channel-associated signalling) is also used in some countries (e.g. Brazil). With this method the signalling data is transmitted over the voice channel. The type of signalling can be selected for each PRI interface ( =dg).

Note:

DSP resources (CAS senders/receivers) are required for CAS. With Mitel 470, DSP resources for 1 PRI interface are already available on each basic system (on the DSP chip on the call manager card with fixed function assignment). If more CAS senders/receivers are needed, they can be assigned on a configurable DSP chip. On an Mitel 430, the DSP resources for CAS senders/receivers must always be assigned on a configurable DSP chip ( =ym).

2. 1. 2. 1 Clock synchronization

The clock frequency of a communication server is provided (synchronized) by the public network via the basic accesses BRI-T and the primary rate accesses PRI.

Should synchronization by the public network fail (due, for example, to exchange line interruptions), the communication server will use its own clock. This frequency deviates at most by 5 ppm from the nominal value, which ensures that the Mitel DECT system also remains available.

In a private leased-line network, PINXs that are synchronized by the public network pass on the clock reference to PINXs that are not connected directly to the public network.

Synchronisation on a private fixed network must be carefully planned to ensure there are no synchronisation loops.

All the private leased-line network connections and public exchange line circuits are automatically in a shared clock reference table when the communication server is configured for the first time.

If a communication server is not networked in a PISN, the clock reference table can be left as it is; only the initial reference may have to be assigned differently.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 32

System interfaces

BRI-S

ext.

Cells

Communication server

Up-circuit system

PRI

BRI-T

2. 1. 2. 2 Digital down-circuit connection with QSIG

If a down-circuit communication server is connected with an up-circuit communication server via digital lines (BRI-T, PRI), all the features as per QSIG are available providing the up-circuit communication server supports the QSIG protocol.

The down-circuit communication server is configured in accordance with the rules for networked systems.

The up-circuit communication server has a connection to the public network. It can also be an MiVoice Office 400 system or a third-party product, provided it supports the QSIG protocol.

As a rule the down-circuit communication server is connected with the up-circuit communication server via its own fixed lines. The interfaces can be basic rate interfaces (BRI-T) or primary rate interfaces (PRI). Connections on BRI-S also possible instead of connections on a BRI-T interface, provided at least one BRI-T interface is available for synchronization via the ISDN network.

Example: Down-circuit connection with cordless system

external interface are

Fig. 9 Digital down-circuit connection with QSIG

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 33

System interfaces

DDI BRI-S

Fax receivers with allocated a DDI numbers

Fax servers

ISDN

Communica-

tion server

external

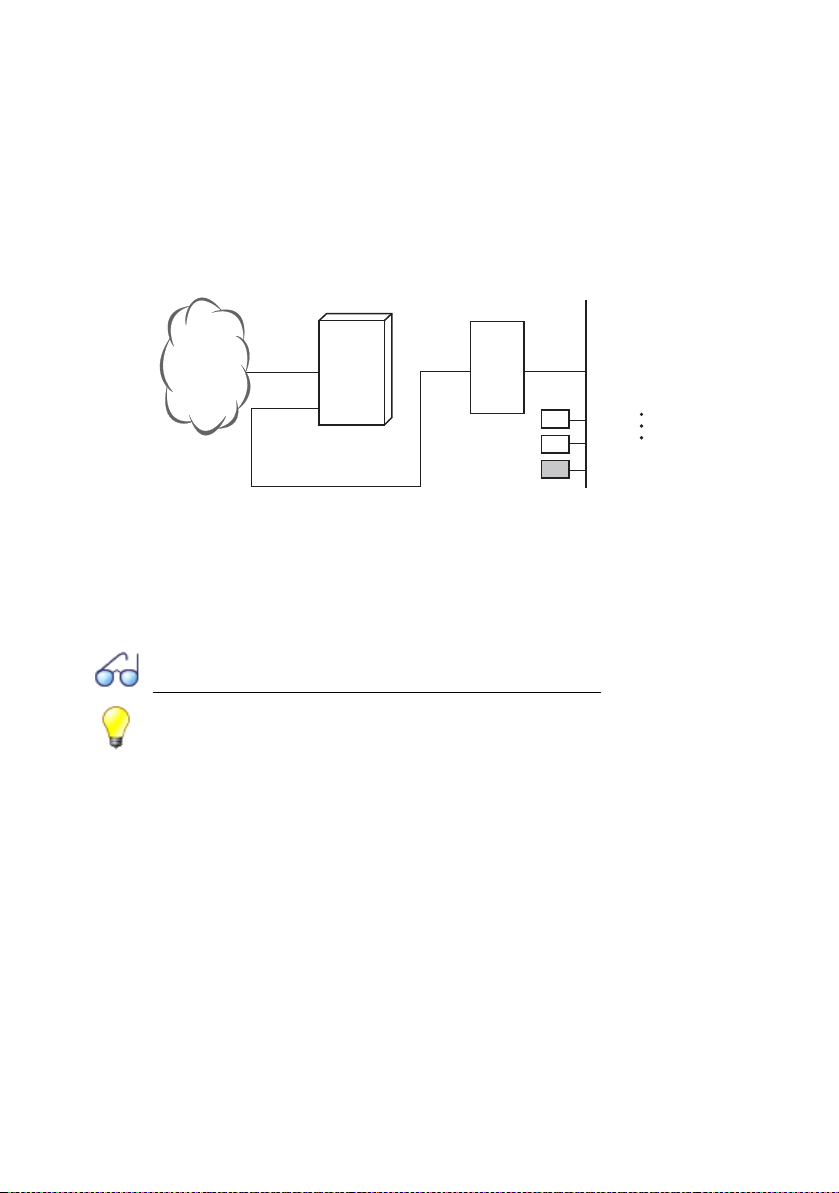

2. 1. 2. 3 Direct Dialling Out (DDO)

If an external fax server is connected to an S bus, individual fax recipients allocated a DDI number can be specifically addressed. In terms of routing technology, this corresponding to a DDO (Direct Dialling Out) function.

The external fax server forwards the incoming faxes via e-mail to the relevant PC stations that are set up as fax recipients.

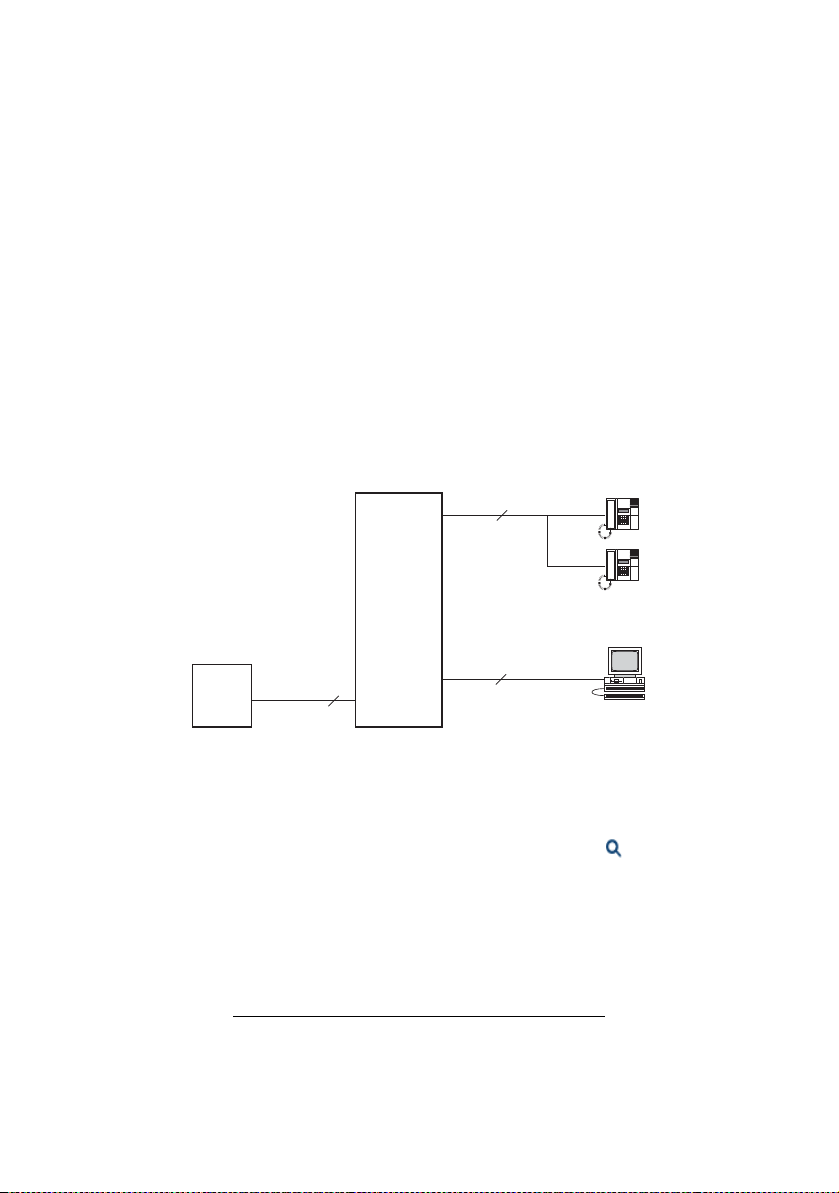

Fig. 10 Direct Dialling Out (DDO) to a fax server

Due to the configuration of the BRI-S interface as BRI-S external and the use of the DSS1 protocol, the fax calls can be routed via routes and trunk groups. This means that all fax receivers that have been allocated a DDI number can be reached via a single BRI-S interface.

See also:

"Call to a DSS1 terminal equipment on the S Bus (DDO)", page 206

Tip:

The CPU2 applications card of an Mitel 470 communication server already contains a fax server and its use is subject to the acquisition of the relevant licences.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 34

System interfaces

2. 1. 3 SIP

2. 1. 3. 1 What is SIP?

The Session Initiation Protocol (SIP) is a network protocol used for setting up, controlling and clearing down a communication session between two or more subscribers (source: Wikipedia). SIP is an open standard and was developed by an IETF (Internet Engineering Task Force) working group. While the text-based protocol has a great deal in common with HTTP (Hypertext Transfer Protocol) in terms of both structure and sequence, it is not compatible with it.

SIP is now widely used in IP telephony. However SIP alone cannot enable VoIP connections. With the aid of the Session Description Protocol (SDP), SIP merely negotiates the communication modalities between the SIP subscribers. The actual audio data stream is exchanged via other, more suitable protocols, such as the Real-Time Transport Protocol (RTP) or the encrypted Secure Real-Time Transport Protocol (SRTP). For this, the coded and compressed data is packed into packets and sent via the User Datagram Protocol (UDP) or the Transmission Control Protocol (TCP).

The SIP connection is used to transmit not just voice but other multimedia data, too (video, fax, text, etc.).

SIP subscribers have an address whose structure is similar to that of an e-mail address (e.g. URL: "sip:12345@sip-server.com"). SIP subscribers can be reached via this address, regardless of their location. However, this is only possible if they register with an SIP provider and regularly update their IP address.

Gateways at the SIP providers enable the transition into the public telephone network, for example the leased-line network or the mobile phone network.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 35

SIP provider

Location Service

Registrar server Proxy server Redirect server

User Agent

System interfaces

System components

SIP is based on a client-server architecture. Components may include a User Agent, Registrar Server, Proxy Server and Redirect Server. The three servers are located at the SIP provider and may be installed on the same system.

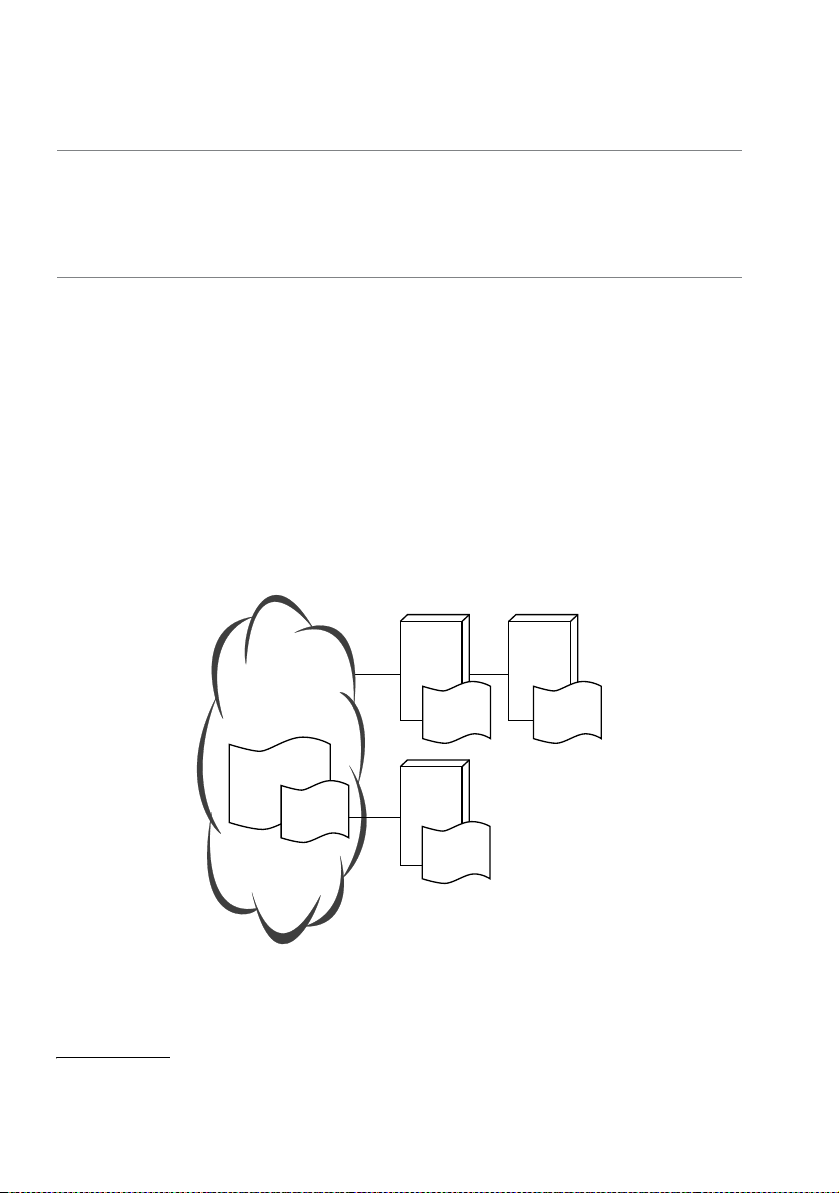

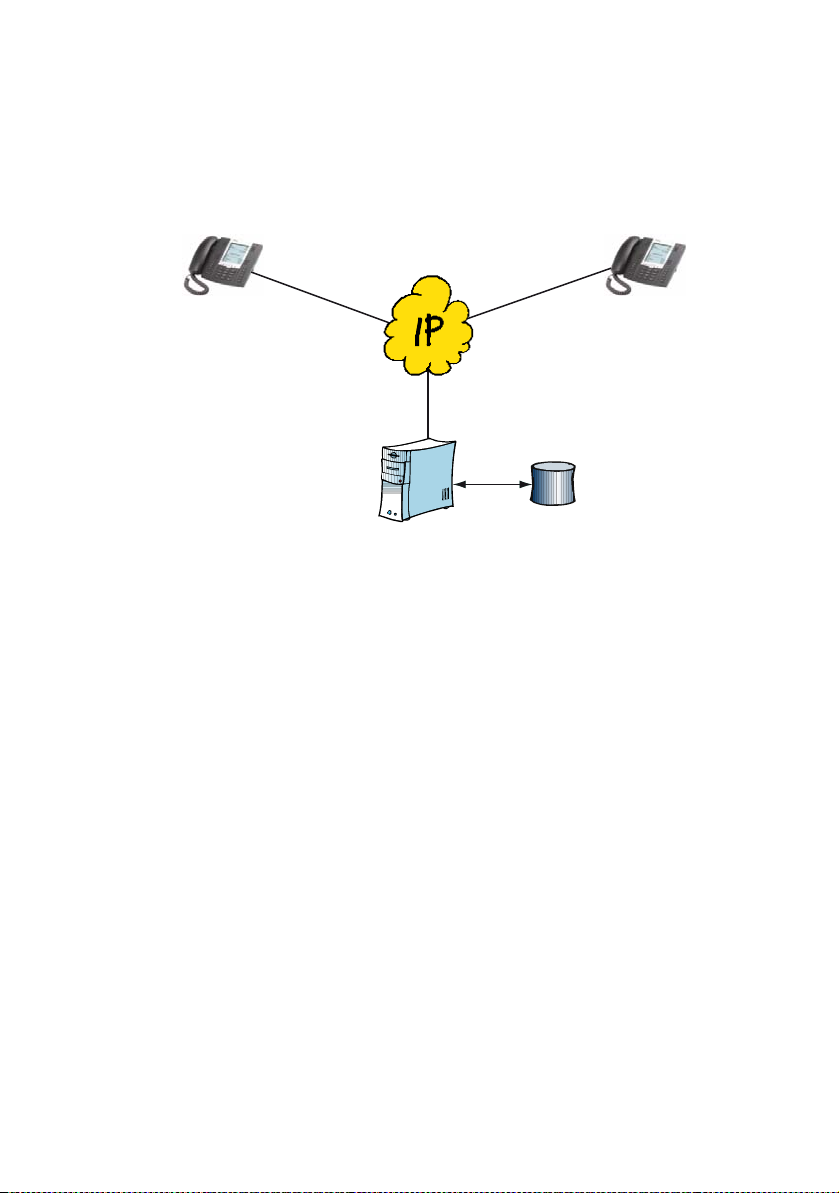

Fig. 11 SIP components

• User Agent User Agents are applications at SIP endpoints, i.e. software or hardware-based components. The caller is referred to as the User Agent Client; the called party, as the User Agent Server.

• Registrar Server An SIP subscriber regularly sends his registration data and his IP address to the Registrar Server. This information is stored in a database (Location Service).

• Proxy Server The Proxy Server is responsible for contacts between the subscribers. Following a request from a User Agent Client, the Proxy Server contacts the Registrar Server to determine the current IP address of the User Agent Server. It then tries to make contact with the User Agent Server.

• Redirect Server The Redirect Server works in a way similar to the Proxy Server. However it hands over the IP address of the User Agent Server directly to the User Agent Client, who then takes charge of the connection setup.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 36

System interfaces

INVITE

ACKNOWLEDGE

User Agent ServerUser Agent Client

Types of connection setup

Requests and responses are defined in SIP in order to set up a connection between two subscribers. The User Agent Client generates a request, to which the User Agent Server responds with a response.

There are essentially three methods for setting up an SIP connection. The descriptions below are greatly simplified and explain only the principle and the different methods.

Method 1: Direct connection setup between the User Agents

The User Agent Client sends the "INVITE" request for a connection setup to the User Agent Server. If the User Agent Server takes the call, he sends back the response "OK" together with the connection parameters. The User Agent Client confirms this with an "ACKNOWLEDGE" and the call connection is set up.

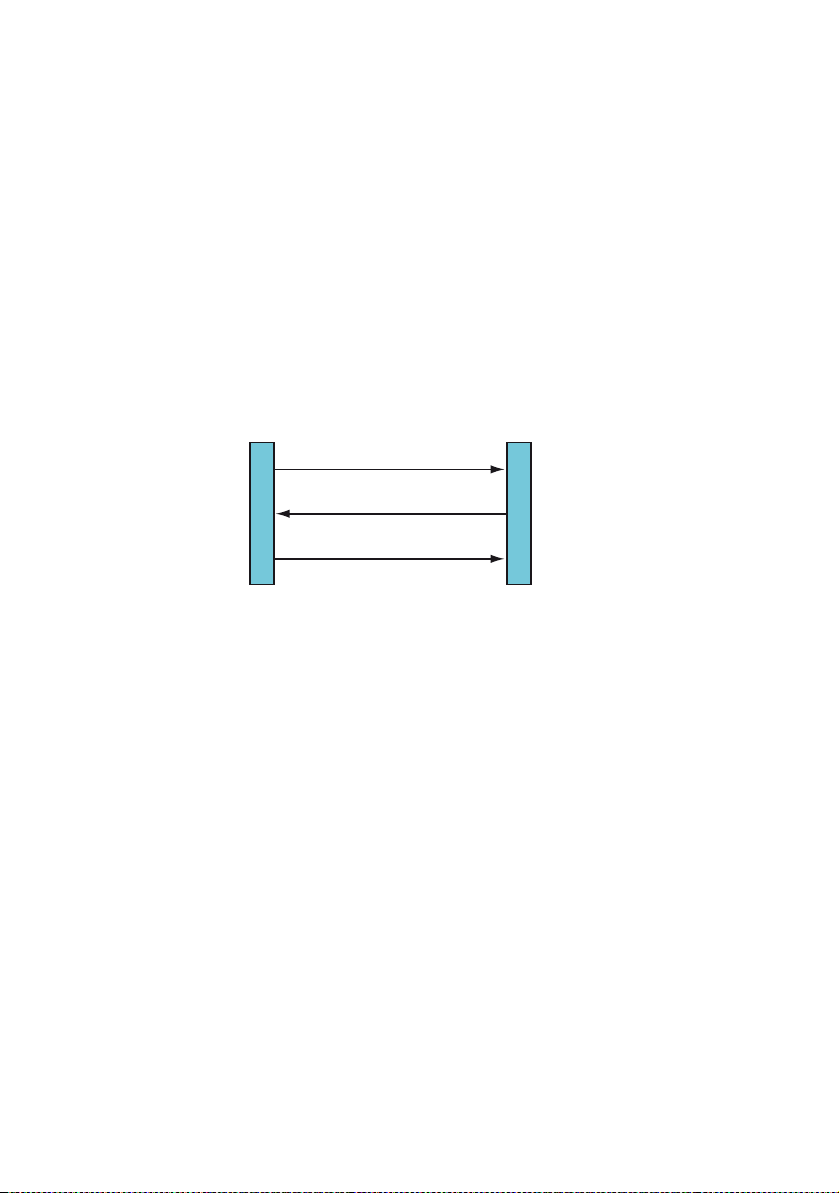

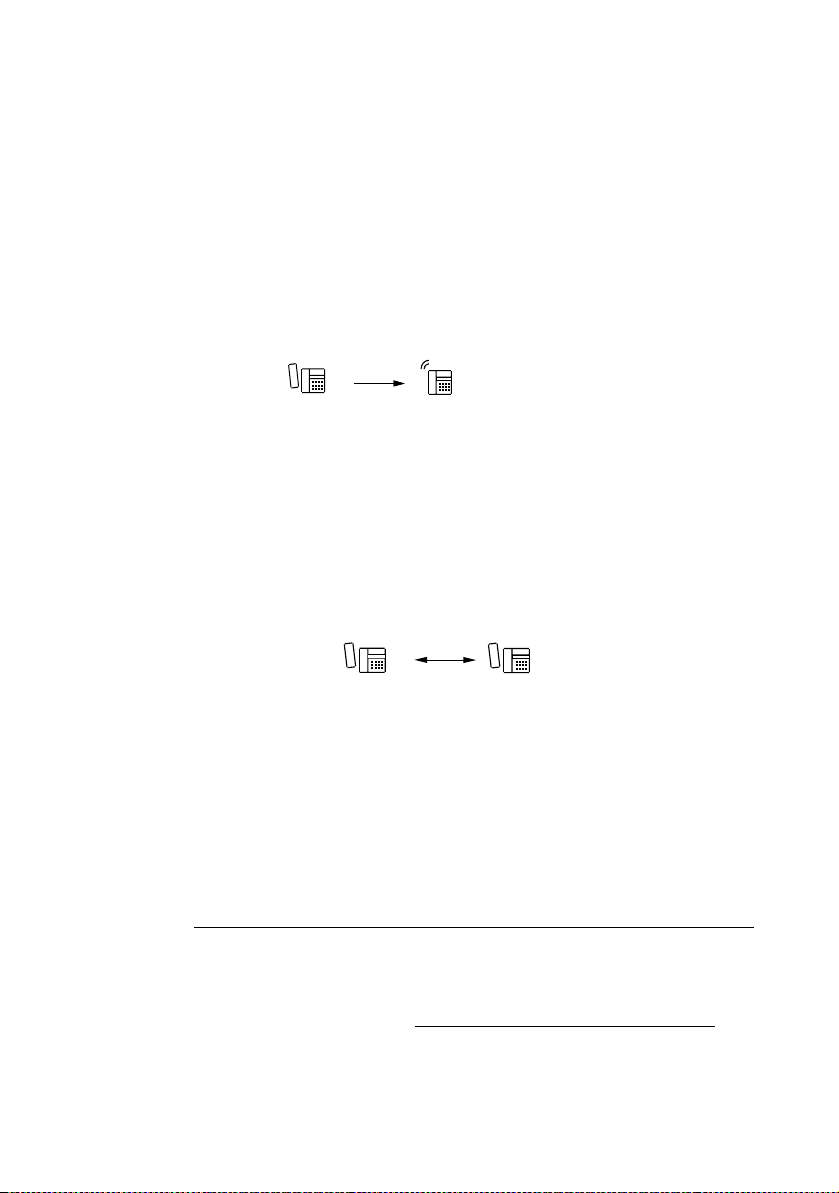

Fig. 12 Direct connection setup

As the IP address changes depending on the User Agent’s location, this method does not guarantee that the connection is set up.

Method 2: Connection setup using a Proxy Server

The User Agent Client sends the "INVITE" request for a connection setup with the User Agent Server to the Proxy Server. The Proxy Server retrieves the current IP address of the User Agent Server from the database of the location service and forwards the connection request to the User Agent Server. If the User Agent Server takes the call, it sends the response "OK" back to the Proxy Server, which in turn forwards it to the User Agent Client. The response contains all the connection parameters. From this point onwards the two User Agents communicate directly with each other. The User Agent Client confirms the connection parameters with an "ACKNOWLEDGE" and the call connection is set up.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 37

System interfaces

INVITE

ACKNOWLEDGE

Location Service

User Agent ServerProxy ServerUser Agent Client

Database query

ACKNOWLEDGE

INVITE

ACKNOWLEDGE

User Agent Server

Location Service

Database query

Redirect Server

User Agent Client

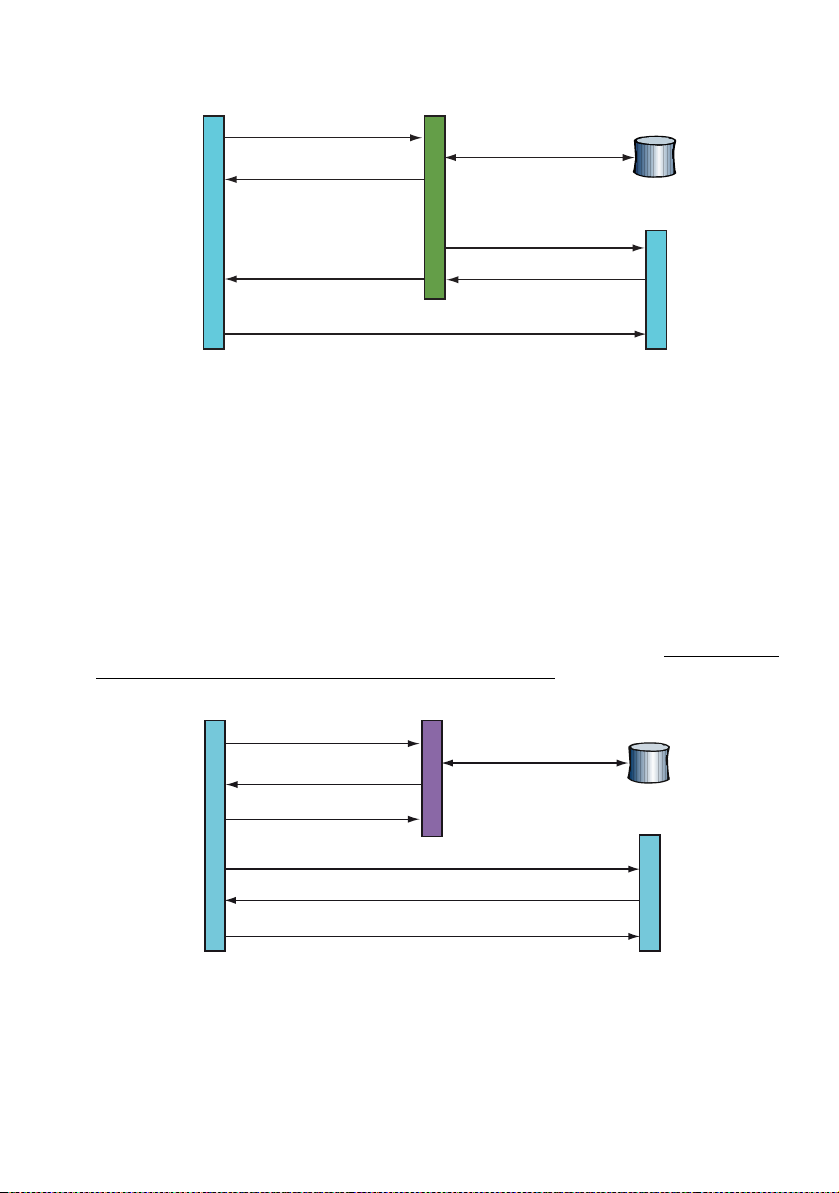

Fig. 13 Connection setup using a Proxy Server

This type of connection requires that the User Agents register with the Registrar Server and regularly update their data.

Method 3: Connection setup using a Redirect Server

The User Agent Client sends the "INVITE" request for a connection setup to the Redirect Server. The Proxy Server retrieves the current IP address of the User Agent Server from the database of the location service and sends it back to the User Agent Client, who confirms the action with an "ACKNOWLEDGE". The User Agent Client now sets up a direct connection with the User Agent Server, as described in "Method 1: Direct connection setup between the User Agents", page 36.

Fig. 14 Connection setup using a Redirect Server

This type of connection also requires that the User Agents register with the Registrar Server and regularly update their data.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 38

System interfaces

Signalling data Signalling data

Communication server

as SIP provider

SIP phone

Voice data

SIP phone

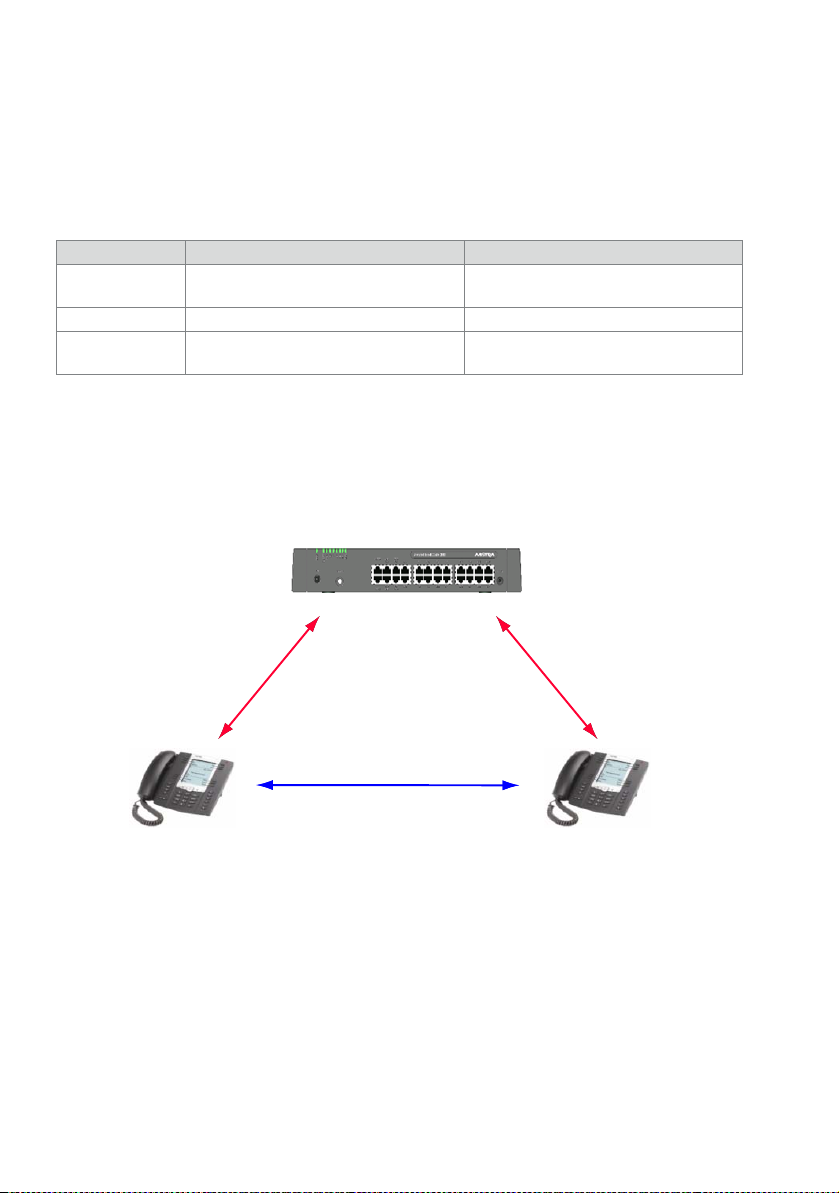

2. 1. 3. 2 Security aspects with VoIP

Security is an important aspect of VoIP telephony. The table below shows the three security objectives of data protection, authentication and integrity as well as ways of achieving those objectives:

Tab. 2 Security objectives

Security objective Meaning Remedy

Data Protection Third parties must not be able to read the

exchanged data

Authentication Verifying the identity of the remote station Using shared passwords and certificates

Integrity Third parties must not be able to modify the

transmitted data

With these considerations it is important to note that the voice data and the signalling data do not always run in parallel and may well take separate paths, as the following example shows:

Data encryption

Using checksums

Fig. 15 SIP data streams

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 39

System interfaces

Situation without encryption (SIP/RTP)

If the signalling data and voice data are considered separately, the situation is as follows if encryption is not used:

Tab. 3 Situation without encryption

Security objective Signalling data Voi ce d a ta

Data Protection Not guaranteed. Not guaranteed

Authentication Partially guaranteed through password protection Not guaranteed

Integrity Not guaranteed Not guaranteed

Solutions

• Encryption of the SIP and RTP data at IP level using IPSec (Internet Protocol Security) and VPN (Virtual Private Network). The signalling data and the voice data are protected if all the SIP components involved are within the VPN.

• Encryption of the SIP signalling data at the transport level using TLS (Transport Layer Security) and of the voice data at application level using SRTP (Secure RealTime Transport Protocol).

For WAN links via the internet it makes sense to combine both methods.

Securiing the signalling data with TLS:

TLS works by exchanging certificates and requires the TCP transport protocol. The communication server generates a trusted certificate and automatically uploads it to the Mitel SIP phones, which then restart. A call connection between communication server and terminal is established only if the two certificates match. For standard SIP terminals the trusted certificate must be exported as a file and manually uploaded to the terminal. Certificates remain valid for long periods; however for security reasons they should be replaced at regular intervals. New certificates must also be generated manually whenever the IP address of the communication system changes. The settings can be found in the Certificate ( =u9) view.

Securing voice data with SRTP:

The SRTP protocol is used to secure the voice data. Please note the following points:

• VoIP encryption must be activated ( =3n).

• VoIP mode ( =ym) must be set to Secure G.711 or Secure G.711/G.729.

•The NTP service ( =ty) must be activated.

•A Secure VoIP licence is required.

Note:

Securing signal data with TLS, and voice data with SRTP, is also important for the connection between the communication server and an SIP provider, as well as between the SIP nodes of a private SIP network.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 40

System interfaces

2. 1. 3. 3 SIP in MiVoice Office 400

If SIP is supported in MiVoice Office 400, Method 2: Connection setup using a Proxy Serveris used exclusively.

A distinction is made between the following three application cases:

• Connection of SIP terminals as internal subscribers to MiVoice Office 400:

In this case, the MiVoice Office 400 communication server assumes the role of an SIP provider for the SIP terminal and provides the Registrar and the Proxy Servers internally. The terminal can be connected either internally on the same IP network as the MiVoice Office 400 communication server or externally via a VPN connection or using SRTP and TLS. This particular application is described in the chapter "IP terminal interface", page 50.

• Connection of MiVoice Office 400 to one or more SIP providers:

Here the MiVoice Office 400 communication server itself is the User Agent. Access to an SIP Provider is provided via an SIP network interface (SIP access). One SIP access supports up to 30 SIP channels, i.e. up to 30 connections to one SIP provider are possible simultaneously. Access to the public telephone network is via a gateway at the SIP provider. The connection to an SIP provider is described in the chapter "SIP access", page 43

• Networking MiVoice Office 400 communication servers via SIP:

It is possible to network two or more MiVoice Office 400 communication servers via SIP. The principle is comparable to QSIG networking on an ISDN basis. In the same way as with QSIG networking, star-shaped centralised networking configurations as well as meshed networking configurations are possible. For more information, refer to the system manual "Private Networking with MiVoice Office 400".

Data encryption is designed to ensure that security is taken into account in all three application cases, especially when the VoIP data leaves the LAN. They can be external home workstations, a connection of the communication server to the public network via an SIP provider or the SIP networking of several systems at different locations.

SIP support in MiVoice Office 400 is continually being expanded and therefore depends on the software version of the communication server. A general overview of the protocols and methods currently supported can be found in Tab. 4, Seite 41.

2. 1. 3. 4 SIP RFCs supported by MiVoice Office 400

RFCs (Request for Comments) are numbered, freely accessible technical and organisational documents on the internet. They are drawn up by the IETF (Internet Engineering Task Force) and go through various stages until in the ideal scenario they establish themselves as a standard. There is a whole series of RFCs dealing directly or indirectly with SIP.

The RFCs are published on the following web site. Specific RFCs can be displayed directly using a search engine; you can also search for RFCs using keywords:

http://www.rfc-editor.org

The following RFCs are supported for connecting MiVoice Office 400 to SIP service providers, terminals to MiVoice Office 400, and for SIP networking:

Tab. 4 SIP RFCs supported by MiVoice Office 400

RFC Title

2617 HTTP Authentication: Basic and Digest Access

Authentication

2833

RTP Payload for DTMF Digits, Telephony Tones and

4733

Telephony Signals

3261 SIP: Session Initiation Protocol including support for

TCP

3262 Reliability of Provisional Responses in Session Initia-

tion Protocol (SIP)

3263 Session Initiation Protocol (SIP): Locating SIP Servers

3264 An Offer/Answer Model with the Session Description

Protocol, (SDP)

3265 Session Initiation Protocol (SIP)-Specific Event Notifi-

cation

3311 The Session Initiation Protocol (SIP) UPDATE Method

3323 A Privacy Mechanism for the Session Initiation Proto-

col (SIP)

3325 Private Extensions to the Session Initiation Protocol

(SIP) for Asserted Identity within Trusted Networks

3326 The Reason Header Field for the Session Initiation

Protocol (SIP)

3398 The Reason Header Field for the Session Initiation

Protocol (SIP)

3515 The Session Initiation Protocol (SIP) Refer Method

3550 RTP: A Transport Protocol for Real-Time Applications

3551 RTP Profile for Audio and Video Conferences with

Minimal Control

Supported on the SIP network interface (SIP access)

✓✓✓

✓✓

✓✓✓

✓✓

✓✓✓

Supported on the SIP terminal interface

Supported for SIP networking

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 42

System interfaces

RFC Title

3581 An Extension to the Session Initiation Protocol (SIP)

for Symmetric Response Routing

3711 The Secure Real-time Transport Protocol (SRTP)

3842 A Message Summary and Message Waiting Indication

Event Package for the Session Initiation Protocol (SIP)

3856 A Presence Event Package for the Session Initiation

Protocol (SIP)

3863 Presence Information Data Format (PIDF)

3891 The Session Initiation Protocol (SIP) Replaces Header

3903 Session Initiation Protocol (SIP) Extension for Event

State Publication

4028 Session Timers in the Session Initiation Protocol (SIP)

4235 An INVITE-Initiated Dialog Event Package for the Ses-

sion Initiation Protocol (SIP)

4480 RPID: Rich Presence Extensions to the Presence

Information Data Format (PIDF)

4488 Suppression of Session Initiation Protocol (SIP)

REFER Method Implicit Subscription

4566 SDP: Session Description Protocol

4612 Real-Time Facsimile (T.38) - audio/t38 MIME Sub-type

Registration

4662 A Session Initiation Protocol (SIP) Event Notification

Extension for Resource Lists

4855 Media Type Registration of RTP Payload Formats

4975 The Message Session Relay Protocol

5246 The Transport Layer Security (TLS) Protocol Version

1.2

5806 Diversion Indication in SIP

Supported on the SIP network interface (SIP access)

✓✓✓

✓

✓✓✓

Supported on the SIP terminal interface

✓

Supported for SIP networking

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 43

System interfaces

2. 1. 3. 5 SIP access

The communication server can be connected to one or more SIP providers via the Ethernet interface on the basic system. The communication server supports 10 SIP access with up to 30 channels per SIP access. One SIP Access Channels licence is required for each channel.

The communication server handles the SIP access in the same way as analogue or digital network interfaces, i.e. they are grouped in one or more separate trunk groups. The allocation to an SIP provider is defined for each trunk group. This means for example that international calls can be routed via SIP providers in different countries.

The communication server must register with a registrar of the SIP provider so that the SIP messages can be forwarded to the proxy server and from there to the public network, for example via a gateway. At least one SIP account has to be set up for each SIP provider. Each account contains a user name and password for identification with the Registrar and an SIP identification number (SIP-ID). The SIP-ID is linked with a direct dial number so that outgoing and incoming connections can be made. A total of 500 SIP accounts can be set up and linked with the corresponding direct dialling numbers.

One SIP account per SIP provider can be set up as a default account. It can then be used by users without an SIP account for outgoing calls via a corresponding route or for incoming calls via a special call routing.

Besides the connection of communication servers to one or more SIP providers, several communication servers can also be networked via SIP.

System configuration

Set the SIP provider parameters using the configuration tool WebAdmin in the Call

routing ( =df) view:

• Under Network interfaces click the Add button to create a new SIP provider.

• Double-click the SIP provider you have just created to specify the settings for this SIP provider. In this overlay view, create and also configure the SIP accounts.

Tips:

– Alternatively you can also configure the SIP provider by importing an SIP provider profile.

For this you must first export the settings of an already configured SIP provider into an XML configuration file.

– In the Call routing ( =df)view you can access a context menu using your secondary

mouse key (right-clicking).

See also:

You can find more information about the procedure and individual parameters on line.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 44

System interfaces

2. 1. 4 Analogue Network Interfaces

The analogue network interfaces support DTMF and pulse dialling1). A range of parameters in the System Configurations allows country-specific adaptations to the public network as well as other settings.

The analogue network interface settings are only visible in the WebAdminconfiguration network tool if analogue network interfaces are also actually available. Configuration is carried out either with the analogue interfaces ( =7g) or in call routing ( =df).

See also:

You can find more information about the procedure and individual parameters on line.

2. 1. 4. 1 Analogue down-circuit connection

With an analogue down-circuit connection the features of the up-circuit communication server can also be utilized.

This results in the following special applications for the user:

• Depending on the system configuration the user makes phone calls in a complex environment. The subscriber’s disposal is a large number of features at two levels (subscriber’s own system and the up-circuit system). A short induction course helps users to familiarize themselves quickly with the new environment.

• Practically all the systems used as up-circuit systems also feature the DTMF dialling method on the analogue terminal line, in addition to pulse dialling. It is advisable to give preference to the MFV / DTMF dialling method over pulse dialling.

• If the up-circuit communication server requires that subscribers wait for the exchange-free tone, all the entered abbreviated dialling numbers must be provided with a hyphen "-" (interdigit pause) after the digits for exchange access. At this point the communication server will again pause for the tone when dialling.

1) Pulse dialling in New Zealand is not supported.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 45

System interfaces

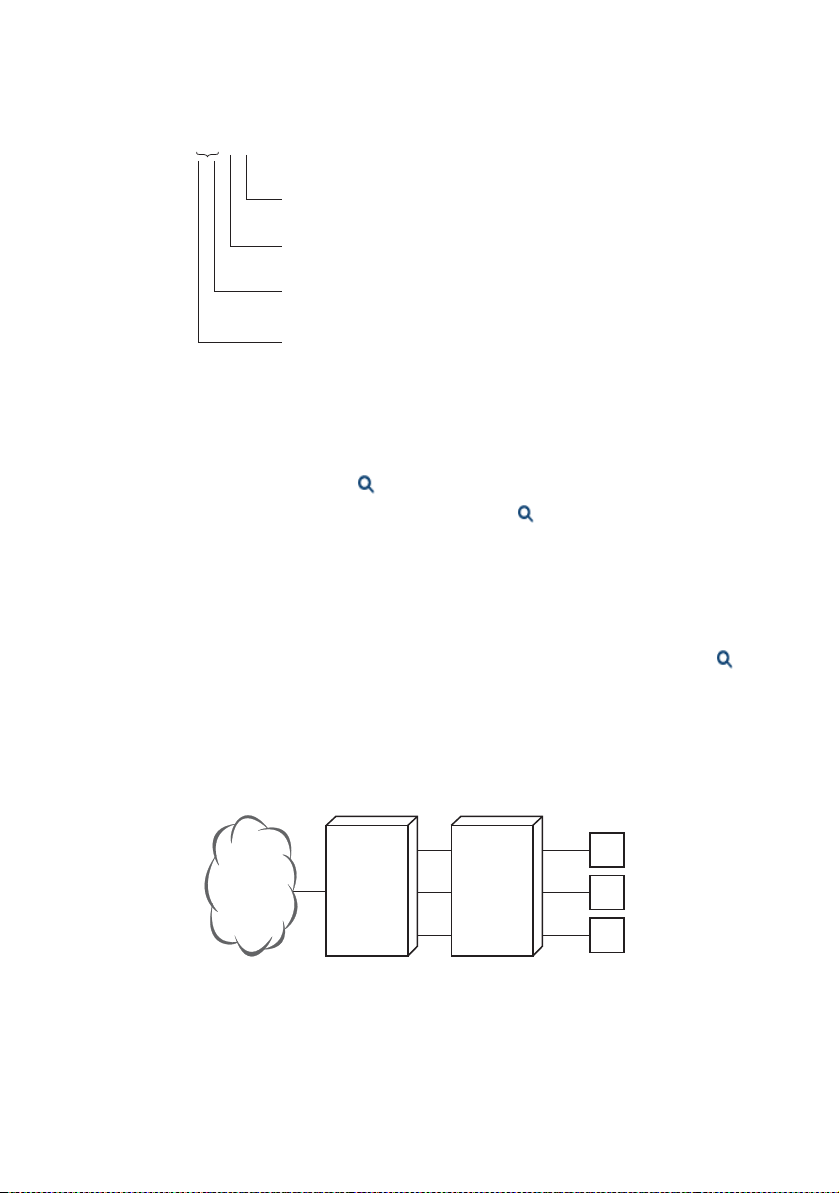

00– – 032 6000 00 00

Exchange seizure

When a number is via Line key dialled, all characters prior to the followed hyphen are suppressed

Exchange seizure on up-circuit communication server

Waiting for exchange-free tone or dialling after e.g. 6 sec. (The duration of the interdigit pause can be set.)

DSI

FXS

Up-circuit

communi-

cation server

S bus

Communi-

cation server

Example: Exchange access via exchange access prefix

Fig. 16 Example of the exchange access prefix via up-circuit communication server

The following configuration steps are necessary:

1. The exchange access prefix of the up-circuit communication server must be entered in the exchange digit barring ( Exchange digit barring).

2. The corresponding analogue trunk lines are set to Behind communication server. Consequence:

– The external digit barring is deactivated and the exchange digit barring is acti-

vated. The external digit barring of the up-circuit communication server has to be used.

– Incoming calls are forwarded transparently to the user.

3. The corresponding analogue trunk lines are to be configured to the correct Dial

sort. If the up-circuit communication server provides DTMF and pulse dialling for in-

ternal users, it is advisable to configure DTMF.

Example: Enquiry call behind communication server

This feature can be used from both analogue terminals and system phones.

Fig. 17 Enquir y call behind communication server

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 46

System interfaces

Situation: The existing call connection of an MiVoice Office 400 user already seizes a trunk line to the up-circuit communication server. The procedure for setting up an inquiry call depends on the type of terminal:

• Analogue terminal

– Flash: Dialling tone of the MiVoice Office 400 communication server – Flash *42: Dialling tone of an up-circuit communication server

• System phones

– Enquiry call menu: Dialling tone of the MiVoice Office 400 communication server – Key with macro "I*42": Dialling tone of an up-circuit communication server

Using the exchange's features

To activate features on the public network such as the exchange feature "Call Forwarding" from the system itself, you need to seize a trunk line. The feature can then be entered in accordance with the service provider's operating instructions.

2. 1. 4. 2 Attenuation on analogue network interfaces

With analogue network connections you have a choice of four different attenuation settings:

• Long or

• Long D for long lines

• Short or

• Short D for short lines

On lines with a loop resistance < 280 Ω Short or Short D should be selected to avoid problems with echo or instability (feedback).

The "… D" settings are used to increase the volume in an "analogue exchange - digital terminal" connection type by 3 dB in both directions as this type of connection is generally perceived as too quiet. The reference level is modified accordingly on the expansion card. Due to the restriction to the aforementioned call type the "… D" setting does not result in an increase if an analogue terminal interface is involved in a connection.

Note:

"… D" setting should not be used (or only once the stability conditions have been thoroughly clarified) if the equipment (Terminal Adapter) operated on digital interfaces also features a fourwire to two-wire conversion, i. e. an analogue two-wire interface.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 47

System interfaces

ETSI

PINX

BRI-S

BRI-T

ISDN terminals

BRI-S

ext.

2. 2 Terminal interfaces

The communication server supports digital and analogue user-network interfaces.

2. 2. 1 Digital user-network interfaces

On each of these digital user-network interfaces several appropriate terminals can be hooked up and operated simultaneously.

2. 2. 1. 1 Terminal interface BRI-S

The S user-network interface is a digital 4-wire interface used for connecting ISDN terminals, Terminal Adapters and ISDN PC cards. Each of these interfaces has two 64 kbit/s user information channels and one 16 kbit/s control and signalling channel (2B+D). This makes it possible to establish two independent call or data connections simultaneously.

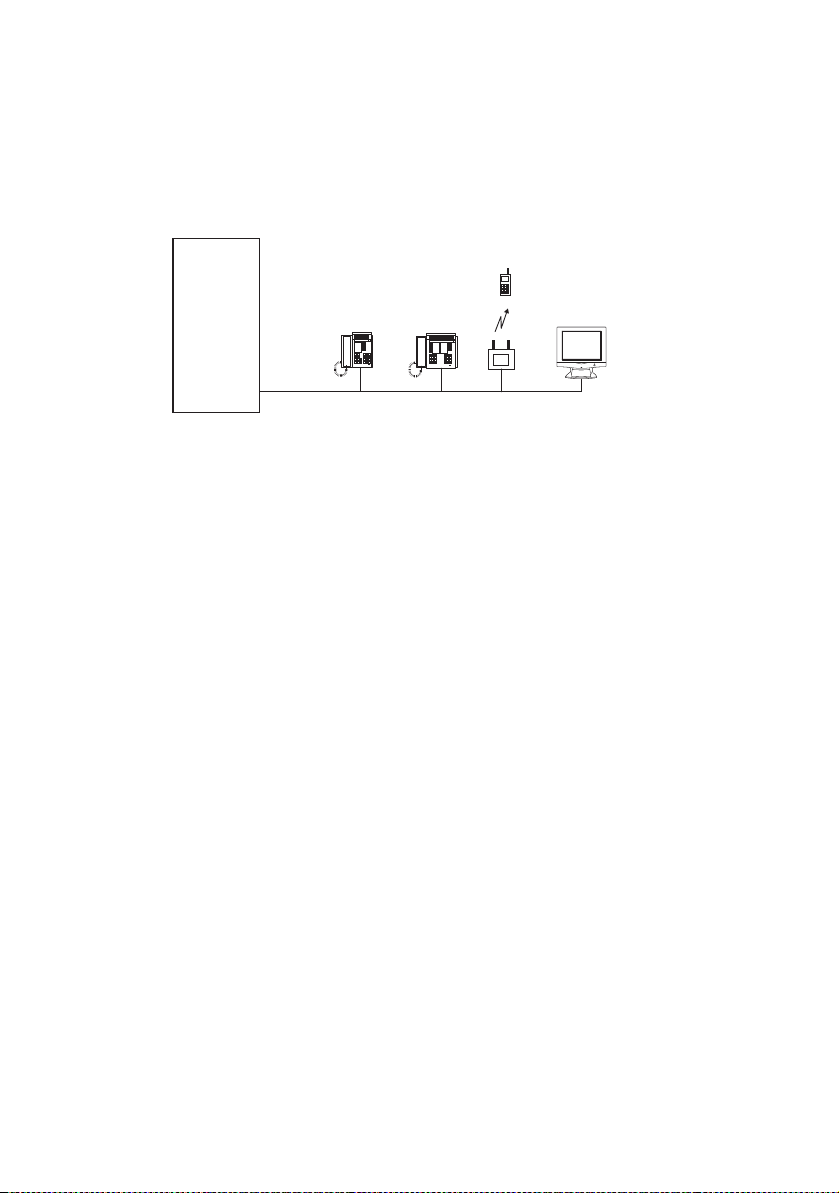

Fig. 18 Terminal interface BRI-S

Up to 8 terminals can be operated on an S user-network interface. They are addressed with the single-digit terminal selection digit (TSD).

Different modes are available for operating the BRI-S interface ( BRI-S protocol in the interface configuration):

•The ETSI mode is used to operate ISDN terminals, Terminal Adapters and ISDN PC cards.

• With the BRI-S external mode a BRI-S interface can be used as a basic access for private networking with QSIG / PSS1 or DSS1. It is no longer available as terminal interface (see "Basic rate interfaces BRI-S external", page 25

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 48

System interfaces

Format of the ETSI S-bus

Depending on application, the format can be configured on the ETSI S-Bus for each BRI-S interface in the interface configuration (setting MSN format for BRI-S). More information can be found in the online help.

Exchange Access Prefix for Terminals on the ETSI S Bus

For terminals on the ETSI S-bus the interface configuration can be used to select whether or not the exchange access prefix of the CLIP should be truncated for incoming calls (setting Remove exchange access prefix). This setting is effective only in the S-bus mode (BRI-S protocol = ETSI).

Mitel Advanced Intelligent Network:

In an AIN the call charge format of ISDN terminals depends on the country and is based on the country configured with the region of the node concerned or user. User allocation takes priority over a node-specific allocation.

Voice and data terminals on the BRI-S interface

Both voice and data terminals can be connected to the same BRI-S interface. When designing the system, bear in mind that data terminals can also take up user information channels. ISDN routers and ISDN PC cards that support channel bundling can take up both user information channels.

In mixed operation the availability of the terminals has to be taken into account.

One call or data connection can be set up on each bearer channel (B channel) simultaneously and independently of the other B channel.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 49

System interfaces

DSI

DECT cordless phone

Communication server

System phones

DECT radio unit

2. 2. 1. 2 DSI terminal interfaces

The digital terminal interface DSI is a proprietary, system-specific two-wire interface on which either the AD2 protocol or DASL protocol (Mitel 470 only) is running. The DSI interface is used to connect the following terminals:

•DSI-AD2:

– MiVoice 5300 series system phones (or older AD2 phones) – Mitel DECT radio units(SB-4+, SB-8, SB-8ANT)

• DSI-DASL: Dialog 4200 series system phones (Mitel 470 only)

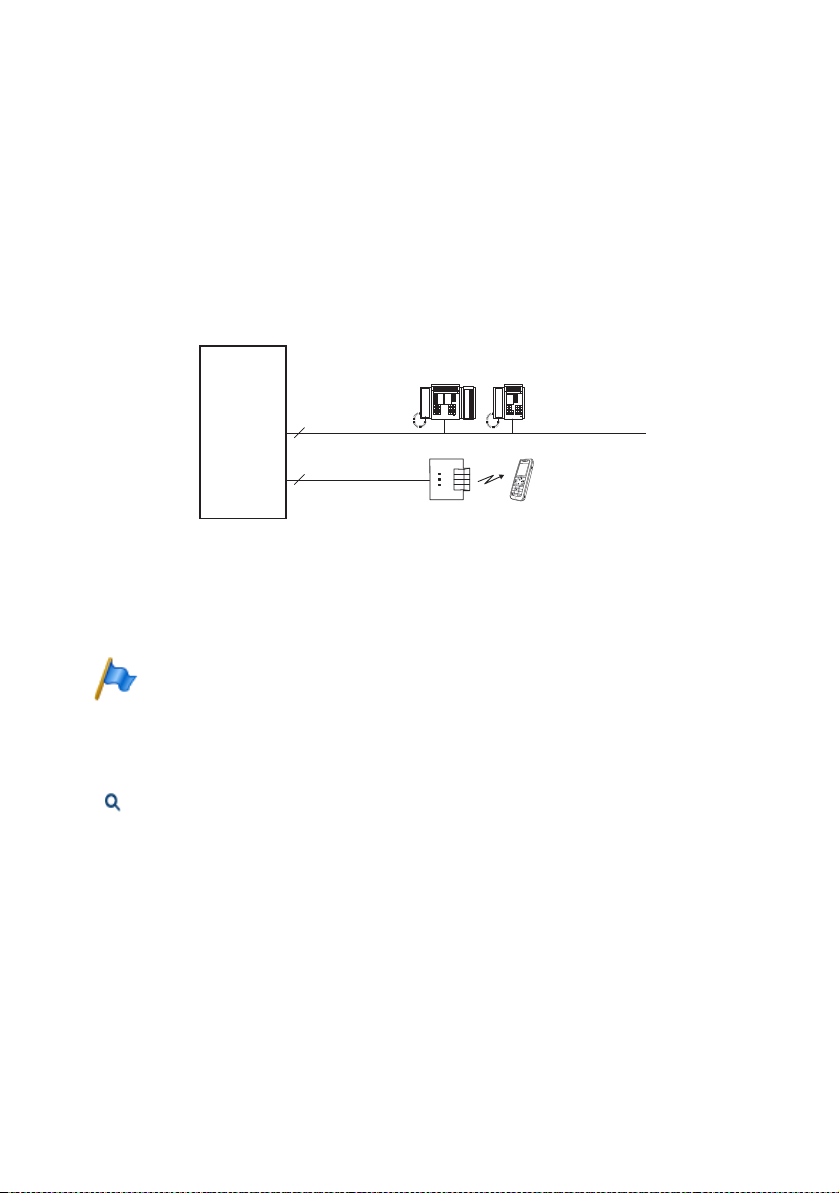

Fig. 19 DSI terminal interfaces

Two system phones can be connected in parallel to a terminal interface DSI-AD2. Address allocation is done by means of a switch on the phone.

Notes:

– Only one DECT radio unit can be connected for each DSI-AD2 interface. An SB-8/SB-

8ANT radio unit with 8 call channels occupies two DSI interfaces.

– Only one system phone of the Dialog 4200 series can be operated on each DSI-DASL

interface.

The type of protocol on the DSI interface can be chosen in the cards and modules view ( =4g). The setting is always valid for the entire interface card (Mitel 470 only).

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 50

System interfaces

Communication server

Ethernet

IP system phone

SIP

terminal

Access

point

IP softphone

WiFi mobile

phone

2. 2. 1. 3 IP terminal interface

The IP terminal interfaces are implemented via an Ethernet interface on the communication server. MiVoice Office 400 supports IP system phones, Mitel SIP terminals and standard SIP terminals from third-party manufacturers.

Fig. 20 IP terminal interface

The following IP system phones are supported:

• Terminals of the series MiVoice 5300 IP

• IP softphone MiVoice 2380 IP

• MiVoice 1560 PC Operator

Like the digital system phones the IP system phones (softphones and desk phones) communicate with the communication server via the AD2 protocol. Unlike digital system phones, however, call and signalling data is transmitted in the IP network. The devices are connected to the IP network. The number of IP terminals on the communication server is determined by the system limits.

The following SIP terminals are supported:

• Terminals of the series Mitel 6700 SIP / 6800 SIP

• Mitel SIP-DECT cordless phones:

• Mitel BluStar 8000i Desktop Media Phone

• Mitel BluStar for PC

• Mitel BluStar for iPhone/iPad

• Mitel BluStar for Android Phone/Tablet

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

• Mitel BluStar for Conference Room

• MiVoice Conference Phone

Page 51

System interfaces

• Other Mitel or third-party SIP phones and SIP softphones

• WLAN and DECT terminals from Mitel and third-party manufacturers, connected with the IP network via an access point.

The media data from SIP terminals is processed into packets using the SIP protocol and transmitted using the RTP protocol. The number of SIP terminals on the communication server is determined by the system limits on the one hand and by the number of licences on the other. For each SIP terminal operated on MiVoice Office 400, either one Mitel SIP Terminals licence or one SIP Terminals licence is required.

2. 2. 2 Analogue terminal interfaces

This 2-wire interface supports the following off-the-shelf analogue terminals:

• Analogue phones with DTMF or pulse dialling (earth key is not supported)

• Analogue radio units for cordless phones

• Two-wire door intercoms with DTMF control functions

• Group 3 fax machines

• Answering machines

• Modem

No call charges are transmitted to the connected terminals via analogue terminal interfaces.

CLIP display is possible (see Technical Data in the Mitel 415/430 System Manual or the Mitel 470 System Manual).

One analogue terminal interface per communication server can be configured for connecting a general bell.

1) Transmission with the T.38 protocol is recommended for Fax over IP.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 52

System interfaces

FXS

Communication server

Analogue phone DTMF/Pulse dialling

Group 3 fax machines Answering machines

Modem

General bell

Door intercom with DTMF control functions

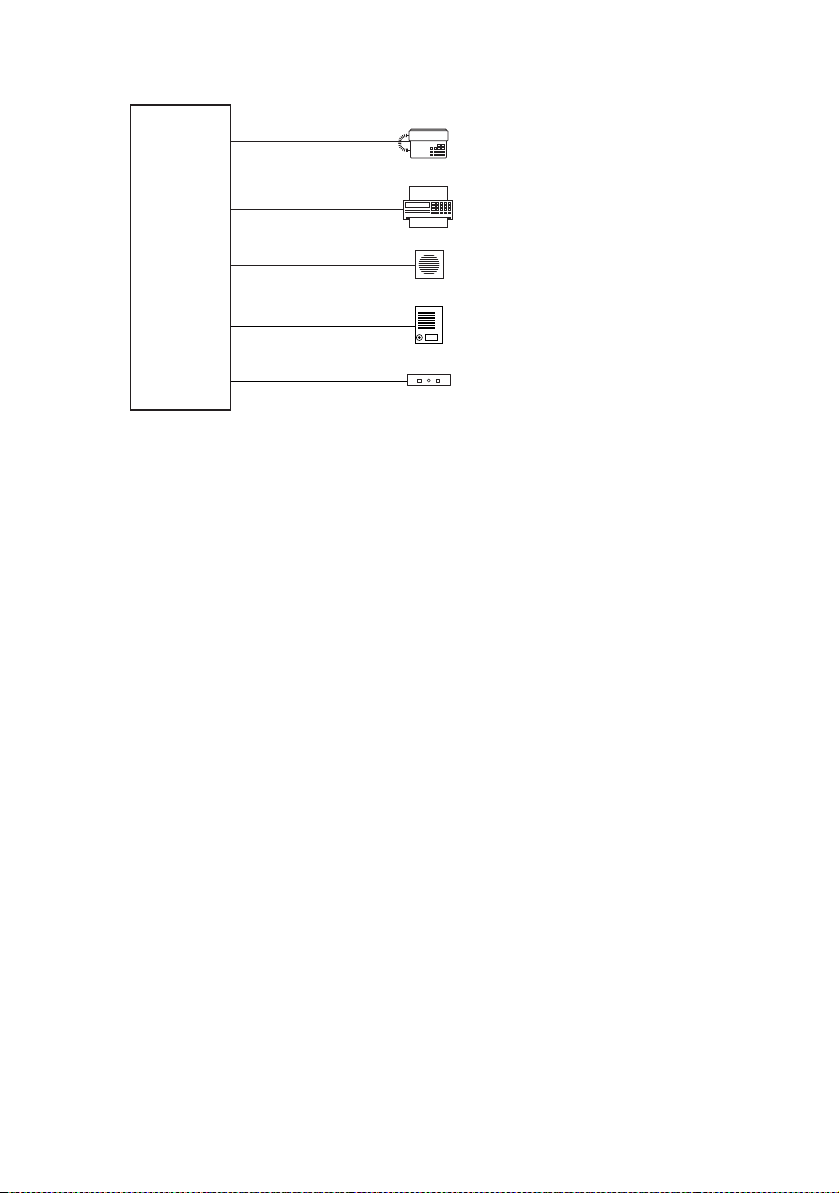

Fig. 21 FXS terminal interface

2. 3 Special Interfaces

The system supports a range of special interfaces.

2. 3. 1 Ethernet interfaces

The Ethernet interface on the basic system is available for the following purposes:

• data exchange with WebAdmin

• signalling and transmitting voice data (VoIP) in an Mitel Advanced Intelligent Network (AIN)

• linking up the Mitel Open Interfaces Platform (OIP)

• the connection of a CTI, alarm, ATAS or messaging server, etc.

• the connection of IP system phones

• the connection of SIP terminals (softphones or desk phones)

• The connection to one or more SIP providers.

• Networking MiVoice Office 400 communication servers via SIP, etc.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 53

System interfaces

2. 3. 2 Interface for door intercom system

There are different ways of connecting door intercom systems:

• Using an options card ODAB (only Mitel 415/430)

• Using an ordinary analogue terminal port

In a connection using an options card, the equipment or installation is controlled via relays and a control input on the options card.

In a connection using an analogue terminal port the TFE must be capable of sending and receiving DTMF signals as the control is effected acoustically via a speech path.

A bell key is backed by an internal destination. The door intercom system can be addressed via an internal number.

A loudspeaker system can also be operated via the interface for door intercom systems.

See also:

"Special interfaces" Chapter in the Mitel 415/430 or Mitel 470. System Manual

2. 3. 3 Interface for General Bell

Calls can also be routed to the general bell. Bells or lamps connected to the general bell interface signal calls which can be answered by anyone from any user’s phone.

Coded ringing can be used to assign different ringing patterns to different destina-

tion persons or groups and, in this way, create a simple type of paging system.

Tip:

One analogue terminal interface per communication server can be reconfigured in such a way that it is also used for connecting a general bell. This eliminates the need for an external ringing voltage source.

See also:

"Special interfaces" Chapter in the Mitel 415/430 or Mitel 470. System Manual

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 54

Numbering plan

3,1; 3,1;

(

313

3,1;

KD]DD[[D

3,1;

313

3Numbering plan

This Chapter features the different types of internal and external numbering plans available in the various systems. It explains the differences between internal numbering plans for the private network and external numbering plans for the public network. It tells you what you need to know when creating numbering plans for each particular network.

3. 1 Numbering Plan Identifiers

The numbering plan is used to analyse numbers and allocate them to an addressable destination. Two types of numbering plans (Numbering Plan Identification, NPI) are relevant to the system:

• The public network uses numbering plan identifier E.164, which is defined and standardized by the ITU-T.

• Private networks use numbering plan identifier PNP (Private Numbering Plan). The internal numbering plan of a communication server or PINX is also of the PNP type, as is the private numbering plan supplied by the public network provider.

PINX 3 is a virtual PINX (Centrex)

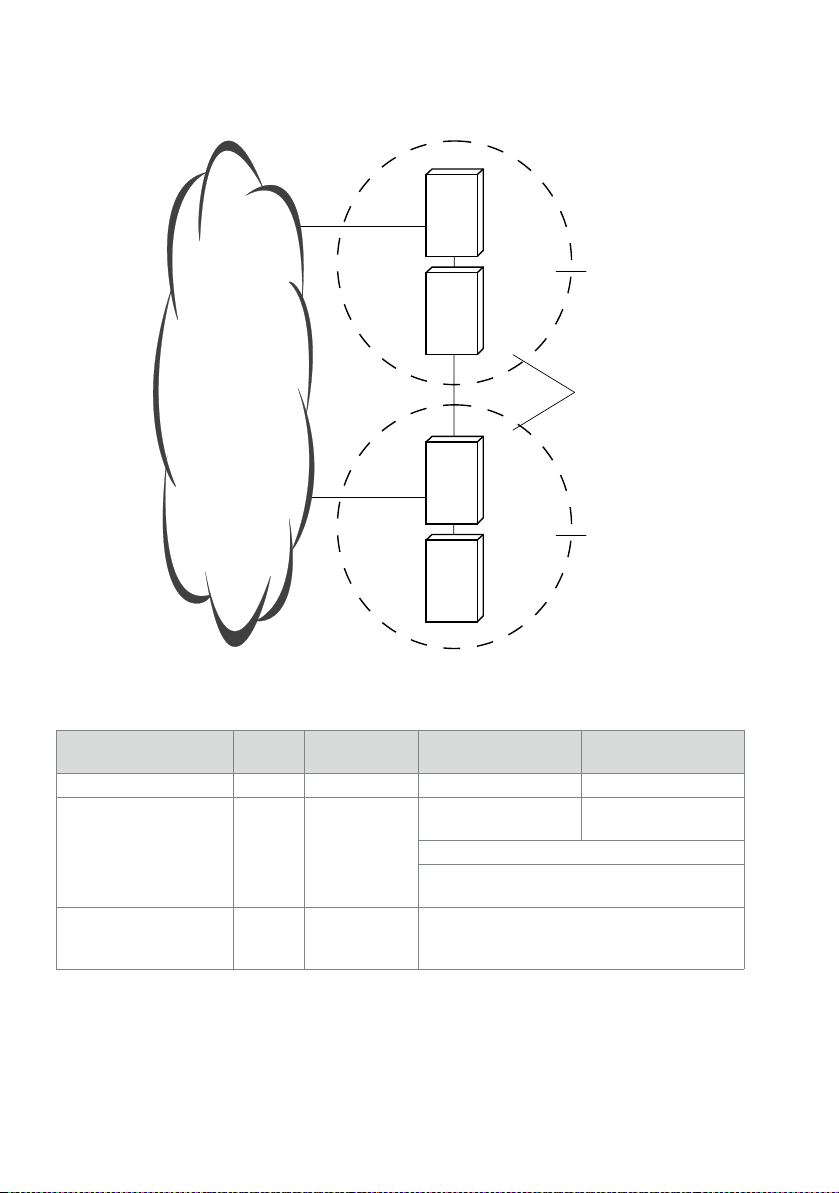

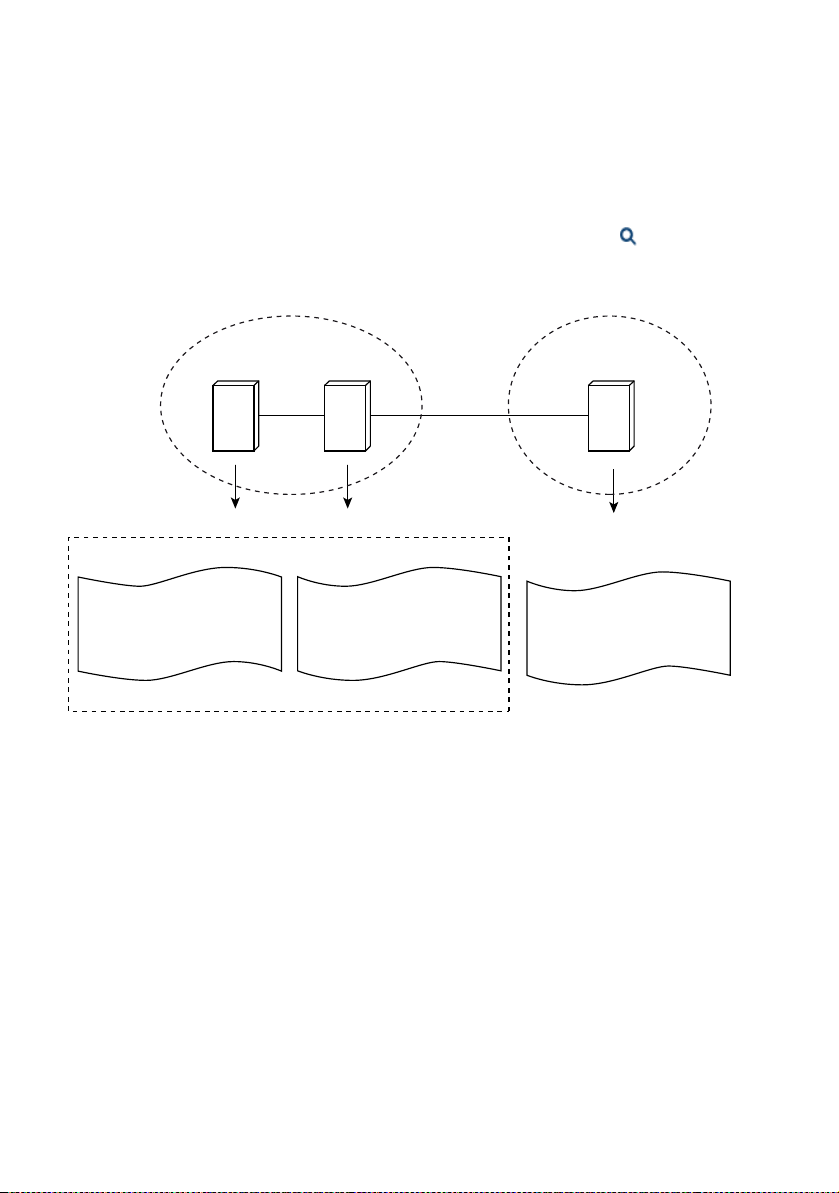

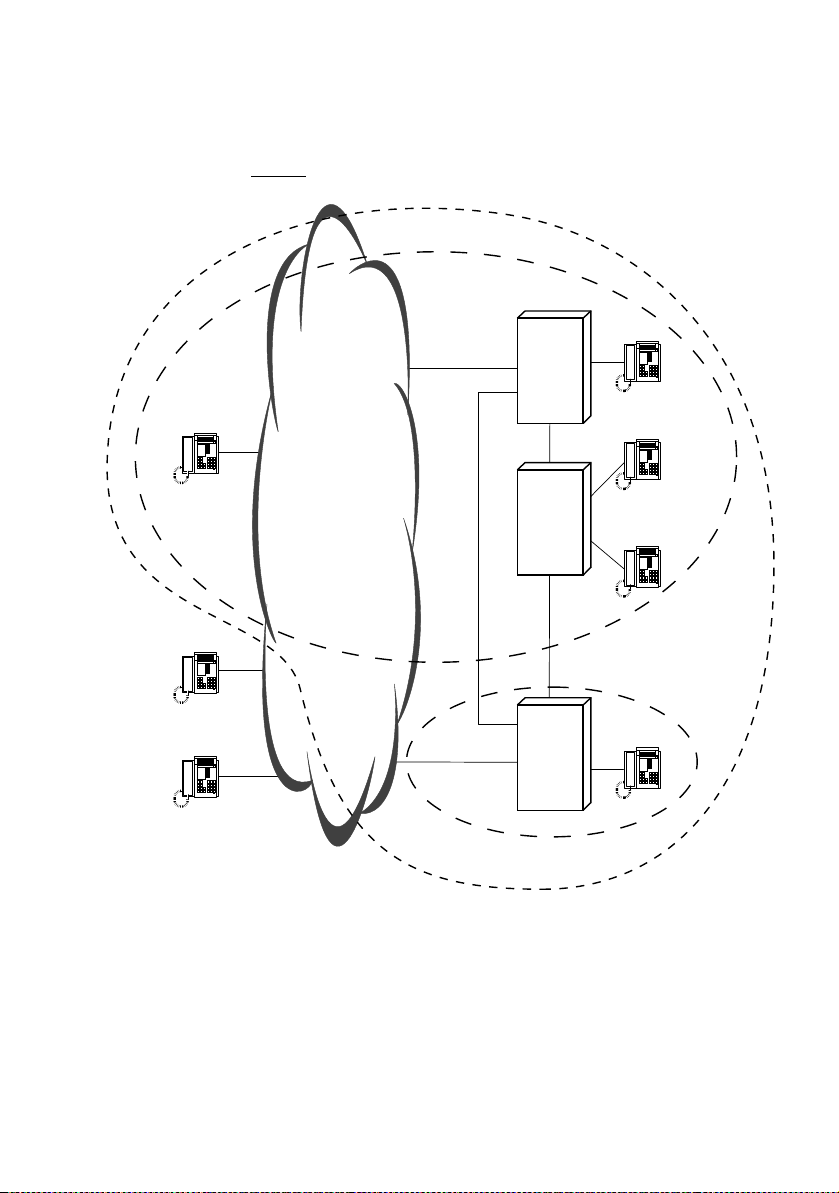

Fig. 22 Numbering plan identifiers in the public network and in the PISN (in PINXs)

1) depends on the network provider

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 55

Numbering plan

Numbers in a numbering plan are analysed with the aid of the Type Of Number (or TON).

Numbering Plan Identifier E.164

Numbering plan E.164 comprises the following types of number:

Tab. 5 E.164 types of number

Typ e Of N u mbe r Structure Example

Subscriber [SN] 624 11 11

National [NDC] [SN] 32 624 11 11

International [CC] [NDC] [SN] 41 32 624 11 11

Unknown [NP] [NDC] [SN] 032 624 11 11

[IP] [CC] [NDC] [SN] 0041 32 624 11 11

[SN]Subscriber Number (user number) [NDC]National Destination Code (national destination code or toll area code) [CC]Country Code (country code) [NP]National Prefix (national prefix) [IP]International Prefix (international prefix)

The national and international prefixes (in Switzerland 0 for national and 00 for international long-distance traffic) are not part of the type of number. Prefix digits are sometimes also referred to as trunk prefixes.

PNP Numbering Plan Identifier

The PNP numbering plan comprises the following types of number:

Tab . 6 PNP typ es o f n umbe r

Typ e Of N u mbe r Structure Example

Level 0 [RIN] 1313

Level 1 [RP1] [RIN] 60 1313

Level 2

The system supports private networks up to and with Level 1

[RIN] Regional Intern Number: all destination numbers within a Level 0 region [RP1] Regional Prefix 1: Prefix for a Level 1 region [RP2] Regional Prefix 2: Prefix for a Level 2 region

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

[RP2] [RP1] [RIN] 62 60 1313

Page 56

Numbering plan

-FWFM

-FWFM 

-FWFM 

-FWFM

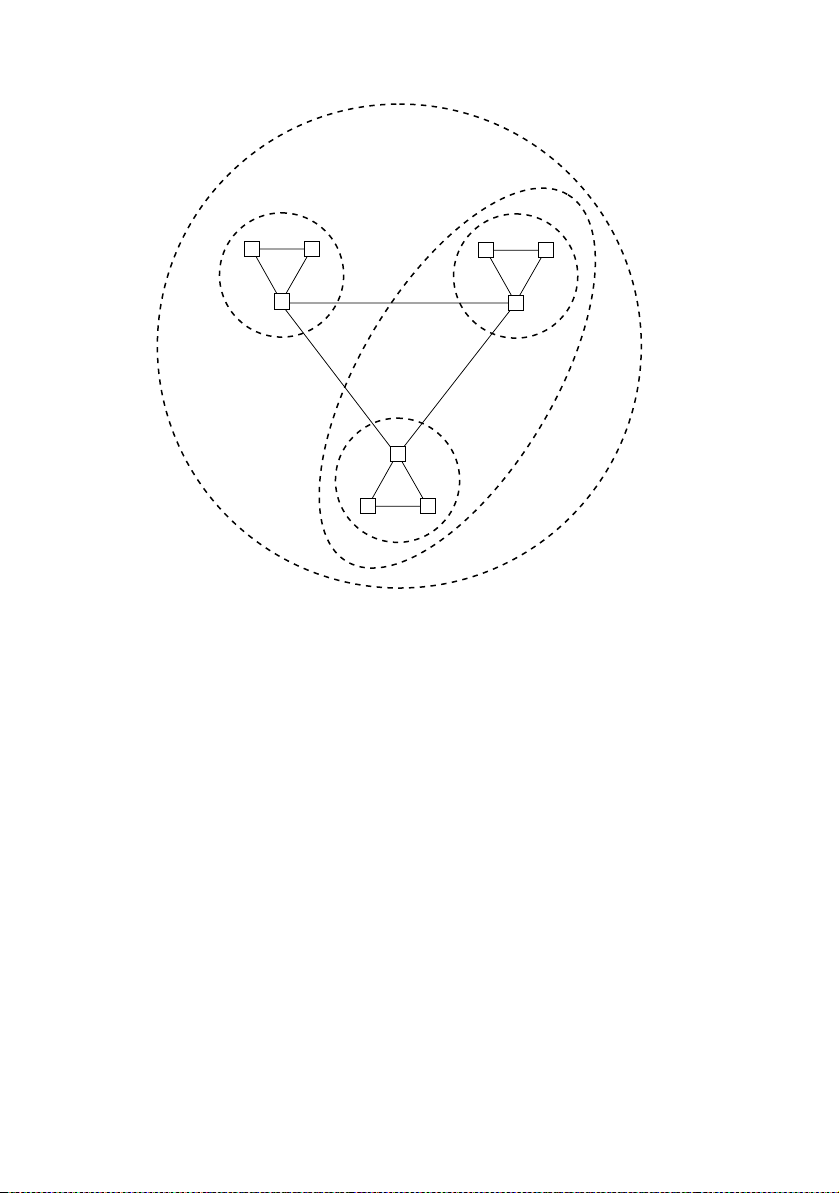

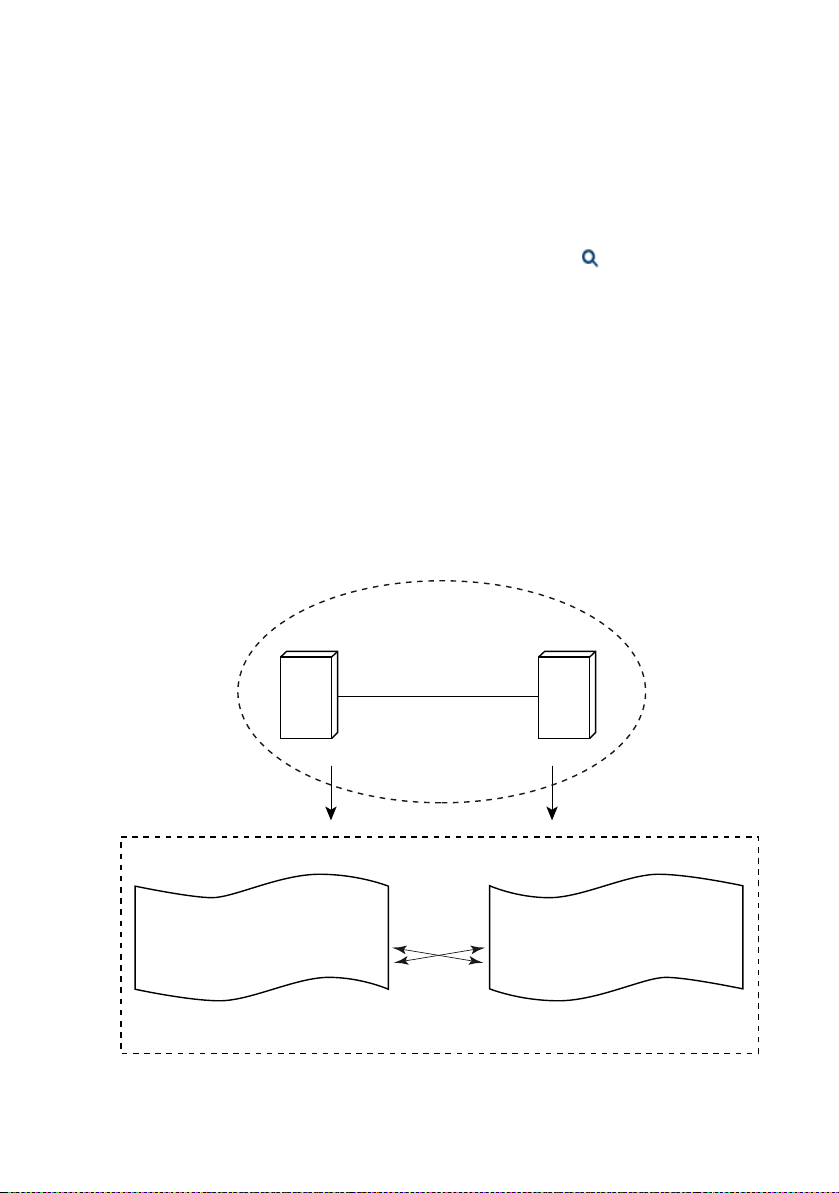

Fig. 23 Levels as per PNP definition

-FWFM

3. 2 The System's Numbering Plan

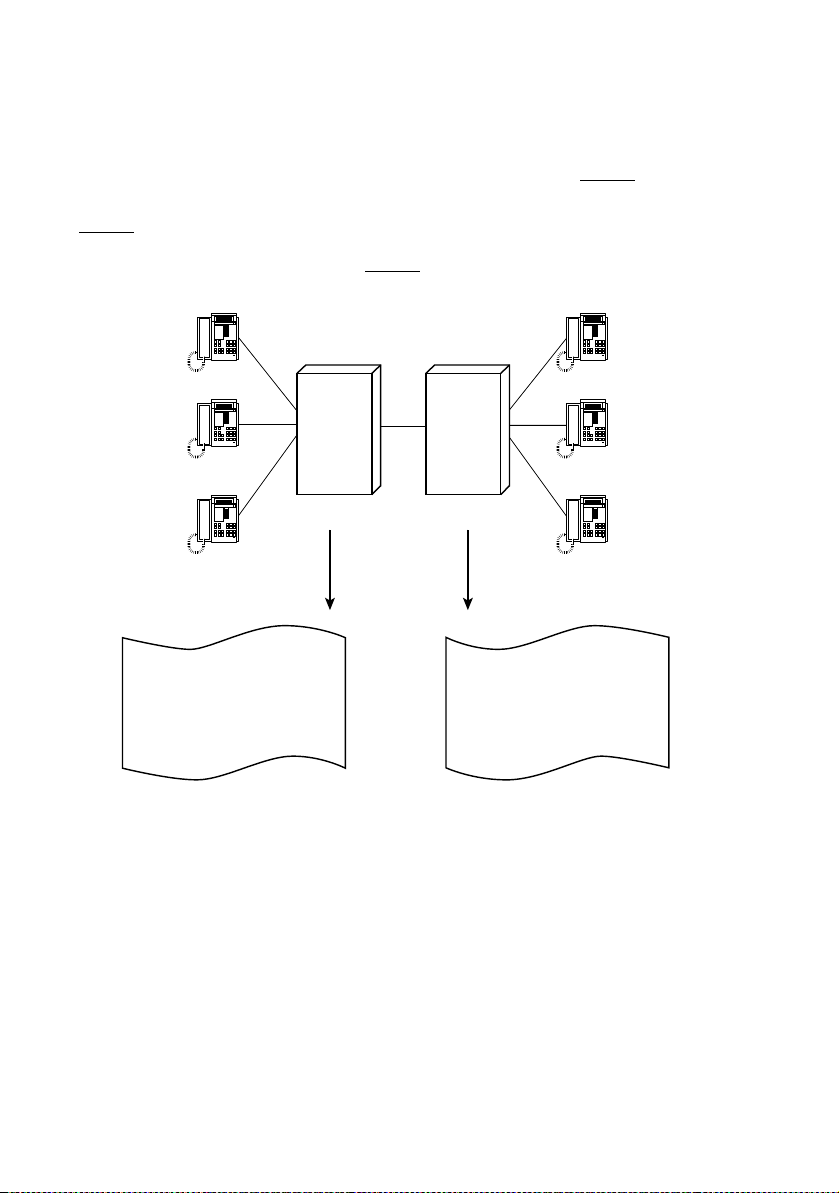

The system's internal numbering plan is the numbering plan used for a stand-alone communication server or a PINX in a private network. The numbers entered in the numbering plan are used both to dial up call destinations in the communication server and to execute control functions. Call destinations and functions are grouped into categories.

The internal numbering plan:

• Assigns number ranges to the categories.

• Allocates their numbers to call destinations and control functions, making them obtainable and executable respectively.

As far as the call destination numbers are concerned, the system's numbering plan is a PNP-type numbering plan.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 57

Numbering plan

3. 2. 1 Categories in the Numbering Plan

The allocation of categories to numbers and number ranges can be freely configured, provided a number of rules are observed. The default settings depend on the country.

Configuration

Open the numbering plan configuration directly with ( =g4).

Alternatively, in the header of the call routing view ( =df) click the numbering plan link.

Rules for the internal numbering plan

• Numbers are always interpreted starting from the left.

• The various categories must be unequivocally separated through number allocation. If, for example, the operator console has been allocated number 11, the numbers 11n cannot be allocated to any other categories. If, however, the operator console has been allocated the number 111, the numbers 112 to 119 can be allocated other categories.

• Numbers within a category do not necessarily have to constitute a coherent range; instead, they can be spread over the entire number range (e.g.: user 200, 404, 550, 551, ...). However, for the purposes of clarity, we recommend that you define coherent ranges.

• The number length is variable and may consist of 1 to 12 digits. Numbers with more than 12 digits will be truncated from the right.

Tab. 7 Categories in the system's numbering plan with allocated numbers

Category Number / Number Range

Name Explanation Number1) Number range Explanation

Exchange access, business

Exchange access, private

Operator phone The PC operator console can

Emergency number This call number is assigned

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Call charges are added up on the Business Telephony or Business Data Service cumulative counter.

Call charges are added up on the Private cumulative counter.

be reached under this call number.

global emergency destination 1 under which three destination numbers are stored (depending on the switch group and switch position).

0 <ext. call No.> Prefix, truncated before

dialling out into the network

10 <ext. call No.> Prefix, truncated before

dialling out into the network

11 –

12 – Up to 10 emergency

numbers can be defined, all of them assigned global emergency number destination 1.

Page 58

Numbering plan

Category Number / Number Range

Name Explanation Number1) Number range Explanation

Cost centre selection The call charges are explicitly

allocated to the selected cost centre.

Users Call numbers of the internal

users The users are assigned one or more terminals.

Route selection Routes the outgoing call via

the selected route

User group These call numbers can be

used to dial user groups internally

MMCC Internal number of the MMC

Controller.

Remote maintenance access PPP

Selects the configuration interface via PPP

Voice mail Internal call number of the

standard voice mail system. To activate a mailbox a call is rerouted to this call number.

Abbreviated dialling Other, user-definable call

numbers are stored under these numbers

Door intercom system

Control output

Selects the door intercom 851 –

Freely configurable control outputs for switching external equipment

Call distribution element

Call distribution elements link direct dialling numbers with internal call numbers. A call distribution element can be assigned its own internal call number.

PISN users a) Internal users in a net-

worked system. b) External users which are displayed as internal users and can be dialled as internal users.

Own region prefix Level 1 prefix for the region

allocation of a PINX in the PISN

* - substitute Substitute digit for pulse dial-

ling phones without * key

13 <CC No.>

<ext. call No.>

Prefix, truncated together with the CC No. before dialling out into the network

20 to n or 200

to n

170 to n

–

<ext. call No.> Prefix, truncated before

dialling out into the network

860 to n

–

897 –

898 –

899 – Only one voice mail no.

can be created.

7000 to 7999 –

853 to 856 –

Not allocated –

Not allocated – Prefix, truncated on

detection

Not allocated <Function code>

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 59

Numbering plan

Default settings for Switzerland

Depends on the number of terminal interfaces installed.

Depends on the type of communication server

Only with Mitel 415/430 and if the corresponding number of ODAB card(s) is fitted

3. 2. 2 Exchange Access Categories

A call can be transmitted to the public network by selecting a prefix from one of the exchange access categories.

The cost type (Business, Private), cost centre (cost centre selection) or route (route selection) is determined according to the prefix selected.

Route selection prefixes are the internal call numbers of the routes.

Route selection can also be used for routing in the private leased-line network.

3. 2. 3 Category for abbreviated dialling

Abbreviated dialling numbers facilitate the exchange traffic for numbers that are frequently used. They can also be used to activate functions via */# function codes more quickly.

An internal or external call number or a function code and a name can be stored under any abbreviated dialling number

Stored Numbers

If an external number is stored, the exchange access prefix must also be entered at the same time. Prefix and number must be separated with a hyphen. The hyphen ensures that when the number is dialled via a line key, the exchange access prefix is truncated.

Only the front portion of a number can be entered at any time. The rear portion must then be suffix-dialled manually. Example: The number 0-001212 and the name "NY" (for New York) are stored under the abbreviated dialling number 7500. Any user who wants to call Manhattan, New York, simply dials "NY" by name, then adds the local number.

Mitel Advanced Intelligent Network:

In an AIN with nodes in different countries the abbreviated dialling numbers must always include the international prefix (e.g. 00) and the country code (e.g. 41). (Example: 0-0041326553333). This is necessary as the national portion of the number may well be identical in different countries. This prevents conflicts in the call routing and call number display (CLIP).

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 60

Numbering plan

Name

The name is used:

• To dial by entering the name rather than the call number (dialling by name).

• To display the name on the user’s own system phone when the CLIP number of an incoming call matches the number stored under abbreviated dialling (see "Replicating the Name Display in the Communication Server", page 77).

Digit Barrings and Exchange Access Rights

When an external destination is dialled via an abbreviated dialling number the number stored bypasses the digit barring and the exchange access authorization.

When an external destination is dialled using dialling by name via abbreviated dialling, only the exchange access rights are bypassed (more on digit barrings and exchange access rights see "Digit barring", page 192

and "Exchange access authorization",

page 203).

3. 2. 4 Category for emergency number

A total of 10 emergency numbers can be created in the numbering plan. The emergency numbers are used to quickly dial an emergency number destination.

All emergency call numbers dial global emergency destination 1. In the Emergency

destination view ( =9r) configure 1 switch group and 3 destination numbers for emer-

gency call destination 1. When an emergency call number is dialled one of the three destination numbers is dialled based on the switch position of the assigned switch group.

Notes:

– When an external destination is dialled via the emergency number the digit barring and the

exchange access authorisations are bypassed.

– 49 emergency destinations can be defined in addition to the global emergency destination.

They are meant for individual assignment to terminals. If a terminal is assigned such an emergency destination, one of the destination numbers of this emergency destination is dialled while dialling an emergency call number, depending on the switch position of the assigned switch group. Therefore, the emergency destination of the terminal has priority over the global emergency destination.

Mitel Advanced Intelligent Network:

In an AIN the nodes can be located in different countries, which means it makes sense to enter in the numbering plan the emergency number normally used in each country. Depending on the assigned emergency destination and the switch position of the configured switch group the corresponding destination number is then dialled whenever the emergency number is dialled. The assignment of the emergency number destination is configured for each node.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 61

Numbering plan

3. 2. 5 Category for users

3. 2. 5. 1 Internal users

The call numbers within this category are assigned one or more terminals. The following terminal types are supported:

• IP system phones (hardphones and softphones)

• Digital system phones (DSI / DASL)

• Cordless DECT phones (system phones or GAP phones)

• Analogue terminals

• SIP system phones (Mitel SIP)

• SIP phones or SIP terminals by other manufacturers (standard SIP)

• BluStar phones (hardphones and softphones)

• Integrated mobile/external phones (with assigned internal call numbers for incoming and outgoing calls; see "Integrating mobile and external phones", page 61

• Integrated mobile phones with user-friendly Mitel Mobile Client application (linked to the communication server via an MMC Controller).

• Virtual phones (behave like analogue internal phones, except that they do not occupy any port since no hardware is available; see "Virtual terminals", page 65

• ISDN terminals on the BRI-S bus (phones, PC cards)

If an internal user is assigned a name, the user in question can be dialled internally by entering the name instead of the call number (dialling by name), and the name is displayed on the destination user’s terminal on the system’s own communication server, or another PINX in the PISN (CNIP).

3. 2. 5. 2 Integrating mobile and external phones

Although the communication server does not have a GSM receiver, mobile phones can be connected to MiVoice Office 400. The mobile phone is assigned to a user and can be reached internally using his user number. If the mobile phone user dials a call number specially set up in the communication server, he can execute certain functions via */# function codes or make internal/external calls. This feature is not limited to mobile phones, but can also be used for other external phones.

An in-depth integration is achieved through the Mitel Mobile Client application installed on a mobile phone, as well as with the help of an MMC Controller connected to the communication server. The Mitel Mobile Client allows the most important telephony functions to be used conveniently, whereas the MMC Controller enables mobile users,

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 62

Numbering plan

for instance, to move back and forth between the internal WLAN coverage and the mobile radio network without the call being interrupted.

Integration step 1

• The mobile or external phone is assigned to a user and can be reached internally using his user number.

• If the integrated phone user is assigned a direct dialling number, he can also be reached from the outside.

• The status of assigned user is monitored and displayed internally (e.g. on team keys). This is of course possible only for actively logged in phones or for calls to integrated phones set up via the internal user number.

• If the user of the integrated phone calls an internal user on his direct dialling number, the called party is shown the CLIP of the integrated mobile phone’s internal call number.

• The external user of the integrated phone can dial in using specially set-up direct dialling numbers for which Mobile/external phone integration is configured as the CDE destination; once the external user has been authenticated he obtains the internal dialling tone. He can then carry out specific functions via */# function codes in prefix dialling or make internal/external calls. Several such direct dialling numbers can be set up for each communication server or AIN. This can help to save considerable roaming charges in an AIN that covers several countries.

• One Mobile or External Phone Extension licence is required for each integrated phone.

Integration step 2

The integration level 2 has also all functions of the level 1. Suffix dialling functions such as enquiry calls or setting up a conference are additionally possible. This requires special DTMF receivers which must be activated throughout the connection. This in turn requires DSP resources. This means that the following prerequisites are needed so that the functions of integration step 2 can be used:

• The number of DTMF receivers required must be covered with GSM channels in the DSP configuration (DSP ( =ym) view). The number of assignable GSM channels differs depending on the configuration server and DSP (see Mitel 415/430 and Mitel 470 System Manual).

• If all GSM channels are busy, the functions of integration level 2 for the current call connection are not available.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 63

Numbering plan

• The enhanced functionality must be assigned to each integrated mobile or external phone in the terminal configuration ( Enhanced functionality parameter).

• Provider-specific case: If the integration of the mobile phone is obtained with separate lines to the provider, the parameter Allow enhanced functionality for direct in-

coming calls must be activated in the corresponding trunk group.

Mitel Advanced Intelligent Network:

The DSP resources must be made available at the node through whose network interface there is a communication server − mobile/external phone connection.

See also:

An overview of the function codes supported at integration levels 1 and 2 can be found in the "Mobile Phones on MiVoice Office 400" User’s Guide.

Automatic mobile/external phone authentication

The integrated phone can be automatically authenticated using the CLIP, and the user hears the internal dialling tone after a ring back tone (Parameter Use CLIP for au-

thentication).

Note:

– For security reasons automatic authentication is not used with "Break-in" or "Special

Arrangement" situations as the incoming CLIP is not PSTN-verified in such cases. There may be cases however (especially with SIP providers) where the CLIP is received as "verified" when in fact it is not. An unauthorized person can then dial into the communication server and make calls or carry out certain */# procedures. After a first start automatic authentication is switched off.

– In the case of a connection via analogue or SIP network interfaces the CLIP is normally

received "unchecked". To allow automatic authentication of the integrated phones nonetheless, the parameter Allow CLIP authentication even if CLIP is not screened must be activated in the corresponding trunk group (default setting = deactivated).

Manual mobile/external phone authentication

If automatic authentication is disabled, the integrated phone is manually authenticated as follows:

1. The user of the integrated phone dials a direct dialling number specially set up.

A ring-back tone is obtained followed by a special authentication tone.

2. The user makes the following entries: <Internal user number> * <user PIN> #

The internal dial tone is obtained.

3. The user of the integrated phone can now make an internal/external call or execute certain functions via */# function codes.

Note:

For both automatic and manual authentication the user PIN must be changed first. The default value "0000" is not permitted.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 64

Numbering plan

System configuration

The mobile/external phones are configured with the mobile/external terminal interface settings. The navigation code =32 opens the first terminal of this type in the terminal list. Refer to the online help for information on the individual settings.

Note:

In the case of an external call to an integrated mobile/external phone the caller’s CLIP is always transmitted to the phone as redirecting information. This also applies to external calls to a user who has redirected to an integrated phone. In this case the parameter Send redirecting informa-

tion must be activated in the trunk group settings and "Special Arrangement" must be activated

by the network provider.

See also:

A separate User’s Guide is available for the mobile phones on MiVoice Office 400. It includes an overview of the functions that can be carried out using mobile phones.

3. 2. 5. 3 Mitel Mobile Client / Mitel Mobile Client Controller

Mitel Mobile Client 4 is an application for the most common Smartphones with Android, iOS and BlackBerry operating systems. The most important telephony functions are thus available via the menu, and the mobile phone user can move about freely between the WLAN and mobile network without the call being interrupted (seamless handover).

The server-based Mitel Mobile Client Controller, connected to the communication system via SIP, is required for integration into the communication system. As a configuration and administration interface, it offers web-based management software. However, Mitel Mobile Client Controller and Mitel Mobile Client 4 are normally configured automatically via WebAdmin.

Dual mode (GSM/ WLAN), address book search, quick call setup, Voice over IP and "trueCLIP" are possible using the 2G/3G data channel between Mitel Mobile Client 4 and Mitel Mobile Client Controller. Mitel Mobile Client Controller is connected to the internet; therefore, a direct internet connection is not required for the communication system.

Each Mitel Mobile Client 4 requires one MMC Extension licence.

See also:

With Mitel Mobile Client 4, a user's guide and and an administration manual are available for each operating system.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 65

Numbering plan

3. 2. 5. 4 Virtual terminals

Virtual terminals respond in the same way as analogue internal terminals except that they

• do not physically occupy a port as there is no hardware involved,

• do not require a B channel.

Other properties

• Virtual terminals are capable of sending and receiving messages via the third-party CTI interface.

• A user who has been assigned only one virtual terminal is referred to as a virtual user.

• When the caller dials a virtual user he obtains the ring-back tone or the busy tone (if the user is already in a call).

• Virtual users belong to the group of users with their own DDI number, the maximum number of which is restricted by the system limits per system.

• Virtual users have their own recall time, which can be set throughout the system. It is used if no recall time is defined in the user setting (see also "Recall", page 371

Application examples:

• During an explicit call transfer without prior notice to a virtual user a call can be parked for up to 900 seconds and then transferred using *86 User No.

• To integrate a PISN user into a user group, it is possible to accept a virtual user in the user group using a CFNR to the PISN user.

• In third-party CTI applications virtual users can be used to send and receive messages.

3. 2. 6 PISN users

This category comprises users who belong to the same private integrated services network (PISN) but are connected to a different PINX. They can also be users of a virtual PINX.

The numbers of user groups, call distribution elements, abbreviated dialling destinations, routes or door intercoms can also be entered as PISN users, besides the numbers of internal users.

The configuration takes place in the PISN user( =gv) view.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 66

Numbering plan

201

202

203

216

217

218

201 202 203 21X 218

216 217 218 201 202 203

Internal user D Internal user E Internal user F PISN user A PISN user B PISN user C

Internal user A Internal user B Internal user C PISN users D, E PISN user F

Numbering plan PINX 2

Numbering plan PINX 1

PINX 2

PINX 1

Entering PISN Users

There are two ways of entering PISN users:

• A PISN user’s call number is entered in full and unequivocally (Fig. 24, PINX 2).

• One number with wildcards is entered for several PISN users (group of PISN users, Fig. 24

, PINX 1, PISN users D and E).

These variants can also be combined (Fig. 24

Fig. 24 PISN users entered with and without wildcards

Entering the Number of a PISN User in Full

A complete PISN user number unequivocally identifies a user at another PINX or a virtual user.

Each unequivocal number of a PISN user can be allocated a name in the user configu-

, PINX 1).

ration. This enables:

• these users to be dialled by entering the name rather than the call number (dialling by name)

• the name of a virtual PISN user to be displayed (CNIP)

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 67

Numbering plan

Entering Wildcards for a Group of PISN Users

A number with wildcards identifies a group of PISN users (Fig. 24 be:

• the internal users of one or more PINXs

• the PISN users of another region

The wildcard is entered as an upper case (e.g. 21X).

This method of entering PISN users helps to reduce the number of entries made. Moreover, not all the changes made to the internal users of a PINX need to be updated in the other PINXs. However, neither the call numbers nor the names of the individual users in the group are stored in a phone book (it is not possible to retrieve the number from a phone book nor is dialling by name possible, except if the number and name are also stored locally in a private phone book).

Tip:

It is advisable to enter PISN users first with wildcards in an initial stage so that the numbering plan is quickly and transparently available throughout the PISN, and is also already operational. All the PISN users to be available using dialling by name can then be entered individually at a later stage

Entering a Regional Prefix

If an individual or group entry belongs to another PISN region, the entry for the PISN user must be preceded by the regional prefix.

, PINX 1). They can

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 68

Numbering plan

200

299

399

299

399

300

PISN

Region 60

Region 50

PINX 4

PINX 3

PINX 2

PINX 1

Example of Entering PISN Users

...

Fig. 25 PISN with two regions

Tab. 8 Entering PISN users in PINX 2

Varia nt

Number in full 300 200,201...299 60200, 60201...60299 60300, 60301...60399

Numbers partly with wildcards

Numbers with maximum possible wildcards

Combination: number in full and number with wildcards

Number of entries

12 20X, 21X...29X 602XX 603XX

22XX 60XXX

5 2XX, 211 60XXX, 60211, 60311

PINX 1 PINX 3 PINX 4

PINX3 and PINX 4

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 69

Numbering plan

200 ...299 400 ...499

400 ...499 200 ...299

Internal users PISN users

Own prex

Shared Numbering Plan

Numbering plan PINX 2

Numbering plan PINX 1

PINX 2PINX 1

Region 50

3. 2. 7 Separate Regional Prefix Category

This regional prefix allocates a PINX to a PISN region. The PINX compares its own regional prefix entry with the first few digits of the call numbers of the following calls:

• All outgoing calls

• All incoming calls routed via a trunk group with the setting Network type = Private

If the first few digits match up with the PINX's own regional prefix, they will be truncated. The remaining number is then analysed and forwarded

3. 2. 8 Shared Numbering Plan

PISN users are structured in the internal numbering plans of the PINX.

From the PINX’s viewpoint its own users are internal users and the users of the other PINXs are PISN users.

If two or more PINXs are structured in such a way that they split the users’ number range among themselves, we talk of a shared numbering plan. Together they form a region, within which all users can be reached under the internal call number.

Fig. 26 Shared numbering plan: two PINXs share the numbers of a numbering plan.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 70

Numbering plan

200 2300 60200

...299 ...399 ...60299

...399 ...299 ...60299

300

200

60200

200 50200

...299 ...50399

Internal users PISN users

Own prex

Internal users PISN users

Own prex

PINX 3PINX 2PINX 1

Shared Numbering Plan

Numbering plan PINX 3

Numbering plan PINX 2

Numbering plan PINX 1

Region 60Region 50

3. 2. 9 PISN with different Regions

A PISN can be divided into several regions. Each region is identified by its regional prefix. Users who call a user in a different region first dial the prefix of the destination region, then the internal number of the user they want. Their specific regional prefix is specified in the internal numbering plan ( =g4) of each PINX. The organization of the numbering plan does not depend on the PISN topology.

Fig. 27 PISN with 2 regions and shared numbering plan for Region 50

Entering a Regional Prefix

In the example above the PISN users of a different region are entered with the regional prefix (for example 60200 to 60299)

Another possibility is to define a route with call number 60 and to enter the PISN users without regional prefix (route method). The user dials exactly the same number, for example 60250, but this time the call is routed as a route selection. It uses the route with call number 60 and not the one allocated to the PISN user in the user configuration. (In the example above the numbers would have to be distributed differently since number ranges cannot be assigned twice.)

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 71

Identification elements

Single ringing tone

Time

Double ringing tone

4 Identification elements

Correctly identifying and displaying a call is the essential requirement for adequately implementing the system's networking philosophy. This Chapter looks at how the origin of a call is identified using different ringing tone patterns and how the caller's number (CLIP) or name (CNIP) is displayed. It describes how CLIP and CNIP displays are created under different system conditions, how they can be influenced, and how to suppress the CLIP display.

A call is identified firstly by the type of acoustic ringing (i.e. ringing pattern) and, secondly, by the display on the terminal.

The default values are selected in such a way that the ringing patterns and displays appear correctly in most cases. Changes to the settings are necessary only in exceptional cases.

4. 1 Internal and External Ringing Patterns

The ringing pattern provides a means of identifying whether the call originates from within the PBX (internal call) or from the outside (external call). The rhythm of the ringing pattern differs in each case

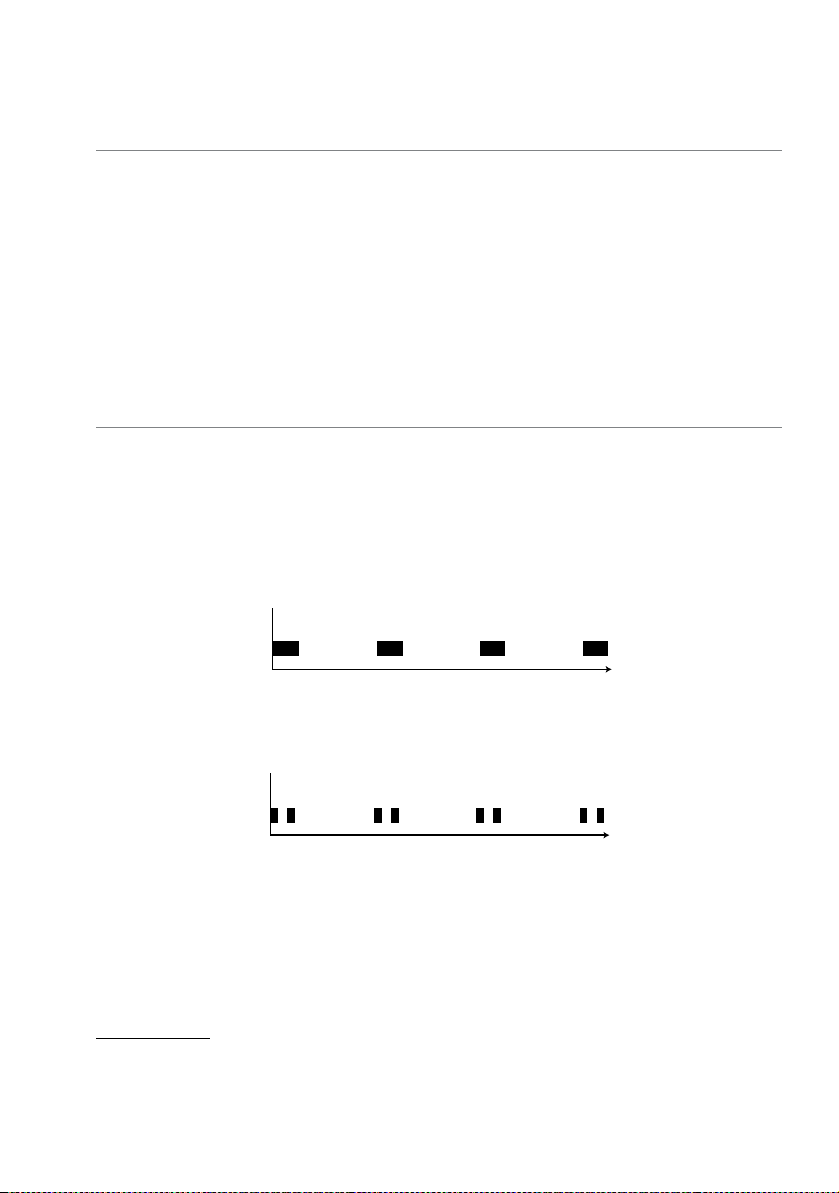

Fig. 28 Single ringing tone

Fig. 29 Double ringing tone

1) The way in which ringing patterns are assigned to internal and external calls varies from one country to the next.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 72

Identification elements

Calls with the Internal ringing pattern:

• Calls from internal users

• Calls from the public network to analogue terminals if the interface configuration ( =7g) of the parameter Ring pattern is set to Single ringing tone.

• Calls from users from the private network (PISN users):

– Calls from the private leased-line network – Calls from virtual network PISN users An enquiry call from a user with an exchange call on hold if in the signalling settings ( =nr)

• the parameter Ringing pattern at enquiry destination is set to Internal ring melody.

Calls with the external ringing pattern:

• Call from the public network

•

An enquiry call from a user with an exchange call on hold if in the signalling settings ( =nr) the parameter Ringing pattern at enquiry destination is set to Internal ring melody.

The Ringing pattern at enquiry destination setting is valid throughout the system.

Note:

Certain terminals which automatically answer calls (e.g. fax machines) are not able to interpret the double ringing tone correctly. With these terminals the configuration Ring pattern = Single ring-

ing tone can be used to force a situation where the single ringing tone is always used for all calls.

Alternative for the MiVoice 5300, MiVoice 5300 IP series of system phones and the MiVoice 2380 IP IP softphone

Different ringing melodies can be configured separately in the terminal configuration for each system phone to help differentiate between internal and external calls. If the parameter External ring melody is deactivated, the single and double ringing tone is used to make the distinction; otherwise, the configured ringing melodies. If no distinction is required, the identical melody can be entered in both places.

Identifying the Origin of a Call

If an incoming call's CLIP number corresponds to numbering plan identifier E.164, the system assumes that the call comes from the public network.

If an incoming call's CLIP number corresponds to numbering plan identifier PNP, the system assumes that the call comes from the PISN.

If the CLIP number’s numbering plan identifier is (Unknown), the trunk group configuration is used to decide whether the call is signalled internally or externally ( NPI call

unknown setting).

See also:

"Numbering Plan Identifiers", page 54

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 73

Identification elements

&/,3  &1,3 7(GLVRQ



 ,1HZWRQ

KD]DD[[D

 7(GLVRQ

&/,3  &1,3 7(GLVRQ

&2/3  &213 ,1HZWRQ



7(GLVRQ



,1HZWRQ

KD]DD[[D

4. 2 Displaying Numbers (CLIP) and Names (CNIP)

During both the ringing phase and the call itself the caller’s call number or name (or both) are shown on the terminal’s display.

• The indication of the caller’s phone number is referred to as CLIP (Calling Line Identification Presentation).

• The indication of the caller’s name is referred to as CNIP (Calling Name Identification Presentation).

Fig. 30 CLIP and CNIP

When the destination user answers the call, the number or name of the destination user is transmitted and displayed to the caller:

• The indication of the number is referred to as COLP (Connected Line Presentation).

• The indication of the name is referred to as CONP (Connected Name Presentation).

Fig. 31 COLP and CONP

These identification elements allow the use of other features such as logging unanswered calls on the destination user’s call log; the destination user can then return the call by dialling the CLIP number.

These identification elements are available in digital networks and in some analogue networks. As CNIP and CONP are not supported by the public network, the system tries to replicate them by searching through the internal phone books for a number that matches the CLIP or COLP number. If there is a match, the name entered there is displayed (see "Replicating the Name Display in the Communication Server", page 77

). CNIP and CONP are supported in the private network under QSIG. They are both accepted and do not need to be recreated in the communication server.

The CLIP and COLP numbers also contain the information of the NPI numbering plan type and the TON Type of Number (see "Numbering Plan Identifiers", page 54

). The system needs this additional information for a correct number analysis, particularly as a PINX in a PISN. It is not displayed on the user’s terminal.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 74

Identification elements

Communication server

C’s CLIP

A’s CLIP

Note:

For CLIP display on analogue terminals the following conditions have to be met: – In the interface configuration ( =7g) the parameter Terminal supports call identification

must be activated. – The terminal must support CLIP display. – Restriction for Mitel 415/430: Different CLIPs can only be sent to 2 analogue terminals

simultaneously.

CLIP Numbers Outside the Registered Number Range

Sometimes the CLIP number transmitted to the public network is not within the registered number range Network providers have different ways of responding to this situation:

• The network provider uses the PINX master number as the CLIP number and sends it on to the destination user.

• The network provider sends the CLIP number received, on to the destination user. Usually this requires an agreement with the network provider (special arrangement).

In the following cases a PINX sends the CLIP outside the registered number range:

• If a freephone number (0800...) is to be displayed as the CLIP

• In the case of overflow routing via a different gateway PINX (see page 246 ample in Tab. 16).

• In the case of break-out routing (see page 251

)

• If a break-in situation is to be forced

and ex-

4. 2. 1 Displaying the CLIP

CLIP functions process incoming and outgoing calls.

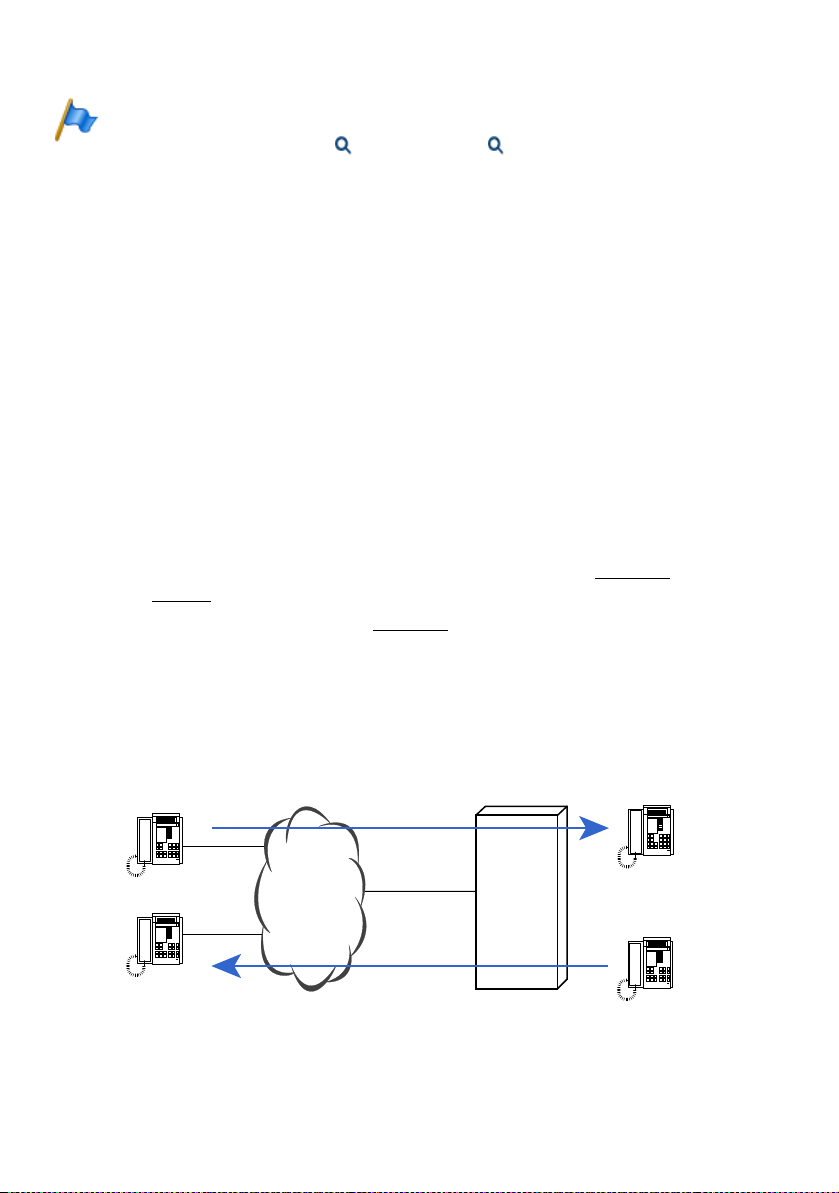

Fig. 32 CLIP of an incoming and an outgoing call

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 75

Identification elements

CLIP of an Incoming Call

User A calls user B: User A sends his CLIP, which is received in the communication server by the trunk group, processed and displayed to user B. For more details see as of page 80

CLIP of an Outgoing Call

User C calls user D: User C sends his CLIP number, which is processed in the communication server. If there already is a direct dialling and a corresponding allocation, the CLIP number is adapted and sent to user D. For more details see as of page 80

The default configuration has been selected so that the CLIP display is correct. The relevant settings do not normally have to be adjusted.

4. 3 CLIP with Incoming Calls

The CLIP number of an incoming call is processed and presented in two stages:

• Analysis and processing of the CLIP number

• Presentation of the CLIP number on the destination user’s terminal

4. 3. 1 Analysing and Editing the CLIP

The following information is necessary for specifying the CLIP properties in a PISN correctly. This sub-chapter can be skipped in the case of the configuration of a standalone communication server.

The system analyses and adapts the CLIP number of an incoming call as accurately as possible so that the CLIP number is always displayed correctly, even in a PISN. For this purpose CLIP number prefixes such as regional prefix, prefix and code are evaluated, and the type of number adapted.

The tables below show how the system handles the type of number and the CLIP number of an incoming call.

Tab. 9 Handling a CLIP number with NPI-type PNP or Unknown

Type of number (TON) Own region prefix

Unknown, Level 1, Level 2 yes Regional prefix is truncated,

no CLIP number and TON remain unchanged

Level 0 no CLIP number and TON remain unchanged

CLIP number has a regional prefix that matches the separate PINX.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Conversion

TON is set to Level 0.

Page 76

Identification elements

Tab. 10 Handling a CLIP number with NPI-type E.164

Type of number (TON)

Unknown International prefix Prefix is truncated,

International Country code that matches the sepa-

National Long-distance code that matches the

Subscriber CLIP number and TON remain unchanged

See also the examples in "Examples of CLIP Displays in the PISN", page 93.

Prefix Conversion

TON is set to International, Further processing, see TON = International

National prefix Prefix is truncated,

No prefix CLIP number and TON remain unchanged

rate PINX

No matching country code CLIP number and TON remain unchanged

separate PINX

No matching country code CLIP number and TON remain unchanged

TON is set to National Further processing, see TON = National

Code is truncated, TON is set to National Further processing, see TON = National

Code is truncated, TON is set to Subscriber.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 77

Identification elements

4. 3. 2 Presentation of the CLIP on the Terminal

Call from the Public Network

If a call originates from the public network, the prefix for Exchange access, business followed by a hyphen is added to the CLIP number (e.g. 0-333 33 33) so that the called party can call back simply by dialling the number displayed.

Call from a PISN User in a Virtual Network

If a call originates from a PISN user in a virtual network, the call number to the PISN user is used to convert the CLIP number into the PISN user number and NPI is set to PNP (see also examples on page 101

Destination is not a system phone

If the destination is not a system phone; the CLIP number is handled in the same way as with system phones but without adding a hyphen.

Calls with suppressed CLIP (CLIR)

If a caller uses the CLIR function to suppress his CLIP display to the called party, the system phone displays Number suppressed instead of the CLIP.

Calls without CLIP

Number unknown is displayed on the system phone for calls without CLIP.

4. 3. 3 Replicating the Name Display in the Communication Server

The communication server will try to assign a name to the CLIP number of an incoming call from the public network and to display that name on the system phone (CNIP). A search is therefore carried out in the communication server directories for a match for the CLIP number. The directories are searched in the following sequence:

• PISN user list

• Abbreviated dialling list

• Local directories of the system phones

A name will be displayed depending on the search result as shown in Fig. 33

CNIP and CONP are supported in the private leased-line network under QSIG. They are both accepted and do not need to be recreated in the communication server.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 78

Identification elements

•

E.164

[

]

[

]

[

]

[

]

[

]

[

]

[

]

= E. 164 ?

CNIP is created by complementing the internal CLIP No. with the stored name

Does

the CLIP No.

match an abbreviated

dialled

number

NPI of

the CLIP No.

CLIP No. is forwarded

to the terminal

without the CNIP

CNIP is created by complementing the internal CLIP No. with the stored name

yes

to the terminal

CLIP is forwarded

to the terminal

wihout CNIP

CLIP No. is forwarded

to the terminal

without the CNIP

to the terminal

CNIP is created by complementing the internal PISN no. with the stored name

NPI of the CLIP No. is set to

unknown

yes

Does

the CLIP No.

match the stored call

number of a PISN

user block

Does

the CLIP No.

match the stored call

number of a

PISN user

Does

the CLIP No.

match an abbreviated

dialled number

Does

the CLIP No.

match a PISN

No.?

Trunk

group settings

“Type of

network = ?”

NPI of the CLIP No.?

Unknown

Public

Private

Matching digits are

removed

Matching digits are removed. NPI of CLIP No. is determined

yes

the rst

digits of the CLIP No.

match an own

prex?

Call with CNIP

Call without CNIP

the rst

digits of the CLIP No.

match the digits under

"Truncate

CLIP"?

yes

4. 3. 4 Flow charts for name identification (CNIP)

[1] Possible prefixes: own prefix, country code, area code or own regional prefix. [2] Continues on Fig. 34

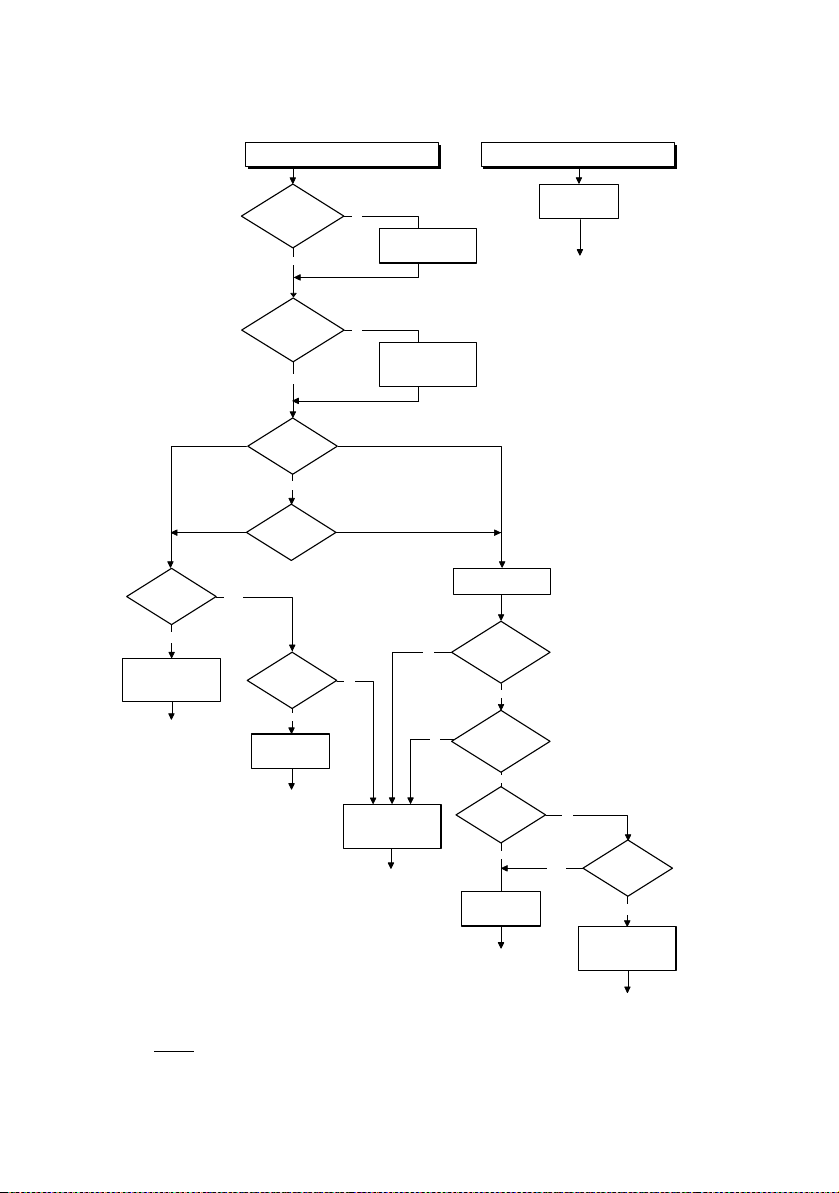

Fig. 33 Analysis and processing of an incoming call in the communication server

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 79

No. in call

list?

No. on

the key?

No. in

phone book?

System

generates CNIP?

System phone

No CNIP

CNIP = name from call list

CNIP = name on

the key

CNIP = name in

phone book

yes

no CNIP

CNIP = unchanged

yes

ISDN terminal

which

terminal?

CLIP/CNIP from communication server[1]

Identification elements

[1] From Fig. 33.

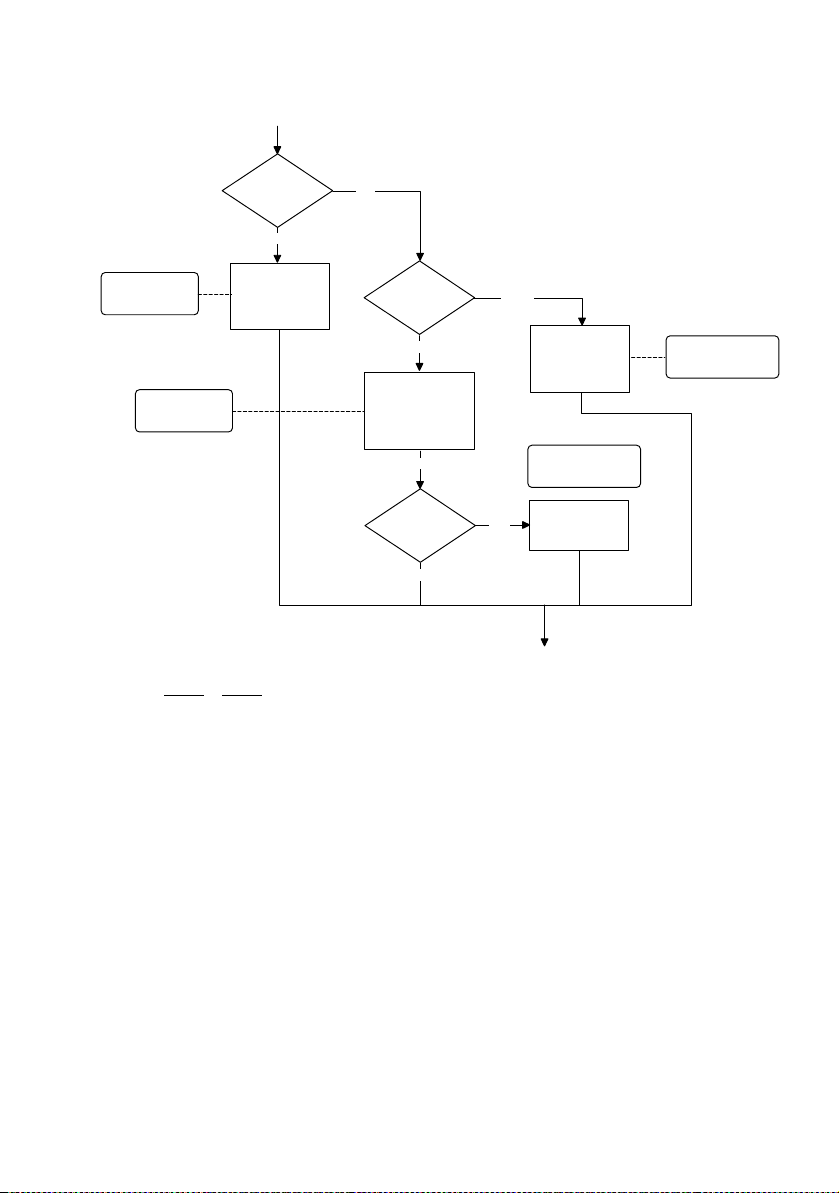

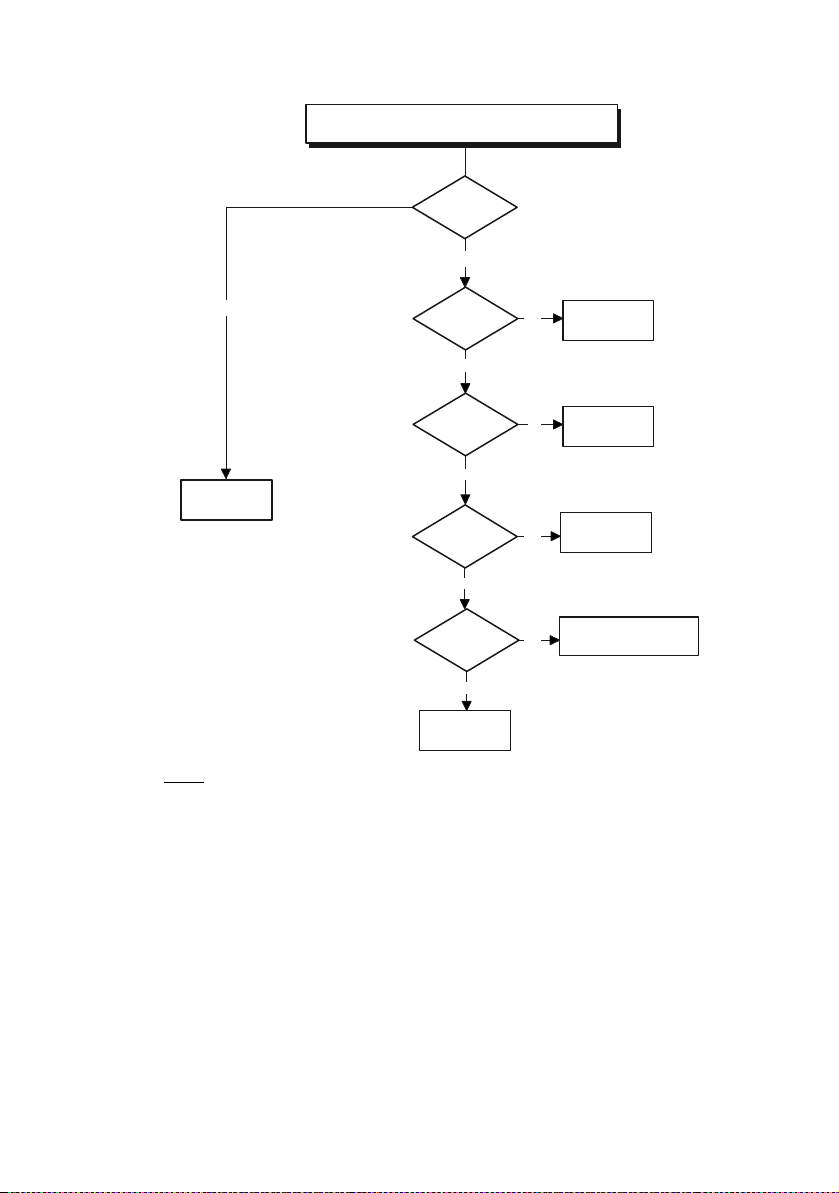

Fig. 34 Presentation of the CLIP / CNIP of an incoming call on the terminal

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 80

Identification elements

4. 4 CLIP with Outgoing Calls

With an outgoing call the CLIP number is transmitted along with the NPI and TON information. In principle there are two possible variants for creating a CLIP number:

• The communication server creates the CLIP number automatically, based on the origin and routing of the call.

• A number is entered permanently as the CLIP number in the user configuration.

4. 4. 1 Creating the CLIP in the communication server

If in the user configuration the setting Create CLIP number automatically is activated, the communication server generates a CLIP number. If there is a suitable DDI number for the calling user, that number will be used. A suitable DDI number is a number in a direct dialling plan which

• is linked directly or through a user group to the calling user via a call distribution element, and

• is linked with the same trunk group via which the outgoing call is routed.

If there is more than one suitable DDI number, the lowest one is used.

The trunk group settings are used as the numbering plan identifier and type of number.

If there is no suitable DDI number, the trunk group settings are used for calls into the public network (Fig. 35), for calls into the private leased-line network it also depends on how the automatic CLIP is set in the trunk group configuration ( =bg) (Fig. 37

4. 4. 2 Entering a fixed CLIP

In practice a permanent CLIP number is used if the CLIP of the user concerned is always to remain the same in the public network, regardless of the path used for routing an outgoing call. Break-out is a typical application (see page 251).

If a call goes out to the public network, the permanent CLIP number is retained unchanged together with the numbering plan identifier NPI and the type of number TON, even if the call is routed via another PINX (see example on page 98

The required CLIP number, the Numbering plan identifier (NPI) and Number

type (TON) are entered in the user configuration. The setting Create CLIP number automatically must be deactivated.

For the Numbering plan identifier (NPI) E.164 is set in normal case.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 81

Identification elements

200

624 32 00

032 624 11 11

200

E.164

624 32 00

Users:

Automatic

CLIP

CLIP sent

CLIP No., NPI

and TON from

user

CLIP created

automatically [1]

CLIP NPI = TON = Subscriber

Example

yes

Conguration: User Trunk groups

CLIP: NPI: Unknown TON: Subscriber Unknown

DDI number: Region:

4. 4. 3 Suppressing CLIP / COLP (CLIR / COLR)

If Restrict call identification (CLIR) has been activated in the caller’s user configuration, the information sent along with the CLIP and COLP numbers specifies that they are not to be displayed to the call’s recipient (CLIR: Calling Line Identification Restriction, COLR: Connected Line Presentation Restriction). In this case the network provider does not forward the CLIP number to the recipient (the CLIP number may nonetheless be sent to a number of public authorities, such as the police, see also "Display CLIR", page 92).

The same setting is also used to prevent the name being displayed to the call's recipient. The suppression of CNIP (Calling Name Identification Presentation) and CONP (Connected Name Identification Presentation) is called CNIR (Calling Name Identification Restriction) and CONR (Connected Name Identification Restriction).

Depending on the network provider it may be necessary to subscribe to CLIR.

For each user CLIR can only be activated permanently or temporarily for one call (see "Suppression of the call number display", page 454

4. 4. 4 CLIP flowcharts for Outgoing Calls

[1] Continues on Fig. 37.

Fig. 35 CLIP of an outgoing call to an external user in the public network

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 82

Identification elements

200

[1]

624 32 00

032 624 11 11

200

E.164

624 32 00

CLIP from user

PISN user: CLIP

selection

CLIP created

automatically [1]

Users:

Automatic

CLIP

CLIP sent

CLIP No., NPI

and TON from

user

CLIP NPI = TON = Subscriber

Conguration: User Trunk groups

CLIP: NPI: Unknown TON: Subscriber Unknown

DDI number: Region:

Example

normal

[1] Continues on Fig. 37.

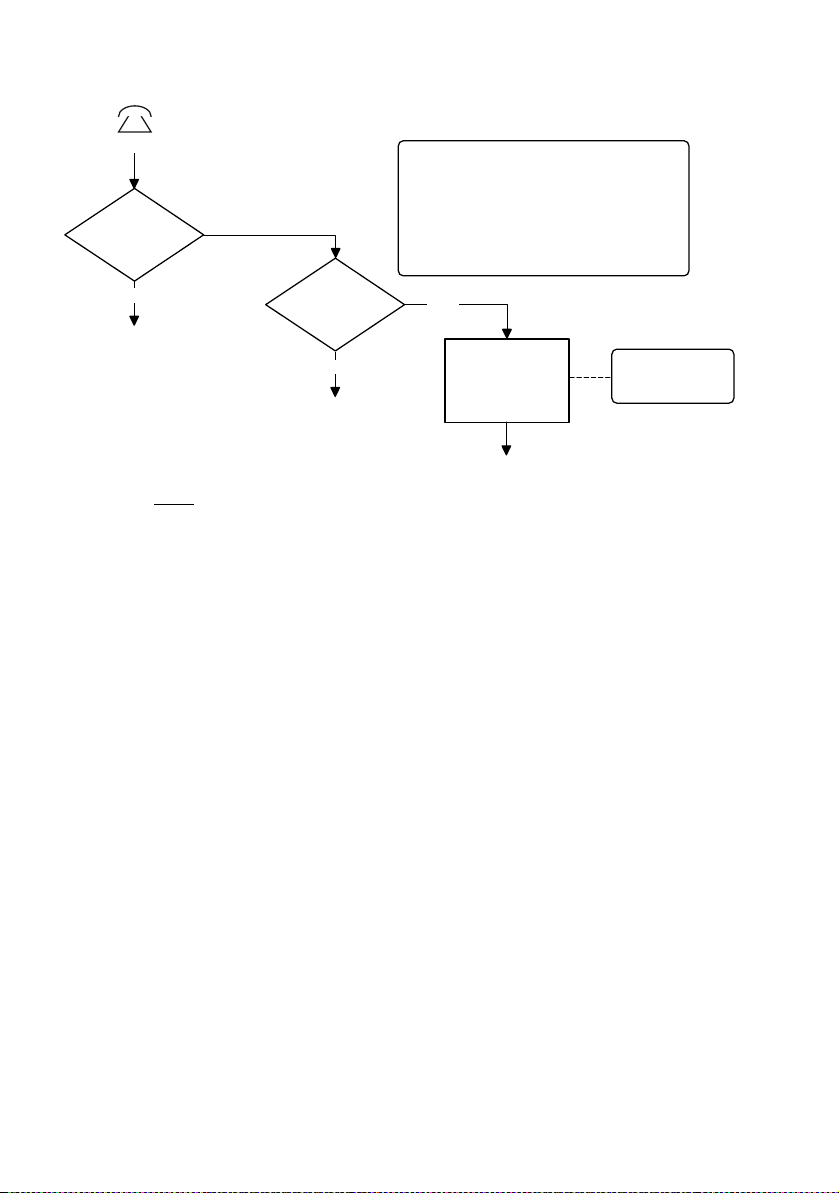

Fig. 36 CLIP of an outgoing call to a PISN user

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 83

Identification elements

[1]

032 624 11 11

60 200

200

NPI = PNP

TON = level 1

CLIP No. = NPI = unknown TON = Unknown

CLIP No. NPI = PNP TON = level 1

CLIP No. = NPI = unknown TON = Unknown

CLIP sent

NPI and TON

from trunk

group

Trunk

groups:

Automatic

CLIP?

CLIP No., NPI and

TON from trunk

group

CLIP No. = own region

prex + user number

Private

Public

Trunk

groups: Net-

work type

CLIP No. = DDI No.

NPI and TON from

trunk group

Suitable DDI

number?

yes

[1] From Fig. 35 or Fig. 36

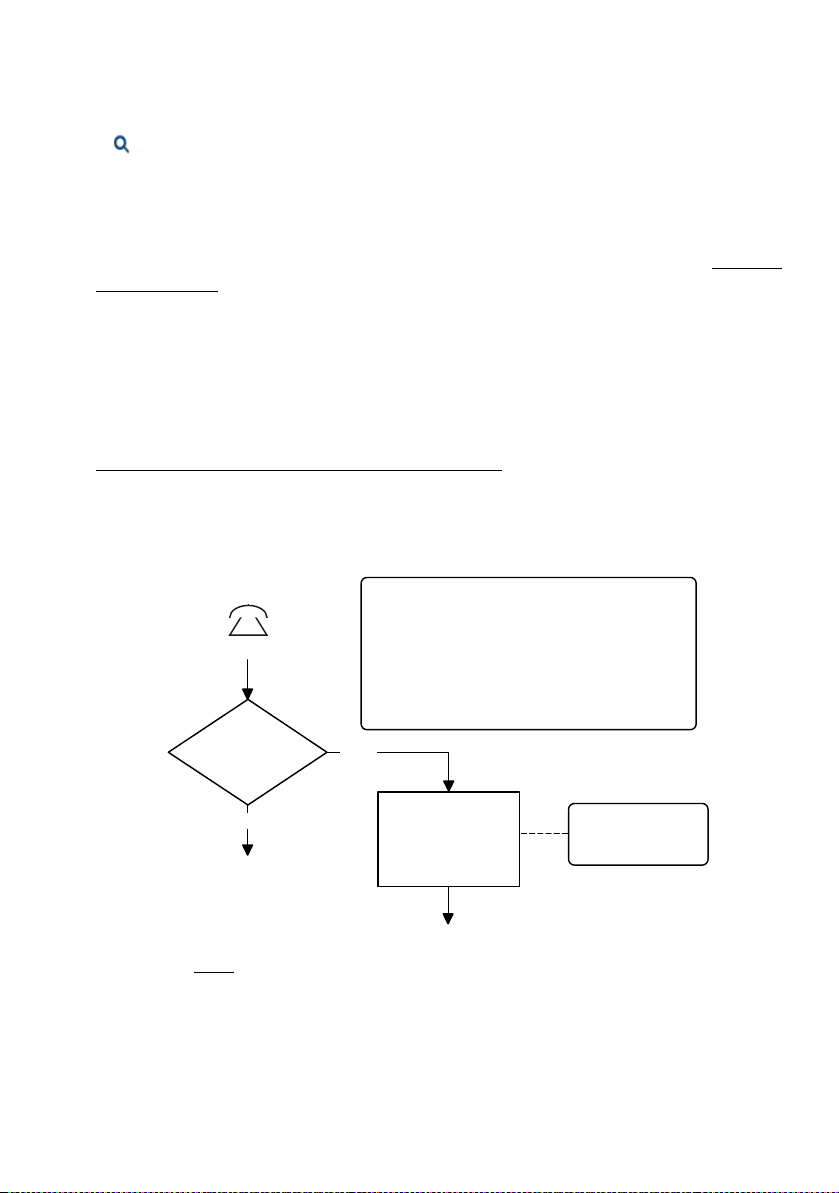

Fig. 37 Creating an automatic CLIP for outgoing calls

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 84

Identification elements

4. 4. 5 CLIP Display with a Virtual Network PISN User

A public network user can be set up as a virtual PISN user in the communication server. Internal users will then perceive the user as another internal user: A call is signalled with the internal ringing pattern. The internal number can also be dialled for outgoing calls. Individual mobile user or entire number blocks can be integrated in this way.

Setting Up a Virtual Network PISN User

A PISN user is set up for this purpose (see "Numbering plan", page 92 lic network user’s full number under External Number. For outgoing calls the configured number will be dialled via the configured route instead of the dialled PISN user number. This mechanism is similar to the one used for abbreviated dialling.

When the user calls up from the public network, his CLIP number will be compared with the numbers of all the PISN users. If there is a match, the called user is shown the PISN user number by way of CLIP instead of the CLIP sent from the public network.

). Enter the pub-

4. 5 Display for Call Forwarding Unconditional

When Call Forwarding Unconditional is activated, it is useful for users to know that the call was redirected, by whom and to whom. This means the called user is able to answer the call on behalf of the user who redirected the call to him. With this information the calling user is better prepared for the call. This redirecting information is available on system phones and ISDN terminals both internally and in private networks. If the public network provider supports the function (special arrangement), the redirecting information is also available to virtual PISN users and users in the public network.

4. 5. 1 Information displayed to the called user

The called user sees not only the caller's name and number but also that the call was redirected and who redirected it (redirecting information).

Example: User A calls user B, who has redirected to user C. The display on an system phone at user C reads:

<CNIP A> / <CLIP A> forwarded from <CNIP B> / <CLIP B>

This redirecting information at user C is available for CFU, CFB, CFNR and Call De-

flection (CD). (With CD forwarded from is displayed instead of deflected from.)

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 85

Identification elements

4. 5. 1. 1 Outgoing call with local call forwarding

The configuration possibilities for the redirecting information depend on the destination user:

If the destination user is

• an internal user in the local PINX, the redirecting information is always transmitted to the called user.

• a PISN user, a PISN user in a virtual network, an integrated mobile/external phone user or a public network user, you can select in the trunk group configuration ( =bg) whether the redirecting information is to be sent to the called user or suppressed ( Send redirecting information).

• a public network user and if CLIR is activated at the user who carried out the redirecting, the called user will see neither the originator of the call nor that it has been redirected. This even though the calling user did not activate CLIR. To prevent this, you can deactivate the ( =bg) CLIR for redirected calls parameter in the trunk group configuration.

In a call forwarding chain with several users the name/number of the first user in the chain is displayed as redirecting information to the called user.

4. 5. 1. 2 Incoming call with CDE overflow

If in the event of a CDE overflow the call is routed from one call distribution element to another due to the entries under ( =dh) with CDE if busy or CDE if no answer, the redirecting information provided to the called user depends on the new destination:

If the destination is

• an internal user or a user in a private QSIG network, the name/number of the CDE is transmitted.

• a virtual network PISN user, the direct dial number to which the call is made is transmitted.

• an external user in the public network, no redirecting information is transmitted.

4. 5. 1. 3 Incoming call that is already redirected

The redirecting information is also available to the called user in the case of an incoming call redirected via a PISN user or a user in the public network. If the call is routed via a call distribution element, it is useful in certain cases if the name/number of the CDE is displayed instead of the redirecting information. Moreover, in the CDE configuration ( =dh) deactivate the parameter Show forwarding information instead of

CDE name (default value = activated).

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 86

Identification elements

4. 5. 2 Information displayed to the calling user

The calling user sees not only the called user’s name and number but also that the call is being redirected and to whom (redirecting information).

Example: User A calls user B, who has redirected to user C. The display on an system phone at user A reads:

<CNIP B> / <CLIP B> forwarded to <CNIP C> / <CLIP C>

This redirecting information at user A is available for CFU, CFB and Call Deflection

(CD). (With CD forwarded to is displayed instead of deflected to.)

4. 5. 2. 1 Incoming call with local call forwarding

The caller's configuration possibilities for the redirecting information depend on the call's origin:

If the caller is

• a user in the local PINX, the redirecting information is always transmitted to the user who is calling.

• a PISN user, a PISN user in a virtual network or a user in the public network, you can select in the trunk group configuration ( =bg)whether the redirecting information should be sent to the calling user or suppressed (( Send redirecting informa-

tion)).

• a public network user or if the user who redirected the call has activated COLR, the caller will not see that he is being redirected. If this setting is required only for internal redirected calls but not external ones, in the trunk group configuration( =bg), the COLR for redirected calls parameter can be deactivated.

In a call forwarding chain with several users the name/number of the last user in the chain is displayed as redirecting information to the calling user.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 87

Identification elements

Trunk groups

PISN users

CLIP basic settings

CLIP A

4. 5. 2. 2 Incoming call with CDE overflow

If the destination is

• an internal user or a user in a private QSIG network, the name/number of the CDE is transmitted.

• a virtual network PISN user or an external user in the public network, no redirecting information is transmitted.

4. 5. 2. 3 Outgoing call with non-local redirection

The redirecting information is also available to the calling user in the case of an outgoing call that is not redirected via his own communication server but via a PISN user, an integrated mobile/external phone user, a virtual network PISN user or a public network user.

4. 6 CLIP / COLP Settings

The following settings affect the CLIP and, by analogy, the COLP, too.

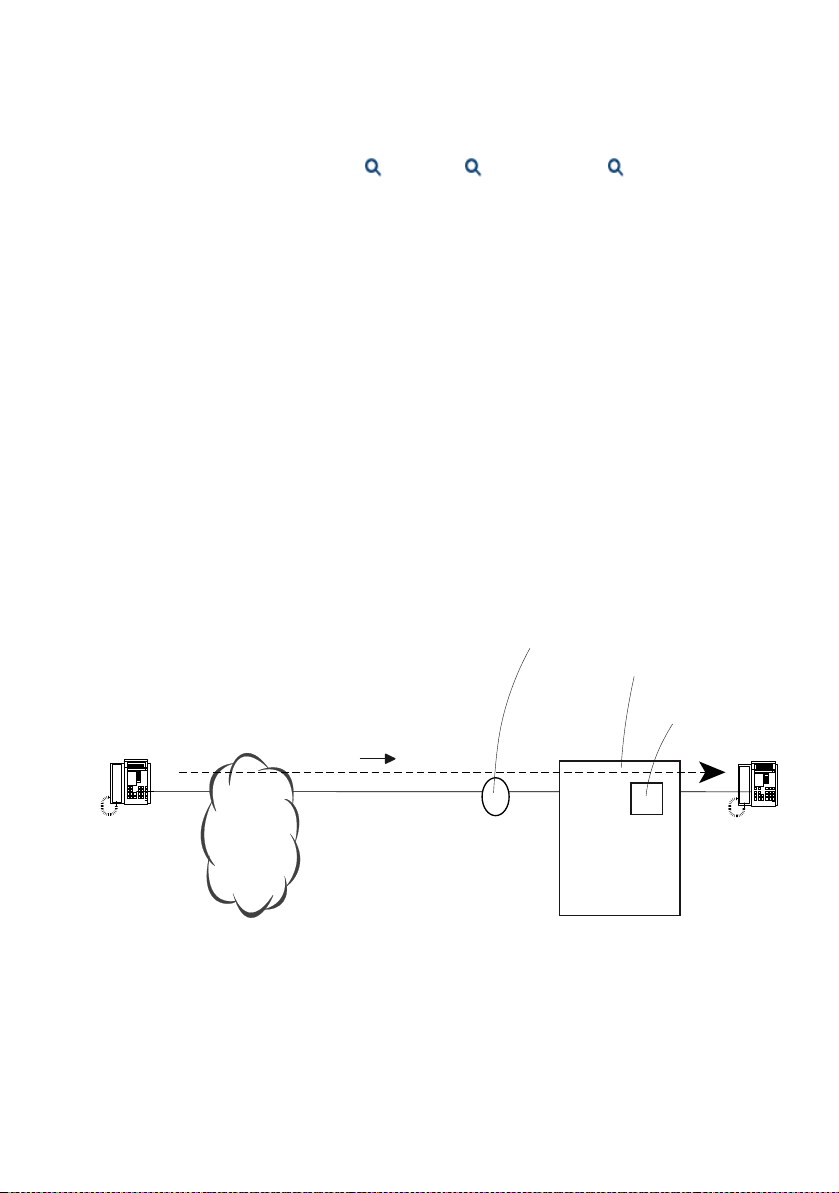

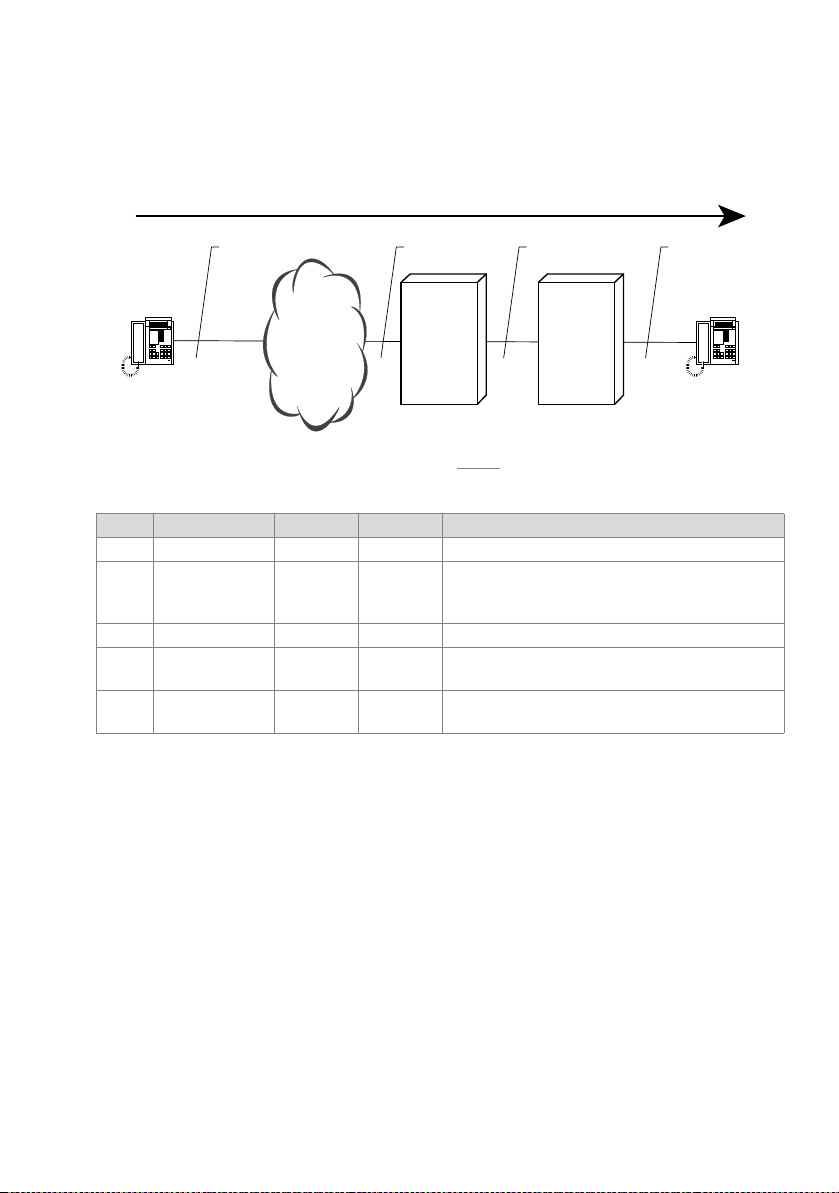

Fig. 38 CLIP incoming

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 88

Identification elements

C’s CLIP

User

PISN users

Trunk groups

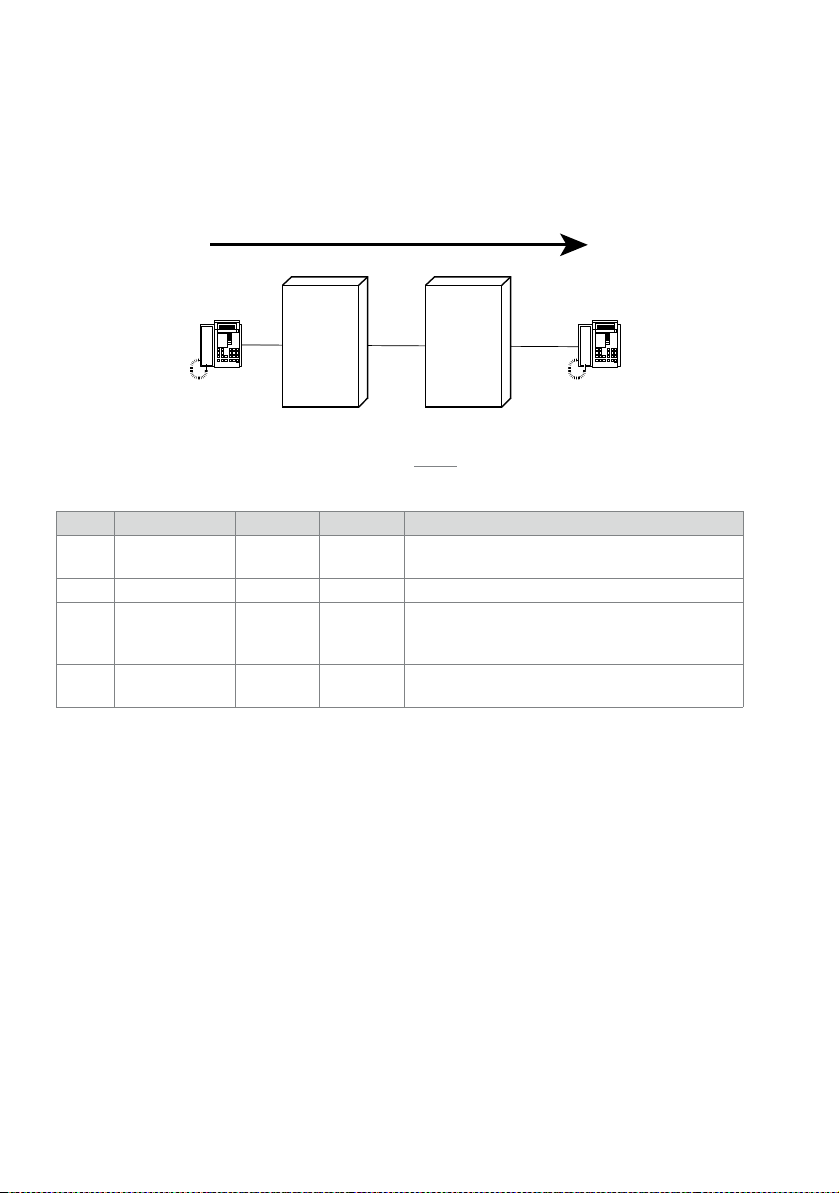

Fig. 39 CLIP outgoing

Tab. 11 CLIP related settings

Configuration Element

User Create CLIP number automatically

PISN user Call number

Trunk group Ring NPI 'Unknown'

Parameter Affect on CLIP

Restrict call identification (CLIR)

CLIR for redirection

Restrict call identification while connected (COLR)

COLR for redirection

Numbering plan identifier (NPI)

Type of number (TON)

CLIP number

CLIP selection (Normal, CLIP from user)

Create CLIP number automatically

Restrict call identification (CLIR)

CLIR for redirection

Restrict call identification while connected (COLR)

COLR for redirection

Numbering plan identifier (NPI)

Type of number (TON)

CLIP number

Truncate CLIP

Send redirection/redirecting information

ECT information

Transit CLIP format

Transit exchange access prefix

Send incoming CLIP for exchange-to-exchange connections

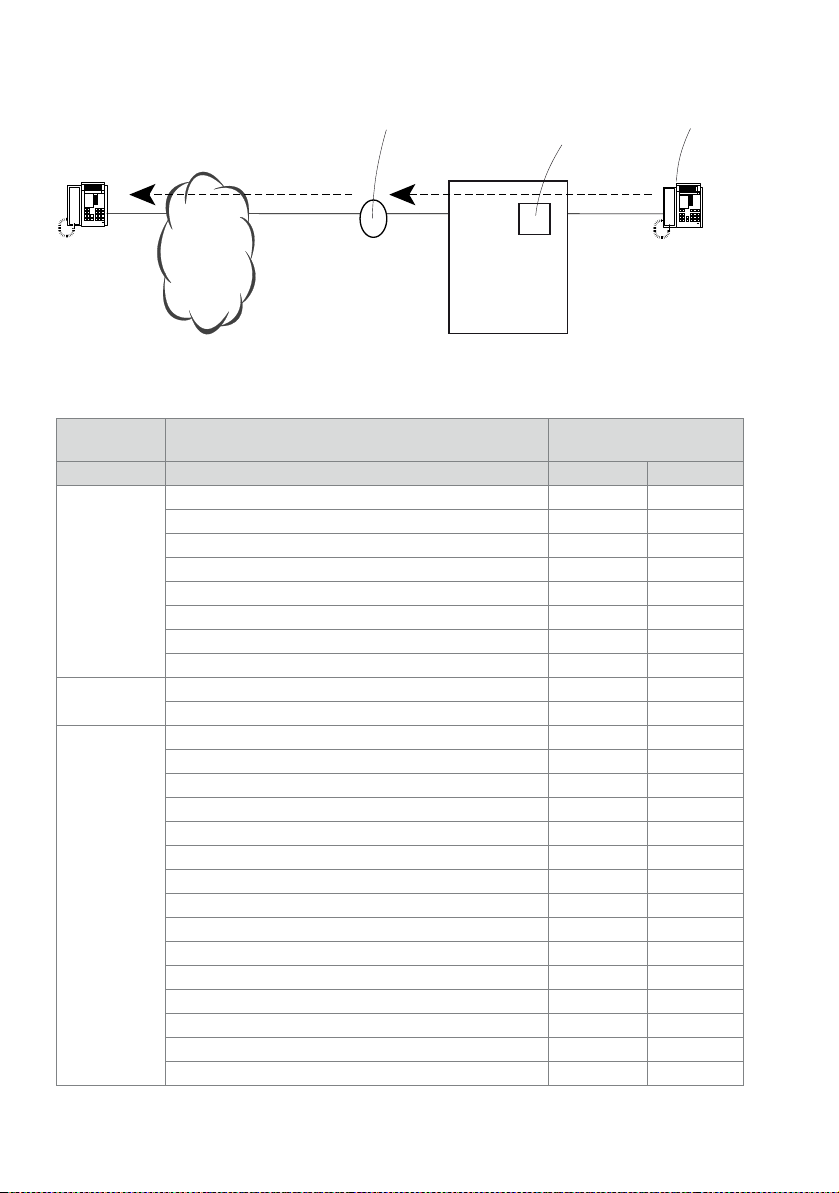

Incoming Outgoing

✓

✓✓

✓

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 89

Identification elements

Configuration Element

Regions International prefix

General Ignore call identification restriction (ignore CLIR)

Numbering plan Own region prefix

Parameter Affect on CLIP

Incoming Outgoing

✓

Country code

National prefix

National destination code

✓

✓✓

4. 6. 1 Users

Call to the Public Network

Call to the public network with exchange access prefix via a trunk group with Net-

work type = Public:

If the setting Create CLIP number automatically is activated, the DDI number is used as CLIP, providing the user is himself reachable by incoming calls via the path trunk group → DDI plan → CDE. If there is no direct dialling plan or corresponding DDI number, the CLIP number entered in the trunk group will be used instead.

The numbering plan and type of number are always taken from the trunk group.

If the setting Create CLIP number automatically is deactivated, the configured number is used without further alterations.

Internal call to a PISN User

The creation of the CLIP number depends on the configured PISN user. If the PISN user has the setting CLIP selection = Normal, the DDI number is used as CLIP, providing the user is himself reachable by incoming calls via the path trunk group → Direct dialling plan→ CDE.

If there is no direct dialling plan or corresponding DDI number (which is normally the case), the user’s internal call number is used instead.

If the PISN user has the setting CLIP Selection = CLIP from user, the CLIP number is created in the same way as for a call to the public network. This means that a permanently defined CLIP number can also be transmitted in the private network.

Internal call to an integrated mobile/external phone user

The CLIP is built according to the configuration of the mobile/external phone assigned to the integrated user.:

•If CLIP selection = Normal is configured for the user in the terminal interface settings, the direct dialling number of the calling user is used as the CLIP, regardless of

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 90

Identification elements

his settings. If there is no corresponding direct dialling number, the internal call number is used in its place.

• If the terminal interface has the setting CLIP Selection = CLIP from user, the CLIP number is created in the same way as for a call to the public network. In this case, the caller's setting Create CLIP number automatically is decisive.

Call to the private network with route selection

Call to the private network with route selection via a trunk group with Network type =

Private:

By analogy with the call to a PISN user with the setting CLIP selection = Normal.

4. 6. 2 PISN user

External call number setting

The call number entered under External call number is compared with the CLIP number of an incoming call. If the two numbers match up, the PISN user number is displayed as the CLIP with Numbering plan identifier (NPI) = Private and Number

(TON) = Level 0.

CLIP selection settings

See "Internal call to a PISN User", page 89

4. 6. 3 Trunk group

Call if NPI unknown setting

If a call with Numbering plan identifier (NPI) = Unknown is received, it is signalled with the internal or external ringing pattern on the basis of the setting Call if NPI ’Un-

known’. It is also decided at the same time whether the exchange access prefix (0-)

should precede the CLIP number.

CLIP cut setting

A digit sequence can be configured under CLIP cut. If the sequence matches the initial digits of the CLIP number received, the digits will be truncated. This setting is normally used to remove any superfluous "0".

Setting Create CLIP number automatically

The setting Create CLIP number automatically only has an impact if the trunk group configuration ( =bg) Network type = Private is set.

If the setting is activated, the numbering plan identifier and type of number are left unchanged.

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 91

Identification elements

If the setting is deactivated, the numbering plan identifier and type of number are taken from the trunk group setting, but not the actual CLIP number. This may be necessary in cases where connected third-party systems do not process numbering plan identifiers and types of number correctly.

Numbering plan identifier (NPI), Number type (TON), CLIP number

These settings are used if the CLIP number could not be created automatically. This is the case when there is no suitable DDI number available with a call to the public network.

ECT information

If the parameter ECT information is activated, the new CLIP is also transmitted in the event of a call transfer to the exchange, provided the network interface involved is in the same trunk group.

Example: Internal user A calls internal user B, who transfers to external user C. After the call transfer, C is presented with A’s new CLIP instead of B’s old CLIP.

The same applies accordingly with COLP, if the caller is an external user.

Example: External user A calls internal user B, who transfers to internal user C. After the call transfer, A is presented with C’s new COLP instead of B’s old COLP.

Note:

With some carriers there are problems in connection with ECT information. Transmission of this information can therefore be suppressed with the deactivation of the parameter ECT infor-

mation.

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 92

Identification elements

4. 6. 4 CLIP/CLIR settings

These settings are used to truncate prefixed access digits so that the CLIP number is as short as possible.

To enable the communication server to interpret CLIP numbers correctly, own local prefixes must be entered in the location-related regional settings ( =fz):

• International and national prefixes for the locations (example: "00" and "0" for Switzerland, "00" and "-" for France)

• Country code and toll area code of the location (example: for Switzerland "41", for Geneva "22"", see also "Numbering Plan Identifier E.164", page 55

Mitel Advanced Intelligent Network:

In an AIN the nodes may be spread over different regions or even countries. Some settings do not apply throughout the system but only to one region. A region is assigned to one or more AIN nodes. An region can also be assigned for each trunk group. The trunk group allocation takes priority over the node-specific allocation.

Display CLIR

When CLIR is activated ( Restrict call identification (CLIR)) the public network provider will still send a CLIP to special customers, for instance the fire brigade and the police. The CLIR information will, however, include the CLIP (see also "Suppressing CLIP / COLP (CLIR / COLR)", page 81).

In the private leased-line network a CLIP is always sent with an activated CLIR. It is also provided with the CLIR information.

With the activation of the Ignore call identification restriction (ignore CLIR) setting, a clip with CLIR information is still displayed with incoming calls.

In internal traffic, a suppressed CLIP is always displayed.

4. 6. 5 Numbering plan

The CLIP number is prefixed with the regional prefix for outgoing calls to a PISN user or via a trunk group with Network type = Private.

For incoming calls, the regional prefix is removed from the CLIP number (provided it begins with that digit sequence).

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 93

Identification elements

201

340

310

200

330

022 222 22 22

066 333 33 33

066 666 66 xx

055 555 55 xx

055 777 77 77

Region 60

PINX 3

PINX 2

PINX 1

Region 50

PISN

4. 7 Examples of CLIP Displays in the PISN

Various scenarios are used in a sample network to illustrate how CLIP displays are handled in a PISN. Fig. 40 shows the sample network.

Fig. 40 Sample network: PISN with two regions and one virtual network user

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 94

Identification elements

340

201

50340

Destination PINX

Source PINX

PINX 2

PINX 1

4. 7. 1 PISN-Internal Calls

Ordinary PISN-Internal Call

User C (340) on PINX 2 calls user A on PINX 1 by a direct route. Both users belong to the same region.

Fig. 41 Example 1: User C calls user A (excerpt from Fig. 40)

Tab. 12 Example 1: Creating and presenting user C’s CLIP number

Step CLIP number NPI TON Description

1 340 PNP Level 0 User C → PINX 2

2 50340 PNP Level 1 PINX 2

3 340 PNP Level 0 PINX 1

4340 PINX1

• There is no suitable DDI number.

→

PINX 1

• The system’s own regional prefix is deleted

• TON is adapted.

→

user A

• Presentation on the system phone

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 95

Identification elements

340

201

50340

PINX 3PINX 2

PINX 1

Region 60

Region 50

Transfer PINX

Region 50

Source PINX

Destination PINX

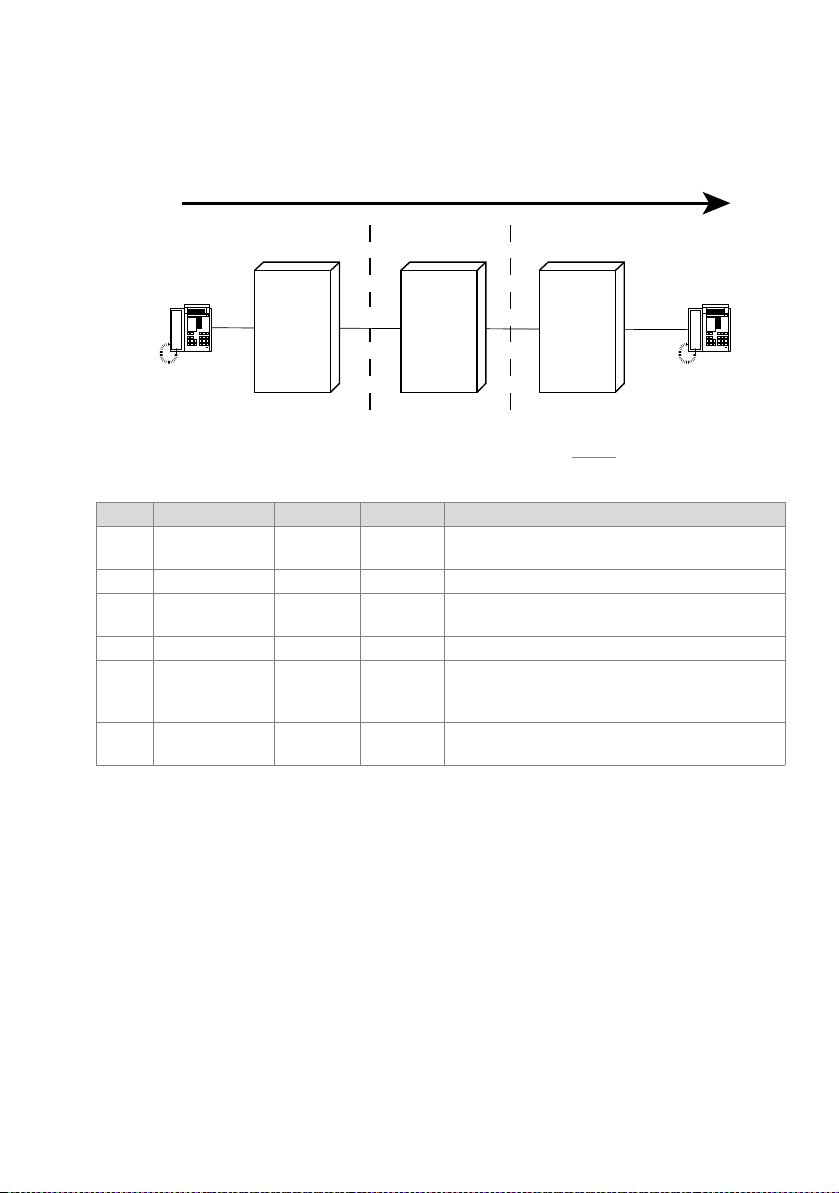

PISN - Internal Call with Overflow Routing

User C (340) on PINX 2 calls user A on PINX 1 via PINX 3 as all the available communication channels between PINX 2 and PINX 1 are busy. PINX 3 belongs to Region 60.

Fig. 42 Example 2: User C calls user A, overflow routing (excerpt from Fig. 40)

Tab. 13 Example 2: Creating and presenting user C’s CLIP number

Step CLIP number NPI TON Description

1 340 PNP Level 0 User C → PINX 2

2 50340 PNP Level 1 PINX 2

3 50340 PNP Level 1 PINX 3

4 50340 PNP Level 1 PINX 3

5 340 PNP Level 0 PINX 1

6 340 PINX 1

• There is no suitable DDI number.

→

PINX 3

• There is no suitable DDI number.

→

PINX 1

• The system’s own regional prefix is deleted

• TON is adapted.

→

user A

• Presentation on the system phone

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 96

Identification elements

340

50340

055 555 55 54

022 222 22 22

Source PINX Gateway PINX

PINX 1

PINX 2

4. 7. 2 Outgoing Calls to the Public Network

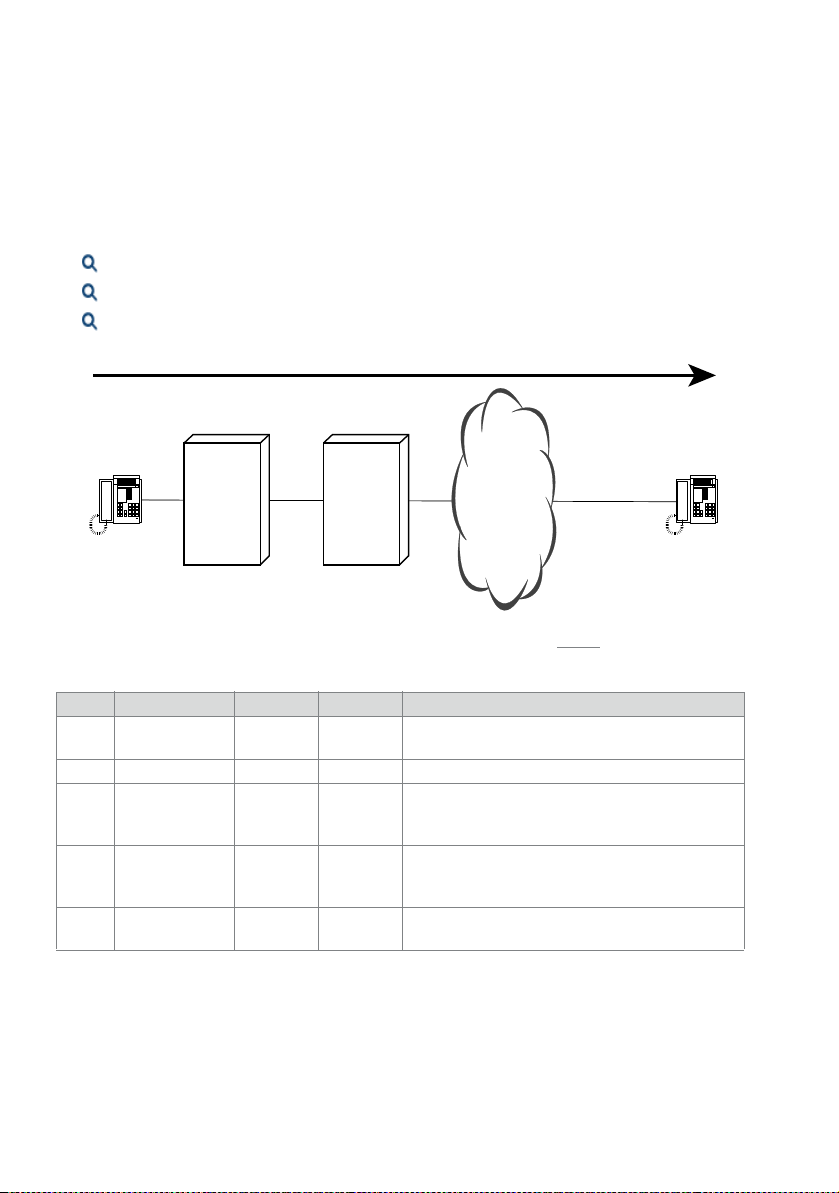

Call to the Public Network via a Gateway PINX

User C (340) on PINX 2 calls user F on the public network via PINX 1. PINX 1 has a DDI number for user C (54).

The following CLIP characteristics are set in the trunk group configuration of PINX 1:

• CLIP number = 50

• Numbering plan identifier (NPI) = Unknown

• Number type (TON) = Unknown

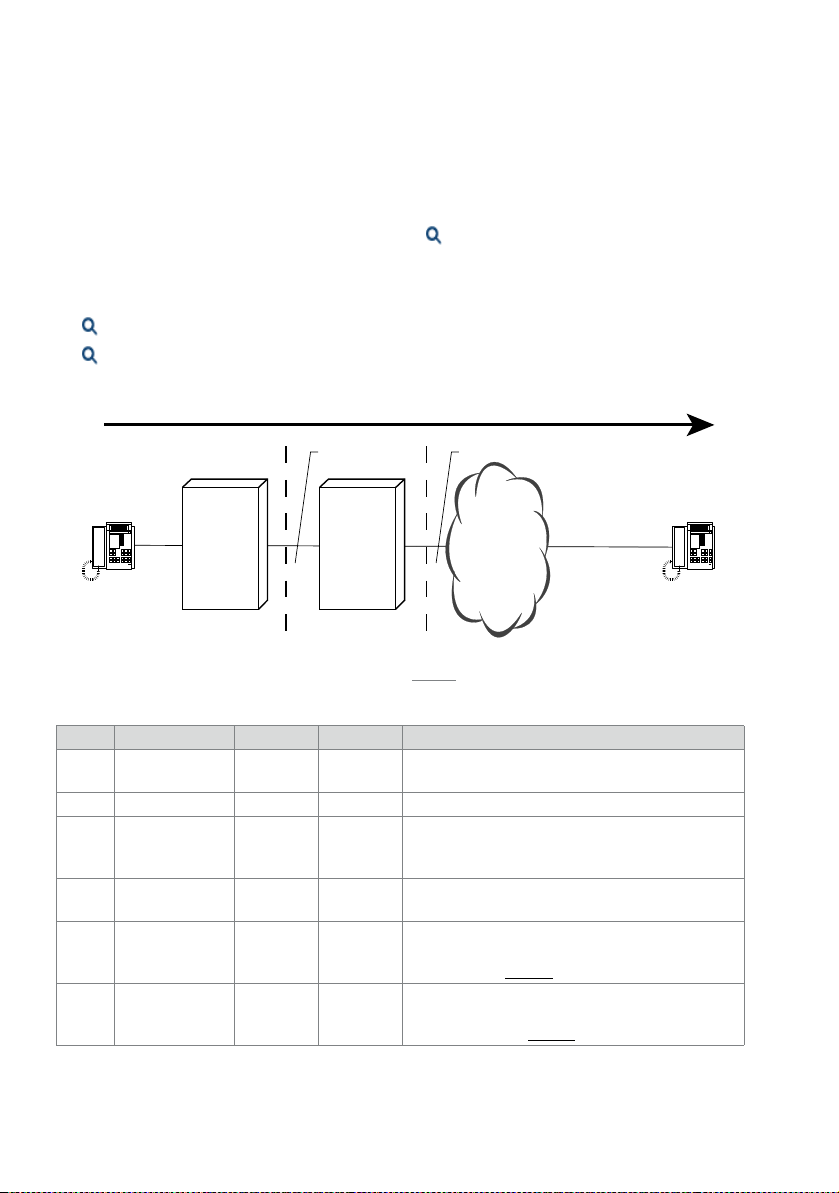

Fig. 43 Example 3: User C calls user F in the public network (excerpt from Fig. 40)

Tab. 14 Example 3: Creating and presenting user C’s CLIP number

Step CLIP number NPI TON Description

1 340 PNP Level 0 User C → PINX 2

2 50340 PNP Level 1 PINX 2

3 340 PNP Level 0 PINX 1

4 54 Unknown Unknown PINX 1

5 055 555 55 54 Public exchange

• There is no suitable DDI number.

→

PINX 1

• The system’s own regional prefix is deleted

• TON is adapted.

→

Public exchange

• There is a suitable DDI number, which is used as a CLIP number and sent to the public network.

• Presentation on the terminal

→

user F

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 97

Identification elements

340

50340

055 555 55 54

066 666 66 60

022 222 22 22

Gateway PINXSource PINX

PINX 3

Region 50

PINX 2

Region 60

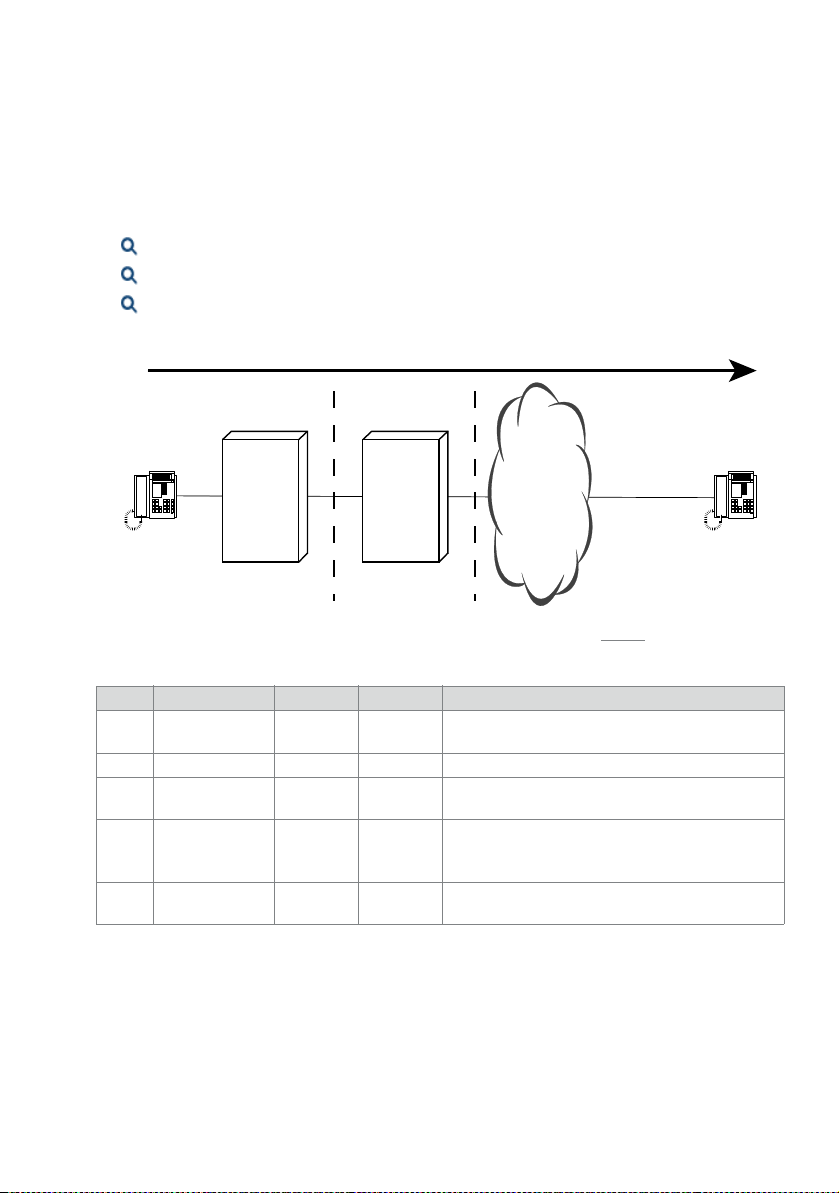

Call to the Public Network via a Gateway PINX with Overflow Routing

User C (340) on PINX 2 calls user F on the public network via PINX 3 as all the available communication channels between PINX 2 and PINX 1 are busy. PINX 3 does not have a DDI number for user C.

The following CLIP characteristics are set in the trunk group configuration of PINX 3:

• CLIP number = 60

• Numbering plan identifier (NPI) = Unknown

• Number type (TON) = Unknown

Fig. 44 Example 4: User C calls user F via an alternative path (excerpt from Fig. 40)

Tab. 15 Example 4: Creating and presenting user C’s CLIP number

Step CLIP number NPI TON Description

1 340 PNP Level 0 User C → PINX 2

2 50340 PNP Level 1 PINX 2

3 50340 PNP Level 1 PINX 3

4 60 Unknown Unknown PINX 3

5 066 666 66 60 Public exchange

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

• There is no suitable DDI number.

• The CLIP number entered in the trunk group configuration is sent to the public network.

• Presentation on the terminal

→

PINX 3

→

Public exchange

→

user F

Page 98

Identification elements

330

055 555 55 53

55 555 55 53

022 222 22 22

55 555 55 53

Region 60

Region 50

PINX 2

PINX 3

Gateway PINX

Source PINX

Call to the Public Network via a Gateway PINX with Overflow Routing and nonautomatic CLIP

User B (330) on PINX 2 calls user F on the public network via PINX 3 as all the available communication channels between PINX 2 and PINX 1 are busy.

PINX 3 does not have a DDI number for user B.

In the user configuration of user B, the setting Create CLIP number automatically is deactivated. The CLIP settings of the user configuration are used:

• CLIP number = 55 555 55 53

• Numbering plan identifier (NPI) = E.164

• Number type (TON) = National

Fig. 45 Example 5: User B calls user F (excerpt from Fig. 40)

Tab. 16 Example 5: Creating and presenting user B’s CLIP number

Step CLIP number NPI TON Description

1 330 PNP Level 0 User B → PINX 2

2 55 555 55 53 E.164 National PINX 2

3 55 555 55 53 E.164 National PINX 3

4 55 555 55 53 E.164 National PINX 3

5a 055 555 55 53 Public exchange

5b 066 666 66 60 Public exchange

• A suitable DDI number is not searched for.

→

PINX 3

• CLIP number is buffered unchanged

• A suitable DDI number is not searched for.

→

Public exchange

• CLIP number is sent unchanged to the public network.

→

• Presentation on the terminal if special arrangement is available (see page 74

• Presentation on the terminal if special arrangement is not available (see page 74

user F

→

user F

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Page 99

Identification elements

340

066 333 33 33

0-066 333 33 33066 333 33 33 066 333 33 33

66 333 33 33

Destination PINX

PINX 2PINX 1

Gateway PINX

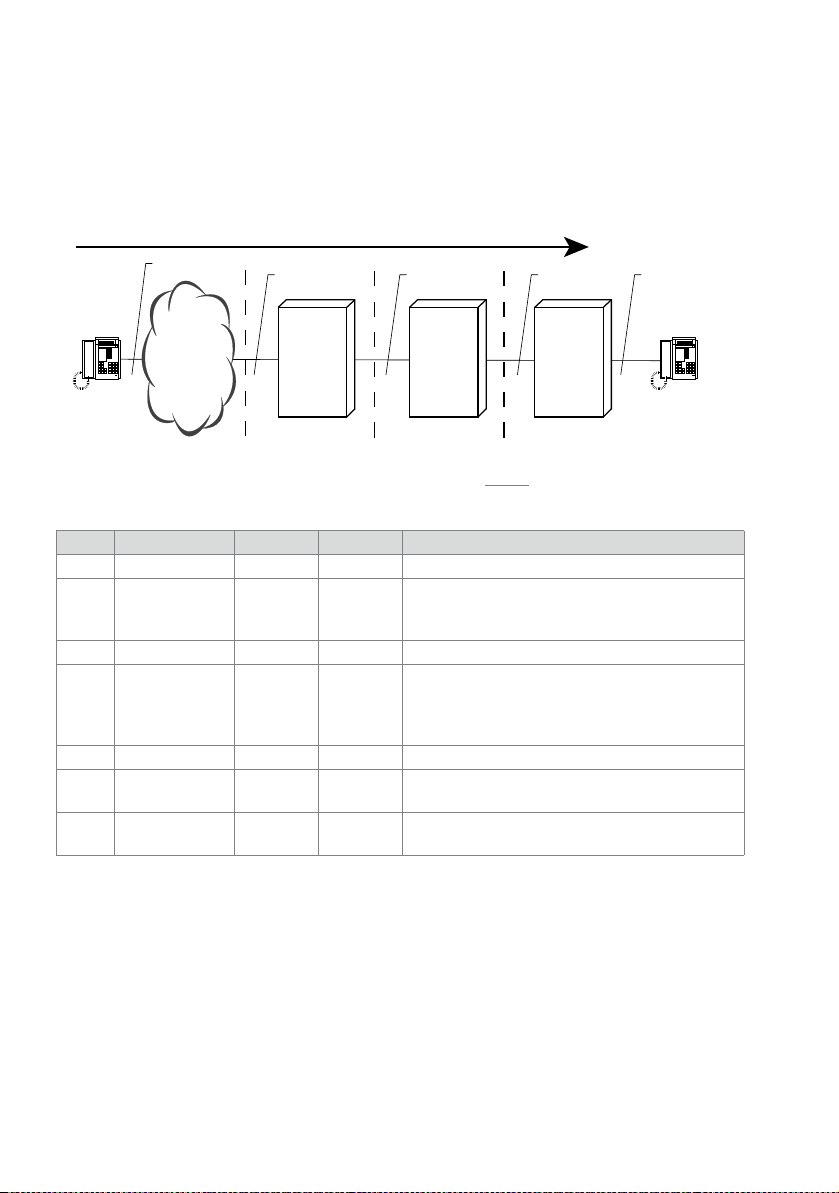

4. 7. 3 Incoming calls from the public network

User G on the public network calls user C on PINX 2 via PINX 1. He dials 055 555 55

54.

Fig. 46 Example 6: User G calls user C (excerpt from Fig. 40)

Tab. 17 Example 6: Creating and presenting user G’s CLIP number

Step CLIP number NPI TON Description

1 066 333 33 33 E.164 Unknown User G → Exchange → PINX 1

2 66 333 33 33 E.164 National PINX 1

3 66 333 33 33 E.164 National PINX 1

4 66 333 33 33 E.164 National PINX 2

5 0-066 333 33 33

In PINX 3’s trunk group configuration 066 666 60 is entered as the master number.

• Prefix is truncated

• TON is set to National

→

PINX 2

• CLIP number is not altered.

PINX 2 → user C

• Presentation on the system phone

System functions and features as of R4.1 syd-0570/1.2 – R4.1 – 08.2016

Page 100

Identification elements

340

066 333 33 33

0-066 333 33 33

066 333 33 33

066 333 33 33 66 333 33 33 66 333 33 33

Region 50

PINX 2

Destination PINX

Transfer PINX

Gateway PINX

PINX 3PINX 1

Region 50

Region 60

Call from the Public Network with Overflow Routing

User G on the public network calls user C on PINX 2 via PINX 1 and PINX 3 as all the available communication channels between PINX 2 and PINX 1 are busy. He dials 055 555 55 54.

Fig. 47 Example 7: User G calls user C via PINX 3 (excerpt from Fig. 40)

Tab. 18 Example 7: Creating and presenting user C’s CLIP number

Step CLIP number NPI TON Description

1 066 333 33 33 E.164 Unknown User G → Exchange → PINX 1

2 66 333 33 33 E.164 National PINX 1

3 66 333 33 33 E.164 National PINX 1

4 333 33 33 E.164 Subscriber PINX 3

5 66 333 33 33 E.164 National PINX 3

6 66 333 33 33 E.164 National PINX 2

7 0-066 333 33 33 PINX 2

• Prefix is truncated

• TON is set to National

→

PINX 3

• Long-distance code is truncated as it is the same as the system’s own long-distance code

• TON is set to Subscriber.

→

PINX 2

• CLIP number is not altered.

→

user C

• Presentation on the system phone

100

System functions and features as of R4.1

syd-0570/1.2 – R4.1 – 08.2016

Mitel 430, 415, 470 System Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SYSTEM FUNCTIONS AND FEATURES

Content

1 Product and Safety Information

1. 1 About Mitel

1. 2 Product information

1. 3 Safety Information

1. 4 Data protection

1. 5 About this document

syd-0570/1.2 – R4.1 – 08.2016

1. 6 Limited Warranty (Australia only)

2 System interfaces

2. 1 Network Interfaces

2. 1. 1 Basic Access Variants

2. 1. 1. 1 Basic rate interface BRI-T

2. 1. 1. 2 Basic rate interfaces BRI-S external

2. 1. 2 Primary rate interface PRI
