MIPRO ACT-80HC User Manual

User Guide

2 CE 5 0 9 A

ACT-80HC Rechargeable

Wideband

Digital Handheld Transmitter

All rights reserved.
Do not copy or forward without prior approvals MIPRO.
Specifications and design subject to change without notice.

MN 014/05

WARNING

1. FOR OUTDOOR USE:
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.

2. UNDER WET LOCATION:
Apparatus should not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases should be placed on the apparatus.

3. SERVICE INSTRUCTIONS:
CAUTION - These servicing instructions are for use by
qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than
that contained in the operating instructions unless you
are qualified to do so.

This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.

This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.

Disposal

2005 -08-1 3

Dispose of any unusable devices or batteries
responsibly and in accordance with any
applicable regulations.

Disposing of used batteries with domestic waste
is to be avoided!

Batteries / NiCad cells often contain heavy
metals such as cadmium(Cd), mercury(Hg) and
lead(Pb) that makes them unsuitable for
disposal with domestic waste. You may return
spent batteries/accumulators free of charge to
recycling centres or anywhere else batteries/
accumulators are sold.

By doing so, you contribute to the conservation
of our environment!

FCC

THIS DEVICE COMPLIES WITH PART 74 OF THE FCC
RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:

(1) This device may not cause interference.

(2) This device must accept any interference, including

interference that may cause undesired operation of the

device.

This equipment complies with FCC RF radiation exposure

limits set forth for an uncontrolled environment.

IC

This device complies with Industry Canada RSS-123

ISSUE 2 standards. Operation is subject to the following
two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of the
device.

Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.

Rechargeable Wideband Digital Handheld Transmitter Rechargeable Wideband Digital Handheld Transmitter

Contents

1 Controls and Indicators

Handheld

3 Operating Instructions for Insertion &

Removing Battery

5 Patented Protection Cover

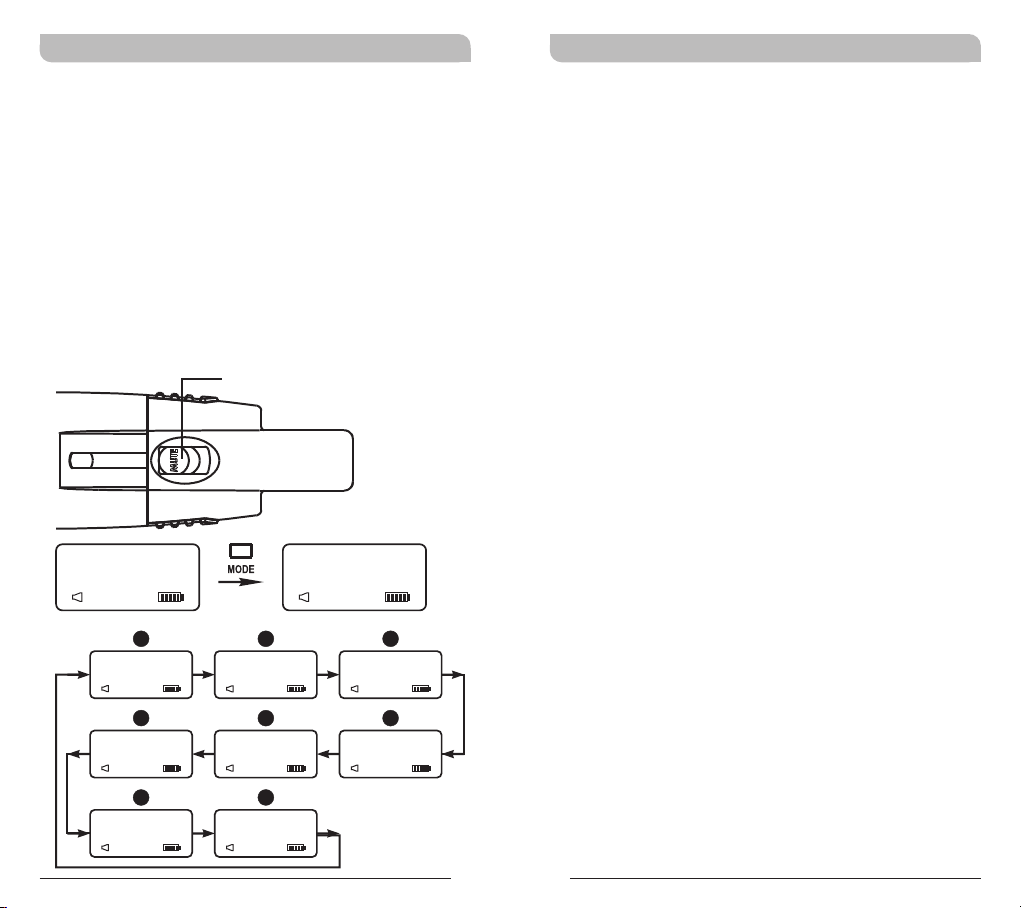

7 LCD

8

Display Screen

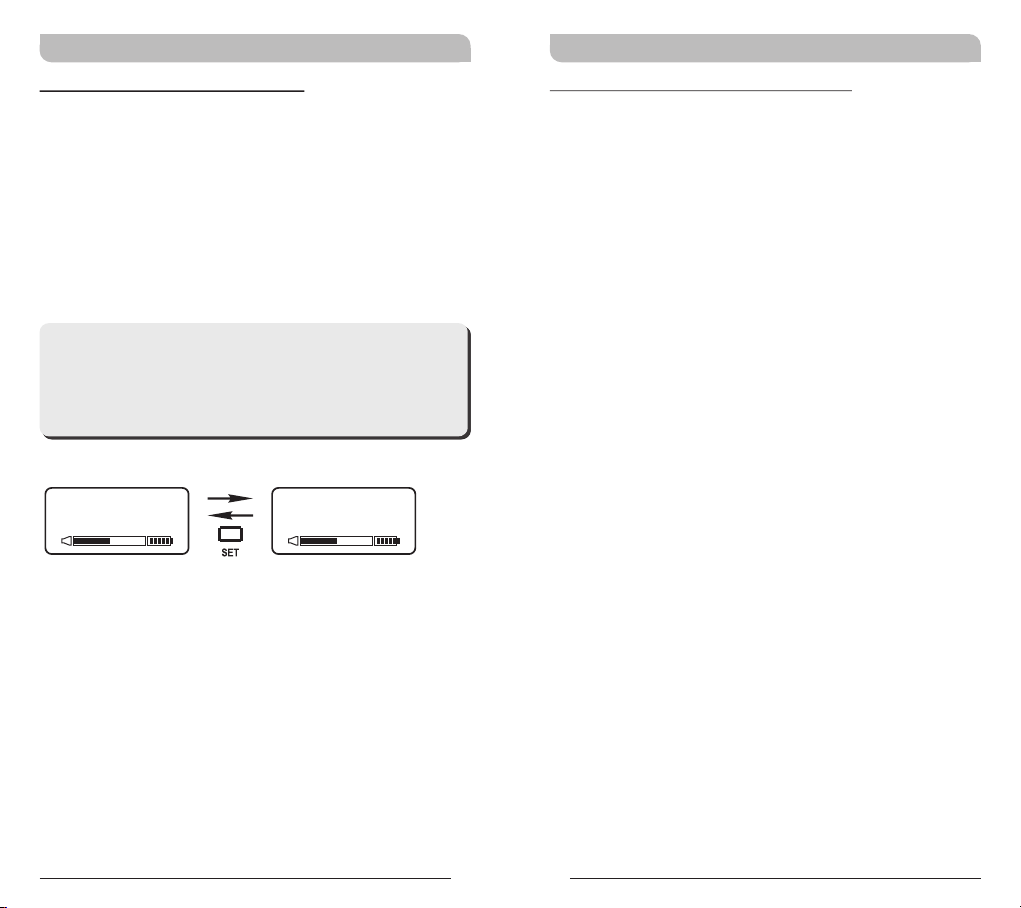

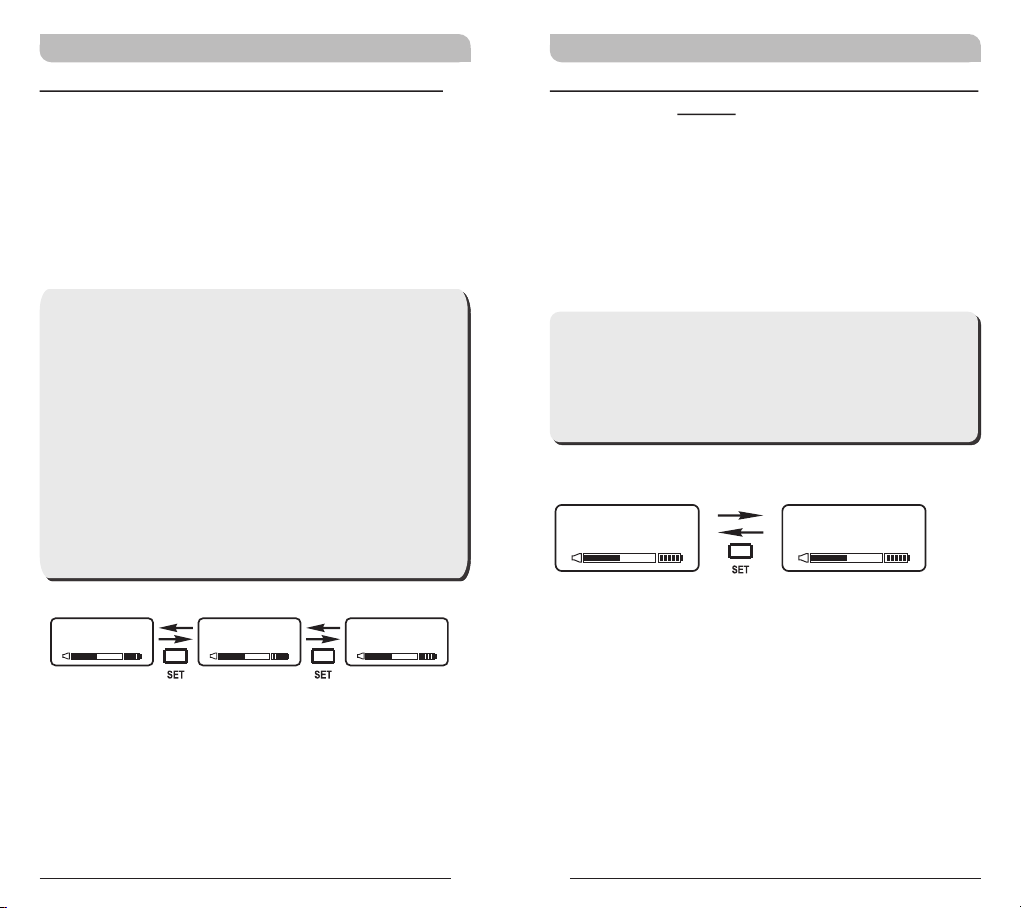

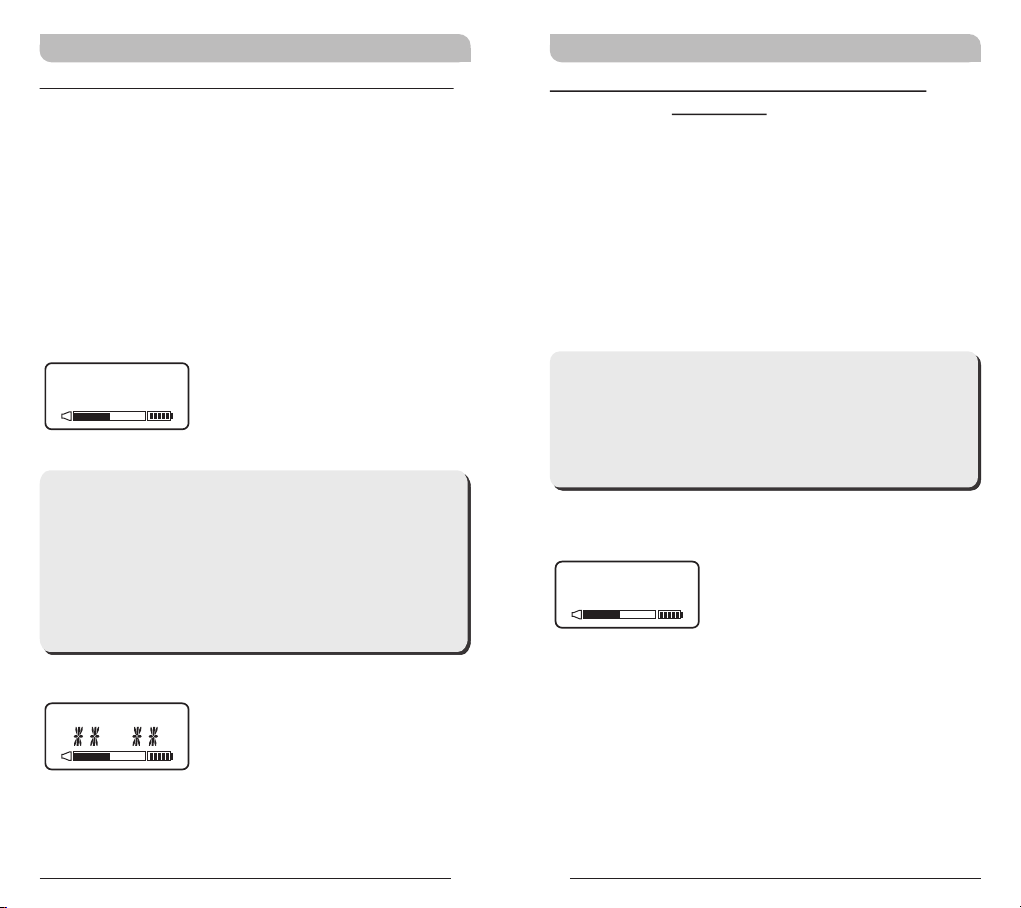

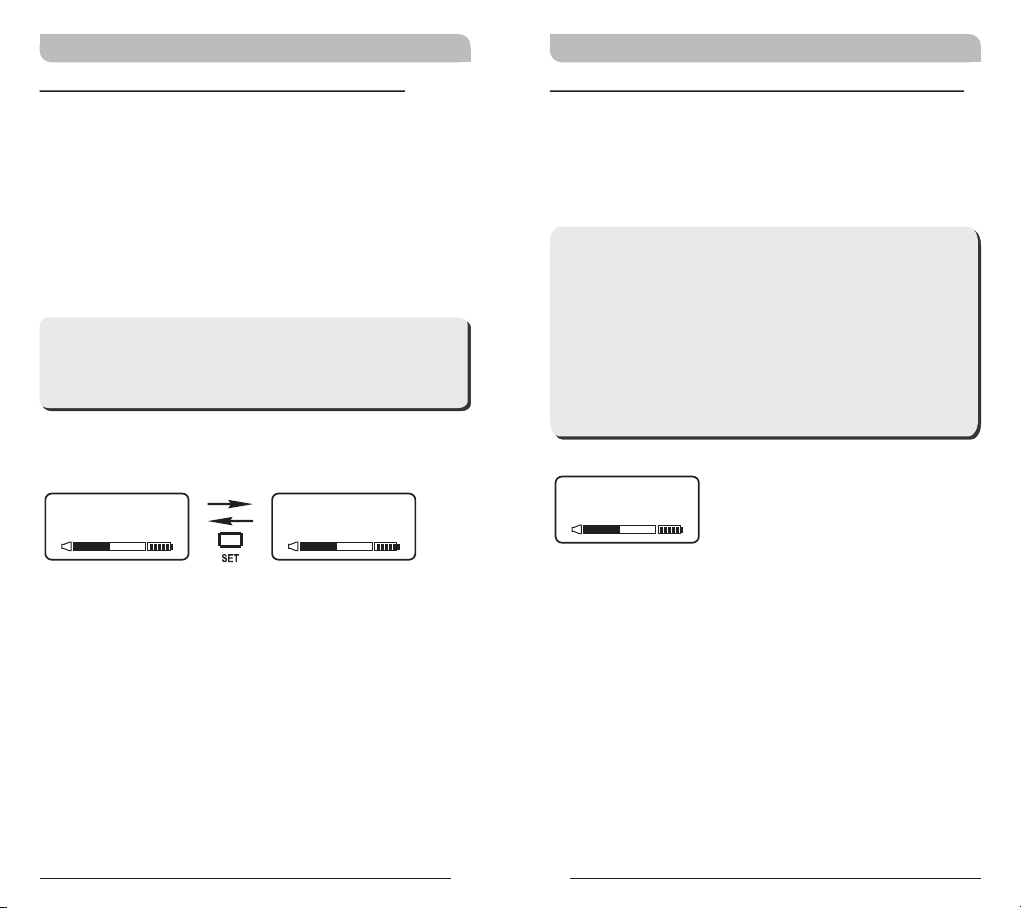

How to Setup Transmitter Parameters

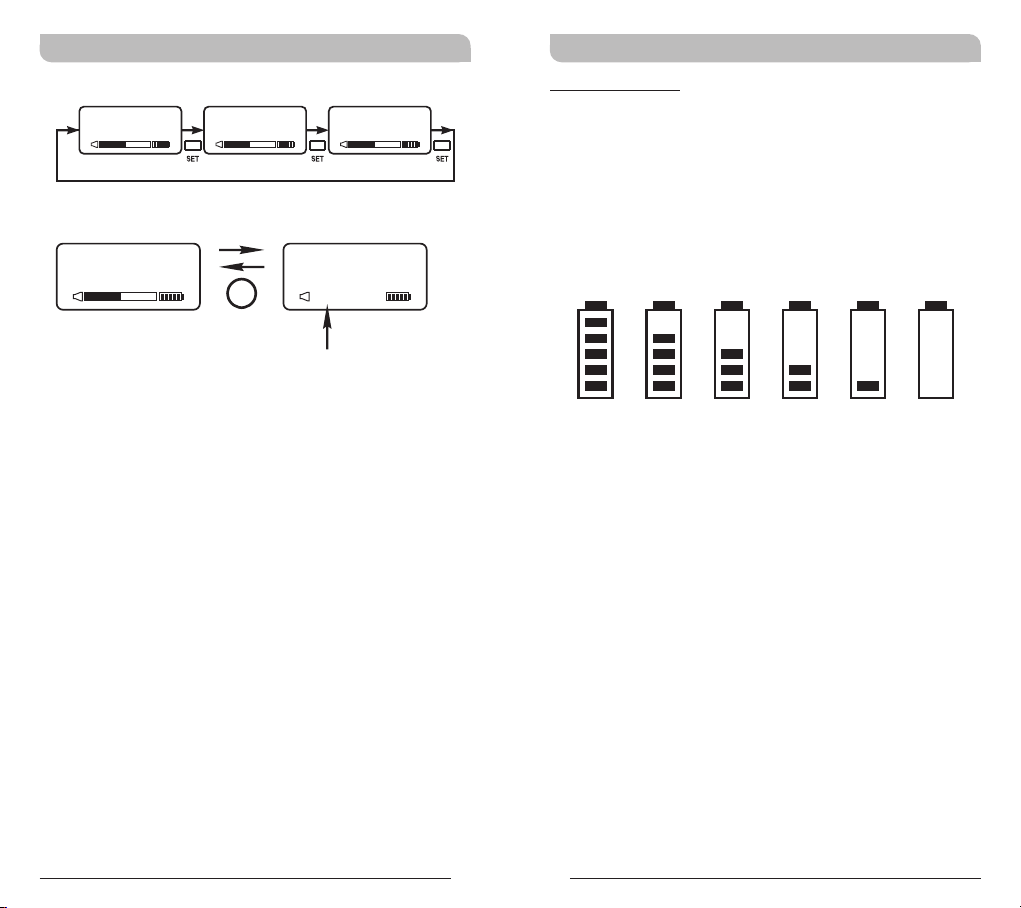

19 Battery Status

22

23

Setting MUTE

General Tips for Improving System
Performance

Handheld Controls and Indicators

1

2

3

4

486.500MHz

5

6

7

8

FREQU ENCY

9

10

11

12

13

0

1

Rechargeable Wideband Digital Handheld Transmitter Rechargeable Wideband Digital Handheld Transmitter

1

 Capsule Module: Protects detachable

microphone capsule module and internal foam

Operating instructions for insertion &
removing battery

prevents breathing, wind and POP noises.

2

 Fixed Ring

3

Battery Compartment: Accommodates one



18500 rechargeable battery.

4

 Housing: Protects transmitter PCB, battery

compartment and batteries.

5

 LCD Panel: Displays transmitter parameters.

6

 Power On/Off Switch: Slides the power switch

to the “ON” position for use or to the “OFF”
position when not in use.

7

 MODE Button: Allows access to available

functions displaying in LCD panel.

8

 SET Button: Changes parameters.

9

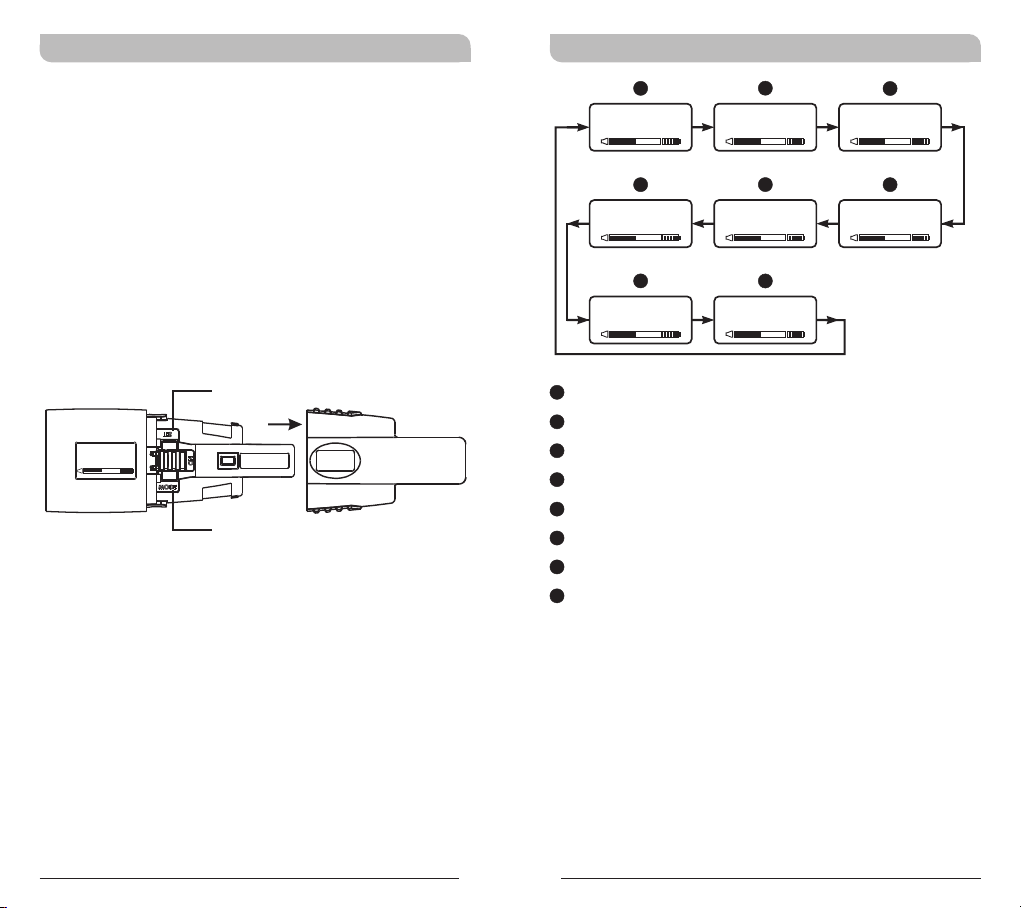

 ACT Infrared (IR) Port: Receives signals from

receiver to synchronize frequencies.

10

 MUTE Button: To mute and un-mute the audio

signal temporary.

11

 Battery Charging Contact: Align contacts

during charging.

12

Protection Cover: Protects power switch and
prevents user has direct access to power switch.

13

Channel ID Clip: For channel identification
(Optional)

18500
rechargeable
lithium
battery

2

3

Rechargeable Wideband Digital Handheld Transmitter Rechargeable Wideband Digital Handheld Transmitter

! Rotate and remove microphone grill counter

clock direction.

! Press both sides of Fixed Ring to pull out Fixed

Ring.

! Insert or remove battery accordingly. Insert

battery according to its correct polarity for a
proper fit. Wrong polarity will not fit properly.

! Power on the transmitter to check if battery is

fresh and inserted correctly. LCD lit denotes
battery inserted correctly.

Note: Transmitter cannot be powered on with

charged battery.

a. Ensure battery is inserted correctly with +

top side.

b. If battery is inserted correctly it could be

due to self battery protection mechanism.
Insert the transmitter into the charger to
re-charge for 10-20 seconds to wake-up
the battery. It should work.

c. If charger cannot be used, reverse the

battery insertion for 10-20 seconds, wake
up the battery with correct polarity. It
should work.

d. Always power off after each use. Remove

the internal battery if it will not be used
for an extended period of time.

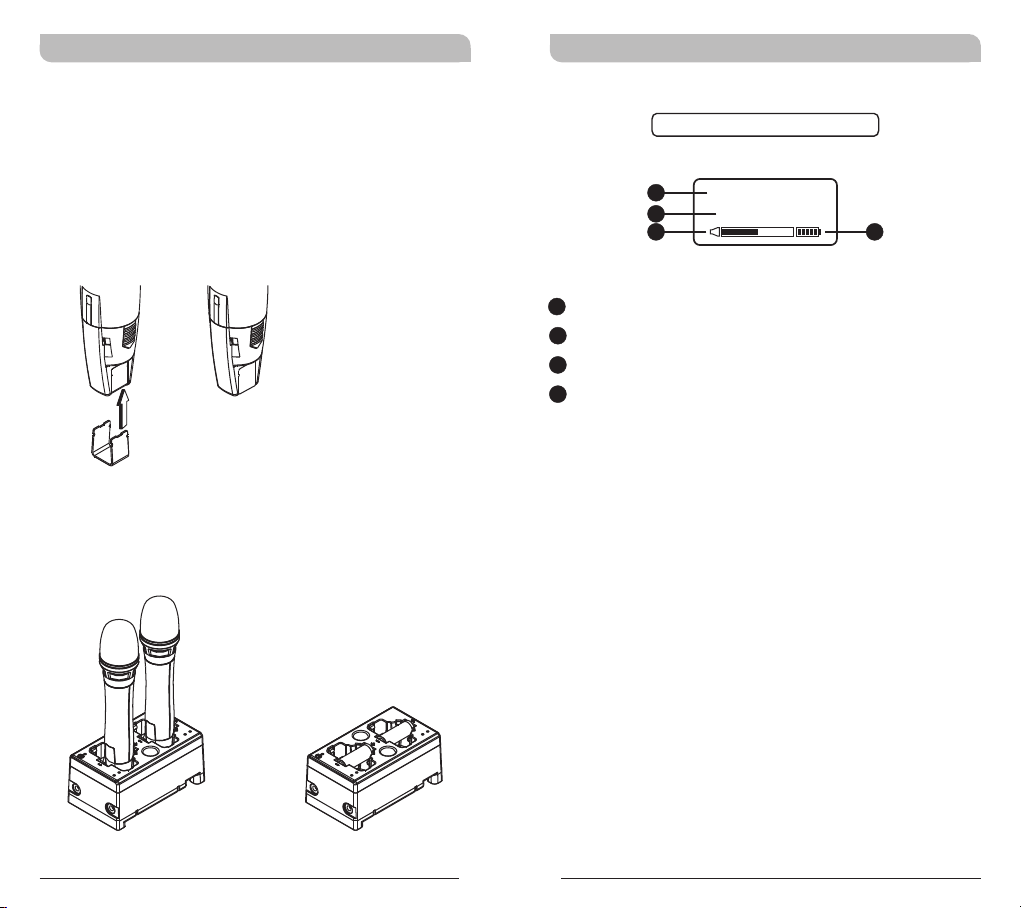

Patented Protection Cover

Protection cover's patented design protects
accidental access to power switch and its rugged
material and snug fit offer protection to both power
switch and PCB during accidental drop.

Steps

! Remove protection cover.

! Reverse protection cover.

! Install protection cover to protect accidental

power on/off.

! Mute function is open for easy acsess.
