Miele W 1901 WPS Operating instructions

Operating instructions

for Washing machine
W 1901 WPS

To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.

en-GB

M.-Nr. 09 482 650

Caring for our environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.

Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!

Disposal of your old machine

Electrical and electronic machines
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your machine.
Please do not therefore dispose of it
with your household waste.

Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

2

Contents

Caring for our environment .........................................2

Warning and Safety instructions .....................................6

Operating the washing machine.....................................13

Control panel .....................................................13

Display ..........................................................14

Optional programme packages.......................................15

Before using for the first time.......................................16

Washing environmentally and economically ..........................18

How to wash correctly.............................................19

Extra options ....................................................25

Stains 4 ........................................................25

Short............................................................25

Further extras 4 ..................................................25

The following extra options can be selected in addition to the programme:.....27

Spin ............................................................28

Final spin speed ..................................................28

Rinse and interim spin ...........................................28

To omit the final spin (Rinse hold) ..................................28

To omit rinse and interim spin and the final spin (No spin) ...............28

Programme chart .................................................29

Garment care label symbols ........................................33

Programme sequence .............................................34

Changing the programme sequence .................................36

Cancelling a programme ............................................36

Interrupting a programme ...........................................36

Making changes to a programme .....................................36

3

Contents

Adding or removing laundry after a programme has started ................37

Safety lock .......................................................37

Detergent .......................................................38

The correct detergent ..............................................38

Water softeners ...................................................40

Washing with several components ....................................40

Fabric conditioners and liquid starch ..................................41

Automatic dispensing of fabric conditioner or liquid starch to laundry at the end

of a programme ................................................41

Adding fabric conditioner or starch separately ........................41

Colour run and dye removers/dyes ....................................41

Cleaning and care ................................................42

Cleaning the drum (Hygiene info) .....................................42

External casing and fascia panel .....................................42

Cleaning the detergent dispenser drawer...............................42

Cleaning the filter in the water inlet ....................................44

Problem solving guide ............................................45

The programme does not start .......................................45

One of the following fault messages appears in the display.................46

The following fault messages appear in the display at the end of the programme47

General problems .................................................48

An unsatisfactory wash result ........................................49

The door will not open ..............................................50

Opening the drum door in the event of a blocked drain outlet and/or power failure

................................................................51

Blocked drain outlet .............................................51

After sales service ................................................53

Future updates (PC) .............................................53

Guarantee .....................................................53

Optional spare parts and accessories ...............................53

Installation and connection ........................................54

Front view........................................................54

Rear view ........................................................55

Installation surface.................................................56

Transporting the washing machine to its installation site .................56

4

Contents

Removing the transit bars ...........................................56

Re-fitting the transit bars ............................................58

Levelling the machine ..............................................59

Screwing out and adjusting the feet .................................59

Building under a worktop .........................................60

Washer-dryer stack..............................................60

The Miele Waterproof system ........................................61

Connection to the water supply .......................................62

Connection to the drainage system....................................64

Electrical connection U.K. ...........................................65

Consumption data ................................................66

Notes for test institutes: ..........................................66

Technical data ...................................................67

Settings menu ...................................................68

To open the Settings menu........................................68

To select a setting...............................................68

To close the Settings menu .......................................68

Language

Buzzer ..........................................................68

Time ............................................................69

Gentle action .....................................................69

Longer pre-wash Cottons ...........................................69

Suds cooling .....................................................69

Lock code .......................................................70

Temperature unit ..................................................70

Keypad tone .....................................................70

Brightness .......................................................70

Contrast .........................................................70

Standby display ...................................................71

Memory .........................................................71

Anti-crease.......................................................71

! ......................................................68

Optional accessories..............................................72

CareCollection ....................................................72

5

Warning and Safety instructions

This washing machine conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.

To avoid the risk of accidents and damage to the washing
machine, please read these instructions carefully before using it
for the first time. They contain important information on its
installation, safety, use and maintenance.

Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.

Correct application

This washing machine is not designed for commercial use. It is

~

intended for use in domestic households and in similar working and
residential environments.

The washing machine is not intended for outdoor use.

~

It must only be used as a domestic appliance to wash items

~

which are specified by the manufacturer as being washable on the
care label.
Any other usage is not supported by the manufacturer and could be
dangerous. Miele cannot be held liable for damage resulting from
incorrect or improper use or operation of the washing machine.

The washing machine can only be used by people with reduced

~

physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it or have been shown
how to use it in a safe way and understand the hazards involved.

6

Warning and Safety instructions

Safety with children

Children 8 years and older may use, clean or maintain the

~

washing machine without supervision only if they have been shown
how to do so in a safe way and understand the hazards involved.

Children under 8 years of age must be kept away from the

~

machine unless they are constantly supervised.

The washing machine is not a toy! To prevent the risk of injury, do

~

not allow children to play with it or near it, or to play with the
controls.

For machines with a 'porthole' door, remember that the porthole

~

glass will be hot when washing at high temperatures
Do not let children touch it.

7

Warning and Safety instructions

Technical safety

Before setting up the washing machine, check it for any externally

~

visible damage.
Do not install or use a damaged washing machine.

Before connecting the washing machine, ensure that the

~

connection data on the data plate (voltage and frequency) match
the mains electricity supply. If in any doubt, consult a qualified
electrician.

The electrical safety of this washing machine can only be

~

guaranteed when correctly earthed. It is most important that this
basic safety requirement is observed and regularly tested, and
where there is any doubt the household wiring system should be
inspected by a qualified electrician. The manufacturer cannot be
held liable for the consequences of an inadequate earthing system
(e.g. electric shock).

Do not connect the washing machine to the mains electricity

~

supply by an extension lead. Extension leads do not guarantee the
required safety of the machine (e.g. danger of overheating).

Faulty components must only be replaced by genuine Miele

~

original spare parts. Only when these parts are fitted can the safety
standards of the machine be guaranteed.

8

Warning and Safety instructions

Unauthorised repairs could result in unforeseen dangers for the

~

user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician.

If the connection cable is faulty it must only be replaced by a

~

Miele approved service technician to protect the user from danger.

The machine must be isolated from the electricity supply in the

~

event of a fault and during installation, maintenance and repair work.

The Miele "Water protection system" protects from water damage

~

provided the following conditions have been met:
– the machine is correctly plumbed in and connected to the

electricity supply.

– if a fault has been identified, the machine must be examined by a

competent person before further use, and repaired if necessary.

In areas which may be subject to infestation by cockroaches or

~

other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.

This machine must not be used in a non-stationary location (e.g.

~

on a ship).

Do not make any alterations to the washing machine, unless

~

authorised to do so by Miele.

9

Warning and Safety instructions

Correct use

Do not install your washing machine in rooms where temperatures

~

below freezing may occur. Frozen hoses may burst or split. The
reliability of the electronic control unit may be impaired at
temperatures below freezing point.

Before using the washing machine for the first time, check that

~

the transit bars at the rear of the machine have been removed (see
section on "Installation and connection"). During spinning, a transit
bar which is still in place may result in damage to both the machine
and adjacent furniture or appliances.

Turn off the stopcock if the machine is to be left for any length of

~

time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.

Flooding danger.

~

If hooking the drain hose into a wash basin, check that the water can
drain off quickly enough to prevent the sink from overflowing. Make
sure the drain hose is secure, so that the force of the water flowing
out of the hose does not dislodge it.

Take care to ensure that foreign objects (e.g. nails, pins, coins,

~

paper clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds
container, drum), which in turn can result in damage to the laundry.

10

Warning and Safety instructions

If the correct amount of detergent is dispensed, the machine

~

should not need to be descaled. If, however, you do wish to descale
the machine only use proprietary non-corrosive descaling agents
and strictly observe the instructions on the packaging. A special
descaling agent is available to order from the Miele Spare Parts
Department or via the internet on www.miele-shop.com.

Textiles which have been pre-treated in solvent based cleaning

~

agents must be thoroughly rinsed in clean water before being
washed in the machine.

Do not use solvent based cleaning agents, e.g. those containing

~

benzine, in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.

Do not use solvent based cleaning agents, e.g. those containing

~

benzine, to clean the outside surfaces of this machine. They can
cause damage to plastic surfaces.

Only use dyes specified by the manufacturer as being suitable for

~

use in a domestic washing machine. Always observe the
manufacturer's instructions carefully.

Colour run and dye removers contain sulphur compounds which

~

can cause damage such as corrosion. Do not use these products in
this machine.

If detergent comes into contact with the eyes, rinse them

~

thoroughly with lukewarm water immediately. If swallowed, seek
medical assistance immediately and retain the packaging or label
for reference. Those with skin problems or sensitive skin should
avoid their skin coming into contact with detergent.

11

Warning and Safety instructions

Accessories

Accessory parts may only be fitted when expressly approved by

~

Miele. If other parts are used, guarantee, performance and product
liability claims will be invalidated.

Miele cannot be held liable for damage caused by non­compliance with these Warning and Safety instructions.

12

Control panel

Operating the washing machine

a PC / Optical interface

This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.

b Start/Stop button

For starting the programme selected
and cancelling a programme once it
has started.

c Display with Y, X and OK buttons

See the following page for more
information.

d Delay start button

For delaying the start time of a
programme.

e Extra option buttons

Various extra options can be added
to the washing programmes.

f Programme selector

For selecting a programme. The
indicator light next to the selected
programme will come on. The
programme selector can be turned
clockwise or anti-clockwise.

g Door button

Opens the machine door.

h K Button

For switching the washing machine
on and off.
To save energy, the washing
machine will switch itself off
automatically 15 minutes after the
end of the programme/anti-crease
phase or after being switched on, if
no other selection is made.

13

Operating the washing machine

Display

The display is operated using the Y, X
and OK buttons.

– Press the Y button

to move up to the next line of text or
to increase the value highlighted in
the display.

– Press the X button

to move down to the next line of text
or to decrease the value highlighted
in the display.

Multiple option selection

If a value is selected there will be a
tick

9 next to it.

Further extras

Water plus

9

8 Extra quiet

;

,

Press the X or Y button to scroll down
or up the options in the display. Press
the OK button to select the highlighted
value. You can now select the next
value, if you wish.

Single option selection

Here one of the values is always
selected. A tick

( will appear next to

the one currently selected. The other
values are deselected automatically.

Gentle action

Off (

On ,

;

–

Press the OK button
to confirm the value highlighted in
the display.

Programme selection examples

To decrease or increase a value

Cottons

s NNNNNNE

EM

Duration: 2:59

1400 rpm

h.

Press the X button to decrease the
temperature and the Y button to
increase the temperature.

14

Press the X or Y button to scroll down
or up the options in the display. Press
the OK button to select the highlighted
value.

To come out of a sub-menu
Select Back # to come out of the sub-

menu or wait for approx. 15 seconds
and the display will return to the
programme menu automatically.

Operating the washing machine

The following are selected via the
display

wash temperature

–

final spin speed

–

the soak time

–

delay start

–

cancellation of a programme

–

safety lock

–

The following are selected via

Further programmes/Settings 4

– Maintenance programme

– Dark garments

– Down filled items

– Outerwear

– Proofing

– Separate rinse

– Starch

Optional programme packages

Additional programme packages
(containing a number of individual
programmes) are available for
downloading into your machine.

These have to be downloaded by a
Miele service engineer.

The following programme packages
can be downloaded into your machine
if they were not supplied with your
machine ex-works (depending on
model):

Eco

–

– Home

– Home XL

– Hygiene & kids

– Medic

– Nursery

– Sport & leisure

The new programmes can then be
selected by turning the programme
selector to Further programmes/
Settings 4.

15

Before using for the first time

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of leaks
during use.

Set the language

You will be asked to select the
language you require for the display. It
is possible to select another language
at any time via Further programmes/
Settings 4 in the Settings sub-menu.

Sprache

This washing machine has undergone
a complete functional test at the factory
and there will be some residual water
in the drum from this process.

For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.

Using detergent could result in an
excessive build-up of foam.

This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.

^

Press the K button.

If the washing machine is being
switched on for the first time, the
welcome screen will appear briefly.

deutsch

english ,

Use the X and Y buttons to scroll

^

;

through the options until the
language that you want is
highlighted. Press the OK button to
confirm your selection.

Set the time (of day) (if necessary)

The display for setting the time will then
appear.

Time

12:00

^

Press the X button to decrease or the
Y button to increase the hour.

^

Confirm the hour selected with the
OK button. Then do the same to set
the minutes.

The welcome screen will appear in the
display every time the machine is
switched on until a programme lasting
longer than 1 hour has been
completed.

The display for setting the language will
then appear.

16

Reminder to remove transport bars

To avoid the risk of damage, the

,

transport bars must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.

After removing the transport bars (if

^

this has not already been done by
your fitter) press the OK button.

Run your first programme

Your machine is now ready for the first
wash programme to be run.

Cottons

r 1400 rpm

Before using for the first time

Duration: 2:59

h.

The Cottons programme will be
selected automatically.

^ Open the stopcock.

^

Press the Start/Stop button.

^

At the end of the programme switch
the machine off.

The washing machine is now ready for
use.

17

Washing environmentally and economically

Energy and water consumption

Water consumption and energy

–

usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.

When smaller amounts of laundry are

–

washed, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.

– Use the Express 20 programme for

small loads.

– Modern detergents make it possible

to wash at lower temperatures (e.g
20°C). Washing using lower
temperature settings will save
energy.

– To keep your machine clean we

recommend running the
Maintenance programme from time
to time. This should be always be run
if the

Hygiene Info message

appears in the display.

Detergent

Do not exceed the amounts of

–

detergent recommended by the
manufacturer on the packaging.

Adjust the dosage to the degree of

–

soiling of the laundry.

Reduce the amount of detergent with

–

smaller loads (approx.

1

/3less than
the amount recommended can be
used when washing a half load).

Choosing the correct Extra option
(Short, Soak, Pre-wash)

Select:

– A wash programme together with the

Short extra option for light soiling
where there are no obvious marks.

– A wash programme without any extra

options for normal to heavy soiling
with visible staining.

– A wash programme together with the

Soak extra option for very heavily
soiled laundry.

–

The Pre-wash extra option for laundry
with large amounts of dirt (e.g. dust,
sand).

18

When drying with a tumble dryer

Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.

Brief instructions

The headings numbered A, B, C,...
show the operating sequence and can
be used as brief instructions.

A Sort the laundry

^ Empty all pockets.

,

Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.

^

Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.

How to wash correctly

If you use a solvent-based

,

cleaning agent (e.g. one containing
benzene) to pre-treat a stain, make
sure that any plastic parts (e.g.
buttons) are protected, and that the
cleaning agent is rinsed off before
washing the garment in the machine.

Do not use solvent-based

,

cleaning agents in or on this machine.

Sort the laundry by colour and by

^

care label. Most garments have a
textile care label in the collar or side
seam.

Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–

Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.

–

Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.

–

Close any zips, fasten hooks and
eyes etc before washing.

–

Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.

Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (h symbol)

19

How to wash correctly

B Switch on the washing machine

C Load the drum

Press the Door button to open the

^

drum door.

Unfold the laundry and load loosely

^

into the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.

The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.

Make sure that items do not get
caught between the drum door and
the seal.

D Select a programme

Using the programme selector:

^ Turn the programme selector

clockwise or anti-clockwise to the
required programme. The
programme indicator light for the
programme selected will come on.

^

Shut the door with a gentle swing.

20

How to wash correctly

Using the programme selector at the
Further programmes/Settings 4
position

^ Turn the programme selector

clockwise until the indicator light for
Further programmes / Settings 4
comes on.

^ The following will appear in the

display:

Further programmes

E Select a temperature / spin speed

If required, you can change the
suggested temperature and/or spin
speed within a given range.

Cottons

r 1400 rpm

Duration: 2:59

Press the Y or X button to alter the

^

h.

temperature.

By pressing the OK button you

^

switch to changing the spin speed
and back again.

Cottons

r 1400 rpm

Duration: 2:59

h.

^ Press the Y or X button to alter the

spin speed.

Settings !

Maintenance programme ,

^

Use the Y or X button to scroll up

;

and down the menu.

^

When the programme you want
shows in the display, confirm your
selection by pressing the OK button.

21

How to wash correctly

F Select extra option(s)

Select any Extra options by either

^

pressing the relevant button for the
Extra, or by using the Further
extras 4 button.

Not all extra options are suitable for use
with every programme.

You can only select extra options which
are compatible with the programme
being used.

See "Extra options" for more
information.

G Select Delay start (if required)

The programme can be set to have a
finish time up to 24 hours later.

^ Press the Delay start button.

Delay start 10:02

Start time 10:02

Finish time 13:00

^ Press the X or Y button to alter the

finish time. The Start time will be
calculated automatically.

The finish time can be set in 15 minute
time delays. With the first 15 minute
delay the time will be adjusted to the
next quarter of an hour.

22

The actual load size can only be
determined accurately by the machine
once the programme has started. The
programme end time may, therefore, be
a bit later or earlier than first indicated.

H Add detergent

It is important to dispense the correct

amount, because... . .

. . . too little detergent results in:

Laundry not getting properly clean

–

and with time it may become grey
and hard to the touch.

Greasy particles clinging to the

–

laundry.

Limescale deposits on the heater

–

elements.

. . . too much detergent results in:

– Excessive foam which causes a low

level of agitation and poor wash,
rinse and spin results.

– Higher water consumption (an

additional rinse cycle will
automatically switch in).

– A burden to the environment.

How to wash correctly

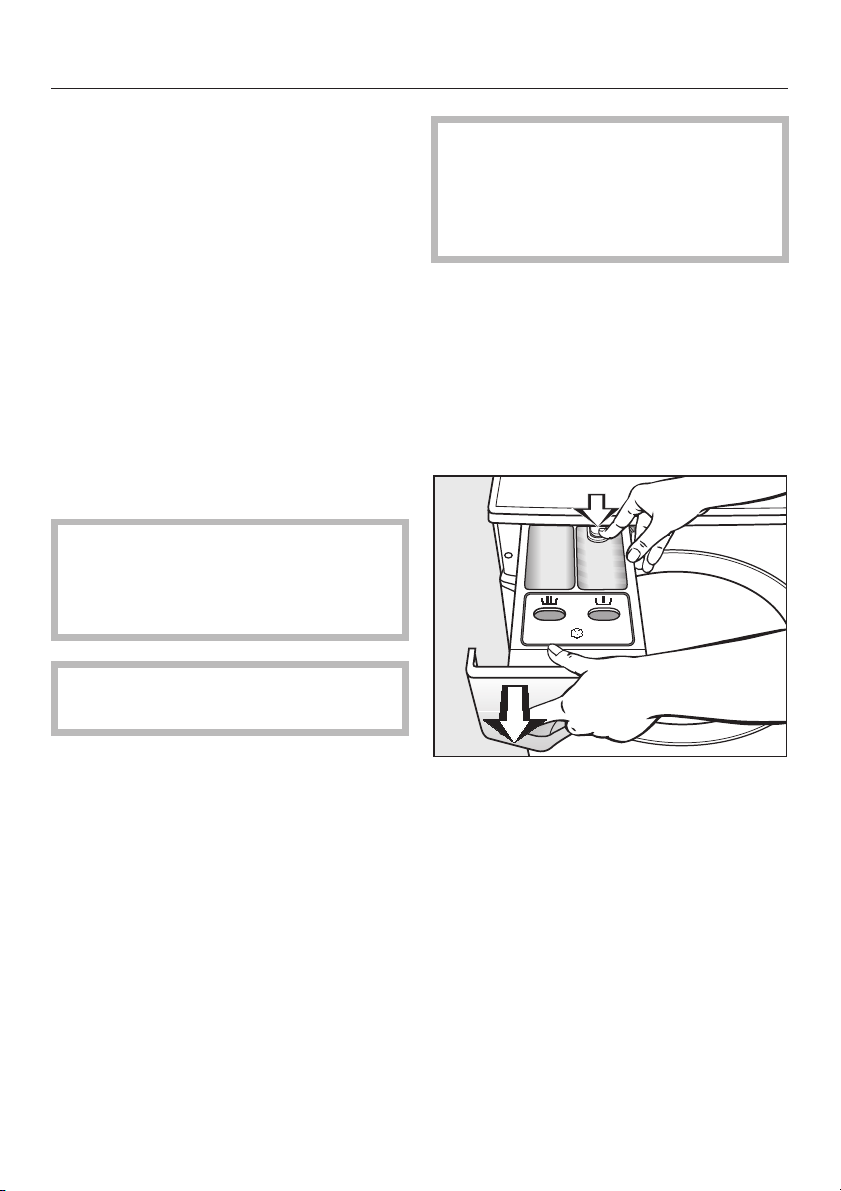

Pull out the detergent drawer and

^

add detergent to the compartments
as follows:

i

Detergent for the pre-wash. Divide
the total recommended amount as
follows: add

2

and

/3to compartment j

j

Detergent for the main wash,
including Soak if selected

1

/3to compartment i

§

Fabric conditioner and liquid starch

^

Close the detergent drawer.

See "Detergent" for further information
on detergent dispensing.

23

How to wash correctly

I Start the programme

Press the flashing Start/Stop button.

^

If a delay start time has been selected,
then this will count down in the display.
At the end of the delay start time or
immediately after the programme has
started (if a delay start time has not
been selected) the estimated
programme duration will appear in the
display. During the first 8 minutes the
machine measures how much water is
being absorbed by the laundry. The
programme duration may be longer or
shorter depending on this absorbency
rate.

The programme sequence is also
shown in the display. The machine lets
you know which section of the
programme has been reached.

J Programme end - unload the drum

In the anti-crease phase after the
programme has finished, the following
will appear alternately in the display:

Finished

and

Anti-crease

^

Press the Door button to open the
drum door.

The machine will switch off
automatically 15 minutes after the
end of the anti-crease phase. You will
need to press the K button to switch
it back on again.

Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become
discoloured themselves.

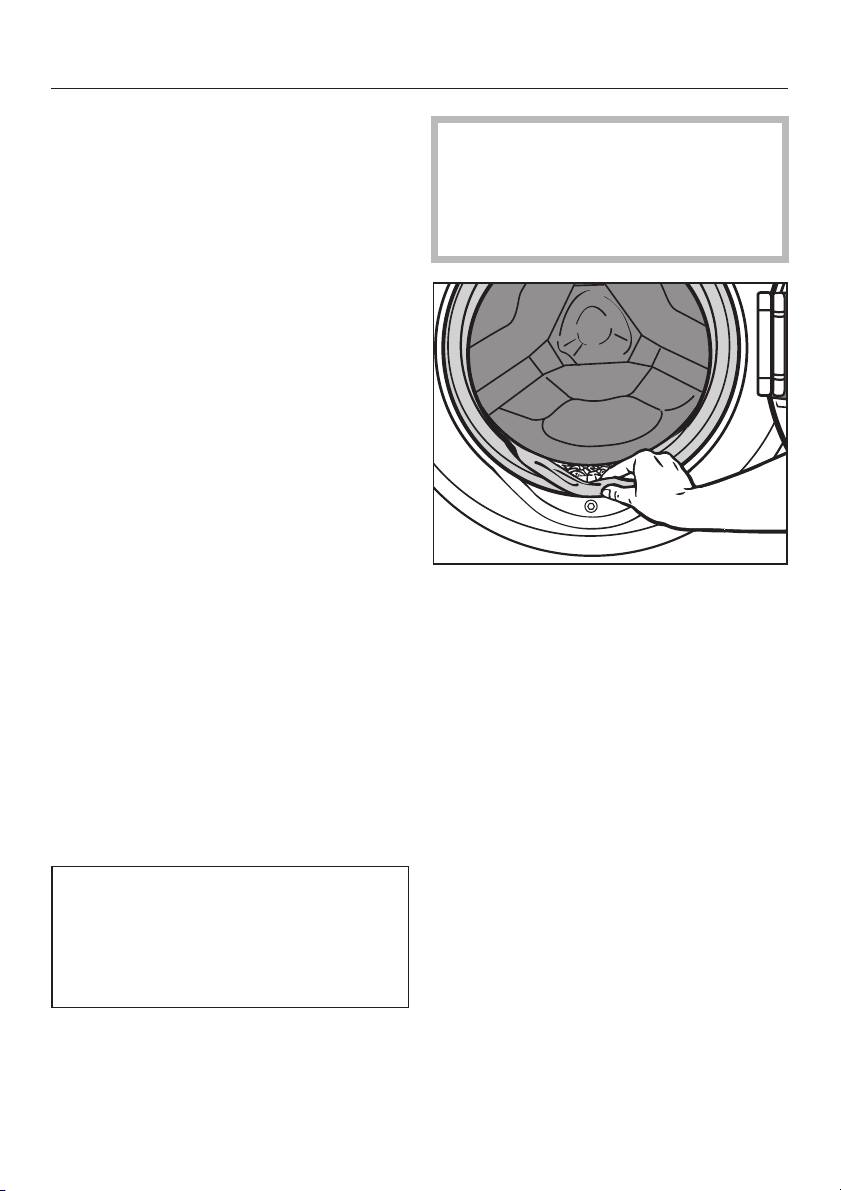

^ Check the folds in the door seal for

any small articles, e.g. buttons, which
might be lodged there.

^ Switch the machine off with the K

button. An audible tone sounds
briefly to confirm selection.

^

Close the drum door. Otherwise there
is the danger of objects being placed
inadvertently in the drum. If these
remained unnoticed and were
washed in the next load, they could
damage the laundry.

^

Unload the drum.

24

Extra options

Extra options are selected or
deselected by pressing the appropriate
button.

Stains 4

There is a choice of various types of
stains for achieving the optimum wash
result with stain removal. Extra options
will be added to the wash programme
automatically, depending on the type of
stain selected. With some stains, a tip
about pre-treating the stain will appear
in the display. You can select a
maximum of three stains with each
wash programme.

If the "Short" extra option was selected
previously, it will be deselected
automatically.

Press the Stains 4 button again to
come out of the Stains sub-menu.

Short

For light to normal soiling with no visible
staining.

The duration of the main wash is
reduced.

Further extras 4

The Further extras sub-menu will open
in the display.

Press the Further extras 4 button
again to come out of the Further
extras sub-menu.

Water plus

The water level in the main wash and
the rinses will be increased.

Extra quiet

If using your washing machine during
quiet periods, you can reduce the noise
levels even more.

If the Extra quiet extra option is
selected, the machine will activate the
Rinse hold extra option and not spin.
The programme duration is longer.

The Rinse hold option is switched off
via the Further extras menu.

By using Delay start you can make
sure the final spin occurs outside
quiet periods in the home.

Extra rinse

An additional rinse cycle is carried out
to achieve even better rinse results.

25

Extra options

Pre-wash

For laundry with large amounts of dirt
e.g. dust, sand.

Soak

For heavily soiled items with protein
stains.

A duration of between 30 minutes and 6
hours can be chosen in 30 minute
increments for the soak process.

To select the soak duration

–

Press the Further extras 4 button.

^

Further extras

Soak

8

8 Rinse hold

;

,

^ Press the X or Y button until Soak is

highlighted and confirm it with the
OK button.

You can now use the display to select
the soak duration you require.

To delete the soak duration

–

Press the Further extras 4 button.

^

Further extras

Soak

9

8 Rinse hold

Press the X or Y button until Soak is

^

;

,

highlighted and deselect it with the

OK button.

Rinse hold

The laundry will not be spun and will
remain suspended in the final rinse
water. This reduces creasing if the
laundry is not going to be removed
from the drum immediately after the
end of the programme.

Soak duration

0:30 h:min

(0:00 - 6:00 h)

^

Use the X or Y button to select the
soak duration you want and confirm it
with the OK button.

26

Extra options

The following extra options can be selected in addition to the
programme:

Rinse hold

Soak

Pre-wash

Extra rinse

Extra quiet

Water plus

Short

Stains 4

Cottons ########

Minimum iron ########

Delicates ## # ###
Woollens / ##

Express 20 #

Shirts ########

Denim ## # ###

Automatic plus ## #

Spin

Maintenance
programme

Dark garments ## # ###

Down filled items ### #

Outerwear ########

Proofing ##

Separate rinse ##

Starch ##

1)

### #

1)

This extra option is activated automatically but can be deselected

2)

This extra option is activated automatically and cannot be deselected

27

Spin

Final spin speed

Programme rpm

Cottons 1400

Minimum iron 1200

Delicates 600
Woollens / 1200

Express 20 1400

Shirts 600

Denim 900

Automatic plus 1200

Spin 1400

Maintenance prog. –

Dark garments 1200

Down filled items 1200

Outerwear 800

Proofing 1000

Separate rinse 1400

Starch 1400

You can reduce the final spin speed.
However, you cannot select a final spin
speed higher than that shown in the
chart above.

Rinse and interim spin

There is a spin after the main wash and
between the rinses. A reduction in the
final spin speed will also reduce the
interim spin speed. In some
programmes, an additional rinse is
introduced if a spin speed of less than
700 rpm is selected.

To omit the final spin (Rinse hold)

The laundry will not be spun and will
remain suspended in the final rinse
water. This reduces creasing if the
laundry is not going to be removed
from the drum immediately after the
end of the programme.

Press the Further extras button 4

^

and select the Rinse hold option.

To start the final spin and end the

–

programme:

Each programme has a preset
optimum spin speed. You can alter
this spin speed if you wish.

^ Press the Start/Stop button to start

the final spin.

– To end the programme without the

final spin:

^ Press the Door button. The water will

drain away. Press the Door button
again to open the door.

To omit rinse and interim spin and
the final spin (No spin)

^

Select No ..

The laundry is not spun after the final
rinse. The water will drain away and the
machine will go straight into the anti­crease stage. With some programmes
an additional rinse is introduced if this
setting is selected.

28

Programme chart

Cottons 9876* cold to 90°C Max. load 7.0 kg

Use for Cotton, linen or cotton mix fabrics, e.g. table linen, towelling,

underwear, T-shirts etc.

Note The 60°/40°C programmes differ from the r/s programmes

as follows:

Shorter programme duration

–

Longer temperature holding times

–

Higher energy consumption

–
Where particularly high levels of hygiene are required please

select a temperature of 60°C or higher.

Cottons r/s Max. load 7.0 kg

Use for Normally soiled cotton garments

Note – These settings are the most efficient in terms of energy and

water consumption for washing cottons.

– With r the actual wash temperature reached will be lower

than 60°C although the wash performance is the same as with
the standard Cottons 60°C programme.

Note for test institutes:

The test programme conforms to EN 60456 and the energy label with
Directive 1061/2010.

Minimum iron
43218E76*

Use for Synthetic, mixed fibre and easy care cotton. If fabrics have a high

proportion of man-made fibres it is advisable to programme the
machine for "Gentle action".

Note Reduce the spin speed for fabric which creases easily.

cold to 60°C Max. load 3.5 kg

29

Programme chart

Delicates 4321ac* cold to 60°C Max. load 2.5 kg

Use for Delicate garments made from synthetic fibre, mixed fibre, rayon

and easy care cotton.
Curtains, including net curtains, specified as machine-washable

by the manufacturer.

Notes

Woollens /ac* cold to 40°C Max. load 2.0 kg

Use for Machine-washable or hand-washable wool or wool blend fabrics.

Note Reduce the spin speed for items which crease easily.

Express 20 76* cold to 40°C Max. load 3.5 kg

Use for Cotton and minimum iron garments that have hardly been worn or

Note The Short extra option will be activated automatically.

Dust in curtains usually makes using a programme with pre-

–

wash advisable.
Select No . (No spin) for items which crease easily.

–

If the care label does not specify a temperature, wash using the
cold setting.

are only very lightly soiled.

Shirts cold to 60°C Max. load 2.0 kg

Notes – Pre-treat collars and cuffs if necessary.

– Wash silk garments in the Silks / programme.

Denim cold to 60°C Max. load 3.0 kg

Notes

30

–

Wash denim inside out.

–

Denim often contains excess dye and may run during the first
few washes. Wash light and dark coloured items separately.

Programme chart

Automatic plus 7621* cold to 40°C Max. load 5.0 kg

Use for Mixed loads of garments suitable for the Cottons and Minimum

iron programmes. Sort according to colour.

Note The wash parameters (e.g. water level, wash rhythm and spin

speed) are adjusted automatically in this programme to ensure the
best possible care and wash result for each item.

Spin

Notes

Maintenance prog. 75°C Empty

With frequent washing at low temperatures, there is the danger of a build-up of
bacteria in the washing machine.

Cleaning the washing machine will significantly reduce bacteria, fungus and
biofilm and help prevent the build-up of unpleasant odours.

Notes – Optimum results can be achieved by using Miele machine

Dark garments cold to 60°C Max. load 3.0 kg

Use for Black and dark garments made from cotton or mixed fibre.

Note Wash inside out.

Down filled items cold to 60°C Max. load 2.0 kg

Use for Jackets, sleeping bags, pillows and other down filled garments

To drain only: Select No . (No spin).

–

Make sure you select the appropriate spin speed.

–

cleaner. Alternatively a universal powder detergent can be
used.

– Dispense the machine cleaner or universal powder via the

detergent compartment.

– Do not load any laundry. The drum must be empty for the

maintenance programme.

Note Please observe the instructions on the wash care label.

* Please note that the "buckets" represent garment care label symbols. See

"Garment care label symbols".

31

Programme chart

Outerwear cold to 40°C Max. load 2.5 kg

Use for Outerwear made from membrane fabric such as Gore-Tex

SYMPATEX

®

, WINDSTOPPER®etc.

®

,

Notes

Zip up jackets before washing.

–

Do not use fabric conditioner.

–

If wished these garments can also be re-proofed using the

–

Proofing programme. Proofing should not be done every time
the garment is washed.

Proofing 40°C Max. load 2.5 kg

Use for Treating microfibre fabric, skiwear, and table linen made from

mainly synthetic fibres to provide a water and stain resistant finish.

Notes

The items should be freshly laundered and spun or dried before

–

proofing.

– For best results, the items should be heat-treated afterwards,

either in a tumble dryer or by ironing.

Separate rinse Max. load 7.0 kg

Use for Rinsing handwashed items.

Note – Reduce the spin speed for fabrics which crease easily.

Starch Max. load 7.0 kg

Use for Starching table cloths, serviettes and workwear

Notes

–

Reduce the spin speed for fabrics which crease easily.

–

The laundry should be washed but not treated with fabric
conditioner.

32

Garment care label symbols

Washing

The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicates the
level of agitation permitted.

9 No bar under the symbol: =

normal agitation

4 One bar under the symbol: =

reduced agitation

c Two bars under the symbol: =

much reduced agitation

/ Hand wash (if no temperature

is specified use the lowest
temperature or cold)

h Do not wash

Drying

The number of dots indicates the
drying temperature

q Normal temperature
r Low temperature
s Do not tumble dry

Ironing

The number of dots indicates the
ironing temperature

I Hot iron (max sole plate temp.

approx. 200°C)

H Medium hot iron (max sole

plate temp. approx. 150°C)

G Cool iron (max sole plate

temp. approx. 110°C). Do not
steam iron garments carrying
this symbol.

J Do not iron

Professional cleaning

f Dry clean only. The letters

indicate the type of cleaning

p

agent required.

w Professional Wet Clean only
D Do not dry clean

Bleaching

x Any oxidising bleaching

agent can be used

{ Only use an oxygen based

bleach or a non-chlorine
bleach

z Do not bleach

33

Programme sequence

Main wash Rinses Spinning

Water

level

Cottons d a ( 2-4
Minimum iron ( c e 2-3
Delicates e d e 3 – L
Woollens /ef e 2 LL
Express 20 d b d 1-3
Shirts e c e 2 – L
Denim ( c e 3 – L
Automatic plus ( abc e 2-3

Spin – – –––L
Maintenance prog. ( a e 2– –
Dark garments ( b d 3-4

Down filled items

5)

( d e 3 – L

Outerwear e d e 3 L

Wash

rhythm

Water

level

Rinses Interim

spin

1)2)

3)

3)

3)

3)

LL

LL

LL

LL

LL

4)

Final

spin

L

Proofing ( d –––L
Separate rinse ––e 2 – L
Starch ( c –––L

Please see next page for description of the symbols

34

Programme sequence

d = Low water level
( = Medium water level
e = High water level

a = Intensive rhythm

b = Normal rhythm

c = Gentle rhythm

d = Sensitive rhythm

e = Ultra sensitive rhythm

f = Handwash rhythm

This machine has fully electronic
controls with automatic load
recognition. It takes in the right amount
of water required for the programme
depending on the amount of laundry
and its absorbency rate. This means
that programme cycles and durations
can vary.

The programme sequences outlined in
the chart are based on the basic
programme with a full load. Extra
options which can be selected have not
been taken into account.

The display shows the stage the
programme has reached.

Special features in the programme
sequences:

Anti-crease:

At the end of the programme, the drum
continues to turn at intervals for up to
30 minutes to help prevent creasing.
Exception

: There is no anti-crease
phase in the Woollens programme.
The door can be opened and laundry
removed at any time during the anti­crease phase.

1)

A second rinse is carried out when a
temperature of 60°C to 90°C has
been selected. A third rinse is
carried out when a temperature
below 60°C is selected.

2)

An additional rinse is carried out if:

– there is too much foam in the drum

– a spin speed lower than 700 rpm has

been selected

– No . has been selected.

3)

An additional rinse is carried out if:

–

No . has been selected.

4)

There is a spin only after the main
wash.

5)

Run-up to spin: A run-up to spin is
carried out before the wash process
begins to deflate the down filling.
Subsequent water intake for the main
wash is through compartment j.

6)

Pre-wash: A pre-wash without
detergent is carried out automatically
to remove dust.

7)

A pre-wash will be carried out.

35

Changing the programme sequence

Cancelling a programme

You can cancel a programme at any
time after it has started.

Press the Start/Stop button.

^

Options

Cancel programme

Activate safety lock ,

Press the OK button.

^

The suds will be pumped away.

If you want to remove the laundry:

^ Press the Door button.

If you want to select a different
programme:

^ Switch the machine off with the K

button.

^ Switch the machine back on again.

^ Check that there is still detergent in

the detergent drawer. Add detergent,
if necessary.

^

Select a new programme.

;

Interrupting a programme

Switch the machine off with the K

^

button.

To continue with the same programme:

Switch the machine back on again

^

with the K button.

Making changes to a
programme

Programme

After the start of a programme it is no
longer possible to select a different
programme.

Temperature

It is possible to select a different
temperature up to 5 minutes after the
programme has started.

Spin speed

It is possible to change the spin speed
up until the final spin begins.

Extra options

36

With the exception of the Express 20
programme, it is possible to select or
deselect the Short and Water plus extra
options up to 5 minutes after the
programme has started.

It is not possible to make any
changes if the safety lock has been
activated.

Changing the programme sequence

Adding or removing laundry
after a programme has started

Press the Door button to open the

^

drum door.

Add or remove items.

^

Close the drum door.

^

The programme will continue
automatically.

Please note:

Once a programme has started the
machine cannot recognise any
adjustment to the load.

For this reason, if laundry is added or
removed after the start of a programme,
the machine will always complete the
programme cycle assuming a full load
which can alter the programme running
time shown in the display.

The door cannot be opened if:

– the suds temperature is above 55°C.

Safety lock

The safety lock prevents the machine
from being opened or the
programme cancelled during a wash
programme.

To activate the safety lock

Press the Start/Stop button in after

^

the programme has started.

Options

Activate safety lock

Back # ,

^ Press the X button until Activate

safety lock is highlighted and confirm

by pressing the OK button.

The following will appear in the display:

0 Locked

The safety lock is now activated. It is
deactivated automatically at the end of
the programme.

;

–

the water is above a certain level.

–

the programme has reached the
Final spin stage.

If you press the Door button when the
above conditions are present, the
following will appear in the display:

Door locked

To deactivate the safety lock

^

Press the Start/Stop button.

The following will appear in the display:

Deactivate safety lock

^

Press the OK button. The following
will appear in the display:

1 Unlocked

37

Detergent

The correct detergent

All modern detergents produced for automatic washing machines are suitable.
Use dispensing aids, e.g. balls, if these are supplied with the detergent. Tablets
are suitable for full loads, but note that it may be impractical to reduce tablets for
smaller loads. Some tablets do not dissolve as rapidly as others, and may not be
suitable for programmes with short durations.

Do not use biological detergents on silk as the enzymes may damage the silk!
Instructions for use and recommended dosage amounts are given on the
detergent packaging.

See "Optional accessories" at the end of this booklet for details of Miele
branded care products including detergents and fabric conditioner.

38

Detergent

Universal

detergent

Detergent

for

coloureds

Detergent

for

delicates

Specialist

detergent*

Proofing

agent**

Fabric

conditioner

Cottons X X – – – X

Minimum iron X X – – – X

Delicates X X X – – X
Woollens / –––X–X

Express 20

1)

XX– ––X

Shirts X X – – – X

1)

Denim

XXX ––X

Automatic plus X X – – – X

Maintenance

X–– X––

programme

Dark garments

Down filled

1)

items

Outerwear

1)

XXX ––X

–XXX––

1)

––XX––

Proofing – – – – X –

Separate rinse – – – – – X

Starch – – – X – –

1)

Liquid detergent
For programmes with a pre-wash you will need to purchase a special container
from the Miele Spare Parts Department which sits in the main wash
compartment j. Add liquid detergent to this container for the main wash and
to compartment i for the pre-wash

2)

Use powder detergent

* Specialist detergent

Detergent designed specifically for the wash programme or type of fabric.

** Only use proofing agents containing fluorochemical compounds which are

stated by the manufacturer as being "suitable for use on membrane textiles".
Do not use proofing agents which contain paraffin. Add proofing agents to
compartment §.

39

Detergent

The right amount to dispense will
depend on the following:

The soiling level of the laundry

–

Lightly soiled
No visible dirt or stains. Possibly
slight body odour.

Normally soiled
Visibly dirty and/or just a few slight
stains.

Heavily soiled
Visible dirt and stains and/or dried on
soiling.

– The size of the load

– The water hardness level.

Check with your local water supplier
if you do not know the hardness level
in your area.

Water hardness levels

Hardness level mmol/l German scale

I (soft) 0 - 1.5 0 - 8.4

II (medium) 1.5 - 2.5 8.4 - 14

III (hard) Above 2.5 Above 14

°dH

Refill packs of detergent

When purchasing detergent buy refill
packs whenever possible. This helps
reduce the amount of waste packaging.

Water softeners

A water softener can be used to cut
down on the use of detergents in hard
water areas. Dispense according to the
amount specified on the packaging.
First add detergent and then the water
softener.

Miele branded water softening tablets
are available from the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.

Use a quantity of detergent as for soft
water.

Washing with several
components

If you wash using several components
(e.g. special application detergents),
we recommend always dispensing the
agents into compartment j in the
following order:

40

1. Detergent

2. Water softener

3. Stain remover

This way the agents are distributed
more evenly.

Fabric conditioners and liquid
starch

Fabric conditioner
makes garments soft to handle and
help prevent static cling when tumble
drying.

Starch
stiffens and gives body to items of
laundry, e.g. shirts, tablecloths and bed
linen.

Automatic dispensing of fabric
conditioner or liquid starch to
laundry at the end of a programme

Detergent

If starching frequently, thoroughly
clean the dispenser compartment,
especially the siphon tube and
fabric conditioner channel, regularly.
See "Cleaning the detergent
dispenser drawer". Do not use
powder starch formulations or
viscous liquid starch in the §
compartment as it will clog up.

Adding fabric conditioner or starch
separately

Dispense in accordance with

^

manufacturer's instructions on the
packaging.

^ Dispense liquids into the §

compartment and powder or viscous
formulations into the i
compartment.

^ Turn the programme selector to

Further programmes/Settings 4 and
select the Starch programme.

^

Add the fabric conditioner or liquid
starch to compartment §. Do not

exceed the maximum level mark.

It will be dispensed automatically in the
last rinse. At the end of the programme
a small amount of water remains in the
fabric conditioner compartment §.

^

Select a spin speed or the Rinse hold
extra option.

^

Press the Start/Stop button.

Colour run and dye removers/
dyes

^

Do not use
removers in this machine.

^

Dyes suitable for use in domestic
washing machines can be used.
However, please note that the salt
used in the dyeing process can
cause corrosion to stainless steel
components in the machine if you
dye frequently. Follow the
manufacturer's instructions carefully.

colour run or dye

41

Cleaning and care

A range of Miele branded cleaning and
conditioning agents is available to
order from the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.

Cleaning the drum (Hygiene
info)

Washing at low temperatures and/or
using liquid detergent can cause
bacteria and unpleasant smells to build
up in the machine. The washing
machine can be cleaned using the
Maintenance programme. This should
be always be run if the
message appears in the display.

Disconnect the machine from the

,

mains electricity supply and
withdraw the plug from the socket
before cleaning the machine.

Hygiene Info

Do not use solvents, abrasive

,

cleaners, glass cleaners or multi­purpose cleaning agents.
These could damage plastic
surfaces and other parts.

Cleaning the detergent
dispenser drawer

The pre-wash and main wash
compartments of the detergent
dispensing drawer are self-cleaning.
For hygiene reasons, clean the entire
drawer at regular intervals.

,

The machine must not be hosed

down.

External casing and fascia
panel

^

Clean the casing using a Miele E­cloth or with a mild non-abrasive
cleaning agent or soap and water
using a well wrung-out cloth. Wipe
dry with a soft cloth.

^

The drum can be cleaned using a
suitable proprietary stainless-steel
cleaning agent following the
manufacturer's instructions on the
packaging.

42

^

Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release catch and at the
same time pull the drawer right out of
the machine.

^

Clean the drawer with hot water.

Cleaning the siphon and conditioner
channel

1. Remove the siphon from

compartment § and rinse under hot
running water. Clean the siphon tube
in the same way.

2. Replace the siphon.

Cleaning and care

If starching frequently, thoroughly
clean the siphon, the siphon tube
and the fabric conditioner channel
regularly. A build-up of liquid starch
will cause them to get clogged.

Cleaning the detergent dispenser
drawer housing

^

Clean the fabric conditioner channel
using a brush and hot water.

^ Use a bottle brush to remove

detergent residues and limescale
from the jets inside the detergent
dispenser drawer housing.

43

Cleaning and care

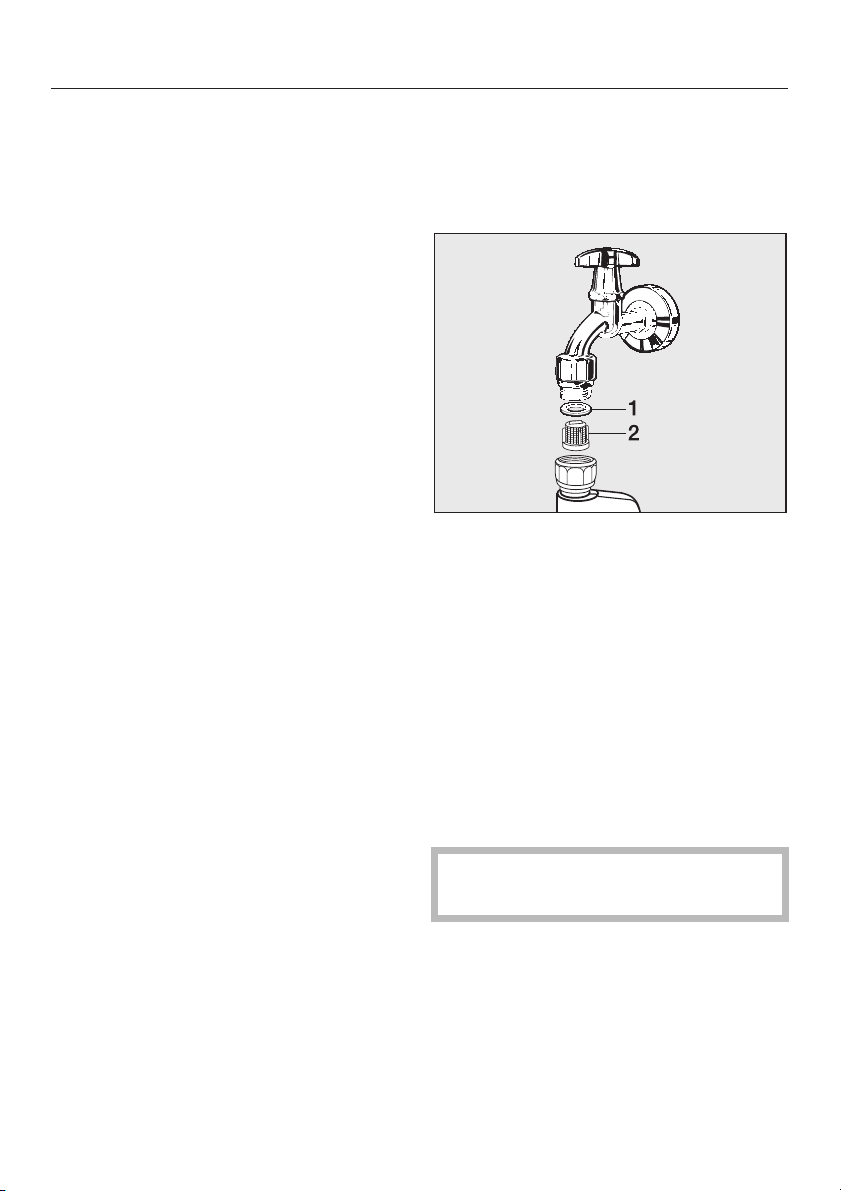

Cleaning the filter in the water
inlet

The washing machine has a filter to
protect the water inlet valve.

The accessible filter in the union in the
open end of the inlet hose should be
checked every six months, or more
often if there are frequent interruptions
to the external water supply.

First turn off the stopcock.

^

Unscrew the threaded union

^

connecting the free end of the inlet
hose to the stopcock.

^ Remove the rubber seal 1 from the

recess.

^ Using pointed pliers, take hold of the

plastic filter bar 2 and remove.

^ Clean the plastic filter.

^ Put the filter and seal back in the

reverse order and reconnect the
hose.

44

Turn on the stopcock and check the
connection is watertight. If water drips
out, tighten the connection.

Never forget to put the filter back in
place after cleaning.

Problem solving guide

With the help of the following notes, minor faults in the performance of the
machine, some of which may result from incorrect operation, can be put right
without contacting the Service Department.

Repair work to electrical appliances should only be carried out by a

,

suitably qualified person in strict accordance with current local and national
safety regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The display remains
dark, and the Start/
Stop button indicator
light does not come
on.

You are asked to enter
a code.

The display is dark. The display has

There is no power to
the machine.

Access via a code has
been activated.

switched off
automatically to save
energy (Standby
mode).

Check whether
– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

Enter the code and confirm
the entry. Deactivate the code
if you do not wish this
message to appear in the
display the next time the
machine is switched on.

Press a button. Standby
comes to an end.

45

Problem solving guide

One of the following fault messages appears in the display

Fault message Possible cause Remedy

Fault

2

2

L
;

1)

Water intake
Open stopcock

Fault
Check drainage
system

Waterproof system
activated
Close the stopcock

Technical fault xxx
Call Service

To switch off the fault message: Switch the machine off with the K button.

The water inlet is
blocked or
restricted.

The water outlet is

–

blocked or
restricted.

– The drain hose

has been fixed
too high.

The water protection
system has reacted.

There is a fault. Start the programme

Check whether

the stopcock is

–

opened properly.
the inlet hose is kinked.

–

the water pressure is

–

too low.

Clean the drain filter

–

and the drain pump.
The maximum delivery

–

head is 1 m.

– Close the stopcock.
– Call the Service

Department.

again.
If the fault message
appears again, contact
the Service Department.

1)

46

Problem solving guide

The following fault messages appear in the display at the end
of the programme

Fault message Possible cause Remedy

Check detergent

Hygiene information.

Excessive foam has built
up during washing.

A programme using a
temperature above 60°C
has not been run for a
long time.

Check:

the amount of detergent

–

used.
Follow the instructions on

–

the manufacturer's
packaging and also take the
degree of soiling of the
laundry into account.

In order to prevent bacteria
and unpleasant smells building
up in the machine, run the

Maintenance programme

programme using Miele
machine cleaner or a universal
powder detergent.

47

Problem solving guide

General problems

Problem Possible cause Remedy

The machine shakes
during the spin cycle.

The laundry has not
been spun properly and
is still wet.

The laundry has not
been spun satisfactorily.

The pump makes
strange noises.

There is a lot of
detergent residue in the
detergent drawer.

Fabric conditioner is not
completely dispensed or
too much water remains
in the § compartment.

The display is in a
different language.

When laundry is dry it
feels hard to the touch.

The machine feet are not
level.

The machine detected an
imbalance during the final
spin and reduced the
spin speed automatically.

The spin speed selected
was too low.

This is not a fault! These noises occur at the end of
a pump sequence as a normal part of the operation.

The water pressure is too
low.

Powder detergent used
with water softeners can
be sticky.

The siphon tube is not
correctly positioned, or is
clogged up.

A different language has
been selected in Settings

Language

Too vigorous wash
action.

Not enough detergent
used.

No fabric conditioner
used.

Level the machine (see
"Installation and
connection").

Include both large and
small items in the load as
this will give better
distribution.

Select a higher spin
speed next time.

– Clean the water inlet

filter.

– Select Water plus.

Add washing powder
and then add the water
softener.

Clean the siphon, (see
“Cleaning and care ­Cleaning the detergent
dispenser drawer”).

Set the language you
want. The flag symbol

!.

will guide you.

Programme in gentle
action and more water.

Increase detergent dose
to prevent limescale
build up in laundry.

Use fabric conditioner in
last rinse.

48

Problem solving guide

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent
does not give the
required result.

Grey, greasy
particles cling to
washed laundry.

White residues
which look like
powder detergent
are seen on dark
textiles after
washing.

Clothes are coming
out creased.

Liquid detergents
usually contain no
bleaching agents.
They do not remove
fruit, coffee and tea
stains.

Insufficient amounts of
detergent were used
to break down the
particles of grease in
heavily soiled laundry.

The detergent
contained compounds
(zeolites) to aid water
softening which are
not soluble in water.
They have ended up
on the laundry.

The machine was
overloaded.

The wrong
programme was used.

Use a general purpose

–

detergent containing a
bleaching agent.

Pour stain removers into

–

compartment j of the
dispenser drawer and liquid
detergent into a dispenser ball.

Never put stain removers and

–

liquid detergent together in the
dispenser drawer.

– Use more detergent.
– Before the next wash, run the

Maintenance programme using
Miele machine cleaner or a
universal powder detergent.

– Try and brush off the residues

with a soft brush once the
laundry is dry.

– Wash dark textiles using a

detergent which contains no
zeolites. Liquid detergents
usually contain no zeolites.

–

Use the Dark garments
programme.

–

Reduce quantity of clothes in
drum.

–

Check care labels and the
programme chart.

–

Use easy iron conditioners.

49

Problem solving guide

The door will not open

Possible cause Remedy

The machine is not
connected to the
electricity supply and/or is
not switched on.

The safety lock has been
activated.

Access via a code has
been activated.

Power cut. Open the drum door as described in the next

The door was not correctly
engaged.

There is still water in the
drum and the machine is
unable to drain.

For safety reasons the drum door cannot be opened if the suds temperature is
higher than 55°C.

Insert the plug in the socket and switch on, and/or
switch the machine on with the K button.

Deactivate the safety lock as described in
"Changing the programme sequence - Safety
lock".

Deactivate the code as described in "Settings
menu".

section.

Press hard against the lock side of the drum door
and then press the Door button.

Clean the drain filter and drain pump as described
in the next section.

50

Opening the drum door in the
event of a blocked drain outlet
and/or power failure

Switch the washing machine off.

^

There is a lever behind the detergent
drawer fascia panel.

^ Remove the lever.

Problem solving guide

Caution: if laundry has been

,

washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!

Procedure for draining the machine

Be careful not to release too much
water at once. If the flow of water is
too strong, some water can seep
into the washing machine base and
activate the water protection system
float switch. This will prevent the
washing machine from functioning.

^ Place a suitable container under the

access flap.

When draining water from the
machine, do not unscrew the drain
filter completely or take it right out.

^

Use it to open the access flap.

Blocked drain outlet

If the drain outlet is blocked, up to
25 litres of water will be retained in the
machine.

^

Slowly and carefully unscrew the
drain filter to let the water out.

If you need to interrupt the flow of
water:

^

Tighten the drain filter back up again.

51

Problem solving guide

Once the flow of water ceases:

Remove the drain filter completely.

^

^ Clean it thoroughly.

Make sure the drain filter is

,

securely tightened. Otherwise there
is a risk of water leakage during use.

To avoid loss of detergent, pour
approx. 2 litres of water into the
detergent dispenser drawer after
cleaning the drain filter. Excess water
will be pumped out automatically
before the next wash programme.

Opening the drum door

Always make sure that the drum

,

is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.

^

Remove any foreign objects (e.g.
buttons, coins, etc.) and fluff from the
filter housing. Turn the impeller by
hand to check that it rotates freely.
Any foreign object causing an
obstruction should be removed.

^

Put the drain filter back in place and
secure.

52

^

Pull the emergency release
downwards (see illustration). The
drum door will open.

After sales service

In the event of any faults which you
cannot remedy yourself, please
contact:

your Miele Dealer or

–

Miele (see back cover for contact

–

details).

When contacting your Dealer or Miele,
please quote the model and serial
number of your machine, both of which
are shown on the data plate visible
above the porthole glass when the door
is open.

Future updates (PC)

The indicator light marked PC is the
interface used by Miele service
technicians during servicing work for
testing purposes and for updating the
machine's programme data.

Guarantee

For information on the appliance
guarantee specific to your country
please contact Miele. See back cover
for contact details.

In the U.K. your appliance is
guaranteed for 2 years from the date of
purchase. However, you must activate
your cover by calling 0845 365 6640 or
registering online at www.miele.co.uk.

Optional spare parts and accessories

Optional spare parts and accessories
for this washing machine are available
from your Miele Dealer, the Miele Spare
Parts Department or via the internet at
www.miele-shop.com.

N.B. A call-out charge will be applied
for service visits where the problem
could have been resolved as
described in these instructions.

Please note that telephone calls may
be monitored and recorded for
training purposes.

53

Installation and connection

Front view

a Inlet hose with "Waterproof" system

b Electricity supply cable

c - f Flexible drain hose (with

detachable swivel elbow)

g Detergent dispenser drawer

54

h Control panel

i Drum door

j Access to drain filter, drain pump

and emergency release

k Handle recesses for moving the

machine

l Four height adjustable feet

Rear view

Installation and connection

a Protruding lid for holding when

moving the machine

b Electricity supply cable

c Inlet hose with "Waterproof" system

d Drain hose

e Transport clip for inlet and drain

hoses

f Safety cap for transit bars

g Transport clip for inlet and drain

hoses and for storing transit bars
when not in use.

55

Installation and connection

Installation surface

A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.

Please note:

The machine must be level and

^

securely positioned.

To avoid vibrations during spinning,

^

the machine should not be installed
on soft floor coverings.

If installing on a wooden joist floor:

^ We recommend a plywood base (at

least 59x52x3 cm). The base should
span several joists and be bolted to
the joists and not only to the
floorboards. Check for the presence
of pipes and cables first.

If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.

Transporting the washing machine to
its installation site

To manoeuvre the machine out of its
packing case to its installation site hold
it by the edge of the lid where it
protrudes to the rear of the washing
machine as well as by the front feet.

Ensure that the machine feet and

,

the floor are dry to prevent the
machine from slipping during the
spin cycle.

Removing the transit bars

,

If the machine is installed on a

raised plinth, it has to be secured
against slippage during spin using
retaining clips (available from the
Miele Spare Parts Dept). Otherwise
there is the danger of the machine
moving about and falling off the
plinth.

56

^

To remove the left and right covers

1. Pull on the attached stopper,

2. then use a screwdriver to release the

catch at the top.

Installation and connection

Using the spanner supplied, turn the

^

left-hand transit bar 90°, then

^

withdraw the transit bar.

Turn the right-hand transit bar 90°,

^

then

^

withdraw the transit bar.

57

Installation and connection

To avoid the risk of injury the

,

holes for the transit bars must be
covered after the transit bars have
been removed.

^ Plug the holes with the plastic caps

as illustrated.

Secure the transit bars to the back of

^

the washing machine. Make sure that
the top catch is located above the
holder.

The machine must not be moved

,

without the transit bars in place.
Store them as shown or keep them
in a safe place for future use. They
must be re-fitted if the machine is to
be moved again (e.g. when moving
house).

58

Re-fitting the transit bars

Re-fitting is carried out by reversing the
procedure.

Levelling the machine

The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.

Incorrect installation may increase
electricity and water consumption and
may cause the machine to move about.

Screwing out and adjusting the feet

The four adjustable screw feet are used
to level the machine. All four feet are
screwed in when the machine is
delivered.

Installation and connection

Use a spirit level to check the

^

machine is standing level.

^ Hold foot 1 securely with a pipe

wrench. Turn counternut 2 again
using the spanner supplied until it
sits firmly up against the housing.

,

All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.

^

Using the spanner supplied turn
counternut 2 in a clockwise direction.
Then turn counternut 2 together with
foot 1 to unscrew.

59

Installation and connection

Building under a worktop

The machine lid must not be

,

removed.

This washing machine can be pushed
under a worktop with its lid in place,
providing the worktop is high enough.

Washer-dryer stack

A Miele tumble dryer can be stacked
with the washing machine. A WTV
stacking kit is necessary which can be
purchased from your Dealer, the Miele
Spare Parts Department or via the
internet on www.miele-shop.com.

Please note:

60

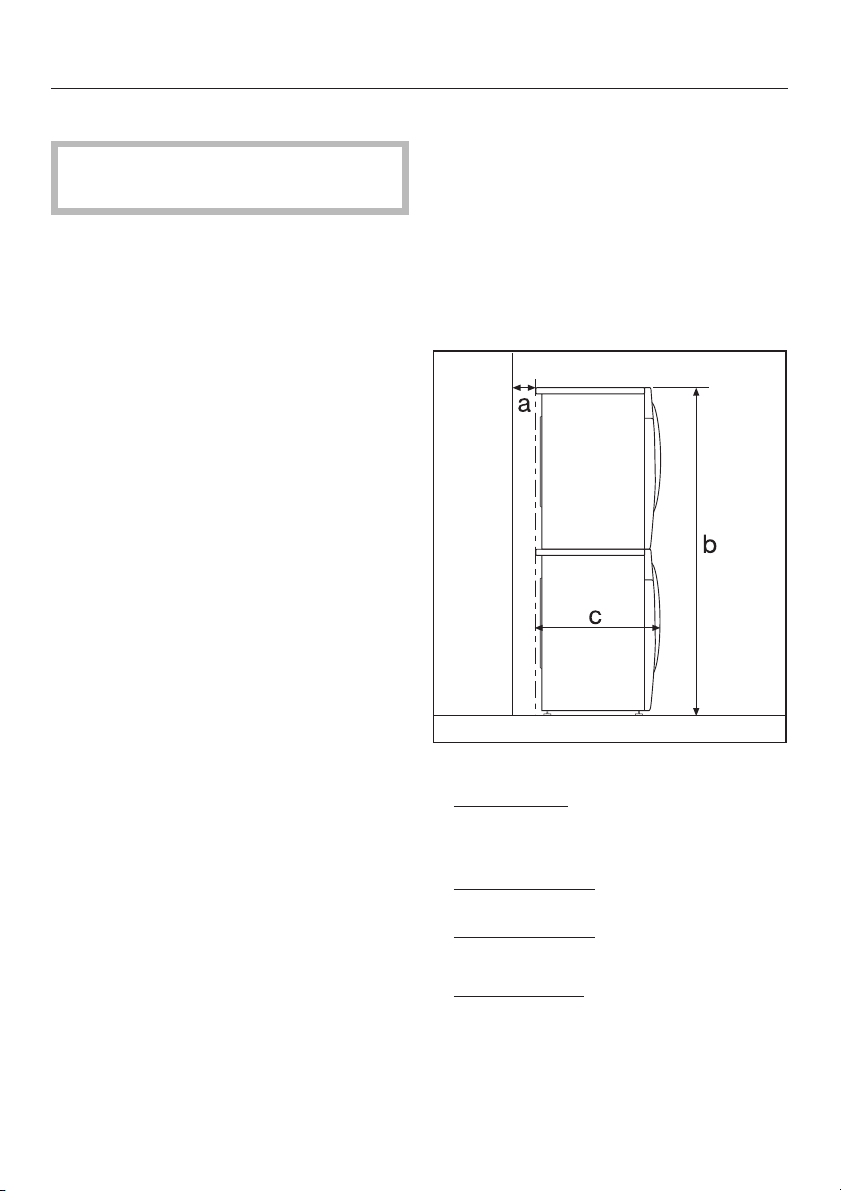

a Safety distance to wall:

at least 2 cm

b Height:

Stacking kit with pull-out shelf:
approx. 172 cm
Stacking kit without pull-out shelf:
approx. 170 cm

c Depth of the washer-dryer stack:

approx. 65 cm

Installation and connection

The Miele Waterproof system

The Miele Waterproof system protects
the washing machine from water
damage.

The system consists of three main
components:

1) the inlet hose

2) the electronic unit and the washing
machine housing

3) the drain hose

1) Inlet hose

– The inlet hose is fitted with an

additional electrical safety valve
which works like an automatic
stopcock and is housed in the inlet
hose connection box.

– It is pressure tested to between

7,000 and 10,000 kPa.

– The inlet hose has a protective

sleeve.

2) Electronic unit and washing
machine housing

Sump

–

Any leaking water is collected in a
sump in the base of the machine. A
float switches off the safety valves,
preventing any more water from
flowing into the machine and water in
the suds container is pumped away.

Overflow protection

–

This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.

3) Drain hose

The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.

Any leaking water from the inlet hose
is fed into the sump through this
protective sleeve. A float switches off
the safety valve, preventing any
more water from flowing into the
machine and water in the suds
container is pumped away.

61

Installation and connection

Connection to the water supply

The plastic casing of the safety

,

valve contains electrical
components. The Waterproof system
must only be connected to its own
stopcock. It must not be connected
to mixer taps or similar and must not
be fitted in areas where there is the
risk of water or other liquids
reaching it.

Do not get wet.

The machine should be connected to
the mains water supply in accordance
with local and national safety
regulations. The German authorities do
not require it to have a non-return valve
as the washing machine has been
designed to comply with DIN
regulations.

The machine is designed to operate
with a flow pressure of between 100
and 1,000 kPa (1-10 bar). If it is higher
than 1,000 kPa it is essential to fit a
pressure reducing valve.

Connection to the mains water supply
should incorporate a mains stopcock

3

with

/4" thread. The stopcock should

be fitted by a qualified plumber.

,The connection point is subject

to mains water pressure. Turn on the
stopcock slowly and check for leaks.
Correct the position of the washer
and union if appropriate.

The protective sleeve of the hose
must not be damaged or kinked.

62

The washing machine is not suitable
for connection to a hot water supply.

Maintenance and care

If you intend to unscrew the Miele
Waterproof system hose from the
stopcock it is essential to disconnect
the machine from the electricity supply
first.

Only use a Miele Waterproof system
hose should you need a replacement.

In order to protect the water inlet
valve, the dirt filter in the water inlet
valve connection must not be
removed.

Extension hose

A 1.5 metre long (metal) extension hose
is available from your Miele dealer or
the Miele Spare Parts Department as an
optional extra.

This hose is tested to withstand
pressures of up to 14,000 kPa and can
be used as a flexible extension to the
water supply.

Installation and connection

N.B. Using this hose renders the
Waterproof system safety valve on the
inlet hose ineffective.

63

Installation and connection

Connection to the drainage
system

The machine drains via a drain pump
with a delivery head of 1 metre*. The
drain hose must not be kinked as this
restricts drainage. The swivel elbow at
the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.

If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can purchased from
the Miele Spare Parts Department or
your Miele dealer.

* For a delivery head of more than 1 m
(up to a max. of 1.8 m) a replacement
drain pump will need to be fitted.
Please contact the Miele Spare Parts
Department or your Miele Dealer.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following:

–

Hook the hose over the edge and
secure.

Please note:

a Adapter

b Nut

c Hose clip

d End of the hose

^ Fit adapter a to the sink drain outlet

using nut b.

^ Attach the end of the hose d to

adapter a.

^

Use a screwdriver to tighten hose
clip c up close to the nut.

–

Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.

2. Connected securely to a plastic

drain pipe with a rubber nipple.
There is no need to use a non-return
valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

64

Installation and connection

Electrical connection U.K.

All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).

Ensure power is not supplied to the
appliance until after installation work
has been carried out.

The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply.

Please ensure the connection data
quoted on the data plate match the
household mains supply.

Connection should be made via a
suitable switched socket which is easily
accessible after installation.

For extra safety it is advisable to protect
the machine with a suitable residual
current device (RCD). Contact a
qualified electrician for advice.

Non-rewireable plugs BS 1363

The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).

Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.

WARNING: THIS APPLIANCE
MUST BE EARTHED

Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

65

Consumption data

Load Consumption data

Energy Water Duration Residual

in kWh in litres

Cottons 90°C 7.0 kg 2.20 52 2 h 29 min 50%

60°C 7.0 kg 1.33 52 1 h 59 min 50%

60°C 3.5 kg 1.00 45 1 h 59 min 50%

r* 7.0 kg 0.82 52

r* 3.5 kg 0.82 45 2 h 59 min 50%

40°C 7.0 kg 0.84 67 2 h 29 min 50%

40°C 3.5 kg 0.73 45 2 h 29 min 50%

s 7.0 kg 0.70 52 2 h 59 min 50 %

s* 3.5 kg 0.58 45 2 h 59 min 50%

Minimum iron 40°C 3.5 kg 0.56 50 1 h 41 min 30%

Delicates 30°C 2.0 kg 0.38 69 59 min –
Woollens / 30°C 2.0 kg 0.23 39 39 min –

Express 20 40°C 3.5 kg 0.32 30 20 min –

Shirts 60°C 2.0 kg 0.95 59 1 h 12 min –

Denim 40°C 3.0 kg 0.52 52 1 h 00 min –

Automatic plus 40°C 5.0 kg 0.52 62 1 h 29 min –

Maintenance prog. 75°C 0 kg 0.80 42 43 min –

Dark garments 40°C 3.0 kg 0.58 55 1 h 12 min –

Down filled items 40°C 2.0 kg 0.60 39 1 h 28 min –

Outerwear 40°C 2.5 kg 0.45 55 1 h 03 min –

Proofing 40°C 2.5 kg 0.35 12 40 min –

2h59min

moisture

50%

Notes for test institutes:

* The test programme conforms to EN 60456 and the energy label with

Directive 1061/2010.

Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any extra options
selected.

66

Technical data

Height 850 mm

Width 595 mm

Depth 656 mm

Depth with door open 1092 mm

Height for building under 850 mm

Width for building under 600 mm

Weight 99 kg

Capacity 7 kg dry laundry

Voltage See data plate

Connected load See data plate

Fuse rating See data plate

Consumption data See "Consumption data"

Minimum water flow pressure 100 kPa (1 bar)

Maximum water flow pressure 1000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Mains connection cable length 1.60 m

Delivery head max. 1.00 m

Maximum drainage length 5.00 m

LEDs Class 1

Test certificates awarded See data plate

Power consumption when switched off 0.25 W

Power consumption
when not switched off

2.00 W

67

Settings menu

The Settings menu can be used to
alter the machine's electronics to suit
changing requirements.
Settings can be altered at any time.

To open the Settings menu

Switch on the machine.

^

Turn the programme selector to

^

Further programmes/Settings 4.
The following will appear in the
display:

Language !

The display can be set to appear in
one of several different languages.

You can change the language via the
Language sub-menu.

The flag after the word Language acts
as a guide to prevent a language which
will not be understood from being set.

A tick L will appear beside the
language to show that it has been set.

Further programmes

Settings !

Maintenance programme ,

;

^ Confirm the selection of the

highlighted Settings

! option by

pressing the OK button.

To select a setting

^ Press the X or Y button to scroll

through the options until the setting
you want is highlighted and confirm
your selection by pressing the OK
button.

To close the Settings menu

^

Select Back

# or wait for approx. 15

seconds and the display will return to
the programme menu automatically.

Buzzer

When the buzzer function has been
activated, an audible tone sounds at
the end of a programme or when
Rinse hold is reached.

There are two volumes:

Off

(The machine is delivered with this
option selected.)

The buzzer is switched off.

Normal

The buzzer sounds at normal volume at
the end of a programme or when Rinse
hold is reached.

Loud

^

The buzzer sounds at maximum
volume (Loud) at the end of a
programme or when Rinse hold is
reached.

68

Settings menu

Time

First select either a 24 hour or 12 hour
clock. Then set the current time of day.

Clock format

Use the X or Y button to highlight the

^

clock format you want and confirm
your selection with the OK button.

Set the time of day

Select the Set the time of day sub­menu. Use the X or Y button to set the
time and confirm your selection with the

OK button.

Gentle action

Activating Gentle action reduces the
drum action and is suitable for
washing slightly soiled items more
gently. It should be activated for
garments with a single bar under the
"bucket" in the care label and for
articles which feel too hard after they
have been dried.

Gentle action can be activated for the
Cottons and the Minimum iron
programmes.

The machine is delivered with the
Gentle action setting deactivated.

The option which is currently set will
have a tick L beside it.

Longer pre-wash Cottons

The pre-wash for the Cottons
programme can be extended by 6, 9
or 12 minutes.

The default setting for the pre-wash is
25 minutes.

If you require a longer pre-wash, this
time of 25 minutes can be extended.

The option which is currently set will
have a tick L beside it.

Suds cooling

When this is activated, additional
water flows into the drum at the end
of the main wash to cool the suds
down. Hot suds can damage plastic
drainage pipes.

Suds cooling takes place when
temperatures of 95°C and 75°C are
selected.

Suds cooling should be activated:

–

to prevent the danger of scalding if
the drain hose is hooked over the
edge of a sink or basin.

–

where the drainage pipes do not
comply with DIN 1986.

The machine is delivered with Suds
cooling deactivated.

The option which is currently set will
have a tick L beside it.

69

Settings menu

Lock code

The code prevents the washing
machine being used without your
knowledge.

When the code has been activated, you
have to enter a code after switching the
washing machine on. Otherwise the
washing machine cannot be operated.

To activate the code

You will be prompted to enter a code.
The code is 125 and cannot be altered.

^ Use the Y and X buttons to enter the

first number.

^ Confirm the first number with OK and

then enter the second number.
Repeat the process until all three
numbers have been entered.

^ After the last number has been

entered, you must confirm the code
with OK.

To use the washing machine when
the code is activated

When the washing machine is switched
on again, the display will request the
code.

Temperature unit

You can chose for the temperature to
be displayed in

°C/Celsius or
°F/Fahrenheit.

The option which is currently set will
have a tick L beside it.

Keypad tone

An audible tone sounds each time a
button is pressed.

The washing machine is delivered with
the keypad tone switched off.

The option which is currently set will
have a tick L beside it.

Brightness

There are ten different display
brightness settings.

The washing machine is delivered with
the text brightness on setting 5.

The brightness will change as soon as
a different setting is chosen.

Contrast

^

Enter code 125 as described above
and confirm the entry.

The washing machine is now unlocked
and ready for use.

To deactivate the code

Proceed as for activating the code.

70

There are ten different display
contrast settings.

The washing machine is delivered with
the text brightness on setting 5.

The contrast will change as soon as a
different setting is chosen.

Settings menu

Standby display

To save energy, the display goes out
and the indicator light for the Start/
Stop button starts flashing slowly.

The display will always go out,

if a programme is not selected within

–

10 minutes of the washing machine
being switched on.

10 minutes after the end of a

–

programme.

Pressing one of the buttons switches
the display back on again.

You can also choose whether you want
the display to go out 10 minutes after a
programme has started or to remain
visible throughout the programme.

On

The standby function is activated. The
display will go out 10 minutes after a
programme has started.

Not in current prog.

Memory

If an extra option has been selected
for a programme, or the
recommended temperature or spin
speed has been altered, the machine
will store the changes in memory at
the start of a programme.

When this programme is chosen again
these settings will appear in the
display.

The machine is delivered with the
memory function deactivated.

Anti-crease

Anti-crease helps prevent creasing
if laundry is not normally removed
immediately after the end of a
programme.

The drum will turn at intervals for up to
30 minutes after the programme has
finished. The door can be opened and
items removed at any time during the
anti-crease phase.

(the machine is delivered with this
option selected)

The standby function is deactivated.
The display will remain visible during a
programme.

On

(the machine is delivered with this
option selected)

Anti-crease is activated.

Off

Anti-crease is deactivated.

71

Optional accessories

Miele washing machines offer perfect
care for your laundry and feature a
wide range of special programmes
designed to suit the fabric being
washed. Miele have also developed a
range of specialist CareCollection
detergents and conditioning products
to offer you a complete package for
cleaning and caring for your laundry.

The Miele CareCollection detergents
and conditioning products are listed
below. You can order these and many
other useful products via the internet at:

All the products can also be ordered
via the Miele Customer Contact Centre
(see back cover for contact details).

CareCollection

Miele specialist detergents

"Outdoor wear"

This specialist detergent will clean your
water-repellent outerwear with care.

"Sportswear"

The Miele Sportswear detergent is
designed to clean sportswear and
remove odours whilst taking care of the
special microfibres used in these
garments.

"Down Items"

This special-purpose detergent
contains a mild tenside and has been
specially formulated to keep down-filled
items supple and to give them bounce.

Miele proofing agent

This special finishing agent reproofs
garments against wind and water and
provides a dirt-repellent finish whilst
retaining elasticity and breathability.

72

Optional accessories

"UltraWhite" detergent

This multi-purpose powder detergent
has excellent stain removal properties
and is suitable for white and light
coloured laundry as well as heavily
soiled coloured items.

"UltraColor" detergent for coloured
garments

This liquid detergent is particularly
suitable for cleaning coloured and dark
garments. The special formulation
offers effective stain removal, even at
low temperatures, while helping to
prevent colours fading.

Liquid detergent "For Delicates"

This liquid detergent is ideal for the
gentle treatment of delicate fabrics,
such as wool and silk. Its special
formulation cleans effectively at
temperatures as low as 20°C, while
protecting the colour of your delicate
garments.

Fabric conditioner

The Miele fabric conditioner will give
your laundry a fresh, natural fragrance.
It makes garments soft to handle and
prevents static build-up during tumble
drying.

737475

Alteration rights reserved/4412/W 1901 WPS

M.-Nr. 09 482 650 / 00
