Miele PG 8527, PG 8528 Operating instructions

Operating instructions

Washer-disinfector PG 8527 / PG 8528

To avoid the risk of accidents or damage to the machine it is essential to read these instructions before it is installed, commissioned and used for the first time.

en - GB, AU, NZ

M.-Nr. 07 776 940

Contents

Warning and safety instructions .....................................5

Correct application ...............................................5

Using accessories ...............................................9

Symbols on the appliance .........................................9

Disposing of your old machine......................................9

Intended Use ....................................................10

Guide to the machine .............................................12

Controls .........................................................15

Display ..........................................................17

An example of a selected list ......................................17

An example of a programme sequence display .......................18

Context menu ....................................................19

Change display language ...........................................20

Changing operating level ...........................................21

Delay start .......................................................23

Switch heating method .............................................25

Current faults .....................................................25

Load items .......................................................25

Automatic mobile unit recognition...................................26

Areas of application...............................................27

Protein test .......................................................27

Loading the machine ...............................................28

Surgical instruments (OP) ...........................................29

Ophthalmology ...................................................30

Anaesthetic instruments (AN) ........................................31

Baby bottles (BC) .................................................32

Operating theatre shoes (OS) ........................................33

Laboratory glassware (LG) ..........................................34

Chemical processes and technology.................................35

Dispensing liquid chemical agents ..................................40

Dispensing systems................................................42

"Fill DOX [X] container" message ...................................42

Fill the containers with the relevant agent ............................42

"Check dispensing system [X]".....................................43

Venting the dispensing system.....................................43

Contents

Operation .......................................................44

Master switch.....................................................44

Switching on .....................................................44

Starting the programme.............................................45

Programme sequence ..............................................47

At the end of a programme ..........................................47

Switching off .....................................................47

Cancelling a programme ............................................47

Interrupting a programme ...........................................48

Barcode scanner (optional) ........................................49

Barcode scanner functions ..........................................49

Scanning the barcode with a conveyor system connected ...............50

Scan loading operator ..............................................51

To cancel Scan loading operator ...................................51

Scan unloading operator ............................................52

Skipping Scan unloading operator..................................52

Scanning the load .................................................53

Cancelling "Scan the load" ........................................54

Skipping "Scan the load"..........................................54

Accept Scanned loads ...........................................54

Scanned loads....................................................56

Adding scanned loads ...........................................57

Displaying scanned loads ........................................58

Deleting scanned loads ..........................................59

Moving scanned loads ...........................................60

Data transfer.....................................................61

Maintenance .....................................................62

Periodic checks ...................................................62

Process validation .................................................63

Routine checks ...................................................63

Cleaning the filters in the wash cabinet.................................64

Cleaning the fine filter............................................64

Cleaning the flat filter ............................................64

Cleaning the filters for the circulation pump...........................65

Cleaning the spray arms ............................................66

Cleaning the controls and the (optional) glass door .......................67

Contents

Cleaning the front of the machine .....................................67

Cleaning the wash cabinet ..........................................67

Cleaning the door seals.............................................67

Mobile units, modules and inserts .....................................68

Integrated printer (optional)..........................................69

Renewing the paper roll ..........................................69

Renewing the ribbon.............................................69

After sales service ................................................70

Electrical connection .............................................71

Plumbing........................................................72

Technical data ...................................................73

Optional extras...................................................74

Special processes - OXIVARIO and ORTHOVARIO .....................75

Description of the machine ..........................................75

Areas of application .............................................75

Warning and Safety instructions ......................................76

Connecting the H

Disposal of your old machine.......................................77

solution container ................................76

2O2

Warning and safety instructions

This machine complies with all relevant local and national safety requirements. Please note that incorrect use can lead to personal injury and damage to property. To avoid the risk of accidents and damage to the machine, please read these instructions carefully before starting to use it. Keep these instructions in a safe place for reference, and pass them on to any future user.

Correct application

This washer-disinfector is designed

for use with the applications described in these Operating Instructions only. Alterations or conversions to the machine, or using it for purposes other than those for which it was designed, are not permitted and could be dangerous. This machine must only be used for cleaning and disinfecting instruments, medical devices and laboratory equipment if the manufacturer has stated that they are suitable for machine processing. Manufacturer's cleaning and maintenance instructions for instruments etc. must also be observed. Miele cannot be held liable for damage caused by improper or incorrect use or operation of the machine.

This machine is intended for indoor

use only.

This machine is not designed for

use in mobile installations unless a risk assessment of the installation has been carried out by a suitably qualified engineer.

Please pay attention to the following notes to avoid injury and damage.

This machine should be

commissioned and then maintained by a Miele authorised and trained service technician only. A Miele service contract is recommended to ensure compliance with GLP Guidelines and the Medical Devices Directive. Unauthorised repairs could be dangerous, for which the manufacturer cannot be held liable.

Do not install the machine in an area

where there is any danger of explosion or of freezing conditions.

The electrical safety of this machine

can only be guaranteed if connected to a correctly installed earthing system on site. It is most important that this basic safety requirement is present and regularly tested, and where there is any doubt the on-site wiring system should be inspected by a qualified electrician. The manufacturer cannot be held liable for damage or injury caused by the lack of or inadequacy of an effective earthing system (e.g. electric shock).

A damaged or leaking machine

could be dangerous and compromise your safety. Disconnect the machine from the mains immediately and call the Miele Service Department.

Warning and safety instructions

Personnel operating the machine

should be trained regularly. Untrained personnel must not be allowed access to the machine or its controls.

Take care when handling chemical

agents such as cleaning agent, neutralising agent, rinsing agent etc. These may contain irritant or corrosive ingredients. Please follow the manufacturer's safety instructions. Wear protective gloves and goggles. With all chemical agents, the manufacturer's safety instructions and safety data sheets must be observed.

The machine is designed for

operation with water and recommended additive chemical agents only. Organic solvents and flammable liquid agents must not be used in this machine. These could cause an explosion, damage rubber and plastic components in the machine, and cause liquids to leak out of the machine.

The water in the cabinet must not be

used as drinking water.

Be careful when sorting items with

sharp pointed ends and positioning them in the machine that you do not hurt yourself or create a danger for others. Sharp knives etc. should be placed in baskets with the pointed ends facing downwards.

When using this machine in the

higher temperature ranges, be especially careful not to scald or burn yourself or come into contact with irritant substances when opening the door. Where disinfecting agents are used there is a danger of inhaling toxic vapours.

Where there is a risk of toxic or

chemical substances occuring in the suds solution (e.g. aldehyde in the disinfecting agent), it is essential to regularly check door seals and make sure that the steam condensor is functioning correctly. Opening the machine door during a programme interruption carries particular risks in such circumstances.

Should personnel accidentally come

into contact with toxic vapours or chemical agents, follow the emergency instructions given in the manufacturer's safety data sheets.

Mobile units, modules, inserts and

the load must be allowed to cool down before they are unloaded. Any water remaining in containers could still be very hot. Empty them into the wash cabinet before taking them out.

After using the hot air drying unit,

open the door to allow the everything in the cabinet from the load itself to the mobile units, modules and inserts to cool down.

Warning and safety instructions

If the boiler has been programmed

to "BOILER READY", be particularly careful of hot water and steam when opening the door. Danger of burning or scalding. The inlet to the wash cabinet is located, as viewed from the unclean side, underneath the basket runner on the right hand side.

Steam heating is permissible up to a

pressure of 1000 kPa (10 bar). This corresponds to a water steam temperature of 179°C.

Never clean the machine or near

vicinity with a hose or a pressure washer.

The machine must be disconnected

from the mains electricity supply before any maintenance or repair work is carried out. Do not reconnect it until the maintenance or repair work has been successfully completed.

The following points should be observed to assist in maintaining quality standards for processing medical devices and sensitive laboratory glassware, and to avoid injury to patients or damage to equipment.

If the machine is being used for

disinfection in accordance with official regulations on the control of epidemics, the steam condenser and its connections to and from the wash cabinet must be cleaned and disinfected whenever any repairs are carried out or parts replaced.

If it is necessary to interrupt a

programme in exceptional circumstances, this may only be done by authorised personnel.

The standard of cleaning and

disinfection in the disinfection programmes must be routinely confirmed by the user. The process should be validated on a regular basis, and checked against documented control results. Chemical disinfection procedures should also be validated using chemical or bio indicators.

For thermal disinfection, use

temperatures and temperature holding times to achieve the required infection prophylaxis in accordance with current health and safety regulations.

Disinfection programmes which use

a chemical disinfecting agent at moderate temperatures such as 65 °C or lower are not recognised by §18 IfSG for disinfection. They should only be used for items which cannot withstand the higher temperatures used by thermal disinfection. The range of effective disinfection is based on claims made by the producer of the disinfecting agent. Their instructions on handling, use and effectiveness must be observed. The use of chemical disinfection procedures is the responsibility of the operator.

Theatre (OP) shoes should only be

cleaned and disinfected in a machine installed specifically for this purpose.

Warning and safety instructions

Only use chemical agents

formulated for special processes and approved by Miele for use with this machine. Use of unsuitable agents could adversely affect the components of the machine. In the event of any damage or material deterioration please contact your Miele application specialist.

Pre-treatments with cleaning or

disinfecting agents can create foam, as can certain types of soiling and chemical agents. Foam can have an adverse effect on the disinfection and cleaning result.

Foam must not be able to escape

from the wash cabinet. It would hinder the correct functioning of the machine.

Check the process used regularly to

monitor foaming levels.

To avoid the risk of damage to the

machine and any accessories used with it caused by chemical agents, soiling and any reaction between the two please read the notes in "Chemical Processes and Technology".

Where a chemical agent is

recommended on technical application grounds (e.g. a cleaning agent), this does not imply that the manufacturer of the machine accepts liability for the effect of the chemical on the items being cleaned. Please be aware that changes in formulation, storage conditions etc. which may not be publicised by the chemical manufacturer, can have a negative effect on the cleaning result.

When using cleaning agents and

specialised products it is essential that the manufacturer's instructions are followed. Only use the product for the application described by the manufacturer, to avoid any material damage or the occurrence of strong chemical reactions.

In critical applications where very

stringent requirements have to be met, it is strongly recommended that all the relevant factors for the process, such as chemical agents, water quality etc. are discussed with the Miele Application Technology specialists.

If cleaning and rinsing results are

subject to particularly stringent requirements (e.g. chemical analysis, specialised industrial processes etc.), a regular quality control test must be carried out by the user to ensure that the required standards of cleanliness are being achieved.

Mobile units, modules and inserts

should only be used for the purpose they are designed for. Hollow instruments must be thoroughly cleaned, internally and externally.

Empty any containers or utensils

before arranging them in the machine.

Do not allow any remains of acids or

solvents, and in particular hydrochloric acid or chloride solutions, to get into the wash cabinet. Similarly avoid any materials with a corrosive effect. The presence in compounds of any solvents should be minimal (especially those in hazard class A1).

Warning and safety instructions

Ensure that solutions or steam

containing hydrochloric acid do not come into contact with the steel outer casing of the machine, to avoid any corrosion damage.

After carrying out any work on the

mains water system, the water supply system to the washer-disinfector must be vented. Otherwise, the components in the machine may become damaged.

Please follow the advice on

installation in these instructions and the separate Installation Instructions.

Using accessories

Only use genuine Miele original

accessories with this machine. Consult Miele on the type and application of such equipment.

Only use Miele mobile units,

modules and inserts in this machine. Using accessories made by other manufacturers, or making modifications to Miele accessories, can result in unsatisfactory cleaning and disinfecting results, for which Miele cannot be held liable. Any resultant damage would also invalidate the machine guarantee.

Only use chemical agents which

have been approved by their manufacturer for use in the application you are using. The chemical agent manufacturer is responsible for any negative influences on the material the load is made from and for any damage they may cause to the machine.

Symbols on the appliance

Warning: Observe the operating instructions.

Warning: Danger of electric shock.

Disposing of your old machine

Please note that the machine may

have contamination from blood or other bodily fluids in it and must be decontaminated before disposal. For environmental and safety reasons ensure the machine is completely drained of any residual water, chemical residues and cleaning agent. Observe safety regulations and wear safety goggles and gloves. Make the door lock inoperative, and block or disable the door in such a way that children cannot accidentally shut themselves in the cabinet. Then make appropriate arrangements for the safe disposal of the appliance. For tank system machines ensure that any water is emptied out of the tank before it is moved.

The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.

Intended Use

This washer-disinfector can be used to clean, rinse, disinfect (thermally and chemically) and dry a wide range of reusable medical devices and laboratory equipment. Follow the manufacturer's instructions (according to EN ISO 17664) on how to process their items by machine.

Examples of application areas:

surgical instruments,

–

minimally invasive surgical

–

instruments,

– anaesthetic and intensive care

instruments,

– baby bottles and teats,

– maintenance and waste containers,

– operating theatre shoes,

– laboratory equipment used in

research and development,

–

laboratory equipment used in areas of analysis and specimen taking,

–

laboratory equipment used in micro-biology and biotechnology.

The type of laboratory equipment which can be processed ranges from evaporating dishes to centrifugal test tubes.

Processing medical devices and laboratory equipment by machine achieves reproducible results, and should be used in preference to processing them by hand. Where disinfection is required for the protection of staff and/or patients, a thermal disinfection programme, e.g. the DESIN vario TD programme, should be selected. The parameters for thermal disinfection according to EN ISO 15883-1 (A

concept) vary depending on the disinfection standard required. They are 80 °C (+ 5 °C, - 0 °C) with a 10 min holding time (A

- 0 °C) with a 5 min holding time (A

600) or 90 °C (+ 5 °C,

3000). An A0value of 3000 is suitable for deactivating the HBV virus.

National health and safety regulations regarding disinfection must also be observed.

The cleaning programme as well as any chemical agents must be chosen according to the type of soiling and load being processed. The agents used for processing the products should be selected to suit the level of cleaning required as well as the method of analysis used.

The cleaning result must ensure that instruments can be disinfected correctly, that no residues are left behind, that subsequent sterilisation can be carried out and that the instruments can be used again safely. Medical devices are best processed using the DESIN vario TD programme, or the ORTHOVARIO or OXIVARIO programme where applicable.

The use of a suitable carrier (mobile unit, module, insert etc.) is important to ensure the adequate cleaning of instruments and medical devices. Examples are given in the section "Areas of application".

The washer-disinfector is programmed to carry out the final rinse with mains water or prepared water (e.g. Aqua destillata, pure water, de-ionised water, demineralised water in the quality required by the application). The water quality is of particular importance for applications requiring analytically clean laboratory glassware.

Intended Use

The machine qualifies for the validating of processes in accordance with EN ISO 15883.

Guide to the machine

Unclean side

a Housing for hot air drying unit TA

and / or steam condenser DK

b "Profitronic" electronic controls (see

also "Programming manual")

c Multiport

d Master switch

e Scanner holder (optional)

f Service panel

g Docking facility for Transfer trolley

MF 27/28

h Door shown closed

Unclean side

Guide to the machine

a Door shown open

b Docking facility for mobile units and

modules

c Lower spray arm

d Filter combination

e Containers for dispensing systems

DOS 1 - DOS 4

Guide to the machine

Clean side (PG 8528 only)

a Door shown closed

b Service panel with docking facility for

Transfer trolley MF 27/28

c Multiport

d Scanner holder (optional)

e Printer (optional)

f Door release

g Display

Controls

Guide to the machine

a On/Off button s

For switching the machine on and off

b a Door release button

For opening and closing the door

c Display

The display will switch off automatically after approximately 10 minutes when the washer-disinfector is not in operation.

Press any button to switch the display back on again.

Faults occurring during operation will be indicated by a number in the display. The fault numbers are listed in the Programming manual.

Guide to the machine

d PC service interface 9

For testing and updating the programme data

e h Start button

For starting the programme

f +C (Clear) button used to

– return to the previous level – delete entries already made – cancel a programme

g and i - e buttons (Selector buttons) used to

– move the highlighting in the display – change highlighted values – scroll – call up context menus – show user defined operating parameters during the

programme

h OK button used to

- confirm highlighted options or selected values – acknowledge fault messages, – acknowledge dialogue messages, – call up the A

graph during the programme.

Display

The display can show the following, depending on the operating level:

the programme / programme overview

–

the programming menu

–

the Settings J menu

–

The Settings menu J is used to alter the washer-disinfector's profitronic controls to suit different requirements. See the Programming manual for more details.

An example of a selected list

Programme overview B

CHANGE-TA-FINE

DES-VAR-TD

DES-VAR-TD-AN

The -ebuttons are used to select the options.

Guide to the machine

The selector buttons -e move the highlighting in the display.

The OK button is used to confirm a message or setting and also to move to the next menu or to another menu level.

To select an option use the selector buttons -e to highlight it and then confirm your selection with the OK button.

The display shows a maximum of three options or choices. A scroll bar on the right hand side of the display indicates that more options or choices are available. The -e selector buttons are used to display these.

The end of the list is marked with a dotted line. The last entry in the list is shown above the line and the first, below it.

Guide to the machine

An example of a programme sequence display

DES-VAR-TD A Main wash 55.2 °C

During a programme, the display shows the following:

the name of the programme

–

the operating level

–

the programme block

–

the water temperature

–

(the air temperature in the "Drying" programme block)

– the estimated programme duration remaining or the

programme duration already elapsed

– any relevant fault messages and notes.

Time remaining 0:35 h

Context menu

Some functions can be called up at any time via a context menu, irrespective of the operating level:

Change display language,

–

Change operating level,

–

Enter delay start,

–

(On convertible washer-disinfectors)

–

Switch heating method,

Link the load items with the barcode scanner.

–

In addition, current fault messages will be displayed in operating level D (if applicable).

^ Press the - e buttons at the same time for at least 3

seconds to call up the context menu.

The context menu will appear in the display:

Context menu B

Scanned loads

Change display language F

Change operating level

The -ebuttons are used to select the options.

Context menu

Change display language

You can change the language in which the display is currently being shown via the context menu. The display will be shown in this new language until the washer-disinfector is switched off with the s button or the master switch.

N.B. The language which has been set in the Settings / Language J menu will not be changed and all reports and print-outs will continue to be printed in this "Settings" language.

Select the

activate your selection with OK.

The flag J after the words Change display language acts as a guide if a language which you do not understand has already been set. If this is the case, keep changing the options until the flag

J appears.

^ Select the language you require and confirm your selection

with OK.

The language selected will be shown in the display.

Press +C to come out of the context menu.

Change display language option with - e and

Changing operating level

There are four operating levels available on this washer-disinfector:

Operating level Access authorisation for

A and B Selection from a list of specified

C Automatic programme selection via mobile

D Free programme selection in the

You can switch between the operating levels via the context menu. To prevent unauthorised access to the settings, you will be asked for a code when changing to another operating level.

You must be signed on as the administrator, to be able to change the codes of the various operators or set up new operators. technician.

Context menu

programmes.

unit coding.

Programme overview, Programming and Settings J.

Administrator rights are set by a Miele Service

Press the - e buttons at the same time for at least 3 seconds.

The context menu will appear in the display:

Context menu B

Scanned loads

Change display language F

Change operating level

Context menu

Select the

Change operating level option and call up the

sub-menu with OK.

Select operator B

Operator ABC

Administrator Miele Service

Select the user group you require and confirm with OK.

Enter the requested code.

Change operating level B

0 FFF

Enter code

The -ebuttons alter the values, the OK button confirms the values entered and moves on to the next entry position.

The electronics will change to the operating level selected.

^ Press +C to come out of the context menu.

Code invalid will appear if you make a mistake.

Acknowledge the fault message with OK.

Start the Change operating level process again.

Delay start

Context menu

A programme can be set to start at a later, specific time.

To do this, highlight the

Delay start option and confirm

your selection.

To activate Delay start, select

Delay start

Activate Yes

Delay start

To set the Delay start time, highlight the

Yes for the Activate option.

Delay start

parameter and confirm your selection.

The menu for entering the start time will appear.

Delay start

17:48

Enter time

^ Enter the start time, digit by digit and confirm your entry.

Press the +C button repeatedly until the appears.

Main menu

Call up the

Programme overview B

CHANGE-TA-FINE

DES-VAR-TD

DES-VAR-TD-AN

Select a programme and start it with the h button.

Programme overview to select a programme.

Context menu

The selected programme, the start time set, the current time of day and time remaining until the start of the programme will appear in the display.

DES-VAR-TD Start time 17:15

Time remaining 01:55 h

15:20

The programme selected will now start automatically when the start time is reached.

The automatic start time for the programme can be cancelled.

^ Press the +C button.

An "Are you sure" question will appear:

Cancel start time?

Yes No

To cancel the programme start time, select

Yes and

confirm your selection.

The automatic start time for the programme is now cancelled. The display will change back to the Programme overview. The If you select

Delay start function is deactivated.

No the delay start time for the programme will

continue to count down.

Delay start function is deactivated automatically at

The the end of the programme.

You can also deactivate the

Delay start function without

actually starting the programme (starting the count down to the start time). To do this, set the

Delay start menu to No.

Activate parameter in the

Switch heating method

On convertible washer-disinfectors, the heating method can be switched, e.g. from electric to steam heating, via the context menu.

Context menu

Current faults

Load items

Selelct the

Change the heating method setting to the one you require,

Steam+electric and confirm your selection with OK.

e.g.

The changed heating method is now saved to memory.

Press +C to come out of the context menu.

The current fault messages can be called up in operator level D under this menu option.

^ Select the option and confirm your selection with OK.

Any faults which are present at the moment will be displayed.

^ Use OK to change between the fault messages.

^ Press +C to come out of the context menu.

If a barcode scanner has been connected to the washer-disinfector and the load scan is activated, scanned loads can be listed in the context menu under this option.

All of the procedures in connection with the barcode scanner are described in the section "Barcode scanner".

Steam/Electric option and activate it with OK.

Automatic mobile unit recognition

The automatic mobile unit recognition

Make sure that there are no

system allocates a programme to a mobile unit. The mobile units must be coded with a magnetic strip (via a Bit combination). The programme allocated for a coded mobile unit is available in operating level C.

After a coded mobile unit has been put into the machine and the door closed, the automatic mobile unit recognition system will select the allocated programme.

The coding of the mobile units and the allocation of programmes in the Profitronic control unit are described in the Programming manual for the washer-disinfector.

small metallic objects or instrument parts attracted to the magnetic strip, in particular to the underside of it. Any metallic objects on the strip can result in the coding being incorrectly read.

Make sure that you code mobile units with side coupling with a track where the sixth magnet is set to 1. Mobile units without side coupling must be coded with a track without the sixth magnet. The magnet strips for PG 8527 / PG 8528 washer-disinfectors must have black magnets.

Areas of application

This washer-disinfector can be fitted with a variety of mobile units, which can be equipped with a variety of modules and inserts depending on the type and shape of items requiring cleaning and disinfection.

Select mobile units, modules and inserts which are appropriate for the application.

Notes on the individual areas of application and examples of loading are given on the following pages.

Before starting a programme you should carry out a visual check on the following:

– Is everything correctly

loaded/connected for cleaning?

– Are the spray arms clean and do

they rotate freely?

–

Are the filters clean? Remove any coarse soiling and clean them properly if necessary.

At the end of each programme:

Carry out a visual check of the load

–

for cleanliness.

Check that all hollow shafted

–

instruments are still securely located on their jets.

Any hollow instruments that have

become disconnected from their adapters during processing must be re-processed.

Check that the lumen of hollow

–

instruments are free of obstruction.

– Check that jets and connectors are

securely held in position in the baskets or inserts.

Protein test

Cleaning results should be subjected to periodic protein tests, e.g. with the Miele test kit.

–

Is the adapter connecting the water supply to the spray arms/jets correctly connected?

–

Are all chemical containers sufficiently filled?

Areas of application

Loading the machine

Arrange the load so that water can

–

access all surfaces. This ensures that it gets properly cleaned.

Do not place items to be cleaned

–

inside other pieces where they may be concealed.

Hollow instruments must be

–

thoroughly cleaned, internally and externally.

Ensure that instruments with long

–

narrow hollow sections can be flushed through properly before placing them in inserts or connecting them to jets.

– Hollow vessels should be inverted

and placed in the correct mobile units, modules and inserts to ensure that water can flow in and out of them unrestricted. A cover can be used to reduce the risk of glass breakage during the wash process.

–

Lightweight items should be secured with a cover net (e.g. an A 6) and small items placed in a mesh tray to prevent them blocking the spray arms or being attracted by the magnetic strip on the automatic mobile unit recognition system.

–

Deep-sided items should be placed at an angle to make sure water runs off them freely.

–

Tall, narrow pieces should be placed in the centre of the baskets. This ensures good water coverage.

Mobile units with an adapter must

–

engage correctly.

Modules must be correctly

–

connected in the mobile unit.

The spray arms must not be blocked

–

by items which are too tall or which hang down in their path. If in doubt, test for free movement by manually rotating the spray arms.

It is advisable to use only instruments

–

made of special application steel which are not susceptible to corrosion.

– Instruments which cannot withstand

high temperatures should be chemically disinfected.

Disposable instruments must not

be put into the machine for processing.

Preparing the load

Empty all containers before loading into the machine (paying particular attention to regulations regarding infectious diseases and epidemics).

Ensure that acids and residual solvents, especially hydrochloric acid or chlorides, cannot get into the wash cabinet.

Unloading instruments

Instruments should be unloaded dry ready for further processing.

Areas of application

Surgical instruments (OP)

Surgical instruments should be stored for as short a time as possible before machine processing. It is best to process surgical instruments using the DES-VAR-TD programme.

The OXIVARIO or ORTHOVARIO programme should be used for instruments where there is a long delay between the time they are used and the time they can be reprocessed. See "Special processes" at the end of this booklet.

Disinfection of surgical instruments and of those used for minimally invasive surgery should preferably take place thermally.

De-ionised water with a conductivity level of ~ 15 ZS/cm (microsiemens per centimeter) should be used for the final rinse whenever possible to ensure no marks are left on the load and to avoid corrosion. If the water used contains more than 100 mg chloride/litre there is danger of corrosion.

OP-containers can be disinfected thermally in the CONTAINER programme, or chemically. If anodised aluminium containers are being processed, de-ionised water must be used for the wash cycles and the final rinse. These containers must not be processed with an alkaline cleaning agent in a 93 °C programme with 10 minutes holding time (according to § 18 IfSG).

Mobile units for surgical instruments and containers are supplied with their own operating instructions.

When processing narrow lumen

instruments e.g. those used for minimally invasive surgery,an

intensive internal cleaning result is imperative. The DES-VAR-TD and OXIVARIO programmes are the only ones which offer a thorough enough level of cleaning for this. It is essential that instruments are loaded as directed and that the cleaning agent used is suitable for the programme and for the sensitive instruments being processed. The final rinse must be carried out using de-ionised water with a conduc tivity level of ~15 ZS/cm (microsiemens per centimeter).

Instruments with very narrow lumen must be manually pre-rinsed where necessary. Follow the instrument manufacturer's instructions on how to handle them.

Areas of application

Ophthalmology

The E 929/1 mobile injector unit is designed for the cleaning and disinfecting of opthalmic instruments.

The top level is fitted with various connections for hollow instruments, e.g. rinsing and suction hand pieces, and cannulae.

Instruments are secured to the hose connectors in the mobile injector unit using the silicone holders and connectors in the rack.

The lower level of the mobile injector unit is designed to take E 441/1 inserts or E 142 mesh trays for processing solid instruments.

The mobile injector unit for ophthalmic instruments is supplied with its own operating instructions.

The E 929/1 mobile injector unit

for opthalmic instruments may only be used in washer-disinfectors which do not have a built-in dispensing system with a flow rate of 465 ml/min.

Plastic fibre cover nets must not

be used in washer-disinfectors which are used to process hollow opthalmic instruments with narrow lumen.

Anaesthetic instruments (AN)

Anaesthetic instruments should be thermally disinfected using the DES-VAR-TD-AN programme.

If this is not possible, they can be processed using a chemical disinfection programme. The water level in the machine should be increased when using a chemical disinfection programme. To establish the effectiveness of disinfection, consult the manufacturer of the disinfecting agent being used.

If the process is not to be followed by sterilisation, the load should be dried completely to avoid the development of water-borne bacteria. A sufficient drying time is, therefore, absolutely essential.

Areas of application

Mobile units for anaesthetic instruments are supplied with their own operating instructions.

Areas of application

Baby bottles (BC)

Baby bottles in E 135 containers can be placed in the two lower levels of mobile unit E 935/1 and then cleaned and disinfected in this washer-disinfector. In addition, E 364 containers with wide-necked teats and E 458 containers with screw-cap teats can be placed in the upper level of the mobile unit.

Ensure the level marker on the

–

bottles is machine-washable.

If there is a delay of 4 hours or more

–

before bottles can be washed, fill them with water to prevent residues from drying on.

Loading in E 935/1 mobile unit

Lower level with4xE135containers

Inserts for baby bottles and teats are supplied with their own operating instructions.

Upper level with3xE135containers

The containers must be arranged so that the two blocked off corners are in the positions marked with crosses, as shown. If bottles were to be placed in these positions, water would not be able to access the inside of the bottles properly and cleaning results would be impaired.

Operating theatre shoes (OS)

Polyurethane operating theatre shoes, and/or insoles should be cleaned and chemically disinfected at 60 °C. These can only be thermally disinfected (using programme SHOE-TD-75/2) if the manufacturer states that they are made of a suitably heat-resistant material.

To establish the effectiveness of chemical disinfecting agents for disinfection consult the manufacturer.

Theatre shoes should be cleaned and disinfected in a machine

installed specifically for this purpose only.

Mobile unit E 975/1 with a suitable insert can be used for this purpose, e.g.

– Insert E 930 for up to shoe size 43

can be placed in the lower level of mobile unit E 975/1,

Areas of application

–

Insert E 931 for up to shoe size 48.

A large amount of fluff can build up in the machine when cleaning theatre shoes. The filters in the wash cabinet should therefore be checked regularly, and cleaned when necessary. See "Cleaning and care".

Areas of application

Laboratory glassware (LG)

Wide-necked laboratory glassware, e.g. beakers, wide-necked Erlenmeyer flasks and Petri dishes, and cylindrical shaped items e.g. test tubes, can be cleaned and rinsed, internally and externally, by the action of the rotating spray arms. They can be arranged in full, half and quarter inserts in an empty mobile unit with spray arms. Narrow-necked items e.g. narrownecked Erlenmeyer flasks, conical flasks, measuring flasks and pipettes, require mobile injector units or injector modules.

The following instructions relate only to basic preparation and loading of glassware.

Loading the machine

– Petri dishes and similar should be

placed in the correct insert with the soiled side facing the centre.

Preparing the load

Empty all glassware before loading

into the machine (paying particular attention to regulations regarding epidemics).

Ensure that acids and residual

solvents, especially hydrochloric acid or chlorides, cannot get into the wash cabinet.

Remove all agar residues from Petri

dishes.

Remove blood clots and residues

from test tubes, etc.

^ Remove all stoppers, corks, labels,

sealing wax residues, etc.

^ Small parts - such as stoppers and

taps - should be secured in suitable basket inserts.

–

Pipettes should be placed with the tip facing downwards.

–

Quarter inserts should be placed as close to the middle of the unit as possible.

–

Glass items must not get in the way of the door opening.

E 940 Mobile injector unit

On two levels, for narrow necked laboratory glassware (can also be used without the upper level).

Chemical processes and technology

General notes

Problem How to resolve it

If seals, hoses and plastics in the washer-disinfector suffer damage they will not be water-tight and will not function correctly.

Heavy foaming during a programme affects cleaning and rinsing results. Foam escaping from the wash cabinet can cause damage to the washer-disinfector. Cleaning processes cannot be regulated and validated where there has been a build-up of foam..

Corrosion to stainless steel in the wash cabinet and to accessories can give them a different appearance:

– Rust (red marks / discolouration), – black marks / discolouration, – white marks / discolouration (etched

surface).

Corrosive pitting can lead to the washer-disinfector not being water-tight. Depending on application corrosion can influence cleaning and rinsing results (laboratory analysis) or cause corrosion to stainless steel items in the cabinet.

Establish the cause of the damage

–

and rectify it.

See information regarding "Chemical agents“, "Soiling“ and "Reaction between chemical agents and soiling“.

Establish the cause of the foam and

–

rectify it. Check the process used regularly to

–

monitor foaming levels.

See information regarding "Chemical agents“, "Soiling“ and "Reaction between chemical agents and soiling“.

– Establish the cause of the corrosion

and rectify it.

See information regarding "Chemical agents“, "Soiling“ and "Reaction between chemical agents and soiling“.

Chemical processes and technology

Chemical agents

Problem How to resolve it

The ingredients in chemical agents have a strong influence on the longevity and functionality (throughput) of the dispensing system. The dispensing system (hoses and pumps) should be set up for a particular type of chemical agent.

General types:

Alkaline to pH neutral products,

–

acidic to pH neutral products,

–

hydrogen peroxide.

–

Chemical agents can damage elastomers and plastics in the washer-disinfector and accessories.

The following oxidising chemical agents can damage elastomers (hoses and seals) and plastics in the washer-disinfector:

–

Nitric acid,

–

peracetic acid,

–

products containing active chlorine.

Use Miele approved chemical agents

–

in this machine. Carry out a regular visual check of

–

the dispensing system for any damage.

Regularly check the flow rate of the

–

dispensing system.

– Use Miele approved chemical agents

in this machine.

– Carry out a regular visual check of

any accessible elastomers and plastics for damage.

The wash temperature should be limited to:

– 50 °C Nitric acid, – 35 °C with peracetic acid, –

80 °C with products containing active chlorine.

The following chemical agents can release large amounts of oxygen:

–

Hydrogen peroxide,

–

peracetic acid.

–

Only use approved processes such as OXIVARIO or OXIVARIO PLUS.

–

The wash temperature must be less than 70 °C when using hydrogen peroxide.

–

Please contact Miele Service or your Miele Application Professional for advice.

Chemical processes and technology

Chemical agents

Problem How to resolve it

The following chemical agents can cause large amounts of foam to build up:

Cleaning agents and rinsing agents

–

containing tensides, emulsifiers.

– Foam can occur:

in the programme block in which the

–

chemical agent is dispensed, in the following programme block if it

–

has been spilt,

– in the following programme with

rinsing agent if it has been spilt.

De-foaming agents, especially silicone based ones can cause the following:

– Deposits to build up in the cabinet, – deposits to build up on the load, – damage to elastomers and plastics

in the washer-disinfector,

– damage to certain plastics (e.g.

polycarbonate and plexiglass) in the load being processed.

Process parameters in the wash

–

programme, such as dispensing temperature, dosage concentration etc. must be set to ensure the whole process is foam free or very low foaming.

Please observe chemical agent

–

manufacturer's instructions.

– De-foaming agents should be used

in exceptional cases only, for instance when absolutely essential for the process.

– The wash cabinet and accessories

should be periodically cleaned without a load and without de-foaming agent using the ORGANICA programme.

–

Please contact Miele Service or your Miele Application Professional for advice.

Chemical processes and technology

Soiling

Problem How to resolve it

The following substances can damage elastomers (hoses and seals) and plastics in the washer-disinfector:

Oil, wax, aromatic and unsaturated

–

hydrocarbons, emollients,

–

cosmetics, hygiene and care

–

products such as creams (analytical applications).

The following substances can lead to a heavy build-up of foam during washing and rinsing:

– Some disinfecting agents and

dishwashing detergents,

– reagents for analysis e.g. for

microtiter plates,

–

cosmetics, hygiene and care products such as shampoos and creams (analytical applications),

–

active foaming agents such as tensides.

Refit the washer-disinfector with oil

–

resistant elastomeres. Depending on usage wipe the lower

–

door seal on the washer-disinfector periodically with a lint-free cloth or sponge. Clean the wash cabinet and accessories without a load using the ORGANICA programme.

Prepare the load

–

using the "OIL" programme (where this is available) or use a special programme that dispenses emulsifiers.

– Thoroughly rinse items in water

beforehand.

– Select a cleaning programme with at

least one short pre-rinse in cold or hot water.

– Depending on application use

de-foaming agents that do not contain silicone oils.

The following substances cause corrosion to stainless steel in the wash cabinet on accessories:

–

Hydrochloric acid,

–

other substances containing chlorides such as sodium chloride etc.,

–

concentrated sulphuric acid,

–

chromic acid,

–

Particles of iron and swarf.

–

Thoroughly rinse items in water beforehand.

–

Place items drip dried into mobile units, baskets and inserts and then place these in the wash cabinet.

Chemical processes and technology

Reaction between chemical agents and soiling

Problem How to resolve it

Natural oils and fats can be emulsified with alkaline chemical agents. This can lead to a heavy build-up of foam.

Soiling containing high protein levels such as blood can cause a heavy build-up of foam when processed with alkaline chemical agents.

Non-precious metals such aluminium, magnesium and zinc can release hydrogen when processed with very acidic or alkaline chemical agents (oxyhydrogen reaction).

Where available use the "OEL“

–

programme. This special programme dispenses

–

emulsifiers (pH neutral) in the pre-rinse.

Depending on application use

–

de-foaming agents that do not contain silicone oils.

Select a cleaning programme with at

–

least one short pre-rinse in cold water.

– Please observe chemical agent

manufacturer's instructions.

Dispensing liquid chemical agents

The washer-disinfector is supplied as

Only use agents formulated

specifically for use in washer-disinfectors and make sure you follow the manufacturer's instructions.

The washer-disinfector can be fitted with a maximum of five internal dispensing systems. They are colour-coded to ensure that the dispenser pumps are attached to the correct siphon tubes.

Dispensing system

1 blue 2 white 3 red 4 green 5 yellow

The correct amount of liquid agent etc. required for the application chosen will then be dispensed through these dispensing systems.

Colour code

standard with two internal dispensing systems:

Dispensing system DOS 1 to

–

dispense alkaline media, such as liquid cleaning agent. It can dispense up to 200 ml/min.

Dispensing system DOS 3 to

–

dispense acid media, such as neutralising agent. It can dispense up to 105 ml/min.

Up to three further optional dispensing units can be built in:

Flow rate Media

465 ml/min alkaline 200 ml/min alkaline 105 ml/min acid

Up to five external dispensing systems can be connected instead of the internal dispensing systems.

In special circumstances the external dispensing systems can be activated in addition to the internal systems.

Dispensing liquid chemical agents

Further information regarding the

OXIVARIO and ORTHOVARIO programmes and connection of the H

solution container can be

2O2

found at the end of this booklet under "Special processes OXIVARIO and ORTHOVARIO".

OXIVARIO kit

The OXIVARIO cleaning process requires dispensing systems 2 and 5 in order to dispense hydrogen peroxide solution (H The H

2O2

are colour coded black. Dispensing system 2 dispenses 105 ml/min. Dispensing system 5 is used to transfer the H washer-disinfector.

If the OXIVARIO process is used, dispensing system DOS 5 cannot be used for any other agents.

solution).

2O2

solution dispensing systems

solution into the

2O2

ORTHOVARIO kit

This washer-disinfector can be retro-fitted to use the ORTHOVARIO process by adding a special dispensing pump to the DOS 4 dispenser in the OXIVARIO system:

Dispensing system DOS 4 (green) to

–

dispense a special tenside cleaning agent. It can dispense up to 105 ml/min.

If the ORTHOVARIO process is used, chemical disinfecting agents cannot be used in the DOS 4 dispenser.

Dispensing liquid chemical agents

Dispensing systems

Four 10 litre containers with agents can be placed behind the service panel of the washer-disinfector. Any other containers must be set up externally to the washer-disinfector.

Take great care when handling

liquid agents and additives. These may contain irritant or corrosive ingredients. The manufacturer's safety instructions and safety data sheets must be observed. Wear protective gloves and goggles.

"Fill DOX [X] container" message

^ Refill the container referred to in the

display or replace it with a new, full container.

[x] The display will show the number of the dispensing system instead of the X.

Fill the containers with the relevant agent

^ Release the catches on the right and

the left of the service panel.

^ Then remove the service panel

downwards.

Refill the appropriate container according to the message shown in the display, e.g. This will prevent the unit becoming empty and so avoid the necessity of venting the dispensing system.

Fill DOS1 container.

Dispensing liquid chemical agents

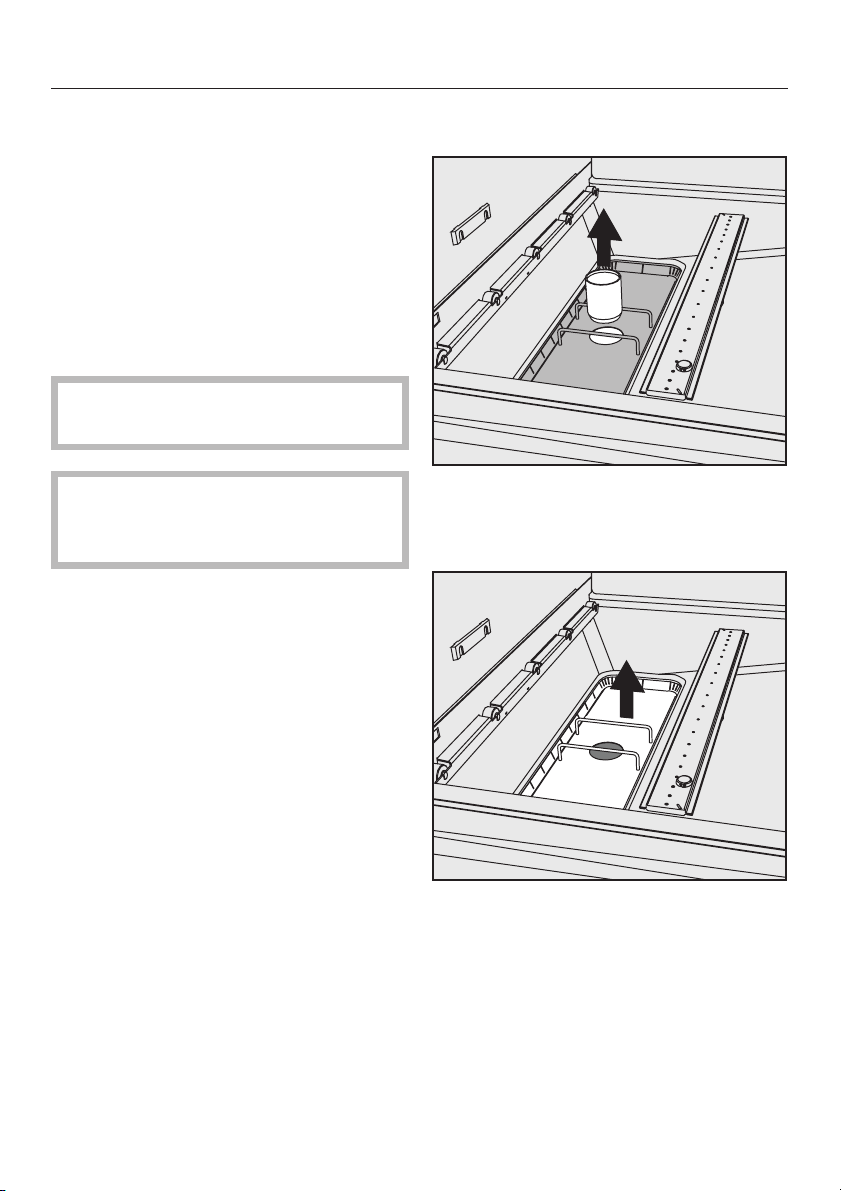

Take the containers out of the

washer-disinfector.

^ Unscrew and remove the siphon

tube.

^ Fill the container with the agent

required.

"Check dispensing system [X]"

The current programme will be interrupted.

Check the container referred to in the

message and the dispensing hoses.

[x] The display will show the number of the dispensing system instead of the X.

If necessary, refill an empty container

or replace it with a new, full container.

Vent the dispensing system hoses

referred to in the display using the appropriate Service programme.

The level query for dispensing systems which are not being used can be turned off to avoid the error message (see "Machine functions / container query" in the Programming manual supplied with the washer-disinfector).

Insert the siphon tube into the container and tighten it securely.

Once the storage containers have been filled the relevant message goes out.

Venting the dispensing system

If a dispensing system has been emptied completely, it must be vented after the container has been filled.

Select the appropriate Service programme, e.g.

Press the Start button h.

DOS1-FILL.

Operation

Master switch

The master switch disconnects the operator side of the washer-disinfector from the electricity supply.

Set the master switch to IONso that

the machine can be operated.

The washer-disinfector is ready to use at the end of the start-up procedure.

The following message may appear: "New mains frequency 60Hz Flow rate automatically adjusted" or "New mains frequency 50 Hz Flow rate automatically adjusted.". During the start-up procedure, the profitronic controls have detected a different mains frequency and adjusted the flow rate of the dispensing pumps accordingly.

Before the machine is operated, a check must be made to ascertain if the change in mains frequency was caused by an interruption to the power supply. In this case, the wrong quantity of agent would be dispensed during the programme.

The fault message can only be confirmed in operating level D or Service mode.

Switching on

Press button s for at least 1.5

seconds.

The length of time the s button can be pressed is set at a maximum of 10 seconds (see Programming manual "System functions/How long you can press the On/Off button").

Depending on which operating level has been set, the following will appear in the display:

Operating level

A and B A list of free access

C Instructions on how to

D The following options:

The display will switch off automatically after approximately 10 minutes when the washer-disinfector is not in operation. Press any button to switch the display back on again.

Display shows

programmes

operate the automatic mobile unit recognition

– Programme overview – Programming –

Settings J

Operation

Opening and closing the door

Press button a.

The door will go up or down.

To open the door on the Clean side (PG 8528), the following conditions must also be met:

Programmes with defined process

–

requirements must have been carried out without any faults according to programme parameters.

– the door interlock is activated, i.e.

the automatic door function is set to one of the following parameters:

- Interlock,

- Door clean + Interlock,

- Door unclean + Interlock. (see Programming manual "Machine function / Automatic door").

If the boiler has been programmed to "Boiler ready", be particularly careful to avoid hot water and steam when opening the door. Danger of burning or scalding. The inlet to the wash cabinet is located, as viewed from the unclean side, underneath the basket runner on the right hand side.

Starting the programme

See the Programme charts in the Programming manual supplied with the machine for detailed information and important notes on the standard Miele programmes.

When processing medical

devices, any changes made to programmes or dispensing systems must be documented in a log book kept with the machine (in accordance with the Medical Devices Directive). The machine's cleaning and disinfecting standards must also be re-validated.

If a barcode scanner is connected to the washer-disinfector and the operator or loading scan is activated, the programme selected can only be started once the scanning process has been carried out. All steps required for operating the barcode scanner are described in the section "Barcode scanner".

Operation

Operating levels A and B

A list of all the available programmes will appear.

Select the programme required with

- e and confirm with OK.

Press the Start button h.

The programme will proceed.

Operating level D

Select the

option and confirm your selection with OK.

^ Select the programme required with

- e and confirm with OK.

^ Press the Start button h.

The programme will proceed.

Programme overview

Operating level C

Make sure that there are no

small metallic objects or instrument parts attracted to the magnetic strip, in particular to the underside of it. Any metallic objects on the strip can result in the coding being incorrectly read.

Before starting a programme by

pressing the Start button, it is absolutely essential that you check that the programme shown in the display is the correct one for the mobile unit being used. Otherwise inadequate cleaning or disinfection could be the result. Please make sure that mobile units used for automatic mobile unit recognition are correctly coded.

^ Push the coded mobile unit into the

washer-disinfector.

Close the door with a and press Start button h.

The programme will proceed.

Operation

Programme sequence

The programme will start automatically as soon as the Start button has been pressed.

The programme stage reached will be shown in the display as the programme proceeds.

Detailed information on programme sequences is given in the Programming manual.

On machines with a built-in

printer you must not change the ribbon or the paper roll whilst a programme is in progress.

At the end of a programme

Programme finished will appear in

the display at the end of a programme.

Cancelling a programme

A programme can only be cancelled in operating level B or D.

In operating levels B or D

Press button +C.

The programme will be interrupted. The following query will appear:

Cancel programme (OK) or continue (Clear)?

With established

decontamination programmes any contaminated water must be decontaminated using a disinfecting agent before it is discharged into the sewerage system. The door on the unclean side of the machine can be opened to do this.

^ Confirm the cancellation of the

programme with the OK button.

Switching off

Press button s.

If the machine is not going to be used for several days, the master switch should be set to 0 OFF.

Programme cancelled, Water drainage will appear in the

display.

After the water has been pumped away, the display will show the list of programmes again.

Operation

Interrupting a programme

A programme can only be interrupted in operating level B or D.

If you absolutely have to open the door, e.g. because the load is obviously unstable or to check the cleaning performance (conscious intervention):

After interrupting a programme with defined process requirements, if you wish to continue it, please check the message in the display at the end of the programme. If the message

Process parameters not achieved

appears, it means that the door was opened after the process parameter monitoring had begun and so the defined process requirements were not fulfilled. If necessary, the programme must be repeated.

In operating levels B or D

^ Press button +C.

The programme will be interrupted. The following query will appear:

Cancel programme (OK) or continue (Clear)?

Open door with a.

Important PG 8528:

The door which can be opened will depend on what setting has been programmed under Machine function/Automatic door (see the Programming manual).

The door on the unclean can be opened whatever the parameter set.

The door on the clean side can only be opened if one of the following parameters has been set:

- Interlock,

- Door clean + Interlock,

- Door unclean + Interlock.

Caution. Water and items in the

machine may be hot. Danger of burning or scalding. Where a chemical disinfection programme has been used, be aware that steam may contain high quantites of disinfecting agent.

Rearrange the load. Follow infection control regulations and wear protective gloves.

Close the door with a

Press button +C.

The programme will continue.

A barcode scanner can be connected to the washer-disinfector via the multiport on the unclean side or, if necessary, on the clean side.

The configuration of the serial interface for the barcode scanner is described in "PC/Print function/Interface configuration" in the Programming manual.

Barcode scanner functions

All the barcode functions are available in every operating level:

Scan loading operator

–

Scan unloading operator

–

Scan the load

–

The recorded barcodes will be transferred to the operator documentation and/or the wash report for the load.

Scan (loading/unloading) operator and Scan the load can be activated independently of one another. Activating the functions is described in more detail in "System functions / Barcode" in the Programming manual.

Barcode scanner (optional)

Scanning the barcode with a conveyor system connected

If a conveyor system is connected to the washer-disinfector, in operating level C only loads which have already been scanned will be processed.

The order of the scanned loads in the Profitronic must

correspond with those of the mobile units on the loading conveyor.

When the message up at the end of the programme, the scanned loads which have been processed will disappear from the display.

If a programme is cancelled or if a fault occurs during a programme ( scanned load which was last processed will not disappear from the display. It will be processed again when the programme is restarted after rectifying the fault.

If you do not wish a scanned load to be processed again from the beginning, it must be deleted from the display manually.

Process parameters not achieved), the

Process parameters achieved comes

Scan loading operator

If Scan loading operator is activated, the following message will come up in the display after the programme has been selected (this happens immediately with automatic mobile unit recognition in operating level C).

Scan operator

The programme can be started after scanning the operator's barcode.

If Scan the load is also activated, the instruction to scan the load comes up in the display after Scan operator.

To cancel Scan loading operator

Scan loading operator can be cancelled by pressing the +C button. The programme overview will appear in the display again.

Barcode scanner (optional)

Scan unloading operator

If Scan unloading operator is active you will be asked to scan the operator barcode at the end of the programme.

Programme finished Scan operator

The door cannot be opened until the operator barcode has been scanned. The door will open automatically depending on how the settings in the

door

menu have been configured.

After cancelling a programme with the +C button

Scan unloading operator is activated, the following

message will come up in the display after a programme has been cancelled:

Programme cancelled Water drainage

After the water has drained, the instruction to scan the operator comes up in the display:

Scan operator

Machine functions/ Automatic

Skipping Scan unloading operator

In operating levels B and D, be skipped by pressing the OK button.

"Scan unloading operator skipped" will show at the end of the printed wash report.

Scan unloading operator can

Scanning the load

When Scan the load is activated, the following message will appear to prompt the operator to scan the load:

Barcode scanner (optional)

Scan the load

: Scan the load

Scan the first barcode on the load.

The barcode numbers of the scanned load will be listed in the menu

Scan the load.

Scan the load 0987664

^ Scan any other barcodes if necessary.

If a barcode has already been scanned, the following question will come up in the display:

Load already scanned. Accept?

A maximum of 99 load barcodes can be scanned. The following message will then appear:

Max. number of entries reached

You can use +C to delete the last entry on the list. To avoid deleting an entry inadvertently, the following "Are you sure" question must be answered:

Delete last entry?

Barcode scanner (optional)

Cancelling "Scan the load"

Providing a load has not been scanned, scan the load can be cancelled by pressing the +C button. The programme overview will appear in the display again.

If loads have already been scanned, these must be deleted before cancelling. To do this, for each scanned load answer the question

Skipping "Scan the load"

In operating levels B and D, Scan the load can be skipped by pressing the OK button.

Delete last entry? with Yes.

If the question programme overview appears in the display.

If the question is answered with started again by pressing the h button.

"Load scan skipped" will be printed at the end of the wash report.

Closing "Scan the load"

^ After all of the barcodes on a load have been scanned,

close the process by pressing OK.

The h button will flash and the programme can be started.

Accept Scanned loads

When "Scan the load" is activated, the Profitronics check before the programme starts that at least one scanned load has been saved to memory.

Skip load scan? is answered with No, the

Yes, the programme can be

Barcode scanner (optional)

If this is the case, the following message will appear:

Accept scanned loads?

Yes

Confirm by pressing

Yes.

The list of all scanned loads will appear in the display:

Select scanned loads A

1_14.02.2007_08:23

2_14.02.2007_09:11

^ Select the scanned load you require and confirm with OK.

The h button will flash and the programme can be started.

When the message

Process parameters achieved comes

up at the end of the programme, the scanned loads which have been processed will disappear from the display.

The scanned load which was last to be processed will not disappear from the display:

–

when a programme is cancelled or if a fault has occured during a programme (

–

in programmes where the parameter

Process parameters not achieved),

Report process from

in the programme header is not defined.

When the programme is restarted, the scanned load will be processed again. It can either be deleted manually or placed further down the list.

If none of the saved scanned loads are to be accepted:

Select and confirm

Scan the load will appear in the display.

Scan the load manually, as described in "Scanning the

No .

load".

Barcode scanner (optional)

Scanned loads

To optimise processes when loading the washer-disinfector, scanned loads can be processed together. To do this "Scan the load" must be activated; see the section "System function/Barcode" in the Programming manual.

Context menu B

Scanned loads

Change display language F

Change operating level

After the context menu has been called up and the Scanned

option has been confirmed, the following functions are

loads

available:

Add scanned loads Display scanned loads Delete scanned loads Move scanned loads

Adding scanned loads

To process scanned loads together, first the context menu and then confirmed.

Scanned loads B

Move scanned loads

Add scanned loads

Display scanned loads

Barcode scanner (optional)

Scanned loads must be called up in the menu and

Select

Add scanned loads and confirm.

The following message will appear:

Scan the load

^ Scan the individual items in the load.

^ Confirm the complete scanned load with OK.

Repeat the steps to add additional scanned loads. The scanned loads are saved in a list (see "Displaying scanned loads"). The load which was scanned last is added to the end of the list.

A maximum of 50 scanned loads can be stored. Before further scanned loads can be added, scanned loads be processed or deleted.

Barcode scanner (optional)

Displaying scanned loads

To display scanned loads, first the context menu and then

Scanned loads must be called up in the menu and confirmed.

Select

Display scanned loads and confirm.

A list of all scanned loads will appear in the display. Each scanned load is identifiable by number, date and time.

Display scanned loads A

1_14.02.2007_08:23

2_14.02.2007_09:11

^ Select and confirm the scanned load you want.

The components of the scanned load are listed in the

the load

Scan the load A

0987664 0983558 0991724

^ Press +C to return to the

Press +C to return to the

menu.

Display scanned loads menu. Scanned loads menu.

Scan

Deleting scanned loads

To delete scanned loads, first the context menu and then the

Scanned loads option must be called up and confirmed.

Barcode scanner (optional)

Select

Delete scanned loads and confirm.

All existing scanned loads are listed with their number, date and time.

Delete scanned loads A

1_14.02.2007_08:23

2_14.02.2007_09:11

^ Select and confirm the scanned load you want.

The following "Are you sure" question will appear in the display:

Delete scanned loads?

^ Confirm the question.

The scanned load will be deleted.

^ Press +C to return to the

Scanned loads menu.

Barcode scanner (optional)

Moving scanned loads

To move scanned loads, first the context menu and then the

Scanned loads option must be called up and confirmed.

Select

Move scanned loads and confirm.

All existing scanned loads are listed with their number, date and time.

Move scanned loads A

1_14.02.2007_08:23

2_14.02.2007_09:11 3_14.02.2007_10:31

^ Select the scanned load you want.

^ Move the scanned load with e-to the position required,

and confirm.

The list will be saved in the new order.

^ Press +C to return to the

Scanned loads menu.

Data transfer

The machine is supplied witha5m long interface cable with RJ45 connector for data transfer between the Profitronic system and an external report printer or PC.

The interface cable is connected to the Ethernet interface on the washer-disinfector. It may only be connected to another interface by a Miele authorised technician.

The cable supplied can be used for Ethernet connection of the washer-disinfector with a suitable network component (e.g. hub, switch). An Ethernet network cable is necessary for a direct Ethernet connection between the washer-disinfector and an external appliance.

The cable supplied can also be used to connect the washer-disinfector with an external appliance via the RS 232 interface. An RJ45 / Sub-D connector is supplied.

Pin configuration of the RJ45 connector (Ethernet): 1 Transmit Data + 2 Transmit Data 3 Receive Data + 6 Receive Data 4-5-7-8 Not assigned.

Pin configuration of the 9-pole Sub-D connector (serial interface): 5 GND 3 TXD 2 RXD 7 CTS 8 RTS 1-4-6-9 Not assigned.

The interface configuration is described in section "PC/Printer function" of the Programming manual.

Please note the following when connecting a printer or PC:

– Only use an industry-standard PC or

printer (e.g. in Germany TÜV, or VDE approved) (IEC 60950).

– The size of the printer or PC must be

taken into account when installing the machine.

–

The maximum length for an extension cable from the serial interface to the printer or PC is 10 m and from the ethernet interface 100 m.

Only HP Laserjet printers or function compatible appliances may be used as external printers.

Instructions on how to set the print functions of an external printer are given in section "PC/Print functions" of the Programming manual.

Maintenance

Periodic checks

This washer-disinfector should be inspected in accordance with local and national safety regulations after every 1000 operating hours, or every 6 months by a Miele approved service technician.

This maintenance will cover the following:

Electrical safety tests

–

Door mechanism and door seal

–

Any screw connections and

–

connectors in the wash cabinet

– Water inlet and drainage

– Internal and external dispensing

systems

– Spray arms

– Filter combination

– Sump including drain pump and

non-return valve

The following operational tests will be carried out within the framework of the maintenance:

A programme will be run as a test

–

run

Thermo electrical measurements will

–

be taken

Seals will be tested for water

–

tightness

All relevant measuring systems will

–

be safety tested including error message displays.

–

Steam condenser

–

All mobile units, modules and inserts

and where applicable:

–

The drying unit

–

Any printer connected to the machine

Maintenance

Process validation

The standard of cleaning and disinfection in the disinfection programmes must be confirmed by the user as a routine matter. Safety checks must be carried out to the machine every 3 months by a Miele approved service technician in accordance with EN ISO 15883 and HTM 2030.

Routine checks

Before the start of each working day the user must carry out a number of routine checks. A check list is supplied with the machine for this purpose.

The following need to be inspected:

All filters in the wash cabinet

–

The spray arms in the machine and

–

in any mobile units or modules

The wash cabinet and the door seal

–

Mobile units, modules and inserts

–

Maintenance

Cleaning the filters in the wash cabinet

The filters in the base of the wash cabinet are designed to prevent coarse soiling getting into the circulation system. A build-up of coarse soiling can cause the filters to clog up. They should, therefore, be checked daily and cleaned if necessary.

The machine must not be used

without all the filters in place.

Watch out for glass splinters,

needles etc, which could cause injury.

Cleaning the fine filter

^ Remove the filter and clean it.

Cleaning the flat filter

Remove the flat filter and clean it.

Cleaning the filters for the circulation pump

There are two filters located underneath the circulation pump. These protect the circulation pump.

^ Pull them up and out of their holders,

and clean them.

Maintenance

^ Replace the filters by carrying out the

above steps in the reverse order.

Check that all the filters have been replaced correctly.

Maintenance

Cleaning the spray arms

The spray arm jets can get blocked by particles inside them. The spray arms should, therefore, be checked daily.

Use a sharp pointed object to push

particles into the spray arm jets, and rinse well under running water.

Remove the spray arms as follows:

Take any mobile units out of the wash

cabinet.

Spray arms in the wash cabinet:

Loosen the securing clip on the spray arm connection and then pull the spray arm upwards or downwards.

Spray arms in mobile units/modules:

Loosen the securing clip on the spray

arm connection and then pull the spray arm downwards.

If the bearings show excessive wear which could cause operational faults please contact the Miele Service Department.

After cleaning the spray arms,

replace them and fit the securing clips. Check that the securing clips are in the correct position.

After replacing the spray arms, rotate them to make sure they move freely.

Make sure that there no small metallic objects or instrument parts have been attracted to the magnets on the ends of the spray arms. Any metallic objects can result in the spray arm rotation being incorrectly read.

Cleaning the controls and the (optional) glass door

Switch the washer-disinfector off with

Maintenance

Never clean the machine or near

vicinity with a hose or a pressure washer.

The controls and glass door should

only be cleaned using a damp cloth or with a proprietary cleaning agent for glass surfaces. An approved and listed disinfecting agent can be used to wipe surfaces.

Do not use abrasive cleaners or

all-purpose cleaners. Because of their chemical composition they could cause serious damage to the glass surface.

Cleaning the front of the machine

^ The stainless steel front should be

cleaned using a damp cloth and a little washing-up liquid, or with a non-abrasive proprietary cleaning agent designed for use on stainless steel.

To help prevent resoiling (fingermarks etc.) a stainless steel conditioning agent (available from the Miele Spare Parts Department) can also be used.

Cleaning the wash cabinet

The wash cabinet is generally self-cleaning.

However, should a build-up of deposits occur in the cabinet please contact the Miele Service Department for advice.

Cleaning the door seals

The door seals should be cleaned regularly with a damp cloth to remove any soiling.

Seals which are no longer tight or which have suffered damage must be replaced with new ones by an approved Miele technician.

Do not use any cleaning agents containing ammonia or thinners as these can damage the surface material.

Maintenance

Mobile units, modules and inserts

Mobile units, modules and inserts should be checked daily to make sure they are functioning correctly. The washer-disinfector is supplied with a check list.

The following need to be inspected:

Check that the guide rails on mobile

–

units/inserts are free of hindrance and that they are secured to the mobile units/inserts correctly.

– Check that the counternuts on the

guide rails are tightened correctly.

– Check that the mobile unit connector

is at the correct height and screwed on correctly.

– Check that the locking caps in the

module connectors of modular system mobile units are working properly.

Where there are spray arms:

Make sure that the spray arms rotate

–

freely.

Make sure the spray arm jets are free

–

of any blockages. See "Cleaning the spray arms".

Check that there are magnets on the

–

ends of the spray arms.

Make sure no metal parts have been

–

attracted to the magnets on the ends of the spray arms.

–

Check that jets, sleeves and hose adapters are securely held in position in mobile units/inserts.

–

Check that washing solution can flow unhindered through all jets, sleeves and hose adapters.

–

Make sure caps and closures on sleeves are correctly located.

–

Make sure that there are no small metallic objects sticking to the magnetic strip on a mobile unit.

–

Check that the magnetic strip on mobile units with automatic mobile unit recognition is correctly screwed into position.

Maintenance

Integrated printer (optional)

Renewing the paper roll

A red indicator light behind the front flap of the printer will light up when the paper roll is finished. Check how much paper is left on the roll, regularly. To do this:

Open the upper edge of the front flap

on the printer and then open it downwards.

Renew the paper roll when the red indicator lights up.

To do this:

^ Open up the front flap on the printer

and then open it downwards.

^ Take the empty roll together with its

spindle from the roller holder, fit the new roll on the spindle and put back in place.

^ Guide the paper upwards onto the

paper feed roller (slot behind the colour cassette), ensuring that the grey paper feed button is kept pressed in until the paper emerges above the cassette.

Renewing the ribbon

Open up the front flap on the printer

and then open it downwards.

Pull the ribbon (above the paper roll)

forward and out of its holder, then put in a new one. Ensure the paper still passes between the ribbon and the cassette.

Turn the little wheel for manual

ribbon feed on the right in a clockwise direction until the ribbon is taut.

Guide the paper through the slot in

the front flap, then close the front flap.

Replacement ribbons can be bought from the Miele Spare Parts dept or from an office stationery supplier.

Guide the paper through the slot in the front flap, then close the front flap.

Replacement paper rolls (58 mm wide, outer diameter approx. 50 mm) can be purchased from the Miele Spare Parts Department or from an office stationery supplier.

After sales service

Repairs should only be carried

out by a suitably qualified and trained Miele technician in accordance with local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage the machine.

If, having followed the advice in the operating instruction manual and in the programming manual, you are still unable to resolve a problem please call the Miele Service Department (see back cover for contact details).

When contacting Miele, please quote

the model and serial number of your machine

To avoid unnecessary service call-outs, check that the fault has not been caused by incorrect operation.

An overview of all error messages that can appear in the display are given in the Programming manual under "Messages".

These are located on the data plate (see "Electrical connection").

All electrical work must be carried out by a suitably qualified and competent person in accordance with local and national safety regulations (BS 7671 in the UK).

Connection should be made via a

–

suitable isolator with an on-off switch which is easily accessible for servicing after the machine has been installed.

An electrical safety test must be

–

carried out after installation and after any servicing work. It is therefore essential that the on-off switch is easily accessible.

– When switched off there must be an

all-pole contact gap of at least 3 mm in the isolator switch.

Electrical connection

The machine must only be operated with the voltage, frequency and fusing shown on the data plate.

Further notes on electrical connection are given on the Installation diagram supplied with the machine.

The data plate showing relevant test marks (VDE, DVGW etc.) is located on the cover located behind the service panel on the unclean side of the machine.

The wiring diagram is supplied with the machine.

WARNING

– For extra safety it is advisable to

protect the washer-disinfector with a suitable a residual current device.

–

Check that the phase rotation is correct when connecting the machine. Failure to do so could have an adverse effect on the circulation pump and impair the wash quality.

–

Equipotential bonding should be carried out.

–

For technical data see data plate or wiring diagram supplied.

THIS APPLIANCE MUST BE

EARTHED

Plumbing

This machine should be

connected to the mains water supply and to the drainage system in accordance with local and national water regulations. Please refer to the installation diagram supplied with the machine.

If the water supply has a high iron

–

content there is a danger of corrosion occurring on items being processed in the machine, as well as in the machine itself. If the chloride content of the water exceeds 100 mg/l the risk of corrosion to items being processed in the machine will be further increased.

Technical data

Height 250 cm (minimum room height) Width 115 cm Depth 87 cm Weight (net) Approx. 550 kg Operating weight Approx. 800 kg Voltage see data plate Connected load see data plate Fuse rating see data plate Compressed air connection 600 kPa (6.0 bar) required for steam

operation

Steam connection: with electric TA with steam TA

Water pressure (flow rate) 200 - 1000 kPa overpressure Water connection:

Cold, hot and de-ionised (AD) water Ambient temperature 5 °C to 40 °C Relative humidity:

maximum decreasing proportionately to

Altitude Max. 1500 m Soiling level

(according to IEC/EN 61010-1) Protection category

(according to IEC 60529) Noise level in dB (A), Sound level LpA in

washing and drying Test marks VDE, radio interference suppression ! mark MDD-Guidelines 93/42/EWG, Class IIb Manufacturer's address Miele & Cie. KG, Carl-Miele-Str. 29,

* if the steam pressure lies between 250 - 300 kPa (2.5 – 3.0 bar) the steam drying unit (TA) will only reach a max. drying temperature of 90 - 100 °C.

If installed at altitudes above 1500 m the boiling point of the suds solution will be lower. Disinfecting temperature parameters should be lowered and the holding time increased (A

value).

250 - 1000 kPa / 140 - 180 °C 250 - 600 kPa * / 140 - 164 °C

up to max. 70 °C

80 % for temperatures to 31 °C 50 % for temperatures to 40 °C

IP20 (Dust permeation)

<70

33332 Gütersloh, Germany

Optional extras

Optional modules:

Drying unit (TA)

–

Steam condenser (DK)

–

Boiler

–

Conductivity measurement module

–

Report printer (PRT)

–

Barcode scanner connection

–

up to 3 additional internal dispensing

–

systems

OXIVARIO kit

–

– The ORTHOVARIO system must be

set up by an approved Miele service technician only.

– Glass doors and wash cabinet

lighting

– Combination steam/electric wash

cabinet heating

– Conveyor system connection module

Water softener

If the mains water hardness level is more than 70 mg/l (4°d), a water softening system should be provided on site, such as the Miele PG 8597 "Aqua-Soft system" which is effective up to approx 720 mg/l (40°d).

Special processes - OXIVARIO and ORTHOVARIO

Description of the machine

This washer-disinfector can be set up or retro-fitted to use the OXIVARIO process by adding two additional dispenser pumps together with a buffer tank for hydrogen peroxide solution (H

). The DOS 2 dispenser is used

2O2

for the H

To use the ORTHOVARIO process the DOS 4 dispensing system has to be replaced by a dispenser pump for a tenside based cleaning agent.

The OXIVARIO, OXIVARIO PLUS and ORTHOVARIO programmes are available for these requirements.

The OXIVARIO process releases active oxygen under alkaline conditions. The cleaning agent used must be tenside free and have a pH value of between 11 and 11.5.

The ORTHOVARIO process uses a special tenside based cleaning agent in the first cleaning phase and then releases active oxygen in the second phase with a pH value of between 10.0 and 11.0 and a slightly higher temperature of 65 °C.

2O2

solution.

It is also suitable for antiseptic circumstances.

The cleaning process is gentle enough for instruments used in minimally invasive surgery, including fibre optics, where the manufacturer has declared that they are suitable for processing with an alkaline cleaning agent.

It is not suitable for anodised aluminium. Be aware that items made from alloys containing titanium such as some implants, do not always state the material's compatibility. If in doubt please consult the manufacturer of the item.

The ORTHOVARIO procedure is suitable for processing aluminium instruments which are sensitive to alkalines. It is particularly suitable for orthopaedic instruments including motor systems.

Because of its oxidising effect it must not be used for titanium implants, and in particular colour coded ones.

Areas of application

The OXIVARIO procedure has an alkaline main wash making it particularly suitable for the processing of surgical instruments where existing procedures are not satisfactory. It is particularly suitable for instruments such as those used in high frequency surgery, orthopaedic surgery as well as for instruments which have dried out because of the length of time between using them and reprocessing them.

Due to the high efficacy of the Oxivario and Orthovario processes, it is important to lubricate joints and contact parts on instruments pre-sterilisation. Please refer to the instrument manufacturer for guidance.

Special processes - OXIVARIO and ORTHOVARIO

Warning and Safety instructions

These warning and safety

instructions are in addition to those given at the beginning of this booklet.

H2O2solution must only be used in

the special containers and adapters provided by the Ecolab and Dr. Weigert companies.

Important: observe the

manufacturer's safety instructions as given on their safety data sheets.

Be especially careful when handling

solution. It is an irritant chemical.

2O2

Observe all current safety instructions pertaining to its use. Wear protective gloves and goggles.

Empty containers must be disposed

of in accordance with the manufacturer's instructions.

H2O2solution must not be mixed

with other chemicals. This could cause a serious chemical reaction, e. g. the release of harmful vapours or gases.

Only use tenside cleaning agents

supplied by Ecolab or Dr. Weigert.

Connecting the H2O2solution container

The connection hose for the H2O solution container is identified by a black label. The connection hose is supplied without a safety cap as the container for hydrogen peroxide will vary depending on supplier.

Connect the supplier's safety cap to

the connection hose (black).

Then connect this to the H

solution container.

^ Then start the

programme.

Unlike with other chemical agents the H

solution container must be fully

2O2

emptied before it is exchanged for a new one.

^ Do not replace the H

container with a new one until the

DOS2 container

displayed. After connecting the new container, you must run the

DOS2-FILL programme.

Check dispensing system 2

If the message appears you should check the container as well as the dispensing system. The programme will stop automatically.

DOS2-FILL

2O2

message is

2O2

solution

Fill

Electrical and electronic machines often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your or machine. Please do not therefore dispose of it with your general waste.

Please dispose of it at your local community waste collection / recycling centre or contact your dealer for advice. Ensure that it presents no danger to children while being stored for disposal.

Disposal of your old machine

777879

Alteration rights reserved / Publication date 11.01.2010

0366

M.-Nr. 07 776 940 / 00

Miele PG 8527, PG 8528 Operating instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
