Operating and installation instructions
Ceramic cooktops with induction
KM 6350
KM 6380 / KM 6382
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these
instructions before it is installed
and used for the first time.
en - AU, NZ
M.-Nr. 07 840 000
2
Contents
Description of the appliance.........................................5
Models ...........................................................5
KM 6350 .......................................................5
KM 6380 .......................................................6
KM 6382 .......................................................7
Control panel ......................................................8
Cooking zone data.................................................10
Special feature....................................................11
Warning and Safety instructions ....................................12
Caring for the environment.........................................18
Before using for the first time.......................................19
Cleaning for the first time............................................19
Before using for the first time.........................................19
Induction........................................................20
How the appliance works ...........................................20
Noises ..........................................................21
Pans ............................................................22
Use ............................................................23
Operation ........................................................23
Switching on .....................................................24
Settings .........................................................25
Auto heat-up .....................................................26
Booster function...................................................28
Keeping warm function .............................................30
Switching off and residual heat indicators...............................31
Tips on saving energy .............................................32
Timer ...........................................................33
Minute minder ....................................................34
To switch a cooking zone off automatically ..............................37
To use both timer functions at the same time ............................38
3
Contents
Safety features ...................................................39
Safety lock/System lock .............................................39
Stop and Go......................................................41
Safety cut-out.....................................................42
Overheating protection .............................................43
Cleaning and care ................................................44
Programming ....................................................46
Problem solving guide ............................................49
Optional accessories..............................................53
Con|ctivity and Miele|home.......................................55
Description of the functions of Con|ctivity ..............................55
Description of the functions of Miele|home .............................56
Parts of the system ................................................56
Sign on cooktop...................................................57
Sign off cooktop...................................................58
Safety instructions for installation...................................59
Safety clearances.................................................60
Building-in dimensions ...........................................65
KM 6350.........................................................65
KM 6380.........................................................66
KM 6382.........................................................67
Installation ......................................................68
Electrical connection..............................................69
Wiring diagram ...................................................70
After sales service, data plate ......................................71
4
Models
KM 6350
Description of the appliance
ac Cooking zones with TwinBooster
bd Cooking zones with Single Booster
e Control panel
5
Description of the appliance
KM 6380
a Cooking zone with TwinBooster
bc Cooking zones with Single Booster
d Control panel
6
KM 6382
Description of the appliance
ac Cooking zones with TwinBooster
bde Cooking zones with Single Booster
f Control panel
7
Description of the appliance
Control panel
8
Description of the appliance
Sensors
a Cooktop ON/OFF
b Safety lock
c For setting the power levels
d Single Booster / TwinBooster
e Keeping warm function
f - For setting the time
- Setting the power setting for the cooking zone in the rear middle, depending
on model
g Stop and Go
h - Selecting the timer
- Changing the timer functions
- Selecting the switch-off time (see "Auto switch-off")
i Hour function
Indicator lamps
j Safety lock
k Indicator lamp for relevant zone, e.g. the rear right cooking zone
l Indicator lamp for half hours with a minute minder time of more than 99 minutes
m Residual heat indicator
n TwinBooster
¤ setting 1
¥ setting 2
o Timer display
00 to 99 = time in minutes
0.^ to 9^ = time in hours
9
Description of the appliance
Cooking zone data
Cooking
zone
y 18 - 28 normal
w 10 - 16 normal
x 14-20/
z 14 - 20 normal
Cooking
zone
f 18 - 28 normal
b 10 - 16 normal
a 14 - 20 normal
Minimum to maximum
C in cm*
20x30
Minimum to maximum
C in cm*
KM 6350
Rating in watts for 230 V**
2600
TwinBooster, setting 1
TwinBooster, setting 2
Single Booster
normal
TwinBooster, setting 1
TwinBooster, setting 2
normal
TwinBooster, setting 1
TwinBooster, setting 2
Single Booster
Total: 7400
KM 6380
Rating in watts for 230 V**
TwinBooster, setting 1
TwinBooster, setting 2
Single Booster
Single Booster
Total: 7400
3000
3700
1400
2200
1850
2500
3000
2300
3000
3700
1850
3000
2600
3000
3700
1400
2200
1850
3000
* Pans of any diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the pans
used.
10
Description of the appliance
Cooking
zone
y 16 - 23 normal
w 10 - 16 normal
b 18 - 28 normal
x 14 - 20 normal
z 14 - 20 normal
* Pans of any diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the pans
used.
Minimum to maximum
C in cm*
KM 6382
Rating in watts for 230 V**
2300
TwinBooster, setting 1
TwinBooster, setting 2
Single Booster
TwinBooster, setting 1
TwinBooster, setting 2
Single Booster
Single Booster
Total: 11.100
3000
3700
1400
1800
2400
3000
3700
1850
2900
1850
2900
Special feature
Cooktops bearing the < symbol in the top left-hand corner are suitable for
connecting to the Miele|home system (available in selected countries only).
11
Warning and Safety instructions
Correct application
This appliance complies with all
relevant local and national safety
requirements. Improper use of the
appliance can, however, present a
risk of both personal injury and
material damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time.
They contain important notes on the
installation, safety, operation and
care of the appliance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
This cooktop is designed for
~
domestic use and for use in similar
environments by guests in hotel or
motel rooms, bed & breakfasts and
other typical living quarters. This does
not include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
This cooktop must only be used for
~
the preparation and keeping warm of
food. Any other usage is at the owner's
risk. Miele cannot be held liable for
damage resulting from incorrect or
improper use or operation.
This appliance is not intended for
~
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.
12
This cooktop may only be installed
~
and used in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Warning and Safety instructions
Safety with children
Use the safety lock to prevent
~
children operating the appliance or
altering the settings.
Children should be supervised to
~
ensure that they do not play with the
appliance.
Older children may use the
~
appliance only when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
They must be aware of the potential
dangers caused by incorrect operation.
The appliance gets hot when in use
~
and remains hot for quite a while after
being switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
Do not store anything which might
~
arouse a child's interest in storage
areas above or next to the appliance.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.
Keep all pans out of reach of
~
children. Turn pan handles inwards
away from the edge of the cooktop.
Danger of burning or scalding. Special
cooktop guards are available from
good retail outlets.
Packaging, e.g. cling film,
~
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
13
Warning and Safety instructions
Technical safety
Before installation, check the
~
appliance for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance is
dangerous.
The electrical safety of this
~
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt, the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
Before connecting the appliance,
~
make sure that the connection data on
the data plate (voltage and rated load)
matches the mains electricity supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
For safety reasons, this appliance
~
may only be used after it has been built
in.
Never open the housing of the
~
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Installation, maintenance and
~
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
During installation, maintenance and
~
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– the mains fuse is disconnected,
– the screw-out fuse is removed (in
countries where this is applicable),
– it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
If the cooktop has been fitted with a
~
communication module, it must be
disconnected from the mains during
installation, maintenance and repairs of
the cooktop.
While the appliance is under
~
warranty, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the warranty is invalidated.
Faulty components must only be
~
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
14
Warning and Safety instructions
If the connection cable is damaged,
~
it must be replaced by a suitably
qualified electrician with a specialist
connection cable of type H 05 VV-F
(pvc insulated), available from Miele.
Do not connect the appliance to the
~
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
This appliance is not intended to be
~
operated by means of an external timer
or separate remote control system.
Do not use the cooktop if it is faulty,
~
or if the ceramic surface is cracked,
chipped or damaged in any way.
Switch it off immediately, and
disconnect it from the mains electricity
supply. Danger of electric shock.
In areas which may be subject to
~
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage caused by
cockroaches or other vermin will not be
covered by the warranty.
Correct use
For people fitted with a heart
~
pacemaker:
Please note that the area immediately
surrounding the cooktop is
electromagnetically charged, and that it
is very unlikely to affect a pacemaker.
However, if in any doubt, consult the
manufacturer of the pacemaker or your
doctor.
To prevent damage to items which
~
are susceptible to magnetic fields, e.g.
credit cards, diskettes, pocket
calculators etc, do not leave them in the
immediate vicinity of the cooktop.
The appliance gets hot when in use
~
and remains hot for quite a while after
being switched off. There is a danger of
burning until the residual heat
indicators go out.
Do not leave the appliance
~
unattended whilst it is in use.
Pans that have boiled dry can cause
damage to the ceramic surface for
which the manufacturer cannot be held
liable.
Boiling fat or oil could ignite and cause
a fire.
If, despite this, oil or fat does catch
~
fire, do not attempt to put out the flames
with water. Use a suitable fire blanket,
saucepan lid, damp towel or similar to
smother the flames.
15
Warning and Safety instructions
For added protection, it is advisable
~
to use heat-resistant pot holders or
gloves when using the appliance. Do
not let them get damp or wet, as this
causes heat to transfer through the
material more quickly with the risk of
scalding or burning yourself.
Do not flambé under a rangehood.
~
The flames could set the rangehood on
fire.
Do not use the appliance as a
~
resting place for anything else.
Take particular care never to place
cutlery or other metal objects on the
appliance. When the appliance is
switched on either deliberately or by
mistake, or when there is residual heat
present, there is the risk of metal
objects heating up, with a danger of
burning.
Depending on the material, other
objects left on the cooktop could also
melt or catch fire.
Damp pan lids might adhere to the
ceramic surface and be difficult to
dislodge.
Switch the cooking zones off after use.
Do not cover the appliance, e.g.
~
with a cloth, kitchen foil, etc. This could
be a fire hazard if the appliance is
switched on by mistake.
Do not use plastic or aluminium foil
~
containers. These melt at high
temperatures, and could catch fire.
Do not heat up unopened tins of
~
food on the cooktop, as pressure will
build up in the tin, causing it to
explode. This could result in injury and
scalding or damage.
Do not use pots and pans on the
~
ceramic cooktop with bases with
pronounced edges or ridges, e.g. cast
iron pans. These could scratch or scour
the cooktop surface permanently.
Never heat an empty pan unless the
~
manufacturer of the pan expressly
states that you can do so. Because
induction heating works extremely
quickly, the base of the pan could heat
up to the temperature at which oil or fat
self-ignites within a very short time.
Keep the cooktop clean. Grains of
~
salt, sugar and sand (e.g. from
cleaning vegetables) can cause
scratches.
Never place hot pans on the area
~
around the controls. This could damage
the electronic unit underneath.
Do not drop anything on the ceramic
~
surface. Even a light object could
cause damage in certain
circumstances.
Do not allow either solid or liquid
~
sugar, or pieces of plastic or aluminium
foil to get onto the cooking zones when
they are hot. Should this occur, switch
off the appliance, and carefully scrape
off all the sugar, plastic or aluminium
residues from the cooktop whilst they
are still hot, using a shielded scraper
blade. Take care not to burn yourself.
If residues are allowed to cool before
being removed, the ceramic surface
will be susceptible to pitting or even
cracking.
Once the residues have been removed,
allow the appliance to cool down, and
then clean with a suitable proprietary
ceramic cooktop cleaner.
16
Warning and Safety instructions
When using an electric socket near
~
the cooktop, care should be taken that
the cable of the electrical appliance
does not come into contact with a hot
cooking zone. The insulation on the
cable could become damaged, giving
rise to an electric shock hazard.
This appliance is fitted with a
~
cooling fan. If a drawer is fitted directly
underneath the cooktop, ensure that
there is sufficient space between the
drawer and its contents and the
underside of the appliance in order to
ensure sufficient ventilation for the
cooktop. Do not store pointed or small
items or paper in the drawer. They
could get in through the ventilation slots
or be sucked into the housing by the
fan and damage the fan or impair
cooling.
Spray canisters, aerosols and other
~
inflammable substances must not be
stored in a drawer under the cooktop.
Cutlery inserts must be heat-resistant.
Do not use two pans on one cooking
~
or casserole zone at the same time.
If the cooktop is built-in behind a
~
furniture door, it must only be operated
when the door is open.
Close the furniture door only once the
appliance has been switched off and
the residual heat indicators have gone
out.
If the cooktop is built-in over a
~
pyrolitic oven, the cooktop should not
be used whilst the pyrolitic process is
being carried out as this could trigger
the overheating protection mechanism
on the cooktop (see relevant section).
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Metal utensils stored in a drawer
~
under the cooktop can become hot if
the induction cooktop is used
intensively for a long time.
Always ensure that food is
~
sufficiently cooked or reheated. Some
foods may contain micro-organisms
which are only destroyed by thorough
cooking at a sufficiently high
temperature for long enough.
Therefore, when cooking or reheating
food such as poultry, it is particularly
important that the food is completely
cooked through. If in doubt, select a
longer cooking or reheating time.
17
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
18
It should be unplugged or
disconnected from the mains electricity
supply by a competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service" section of this booklet.
Cleaning for the first time
Remove any protective wrapping and adhesive labels.
Before using for the first time, clean the appliance with a
damp cloth only and then wipe dry.
Do not use washing up liquid to clean the ceramic surface
as it can leave a blue sheen which may be difficult to
remove.
Before using for the first time
On cooktops with bevelled glass edges, a small gap may
be visible between the cooktop and the worktop during the
first few days after installation. This gap will reduce with
time as the appliance is used and will not affect the
electrical safety of your appliance.
When the appliance is used for the first time, it may give off a
slight smell. The smell and any vapours will dissipate after a
short time.
Before using for the first time
The smell and any vapours given off do not indicate a faulty
connection or appliance, and neither are they hazardous to
health.
Please note that the heating-up time of induction cooktops
is much shorter than that of conventional cooktops.
19
Induction
How the appliance works
An induction coil is located under each cooking zone. When
a cooking zone is switched on, this coil creates a magnetic
field which impacts directly on the base of the pan and heats
it up. The cooking zone itself is heated up indirectly by the
heat given off by the pan.
An induction cooking zone only works when a ferromagnetic
pan is placed on it (see "Pans").
Induction automatically recognises the size of the pan, i.e.
heat is only generated in the area covered by the base of the
pan.
The cooking zone will not work:
– if it is switched on without a pan in place, or if the pan is
unsuitable (non-magnetic base).
– if the diameter of the base of the pan is too small.
– if the pan is taken off the cooking zone when it is switched
on.
In this case the numbers 1 to 9 will flash on the relevant
control panel.
20
If a suitable pan is placed on the cooking zone within 3
minutes, the numbers will light up constantly and you can
continue as normal.
If no pan or an unsuitable pan is placed on the cooking zone,
the cooking zone and the cooktop will switch off automatically
after 3 minutes.
Take particular care never to place cutlery or other metal
objects on the cooktop. When the appliance is switched
on either deliberately or by mistake, or when there is
residual heat present, there is the risk of metal items
heating up with the danger of burning.
Switch the cooking zones off after use.
Noises
Induction
When using an induction cooking zone, the following noises
can occur in the pan, depending on what it is made of and
how it has been constructed:
On the higher power settings, it might buzz. This will
–
decrease or cease altogether when the power setting is
reduced.
If the pan base is made of layers of different materials (e.g.
–
in a sandwiched base), it might emit a cracking sound.
Whistling might occur if linked zones (see "Booster
–
function") are being used at the same time, and the pans
also have bases made of layers of different materials.
– You might hear a clicking sound from the electronic
switches, especially on lower settings.
The appliance has a cooling fan to help extend the life of the
electronics. When the cooktop is being used intensively, this
will come on and you will hear a whirring sound. The fan may
continue to run after the appliance has been switched off.
21
Induction
Pans
Suitable pans include:
stainless steel pans with a magnetic base
–
enamelled steel pans
–
cast iron pans
–
Unsuitable pans:
stainless steel pans without a magnetic base
–
aluminium and copper pans
–
glass, ceramic or earthenware pots and pans
–
To test whether a pot or pan is suitable for use on an
induction cooktop, hold a magnet to the base of the pan. If
the magnet sticks, the pan is suitable.
Please be aware that the properties of the pan base can
affect the eveness with which food heats up in the pan.
To make optimum use of the cooking zones, choose pans
with diameters larger than the innermost markings but smaller
than the outermost markings. If the diameter of the pan is
smaller than the innermost marking, the induction heating will
not work. The zone will behave as if it had no pan on it.
22
Please note that the maximum diameter quoted by
manufacturers often refers to the diameter of the top rim of
the pot or pan. The diameter of the base (generally smaller) is
more important.
Place pans in the centre of the cooking zone.
If a pan's base sits only partly on the cooking zone,
handles can become very hot.
Operation
Use
This ceramic cooktop is equipped with electronic sensor
switches which react to finger contact.
When the cooktop is switched off, you can only see the
symbols for the ON/OFF button of the cooking zones and the
Safety lock in the display.
If the cooktop is switched on, all other sensors will light up. "0"
will light up at brightness setting 2 and 1-9 at brightness
setting 1.
If a power setting is selected, the numbers will light up from 0
up to and including the selected power setting at brightness
setting 2.
If the booster or keeping warm funtion has been selected, the
relevant sensor will light up at brightness setting 2.
To operate a cooking zone, touch the relevant sensor. Each
time you touch a sensor, an audible tone sounds.
Take care to keep the control area clean. Do not place
anything on the control area. The sensor switches may fail
to react or they could mistake the article or any dirt for a
fingertip contact, thereby activating a function or even
causing the cooktop to switch off automatically (see Safety
switch-off.)
Never place hot pans on the sensor switches. The
electronic unit underneath could get damaged.
23
Use
Switching on
The cooktop must be switched on before any of the zones
can be used.
Do not leave the appliance unattended whilst it is being
used.
To switch the cooktop on
Touch the s sensor.
^
All sensors will light up. If no further entry is made, the
cooktop will switch itself off after a few seconds for safety
reasons.
To activate the cooking zone
A cooking zone is not active if only "0" lights up in the control
panel. Touch "0" to activate. All power settings will light up.
Select the power setting
Factory default setting
^ Touch the required number on the control panel for the
required cooking zone.
Extended setting
(see "Settings")
^
Touch the area between the numbers.
If you have selected e.g. power level 7+, the numbers 7 and
8 will light up brighter than the rest of the numbers.
Change the power setting
^
Touch the required number on the control panel for the
required cooking zone.
24
Use
Settings
The appliance is programmed with 9 power settings at the factory. If you wish to
fine-tune a setting, you can extend the power setting range (see "Programming").
Settings
Factory stan
dard
(9 settings)
Melting butter
Dissolving gelatine
Making porridge 2 2 - 2+
Warming small quantities of liquid
Cooking rice
Defrosting frozen vegetables 3 2+ - 3
Cooking broths, pulse soups 3 2+-3+
Warming liquid and semi-solid foods
Preparing omelettes, lightly fried eggs
Steaming fruits
Cooking dumplings 4 4 - 5+
Steaming vegetables, fish 5 5
Defrosting and heating frozen food 5 5 - 5+
Bringing large quantities of food to the boil
Thickening sauces, e.g. Hollandaise
Gentle braising (without overheating the fat) of fried eggs 6 5+ - 6+
Gentle braising (without overheating the fat) of meat, fish,
vegetables etc.
Frying pancakes etc. 7 6+ - 7
Searing stews 8 8 - 8+
Boiling large quantities of water
Bringing to the boil
1-2 1-2+
-
3 3-3+
4 4-4+
6 5+-6
7 6+-7+
99
Extended
(17 power
settings)
This information should only be taken as a guide.
The wattage may vary depending on the size and material of the pans used. It is therefore possible
that the power settings are slightly different for your pans. You can establish the best settings for your
cooking containers through practice.
25
Use
Auto heat-up
When Auto heat-up has been activated, the cooking zone
switches on automatically at the highest setting and then
switches to the continued cooking setting which you have
previously selected. The heat-up time depends on which
continued cooking setting has been chosen (see chart).
To activate Auto heat-up
Touch the number of the required continued cooking
^
setting continuously until an audible tone sounds and the
continued cooking setting starts to flash.
The continued cooking setting will continue to flash during
Auto heat-up (see table).
Changing the continued cooking setting deactivates Auto
heat-up.
In the extended range of settings (see "Programming") and a
selected intermediate setting, the power setting before and
after the intermediate setting will flash.
To deactivate Auto heat-up
26
You can deactivate the Auto heat-up before the end of the
heat-up time.
^ Touch the continued cooking setting until the display lights
up continuously, or select another power setting.
Use
Continued cooking
setting*
1 0:15
1+ 0:15
2 0:15
2+ 0:15
3 0:25
3+ 0:25
4 0:50
4+ 0:50
5 2:00
5+ 5:50
6 5:50
6+ 2:50
7 2:50
7+ 2:50
8 2:50
Heat-up time
in minutes and seconds (approx.)
8+ 2:50
9-
* The continued cooking settings 1+ etc. are only available if
the power setting range has been extended (see
"Programming").
27
Use
Booster function
The cooking zones are equipped with a Single Booster or a
TwinBooster (see "Description of the appliance").
When activated, the power is boosted for 10 minutes so that
large quantities can be heated quickly, e.g. when boiling
water for cooking pasta. If it is activated, the cooking zones
will operate with extra power for a period of 15 minutes.
The Booster function can only be used on two cooking zones
at the same time, one on the left and one on the right.
If the Booster function is switched on when
no setting has been selected, the cooking zone will revert
–
automatically to setting 9 at the end of the Booster time or
if the Booster function is switched off before this.
– a setting has been selected, the cooking zone will revert
automatically to the setting selected at the end of the
Booster time or if the Booster function is switched off
before this.
Taking a pan off the zone whilst the booster is in operation
interrupts the Booster function. It will resume if a pan is
placed back on the zone within 3 minutes.
28

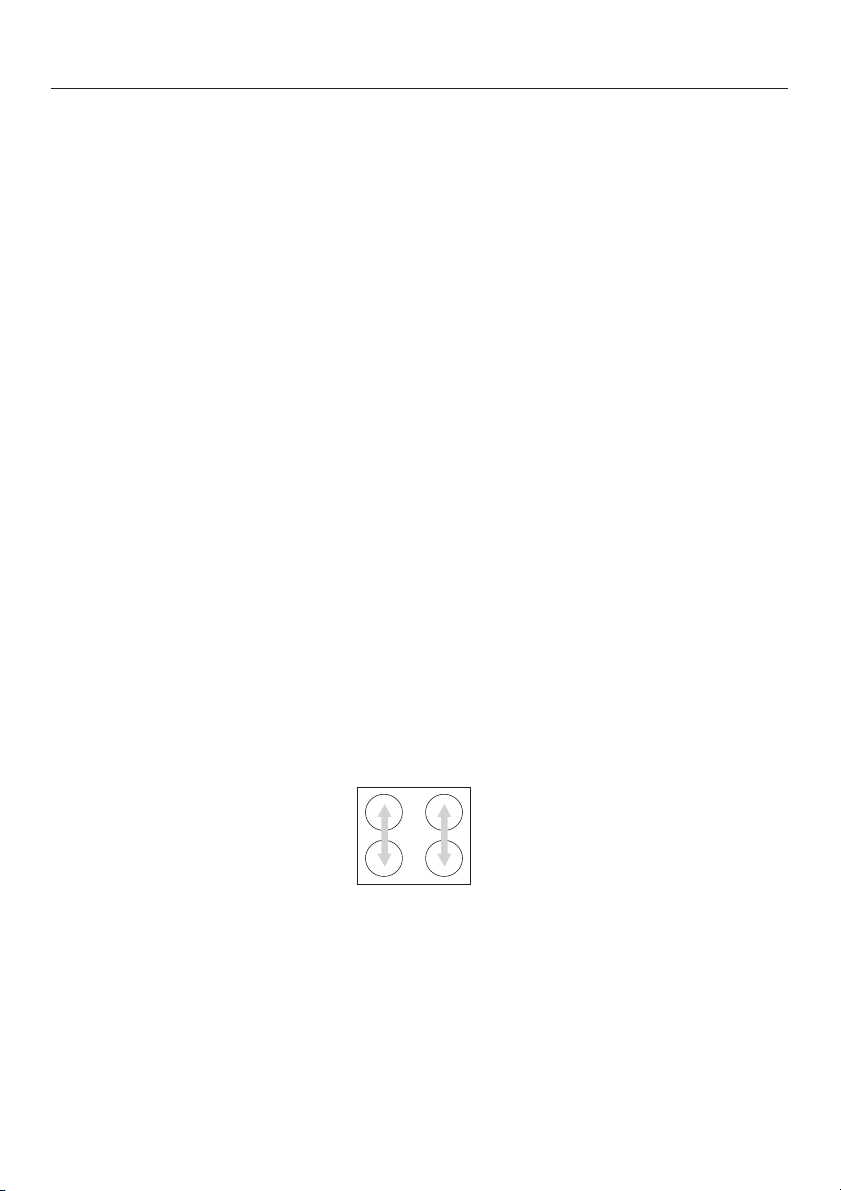

The extra boost of energy is only available by taking a
proportion of energy away from another cooking zone. For
this reason, the cooking zones are networked in pairs as
shown.
When the Single Booster/TwinBooster setting 1 is switched
on, the following happens to the connected cooking zones:
–
if Auto heat-up is activated, it will be deactivated.
–
If the power setting 9 is set on the connected cooking
zone, the setting will be reduced.
If the TwinBooster setting 2 is switched on, the connected
cooking zone will be switched off.
During the booster time, the B sensor lights up along with all
other numbers on the control panel at brightness setting 2.
To switch on the Single Booster
Touch "0" on the control panel for the required cooking
^
zone.
Select a power setting for the cooking zone.
^
Touch the "B" sensor.
^
To switch on the TwinBooster
Setting 1
Touch "0" on the control panel for the required cooking
^
zone.
^ Select a power setting for the cooking zone.
^ Touch the "B" sensor.
The indicator lamp for the TwinBooster setting 1 ¤ will light up.
Setting 2
^ Touch "0" on the control panel for the required cooking
zone.
Use
^ Select a power setting for the cooking zone.
^
Touch the B sensor twice.
The indicator lamp for the TwinBooster setting 2 ¥ will light up.
To switch off Single Booster / TwinBooster
^
Touch the B sensor
- once (Single Booster)
- until the indicator lamps go out (TwinBooster).
or
^
Switch on the cooking zone at another setting.
29
Use
Keeping warm function
Each cooking zone has a keeping warm function.
If the keeping warm function has been activated, the cooking
zone will switch off automatically after a maximum of 2 hours.
This function is for keeping food that has just been cooked
warm, i.e. food that is still hot. It is not for reheating food
that has gone cold.
To switch on/off the keeping warm function
Briefly touch the 2 sensor of the required cooking zone.
^
Useful tips
Only use pots and pans for keeping food warm. Cover pots
and pans with a lid.
You do not have to stir food while it is being kept warm.
Nutrients are lost when food is cooked, and continue to
diminish when food is kept warm. The longer food is kept
warm for, the greater the loss of nutrients. Try to ensure that
food is kept warm for as short a time as possible.
30
Switching off and residual heat indicators
To switch off a cooking zone
Touch "0" on the control panel for the required cooking
^
zone.
The number sensors 1 to 9 will go out on the control panel
after a few seconds. If the cooking zone is still hot, the
residual heat indicator will then appear in the display.
To switch off the cooktop
Touch the s sensor.
^
This switches off all cooking zones. All the indicator lamps will
go out.
If there is still residual heat, the number sensors 1 to 9 will go
out on the control panel after a few seconds. The residual
heat indicators of the hot cooking zones will light up.
The lines of the residual heat indicator go out one after
another as the cooking zones cool down. "0" also goes out
with the last line.
Use
Do not touch or place any heat-sensitive objects on the
cooking zones while the residual heat indicators are on.
Danger of burning.
31
Tips on saving energy
Use a lid whenever possible to minimise heat loss.
–
Uncovered Covered
Select a smaller pan when cooking small quantities. A
–
small pot requires less energy than a larger, less filled pot.
Cook with as little water as possible.
–
Reduce the power setting once the water has come to the
–
boil or the oil is hot enough to fry in.
– Cooking times can be significantly reduced with a
pressure cooker.
32
Timer
h
The cooking zone has to be switched on if you wish to use
the timer.
The timer can be used for two different functions:
To set the minute minder
–
To set a cooking zone to switch off automatically.
–
A duration of between 1 minute (01)and9(9^) hours can be
set.
A time of up to 99 minutes will be shown in the display.
For example:
To set a time of more than 99 minutes, the timer has to be set
to hours (h). The time is set in half-hour steps. The half hour is
indicated by a dot after the number.
For example (2 hour 30 min):
When the set time has elapsed, 00 will appear in the timer
display for a few seconds. An audible tone will sound at the
same time.
33
Timer
h
h
h
Minute minder
Setting the minute minder
Minutes

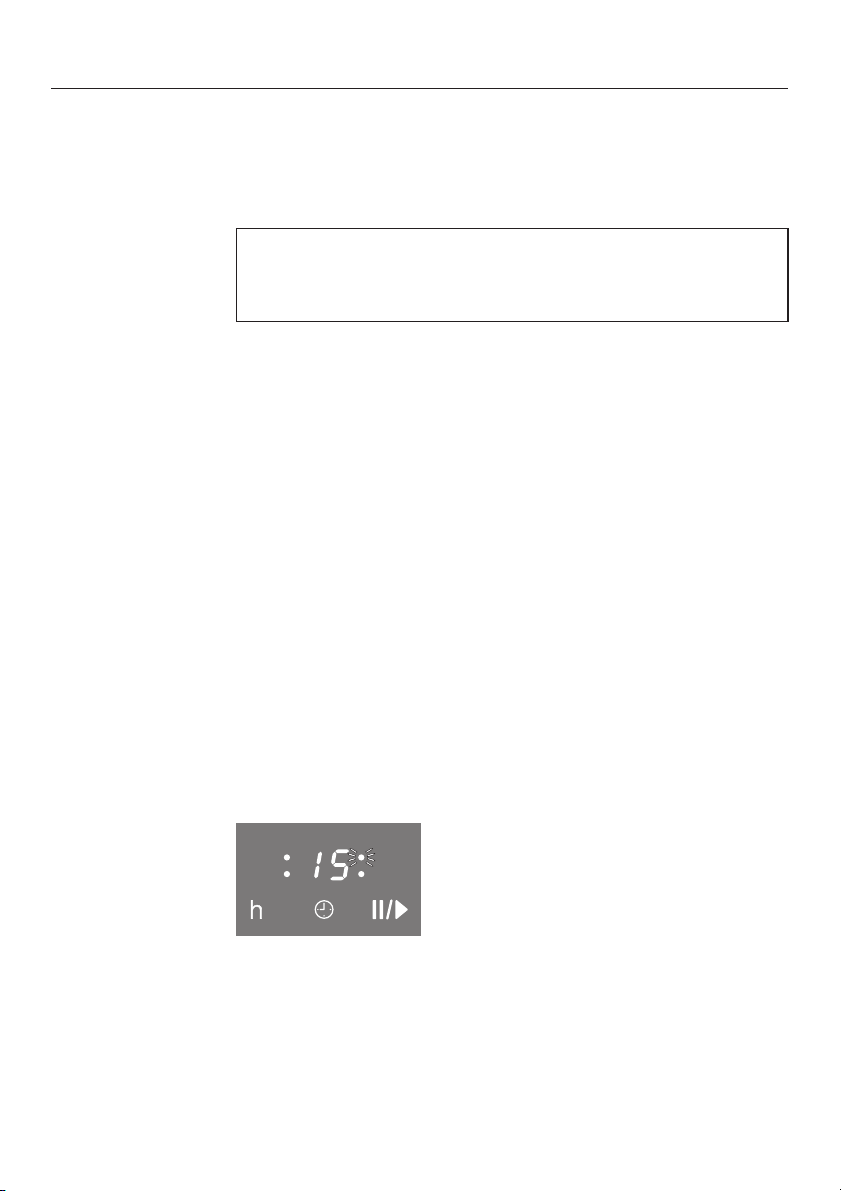

Example: You want to set the minute minder to 15 minutes.
Switch the cooktop on.
^
Touch the m sensor.
^
The sensor control "m" flashes. 00 appears in the display, 0
flashes on the right.
First the tens digit is set then the units digit.
^ Touch a number on the number sensor scale to set the tens
digit (here: 1).
The timer display changes, 1 flashes on the right.
^
Touch a number on the number sensor scale to set the
units digit (here: 5).
The timer display changes, 1 moves to the left and 5 appears
on the right.
After a few seconds, the m sensor lights up continuously and
the minute minder begins to count down.
34
Timer
h
h
h
Hours
Touch the required number on the number sensor scale to
set the hours.
Half hours can be selected by touching the area between two
numbers.
Example: You want to set the timer to 2 hours 30 minutes.
Switch the cooktop on.
^
Touch the m sensor.
^
The sensor control "m" flashes. 00 appears in the display, 0
flashes on the right.
^ Touch the h sensor to set the display to hours.
^ Touch the area between two and three.
The m sensor and the timer light up constantly after a few
seconds. The minute minder will begin to count down.
35
Timer
Change
Delete
Touch the m sensor.
^
Set a new minute minder time, as described above.
^
Touch the m sensor.
^
Touch the "0" on the number sensor scale.
^
36
To switch a cooking zone off automatically
You can set a time after which the cooking zone will switch off
automatically.
All cooking zones can be programmed for the same time.
If the time programmed is longer than the maximum
operational time allowed, the cooking zone will switch off
after the maximum time allowed (see relevant section).
Select a power setting for the zone you require.
^
Touch the m sensor until the indicator lamp for the zone
^
you require flashes.
If more than one cooking zone is switched on, the indicator
lamps will light up clockwise beginning with the front left
zone.
^ Select the setting you require.
The time then counts down in minutes. The time remaining
can be seen in the display and can be changed anytime.
If you want to set another cooking zone to switch off
automatically, follow the same steps as described above.
Timer
If more than one switch-off time is programmed, the shortest
time remaining will show in the display, and the indicator
lamp for that particular cooking zone will flash. All the other
indicator lamps will light up constantly. If you want to check
on the remaining time, touch the m sensor until the indicator
lamp for the zone you require flashes.
37
Timer
To use both timer functions at the same time
The minute minder and automatic switch-off functions can be
used at the same time.
If you have programmed in one or more switch-off times, and
would like to use the minute minder as well:
Touch the m sensor repeatedly until the indicator lights for
the cooking zones selected light up continuously and 00
appears in the timer display.
If you are using the minute minder, and would like to
programme in one or more switch-off times as well:
Touch the m sensor repeatedly until the indicator lamp
flashes for the cooking zone required.
Shortly after the last entry, the Timer display switches to the
function with the shortest remaining time.
If you want to check on the remaining time, touch the m
sensor repeatedly until
- the indicator lamp for the zone you require flashes.
(Automatic switch-off).
- only the Timer display flashes (minute minder).
Starting with the shortest remaining time which is showing in
the display, all cooking zones that are in use and the minute
minder are selected clockwise.
38
Safety lock/System lock
Keep children away from the cooktop for their own safety.
Your appliance is equipped with a safety lock to prevent the
cooktop and the cooking zones being switched on or any
settings being altered.
The safety lock can be activated when the cooktop is
switched on. If the safety lock is activated:
The settings for the cooking zones and the timer settings
–
cannot be changed.
The cooking zones, the cooktop and the timer can be
–
switched off, but once switched off cannot be switched on
again.
The system lock can be activated when the cooktop is
switched off. If the system lock is activated, the cooktop
cannot be switched on and the timer cannot be used.
The cooktop is programmed in such a way that the system
lock has to be operated manually.
The settings can be changed so that the system lock is
activated automatically five minutes after the cooktop has
been switched off (see "Programming").
Safety features
If a prohibited sensor is touched while the safety lock or
system lock is activated, the indicator light and the Timer
display will appear for a few seconds LC.
Three-finger operation is set at the factory. You can change
this setting to one-finger operation (see "Programming").
The safety lock and the system lock will be deactivated in
the case of a power cut.
39
Safety features
To activate
Three-finger operation (factory default setting)
^
The indicator light and LC will go out after a short time.
One-finger operation
^
The indicator light and LC will go out after a short time.
To deactivate
Three-finger operation (factory default setting)
^ Touch the $ sensor and setting "0" of both of the right-hand
One-finger operation
Touch the $ sensor and setting "0" of both of the right-hand
cooking zones simultaneously until the safety lock indicator
light and LC appear in the timer display.
Touch the $ sensor until the safety lock indicator light and
LC appear in the timer display.
cooking zones simultaneously until the safety lock indicator
light and LC disappear.
40
^ Touch the $ sensor until the safety lock indicator light and
LC disappear.
Stop and Go
The Stop and Go function reduces the power setting of all
cooking zones to 1. The settings for the cooking zones and
the timer settings cannot be changed, the cooktop can only
be switched off.
When deactivated, the cooking zones continue to operate on
the power settings last set.
If the function is not deactivated, the cooktop will switch off
after 1 hour.
When activating "Stop and Go"
- the countdown of a time programmed for automatic
switch-off will be interrupted. When deactivating "Stop and
Go", the timer continues to count down.
- the minute minder will continue without interruption.
To activate "Stop and Go"
^ Touch the sensor.
The power setting of the cooking zones is reduced to 1.
To deactivate "Stop and Go"
Safety features
^ Touch the sensor.
The cooking zones continue to operate on the power setting
previously set.
41
Safety features
Safety cut-out
Safety switch-off with an over-long cooking time
If one of the cooking zones is heated for an unusually long
period of time (see chart), and the power settings are not
altered, the cooktop will switch itself off automatically and the
corresponding residual heat indicator will appear.
To use the cooking zone again, switch it back on in the usual
way.
Power setting* Maximum operating time in hours
1/1+ 10
2/2+ 5
3/3+ 5
4/4+ 4
5/5+ 3
6/6+ 2
7/7+ 2
8/8+ 2
91
* The power levels 1+ etc. are only available if the power
setting range has been extended (see "Programming").
Safety switch-off if the sensors are covered
Your cooktop will switch off automatically if one or several of
the sensors remain covered for longer than 10 seconds, for
example, by finger contact, food boiling over or by an object
such as an oven glove or tea towel.
F will flash in the timer display. An audible tone will sound
every 30 seconds (for a maximum of ten minutes).
^
Clean the control area or remove the obstruction.
This will turn off the tone and the F will go out. You can
operate the appliance again.
42
Overheating protection
All the induction coils and the cooling elements for the
electronics are fitted with an overheating protection
mechanism. To prevent the induction coils and cooling
elements from overheating, the overheating protection
mechanism works in the following ways:
Induction coil
If the Booster function is being used, this will be switched
–
off.
The power setting will be reduced.
–
The cooking zone switches off automatically.
–
"FE" flashes alternately with "44" in the timer display.
The cooking zone can be used again once the fault message
disappears.
Cooling elements
– If the Booster function is being used, this will be switched
off.
Safety features
– The power setting will be reduced.
– The cooking zones switch off automatically.
The affected cooking zones can only be used again as usual
once the cooling element has cooled down to a safe level.
Overheating can be caused by:
–
heating up an empty pan
–
fats or oils being heated up on the highest power setting
–
insufficient ventilation to the underside of the appliance
–
a hot cooking zone being switched on again after a
power-cut.
If the overheating protection mechanism triggers again,
contact Miele.
43
Cleaning and care
,
appliance. The steam could reach the electrical
components and cause a short circuit.
The appliance should be cleaned regularly, preferably after
each use. Allow it to cool down to room temperature before
cleaning.
To avoid water marks and limescale deposits, use a soft cloth
to dry surfaces that have been cleaned with water.
To avoid damaging the outer surfaces of your appliance,
do not use:
liquid detergent
–
– cleaning agents containing soda, alkalines, ammonia,
acids or chlorides,
– cleaning agents containing descaling agents,
– stain or rust removers,
– abrasive cleaning agents, e.g. powder cleaners and cream
cleaners,
Do not use a steam cleaning appliance to clean this
44
– solvent-based cleaning agents,
– dishwasher cleaner,
–
grill and oven cleaners,
–
glass cleaning agents,
–
hard, abrasive brushes or sponges, e.g. pot scourers,
brushes or sponges which have been previously used with
abrasive cleaning agents,
–
Melamine foam eraser blocks,
–
sharp, pointed objects which could damage the seal
between the ceramic surface and the surrounding frame,
and between the frame and the worktop.
Ceramic surface
Cleaning and care
Wipe all coarse soiling off using a damp cloth. Stubborn
soiling may need to be removed with a shielded scraper
blade.
Then clean the cooktop with a suitable proprietary ceramic
and stainless steel cooktop cleaner (see "Accessories")
applied with kitchen paper or a clean cloth. Do not apply
cleaner whilst the cooktop is still hot as this could result in
marking. Please follow the manufacturer's instructions.
Finally, wipe the cooktop with a damp cloth, then polish with a
soft, dry cloth. Ensure that all cleaner residues are removed.
Residues can burn onto the appliance the next time it is used,
and cause damage to the ceramic surface.
Spots caused by limescale, water and aluminium residues
(spots with a metallic appearance) can be removed using the
ceramic and stainless steel cooktop cleaner.
Should any sugar, plastic or aluminium foil spill or fall onto
a hot cooking zone while it is in use, first switch off the
appliance. Then carefully scrape off all the sugar, plastic or
aluminium residues from the cooktop whilst they are still hot,
using a shielded scraper blade. Take care not to burn
yourself.
Allow the appliance to cool down, and then clean as
described above with a suitable proprietary ceramic and
stainless steel cooktop cleaner.
45
Programming
You can change the default settings of the programme
options (see chart). Several settings can be altered in
succession.
After calling up the programming, P (programme) and S
(status) appear in the timer display; in all cooktops with three
cooking zones another selection scale will light up in the rear
left.
The programme is displayed in the front left and rear left
cooking zone displays. Example:
Programme 3 = front left 3, rear left 0
Programme 14 = front left 4, rear left 1
The status is displayed in the front right of the control panel.
After leaving programming, an automatic reset is carried out.
It is finished when an indicator lamp briefly lights up over the
s sensor.
Do not switch the cooktop on before reset has finished,
otherwise a fault message will appear and the reset will be
carried out again.
Calling up programming
^ While the cooktop is switched off, touch the sensor
switches s and $ at the same time until the indicator light
for the safety lock flashes.
To set the programme
^
To set the unit digits, touch the required number of the
front left selection scale.
^
To set the tens digits, touch the required number of the
rear left selection scale.
To set the status
^
Touch the required number on the front right selection
scale.
How to save the settings
^
Touch the s sensor until the displays go out.
How to avoid saving the settings
^
Touch the $ sensor until the sensors go out.
46
Programme* Status** Setting
Programming
P0Demonstration mode and
factory default settings
P2Power setting range S0 9 power settings
P3Induction warning tone
when there is no pan or
the pan is unsuitable
P4Keypad tone when a
sensor is touched
P5Audible tone for the timer S 0 Off
S 0 Demonstration mode on
S1 Demonstration mode off
S 9 Factory default settings reinstated
(1, 2, 3 ... to 9)
S 1 17 power settings
(1, 1+, 2, 2+, 3 ... to 9)
S0 Off
S 1 Quiet
S 2 Medium
S 3 Loud
S 0 Off
S 1 Quiet
S2 Medium
S 3 Loud
S 1 Quiet audible tone on for 10
seconds
S2 Medium audible tone on for 10
seconds
S 3 Loud audible tone on for 10
seconds
P6Safety lock S 0 One-finger locking using $
S1 Three-finger locking using $ and
"0" on the two right-hand cooking
zones
* Programmes/Status not shown here have no allocation.
** The factory default settings are shown in bold.
47
Programming
Programme* Status** Setting
P7 System lock S0 Activating the system lock
manually
S 1 Activating the system lock
manually and automatically
P8 Auto heat-up S 0 Off
S1 On
P10Miele|home
- only on
communication-enabled
appliances fitted with a
communication module.
P15Safety switch-off if the
sensors are covered
P16Sensor switch reaction
speed
* Programmes not shown here have no allocation.
** The factory default settings are shown in bold.
S0 Feature not fitted
S 1 Logged off
S 2 Logged on
S0 Off
S1 On
S 0 Slow
S1 Normal
S 2 Rapid
48
Problem solving guide
With the aid of the following guide, minor problems can be easily corrected
without contacting Miele. This will save you time and money because you won't
need to book a service technician.
The following information may help you to find the reason for a fault, and to correct
it. Please note that a call-out fee will be applied for unnecessary service visits
where the problem could have been rectified as described in these Operating
instructions.
Installation work and repairs to electrical appliances must only be carried
,
out by a suitably qualified and competent person in strict accordance with
current local and national safety regulations. Repairs and other work by
unqualified persons could be dangerous. The manufacturer cannot be held
liable for unauthorised work.
Problem Possible cause Remedy
The cooktop or
cooking zones
cannot be switched
on.
The fuse is defective or has
tripped.
There may be a technical
fault.
Reset or replace the fuse
(Minimum fuse rating - see
data plate).
Disconnect the appliance
from the mains connection
for approx. 1 minute:
– switch off at the wall
socket, or unplug the
safety fuse, or
–
switch off the
fault-current circuit
breaker.
Reset the trip switch in the
mains fuse box, and switch
the appliance back on. If it
still will not switch on,
contact a qualified
electrician or Miele.
49
Problem solving guide
Problem Possible cause Remedy
There is a strange
smell or vapours
when a new appliance
is being used.
Power settings 1-9 are
flashing.
LC" appears in the
timer display for a few
seconds after
switching on the
cooking zone.
After switching on the
cooking zone, "dE"
appears in the timer
display for several
seconds.
The cooking zones
won't heat up.
A cooking zone or the
entire appliance
switches off
automatically.
There is no pan or an
unsuitable pan on the
cooking zone.
The system lock has been
activated.
The appliance is in
demonstration mode.
A cooking zone has been
operated for too long.
The smell and any vapours
will dissipate after a short
time.
Use suitable pans (see
"Pans").
You need to deactivate the
system lock (see "Safety
lock").
You need to deactivate the
demonstration mode (see
"Programming").
This doesn't indicate a
fault. You can continue
operation (see "Safety
switch-off").
The Booster function
has automatically
deactivated early.
The cooking zone is
not working in the
usual way at the
power setting
selected.
50
The overheating protection
mechanism has been
activated.
The overheating protection
mechanism has been
activated.
See "Overheating
protection".
See "Overheating
protection".
Problem solving guide
Problem Possible cause Remedy
Power setting 9 is
automatically reduced
if the combined
cooking and casserole
zones are set to power
setting 9.
The appliance switches
off during operation
and F flashes in the
timer display.
The food in the pan
hardly heats up or does
not heat up at all when
the Auto heat-up
function is switched
on.
The fan continues to
run after the cooktop
has been switched off.
If both zones are
operated on power
setting 9, the overall
power outlet might be
exceeded.
One or several of the
sensors are covered,
for example, by finger
contact, food boiling
over or by an object
such as an oven glove
or tea towel.
There is too much food
in the pan.
The pan is not
conducting heat
properly.
The fan will continue
running until the
appliance has cooled
down. It will then
switch itself off
automatically.
Clean the control area or
remove the obstruction (see
"Safety switch-off").
Start cooking at the highest
setting, then turn the heat
down manually.
51
Problem solving guide
Problem Possible cause Remedy
The sensor switches
show increased
sensitivity or fail to
react.
FE flashes alternately
with a number in the
timer display.
FE 44 The overheating protection
FE 47 The fan is blocked or
FE 48
Other fault messages
FE..
The sensitivity level of the
sensor switches has
changed.
mechanism has been
activated.
faulty.
There has been a fault in
the electronics.
Make sure that there is no
direct light (from the sun or
from an artificial source)
falling onto the cooktop. The
area surrounding the cooktop
must not be too dark.
Make sure the cooktop or the
sensor switches aren't
covered. Take any pans off
the cooktop and wipe away
any food deposits.
Interrupt the power supply to
the cooktop for approx. 1
minute. If this does not solve
the problem, please call
Miele.
See "Overheating protection".
Check whether the fan is
blocked by an object, e.g. a
fork, and remove the
obstruction. If the fault
message does not disappear,
call Miele.
Interrupt the power supply to
the cooktop for approx. 1
minute. If the problem
persists after reconnecting
the appliance to the power
supply, please contact Miele.
52
Optional accessories
Miele offers a range of useful accessories designed for your
appliance.
These can be ordered via the internet at
www.miele-shop.com (depending on country) or from Miele
(see back cover).
Saucepans and frying pans
Pans in various sizes
Frying pan with lid
Anti-stick pans
Wok
Gourmet oven dish
Cleaning product
Original Miele ceramic and stainless steel cooktop cleaner
250 ml
Removes heavy soiling, limescale deposits and aluminium
residues.
Original Miele all purpose microfibre cloth
Removes finger marks and light soiling.
53
Optional accessories
Miele|home system
(Available in selected countries only)
Miele|home enabled appliances use the existing household
power supply (Powerline technology) to transfer data to the
Miele|home master appliance (SuperVision appliance with
the InfoControl unit). You can use the master appliance to call
up information about Miele|home appliances, such as the
operational status or fault messages at any time.
The Miele|system allows certain cooktops to be linked to
certain rangehoods (Con{ctivity).
The rangehood responds automatically to the cooktop
setting, controlling the power setting and lighting accordingly.
To enjoy the benefits of this feature, your appliance will have
to be fitted with a communication module.
XKM 2100 KM
Communication module, including building-in kit.
InfoControl
54
Master appliance with base station and mobile receiver.
Con|ctivity and Miele|home
Description of the functions of Con|ctivity
Con|ctivity is the communication between the cooktop and
the rangehood.
The operation of the rangehood is automatically controlled
depending on the power setting of the cooktop.
To enable communication between the two appliances, the
rangehood has to be equipped with the communication
module XKM 2000 DA a and the cooktop with the
communication module XKM 2100 KM b.
The cooktop transmits information about the operational
status via the household wiring system c to the rangehood.
55
Con|ctivity and Miele|home
Description of the functions of Miele|home
Miele|home enabled appliances use the existing household power supply
(Powerline technology) to transfer data to the Miele|home master appliance
(SuperVision appliance with the InfoControl unit). You can use the master
appliance to call up information about Miele|home appliances, such as the
operational status or fault messages at any time.
Parts of the system
a Communication module
b Communication enabled appliances (Examples)
c 230-Volt power supply (Powerline technology)
d SuperVision-appliances as a fixed master unit, e.g. oven
e InfoControl as a mobile master unit (base station and mobile receiver)
56
Sign on cooktop
Con|ctivity and Miele|home
If you want to
sign on your cooktop to Miele{home, you will need to
–
prepare the sign-on process on the master unit first (see
Installation instructions "Miele|home").
sign on your cooktop to Con|ctivity, you will first need to
–
sign on the rangehood (see Installation instructions
"Con|ctivity").
While the cooktop is switched off, touch the sensor
^
switches s and $ at the same time until the indicator light
for the safety lock flashes.
After calling up programming, P (programme), S (status) and
numbers appear in the timer display.
The selection scales will show the programme number on the
left and the set status on the right.
^ Touch the number 1 on the rear left selection scale (set to
programme 10).
^ Touch the number 2 on the front right selection scale (set
to status 2 = sign on).
The sign on process will start and the number 2 will start
flashing in the front right selection scale. The sign-on process
will take several minutes. When the sign on process is
finished, the number 2 will light up constantly.
^
Touch the s sensor until the displays go out.
^
Proceed as described in the Installation instructions for
"Miele|home" and Con|ctivity".
57
Con|ctivity and Miele|home
Sign off cooktop
If you want to sign your cooktop off from Miele{home, you
will need to prepare the sign-off process on the master unit
first (see Installation instructions "Miele|home").
While the cooktop is switched off, touch the sensor
^
switches s and $ at the same time until the indicator light
for the safety lock flashes.
After calling up programming, P (programme), S (status) and
numbers appear in the timer display.
The selection scales will show the programme number on the
left and the set status on the right.
Touch the number 1 on the rear left selection scale (set to
^
programme 10).
^ Touch the number 1 on the front right selection scale (set
to status 1 = sign off).
The sign-off process will start and the number 1 starts
flashing in the front right selection scale. The sign-off process
will take several minutes. When the sign-off process is
finished, the number 1 will light up constantly.
58
^ Touch the s sensor until the displays go out.
^ Proceed as described in the Installation instructions for
"Miele|home" and Con|ctivity".
Safety instructions for installation
Fit wall units and rangehood before
fitting the cooktop to avoid
damaging the surface.
The veneer or laminate coatings of
~
worktops (or adjacent kitchen units)
must be treated with 100 °C
heat-resistant adhesive which will not
dissolve or distort.
Any backmoulds must be of
heat-resistant material.
The cooktop may not be built in over
~
a fridge, fridge-freezer, freezer,
dishwasher, washing machine or
tumble dryer.
These cooktops must not be
~
installed above ovens or cookers
unless these have a built-in cooling
down fan.
After installing the cooktop, ensure
~
that the connection cable cannot come
into contact with the underside of the
appliance. Make sure that there is no
mechanical obstruction, such as a
drawer, which could damage it.
Observe carefully the safety
~
distances given on the following pages.
All dimensions in this instruction booklet
are given in mm.
This appliance must be installed
,
and connected to services in
accordance with local and national
safety and building regulations.
59
Safety clearances
Safety distance above the appliance
A minimum safety distance must be
maintained between the appliance and
the rangehood above it. See the
rangehood manufacturer’s operating
and installation instructions for details.
If the manufacturer’s instructions are
not available for the rangehood, a
minimum safety distance of at least
760 mm must be maintained. For any
flammable objects, e.g. utensil rails,
wall units etc., a minimum distance of at
least 760 mm must be maintained
between them and the appliance
below.
When two or more appliances are
installed together below a
rangehood, e.g. a gas wok and an
induction cooktop, which have
different safety distances given in
the installation instructions, you
should select the greater distance of
the two.
60
Side / rear clearances to the cooktop
Ideally the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear and a
tall unit or wall at one side. On the other
side, however, no unit or divider should
stand higher than the cooktop (see
illustrations).
Safety clearances
Not allowed
Recommended
Not recommended
Not recommended
61
Safety clearances
Before installing the appliance, check
that the location provides the required
clearances from combustible material
and, if necessary, provide protection to
adjacent surfaces as required by
regulations.
The minimum side clearance from a
cooktop to a combustible surface* shall
be a 300 mm horizontal distance from
the periphery of any electric burner.
The minimum rear clearance from a
cooktop to a
combustible surface* shall be a
–
200 mm horizontal distance from the
periphery of any electric burner.
– non-combustible surface or
splashback shall be a 50 mm
horizontal distance from the rear
edge of the cooktop.
If the clearance between the periphery
of any electric burner and
- the side wall is less than 300 mm,
- the rear wall is less than 200 mm,
the walls must be protected with a
non-combustible material.
The protection must be extended a
minimum distance of 150 mm above
the burner. The shown area indicates
the protected surface, which may be
ceramic tiles or other approved
material.
62
* Combustible surface:
The surface of a material that is
capable of catching fire and
burning at temperatures exceeding
50 K above ambient.
Safety clearances
Safety distances underneath the
cooktop
To ensure sufficient ventilation to the
cooktop, a certain gap must be left
between the underside of the cooktop
and any oven, interim shelf or drawer.
The minimum gap between the
underside of the cooktop and
the top of an oven is 15 mm.
–
the top of an interim shelf is 15 mm.
–
the base of a drawer must be
–
75 mm.
Interim shelf
It is not necessary to install an interim
shelf underneath the cooktop.
A gap of 10 mm is needed at the back
for laying the mains connection cable.
For better cooktop ventilation, however,
a gap of 20 mm is recommended.
63
Safety clearances
Cooktops with frames and
bevelled edges
Seal between the cooktop and the
worktop
The sealing strip under the edge of the
top part of the appliance provides a
sufficient seal for the worktop.
Do not use any additional sealant
(e.g. silicone) between the
appliance and the worktop.
This could cause difficulties if the
appliance ever needs to be taken
out for servicing and possibly result
in damage to the cooktop or the
worktop.
Tiled worktop
Grout lines a and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.
Tiled worktops must be a minimum
5 mm thick to ensure the surface
temperatures of the combustible
surfaces underneath the tiles do not
exceed 50 K above ambient.
64
KM 6350
Building-in dimensions
a Front
b Building-in height
c Miele|home connection
d Mains connection box
The mains connection cable (L=1440 mm) supplied is not fixed.
65
Building-in dimensions
KM 6380
a Front
b Building-in height
c Miele|home connection
d Mains connection box
The mains connection cable (L=1440 mm) supplied is not fixed.
66
KM 6382
Building-in dimensions
a Front
b Building-in height
c Building-in height mains connection cable
d Mains connection cable, L = 1,440 mm
e Miele|home connection
Building-in height with Miele|home connection cable = 54 mm
67
Installation
Preparing the worktop
Make the worktop cut-out for one or
^
more appliances as applicable.
Remember to maintain a minimum
safety distance (see "Safety
instructions for installation").
Seal the cut surfaces with a suitable
^
heat-resistant sealant to avoid
swelling caused by moisture.
Make sure these materials do not
come into contact with the surface of
the worktop.
This cooktop has a seal underneath it
to keep the cooktop securely in
position. Clamps are not required.
Any gap between the frame and
worktop will reduce with time.
Connecting the mains connection
cable to the appliance
Installing the cooktop
Feed the mains connection cable
^
down through the cut-out.
Place the cooktop centrally in the
^
cut-out. When doing this, make sure
that the seal of the appliance sits
flush with the worktop on all sides.
Do not use any additional sealant
(e.g. silicone).
If, during installation, you find that the
seals on the corners are not flush
with the worktop, the corner radii
ß R4, can be carefully scribed to fit.
^ Connect the cooktop to the mains.
^ Check that the cooktop works.
The mains connection cable must
be connected by a suitably qualified
and competent electrician in
accordance with current local and
national safety regulations.
^
Connect the mains connection to the
appliance according to the
connection diagram (see "Electrical
connection").
68
All electrical work should be carried
out by a suitably qualified and
competent person in strict
accordance with national and local
safety regulations.
Electrical connection
Important
The wires in the mains lead are
coloured in accordance with the
following code:
Green/yellow = earth
For extra safety, it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA.
Connection for each appliance should
be made via a suitable isolator.
The data plate gives the necessary
data for connection.
WARNING
THIS APPLIANCE MUST BE
EARTHED
Blue = neutral
Brown = live
As the colours of the wires in the mains
lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows:
– The wire which is coloured green
and yellow must be connected to the
terminal in the plug which is marked
with the letter E or by the earth
symbol - or coloured green or
green and yellow.
– The wire which is coloured blue must
be connected to the terminal which
is marked with the letter N or
coloured black.
–
The wire which is coloured brown
must be connected to the terminal
which is marked with the letter A or
coloured red.
69
Electrical connection
Wiring diagram
N.B. This appliance is supplied
single phase
70
After sales service, data plate
The address and phone number of your nearest Miele office is given on the back
page.
The voltage and rated load are given on the data plate. Please quote this data,
together with the model description and serial number when contacting Miele.
Space in which to adhere the extra data plate supplied with the appliance. Ensure
that the model number is the same as the one on the front of these operating
instructions.
71
Alteration rights reserved/ 4510
M.-Nr. 07 840 000 / 02
Loading...
