Operating Instructions
Ceramic Cooktop
KM 443
To prevent accidents and
appliance damage,
read these instructions
before installation or use.
UV
M.-Nr. 04 776 091
Contents
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Help protect our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Disposal of the packing materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Disposal of an old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Guide to the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Residual heat indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Locking a burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic shut off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Variable and extended burners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
The cooking surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cooktop care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2
IMPORTANT SAFETY INSTRUCTIONS
READ THE OPERATING
INSTRUCTIONS CAREFULLY
BEFORE USING THE
COOKTOP
When using your appliance, follow
basic safety precautions including
the following:
WARNING -
This appliance is intended for
residential cooking only. The
manufacturer cannot be held
responsible for damage or
injury caused by improper use
or for uses other than those
for which the appliance is
intended.
Installation
Be certain your appliance is
properly installed and grounded by
a qualified technician in strict
accordance with national and local
safety regulations. The manufacturer
cannot be held responsible for damage
caused by incorrect installation or
connection.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement is met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy of, an
effective grounding system.
Do not connect the appliance to
the main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
Before servicing, disconnect the
power supply by either removing
the fuse, unplugging the unit or
"tripping" the circuit breaker.
3
IMPORTANT SAFETY INSTRUCTIONS
Do not install the cooktop directly
above a dishwasher, refrigerator or
freezer. Heat radiated by the cooktop
may damage other appliances.
If the cooktop is installed above an
oven, keep the cooktop’s power
cord from contacting the oven.
Because of the heat radiated it is
not recommended to install the
cooktop above a drawer. It should only
be installed above a cabinet base unit
with a dummy drawer front and an
additional protective base between the
appliance and the cabinet.
This equipment has not been
designed for maritime use or for
use in mobile installations such as
aircraft or recreational vehicles.
However, under certain circumstances
it may be possible for an installation in
these applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements.
Use
Do not use the appliance until it is
properly installed in the countertop.
This appliance is equipped with an
overheating protection. For more
information, see "Overheating
protection".
Never use the appliance to warm
or heat the room. Due to the high
temperatures radiated objects left near
the appliance could catch fire.
Protection from damage
Do not drop or rest anything on the
surface of the cooktop. Although
the ceramic glass is shock and scratch
resistant, it is not shock or scratch
proof.
Do not use pots or pans with
pronounced edges or ridges on
the ceramic cooktop. These could
scratch the cooktop permanently. See
also, "Selecting cookware" for more
information. Grains of salt and sand can
also scratch. Make sure that the bases
of any pots and pans are clean, free of
any fat or oils and dry.
Do not allow solid or liquid sugar,
pieces of plastic or aluminum foil to
fall on the cooking zones when they are
hot. If these residues are allowed to
cool on the ceramic surface pitting or
even cracking could occur.
Any spills should be removed as
quickly as possible to prevent them
from burning on and becoming difficult
to remove.
Do not use a steam cleaner to
clean the appliance. Steam could
penetrate electrical components and
cause a short circuit.
Never place hot pots or pans over
the touch controls, as the
electronics may be damaged.
4
IMPORTANT SAFETY INSTRUCTIONS
Injury prevention
Do not touch the cooktop or the
area surrounding it during or imimmediately after use. The cooktop may
be hot even though it is dark in color.
Areas near it may become hot enough
to cause burns. During or after use, do
not touch, or let clothing or other
flammable materials touch the cooktop
or surface areas near it until they have
cooled. Wait for the residual heat
indicator lights go out.
CAUTION: Do not store toys or
items of interest to children in
cabinets above or behind the
appliance. Children climbing onto the
cooktop to reach these items may be
injured.
Children should not be left alone in
the area where the appliance is in
use. They should never be allowed to
sit or stand on any part of the
appliance.
Protect your hands with insulated
gloves or potholders when using
the appliance. Only use dry, heat
resistant potholders. Moist or damp
potholders used on hot surfaces can
result in steam burns. Do not let the
potholder touch the heating element.
Do not use towels or other bulky items
near the appliance.
Clean the cook top with caution -
If a wet sponge or cloth is used to
wipe spills off a hot cooking area, be
careful to avoid steam burns.
Also, some cleaners can produce
harmful fumes if applied to a hot
surface.
Keep all pans out of reach of
children. Danger of burns!
Pan handles should be turned in
and not extend over the area of a
burner to reduce risk of burns, ignition
of flammable materials, and spills due
to unintentional contact with the pan.
5
IMPORTANT SAFETY INSTRUCTIONS
Use the proper pan size. Select
pans having flat bottoms large
enough to cover the surface unit
heating element. The use of undersized
pans will expose a portion of the
heating element to direct contact and
may result in ignition of clothing. Proper
relationship to burner will also improve
efficiency.
Only certain types of glass,
glass/ceramic, ceramic
earthenware, or other glazed pots and
pans are suitable for range-top service
without breaking due to sudden change
in temperature.
Do not heat unopened food
containers. Built-up pressure may
cause the container to burst and result
in injury.
Never leave surface units
unattended at high heat settings.
Boil overs cause smoking and greasy
spillovers may ignite.
Before removing pots and pans, be
sure to turn off the burners.
Do not store items on the
appliance when not in use. Items
could melt or catch fire from residual
heat or if the cooktop is turned on
inadvertently.
Never cover the cooktop with a
cloth. A fire could result.
Never leave the cooktop
unattended when cooking with oil
or fat. Overheated fat could ignite.
Always heat oil slowly, monitoring it as it
heats.
Do not use water on grease fires.
Smother any fire or flame, or use a
dry chemical or foam-type extinguisher.
When frying food, make sure that
the food is as dry as possible
before placing it in the oil. Moisture can
cause hot oil to splatter and boil over.
Do not flambé under an exhaust
hood. Flames could be drawn up
into the hood by the suction and possibly cause the grease filters to ignite.
Do not let cooking grease or other
flammable materials accumulate
on the appliance.
Be aware of loose fitting or hanging
garments when operating the
cooktop, they may present a fire
hazard.
Flammable materials should not be
stored in a oven or near surface
units.
If there is a drawer directly
underneath the appliance without
any wooden base in between, ensure
that no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, they must be
made of heat-resistant material.
6
IMPORTANT SAFETY INSTRUCTIONS
Appliance safety
In the event of any damage to the
appliance, it must be turned off
immediately and disconnected from the
electrical supply by either removing the
fuse or manually "tripping" the circuit
breaker.
Contact the Miele Technical Service
Department.
Do not use the appliance until it has
been repaired. Ensure power is not
supplied to the appliance until repair
work is completed.
Do not cook on a broken cooktop.
Any breaks or cracks in the
ceramic surface of the appliance are
hazardous.
If the cooktop should break, liquids
could penetrate the broken cooktop
and create a risk of electric shock.
Do not use the appliance until it has
been repaired. Contact a qualified
technician immediately.
Repairs should only be performed
by qualified technicians to ensure
safety. Repairs and other work by
unqualified persons could be
dangerous. Under no circumstances
open the outer casing of the appliance.
While the appliance is under
warranty repairs should only be by
a Miele authorized service technician.
Otherwise the warranty is void.
7
IMPORTANT SAFETY INSTRUCTIONS
Further safety notes
When using a portable appliance
near the cooktop, make sure that
its power cord does not come into
contact with the cooktop. The insulation
of the power cord could be damaged.
Danger of electric shock!
Only use cookware suitable for the
cooktop. Unsuitable cookware may
break due to sudden temperature
changes.
Do not use plastic or aluminum
containers. They will melt at high
temperatures. Fire hazard!
Do not heat empty pots or pans,
they may be damaged.
Do not allow children to operate or
play with or near the cooktop.
If a pet hops onto the cooktop, a
touch control sensor could be
activated and a burner turned on. Keep
pets away from the cooktop at all times
and activate the child safety lock.
Before discarding an old
appliance, remove the power cord
to prevent hazards.
SAVE THESE INSTRUCTIONS
8
Help protect our environment
Disposal of the packing
materials
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Please recycle.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old appliance
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet and
cut off its power cord to prevent
hazards.
9

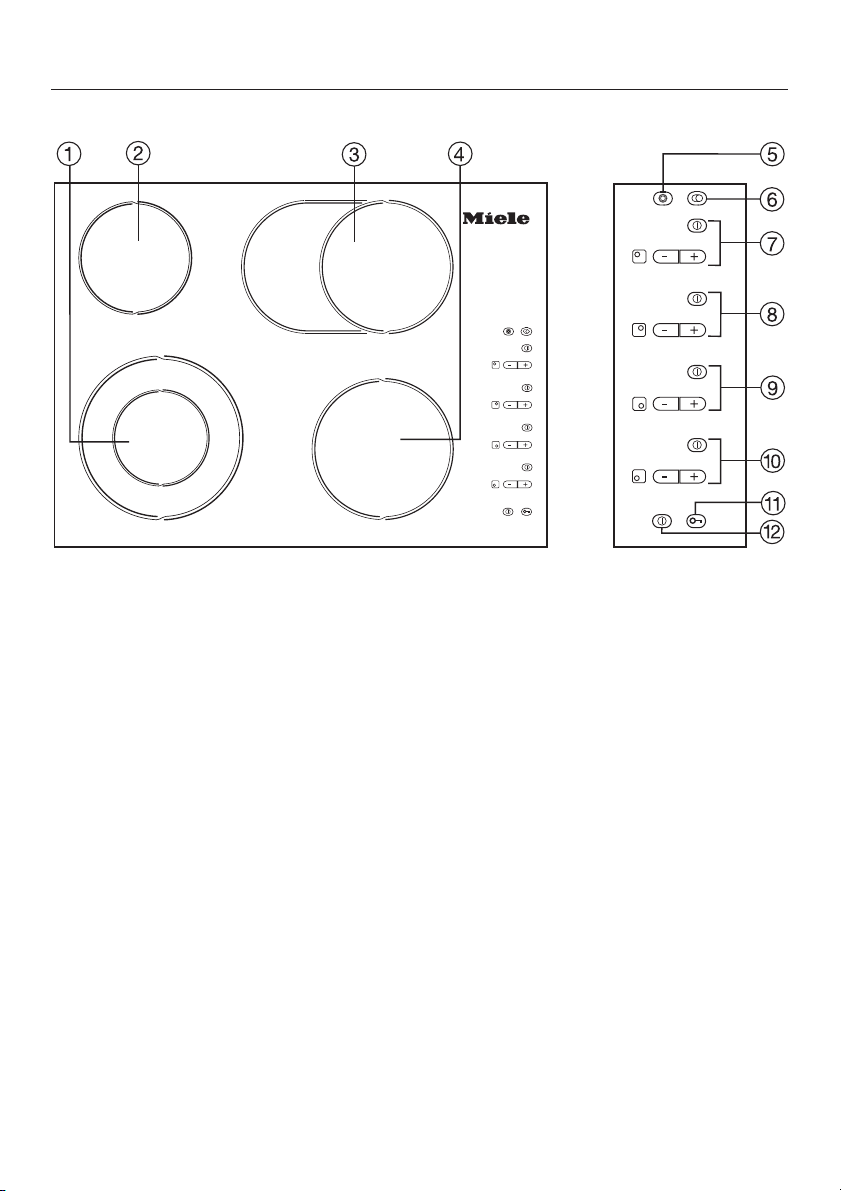

Guide to the cooktop
KM 443
Burners
a Variable burner
bd Single burner
c Extended burner
10
Touch controls
e Variable burner selector
f Extended burner selector
g Left rear control and display
h Right rear control and display
i Right front control and display
j Left front control and display
k Control lock
l Cooktop On/Off control
Cooking zones
Cooking zone KM 443
Ø in inches Ø in cm Rating in watts
front left
a
rear left
3
4
/4"
1
/4"
8
3
5
/4" 14.5 1200
b
rear right
c
front right
6
3
6
/4x 10 ½
7
3
/4"
17 x 26.5
1
/
8
d
Guide to the cooktop
12
21
17
18 1800
750
2200
1500
2400
Total: 7600
11
Use
This cooktop is equipped with
electronic touch controls activated by a
light touch of the fingertip.
Only touch one control at a time. If
more than one control is pressed, the
entries will be ignored.
Keep the area around the touch
controls clean at all times. Dirt or
utensils placed on the controls may
activate them.
When cleaning the cooktop, make
sure the cooktop is "Off", and be
careful not to accidentally turn it
"On".
Never place hot pots or pans over
the touch controls, as the underlying
electronics may be damaged.
The cooktop is safe to clean when all
the displays, including the residual heat
indicators are "Off".
Before using for the first time
^
To avoid scratching the ceramic
glass, clean the cooktop before the
first use in order to remove any dust
or fine particles left over from the
installation process (see "Cleaning
and care"). An odor may be
noticeable during the first use of
each burner as the residual moisture
left in the heating element insulation
dries out. This is normal.
Turning on the cooktop
Place your finger on the "On / Off"
^
button, l, for about 2 seconds until a
dot lights up above it. A "–" will
appear in each of the 4 displays.
Individual burners and power settings
can now be selected. If a selection is
not made within a few seconds, the
cooktop will turn itself off.
Selecting a burner
Press the "s" touch control for the
^
desired burner. A "0" will appear in its
display.
The zone has now been selected.
It will not heat until a power setting is
entered.
Choosing or changing a power
setting
^ Use the "_" touch control to
select one of the 9 available power
settings. Hold your finger over the
touch control until the desired power
value is reached. Pressing "&" will
increase the setting, while pressing
"$" will decrease it.
Recommended settings for different
types of cooking can be found in the
table on the following page.
12
Use
Recommended power settings
Cooking process Setting
Melting butter or chocolate
Dissolving gelatin
Keeping food warm
Warming small quantities
Thickening sauces or making gravy
Cooking omelets
Defrosting
Cooking rice, pasta or oatmeal
Steaming fish or vegetables
Cooking light soups or broth
Braising meat, fish or vegetables
Cooking dumplings, potatoes or
soups
Preparing jams, jellies or stewed
fruit
Frying fish or cutlets 5 - 6
Making pancakes
Frying liver, sausages or eggs
Searing large quantities of meat
Frying steaks or potatoes
Boiling large quantities of food 9
1
1 - 2
2 - 3
3 - 5
6 - 7
7 - 9
Turning off a burner
Press the s touch control for the
^
desired burner. Either a "–" or an "H"
will appear in the display.
Residual heat indicators
A flashing "H" will remain displayed for a
particular burner as long as it is still hot.
Once the zone is cool enough to safely
touch, the "H" will change to a "–". If no
other zones are being used, the
cooktop will turn itself off after a few
minutes.
Do not touch the burners or place
heat sensitive items on them when
the flashing "H" is displayed. If the
main power supply is interrupted,
the "H" will disappear, even though
the burners will still be hot!
These settings are intended only as a guide.
When using large pans or cooking large
quantities, a higher setting may be required.
When cooking smaller quantities, use a lower
setting.
13
Use
Locking a burner
Once selected, the burners can be
"locked" in order to prevent accidental
changing of the settings.
To lock the burners:
Press the "a" touch control, k, until
^
a dot lights up above it.
To turn the lock off:
Press the "a" touch control, k, until
^
the dot goes out.
Automatic shut off
If the cooktop is left "On" longer than
normal cooking generally requires, it
will turn itself off automatically. The
amount of time required, between 1
and 10 hours for this feature to activate
depends on the power setting selected.
The lower the setting, the longer it will
take to shut off. In addition, each burner
is equipped with a safety thermostat
that will shut it off if the ceramic surface
should overheat.
All burners can be shut off
simultaneously, even if the Control Lock
has been activated.
Press the main "s" touch control, l,
^
until the dot above it goes out.
Keep the area around the touch
controls clean at all times. Clean up
Boil overs and spills as soon as
possible. Dirt or utensils placed on
the controls may activate them.
Never place hot pots or pans over
the touch controls, as the underlying
electronics may be damaged.
When cleaning the cooktop, make
sure the cooktop is "Off", and be
careful not to accidentally turn it
"On".
14
Automatic pre-heat
This feature is separately available for
each burner, allowing it to reach the
desired cooking temperature quickly
without manual intervention. If the
automatic pre-heat function is selected,
the burner will heat up using its
maximum power for a pre-set time (see
table) before automatically switching to
the selected cooking temperature.
A dot will appear behind the power
setting display when this feature is
active.
Use
Setting Approximate pre-heat time
(min)
1 1.5
2 2.5
34
4 5.5
57
6 1.5
7 2.5
8 2.5
9-
Length of pre-heating
The length of the pre-heat cycle
depends upon the cooking power that
is set. When using Settings 1 - 5, food
is usually placed in the pot before
setting it on the cooktop. To
compensate for the added mass of the
food, the preheat time is increased as
the cooking power is increased.
Settings 6 - 8 are generally used for
frying or roasting where the pan needs
to be brought up to temperature before
the food is introduced. For this reason
the pre-heat times are shorter.
To Turn on "automatic pre-heat":
^ Turn on the cooktop by pressing the
"s" touch control (l) until a dot
lights up above it. A "–" will appear in
the display.
^ Turn on the desired burner by
pressing its "s" touch control. A "0"
will appear in its display.
^
Press the "$" control once. A "9" will
appear in the display.
^
Press the "&" control once. A "9." will
be displayed. The automatic pre-heat
feature is now selected. You now
have 1 second to select the desired
cooking temperature. If time elapses
before a temperature is set, the
"automatic pre-heat" feature will be
canceled.
^
Use the "$" touch control to set the
desired cooking temperature. Once
the burner has stabilized at this
temperature, the dot will disappear
from the display.
15
Use
Variable and extended burners
Variable burner
The left front burner of the cooktop is a
variable burner. Selection of a large or
standard size cooking area is possible.
The standard size burner will be used
unless the large burner has been
selected.
Touch the variable burner selector
^
"e" to turn on the large burner. A dot
will appear above the touch control
once it has been selected.
Extended burner
The cooktops right rear burner can be
extended from its normal size to a
larger, oval cooking surface.
Touch the extended burner selector,
^
"f", to increase the size of the
cooking surface. A dot will appear
above the touch control once it has
been selected.
16
Selecting cookware
The cooking surface
Your ceramic cooktop is made of an
extremely hard and durable material.
The surface is scratch resistant, not
scratch proof. Avoid using cookware
with ridged bottoms. Ridged pots with
dirty or chipped enamel bottoms may
scratch the cooktop if they are pulled
across the ceramic surface.
Make sure the cooktop and pot bottoms
are clean before cooking. Certain
items, particularly sugar grains or
crystallized liquids such as molasses or
syrups are actually harder than ceramic
and can scratch the surface if they are
not cleaned off immediately. Small or
light scratches will not affect the safety
or performance of the cooktop however.
The burner rings and touch controls are
fused into the ceramic glass and are
resistant to wear if properly maintained.
Do not use abrasive cleaners or pads,
as they may eventually wear off the
rings.
Pots and pans
Special cookware is not required, but
as is true with all types of cooking
appliances, the better the cookware,
the better the performance.
Following these tips will allow you to
make the most of your ceramic
cooktop.
– For the most even and energy
efficient cooking, the diameter of the
pots should match the diameter of
the burners as closely as possible.
– Use cookware with thick, flat, smooth
bottoms. Slightly concave bottoms
will also work adequately. Pans with
convex bottoms will not cook well.
17
Selecting cookware

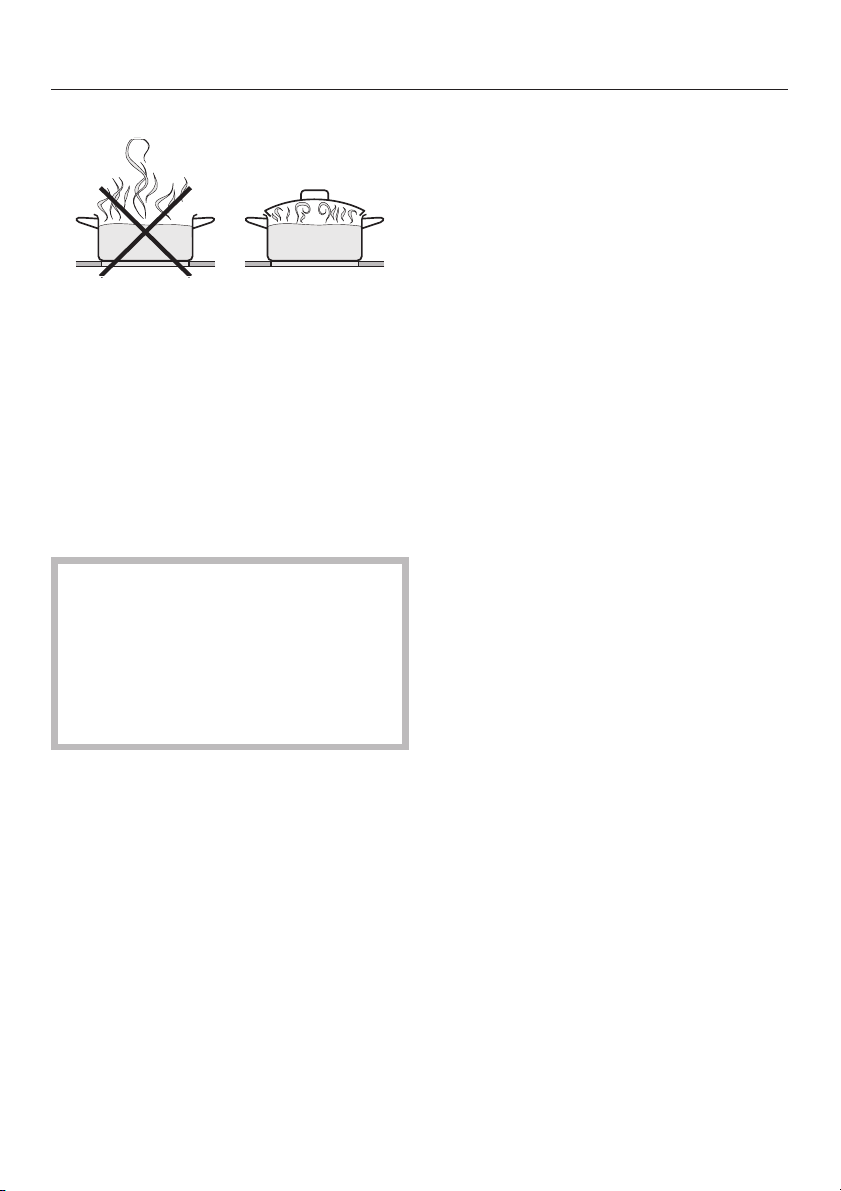

Using a lid while cooking will
–
minimize the loss of heat and
decrease the cooking time.
Copper bottom and aluminum pans
–
may leave a residue on the cooktop
in the form of metallic lines. This is
normal. These lines can be removed
using a non-abrasive ceramic
cooktop cleaner or a shielded
scraper blade.
Be sure to clean the cooktop after
each use. Each time the residue is
allowed to melt it becomes harder to
remove and may mar the
appearance of the cooktop.
Let the cooktop cool before
cleaning.
–
Cast iron, glass or stoneware should
not be used because they have poor
heat transfer and may scratch the
surface.
18
When cleaning the cooktop, make sure
the cooktop is "Off", and be careful not
to accidentally turn it "On".
Under no circumstances should a
steam cleaner be used to clean this
appliance. Pressurized steam could
cause permanent damage to the
surface and to components for which
the manufacturer cannot accept
responsibility.
Do not use any sharp pointed objects
which could damage the seal between
the ceramic surface, the surrounding
frame and the countertop.
Never use scouring agents, pads,
abrasive cleaning agents or strong
cleaners, e.g. oven sprays, stain or
rust removers, as these could
damage the surface of the appliance.
After cleaning, thoroughly dry the
ceramic surface with a soft cloth to
prevent a build up of limescale
deposits.
Cooktop care
The ceramic surface should be
^
cleaned regularly with a cleaner for
ceramic surfaces. Follow the ceramic
cleaner manufacturer’s instructions. If
you have difficulty locating a suitable
product contact Miele.
Before cleaning allow the cooktop to
^
cool. Wipe spills using a damp
sponge. Stubborn spills are best
removed with a shielded scraper
blade.
To remove any limescale deposits or
^
metallic residue apply ceramic
cleanser using a soft cloth or use a
shielded scraper blade if necessary.
^ A cleaner with a special additive to
prevent water marks and smears on
the ceramic surface may be used.
^ After cleaning, wipe the ceramic
surface with a damp cloth to remove
any residue. Cleaner residues could
damage the cooktop or create toxic
fumes when heated. Finally, dry the
cooktop with a clean soft cloth.
^
Any melted solids (e.g. sugar, plastic,
syrup, aluminum foil, etc.) should be
removed as quickly as possible and
while the burner is still warm. If they
are allowed to harden, the cooktop
may become pitted. Scrape the
melted item off the cooktop using a
shielded scraper blade. Once the
cooktop has cooled, remove any
remaining residue using a ceramic
cooktop cleaner.
19
Frequently asked questions
Repairs to the electrical components
of this appliance should only be
performed by a trained technician.
Repairs by unauthorized personnel
could cause personal injury or
damage the cooktop.
...a burner shuts off during use and
"H" flashes in the display?
If a burner has been on for an extended
period of time, it will automatically shut
itself off and flash an "H" in the display.
This time will range from 1 to 10 hours
depending on the setting selected.
Some minor problems can be resolved
as follows:
What if . . .
...you notice a slight odor when
using the cooktop for the first time?
This is normal. The residual moisture in
the internal insulation is drying out. The
odor should disappear after one or two
uses.
...a burner will not turn on?
Check to see if the cooktop has been
"locked" (see "Locking a burner").
^ Make sure the cooktop is connected
to the main power supply and that
the circuit breaker has not tripped.
To reset the burner:
Select "0" first, then select the desired
^
cooking setting.
An "H" flashing in the display after the
burner has been manually shut off is
normal. This is the residual heat
indicator telling you that the burner is
still hot.
...food does not cook satisfactorily
when using the automatic pre-heat
feature?
^ Check that the cooking setting is
correct for the pans being used and
the items being cooked.
^
If the pots have poor or slow heat
transfer qualities, they will take longer
to reach cooking temperature than
the burners. In this case, the pots
should be allowed to heat up before
placing the food in them, or a higher
cooking setting should be chosen.
20
After Sales Service
In the event of a fault which you cannot
correct yourself please contact:
your Miele Dealer
or
the Miele Technical Service Department
U 1-800-999-1360
techserv@mieleusa.com
V 1-800-565-6435
service@miele.ca
When contacting the Technical Service
Department please quote the model
and serial number of your appliance.
These are shown on the data plate.
Please paste the copy of the unit’s data
plate here.
MieleCare
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your appliance
investment is covered by 5 years of worry
free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts. Only
genuine Miele parts installed by factory
trained professionals can guarantee the
safety, reliability, and longevity of your
Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service Contracts
offered by other providers for Miele
products will not be recognized by Miele.
Our goal is to prevent unauthorized (and
untrained) service personnel from
working on your Miele products, possibly
doing further damage to them, you and/or
your home.
To learn more about MieleCare Extended
Service Contracts, please contact your
appliance dealer or visit us online at:
www.store.miele.com
21
22
Installation Instructions
To prevent accidents
and machine damage
read these instructions
before
installation or use.
Installation instructions
Please read this section in its
entirety before installing the
cooktop.
As a general rule there must be at
least 30" (760 mm) between the top
of the appliance and any object
above it. If the manufacturer of said
object recommends a different
distance, follow that manufacturer’s
recommendation.
To avoid damaging the cooktop, it
should only be placed in the
countertop after any exhaust hood
or cabinetry have been installed
above it.
Do not install the cooktop directly
above a dishwasher, refrigerator or
freezer. Heat radiated by the
cooktop may damage them.
The rated load and voltage are
printed on the data plate. Make sure
they match those of the main power
supply.
Ideally, the cooktop should be installed
with no walls (other than the rear wall)
or tall cabinets directly adjacent to it. It
can be installed next to one wall,
however, as long as the spacings listed
below are maintained.
If the cooktop is installed above an
oven, make sure the cooktop’s
power cord does not come into
contact with the oven.
To reduce the risk of burns when
reaching over the cooktop, avoid
installing the cooktop below wall
mounted cabinets.
If cabinets are installed above the
cooktop, the risk of burns can be
reduced by installing an exhaust hood
that extends at least 5" (13 cm) beyond
the bottom of the cabinet.
24

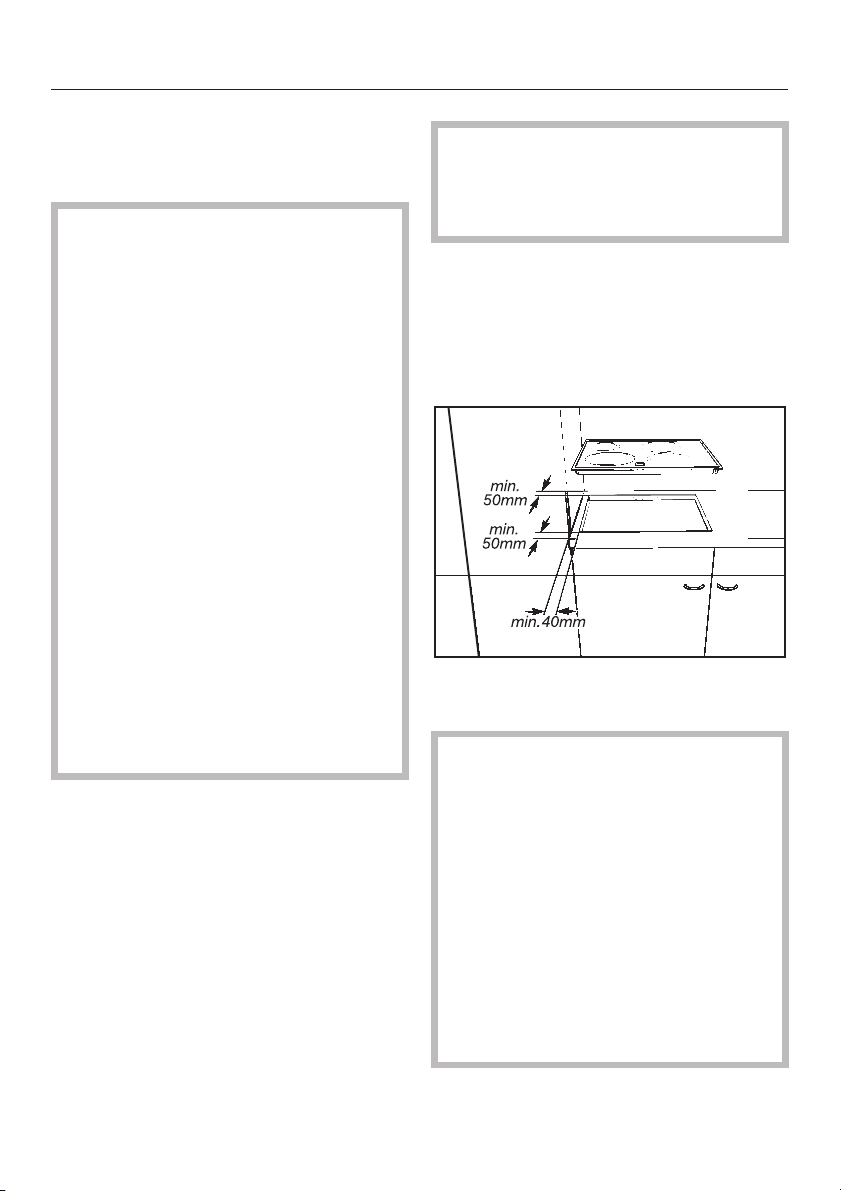

40 mm = 1 ½"
50 mm = 2"
When installing cooktops, keep in
mind that they will radiate some heat
sideways as well as straight up. For
this reason, the recommended
distances from the surrounding
cabinets must be maintained for
safety reasons.
Do not install the cooktop into an
area between two walls or cabinets.
One side of the cooktop must be
open to air flow or the danger of fire
will exist.
Installation instructions
Cutting out the countertop
Cut an opening in the countertop to
^
the dimensions of your particular
model as shown in illustration 2.
Please note:
There must be at least 2
usable depth at the right rear corner of
the cut out for the connection cable.
Minimum distances of 1 ½" (38 mm)
from the cooktop to a side wall and
2" (50 mm) from the cooktop to the
rear wall must be maintained for
safety reasons.
5
/8" (65 mm) of

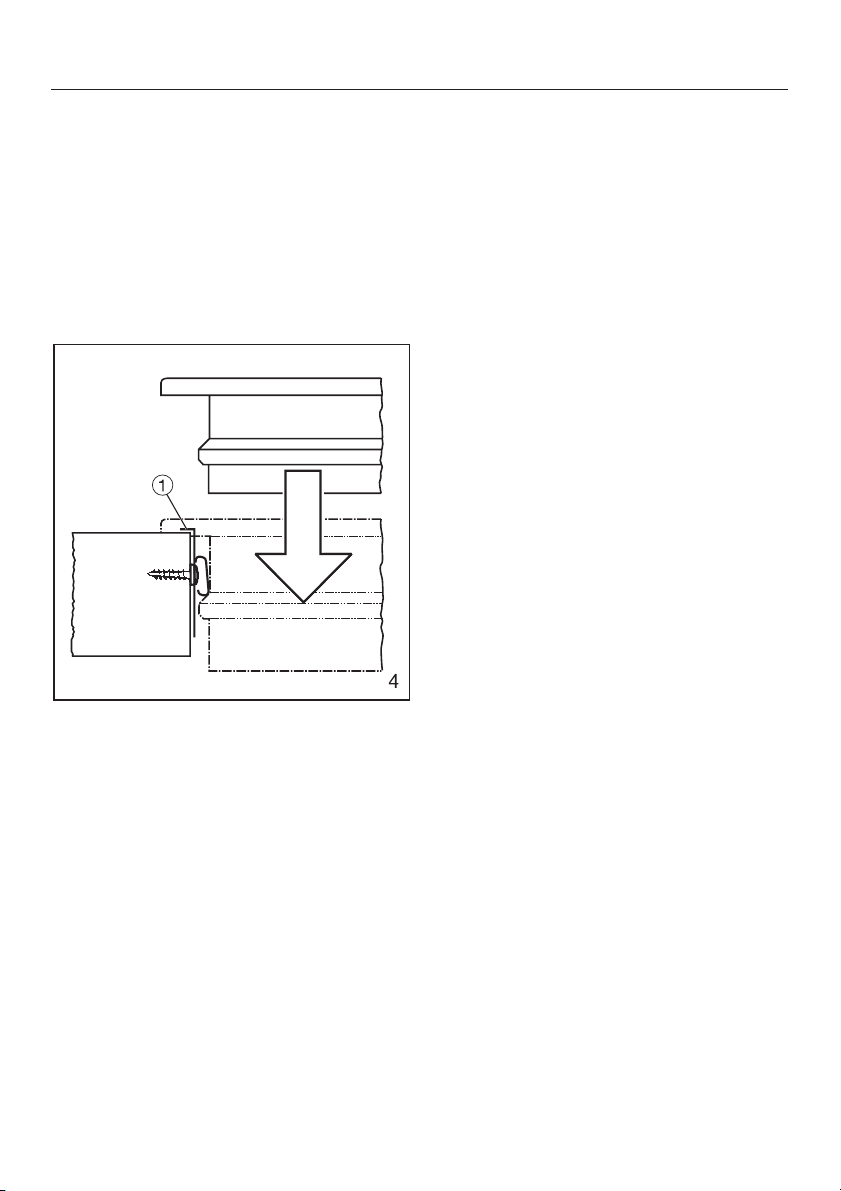

Install the provided spring clips on
^
the side walls of the cut out at the
positions marked a in illustration 2.
Fasten them using the supplied
screws as shown in illustration 3. On
granite countertops, the clips should
be attached using silicone adhesive
or a strong double-sided tape. Allow
the glue to cure before positioning
the cooktop.
Cut out dimensions
1 mm =1/16" 490 mm = 191/4"
48 mm = 1
50 mm = 2" 750 mm = 29 ½"
65 mm = 2 ½" 764 mm = 30
75 mm = 3"
r4 max.= maximum radius of
7
/8" 504 mm = 197/8"
3
/16"
1
/8"
25

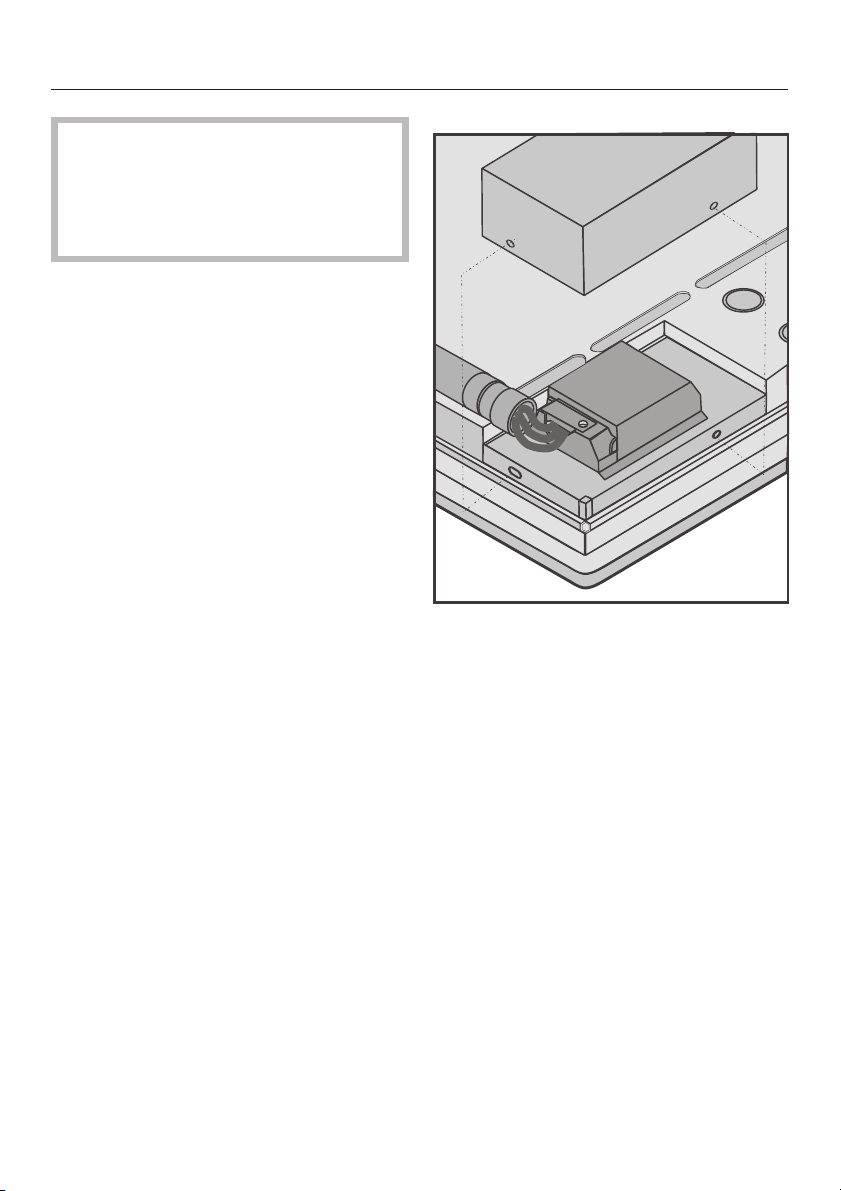

Installation instructions
Guide the power cable through the
^
cut out and connect it to the power
supply.
Align the cooktop with the spring
^
clips and press evenly on each side
until it clicks into place. Make sure
that the edge of the cooktop is lying
flat against the countertop around its
whole perimeter.
Installing a shelf under the
cooktop.
If a shelf is installed under the cooktop,
there must be at least 2
between the bottom of the cooktop and
the top of the shelf. There should also
be a ½" (10 mm) air gap for ventilation
between the rear of the shelf and the
back wall.
1
/4" (55 mm)
26
The electrical connection of this
appliance should be made by a
qualified electrician in accordance
with all local and national codes and
ordinances.
This cooktop comes ready for connection to a single phase 208 V, or
220 - 240 V, 60 Hz, 50A power supply.
The operating voltage of your model
can be found on the data plate of the
appliance.
The power cord should be connected
to the supply as follows:
Black – Live 1
Red – Live 2
Green – Ground
Electrical Connection
CAUTION:
To reduce the risk of electric shock:
–
Disconnect the main power supply
before connecting or servicing the
cooktop
–
Make certain that the cooktop is
properly grounded after installation.
WARNING:
THIS APPLIANCE MUST BE
GROUNDED.
27
