PureLine 30” Convection Oven
H 6680 BP HVBR

H 6680 BP

Features:

• SensorTronic controls: 5-line TFT
display with laterally positioned
sensor controls that clearly present
menu content

• Self Clean Oven

• 18 Operating Modes

• Rapid PreHeat

• MasterChef menu offers over 100

food types to cook to perfection

• Roast Probe for perfect roasting results

• Favorites — up to 20 recipes

• Sabbath Program

• CleanGlass Door

• Timer

• TwinPower Fans provide optimum

and even distribution of hot air

• Soft Open and Soft Close for an
easier handling

• The simple yet sleek Silhouette

handle seems to oat enhancing its

modern design lines

H 6680 BP HVBR

Page 2 of 7

PureLine 30” C onvection Oven
H 6680 BP HVBR

SPECIFICATIONS

H 6680 BP HVBR — Item

Overall Unit Width - Excluding Fascia Dimension 287/16” (722mm)

Overall Height - Excluding Fascia Dimension 27

Overall Unit Depth - Excluding Fascia Dimensions 23

Oven Door Clearance 23” (584mm)

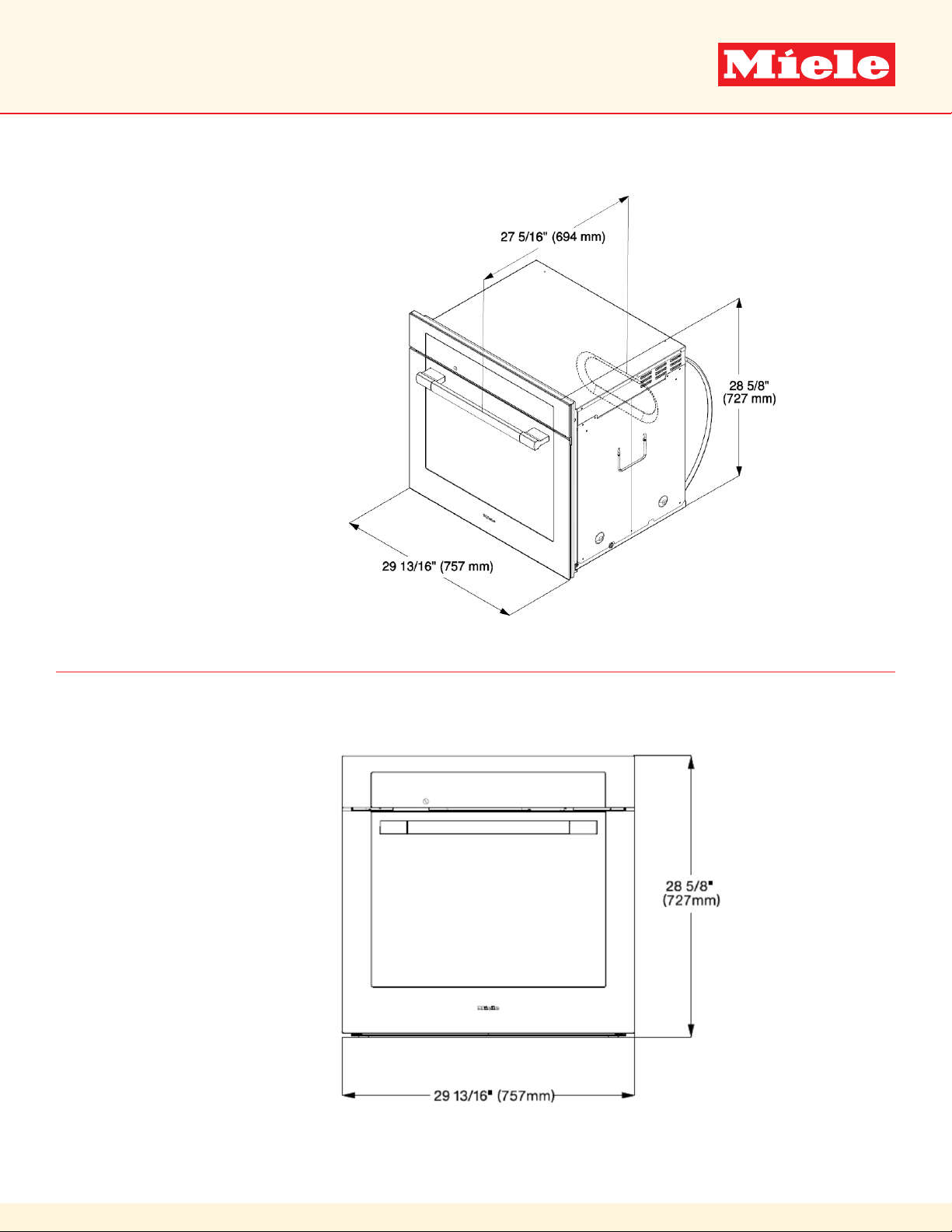

Overall Fascia Dimensions

Built-In

Minimum Cabinet Width 28

Minimum Cabinet Depth 24” (610mm)

Minimum Cabinet Opening Height 28

Minimum Base Support 193 lbs

Additional Cut-outs Required

Electrical

Electrical Requirements 208/240V 30A 60Hz circuit

Power Cord Yes - NEMA 14-30 plug

Electrical Rating

Total Amps 240V / 28A / 208V / 24A

Shipping

Shipping Weight 216 lbs

Shipping Dimensions 32

Support

Call 800.843.7231

20/20

22668003USA

3

/4” (705mm)

3

/4” (603mm)

13

29

/16” (757mm) W x 285/8” (727mm) H

7

/8” (23mm) D

x

1

/2” (724mm)

1

/4” (718mm)

Venting cut-out required at base of cabinet
(4” x 28” / 100mm x 720mm) in the bottom
of the cabinet for power cord and ventilation

120/208V, 30A, 60Hz, 5000w
120/240V, 30A, 60Hz, 6700w

11

/16” W x 351/16” H x 305/16” L
