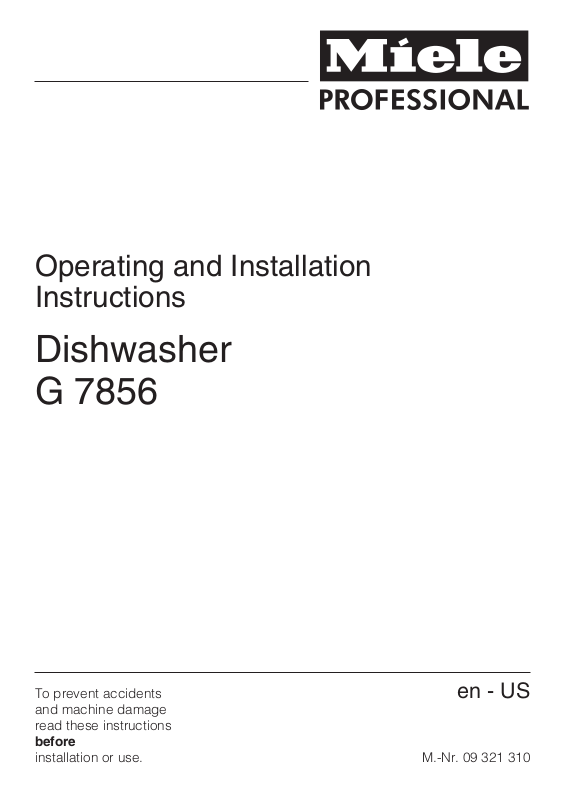

Operating and Installation
Instructions
Dishwasher
G 7856
To prevent accidents
and machine damage
read these instructions
before
installation or use.
en-US
M.-Nr. 09 321 310
2
Contents
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Intended purpose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Opening and closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the water softener ...........................................14
Filling the salt reservoir .............................................15
Salt indicator .....................................................16
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Adding rinse aid ..................................................17
Setting the dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loading the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjusting the upper basket ..........................................22
Items not suitable for dishwashers ....................................22
Adding cleaning agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Turning on .......................................................25
Starting a program.................................................25
Selecting an additional function ......................................26
Program sequence display ..........................................26
At the end of a program.............................................26
Turning off .......................................................26
Changing a program ...............................................27
Canceling a program...............................................27
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Programming special functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
INSTALLATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING When using your dishwasher
follow basic precautions,
including the following:
This dishwasher is intended for
household and professional
applications.
Only use the machine for its
intended purpose. Any other use,
conversion or modification is
dangerous.
This dishwasher complies with
current safety requirements.
Improper use of the machine can
lead to personal injury and material
damage.
Read all instructions before installing
or using this machine.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Installation and service
Installation and repair work should
~
be performed by a qualified and trained
service technician in accordance with
local and national safety regulations.
Work by unqualified persons could be
dangerous and may void the warranty.
Do not use the machine until
~
properly installed.
Do not install the machine in an area
~
where a danger of explosion or of
freezing temperatures may be present.
The installation of this unit in
~
non-stationary locations (e.g. ships)
must be performed by a qualified
installer or service agency, in strict
accordance with national and local
safety regulations and standards.
Before installation, make sure that
~
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
Be certain this machine is properly
~
installed and grounded by an
authorized technician. To guarantee the
electrical safety of this machine,
continuity must exist between the
machine and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system
checked by a qualified technician.
4
IMPORTANT SAFETY INSTRUCTIONS
Do not install or use a damaged
~
dishwasher. A damaged machine is
dangerous. Unplug the machine and
call your Miele dealer or the Miele
Technical Service Department.
If the power cord is damaged it
~
must only be replaced by a qualified
Service technician with a genuine Miele
power cord.
Do not use an extension cord to
~
connect this machine to electricity.
Extension cords do not guarantee the
required safety of the machine (e.g.
danger of overheating).
Defective components should be
~
replaced by Miele original parts only.
Before installation or service,
~
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
When work has been performed on
~
the supply plumbing, the supply line to
the commercial dishwasher must be
bled.
Otherwise, the water softening system
may be damaged.
Use
Please follow the advice on
~
installation in this manual and in the
separate Installation Instructions.
Personnel operating the machine
~
should be trained regularly.
Persons who lack physical, sensory
~
or mental abilities, or experience with
the machine should not use it without
supervision or instruction by a
responsible person.
Do not allow children to play in or
~
around the dishwasher, or to operate it.
Do not tamper with the controls.
~
BURN AND SCALD HAZARD
~
This dishwasher reaches very high
temperatures. Take care when
unloading the unit. Let baskets and
inserts cool before touching them. Any
water which may remain in containers
will be very hot and should be emptied
into the wash cabinet.
BURN HAZARD
~
The heating elements become
extremely hot during use. Do not touch
the heating elements during or directly
after the end of a program.
Take care when handling liquids
~
such as detergent, rinsing, wetting, or
neutralizing agents. These may contain
irritant or caustic ingredients. Do not
use any organic solvents. Danger of
explosion!
Follow the instructions and relevant
safety procedures carefully. Wear
protective gloves and goggles. The
manufacturer’s safety conditions must
be observed with all chemical agents.
5
IMPORTANT SAFETY INSTRUCTIONS
Under certain conditions, hydrogen
~
gas may be produced in a hot water
system that has not been used for two
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has
not been used for such a period, turn
on all hot water faucets and let water
flow from each for several minutes
before using the dishwasher. This will
release any accumulated hydrogen
gas. Do not smoke or use an open
flame during this time.
Avoid inhaling detergent. If
~
swallowed, it can cause burning in the
mouth and throat or inhibit breathing.
Be careful when sorting and loading
~
items to be washed: locate sharp items
so that they are not likely to damage the
door seal; and load sharp knives with
the handles up to reduce the risk of
injuries.
The water in the machine must not
~
be used as drinking water.
Do not sit or lean on the open door.
~
This could cause the machine to tip or
be damaged.
Never clean the machine or near its
~
vicinity with a water or high pressure
hose.
Only use cleaning agents
~
formulated for special processes and
approved by Miele for use with this
machine. Keep all cleaning agents out
of the reach of children. Use of
unsuitable cleaning agents could
adversely affect the
components of the machine.
Use only rinse agents for
~
commercial dishwashers. When other
rinse agents are used, there is the
danger that the rinse load and the
dishwasher might be damaged.
Pre-treatments with detergents can
~
create suds, as can certain rinsing
agents. For pre-treatment and / or
cleaning only, use low-sudsing
detergents which have been approved
by Miele. Suds can have an adverse
effect on the cleaning process.
When a chemical additive is
~
recommended on technical application
grounds (e.g. with a detergent).
Please be aware that changes in
formulation, storage conditions, etc.,
which may not be publicized by the
chemical producer, can have a
negative effect on the cleaning result.
Always follow the instructions of the
~
chemical manufacturer when using
detergents and special application
chemicals. Only use such chemicals for
the purpose and in the situation
specified to avoid such dangers as
chemical reactions and material
damage.
The dishwasher is designed only for
~
operation with water and additive
cleaning agents. Organic solvents must
not be used in the machine. An
explosion or machine corrosion could
occur with the use of organic solvents.
6
IMPORTANT SAFETY INSTRUCTIONS
In critical applications where very
~
stringent requirements must be met, it
is highly recommended that all relevant
factors for the process, such as
cleaning agent, quality of water, etc.,
be discussed with a Miele Application
Specialist.
The special inserts should only be
~
used for their specific application.
Do not wash plastic items unless
~
they are marked "dishwasher safe" or
the equivalent. If in doubt follow the
manufacturers recommendations.
Empty any containers or utensils
~
before arranging them in the machine.
Do not allow any remains of acids or
~
solvents, particularly hydrochloric acid
or chloride solutions, to get into the
wash cabinet. The presence of any
solvents should be minimized
(especially those in hazard class A1).
To avoid corrosion damage ensure
~
that solutions or steam containing
hydrochloric acid do not come into
contact with the steel outer casing of
the machine.
Disposal of the old machine
When disposing of your old
~
dishwasher first make it unusable.
Disconnect it from the mains power
supply, cut off the cable and plug from
the cable.
For environmental and safety
~
reasons ensure the machine is
completely drained of any residual
water and detergent. (Observe safety
regulations and wear safety goggles
and gloves).
Remove the door to the washing
~
compartment, so that children cannot
accidentally shut themselves in. Make
appropriate arrangements for the safe
and environmentally responsible
disposal of the machine.
For tank system machines ensure
~
that all water is emptied out the tank.
SAVE THESE
INSTRUCTIONS
Accessories
Only specific additional equipment,
~
made by Miele or approved by Miele,
should be used with this machine.
Consult Miele on the type and
application of such equipment.
7
Guide to the machine
a Connection for dosage pump for
liquid detergents - optional
(located on the rear side of the
machine)
b Filter combination
c Salt reservoir
(water softener)
8
d Compartment for powder detergent
e Rinse aid reservoir
(with dosage selector)
Guide to the machine
a On/Off button (I-0)
b Door button
c Display
d Delay Start indicator
(see "Programming special
functions")
e Extra drying indicator
f Start indicator
g Start button
h Extra drying button
i Display button to toggle between
"Actual time" and "Elapsed wash
time"
j Serial interface
(for use by Service Technicians)
k Add liquid cleaning agent indicator
(only applies to machines equipped
with an optional external DOS
module)
l Add rinse aid indicator
m Add salt indicator
n Check water inlet/drain indicator
o Program sequence indicator
p Program selector
9
Intended purpose
This Miele machine is a dishwasher
with fresh water wash system and short
batch times for household and
professional applications. It is
especially suitable for use where quick
turn-around flexible wash programs,
and commercial durability are of the
utmost importance.
The dishwasher is equipped with a
water softener as a standard.
10
Opening and closing the door
To open the door
Press the door button, hold the door
^
grip and pull open the door at the
same time.
The door should only be opened during
operation for emergencies, e.g. if items
are knocking together or if a program
fault is indicated in the display. See
"Canceling a program".
Do not touch the heating
,
elements during or directly after the
end of a program, you could burn
yourself. They remain hot for some
time after the end of the program.
When using the "Rapid" program the
door must be kept closed between
loads. The condensed water which
builds up in the machine could cause
corrosion or damage to surrounding
countertops or furniture. See advice on
installation locations in the "Installation"
section of this manual.
To close the door
Lift the door upwards and push until
^
it clicks shut. Do not press the door
button while shutting the door.
11
Water softener
To avoid the build-up of calcium
deposits on items being cleaned and in
the machine the water needs to be
softened.
To ensure a steady supply of soft water
the water softener unit must always be:
1. correctly set (programmed) and
2. the salt reservoir must be filled.
(If the water hardness level is below
4 gr/gal (4 °d) the water does not
need to be softened.)
The machine is set at the factory for
a water hardness level
of 20 gr/gal (19 °d).
If the water supply is harder or softer
than this (including below 4 gr/gal
(4 °d) the factory setting will need to
be changed following the
instructions in the section "Setting
the water softener". For settings see
chart on the next page.
For future servicing it is useful to make
a note of your water hardness level.
Enter details of your water hardness
^
level here:
gr/gal
Your local water authority will advise
you on the water hardness in your area.
For fluctuating levels (e.g.8-18gr/gal
or8-17°d)setthewater softener to
the highest setting (in this example to
18 gr/gal or 17 °d).
Important
The built-in water softener has settings
from1-62gr/gal (1 - 60 °d).
12
Table of settings
Water softener
°d
(German
scale)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 *)
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
gr/gal Setting
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
°d
(German
scale)
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
*) factory setting
gr/gal Setting
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Machines without a water softener
are set to "0" at the factory. This
setting of "0" must not be changed
on these machines.
13
Water softener
Setting the water softener
Switch the machine off.
^
Turn the program selector to "Stop".
^
Press "Display" and "Start" at the
^
same time, hold them in and while
doing so switch on the machine with
the "On/Off" button.
The actual program status "P..."
appears in the display.
The "Fill/Drain" indicator light
illuminates.
Press "Extra Drying" once, "E01"
^
(program level 1) will appear in the
display.
^ Turn the program selector six switch
positions to the right (6 o’clock
position).
The number "19" appears in the
display (the factory water hardness
setting in °d), (equivalent to
20 gr/gal).
^ Press "Display" as many times as is
necessary, or hold it in until the
required value (degree of hardness
in °d) appears in the display.
The counter returns to "0" after
reaching "60".
^
Press "Start". "SP" appears.
^
Press "Start" once more. The setting
will now be stored. The display
clears.
^
The machine is now ready for
operation.
14
Water softener
Filling the salt reservoir
Please only use special coarse grained
reactivation salt with granules of
approx. 1-4 mm. Do not use other types
of salt, e.g. table salt, agricultural or
gritting salt. These could contain
components which are insoluble in
water which could result in damage to
the water softener. If in doubt consult
your Miele Professional Department.
The salt reservoir holds approx. 5.5 lbs
(2.5 kg) of salt.
Inadvertently filling the salt
,
reservoir with cleaning agent will
damage the water softener.
Before filling the salt reservoir make
sure that you have picked up the
right packet of reactivation salt.
Remove the bottom basket from the
^
machine.
Unscrew the salt reservoir cap.
^
Before filling the salt reservoir with
reactivation salt for the first time fill it
with approx. 2 quarts (2.5 liters) of
water.
^ Place the funnel provided in place.
^ Fill carefully with salt, (as it is filled
water will run out).
15
Water softener
Wipe any residual salt off the screw
^
threads on the socket.
^ Screw the cap on firmly.
^ Immediately after this: Run the
"Rinse" program to remove any traces
of salt from the cabinet.
Important:
If after starting the "Rinse" program,
the machine will not start for a few
minutes. This is not a fault. The
water softener is being reactivated.
Salt indicator
When the salt reservoir is empty the
"Recharging" indicator light b comes
on to remind you to fill the reservoir.
Reactivation takes place automatically
during a program. The program
sequence indicator light a, "Recharge"
lights up while this is happening.
16
Rinse aid
Rinse aid is needed to prevent spotting
on dishes and glassware.
The rinse aid is filled in the reservoir
and the set amount will be
automatically dispensed during the final
rinse. The reservoir holds about 4 oz.
(125 ml).
Inadvertently filling the rinse aid
,
reservoir with detergent (liquid or
powder detergent) will damage the
reservoir!
Only use rinse aid approved for
this dishwasher.
Adding rinse aid
If the "Rinse aid" indicator lights, the
rinse aid reservoir must be refilled.
^ Open the door fully.
^
Press the button in the direction of
the arrow until the flap springs open.
17
Rinse aid
Add rinse aid until it is visible on the
^
surface of the filter in the opening.
^ Close the flap until it clicks into place.
Make sure it is firmly shut, otherwise
water could get into the rinse aid
reservoir during the program.
^ Clean up any spilled rinse aid to
prevent over-foaming during the next
program.
The flap should always remain closed.
Only open it to add more rinse aid.
Setting the dosage
The dosage selector (see arrow) is
preset to 3. This dispenses
approximately 3 ml of rinse aid per
program. It can be adjusted from 1 to 6.
^ Use a higher setting if spots appear
on dry glassware.
^ Use a lower setting if streaking
appears on dishes or glasses.
^
Only add rinse aid when the rinse aid
indicator comes on.
18
Loading the machine
Preparation
Empty all containers before loading
^
into the machine.
Ensure that no acid or solvent
,
residues, especially hydrochloric
acid or chlorides get into the wash
cabinet.
Notes
Load items so that water will come
^
into contact with all surfaces. This
ensures that they will be properly
cleaned.
Loading the machine
The water duct for the spray arm in
^
the middle of the upper basket must
not be covered.
The spray arms must not be blocked
^
by items which are too tall or which
hang down in their path. If necessary,
manually rotate the arms to test.
Use the upper basket for:
small, lightweight, delicate items
^
such as cups, saucers, glasses,
dessert bowls etc. as well as for
lightweight thermally stable plastic
items.
Use the bottom basket for:
^ Do not place items to be cleaned
inside other pieces where they may
be concealed.
^ Hollow vessels such as cups,
glasses, pots, etc. should be inverted
and placed in the correct inserts.
^ Deep based items should be placed
at an angle to ensure that water runs
freely off them.
^
Tall, narrow, hollow pieces should be
placed in the center of the basket to
ensure good coverage of water.
^
Small pieces should be placed on
the cup racks in the upper basket.
Do not obscure them by larger items
below. Cups should be on the lower
rack and bowls on the top rack so
that water reaches all pieces.
^ larger and heavier items such as
plates, serving platters, saucepans,
bowls etc. Glasses may only be
cleaned in the bottom basket if it is
fitted with a special glassware insert
or if there is a special bottom basket.
Cutlery
^
Unsorted cutlery should be placed in
the cutlery holders with the handles
facing downwards.
Select baskets and inserts which are
appropriate for the application
(available from Miele).
See examples on the following pages
19
Loading the machine
Loading examples:
O 881 Upper basket
for 20 cups, 24 saucers or 12 dessert
plates.
Individual upper and bottom baskets
O 889 Upper basket carrier
to take various inserts, e.g. containers
for cutlery and glasses.
U 880 Bottom basket
with2xE216half inserts each for
15 plates Ø 240 mm and2xE165
cutlery baskets for mixed cutlery.
20
U 880 Bottom basket
with E 884 insert 1/1 for 20 large plates
or 10 trays.
Glass-Set GG/F-GL
O 882 Upper basket
for 27 glasses Ø 65 mm.
Loading the machine
U 880 Bottom basket
with2xE205half inserts each for
14 glasses Ø 65 mm.
21
Loading the machine
Adjusting the upper basket
The upper basket can be adjusted
above and below the middle position
by 1" (2.5 cm). It is set in the middle
position on delivery.
Depending on the setting of the upper
basket and the insert used, a variety of
plate dimensions can be
accommodated.
To adjust the upper basket:
Pull the upper basket out until a
^
resistance is felt, lift from the runners
and remove.
^ Unscrew the knurled nuts on both
sides of the basket with an adjustable
wrench and reposition as required.
Items not suitable for
dishwashers
Cutlery with wooden or bone
–
handles.
Wooden or plastic cutting boards.
–
Glued items, e.g. old knives with
–
handles which have been glued on.
Hand-made craft items.
–
Copper or tin items.
–
Plastic items which are not heat
–
resistant.
Please note
– Silver and aluminum items may
tarnish.
– Colors painted over a glaze may
fade after a number of washes.
– Clouding or etching may occur on
glasses after frequent washing.
Our recommendations
22
–
Wash delicate glassware by hand.
–
When purchasing new glasses,
dishes and cutlery make sure they
are dishwasher safe.
Only use cleaning agents
,
formulated for dishwashers.
Powder cleaning agent is dispensed
via the compartment for powder
cleaning agents in the door.
Liquid cleaning agents are dispensed
via dosing pump (optional).
Tab cleaning agents cannot be used
in this machine.
If liquid cleaning agent is not being
used, powder detergent must be
placed in the detergent container prior
to every program (with the exception of
"Rapid" and "Rinse"). See the "Program
guide" for more information.
Adding cleaning agent
Add powder cleaning agent to
^
compartment II.
Dosage: approx. 1 ½ tablespoons
(20 g) per program cycle.
Follow cleaning agent
manufacturer's instructions if they
differ.
^
Press the opening catch in the
direction of the arrow. The flap will
spring open. The flap is always open
at the end of a program.
^ Close the dispenser lid.
23
Adding cleaning agent
"Rapid" program
^ If liquid cleaning agent is not being
used, add powder detergent directly
to the inside of the door for this
program.
A different combination of cleaning
agents and other additives may be
necessary for special soiling. Contact
Miele fore more information.
Maintenance of the dispensing
systems
The following maintenance should be
carried out by a Miele Service
Technician to ensure trouble-free
operation.
Use caution when handling
,
liquid agents and additives! They
may contain irritant or caustic
ingredients.
Please follow the manufacturer's
safety instructions.
Wear protective gloves and
goggles.
Note
This machine can be equipped with a
dispenser pump for liquid cleaning
agent as an optional accessory. This is
connected externally.
To vent the dosage system and set the
dosage concentration see,
"Programming special functions".
24
Use
Turning on
Close the door.
^
Open the water supply (if closed).
^
Press the On / Off button.
^
If the program selector is turned to
"Stop" a dot lights in the display.
Starting a program
^ Turn the program selector clockwise
or counterclockwise to the required
program. See the "Program guide" for
information on the programs.
The display shows the first wash
temperature of the selected program
(except "Rinse" and "Drain"). The "Start"
indicator flashes.
^
If required select the additional
feature "Extra Drying" . See "Selecting
an additional function".
^
Press the "Start" button. The running
time is displayed in ascending
minutes.
Once the program has started all other
programs are blocked. If the program
selector is turned to another program
during the running program, the values
shown in the display will go out. The
values appear again if the program
selector is turned back to the running
program.
^ Press the "Display" button to alternate
between the elapsed time and actual
temperature in the display during the
program.
Note: During the heating stage in
"Wash" and "Rinse" cycles, the required
end temperature is shown in the "time
run" display.
The "Start" indicator lights.
25
Use
Selecting an additional
function
"Extra drying" can be selected as an
additional function.
Select the drying function directly
^
after a program has been selected
(not available for "Rapid", "Rinse" and
"Drain" programs).
Drying is phased over 10 minutes. The
total running time of the program
lengthens accordingly.
Program sequence display
The indicator for the active program
sequence lights up during the program.
Recharging
Pre-wash
Wash
Rinse
Dry (optional function)
At the end of a program
At the end of a program the "program
sequence indicators" and the "Start"
indicator go out. A "0" will appear in the
display and a buzzer sounds for 30
seconds (factory setting). The buzzer
can be changed (see "Programming
special functions").
If desired use the "Display" button to
^
see the total running time of a
program or the actual temperature.
To turn the buzzer off
^ Turn the program selector to "Stop".
or
^ Open the door.
Turning off
^ Press the "On/Off" button.
26
Use
Changing a program
If the "Start" button has not yet been
pressed, the selected program can be
changed.
Turn the program selector to the
^
desired program.
If required select the additional
^
function "Extra Drying" again. See
"Selecting an additional function".
Press the "Start" button.
^
Canceling a program
Once a program is running it should
only be canceled in extreme cases,
e.g. when items in the machine are
moving and need to be arranged
securely.
Turn the program selector to "Stop".
^
The program is canceled after
2 seconds.
Open the door.
^
Caution! Water and items in the
,
machine may be hot. Danger of
burning or scalding!
^ Rearrange the items securely.
Observe appropriate health and
safety regulations - wear protective
gloves when necessary.
^ Replenish powder detergent if
necessary.
^ Close the door.
^
Select the "Drain" program. The
waste water is drained.
^
Select and start the program again.
27
Program guide
Program When to use Program cycle
Pre-
Main
Interim
rinse
1)
123
X X (X) X (X)
X (X)
China &
Crystal
120°F
Rapid
130°F
Normal
130°F
For temperature sensitive glassware
and lightly soiled dishware.
Run-time: ~ 12 minutes*
(plus 10 minutes for optional drying)
Quick program for lightly soiled
dishware.**)
Powder detergent: Place detergent
directly on the right hand side of the
door interior, NOT in the detergent
compartment.
Run-time: ~ 10 minutes*
For normally soiled items or to remove
salt traces from the wash cabinet after
refilling salt.
Run-time: ~ 15 minutes*
(plus 10 minutes for optional drying)
wash
wash
12
X (X) X (X)
Powder detergent dosage: 1 ½ tablespoons (20 grams) in the detergent
dispenser. Follow manufacturers instructions if they differ.
Final
rinse
1)
3)
2)
X **)
Drying
(Option.
funct.)
*) Run times dependent on incoming water pressure and temperature
**) Important information for the "Rapid" program
At the end of the program, the final rinse water is not drained away. It is used for
the following "Rapid" program as wash water. If the operation is interrupted for a
longer time or another program is desired:
^
Select the program "Drain". The final rinse water is drained away.
X = Sections included in the program (with temperature/temperature holding time)
1)
Temperature or temperature holding time adjustment
(see "Programming special functions").
Important: it is recommended to program a wash temperature of 140°F (60°C)
to clean soiled dishware.
2)
To select an economy interim rinse see "Programming special functions".
3)
To select a second interim rinse see "Programming special functions".
28
Program guide
Program When to use Program cycle
Pre-
Main
Economy
130°F
Intensive
140°F
Pots & Pans
150°F
Rinse
Drain
For normally soiled items with light
greasy/oily residues.
Run-time: ~ 24 minutes*
(plus 10 minutes for optional drying)
For heavily soiled items. Higher wash
temperature to remove starchy foods.
Run-time: ~ 25 minutes*
(plus 10 minutes for optional drying)
For heavily soiled items. Most of the
soiling is removed in an intensive cold
water pre-rinse.
Run-time: ~ 30 minutes*
(plus 10 minutes for optional drying)
To rinse heavily soiled items (e.g. for
removing soiling or to prevent soiling
from drying onto dishes when a full
program does not need to be run).
To drain waste water, e.g. when a
program has been interrupted (to
interrupt a program, the program selector
must be in the “Stop” position).
wash
12
wash
1)
Interim
rinse
123
X X X (X) X (X)
X X X (X) X (X)
X X X X (X) X (X)
Final
rinse
3)
X
1)
Drying
(Option.
funct.)
Powder detergent dosage: 1 ½ tablespoons (20 grams) in the detergent
dispenser. Follow manufacturers instructions if they differ.
*) Run times dependent on incoming water pressure and temperatures
X = Sections included in the program (with temperature/temperature holding time)
1)
Temperature or temperature holding time adjustment
(see "Programming special functions").
Important: it is recommended to program a wash temperature of 140°F (60°C)
to clean soiled dishware.
2)
To select an economy interim rinse see "Programming special functions".
3)
To select a second interim rinse see "Programming special functions".
29
Programming special functions
2. Selecting a second interim rinse
Every change of the factory setting
should be documented in case of
possible technical service.
Record any changes in the field
"Adjusted value___________".
1. Setting the cold water inlet from:
"Nominal water intake" to "Nominal
water intake+1l".
The amount of water taken into the
machine at each intake can be
increased by 1 liter to a maximum of
9.5 liters (1 liter = approx. 1 quart).
^ Turn the program selector to "Stop".
^ Turn the machine off.
^ Press and hold the "Display" and "Start"
buttons, at the same time turn the
machine on with the "On/Off button".
The displays shows the current
program status "P...".
The "Fill/Drain" indicator lights.
^ Press the "Extra Drying" button once.
"E01" (programming level 1) is
displayed.
^
Turn the program selector to "China &
Crystal".
Either "10" or "11" is displayed.
"10" = Nominal water intake
"11" = Nominal water intake + 1 liter
^
Press "Display" to change from "10" to
"11" or vice versa.
A second interim rinse "Interim rinse II"
can be programmed to improve interim
rinsing in all programs (not available for
"Rinse" and "Rapid" programs).
Turn the program selector to "Stop".
^
Turn the machine off.
^
Press and hold the "Display" and
^
"Start" buttons, at the same time turn
the machine on with the "On/Off"
button.
The display shows the current
program status "P...".
The "Fill/Drain" indicator lights.
^ Press the "Extra Drying" button once.
"E01" (programming level 1) is
displayed.
^ Turn the program selector to "Rapid".
"30" or "31" is displayed.
"30" = without interim rinse II
"31" = with interim rinse II.
^ Press "Display" to change from "30" to
"31" or vice versa.
^
Press the "Start" button. "SP" is
displayed.
^
Press the "Start" button again. The
change has been saved.
Value set:
^
Press the "Start" button. "SP" is
displayed.
^
Press the "Start" button again. The
change has been saved.
Value set:
30
Programming special functions
3. Selecting an economy interim
rinse (only for "Rapid" program)
Turn the program selector to "Stop".
^
Turn the machine off.
^
Press and hold the "Display" and
^
"Start" buttons, at the same time turn
the machine on with the "On/Off"
button.
The display shows the current
program status "P...".
The "Fill/Drain" indicator lights.
Press the "Extra Drying" button once.
^
"E01" (programming level 1) is
displayed.
^ Turn the program selector to "Rinse".
"40" or "41" is displayed.
"40" = without economy interim rinse
"41" = with economy interim rinse
^ Press "Display" to change from "40" to
"41" or vice versa.
^ Press the "Start" button. "SP" is
displayed.
^
Press the "Start" button again. The
change has been saved.
Value set:
4. Venting and setting the dosage for
liquid cleaning agents (optional
extra)
Turn the program selector to "Stop".
^
Turn the machine off.
^
Press and hold the "Display" and
^
"Start" buttons, at the same time turn
the machine on with the "On/Off"
button.
The display shows the current
program status "P...".
The "Fill/Drain" indicator lights.
Press "Extra Drying" twice. "E02"
^
(programming level 2) is displayed.
Venting the dispensing system:
^ Turn the program selector to "Rinse".
"do1" is displayed.
^ Press "Display" for 90 secs.
The dosage system is vented.
If only venting is required:
^ Turn the machine off with On/Off (I-0)
button.
Immediately: Start the "Rinse" program,
so that after venting any agents in the
wash cabinet are diluted before being
drained away.
31
Programming special functions
Setting the dosage
Set the dispensing amount according
to the detergent manufacturer's
recommendations and the
applications.
The machine needs 1.85 gal (7 liters) of
water in the program cycle "Main wash".
Example:
The detergent manufacturer
recommends 4 ml of detergent per liter
water.
7lx4ml/l = 28 ml.
2 ml per 1 sec dispensing time;
i.e. programming to 14 secs.
^ Turn the program selector to "Normal"
the dispensing time in seconds is
displayed, e.g "10".
^ Press and hold "Display" until "14" is
displayed (dispensing time 14 secs
per 28 ml, see example above).
The dosage time / dosage amount is
set.
Having changed a value or all values:
Press the "Start" button. "SP" is
^
displayed.
Press the "Start" button again. The
^
change has been saved.
Value set:
If the dispensing system was also
vented:
Start the "Rinse" program, so that
^
after venting any agents in the wash
cabinet are diluted before being
drained away.
32
Programming special functions
5. Altering the cleaning temperature
and/or the temperature holding time
in the "Main Wash" and "Final
rinse"stage of the program cycle
Any changes to the wash
temperature and/or the temperature
holding time should be recorded in
the program chart.
The main wash and final rinse
temperatures can be changed from
86°F - 158°F (30 °C - 70 °C) and the
temperature holding time from
1 - 10 mins.
Important: To wash dishes with
soiling, program to 140°F (60°C).
^ Turn the program selector to "Stop".
The programming level is displayed
in this position only.
^ Turn the machine off.
^ Press and hold the "Display" and
"Start" buttons, and at the same time
turn the machine on with the "On/Off"
button.
The displays shows the current
program status "P...".
The "Fill/Drain" indicator lights.
Temperature "Main wash":
^
Press "Extra Drying" three times.
"E03" (programming level 3) is
displayed.
Turn the program selector to the
^
program to be changed. The current
value is displayed after °F.
Press and hold "Display" until the
^
desired value is displayed.
Temperature holding time "Main
^
wash":
Turn the program selector to the
"Stop" position (the programming
level is displayed in this position
only).
^ Press "Extra Drying" again. "E04"
(programming level 4) is displayed.
^ Turn the program selector to the
program to be changed. The current
value is displayed after min.
^ Press "Display" until the required
value is displayed.
33
Programming special functions
Temperature "Final rinse":
^
Turn the program selector to the
"STOP" position (the programming
level is displayed in this position
only).
Press "Extra Drying" again. "E05"
^
(programming level 5) is displayed
field.
Turn the program selector to the
^
program to be changed. The actual
value is displayed after °F.
Press and hold "Display", until the
^
desired value is displayed.
Temperature holding time "Final
^
rinse":
Turn the program selector to the
"Stop" position (the programming
level is displayed in this position
only).
Press "Extra Drying" again. "E06"
^
(programming level 6) is displayed
field.
Turn the program selector to the
^
program to be changed. The actual
value is displayed after min.
Press "Display" until the required
^
value is displayed.
^ Having changed a value or all
values:
^ Press the "Start" button. "SP" is
displayed.
^ Press the "Start" button again. The
change has been saved.
34
Programming special functions
6. Delay start and setting the delay
start time
The start of a wash program can be
delayed up to 9 hours and 30 minutes
in 30 minute increments.
Delay start should only be selected with
the "Economy" and "Pots & Pans"
programs. The short programs cannot
guarantee satisfying cleaning results
when the residues are allowed to dry on
because the start time is delayed.
a) To activate Delay Start
^ Turn the program selector to "Stop".
^ Turn the machine off.
^ Press and hold the "Display" and
"Start" buttons, at the same time turn
the machine on with the "On/Off"
button.
The display shows the current
program status "P...".
The "Fill/Drain" indicator lights.
b) Setting the delay start period
The delay start period (from 30 minutes
to 9 hours 30 mins) must be set before
a program is started.
After selecting a program (see
^
"Turning on") press or hold the
"Display" button it until the required
value is displayed. The "Delay Start"
indicator lights.
After the "Start" button is pressed the
delay start period will count down in the
display until the program automatically
starts.
^
Press the "Extra Drying" button once.
"E01" (programming level 1) is
displayed.
^
Turn the program selector to "Drain"
either "80" or "81" is displayed.
"80" = No Delay Start
"11" = Delay Start active
^
Press "Display" to change from "80" to
"81" or vice versa.
^
Press the "Start" button. "SP" is
displayed.
^
Press the "Start" button again. The
change has been saved.
Value set:
35
Programming special functions
Press "Display" until the desired
7. Buzzer
A buzzer (30 secs) can be set for the
following functions:
End of program = Buzzer constantly
–
Error = Buzzer sounds every other
–
second
Turn the program selector to "Stop".
^
Turn the machine off.
^
Press and hold the "Display" and
^
"Start" buttons, at the same time turn
the machine on with the "On/Off"
button.
The display shows the current
program status "P...".
The "Fill/Drain" indicator lights.
^ Press the "Extra Drying" button once.
"E01" (programming level 1) is
displayed.
^ Turn the program selector to "Pots &
Pans".
The display shows a figure between
"90" and "93".
"90" = Buzzer turned off
"91" = End of program
"92" = Fault
"93" = All functions / End of program /
Fault (default)
^
function is displayed.
Press the "Start" button. "SP" is
^
displayed.
Press the "Start" button again. The
^
change has been saved.
Value set:
36
Programming special functions
8. Re-setting all changes back to the
factory default
Turn the program selector to "Stop".
^
Turn the machine off.
^
Press and hold the "Display" and
^
"Start" buttons, at the same time turn
the machine on with the"On/Off"
button.
The display shows the current
program status "P...".
The "Fill/Drain" indicator lights.
Press "Extra Drying" seven times.
^
"E07" (programming level 7) is
displayed.
^ Turn the program selector to any
position (except "Stop").
The display shows either "00" or "PP".
"00" = factory setting
(electronic was not reset).
"PP" = Electronic was reset.
^ If "PP" is displayed press "Display" to
change from "PP" to "00".
^
Press the "Start" button. "SP" is
displayed.
^
Press the "Start" button again. Values
which had been changed are now
reset.
If the hardness level setting in the
water softener had been changed
this will reset to the factory setting of
19 gr/gal (19 °d). This will need to
be adjusted back to the hardness
level in your area.
37
Cleaning and care
Cleaning the filters in the wash
cabinet
The machine must not be used
,
without all the filters in place.
The filter combination in the base of the
wash cabinet should be inspected
regularly and cleaned if necessary.
Caution:
,
Watch out for glass splinters which
could cause injury.
Cleaning the coarse filter
To unscrew the micro-fine filter, take
^
hold of the two clips and turn twice in
a counter-clockwise direction,
and remove, together with the flat
^
filter.
^ Clean the filters.
^
Press the two clips together, remove
and clean the filter.
^
Put the clean filter back in position
and press it until it clicks into place.
Cleaning the flat and the micro-fine
filters
^
Remove the coarse filter.
38
^
The filter combination is then
replaced in the reverse order in
which it was removed.
Cleaning and care
Cleaning the spray arms
Waste particles can lodge in the spray
arm jets.
The spray arms should be inspected
and cleaned regularly (approx. every
6 months).
Use a sharp pointed object to push
^
particles into the spray arm jets and
rinse well under running water.
Remove the spray arms as follows:
Unscrew the upper spray arm.
^
Remove the middle spray arm (on
^
the top basket) by unscrewing the
toothed wheel mechanism.
Important:
The toothed wheel mechanism has a
left hand thread, and to unscrew it, it
must be turned to the right with the
spray arm.
Particles in the lower spray arm are
easier to rinse out if the cap is first
opened.
^ Open the cap in the direction of the
arrow. After cleaning close up the
cap again.
^ After replacing the spray arms check
that they move freely.
^
First remove the bottom basket and
then take the lower spray arm out.
39
Cleaning and care
Cleaning the drain pump and
non-return valve
If water has not been pumped away at
the end of a program the drain pump or
the non-return valve might be blocked.
They are however, easy to clean.
Take the filter combination out of the
^
wash cabinet.
The drain pump is situated under the
non-return valve (see arrow).
^ Before replacing the non-return valve
check that the drain pump is free of
obstructions.
^ Carefully replace the non-return valve
and secure with the locking clamp.
^ Release the locking clamp.
^
Lift up the non-return valve and rinse
under running water.
40
Cleaning and care
Cleaning the filters in the water
inlet
Filters are incorporated in the screw
connection of the water inlet hose to
protect the water inlet valve. If these
filters get dirty they need to be cleaned,
otherwise insufficient water flows into
the wash cabinet.
The plastic housing of the water
,
connection contains an electrical
component. It must not be
submerged in water.
To clean the filters
^ Turn off the machine, and unplug it.
^ Turn off the valve and unscrew the
water inlet hose.
Replace filters and the seal. Make
^
sure they are sitting correctly.
Reconnect the hose to the water inlet,
^
making sure that it goes back on
straight.
Open the valve carefully.
^
If there is a leak, screw the
connections on more tightly.
Cleaning the control panel
This should only be cleaned with a
^
damp cloth or a suitable cleaner for
use on plastic materials, or with a
disinfectant tested and recognized
as suitable for this use.
Do not use abrasive cleaners,
,
glass cleaners or all-purpose
cleaners!
Because of their chemical
composition they could cause
serious damage to plastic
components.
^
Clean the large area filter (1) and fine
filter (2), and replace with new filters
if necessary.
Cleaning the front of the
machine
^
Clean using a proprietary cleaning
agent designed for the type of front
the machine is fitted with.
,
Do not use cleaning agents
containing ammonia or thinners.
41
Frequently Asked Questions
Repairs should only be carried out by a qualified and trained person in
,
accordance with local and national safety regulations. Unauthorized repairs
could cause personal injury or machine damage.
The machine does not start.
Possible fault Solution
Close the door securely.
The door is not closed properly
–
The machine is not plugged in
–
properly.
The circuit breaker has tripped.
–
A few minutes after switching on, the "Fill/Drain" indicator light flashes
(fault code F..E appears in the display)
Possible fault Solution
– The valves are closed.
– The filters in the water inlet hose
are dirty.
– The water pressure is too low.
^
Insert the plug.
^
Reset the circuit breaker. See the data
^
plate for minimum amperage.
If the circuit breaker trips again. Contact
^
Miele.
^ Turn the program selector to the "Stop"
position (the fault code goes out).
^ Turn the machine off using the "On/Off"
button.
^
Open the valves or clean the filters (see
"Cleaning and care").
^
Switch on the machine again and re-select
the program.
The wash cycle finishes too early and the "Fill/Drain" indicator light flashes
(fault code F A appears in the display)
Possible fault Solution
^
–
The drain hose is kinked.
–
The drain pump is blocked.
42
Turn the program selector to the "Stop"
position (the fault code goes out).
^
Correct the fault.
^
Pump away the water and start the
program again (see additional program
"Drain" and "Turning on").
Water in the wash cabinet is not
heated; the program sequence lasts
too long
This machine has a resettable heater
limiter which will turn off the heaters in
the case of over-heating. This could be
caused for example, if large articles
obscure the heating elements or if the
filters in the wash cabinet are blocked.
Remove the cause of the fault.
^
Remove the service panel (see
^
"Electrical connection").
Frequently Asked Questions
^
Press the reset button on the heater
limiter (yellow) located on the lefthand side of the plastic cover.
If this switch trips again contact
Miele.
43
After Sales Service
In the event of a fault which you cannot
correct yourself or if the fault code "F..."
shows in the display please contact the
Miele Service Department at the phone
number on the back of these
instructions.
Please quote the model and serial
^
number of your machine.
This information can be found on the
data plate (see also "Electrical
connection").
44
Installation Instructions
Information is subject to change. Please refer to our website to obtain the most
current product specification, technical & warranty information.
To prevent accidents
and machine damage
read these instructions
before
installation or use.
Caring for the environment
Disposal of the packing
material
The protective packing materials are
environmentally safe and can be
recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of the appliance
Appliances contain materials which can
be recycled. Please contact your local
authorities about recycling in your area.
Ensure that the machine presents no
danger to children while being stored
for disposal. See "Important Safety
Instructions".
46
Installation
Please refer to the installation
diagram supplied with the machine.
Furniture and fittings installed
,
near the machine must be able to
withstand the effects of steam and
condensed water.
Installation options
Undercounter
–
The machine must be positioned
under a continuous worktop or sink
drainer.
The opening must be at least 23 5/8"
(60 cm) wide, 23 5/8" (60 cm) deep and
34 1/4" (82 cm) high.
If necessary, the machine lid can be
removed as follows:
Open the door.
^
^ Remove the fixing screws on both
sides using a Phillips screwdriver.
^ Pull the machine lid approx. ¼"
(5 mm) forwards, lift and remove.
47
Installation
Leveling the machine
Any unevenness in the floor can be
compensated for.
Adjust the four screw feet to raise or
^
lower the height of the machine.
Position and secure the
machine
To ensure stability the machine must
first be aligned and then screwed to the
countertop.
Open the door.
^
^ Through each of the two holes in the
front trim, left and right, screw the
machine to the front edge of the
continuous countertop.
^ Do not use silicone sealant to seal
the gaps between the machine and
any neighboring units, this would
hinder ventilation to the circulation
pump.
Stainless steel toe kick
A stainless steel toe kick is included for
easing undercounter installations.
Please refer to installation directions
included with the toe kick.
Depending on the requirements for
installation, the following "kits" can be
ordered from the Miele.
Cover plate (protects the countertop)
The underside of the countertop is
protected from steam damage by a
stainless steel plate.
48
All electrical work must be
,
performed by a qualified service
technician in accordance with local
and national safety regulations.
Connection should be made via a
^
suitable isolator which complies with
local and national safety regulations
and the on-off switch should be
easily accessible for servicing.
Electrical connection
Removing the plinth panel and the
protective plastic cover:
Isolate the machine from the
,
power supply.
Holding the plinth panel at both
^
sides, pull gently outwards from
beneath a and take it out b.
To remove the protective plastic cover
^
unscrew the 2 screws (left and right) c.
WARNING
THIS APPLIANCE MUST
BE GROUNDED
^ For technical data see the data plate
or wiring diagram supplied.
The machine must only be operated
with the voltage, frequency and fusing
shown on the data plate.
The data plate (with test certifications)
is located on the rear of the machine
and also behind the plinth panel below
the protective plastic cover.
The wiring diagram is secured to the
inner side below the protective plastic
cover.
To reassemble:
^
Refit the protective plastic cover and
the plinth panel in the reverse order
to which they were removed.
See also the installation diagram
supplied.
WARNING
THIS APPLIANCE MUST BE
GROUNDED
Grounding the machine
A connection screw with the grounding
symbol (
the machine for grounding.
8) is provided on the back of
49
Plumbing
Connection to the water inlet
Water in the machine is not
,
suitable for drinking.
The machine must be connected to
–
the water supply in accordance with
local and national regulations.
The washer is constructed so it may
–
be connected to a water supply
without an extra non-return valve,
unless required by code.
The water pressure (flow rate) must
–
be a minimum of 7.25 psi (0.5 bar /
50 kPa).
If the water pressure (flow rate) is
below 29 psi (2 bar) the fill time is
automatically extended.
The max. permitted static pressure is
145 (10 bar).
If the water pressure is not in the
range of 7.25 psi (0.5 bar) to 145 psi
(10 bar) the "Fill/Drain" indicator light
may come on and the fault code "F2
E" show in the display. Please
contact the Miele Service
Department.
Valve with 3/4 BSP male thread are
–
to be provided on site. They should
be easily accessible so that the
water supply can be turned off when
the machine is not in use.
The DN10 inlet hose is 5
–
long, with a
thread. The water inlet filters in the
threads must not be removed.
Large surface area filters are
–
enclosed in the kit supplied with the
machine for installing between the
valve and the inlet hose
(see illustration in "Cleaning and
Care - Water inlet").
3
/4" (2 cm) female hose
½
ft. (1.7 m)
–
The machine is supplied as standard
for connection to a cold (coded blue)
and a hot (coded red) water supply
up to a max. temperature of 158°F
(70 °C).
The inlet hoses should be connected
to the cold and hot water valve.
If there is no hot water connection
the hot water inlet hose marked red
should also be connected to a cold
water valve. In other words both inlet
hoses are connected to the cold
water supply.
50
,
Do not cut the inlet hose or
damage it in any way.
^
See also the installation diagram
supplied.
Drainage
The drainage system is fitted with a
–
non-return valve which prevents dirty
water from flowing back into the
machine via the drain hose.
The drain hose should be
permanently positioned, during
installation, so that its highest point is
located above the flood plane of the
sink that it is attached to.
The on-site drain connection point
–
should be located between 1 ft.
(0.3 m) and 3’ 3". (1 m) above the
lower edge of the machine.
If it is lower than 1 ft. (0.3 m), bend
the hose in a curve to a height of at
least 1 ft. (0.3 m).
The drainage system must be able to
take a minimum drainage flow of
4.5 gal/min (16 l/min).
– The flexible drain hose is 4’ 7" (1.4 m)
long and has an internal diameter of
7
/8" (22 mm). Do not cut the drain
hose.
Hose clamps are supplied for
securing it into position.
Plumbing
–
A longer drain hose (up to 13 ft.
[4 m] long) is available to from Miele.
–
The drainage system must not
exceed 13 ft. (4 meters).
See also the installation diagram
supplied.
51
Technical data
Height: 33
English Metric
½
1/4
" (32
") 85 (82) cm
Width: 23
Depth: 23
Voltage:
Rate load:
Fuse rating:
5/8
"60cm
5/8
"60cm
see Data Plate
see Data Plate
see Data Plate
Connection cable: approx. 5' 10" approx. 1.8 m
Water pressure
(flow pressure):
Cold or
hot water connection:
7.25 - 145 PSI 50 - 1000 kPa
up to max. 158°F up to max. 70 °C
Drainage length: max.13' max. 4 m
Delivery head:
min. 12"
max.39
3/8
"
min. 0.3 m
max. 1 m
Inlet hose: approx. 5' 7" approx. 1.7 m
Drain hose: approx. 4' 7" approx. 1.4 m
Test marks: CSA
525354
55
All rights reserved /Publication date / 01/06/2012
INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST
CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
M.-Nr. 09 321 310 / 01
