Marantz PS-110 Service Manual

Download

Page 1

Service

PS110

PS110/N1S

Manual

AV Surround Amplifier

STANDBY DISPLAY MUTE OPEN

AUTO

5 – STEREO

STANDBY DISPLAY MUTE OPEN

SURROUND

TIMER

AUTO

5 – STEREO SLEEP

PHONES

DIGITAL

LFE L C R

SLSSR

LFE L C R

SLSSR

PLII

MOVIE

MUSIC

PS110

NIGHT

SLEEP

DIGITAL

PLII

MOVIE

MUSIC

BASS BOOST

NIGHT

SLEEP

TIMER

NIGHT

TIMER

VOLUME

TABLE OF CONTENTS

SECTION PAGE

1. TECHNICAL SPECIFICATIONS ........................................................................... 1

2. WIRING DIAGRAM ............................................................................................... 3

3. BLOCK DIAGRAM ................................................................................................ 5

4. SCHEMATIC DIAGRAM ....................................................................................... 7

5. PARTS LOCATION ............................................................................................. 13

6. IC DATA .............................................................................................................. 18

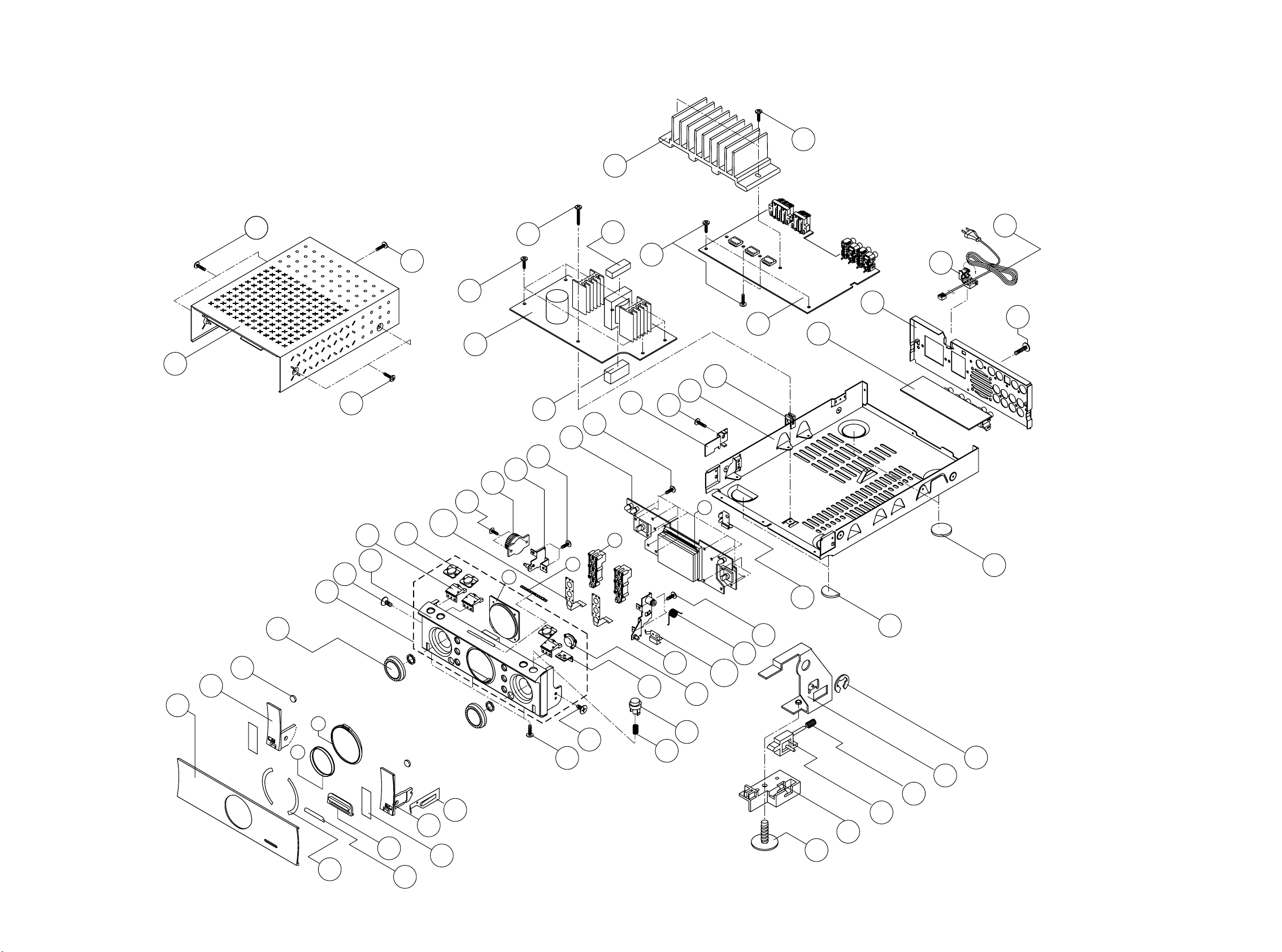

7. EXPLODED VIEW AND PARTS LIST ................................................................ 25

8. SERVICE PROCEDURE .................................................................................... 29

9. ELECTRICAL PARTS LIST ................................................................................ 30

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

PS110

16AW855010 MIT First Issue 2003.3

Page 2

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original

MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which

it is famous. Parts for your

MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

USA

MARANTZ AMERICA, INC

1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301

AMERICAS

SUPERSCOPE TECHNOLOGIES, INC.

MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103

AUSTRALIA

QualiFi Pty Ltd,

24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677

NEW ZEALAND

WILDASH AUDIO SYSTEMS NZ

14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554

EUROPE / TRADING

MARANTZ EUROPE B.V.

P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860

AUSTRALIA

TECHNICAL AUDIO GROUP PTY, LTD

43-53 Bridge Rd., STANMORE NSW 2048 AUSTRALIA PHONE : +61 - (0)2 - 9519 - 0900 FAX : +61 - (0)2 - 9519 - 0600

THAILAND

MRZ STANDARD CO., LTD

746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795

TAIWAN

PAI- YUING CO., LTD.

6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415

CANADA

LENBROOK INDUSTRIES LIMITED

633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936

HONG KONG

Jolly ProAudio Broadcast Engineering Ltd.

UNIT 2, 10F, WAH HUNG CENTRE,

41 HUNG TO ROAD, KWUN TONG, KLN., HONG KONG PHONE : 852 - 21913660 FAX : 852 - 21913990

SINGAPORE

WO KEE HONG DISTRIBUTION PTE LTD

130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078

MALAYSIA

WO KEE HONG ELECTRONICS SDN. BHD.

2ND FLOOR BANGUNAN INFINITE CENTRE LOT 1, JALAN 13/6, 46200 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 - 3 - 7954 8088 FAX : +60 - 3 - 7954 7088

JAPAN

MARANTZ JAPAN, INC.

35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190

Technical

KOREA

MK ENTERPRISES LTD.

ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC

cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492.

In case of difficulties, do not hesitate to contact the Technical

Department at above mentioned address.

030307MIT

Page 3

1. TECHNICAL SPECIFICATIONS

AUDIO SECTION

THD 10 % 6 Ω ........................................................................................................................................................... 50W / Ch

THD 10 % 8 Ω ........................................................................................................................................................... 40W / Ch

THD 1 % 6 Ω ............................................................................................................................................................. 40W / Ch

THD 1 % 8 Ω ............................................................................................................................................................. 30W / Ch

Continuous Power Output

(40 Hz - 20 kHz) ............................................................................................................................ 6 Ω 30W / Ch

THD (1 kHz) at 30 W output ..................................................................................................................... 6 Ω 0.5 %

Input Sensitivity

Linear ..................................................................................................................................................... 340 mV

Signal to Noise Ratio with 20K filter

Linear (1 W) .............................................................................................................................................. 80 dB

GENERAL

Power Requirement ....................................................................................................................... AC 230 V 50 Hz

Power Consumption (STEREO MODE RATED POWER) .............................................................................. 53 W

Dimension (MAX)

Width ...................................................................................................................................................... 210 mm

Height ................................................................................................................................................... 71.5 mm

Depth ..................................................................................................................................................... 310 mm

Weight ....................................................................................................................................................... 2.6 Kg

ACCESSORIES

Remote Control Unit (RC110PS) .......................................................................................................................... 1

AAA Type Batteries .............................................................................................................................................. 2

Registration Card .................................................................................................................................................. 1

User’s Guide .......................................................................................................................................................... 1

Page 4

The relation between the selected surround mode and the input signal

The surround mode is selected with the surround mode knob on PS110 or the remote control unit. However, the sound you hear is subject to the relationship between the selected surround mode and input signal. That relationship is as follows;

Surround Input Signal Output Fluorescent Indicator Mode L/R

DOLBY Digital (5.1ch) DOLBY Digital (2ch)

Auto DOLBY Digital (2ch:Lt/Rt)

96kHz PCM PCM(Audio)

DTS (5.1ch) No input signal - - - - AUTO AUTO → NO DATA BLANK →Function name DOLBY Digital (5.1ch) DOLBY Digital (2ch) DOLBY Digital (2ch:Lt/Rt)O--OSTEREO STEREO →DD 2/1 BLANK →Function name L, R, S

Stereo 96kHz PCM

PCM(Audio) DTS (5.1ch) No input signal - - - - STEREO STEREO →NO DATA BLANK →Function name DOLBY Digital (5.1ch)

DOLBY Digital (2ch) DOLBY DOLBY Digital (2ch:Lt/Rt) (PLII Movie) 96kHz PCM - - - - , PLII, Movie PL II MOVIE → "96k" PCM DOLBY →Function name -

PCM(Audio)

DTS (5.1ch) - - - - , PLII, Movie PL II MOVIE → "DTS"3/2.1 DOLBY →Function name -

No input signal - - - - , PLII, Movie PL II MOVIE →NO DATA DOLBY →Function name -

DOLBY Digital (5.1ch)

DOLBY Digital (2ch) DOLBY DOLBY Digital (2ch:Lt/Rt) (PLII Music) 96kHz PCM - - - - , PLII, Music PL II MUSIC → "96k" PCM DOLBY → Function name -

PCM(Audio)

DTS (5.1ch) - - - - , PLII, Music PL II MUSIC →"DTS"3/2.1 DOLBY → Function name -

No input signal - - - - , PLII, Music PL II MUSIC →NO DATA DOLBY →Function name -

DOLBY Digital (5.1ch)

DOLBY Digital (2ch) 5Ch DOLBY Digital (2ch:Lt/Rt) Stereo 96kHz PCM - - - - 5-STEREO 5- STEREO →"96k" PCM BLANK →Function name -

PCM(Audio)

DTS (5.1ch)

No input signal - - - - 5-STEREO 5- STEREO

SL/SR

C SW Surround mode Dot Area display 14 segment area display Ch. Status OOOO OOOO

OOOO

- - - AUTO, STEREO AUTO → 96k PCM BLANK → Function name L, R

OOOO

--OSTEREO STEREO →DD 3/2.1 BLANK →Function name L, C, R, SL, SR, LFE

--OSTEREO STEREO →DD 2/0 BLANK →Function name L, R

- - - STEREO STEREO →96k PCM BLANK →Function name L, R

--OSTEREO STEREO →PCM BLANK →Function name L, R

--OSTEREO STEREO →DTS3/2.1 BLANK →Function name L, C, R, SL, SR, LFE

OOOO OOOO OOOO

OOOO

OOOO OOOO OOOO

OOOO

OOOO OOOO OOOO

OOOO OOOO

AUTO, , DIGITAL, AUTO → DD 3/2.1 BLANK → Function name L, C, R, SL, SR, LFE AUTO, , AUTO → DD 2/0 BLANK → Function name L, R PLII Movie (Music) AUTO, , AUTO → DD 2/1 BLANK → Function name L, R, S PLII Movie (Music)

AUTO, , AUTO → PCM BLANK → Function name L, R PLII Movie (Music) AUTO,DTS AUTO → DTS3/2.1 BLANK → Function name L, C, R, SL, SR, LFE

DIGITAL PL II MOVIE →DD 3/2.1 DOLBY →Function name L, C, R, SL, SR, LFE , PLII, Movie PL II MOVIE →DD 2/0 DOLBY →Function name L, R , PLII, Movie PL II MOVIE →DD 2/1 DOLBY →Function name L, R, S

, PLII, Movie PL II MOVIE →PCM DOLBY → Function name L, R

DIGITAL PL II MUSIC →DD 3/2.1 DOLBY →Function name L, C, R, SL, SR, LFE , PLII, Music PL II MUSIC →DD 2/0 DOLBY →Function name L, R , PLII, Music PL II MUSIC →DD 2/1 DOLBY →Function name L, R, S

, PLII, Music PL II MUSIC →PCM DOLBY →Function name L, R

5-STEREO 5- STEREO →DD 3/2.1 BLANK →Function name L, C, R, SL, SR, LFE 5-STEREO 5- STEREO →DD 2/0 BLANK →Function name L, R 5-STEREO 5- STEREO →DD 2/1 BLANK →Function name L, R, S

5-STEREO 5- STEREO →PCM BLANK →Function name L, R 5-STEREO 5- STEREO →DTS3/2.1 BLANK →Function name L, C, R, SL, SR, LFE

→

NO DATA BLANK →Function name -

Page 5

2. WIRING DIAGRAM

3 4

Page 6

3. BLOCK DIAGRAM

5 6

Page 7

4. SCHEMATIC DIAGRAM

7 8

Page 8

9 10

Page 9

11 12

Page 10

5. PARTS LOCATION

MAIN

IC101IC105 IC103

IC102IC106IC107IC104 Q101

IC404 IC403 IC411

Q406

IC407

IC408 IC417 IC416

IC412

Q409Q407

IC413

D401 D404

Q410-415D402-3 D405-6

IC405

IC410

IC414

Q403

IC415

13 14

Page 11

FRONT

LED303 LED302 LED303D307

FRONT

Q312

Q307Q301 Q311

D304

Q308Q309

D301-2

Q305Q304

Q301 Q310

Q306D303

Q313

Q302

Q303

15 16

Page 12

PIN NAME TYPE

DESCRIPTION FAN - IN / OUT

1 SDl_1/SDATA_OUT I

Input I

S Serial Data 1/AC97 Output Data

S mode maps to L,R DDX)

2 SDl_2/SDATA_IN I/O

Input I

S Serial Data 2/AC97 Input Data

S mode maps to LS,RS DDX)

2mA

3 LRCKI/SYNC I/O Input I2S Left/Right Clock/AC97 Synch. Clock 2mA 4 BICKI/BIT_CLK I/O Input I2S Serial Clock/AC97 Bit Clock 4mA 5 VDD_1 Digital Supply Voltage 6 GND_1 Digital Ground

7 RESET I

Global Reset (Active Low) This pin is sensed only after 2 clock cycles

CMOS Schmitt In Pull-Up

8 AC97_MODE I

AC97 Enable/Disable (1=AC97; 0=I

S/SPDIF)

CMOS Schmitt In Pull-Down

9 SDA I/O I2C Serial Data 2mA 10 SCL I I2C Serial Clock 11 SA I Select Address (I²C/AC97) 12 TEST_MODE Connect pin to ground CMOS In Pull-Down 13 VDD_2 Digital Supply Voltage 14 XTI I Crystal Oscillator Input (Clock Input) Analog IN 15 XTO O Crystal Oscillator Output Do Not Load 16 GND_2 Digital Ground 17 VCC Analog Supply Voltage 18 RXP I S/PDIF receiver positive (L,R DDX) Analog In 19 RXN I S/PDIF receiver negative (L,R DDX) Analog In 20 VSS Analog Ground 21 LFE_B O PWM LFE (subwoofer) channel output (B) 3mA 22 LFE_A O PWM LFE (subwoofer) channel output (A) 3mA 23 SRIGHT_B O PWM Surround right channel output (B) 3mA 24 SRIGHT_A O PWM Surround right channel output (A) 3mA 25 GND_3 Digital Ground 26 VDD_3 Digital Supply Voltage 27 RIGHT_B O PWM Right channel output (B) 3mA 28 RIGHT_A O PWM Right channel output (A) 3mA 29 LEFT_B O PWM Left channel output (B) 3mA 30 LEFT_A O PWM Left channel output (A) 3mA 31 GND_4 Digital Ground 32 VDD_4 Digital Supply Voltage 33 SLEFT_B O PWM Surround Left channel output (B) 3mA 34 SLEFT_A O PWM Surround Left channel output (A) 3mA 35 EAPD O External Amplifier Power down (Active Low) 3mA 36 LRCKO I/O I2S Left/Right Clock 2mA 37 SDO_1 O I2S Serial Data 1 Output (L, R) 2mA 38 SDO_2 O I2S Serial Data 2 Output (LS, RS) 2mA 39 SDO_3 O I2S Serial Data 3 Output (C, SUB) 2mA 40 BICKO I/O I2S Serial Clock 4mA 41 GND_5 Digital Ground 42 VDD_5 Digital Supply Voltage 43 CKOUT O Clock Output (256 x FS or 512 x FS) 8mA 44 PWDN I Device Power down (Active Low) CMOS In Pull-Up

6. IC DATA

IC102, IC104:DDX4100A

Pin Function

DIGITAL INPUT

D601 Q405

D602

Q408IC602

D408

D407

Q421

IC409Q420

IC402 IC401

Q422

D410

17 18

Page 13

IC101, IC103, IC105:DDX2100

Pin Assignment Block Diagram

1819

NCGNDREF

GNDR1

VREG1

CONFIG

PWRDN

TRI-STATE

FAULT

TWARN

INLA

INLB

INRA

INRB

VREG2

VSIG

OUTPL

VCC1P

PGND1P

PGND1N

VCC1N

OUTNL

OUTPR

VCC2P

PGND2P

PGND2N

VCC2N

OUTNR

GNDS

INLA

BIAS

CONFIG

PWRDN

FAULT

TRISTATE

TWARN

GNDREF

INLB

INR

VSIG

VREG2

VREG1

GNDR1

INRB

PROTECTION

AND

DRIVER

LOGIC

REGULATORS

FET

DRIVE

FET

DRIVE

FET

DRIVE

FET

DRIVE

VCC1P

OUTPL

PGND1P VCC1N

OUTNL

PGND1N

VCC2P

OUTPR

PGND2P VCC2N

OUTNR

PGND2N

IC404, IC407:74LCX574

Pin Names Description

0–D7

Data Inputs

CP Clock Pulse Input

0–O7

3-STATE Output Enable Input

3-STATE Outputs

Truth Table

Inputs Internal Outputs

CP D Q O

H H L NC Z Hold

H H H NC Z Hold

H L L Z Load

H H H Z Load

L L L L Data Available

LHH HData Available

L H L NC NC No Change in Data

L H H NC NC No Change in Data

H = HIGH Voltage Level L = LOW Voltage Level X = Immaterial Z = High Impeda nce

= LOW-to-HIGH Transition

NC = No Change

Pin AssignmentPin Function

Function

Page 14

IC405:AK4586

Pin Function

No. Pin Name I/O Function

1 XTO O X'tal Output Pin

XTI I X'tal Input Pin2 EXTCLK I External Master Clock Input Pin

3 TVDD -

Output Buffer Power Supply Pin, 2.7V

~5.5V

4 DVSS - Digital Ground Pin, 0V 5 DVDD -

Digital Power Supply Pin, 4.5V

~5.5V

6 TX O Transmit channel (through data) Output Pin 7 MCKO O Master Clock Output Pin 8 LRCK I/O Input/Output Channel Clock Pin

9 BICK I/O Audio Serial Data Clock Pin 10 SDTO O Audio Serial Data Output Pin 11 SDTI1 I DAC1 Audio Serial Data Input Pin 12 SDTI2 I DAC2 Audio Serial Data Input Pin 13 SDTI3 I DAC3 Audio Serial Data Input Pin 14 INT0 O Interrupt 0 pin 15 INT1 O Interrupt 1 pin

CDTO O Control Data Output Pin in 4-wire serial control mode16 CAD1 I Chip Address 1 Pin in I CDTI I Control Data Input Pin in 4-wire serial control mode17 SDA I/O Control Data Input/Output Pin in I CCLK I Control Data Clock Pin in 4-wire serial control mode18 SCL I Control Data Clock Pin in I CSN I Chip Select Pin in 4-wire serial control mode19 CAD0 I Chip Address 0 Pin in I DZF2 O Zero Input Detect 2 Pin (Note 1)

C bus control mode

When the input data of the group 1 follow total 8192 LRCK cycles with input data, this pin goes to “H”.

OVF O Analog Input Overflow Detect Pin (Note 2)

This pin goes to

“ H” if the analog input of Lch or Rch is overflows.

21 AVSS - Analog Ground Pin, 0V 22 AVDD -

Analog Power Supply Pin, 4.5V

~5.5V

“0”

IC602:74VHCU04

Block Diagram

Truth Table

Page 15

IC401:NJM4556AM

Block Diagram

IC410:74HCT244

Block Diagram

Truth Table

1G 1A 1Y 2G 2A 2Y

LLLLLL

LHHLHH

HLZHLZ

HHZHHZ

IC411:LC78211

Block Diagram

Page 16

IC413:74LCX244

Block Diagram

Truth Table

Pin Function

Pin Names Description

, OE23-STATE Output Enable Inputs

– I

– O

Inputs Outputs

1In

LL L

LH H

HX Z

(Pins 12, 14, 16, 18)

Inputs

Outputs

Inputs Outputs

2In

(Pins 3, 5, 7, 9)

LL L

LH H

HX Z

H = HIGH Voltage Level L = LOW Voltage Level X = Immaterial Z = High Impeda nce

Page 17

G1/A1

G0/A0

PE0/EC0/INT0

PE1/EC1/INT1

PE2/INT2

PE3/INT3/NMI

PE4/RMC

PE5

PE6/PWM

PE7/TO/ADJ

PC0/KR0

PC1/KR1

PC2/KR2

PC3/KR3

PC4/KR4

PC5/KR5

PC6/KR6

PC7/KR7

PB0/CINT

PB1/CS0

PB2/SCK0

PB3/SI0

PB4/SO0

PB5/SCK1

PB6/SI1

PB7/SO1

AVREF

PA0/AN0

PA1/AN1

100

PA2/AN2

PA3/AN3

PA4/AN4

PA5/AN5

PA6/AN6

PA7/AN7

RST

EXTAL

XTAL

Vss

TEX

PD0/A55

PD1/A54

PD2/A53

PD3/A52

PD4/A51

A21

A22

A23

PH7/A24

PH6/A25

PH5/A26

PH4/A27

PH3/A28

PH2/A29

PH1/A30

PH0/A31

PG7/A32

PG6/A33

PG5/A34

PG4/A35

PG3/A36

PG2/A37

PG1/A38

PG0/A39

PF7/A40

PF6/A41

PF5/A42

PF4/A43

PF3/A44

PF2/A45

PF1/A46

PF0/A47

PD7/A48

PD6/A49

PD5/A50

G2/A2

G3/A3

G4/A4

G5/A5

G6/A6

G7/A7

G8/A8

G9/A9

G10/A10

G11/A11

G12/A12

G13/A13

G14/A14

G15/A15

A16

A17

A18

A19

A20

Note) 1. NC (Pin 3) must be connected to VDD.

2. V

(Pins 44 and 89) must be connected to VDD.

control

PIN NO

PIN NAME

connection

6 POWER DOWN

65 POWER ON

MAIN OPERATION 18 RC-5 IN

19 RC-5 OUT 62 RC5-SW 13 SYSTEM 20 SCL-EEPROM(N.C) 21 SDA-EEPROM(N.C) 56 F MUTE 57 SW MUTE 12 PROTECTION(Not used) 66 FAN ON(Not used) 53 CE 7821 54 DATA LC7821 55 CLK LC7821

28 AVREF 37 AVSS

SYSTEM 38 RESET

39 EXTAL 10MHZ CRYATAL 40 XTAL 41 VSS 42 TX 32.7688KHZ 43 TEX 44 +5V BACK UP 45 VFDP -30V 89 VDD 36 SET OPT(N.C)

8 REMOCON 9 HP IN

FRONT

16 DATA-66005 17 CLK-66005 58 CE-66005 59 RESET-66005 46 STBY LED 47 POWER LED(GREEN) 29 KEY IN2 30 KEY IN1 31 JOG DN 32 JOG UP 33 VOL- UP 34 VOL- DN

4 FAULT-2100(Not used)

VOLUME&

7 TWARN-2100

PWM PROCESSOR

14 SDA-O-4100A 22 SCL1-4100A 23 SDA-I-4100A 35 SCL2-4100A 63 PWR DN-4100A 64 RESET-4100A 68 3STATE-4100A

5 49326-INTREQ

24 SCDIO-49326

DSP & AD/DA/DIR

48 RESET-49326 49 CS-49326 50 ROM2 51 ROM3 60 ABOOT 67 A17 25 CCLK 49326/4586 26 CDTI 4586/49326 27 CDTO-4586 52 CSN-4586 61 PDN-4586

SMPS CONTROL

RC5 IN/OUT

SYSTEM SWITCH

MUTE CONTROL

fuction switch IC LC7821 control

RESET

+5V

GND

+5V GND

+5V

volume & PWM IC DDX4100A control

H/P JACK IN

LED ON/OFF

KEY CONTROL

thermal protection

BUFF

MM74LCX244

BUFF

MM74HCT244

DSP IC CS493263 control

DIR & AD/DAC IC AK4586VQ control

EPROM IC M27W201-8086 control

MUX IC MM74LCX574 WMX

REM

VFD drive IC M66005 control

IC301:M66005FP

Pin Assignment

Pin Function

IC414:CXP82840-351Q

Pin Assignment

Pin Function

VFD Grid

23 24

Page 18

7. EXPLODED VIEW AND PARTS LIST

A x2

E x2

7 x3

A x4

POWER SUPPLY (SMPS)

PCB ASSY

F x2

PE x2

8 x3

K x2

K x13

9 x2

A x4

PCB MAIN

C x14

DIGITAL INPUT PCB

5 x2

K x2

35 x2

34 x2

4 x2

J x3

TH x2

TA x2

25 26

Page 19

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

* nsp nsp CLAMP CABLE TIE DACT-100A 4330040343010

PACKING

- ZK16AW0010 ZK16AW0010 REMOTE CONTROLLER RC110PS (SILVER,44KEY) 8300110020010

- /N1S 16AW851310 16AW851310 INSTRUCTION MANUAL USER GUIDE PS110(N1S) EUROPE 5707210420050

NOT STANDARD SPARE PARTS

- nsp nsp LABEL PS110(N1S)SHIPPING 5507051880320

48 nsp 323W257010 CABINET SECC 0.8T A2 / TOP 3007210236020

- nsp 16AW801010 BOX,GIFT PS110/ALL(MARANTZ) DW 6007210290040

- nsp 323W809010 CUSHION,SNOW SR110/N1S(MARANTZ) EPS(WHITE) 6230210314000

- nsp nsp POLY BAG LD 260*390*0.03T SILK 6337000240010

- nsp nsp POLY BAG DRAF100(E1) "BK 400*520"/SET 6337200029010

- nsp nsp CARD SR110 IMPORTANT 5777200120050

- nsp nsp BATTERY,DRY ALKALINE AAA SIZE(LR03)1.5V G670001R50150

- nsp nsp LABEL 50TH ANNIVERSARY 5507020630070

POS. NO

A1 16AW248500 16AW248500 PANEL ASSY FRONT PANEL SUB ASSY 1038MM0207010

1 16AW162010 16AW162010 PANEL AL 6030EXT. 1.5T / DOOR(KD) 3067210558040Z

3 323W002010 323W002010 ARM LGHF3808A529 A3 / DOOR L 2547210023000

4 323W259010 323W259010 CUSHION FELT0.5+PET0.2(GRAY) A4 / DOOR 4050210319000

5 323W154010 323W154010 KNOB ABSLGMP211(CRPLATING)A4/VOLUME 5087210411000

6 nsp 16AW248010 PANEL LGAF312 LIGHT GRAY A1/ FRONT 3067210581010

7 nsp 323W270030 BUTTON ABS(MILKY WHITE) A3 / POWER B 5090211231000

8 nsp 323W270010 BUTTON ACRYL(LGHI850) A4 / POWER A 5090211223000

9 323W270020 323W270020 BUTTON ABSMP211(CR PLATING)/FUNCTION 5097211211000

10 323W130010 323W130010 DAMPER DP802 /GEAR (KIFCO) 3660040183010

11 nsp nsp BRACKET SECC 1.0T A4 / DOOR C 4010210796000

12 nsp nsp P.C.B SUB ASSY PS110/N1S(MARANTZ) /FRONT 7028060821050

13 nsp nsp CHASSIS SECC 1.0T A1 / MAIN 3200211126000

15 nsp nsp BRACKET SECC 1.0T A4 / SIDE 4010210866000

16 nsp nsp CHASSIS SECC 0.8T A3/BACK 3207211146000

17 /N1S 323W259030 323W259030 STOPPER CORD HOLDER DACH-1 4380040162010

19 323W353020 323W353020 RING AL/DOOR (IL) 4700210018000Z

20 323W353010 323W353010 HOLDER LGHF3808A529 A3 / RING 4327210251000

21 323W251010 323W251010 BADGE NI 0.6T 40.5*3.0 5630210197010

22 nsp 323W158010 WINDOW PMMA(RED WINE) A3 / DISPLAY SR 5070210533000

23 nsp nsp SUPPORTER ABS A3 / FLT SR 4070210211000

24 nsp nsp SUPPORTER UPAF07 ABS BK/PCB 4070001601010

25 323W158030 323W158030 WINDOW PMMA(WHITE) A4 / REMOCON B 5070210563000

26 323W002020 323W002020 ARM LGHF3808A529 A3 / DOOR R 2547210033000

27 nsp nsp PLATE SPTE 0.3T A4 / EARTH A 4470210236000

28 323W115010 323W115010 SPRING SUS304 0.5T A4 / DOOR C 3720210196000

29 323W154020 323W154020 KNOB ABSLGHF3808A529 A4 / EJECT 5087210421000

30 nsp 323W101010 SUPPORTER LGHF3808A529 A4 / EJECT 4070210251000

31 nsp 323W158020 WINDOW PMMA(DARK BLUE) A4 5070210553000

32 nsp nsp BRACKET SECC 1.0T A4 / DOOR A 4010210776000

33 323W115020 323W115020 SPRING SUS304 0.8T A4 / DOOR A 3720210176000

34 323W057010 323W057010 CUSHION KANSAI FELT 3.0T(BK)A4/FOOT F 4050210329000

35 323W057020 323W057020 CUSHION KANSAI FELT 3.0T(BK)A4/FOOT B 4050210339000

36 nsp nsp HOLDER LGHF3808A529 A4 / HINGE B 4320210271000

37 nsp nsp HOLDER LGHF3808A529 A4 / HINGE A 4320210261000

38 323W115030 323W115030 SPRING SUS304 0.3T A4 / DOOR B 3720210186000

39 nsp nsp BRACKET SECC 1.0T A4 / DOOR B 4010210786000

40 nsp nsp RING E-RING PI6 0.8T SUS B700060005E10

41 nsp nsp P.C.B SUB ASSY PS110/N1S(MARANTZ)/INPUT 7028062042010

42 nsp nsp P.C.B SUB ASSY PS110/N1S(MARANTZ)/MAIN 7028062041010

43 nsp nsp CUSHION PS110/EVA(BK)30*15*6.5T/SMPS 4050210835000

44 nsp nsp CUSHION SPONGE EVA 12TX30X15 45% 4050044345010

45 nsp nsp HEAT SINK AL6063 EXT/ MAIN 2120210528000

50 *ZZ002020R *ZZ002020R POWER SUPPLY PCB ASSY ORTP-850(SMPS BD ASSY) PS-110 8208000110010

A nsp nsp SCREW,TAP TITE +2S 3*8 B-TYPE ZNY/BH B020030081B10

B nsp nsp SCREW,TAP TITE +2S 3*17 B-TYPE ZNY/BH B020030171B10

C nsp nsp SCREW,TAP TITE AVR3300(E3) +2S 3*10 B-TYPE B020030103B11

E nsp nsp SCREW 3*8 B-TYPE NICKEL-PLATING 1500210036000

F nsp nsp SCREW,TAPPING +2S 2*6 BK/PH B010220063P10

G nsp nsp SCREW +2S 3*8 PI9.5 B-TYPE ZNY 1500001206010

H nsp nsp SCREW,TAP TITE +2S 3*5 B-TYPE BK/FH B020030053F10

J nsp nsp SCREW,TAP TITE +2S 3*6 B-TYPE ZNY/BH B020030061B10

K nsp nsp SCREW,TAP TITE +#2PS 3X8Y B020030081P10

PC nsp nsp PLATE 0.2T A4 / EARTH-C 4470210266000

PE nsp nsp PLATE 0.2T A4 / EARTH-E 4470210286000

PP nsp nsp PLATE 0.2T A4 / EARTH-P 4470210476000

TA nsp nsp TAPE BOTH FACES TAPE 3M9448HK/ARM 1220210079000

TH nsp nsp TAPE SUMITOMO 3M Y-4914/HOLDER RING 1220210109000

TL nsp nsp TAPE SUMITOMO 3M Y-4914 / LENS 1220210099000

TP nsp nsp TAPE PETFORM+PETFILM 0.05T/PROTECT 1220210119000

* nsp nsp LABEL PS110(LICENSE) 5507015930080

* nsp nsp CLAMP ACM393 DARB-2(W=2.6,L=50)/WIRE 4330000310000

* nsp *YU001180R CABLE,FLAT CARD 17PIN MAIN(CP484) – FRONT(CP301) L301241170010

VERS.

COLOR

18 /N1S *YC000730R *YC000730R CORD ASSY 2.5A/250V WS-006,BK2M(210MM) L068040014020

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

27 28

Page 20

8. SERVICE PROCEDURE

9. ELECTRICAL PARTS LIST

The suppliers and their type numbers of fusible resistors are as follows;

1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ(±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ(±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ(±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ(±5% 1/4W)

2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140

ERD-2FCG

× × × ( ±2% 1/4W)

RF02 × × × 140

Examples ;

Resistance value

0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105

6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475

ASSIGNMENT OF COMMON PARTS CODES.

RESISTORS

R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W

Examples ;

Resistance value

0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105

6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475

Note : Please distinguish 1/4W from 1/6W by the shape of par ts

used actually.

CAPACITORS

C : CERAMIC CAP.

3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V

Examples ;

Tolerance (Capacity deviation)

±0.25 pF .... 0

±0.5 pF .... 1

±5% .... 5

Tolerance of COMMON PARTS handled here are as follows :

0.5 pF 5 pF .... ±0.25 pF

6 pF 10 pF .... ± 0.5 pF

12 pF 560 pF .... ±5%

Capacity value

0.5 pF .... 005 3 pF .... 030 100 pF .... 101

1 pF .... 010 10 pF .... 100 220 pF .... 221

1.5 pF .... 015 47 pF .... 470 560 pF .... 561

C : CERAMIC CAP.

4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V

Examples ;

Capacity value

100 pF .... 101 1000 pF .... 102 10000 pF .... 103

470 pF .... 471 2200 pF .... 222

C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( )

5) EA

× × × × ×

10, Electrolytic capacitor

One-way lead type, Tolerance ±20%

Examples ;

Capacity value

0.1 µF .... 104 4.7 µF .... 475 100 µF ....107

0.33 µF .... 334 10 µF ....106 330 µF ....337

1 µF.... 105 22 µF .... 226 1100 µF .... 118

2200 µF ....228

Working voltage

6.3V .... 006 25V .... 025

10V .... 010 35V .... 035

16V .... 016 50V .... 050

6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor

One-way type, Mylar ±10% 50V

Examples ;

Capacity value

0.001 µF (1000 pF) ....... 102 0.1 µF.... 104

0.0018 µF ........................ 182 0.56 µF ....564

0.01 µF ........................ 103 1 µF .... 105

0.015 µF ........................ 153

: 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some

case.

2) On the occasion, be confirmed the common parts on the parts list.

3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4).

➀

➁

Capacity value Tolerance

➃

Capacity value

Resistance value

➄

Working voltage Capacity value

➆

Capacity value

NOTE

NOTE ON SAFETY FOR FUSIBLE RESISTOR :

Resistance value

Resistance value (0.1 Ω − 10 kΩ)

Resistance value

ANT. : ANTENNA BATT. : BATTERY

CAP. : CAPACITOR CER. : CERAMIC

CONN. : CONNECTING DIG. : DIGITAL

HP : HEADPHONE MIC. : MICROPHONE

µ-PRO : MICROPROCESSOR REC. : RECORDING

RES. : RESISTOR SPK : SPEAKER

SW : SWITCH TRANSF. : TRANSFORMER

TRIM. : TRIMMING TRS. : TRANSISTOR

VAR. : VARIABLE X’TAL : CRYSTAL

ABBREVIATION AND MARKS

{

➂

➀

➁

➂

➃

➄

➅

➆

➅

NOTE ON SAFETY :

Symbol Fire or electrical shock hazard. Only original

parts should be used to replaced any part marked with

symbol . Any other component substitution (other

than original type), may increase risk of fire or electrical

shock hazard.

NOTE ON FUSE :

Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse.

010728MIT

Rsetting the unit

1. Pull out the Mains (AC) plug from wall outlet.

2. Keep pressing the STAND BY button on the front panel.

3. Insert the Mains (AC) plug to wall outlet.

4. All the settings except the parental lock password are reset.

Firmware version check

1. Pull out the Mains (AC) plug from wall outlet.

2. Keep pressing the DISPLAY button on the front panel.

3. Insert the Mains (AC) plug to wall outlet.

4. The firmware version is displayed on the front FLD.

(Ex.: VER Jan16-1)

5. Push or turn the MULTI JOG dial one step to either side. All the FLD segments light up then light off one by one.

29 30

Page 21

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

MAIN PCB

* nsp nsp SOCKET,IC IC SOCKET 32PIN G450320000010

* nsp nsp SCREW,TAP TITE +2S 3*8 B-TYPE ZNY/BH B020030081B10

C101 nsp OA10701620 C,ELECT GE 85C 100µF-M/16V,6.3*11-5RE,SMS SY D040101083070

C103 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C105 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C106 nsp *DD900350R C,CERAMIC CHIP T.C 680pF-J 50V-1608REEL D010681167160

C107 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C108 *OF100340R *OF100340R C,FILM POLYESTER 0.82µF-J/63V-5RE BLUE D020824068050

C109 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C110 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C111 nsp *DK900040R C,CERAMIC CHIP HIK 1µF-Z/50V-1608REEL D011105597160

C112 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C113 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C114 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C115 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C116 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C117 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C118 nsp *DD900350R C,CERAMIC CHIP T.C 680pF-J 50V-1608REEL D010681167160

C119 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C120 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C121 nsp *DK900040R C,CERAMIC CHIP HIK 1µF-Z/50V-1608REEL D011105597160

C122 *OF100340R *OF100340R C,FILM POLYESTER 0.82µF-J/63V-5RE BLUE D020824068050

C123 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C124 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C125 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C126 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C127 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C128 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C129 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C130 nsp OA10805020 C,ELECT GE 85C 1000µF-M/50V,12.5*25S.BLK SY D040102087010

C131 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C132 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C133 *OF100340R *OF100340R C,FILM POLYESTER 0.82µF-J/63V-5RE BLUE D020824068050

C134 nsp *DD900350R C,CERAMIC CHIP T.C 680pF-J 50V-1608REEL D010681167160

C135 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C136 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C137 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C138 nsp *DK900040R C,CERAMIC CHIP HIK 1µF-Z/50V-1608REEL D011105597160

C139 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C140 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C141 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C142 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C143 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C144 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C145 nsp OA22601620 C,ELECT GE 85C 22µF-M/16V,5*11-5RE.SY D040220083070

C146 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C147 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C148 nsp *DD900350R C,CERAMIC CHIP T.C 680pF-J 50V-1608REEL D010681167160

C149 *OF100340R *OF100340R C,FILM POLYESTER 0.82µF-J/63V-5RE BLUE D020824068050

C150 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C151 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C152 nsp *DK900040R C,CERAMIC CHIP HIK 1µF-Z/50V-1608REEL D011105597160

C153 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C154 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C155 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C156 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C157 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C158 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C159 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C160 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 22

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

C161 nsp OA10805020 C,ELECT GE 85C 1000µF-M/50V,12.5*25S.BLK SY D040102087010

C162 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C163 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C164 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C165 nsp *DD900350R C,CERAMIC CHIP T.C 680pF-J 50V-1608REEL D010681167160

C166 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C167 *OF100340R *OF100340R C,FILM POLYESTER 0.82µF-J/63V-5RE BLUE D020824068050

C168 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C169 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C170 nsp *DK900040R C,CERAMIC CHIP HIK 1µF-Z/50V-1608REEL D011105597160

C171 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C172 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C173 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C174 *OF100330R *OF100330R C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050

C175 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C176 nsp *DK900040R C,CERAMIC CHIP HIK 1µF-Z/50V-1608REEL D011105597160

C177 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C178 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C179 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C180 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C181 nsp OA22601620 C,ELECT GE 85C 22µF-M/16V,5*11-5RE.SY D040220083070

C182 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C183 nsp OA10805020 C,ELECT GE 85C 1000µF-M/50V,12.5*25S.BLK SY D040102087010

C184 nsp OA10805020 C,ELECT GE 85C 1000µF-M/50V,12.5*25S.BLK SY D040102087010

C185

nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C190

C191 nsp DK96103300 C,CERAMIC CHIP HIK 0.01µF-K/50V-1608REEL D011103777160

C192 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C193 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C194 EA10802510 EA10802510 C,ELECT GE 85C 1000µF-M/25V(SHL),10*20L-L D040102084060

C195 EA10802510 EA10802510 C,ELECT GE 85C 1000µF-M/25V(SHL),10*20L-L D040102084060

C196 EA10802510 EA10802510 C,ELECT GE 85C 1000µF-M/25V(SHL),10*20L-L D040102084060

C197 nsp DK96103300 C,CERAMIC CHIP HIK 0.01µF-K/50V-1608REEL D011103777160

C198 nsp DA17104110 C,CERAMIC HIK DISC F0.1µF-Z/50V-BULK D004104197010

C199 nsp DD95180300 C,CERAMIC CHIP T.C 18pF-J/50V-1608REEL D010180167160

C200 nsp DD95200300 C,CERAMIC CHIP T.C 20pF-J/50V-1608REEL D010200167160

C201 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C202

nsp DA17104110 C,CERAMIC HIK DISC F0.1µF-Z/50V-BULK D004104197010

C206

C415 nsp OA10701020 C,ELECT GE 85C 100µF-M/10V,5*11-5RE D040101082060

C417 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C418 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C419 nsp OA22505020 C,ELECT GE 85C 2.2µF-M/50V,5*11-5RE D0402R2087100

C423 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C424 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C425 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C426 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C427 nsp OA22701020 C,ELECT GE 85C 220µF-M/6.3V,6.3*11-5RE-SMS SY D040221081050

C428 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C430 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C431 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C432 nsp DD95180300 C,CERAMIC CHIP T.C 18pF-J/50V-1608REEL D010180167160

C433 nsp DD95200300 C,CERAMIC CHIP T.C 20pF-J/50V-1608REEL D010200167160

C434 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C435 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C436 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C438 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C439 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C440 nsp DK96103300 C,CERAMIC CHIP HIK 0.01µF-K/50V-1608REEL D011103777160

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 23

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

C441 nsp OA22505020 C,ELECT GE 85C 2.2µF-M/50V,5*11-5RE D0402R2087100

C442 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C443 nsp OA47601640 C,ELECT GE 85C 47µF-M/16V,5*11-5RE.SY D040470083080

C446 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C449 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C451 nsp OA10505020 C,ELECT GE 85C 1µF-M/50V,5*11-5RE D040010087050

C452 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C455 nsp DK96102300 C,CERAMIC CHIP HIK 1000pF-K/50V-1608REEL D011102777160

C456 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C457 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C458 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C459 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C460 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C461 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C462 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C463 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C464 nsp DD95471300 C,CERAMIC CHIP T.C 470pF-J/50V-1608REEL D010471167160

C465 nsp OA47505020 C,ELECT GE 85C 4.7µF-M/50V,5*11-5RE.SY D0404R7087250

C466 nsp DD95471300 C,CERAMIC CHIP T.C 470pF-J/50V-1608REEL D010471167160

C467 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C468 nsp OA10405020 C,ELECT GE 85C 0.1µF-M/50V,5*11-5RE.SY D040R10087070

C469 nsp DK96103300 C,CERAMIC CHIP HIK 0.01µF-K/50V-1608REEL D011103777160

C470 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C471 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C472 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C473 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C475 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C476 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C481 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C483 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C484 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C486 *EX000070R *EX000070R C,DOUBLE LAYER(70) IF/5.5V 5*20 D090105000010

C487 nsp DD95270300 C,CERAMIC CHIP T.C 27pF-J/50V-1608REEL D010270167160

C489 nsp OA47602520 C,ELECT GE 85C 47µF-M/25V 5*11-5RE.SY D040470084070

C491 nsp DD95270300 C,CERAMIC CHIP T.C 27pF-J/50V-1608REEL D010270167160

C498 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C499 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C500 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C501 nsp DD95471300 C,CERAMIC CHIP T.C 470pF-J/50V-1608REEL D010471167160

CN101 nsp nsp CN,ASSY 2.5MM BD-PLG 260MM/6P B2513-6=A2505-6 N621506261630

CN102 nsp nsp CN,ASSY 2.5MM BD-PLG 200MM/7P B2513-7=A2505-7 N621507201630

CN103 nsp nsp CN,ASSY 2.5MM BD-PLG 260MM/5P B2513-5=A2505-5 N621505261630

CN104 nsp nsp CN,WIRE 380MM/2P A2505-03=B2513-03 L000381020040

CN602 nsp nsp CN,WIRE 120MM 9P A2004-9=B2011-09 L000121090010

CN603 nsp nsp CN,WIRE 80/3P A2004-03=B2011-03 L000800030060

CP402 nsp nsp CN.WAFER 2.0MM 53014-0910 9P L101530140910

CP403 nsp nsp CN.WAFER 2.0MM 53014-0910 9P L101530140910

CP404 nsp nsp CN.FPC 1.25MM SCB 1117-00 17P ST L131111700010

CP405 nsp nsp CN.WAFER 2.0MM 53014-0310 3P L101530140310

D401 *HZ200180R *HZ200180R D,SWITCHING CHIP 1N4148WS/BAV16WS SMD K005041480010

D402 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

D403 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

D404 *HZ200180R *HZ200180R D,SWITCHING CHIP 1N4148WS/BAV16WS SMD K005041480010

D405 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

D406 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

IC101 *HC108270R *HC108270R IC,LINEAR POWER DDX-2100 DIGITAL HIGH POWER J122210000010

IC102 *HC108260R *HC108260R IC,AUDIO PROCESSOR DDX-4100A MULTI CH DIGTAL J085410000010

IC103 *HC108270R *HC108270R IC,LINEAR POWER DDX-2100 DIGITAL HIGH POWER J122210000010

IC104 *HC108260R *HC108260R IC,AUDIO PROCESSOR DDX-4100A MULTI CH DIGTAL J085410000010

IC105 *HC108270R *HC108270R IC,LINEAR POWER DDX-2100 DIGITAL HIGH POWER J122210000010

IC107 *HC108230R *HC108230R IC,LOGIC-D/A CONVER CS4334-KS 24BIT,96K STEREO DAC J042433400010

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 24

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

IC403 *HC107300R *HC107300R IC,MEMORY-EEPROM M27W201-80B6 2M 80NANO PDIP32 J000272010010

IC404 *HC700360R *HC700360R IC,LOGIC MM74LCX574WMX LOWVOLT DUAL J040745740050

IC405 *HC108240R *HC108240R IC,ANALOG AK4586VQ MULTI CH AUDIO CODEC J080458600010

IC407 *HC700360R *HC700360R IC,LOGIC MM74LCX574WMX LOWVOLT DUAL J040745740050

IC408 *HC108250R *HC108250R IC,ANALOG CS493263-CL AUDIO DECODER J080493260030

IC410 *HC700350R *HC700350R IC,LOGIC MM74HCT244WMX OCTAL 3STATE J040742440160

IC411 HC10228030 HC10228030 IC,LOGIC LC7821-DIP30P(LOW NOISE) J040782100010

IC412 *HC400040R *HC400040R IC,LINEAR OP BA4558F-E2/SOP8P J121455800140

IC413 *HC700450R *HC700450R IC,LOGIC MM74LCX244WMX LOWVOLT BUFFER J040742440150

IC414 *HU100640R *HU100640R IC,CPU MICRO PROCESS CXP82840-351Q QFP100 DWP-592 PS110 J020828403510

IC416 *HC108280R *HC108280R IC,LINEAR-REGULATOR RC1117-3.3 SOT223 3.3V 1AMP J126111733020

IC417 *HC108280R *HC108280R IC,LINEAR-REGULATOR RC1117-2.5 SOT223 2.5V 1AMP J126111725020

JACK101 *YT003010R *YT003010R TER,BOARD PUSH 6P SP 6P, P80620731P(R/B) G596040340000

JACK102 *YT002490R *YT002490R TER,BOARD PUSH 4P P80420771P G594040470000

JACK401 *YT003050R *YT003050R CINCH PIN 4PIN JE040D606N(GND),2048540009 G602040600010

JACK402 *YT003050R *YT003050R CINCH PIN 4PIN JE040D606N(GND),2048540009 G602040600010

L101

nsp nsp COIL,CHOKE DR7.8*8 15UH 8080PH-07-150L D300780000010

L104

L105 *FC900290R *FC900290R BEAD,COIL CHIP HB-IT2012-121JT 2012REEL 7611010000020

L106

nsp nsp COIL,CHOKE DR7.8*8 15UH 8080PH-07-150L D300780000010

L110

L111 *FC900290R *FC900290R BEAD,COIL CHIP HB-IT2012-121JT 2012REEL 7611010000020

L112 nsp nsp COIL,CHOKE DR7.8*8 15UH 8080PH-07-150L D300780000010

L113 *FC900290R *FC900290R BEAD,COIL CHIP HB-IT2012-121JT 2012REEL 7611010000020

L114 nsp nsp COIL,FILTER-INDUCTOR 4.7UH-Q50/56M-R1.7-5REEL D3304R7000150

L115 nsp nsp COIL,FILTER-INDUCTOR 4.7UH-Q50/56M-R1.7-5REEL D3304R7000150

L116 *FC900290R *FC900290R BEAD,COIL CHIP HB-IT2012-121JT 2012REEL 7611010000020

L117 nsp nsp COIL,CHOKE DR7.8*8 15UH 8080PH-07-150L D300780000010

L403

*FC900290R *FC900290R BEAD,COIL CHIP HB-IT2012-121JT 2012REEL 7611010000020

L415

Q406 BA10005210 BA10005210 TRS.CHIP/PNP 2SA DTA114YK(54) 0.2W/SMT-REEL J5200114Y0210

Q407 BA20005210 BA20005210 TRS.CHIP/NPN 2SC DTC114EK(24),0.2W/SMT-REEL J5220114E0210

Q409 BA20007210 BA20007210 TRS.CHIP/NPN 2SC DTC114YK (64),0.2W/SMT-REEL J5220114Y0210

Q410 BA10023210 BA10023210 TRS.CHIP/PNP 2SA DTA114EK(14) 0.2W/SMT-REEL J5200114E0210

Q411 BA20005210 BA20005210 TRS.CHIP/NPN 2SC DTC114EK(24),0.2W/SMT-REEL J5220114E0210

Q412 BA10023210 BA10023210 TRS.CHIP/PNP 2SA DTA114EK(14) 0.2W/SMT-REEL J5200114E0210

Q413 BA20005210 BA20005210 TRS.CHIP/NPN 2SC DTC114EK(24),0.2W/SMT-REEL J5220114E0210

Q414 BA10023210 BA10023210 TRS.CHIP/PNP 2SA DTA114EK(14) 0.2W/SMT-REEL J5200114E0210

Q415 BA10001210 BA10001210 TRS.CHIP/PNP 2SA DTA114TK(94) 0.2W/SMT-REEL J5200114T0210

R107 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R108 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R109 nsp *NN000530R R,CHIP THICK 20-J,1/4W-3216REEL C200020006330

R110 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R111 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R112 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R113 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R114 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R115 nsp *NN000530R R,CHIP THICK 20-J,1/4W-3216REEL C200020006330

R116 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R117 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R118 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R119 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R120 nsp *NN000530R R,CHIP THICK 20-J,1/4W-3216REEL C200020006330

R121

nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R124

R125 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R126 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 25

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

R127 nsp *NN000530R R,CHIP THICK 20-J,1/4W-3216REEL C200020006330

R128 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R129 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R130 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330

R131 nsp *NN000530R R,CHIP THICK 20-J,1/4W-3216REEL C200020006330

R132 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R133 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R134 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R135 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R137 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R139 nsp NN05105610 R,CHIP THICK 1M-J,1/16W-1608REEL C20001056M160

R429 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R430 nsp NN05183610 R,CHIP THICK 18K-J,1/16W-1608REEL C20001836M160

R431 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R432 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R433 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R436 nsp NN05330610 R,CHIP THICK 33-J,1/16W-1608REEL C20003306M160

R437 nsp NN05330610 R,CHIP THICK 33-J,1/16W-1608REEL C20003306M160

R438 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R439 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R440 nsp NN05105610 R,CHIP THICK 1M-J,1/16W-1608REEL C20001056M160

R441 nsp NN05330610 R,CHIP THICK 33-J,1/16W-1608REEL C20003306M160

R442 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R443 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R445 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R449 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R452 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R453 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R454 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R455 nsp NN05330610 R,CHIP THICK 33-J,1/16W-1608REEL C20003306M160

R456 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R457

nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R464

R466 nsp NN05330610 R,CHIP THICK 33-J,1/16W-1608REEL C20003306M160

R469 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R470 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R472 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R475 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R476 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R477 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R479 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R481 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R482 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R483 nsp NN05331610 R,CHIP THICK 330-J,1/16W-1608REEL C20003316M160

R484 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R485 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R486 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R487 nsp NN05331610 R,CHIP THICK 330-J,1/16W-1608REEL C20003316M160

R488 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R489 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R490 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R491 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R492 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R493 nsp NN05331610 R,CHIP THICK 330-J,1/16W-1608REEL C20003316M160

R494 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R495 nsp NN05105610 R,CHIP THICK 1M-J,1/16W-1608REEL C20001056M160

R496 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R497 nsp NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160

R498 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R499 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 26

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

R500 nsp NN05331610 R,CHIP THICK 330-J,1/16W-1608REEL C20003316M160

R501 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R503 nsp NN05683610 R,CHIP THICK 68K-J,1/16W-1608REEL C20006836M160

R504 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R507 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R508 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R509 nsp NN05470610 R,CHIP THICK 47-J,1/16W-1608REEL C20004706M160

R510 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R511 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R512 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R513 nsp NN05473610 R,CHIP THICK 47K-J,1/16W-1608REEL C20004736M160

R514

nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R518

R519 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R520 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R521 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R522

nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R536

R537 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R538 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R539 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R540 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R541 nsp NN05330610 R,CHIP THICK 33-J,1/16W-1608REEL C20003306M160

R542 nsp NN05330610 R,CHIP THICK 33-J,1/16W-1608REEL C20003306M160

R543 nsp NN05333610 R,CHIP THICK 33K-J,1/16W-1608REEL C20003336M160

R544 nsp NN05473610 R,CHIP THICK 47K-J,1/16W-1608REEL C20004736M160

R545 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

XTAL101 *JX000470R *JX000470R CRYSTAL 24.576MHZ CL:16pF E800245760810

XTAL401 *JX000470R *JX000470R CRYSTAL 24.576MHZ CL:16pF E800245760810

XTAL402 *FQ000560R *FQ000560R RESONATOR,CERAMIC CSTLS10M0G53-A0 10.000MHZ 15pF E830100000030

XTAL403 *JX000750R *JX000750R CRYSTAL 32.768KHZ,CFS308-CL;12.5P E80032R768050

DIGITAL INPUT PCB

BKT601 nsp nsp SHIELD PLATE GND 3070045526010

C401 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C403 nsp DD95331300 C,CERAMIC CHIP T.C 330pF-J/50V-1608REEL D010331167160

C404 nsp OA10701620 C,ELECT GE 85C 100µF-M/16V,6.3*11-5RE,SMS SY D040101083070

C405 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C407 nsp DK96332300 C,CERAMIC CHIP HIK 3300pF-K/50V-1608REEL D011332777160

C408 nsp DD95331300 C,CERAMIC CHIP T.C 330pF-J/50V-1608REEL D010331167160

C409 nsp DK96332300 C,CERAMIC CHIP HIK 3300pF-K/50V-1608REEL D011332777160

C410 nsp DD95331300 C,CERAMIC CHIP T.C 330pF-J/50V-1608REEL D010331167160

C411 nsp OA10701620 C,ELECT GE 85C 100µF-M/16V,6.3*11-5RE,SMS SY D040101083070

C412 nsp OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050

C413 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C414 nsp DD95331300 C,CERAMIC CHIP T.C 330pF-J/50V-1608REEL D010331167160

C420 nsp DK96272300 C,CERAMIC CHIP HIK 2700pF-K/50V-1608REEL D011272777160

C421 nsp DK96272300 C,CERAMIC CHIP HIK 2700pF-K/50V-1608REEL D011272777160

C422 nsp DK96272300 C,CERAMIC CHIP HIK 2700pF-K/50V-1608REEL D011272777160

C429 nsp DK96272300 C,CERAMIC CHIP HIK 2700pF-K/50V-1608REEL D011272777160

C437 nsp *DD900350R C,CERAMIC CHIP T.C 680pF-J 50V-1608REEL D010681167160

C444 nsp DK96332300 C,CERAMIC CHIP HIK 3300pF-K/50V-1608REEL D011332777160

C445 nsp *DD900350R C,CERAMIC CHIP T.C 680pF-J 50V-1608REEL D010681167160

C447 nsp OA10505020 C,ELECT GE 85C 1µF-M/50V,5*11-5RE D040010087050

C448 nsp DK96222300 C,CERAMIC CHIP HIK 2200pF-K/50V-1608REEL D011222777160

C450 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C453 nsp OA10505020 C,ELECT GE 85C 1µF-M/50V,5*11-5RE D040010087050

C454 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 27

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

C502 nsp DK96272300 C,CERAMIC CHIP HIK 2700pF-K/50V-1608REEL D011272777160

C503 nsp DK96332300 C,CERAMIC CHIP HIK 3300pF-K/50V-1608REEL D011332777160

C504 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

C505 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

C506 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

C507

nsp OA10505020 C,ELECT GE 85C 1µF-M/50V,5*11-5RE D040010087050

C510

C601 nsp OA47601050 C,ELECT GE 85C 47µF-M/10V,5*11-5RE SY D040470082050

C602 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

C603 nsp DD95220300 C,CERAMIC CHIP T.C 22pF-J/50V-1608REEL D010220167160

C604 nsp OA47601050 C,ELECT GE 85C 47µF-M/10V,5*11-5RE SY D040470082050

C605 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

C606 nsp OA10405020 C,ELECT GE 85C 0.1µF-M/50V,5*11-5RE.SY D040R10087070

C607 nsp DD95220300 C,CERAMIC CHIP T.C 22pF-J/50V-1608REEL D010220167160

C608 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

C609 nsp DD95220300 C,CERAMIC CHIP T.C 22pF-J/50V-1608REEL D010220167160

C611 nsp OA10405020 C,ELECT GE 85C 0.1µF-M/50V,5*11-5RE.SY D040R10087070

C612 nsp DD95220300 C,CERAMIC CHIP T.C 22pF-J/50V-1608REEL D010220167160

C613 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

C614 nsp DD95220300 C,CERAMIC CHIP T.C 22pF-J/50V-1608REEL D010220167160

C616 nsp DK98104300 C,CERAMIC CHIP HIK 0.1µF-Z/50V-1608REEL D011104597160

CN601 nsp nsp CN,ASSY 2MM BD-PLG 80MM/9P A2004-09=B2011-09 N611509081330

CP401 nsp nsp CN.WAFER 2.0MM 53015-0310 3P ANGLE L101530150310

D407 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

D408 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

D410 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

D601 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

D602 nsp *HD201720R D,SWITCHING 1N4148-52RE 75V 150MA DO-34 K000414803520

IC401 HC10045090 HC10045090 IC,LINEAR OP NJM4556AM HEADPHONE AMP J121455600010

IC402 *HC400040R *HC400040R IC,LINEAR OP BA4558F-E2/SOP8P J121455800140

IC409 *HC400040R *HC400040R IC,LINEAR OP BA4558F-E2/SOP8P J121455800140

IC601 *YT002570R *YT002570R MODULE GP1FA502RZ OPTICAL RCVR 96KHZ E100150200020

IC602 HC700411Y0 HC700411Y0 IC,LOGIC 74VHCU04 SOP14 /HEX INVERTER J040740400260

JACK601 *YT003040R *YT003040R CINCH PIN 2PIN JE020163QN (H,H) G601020163060

JACK602 *YT003030R *YT003030R CINCH PIN 2PIN R-756 JE020163EN,(B,B,NI) G601020163030

JACK603 *YT003020R *YT003020R CINCH PIN 1PIN JC010127CN G600101270060

L401 nsp nsp COIL,FILTER-INDUCTOR 100UH-Q40/9M-R12-52RE 02TB D330101001020

L402 nsp nsp COIL,FILTER-INDUCTOR 100UH-Q40/9M-R12-52RE 02TB D330101001020

L601 nsp nsp COIL,FILTER-INDUCTOR 4.7UH-Q50/56M-R1.7-5REEL D3304R7000150

L602 nsp nsp COIL,FILTER-INDUCTOR 4.7UH-Q50/56M-R1.7-5REEL D3304R7000150

L603 nsp nsp COIL,FILTER-INDUCTOR 2.2UH-Q50/110M-R1.2-5REEL D3302R2000150

L604 nsp nsp COIL,FILTER-INDUCTOR 2.2UH-Q50/110M-R1.2-5REEL D3302R2000150

L605 nsp nsp COIL,FILTER-INDUCTOR 4.7UH-Q50/56M-R1.7-5REEL D3304R7000150

Q405 *HT300870R *HT300870R TRS.CHIP/NPN 2SC KTC2875B(MB) 0.15W/LOW-ON-RES J5222875B0010

Q408 BA10023210 BA10023210 TRS.CHIP/PNP 2SA DTA114EK(14) 0.2W/SMT-REEL J5200114E0210

Q420 *HT300870R *HT300870R TRS.CHIP/NPN 2SC KTC2875B(MB) 0.15W/LOW-ON-RES J5222875B0010

Q421 *HT300870R *HT300870R TRS.CHIP/NPN 2SC KTC2875B(MB) 0.15W/LOW-ON-RES J5222875B0010

Q422 *BA001360R *BA001360R SEMI,BRT/NPN RC DTC114YS,0.3W/TO92M-REEL J6020114Y0050

R402 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R404 nsp NN05390610 R,CHIP THICK 39-J,1/16W-1608REEL C20003906M160

R405 nsp NN05473610 R,CHIP THICK 47K-J,1/16W-1608REEL C20004736M160

R406 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R407 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R408 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R409 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R410 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R411 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R412 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R413 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R416 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 28

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

R417 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R419 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R420 nsp NN05390610 R,CHIP THICK 39-J,1/16W-1608REEL C20003906M160

R421 nsp NN05473610 R,CHIP THICK 47K-J,1/16W-1608REEL C20004736M160

R422 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R423 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R424 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R425 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R427 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R434 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R435 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R444 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R446 nsp NN05622610 R,CHIP THICK 6.2K-J,1/16W-1608REEL C20006226M160

R447 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R450 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R451 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R465 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R467 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R468 nsp NN05183610 R,CHIP THICK 18K-J,1/16W-1608REEL C20001836M160

R471 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R473 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R474 nsp NN05122610 R,CHIP THICK 1.2K-J,1/16W-1608REEL C20001226M160

R478 nsp NN05474610 R,CHIP THICK 470K-J,1/16W-1608REEL C20004746M160

R480 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R505 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R506 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R550 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R551 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R552 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R553 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R554 nsp NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160

R555 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R556 nsp GG05680140 R,METAL FILM 100PPM 68-J,1/4W-R.REEL C060068063050

R601 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R602 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R603 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R604 nsp NN05750610 R,CHIP THICK 75-J,1/16W-1608REEL C20007506M160

R605 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R606 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R607 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R608 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R609 nsp NN05750610 R,CHIP THICK 75-J,1/16W-1608REEL C20007506M160

R610 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R611 nsp NN05222610 R,CHIP THICK 2.2K-J,1/16W-1608REEL C20002226M160

R612 nsp NN05470610 R,CHIP THICK 47-J,1/16W-1608REEL C20004706M160

RLY402 *LY000300R *LY000300R RELAY RSB12S DC12V 2A30VDC G680120202020

SW601 *SS000700R *SS000700R SW,SLIDE SSAF112NA011 G060112011010

FRONT PCB

* *HQ300590R *HQ300590R DISPLAY,FLT 13-ST-51GN 13X35 2COLOR K530135100010

* nsp nsp SUPPORTER RUBBER(MBR)H5(BK3PIN) / LED A 4070210235000

* nsp nsp SUPPORTER RUBBER(MBR)H6(BLUE2PIN)/LED B 4070210245000

C301 nsp EJ10505010 C,ELECT GE 85C 1µF-M/50V,3*5-5RE SY D040010087070

C302 nsp DK98473300 C,CERAMIC CHIP HIK 0.047µF-Z/50V-1608REEL D011473597160

C303 nsp EJ147601610 C,ELECT GE 85C 47µF-M/16V,6.3*5-5RE.SY D040470083070

C304 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C305

nsp DK96821300 C,CERAMIC CHIP HIK 820pF-K/50V-1608REEL D011821777160

C308

C310 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 29

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

C311 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C312 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C313 nsp EJ10505010 C,ELECT GE 85C 1µF-M/50V,3*5-5RE SY D040010087070

C314 nsp DK98473300 C,CERAMIC CHIP HIK 0.047µF-Z/50V-1608REEL D011473597160

C315 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C316 nsp EJ47602510 C,ELECT GE 85C 47µF-M/25V,6.3*7-5RE D040470084060

C317 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C318 nsp DK96221300 C,CERAMIC CHIP T.C 220pF-J/50V-1608REEL D010221167160

C319 nsp DK96221300 C,CERAMIC CHIP T.C 220pF-J/50V-1608REEL D010221167160

C320 nsp DK96221300 C,CERAMIC CHIP T.C 220pF-J/50V-1608REEL D010221167160

C321 nsp DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160

C322 nsp DK98473300 C,CERAMIC CHIP HIK 0.047µF-Z/50V-1608REEL D011473597160

C323 nsp EJ10505010 C,ELECT GE 85C 1µF-M/50V,3*5-5RE SY D040010087070

C324 nsp DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160

C325 nsp DK96221300 C,CERAMIC CHIP T.C 220pF-J/50V-1608REEL D010221167160

CN301 nsp nsp CN,WIRE 460MM 3P A2004-03=B2011-03(AN) L000461030010

CN302 nsp nsp CN,WIRE 60MM/3P 9073-03(AN) L000600030030

CP301 nsp nsp CN.FPC 1.25MM SCB 1017-00 17P AN L131101700010

CP302 nsp nsp CN.WAFER 2.5MM 5268-03A 3P ANGLE L102526803010

D301 *HZ200180R *HZ200180R D,SWITCHING CHIP 1N4148WS/BAV16WS SMD K005041480010

D302 *HZ200180R *HZ200180R D,SWITCHING CHIP 1N4148WS/BAV16WS SMD K005041480010

D303 *HZ200180R *HZ200180R D,SWITCHING CHIP 1N4148WS/BAV16WS SMD K005041480010

D304 *HZ200180R *HZ200180R D,SWITCHING CHIP 1N4148WS/BAV16WS SMD K005041480010

D307 *HD301620R *HD301620R D,ZENER MTZJ6.8B-0.5W/5MA-52MM K06006R844520

IC301 *HC107180R *HC107180R IC,LINEAR-DRIVER M66005FP-SOP64P /FL DRIVER J127660050010

IR301 *HW100520R *HW100520R MODULE,REMOCON NJL64H380A E940643800000

J301

nsp nsp CN,WIRE 1P JUMPER (0.6/52MM) L045084006040

J304

JACK501 *YT002500R *YT002500R JACK,D3.5 HTJ035-18AB(G) G401035180010

L301 nsp nsp COIL,FILTER-INDUCTOR 10UH-Q40/24M-R2.5-52RE 02TB D330100700520

LED301 *HI100970R *HI100970R LED,ROUND HL-50CDG (MAN,5PI,P=2.5) K500000020010

LED302 *HI100970R *HI100970R LED,ROUND HL-50CDG (MAN,5PI,P=2.5) K500000020010

LED303 *HI100980R *HI100980R LED,ROUND PI5-RD,GR/HLD50RG,DUAL K500052003090

Q301 BA20005210 BA20005210 TRS.CHIP/NPN 2SC KRC102S (NB) 0.2W/SOT-23 REEL J522010200210

Q302 BA20005210 BA20005210 TRS.CHIP/NPN 2SC KRC102S (NB) 0.2W/SOT-23 REEL J522010200210

Q303 BA20005210 BA20005210 TRS.CHIP/NPN 2SC KRC102S (NB) 0.2W/SOT-23 REEL J522010200210

Q304

*BA001230R *BA001230R TRS.CHIP/PNP 2SA KRA102S(PB) 0.2W/SOT-23 REEL J520010200210

Q307

Q308

*BA001160R *BA001160R TRS./GE NPN 2SC TR CHIP KRC107S SOT23 J5020107S0050

Q311

Q312 BA20005210 BA20005210 TRS.CHIP/NPN 2SC KRC102S (NB) 0.2W/SOT-23 REEL J522010200210

Q313 BA20005210 BA20005210 TRS.CHIP/NPN 2SC KRC102S (NB) 0.2W/SOT-23 REEL J522010200210

R332 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R333 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R334 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R336

nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R339

R355 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R356

nsp NN05221610 R,CHIP THICK 220-J,1/16W-1608REEL C20002216M160

R359

R361 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

R362 nsp *NN000470R R,CHIP THICK 2.4K-J,1/16W-1608REEL C20002426M160

R363 nsp NN05432610 R,CHIP THICK 4.3K-J,1/16W-1608REEL C20004326M160

R364 nsp NN05822610 R,CHIP THICK 8.2K-J,1/16W-1608REEL C20008226M160

R365 nsp *NN000520R R,CHIP THICK 24K-J,1/16W-1608REEL C20002436M160

R367 nsp NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

Page 30

POS. NO

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

DESCRIPTION

R368 nsp *NN000470R R,CHIP THICK 2.4K-J,1/16W-1608REEL C20002426M160

R369 nsp NN05432610 R,CHIP THICK 4.3K-J,1/16W-1608REEL C20004326M160

R370 nsp NN05822610 R,CHIP THICK 8.2K-J,1/16W-1608REEL C20008226M160

R371 nsp *NN000520R R,CHIP THICK 24K-J,1/16W-1608REEL C20002436M160

R372 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R373 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R374 nsp NN05102610 R,CHIP THICK 1K-J,1/16W-1608REEL C20001026M160

R375 nsp NN05101610 R,CHIP THICK 100-J,1/16W-1608REEL C20001016M160

R376 nsp NN05273610 R,CHIP THICK 27K-J,1/16W-1608REEL C20002736M160

R377 nsp NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160

R378 nsp NN05470610 R,CHIP THICK 47-J,1/16W-1608REEL C20004706M160

R379 nsp NN05122610 R,CHIP THICK 1.2K-J,1/16W-1608REEL C20001226M160

R380 nsp NN05474610 R,CHIP THICK 470K-J,1/16W-1608REEL C20004746M160

R381 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R382 nsp nsp R,FIXED,CARBON FILM RD-T-1/6WJ-4.7 1.9*3.2 52REEL N111112647910

R383 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

R384 nsp NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160

SW301 *SP001220R *SP001220R SW,TACT THHH582GAA /VERTICAL P=4.5 G180040520020

SW302

*SP001140R *SP001140R SW,TACT SKHV10920A,5MM/260G-REEL G180000270010

SW305

SW306 *SP001220R *SP001220R SW,TACT THHH582GAA /VERTICAL P=4.5 G180040520020

SW307 *SP001140R *SP001140R SW,TACT SKHV10920A,5MM/260G-REEL G180000270010

SW308 *SP001220R *SP001220R SW,TACT THHH582GAA /VERTICAL P=4.5 G180040520020

SW309 *SP001140R *SP001140R SW,TACT SKHV10920A,5MM/260G-REEL G180000270010

VOL301 *SR000230R *SR000230R SW,ENCODER EC16B24T00C3ZZZ G121162400010

VOL302 *SR000160R *SR000160R SW,ROTARY EC11B20D2-ZZZ G120112020010

F1 *FS001010R *FS001010R FUSE T4AL/250V FUSE CARTRIDGE G659402251010

POWER SUPPLY(SMPS) PCB

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
