Model PMD505 User Guide
R
Cassette Deck
IMPORTANT TO SAFETY
FOR U.S.A. & CANADA MODEL ONLY
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
1. Handle the power supply cord carefully
Do not damage or deform the power supply cord. If it is damaged
or deformed, it may cause electric shock or malfunction when
used. When removing it from wall outlet, be sure to remove by
holding the plug attachment and not by pulling the cord.
2. Do not open the top cover
In order to prevent electric shock, do not open the top cover.
If problems occur, contact your MARANTZ DEALER.
3. Do not place anything inside
Do not place metal objects or spill liquid inside the cassette tape
deck.
Electric shock or malfunction may result.
Please, record and retain the Model name and serial number of your
set shown on the rating label.
Model No. PMD505 Serial No.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
POUR LES MODELES AMERICAINS ET CANADIENS
UNIQUEMENT
ATTENTION
POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN PROLONGATEUR UNE
PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT,
SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS
EN LAISSER AUCUNE PARTIE A DECOUVERT.
PARA EL MODELO DESTINADO A LOS EE.UU. Y A CANADÁ
PRECAUCIÓN
PARA IMPEDIR LAS DESCARGAS ELÉCTRICAS NO UTILICE
ESTA CLAVIJA POLARIZADA CON UN CABLE DE EXTENSIÓN,
UNA TOMA DE CORRIENTE O UNA SALIDA DE CORRIENTE A
MENOS QUE LAS PATILLAS PUEDAN INSERTARSE
COMPLETAMENTE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user of the
persence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user of the persence of
important operating and maintenance (servicing)
instruction in the literature accompanying the
appliance.
i
IMPORTANT SAFETY
INSTRUCTIONS
READ BEFORE OPERATING EQUIPMENT
This product was designed and manufactured to meet strict quality and
safety standards. There are, however, some installation and operation
precautions which you should be particularly aware of.
1. Read Instructions – All the safety and operating instructions
should be read before the product is operated.
2. Retain Instructions – The safety and operating instructions should
be retained for future reference.
3. Heed Warnings – All warnings on the product and in the operating
instructions should be adhered to.
4. Follow Instructions – All operating and use instructions should be
followed.
5. Cleaning – Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
6. Attachments – Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture – Do not use this product near water-for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub,
in a wet basement, or near a swimming pool, and the like.
8. Accessories – Do not place this product on an unstable cart,
stand, tripod, bracket, or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product. Any
mounting of the product should follow the manufacturer’s
instructions, and should use a mounting accessory recommended
by the manufacturer.
9. A product and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.
12. Grounding or Polarization – This product may be equipped with a
polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the polarized plug.
AC POLARIZED PLUG
13. Power-Cord Protection – Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
product.
14. Protective Attachment Plug – The product is equipped with an
attachment plug having overload protection. This is a safety
feature. See Instruction Manual for replacement or resetting of
protective device. If replacement of the plug is required, be sure
the service technician has used a replacement plug specified by
the manufacturer that has the same overload protection as the
original plug.
15. Outdoor Antenna Grounding – If an outside antenna or cable
system is connected to the product, be sure the antenna or cable
system is grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides information
with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode. See Figure 1.
10. Ventilation – Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to
protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
11. Power Sources – This product should be operated only from the
type of power source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
16. Lightning – For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the product due to
lightning and power-line surges.
17. Power Lines – An outside antenna system should not be located
in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should
be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
18. Overloading – Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of fire
or electric shock.
19. Object and Liquid Entry – Never push objects of any kind into this
product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
ii
20. Servicing – Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.
21. Damage Requiring Service – Unplug this product from the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a distinct change in performance – this
indicates a need for service.
22. Replacement Parts – When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
23. Safety Check – Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
24. Wall or Ceiling Mounting – The product should be mounted to a
wall or ceiling only as recommended by the manufacturer.
25. Heat – The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
FIGURE 1
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme
NMB-003 du Canada.
NEC - NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
iii
NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO
Avoid high temperatures
Allow for sufficient heat dispersion when
installed on a rack.
Eviter des températures élevées
Tenir compte d’une dispersion de
chaleur suffisante lors de l’installation
sur une étagère.
Evite altas temperaturas
Permite la suficiente dispersión del
calor cuando está instalado en la
consola.
Keep the set free from moisture, water,
and dust.
Protéger l’appareil contre l’humidité,
l’eau et la poussière.
Mantenga el equipo libre de humedad,
agua y polvo.
Unplug the power cord when not using
the set for long periods of time.
Débrancher le cordon d’alimentation
lorsque l’appareil n’est pas utilisé
pendant de longues périodes.
Desconecte el cordón de energía
cuando no utilice el equipo por mucho
tiempo.
Do not let foreign objects in the set.
Ne pas laisser des objets étrangers
dans l’appareil.
No deje objetos extaños dentro del
equipo.
Do not let insecticides, benzene, and
thinner come in contact with the set.
Ne pas mettre en contact des
insecticides, du benzène et un diluant
avec l’appareil.
No permita el contacto de insecticidas,
gasolina y diluyentes con el equipo.
Handle the power cord carefully.
Hold the plug when unplugging the
cord.
Manipuler le cordon d’alimentation avec
précaution.
Tenir la prise lors du débranchement du
cordon.
Maneje el cordón de energía con
cuidado.
Sostenga el enchufe cuando
desconecte el cordón de energía.
*(For sets with ventilation holes)
Do not obstruct the ventilation holes.
Ne pas obstruer les trous d’aération.
No obstruya los orificios de ventilación.
Never disassemble or modify the set in
any way.
Ne jamais démonter ou modifier
l’appareil d’une manière ou d’une autre.
Nunca desarme o modifique el equipo
de ninguna manera.
iv
Thank you very much for purchasing the MARANTZ component
LINE
L
OUT
REMOTE
R
IN
OUT
CONTROL
IN
WHITE
RED
RED
TAPE-1
Receiver or amplifier
RED
RED
WHITE
LINE
IN OUT
PMD505
Power supply
outlet.
WHITE
PB REC
WHITE
L
R
L
R
L
R
L
R
stereo cassette tape deck.
MARANTZ proudly presents this advanced tape deck to audiophiles
and music lovers as a further proof of MARANTZ’s non-compromising
pursuit of the ultimate in sound quality. The high quality performance
and easy operation are certain to provide you with many hours of
outstanding listening pleasure.
–
TABLE OF CONTENTS
–
FEATURES ............................................................... 1
CONNECTION ........................................................... 1
NAMES AND FUNCTIONS OF PARTS ............................. 2, 3
CASSETTE TAPES ...................................................... 3
AUTOMATIC TAPE SELECTION ...................................... 3
PLAYBACK .............................................................. 4
RELAY PLAY ............................................................ 4
RECORDING ............................................................. 5
PROPER RECORDING LEVEL ........................................ 5
REC MUTE AND REC PAUSE BUTTON .............................. 5
DUBBING ................................................................. 6
SYNCHRO REVERSE DUBBING ....................................6, 7
SYNCHRO RECORDING PROCEDURE ...............................7
TAPE COUNTER ........................................................ 7
DOLBY B AND C NOISE REDUCTION SYSTEM .................... 7
DOLBY HX PRO HEADROOM EXTENSION SYSTEM .............. 7
MAINTENANCE .......................................................... 8
REMOTE CONTROL .................................................... 9
USING THE REMOTE CONTROL UNIT .............................. 9
TROUBLESHOOTING ................................................. 10
SPECIFCATIONS ...................................................... 10
Please check to make sure the following items are included with
the main unit in the carton:
(1) Operating Instructions
(Warranty card is on the last page of this instructions.) ....... 1
(2) Stereo audio cable ................................................ 2
(3) Remote control unit (RC455SD) ................................. 1
(4) AA (R6) Batteries ................................................. 2
(5) Market survey card ............................................... 1
ENGLISHFRANÇAISESPAÑOL
FEATURES
Computer Controlled Mechanism
Dolby HX-Pro Headroom Extension System
Dolby B & C Noise Reduction Systems
Dual Computing Tape Counter with 4-Digit Readout
FL Peak Level Meters
Auto Tape Selector
2-Speed Dubbing
Relay Playback
Remote Controllable
Pitch Control Function (DECK A)
CONNECTION
Leave your entire system (including this cassette deck) turned off
until all connections between the deck and other components
have been completed.
Connecting the Deck to an Amplifier
Before connecting the deck to your amplifier, please review
your amplifier’s instruction manual.
Use the white plugs for the left channel and red plugs for the
right channel.
Tape Dubbing
Many stereo amplifiers and receivers have tape dubbing
circuitry so that tape duplication can be performed between
two or more tape decks. Review your amplifier’s instruction
manual for a full explanation of this mode of operation.
Connecting Headphones
To listen through headphones, plug your headphones into the
PHONES jack.
REMOTE CONTROL
For the operation of the system control.
The following functions of this Marantz product can be remotecontrolled.
Play, FF, REW, Stop, Rec, Rec Pause, Rec Mute, Counter
Reset, Direction, Deck A, Deck B.
However, the remote-controllable functions are dependednt on the
type of remote control used.
If this Marantz product is to be remote-controlled by a Marantz
Learning Remote Control, please refer to the Command Code
Table of page 8.
Installation Precautions
If the deck is placed near an amplifier, TV or tuner, noise (induced
hum) or beat interference may result, especially during FM or AM
reception. If this occurs, place the deck further away from other
components or reorient its position.
Caution
A mechanical sound is heard the first time the power switch is
set to “ON” after the power cord is plugged into an outlet. This
is the sound of the cassette mechanism being set to the
proper operating state, and is normal.
(When using an AC outlet on a receiver or amplifier, used an
“UNSWITCHED” outlet.)
1
RESET
MIN
–
PHONES
CONTROL
PITCH
PLAY
+
RESET
COUNTERCOUNTER
REC/PLAY
EJECT
A
PLAY
PLAY
HIGH
PAUSE
NORMAL
REC MUTEREC
REC LEVEL
SYNC REV
STOP
POWER
ON/OFF
STOP
CCONT. PLAY
B
OFF
PLAY
OFF
REC
C
B
REV. MODE
DOLBY NR
CASSETTE DECK PMD505
EJECT
TIMER
MAX
DUBBING SPEED
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
r!5 o!2 ey eu!3!1 o
qtwiuw!0!4

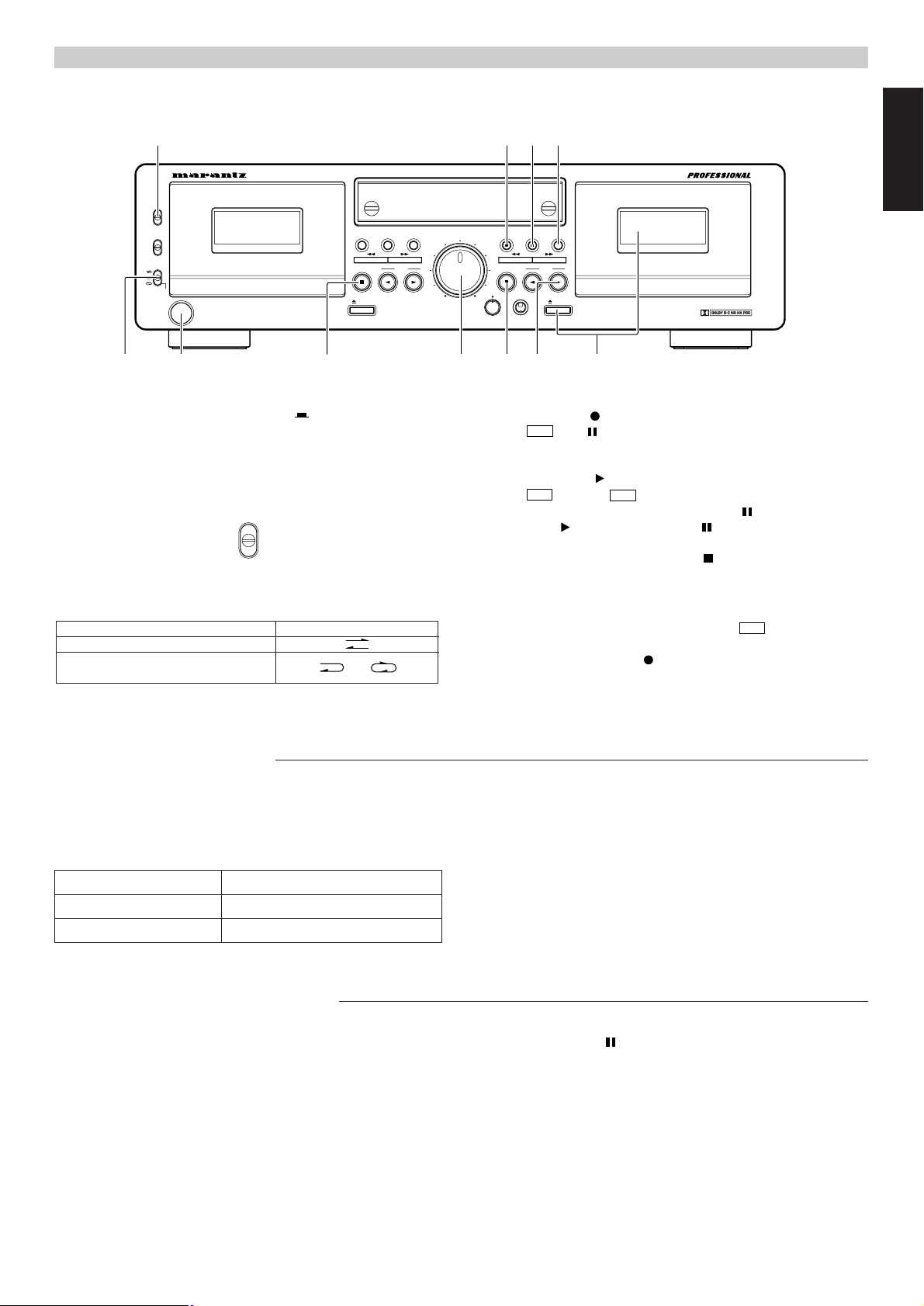

NAMES AND FUNCTIONS OF PARTS
ENGLISH FRANÇAIS ESPAÑOL
q Power Switch (POWER)
Press once to turn the power to deck on, and once more to turn
the power off.
The deck remains in a standby (non-operative) mode for
approximately 2 seconds after it is switched on.
w Eject Button ( EJECT)
Press this button to open the cassette compornent cover, When
the tape is running, press the STOP ( ) button first to stop
tape transport, then press the Eject button.
e Counter Reset Button (COUNTER RESET)
Press this button to reset the tape counter to zero.
u Tape Transport Buttons
(PLAY)
(PLAY)
(STOP)
(REW)
(FF)
(REC)
(Deck B only)
REC MUTE
(Deck B only)
(PAUSE)
(Deck B only)
Forward Play Button
Reverse Play Button Press to Reverse playback tape.
Stop Button
Fast Rewind Button
Fast Forward Button
Rec Button
Rec Mute Button
Rec Pause Button
Press to Forward playback tape.
Press to stop the tape in any mode.
Press for fast rewind.
Press for fast forwarding
Press the REC button and PLAY button simultaneously to start recording. If only the REC button is pressed,
the deck enters the Recording Pause mode.
Pressing this button in the Recording Pause mode will start Auto Rec Mute, and a 4-second silent space is
recorded onto the tape. See page 5.
Press this button to enter the recording pause mode from the recording or recording mute mode. This
button can only be used during recording.
r Dolby NR Switch (DOLBY NR)
To record or playback tapes with Dolby B or C-type noise
reduction, set this switch to “B” or “C” . Turn it “OFF” when not
using the Dolby NR system.
t Reverse Mode Switch (REV MODE)
Select the tape of tape transport. The reverse mode can be set
to (one side), (both side), (continuous
playback).
y Dubbing Speed Buttons (DUBBING SPEED)
Pressing the NORMAL button starts regular speed dubbing
from deck A to deck B. Press the HIGH button to perform
dubbing at double speed. See page 6.
See page 5.
i Rec Level Control (REC LEVEL)
This knob adjusts the recording input level. It affects the level in
both channels. See page 5.
!1 Remote Sensor
Each of “PLAY, FF, REW, STOP, REC, REC PAUSE, REC MUTE,
DIRECTION, COUNTER RESET, DECK A and DECK B”
functions can be remote controlled with wireless handset.
o Cassette Compartment Cover
If the cover is not closed completely, the tape transport buttons
will remain inoperative.
!0 Headphone Jack (PHONES)
For private music enjoyment without disturbing others, or for
monitoring a recording, a headphone set may be connected to
this jack. Use a headphone with an impedance rating of 8 to
1200 ohms.
NOTE:
Note that only the A deck can be operated with remote control
units which have no
!2 Syncro Reverse Button (SYNC REV)
Press this button to set the SYNC REV mode. See page 6.
2
A/B selector button.
Erasure prevention tab for side B
Erasure prevention tab for side A

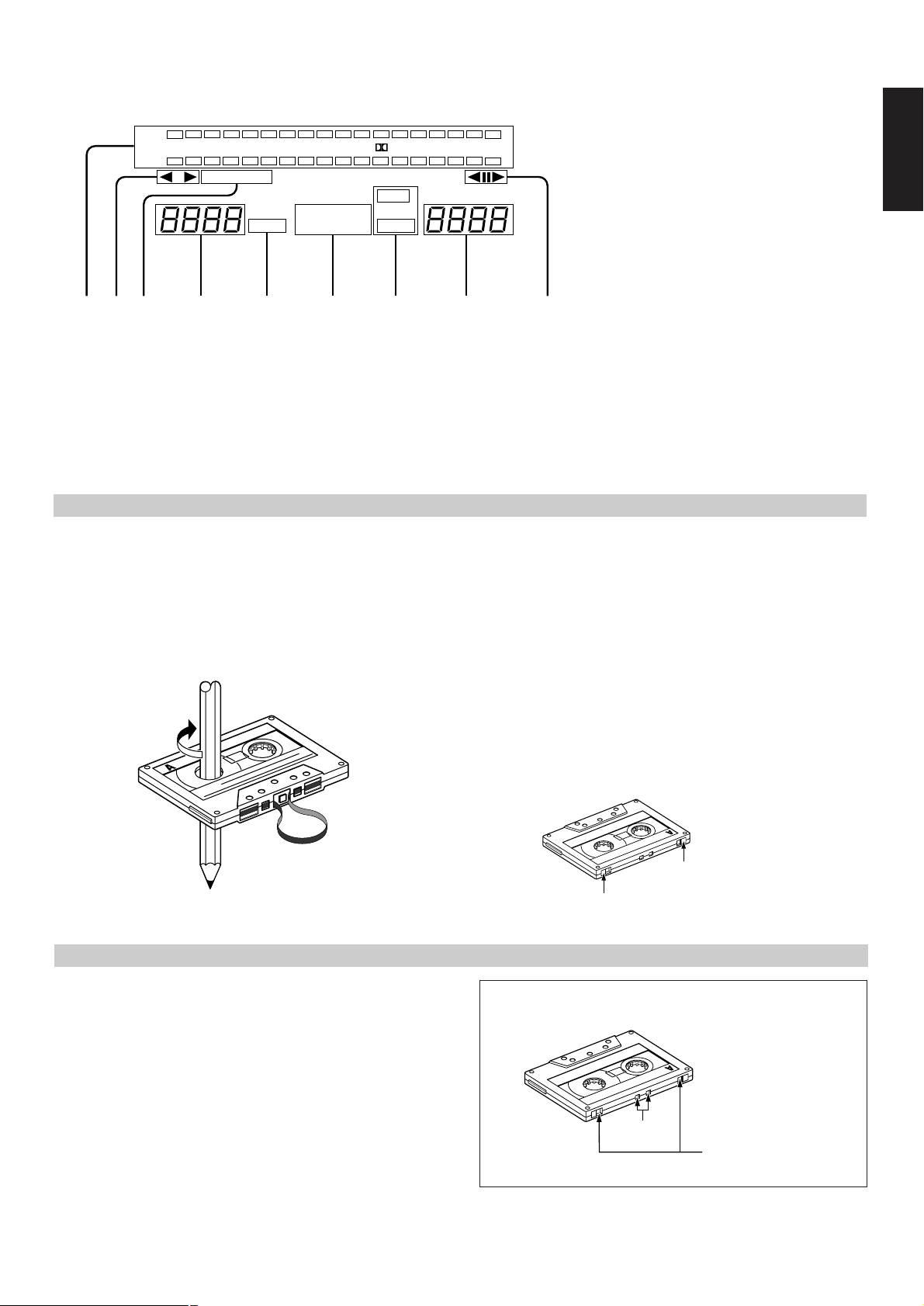

!3 Display
PLAY PLAY
NORM DUB
REC
L
dB – 30 20 10 8 3 0 3 +6
R
SYNC REV
HIGH DUB
a b bd c e f ce
Detection holes for
chrome tape
Detection holes
for metal tape
Indicators with an encircled number light up when the
corresponding button is pressed.
a Peak Level Meter
b Direction & Pause Indicators
!4 PITCH CONTROL Knob
Used to vary the pitch (key of music) during playback of a
cassette. (Only the pitch of Deck A can be varied.)
Turn the PITCH CONTROL clockwise to heighten the pitch by
increasing the tape transport speed.
Turn it counterclockwise to lower the pitch by decreasing the
tape transport speed.
CASSETTE TAPES
Handling Precautions
C-120 Cassettes
C-120 cassette tapes are not recommended as they use a very
thin tape base which may become tangled around the capstan or
pinch roller.
Tape Slack
Before putting a tape into the deck, take up any slack with a
pencil or your finger tip. This precaution prevents the tape from
becoming entangled around the capstan or pinch roller.
c Multi Counter
d SYNC REV Indicator
e Mode Indicators
f Dubbing Indicators
!5 TIMER Switch (TIMER playback/TIMER recording)
The select switch for use in timer playback or timer recording
using an audio timer.
Set this switch to the OFF position when timer playback or timer
recording is not required.
Storage Precautions
Do not store cassette tapes in a place where they will be subject
to:
Extremely high temperature or excessive moisture
Excessive dust
Direct sunlight
Magnetic fields (near TV sets or speakers)
To eliminate tape slack, store your cassettes in cassette cases
with hub stops
Accidental Erasure Prevention
All cassettes have erasure prevention tabs for each side. To
protect valuable recordings from accidental or inadvertent
erasure, remove the tab for the appropriate side with a
screwdriver or another tool.
To record on a tape whose erasure prevention tabs have been
removed, cover the tab holes with adhesive tape.
ENGLISHFRANÇAISESPAÑOL
AUTOMATIC TAPE SELECTION
This Stereo Cassette Deck contains an automatic tape selector which
automatically selects the optimum bias and equalization for the tape
in use. This is accomplished by detection of the tape type detections
holes in the cassette housing.
If a tape without tape type detection holes is used, the deck
will be set for normal tapes.
3
RESET
MIN
–
PHONES
CONTROL
PITCH
PLAY
+
RESET
COUNTERCOUNTER
REC/PLAY
EJECT
A
PLAY
PLAY
HIGH
PAUSE
NORMAL
REC MUTEREC
REC LEVEL
SYNC REV
STOP
POWER
ON/OFF
STOP
CCONT. PLAY
B
OFF
PLAY
OFF
REC
C
B
REV. MODE
DOLBY NR
CASSETTE DECK PMD505
EJECT
TIMER
MAX
DUBBING SPEED
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
re
qwu
yt
OFF
C
B
DOLBY NR
REV. MODE
RESET
MIN
–
PHONES
CONTROL
PITCH
PLAY
+
RESET
COUNTERCOUNTER
REC/PLAY
EJECT
A
PLAY
PLAY
HIGH
PAUSE
NORMAL
REC MUTEREC
REC LEVEL
SYNC REV
STOP
POWER
ON/OFF
STOP
CCONT. PLAY
B
OFF
PLAY
OFF
REC
C
B
REV. MODE
DOLBY NR
CASSETTE DECK PMD505
EJECT
TIMER
MAX
DUBBING SPEED
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
w
q
e
PLAYBACK
The operations described below apply to deck A and deck B alike.
Switch on your amplifier or receiver.
ENGLISH FRANÇAIS ESPAÑOL
Set the Function Selector or Tape Monitor switch on your amplifier or receiver to TAPE or Tape monitor position.
The numbers in the illustration below depict the order in which operation steps are carried out.
1. Press the POWER switch q to the ON ( ) position.
2. Press the
EJECT
button w to open
6. Press the PLAY ( or ) button y to being playback.
the cassette compartment cover e.
3. Load the cassette tape and close the cassette compartment cover
e.
4. When listening to a tape that has been recorded with Dolby noise
reduction, set the
DOLBY NR switch r to match the system used
at the time of recording.
7. Press the STOP ( ) button u to stop the playback.
In the continuous playback mode (REV MODE set to ),
If different types of Dolby noise reduction are used for record
5. Select the type of tape transport with the REV MODE switch t.
Mode
Switch position
When power is turned off during tape transport, it may not be
To listen to one side only
To listen to playback of both sides
To listen to continuous play back of
both sides and both decks.
RELAY PLAY (continuous playback of the tapes in deck A and deck B)
Load a cassette tape into deck A and B, and set the Dolby NR button correctoly.
Transport Direction
Indicator
Forward
Reverse
playback of both tape sides will be repeated 5 times and then
stop automatically.
and playback, playback response will be adversely effected.
possible to remove the cassette by pressing the
EJECT
button. In this case, turn on power again before you press the
EJECT button.
1. REV MODE set to q.
2. Press the
PLAY ( ) button w of the deck you first wish to listen
to.
3. To stop relay play, press the
currently playing the tape.
STOP ( ) button e of the deck
Relay play will play deck A and B in succession for 5 times,
upon which playback stops (Deck A Deck B Deck A
Deck B Deck A) or (Deck B Deck A Deck B Deck A
Deck B).
4
OFF
C
B
DOLBY NR
REC
REC
PLAY
REC
RESET
MIN
–
PHONES
CONTROL
PITCH
PLAY
+
RESET
COUNTERCOUNTER
REC/PLAY
EJECT
A
PLAY
PLAY
HIGH
PAUSE
NORMAL
REC MUTEREC
REC LEVEL
SYNC REV
STOP
POWER
ON/OFF
STOP
CCONT. PLAY
B
OFF
PLAY
OFF
REC
C
B
REV. MODE
DOLBY NR
CASSETTE DECK PMD505
EJECT
TIMER
MAX
DUBBING SPEED
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
!0e ot
qwu
y i ur
RECORDING (DECK B only)
Switch on your amplifier or receiver and the source component.
Set the Function Selector and the REC Selector on your amplifier or receiver to the source to record, with Tape Monitor switch (it available) set to monitor
ENGLISHFRANÇAISESPAÑOL
1. Press the POWER switch q to the ON ( ) position.
2. Load the cassette tape w.
(Check that the erasure prevention tabs of the cassette housing
have not been broken off.)
3. Move the DOLBY NR switch e and select the Dolby NR type that
suits the recording.
4. Select the type of tape transport with the REV MODE switch r.
Mode
Switch position
To record on only one side
To continuously record on
both sides
or
PROPER RECORDING LEVEL
A too high recording level can saturate the tape and cause distortion.
On the other hand, if the recording level is set too low, soft passages
will be marked by residual noise. A proper recording level is the
single most important factor for making well balanced recordings.
Guideline for maximum recording level
5. Press the REC ( ) button !0 to set the recording pause mode.
The and indicator will light up.
6. Adjust the recording level with the REC LEVEL control y while
watching the Peak Level Meter.
7. Press the PLAY ( ) button u to start the recording.
The and the Indicator will light during recording.
8. To pause the recording, press the PAUSE ( ) button o. Press
the PLAY ( ) button u or PAUSE ( ) button o to resume
recording.
9. To stop recording, press the STOP ( ) button i.
Caution:
Be careful not to erase important recordings by mistake.
Inadvertent start of recording will happen in the following cases:
1. If the PLAY button is pressed while the indicator lights,
recording starts.
2. If the PLAY and REC ( ) button are pressed at the same
time, recording starts.
The best way to avoid accidental erasure is to break off the two
erasure prevention tabs on the cassette housing.
Note:
The optimum recording level differs depending on the program
source and the type of tape used.
TYPE q (Normal)
w (High position)
TYPE
r (Metal)
TYPE
0 dB level on peaks
1 dB level on peaks
3 dB level on peaks
REC MUTE AND REC PAUSE BUTTON
1. To record a 4-second blank section during recording:
Press the
recorded and the deck will enter the recording Pause mode.
2. To record a 4-second blank section during the recording Pause
mode:
Press the REC MUTE button t from the recording Pause mode.
A 4 second blank will be recorded and the deck will enter the
recording Pause mode again.
REC MUTE button t. A 4-second blank will be
5
3. To cancel recording of blank space:
Press the
PAUSE ( ) button o. Blank space recording will be
canceled and the deck enters the recording Pause mode.
4. To extend the blank section with another 4 seconds or more:
Simply press the
be increased with another 4 seconds.
REC MUTE button t and the blank section will
REV. MODE
RESET
MIN
–
PHONES
CONTROL
PITCH
PLAY
+
RESET
COUNTERCOUNTER
REC/PLAY
EJECT
A
PLAY
PLAY
HIGH
PAUSE
NORMAL
REC MUTEREC
REC LEVEL
SYNC REV
STOP
POWER
ON/OFF
STOP
CCONT. PLAY
B
OFF
PLAY
OFF
REC
C
B
REV. MODE
DOLBY NR
CASSETTE DECK PMD505
EJECT
TIMER
MAX
DUBBING SPEED
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
w
qu
yr
w
t
e
DUBBING (from deck A to deck B)
RESET
MIN
–
PHONES
CONTROL
PITCH
PLAY
+
RESET
COUNTERCOUNTER
REC/PLAY
EJECT
A
PLAY
PLAY
HIGH
PAUSE
NORMAL
REC MUTEREC
REC LEVEL
SYNC REV
STOP
POWER
ON/OFF
STOP
CCONT. PLAY
B
OFF
PLAY
OFF
REC
C
B
REV. MODE
DOLBY NR
CASSETTE DECK PMD505
EJECT
TIMER
MAX
DUBBING SPEED
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
AUTO TAPE SELECT/HIGH SPEED DUBBING
AUTO REVERSE
w
qu
yi
w
t
e
r
Switch on the amplifier or receiver.
Set the Function Selector or Tape Monitor switch on your amplifier or receiver to TAPE or Tape monitor position.
ENGLISH FRANÇAIS ESPAÑOL
1. Press the POWER switch q to the ON ( ) position.
2. Load the cassette tape to be played on deck A and the one to be
recorded in deck B w.
3. Select the type of tape transport with the
REV MODE switch e.
Reverse mode Operation
Dubbing is performed only for one side.
The decks stop when either deck A or B
reaches the end of the tape.
The tape direction is reversed on each deck
or
when they reach the end of the tape.
(This is convenient for dubbing to a tape with
a different length.)
SYNCHRO REVERSE DUBBING
4. To being normal speed dubbing, press the DUBBING SPEED
NORMAL
button r. The NORM DUB indicator will light at this
time.
To high speed dubbing, press the DUBBING SPEED HIGH button
r.
The HIGH DUB indicator will light at this time.
5. To stop dubbing, press the
STOP ( ) button t of deck A or deck
B.
When dubbing, the recording level and the Dolby NR recording
will be the same as those of the playback tape, regardless of
the positions of the REC LEVEL control and the DOLBY NR
switch.
When listening to the playback sound during normal speed
dubbing, the DOLBY NR switch remains off even if it is
pressed.
Operation using the REC MUTE u and PAUSE () y buttons
of deck B is permitted during normal speed dubbing.
During dubbing of the side facing you, the deck that first reaches the
end if the tape will stand by until the other deck reaches the end of
the tape, direction together.
(Depending on the manufacturer, the length of tapes having the same
recording time may differ somewhat. Setting this mode permits the
arrangement of the begining portion of the opposite side of the tape.)
1. Press the POWER switch q to the ON ( ) position.
2. Load the cassette tape to be played on deck A and the one to be
recorded in deck B w.
3. Select the position of the REV MODE switch e.
6
4. Press the SYNC REV button i to set the SYNC REV Mode.
The SYNC REV Indicator will light up.
To release SYNC REV mode, press the
When direction of Deck A and Deck B is only Forward ( ), the
SYNC REV mode can be set.
5. To being normal speed dubbing, press the
NORMAL button r. The NORM DUB indicator will light at this
time.
To high speed dubbing, press the
r.
The HIGH DUB indicator will light at this time.
SYNC REV button again.
DUBBING SPEED
DUBBING SPEED HIGH button
SYNCHRO RECORDING PROCEDURE (Deck B)
6. To stop dubbing, press the STOP ( ) button t of deck A or
deck B.
When dubbing, the recording level and the Dolby NR
recording will be the same as those of the playback tape,
regardless of the positions of the REC LEVEL control and the
DOLBY NR switch.
When listening to the playback sound during normal speed
dubbing, the DOLBY NR switch remains off even if it is
pressed.
Operation using the REC MUTE u and PAUSE () y
buttons of deck B is permitted during normal speed dubbing.
ENGLISHFRANÇAISESPAÑOL
The following operation is available only when a MARANTZ CD
player with the synchro recording capability is connected to the
cassette deck.
To use synchro recording, connect the remote control cord
terminals on the CD player and cassette deck.
1. Load a cassette tape in Deck B.
2. If Dolby NR recording is required, select type B or C.
3. Press the RECORD/o button to put the cassette deck in recordpause mode.
TAPE COUNTER
1) Operation of the Tape Counter
(1) Press the COUNTER RESET button to reset the counter to
“”.
(2) By using the PLAY, FF, or REW functions, the reading of the
counter will change to indicate index position.
DOLBY B AND C NOISE REDUCTION SYSTEM
The Dolby noise reduction system substantially reduces the tape
background noise (hiss) inherent in the cassette medium.
Tape background noise consists primarily of high frequency
information, which is particularly annoying during soft passages,
The Dolby NR system increases the level of low volume mid and
high frequency signals during recording and reduces the level of
these signals by an identical amount during playback, As a result,
the playback signal is identical to the original source, but the level
of background noise generated by the tape is greatly reduced.
4. Adjust the recording level with the REC LEVEL control.
5. Start edit playback of the CD player. (The operation procedure
may be variable between CD players with edit function. Refer to
the instruction manual of your CD player.)
When the MARANTZ PMD371 CD changer is used, it is possible to
set the REV. MODE switch to “”. (This enables to record
both A and B sides continuously.)
When other MARANTZ CD player than the above mentioned
models is used, set the REV. MODE switch to “”. (This
causes only tape side A or B to be recorded.)
During recording and playback operations, the counter is useful
for noting the location of existing programs or positions where
recording is to be started.
The reading of this counter does not correspond with that of any
other deck.
The operating principle of Dolby C NR is similar to that of Dolby B
NR except for the encoding/decoding response curves. The noise
reduction effect obtained with Dolby C NR is up to 20 dB,
compared to 10 dB with Dolby B NR. In addition, Dolby C NR uses
an anti-saturation network and spectral skewing circuitry for a
significant improvement in the dynamic range of the mid-to highfrequencies.
DOLBY HX PRO HEADROOM EXTENSION SYSTEM
This deck is equipped with the Dolby HX PRO headroom extension
system. Since the system functions automatically during recording, no
switching operation or adjustment is required. The system is effective
with any type of Normal, High and Metal tape.
The Dolby HX PRO headroom extension system functions during
recording to raise the saturation level in the high frequency range.
Therefore, most of the high frequency range distorted or lost during
recording on conventional cassette decks are more faithfully
recorded on the new MARANTZ cassette deck.
7
Features of the Dolby HX PRO Headroom Extension System
(1) Performance of Normal and High Position tapes can be improved
to very close of that offered by Metal tape.
(2) The dynamics in the high frequency range are improved
significantly.
(3) Since no decoding is necessary during playback, the improved
sound can be enjoyed on any type of tape deck, including
portable players and car audio systems.
(4) The system functions whether the Dolby B/C NR system is
engaged or not.
MAINTENANCE
Head cleaning
ENGLISH FRANÇAIS ESPAÑOL
After long usage, tape coating or dust may adhere to the heads,
causing deterioration of sound. Therefore, the parts depicted in
the illustration should be cleaned reguraly. Use a cotton swab
moistened with a tape head cleaning solution (such as alcohol).
Note:
1. Some cleaning cassettes on the market have strong abrasive
effects and may scratch the heads. Always use cotton swabs
instead of cleaning cassettes.
2. Since the use of metal tape is apt to collect more dust on the
heads, the heads should be cleaned more often to enjoy the
best possible sound.
Cleaning the Pinch Rollers and Capstans
If the pinch roller or capstans accumulate dust, tape transport may
become unstable, as a result from slippage, during recording or
playback. The tape can also be damaged if it gets entangled in
the capstan.
Clean these parts with a cotton swab or a soft cloth moistened with
a tape head cleaning solution (such as alcohol).
Demagnetizing the Heads
The heads may become magnetized after long usage or if
storongly magnetized objects are brought near them. The result is
a generation of noise, loss of the high frequency range, and in
extreme cases erasure of trable components on pre-recorded
tapes in combination with added noise.
Thus, the heads should be demagnetized at regular intervals.
(Head demagnetizers are sparately available from your dealer.)
How to Demagnetize the Tape Heads
1. Turn off the power.
2. Turn on the demagnetizer while it is at least 30 cm away from
the heads. Bring the demagnetizer near the heads and slowly
move it in small circles four or five times in front of each head,
making sure you do not touch them.
3. Slowly move the demagnetizer away and turn it off when it is at
least 30 cm away from the heads.
4. For more details, please read the User Guide provided with the
demagnetizer (optional).
CAPABILITY OF REMOTE CONTROL
RC-5 CODE
PLAY ( )
FF ( )
REW ( )
PAUSE ( )
STOP ( )
REC
REC MUTE
COUNTER RESET
DECK A
DECK B
DIRECTION ( )
1853
1852
1850
1848
1854
1855
1842
1849
1844
1846
1847
8
REC
RESET
RC455SD
DECK
REC MUTE
A B
z
x
c
n
m
,
.
⁄0
v
b
60˚
Approx. 5m
REMOTE CONTROL
USING THE REMOTE CONTROL UNIT
1. Remote control
Operate the remote control unit (RC455SD) within a distance of
approx. 5 m from the infrared signal reception window (remote
sensor) on the front of the CASSETTE DECK.
Remote control operation may not be possible if the remote control
unit's transmitter is not pointing in the direction of the remote sensor
or if there is an obstruction between the transmitter and the remote
sensor.
Remote control operating range
Cassette deck
ENGLISHFRANÇAISESPAÑOL
z A/B button Mechanism select buttons (DECK A/B):
Press to select the deck mechanism, Deck A or Deck B, to be
controlled.
x (REC PAUSE) button:
Press this button to enter the recording pause mode from the
recording or recording mute mode. This button can only be used
during recording. See page 5.
c REC button:
Press the REC button, the deck enters the Recording Pause mode.
See page 5.
v (Play button):
Press to playback tape.
b (Fast rewind button):
Press for fast rewind.
n RESET button:
Press to tape counter reset.
m REC MUTE button:
Press the REC MUTE button, the Recording Pause mode will start
Auto Rec Mute, and a 4-second silent space is recorded onto the
tape. See page 5.
Remote control unit
2. Loading batteries
Batteries in this remote control unit have a life of approximately 1 year
under normal operating conditions. When the remote control unit is
not to be used for an extended period of time, remove the batteries.
Also, when you notice that the batteries are starting to run down,
replace them as soon as possible.
(1) Remove the battery cover.
Remote control unit Rear side
(2) Insert the batteries with correct
/ orientation.
Two AA-size (R6 batteries)
, (DIRECTION) button:
After starting playback, press the forward ( ) or reverse ( ) to
select the top playback direction.
. (Fast forward button):
Press for fast forwarding.
⁄0 (STOP) button:
Press to cancel any operation modes and stop the tape travel of the deck.
(3) Close the battery cover until it clicks shut.
9
TROUBLESHOOTING
Check the following before you draw the conclusion that your Stereo Cassette Deck is malfunctions.
1. Are all the connections correct?
ENGLISH FRANÇAIS ESPAÑOL
2. Are all system components being operated correctly in accordance with the operating instructions?
3. Are the speakers and amplifier/receiver functioning correctly?
If the tape deck still does not function properly, check the symptom against the list below. If the symptom does not correspond to the check list,
please contact your MARANTZ dealer.
Problem
Tape does not run.
Tape is not recorded when
pressed.
Sound is warbled or distorted.
Excessive noise.
High frequency range (treble) is emphasized.
High frequency range (treble) is lost.
The cassette tape cannot be removed.
REC button is
Cause Remedy
Power cord is disconnected.
Tape is loose.
Cassette is not loaded properly.
Defective cassette.
No cassette is loaded.
Erase prevention tabs are broken off.
Heads, capstan or pinch roller are dirty.
Tape is wound too tight.
Recording input level is too high.
Tape is worn out and has “dropouts”.
Tape is worn.
Heads, capstan or pinch roller are dirty.
Heads are magnetized.
Recording input level is too low.
Dolby NR switch is set improperly.
Heads are dirty.
Tape is worn.
If the POWER switch is turned off in either
during recording or playback and the unit is
stopped, there may be case when the
cassette cannot be removed, even if the (
EJECT) button is pressed.
Check power cord.
Tighten tape with a pencil, etc.
Load cassette properly.
Replace cassette.
Load cassette.
Cover hole with plastic tape.
Clean them.
Fast forward or rewind to loosen tape winding.
Adjust recording input level.
Replace tape.
Replace tape.
Clean them.
Demagnetize heads.
Adjust recording input level.
Set Dolby NR switch properly.
Clean them.
Replace tape.
Turn the POWER switch ON ( ) again, and
then press the
STOP ( ) button.
Now, press the ( EJECT) button to remove
the cassette tape.
SPECIFICATIONS
Type Vertical tape loading; 4-track 2-channel stereo double
Heads Playback head 1 recording/playback head 1
Motors DC servo motor 2
Tape Speed 4.8 cm/sec. 9.5 cm/sec. (When high speed dubbing)
Fast Forward,
Rewind Time
Recording Bias Approx. 100 kHz
Overall S/N Ratio
(at 3% THD level)
Overall Frequency
Response
Channel Separation More than 40 dB (at 1 kHz)
Wow & Flutter 0.09 % WRMS, 0.1 % w. peak
Dolby noise reduction and HX Pro headroom extension manufactured under license from Dolby Laboratories Licensing Corporation. HX Pro originated by Bang &
Olufsen.
“DOLBY”, the double-D symbol and “HX PRO” are trademarks of Dolby Laboratories Licensing Corporation.
cassette deck
Erase head (Double-gap ferrite)
Approx. 110 sec. with a C-60 cassette
Dolby C NR on: more than 74 dB (CCIR/ARM)
25 ~ 18,000 Hz 3 dB (at 20 dB, Metal tape)
* Above specifications ans design are subject to change without prior notes.
1
Inputs LINE 100 mV input level at maximum
Output LINE 460 mV (0 dB) output level at maximum
PHONES 0.95 mW output level at maximum
Power Consumption 0.13 A
Dimensions 17-7/16 (W) 5-5/16 (H) 12-9/16 (D) inches
Weight 8.58 lbs oz (4.0 kg)
Input impedance: 50 kohms unbalanced
(with 47 kohms load, recorded level of
200 nWb/mm)
(optimum load impedance 8 ohms ~ 1.2 kohms)
124 (H) 286 (D) mm
440 (W)
10
Limited Warranty
Your Marantz Professional product is warranted against
manufacturer defect for period of one year parts and labor.
Except as specified below this warranty covers defects in
material and workmanship. The following are not covered
under warranty.
1. a) Damage, deterioration, malfunction or failure to meet
performance specification resulting from:
b) Accidents, acts of nature, misuse, abuse, neglect or
unauthorized product modification.
c) Improper installation, removal or maintenance, or failure
to follow supplied instruction.
d) Repair or attempted repair by a non Marantz authorized
agent.
e) Any shipment of the product (claims must be presented
to the carrier).
f) Any cause other than a defect in manufacturing.
2. Cleaning, check-ups with no fault found, or changes
incurred for installation, removal or reinstallation of the
product.
3. Any serialized product on which the serial number has
been defaced, modified or removed.
4. Batteries and battery chargers.
5. Accessories, including but not limited to, cables, mounting
hardware and brackets, cleaning accessories, power cords
and adapters, and carry cases.
6. Product purchased outside the United States, its
possessions or territories.
Limitation of Implied Warranties
All implied warranties, including warranties or merchantability
and fitness for a particular purpose, are limited in duration to
the length or this warranty.
Exclusion of Damages
Liability for any defective product is limited to repair or
replacement of the product at manufacturer's option.
Manufacturer shall not be liable for damage to other products
caused by any defects in Marantz products, damages based
upon inconvenience or loss of use of the product, or any other
damages, whether incidental, consequential, or otherwise.
Some states do not allow limitations on how long an implied
warranty lasts and/or do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations
and exclusions may not apply to you.
How State Law Relates to the Warranty
This warranty gives you specific legal rights, and you may have
other rights which may vary from state to state.
Marantz Professional Service Number:
Marantz Professional Factory Service (630) 820-4800
This warranty is enforceable only in the United States and its
possessions or territories.
Non-Transferable Warranty
This warranty may be enforced only by the original purchaser.
What We Will Pay For
We will pay for all labor and material expense for items covered
by the warranty.
How You Can Get Service
1. If your unit needs service, contact our service referral at the
appropriate telephone number indicated below. We will
advise you of the name and location of one or more
warranty authorized service centers from which service may
be obtained. Please do not return your unit directly to us.
2. You must pay any shipping charges if it is necessary to ship
the product for service. If the necessary repairs are covered
by the warranty, we will pay the return shipping charges to
your location anywhere in the United States or its territories.
3. Whenever warranty service is required, you must present
the original dated sales receipt or other proof of date
purchased.
is a registered trademark.
R
Printed in China 02/07 SG 286W851280
