Magellan
®
Triton™
User Manual
Magellan Triton 200
Magellan Triton 300
Magellan Triton 400
Magellan Triton 500
Magellan Navigation, Inc. 960 Overland Court, San Dimas, CA 91773
IMPORTANT SAFETY WARNINGS
The Magellan Triton is a navigation aid designed to assist you in arriving to your selected destination.
When using the Magellan Triton, these safety rules must be followed to prevent accidents that can
result in injury or death to yourself or others:
IN THE INTEREST OF SAFETY, DO NOT USE THIS NAVIGATION DEVICE WHILE
DRIVING A VEHICLE.
Please do not try and change any settings on the Magellan Triton while driving. Come to a
complete stop or have a passenger make any changes. Taking your eyes off the road is
dangerous and can result in an accident in which you or others could be injured.
USE GOOD JUDGEMENT
This product is an excellent navigation aid, but does not replace the need for careful
orienteering and good judgement. Never rely solely on one device for navigating.
USE CARE
The Global Positioning System (GPS) is operated by the U.S. Government, which is solely
responsible for the accuracy and maintenance of the GPS network.The accuracy of position
fixes can be affected by the periodic adjustments to GPS satellites made by the U.S.
government and is subject to change in accordance with the Department of Defense civil GPS
user policy and the Federal Radionavigation Plan. Accuracy can also be affected by poor
satellite geometry and obstructions, like buildings and large trees.
USE PROPER ACCESSORIES
Use only Magellan cables and antennas; the use of non-Magellan cables and antennas may
severely degrade performance or damage the receiver, and will void the warranty.
LICENSE AGREEMENT
Magellan Navigation Inc. grants you, the purchaser, the right to use the software supplied in
and with Magellan Navigation GPS products (the “SOFTWARE”) in the normal operation of the
equipment.
The SOFTWARE is the property of Magellan Navigation and/or its suppliers and is protected by
United States copyright laws and international treaty provisions; therefore, you must treat this
SOFTWARE like any other copyright material.
You may not use, copy, modify, reverse engineer or transfer this SOFTWARE except as expressly
provided in this license. All rights not expressly granted are reserved by Magellan Navigation
and/or its suppliers.
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of this device.
No part of this guide may be reproduced or transmitted in any form or by any means, electronic
or mechanical, including photocopying and recording, for any purpose other than the
purchaser’s personal use without the prior written permission of Magellan Navigation Inc.
i
IMPORTANT SAFETY WARNINGS
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with
non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is
cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's
authority to operate this equipment.
The Magellan Triton must be installed and operated at a distance no closer then 8 inches (20 cm) from the user.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
ii
IMPORTANT SAFETY WARNINGS
IC statement
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow
the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The information provided in this document is subject to change without notice. Improvements and enhancements to the
product may occur without any formal notification. Check the Magellan website (www.magellanGPS.com) for product
updates and additional information.
Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the Global Positioning System (“GPS”)
hardware, operating software or other aspects of this product. UL has only tested for fire, shock or casualties as outlined in
UL’s Standard(s) for Safety for Information Technology Equipment, UL60950-1. UL Certification does not cover the
performance or reliability of the GPS hardware and GPS operating software. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY GPS
RELATED FUNCTIONS OF THIS PRODUCT.
Maximum normal use temperature is 66°C.
© 2007 Magellan Navigation, Inc. All rights reserved. The Magellan Logo, Magellan, and Magellan Triton are trademarks of
Magellan Navigation, Inc. No part of this user manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser’s personal use,
without the prior written permission of Magellan Navigation, Inc.
604-0081-002 A
iii
Table of Contents
Fundamentals ..........................................................................................................................1
Navigation Screens .................................................................................................................3
Map Screen Overview ............................................................................................. 3
Buttons ..........................................................................................................................4
Cursors ..........................................................................................................................4
Additional Navigation Screens ................................................................................. 4
Accessing the Navigation Screens ....................................................................... 4

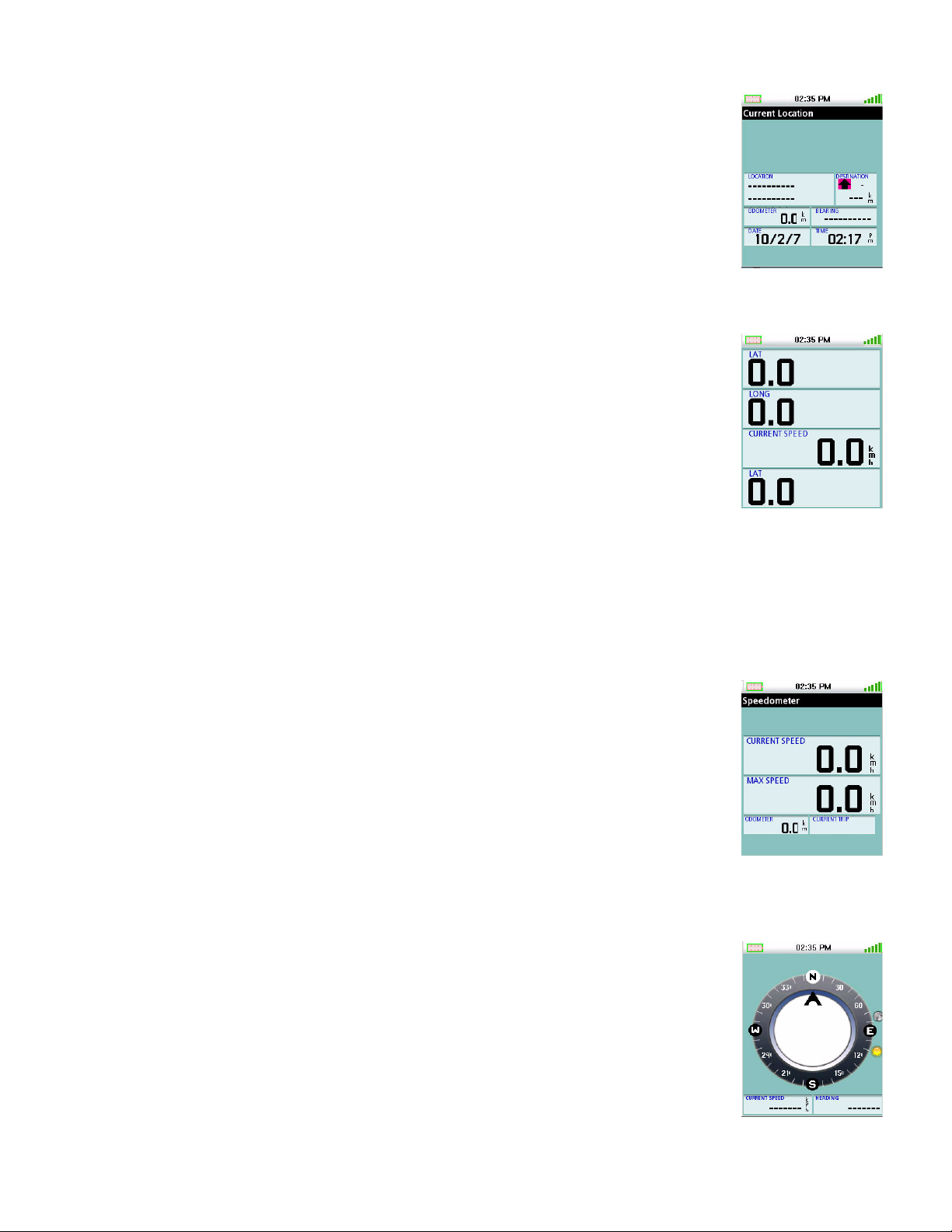

Current Location Screen .................................................................................................5
Large Data Screen ..........................................................................................................5
Changing a Navigation Field ............................................................................... 5
Speedometer Screen .............................................................................................. 5
Resetting the Odometer or Maximum Speed ......................................................... 5
Compass Screen ............................................................................................................5
Changing a Navigation Field ............................................................................... 6
Satellite Status ................................................................................................................6
Changing a Navigation Field ............................................................................... 6
Using the Keypad ....................................................................................................................7
The Keypad ........................................................................................................... 7
Key Functions ................................................................................................... 7
Create Menu ...........................................................................................................................8

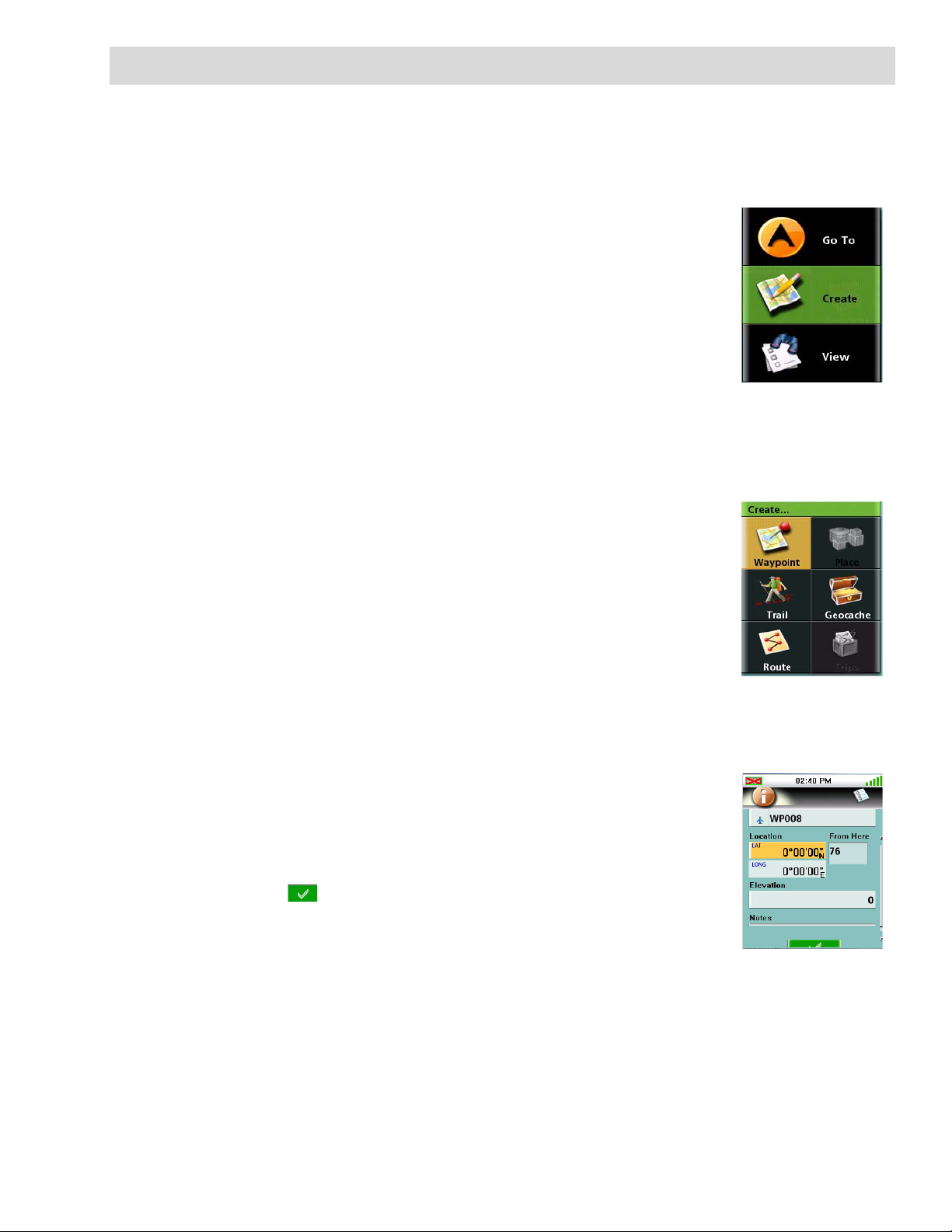

Accessing the Create Menu ................................................................................. 8
Waypoints ......................................................................................................................8
Creating a Waypoint ........................................................................................... 8
Trail ...............................................................................................................................9
Creating a Trail from Current Track History ........................................................... 9
Geocache .......................................................................................................................9
Creating a Geocache .......................................................................................... 9
Route ...........................................................................................................................10
Creating a Route .............................................................................................. 10
Go To Menu ..........................................................................................................................12
Accessing the Go To Menu ...............................................................................12
Waypoints ............................................................................................................ 12
Go To a Waypoint ............................................................................................ 12
Cancelling a Go To Waypoint Route ................................................................... 12
Table of Contents Magellan Triton 1
Editing a Waypoint .......................................................................................... 12
Deleting a Waypoint ......................................................................................... 13
Duplicating a Waypoint .................................................................................... 13
Places ................................................................................................................. 14
Creating a Go To to a Place .............................................................................. 14
Trail .................................................................................................................... 14
Activating a Trail ............................................................................................. 14
Deleting a Trail ................................................................................................ 15
Duplicating a Trail ........................................................................................... 15
Geocache ............................................................................................................ 15
Creating a Geocache Go To Route ..................................................................... 15
Cancelling a Geocache Go To Route .................................................................. 16
Deleting a Geocache Waypoint .......................................................................... 16
Duplicating a Geocache Waypoint ..................................................................... 16
Route .................................................................................................................. 17

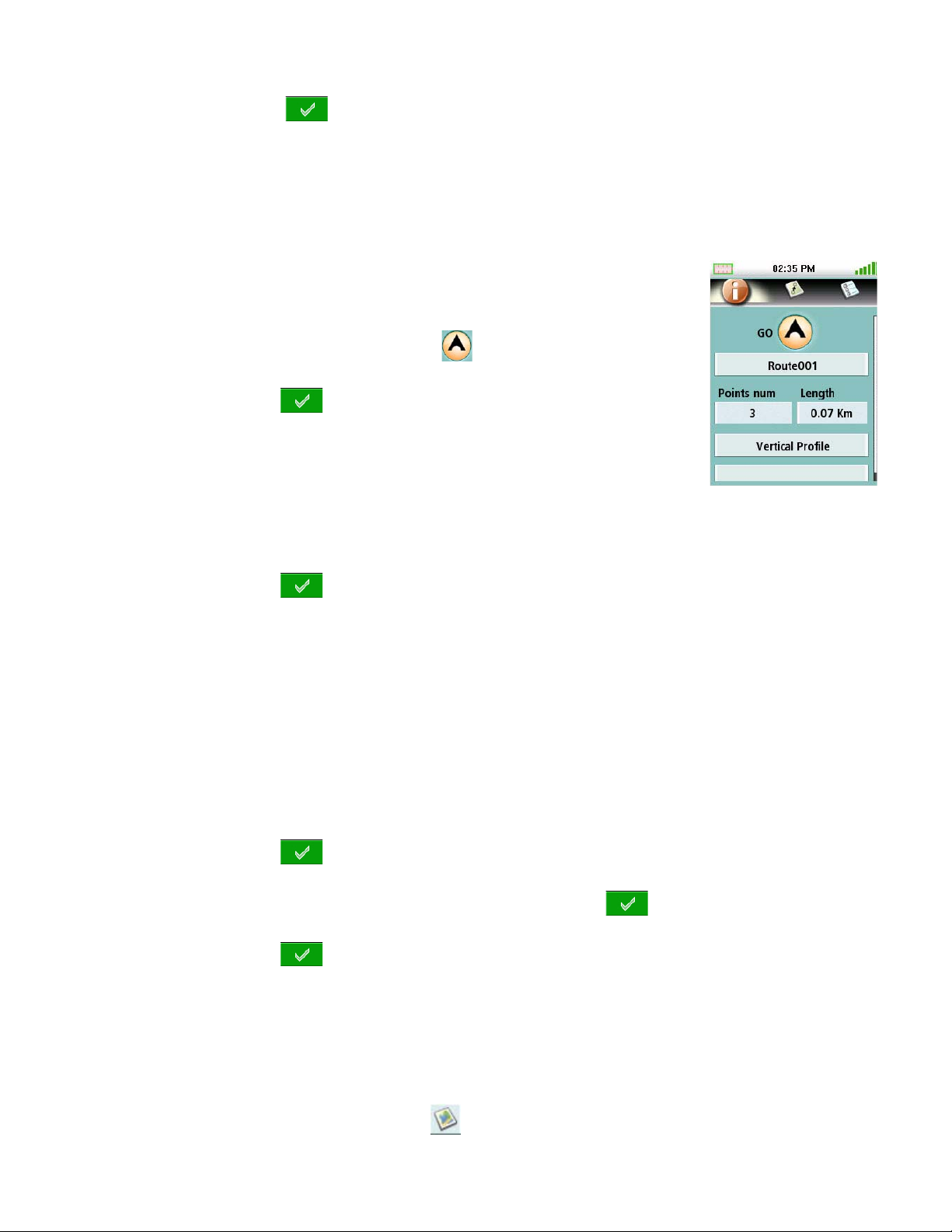

Activating a Route ........................................................................................... 17
Cancelling an Active Route ............................................................................... 17
Duplicating a Route ......................................................................................... 17
Deleting a Route .............................................................................................. 17
Back Track Route ................................................................................................. 18
Creating a Back Track Route ............................................................................. 18
Cancelling a Back Track Route ......................................................................... 18
View Menu ............................................................................................................................19
Local Info ............................................................................................................ 19
Viewing Best Fishing and Hunting Times for Current Location .............................. 19
Viewing Sunrise, Sunset Times and Lunar Information for Current Location ........... 19
User Profiles ........................................................................................................ 20
Activating User Profiles .................................................................................... 20
Display options ................................................................................................ 20
Map options .................................................................................................... 20
Alert options ................................................................................................... 21
Tracks ................................................................................................................. 22
Viewing Track Vertical Profile ............................................................................ 22
Saving a Track as a Trail ..................................................................................22
Erasing a Track ............................................................................................... 22
Setting Track Log Options ................................................................................ 22
Maps .................................................................................................................. 22
Viewing Map Information .................................................................................. 22
Settings .............................................................................................................. 23
Table of Contents Magellan Triton 2
Navigation ....................................................................................................................23
Setting Navigation Options ............................................................................... 23
Volume & Brightness ....................................................................................................23
Setting Volume & Brightness ............................................................................ 23
Memory ........................................................................................................................23
View Memory Usage ......................................................................................... 23
Clearing Memory ............................................................................................. 23
Restoring Factory Settings ................................................................................ 24
Formatting SD Card (Magellan Triton 400 and 500 only) ..................................... 24
About ...........................................................................................................................24
Displaying Information About the Triton Receiver ................................................ 24
Diagnostics ...................................................................................................................24
Testing the receiver ......................................................................................... 24
Table of Contents Magellan Triton 3
Fundamentals
The Magellan Triton is a hand-held GPS receiver that has been designed for the outdoorsman. Simple
to use, yet powerful enough to get you through the toughest terrain or returning to that same fishing
hotspot, year after year.
• Store waypoints that can include images for the complete experience. (Magellan Triton
400 and 500 only.)
• Record your track from start to finish and save it as a trail to be used over and over.
• Set a quick and easy Go To route from your current position to a stored waypoint or any
point on the map, simply and easily.
• Load detailed Magellan maps with topographic or navaid information for the most detail
possible. (Magellan Triton 200 requires accessory USB cable.)
• View images stored on an SD card that can be used to assist you in arriving at the proper
location. (Magellan Triton 400 and 500 only.)
• Create a route from your current position to many different waypoints or places on the
map. Plan your day for the best use of your outdoor time.
The Magellan Triton is constantly being reviewed and updated to meet the outdoorsman’s needs. Be
sure to visit the support page at www.magellanGPS.com for firmware updates, keeping your Magellan
Triton running at it’s peak.
While you are checking for firmware updates, check the support section for additional FAQs as well as
updated manuals to assist you in the use of your Magellan Triton.
This document is set up to be printed on 8.5” x 11” (letter) paper should you desire a printed version
for your reference.
Fundamentals 1
A
B
D
E
C
F
G
I
H
A Backlight Press to step though 3 levels of backlight intensity or off.
B Power button
C SD card slot (Magellan Triton 400 and 500 only)
D ZOOM OUT button
E ZOOM IN button
F Enter button and cursor control pad
G PAGE/GO TO. Press to step through the navigation screens.
H ESCape or cancel button
I MENU button. On the map screen, displays the Main Menu. On other screens,
displays a pop-up menu when available.
Fundamentals 2
Navigation Screens
F
G
A
B
C
D
E
H
The Map Screen will be the most commonly viewed screen while using the Magellan Triton. It has
been simplified to provide the best possible outdoor experience while providing access to all of the
information needed.
Map Screen Overview
A Battery Level
B Saved Waypoint (Preloaded or User-Entered)
C Present Position Marker (points towards heading while moving)
D Map Scale Indicator
E North Indicator
F Satellite Status
G Ti me of Da y
H Map Area
Navigation Screens 3
Buttons
Map Location Large Data Speedometer Compass Sat Status
While viewing the map screen the keys on the Magellan Triton provide additional input and feature
access.
Menu Accesses the Main Menu
PAGE/GO TO Pages through the Navigation screens.
ZOOM IN Zooms in on the map showing less area and more details
ZOOM OUT Zooms out from the map showing more area and less detail
Cursor Pad Pans around the map screen
Enter Accesses the Contextual Menu
Escape If the cursor has been panned to a location other then your present position,
returns the map to be centered on your present position.
Cursors
There are two important cursors on the map screen, the Present Position cursor and the Panning
cursor.
Present position cursor (Displays your position relative to the map.)
Panning cursor (Displays the location on the map that would be used to create a
waypoint or Go To route while panning). The red dot around the panning cursor
indicates the direction of your present position.
Additional Navigation Screens
There are four additional navigation screens and a Satellite Status screen that can be viewed while
using the Magellan Triton.
Accessing the Navigation Screens
1. Press the PAGE/GO TO button. Each time the PAGE/GO TO button is pressed the next
navigation screen is displayed. Press Escape to step through the screens in the opposite
direction.
Navigation Screens 4
Current Location Screen
The Current Location Screen provides general information about your current
location.
Large Data Screen
This screen allows you to view four navigation fields in a large type face that is
easy to read, even from a distance.
Changing a Navigation Field
Each navigation field can be customized to display latitude, longitude,
heading, bearing, distance to next waypoint, distance to the end of a route,
time to next waypoint, time to complete the route, time of day, date,
destination, cross track error (XTE), elevation, current speed, average speed
or maximum speed.
1. Press Enter to access the fields. Highlight the field you want to change and press Enter.
A screen will be displayed with all of the options available. (Note that some fields are
displayed with dashes. This can be due to the data not being computed as you are not
moving or the data is only displayed when a route or a Go To is active.)
Speedometer Screen
This screen displays your current speed, your maximum speed and two
odometers in a large easy-to-read type.
Resetting the Odometer or Maximum Speed
1. While viewing the Speedometer screen, press MENU.
2. Highlight “Reset Odometer”, “Reset Trip Odometer” or “Reset
Speed” and press Enter.
Compass Screen
The Compass screen displays your heading using an easily identifiable
compass graphic. Outside the compass the relative direction of the sun and
moon is displayed. Additionally, if you have an active route, an icon
representing your next destination is shown making it simple to align your
heading marker (inside the compass) to your destination.
Navigation Screens 5
Changing a Navigation Field
Each navigation field can be customized to display latitude, longitude, heading, bearing, distance to
next waypoint, distance to the end of a route, time to next waypoint, time to complete the route,
time of day, date, destination, cross track error (XTE), elevation, current speed, average speed or
maximum speed.
1. Press Enter to highlight the fields. Use the cursor control to highlight the field you want to
change and press Enter.
A screen will be displayed with all of the options available. Highlight the data field you want
displayed and press Enter.
Satellite Status
This screen graphically displays the satellites and their signal strength that
are being used to compute your location. Handy screen to view when you are
getting weak to poor signal reception. There are also two navigational screens
displayed at the bottom of the display.
Changing a Navigation Field
1. Press Enter to highlight the fields. Use the cursor control to highlight
the field you want to change and press Enter.
A screen will be displayed with all of the options available. Highlight
the data field you want displayed and press Enter.
Navigation Screens 6
Using the Keypad
The Magellan Triton displays a keypad on the screen whenever data needs to be entered.
Understanding the various components of the keypad will make entering data easier.
The Keypad
The keypad is used to enter names, notes, latitude, longitude or data
that the user needs to enter. Use the cursor control to move around
the keyboard and press Enter for the desired character or function.
Key Functions
Moves the cursor to the left.
Moves the cursor to the right.
Deletes the character to the left of the cursor.
Carriage return.
Shift key. Alternates between lowercase and uppercase characters.
Displays extended characters.
Displays number keypad.
Displays symbols.
Accepts the text entered and closes the screen.
Cancels any text changes and closes the screen.
Using the Keypad 7
Create Menu
The Create Menu is used to access the functions needed to create waypoints, trails, geocaches and
routes.
Accessing the Create Menu
1. From the Map screen, press the MENU button.
2. Highlight “Create” and press Enter.
Waypoints
Creating a Waypoint
1. Access the Main Menu, highlight “Create” and press Enter.
2. Highlight “Waypoint” and press Enter.
3. Select “Current Location”, “Point On Map”, or “Coordinates”.
Current Location displays the Waypoint screen with the coordinates
for your present location filled in.
Point on Map displays the Map screen. Pan around the map until the
pan cursor is at the point you want the waypoint created for and
press Enter. The Waypoint screen is displayed with the coordinates
for the pan cursor filled in.
Coordinates displays the Waypoint screen with values set to your current or last known
position.
4. The Waypoint screen provides the fields needed to identify the
waypoint and its location. The fields can be modified to customize
the waypoint.
Icon: Highlight the icon and press Enter to display all possible icons
that can be used to represent the waypoint. Select the desired icon
and press to accept and close the window.
Waypoint Name: (Default “WPXXX”). Highlight the waypoint name
field and press Enter to display the keyboard.
Location: Highlighting the latitude or longitude fields and pressing Enter brings up the
keyboard that can be used to enter the coordinates.
Elevation: Highlight the Elevation field and press Enter to display the keyboard.
Use the PAGE/GO TO button to access Options.
5. Select the green check button to accept the information and save the waypoint.
Create Menu 8
Trail
Creating a Trail from Current Track History
1. Access the Main Menu, highlight “Create” and press Enter.
2. Select “Trail” from the Create Menu.
3. Select “Current Track”.
4. Use the keypad to enter a name for the trail. (The default name
“TrailXXX” will be used if no name entered.)
5. When the name has been entered, highlight and press
Enter.
Geocache
Creating a Geocache
1. Access the Main Menu, highlight “Create” and press Enter.
2. Select “Geocache” from the Create Menu.
3. Select “Current Location”, “Point On Map”, or “Coordinates”.
Current Location displays the Waypoint screen with the
coordinates for your present location filled in.
Point on Map displays the Map screen. Pan around the map until
the pan cursor is at the point you want the waypoint created for
and press Enter. The Waypoint screen is displayed with the
coordinates for the pan cursor filled in.
Coordinates displays the Waypoint screen with all values set to
current location.
Use the PAGE/GO TO button to access Options.
Create Menu 9
4. The Geocache screen provides the fields needed to identify the
waypoint and its location. The fields can be modified to
customize the waypoint.
5. Icon: Highlight the icon and press Enter to display all possible
icons that can be used to represent the waypoint. Select the
desired icon and press to accept and close the window.
Geocache Name: (Default “GCXXX”). Select the waypoint name
field and press Enter to display the keyboard. Enter the name and
select the green button.
Location: Select the latitude or longitude fields and press Enter
to bring up the keyboard that can be used to enter the desired data.
Difficulty: Assign a difficulty rating to this cache.
Terrain: Indicate the type of terrain the cache is located in.
GCType: Geocache type.
Hint: Field for including hints about the cache site.
Date: Date the cache site was created.
6. Select to accept the information and save the geocache waypoint.
Route
Creating a Route
1. Access the Main Menu, highlight “Create” and press Enter.
2. Select “Route” from the Create Menu.
3. Select the starting location for the route.
Current Location displays the Waypoint screen with the
coordinates for your present location filled in.
Point on Map displays the Map screen. Pan around the map until
the pan cursor is at the point you want the waypoint created for
and press Enter. The Waypoint screen is displayed with the
coordinates for the pan cursor filled in.
Waypoint displays a list of saved waypoints.
Geocache displays a list of saved geocache waypoints.
Place displays the categories of places (only if a detailed map is loaded).
4. After selecting the starting location the Route Screen is displayed.
5. Select “Add Point” to repeat step 3 to continue adding waypoints to the route.
6. Select “Done” when the route is complete.
7. Select “Save Route”.
Create Menu 10
8. The Save Route Screen is displayed.
Highlight the Route name (default “RouteXXX”) and press Enter to assign a name to the
route.
Highlight the alert button to turn alerts for this route on or off.
9. Select “Save” to store the route into memory.
Create Menu 11
Go To Menu
The Go To Menu is used to access the functions used to activate Go To’s and saved routes.
Accessing the Go To Menu
1. From the Map screen, press the MENU button.
2. Select “Go To” and the Go To Menu will be displayed.
Waypoints
Go To a Waypoint
1. Access the Main Menu and select “Go To”.
2. Select Waypoint.
3. Highlight a waypoint from the list of saved waypoints and press
Enter.
4. Select .
5. The Waypoint information screen is displayed.
6. If it is correct waypoint, highlight and press Enter.
7. Select and press Enter.
Cancelling a Go To Waypoint Route
1. From the Map screen press Enter to access the contextual menu.
2. Select “Cancel Route”.
3. Select and press Enter to confirm route cancellation.
Editing a Waypoint
1. Access the Main Menu and select “Go To”.
2. Select Waypoint.
3. Highlight a waypoint from the list of saved waypoints and press Enter.
Go To Menu 12
4. Select .
5. The Waypoint information screen is displayed.
6. Select the field you want to edit (icon, name, location, elevation or notes) and press Enter.
7. Use the keyboard to enter the information.
8. Select and press Enter.
9. Use the PAGE/GO TO button to access waypoint alarms setting.
10. When the information for the waypoint is correct, select .
Deleting a Waypoint
1. Access the Main Menu and select “Go To”.
2. Select Waypoint.
3. Highlight a waypoint from the list of saved waypoints and press Enter.
4. Select .
5. Confirm deleting the waypoint by selecting .
Duplicating a Waypoint
1. Access the Main Menu and select “Go To”.
2. Select Waypoint.
3. Select a waypoint from the list of saved waypoints.
4. Highlight and press Enter.
5. The Waypoint information screen is displayed.
6. Press the PAGE/GO TO button.
7. Select “Duplicate Waypoint” and press Enter.
8. Confirm the duplication.
9. Use the keypad to enter a waypoint name.
10. Select when done.
Go To Menu 13
Places
Creating a Go To to a Place
1. Access the Main Menu and select “Go To”.
2. Select “Place” from the Go To menu.
3. Select the map to be used. (Basemaps contain limited places to
select from. Detailed maps include a wide variety of points of
interest.)
4. If “Detailed Map” is selected, choose a detailed map and press
Enter.
5. Select a category and press Enter.
6. Select a subcategory, if required, and press Enter.
7. Select a place from the list and press Enter.
8. The Place Information screen is displayed. To activate the Go To, highlight and press
Enter.
9. Highlight and press Enter.
Trail
Activating a Trail (Not available in initial software release. Check www.magellanGPS.com/ support for software updates.)
1. Access the Main Menu and select “Go To”.
2. Select “Trail” from the Go To menu.
3. Select a saved trail from the list and press Enter. Select
and press Enter.
4. The Trail Information screen is displayed.
Highlight “View on Map” and press Enter to get a graphical view
of the trail.
Highlight “View Vertical Profile” and press Enter to get a
graphical representation of the elevation levels found on the trail.
5. To activate the trail, select .
6. Highlight and press Enter.
Go To Menu 14
Deleting a Trail
1. Access the Main Menu and select “Go To”.
2. Select “Trail”.
3. Select a trail from the list of saved trails and press Enter.
4. Highlight and press Enter.
5. Confirm deleting the waypoint by selecting .
Duplicating a Trail
1. Access the Main Menu and select “Go To”.
2. Select “Trail” from the Go To menu.
3. Select a saved trail from the list and press Enter. Select
and press Enter.
4. The Trail Information screen is displayed.
5. Press the PAGE/GO TO button.
6. Highlight “Duplicate Trail” and press Enter.
7. Use the keypad to enter a name for the trail.
8. Highlight and press Enter.
Geocache
Creating a Geocache Go To Route
1. Access the Main Menu and select “Go To”.
2. Select “Geocache” from the Go To menu.
3. Select a saved geocache waypoint from the list and press Enter. Select and press
Enter.
4. The Geocache Information screen provides the fields needed to identify the waypoint and its
location. The fields can be modified to customize the waypoint.
Icon: Highlight the icon and press Enter to display all possible icons that can be used for a
waypoint. Select the icon desired and press Enter.
Geocache Name: (Default “GCXXX”). Highlight the waypoint name field and press Enter to
display the keyboard. Enter the name and select the green button.
Location: Selecting the latitude or longitude fields brings up the keyboard that can be used
to enter the desired data.
Go To Menu 15
Elevation: Highlight the Elevation field and press Enter to display the keyboard. Enter the
elevation and select the green button.
Difficulty: Assign a difficulty rating to this cache.
Terrain: Indicate the type of terrain the cache is located in.
GCType: Geocache type.
Hint: Field for including hints about the cache site.
Hider: Name of the person that originated the cache site.
Date: Date the cache site was created.
5. To activate the Go To, highlight and press Enter.
6. Highlight and press Enter.
Cancelling a Geocache Go To Route
1. From the Map screen press Enter to access the contextual menu.
2. Select “Cancel Route”.
3. Select and press Enter to confirm route cancellation.
Deleting a Geocache Waypoint
1. Access the Main Menu and select “Go To”.
2. Select “Geocache”.
3. Select a geocache waypoint from the list of geocache waypoints.
4. Highlight and press Enter.
5. Confirm deleting the waypoint by highlighting and pressing Enter.
Duplicating a Geocache Waypoint
1. Access the Main Menu and select “Go To”.
2. Select “Geocache”.
3. Select a saved geocache waypoint from the list and press Enter. Select and press
Enter.
4. The Geocache Information screen is displayed.
5. Press the PAGE/GO TO button.
Go To Menu 16
6. Select “Duplicate Geocache”.
7. Highlight and press Enter.
Route
Activating a Route
1. Access the Main Menu and select “Go To”.
2. Select “Route” from the Go To menu.
3. Select a saved route.
4. To activate the route, highlight and press Enter.
5. Highlight and press Enter.
Cancelling an Active Route
1. From the Map screen, press Enter to display the contextual
menu.
2. Select “Cancel Route”.
3. Highlight and press Enter to confirm route cancellation.
Duplicating a Route
1. Access the Main Menu and select “Go To”.
2. Select “Route” from the Go To menu.
3. Select a saved route.
4. Press the PAGE/GO TO button.
5. Select “Duplicate Route”.
6. Highlight and press Enter to confirm.
7. Use the keypad to enter a new route name. Highlight and press Enter.
8. Highlight and press Enter to save the route.
Deleting a Route
1. Access the Main Menu and select “Go To”.
2. Select “Route” from the Go To menu.
3. Select a saved route. Select and press Enter.
Go To Menu 17
4. Press the PAGE/GO TO button.
5. Select “Delete Route”.
6. Highlight and press Enter to confirm.
Back Track Route
Creating a Back Track Route
1. From the Map screen press Enter to access the contextual menu.
2. Select “Back Track”.
3. Select and press Enter to confirm back track route creation.
Cancelling a Back Track Route
1. From the Map screen press Enter to access the contextual menu.
2. Select “Cancel Route”.
3. Select and press Enter to confirm route cancellation.
Go To Menu 18
View Menu
Local Info
The Local Info option provides a way of viewing tide and current information (if a detailed map has
been installed with tide and current information), best fishing and hunting times, and sunrise/sunset/
lunar information.
Viewing Best Fishing and Hunting Times for Current Location
1. Access the Main Menu and select “View”.
2. Highlight “Local Info” and press Enter.
3. Highlight “Fish and Hunt” and press Enter.
4. The Fish and Hunt screen is displayed for your current
location.
5. Use the left and right arrows to change the date or highlight
date field and press Enter to open a calendar.
6. Select to close the screen.
Viewing Sunrise, Sunset Times and Lunar Information for Current Location
1. Access the Main Menu and select “View”.
2. Highlight “Local Info” and press Enter.
3. Select “Sun and Moon”.
4. The Sun and Moon screen is displayed for your current
location.
5. Use the left and right arrows to change the date or highlight
date field and press Enter to open a calendar.
6. Select to close the screen.
View Menu 19
User Profiles
You can set user profiles for various operations of the Magellan Triton that can be loaded easily.
Activating User Profiles
1. Access the Main Menu and select “View”.
2. Select “Profiles”.
3. Select Hiking, Marine, or Geocaching.
4. Press the PAGE/GO TO button to access the display options.
Press the PAGE/GO TO button again to access the map options.
Press the PAGE/GO TO button again to access the navigation options. (Magellan Triton 500
only.)
Press the PAGE/GO TO button again to access the alert options.
Display options
Map options
Backlight Level Off, Low, Medium,
High
Backlight Timer Off, 15 sec, 30 sec,
60 sec
Power Off Timer Off, 5 min, 15 min,
60 min
Time Format 12-hour or 24-hour
Time Zone Select zone
Daylight Savings On or Off
Language English or French
Decreasing backlight
levels will increase
battery life.
Sets duration of no
GPS or screen activity
before the backlight
turns off.
Sets duration of no
GPS or screen activity
before the receiver
turns off in sleep
mode.
Map Detail Low, Medium, High
Waypoint Names On or Off Displays waypoint
names on the map
screen.
Geocache Icons Not Found, All, Off Displays geocache
waypoint icons on the
map screen.
View Menu 20
Place Names On or Off Displays names of
waypoints stored in
the receiver as
places.
Trail Lines On or Off Display of trail (track)
lines on the map
screen.
Orientation North, Course, Track Sets orientation for
the top of the display.
Alert options
Position Destination
On or Off Display of the Line of
Line
GPS Fix On or Off
Alarm Tone Beep or Ring
Alarm Volume Off, Low, Medium,
High
Beeper Volume Off, Low, Medium,
High
Beeper Mode Keys, Alarms, Keys &
Alarms, Off
Anchor Off, 1 mi, 0.5 mi
Off Course Off, 10 ft, 20 ft
Arrival On or Off
Sight (LOS) line from
your current position
to your destination.
Waypoint Proximity Off, 1 mi, 0.5 mi
Geocache Proximity Off, 1 mi, 0.5 mi
Place Proximity Off, 1 mi, 0.5 mi
Low Battery On or Off
Sunrise Alarm Set alarm parameters
for alarm at sunrise
Sunset Alarm Set alarm parameters
for alarm at sunset
View Menu 21
Tracks
Viewing Track Vertical Profile
1. Access the Main Menu and select “View”.
2. Select Tracks.
3. Select Vertical Profile.
4. With a current track in memory, the vertical profile is displayed.
Saving a Track as a Trail
1. Access the Main Menu and select “View”.
2. Select Tracks.
3. Select Save Track.
4. Select which track to create a trail from.
5. Use the keyboard to enter a name for the trail. (Default name is TrailXXX.) Select to
save the trail with the name entered.
Erasing a Track
1. Access the Main Menu and select “View”.
2. Select Tracks.
3. Select Erase Track.
4. Select to confirm deletion.
Setting Track Log Options
1. Access the Main Menu and select “View”.
2. Select Tracks.
3. Select Options.
4. Select parameters for if and how track logs are recorded.
5. Select to accept.
Maps
Viewing Map Information
1. Access the Main Menu and select “View”.
2. Select Maps to view details on the installed background map and detail map (if loaded).
3. Select OK to exit.
View Menu 22
Settings
Navigation
Setting Navigation Options
1. Access the Main Menu and select “View”.
2. Select Settings.
3. Select Navigation.
Units (of Measure) Miles, Kilometers,
North Reference Magnetic or True
Coordinate system Lat/Lon (DD), Lat/Lon
Map Datum Select from list
Knots
(DM), Lat/Lon (DMS),
UTM
Volume & Brightness
Setting Volume & Brightness
1. Access the Main Menu and select “View”.
2. Select Settings.
3. Select Volume & Brightness.
4. Highlight the slider bars and use the left and right controls on the cursor control to set the
display brightness and alarm volume.
5. Select OK to accept.
Memory
View Memory Usage
1. Access the Main Menu and select “View”.
2. Select Settings.
3. Select Memory.
4. Select View Usage.
Clearing Memory
1. Access the Main Menu and select “View”.
2. Select Settings.
View Menu 23
3. Select Clear Memory.
4. Confirm. (Use this option with caution.)
Restoring Factory Settings
1. Access the Main Menu and select “View”.
2. Select Settings.
3. Select Restore Factory Settings.
4. Confirm. (Use this option with caution.)
Formatting SD Card (Magellan Triton 400 and 500 only)
1. Access the Main Menu and select “View”.
2. Select Settings.
3. Install SD card to be formatted.
4. Select Memory.
5. Select Format SD Card. (Option appears only when an SD card is inserted.)
6. Confirm. (This will erase all information on the SD card.)
About
Displaying Information About the Triton Receiver
1. Access the Main Menu and select “View”.
2. Select Settings.
3. Select About.
4. Select Version, Copyright, or Owner.
Version displays information about the firmware version, application versions and map
versions.
Copyright displays copyright information for the Magellan Triton.
Owner displays information about the owner of the Magellan Triton. You can select any of the
fields available to enter your details if desired.
Diagnostics
Testing the receiver
1. Access the Main Menu and select “View”.
2. Select Settings
3. Select Diagnostics.
4. Select Audio Test, Video Test, or Keypad Test.
View Menu 24
