Logitech Solar Keyboard Folio User guide

Getting started with Logitech® Solar Keyboard Folio
Logitech Solar Keyboard Folio
Contents
English. . . . . . . . . . . . . . . . . . 3
www.logitech.com/support  . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2
1
2
3
Logitech Solar Keyboard Folio
1. Solar cells
2. Protective case
3. iPad tray
4. Keyboard
5. Function keys
6. Status light
7. Battery check button
8. Bluetooth® connect button
9. Media keys
5
4
9
6 7
8
English  3
Logitech Solar Keyboard Folio
Set up your product
1. Open the Keyboard Folio.
2. Place your iPad in the iPad tray.
3. Move the iPad tray to the typing
position:
• The Keyboard Folio turns on.
• The Status light blinks green.
• The Keyboard Folio is discoverable
for 15 minutes.
• If the Status light shows no color, check the iPad tray for correct positioning. Also, the internal batteries may need charging. Go to “Charge the batteries.”
4  English
4. Turn on Bluetooth on your iPad: Select Settings > General > Bluetooth > On.
5. Choose “Logitech Solar KB folio” on your iPad’s Devices menu.
6. If your iPad requests a PIN, enter the code using the Keyboard Folio and not your iPad’s virtual keyboard. After the Bluetooth connection is made, the Status light briefly turns green.
Logitech Solar Keyboard Folio
Charge the batteries
The Keyboard Folio needs light to recharge. Six hours of typical room light a day is recommended.
To check battery power and recharge
1. Place the iPad tray in the typing position.
2. Press the Battery Check button. If there is a red Status light or no light, recharge the Keyboard Folio.
Status light indications
Light Description
Green The tray is in place, the Bluetooth connection is established,
Red The tray is in place, the Bluetooth connection is established,
Blinking green The tray is in place, the Keyboard Folio is attempting an iPad
One red blink, then blinking green
No light The tray is not in place, the Bluetooth connection is lost,
and the battery is charged.
and battery power is low (10 - 20% charge). Recharge the Keyboard Folio following the instructions above.
connection, and the battery is charged. The tray is in place, the Keyboard Folio is attempting an iPad
connection, and the battery charge is low.
or the battery is dead. See “Troubleshooting.”
3. Close the Keyboard Folio with the solar cells facing up. The Keyboard Folio turns o.
4. Place the Keyboard Folio in a well-lit room.
English  5
Logitech Solar Keyboard Folio
Visit Product Central
There’s more information and support online for your product. Take a moment to visit Product Central to learn more about your new Keyboard Folio.
Browse online articles for setup help, usage tips, or information about additional features.
Connect with other users in our Community Forums to get advice, ask questions, and share solutions.
At Product Central, you’ll find a wide selection of content:
• Tutorials
• Troubleshooting
• Support community
• Software downloads
• Online documentation
• Warranty information
• Spare parts (when available)
Go to www.logitech.com/support/ solarkeyboardfolio
Use your product
Opening the Keyboard Folio turns on your iPad. Closing it turns o your iPad.
The Keyboard Folio does not charge while in use.
iPad tray positions
There are two iPad tray positions—typing and media. Both turn on the Keyboard Folio when the iPad tray supports are placed as shown in the drawings that follow.
1 2
1. Typing position
2. Media position
6  English
Logitech Solar Keyboard Folio
Typing position Use for entering text. In the typing position, the Keyboard Folio provides a Home key and 13 function keys:
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1. Home Displays the iPad Home screen.
Function keys To use, press and hold the
Fn key, and then press a key listed below.
2. Fn + 1 = Search Launches the iPad search function.
3. Fn + 2 = Switch language  Switches keyboard language.
4. Fn + 3 = Virtual keyboard  Shows/hides the virtual keyboard.
5. Fn + 4 = Select left Selects text on the left, word by word.
6. Fn + 5 = Select right Selects text on the right, word by word.
7. Fn + 6 = Cut
8. Fn + 7 = Copy
9. Fn + 8 = Paste
10. Fn + 9 = Play/Pause
11. Fn + 0 = Mute
12. Fn + dash = Volume down
13. Fn + plus = Volume up
14. Fn + delete = Lock screen 
Locks or unlocks the iPad screen.
English  7
Logitech Solar Keyboard Folio
Media position Use when watching videos, listening to music, or playing games. In the media position, the Keyboard Folio provides 8 function keys:
1 2 3 4 5 6 7 8
1. Slideshow Plays a slide show of saved pictures.
2. Virtual keyboard Shows/hides the virtual keyboard.
3. Previous
4. Play/Pause
5. Next
6. Mute
7. Volume down
8. Volume up
Note: These 8 function keys only work when the iPad tray is in the media position. Pressing the Fn key is not required for these keys to work.
8  English
Connecting to a dierent iPad
Logitech Solar Keyboard Folio
1. Make sure the Keyboard Folio is in the typing position.
2. Check that your iPad’s Bluetooth feature is on. Select Settings > General > Bluetooth > On.
3. Press the Bluetooth Connect Button. The Keyboard Folio is discoverable for 3 min.
4. Select “Logitech Solar KB folio” on the iPad’s Devices menu.
5. If your iPad requests a PIN, enter the code using the Keyboard Folio and not your iPad’s virtual keyboard. After the Bluetooth connection is made, the Status light briefly turns green.
6. Place the new iPad in the iPad tray.
English  9
Logitech Solar Keyboard Folio
Troubleshooting
The Keyboard Folio does not work
• Position the iPad tray for typing or media use. The Keyboard Folio does not work if the tray supports are incorrectly placed.
• Press the Battery Check button. A red Status light or no light indicates battery charging is needed. No light also signifies that the tray supports are not correctly placed.
What do you think?
Please take a minute to tell us.
Thank you for purchasing our product.
www.logitech.com/ithink
• Re-establish the Bluetooth connection between the Keyboard Folio and iPad:
• Verify that iPad Bluetooth is
turned on.
• Choose “Logitech Solar KB folio”
on the Devices menu on your iPad. The Status light briefly turns green after the Bluetooth connection is made.
10  English
Logitech Solar Keyboard Folio

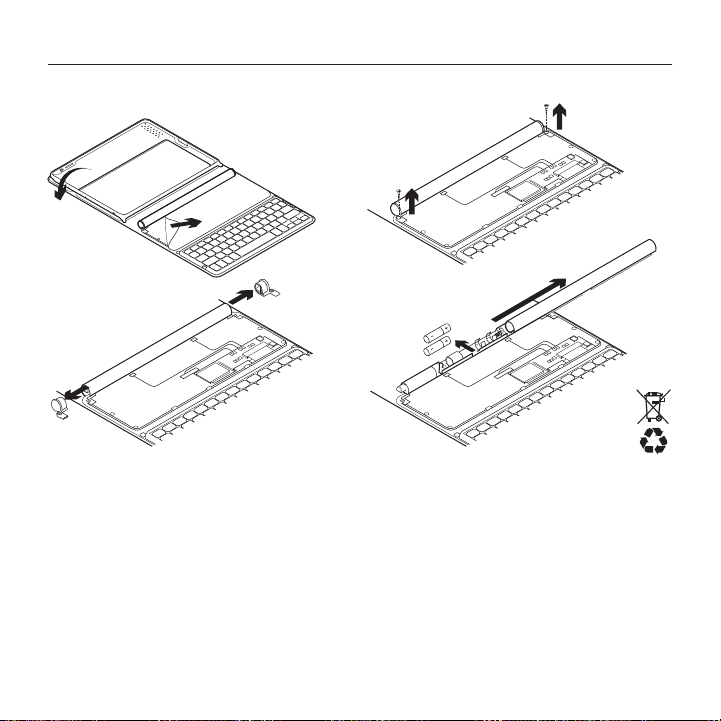

Battery disposal at product end of life
1
2
4 5 6
3
1. Open the Keyboard Folio and lay it flat.
2. Pry o the cover.
3. Remove the screw at each end of
the tube.
4. Remove the tube end caps.
5. Slide o the tube cover and remove
the batteries.
6. Dispose of your product and its batteries according to local laws.
