Logitech NuLOOQ User Manual

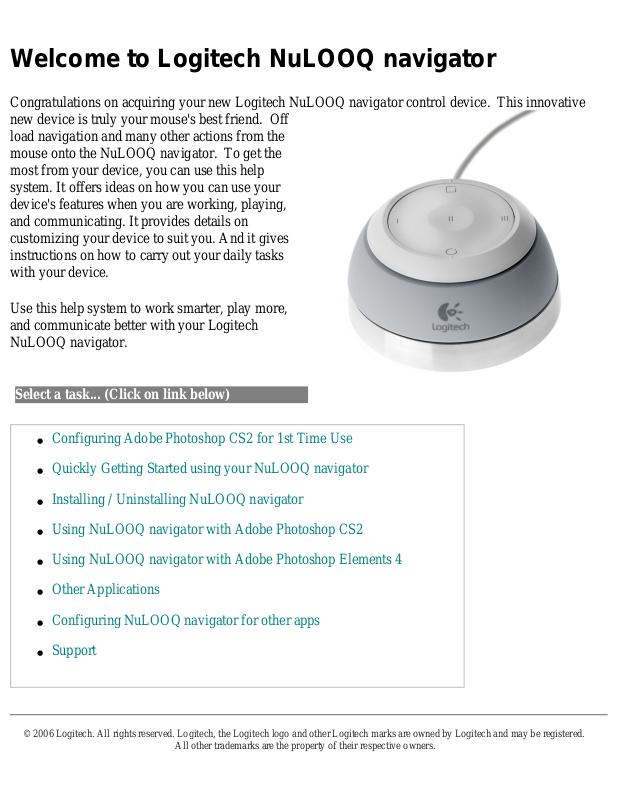

Welcome to Logitech NuLOOQ navigator

Congratulations on acquiring your new Logitech NuLOOQ navigator control device. This innovative new device is truly your mouse's best friend. Off load navigation and many other actions from the mouse onto the NuLOOQ navigator. To get the most from your device, you can use this help system. It offers ideas on how you can use your device's features when you are working, playing, and communicating. It provides details on customizing your device to suit you. And it gives instructions on how to carry out your daily tasks with your device.

Use this help system to work smarter, play more, and communicate better with your Logitech NuLOOQ navigator.

Select a task... (Click on link below)

● Configuring Adobe Photoshop CS2 for 1st Time Use

● Quickly Getting Started using your NuLOOQ navigator

● Installing / Uninstalling NuLOOQ navigator

● Using NuLOOQ navigator with Adobe Photoshop CS2

● Using NuLOOQ navigator with Adobe Photoshop Elements 4

● Other Applications

● Configuring NuLOOQ navigator for other apps

● Support

All other trademarks are the property of their respective owners.

Configuring Adobe Photoshop CS2 for 1st Time Use

Before NuLOOQ navigator can be used with Adobe Photoshop CS2, you must first configure Adobe Photoshop CS2 and then restart CS2 for proper operation. To get started, first ensure that the NuLOOQ navigator driver has been installed on your system and your system has been restarted, if required.

Once up and running, start Adobe Photoshop CS2. After a first time install, you'll get a dialog box saying that you need to configure Adobe Photoshop CS2.

Click on OK and once in Photoshop, go to "Keyboard Shortcuts..." menu. This menu is available from the "Edit" menu item.

A dialog box appears with options on configuring shortcut keys for virtually any command in Photoshop.

Click on "File" menu command. This will expand all the "File" menu commands. Scroll down the list till you fine "NuLOOQ Plug-in...". Click under shortcut column next to "NuLOOQ Plug-in..." row and enter a shortcut command. Note, this shortcut command can be

anything, you'll not be typing this shortcut key at anytime, so make it as complicated as possible. This is required for our Photoshop plug-in and once configured, you'll never have to use it again.

Click on OK once complete and then exit out of Photoshop. You may now start Photoshop and start using NuLOOQ navigator. No other configuration changes are required from within the NuLOOQ navigator panel.

If you change your workspace or load a different workspace, you may need to reconfigure the shortcut key for NuLOOQ Plug-in.

respective owners.

Getting Started

Logitech NuLOOQ navigator is a powerful device with a great deal of functionality and flexibility. Click on links below to quickly get to a different section.

● NuLOOQ navigator components

● Placing the device on the desk

● Properly holding your NuLOOQ navigator

● Using the navring

● Using the tooltuner dial

● Using the triggerpoints

● Configuring NuLOOQ navigator

NuLOOQ navigator components

The NuLOOQ navigator is composed of a number of moveable and touch sensitive parts:

● navring: The gray moveable ring encircling the device.

● tooltuner dial: The touch sensitive circular surface located on top. (Also referred to as tooltuner.)

● click triggerpoints: The 4 triggerpoints within the tooltuner dial groove. Triggerpoints labeled I, III and the circle

and square buttons are click triggerpoints.

● touch triggerpoint: The single button located in the center labeled triggerpoint II.

Placing the device on the desk

The NuLOOQ navigator is not a mouse, but rather works with your mouse, trackball or tablet and keyboard. If you use your mouse or tablet with the right hand, the NuLOOQ navigator should be placed on the left hand side. And vice versa if you use your mouse or tablet on the left hand side. Picture below is an example of how NuLOOQ navigator is used on the left hand and the mouse on the right hand.

Properly holding the NuLOOQ navigator

The NuLOOQ navigator is composed of a moveable ring, called the navring and also a touch sensitive surface located on top of the device called the tooltuner dial or tooltuner. The most practical way to hold the device is to gently place your thumb and middle or index finger on the gray ring and rest your arm on its side next to the navigator. This allows you to move the navring as well as the tooltuner dial with minimal hand movement. See picture below for an example of the left hand can be placed on the NuLOOQ navigator. We don't recommend placing your hand over the top the device as that

limits your access to the tooltuner dial and the built-in triggerpoints.

Using the navring

The navring is a gentle moveable gray ring encircling the device. This ring can be moved in all horizontal directions and twisted, as shown in animated image below. Keep in mind that the device is not intended to move. Only the navring slides, while the device is stationary.

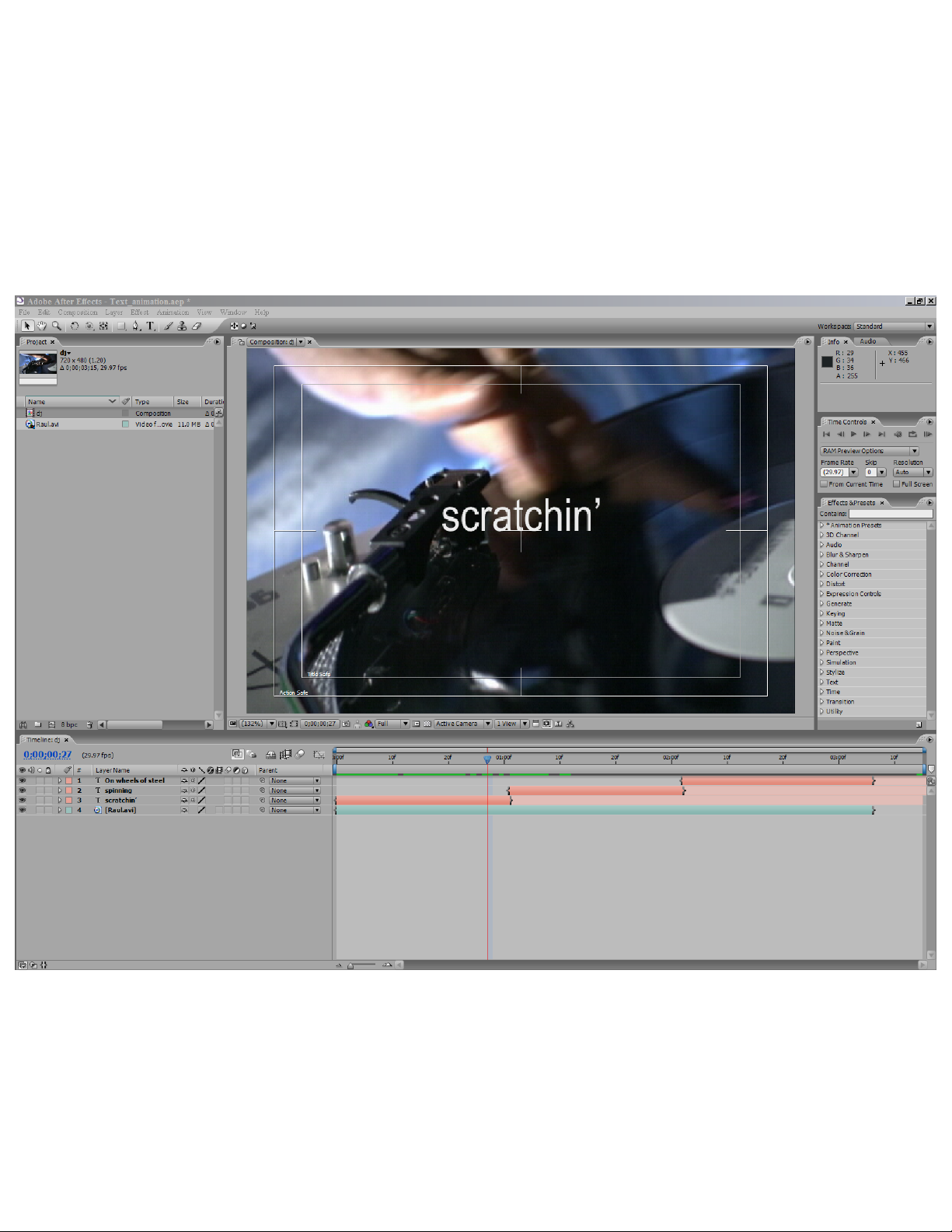

In most applications, the navring is used to pan and zoom around documents and images. However in timeline based apps, such as video editing or audio applications, the navring can be configured to navigate the timeline, such as moving forward or backwards or adjusting resolution.

Using the tooltuner dial

The tooltuner dial is a flat touch-sensitive surface located on the top of your NuLOOQ navigator. To use the tooltuner dial, just gently glide your finger on the surface within the groove in a clockwise or counter clockwise direction as shown in the picture below.

The tooltuner dial is typically used to adjust brush size or text attributes in applications like Adobe Photoshop and Adobe InDesign. However the tooltuner dial can be configured for many uses, including adjusting volume or navigating timelines.

Using the triggerpoints

The surface of the tooltuner dial also contains five triggerpoints; 4 triggerpoints require a click to activate, while one is touch sensitive.

All 5 triggerpoints are fully programmable and configurable. Triggerpoint II is touch sensitive and doesn't require a click to activate. Just resting your finger on the surface of triggerpoint II will activate the button. The triggerpoints can be configured to execute shortcut commands or even act as a modifier key. The NuLOOQ navigator control panel can be used to configure the triggerpoints by application.

Please note that in applications such as Adobe Photoshop and Adobe InDesign, to adjust the brush size or text attributes using tooltuner dial, a button needs to be configured to enable that mode. By default the button at the top (looks like a square) is configured to enable tooltuner dial to adjust brush size. In other applications, all 5 buttons are programmable.

Configuring NuLOOQ navigator

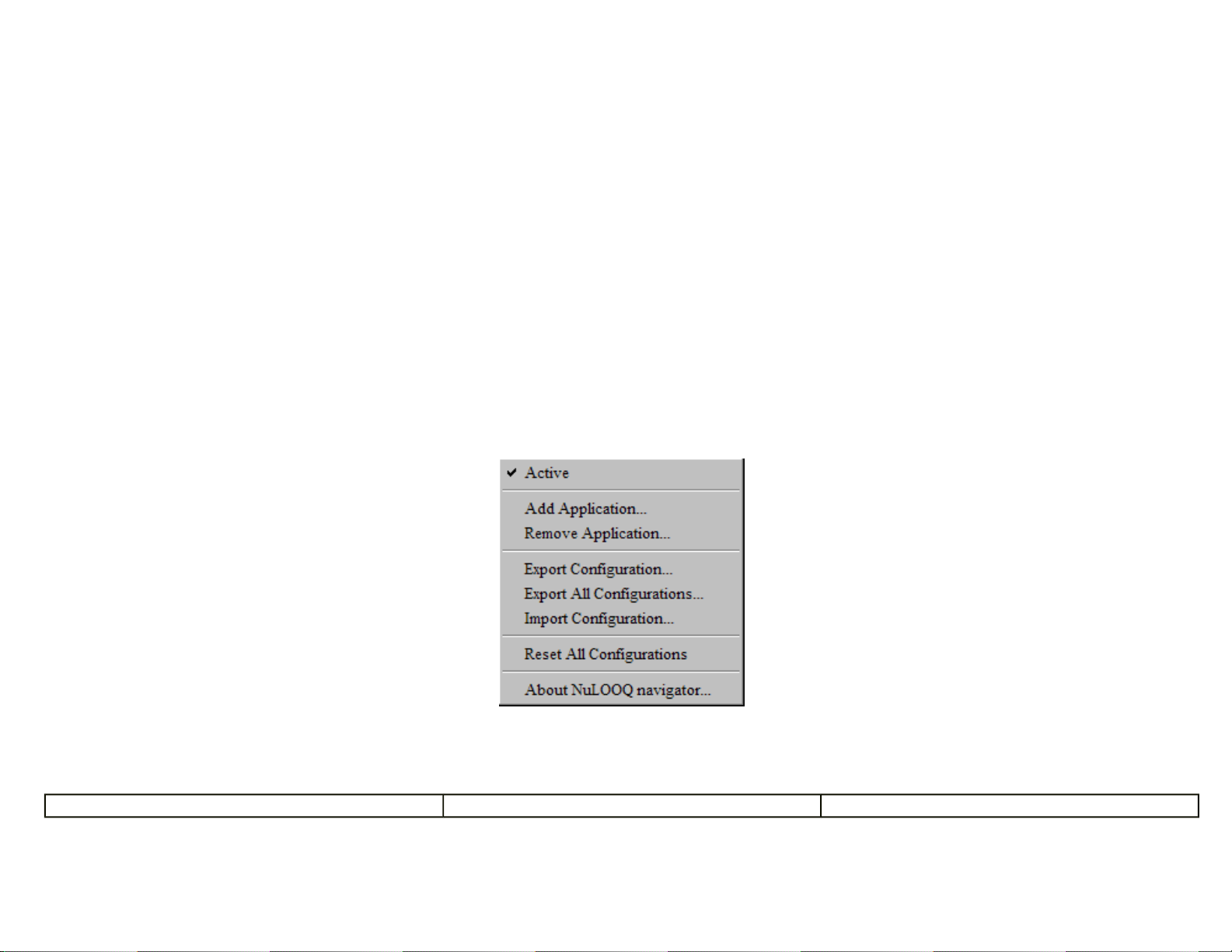

The NuLOOQ navigator control panel can be used to quickly configure NuLOOQ navigator for your custom needs. The control panel can be opened by either right clicking on navigator icon on system tray and opening panel or opening control panel window and then double clicking on NuLOOQ navigator icon.

property of their respective owners.

Installing / Uninstalling Logitech NuLOOQ navigator

In the Package

The package containing NuLOOQ navigator contains the control device, an installation CD and other marketing collateral. The CD contained in the package is the latest version of software available at that time. Please visit http://www.logitech.com/ for any newer drivers that may have been released since the

CD.

Plugging in NuLOOQ navigator

First plug your NuLOOQ navigator into any available USB port on your system or hub. The NuLOOQ navigator does not require any unique USB port. Any available port will work for NuLOOQ navigator.

Once you plug-in the hardware, Microsoft Windows XP may attempt to auto configure the device. You may see a message in the system tray indicating the system is attempting to configure the new hardware. Let Microsoft Windows complete this process. Upon completion of this process, Microsoft may require you to reboot the system. Please reboot at this time. However note the NuLOOQ

navigator driver hasn't yet been installed.

Installing the Driver

Place the install CD into your CD-ROM drive. If the CD doesn't auto start, open Windows Explorer and open the setup file to start the install process. You'll see a sequence of screens guiding you through the installation process.

The first screen above asks you to confirm the license agreement. Check next to "Yes" if you agree with the agreement and then click on "Next>" to proceed to next screen.

The second screen above allows you to confirm location of driver. We recommend selecting the default location. If you desire the driver to be installed at another location, type in the new location in the text box or select browse to bring up the "Select Folder" window to select the folder. Once complete, click on "Next>" to proceed to next screen. You may be asked for confirmation to place NuLOOQ navigator files into the specified directory.

The last screen confirms your installation configuration. Once you click on "Next>" the installation for NuLOOQ navigator will begin.

The installation will take between 10-30 seconds depending on your processor speed. Once complete you'll be ready to use NuLOOQ navigator. No reboot is required after installation of Logitech driver. To confirm that your NuLOOQ navigator is installed the button lights on top of your device will be glowing blue and a NuLOOQ navigator icon should appear in the system tray.

Uninstalling NuLOOQ navigator

There are two ways to uninstall NuLOOQ navigator driver and plug-ins. The fastest way is to find NuLOOQ navigator from within the Start menu. Under that menu item, you'll see "Uninstall NuLOOQ navigator". Select that option to start the Uninstall program for NuLOOQ navigator.

The above screen offers two options, one to uninstall and the other to repair. Select Uninstall and then "Next>" to continue the uninstall process

The above confirmation screen asks you to reconfirm uninstall of NuLOOQ navigator. Note when you uninstall NuLOOQ navigator, only driver and plug-in files will be deleted. All user configuration files will NOT be deleted from your system. After you click on "Next>", the uninstall process will start and be completed in a few seconds.

You don't need to restart the system. You can unplug your NuLOOQ navigator at anytime.

Repairing NuLOOQ navigator

If NuLOOQ navigator isn't functioning properly or if you've upgraded your Adobe applications, you may need to repair NuLOOQ navigator installation to ensure required plug-ins are installed in the right directory. At this time plug-ins are installed for Adobe Photoshop CS2, Adobe InDesign CS2 and Adobe Photoshop Elements 4. If any of those applications are reinstalled, installed for first time or uninstalled, you may need to run repair NuLOOQ navigator to ensure proper operation.

Select Repair NuLOOQ navigator from screen above to start repair process. And then click on "Next>" to continue to next screen.

The repair process will reinstall drivers and plug-ins. Note any configuration files will not be removed in the process. Click "Next>" to start process. The repair process will take about 10-30 seconds and NuLOOQ navigator will be fully functional upon completion of the process.

All other trademarks are the property of their respective owners.

Using NuLOOQ navigator with Adobe Photoshop CS2

Let's get started using NuLOOQ navigator in Adobe Photoshop CS2. Click on any link to quickly get to see how you can use the navring, tooltuner and triggerpoints in Adobe Photoshop CS2. If you haven't yet configured a shortcut command within Adobe Photoshop CS2 after your install, please click here to

configure Adobe Photoshop CS2 for proper operation.

● Pan and Zoom Navigation using navring

● Adjusting Brush Size and other Options using tooltuner

● Quick Shortcut Command / Modifier key access using triggerpoints

All other trademarks are the property of their respective owners.

Pan and Zoom Navigation in Adobe Photoshop CS2 using navring

The gray ring encircling the device, called the navring is used to smoothly navigate around your current Photoshop image. Gently nudge the ring in all directions to navigate the image. Note, the device stays stationary. See images below on how each action on navring will act on an image in Photoshop.

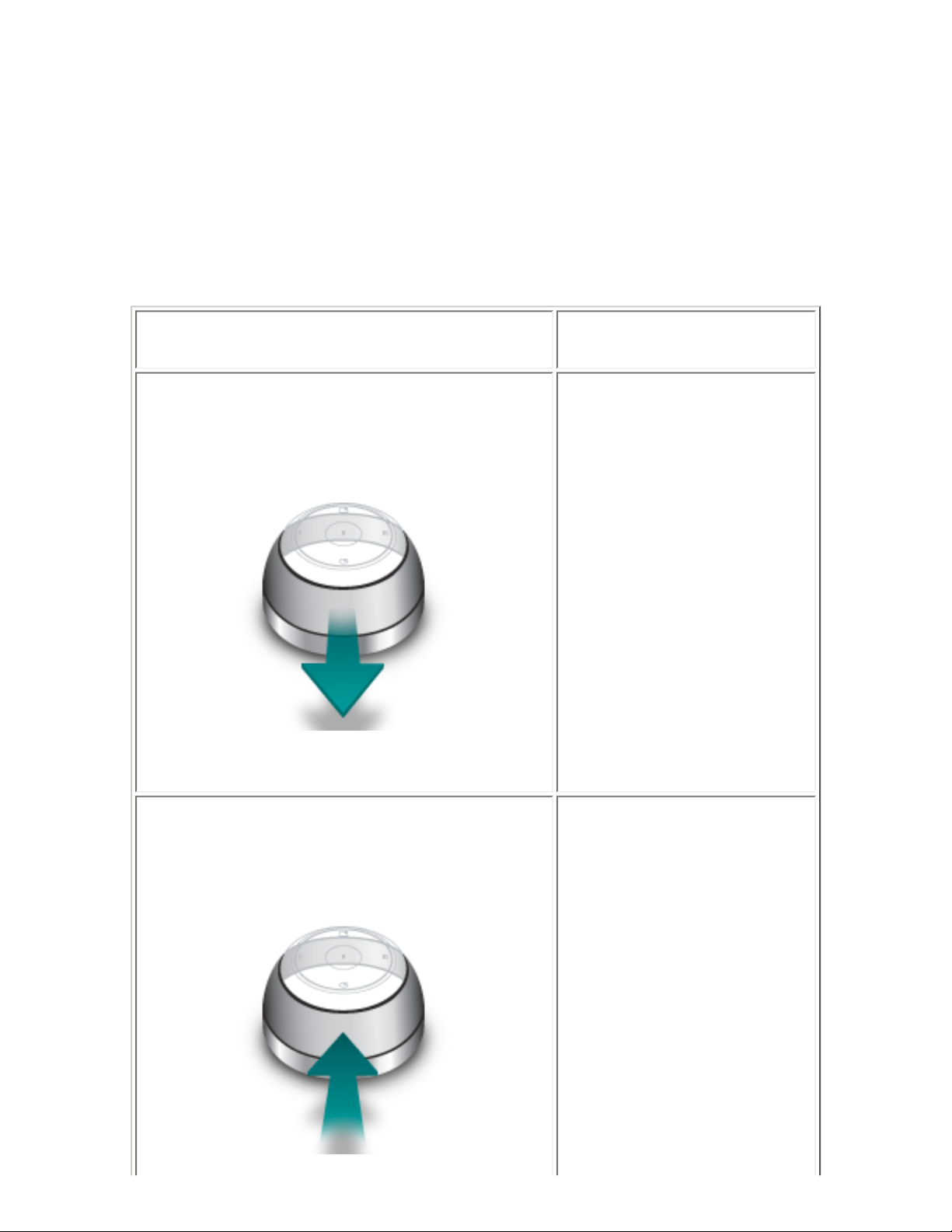

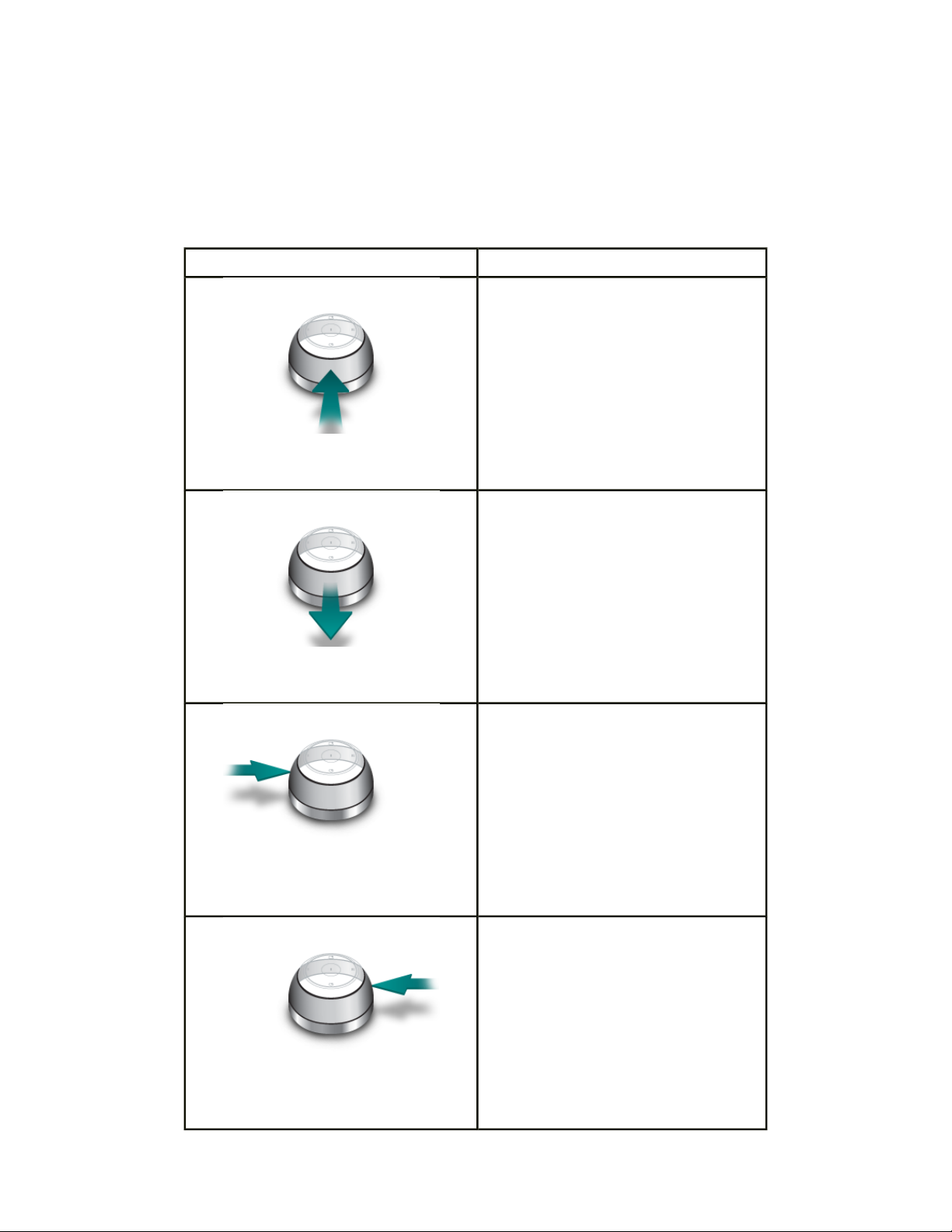

NuLOOQ navigator Action Photoshop CS2 Reaction

Gently move the navring towards you to scroll the image upwards till the end is reached. If the window size is at or larger than the image size, than you may not be able to scroll upwards. Resize window or adjust zoom value to scroll upwards.

Note, if you want to change the orientation of this action, please click here to see how

you can reconfigure NuLOOQ navigator.

Gently move the navring away from you to scroll the image downards till the end is reached. If the window size is at or larger than the image size, than you may not be able to scroll downwards. Resize window or adjust zoom value to scroll downwards.

Note, if you want to change the orientation of this action, please click here to see how

you can reconfigure NuLOOQ navigator.

Gently move the navring to the left to scroll the image to the right till the end is reached. If the window size is at or larger than the image size, than you may not be able to scroll to the right. Resize window or adjust zoom value to scroll to the right.

Note, if you want to change the orientation of this action, please click here to see how

you can reconfigure NuLOOQ navigator.

Gently move the navring to the right to scroll the image to the left till the end is reached. If the window size is at or larger than the image size, than you may not be able to scroll to the left. Resize window or adjust zoom value to scroll to the left.

Note, if you want to change the orientation of this action, please click here to see how

you can reconfigure NuLOOQ navigator.

Gently twist the navring clockwise to zoom into the image. Place the cursor anywhere on the image and the image will continue to zoom in towards the cursor. The image will continue to zoom in, in fine increments until you get to 1600%.

Note, if you want to modify zoom to zoom in, at set increments, i.e. 33%, 50%, etc., please click here to see

how you can reconfigure NuLOOQ navigator.

Gently twist the navring counter-clockwise to zoom out of the image. The image will continue to zoom out, in fine increments until you get to .167%.

Note, if you want to modify zoom to zoom in, at set increments, i.e. 33%, 50%, etc., please click here to see

how you can reconfigure NuLOOQ navigator.

Usage Recommendations

1. Rather than moving the mouse repeatedly to get to different areas of the image or picture, gently nudge the navring to move the image from section to section and keep the mouse stationary.

2. Use the mouse to drive into and out of your image. The image will automatically zoom into where the mouse cursor is located. Move your mouse to make adjustments to where you zoom.

3. Make small movements of the navring to get very precise control of your image navigation. Make large movements to move quickly across your image.

Things to Avoid

1. Using too much. The navring moves a very small amount and requires just a light force.

2. Tilting instead of sliding. Tilting the navring will result in no or little activity. Slide the navring parallel to the desk to get the best results.

All other trademarks are the property of their respective owners.

Changing Pan and Zoom Orientation

If while moving the navring, the image movement doesn't feel comfortable or correct, you may want to reorient how the navring interacts with the image. You may want to swap how the navring interacts with the image. Follow these simple steps to adjust this orientation. First open the NuLOOQ navigator control panel.

NuLOOQ navigator Control Panel Description

Open NuLOOQ navigator panel

and confirm the right application is selected.

Select navring tab at the top.

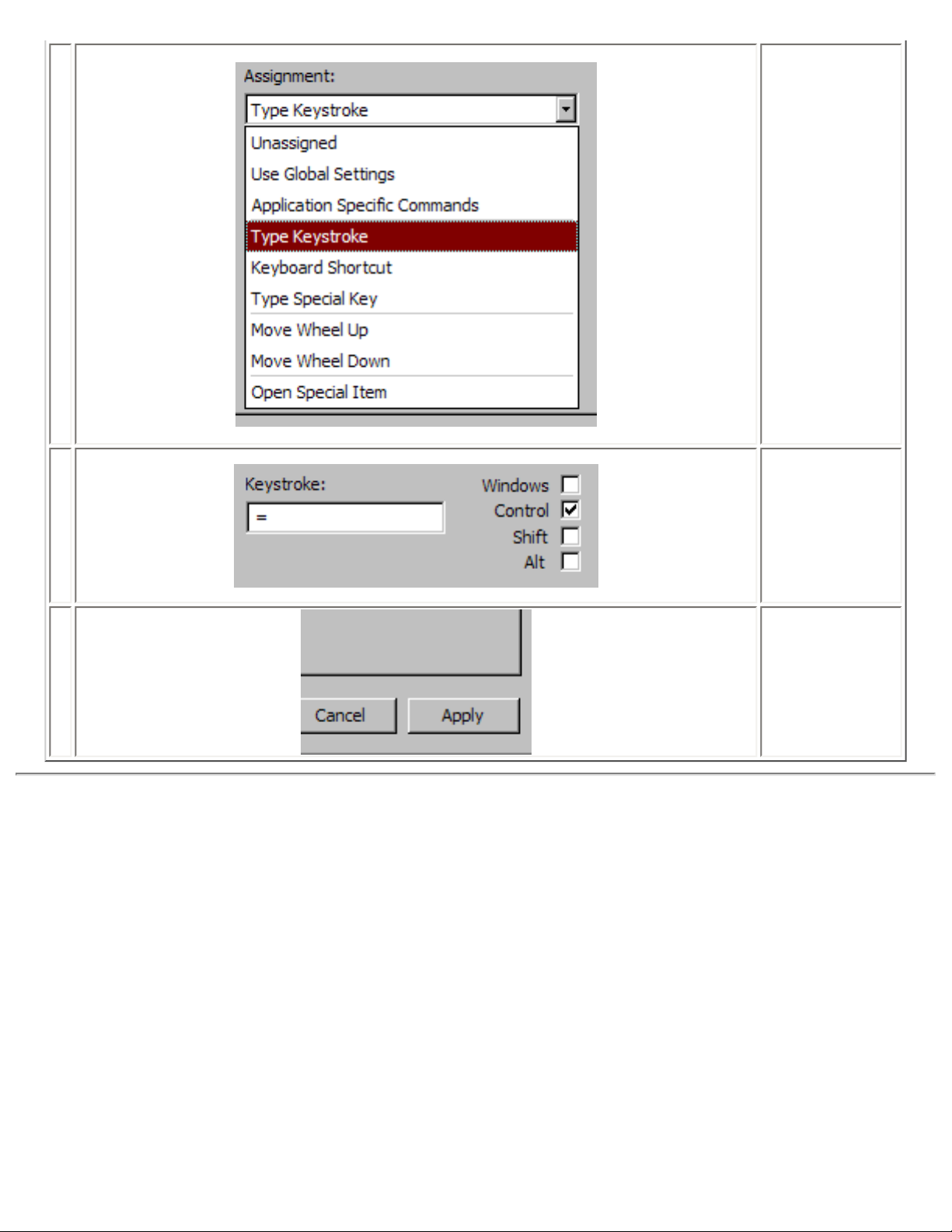

Click on control and when the pull down appears, select the control you want to change. For example, Twist Clockwise.

Change default setting from zoom in to zoom out. Go back to control and now select Twist Counterclockwise to set that assignment to zoom in.

Click on apply to make the changes effective. Now your settings have changed. This change will be effective every time until you change the settings again.

All other trademarks are the property of their respective owners.

Changing Zoom in and Zoom out Settings to Fixed Resolutions (33%, 50%, etc.)

By default, zooming in and zooming out using NuLOOQ navigator is set to provide you with the smoothest experience. This will result in zooming in and out at zoom resolutions that provide the smoothest feel. However if you desire to zoom in and zoom out at fixed zoom resolutions, such as 33%, 50%, etc, the following steps will allow you to change the navring configuration to follow those fixed settings.

NuLOOQ navigator Control Panel Description

Open NuLOOQ

navigator panel and select Adobe Photoshop CS2.

Select navring tab.

Under control, select Twist Clockwise.
