The next generation of home refrigeration
is here. Introducing Monolith, a towering
achievement in cooling technology from
Liebherr. Monolith is the culmination of
Liebherr’s 60 years of refrigeration inno­vation and expertise. An impressive 84"
from top to bottom, this monumental
wonder of German engineering takes
food preservation to a new level. With
superior energy effi ciency and food­saving advancements such as BioFresh-Plus,
PowerCooling and our SmartDeviceBox,
Monolith is a fusion of technical genius
and practical ingenuity. Add Liebherr’s
exclusive Infi nitySwipe electronic touch­control panel and smartphone app,
whisper-quiet operation and infi nite
fi nishes and size confi gurations to match
your décor, and you can see why
Monolith isn’t just state-of-the-art. It’s the
new defi nition of cool.

8 9

MF 1851 I MW 1800 I MRB 3000

10 11

Monolith columns off er limitless combinations for your dream kitchen. These appliances can be installed as single
columns, or in combinations of two and three appliances to maximize your storage options.

The Side-by-Side kit on page 43 is required if there is less than 4” (102 mm) spacing between appliances.
Please refer to page 49 for detailed information about the cut out niche dimensions.

Side-by-Side Combinations

Columns Overview

MRB 2400

MF 1851

MW 1800 ¹
MW 1801 ²

Right, reversible

Left, reversible

1

Right, reversible

2

Left, reversible

Custom panel / *Stainless steel panel

Custom panel / *Stainless steel panel

Custom panel / *Stainless steel panel

MRB 3000

MF 3651

MF 2451

MW 2400 ¹
MW 2401 ²

Model Door Hinge

Panel

(*optional accessories)

Features

Refrigerator

24"

30"

MRB 3600

MF 3051

36"

Freezer

Wine

Right, reversible

Left, reversible

Left, reversible

1

Right, reversible

2

Left, reversible

Custom panel / *Stainless steel panel

Custom panel / *Stainless steel panel

Custom panel / *Stainless steel panel

Custom panel / *Stainless steel panel

Right, reversible

Left, reversible

Custom panel / *Stainless steel panel

Custom panel / *Stainless steel panel

18 "

18 "

24"

24"

30"

36"

Examples of possible combinations with two appliances

Examples of possible combinations with three appliances

Cut out width 54"

C

ut out width 72"

Cut out width 66"

Cut out width 96"

COOLING

12 13

MRB 3000

Key Features

InfinitySwipe: Monolith’s intuitive electronic
touch-control panel features a full-color 3.5-inch
touch & swipe screen that’s bright, clean, and
wonderfully user-friendly. You’ll barely have to
lift a finger to control every function.

InfinitySpring: The seamlessly integrated, flush­mounted InfinitySpring internal water dispenser
is there when you need it, and virtually invisible
when you don’t, and can accommodate pitchers
of any size. Liebherr’s filtration system eliminates
harmful contaminates, resulting in crisp, clear, fresh
tasting water.

PowerCooling: Liebherr’s high-performance
PowerCooling system ensures that newly stored
foods are quickly cooled, while maintaining an
even temperature throughout the interior. Taking
this system one step further, Monolith circulates
cold air behind the door, meaning that items
stored in the door stay just as cold as everything
else inside.

InfinityLight: Monolith’s seamlessly integrated
LED side-wall lighting casts a beautiful and even
glow that can be adjusted according to taste,
including a soft brightening effect upon opening
the doors. InfinityLight doesn’t just add drama
and flair, it also emits less heat, preserving food
quality.

Gallon Storage: Monolith’s durable and
elegant door shelves provide more cubic feet
and convenience. Store gallon jugs of tea,
juice and milk on the door, freeing up the
refrigerator’s interior shelves for everything from
party platters to fresh salad bowls.

SmartDevice: Monolith comes with a
SmartDeviceBox which can be controlled
via a smartphone or tablet, activating
settings and features while on the go.

BioFresh: BioFresh is an advanced food preser­vation system featuring independent climate
controls, where you can create a high-humidity
environment for fruits and veggies in one drawer,
and a low-humidity environment for meats and
cheeses in another. FlexSystem: This simple-to-
use organization system helps sort and separate
foods stored in your favorite BioFresh drawer.

BioFresh-Plus: Liebherr’s BioFresh technology
guarantees the perfect climate for superior,
long-lasting food freshness. In addition to two
BioFresh drawers, the third Monolith refrigerator
drawer can be set as BioFresh-Plus, lowering
temperatures down to 28 ºF, ideal for storing
fresh fish and seafood.

14 15

A
Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E1, E2

Depending on the appliance, the anti-tipping bracket is
positioned at the top (E1) or base (E2) of the appliance
and must be secured to the wall or to the floor, please
refer to the installation manual for more information.

Inset

A = 10 3/4" (273 mm)
B = 1/2" (12.5 mm)
C = 25 7/8" (658 mm)

Frameless

A = 11" (279 mm)
B = 1/2" (12.5 mm)
C = 26 3/8" (670 mm)

Dimension A = without
mounted door handle

24" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 23 3/4" (603 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 24" (610 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 66 lbs. (30 kg)

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjustable feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

24" Monolith Refrigerator

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

Individual Toe Kick

* Estimated energy cost will depend on utility rates and use. Estimated energy cost

based on a national average electricity cost of 12 cents per KWh.

** Noise output – according to EN 60704-3.

*** Please contact your Liebherr Authorized Dealer for door reversal.

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Product Dimensions

16 17

24"

Continuous Toe Kick

MRB 2400

3"

(76 mm)

3"
(76 mm)

4"
(102 mm)

24"

(610 mm)

A

B

13 3

2

/16" - 4 /16

"

(72 - 106 mm)

DD

84"

(2134 mm)

C

E1

E2

3"

(76 mm)

3"
(76 mm)

24"

(610 mm)

A

B

DD

84"

(2134 mm)

C

E1

E2

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

230

28 *

39 **

11.5 (325 )

5 (142)

4

3

2 / 1 with LED lighting

InfinitySwipe

+36 °F to +45 °F (+2 °C to +7 °C)

automatic

InfinityLight

no

no

right, reversible ***

83 3/4" / 23 3/4" / 24"

212.6 / 60.2 / 61

84" / 24" / 25"

213.4 / 61 / 63.5

337.3 (153)

115/6 0

Energy consumption (kWh / y)

Estimated Yearly Energy Cost in US $

Sound rating dB(A)

Refrigerator capacity cu.ft. (l)

BioFresh / BioFresh-Plus comp. cu.ft. (l)

Number of shelves

Number of door racks

Number of BioFresh drawers / BioFresh-Plus drawers

Electronic control

Refrigerator temperature range °F (°C)

Defrost type

Interior light

Internal Water Dispenser

Water fi lter

Door hinges

Product dimensions

in inch H / W / D

in cm H / W / D

Cut out dimensions

in inch H / W / D

in cm H / W / D

Net weight lbs. (kg)

Voltage V / Hz

23

3

/

4" (602 mm)

W

H

8.8 ft (2400 mm)

~

6 ft (1850 mm)

~

30" Monolith Refrigerator

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

Inset

A = 13 1/4" (337 mm)
B = 1/2" (12.5 mm)
C = 31 7/8" (810 mm)

Frameless

A = 13 1/2" (343 mm)
B = 1/2" (12.5 mm)
C = 32 3/8" (822 mm)

Dimension A = without
mounted door handle

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

* Estimated energy cost will depend on utility rates and use. Estimated energy cost

based on a national average electricity cost of 12 cents per KWh.

** Noise output – according to EN 60704-3.

*** Please contact your Liebherr Authorized Dealer for door reversal.

18 19

30"

Product Dimensions

MRB 3000

A

Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E1, E2

Depending on the appliance, the anti-tipping bracket is
positioned at the top (E1) or base (E2) of the appliance
and must be secured to the wall or to the floor, please
refer to the installation manual for more information.

30" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 29 3/4" (756 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 30" (762 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 77 lbs. (35 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

4"
(102 mm)

30"

(762 mm)

A

B

13 3

2 /16" - 4 /16"

(72 - 106 mm)

3"

(76 mm)

3"
(76 mm)

DD

84"

(2134 mm)

C

E1

E2

3"

(76 mm)

30"

(762 mm)

A

B

3"
(76 mm)

DD

84"

(2134 mm)

C

E1

E2

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

245

30 *

39 **

15 (4 25 )

6.5 (185)

4

3

2 / 1 with LED lighting

InfinitySwipe

+36 °F to +45 °F (+2 °C to +7 °C)

automatic

InfinityLight

InfinitySpring

yes

right, reversible ***

83 3/4" / 29 11/16" / 24"

212.6 / 75.4 / 61

84" / 30" / 25"

213.4 / 76.2 / 63.5

392.4 (178)

115/6 0

Energy consumption (kWh / y)

Estimated Yearly Energy Cost in US $

Sound rating dB(A)

Refrigerator capacity cu.ft. (l)

BioFresh / BioFresh-Plus comp. cu.ft. (l)

Number of shelves

Number of door racks

Number of BioFresh drawers / BioFresh-Plus drawers

Electronic control

Refrigerator temperature range °F (°C)

Defrost type

Interior light

Internal Water Dispenser

Water fi lter

Door hinges

Product dimensions

in inch H / W / D

in cm H / W / D

Cut out dimensions

in inch H / W / D

in cm H / W / D

Net weight lbs. (kg)

Voltage V / Hz

29

11

/

16" (754 mm)

W

H

8.8 ft (2400 mm)

~

5.5 ft (1700 mm)

~

36" Monolith Refrigerator

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

MRB 3600

* Estimated energy cost will depend on utility rates and use. Estimated energy cost

based on a national average electricity cost of 12 cents per KWh.

** Noise output – according to EN 60704-3.

*** Please contact your Liebherr Authorized Dealer for door reversal.

20 21

36"

Inset

A = 15 3/4" (400 mm)
B = 1/2" (12.5 mm)
C = 37 7/8" (962 mm)

Frameless

A = 16" (406 mm)
B = 1/2" (12.5 mm)
C = 38 3/8" (975 mm)

Dimension A = without
mounted door handle

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

Product Dimensions

A
Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E1, E2

Depending on the appliance, the anti-tipping bracket is
positioned at the top (E1) or base (E2) of the appliance
and must be secured to the wall or to the floor, please
refer to the installation manual for more information.

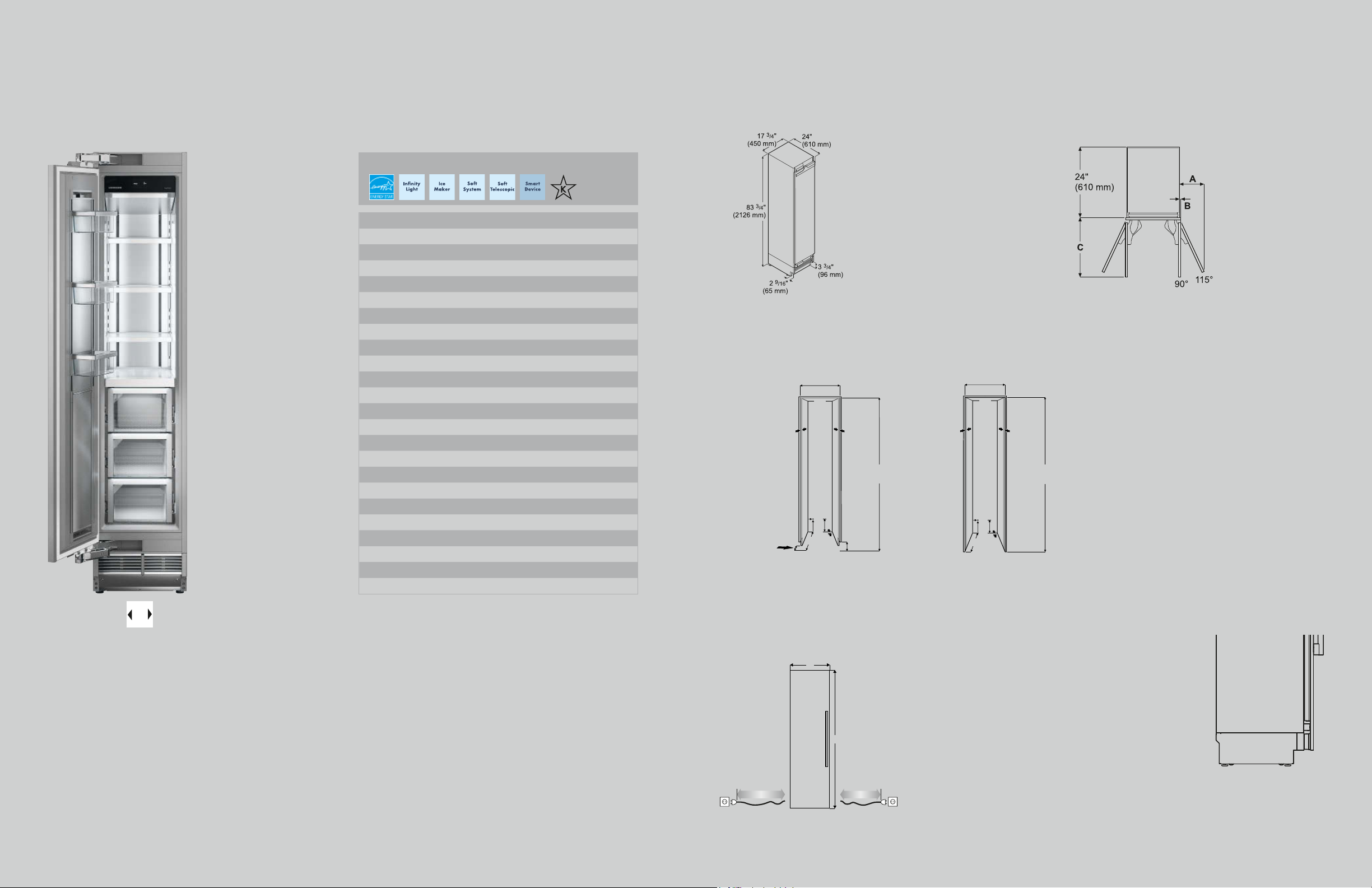

36" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 35 3/4" (908 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 36" (914 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 88 lbs. (40 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

84"

(2134 mm)

4"
(102 mm)

36"

(914 mm)

A

B

13 3

2 /16" - 4

/16"

(72 - 106 mm)

3"

(76 mm)

3"
(76 mm)

DD

C

E1

E2

84"

(2134 mm)

36"

(914 mm)

A

B

3"

(76 mm)

3"
(76 mm)

DD

C

E1

E2

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

260

31 *

39 **

18.9 (53 5)

8.3 (236)

4

3

2 / 1 with LED lighting

InfinitySwipe

+36 °F to +45 °F (+2 °C to +7 °C)

automatic

InfinityLight

InfinitySpring

yes

right, reversible ***

83 3/4" / 35 11/16" / 24"

212.6 / 90.6 / 61

84" / 36" / 25"

213.4 / 91.4 / 63.5

438.7 (199)

115/6 0

Energy consumption (kWh / y)

Estimated Yearly Energy Cost in US $

Sound rating dB(A)

Refrigerator capacity cu.ft. (l)

BioFresh / BioFresh-Plus comp. cu.ft. (l)

Number of shelves

Number of door racks

Number of BioFresh drawers / BioFresh-Plus drawers

Electronic control

Refrigerator temperature range °F (°C)

Defrost type

Interior light

Internal Water Dispenser

Water fi lter

Door hinges

Product dimensions

in inch H / W / D

in cm H / W / D

Cut out dimensions

in inch H / W / D

in cm H / W / D

Net weight lbs. (kg)

Voltage V / Hz

35

11

/

16" (906 mm)

W

H

8.8 ft (2400 mm)

~

5 ft (1550 mm)

~

FREEZING

22 23

MF 1851

Key Features

SoftSystem: Doors close automatically and gently
thanks to our SoftSystem technology, which
eliminates slamming even when shelves are fully
loaded. Depending on which size

Monolith
you choose, the door hinges are rated for up to
88 pounds.

InfinityLight: Monolith’s seamlessly integrated
LED side-wall lighting casts a beautiful and even
glow that can be adjusted according to taste,
including a soft brightening effect upon opening
the doors. InfinityLight doesn’t just add drama
and flair, it also emits less heat, preserving food
quality.

FrostSafe Drawers: Monolith’s FrostSafe sealed
removable freezer drawers protect frozen food
from unwanted air exchange and chilled air
loss, even when the door is opened. FrostSafe
drawers are also generously deep and
trans parent, providing an optimum view of
what’s stored within.

SuperFrost: Simply quick freeze just-bought
groceries to preserve optimum food freshness,
while sealing in flavors and maintaining essential
vitamins and minerals.

Freezer Door Bins: With their unique design, Monolith’s durable freezer door bins allows cold air to flow freely,
keeping temperature constant while optimizing food preservation. The see-through door bins are also fully adjustable,
easily accommodating small to medium-sized items so that inner freezer shelves are free to accommodate bulkier
foods.

IceMaker: Monolith’s automatic IceMaker
produces 3.5 pounds of filtered ice in 24 hours.
Activate the SuperFrost function for an even
greater production capability. With a 4 to

7.7 pound storage capacity, depending on the
model, you'll never be without.

24 25

18" Monolith Freezer

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

* Estimated energy cost will depend on utility rates and use. Estimated energy cost

based on a national average electricity cost of 12 cents per KWh.

** Noise output – according to EN 60704-3.

*** Please contact your Liebherr Authorized Dealer for door reversal.

26 27

18 "

Product Dimensions

Inset

A = 8 1/4" (210 mm)
B = 1/2" (12.5 mm)
C = 19 7/8" (505 mm)

Frameless

A = 8 1/2" (216 mm)
B = 1/2" (12.5 mm)
C = 20 3/8" (517 mm)

Dimension A = without
mounted door handle

MF 1851

A

Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E1, E2

Depending on the appliance, the anti-tipping bracket is
positioned at the top (E1) or base (E2) of the appliance
and must be secured to the wall or to the floor, please
refer to the installation manual for more information.

18" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 17 3/4" (451 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 18" (457 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 55 lbs. (25 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

4"
(102 mm)

18"

(457 mm)

A

B

13 3

2 /16" - 4

/16

"

(72 - 106 mm)

3"
(76 mm)

3"

(76 mm)

DD

84"

(2134 mm)

C

E1

E2

18"

(457 mm)

A

B

3"
(76 mm)

3"

(76 mm)

DD

84"

(2134 mm)

C

E1

E2

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

412

50 *

39 **

7.8 (222)

4

3

3

InfinitySwipe

+7 °F to –17 °F (–14 °C to –27 °C)

automatic

InfinityLight

yes

fixed water connection

3.5 (1.6)

4 (1.8)

left, reversible ***

83 3/4" / 17 3/4" / 24"

212.6 / 45 / 61

84" / 18" / 25"

213.4 / 45.7 / 63.5

302 (137)

115/6 0

Energy consumption (kWh / y)

Estimated Yearly Energy Cost in US $

Sound rating dB(A)

Freezer capacity cu.ft. (l)

Number of shelves

Number of door racks

Number of FrostSafe drawers

Electronic control

Freezer temperature range °F (°C)

Defrost type

Interior light

Water fi lter

IceMaker

Ice cube output lbs. (kg) / 24h

Ice cube stock lbs. (kg)

Door hinges

Product dimensions

in inch H / W / D

in cm H / W / D

Cut out dimensions

in inch H / W / D

in cm H / W / D

Net weight lbs. (kg)

Voltage V / Hz

17

3

/

4" (450 mm)

W

H

8.8 ft (2400 mm)

~

6.5 ft (2000 mm)

~

24"

24" Monolith Freezer

Inset

A = 10 3/4" (273 mm)
B = 1/2" (12.5 mm)
C = 25 7/8" (658 mm)

Frameless

A = 11" (279 mm)
B = 1/2" (12.5 mm)
C = 26 3/8" (670 mm)

Dimension A = without
mounted door handle

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

* Estimated energy cost will depend on utility rates and use. Estimated energy cost

based on a national average electricity cost of 12 cents per KWh.

** Noise output – according to EN 60704-3.

*** Please contact your Liebherr Authorized Dealer for door reversal.

28 29

Product Dimensions

MF 2451

A

Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E1, E2

Depending on the appliance, the anti-tipping bracket is
positioned at the top (E1) or base (E2) of the appliance
and must be secured to the wall or to the floor, please
refer to the installation manual for more information.

24" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 23 3/4" (603 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 24" (610 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 66 lbs. (30 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

3"

(76 mm)

3"
(76 mm)

4"
(102 mm)

24"

(610 mm)

A

B

13 3

2

/16" - 4 /16

"

(72 - 106 mm)

DD

84"

(2134 mm)

C

E1

E2

3"

(76 mm)

3"
(76 mm)

24"

(610 mm)

A

B

DD

84"

(2134 mm)

C

E1

E2

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

438

53 *

39 **

11.5 (325 )

4

3

3

InfinitySwipe

+7 °F to –17 °F (–14 °C to –27 °C)

automatic

InfinityLight

yes

fixed water connection

3.5 (1.6)

5.3 (2.4)

left, reversible ***

83 3/4" / 23 3/4" / 24"

212.6 / 60.2 / 61

84" / 24" / 25"

213.4 / 61 / 63.5

350.5 (159)

115/6 0

Energy consumption (kWh / y)

Estimated Yearly Energy Cost in US $

Sound rating dB(A)

Freezer capacity cu.ft. (l)

Number of shelves

Number of door racks

Number of FrostSafe drawers

Electronic control

Freezer temperature range °F (°C)

Defrost type

Interior light

Water fi lter

IceMaker

Ice cube output lbs. (kg) / 24h

Ice cube stock lbs. (kg)

Door hinges

Product dimensions

in inch H / W / D

in cm H / W / D

Cut out dimensions

in inch H / W / D

in cm H / W / D

Net weight lbs. (kg)

Voltage V / Hz

23

3

/

4" (602 mm)

W

H

8.8 ft (2400 mm)

~

6 ft (1850 mm)

~

30" Monolith Freezer

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

* Estimated energy cost will depend on utility rates and use. Estimated energy cost

based on a national average electricity cost of 12 cents per KWh.

** Noise output – according to EN 60704-3.

*** Please contact your Liebherr Authorized Dealer for door reversal.

30 31

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

Product Dimensions

30"

Inset

A = 13 1/4" (337 mm)
B = 1/2" (12.5 mm)
C = 31 7/8" (810 mm)

Frameless

A = 13 1/2" (343 mm)
B = 1/2" (12.5 mm)
C = 32 3/8" (822 mm)

Dimension A = without
mounted door handle

MF 3051

A

Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E1, E2

Depending on the appliance, the anti-tipping bracket is
positioned at the top (E1) or base (E2) of the appliance
and must be secured to the wall or to the floor, please
refer to the installation manual for more information.

30" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 29 3/4" (756 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 30" (762 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 77 lbs. (35 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

4"
(102 mm)

30"

(762 mm)

A

B

13 3

2 /16" - 4 /16"

(72 - 106 mm)

3"

(76 mm)

3"
(76 mm)

DD

84"

(2134 mm)

C

E1

E2

3"

(76 mm)

30"

(762 mm)

A

B

3"
(76 mm)

DD

84"

(2134 mm)

C

E1

E2

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

529

64 *

39 **

15.2 (431)

4

3

3

InfinitySwipe

+7 °F to –17 °F (–14 °C to –27 °C)

automatic

InfinityLight

yes

fixed water connection

3.5 (1.6)

6.6 (3)

left, reversible ***

83 3/4" / 29 11/16" / 24"

212.6 / 75.4 / 61

84" / 30" / 25"

213.4 / 76.2 / 63.5

392.4 (178)

115/6 0

Energy consumption (kWh / y)

Estimated Yearly Energy Cost in US $

Sound rating dB(A)

Freezer capacity cu.ft. (l)

Number of shelves

Number of door racks

Number of FrostSafe drawers

Electronic control

Freezer temperature range °F (°C)

Defrost type

Interior light

Water fi lter

IceMaker

Ice cube output lbs. (kg) / 24h

Ice cube stock lbs. (kg)

Door hinges

Product dimensions

in inch H / W / D

in cm H / W / D

Cut out dimensions

in inch H / W / D

in cm H / W / D

Net weight lbs. (kg)

Voltage V / Hz

29

11

/

16" (754 mm)

W

H

8.8 ft (2400 mm)

~

5.5 ft (1700 mm)

~

36" Monolith Freezer

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

* Estimated energy cost will depend on utility rates and use. Estimated energy cost

based on a national average electricity cost of 12 cents per KWh.

** Noise output – according to EN 60704-3.

*** Please contact your Liebherr Authorized Dealer for door reversal.

32 33

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

Product Dimensions

Inset

A = 15 3/4" (400 mm)
B = 1/2" (12.5 mm)
C = 37 7/8" (962 mm)

Frameless

A = 16" (406 mm)
B = 1/2" (12.5 mm)
C = 38 3/8" (975 mm)

Dimension A = without
mounted door handle

36"

MF 3651

A

Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E1, E2

Depending on the appliance, the anti-tipping bracket is
positioned at the top (E1) or base (E2) of the appliance
and must be secured to the wall or to the floor, please
refer to the installation manual for more information.

36" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 35 3/4" (908 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 36" (914 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 88 lbs. (40 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

84"

(2134 mm)

4"
(102 mm)

36"

(914 mm)

A

B

13 3

2 /16" - 4

/16"

(72 - 106 mm)

3"

(76 mm)

3"
(76 mm)

DD

C

E1

E2

84"

(2134 mm)

36"

(914 mm)

A

B

3"

(76 mm)

3"
(76 mm)

DD

C

E1

E2

W

H

~

8.8 ft (2400 mm)

~

5 ft (1550 mm)

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

586

71 *

39 **

18.9 (53 4)

4

3

3

InfinitySwipe

+7 °F to –17 °F (–14 °C to –27 °C)

automatic

InfinityLight

yes

fixed water connection

3.5 (1.6)

7.7 (3.5)

left, reversible ***

83 3/4" / 35 11/16" / 24"

212.6 / 90.6 / 61

84" / 36" / 25"

213.4 / 91.4 / 63.5

436.5 (198)

115/6 0

Energy consumption (kWh / y)

Estimated Yearly Energy Cost in US $

Sound rating dB(A)

Freezer capacity cu.ft. (l)

Number of shelves

Number of door racks

Number of FrostSafe drawers

Electronic control

Freezer temperature range °F (°C)

Defrost type

Interior light

Water fi lter

IceMaker

Ice cube output lbs. (kg) / 24h

Ice cube stock lbs. (kg)

Door hinges

Product dimensions

in inch H / W / D

in cm H / W / D

Cut out dimensions

in inch H / W / D

in cm H / W / D

Net weight lbs. (kg)

Voltage V / Hz

35

11

/

16" (906 mm)

WINE

34 35

MW 2400

3736

SoftSystem: Doors close gently every time
thanks to Monolith’s SoftSystem technology,
protecting wine bottles and eliminating
slamming for a premium experience. This
integrated technology allows doors to close
effortlessly and quietly, bringing a bit of
relaxation into every glass poured.

FreshAir Activated Charcoal Filter: Your
wine collections deserve the best air quality.
Monolith’s FreshAir filter features one charcoal
filter in each compartment to preserve and
protect your treasured wines. Incoming air is
purified while damaging odors are filtered out
to prevent contamination.

Flexible Shelves on Telescopic Rails: Monolith’s
flexible shelves allow for custom configurations to
hold larger wine and champagne bottles. With
flexible shelving, Monolith wine columns can
comfortably fit all the bottles in your collection,
helping you get the most out of your cooler and
your wines.

InfinityBoard: The unique design of the Monolith
wine column features a board that can be
pulled out as a temporary shelf to hold bottles
while organizing and adding to your wine
collection. Serve yourself, or your guests, with
ease, while keeping your wines right where they
belong.

Key Features

InfinityProtection: To protect wines from high
temperature fluctuations, Monolith wine columns
utilize two temperature sensors in each compartment
to help maintain precise temperatures – a feature
unique to Liebherr. If the sensors detect a critical
temperature change, an alert is sent, notifying you
immediately to help preserve your wines and keep
them safe from overheating and undercooling.

Customized Labeling: Keep your wine
collections organized and label your collection
with ease. Located on each wine shelf trim,
erasable labels allow you to identify and
customize your wine collection, making sure
each bottle is right where you want it.

InfinityLight: Monolith’s integrated LED side-wall
lighting casts a beautiful and even glow throughout
the space. This feature includes a soft brightening
effect upon opening the doors and the lighting
can be fine-tuned according to your personal
taste. InfinityLight LED technology emits less heat
and is more efficient than traditional lighting,
preserving both your wines and the environment.

InfinitySwipe: Control every function of your
wine column effortlessly with Monolith’s intuitive
electronic touch-control panel. Featuring a
full-color 3.5 inch touch & swipe screen,
that’s bright and easy to read, this wonderful
user-friendly feature displays up to three
temperatures for multiple-zone wine columns.

3938

18" Monolith Wine

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

* Noise output – according to EN 60704-3.

** Please contact your Liebherr Authorized Dealer for door reversal.

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

Product Dimensions

MW 1801

A

Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E

The anti-tipping bracket is positioned at the base of the
appliance and must be secured to the wall or to the floor,
please refer to the installation manual for more information.

18" recess

Inset installation style

H = 79 7/8" (2029 mm) / h = 58 7/8" (1495 mm)
W = 17 3/4" (451 mm) / w = 11" (280 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 18" (457 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 52 lbs. (24 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

4"
(102 mm)

18"

(457 mm)

A

B

13 3

2 /16" - 4

/16

"

(72 - 106 mm)

3"
(76 mm)

3"

(76 mm)

DD

84"

(2134 mm)

C

E

18"

(457 mm)

A

B

3"
(76 mm)

3"

(76 mm)

DD

84"

(2134 mm)

C

E

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

18 "

(2126 mm)

3

83 /4"

(65 mm)

9

2 /16"

(96 mm)

3

3 /4"

(610 mm)

24"

(450 mm)

3

17 /4"

Inset

A = 8 1/4" (210 mm)
B = 1/2" (12.5 mm)
C = 19 7/8" (505 mm)

Frameless

A = 8 1/2" (216 mm)
B = 1/2" (12.5 mm)
C = 20 3/8" (517 mm)

Dimension A = without
mounted door handle

38 *

8.2 (232)

75

9

9

aluminum / beech

yes

InfinitySwipe

+41°F to +68°F (+5°C to +20°C)

2

visual and acoustic

InfinityLight

acoustic

yes

yes

insulated glass door

left, reversible **

83 3/4" / 17 3/4" / 24"

212.6 / 45 / 61

84" / 18" / 25"

213.4 / 45.7 / 63.5

295.4 (134)

115/6 0

with right door hinges

Sound rating dB(A)

Total capacity cu.ft. (l)

Max. No. of Bordeaux bottles (0.75l)

Number of shelves

Shelves on telescopic rails

Shelf material

Infi nityBoard

Electronic control

Temperature range °F (°C)

Temperature zones

Temperature alarm

Interior light

Door alarm

Safety thermostat

Activated Charcoal fi lter

Door type

Door hinges

Product dimensions

in inch (H/W/D)

in cm (H/ W/D)

Cut out dimensions

in inch (H/W/D)

in cm (H/ W/D)

Net weight lbs. (kg)

Voltage V/Hz

This unit is a lso available as MW 1800:

17

3

/

4" (450 mm)

W

w

Hh

8.8 ft (2400 mm)

~

6.5 ft (2000 mm)

~

4140

24" Monolith Wine

Available Accessories

· Stainless steel door panel

· Monolith brushed aluminum square handle

· Monolith stainless steel round handle

· Monolith brushed aluminum soft-edge handle

· Stainless steel Toe Kick

· Reverse door kit

See pages 42–43 for available accessories
for single units and Side-by-Side combinations.

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick height.

Product Dimensions

MW 2400

A

Cabinet depth frameless installation style = 25" (635 mm)
Cabinet depth inset installation style = 25" (635 mm) +
panel thickness

B
At this point the power cord exits from the appliance rear.
3/4" (19 mm) from the left and 5" (127 mm) from the
floor. Free length of the power cord is 98" (2.5 m).

C
The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.

D
This surface is visible when the appliance door is open.
Designed finish is required.

E

The anti-tipping bracket is positioned at the base of the
appliance and must be secured to the wall or to the floor,
please refer to the installation manual for more information.

24" recess

Inset installation style

H = 79 7/8" (2029 mm) / h = 58 7/8" (1495 mm)
W = 23 3/4" (603 mm) / w = 17" (432 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 24" (610 mm) Add overlapping
dimension to the panel on both sides.

Panel thickness: Min. 5/8" (16 mm)* / Max. 1" (25.4 mm)
Panel and handle weight: Max. 52 lbs. (24 kg)

Individual Toe Kick

Cut out Dimensions

Door Panel Dimensions

and dimensions of free length for power

Continuous Toe Kick

3"

(76 mm)

3"
(76 mm)

4"
(102 mm)

24"

(610 mm)

A

B

13 3

2

/16" - 4 /16

"

(72 - 106 mm)

DD

84"

(2134 mm)

C

E

3"

(76 mm)

3"
(76 mm)

24"

(610 mm)

A

B

DD

84"

(2134 mm)

C

E

* If a shaker style panel is used, which is thinner than the minum panel thickness, shorter screws than those supplied in the accessory pack must be used.

C

24

"

(2126 mm)

3

83 /4"

(65 mm)

9

2 /16"

(96 mm)

3

3 /4"

(610 mm)

24"

(602 mm)

3

23 /4"

Inset

A = 10 3/4" (273 mm)
B = 1/2" (12.5 mm)
C = 25 7/8" (658 mm)

Frameless

A = 11" (279 mm)
B = 1/2" (12.5 mm)
C = 26 3/8" (670 mm)

Dimension A = without
mounted door handle

* Noise output – according to EN 60704-3.

** Please contact your Liebherr Authorized Dealer for door reversal.

38 *

11.3 ( 320 )

96

9

9

aluminum / beech

yes

InfinitySwipe

+41°F to +68°F (+5°C to +20°C)

3

visual and acoustic

InfinityLight

acoustic

yes

yes

insulated glass door

right, reversible **

83 3/4" / 23 3/4" / 24"

212.6 / 60.2 / 61

84" / 24" / 25"

213.4 / 61 / 63.5

359.3 (163)

115/6 0

with left door hinges

Sound rating dB(A)

Total capacity cu.ft. (l)

Max. No. of Bordeaux bottles (0.75l)

Number of shelves

Shelves on telescopic rails

Shelf material

Infi nityBoard

Electronic control

Temperature range °F (°C)

Temperature zones

Temperature alarm

Interior light

Door alarm

Safety thermostat

Activated Charcoal fi lter

Door type

Door hinges

Product dimensions

in inch (H/W/D)

in cm (H/ W/D)

Cut out dimensions

in inch (H/W/D)

in cm (H/ W/D)

Net weight lbs. (kg)

Voltage V/Hz

This unit is a lso available as MW 2401:

23

3

/

4" (602 mm)

W

w

Hh

8.8 ft (2400 mm)

~

6 ft (1850 mm)

~

Monolith Accessories

Stainless steel door panel

01

18" (panel dimensions 17 3/4" x 79 7/8" x 3/4", weight: 40.6 lbs. / 18.4 kg) 9901 916

24" (panel dimensions 23 3/4" x 79 7/8" x 3/4", weight: 52.9 lbs. / 24 kg) 9901 883

30" (panel dimensions 29 3/4" x 79 7/8" x 3/4", weight: 61.7 lbs. / 28 kg) 9901 872

36" (panel dimensions 35 3/4" x 79 7/8” x 3/4", weight: 70.5 lbs. / 32 kg) 9901 458

18" (panel dimensions 17 3/4" x 79 7/8" x 3/4", weight: 22 lbs. / 10 kg) 9901 535

24" (panel dimensions 23 3/4" x 79 7/8" x 3/4", weight: 24.9 lbs. / 11.3 kg) 9901 533

42 43

Stainless steel Toe Kick

05

18" 9901 493

24" 9901 496

30" 9901 530

36" 9902 349

42" 9901 552

48" 9901 765

54" 9901 787

60" 9902 366

66" 9902 819

72" 9902 390

Available for all Monolith models 9901 428

Side-by-Side kit

06

The Side-by-Side kit includes a side wall heater to prevent
condensation, metal brackets with screws, and a finishing strip
to fill the gap between the appliances.

Available for all Monolith models 9902 399

Reverse door kit

07

The reverse door kit includes the parts needed and instructions to
reverse the door depending on the model from left to right or right
to left. Reversals to be performed by a Liebherr Authorized Dealer.

Fastening screws are provided. The distance between the two screw
holes is 30 5/16" (770 mm). Handle length 35 7/8" (810 mm), handle
weight 5.1 lbs. (2.3 kg). Handle protrudes from panel 2 7/16" (62 mm).

Monolith stainless steel round handle

04

Available for all Monolith models 9901 489

02 03 04

Monolith brushed aluminum square handle

02

Available for all Monolith models 9901 461

Fastening screws are provided. The distance between the two screw
holes is 30 5/16" (770 mm). Handle length 35 7/8" (810 mm), handle
weight 1.8 lbs. (0.8 kg). Handle protrudes from panel 1 3/4" (48 mm).

Monolith brushed aluminum soft-edge handle

03

Available for all Monolith models 9901 492

Fastening screws are provided. The distance between the two screw
holes is 30 5/16" (770 mm). Handle length 35 7/8" (810 mm), handle
weight 2.6 lbs. (1.2 kg). Handle protrudes from panel 2 3/16" (55 mm).

Refrigerators & Freezer Columns

Wine Columns

The stainless steel panels have pre-drilled holes with spacing of 30 5/16" (770 mm) center on the door.

Toe Kicks are 4" (102 mm) high.

Refrigerators & Freezer Columns Wine Columns

Planning Information

Area Requirements

Verify the following:

• Floors can support appliance’s weight plus approximately
1200 pounds (544 kg) of food weight.

• Finished kitchen fl oor height is level. Refrigerator must be
shimmed to the fl oor level or leveled to make sure air vents
are not obstructed.

• Remove anything attached to the rear or side walls that
can obstruct appliance opening.

• Cut out dimensions are accurate.

• Electrical outlet is in correct location.

In order to transport the Monolith to the installation location, the
door heights must also be considered on the route taken for
transportation with the appliance packed and tilted.

Do not install this unit next to any other refrigerator, freezer or
wine column except another Liebherr model. Liebherr models are
designed to allow for Side-by-Side installation. They are equipped
with a heating system to eliminate condensation when units are
installed Side-by-Side. Installing this unit next to any other refrigerator,
freezer or wine column can cause condensation or cause damage
to the Liebherr unit.

IMPORTANT

• To protect the refrigerator from possible damage, allow the
appliance to stand 1 hour in place before turning the electricity
on. This allows the refrigerant and lubrication system to reach
equilibrium.

• The anti-tipping bracket must be installed to prevent the unit
from tipping after it is installed. Refer to chapter “Blocking
For Safety” in the installation instructions.

Safety Regulations

• The appliances are designed to cool, freeze, store food as well
as make ice (if equipped).

• The appliances are manufactured to operate within specifi c
ambient temperature limits according to its climate rating.

• The climate rating indicates the ambient temperature at which
the appliance may be operated in order to deliver optimal
refrigeration performance.

• The climate rating for all refrigerators and freezers is SN-T
where as the climate rating for wine columns is SN-ST.

IMPORTANT

Do not operate the appliance outside the specifi ed ambient
temperature range.

• Refrigerant circuits are tested for leaks.

• The appliances complies with current safety regulations.

CAN/CSA C22.2 No.60335-1-11
UL 60335-1 Fifth Edition
CAN/CSA C22.2 No. 60335-2-24 - 17
UL 60335-2-24 Second Edition

Climate Rating Ambient Temperature

SN 50 °F to 90 °F (10 °C to 32 °C)

N 61 °F to 90 °F (16 °C to 32 °C)

ST 61 °F to 100 °F (16 °C to 38 °C)

T 61 °F to 109 °F (16 °C to 43 °C)

SN-ST 50 °F to 100 °F (10 °C to 38 °C)

SN-T 50 °F to 109 °F (10 °C to 43 °C)

Electrical Requirements & Safety

A 15 amp or 20 amp, 110-120 VAC, circuit which is grounded
and protected by a circuit breaker or fuse is required.

We recommend using a dedicated circuit for each appliance
to prevent circuit overload and the chance of interruption to the
appliance.

The appliances are equipped with a three-prong (grounding)
polarized plug for protection against possible shock hazards.

The power plug must be easily accessible so that the appliance
can be disconnected quickly in an emergency. It should not be
behind the appliance. In case the plug must to be located
behind the appliance, we recommend the receptacle located
a maximum of 6" (154 mm) from the fl oor.

Comply with the National Electrical Code as well as local codes
and ordinances when installing the receptacle.

WARNING!

Electrocution hazard.

Electrical grounding required.

• Do not remove the round grounding
prong from the plug.

• Do not use extension cords or ungrounded
(two-prong) adapters.

• Do not use a power cord that is frayed or
damaged.

• Do not use a power strip.

Failure to follow these instructions may
result in fi re, electrical shock or death.

WARNING!

The refrigerant R600a contained within the appliances is
environmentally friendly, but flammable. Leaking refrigerant
can ignite.

To prevent possible ignition, designed ventilation is required.

Infi nitySpring (Internal Water Dispenser)

and IceMaker (if equipped)

Monolith appliances that are equipped with an Infi nitySpring
or an IceMaker must be connected to a water supply.

The water pressure must be in the range of
40-90 psi (2.8-6.2 bar).

Use a braided style IceMaker hose with 1/4" compression
end or a 1/4" OD copper line to connect the water supply
with the solenoid valve of the appliance. This is not supplied
with the appliance.

If you have hard water, we recommend you install a water
softener. Also, a fi lter must be installed if the water contains solids
such as sand.

All equipment and devices used to supply the water to the
appliance must comply with the current regulations for your
geographical area.

All models equipped with an Infi nitySpring or IceMaker

include a
water fi lter located in the front base of the product. Water fi lters
must be replaced periodically. An alarm in the Infi nitySwipe will
indicate when the water fi lter must be replaced.

Safety Instructions and Warnings

• Do not attach the water source while the appliance is

connected to an electrical outlet.

• A shut-off valve must be installed between the hose line and

the main water supply so that the water supply can be
stopped if necessary. Do not install the shut-off valve behind
the appliance.

• The connection to the water supply may only be made by a

trained and licensed plumber.

• The water quality must comply with the drinking water

regulations for the geographical area where the appliance
is located.

• The IceMaker is designed exclusively to make ice cubes in

quantities needed by a household, and may only be operated
with water appropriate for this purpose.

• All repairs and work on the IceMaker may only be done by

Customer Service personnel or other trained personnel.

• The manufacturer cannot accept liability for damage caused

by equipment or water lines between the solenoid valve and
the water supply.

44 45

Model

Max. height

MF 1851
MF 2451
MRB 2400
MW 1800
MW 1801

94 3/8"

(2396 mm)

MF 3051
MRB 3000
MW 2400
MW 2401

95 1/16”

(2414 mm)

MF 3651
MRB 3600

97 1/4”

(2469 mm)

X

46 47

Monolith columns are designed to fi t any type of
kitchen cabinetry door installation in 25" (635 mm)
depth of the typical North American style.

The cut out is the niche in which a Monolith column
is installed. The width of the cut out can be the one
of a single column (18", 24", 30", etc.) or the one
for a Side-by-Side combination (42", 48", 54", etc.),
this will depend on the column models considered.

In the North American style cabinetry, the total depth of
the cut out is equal to the depth of the niche plus the face
frame. It does not necessarily include the thickness of the
door panel, as this will depend on the installation style.

For a standard overlay on an American style cabinet and frameless installation in European style cabinet, use the
door panel dimension specifi ed as frameless installation.

For a fl ush inset installation, use the door panel dimensions of inset installation.

For any other type of installation, please refer to Door Clearance Requirements (page 51) to defi ne the door panel
dimensions.

Installation Dimensions

When planning the cut out, it is essential that the
top and side interior walls be fl ush to the appliance
at a minimum depth of 4" (102 mm) from the outer
edge of the face frame and composed of thick
(5/8" (16 mm) minimum) material for secure
installation. Also, because the case interior will be
partially visible when the refrigerator door is opened,
always ensure that the top and side returns are
fi nished to match the exterior furniture at the same
minimum depth of 4" (102 mm).

Monolith columns include a sealing set in order to
cleanly close the gaps between appliance and
cabinet side walls.

Monolith columns are designed to be fully fl ush
integrated when installed in 25" (635 mm) deep
cabinets, by using the stainless steel panels
off ered as accessories, or custom door panels that
perfectly match the rest of kitchen cabinetry.

The typical wood panel thickness is 3/4" (19 mm),
however thicker panels or other materials can be used.
When using custom panels, always ensure that the
panel reverse is fi nished to match the exterior, as
parts of the panel reverse will be visible when the
refrigerator door is opened.

When using custom panels, do not exceed the maximum
panel weight allowed by the door hinge of the specifi c
column and a panel thickness above 1 3/16" (30 mm).

Standard overlay Frameless Flush inset

Appliance depth

24" (610 mm)

Cut out depth

25" (635 mm)

Cut out depth

25" (635 mm)

Appliance depth

24" (610 mm)

Appliance depth

24" (610 mm)

Cut out depth

25" (635 mm) + panel thickness

1

Not considering overlapping of the panel at the top.

² Not considering overlapping of the panel to the right and left.

Model

H

Inset installation

style

W

Inset installation

style

H

Frameless installation

style

W

Frameless installation

style

Max. panel

weight

MRB 2400

79

7

⁄8"

(2029 mm)

23 ¾"

(603 mm)

80"

1

(2032 mm)

24"

2

(610 mm)

66 lbs. (30 kg)

MRB 3000

79

7

⁄8"

(2029 mm)

29 ¾"

(756 mm)

80"

1

(2032 mm)

30"

2

(762 mm)

77 lbs. (35 kg)

MRB 3600

79

7

⁄8"

(2029 mm)

35 ¾"

(908 mm)

80"

1

(2032 mm)

36"

2

(914 mm)

88 lbs. (40 kg)

MF 1851

79

7

⁄8"

(2029 mm)

17 ¾"

(451 mm)

80"

1

(2032 mm)

18"

2

(457 mm)

55 lbs. (25 kg)

MF 2451

79

7

⁄8"

(2029 mm)

23 ¾"

(603 mm)

80"

1

(2032 mm)

24"

2

(610 mm)

66 lbs. (30 kg)

MF 3051

79

7

⁄8"

(2029 mm)

29 ¾"

(756 mm)

80"

1

(2032 mm)

30"

2

(762 mm)

77 lbs. (35 kg)

MF 3651

79

7

⁄8"

(2029 mm)

35 ¾"

(908 mm)

80"

1

(2032 mm)

36"

2

(914 mm)

88 lbs. (40 kg)

MW 1800/1801

79

7

⁄8"

(2029 mm)

17 ¾"

(451 mm)

80"

1

(2032 mm)

18"

2

(457 mm)

52 lbs. (24 kg)

MW 2400/2401

79

7

⁄8"

(2029 mm)

23 ¾"

(603 mm)

80"

1

(2032 mm)

24"

2

(610 mm)

52 lbs. (24 kg)

Door Panel Dimensions and Weights

48 49

W2

A

D

D

C

B B1

E1 E1

E2 E2

3"

(76 mm)

3"
(76 mm)

84"

(2134 mm)

B B1

A

C

(102 mm)

E2 E2

13

3

2 /16

" - 4 /16"

(72 - 106 mm)

4"

W1

A

D

C

W2

A

D

C

B B1

F

B

E1E1 E1

E2 E2 E2

3"

(76 mm)

3"
(76 mm)

84"

(2134 mm)

A

B

C

B B1

A

C

E2 E2 E2

(102 mm)

13

2 /16

" - 4

(72 - 106 mm)

3

/16

"

4"

Side-by-Side Installation

Cut out dimensions for Side-by-Side installation with two appliances

The cut out width for the Side-by-Side combinations is defi ned by adding the single width of each of the models
in the combination.

Installation Options

Recommended Installations

Considerations

Stand-alone

All Monolith appliances can be installed as a left-hinge or right-hinge stand-alone
unit. When dimensioning the cabinet, include the thickness of the door panel and
handle (see page 51, Door Clearance Requirements).

Ensure the Monolith appliance is installed so the door has clearance from any adjacent
wall or any kitchen element.

Side-by-Side
within one
cabinet

Monolith appliances can be installed Side-by-Side within one cabinet by installing a
Side-by-Side kit, which must be purchased separately. When dimensioning the cabinet,
include the thickness of the door panel and handle (see page 51, Door Clearance
Requirements).

During design and installation, please take into account the layout of left and right
hinged appliances without the risk of door opening collision.

Ensure that the Monolith appliances are installed in such a way that the doors do not
interfere with any adjacent wall or any kitchen element.

Side-by-Side
within
separate
cabinets

Monolith appliances can be installed Side-by-Side within separate cabinets. If the panel
between the cabinet is less than 4" (102 mm) a Side-by-Side heater kit is required.
The heater must be ordered separately.

When dimensioning the cabinet, include the thickness of the door panel

and handle,
in order to prevent any door opening collision (see page 51, Door Clearance
Requirements).

A minimum partition of 6" (154 mm) width is required to ensure that handles do not
collide when doors are opened centered towards each other or facing each other.

Ensure that the Monolith appliances are installed so the doors have clearance

from any

adjacent wall or kitchen element.

Triple
Side-by-Side

When combining more than two Monoliths together there are diff erent installation options:
(A) A panel with a minimum thickness of 5/8” (16 mm) can be used between the third

appliance and the kitted together pair. Note there will be door inteference with this
set up.

(B) A minimum partition of 4" (102 mm) width is required to ensure that handles do not

collide when doors are opened in the same direction or 6" (154 mm) width is required
to ensure that handles do not collide when doors are opened centered towards each
other.

(C) It is possible to install three units using t wo Side-by-Side kits. This is not a recommended

confi guration, as there will be door interference and potential door panel damage
(right side door cannot be open or closed while middle door is open). Although the
use of stainless steel panels off ers a true Side-by-Side integrated look, always consider
door interference and potential door panels and/or handles damage.

It is recommended that a 90° door limiter be used on all center appliances to minimize
interference between doors and handles and potential damage.

A Cabinet depth frameless installation style = 25" (635 mm). Cabinet depth inset installation style = 25" (635 mm) + panel thickness.

B At this point the power cord exits from the appliance rear. 3/4" (19 mm) from the left and 5" (127 mm) from the fl oor.

Free length of the power cord is 98" (2.5 m).

B1 Please refer to the specifi c models to be installed in the combination for a precise location of this point for each model (see product pages).

C The appliance has a recess in this area for cable and waterline laying. 1" (25 mm) in depth and 5 1/2" (140 mm) in height over the whole

width of the appliance.

D This surface is visible when the appliance door is open. Designed fi nish is required.

E1, E2 Depending on the appliance, the anti-tipping bracket is positioned at the top (E1) or base (E2) of the appliance and must be secured to the wall or

to the fl oor, please refer to the installation manual for more information.

F A minimum partition of 5/8” (16 mm) width is required when the installation type with a separate recess for additional appliance is applied. Note,

there will be door interference with this set up. A minimum partition of 4” (102 mm) width is required to ensure that handles do not collide when
doors are opened in the same direction. A minimum partition of 6” (154 mm) width is required to ensure that handles do not collide when doors are
opened centered towards each other and 90° door limiter (included in scope of supply) is applied at the same time.

W1, W2 Width of one or two appliances.

Cut out dimensions for Side-by-Side installation with three or more appliances

The cut out width for the Side-by-Side combination of more than two units is defi ned adding the width of the two units
attached Side-by-Side plus a partition plus the width of the single unit.

Appliance
side view

C

Individual to the niche Continuous along the wall

Individual to the niche Continuous along the wall

W2

42" (1067 mm)

48" (1219 mm)

54" (1372 mm)

60" (1524 mm)

66" (1676 mm)

72" (1829 mm)

W2 W1

42" (1067 mm) 18" (457 mm)

48" (1219 mm) 24" (610 mm)

54" (1372 mm) 30" (762 mm)

60" (1524 mm) 36" (914 mm)

66" (1676 mm)

72" (1829 mm)

50 51

Toe Kick and
Ventilation Requirements

All Monolith ventilation takes place through the
Toe Kick area. Door panels must be a minimum of
4" (102 mm) above the fl oor. Do not block grill in
Toe Kick area.

Liebherr off ers a 4" (102 mm) tall Toe Kick matching
the width of the Monolith columns, and possible
Side-by-Side combinations, as an accessory.
Please refer to page 43 for Toe Kick accessories
ranging from 18" to 72" width.

The Monolith appliance comes with dividers that must
be installed on the appliance and onto the door, in
order to separate the warm exhaust air from the fresh
incoming air.

Door Clearance Requirements

Monolith appliances are to be installed so the doors
(including handles) and adjacent cabinets, counter­tops, walls, or other kitchen elements do not collide
with one another when doors open.

In case the door hits the wall or other cabinet, a door
limiter of 90° is included with the appliance. The door
opening angle is set to 115° at the plant, but this can
be reduced to 90° by simply inserting the stable pin
in the hinge.

Additional solutions include:

• Reduce the door panel thickness if it is larger
than 3/4" (19 mm).

• Rearrange the element that is colliding with the
appliance.

• Use a bumper or stopper to prevent the door from
damaging the adjoining wall or cabinet.

Panel clearance

Frameless installation style
Panel thickness 3/4" (19 mm)
Top view

A = 3/4" (19 mm) gable

B = Front panel door closed. 5/16" (8 mm) overlapping.

Dash line shows an overlapping of 7/8" (22 mm).
This overlapping is solely if the appliance is at the end of
a line of cabinets.

C = Front panel 90°

D = Front panel at max. door opening angle of 115°

A = Appliance housing

B = Front panel door closed

C = Front panel 90°

D = Front panel at max. door opening angle of 115°

Panel clearance

Panel thickness 3/4" (19 mm)
Top view

pv w

IMPORTANT

The gap between the appliance front panel and the surrounding furniture panels must be at least 1/8" (3 mm).

Inch in mm:

½" = 12.7 mm
1" = 25.4 mm
1 ½" = 38.1 mm
2" = 50.8 mm

Inch in mm:

½" = 12.7 mm
1" = 25.4 mm
1 ½" = 38.1 mm
2" = 50.8 mm

home.liebherr.com/monolith

Subject to modifi cation. For up -to -date information, visit home.liebherr.com/monolith. Printed in Canada 05.2020.
