OWNER’S MANUAL

Network 3D Blu-ray Disc™ / DVD Player

Please read this manual carefully before operating your set and retain it for future reference.

BP520

P/NO : SAC35374702

www.lg.com

Getting Started2

Safety information

Getting Started

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.

instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)

CAUTION : CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS

Use of controls, adjustments or the performance of procedures other than those specied herein may result in hazardous radiation exposure.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specication page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Getting Started 3

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the

old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects lled with liquids, such as vases, shall be placed on the apparatus.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

yReorient or relocate the receiving antenna.

yIncrease the separation between the equipment

and receiver.

yConnect the equipment into an outlet on a

circuit dierent from that to which the receiver is connected.

yConsult the dealer or an experienced radio/TV

technician for help.

CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Getting Started

Getting Started4

Notes on Copyrights

yBecause AACS (Advanced Access Content

System) is approved as content protection

Getting Started

system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACS protected content. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

yFurthermore, BD-ROM Mark and BD+ are

additionally used as content protection systems for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected content. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact an authorized Customer Service Center.

yMany BD-ROM/DVD discs are encoded with

copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.

yThis product incorporates copyright protection

technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi. Reverse engineering or disassembly is prohibited.

yUnder the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liability.

Caution

yWatching a 3D content for a long period

time may cause dizziness or tiredness.

yIt is not recommended to watch a movie

in 3D mode for inrm, child and pregnant woman.

yIf you are experiencing headache, tiredness

or dizziness while viewing content in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Getting Started 5

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Getting Started

Table of Contents6

Table of Contents

1 Getting Started

2 Safety information 8 Introduction 8 – Playable discs and symbols used in

this manual

9 – About the “7” symbol display 9 – Compatibility notes 10 – File requirement 11 – AVCHD (Advanced Video Codec High

Definition) 12 – About DLNA 12 – Certain system requirements 12 – Regional code 13 Remote control 14 Front panel 14 Rear panel

2 Connecting

15 Connecting to your TV 15 – HDMI connection 16 – What is SIMPLINK? 16 – Video/Audio (Left/Right) connection 17 – Resolution setting 18 Connecting to an amplifier 18 – Connecting to an amplifier via HDMI

output 19 – Connecting to an amplifier via Digital

Audio Output 19 – Connecting to an amplifier via 2

Channel Audio Output 20 Connecting to your home network 20 – Wired network connection 20 – Wired network setup 22 – Wireless network connection 22 – Wireless network setup 25 USB device connection 25 – Playback content in the USB device

3 System Setting

26 Settings 26 – Initial setup 27 – Adjust the setup settings 27 – [DISPLAY] menu 29 – [LANGUAGE] menu 29 – [AUDIO] menu 31 – [LOCK] menu 32 – [NETWORK] menu 33 – [OTHERS] menu

4 Operating

34 General playback 34 – Using [HOME] menu 34 – Playing a disc 34 – Playing a file on disc/USB device 35 – Playing Blu-ray 3D disc 35 – Enjoying BD-Live™ 36 – Playing a file on a network server 36 – Basic operations for video and audio

content 37 – Basic operations for photo content 37 – Using the disc menu 37 – Resume playback 37 – Last scene memory 38 Advanced playback 38 – Repeat playback 38 – Repeating a specific portion 38 – Viewing content information 39 – Changing content list view 39 – Selecting a subtitle file 40 – Options while viewing a photo 40 – Listening to music while slide show 41 On-Screen display 41 – Displaying content information on-

screen 42 – Playing from selected time 42 – Selecting a subtitle language 42 – Hearing a different audio 42 – Watching from a different angle 43 – Changing the TV Aspect Ratio 43 – Changing subtitle code page 43 – Changing the Picture Mode 44 Audio CD recording 45 Using the Premium

45 Using the LG Apps 46 – Signing in 46 – Managing my Apps 46 – Searching online content

5 Troubleshooting

47 Troubleshooting 47 – General 48 – Network 49 – Picture 49 – Customer Support 49 – Open source software notice

6 Appendix

50 Controlling a TV with the Supplied

Remote Control

50 – Setting up the remote to control your

TV 51 Network software update 51 – Network update notification 51 – Software update 53 About Nero MediaHome 4 Essentials 53 – System requirements 53 – Installing Nero MediaHome 4

Essentials 54 – Sharing files and folders 55 Area code list 56 Language code list 57 Trademarks and licenses 58 Audio output specifications 60 Specifications 61 Maintenance 61 – Handling the unit 61 – Notes on discs 62 Important information relating to network

dervices

Table of Contents 7

Getting Started8

Introduction

Playable discs and symbols used in this manual

Getting Started

Media/Term Logo Symbol Description

yDiscs such as movies that can be purchased or

rented.

y“Blu-ray 3D” discs and “Blu-ray 3D ONLY” discs.

yBD-R/RE discs that are recorded in BDAV format.

yBD-R/RE discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

yDiscs such as movies that can be purchased or

rented.

yVideo mode and nalized only

ySupports the dual layer disc also

Finalized AVCHD format

yDVD±R/RW discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

Blu-ray

DVD-ROM

DVD-R

DVD-RW

DVD+R

DVD+RW

(8 cm, 12 cm)

y u i

DVD-RW (VR)

(8 cm, 12 cm)

Audio CD

(8 cm, 12 cm)

CD-R/RW

(8 cm, 12 cm)

Note –

Caution –

y u i

VR mode and nalized only

Audio CD

yCD-R/RW discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

Indicates special notes and operating features.

Indicates cautions for preventing possible damages from abuse.

Note

yDepending on the conditions of the

recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

yDepending on the recording software & the

nalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.

yBD-R/RE, DVD±R/RW and CD-R/RW discs

recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

yIf you record a disc using a personal

computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

yThis player requires discs and recordings to

meet certain technical standards in order to achieve optimal playback quality.

yPre-recorded DVDs are automatically set to

these standards. There are many dierent types of recordable disc formats (including CD-R containing MP3 or WMA les) and these require certain pre-existing conditions to ensure compatible playback.

yCustomers should note that permission

is required in order to download MP3 / WMA les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

yYou have to set the disc format option

to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

Getting Started 9

About the “7” symbol display

“7” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specic media.

Compatibility notes

yBecause BD-ROM is a new format, certain disc,

digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Center.

yThis unit allows you to enjoy functions such

as picture-in-picture, secondary audio and Virtual packages, etc., with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Prole 1 version

1.1). Secondary video and audio can be played from a disc compatible with the picture-inpicture function. For the playback method, refer to the instructions in the disc.

yViewing high-denition content and up-

converting standard DVD content may require a HDMI-capable input or HDCP-capable DVI input on your display device.

ySome BD-ROM and DVD discs may restrict the

use of some operation commands or features.

yDolby TrueHD, Dolby Digital Plus and DTS-HD are

supported with maximum 7.1 channels if you use HDMI connection for the audio output of the unit.

yYou can use a USB device to store some disc

related information, including downloaded online content. The disc you are using will control how long this information is retained.

Getting Started

Getting Started10

File requirement

Video files

Getting Started

File

Location

Disc,

USB

DLNA

Audio files

File

Extension

“.avi”, “.mpg”, “.mpeg”, “.mkv ”, “.mp4”, “.asf”, “.wmv”, “.m4v ” (DRM free), “.vob”, “.3gp”

“.avi”, “.mpg”, “.mpeg”, “.mkv ”, “.mp4”, “.asf”, “.wmv”, “.m4v ” (DRM free)

Codec Format Audio Format Subtitle

XVID, MPEG1 SS, H.264/MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)

Dolby Digital, DTS, MP3, WMA, AAC, AC3

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), SubViewer

1.0 (.sub), SubViewer 2.0 (.sub/. txt), TMPlayer (.txt), DVD Subtitle System (.txt)

File

Location

Disc,

USB

DLNA

File

Extension

“mp3”, “.wma”, “.wav”, “.m4a” (DRM free), “.ac”

“mp3”, “.wma”, “.wav”, “.m4a” (DRM free)

Sampling Frequency Bitrate Note

within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3)

within 32 - 192 kbps (WMA), within 32 - 320 kbps (MP3)

Some wav les are not supported on this player.

Photo files

File

Location

Disc, USB,

DLNA

ySupplied bundle DLNA server for Macintosh edition has limitations in le compatibility, such as ASF, WMA

and WMV.

File

Extension

“.jpg”, “.jpeg”, “.png”, “.gif ”

Recommended

Size

Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel

Note

Progressive and lossless compression photo image les are not supported.

Getting Started 11

Note

yThe le name is limited to 180 characters.

yMaximum les/Folder: Less than 2000 (total

number of les and folders)

yDepending on the size and number of the

les, it may take several minutes to read the content on the media.

yFile compatibility may dier depending on

the server.

yBecause the compatibility on DLNA server

are tested on the bundle DLNA server (Nero MediaHome 4 Essentials Windows edition) environment, le requirements and playback functions may dier depending on media servers.

yThe le requirements on page 10 are

not always compatible. There may have some restrictions by le features and media server’s ability.

yPlaying video subtitle les are only available

on DLNA media server created by supplied Nero MediaHome 4 Essentials software on this player package.

yThe les from removable media such as USB

drive, DVD-drive etc. on your media server may not be shared properly.

yThis unit cannot support the ID3 Tag

embedded MP3 le.

yThe total playback time of audio le

indicated on the screen may not correct for VBR les.

yHD video les contained on the CD/DVD or

USB 1.0/1.1 may not played properly. Blu-ray Disc or USB 2.0 are recommended to play back HD video les.

yThis player supports H.264/MPEG-4 AVC

prole Main, High at Level 4.1. For a le with higher level, the warning message will appear on the screen.

yThis player does not support les that are

recorded with GMC

*1 GMC – Global Motion Compensation

*2 Qpel – Quarter pixel

or Qpel

Note

yA “avi” le which is encoded “WMV 9 codec”

is not supported.

yThis player supports UTF-8 les even it

contains Unicode subtitle content. This player can not support the pure Unicode subtitle les.

yDepending on the types of le or ways of

recording, it may not play back.

yA disc which was recorded by multi-session

on normal PC is not supported on this player.

yTo be playback a video le, video le name

and Subtitle le name must be the same.

yIf video codec is MPEG2 TS or MPEG2 PS,

subtitle does not play back.

yThe total playback time of audio le

indicated on the screen may not correct for VBR les.

AVCHD (Advanced Video Codec High Definition)

yThis player can playback AVCHD format discs.

These discs are normally recorded and used in camcorders.

yThe AVCHD format is a high denition digital

video camera format.

yThe MPEG-4 AVC/H.264 format is capable of

compressing images at higher eciency than that of the conventional image compressing format.

yThis player can playback AVCHD discs using

“x.v.Color” format.

ySome AVCHD format discs may not play

depending on the recording condition.

yAVCHD format discs need to be nalized.

y“x.v.Color” oers a wider color range than normal

DVD camcorder discs.

Getting Started

Getting Started12

About DLNA

This Player is a DLNA Certied digital media player that can display and play movie, photo and music content from your DLNA-compatible digital media

server (PC and Consumer Electronics).

Getting Started

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network.

The DLNA certication logo makes it easy to nd products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Certain system requirements

For high denition video playback:

yHigh denition display that has HDMI input jack.

yBD-ROM disc with high denition content.

yHDMI or HDCP capable DVI input on your display

device is required for some content (as specied by disc authors).

For Dolby® Digital Plus, Dolby TrueHD and DTS-HD multi-channel audio playback:

yAn amplier/receiver with a built-in (Dolby

Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD) decoder.

yMain, center, surround speakers and subwoofer

as necessary for chosen format.

Regional code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”.

Remote control

Getting Started 13

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert two R03 (size AAA) batteries with 4 and 5 matched correctly.

• • • • • • a • • • • • •

(POWER): Switches the player

ON or OFF.

(OPEN/CLOSE): Opens and

closes the disc tray.

0-9 numerical buttons: Selects numbered options in a menu.

CLEAR: Removes a mark on the search menu or a number when setting the password.

REPEAT (h): Repeats a desired section or sequence.

• • • • • • b • • • • •

c/v

backward or forward.

C/V

next or previous chapter / track / le.

Z d M

• • • • • • c • • • • •

HOME (n): Displays or exits the [Home Menu].

TITLE/POPUP: Displays the DVD title menu or BD-ROM’s pop-up menu, if available.

INFO/MENU (m): Displays or exits On-Screen Display.

Direction buttons: Selects an option in the menu.

ENTER (b): Acknowledges menu selection.

BACK (1): Exits the menu or returns to the previous screen.

(SCAN): Searches

(SKIP): Goes to the

(STOP): Stops playback.

(PLAY): Starts playback.

(PAUSE): Pauses playback.

SUBTITLE: Selects a subtitle

language.

DISC MENU: Accesses menu on a disc.

• • • • • • d • • • • •

Colored (R, G, Y, B) buttons: Use to navigate BD-ROM menus. They are also used for [MOVIE], [PHOTO], [MUSIC], [Premium] and [LG Apps] menu.

: This button is not available.

AUDIO: Selects an audio language or audio channel.

TV Control Buttons: See page

50.

Getting Started

Getting Started14

Front panel

Getting Started

Disc Tray

Display Window

Remote Sensor

(OPEN / CLOSE)

d B

(PLAY / PAUSE)

e N

Rear panel

AC power cord

LAN port

DIGITAL AUDIO OUT (OPTICAL)

HDMI OUT

(STOP)

f Z

USB Port

(POWER)

h 1

VIDEO OUT

2CH AUDIO OUT (Left/Right)

Connecting 15

Connecting to your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

yHDMI connection (page 15)

yVideo connection (page 16)

Note

yDepending on your TV and other

equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.

yPlease refer to the manuals of your TV,

Stereo System or other devices as necessary to make the best connections.

yDo not connect the player’s AUDIO OUT

jack to the phono in jack (record player) of your audio system.

yDo not connect your player via your VCR.

The image could be distorted by the copy protection system.

HDMI connection

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High Speed HDMI™ Cable). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.

Rear of the unit

HDMI

cable

Set the TV’s source to HDMI (refer to TV’s Owner’s manual).

Additional Information for HDMI

Connecting

yWhen you connect a HDMI or DVI compatible

device make sure of the following:

-Try switching o the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

-The connected device’s video input is set correctly for this unit.

-The connected device is compatible with 720x480p, 1280x720p, 1920x1080i or 1920x1080p video input.

yNot all HDCP-compatible HDMI or DVI devices

will work with this player.

-The picture will not be displayed properly with non-HDCP device.

Connecting

Note

yIf a connected HDMI device does not accept

the audio output of the player, the HDMI device’s audio sound may be distorted or may not output.

yWhen you use HDMI connection, you can

change the resolution for the HDMI output. (Refer to “Resolution Setting” on page 17)

ySelect the type of video output from the

HDMI OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page

28).

yChanging the resolution when the

connection has already been established may result in malfunctions. To solve the problem, turn o the player and then turn it on again.

yWhen the HDMI connection with HDCP

is not veried, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.

yIf there are noises or lines on the screen,

please check the HDMI cable (length is generally limited to 4.5 m(15 ft.)).

Video/Audio (Left/Right) connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. Connect the left and right AUDIO OUT jacks of the player to the audio left and right IN jacks on the TV using the audio cables.

Rear of the unit

Video/Audio cable

What is SIMPLINK?

Some functions of this unit are controlled by the TV’s remote control when this unit and LG TV’s with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power O, etc.

Refer to the TV owner’s manual for the details of SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as shown above.

Note

Depending on the disc type or playing status, some SIMPLINK operation may dier from your purpose or not work.

Resolution setting

The player provides several output resolutions for HDMI OUT jack. You can change the resolution using [Setup] menu.

1. Press HOME (n).

2. Use ENTER (b). The [Setup] menu appears.

3. Use press D to move to the second level.

4. Use then press ENTER (b) to move to the third level.

5. Use press ENTER (b) to confirm your selection.

to select the [Setup] and press

A/D

to select [DISPLAY] option then

W/S

to select the [Resolution] option

W/S

to select the desired resolution then

W/S

Connecting 17

Note

yIf your TV does not accept the resolution

you have set on the player, you can set resolution to 480p as follows:

1. Press B to open the disc tray.

2 Press Z (STOP) for more than 5 seconds.

yWhen you set the resolution to 480i with

HDMI connection, actual resolution is outputted to 480p.

yIf you select a resolution manually and then

connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].

yIf you select a resolution that your TV

does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

yThe 1080p video output frame rate may

be automatically set to either 24 Hz or 60 Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

yThe resolution of the VIDEO OUT jack is

always outputted at 480i resolution.

Connecting

Connecting18

Connecting to an amplifier

Make one of the following connections, depending on the capabilities of your existing equipment.

yHDMI Audio connection (page 18)

yDigital Audio connection (page 19)

y2CH Analog Audio connection (page 19)

Connecting

Since many factors aect the type of audio output, see “Audio Output Specications” for details (pages

58).

About Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this, you need a multichannel Audio/Video Receiver that supports one or more of the audio formats supported by your player. Check the logos on the front of the Audio/ Video receiver and the manual. (PCM Stereo, PCM Multi-Ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and/or DTS-HD)

Connecting to an amplifier via HDMI output

Connect the player’s HDMI OUT jack to the corresponding in jack on your amplier using a HDMI cable.

Rear of the unit

HDMI cable

Receiver/Amplier

HDMI cable

Connect the amplier’s HDMI output jack to HDMI input jack on your TV using a HDMI cable if your amplier has HDMI output jack.

You will need to activate the player’s digital output. (See “[AUDIO] Menu” on pages 29)

Connecting 19

Connecting to an amplifier via Digital Audio Output

Connect the player’s DIGITAL AUDIO OUT jack to the corresponding in jack (OPTICAL) on your amplier using an optional digital audio cable.

Rear of the unit

Optical cable

Connecting to an amplifier via 2 Channel Audio Output

Connect the Left and Right 2CH AUDIO OUT jacks on the player to the audio left and right in jacks on your amplier, receiver, or stereo system using audio cables.

Rear of the unit

Audio cable

Connecting

Receiver/Amplier

You will need to activate the player’s digital output. (See “[AUDIO] Menu” on pages 29.)

Receiver/Amplier

Connecting20

Connecting to your home network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel or using an USB network adapter. By connecting the unit to a broadband home network, you have access to services such as

software updates, BD-Live interactivity and online

Connecting

content services.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.

Please refer to the documentation for your network device for further instructions.

Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable.

Note

yWhen plugging or unplugging the LAN

cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

yDo not connect a modular phone cable to

the LAN port.

ySince there are various connection

congurations, please follow the specications of your telecommunication carrier or internet service provider.

yIf you want to access content from DLNA

servers, this player must be connected to the same local area network with them via a router.

yTo set your PC as a DLNA server, install the

supplied Nero MediaHome 4 on your PC. (see page 53)

Broadband service

Router

DLNA certied servers

Rear of the unit

Wired network setup

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow.

Preparation

Before setting the wired network, you need to connect the broadband internet to your home network.

Connecting 21

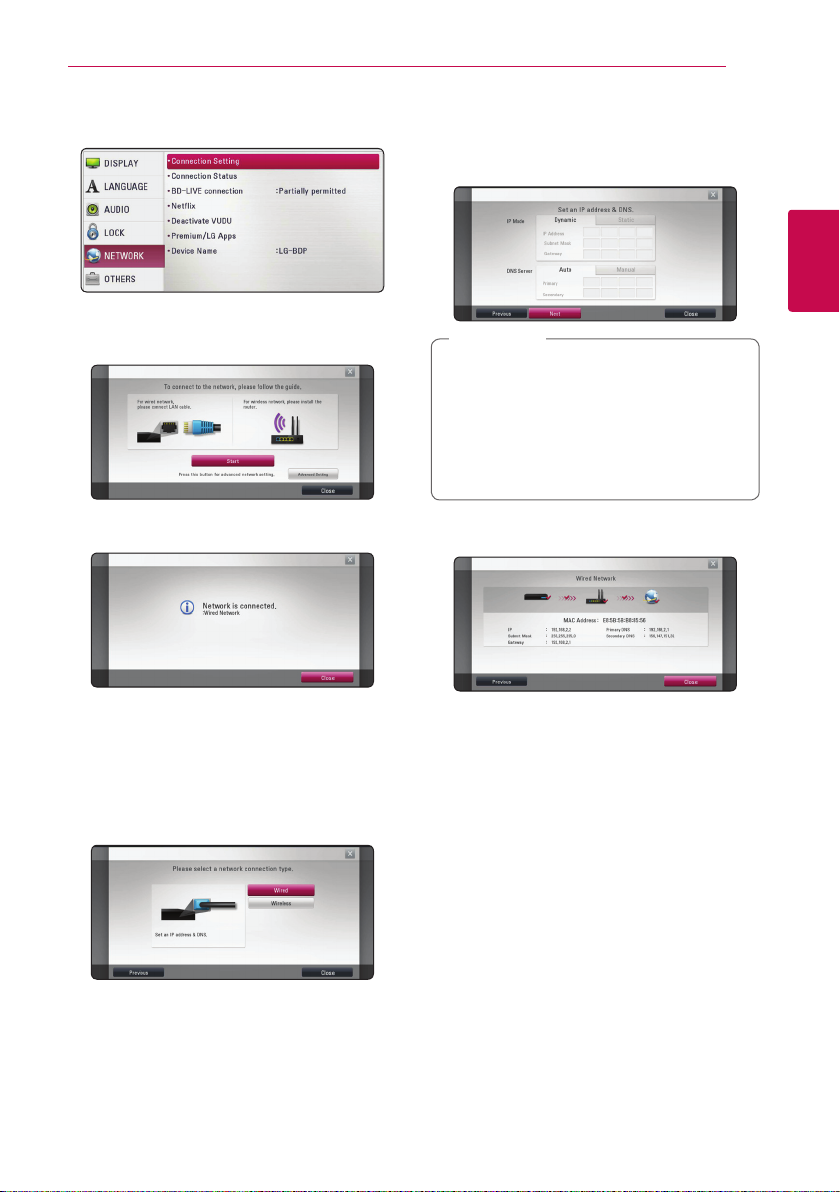

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (b).

2. Read the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

Network will automatically be connected to the unit.

2. Use

W/S/A/D

between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using

and numerical buttons. If you make a

A/D

mistake while entering a number, press CLEAR to clear the highlighted part.

3. Select [Next] and press ENTER (b) to apply network settings.

to select the IP mode

W/S/

Connecting

Advanced Setting

If you want to set the network settings manually, use [Network Setting] menu and press ENTER (b).

1. Use

to select [Advanced Setting] on the

W/S

to select [Wired] and press ENTER

W/S

(b).

Network connection status is displayed on the screen.

4. Press ENTER (b) while [Close] is highlighted to finish the wired network settings.

Connecting22

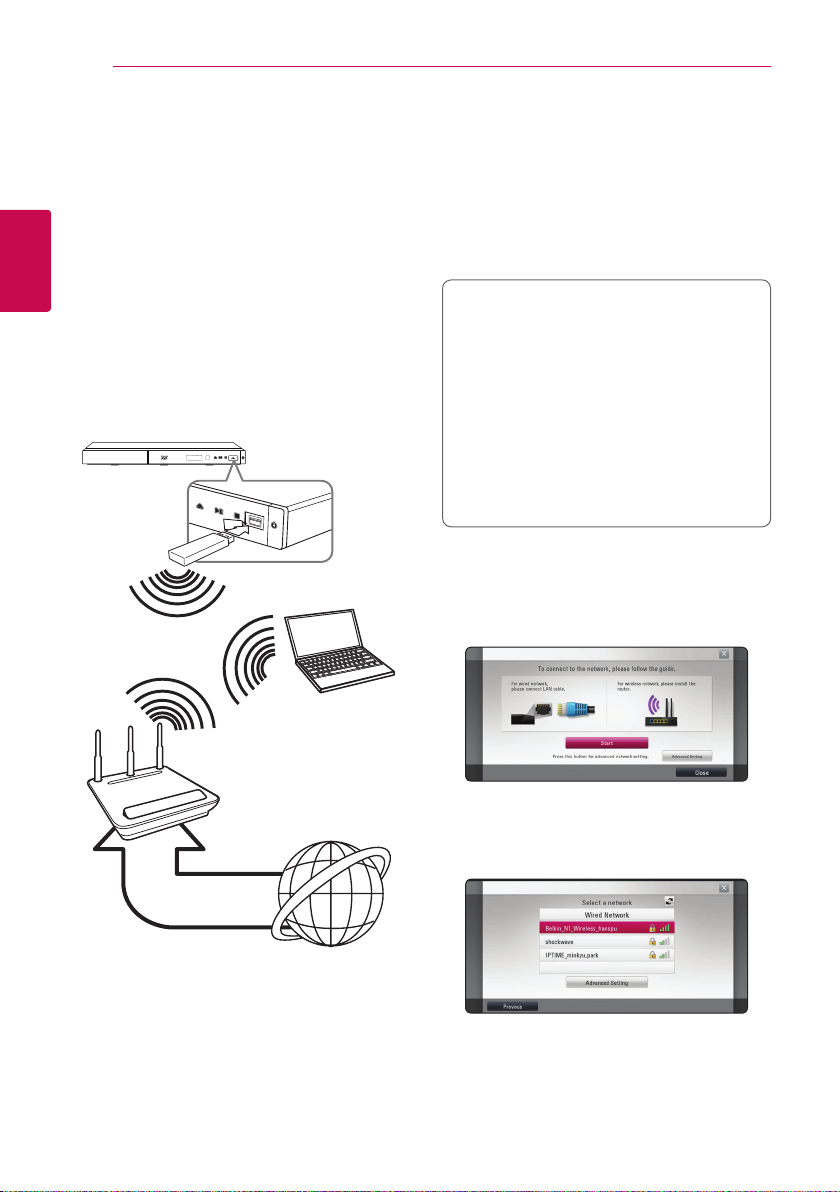

Wireless network connection

Another connection option is to use an Access Point or a wireless router. The network conguration and connection method may vary depending on the equipment in use and the network environment.

For this connection, an USB typed wireless network adapter must be connected to the USB port on the front panel.

The available wireless network adapter can be

purchased from the online stores or nearest

Connecting

electronics shops.

Available Wireless Network Adapter

Model Name : WUSB100-RM(Cisco)

DWA-125(D-Link)

USB-N13(Asus)

Wireless

Communication

Wireless network setup

For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Setup] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network.

Preparation

Before setting the wireless network, you need to:

-connect the wireless network adapter to the USB port on the front panel.

-connect the broadband internet to the wireless home network.

-set the access point or wireless router.

-note the SSID and security code of the network.

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (b).

2. Read the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

DLNA certied servers

Access Point or Wireless Router

Broadband service

Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

For best performance, a direct wired connection from this player to your home network’s router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be aected by other electronic devices in the home.

If wired network is not connected to the unit, all available networks are displayed on the screen.

3. Use network and press ENTER (b).

If you have security on your access point, you need to input the security code as necessary.

to select a desired SSID of wireless

W/S

Note

yWEP security mode generally have 4 keys

available on an access point setting. If your access point or wireless router use WEP security, enter the security code of the key “No.1” to connect on your home network.

yAn Access Point is a device that allows you

to connect to your home network wirelessly.

4. Use

W/S/A/D

between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using

and numerical buttons. If you make a

A/D

mistake while entering a number, press CLEAR to clear the highlighted part.

5. Select [Next] and press ENTER (b) to apply network settings.

Network connection status is displayed on the screen.

6. Select [Close] and press ENTER (b) to complete the network connection.

to select the IP mode

W/S/

Connecting 23

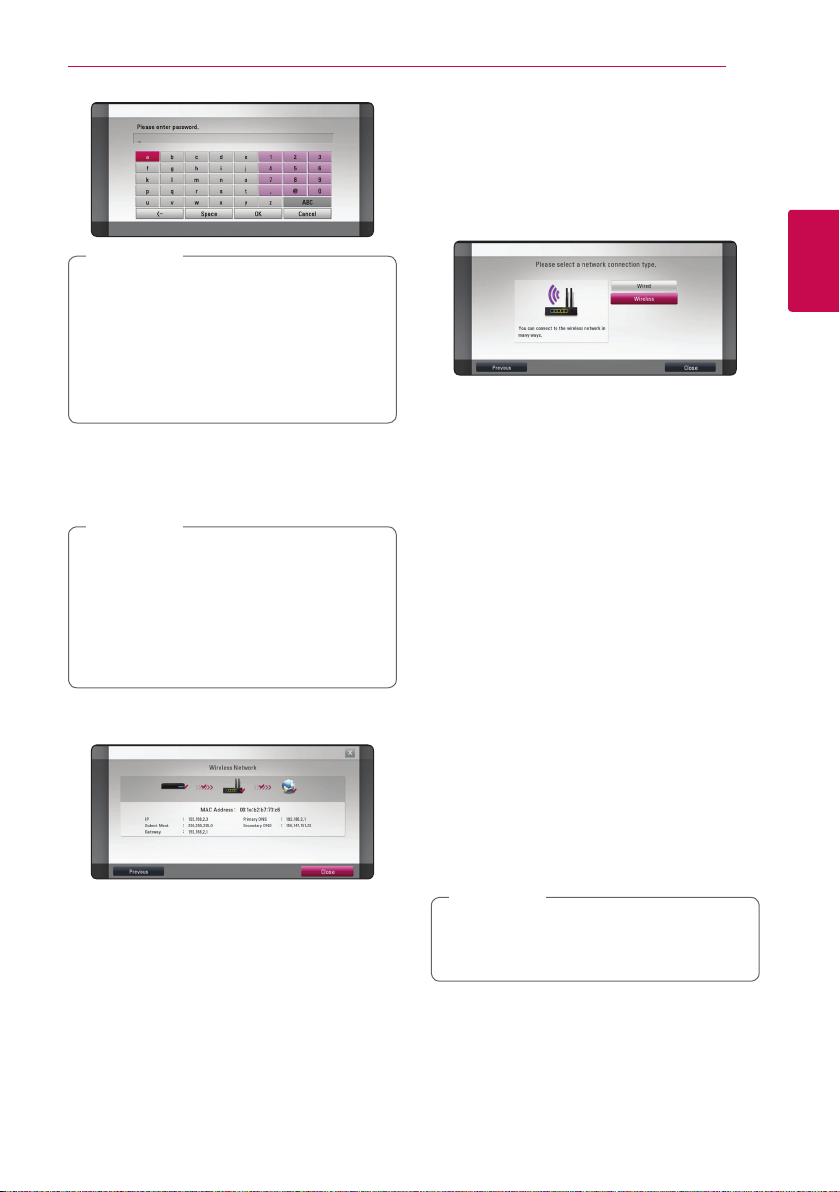

Advanced Setting

If you want to set the network settings manually, use [Network Setting] menu and press ENTER (b).

1. Use

2. Follow the instructions of each connection

to select [Advanced Setting] on the

W/S

to select [Wireless] and press ENTER

W/S

(b).

[AP List] - Scans all available access points or wireless routers within range and display them as a list.

[Network name (SSID)] – Your access point may not be broadcasting its network name (SSID). Check your access point settings through your computer and either set your access point to broadcast SSID, or manually enter the network name in [Network name(SSID)].

[PBC] – If your access point or wireless router that supports the PBC (Push Button Configuration) method, select this option and press the Push Button on your access point within 120 counts. You do not need to know the network name (SSID) and security code of your access point.

[PIN] – If your access point supports the PIN Code configuration method based on WPS(WiFi Protected Setup), select this option and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point to connect. Refer to the documentation for your network device.

method on the screen.

Note

To use PBC and PIN network connection, security mode of your access point must be set to OPEN or AES.

Connecting

Connecting24

Notes on Network Connection:

yMany network connection problems during

set up can often be xed by re-setting the router or modem. After connecting the player to the home network, quickly power o and/ or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

yDepending on the internet service provider (ISP),

Connecting

the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

yOur company is not responsible for any

malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

yThe features of BD-ROM discs made available

through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

ySome internet content may require a higher

bandwidth connection.

yEven if the player is properly connected and

congured, some internet content may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

ySome internet connection operations may not

be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

yAny fees charged by an ISP including, without

limitation, connection charges are your responsibility.

yA 10 Base-T or 100 Base-TX LAN port is required

for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

yYou must use a Router to use xDSL service.

yA DSL modem is required to use DSL service and

a cable modem is required to use cable modem service. Depending on the access method of and

subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

yThe use of a “Router” may not be allowed or its

usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

yThe wireless network operate at 2.4GHz

radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be aected by interference from them.

yTurn o all unused network equipment in

your local home network. Some devices may generate network trac.

yFor the purpose of the better transmission,

placing the player from the access point as close as possible.

yIn some instances, placing the access point or

wireless router at least 0.45 m (1.5 ft.) above the oor may improve the reception.

yMove closer to the access point if possible or re-

orient the player so there is nothing between it and the access point.

yThe reception quality over wireless depends on

many factors such as type of the access point, distance between the player and access point, and the location of the player.

ySet your access point or wireless router to

Infrastructure mode. Ad-hoc mode is not supported.

USB device connection

This player can play video, audio and photo les contained in the USB device.

Playback content in the USB device

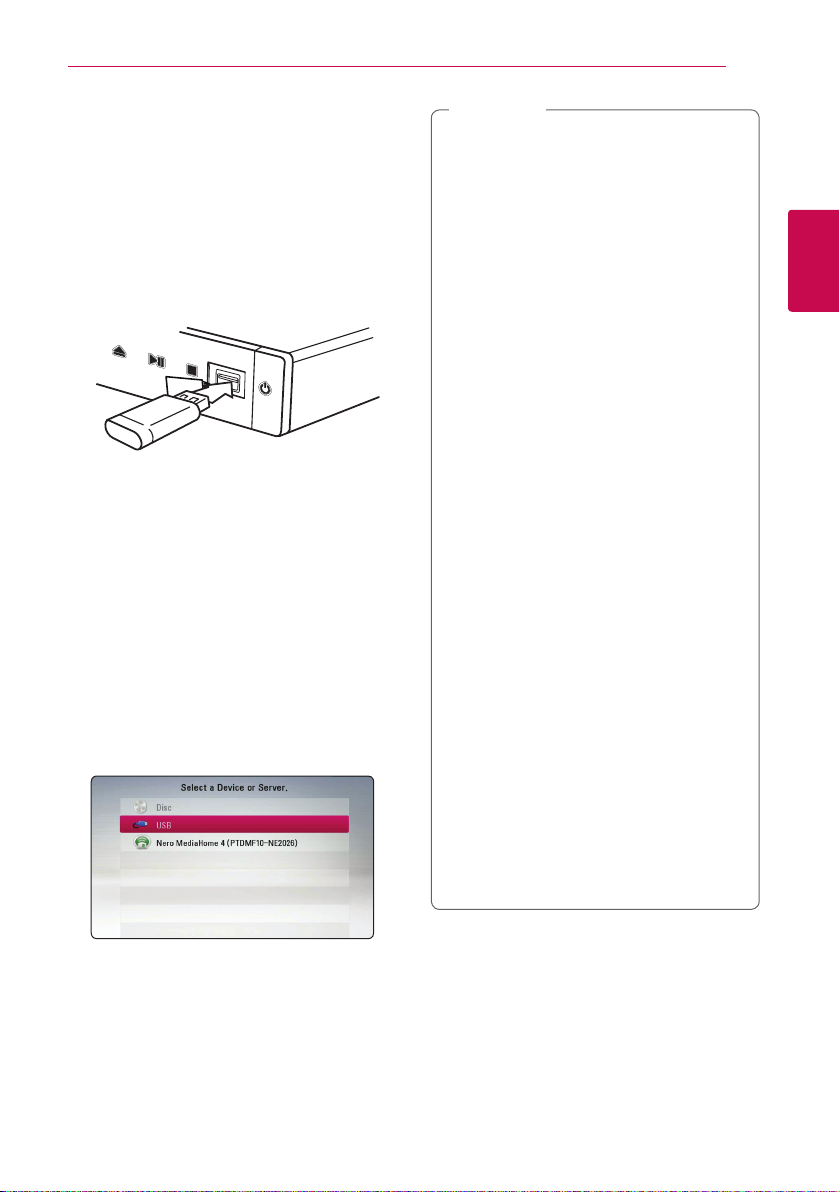

1. Insert a USB device to the USB port until it fits into place.

When you connect the USB device on the HOME menu, the player plays an audio le contained in the USB storage device automatically. If the USB storage device is containing various types of les, a menu for the le type selection will appear.

File loading may takes few minutes depending on the number of content stored in the USB storage device. Press ENTER (b) while [Cancel] is selected to stop loading.

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using and press ENTER (b).

4. Select the [USB] option using ENTER (b).

W/S

A/D

, and press

Connecting 25

Note

yThis player supports USB ash drive/

external HDD formatted in FAT16, FAT32 and NTFS when accessing les (audio, photo, video). However, for BD-Live and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB ash drive/ external HDD formatted in either FAT16 or FAT32 when using BD-Live and Audio CD recording.

yThe USB device can be used for the local

storage for enjoying BD-Live discs with Internet.

yThis unit can support up to 4 partitions of

the USB device.

yDo not extract the USB device during

operation (play, etc.).

yA USB device which requires additional

program installation when you have connected it to a computer, is not supported.

yUSB device: USB device that supports

USB1.1 and USB2.0.

yVideo, audio and photo les can be played.

For details of operations on each le, refer to relevant pages.

yRegular back up is recommended to

prevent data loss.

yIf you use a USB extension cable, USB HUB

or USB Multi-reader, the USB device may not be recognized.

ySome USB device may not work with this

unit.

yDigital camera and mobile phone are not

supported.

yUSB Port of the unit cannot be connected

to PC. The unit cannot be used as a storage device.

Connecting

5. Select a file using PLAY or ENTER (b) to play the file.

6. Withdraw the USB device carefully.

W/S/A/D

, and press

System Setting26

Settings

Initial setup

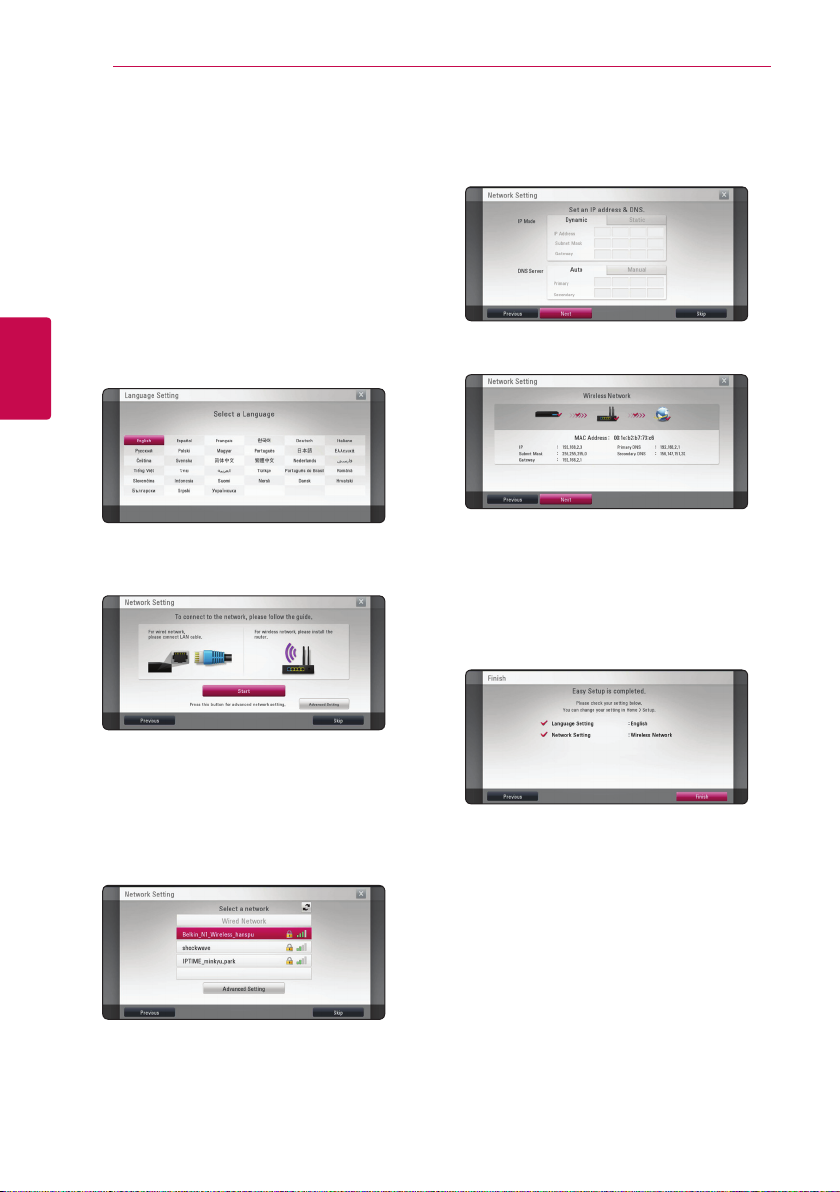

When you turn on the unit for the rst time, the initial setup wizard appears on the screen. Set the display language and network settings on the initial setup wizard.

1. Press 1 (POWER).

The initial setup wizard appears on the screen.

2. Use

W/S/A/D

and press ENTER (b).

System Setting

3. Read and prepare the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

to select a display language

5. Use

W/S/A/D

between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

6. Select [Next] and press ENTER (b) to apply network settings.

Network connection status is displayed on the screen.

For details on network settings, refer to “Connecting to your Home Network” on page

20.

7. Check all the settings that you have set in the previous steps.

to select the IP mode

If wired network is connected, the network connection setting will automatically be finished.

4. All available networks are displayed on the screen. Use or desired SSID of wireless network and press ENTER (b).

If you have security on your access point, you need to input the security code as necessary.

to select [Wired Network]

W/S

Press ENTER (b) while [Finish] is highlighted to finish the initial setup settings. If there is any settings to be changed, use [Previous] and press ENTER (b).

A/D

to select

System Setting

Adjust the setup settings

You can change the settings of the player in the [Setup] menu.

1. Press HOME (n).

2. Use ENTER (b). The [Setup] menu appears.

3. Use press D to move to the second level.

4. Use press ENTER (b) to move to the third level.

to select the [Setup] and press

A/D

to select the first setup option, and

W/S

to select a second setup option, and

W/S

[DISPLAY] menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected. Displays pictures cropped to ll your TV screen. Both sides of the picture are cut o.

[16:9 Original]

Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to ll the entire screen.

Note

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

System Setting

5. Use ENTER (b) to confirm your selection.

to select a desired setting, and press

W/S

System Setting28

Resolution

Sets the output resolution of the HDMI video signal. Refer to page 17 for details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

System Setting

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[480p]

Outputs 480 lines of progressive video.

[480i]

Outputs 480 lines of interlaced video.

1080p Display Mode

When the resolution is set to 1080p, select [24 Hz] for smooth presentation of lm material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.

Note

yWhen you select [24 Hz], you may

experience some picture disturbance when the video switches video and lm material. In this case, select [60 Hz].

yEven when [1080p Display Mode] is set to

[24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 60 Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[RGB]

Select when connecting to a DVI display device.

3D Mode

Select the type of output mode for Blu-ray 3D disc playback.

[O ]

Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback.

[On]

Blu-ray 3D disc playback will output as 3D mode.

Wallpaper

Changes the background of the initial screen.

Home Menu Guide

This function allows you to display or delete the guide bubble on the Home Menu. Set this option to [On] for displaying guide.

System Setting 29

[LANGUAGE] menu

Display Menu

Select a language for the [Setup] menu and onscreen display.

Disc Menu/Disc Audio/ Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc was recorded.

[Other]

Press ENTER (b) to select another language. Use number buttons then press ENTER (b) to enter the corresponding 4-digit number according to the language code list on page 56.

[O] (Disc Subtitle only)

Turn o Subtitle.

Note

Depending on the disc, your language setting may not work.

[AUDIO] menu

Each disc has a variety of audio output options. Set the player’s Audio options according to the type of audio system you use.

Note

Since many factors aect the type of audio output, see “Audio Output Specications” on page 58 for details.

Digital Output

[PCM Stereo] (HDMI, OPTICAL)

Select if you connect this unit’s HDMI OUT or DIGITAL AUDIO OUT jack to a device with twochannel digital stereo decoder.

[PCM Multi-Ch] (HDMI only)

Select if you connect this unit’s HDMI OUT jack to a device with multi-channel digital decoder.

[DTS Re-Encode] (HDMI, OPTICAL)

Select if you connect this unit’s HDMI OUT or DIGITAL AUDIO OUT jack to a device with DTS decoder.

[BitStream] (HDMI, OPTICAL)

Select if you connect this unit’s DIGITAL AUDIO OUT and HDMI OUT jack to a device with LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and DTS-HD decoder.

Note

yWhen [Digital Output] option is set to [PCM

Multi-Ch], the audio may output as PCM Stereo if the PCM Multi-Ch information is not detected from HDMI device with EDID.

yIf the [Digital Output] option is set to [DTS

Re-Encode], the DTS Re-Encode audio is outputted for BD-ROM discs with secondary audio and the original audio is outputted for the other discs (like [BitStream]).

System Setting

System Setting30

Sampling Freq. (Digital Audio Output)

[192 kHz]

Select this if your A/V Receiver or Amplier is capable of handling 192 kHz signals.

[96 kHz]

Select this if your A/V Receiver or Amplier is not capable of handling 192 kHz signals. When this choice is made, this unit automatically converts any 192 kHz signals to 96 kHz so your system can decode them.

[48 kHz]

System Setting

Select this if your A/V Receiver or Amplier is not capable of handling 192 kHz and 96 kHz signal. When this choice is made, this unit automatically converts any 192 kHz and 96 kHz signals to 48 kHz so your system can decode them.

Check the documentation for your A/V Receiver or Amplier to verify its capabilities.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a lower volume without losing clarity of sound.

[O ]

Turns o this function.

[On]

Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output.

[Auto]

The dynamic range of the Dolby TrueHD audio output is specied by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

Note

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

System Setting 31

[LOCK] menu

The [LOCK] settings aect only Blu-ray Disc and DVD playback.

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created. If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (b) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press ENTER (b) to create a new password.

[Change]

Enter the current password and press ENTER (b). Enter a 4-digit password twice, and press ENTER (b) to create a new password.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

2. Select [Password] option in the [Setup] menu.

3. Use Number buttons to enter “210499”. The password is cleared.

Note

If you make a mistake before pressing ENTER (b), press CLEAR. Then input the correct password.

DVD Rating

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select [Unlock], parental control is not active and the disc plays in full.

Blu-ray Disc Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

Note

yThe [Blu-ray Disc Rating] will be applied

only for the Blu-ray disc that containing the Advanced Rating Control.

yFor the region using MPAA rating level, refer

to the table below as an example.

Blu-ray Disc Rating MPAA Rating

0 G

8 PG

13 PG-13

17 R

18 NC-17

255 Not restricted

System Setting

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 55.

System Setting32

[NETWORK] menu

The [NETWORK] settings are needed to use the software update, BD-Live and online content services.

Connection Setting

If your home network environment is ready to connect the player, the player needs to be set the wired or wireless network connection for network communication. (See “Connecting to your Home Network” on pages 20.)

Connection Status

If you want to check the network status on this

player, select the [Connection Status] options and

System Setting

press ENTER (b) to check whether a connection to the network and the internet have been established.

BD-LIVE connection

You can restrict Internet access when BD-Live functions are used.

[Permitted]

Internet access is permitted for all BD-Live content.

[Partially permitted]

Internet access is permitted only for BD-Live content which have content owner certicates. Internet access and AACS Online functions are prohibited for all BD-Live content without a certicate.

[Prohibited]

Internet access is prohibited for all BD-Live content.

Deactivate Vudu

You can deactivate your player from your Vudu account. It is recommended that you do this if you give your player to someone else who should not share your Vudu account.

Premium/LG Apps

[Country Setting]

Select your area for displaying proper services and content on the [Premium] and [LG Apps] feature.

Device Name

You can make a network name using virtual keyboard. This player will be recognised by the name you are entering on your home network.

Netflix

[Netix ESN]

Display its unique Netix ESN (Electronic Serial Number) that allows you to use the Netix streaming.

[Deactivate Netix]

Deactivates your player. To activate the Netix again, contact to the service provider.

System Setting 33

[OTHERS] menu

Network Play

This function allows you to control the playback of media streamed from DLNA media server by a DLNA certied smartphone. Most DLNA certied smartphone has a function to control the playback media on your home network. Set this option to [On] for allowing your smartphone to control this unit. Refer to instructions of your DLNA certied smartphone or the application for more detailed information.

Note

yThis unit and the DLNA Certied

Smartphone must be connected to the same network.

yTo use the [Network Play] function using a

DLNA certied smartphone, press HOME (n) to display the home menu before connecting to this unit.

yWhile controlling the unit using the

[Network Play] function, the remote control may not work.

yAvailable le formats described on page 10

are not always supported on [Network Play] function.

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about ve minutes. If you set this option to [On], the unit automatically turns o within 20 minutes since the Screen Saver is displayed. Set this option to [O] to leave the screen saver until the unit is operated by the user.

Initialize

[Factory Set]

You can reset the player to its original factory settings.

[Blu-ray Storage Clear]

Initializes the BD-Live content from the connected USB storage.

Note

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the online services and network settings again.

Software

[Information]

Displays the current software version.

[Update]

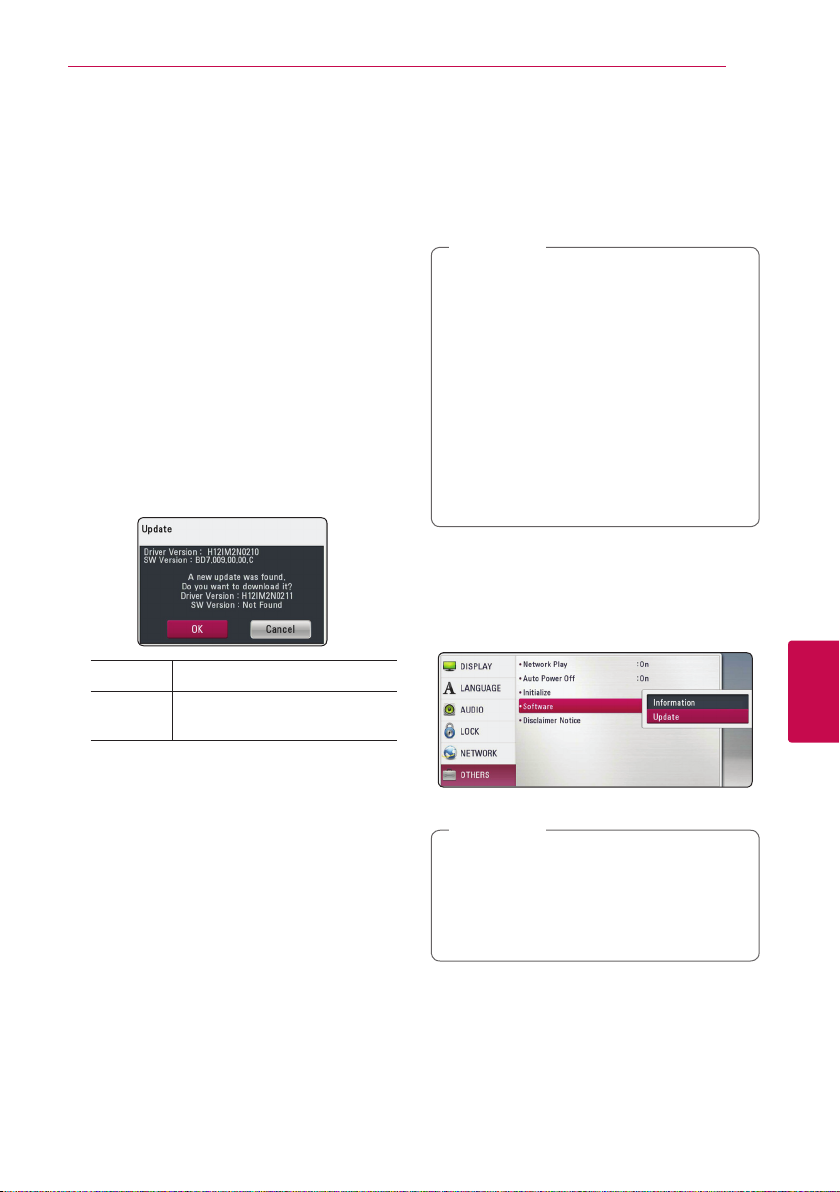

You can update the software by connecting the unit directly to the software update server (see page 51).

Disclaimer Notice

Press ENTER (b) to view the notice of Network Service Disclaimer.

System Setting

Operating34

General playback

Using [HOME] menu

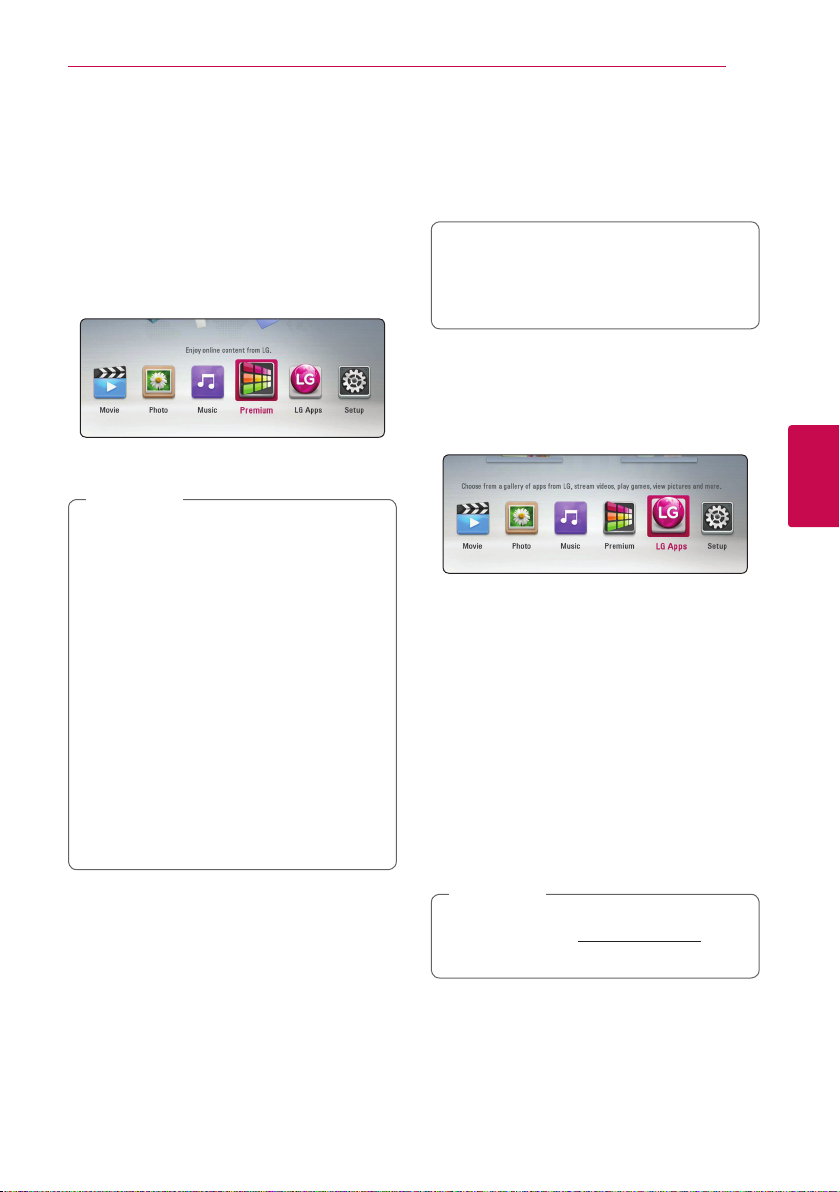

The home menu appears when you press HOME

Operating

(n). Use press ENTER (b).

W/S/A/D

Note

Depending on the region, [LG Apps] service and [Search] function may not be available at the moment. The service may become available in these regions through at software update later.

to select a category and

Playing a disc

erto

1. Press B (OPEN/CLOSE), and place a disc on the disc tray.

2. Press B (OPEN/CLOSE) to close the disc tray.

For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.

3. Press HOME (n).

4. Select [Movie] or [Music] using ENTER (b).

5. Select [Blu-ray Disc], [DVD], [VR] or [Audio] option using

Note

yPlayback functions described in this manual

are not always available in every les and media. Some functions can be restricted depending on many factors.

yDepending on the BD-ROM titles, a USB

device connection may be needed for the proper playback.

yUnnalized DVD-VR format discs may not

be played in this player.

ySome DVD-VR discs are made with CPRM

data by DVD RECORDER. This unit cannot support these kinds of discs.

, and press ENTER (b).

W/S

A/D

, and press

[Movie] - Plays video content.

[Photo] - Plays photo content.

[Music] - Plays audio content.

[Premium] - Displays the Premium Home

screen.

[LG Apps] - Displays the [LG Apps] screen.

[Setup] - Adjusts the system settings.

[Search] - Searches an online content by

inputting a keyword on the search menu.

[LG Apps] - Displays the [LG Apps] screen.

[Favorite Apps] - Shortcut for user’s favorite

Apps.

[My Apps] - Displays the [My Apps] screen.

Playing a file on disc/USB device

yui

This player can play video, audio and photo les contained in the disc or USB device.

1. Insert a data disc on the tray or connect a USB device.

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using and press ENTER (b).

4. Select [Data] or [USB] option using press ENTER (b).

5. Select a file using

(PLAY) or ENTER (b) to play the file.

W/S/A/D

A/D

W/S

, and press

, and

Operating 35

Playing Blu-ray 3D disc

This player can play the Blu-ray 3D discs which contains separate views for the left and right eyes.

Preparation

In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to:

Check your TV is 3D capable and has HDMI

input(s).

y Wear 3D glasses to enjoy the 3D experience

if it is necessary.

Check whether the BD-ROM title is the Blu-

ray 3D disc or not.

Connect an HDMI cable (Type A, High

Speed HDMI™ Cable) between the player’s HDMI output and TV’s HDMI input.

1. Press HOME (n), and set the [3D Mode] option on the [Setup] menu to [On] (page 28).

2. Press B (OPEN/CLOSE), and place a disc on the disc tray.

3. Press B (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

4. Refer to the owner’s manual of your 3D-ready TV for the further instruction.

You may need to adjust the display settings and focus on your TV’s setting for the improved 3D eect.

Caution

yWatching a 3D content for a long period

time may cause dizziness or tiredness.

yIt is not recommended to watch a movie

in 3D mode for inrm, child and pregnant woman.

yIf you are experiencing headache, tiredness

or dizziness while viewing content in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Enjoying BD-Live™

BD-ROM supporting BD-Live that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (page 20).

2. Insert a USB storage device to the USB port on the front panel.

A USB storage device is needed to download bonus content.

3. Press HOME (n), and set the [BD-LIVE connection] option on the [Setup] menu (page

32).

Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted].

4. Insert a BD-ROM with BD-Live.

The operations are dier depending on the disc. Refer to the manual supplied with the disc.

Caution

Do not extract the connected USB device while content is being downloaded or a Bluray disc is still in the disc tray. Doing so may damage the connected USB device and BDLive features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

Note

ySome BD-Live content may be restrictively

accessed in some territories by content provider’s own decision.

yIt may take up to several minutes to load

and start enjoying BD-Live content.

Operating

Playing a file on a network server

yui

This player can play video, audio and photo les located in a DLNA server through your home network.

1. Check the network connection and settings (page 20).

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using and press ENTER (b).

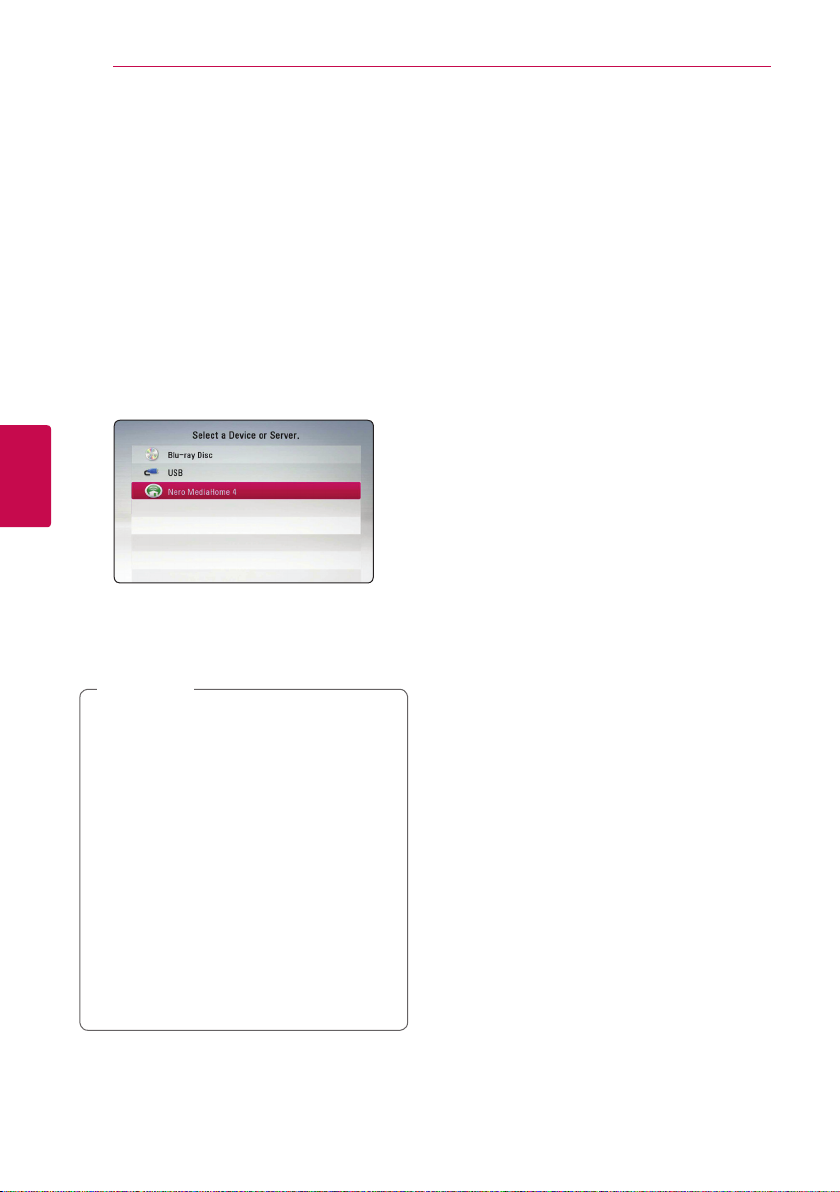

4. Select a DLNA media server on the list using

Operating

5. Select a le using

, and press ENTER (b).

W/S

If you want to rescan available media server, press the green (G) colored button.

ENTER (b) to play the le.

Note

yThe le requirements are described on page

10.

yThe thumbnail of the unplayable les can

be displayed, but those cannot be played on this player.

yThe subtitle le name and video le name

have to be the same and located at the same folder.

yThe playback and operating quality may be

aected by your home network condition.

yYou may experience connection problems

depending on your server’s environment.

yTo set your PC as a DLNA server, install the

supplied Nero MediaHome 4 on your PC. (see page 53)

W/S/A/D

A/D

, and press

Basic operations for video and audio content

To stop playback

Press Z (STOP) while playback.

To pause playback

Press M (PAUSE) while playback. Press d (PLAY) to resume playback.

To play frame-by-frame (Video)

Press M (PAUSE) while movie playback. Press M (PAUSE) repeatedly to play Frame-by-Frame playback.

To scan forward or backward

Press c or v to play fast forward or fast reverse during playback.

You can change the various playback speeds by pressing c or v repeatedly.

To slow down the playing speed

While the playback is paused, press v repeatedly to play various speeds of slow motion.

To skip to the next/previous chapter/track/file

During playback, press C or V to go to the next chapter/track/le or to return to the beginning of the current chapter/track/le.

Press C twice briey to step back to the previous chapter/track/le.

In the le list menu of a server, there may have many types of content in a folder together. In this case, press C or V to go to the previous or next content with same type.

Operating 37

Basic operations for photo content

To play a slide show

Press d (PLAY) to start slide show.

To stop a slide show

Press Z (STOP) while slide show.

To pause a slide show

Press M (PAUSE) while slide show. Press d (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press A or D to go to the previous or next photo.

Using the disc menu

ero

To display the disc menu

The menu screen may be displayed rst after loading a disc which contains a menu. If you want to display the disc menu while playback, press DISC MENU.

Use

W/S/A/D

menu items.

To display the Pop-up menu

Some BD-ROM discs contain Pop-up menu that appears while playback.

Press TITLE/POPUP while playback, and use

buttons to navigate through menu items.

A/D

buttons to navigate through

W/S/

Resume playback

eroyt u

The unit records the point where you pressed the

(STOP) depending on the disc.

If “MZ (Resume Stop)” appears on the screen briey, press d (PLAY) to resume playback (from the scene point). If you press Z (STOP) twice or unload the disc, “Z(Complete Stop)” appears on the screen. The unit will clear the stopped point.

Note

yThe resume point may be cleared when a

button is pressed (for example; 1 (POWER),

(OPEN/CLOSE), etc).

yOn BD-ROM discs with BD-J, the resume

playback function does not work.

yIf you press Z (STOP) once during BD-ROM

interactive title playback, the unit will be in Complete Stop mode .

Last scene memory

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch o the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note

yLast Scene Memory function for a previous

disc is erased once a dierent disc is played.

yThis function may not work depending on

the disc.

yOn BD-ROM discs with BD-J, the last scene

memory function does not work.

yThis unit does not memorize settings of

a disc if you switch o the unit before commencing to play it.

Operating

Operating38

Advanced playback

Repeat playback

erotu y

During playback, press REPEAT (h) repeatedly to select a desired repeat mode.

Blu-ray Disc / DVD / Video les

A- – Selected portion will be repeated continually.

Chapter – The current chapter will be played

back repeatedly.

Title – The current title will be played back

repeatedly.

All – All the tracks or les will be played back

repeatedly.

To return to normal playback, press REPEAT (h)

Operating

repeatedly to select [O ].

Audio CDs/Audio les

Track– The current track or le will be played

;

back repeatedly.

All – All the tracks or les will be played back

repeatedly.

– The tracks or les will be played back in

random order.

All – All the tracks or les will be played

back repeatedly in random order.

A-B – Selected portion will be repeated

continually. (Audio CD only)

To return to normal playback, press CLEAR.

Note

yIf you press V once during Repeat

Chapter/Track playback, the repeat playback cancels.

yThis function may not work on some disc or

title.

Repeating a specific portion

erot

This player can repeat a portion you have selected.

1. While playback, press REPEAT (h) to select [A-] at the beginning of the portion you wish to repeat.

2. Press ENTER (b) at the end of the portion. Your selected portion will be repeated continually.

3. To return to normal playback, press REPEAT (h) repeatedly to select [O ].

Note

yYou cannot select a portion less than 3

seconds.

yThis function may not work on some disc or

title.

Viewing content information

The player can display the content information.

1. Select a le using

2. Press INFO/MENU (m) to display the option menu.

3. Select the [Information] option using and press ENTER (b).

The le information appears on the screen.

While movie playback, you can display the le information by pressing TITLE/POPUP.

Note

The information displayed on the screen may not correct comparing actual content information.

W/S/A/D

W/S

Operating 39

Changing content list view

yui

On the [Movie], [Music] or [Photo] menu, you can change the content list view.

Method 1

Press red (R) colored button repeatedly.

Selecting a subtitle ﬁle

If the subtitle le name is dierent from the video le name, you need to select the subtitle le on the [Movie] menu before playing the movie.

1. Use

W/S/A/D

wish to play in the [Movie] menu.

2. Press ENTER (b).

Press ENTER (b) again to deselect the subtitle le. Selected subtitle le will be displayed when you play the video le.

Note

yIf you press Z (STOP) while playback, the

subtitle selection is cancelled.

yThis function is not available for playing le

on a server via home network.

to select the subtitle le you

Operating

Method 2

1. On the content list, press INFO/MENU (m) to display the option menu.

2. Use

3. Press ENTER (b) to change the content list view.

to select the [View Change] option.

W/S

Operating40

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press INFO/ MENU (m) to display the option menu.

2. Select an option using

Operating

a Current photo/Total number of photos

– Use

A/D

b Slide Show – Press ENTER (b) to start or

pause slide show.

c Music Select – Select the background

music for the slide show (page 40).

d Music –Press ENTER (b) to start or pause

background music.

e Rotate – Press ENTER (b) to rotate the

photo clockwise.

f Zoom – Press ENTER (b) to display the

[Zoom] menu.

g Eect – Use

effect between photos in a slide show.

h Speed – Use

speed between photos in a slide show.

3. Press BACK(1) to exit the option menu.

W/S

to view previous/next photo.

to select a transition

A/D

to select a delaying

A/D

Listening to music while slide show

You can display photo les while listening to audio les.

1. While viewing a photo in full screen, press INFO/ MENU (m) to display the option menu.

2. Use press ENTER (b) to display the [Music Select] menu.

3. Use (b).

Device that you can select are differ depending on the location of the photo file you are displaying in full screen.

4. Use play.

Select g and press ENTER (b) to display the upper directory.

When selecting audio le from a server, folder selection is not available. Only le selection is available.

5. Use D to select [OK], and press ENTER (b) to complete music selection.

to select [Music Select] option, and

W/S

to select a device, and press ENTER

W/S

Photo location Available Device

Disc, USB Disc, USB

DLNA server DLNA server

to select a file or a folder you wish to

W/S

Note

Operating 41

On-Screen display

You can display and adjust various information and settings about the content.

Displaying content information on-screen

eroy

1. While playback, press INFO/MENU (m) to show various playback information.

a Title – current title number/total number of

titles

b Chapter – current chapter number/total

number of chapters

c Time – elapsed playing time/total playback

time

d Audio – selected audio language or channel e Subtitle – selected subtitle. f Angle – selected angle/total number of

angles

g TV Aspect Ratio – selected TV aspect Ratio h Picture Mode – selected picture mode

2. Select an option using

3. Use

4. Press BACK(1) to exit the On-Screen display.

yIf no button is pressed for a few seconds,

yA title number cannot be selected on some

yAvailable items may dier depending on

yIf an interactive Blu-ray Disc is playing back,

to adjust the selected option value.

A/D

Note

the on-screen display disappears.

discs.

discs or titles.

some setting information is displayed on the screen but prohibited to be changed.

W/S

Operating

Operating42

Playing from selected time

eroy

1. Press INFO/MENU (m) during playback. The time search box shows the elapsed playing time.

2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to nd a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020”.

Press forward or backward.

3. Press ENTER (b) to start playback from selected time.

yThis function may not work on some disc or

titles.

Operating

yThis function may not work depending on

the le type and ability of the DLNA server.

to skip the playback 60 seconds

A/D

Note

Selecting a subtitle language

eroy

1. During playback, press INFO/MENU (m) to display the On-Screen display.

2. Use

3. Use

4. Press BACK(1) to exit the On-Screen display.

ySome discs allow you to change subtitle

selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

yYou can select the [Subtitle] option on the

On-Screen display directely by pressing SUBTITLE button.

to select the [Subtitle] option.

W/S

to select desired subtitle language.

A/D

Note

Hearing a different audio

eroy

1. During playback, press INFO/MENU (m) to display the On-Screen display.

2. Use

3. Use audio track or audio channel.

ySome discs allow you to change audio

selections only via the disc menu. In this case, press TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.

yImmediately after you have switched sound,

there may be a temporary discrepancy between the display and actual sound.

yOn BD-ROM disc, the multi audio format

(5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

yYou can select the [Audio] option on the

On-Screen display directely by pressing AUDIO button.

to select the [Audio] option.

W/S

to select desired audio language,

A/D

Note

Watching from a different angle

If the disc contains scenes recorded at dierent camera angles, you can change to a dierent camera angle during playback.

1. During playback, press INFO/MENU (m) to display the On-Screen display.

2. Use

3. Use

4. Press BACK(1) to exit the On-Screen display.

to select the [Angle] option.

W/S

to select desired angle.

A/D

Operating 43

Changing the TV Aspect Ratio

eoy

You can change the TV aspect ratio setting while playback.

1. During playback, press INFO/MENU (m) to display the On-Screen display.

2. Use option.

3. Use

4. Press BACK(1) to exit the On-Screen display.

Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed.

to select the [TV Aspect Ratio]

W/S

to select desired option.

A/D

Note

Changing subtitle code page

If the subtitle is displayed in broken letter, you can change the subtitle code page to view the subtitle le properly.

1. During playback, press INFO/MENU (m) to display the playback menu.

2. Use

3. Use

to select the [Code Page] option.

W/S

to select desired code option.

A/D

Changing the Picture Mode

eroy

You can change the [Picture mode] option while playback.

1. During playback, press INFO/MENU (m) to display the On-Screen display.

2. Use

3. Use

4. Press BACK(1) to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/MENU (m) to display the On-Screen display.

2. Use

3. Use and press ENTER (b).

4. Use options.

Select [Default] option then press ENTER (b) to reset the all video adjustments.

5. Use and press ENTER (b) to nish setting.

to select the [Picture Mode] option.

W/S

to select desired option.

A/D

to select the [Picture Mode] option.

W/S

to select the [User setting] option,

A/D

W/S/A/D

to adjust the [Picture Mode]

to select the [Close] option,

Operating

4. Press BACK(1) to exit the On-Screen display.

Operating44

Audio CD recording

You can record one desired track or all of the tracks in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on the front panel.

2. Press B (OPEN/CLOSE), and place an Audio CD on the disc tray.

Press B (OPEN/CLOSE) to close the disc tray. The playback starts automatically.

3. Press INFO/MENU (m) to display the option menu.

4. Use press ENTER (b).

5. Use the menu, and press ENTER (b).

Repeat this step to select tracks as many as you can.

Operating

6. Use ENTER (b).

7. Use to be copied.

If you want to create a new folder, use

W/S/A/D

ENTER (b).

Enter a folder name using virtual keyboard, and press ENTER (b) while [OK] is selected.

to select [CD Recording] option, and

W/S

to select a track you wish to copy on

W/S

Selects all the tracks on an Audio CD.

Selects an encoding option from the pop-up menu (128kbps, 192kbps or 320kbps).

Cancels the recording and returns to the previous screen.

W/S/A/D

to select [Start], and press

to select a destination folder

to select [New Folder] and press

8. Use

W/S/A/D

ENTER (b) to start Audio CD recording.

If you want to stop in progressing Audio CD recording, press ENTER (b) while [Cancel] is highlighted.

9. A message appears when Audio CD recording is completed. Press ENTER (b) to check the audio le created in the destination folder.

Note

yThe table below shows the average

recording time from an audio track with 4 minutes of playback time to an audio le with 192 kbps as an example.

stop mode while playback

1 min. 4 min.

yRecording times in the table above are

approximate.

yActual recording time for USB storage

device varies depending on the USB storage device’s ability.

yMake sure that there is minimum of 50 MB

free space is needed when recording into the USB storage device.

yThe length of the audio should be longer

than 20 seconds for the proper recording.

yDo not turn o this player or extract the

connected USB storage device during Audio CD recording.

Caution

The recording or copying features on this player are provided for your personal and non-commercial use. The making of unauthorized copies of copy-protected material, including computer programs, les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal oense. This equipment should not be used for such purposes. LG expressly disclaims any responsibility for illegal distribution or use of unauthorized content in commercial purpose.

to select [OK], and press

Be Responsible

Respect Copyrights

Operating 45

Using the Premium

You can use various content services via Internet with the Premium feature.

1. Check the network connection and settings (page 20).

2. Press HOME (n).

3. Select the [Premium] using ENTER (b).

4. Select an online service using and press ENTER (b).

Note

yDetailed information of each service,

contact to the content provider or visit suppot link of the service.

yThe content of Premium services and

service related information, including user interface, is subject to changes. Please refer to the web site of each service for most upto-date information.

yUsing Premium features with wireless

network connection may result in improper streaming speed by interference from household devices that are using radio frequencies.

yWhen you are rst time to access [Premium]

or [LG Apps] feature, current country setting appears. If you want to change the country setting, select [Edit] and press ENTER (b).

, and press

A/D

W/S/A/D

Using the LG Apps

You can use the LG application services on this player via Internet. You can easily nd and download various applications from LG App store.

Depending on the region, the LG Apps service may not be available at the moment. The service will become available in these regions through at software update.

1. Check the network connection and settings (page 20).

2. Press HOME (n).

3. Select the [LG Apps] using

ENTER (b).

4. Select a category using (b).

5. Use

W/S/A/D

press ENTER (b) to display the information.

6. Press ENTER (b) while [Install] icon is highlighted. The application will be installed to the player.

To install an application to the player, user needs to sign in. Refer to page 46 for more information of signning in.

7. Press yellow (Y) colored button to display the [My Apps] screen.

8. Select the installed application and press ENTER (b) to excute it.

Note

To install a paid application, you need to be a paid member. Visit www.lgappstv.com for more information.

A/D

to select an application, and

, and press

Operating

, and press ENTER

Operating46

Signing in

To use the [LG Apps] feature, you need to sign in with your account.

1. On the [LG Apps] or [My Apps] screen, press red (R) colored button.

2. Fill the [ID] and [Password] field using the virtual keyboard.

If you do not have an account, press red (R) colored button to register.

Operating

3. Use

W/S/A/D

ENTER (b) to sign in with your account.

If you select the [Auto Sign In] check box, your ID and password are remembered and automatically signed in without entering them.

Note

yIf you want to sign in with other account,

press red (R) colored button on [LG Apps] or [My Apps] screen, and select [Change User] option.

yTo view the information of your account and

applications, press red (R) colored button on [LG Apps] or [My Apps] screen, and select [Account Setting] option.

to select [OK], and press

Managing my Apps

You can move or delete an installed application in the [My Apps] menu.

Searching online content

If you are having diculties nding specic content from online services, you can use the all-in-one search function by entering keywords in the [Search] menu.

1. Press HOME (n).

2. Select the [Search] on the launcher bar using

W/S/A/D

The [Search] menu appears on the screen with virtual keyboard.

3. Use

W/S/A/D

ENTER (b) to confirm your selection on the virtual keyboard.

4. When you finish entering the keyword, select [OK] and press ENTER (b) to display search result.

5. Use

W/S/A/D

and press ENTER (b) to move to the selected content directly.

The [Search] function does not search content in every online services. It works only in certain services.

, and press ENTER (b).

to select letters then press

to select a desired content,

Note

Move an application

1. Select an application, and press green (G) colored button to display the options.

2. Use ENTER(b).

3. Use to move to, and press ENTER (b).

to select [Move], and press

W/S

W/S/A/D

to select a position you want

Delete an application

1. Select an application, and press green (G) colored button to display the options.

2. Use ENTER(b).

3. Use to confirm.

to select [Delete], and press

W/S

to select [Yes], and press ENTER (b)

A/D

Troubleshooting 47

Troubleshooting

General

Symptom Cause & Solution

The Power does not turned on. yPlug the power cord into the wall outlet securely.

The unit does not start playback.

The angle cannot be changed. yMulti-angles are not recorded on the DVD Video being played.

Cannot play video, photo or audio les.

The remote control does not work properly.

The unit is plugged in, but the power will not turn on or o.

The unit is not operating normally.

yInsert a playable disc. (Check the disc type, color system, and regional

code.)

yPlace the disc with the playback side down.

yPlace the disc on the disc tray correctly inside the guide.

yClean the disc.

yCancel the Rating function or change the rating level.

yThe les are not recorded in a format that the unit can play.

yThe unit does not support the codec of the video le.

yThe remote control is not pointed at the remote sensor of the unit.

yThe remote control is too far from the unit.

yThere is an obstacle in the path of the remote control and the unit.

yThe batteries in the remote control are exhausted.

You can reset the unit as follows.

yUnplug the power cord, wait at least ve seconds, and then plug it in

again.

Troubleshooting

Troubleshooting48

Troubleshooting

Network

Symptom Cause & Solution

BD-Live feature does not work. yThe connected USB storage may not have enough space. Connect

Streaming video services (such as YouTube™, etc.) are often stopped or “buer” during playback.

Media servers are not displayed on the device list.

Cannot connect the player to the access point or wireless LAN router.

Access point is not displayed on the “Access point name” list.

the USB storage with at least 1GB free space.

yEnsure that the unit is correctly connected to the local area network

and can access the internet (see page 20).

yYour broadband speed may not fast enough to use the BD-Live

features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

yThe [BD-LIVE connection] option in the [Setup] menu is set to

[Prohibited]. Set the option to [Permitted].

yYour broadband service speed may not be fast enough to stream

video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

yThe rewall or anti-virus software on your media server is running.

Turn o the rewall or anti-virus software running on your media server.

yThe player is not connected to the local area network that your media

server is connected.

yThe wireless communication may be interrupted from household

devices that are using radio frequencies. Move the player away from them.

yThe access point or wireless LAN router may not broadcast its SSID.

Set your access point to broadcast its SSID through your computer.

yYour network device such as access point may not set with available

frequency range and channel that this player can support. Try setting the frequency range and channel on the network device setting.

Troubleshooting 49


Symptom Cause & Solution

There is no picture. ySelect the appropriate video input mode on the TV so the picture

Picture noise appears yYou are playing a disc recorded in a colour system that is dierent

from the unit appears on the TV screen.

yConnect the video connection securely.

yCheck the [HDMI Color Setting] in the [Setup] menu is set to the

appropriate item that conforms to your video connection.

yYour TV may not support the resolution you have set on the player.

Change the resolution that your TV accepts.

yThe player’s HDMI OUT jack is connected to a DVI device that does

not support copyright protection.

from your TV.

ySet the resolution which your TV accepts.

Blu-ray 3D disc playback does not output 3D views.

yConnect the player to your TV with HDMI cable (Type A, High Speed

HDMI™ Cable).

yYour TV may not support “HDMI 3D mandatory format”.

yThe [3D Mode] option in the [Setup] menu is set to [O ].

Set the option to [On].

Customer Support

You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://www.lg.com/global/support or contact LG Electronics customer care center.

Open source software notice

To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit http://opensource.lge.com. All referred license terms, warranty disclaimers and copyright notices are available to download with the source code.

Troubleshooting

Appendix50

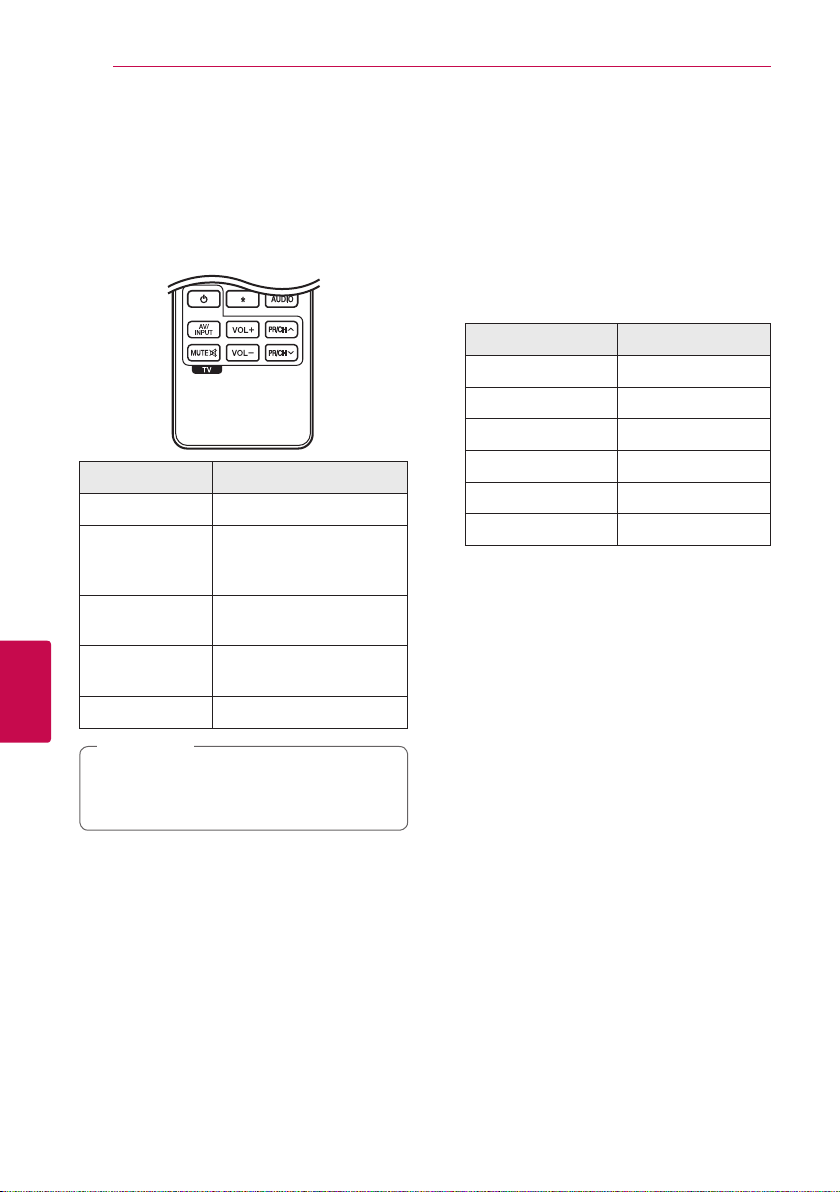

Controlling a TV with the Supplied Remote Control

You can control your TV using the buttons below.

By pressing You can

(TV POWER) Turn the TV on or o.

Switch the TV’s input source between the TV and other input sources.

Turn the TV’s volume on or o.

Scan up or down through memorized channels.

Appendix

AV/INPUT

MUTE

PR/CH

W/S

VOL +/– Adjust the volume of the TV

Note

Depending on the unit being connected, you may not be able to control your TV using some of the buttons.

Setting up the remote to control your TV

You can operate your TV with the supplied remote control. If your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down 1 (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below).

Manufacturer Code Number

LG 1(Default), 2

Zenith 1, 3, 4

GoldStar 1, 2

Samsung 6, 7

Sony 8, 9

Hitachi 4

2. Release the 1 (TV POWER) button to complete setting.

Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

Appendix 51

Network software update

Network update notification

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.

Option 1:

1. The update menu will appear on the screen when you turn off the player.

2. Use press ENTER (b).

Option 2:

If the software update is available from the update server, the “Update” icon appears in the Home menu. Press blue (B) colored button to start the update procedure.

to select a desired option and then

A/D

[OK] Starts the software update.

[Cancel] Exits the update menu and turns

the power o.

Software update

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.

Note

yBefore updating the software in your player,

remove any disc and USB Device from the player.

yBefore updating the software in your player,

turn the player o and then turn it back on.

yDuring the software update procedure,

do not turn o the player or disconnect AC power, or do not press any button.

yIf you cancel the update, turn o the power

and turn it on for stable performance.

yThis unit cannot be updated to previous

software version.

1. Check the network connection and settings (page 20).

2. Select [Software] option in the [Setup] menu then press ENTER (b).

3. Select [Update] option, and press ENTER (b).

The player will check for the newest update.

Note

yPressing ENTER (b) while checking for the

update will end the process.

yIf there is no update available, the Message,

“No update is found.” appears. Press ENTER (b) to return to the [Home Menu].

Appendix

Appendix52

4. If newer version exists, the message “Do you want to download it?” appears.

5. Select [OK] to start update. (Selecting [Cancel] will end the update.)

6. The player starts downloading the newest update from the server. (Downloading will takes several minutes depending on your home network condition)

7. When downloading is completed, the message, “Download is complete. Do you want to update?” appears.

8. Select [OK] to start updating. (Selecting [Cancel] will end the update and downloaded file will not be re-usable. To update software the next time, the software update procedure has to be started from the beginning again.)

Caution

Do not turn o the power during the software update.

Note

If the software includes the driver update, disc tray may open during the process.

9. When update is completed, the power will be turned automatically in a few seconds.

10. Turn the power back on. The system now operates with the new version.

Note

Appendix

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your player. Refer to “Customer Support” on page 49.

Appendix 53

About Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is a software for sharing video, audio and photo les stored on your computer to this player as a DLNA-compatiable digital media server.

Note

yThe Nero MediaHome 4 Essentials CD-

ROM is designed for PCs and should not be inserted in this player or in any product other than a PC.

yThe supplied Nero MediaHome 4 Essentials

CD-ROM is a customized software edition only for sharing les and folders to this player.

yThe supplied Nero MediaHome 4 Essentials

software does not support following functions: Transcoding, Remote UI, TV control, Internet services and Apple iTunes.

yThe supplied Nero MediaHome 4 Essentials

software can be downloaded at http://www. lg.com/global/support. Find the download link on the web page of this product.

yThis manual explains operations with

the English version of Nero MediaHome 4 Essentials as examples. Follow the explanation referring to the actual operations of your language version.

System requirements

Windows PC

yWindows® XP (Service Pack 2 or higher), Windows

Vista® (no Service Pack required), Windows® 7 (no Service Pack required), Windows® XP Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003

yWindows Vista® 64-bit edition (application runs

in 32-bit mode)

yWindows® 7 64-bit edition (application runs in

32-bit mode)

yHard drive space: 200 MB hard drive space for a

typical installation of Nero MediaHome standalone

y1.2 GHz Intel® Pentium® III or AMD

Sempron™ 2200+ processors

yMemory: 256 MB RAM

yGraphics card with at least 32 MB video memory,

minimum resolution of 800 x 600 pixels, and 16bit color settings

yWindows® Internet Explorer® 6.0 or higher

yDirectX® 9.0c revision 30 (August 2006) or higher

yNetwork environment: 100 Mb Ethernet, WLAN

Macintosh

yMac OS X 10.5 (Leopard) or 10.6 (Snow Leopard)

yMacintosh computer with an Intel x86 processor

yHard drive space: 200 MB hard drive space for a

typical installation of Nero MediaHome standalone

yMemory: 256 MB RAM

Installing Nero MediaHome 4 Essentials

Windows

Start up your computer, and insert the supplied CDROM disc into your computer’s CD-ROM drive. An installation wizard will walk you through the quick and uncomplicated installation process. To install Nero MediaHome 4 Essentials, proceed as follows:

1. Close all Microsoft Windows programs and exit any anti-virus software that may be running.

2. Insert the supplied CD-ROM disc into your computer’s CD-ROM drive.

3. Click [Nero MediaHome 4 Essentials].

4. Click [Run] to start installation.

5. Click [Nero MediaHome 4 Essentials]. The installation is prepared and the installation wizard appears.

6. Click the [Next] button to display the serial number input screen. Click [Next] to go to the next step.

7. If you accept all conditions, click [I accept the License Conditions] check box and click [Next]. Installation is not possible without this agreement.

8. Click [Typical] and click [Next]. The installation process is started.

Appendix

Appendix54

9. If you want to take part in the anonymous collection of data, select the check box and click the [Next] button.

10. Click the [Exit] button to complete the installation.

MAC OS X

1. Start up your computer, and insert the supplied CD-ROM disc into your computer’s CD-ROM drive.

2. Browse the CD-ROM drive and open the “MediaHome_4_Essentials_MAC” folder.

3. Double-click the “Nero MediaHome.dmg” image le. The Nero MediaHome window is opened.

4. In the Nero MediaHome window, drag the Nero MediaHome icon either to the Applications folder within the window or to any other desired location.

5. You can now start the application by doubleclicking the Nero MediaHome icon in the location you dragged it to.

Sharing files and folders

On your computer, you must share the folder contained video, audio and/or photo content to play them on this player.

This parts explains the procedure for selecting the shared folders on your computer.

1. Double-click the “Nero MediaHome 4 Essentials” icon.

2. Click [Network] icon on the left and dene your network name in the [Network name] eld. The Network name you enter will be recognized by your player.

3. Click [Shares] icon on the left.

4. Click [Local Folders] tab on the [Shares] screen.

5. Click [Add] icon to open the [Browse Folder] window.

6. Select the folder containing the les you want to share. The selected folder is added to the list of shared folders.

7. Click [Start Server] icon to start the server.

Note

yIf the shared folders or les are not displayed

on the player, click the folder on the [Local Folders] tab and click [Rescan Folder] at the [More] button.

yVisit www.nero.com for more information

and software tools.

Appendix

Appendix 55

Area code list

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Appendix

Appendix56

Language code list

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Appendix

Afar 6565

Afrikaans 6570

Albanian 8381

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laotian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Trademarks and licenses

Appendix 57

Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™, BONUSVIEW™ and the logos are trademarks of the Blu-ray Disc Association.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

Java is a trademark of Oracle and/or its aliates.

HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certication marks of the Digital Living Network Alliance.

“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commerciallyproduced lm and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Appendix

Appendix58

Audio output specifications

Jack/Setting

Source

Dolby Digital PCM 2ch PCM 2ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch PCM 2ch DTS Dolby Digital

Dolby TrueHD PCM 2ch PCM 2ch DTS Dolby Digital

DTS PCM 2ch PCM 2ch DTS DTS

DTS-HD PCM 2ch PCM 2ch DTS DTS

Linear PCM 2ch PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 5.1ch PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 7.1ch PCM 2ch PCM 2ch DTS PCM 2ch

Jack/Setting

Source

Dolby Digital PCM 2ch PCM 2ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch PCM 2ch DTS Dolby Digital Plus

Dolby TrueHD PCM 2ch PCM 2ch DTS Dolby TrueHD

DTS PCM 2ch PCM 2ch DTS DTS

DTS-HD PCM 2ch PCM 2ch DTS DTS-HD

Linear PCM 2ch PCM 2ch PCM 2ch DTS Linear PCM 2ch

Linear PCM 5.1ch PCM 2ch PCM 5.1ch DTS Linear PCM 5.1ch

Linear PCM 7.1ch PCM 2ch PCM 7.1ch DTS Linear PCM 7.1ch

*1 The secondary and interactive audio may not

Appendix

be included in the output bitstream if [Digital Output] option is set to [BitStream]. (Except LPCM Codec : the output always include interactive and secondary audio.)

*2 This player automatically selects the HDMI audio

according to the decoding capability of the connected HDMI device even though [Digital Output] option is set to [BitStream].

*3 On the PCM audio output, the sampling

frequency of DIGITAL AUDIO OUT is limited to 96 kHz.

Analog

2CH Output

PCM Stereo PCM

OPTICAL (DIGITAL AUDIO OUT)

PCM Stereo

Multi-Ch

DTS Re-encode

HDMI OUT

DTS Re-encode

*4 If the [Digital Output] option is set to [DTS re-

encode], the audio output is limited to 48 kHz and 5.1Ch. If the [Digital Output] option is set to [DTS re-encode], the DTS Re-encode audio is outputted for BD-ROM discs, and the original audio is outputted for the other discs (like [BitStream]).

yIf the HDMI OUT jack is connected to your TV

with High Speed HDMI™ Cable and Dolby Digital Plus/Dolby TrueHD is outputted from HDMI OUT jack, DIGITAL AUDIO OUT jack is limited to “PCM 2ch” (When the HDMI and DIGITAL AUDIO OUT are connected simultaneously).

BitStream

*1 *

yThe audio is outputted as PCM 48 kHz/16 bit for

MP3/WMA le and PCM 44.1kHz/16 bit for Audio CD while playback.

yYou must select a digital audio output and

a maximum sampling frequency that your Amplier (or AV receiver) accepts using [Digital Output] and [Sampling Freq.] options on the [Setup] menu (see page 29).

yWith digital audio connection (DIGITAL AUDIO

OUT or HDMI OUT), Disc Menu button sounds of BD-ROM may not be heard if the [Digital Output] option is set to [BitStream].

yIf the audio format of the digital output does

not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

yMulti-channel Digital Surround Sound via digital

connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

Appendix 59

Appendix

Appendix60

Specifications

General

Power requirements Refer to main label on the rear panel.

Power consumption 12 W

Dimensions (W x H x D) Approx. 430 x 41 x 188 mm (16.9 x 1.6 x 7.4 inches)

Net Weight (Approx.) 1.6 kg (3.5 lbs)

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Outputs

VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector)

2CH AUDIO OUT 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

DIGITAL AUDIO OUT (OPTICAL) 3 V (p-p), Optical jack x 1

System

Laser Semiconductor laser

wavelength 405 nm / 650 nm

Signal system Standard NTSC color TV system

Frequency response 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)

Signal-to-noise ratio More than 90 dB (ANALOG OUT connectors only)

Harmonic distortion Less than 0.02%

Appendix

Dynamic range More than 95 dB

LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX

Bus Power Supply (USB) DC 5 V 0 500 mA

yDesign and specications are subject to change without notice.

Appendix 61

Maintenance

Handling the unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Keeping the exterior surfaces clean

yDo not use volatile liquids such as insecticide

spray near the unit.

yWiping with strong pressure may damage the

surface.

yDo not leave rubber or plastic products in

contact with the unit for a long period of time.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.

Notes on discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that ngerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Appendix

Appendix62

Important information relating to network dervices

All information, data, documents, communications, downloads, les, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content (“Content”) and all services and oerings (“Services”) provided or made available by or through any third party (each a “Service Provider”) is the sole responsibility of the Service Provider from whom it originated.

The availability of and access to Content and Services furnished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider’s website for the most up-todate information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers.

Please note that LGE is not responsible for any

Appendix

Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services.

LG BP520 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety information

Getting Started

Introduction

Playable discs and symbols used in this manual

About the “7” symbol display

Compatibility notes

File requirement

AVCHD (Advanced Video Codec High Definition)

About DLNA

Certain system requirements

Regional code

Remote control

Front panel

Rear panel

Connecting to your TV

HDMI connection

Connecting

Video/Audio (Left/Right) connection

What is SIMPLINK?

Resolution setting

Connecting to an amplifier

Connecting to an amplifier via HDMI output

Connecting to an amplifier via Digital Audio Output

Connecting to an amplifier via 2 Channel Audio Output

Connecting to your home network

Wired network connection

Wired network setup

Wireless network connection

Wireless network setup

USB device connection

Playback content in the USB device

Settings

Initial setup

System Setting

Adjust the setup settings

[DISPLAY] menu

[LANGUAGE] menu

[AUDIO] menu

[LOCK] menu

[NETWORK] menu

[OTHERS] menu

General playback

Using [HOME] menu

Operating

Playing a disc

Playing a file on disc/USB device

Playing Blu-ray 3D disc

Enjoying BD-Live™

Playing a file on a network server

Basic operations for video and audio content

Basic operations for photo content

Using the disc menu

Resume playback

Last scene memory

Advanced playback

Repeat playback

Repeating a specific portion

Viewing content information

Changing content list view

Options while viewing a photo

Listening to music while slide show

On-Screen display

Displaying content information on-screen

Playing from selected time

Selecting a subtitle language

Hearing a different audio

Watching from a different angle

Changing the TV Aspect Ratio

Changing subtitle code page

Changing the Picture Mode

Audio CD recording

Using the Premium

Using the LG Apps

Signing in

Managing my Apps

Troubleshooting
