OWNER’S MANUAL
LED TV*
*LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
LY31**
LY33**
LY34**
LY54**
www.lg.com
2 TABLE OF CONTENTS
<![if ! IE]> <![endif]>ENGLISH |
TABLE OF CONTENTS |
|
|
|
3 LICENSES |
3OPEN SOURCE SOFTWARE NOTICE
4ASSEMBLING AND PREPARING
4 Unpacking
6Separate Purchase
6Parts and Button
7- Using the Joystick button
8Lifting and Moving the TV
9Setting up the TV
9- Attaching the stand
10Mounting on a table
11Mounting on a wall
13How to use Dual Lock™
14MAKING CONNECTIONS

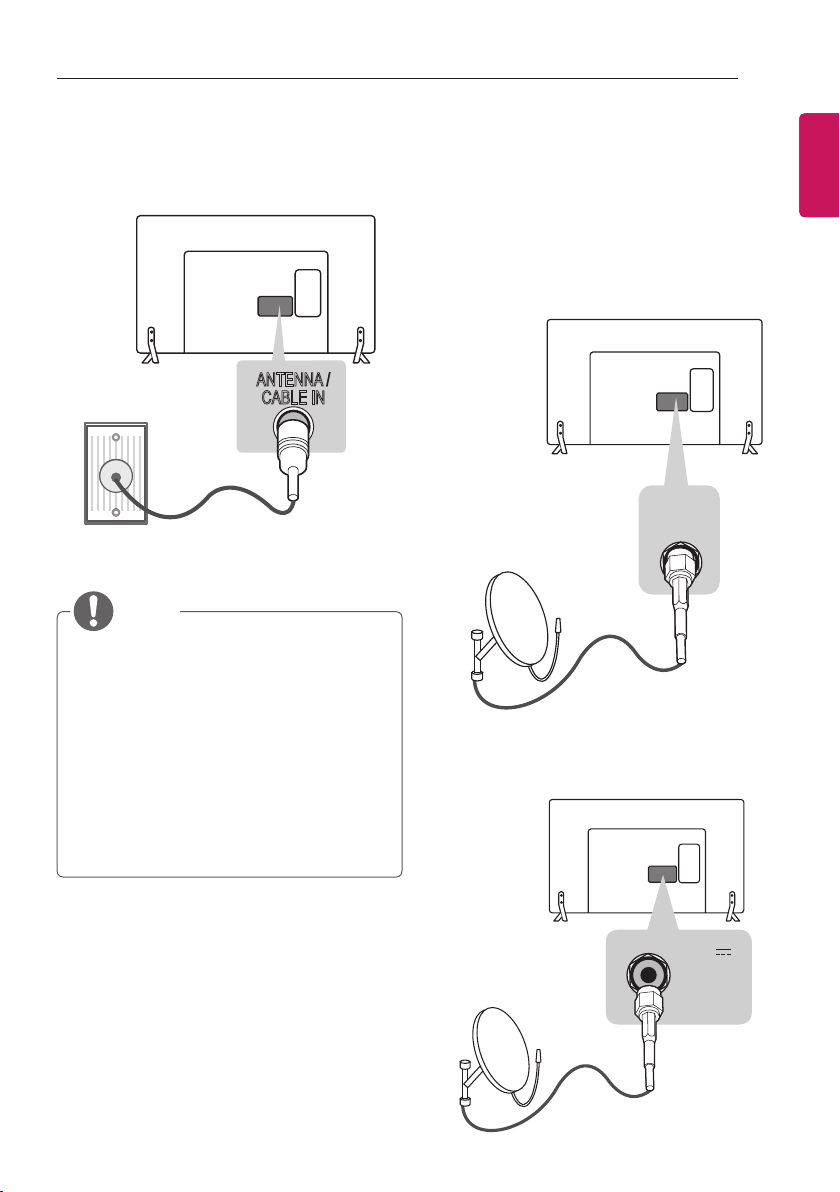

15Antenna Connection
15Satellite Dish Connection
16Adapter Connection
16Euro Scart Connection
17Network Setup

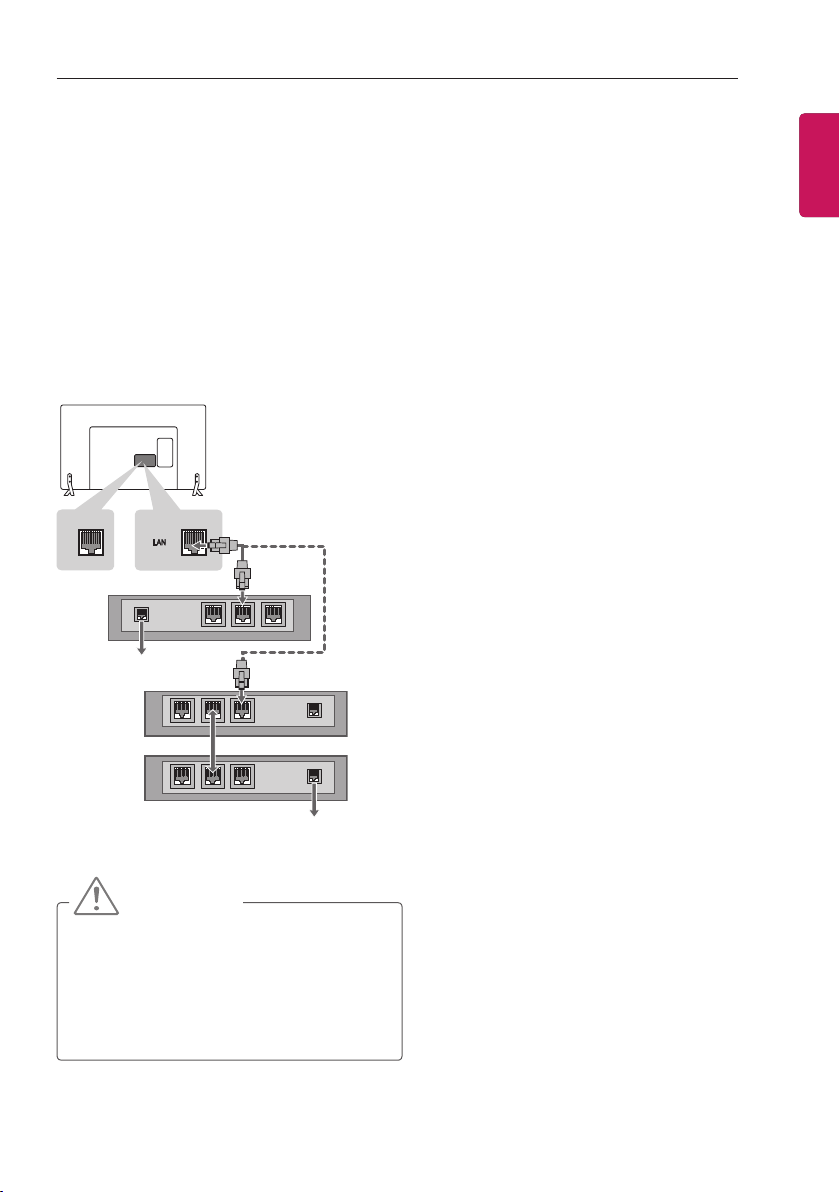

17- Wired network connection

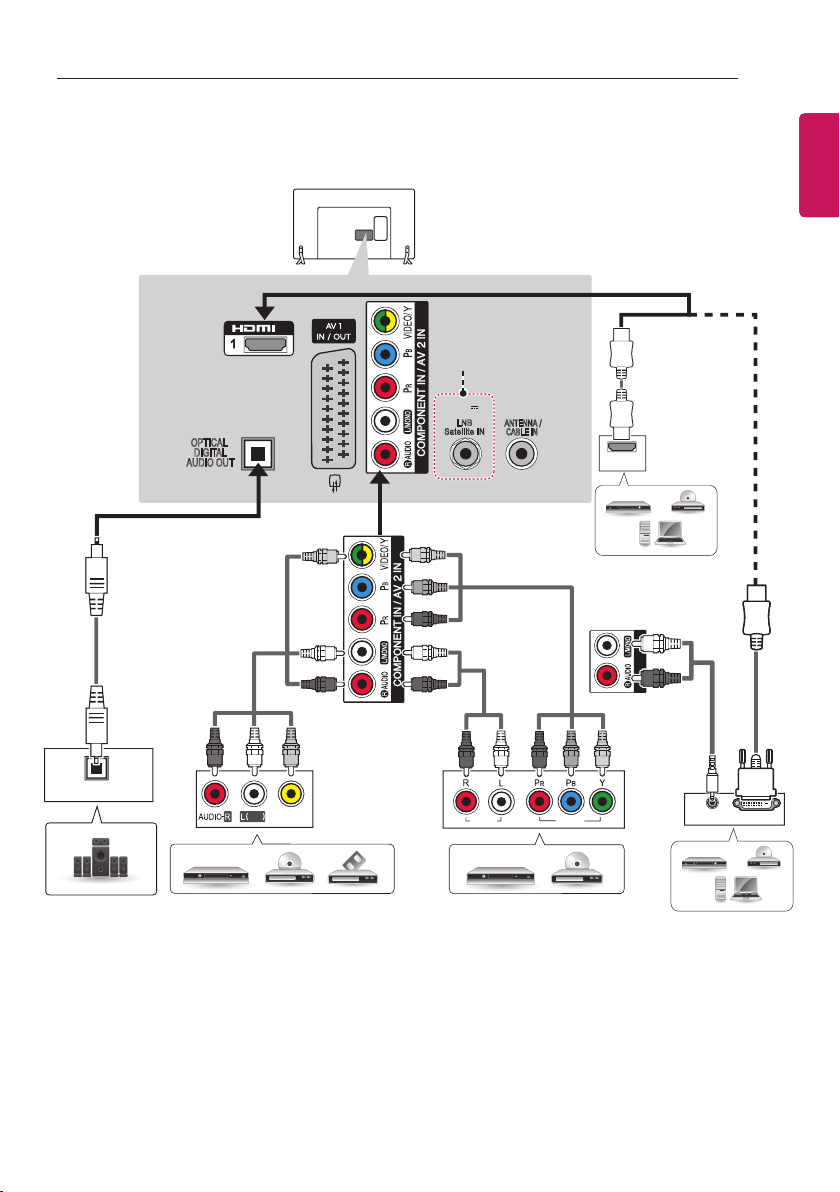

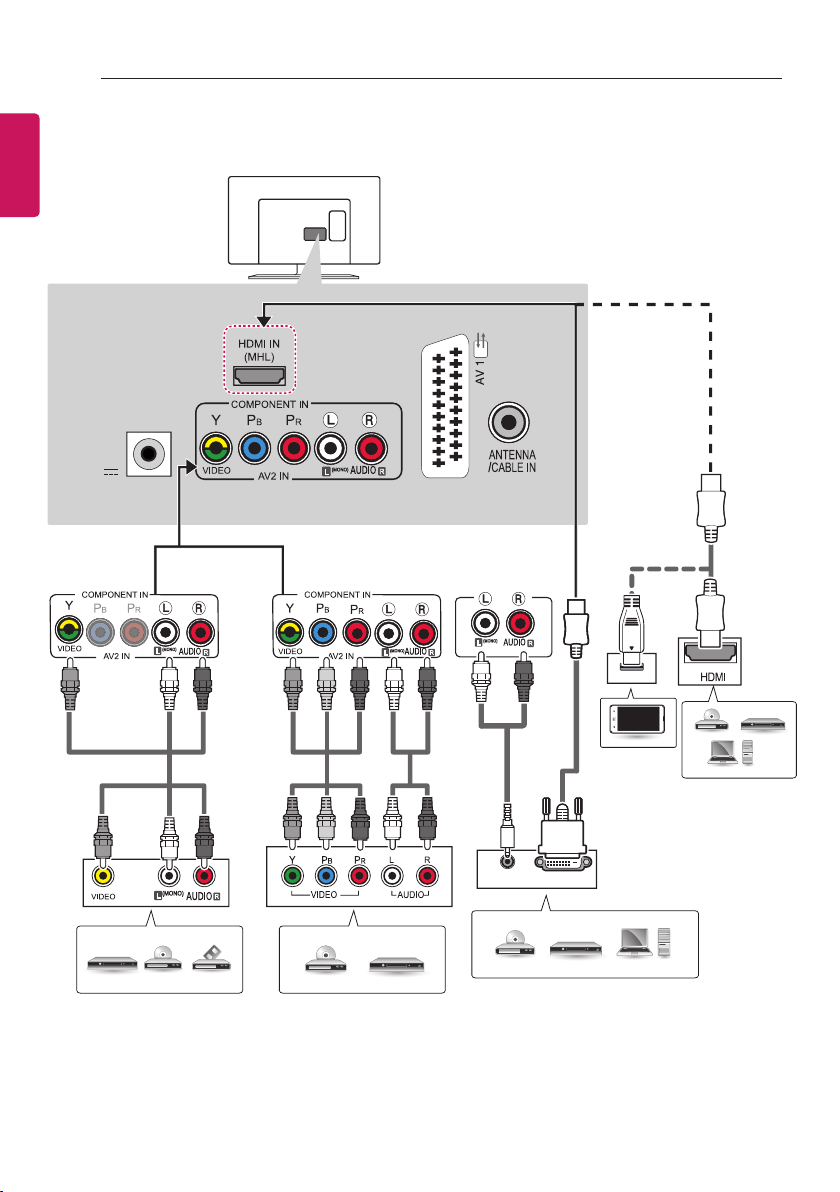

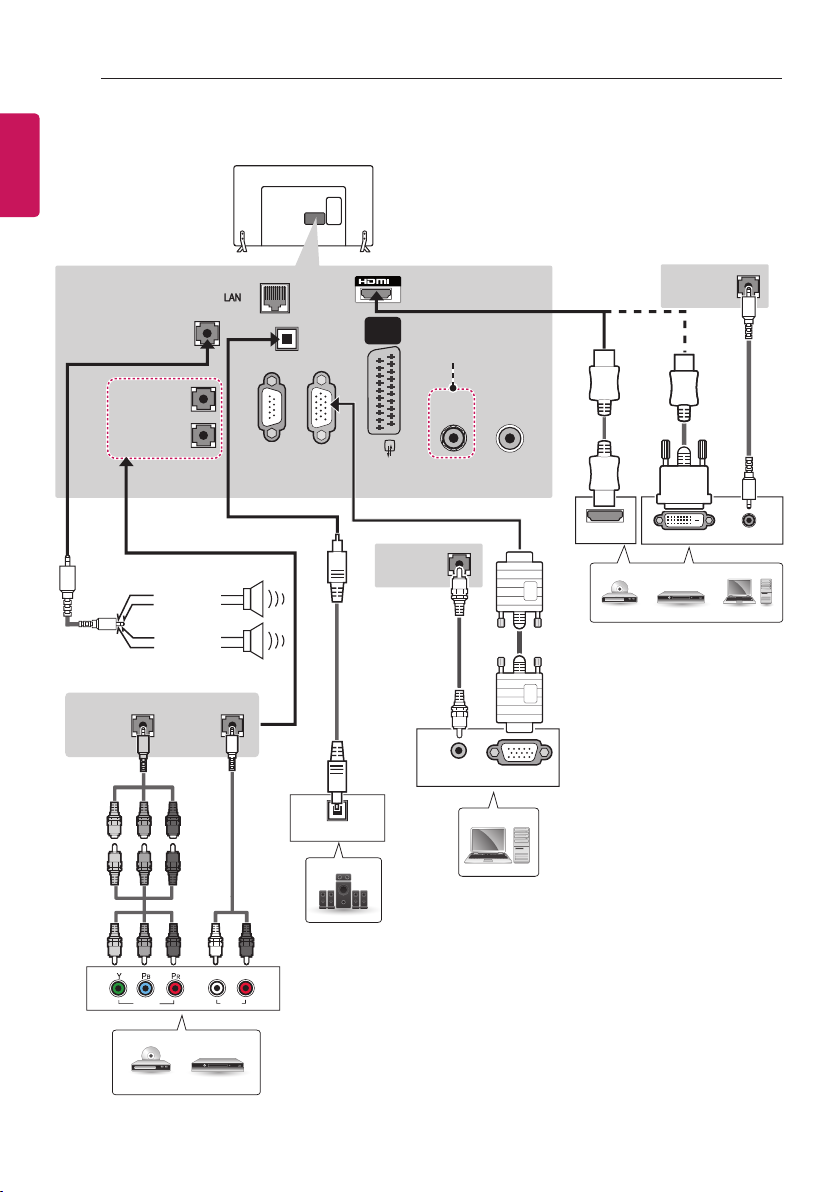

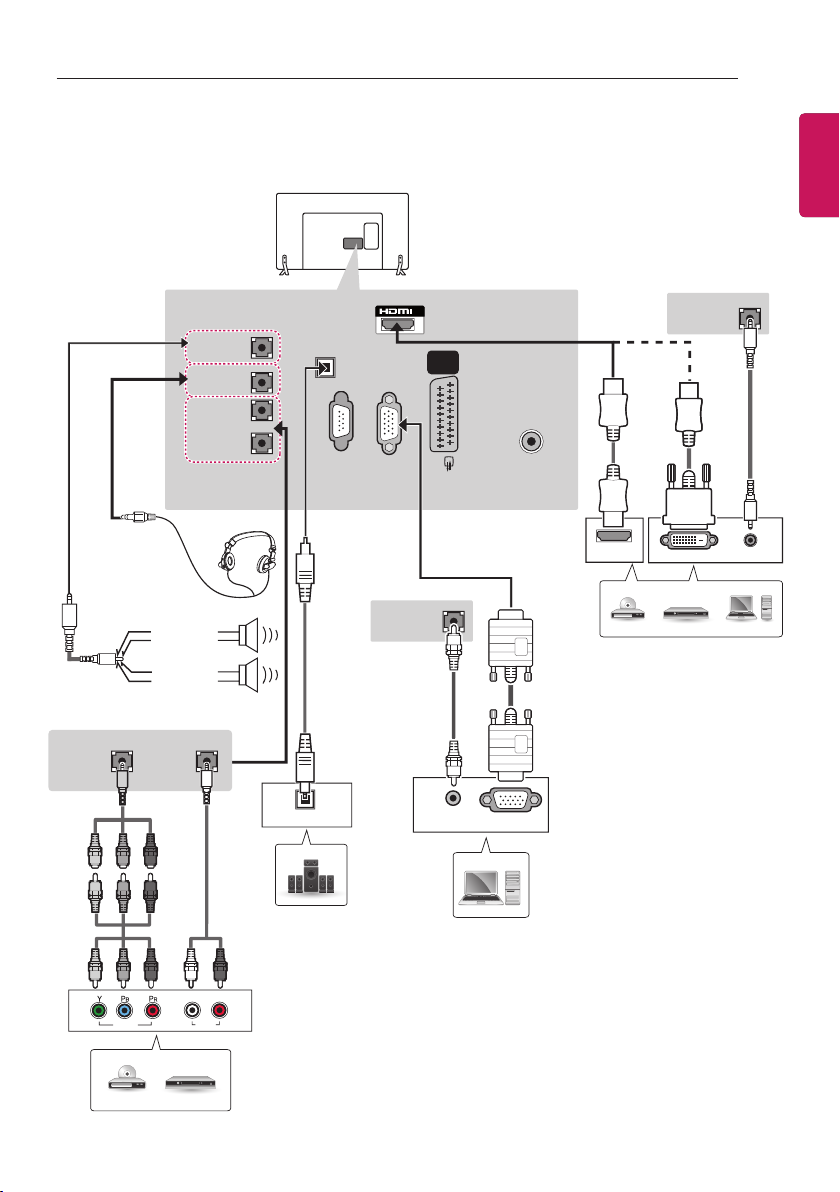

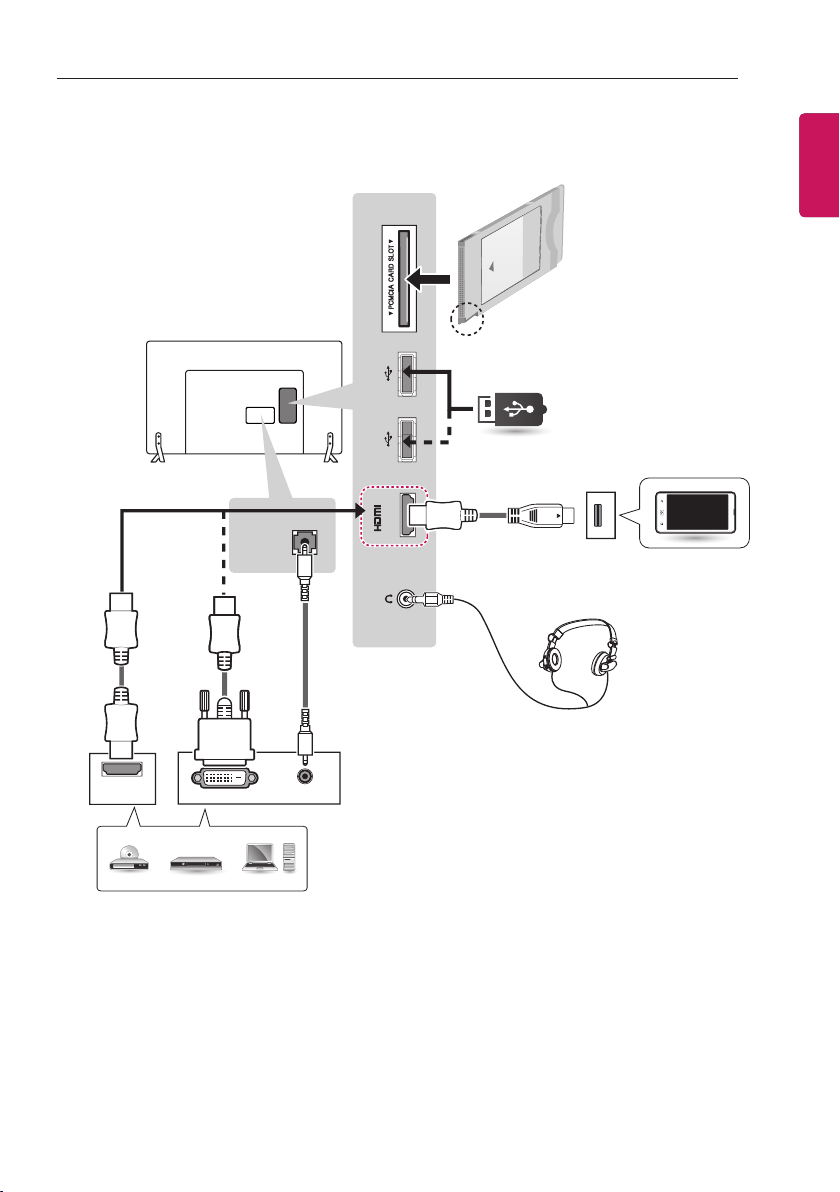

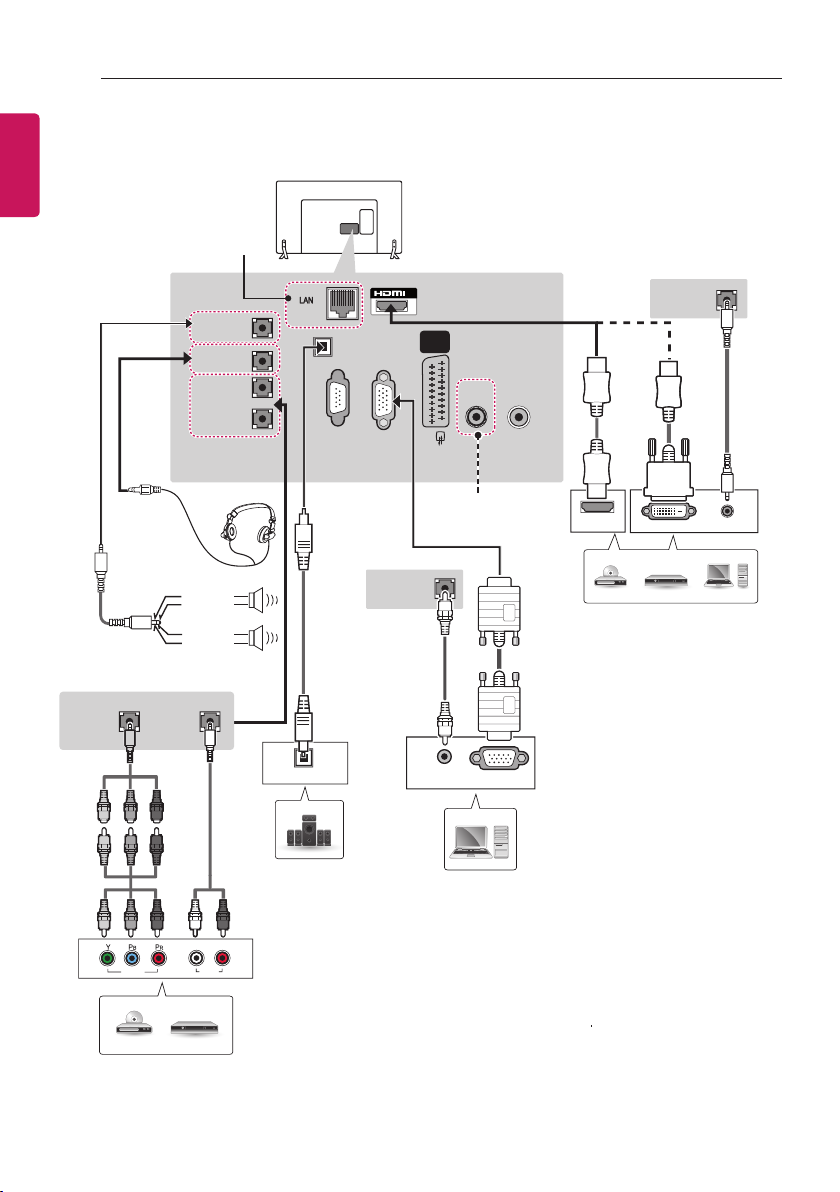

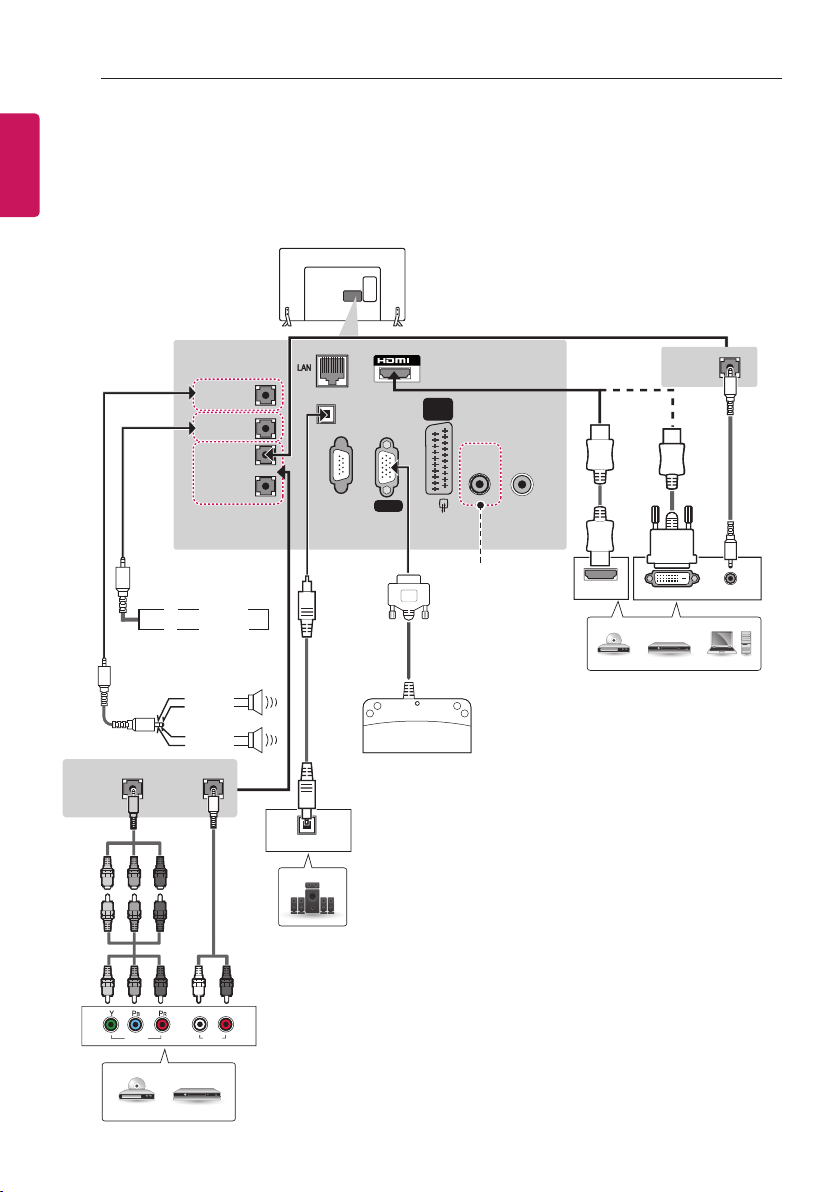

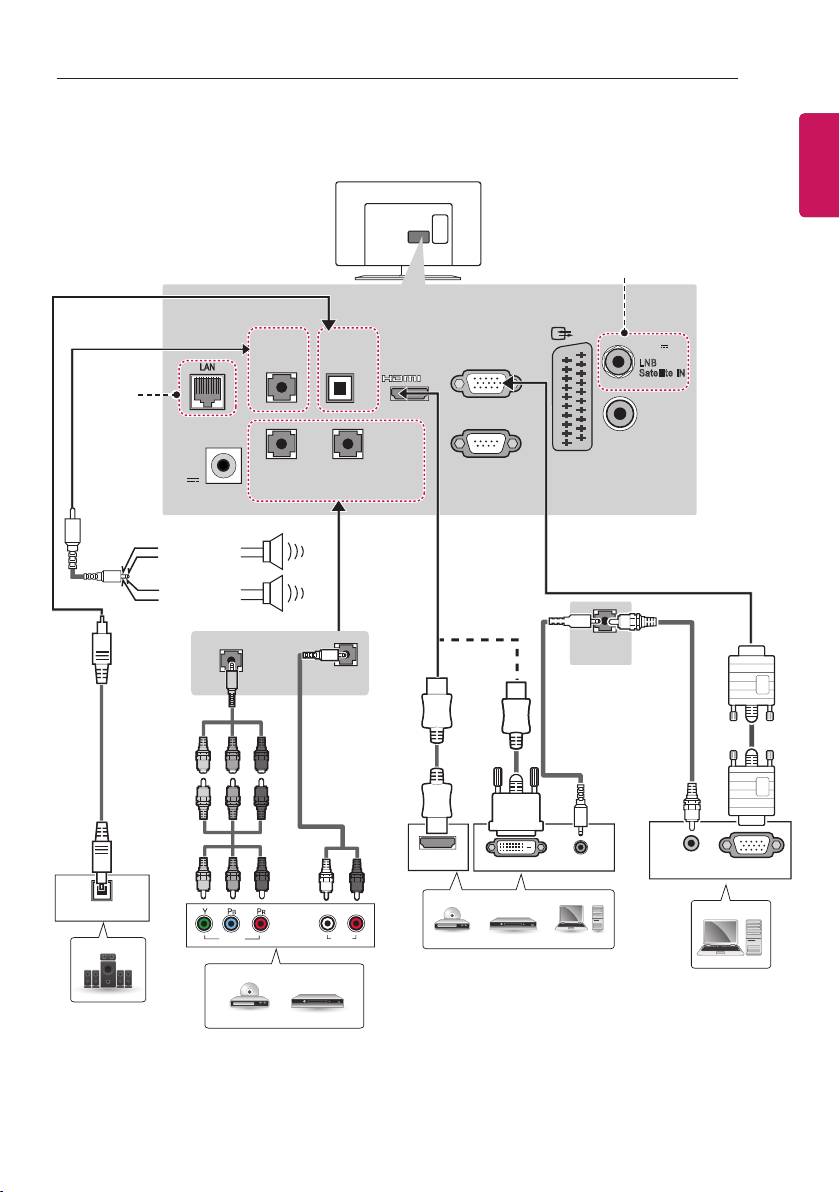

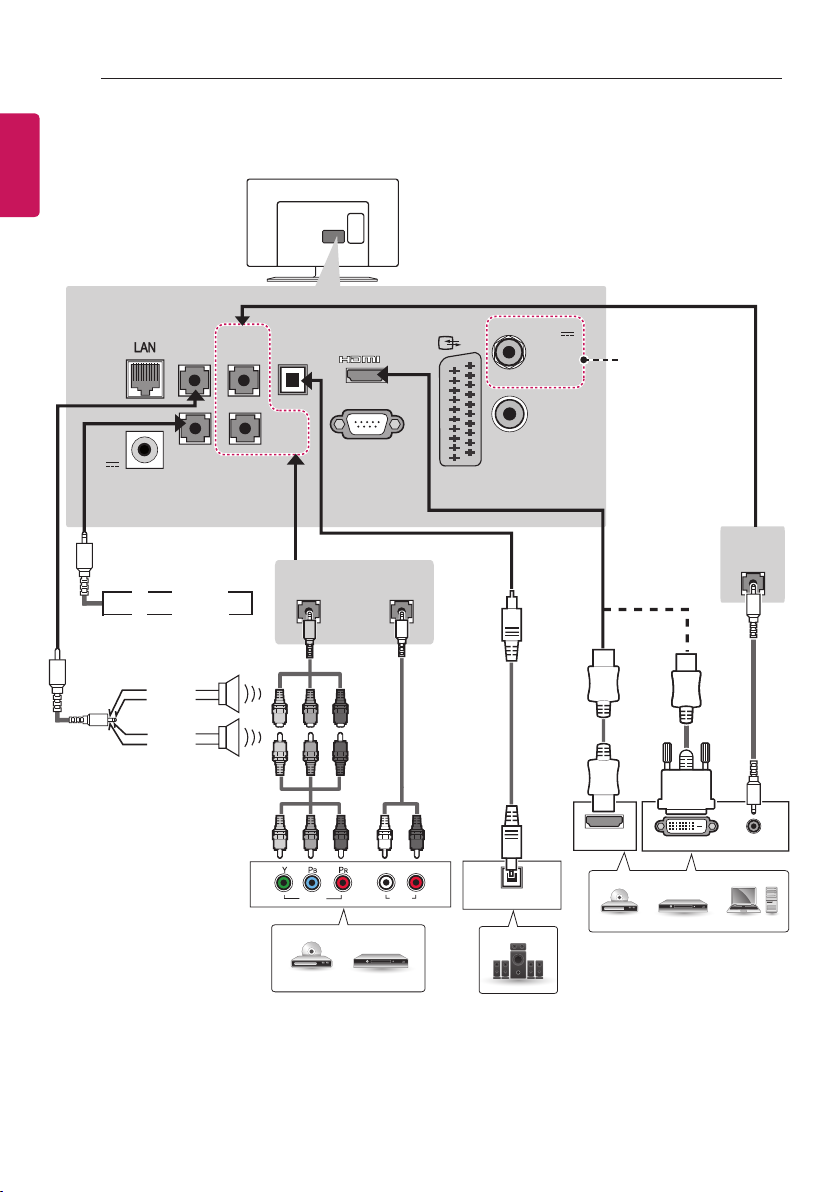

18Other Connections

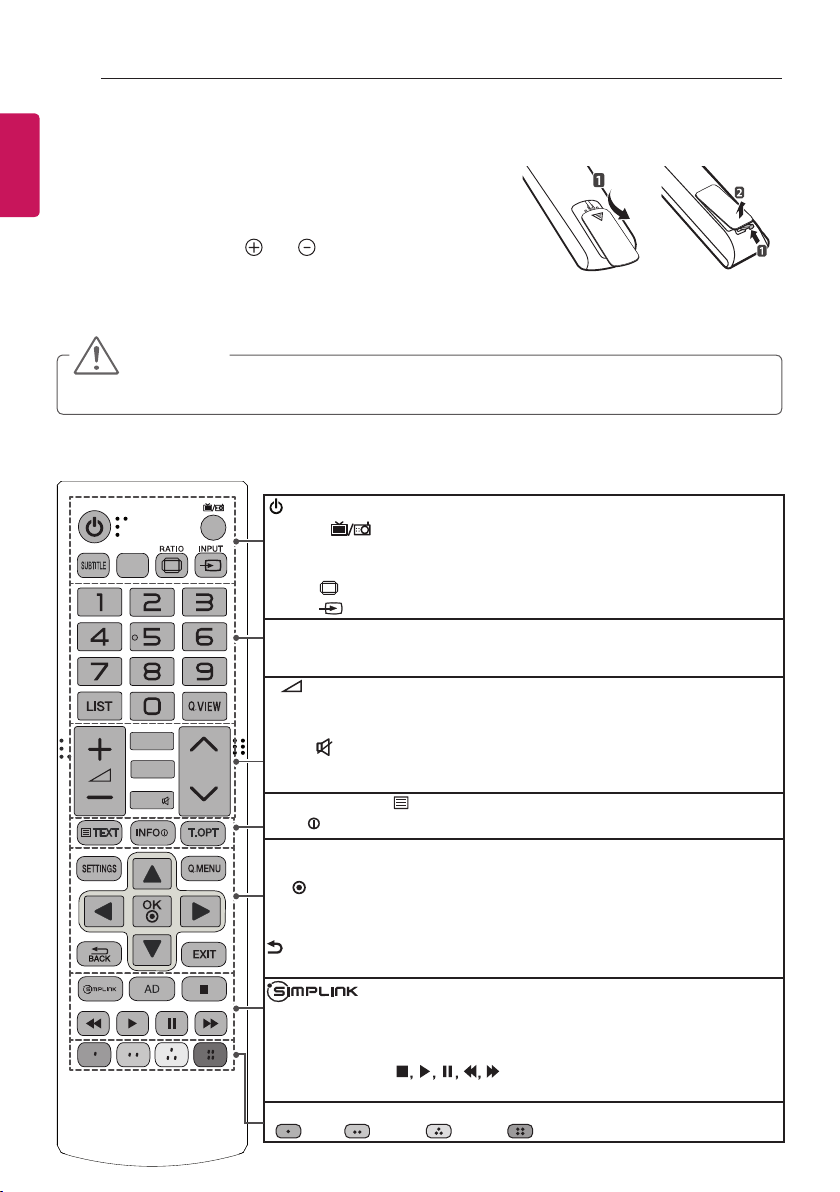

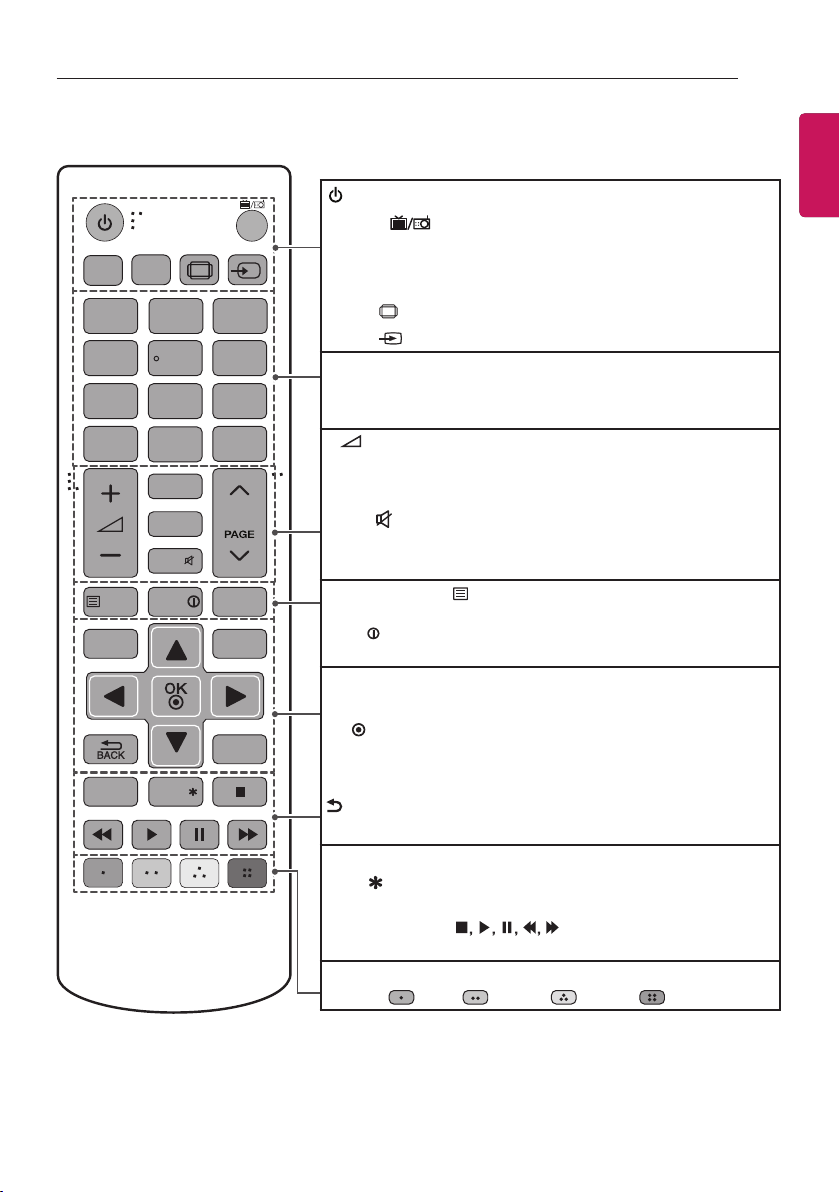

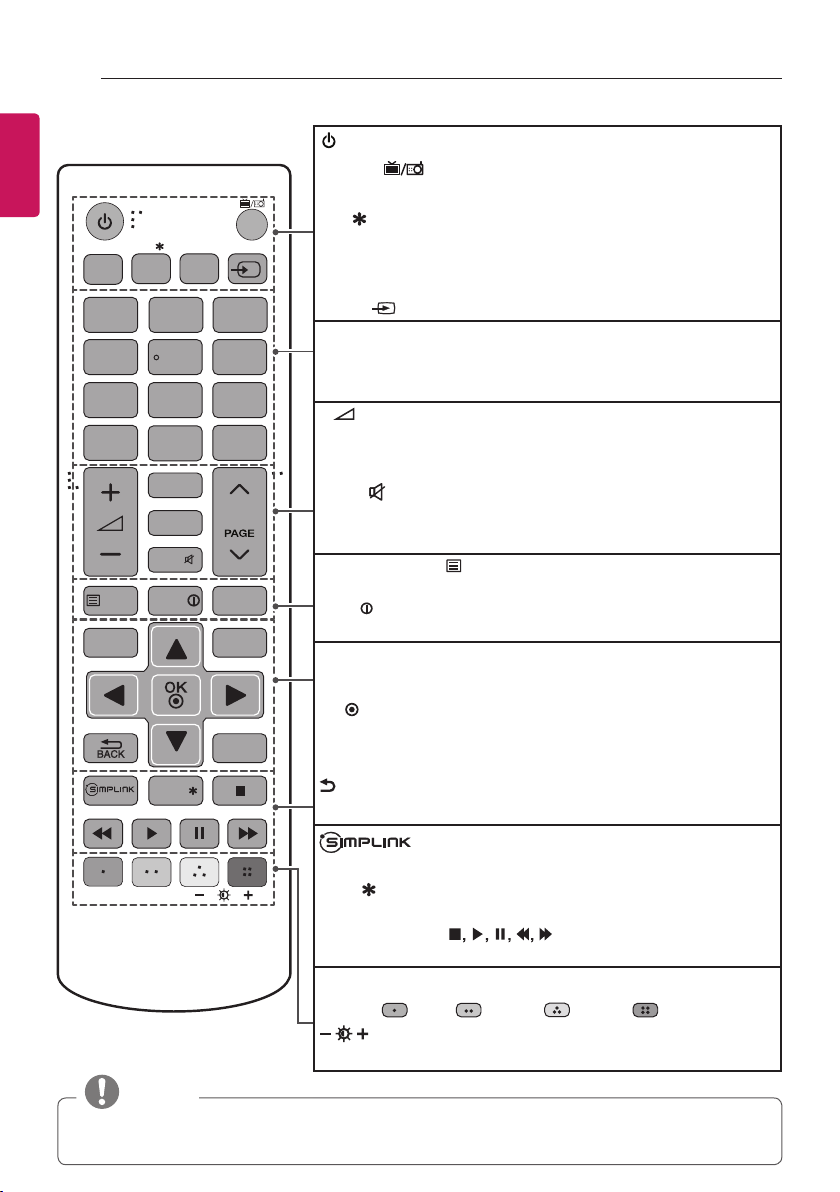

32 REMOTE CONTROL
36 MAINTENANCE
36 Cleaning your TV
36- Screen, frame, cabinet and stand
36- Power cord
37TROUBLESHOOTING

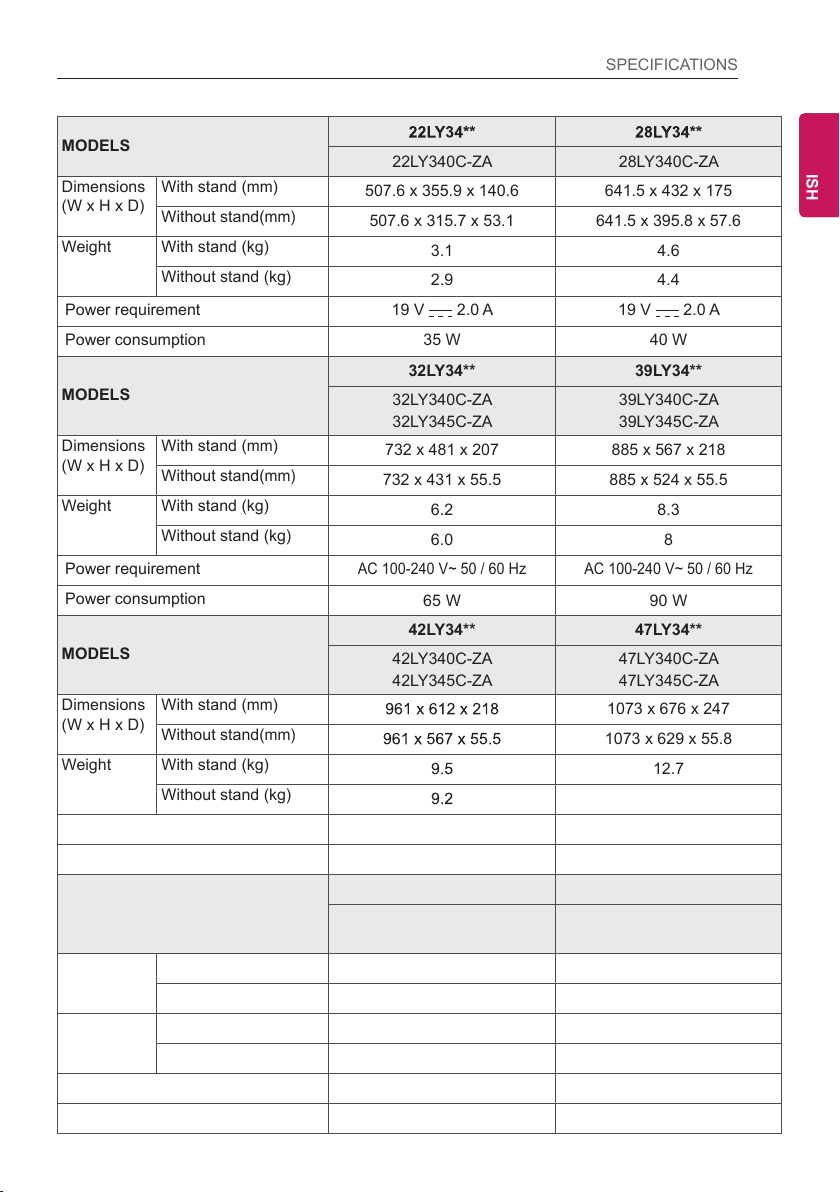

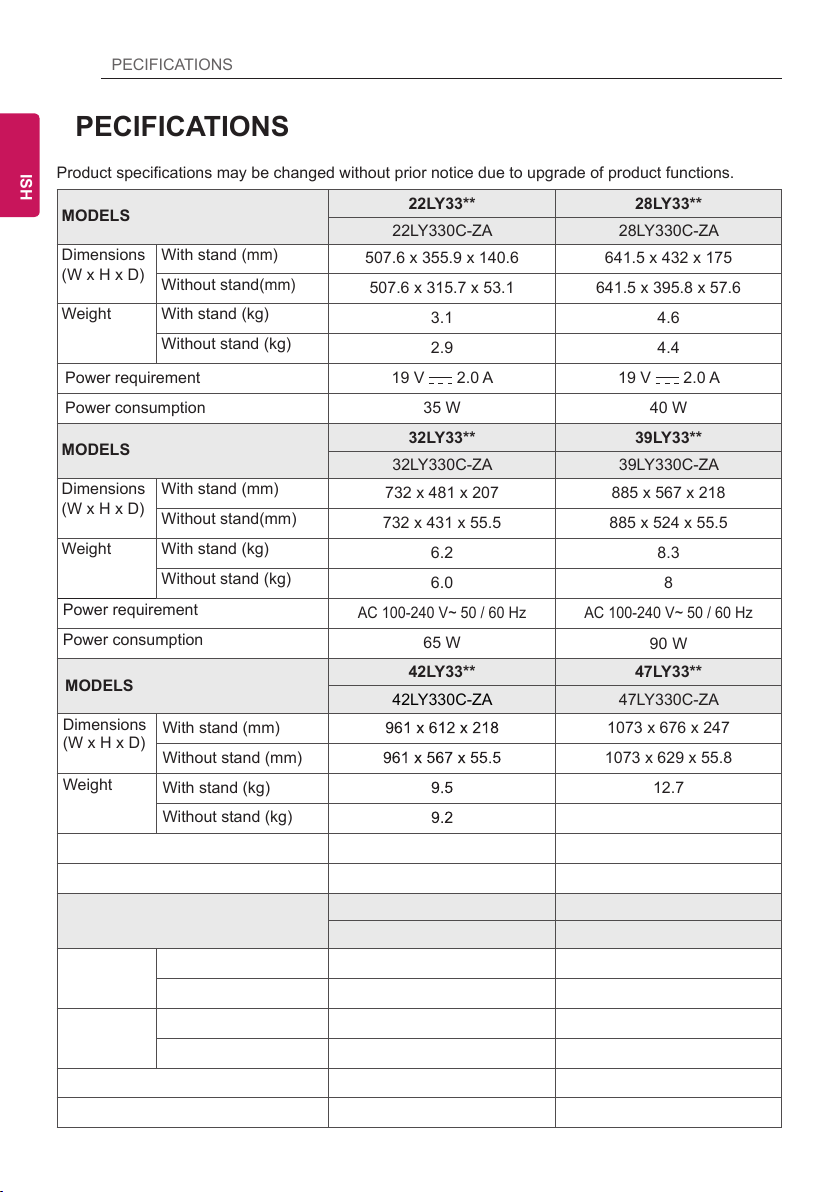

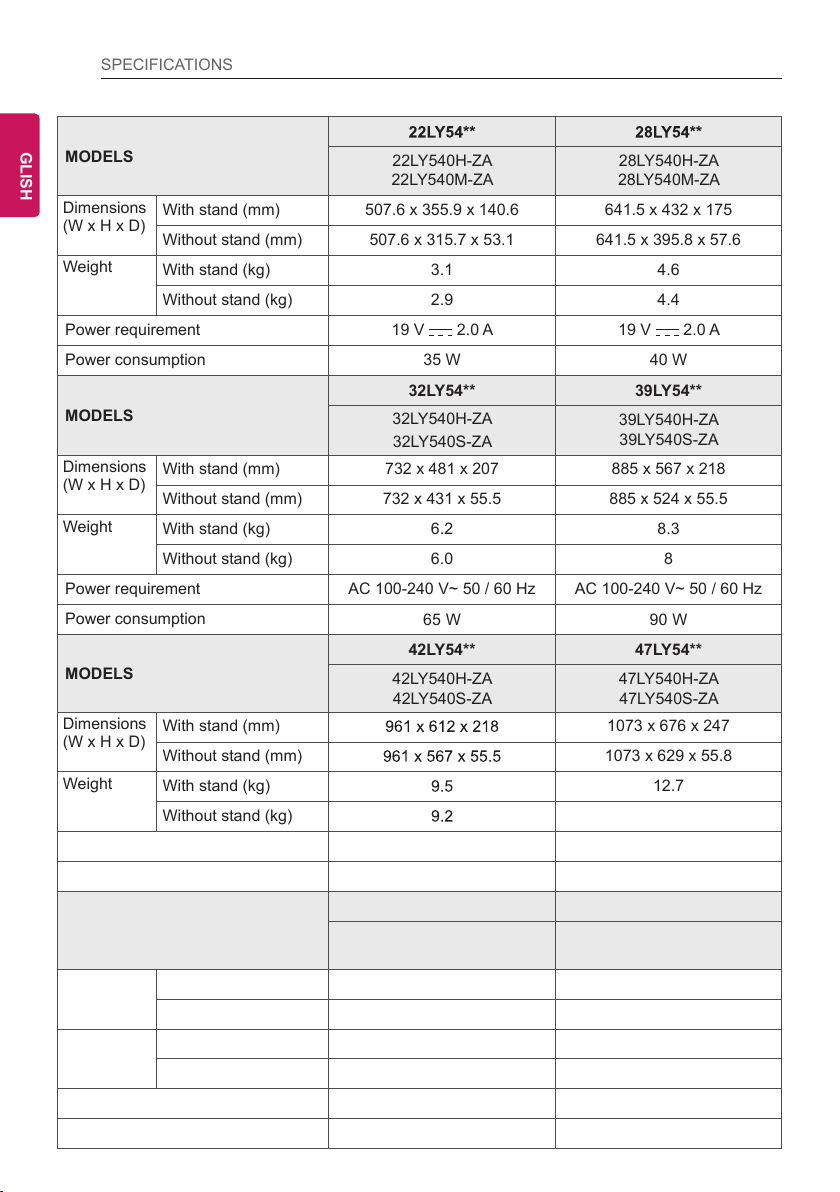

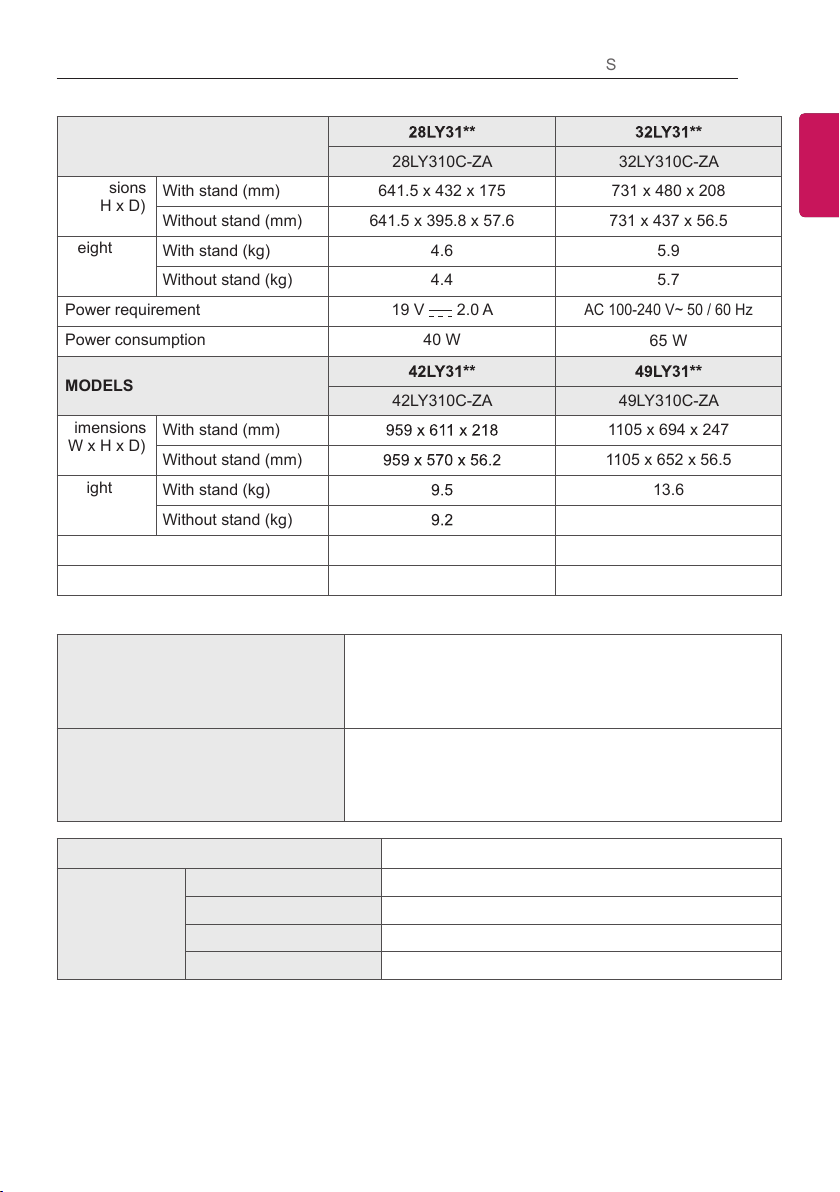

38SPECIFICATIONS
44IR CODES
45EXTERNAL CONTROL DEVICE SETUP

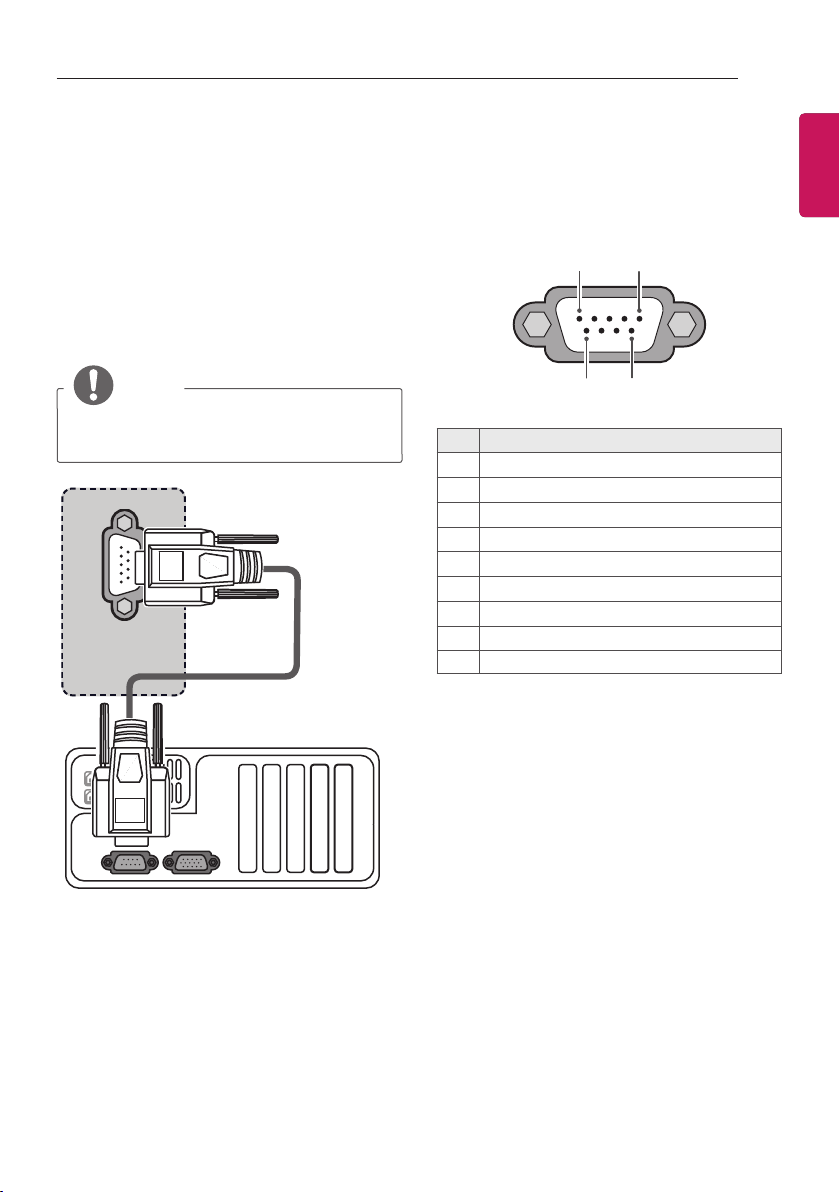

45RS-232C Setup
45Type of Connector: D-Sub 9-Pin Male

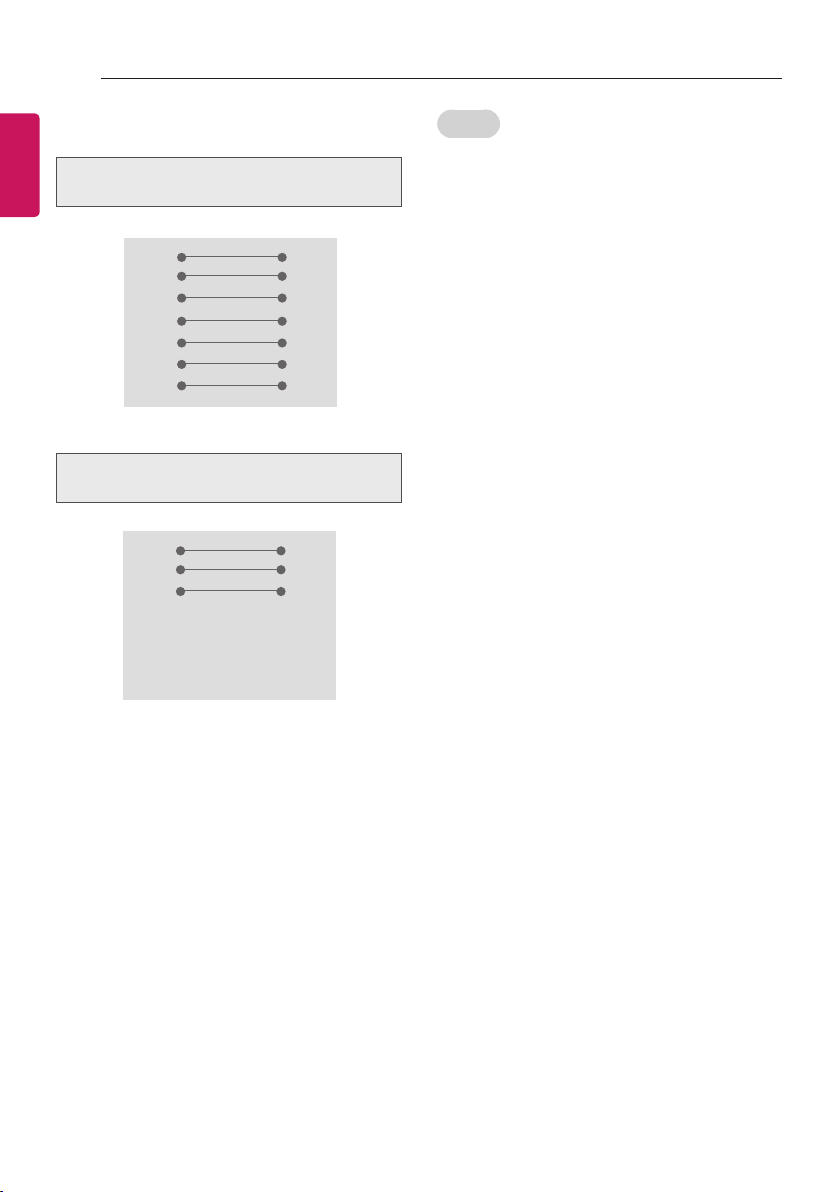

46RS-232C Configurations
47Communication Parameters
47Command Reference List
48Transmission / Receiving Protocol
WARNING
yy If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
yy If you ignore the caution message, you may be slightly injured or the product may be damaged.
NOTE
yy The note helps you understand and use the product safely. Please read the note carefully before using the product.
LICENSES / OPEN SOURCE SOFTWARE NOTICE 3
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in
your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
<![endif]>ENGLISH
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
4 ASSEMBLING AND PREPARING
<![endif]>ENGLISH
NOTE
yy Image shown may differ from your TV.
yy Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yy The available menus and options may differ from the input source or product model that you are using.
yy New features may be added to this TV in the future.
yy The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
yy The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
yy Do not use any unapproved items to ensure the safety and product life span.
yy Any damages or injuries by using unapproved items are not covered by the warranty. yy Some models have a thin film attached on to the screen and this must not be removed.

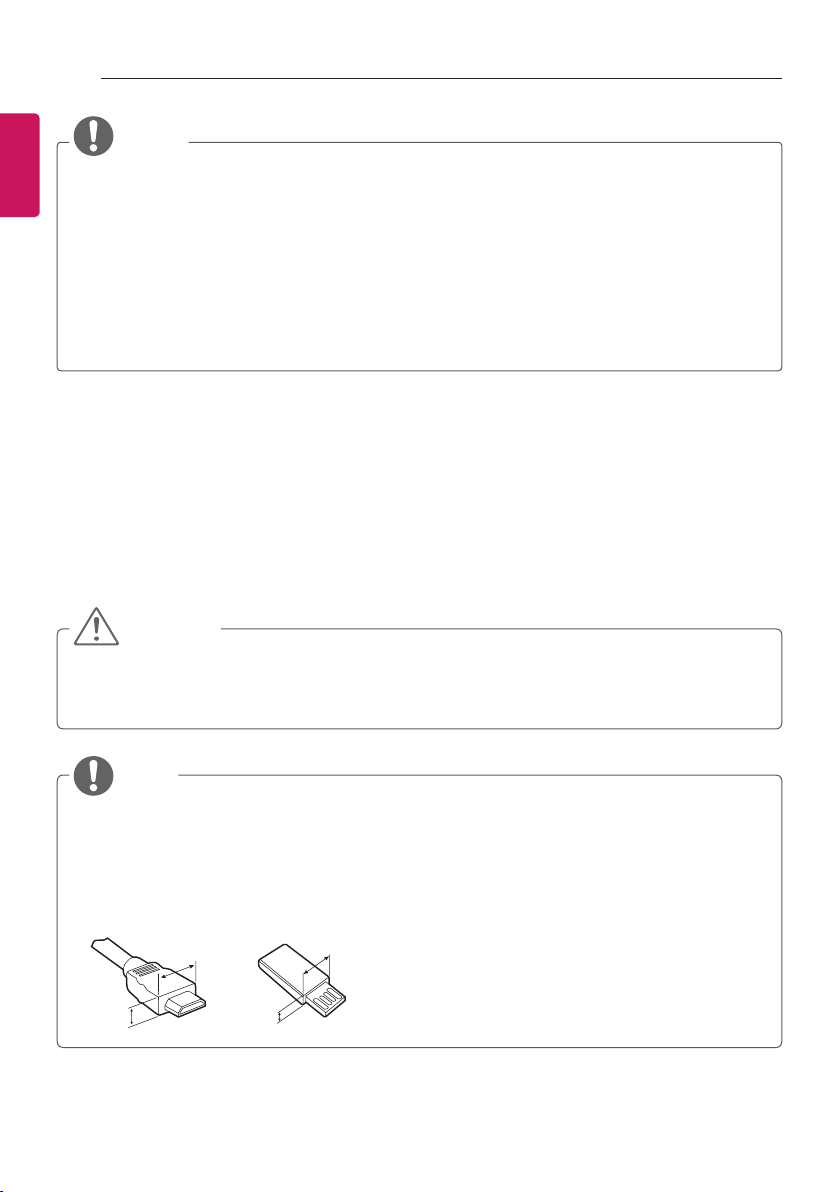

NOTE
yy The items supplied with your product may vary depending on the model.
yy Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
yy For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
|
B |
B |
|
|
< |
10 mm |
|
|
|
||
|
|
*A = |
|
A |
A |
< |
18 mm |
*B = |
ASSEMBLING AND PREPARING |
5 |

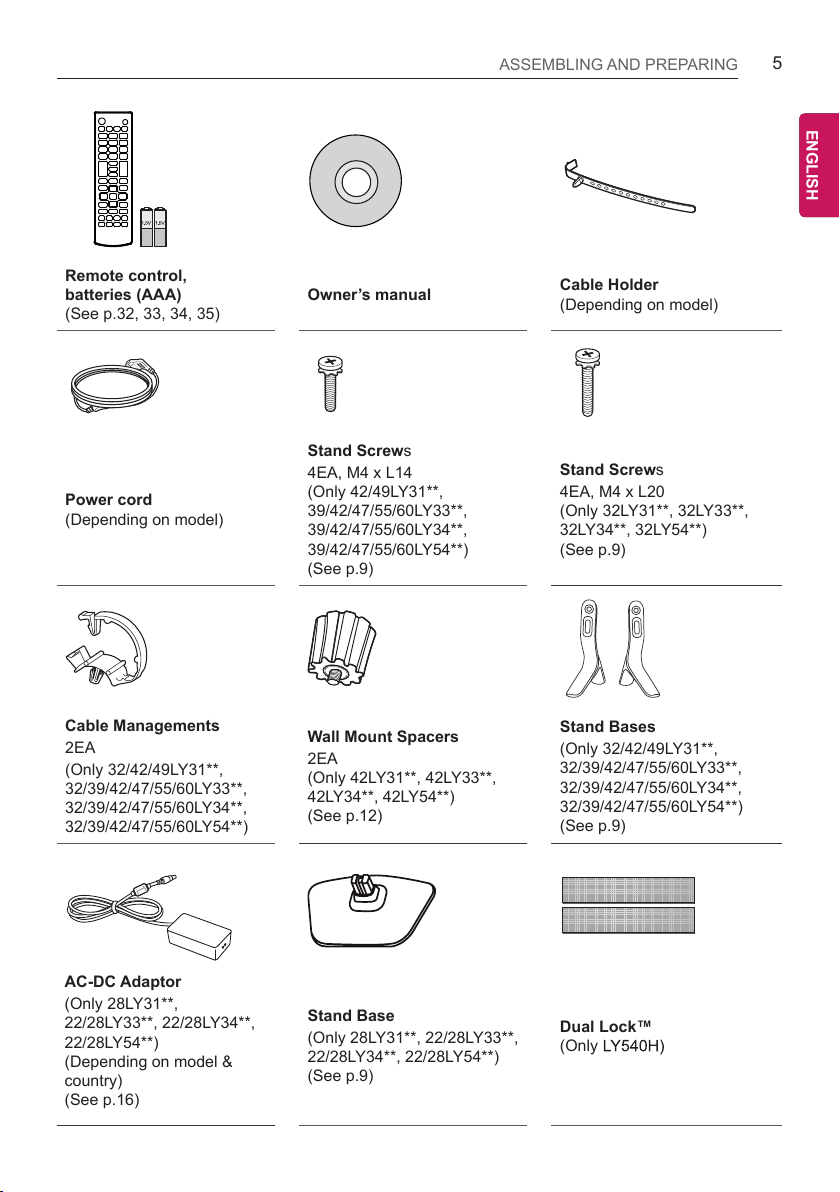

Remote control, batteries (AAA)
(See p.32, 33, 34, 35)
Power cord
(Depending on model)
Cable Managements
2EA
(Only 32/42/49LY31**,
32/39/42/47/55/60LY33**,
32/39/42/47/55/60LY34**,
32/39/42/47/55/60LY54**)
AC-DC Adaptor
(Only 28LY31**, 22/28LY33**, 22/28LY34**, 22/28LY54**)
(Depending on model & country)
(See p.16)
Owner’s manual
Stand Screws
4EA, M4 x L14 (Only 42/49LY31**,
39/42/47/55/60LY33**,
39/42/47/55/60LY34**,
39/42/47/55/60LY54**) (See p.9)
Wall Mount Spacers
2EA
(Only 42LY31**, 42LY33**, 42LY34**, 42LY54**)
(See p.12)
Stand Base
(Only 28LY31**, 22/28LY33**, 22/28LY34**, 22/28LY54**) (See p.9)
<![endif]>ENGLISH
Cable Holder
(Depending on model)
Stand Screws
4EA, M4 x L20
(Only 32LY31**, 32LY33**, 32LY34**, 32LY54**) (See p.9)
Stand Bases
(Only 32/42/49LY31**,
32/39/42/47/55/60LY33**,
32/39/42/47/55/60LY34**,
32/39/42/47/55/60LY54**)
(See p.9)

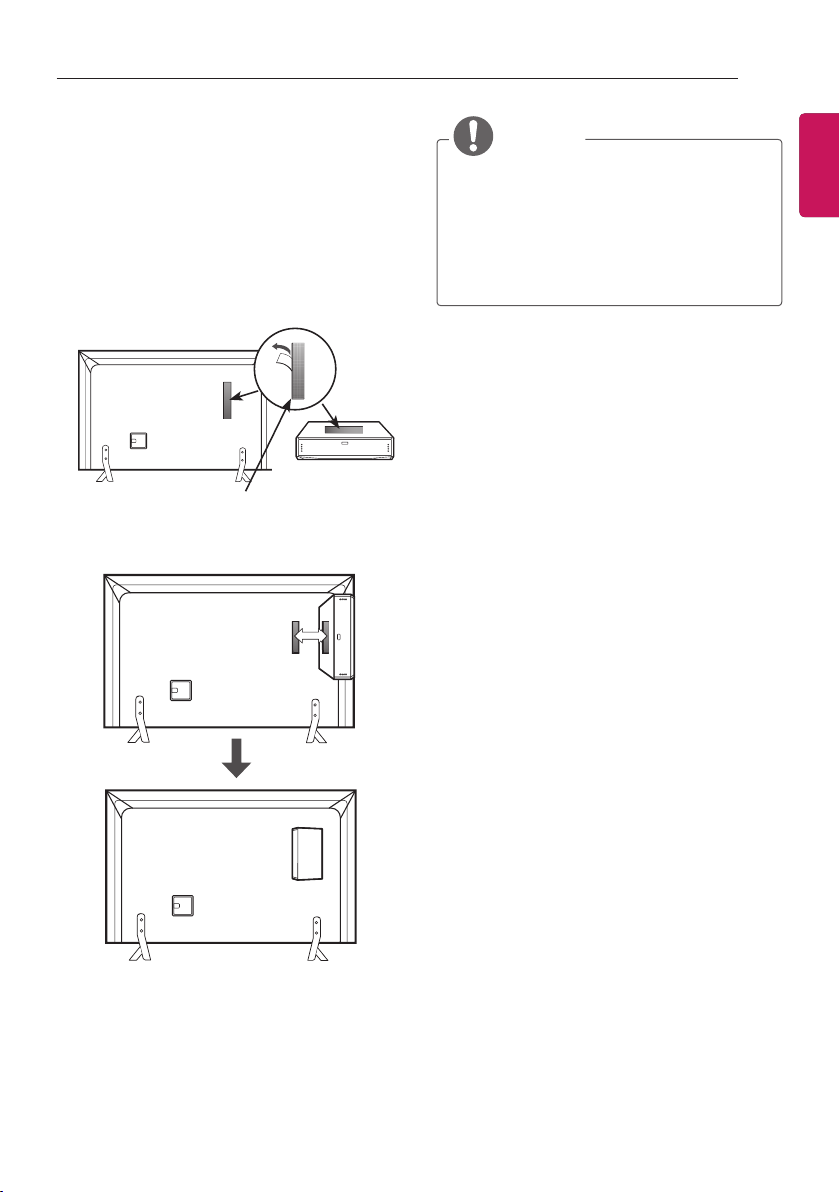

Dual Lock™
(Only LY540H) (See p.13)
6 ASSEMBLING AND PREPARING
<![endif]>ENGLISH
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items. These devices only work with certain models.
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.
LG Audio Device |
|
LED Clock |
|
|
LEC-003 |
|
|
(Only 32/39/42/47/55/60LY540H) |
|
|
|

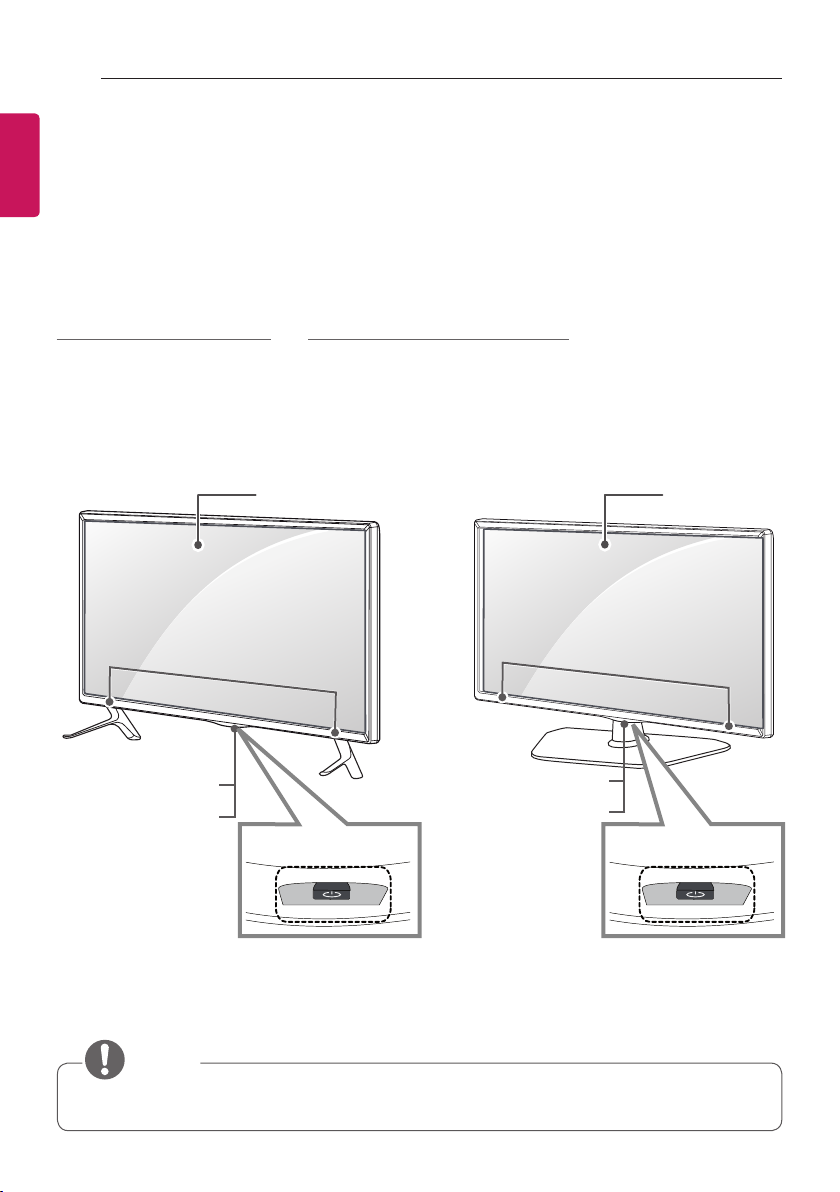

A type : 32/42/49LY31**, 32/39/42/47/55/60LY33**, |
B type : 28LY31**, 22/28LY33**, |
||||
32/39/42/47/55/60LY34**, 32/39/42/47/55/60LY54** |
22/28LY34**, 22/28LY54** |
||||
|
|
Screen |
|
|
Screen |
|
|
|
|
||
|
|
|
|
|
|
Speakers |
Speakers |
Remote control |
Remote control |
and intelligent sensors1 |
and intelligent sensors1 |
Power Indicator |
Power Indicator |
Joystick Button2 |
Joystick Button2 |
1Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2Joystick Button - This button is located below the TV screen.
NOTE
y y You can set the power indicator light to on or off by selecting OPTION in the main menus.
ASSEMBLING AND PREPARING |
7 |

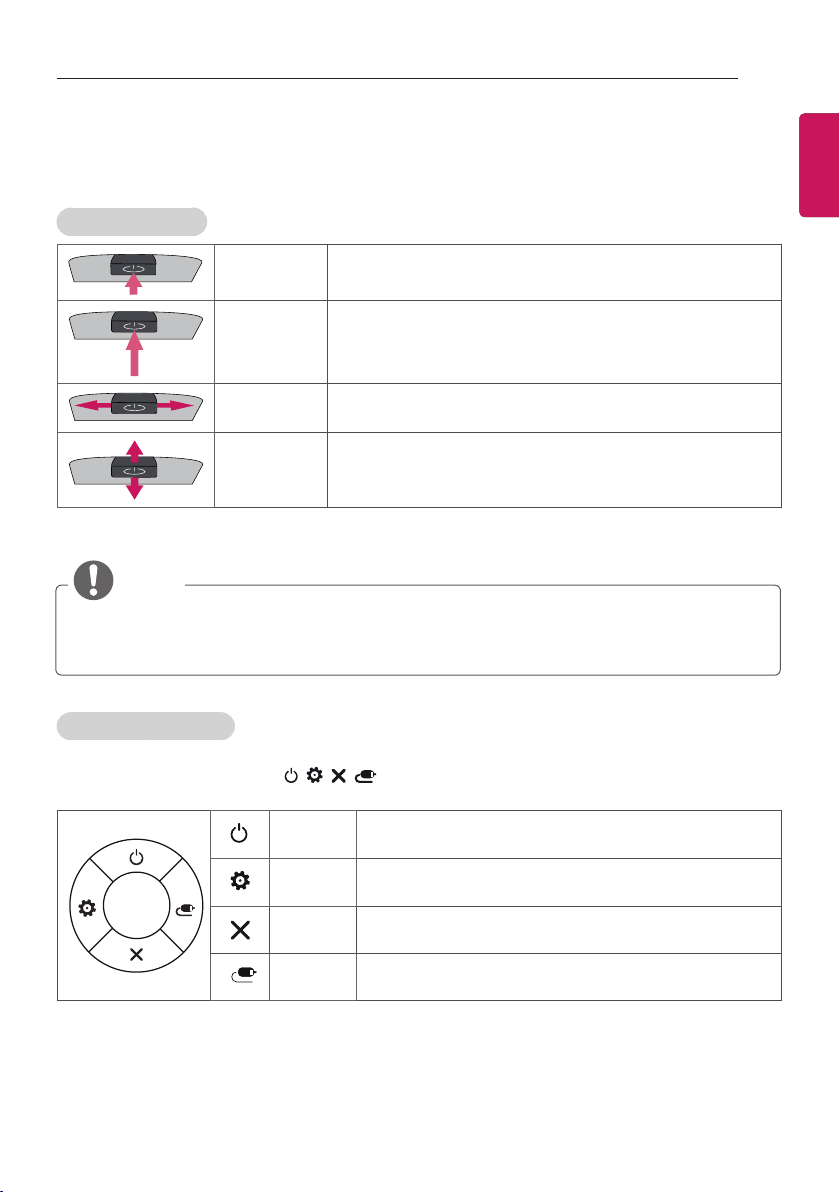

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.
Basic Functions
Power On
Power Off
Volume
Control
Programmes
Control
When the TV is turned off, place your finger on the joystick button and press it once and release it.
When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.
NOTE
yy When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button first, you can not adjust the volume level and saved programmes.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items (, , ,) moving the joystick button up, down, left or right.
TV Off Turns the power off.
Settings Accesses the main menu.
Close Clears on-screen displays and returns to TV viewing.
Input List Changes the input source.
<![endif]>ENGLISH
8 ASSEMBLING AND PREPARING
<![endif]>ENGLISH

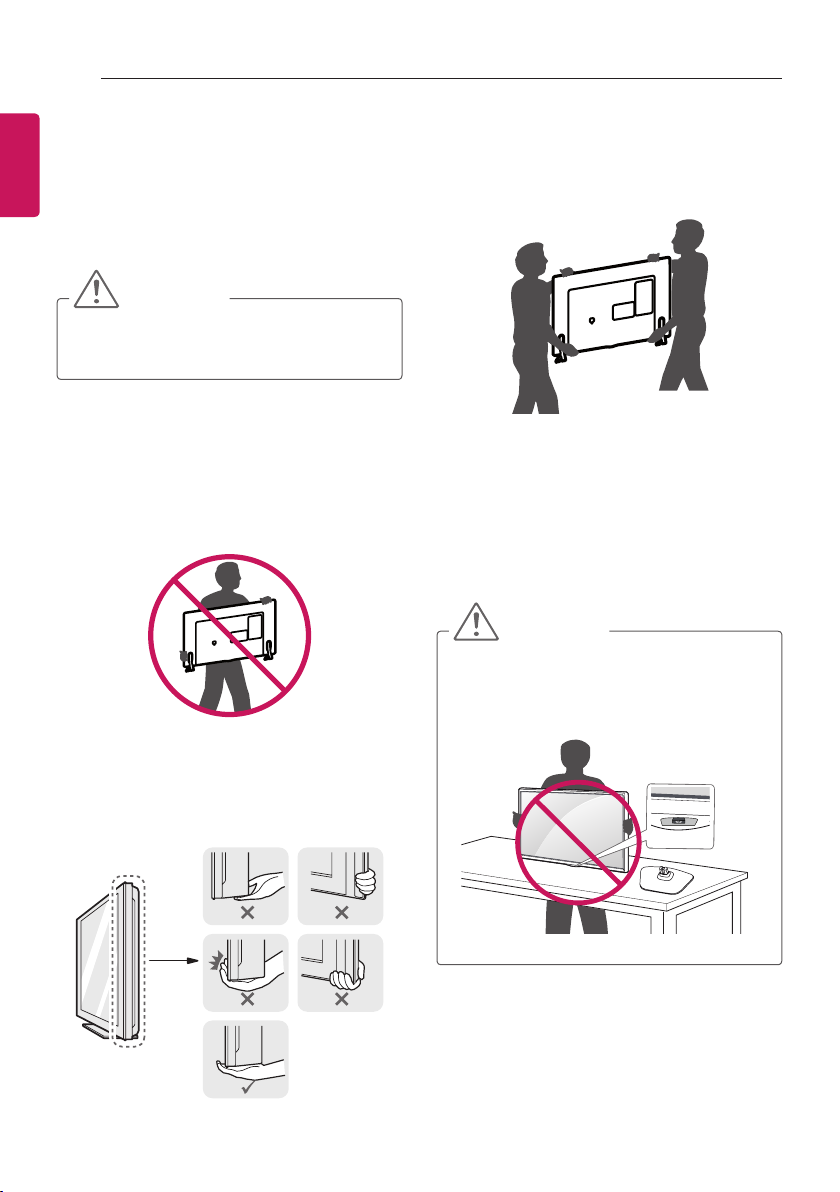

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
CAUTION
yy Avoid touching the screen at all times, as this may result in damage to the screen.
yy It is recommended to move the TV in the box or packing material that the TV originally came in.
yy Before moving or lifting the TV, disconnect the power cord and all cables.
yy When holding the TV, the screen should face away from you to avoid damage.
yy Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.
yy When transporting a large TV, there should be at least 2 people.
yy When transporting the TV by hand, hold the TV as shown in the following illustration.
yy When transporting the TV, do not expose the
TV to jolts or excessive vibration.
yy When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
yy Do not apply excessive pressure to cause flexing /bending of frame chassis as it may damage screen.
CAUTION
yy When handling the TV, be careful not to damage the protruding joystick button.
(Depending on model)
|
ASSEMBLING AND PREPARING |
9 |
Setting up the TV |
(Only 28LY31**, 22/28LY33**, 22/28LY34**, |
|
|
22/28LY54**) |
|
Image shown may differ from your TV. |
1 |
|

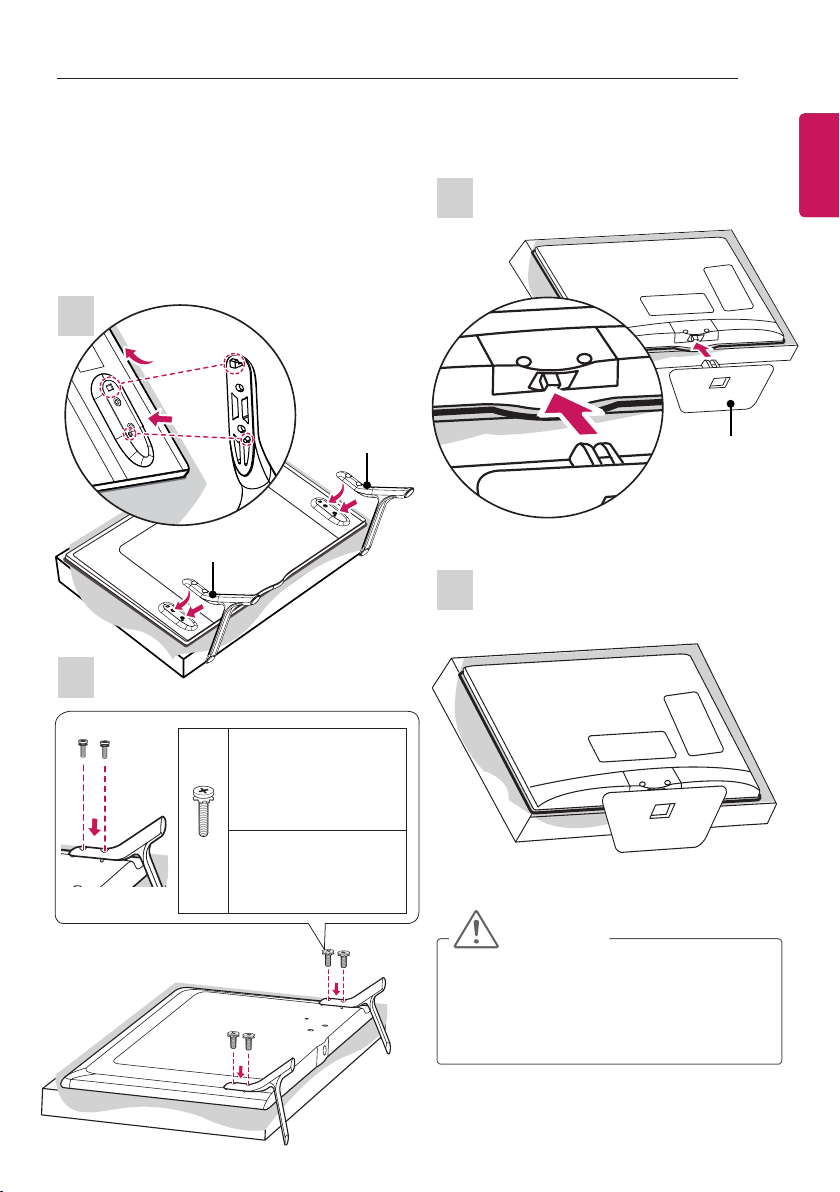

Attaching the stand |
||
|
||
(Only 32/42/49LY31**, 32/39/42/47/55/60LY33**, |
|
|
32/39/42/47/55/60LY34**, 32/39/42/47/55/60LY54**) |
|
<![endif]>ENGLISH
2
A Stand Base
B Stand Base
2
|
M4 x L14 |
|
(Only 42/49LY31**, |
|
39/42/47/55/60LY33**, |
|
39/42/47/55/60LY34**, |
|
39/42/47/55/60LY54**) |
4EA |
M4 x L20 |
|
(Only 32LY31**, |
|
32LY33**, 32LY34**, |
|
32LY54**) |
Stand Base
2
CAUTION
yy When attaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
10 ASSEMBLING AND PREPARING
<![endif]>ENGLISH

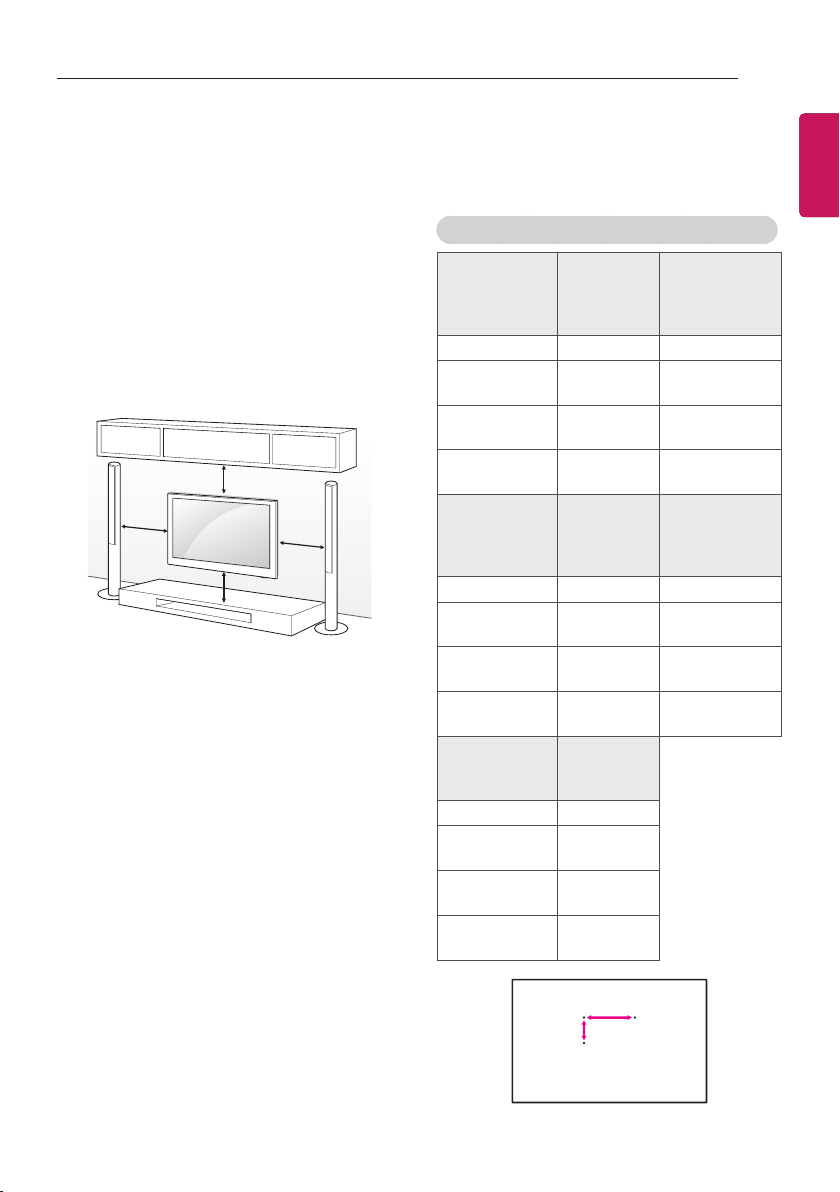

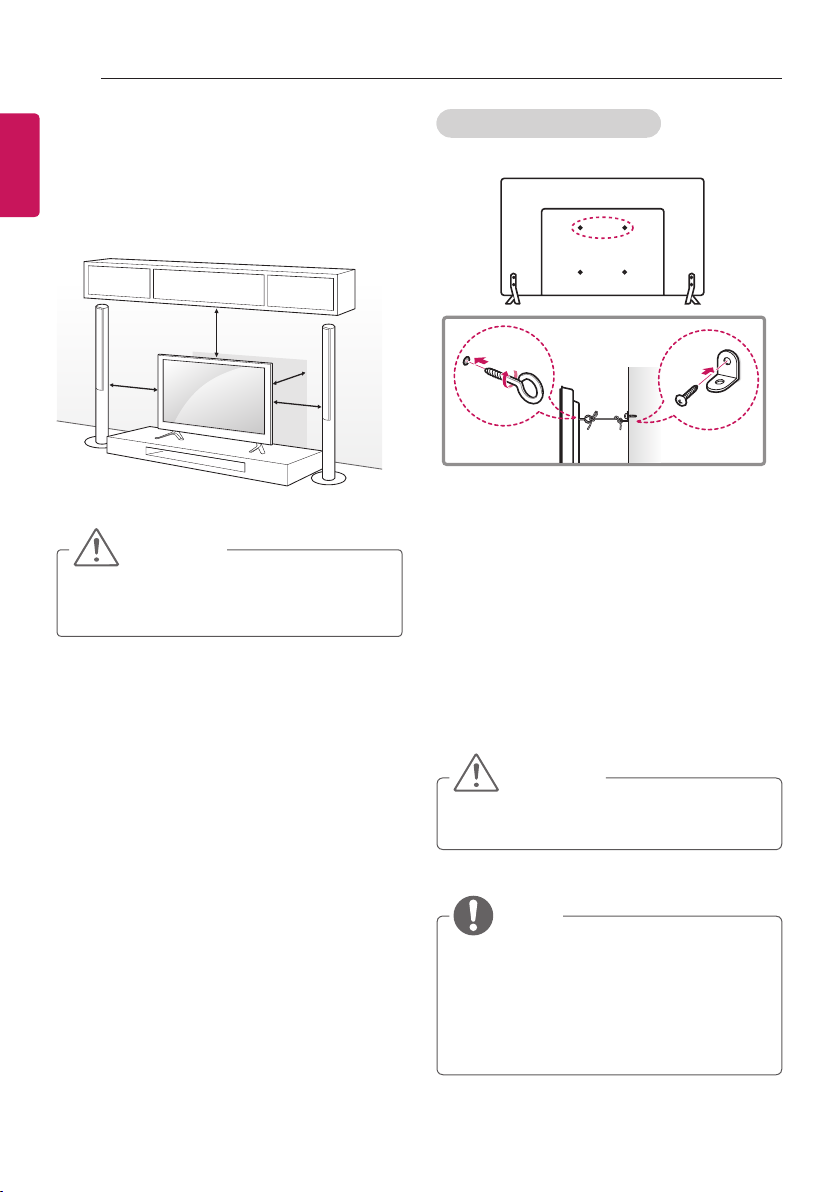

Mounting on a table |
Securing the TV to a wall |
|
(This feature is not available for all models.)
1Lift and tilt the TV into its upright position on a table.
-- Leave a 10 cm (minimum) space from
the wall for proper ventilation.
|
|
10 cm |
10 |
|
cm |
cm |
10 |
|
|
10 cm |
|
|
|
2 Connect the power cord to a wall outlet.
CAUTION
yy Do not place the TV near or on sources of heat, as this may result in fire or other damage.
1Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
-- If there are bolts inserted at the eyebolts position, remove the bolts first.
2Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3Connect the eye-bolts and wall brackets tightly with a sturdy rope.
Make sure to keep the rope horizontal with the flat surface.
CAUTION
yy Make sure that children do not climb on or hang on the TV.
NOTE
yy Use a platform or cabinet that is strong and large enough to support the TV securely.
yy Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket.
When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
|
10 cm |
10 cm |
10 cm |
|
|
|
10 cm |
ASSEMBLING AND PREPARING 11
Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.
Separate purchase(Wall Mounting Bracket)
|
22LY33** |
28LY31** |
|
Model |
28LY33** |
||
22LY34** |
|||
28LY34** |
|||
|
22LY54** |
||
|
28LY54** |
||
|
|
||
|
|
|
|
VESA (A x B) |
75 x 75 |
100 x 100 |
|
Standard |
M4 X L10 |
M4 X L10 |
|
screw |
|||
|
|
||
Number of |
4 |
4 |
|
screws |
|||
|
|
||
Wall mount |
LSW140B |
LSW140B |
|
bracket |
|||
|
|
||
|
32LY31** |
42/49LY31** |
|
Model |
32/39LY33** |
42/47/55LY33** |
|
32/39LY34** |
42/47/55LY34** |
||
|
|||
|
32/39LY54** |
42/47/55LY54** |
|
|
|
|
|
VESA (A x B) |
200 x 200 |
400 x 400 |
|
Standard |
M6 |
M6 |
|
screw |
|||
|
|
||
Number of |
4 |
4 |
|
screws |
|||
|
|
||
Wall mount |
LSW240B |
LSW440B |
|
bracket |
MSW240 |
MSW240 |
|
Model |
60LY33** |
|
|
60LY34** |
|
||
|
60LY54** |
|
|
VESA (A x B) |
400 x 400 |
|
|
Standard |
M6 |
|
|
screw |
|
||
|
|
||
Number of |
4 |
|
|
screws |
|
||
|
|
||
Wall mount |
LSW440B |
|
|
bracket |
|
||
|
|
||
|
A |
|
|
|
B |
|
<![endif]>ENGLISH
12 ASSEMBLING AND PREPARING
<![endif]>ENGLISH

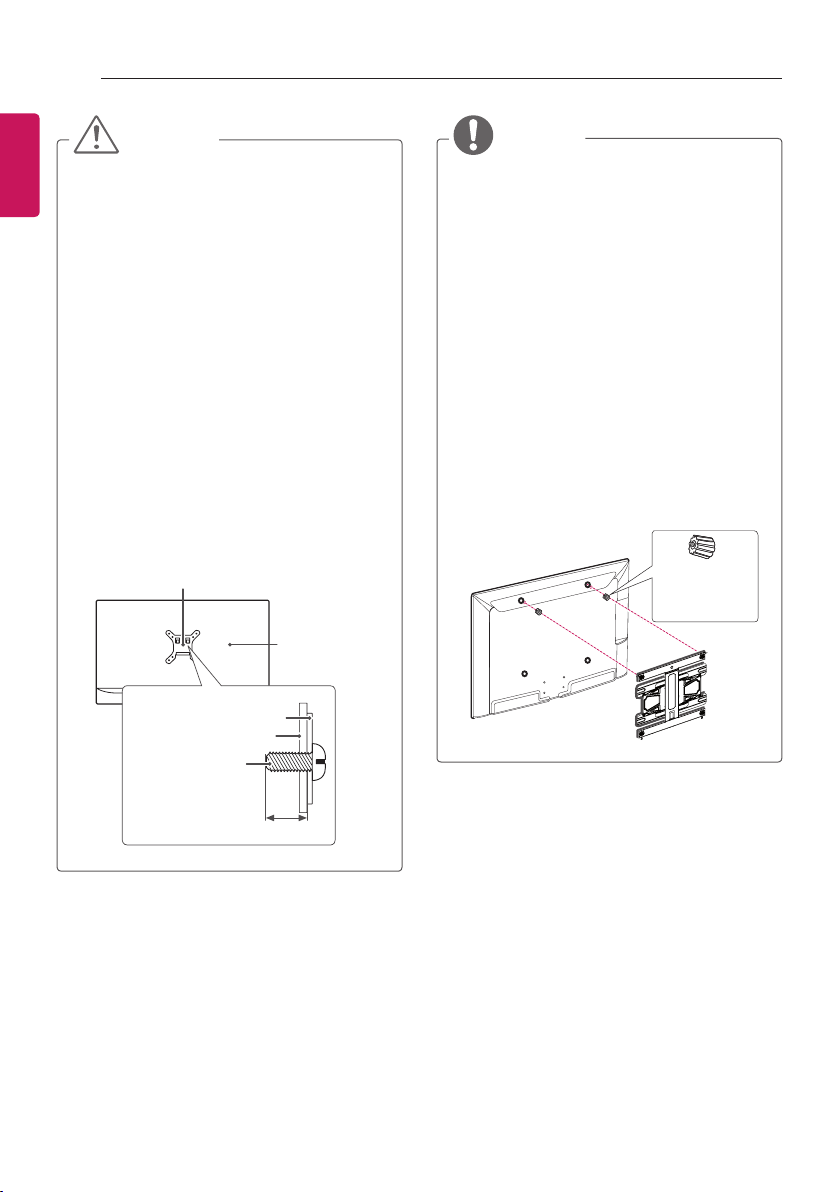

CAUTION
yy Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
yy If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact the local dealer or qualified personnel.
yy Do not over tighten the screws as this may cause damage to the TV and void your warranty.
yy Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.
yy Screw length from outer surface of back cover should be under 8mm.
(Only 28LY31**, 22/28LY33**, 22/28LY34**, 22/28LY54**)
Wall mount Pad
Cover
Wall mount Pad Back Cover
Standard screw
: M4 x L10
Max.8mm
NOTE
yy Use the screws that are listed on the VESA standard screw specifications.
yy The wall mount kit includes an installation manual and necessary parts.
yy The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
yy The length of screws may differ depending on the wall mount. Make sure to use the proper length.
yy For more information, refer to the manual supplied with the wall mount.
yy When attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV.
(Only 42LY31**, 42LY33**, 42LY34**,
42LY54**)
Wall Mount
Spacers
ASSEMBLING AND PREPARING 13
(Only LY540H)
Fix the set-top box to the TV and use it when you want to.
1After removing the protection paper from the Dual Lock, stick it to the TV and the set-top box as shown.
NOTE
yy Please make sure no foreign substances exist on the surface of the product, and then firmly attach the Dual Lock™.
yy Before attaching the set-top box to the TV set, let the attached Dual Lock™ dry for at least three days.
Dual Lock™
2Attach the set-top box to the TV by pressing the Velcro strips together.
<![endif]>ENGLISH
<![endif]>ENGLISH
14 MAKING CONNECTIONS
yy Image shown may differ from your TV. yy Any separate cable is not provided.

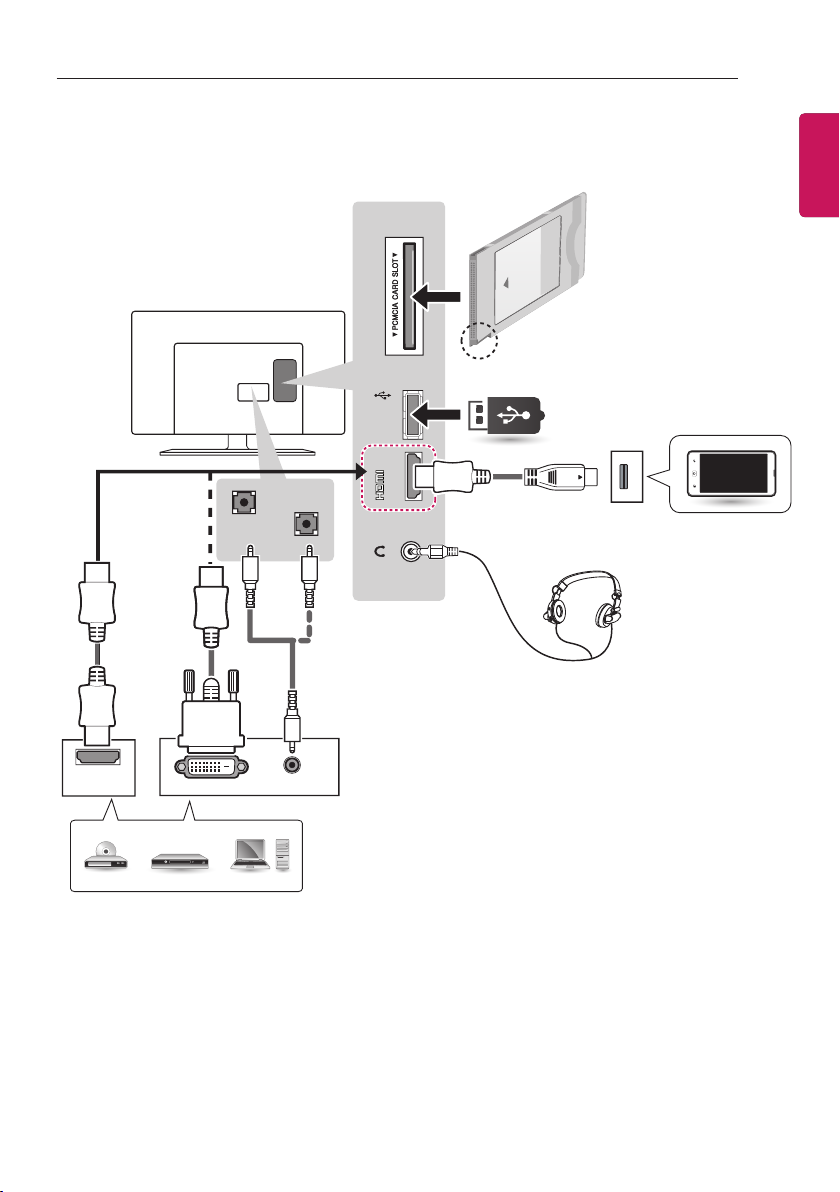

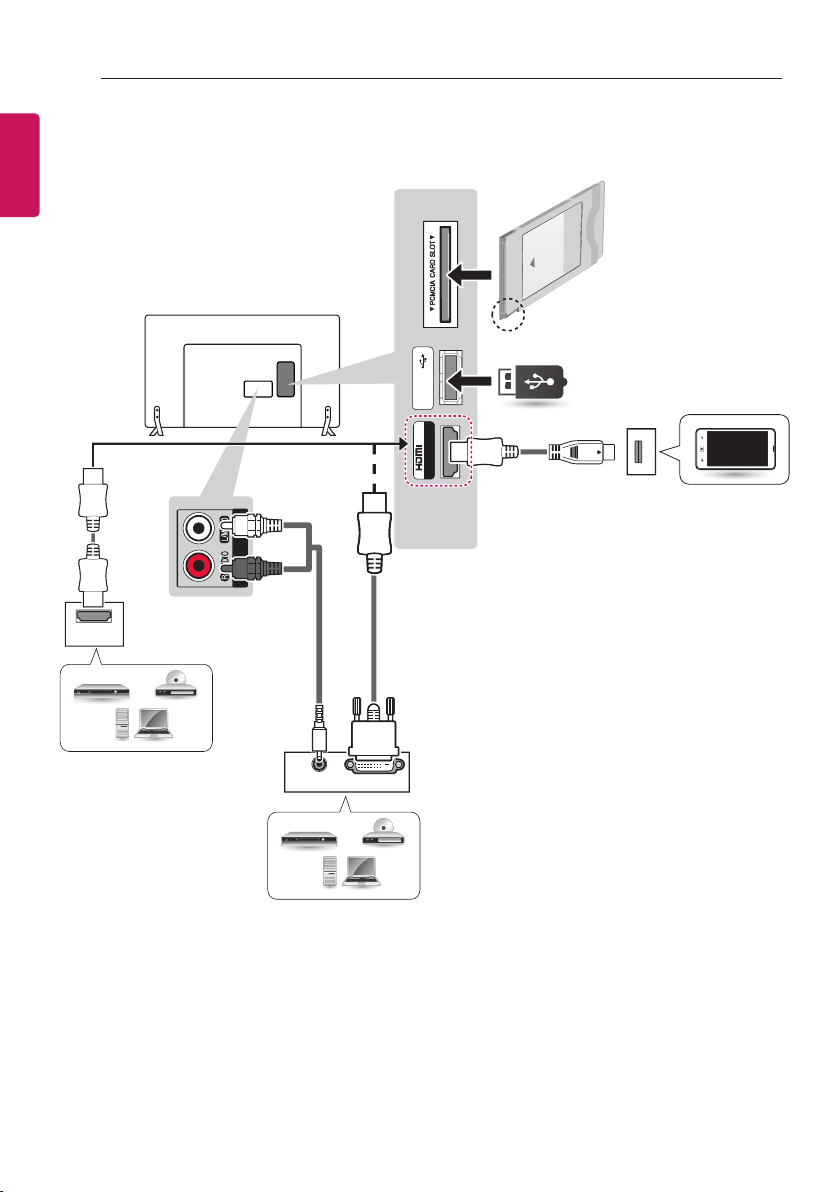

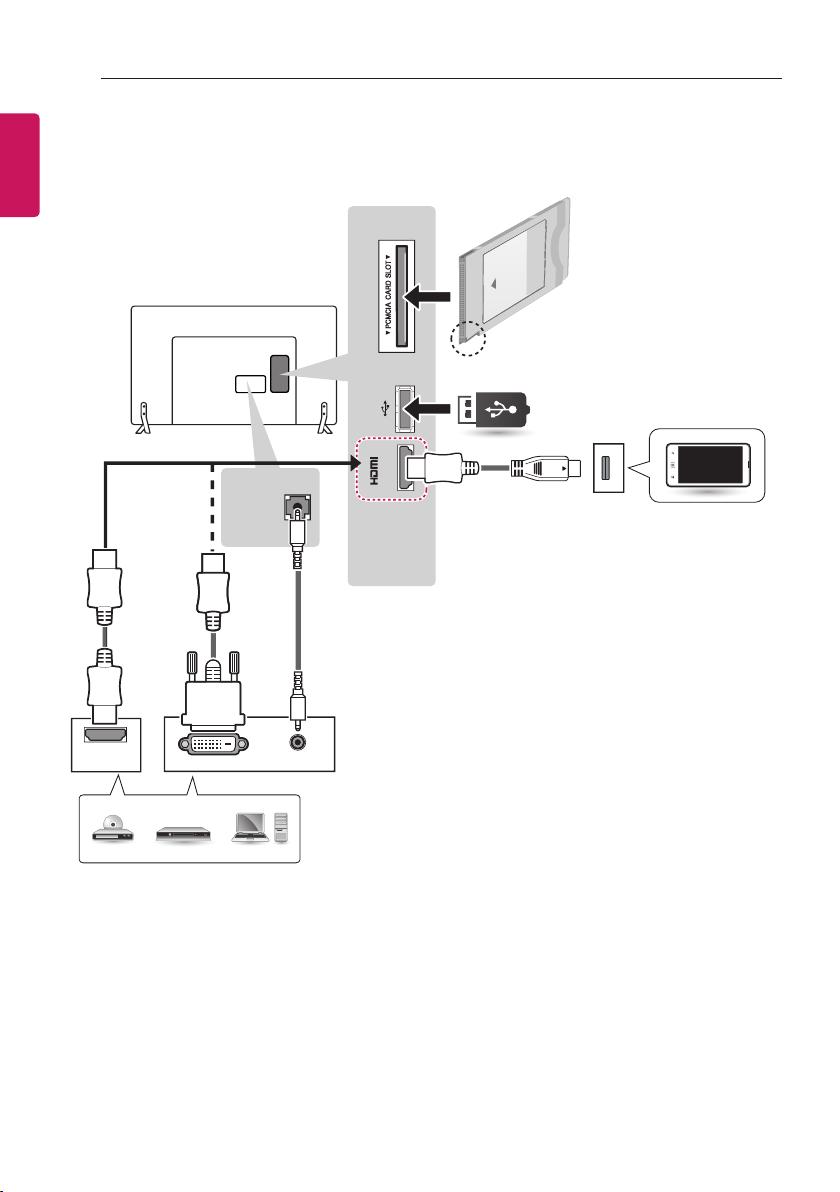

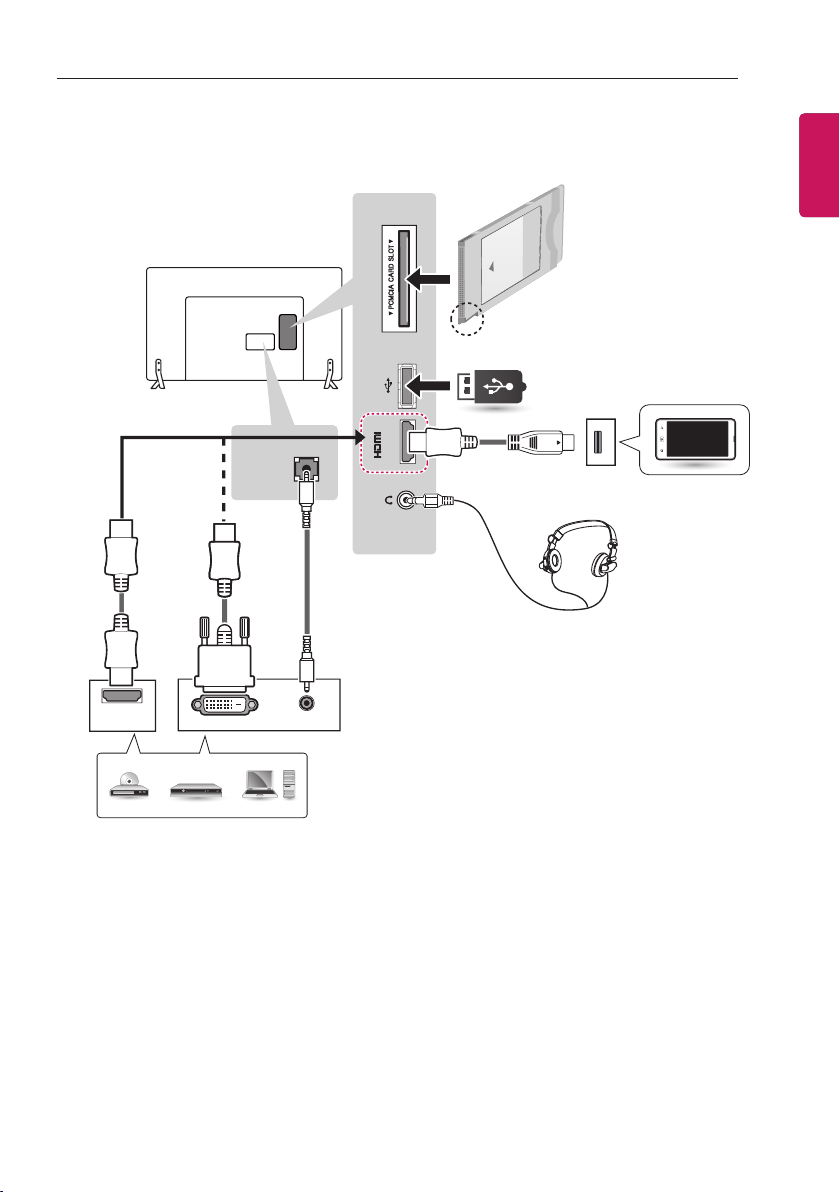

This section on MAKING CONNECTIONS mainly uses diagrams for the 32LY33** models. Connect various external devices to the TV and switch input modes to select an external
device. For more information of external device’s connection, refer to the manual provided with each device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
NOTE
yy The external device connection may differ from the model.
yy Connect external devices to the TV regardless of the order of the TV port.
yy If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device.
yy Refer to the external equipment’s manual for operating instructions.
yy If you connect a gaming device to the TV, use the cable supplied with the gaming device.
yy In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
yy In PC mode, some resolution settings may not work properly depending on the graphics card.
yy Only a USB storage device is recognizable.
MAKING CONNECTIONS 15
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
Wall Antenna |
ANTENNA / |
|
CABLE IN |
||
Socket |
||
|
(Only satellite models)
Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).
(Only 32/39/42/47/55/60LY34**, 32/39/42/47/55/60LY54**)
<![endif]>ENGLISH
(*Not Provided)
NOTE
yy Use a signal splitter to use more than 2 TVs.
yy If the image quality is poor, install a signal amplifier properly to improve the image quality.
yy If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
yy An antenna cable and converter are not supplied.
yy Supported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
LNB
Satellite Satellite
Dish
(*Not Provided)
(Only 32/42/49LY31**, 22/28LY34**, 22/28LY54**)
|
13/18V |
|
Satellite |
700mA Max |
|
Dish |
LNB |
|
Satellite IN |
||
|
(*Not Provided)

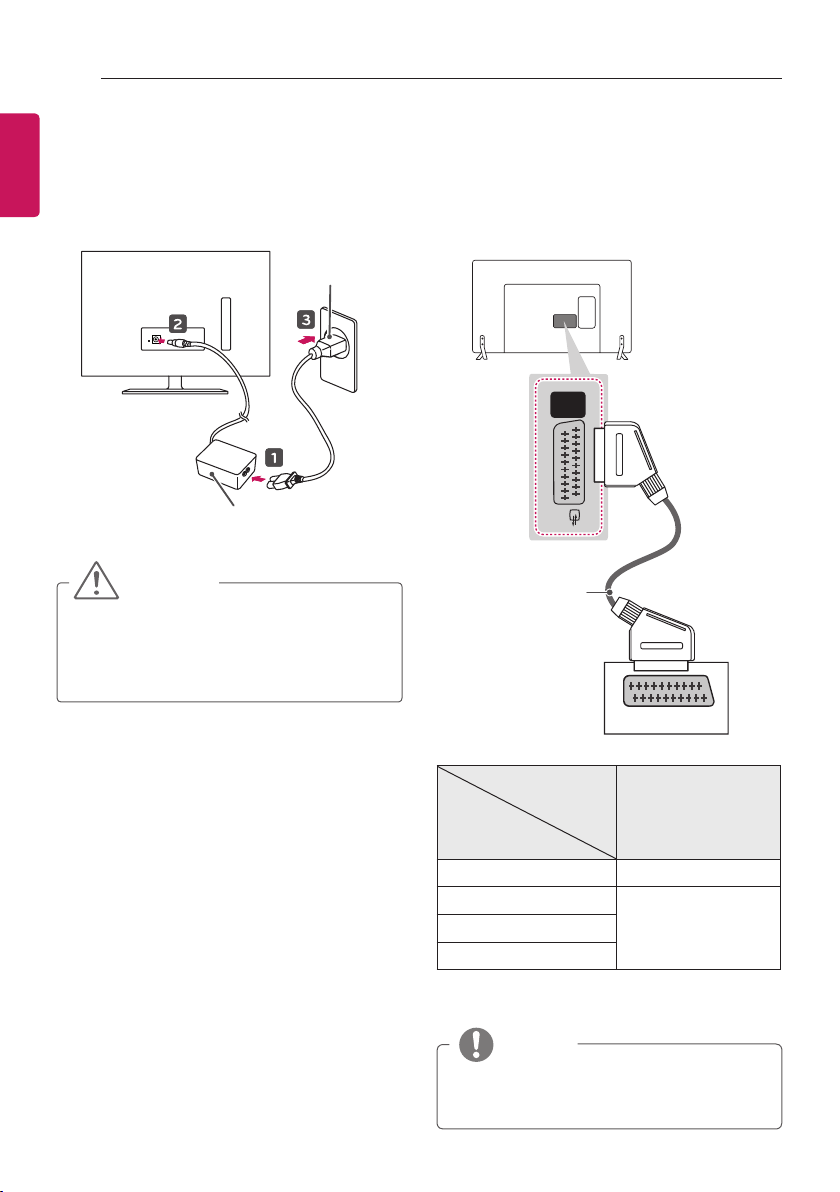

16 MAKING CONNECTIONS
<![if ! IE]> <![endif]>ENGLISH |
Adapter Connection |
22/28LY54**) |
|
|
(Only 28LY31**, 22/28LY33**, 22/28LY34**, |
|
(Depending on model & country) |
|
Power Cord |
|
DC-IN |
Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.
AV (RGB)
AC-DC Adapter
CAUTION
yy Please be sure to connect the TV to the
AC-DC power adapter before connecting the TV’s power plug to a wall power outlet.
(*Not Provided)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AUDIO / VIDEO |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Output |
|
|
|
|
|
|
|
|
|
|
|
|
Type |
|
|
|
|
|
|
|
|
AV1 |
|||
Current |
|
|
|
|
|
|
(TV Out1) |
|||||
input mode |
|
|
|
|
|
|
|
|
|
|
|
|
Digital TV |
|
|
|
|
|
Digital TV |
||||||
Analogue TV, AV |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
Component |
|
|
|
|
Analogue TV |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
HDMI |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1TV Out : Outputs Analogue TV or Digital TV signals.
NOTE
yy Any Euro scart cable used must be signal shielded.
