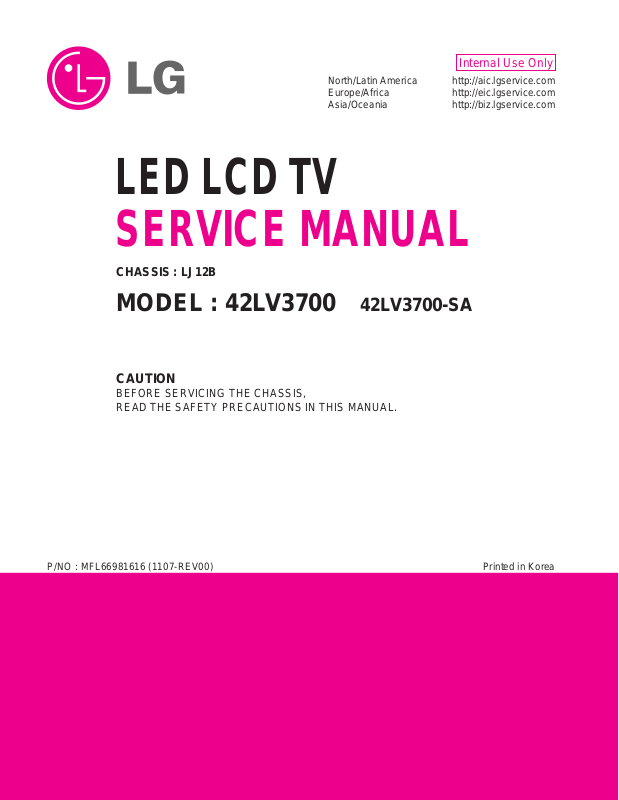

LG 42LV3700-SA Schematic

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LJ12B

MODEL : 42LV3700 42LV3700-SA

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL66981616 (1107-REV00)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SPECIFICATION....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 12

EXPLODED VIEW .................................................................................. 20

SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's
exposed
METALLIC PARTS

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.

2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as
possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

1. Application range

This spec sheet is applied all of the 32”,42”,47”LCD TV with
LJ12B chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC, CST : 40 ± 5 ºC

2) Relative Humidity: 65 ± 10 %

3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz)
* Standard Voltage of each product is marked by models

4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to
the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE,IEC

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement.

4. General Specification(TV)

No Item Specification Remark

1 Receivable System 1) Digital : SBTVD /

2) Analog : NTSC / PAL-M / PAL-N

2 Available Channel 1) VHF : 02 ~ 13

2) UHF : 14 ~ 69

3) DTV : 02 ~ 69

4) CATV : 01 ~ 135
3 Input Voltage 1) AC 100 - 240V~ 50/60Hz
4 Market Central and South AMERICA
5 Screen Size 32 inch Wide(1920x1080) 32LV3700

42 inch Wide(1920x1080) 42LV3700

47 inch Wide(1920x1080) 47LV3700
6 Aspect Ratio 16:9
7 Tuning System FS
8 LCD Module LC320EUN-SDV2 32LV3700

LC420EUN-SDV3 42LV3700

LC470EUE-SDV1 47LV3700
9 Operating Environment Temp : 0 ~ 40 deg

Humidity : ~ 80 %

10 Storage Environment Temp : -20 ~ 60 deg

Humidity : -85 %

- 7 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

5. Chrominance & Luminance

5.1 LJ12B(32/42/47LV3700-SA)

No Item Min Typ Max Unit Remark

1 Max Luminance

Module

290 360 cd/m

2

(Center 1-point / SET 250 320 cd/m

2

Full White Pattern) DCR 1M:1 3M:1
2 Luminance uniformity 77
3 Color coordinate RED X Typ. 0.637 Typ. 32LV3700-SA

Y -0.03 0.341 +0.03

GREEN X 0.320

Y 0.606

BLUE X 0.152

Y 0.055

WHITE X 0.279

Y 0.292

RED X Typ. 0.637 Typ. 42LV3700-SA

Y -0.03 0.341 +0.03

GREEN X 0.325

Y 0.600

BLUE X 0.152

Y 0.051

WHITE X 0.279

Y 0.292

RED X Typ. 0.639 Typ. 47LV3700-SA

Y -0.03 0.343 +0.03

GREEN X 0.316

Y 0.595

BLUE X 0.152

Y 0.058

WHITE X 0.279

Y 0.292

4. Contrast ratio 1000 1400 NORMAL

5. Color Temperature Cool 0.267 0.269 0.271 <Test Condition>

0.271 0.273 0.275 * The W/B Tolerance is ±0.015 for

Standard 0.283 0.285 0.287 Adjustment

0.291 0.293 0.295

** In the case of LED Model, Measure the color

Warm 0.311 0.313 0.315

temperature at the warm mode after heat run

0.327 0.329 0.331

T.V more than 60 minutes at Cinema mode.

- 8 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

6. Component Video Input (Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 720*576 15.625 50* 13.5 SDTV 576I

6. 720*576 31.25 50* 13.5 SDTV 576P

7. 1280*720 37.5 50* 74.25 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 44.96 59.94 74.176 HDTV 720P

10. 1929*1080 28.125 50* 74.25 HDTV 1080I

11. 1920*1080 33.75 60.00 74.25 HDTV 1080I

12. 1920*1080 33.72 59.94 74.176 HDTV 1080I

13. 1920*1080 56.25 50* 148.5 HDTV 1080P

14. 1920*1080 67.500 60 148.50 HDTV 1080P

15. 1920*1080 67.432 59.94 148.352 HDTV 1080P

16. 1920*1080 27.000 24.000 74.25 HDTV 1080P

17. 1920*1080 26.97 23.976 74.176 HDTV 1080P

18. 1920*1080 33.75 30.000 74.25 HDTV 1080P

19. 1920*1080 33.71 29.97 740176 HDTV 1080P

7. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1360*768 47.712 60.015 85.50 VESA(WXGA) X

7. 1600*1200 75.00 60.00 162 VESA (UXGA) O

8. 1920*1080 67.50 60.00 148.5 HDTV 1080P O

• RGB PC Monitor Range Limits

Min Vertical Freq - 56 Hz
Max Vertical Freq - 62 Hz
Min Horiz. Freq - 30 kHz
Max Horiz. Freq - 80 kHz
Pixel Clock - 170 MHz

(* Except Brazil)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 9 -

8. HDMI input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1280*768 47.776 59.870 79.5 CVT(WXGA) O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9. 1600*1200 75.00 60.00 162 VESA (UXGA) O

10. 1920*1080 67.500 60.000 148.50 HDTV 1080P O

DTV

1 720*480 31.50 60 27.027 SDTV 480P
2 720*480 31.47 59.94 27.00 SDTV 480P
3 720*576 31.25 50* 13.5 SDTV 576P
4 1280*720 37.5 50* 74.25 HDTV 720P
5 1280*720 45.00 60.00 74.25 HDTV 720P
6 1280*720 44.96 59.94 74.176 HDTV 720P
7 1929*1080 28.125 50* 74.25 HDTV 1080I
8 1920*1080 33.75 60.00 74.25 HDTV 1080I

9 1920*1080 33.72 59.94 74.176 HDTV 1080I
10 1920*1080 56.25 50* 148.5 HDTV 1080P
11 1920*1080 67.500 60 148.50 HDTV 1080P
12 1920*1080 67.432 59.939 148.352 HDTV 1080P
13 1920*1080 27.000 24.000 74.25 HDTV 1080P
14 1920*1080 26.97 23.976 74.176 HDTV 1080P
15 1920*1080 33.75 30.000 74.25 HDTV 1080P
16 1920*1080 33.71 29.97 74.176 HDTV 1080P

(* Except Brazil)

• HDMI Monitor Range Limits
Min Vertical Freq - 56 Hz
Max Vertical Freq - 62 Hz
Min Horiz. Freq - 30 kHz
Max Horiz. Freq - 80 kHz
Pixel Clock - 170 MHz

- 10 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

* Only 3DTV

9. HDMI Input(1.4a)

10. HDMI Input(1.3a)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1 1920*1080 53.95 / 54 23.98 / 24 148.35/148.5 HDTV 1080P Frame packing
2 1280*720 89.9 / 90 59.94/60 148.35/148.5 HDTV 720P Frame packing
3 1280*720 75 50 148.5 HDTV 720P Frame packing
4 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom
5 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side(half), Top and bottom,
6 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom
7 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom
8 1920*1080 33.75 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom

9 1920*1080 28.125 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom
10 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top and Bottom
11 1920*1080 33.75 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom

2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom

4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom

5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

8 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

- 11 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

11. Wireless Input(1.3)

12. RGB input 3D(PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom

2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom

4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom

5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

8 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 1920*1080 67.50 60.00 148.5 WUXGA (Reduced Blanking) (Side by Side), Top and Bottom

O

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 12 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied all of the LJ12B/C/D/E/F/N
LCD TV models, which produced in manufacture department
or similar LG TV factory

2. Notice

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of

25 ºC ± 5 ºC of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.

(4) The input voltage of the receiver must keep AC 100-220

V~ 50 / 60Hz.
(5) Before adjustment, execute Heat-Run for 5 minutes.

A After Receive 100% Full white pattern (06CH) then

process Heat-run

(or “8. Test pattern” condition of Ez-Adjust status)

A How to make set white pattern

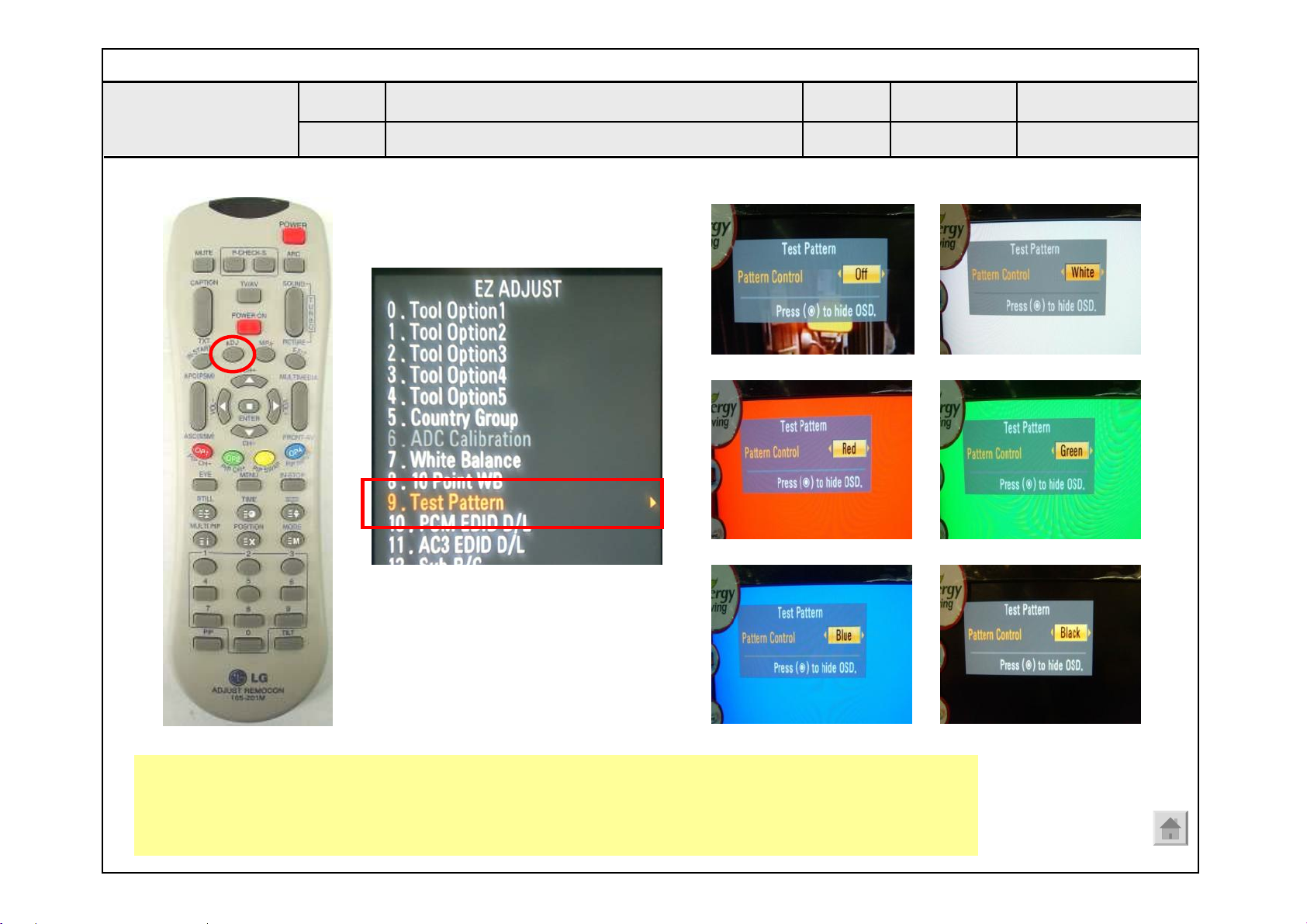

1) Press Power ON button of Service Remocon

2) Press ADJ button of Service remocon. Select “8. Test
pattern” and, after select “White” using navigation
button, and then you can see 100% Full White pattern.

* In this status you can maintain Heat-Run useless any

pattern generator

* Notice: if you maintain one picture over 20 minutes

(Especially sharp distinction black with white
pattern – 13Ch, or Cross hatch pattern – 09Ch)
then it can appear image stick near black level.

3. Adjustment Items

3.1. PCB Assembly Adjustment

A MAC Address Download
A Adjust 480i Comp1

A Adjust 1080p Comp1/RGB

• If it is necessary, it can adjustment at Manufacture Line

• You can see set adjustment status at “1. ADJUST
CHECK” of the “In-start menu”

A EDID (The Extended Display Identification Data)/DDC

(Display Data Channel) download

3.2. Set Assembly Adjustment

A Color Temperature (White Balance) Adjustment
A Using RS-232C
A PING Test
A Selection Factory output option

4. PCB Assembly Adjustment

4.1. MAC Address

4.1.1. Equipment & Condition

• Play file: Serial.exe

• MAC Address edit

• Input Start / End MAC address

4.1.2 Download method

4.1.2.1 Communication Prot connection

Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

4.1.2.2 MAC Address Download

• Com 1,2,3,4 and 115200(Baudrate)

• Port connection button click(1)

• Load button click(2) for MAC Address write.

• Start MAC Address write button(3)

• Check the OK Or NG

4.1.3 Equipment & Condition

• Each other connection to LAN Port of IP Hub and Jig

PCBA

PC(RS-232C)

RS-23 2C Po r t

- 13 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

4.1.4 LAN inspection solution

• LAN Port connection with PCB

• Network setting at MENU Mode of TV

• Setting automatic IP

• Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC
Address.

4.1.5 LAN Port Inspection (PING Test)

4.1.5.1 Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

4.1.6 LAN Port Inspection (PING Test)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

4.2. Using RS-232C

Adjust 3 items at 3.1 PCB assembly adjustments “adjustment
sequence” one after the order.

A Adjustment protocol

See ADC Adjustment RS232C Protocol_Ver1.0

A Necessary items before Adjustment items

• Pattern Generator : (MSPG-925FA)

•Adjust 480i Comp1 (MSPG-925FA:model :209 , pattern
:65) – Comp1 Mode

• Adjust 1080p Comp1 (MSPG-925FA:model :225 ,

pattern :65) – Comp1 Mode

• Adjust RGB (MSPG-925FA:model :225 , Pattern :65) –

RGB-PC Mode

* If you want more information then see the below

Adjustment method (Factory Adjustment)

A Adjustment sequence

• aa 00 00: Enter the ADC Adjustment mode.

• xb 00 40: Change the mode to Component1 (No actions)

• ad 00 10: Adjust 480i Comp

• ad 00 10: Adjust 1080p Comp

• xb 00 60: Change to RGB-PC mode(No action)

• ad 00 10: Adjust 1080p RGB

• xb 00 90: Endo of Adjustmennt

- 14 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

5 Factory Adjustment

5.1 Manual Adjust Component 480i/1080p
RGB 1080p

A Summary : Adjustment component 480i/1080i and RGB

1080p is Gain and Black level setting at Analog to Digital
converter, and compensate the RGB deviation

A Using instrument

• Adjustment remocon, 801GF(802B, 802F, 802R) or
MSPG925FA pattern generator (It can output 480i/1080i
horizontal 100% color bar pattern signal, and its output
level must setting 0.7V±0.1V p-p correctly)

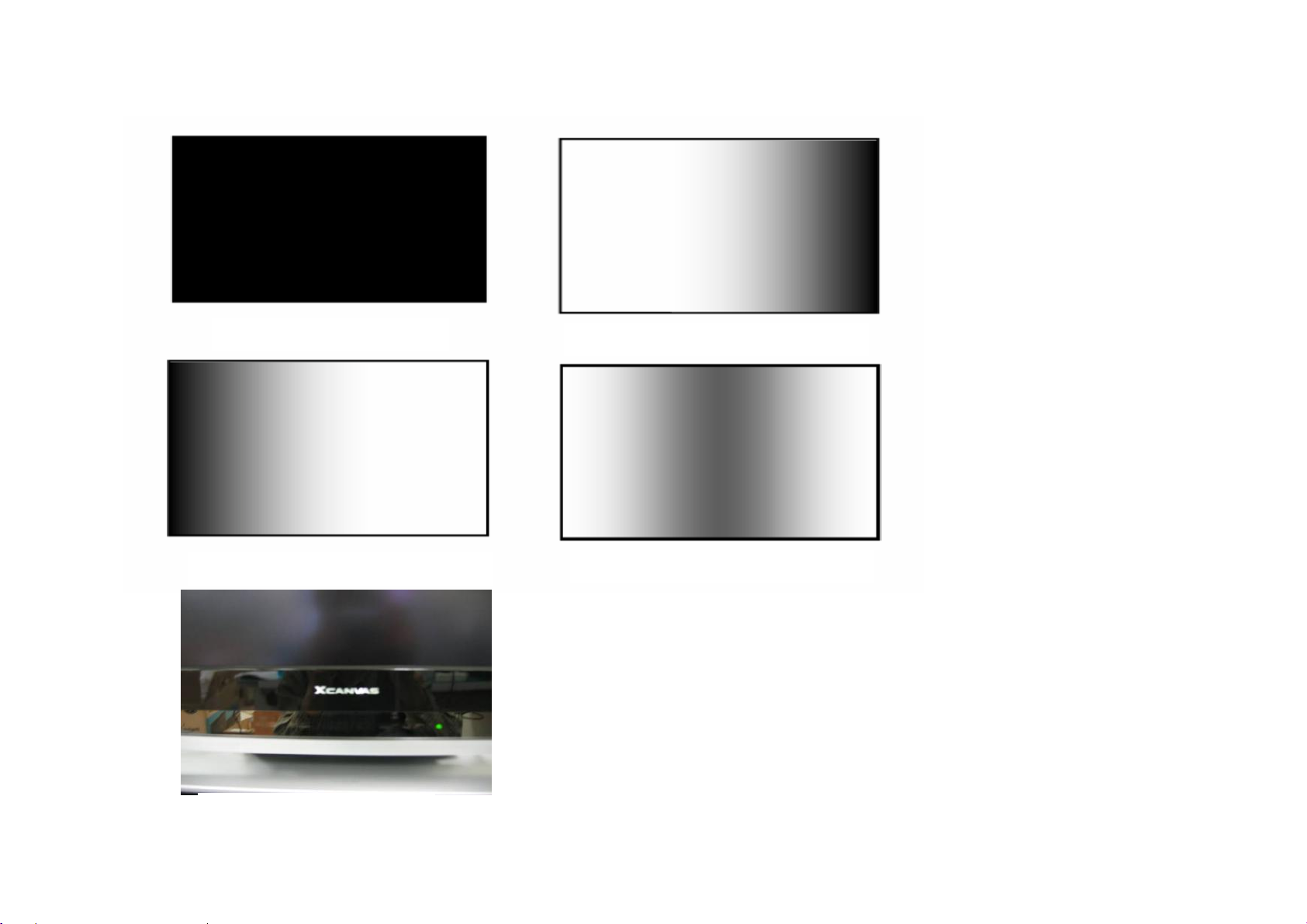

<Pic.4 Adjustment pattern : 480i / 1080p 60Hz Pattern >

A You must make it sure its resolution and pattern cause

every instrument can have different setting

A Adjustment method 480i Comp1, Adjust 1080p Comp1/RGB

(Factory adjustment)

• ADC 480i Component1 adjustment

- Check connection of Component1

- MSPG-925FA -> Model: 209, Pattern 65

• Set Component 480i mode and 100% Horizontal Color
Bar Pattern(HozTV31Bar), then set TV set to
Component1 mode and its screen to “NORMAL”

• ADC 1080p Component1 / RGB adjustment

- Check connection both of Component1 and RGB

- MSPG-925FA -> Model: 225, Pattern 65

• Set Component 1080p mode and 100% Horizontal Color
Bar Pattern(HozTV31Bar), then set TV set to
Component1 mode and its screen to “NORMAL”

• After get each the signal, wait more a second and enter
the “IN-START” with press IN-START key of Service
remocon. After then select “7. External ADC” with
navigator button and press “Enter”.

• After Then Press key of Service remocon “Right
Arrow(VOL+)”

• You can see “ADC Component1 Success”

• Component1 1080p, RGB 1080p Adjust is same method.

• Component 1080p Adjustment in Component1 input

mode

• RGB 1080p adjustment in RGB input mode

• If you success RGB 1080p Adjust. You can see “ADC
RGB-DTV Success”

5.2 EDID (The Extended Display
Identification Data) / DDC (Display Data
Channel) Download.

A Summary

• It is established in VESA, for communication between PC
and Monitor without order from user for building user
condition. It helps to make easily use realize “Plug and
Play” function.

• For EDID data write, we use DDC2B protocol.

A Auto Download

• After enter Service Mode by pushing “ADJ” key,

• Enter EDID D/L mode.

• Enter “START” by pushing “OK” key.

=> Caution : - Never connect HDMI & D-sub Cable when

the user downloading .

- Use the proper cables below for EDID
Writing.

§ Edid data and Model option download (RS232)

- 15 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

5.2.1 Manual Download

A Write HDMI EDID data

• Using instruments

- Jig. (PC Serial to D-Sub connection) for PC, DDC
adjustment.

- S/W for DDC recording (EDID data write and read)

- D-sub jack

- Additional HDMI cable connection Jig.

• Preparing and setting.

- Set instruments and Jig. Like pic.5), then turn on PC and
Jig.

- Operate DDC write S/W (EDID write & read)

- It will operate in the DOS mode.

Pic.3) For write EDID data, setting Jig and another instruments.
See Working Guide if you want more information about EDID
communication.

• EDID data for Non 3DTV (Model name = LG TV )

- HDMI EDID table (0x1E : Physical Address)

1) HDMI 1 Check sum : 0x7F, 0xD9 (CEA Block 0x1E :10)

2) HDMI 2 Check sum : 0x7F, 0xC9 (CEA Block 0x1E :20)

3) HDMI 3 Check sum : 0x7F, 0xB9 (CEA Block 0x1E :30)

4) HDMI 4 Check sum : 0x7F, 0xA9 (CEA Block 0x1E :40)

- Analog (RGB) EDID table

1) RGB CheckSum : 1C

• EDID data for 3DTV ( Model name = LG TV )

- HDMI EDID table (0x1E : Physical Address)

1) HDMI 1 Check sum : 0x7F, 0xCB (CEA Block 0x1E :10)

2) HDMI 2 Check sum : 0x7F, 0xBB (CEA Block 0x1E :20)

3) HDMI 3 Check sum : 0x7F, 0xAB (CEA Block 0x1E :30)

4) HDMI 4 Check sum : 0x7F, 0x9B (CEA Block 0x1E :40)

- Analog (RGB) EDID table

1) CheckSum : 1C

PC

VSC

B/D

- 16 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

5.3 Adjustment Color Temperature (White

balance)

A Using Instruments

• Color Analyzer: CA-210 (CH 9)

- Using LCD color temperature, Color Analyzer (CA-210)
must use CH 9, which Matrix compensated (White, Red,
Green, Blue compensation) with CS-2100. See the
Coordination bellowed one.

• Auto-adjustment Equipment (It needs when Auto­adjustment – It is availed communicate with RS-232C :
Baud rate: 115200)

• Video Signal Generator MSPG-925F 720p, 216Gray
(Model: 217, Pattern 78)

A Connection Diagram (Auto Adjustment)

• Using Inner Pattern

• Using HDMI input

<Pic.5 Connection Diagram for Adjustment White balance>

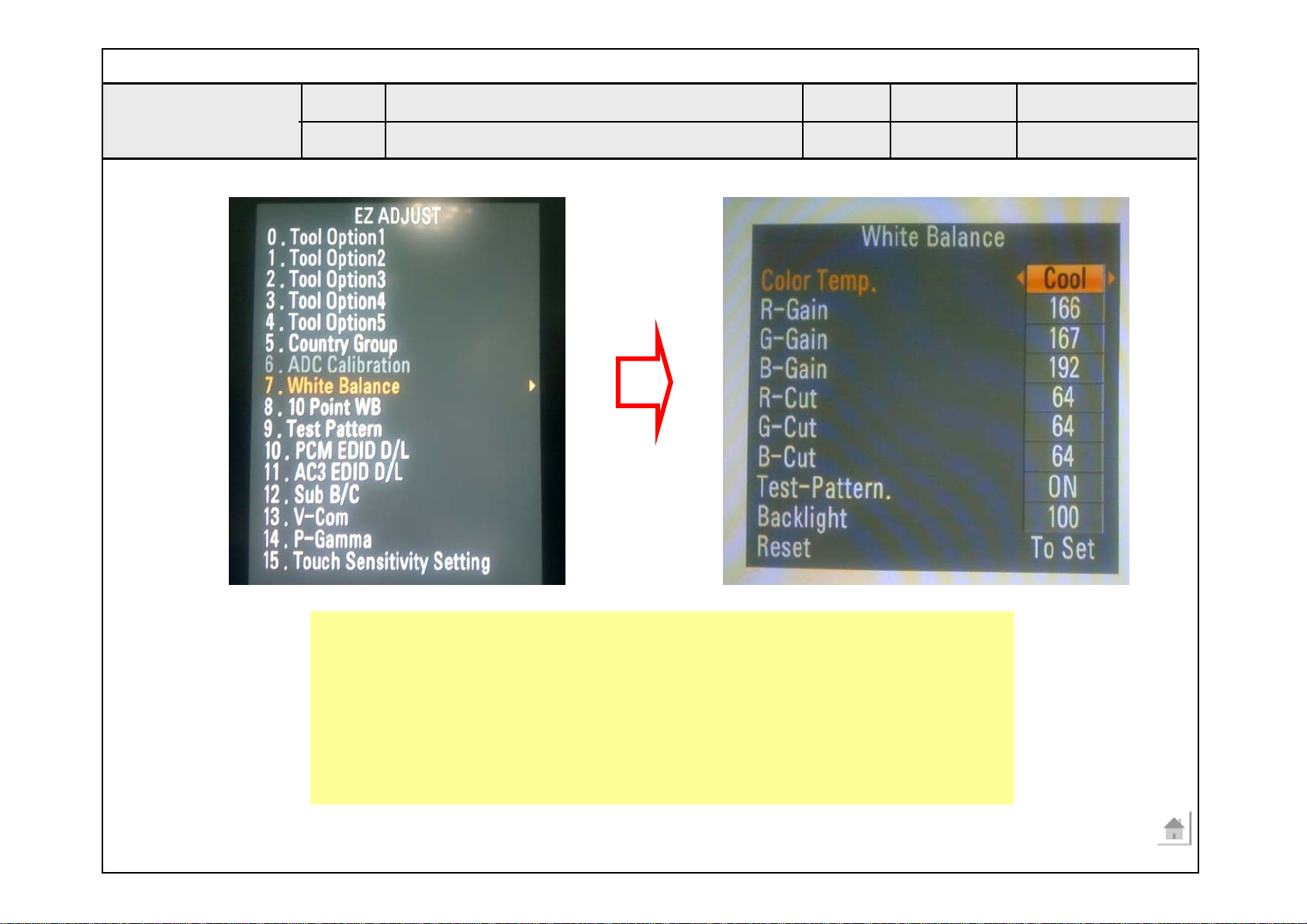

A White Balance Adjustment

If you can’t adjust with inner pattern, then you can adjust it
using HDMI pattern. You can select option at “Ez-Adjust
Menu – 7. White Balance” there items “NONE, INNER,
HDMI”. It is normally setting at inner basically. If you can’t
adjust using inner pattern you can select HDMI item, and
you can adjust.

In manual Adjust case, if you press ADJ button of service
remocon, and enter “Ez-Adjust Menu – 7. White Balance”,
then automatically inner pattern operates. (In case of

“Inner” originally “Test-Pattern. On” will be selected in The
“Test-Pattern. On/Off”.

• Connect all cables and equipments like Pic.5)

• Set Baud Rate of RS-232C to 115200. It may set 115200

orignally.

• Connect RS-232C cable to set

• Connect HDMI cable to set

A RS-232C Command (Commonly apply)

• “wb 00 00”: Start Auto-adjustment of white balance.

• “wb 00 10”: Start Gain Adjustment (Inner pattern)

• “jb 00 c0” :

• …

• “wb 00 1f”: End of Adjustment

* If it needs, offset adjustment (wb 00 20-start, wb 00 2f-

end)

• “wb 00 ff”: End of white balance adjustment (inner pattern
disappear)

CA-100+

COL OR
ANALYZER
TYPE; CA-100+

Full W hite Pattern

RS-232C

-- 17 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

O Notice) Adjustment Mapping information

• When Color temperature (White balance) Adjustment
(Automatically)

- Press “Power only key” of service remocon and operate
automatically adjustment.

- Set BaudRate to 115200.

• If it needs, then adjustment “Offset”.

A White Balance Adjustment (Manual adjustment)

• Test Equipment: CA-210

- Using LCD color temperature, Color Analyzer (CA-210)
must use CH 9, which Matrix compensated (White, Red,
Green, Blue compensation) with CS-2100. See the
Coordination bellowed one.

• Manual adjustment sequence is like bellowed one.

- Turn to “Ez-Adjust” mode with press ADJ button of
service remocon.

- Select “10.Test Pattern” with CH+/- button and press
enter. Then set will go on Heat-run mode. Over 30
minutes set let on Heat-run mode.

- Let CA-210 to zero calibration and must has gap more
10cm from center of LCD module when adjustment.

- Press “ADJ” button of service remocon and select
“7.White-Balance” in “Ez-Adjust” then press “

G ” button

of navigation key.

(When press “

G ” button then set will go to full white

mode)

- Adjust at three mode (Cool, Medium, Warm)

- If “cool” mode
Let B-Gain to 192 and R, G, B-Cut to 64 and then
control R, G gain adjustment High Light adjustment.

- If “Medium” and “Warm” mode
Let R-Gain to 192 and R, G, B-Cut to 64 and then
control G, B gain adjustment High Light adjustment.

- All of the three mode
Let R-Gain to 192 and R, G, B-Cut to 64 and then
control G, B gain adjustment High Light adjustment.

- With volume button (+/-) you can adjust.

- After all adjustment finished, with Enter (A key) turn to
Ez-Adjust mode. Then with ADJ button, exit from
adjustment mode

Attachment: White Balance adjustment coordination and

color temperature.

• Using CS-1000 Equipment.

- COOL : T=11000K, ∆uv=0.000, x=0.276 y=0.283

- MEDIUM : T=9300K, ∆uv=0.000, x=0.285 y=0.293

- WARM : T=6500K, ∆uv=0.000, x=0.313 y=0.329

• Using CA-210 Equipment. (9 CH)

- Contrast value: 216 Gray

• Using CA-210 Equipment. (14 CH)

- White Balance adjustment coordination and color
temperature for Edge / IOP LED, ALEF

-White Balance adjustment table for Edge (IOP) LED

Color coordination is different according to heat run time.
LGD IOP LED, LGD EDGE LED, LGD 3D EDGE LED
(for LV5500, LW5700)

White Balance adjustment table for ALEF Model
(LW9500)

White Balance adjustment table for IOL LED MODEL
(LZ9700)

Color Coordination

Color temperature Test Equipment

x y

COOL

CA-210
CA-210

CA-210

0.269±0.002 0.273±0.002

MEDIUM

0.285±0.002 0.293±0.002

WARM

0.313±0.002 0.329±0.002

Cool 13,000k

K

o

X=0.269 (±0.002)
Y=0.273 (±0.002)

Medium 9,300k

K

X=0.285 (±0.002)
Y=0.293 (±0.002)

Color

Temperature

Warm 6,500k

K

X=0.313 (±0.002)
Y=0.329 (±0.002)

<Test Signal>

Inner pattern

(216gray,85IRE)

o

o

Aging time Cool Medium Warm

(Min) x y x y x y

GP3

269 273 285 293 313 329

1 0-2

3-5
6-9

10-19

279 308
2 278 306
3 277 305
4 276 303
5 20-35 274 300
6 36-49 272 297
7 50-79 271 295
8 80-149 270 294
9 Over 150 269

288
286
285
283
280
277
275
274
273

295
294
293
292
290
288
287
286
285

319
318
317
316
314
312
311
310
309

338
336
335
333
330
327
325
324
323293

Aging time Cool Medium Warm

(Min) x y x y x y

GP3

269 273 285 293 313 329
1 0-2

3-5
6-9

10-19

282 314
2 281 312
3 280 311
4 279 309
5 20-35 277 304
6 36-49 274 299
7 50-79 271 297
8 80-149 270 294
9 Over 150 269

294
292
291
289
284
279
277
274
273

298
297
296
295
293
290
287
286
285

322
321
320
319
317
314
311
310
309

343
341
340
338
333
328
326
323
322293

Aging time Cool Medium Warm

(Min) x y x y x y

GP3

269 273 285 293 313 329

1 0-2

3-5
6-9

10-19

278 307
2 277 305
3 276 304
4 274 302
5 20-35 272 298
6 36-49 270 295
7 50-79 269 293
8 Over80 269 293

288
286
284
282
278
275
273
273

295
294
293
291
289
287
285
285

316
315
314
313
311
309
308
308

334
332
331
329
325
322
323
323

- 18 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

5.4 EYE-Q function check

1) Turn on TV

2) Press EYE key of Adj. R/C

3) Cover the Eye Q II sensor on the front of the using your
hand and wait for 6 seconds

4) Confirm that R/G/B value is lower than 10 of the “Raw Data
(Sensor data, Back lignt )” . If after 6 seconds, R/G/B value
is not lower than 10, replace Eye Q II sensor

5) Remove your hand from the Eye Q II sensor and wait for 6
seconds

6) Confirm that “ok” pop up.
If change is not seen, replace Eye Q II sensor

5.5 HDCP (High-Bandwidth Digital
Contents Protection) Setting

• No Need.

5.6 Test of RS-232C control.

Press In-Start button of Service Remocon then set the
“4.Baud Rate” to 115200. Then check RS-232C control and

5.7 Selection of Country option.

Selection of country option is allowed only North American
model (Not allowed Korean model). It is selection of Country
about Rating and Time Zone.

Models: All models which use LA75A Chassis (See the first
page.)
Press “In-Start” button of Service Remocon, then enter the
“Option” Menu with “PIP CH-“ Button
Select one of these three (USA, CANADA, MEXICO) defends
on its market using “Vol. +/-“button.

* Caution : Don’t push The INSTOP KEY after completing

the function inspection.

6. GND and ESD Testing

6.1 Prepare GND and ESD Testing.

A Check the connection between set and power cord

6.2 Operate GND and ESD auto-test.

A Fully connected (Between set and power cord) set enter the

Auto-test sequence.

A Connect D-Jack AV jack test equipment.
A Turn on Auto-controller(GWS103-4)
A Start Auto GND test.
A If its result is NG, then notice with buzzer.
A If its result is OK, then automatically it turns to ESD Test.
A Operate ESD test
A If its result is NG, then notice with buzzer.
A If its result is OK, then process next steps. Notice it with

Good lamp and STOPER Down.Check Items.

A Test Voltage

• GND: 1.5KV/min at 100mA

• Signal: 3KV/min at 100mA

A Test time: just 1 second.
A Test point

• GND test: Test between Power cord GND and Signal
cable metal GND.

• ESD test: Test between Power cord GND and Live and

neutral.

A Leakage current: Set to 0.5mA(rms)

7. Preset Ch information.

In case of POWER ONLY, System color is operated multi
system
In case of IN STOP, System color is operated default system
(PAN-M)

- 19 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

8. Default Service option.

8.1 ADC-Set.

A R-Gain adjustment Value (default 128)
A G-Gain adjustment Value (default 128)
A B-Gain adjustment Value (default 128)
A R-Offset adjustment Value (default 128)
A G-Offset adjustment Value (default 128)
A B-Offset adjustment Value (default 128)

8.2 White balance. Value.

9. USB DOWNLOAD (*.epk file
download)

9.1 Put the USB Stick to the USB socket

9.2 Press Menu key, and move OPTION

9.3 Press “FAV” Press 7 times.

9.4 Select download file (epk file)

9.5 After download is finished, remove the

USB stick.

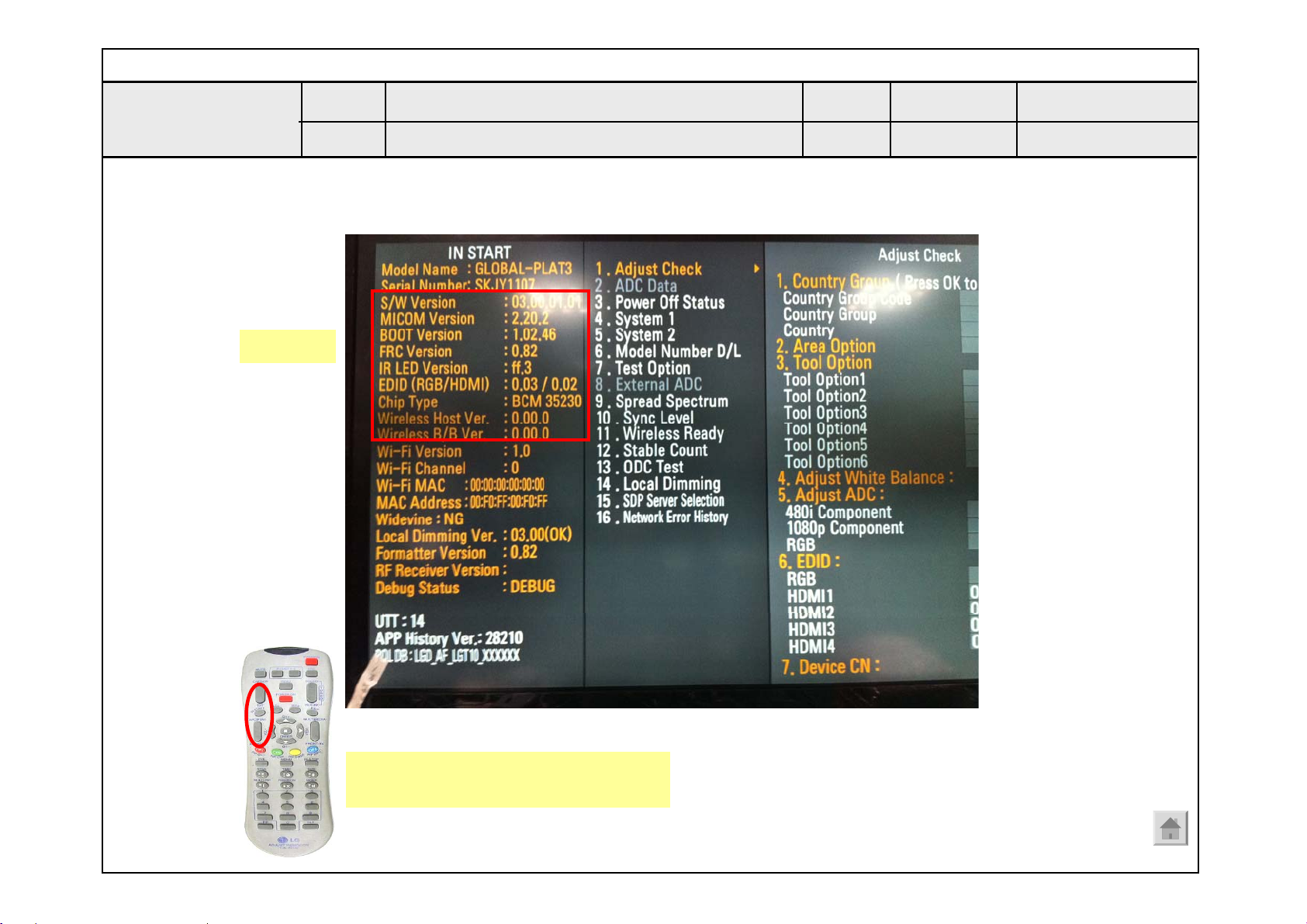

9.6 Press “IN-START” key of ADJ remote

control, check the S/W version.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 20 -

300

200

LV1

400

540

530

521

900

910

800

710

120

511

510

A2

A21

A10

310

320

A5

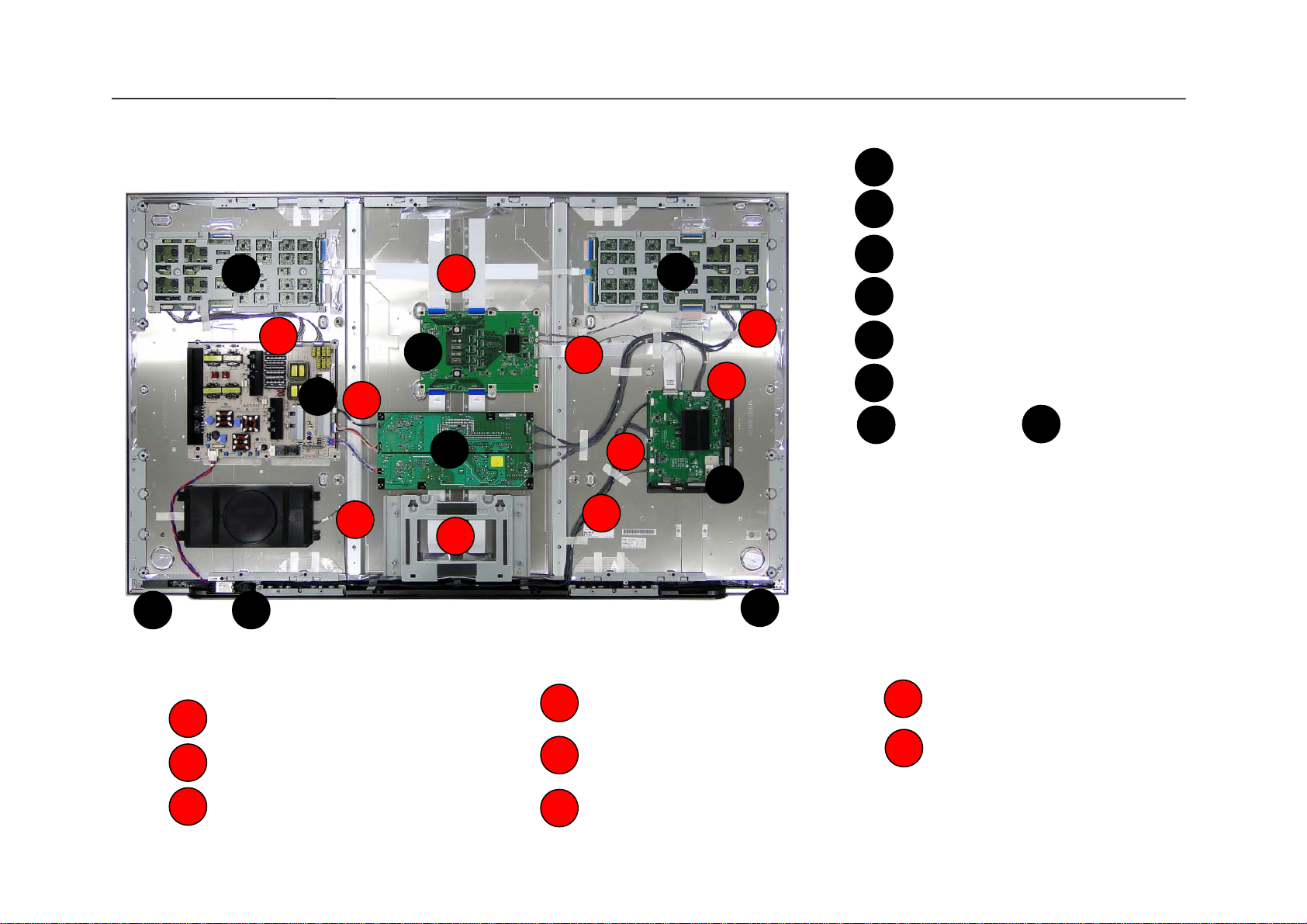

* Set + Stand

* Stand Base + Body

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

L/DIM1_VS
L/DIM0_VS

L/DIM1_SCLK
L/DIM1_MOSI
L/DIM0_SCLK
L/DIM0_MOSI

Serial Flash Boot Mode
GPIO[1:0]="00": 50MHz(Default Value)
"01": 20MHz
"10": 33.333MHz
"11": 25MHz

+3.3VD

R169

10K

GPIO_0

R170
10K

OPT

GPIO[13:11]=Boot Code Selection
(S/W control for boot code start position)

GPIO[18]=External BLU Control sync(120Hz) out
(GPIO[18],[30] connection)

GPIO[22],TP1=BLU sync Reference
(Video sync(240Hz) out monitoring)

R1004

FLASH_WP

33

W/P

Flash Memory Write Protection

RESET

+3.3VD

R1005

R1006

JTP-1127WEM

R102 33

C1160
33pF
50V
OPT

R171
10K

GPIO_1

R172
10K

OPT

+3.3VD

4.7K
OPT

4.7K
OPT

SW100

+3.3VD

R103
10K

TXA0P_2D3D
TXA0N_2D3D
TXA1P_2D3D
TXA1N_2D3D
TXA2P_2D3D

TXA2N_2D3D
TXACLKP_2D3D
TXACLKN_2D3D

TXA3P_2D3D

TXA3N_2D3D

TXA4P_2D3D

TXA4N_2D3D

TXB0P_2D3D

TXB0N_2D3D

TXB1P_2D3D

TXB1N_2D3D

TXB2P_2D3D

TXB2N_2D3D
TXBCLKP_2D3D
TXBCLKN_2D3D

TXB3P_2D3D

TXB3N_2D3D

TXB4P_2D3D

TXB4N_2D3D

C1161
33pF
50V

OPT

AGP_EN

MODE_SEL

LR_IND

I2C_SDA
I2C_SCL

R182 0

C102
33pF
50V
OPT

RBF

C104
33pF
50V
OPT

R195

47K

+3.3VD

RESET_LG1121

R106
100

1%

R107
100

1%

C105
33pF
50V
OPT

R190
10K

R196

47K

R1051KR109

+3.3VD

3.3K
R188

RESET_LG1121

+3.3VD

3.3K

R110
100

1%

R111
100

1%

C1162
33pF
50V

OPT

OUTPUT_OPT1
OUTPUT_OPT2

INCH_OPT_1
INCH_OPT_2

OUTPUT_OPT3
OUTPUT_OPT4

R189
10K

R191
R192
R193
R194

OPT

3D_SYNC_Out

SPI_SCLK

1K

3.3K

R187

XTAL_OUT

GPIO_0
GPIO_1

UART_RX
UART_TX

SPI_CS
SPI_DI
SPI_DO

R186

TRST_N

XTAL_IN

R112
100

1%

R113
100

1%

33
33
33
33

3.3K
R185

TMODE[1]

TDO
TDI
TCK
TMS

R114
100

1%

R115
100

1%

R177 33

R139 33
R120

R173
R174
R175

R147 100K
R126 33

R117
100

1%

R118
100

1%

R116 10K
R167 10K
R168 10K

R179 33

R180 33
R181 33
R137 33
R138 33

OPT

OPT
OPT

33

10K
10K
10K

R183

0

R123

R124

R140 33
R141 33

R142 33

R143 33
R144 33
R145 33
R146 33

R125 10K

TP1

33

33

R148
100

1%

R149
100

1%

AN2

RXA0P

AN1

RXA0N

AM2

RXA1P

AM1

RXA1N

AL2

RXA2P

AL1

RXA2N

AK2

RXACLKP

AK1

RXACLKN

AJ2

RXA3P

AJ1

RXA3N

AH2

RXA4P

AH1

RXA4N

AG2

RXB0P

AG1

RXB0N

AF2

RXB1P

AF1

RXB1N

AE2

RXB2P

AE1

RXB2N

AD2

RXBCLKP

AD1

RXBCLKN

AC2

RXB3P

AC1

RXB3N

AB2

RXB4P

AB1

RXB4N

J2

DPM

H1

GSP/VST/GST1

D1

H_CONV

E2

POL

E1

SOE

F2

OPT_N

D2

GSC/VGH_ODD

C1

GOE/VGH_EVEN/EO

J1

FLK/GCLK1/GCLK

H2

OPT_P/GCLK2/MCLK

G1

GCLK3/GST2

H3

GCLK4

G2

GCLK5

F1

GCLK6

D18

RMLVDS

L3

TEMPSEL0

K2

TEMPSEL1

K1

TEMPSEL2

E31

L_VSOUT_LD

M3

R_VSOUT_LD

E33

M0_SCLK

E34

M0_MOSI

G33

M1_SCLK

G34

M1_MOSI

L2

M2_SCLK

M2

M2_MOSI

L1

M3_SCLK

M1

M3_MOSI

AM10

GPIO[0]

AN10

GPIO[1]/VSYNC_IN

AP10

GPIO[2]

AP9

GPIO[3]/DE_IN

AN9

GPIO[4]

AN8

GPIO[5]

AP8

GPIO[6]

AP7

GPIO[7]

AN7

GPIO[8]/DE_OUT

AM7

GPIO[9]/LED_GPIO[0]

AM6

GPIO[10]/LED_GPIO[1]

AN6

GPIO[11]

AP6

GPIO[12]

AP5

GPIO[13]

E32

GPIO[14]/SSP0_HS

F32

GPIO[15]/SSP0_MISO

F33

GPIO[16]/SSP0_CS

F34

GPIO[17]/SSP0_INTR

AN5

GPIO[18]/SCAN_BLK1

AN4

GPIO[19]/SCAN_BLK2

AP4

GPIO[20]/SCAN_BLK3

AP3

GPIO[21]/SCAN_BLK4

AN3

GPIO[22]/SCAN_BLK5

C34

GPIO[23]/SSP1_VS

G32

GPIO[24]/SSP1_HS

H32

GPIO[25]/SSP1_MISO

H33

GPIO[26]/SSP1_CS

H34

GPIO[27]/SSP1_INTR

N1

GPIO[28]/SSP2_HS

N2

GPIO[29]/SSP2_MISO

D34

GPIO[30]/LED_VSYNC

AP2

GPIO[31]/3D_SYNC_OUT

T1

UART_RXD

T2

UART_TXD

R1

SPI_SCLK

R2

SPI_CS

P2

SPI_DI

P1

SPI_DO

V1

SDA_M

V2

SCL_M

U1

SDA_S

U2

SCL_S

W2

SMODE

Y1

TMODE0

Y2

TMODE1

AA1

TMODE2

AA2

TMODE3

AP12

TRST_N

AP11

TDO

AN11

TDI

AP13

TCK

AN13

TMS

W1

PORES_N

AP15

XTALO

AP14

XTALI

IC101

LG1121A

I2C Slave Address
0x1C (Direct access)
0x70 (In-direct access)

TXA0P/RRV7P
TXA0N/RRV7N
TXA1P/RRV6P
TXA1N/RRV6N
TXA2P/RRV5P

TXA2N/RRV5N
TXACLKP/RRV4P
TXACLKN/RRV4N
TXA3P/RRVCLKP
TXA3N/RRVCLKN

TXA4P/RRV3P

TXA4N/RRV3N

TXB0P/RRV2P

TXB0N/RRV2N

TXB1P/RRV1P

TXB1N/RRV1N

TXB2P/RRV0P

TXB2N/RRV0N

TXBCLKP
TXBCLKN

TXB3P
TXB3N
TXB4P
TXB4N

TXC0P/RLV7P

TXC0N/RLV7N

TXC1P/RLV6P

TXC1N/RLV6N

TXC2P/RLV5P

TXC2N/RLV5N
TXCCLKP/RLV4P
TXCCLKN/RLV4N
TXC3P/RLVCLKP
TXC3N/RLVCLKN

TXC4P/RLV3P

TXC4N/RLV3N

TXD0P/RLV2P

TXD0N/RLV2N

TXD1P/RLV1P

TXD1N/RLV1N

TXD2P/RLV0P

TXD2N/RLV0N

TXDCLKP
TXDCLKN

TXD3P
TXD3N
TXD4P
TXD4N

TXE0P/LRV7P

TXE0N/LRV7N

TXE1P/LRV6P

TXE1N/LRV6N

TXE2P/LRV5P

TXE2N/LRV5N
TXECLKP/LRV4P
TXECLKN/LRV4N
TXE3P/LRVCLKP
TXE3N/LRVCLKN

TXE4P/LRV3P

TXE4N/LRV3N

TXF0P/LRV2P

TXF0N/LRV2N

TXF1P/LRV1P

TXF1N/LRV1N

TXF2P/LRV0P

TXF2N/LRV0N

TXFCLKP
TXFCLKN

TXF3P
TXF3N
TXF4P
TXF4N

TXG0P/LLV7P

TXG0N/LLV7N

TXG1P/LLV6P

TXG1N/LLV6N

TXG2P/LLV5P

TXG2N/LLV5N
TXGCLKP/LLV4P
TXGCLKN/LLV4N
TXG3P/LLVCLKP
TXG3N/LLVCLKN

TXG4P/LLV3P

TXG4N/LLV3N

TXH0P/LLV2P

TXH0N/LLV2N

TXH1P/LLV1P

TXH1N/LLV1N

TXH2P/LLV0P

TXH2N/LLV0N

TXHCLKP
TXHCLKN

TXH3P
TXH3N
TXH4P
TXH4N

A2
B2
C3
C2
B3
A3
A4
B4
C5
C4
B5
A5

A6
B6
C7
C6
B7
A7
A8
B8
C9
C8
B9
A9

A10
B10
C11
C10
B11
A11
A12
B12
C13
C12
B13
A13

A14
B14
C15
C14
B15
A15
A16
B16
C17
C16
B17
A17

A18
B18
C19
C18
B19
A19
A20
B20
C21
C20
B21
A21

A22
B22
C23
C22
B23
A23
A24
B24
C25
C24
B25
A25

A26
B26
C27
C26
B27
A27
A28
B28
C29
C28
B29
A29

A30
B30
C31
C30
B31
A31
A32
B32
C33
C32
B33
A33

TXA0P
TXA0N
TXA1P
TXA1N
TXA2P
TXA2N
TXACLKP
TXACLKN
TXA3P
TXA3N
TXA4P
TXA4N

TXB0P
TXB0N
TXB1P
TXB1N
TXB2P
TXB2N
TXBCLKP
TXBCLKN
TXB3P
TXB3N
TXB4P
TXB4N

TXC0P
TXC0N
TXC1P
TXC1N
TXC2P
TXC2N
TXCCLKP
TXCCLKN
TXC3P
TXC3N
TXC4P
TXC4N

TXD0P
TXD0N
TXD1P
TXD1N
TXD2P
TXD2N
TXDCLKP
TXDCLKN
TXD3P
TXD3N
TXD4P
TXD4N

TXE0P
TXE0N
TXE1P
TXE1N
TXE2P
TXE2N
TXECLKP
TXECLKN
TXE3P
TXE3N
TXE4P
TXE4N

TXF0P
TXF0N
TXF1P
TXF1N
TXF2P
TXF2N
TXFCLKP
TXFCLKN
TXF3P
TXF3N
TXF4P
TXF4N

TXG0P
TXG0N
TXG1P
TXG1N
TXG2P
TXG2N
TXGCLKP
TXGCLKN
TXG3P
TXG3N
TXG4P
TXG4N

TXH0P
TXH0N
TXH1P
TXH1N
TXH2P
TXH2N
TXHCLKP
TXHCLKN
TXH3P
TXH3N
TXH4P
TXH4N

+3.3V_IO Decaps

+3.3V_IO

C106

0.1uF
16V

C124

0.1uF
16V

XTAL_IN

+3.3VD

R150

10K
LVDS

R151

10K

MINI_LVDS

Output LVDS Data Mapping Selection

- GPIO[3] = 1 : FRC2 LVDS out

- GPIO[3] = 0 : FRC2 MINI_LVDS out

+3.3VD

R1000

10K

DP

R1001

10K

NON_DP

Output LVDS Data Mapping Selection

- GPIO[3] = 1 : Display Port

- GPIO[3] = 0 : Non Display Port

+3.3VD

R152

10K
OPT

R153

10K

C127

C156

0.1uF

0.1uF

16V

16V

C120
27pF
50V

OUTPUT_OPT1

OUTPUT_OPT3

INCH_OPT_1

+1.0VDC Decaps

+1.0VDC

+1.0VDC

+1.0AVDD Decaps

+1.0AVDD

C162

0.1uF
16V

XTAL

24.75MHz

X-TAL_1

GND_13X-TAL_2

C170

0.1uF
16V

C1165

0.22uF

6.3V

C148
10uF
25V

C174

C169

10uF

10uF

25V

25V

1

2

C172

0.1uF
16V

C1166

0.22uF

6.3V

C1180

0.22uF

6.3V

R154
1M

X100

GND_2

4

C133
27pF
50V

+3.3VD

R155

10K

SHARP

OUTPUT_OPT2

R156

10K
XTR

Output LVDS Data Mapping Selection

- GPIO[4] = 1 : GP3 SHARP module

- GPIO[4] = 0 : GP3 XTR T-con

+3.3VD

R1002

10K
OPT

OUTPUT_OPT4

R1003

10K

+3.3VD

R157

10K
OPT

INCH_OPT_2

R158

10K

C185

C179

0.1uF

0.1uF
16V

16V

+1.0VDC

C1167

1uF

6.3V

+3.3V_IO

C1179

C181

0.22uF

10uF

6.3V

25V

XTAL_OUT

C1101

0.22uF

6.3V

C1168

C1113
10uF
25V

6.3V

IC101

SPI FLASH(4Mbit)

IC102

MX25L4006EM2I-12G

R160

R159

10K

4.7K

SPI_CS

SPI_DI

C

W/P

Q100

C187

0.1uF
16V

L103

CIS21J121

+3.3V_IO

+3.3VD

R184

1K

+1.0AVDD

R1009 0

R1007 0

R1008 0

C1172

1uF

6.3V

C1106

1uF

6.3V

B

C198

0.1uF
16V

SPI_CS

SPI_DO

SPI_SCLK

SPI_DI

TMODE[1]

W/P

E

TRST_N

KRC103S

C1173

FLASH_WP

I2C_SDA

I2C_SCL

1uF

6.3V

C1107

1uF

6.3V

FLASH_WP

For SPI/I2C Interface

P100

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

C1117

C147

10uF

0.1uF

25V

16V

C1169

1uF

+1.0V

CIS21J121

C167

0.1uF
16V

C1102

0.22uF

6.3V

C1170

1uF

1uF

6.3V

6.3V

+1.0VDC

L102

C175

0.1uF
16V

C1103

0.22uF

6.3V

C1104

0.22uF

6.3V

C154

0.1uF
16V

+1.0VDC

C1105

0.22uF

6.3V

C1171

C160

0.1uF
16V

1uF

6.3V

CS#

R161

SO/SIO1

33

WP#

GND

1

2

3

4

Serial Flash

8

7

6

5

For JTAG Interface

P102

YFW254-07

OPT

C1174

C1175

1uF

1uF

6.3V

6.3V

+3.3VD

C1109

R162

+3.3VD

0.1uF

3.3K

SPI_SCLK

SPI_DO

UART

P101

12507WR-04L

1

2

+3.3VD

3

4

5

+2.5VLVDS_RX Decaps

+2.5LVDS_RX

C1141

C1133

0.1uF

0.1uF
16V

16V

UART_TX

R166

33

UART_RX

C1136

0.1uF
16V

C1147

C1150

0.1uF

10uF

16V

25V

+2.5V

C1177

1uF

6.3V

CIS21J121

C1118

0.1uF
16V

C1140

0.1uF
16V

TDI

TMS

TCK

TDO

TRST_N

C1178

1uF

6.3V

+2.5LVDS_RX

L104

C1124

0.1uF
16V

VCC

HOL

SCL

SI/S

1

2

R163 33

3

R164 33

4

R165 33R136 33

5

R176 33

6

7

C1176

1uF

6.3V

+1.0VDC

LG1121A

F5

VDD_1

F6

VDD_2

F7

VDD_3

F9

VDD_4

F11

VDD_5

F13

VDD_6

F15

VDD_7

F17

VDD_8

F20

VDD_9

F22

VDD_10

F24

VDD_11

F26

VDD_12

F28

VDD_13

F30

VDD_14

G5

VDD_15

G30

VDD_16

H5

VDD_17

H30

VDD_18

J5

VDD_19

J30

VDD_20

K5

VDD_21

K30

VDD_22

L5

VDD_23

L30

VDD_24

M5

VDD_25

N5

VDD_26

P5

VDD_27

P30

VDD_28

R5

VDD_29

R30

VDD_30

T5

VDD_31

T30

VDD_32

U5

VDD_33

U30

VDD_34

V5

VDD_35

W5

VDD_36

Y5
Y30
AA5

AA30

AB5

AB30

AC5

AC30

AD5

AD30

AE5

AE30

AF5

AF30

AG5

AG30

AH5

AH30

AJ5
AJ6
AJ7
AJ8
AJ9

AJ10
AJ11
AJ12
AJ17
AJ18
AJ19
AJ20
AJ21
AJ23
AJ24
AJ25
AJ27
AJ28
AJ29
AJ30

VDD_37
VDD_38
VDD_39
VDD_40
VDD_41
VDD_42
VDD_43
VDD_44
VDD_45
VDD_46
VDD_47
VDD_48
VDD_49
VDD_50
VDD_51
VDD_52
VDD_53
VDD_54
VDD_55
VDD_56
VDD_57
VDD_58
VDD_59
VDD_60
VDD_61
VDD_62
VDD_63
VDD_64
VDD_65
VDD_66
VDD_67
VDD_68
VDD_69
VDD_70
VDD_71
VDD_72
VDD_73
VDD_74

AVDD33_XTAL

LVRX_LVDD_1
LVRX_LVDD_2
LVRX_LVDD_3
LVRX_LVDD_4

LVTX_LVCC_1
LVTX_LVCC_2
LVTX_LVCC_3
LVTX_LVCC_4
LVTX_LVCC_5
LVTX_LVCC_6
LVTX_LVCC_7
LVTX_LVCC_8
LVTX_LVCC_9

LVTX_LVCC_10

VDD33_1
VDD33_2
VDD33_3
VDD33_4
VDD33_5
VDD33_6
VDD33_7
VDD33_8

VDD33_9
VDD33_10
VDD33_11
VDD33_12
VDD33_13
VDD33_14
VDD33_15
VDD33_16
VDD33_17
VDD33_18
VDD33_19
VDD33_20
VDD33_21
VDD33_22
VDD33_23
VDD33_24
VDD33_25
VDD33_26
VDD33_27
VDD33_28
VDD33_29
VDD33_30
VDD33_31
VDD33_32
VDD33_33
VDD33_34
VDD33_35

AVDD10_1
AVDD10_2
AVDD10_3
AVDD10_4

AVDD25_1
AVDD25_2
AVDD25_3

D4
D5
D6
D29
D30
D31
D32
D33
E4
F4
G4
H4
J4
K4
L4
M4
N4
P4
R4
T4
U4
V4
W4
Y4
AA4
AJ4
AK4
AK5
AK6
AK7
AK8
AK9
AK10
AK11
AK12

AK13

AC3
AE3
AJ3
AL3

D8
D10
D12
D14
D16
D19
D21
D23
D25
D27

AJ13
AJ14
AJ15
AJ16

AM14
AM15
AM16

+3.3V_IO

+3.3V_XTAL

+2.5LVDS_RX

+2.5LVDS_TX

+1.0AVDD

+2.5AVDD

IC101

LG1121A

B1

VSS_1

B34

VSS_2

D3

VSS_3

D7

VSS_4

D9

VSS_5

D11

VSS_6

D13

VSS_7

D15

VSS_8

D17

VSS_9

D20

VSS_10

D22

VSS_11

D24

VSS_12

D26

VSS_13

D28

VSS_14

E3

VSS_15

E5

VSS_16

E6

VSS_17

E7

VSS_18

E8

VSS_19

E9

VSS_20

E10

VSS_21

E11

VSS_22

E12

VSS_23

E13

VSS_24

E14

VSS_25

E15

VSS_26

E16

VSS_27

E17

VSS_28

E18

VSS_29

E19

VSS_30

E20

VSS_31

E21

VSS_32

E22

VSS_33

E23

VSS_34

E24

VSS_35

E25

VSS_36

E26

VSS_37

E27

VSS_38

E28

VSS_39

E29

VSS_40

E30

VSS_41

F3

VSS_42

F8

VSS_43

F10

VSS_44

F12

VSS_45

F14

VSS_46

F16

VSS_47

F18

VSS_48

F19

VSS_49

F21

VSS_50

F23

VSS_51

F25

VSS_52

F27

VSS_53

F29

VSS_54

F31

VSS_55

G3

VSS_56

G31

VSS_57

H31

VSS_58

J3

VSS_59

K3

VSS_60

M12

VSS_61

M13

VSS_62

M14

VSS_63

M15

VSS_64

M16

VSS_65

M17

VSS_66

M18

VSS_67

M19

VSS_68

M20

VSS_69

M21

VSS_70

M22

VSS_71

M23

VSS_72

M30

VSS_73

M31

VSS_74

N3

VSS_75

N12

VSS_76

N13

VSS_77

N14

VSS_78

N15

VSS_79

N16

VSS_80

N17

VSS_81

N18

VSS_82

N19

VSS_83

N20

VSS_84

N21

VSS_85

N22

VSS_86

N23

VSS_87

N30

VSS_88

N32

VSS_89

P3

VSS_90

P12

VSS_91

P13

VSS_92

P14

VSS_93

P15

VSS_94

P16

VSS_95

P17

VSS_96

P18

VSS_97

P19

VSS_98

P20

VSS_99

P21

VSS_100

P22

VSS_101

P23

VSS_102

P32

VSS_103

R3

VSS_104

R12

VSS_105

R13

VSS_106

R14

VSS_107

R15

VSS_108

R16

VSS_109

R17

VSS_110

R18

VSS_111

R19

VSS_112

R20

VSS_113

R21

VSS_114

R22

VSS_115

R23

VSS_116

R32

VSS_117

T3

VSS_118

T12

VSS_119

T13

VSS_120

T14

VSS_121

T15

VSS_122

T16

VSS_123

T17

VSS_124

T18

VSS_125

T19

VSS_126

T20

VSS_127

T21

VSS_128

T22

VSS_129

T23

VSS_130

T32

VSS_131

U3

VSS_132

U12

VSS_133

U13

VSS_134

U14

VSS_135

U15

VSS_136

U16

VSS_137

U17

VSS_138

U18

VSS_139

U19

VSS_140

U20

VSS_141

U21

VSS_142

U22

VSS_143

U23

VSS_144

U32

VSS_145

V3

VSS_146

V12

VSS_147

V13

VSS_148

V14

VSS_149

V15

VSS_150

VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221
VSS_222
VSS_223
VSS_224
VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_234
VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
VSS_243
VSS_244
VSS_245
VSS_246
VSS_247
VSS_248
VSS_249
VSS_250
VSS_251
VSS_252
VSS_253
VSS_254
VSS_255
VSS_256
VSS_257
VSS_258
VSS_259
VSS_260
VSS_261
VSS_262
VSS_263
VSS_264
VSS_265
VSS_266
VSS_267
VSS_268
VSS_269
VSS_270
VSS_271
VSS_272
VSS_273
VSS_274
VSS_275
VSS_276
VSS_277
VSS_278
VSS_279
VSS_280
VSS_281
VSS_282
VSS_283
VSS_284
VSS_285
VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
VSS_294
VSS_295
VSS_296
VSS_297
VSS_298
VSS_299
VSS_300

V16
V17
V18
V19
V20
V21
V22
V23
V30
V31
V32
W3
W12
W13
W14
W15
W16
W17
W18
W19
W20
W21
W22
W23
W30
W32
Y3
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y19
Y20
Y21
Y22
Y23
Y32
AA3
AA12
AA13
AA14
AA15
AA16
AA17
AA18
AA19
AA20
AA21
AA22
AA23
AA32
AB3
AB4
AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
AB32
AC4
AC12
AC13
AC14
AC15
AC16
AC17
AC18
AC19
AC20
AC21
AC22
AC23
AC32
AD3
AD4
AD32
AE4
AF3
AF4
AF32
AG3
AG4
AG32
AH3
AH4
AH32
AJ31
AJ32
AK3
AK14
AK15
AK16
AL4
AL5
AL6
AL7
AL8
AL9
AL10
AL11
AL12
AL13
AL14
AL15
AL16
AL17
AL18
AL19
AL20
AL21
AL22
AL23
AL24
AL25
AL26
AL27
AL28
AL29
AL30
AL31
AL32
AL33
AL34
AM3
AM4
AM5
AM8
AM9
AM11
AM12
AM13
AM23
AM25
AM26
AM30
AM34
AN12
AN14
AN15
AN16

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3VD +3.3V_IO

L100

CIS21J121

C108

0.1uF
16V

C111

0.1uF
16V

+3.3V_IO

C116

0.1uF
16V

L101

CIS21J121

+3.3V_XTAL

C119

0.1uF
16V

+3.3V_XTAL

C125

0.1uF
16V

+2.5V

+2.5V

CIS21J121

C1119

0.1uF
16V

CIS21J121

C1120

0.1uF
16V

L105

L106

+2.5LVDS_TX

+2.5AVDD

C1125

0.1uF
16V

C1126

0.1uF
16V

+2.5VLVDS_TX Decaps

+2.5LVDS_TX

C1142

C1134

0.1uF

0.1uF
16V

16V

+2.5AVDD Decaps

+2.5AVDD

C1135

C1143

0.1uF

0.1uF

16V

16V

C1148

0.1uF
16V

C1149
10uF
25V

C1151

0.1uF
16V

C1152

0.1uF
16V

C1153

0.1uF
16V

C1154

0.1uF
16V

C1155

0.1uF
16V

C1156

0.1uF
16V

C1157

0.1uF
16V

C1158

0.1uF
16V

C1159
10uF
25V

LG1121 GP3 2010. 10. 20

1LG1121 7

DDR0_A[0-13]

DDR0_RESET_N

DDR0_DATA[0-15]

+1.5VQ0

100 1%

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

DDR0_A[0]
DDR0_A[1]
DDR0_A[2]
DDR0_A[3]
DDR0_A[4]
DDR0_A[5]
DDR0_A[6]
DDR0_A[7]
DDR0_A[8]
DDR0_A[9]
DDR0_A[10]
DDR0_A[11]
DDR0_A[12]

DDR0_BA[0]
DDR0_BA[1]
DDR0_BA[2]

DDR0_CLK

DDR0_CLKN

+1.5VQ0

R200

10K

DDR3 1.5V Decaps - Place these caps near Memory

DDR0_CKE

DDR0_ODT
DDR0_RASN
DDR0_CASN

DDR0_WEN

DDR0_DQS_N[0]

DDR0_DQS[1]

DDR0_DQS_N[1]

DDR0_DM[0]
DDR0_DM[1]

R203

DDR0_DATA[0]
DDR0_DATA[1]
DDR0_DATA[2]
DDR0_DATA[3]
DDR0_DATA[4]
DDR0_DATA[5]
DDR0_DATA[6]
DDR0_DATA[7]

DDR0_DATA[8]
DDR0_DATA[9]
DDR0_DATA[10]
DDR0_DATA[11]
DDR0_DATA[12]

DDR0_DATA[14]
DDR0_DATA[15]

IC201

H5TQ1G63DFR-PBC

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

A15

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+0.75V_VREF0_M0

R204

240 1%

+0.75V_VREF0_M1

+1.5VQ0

DDR3 1.5V/0.75V Decap

- Place these caps near IC101

+0.75V_VREF0_D0

C231

0.1uF

+0.75V_VREF0_D1 +0.75V_VREF1_D1+0.75V_VREF1_D0

C235

0.1uF

DDR0_A[0-13]

DDR0_DATA[0-15]

+0.75V_VREF0_D0

+0.75V_VREF0_D1

DDR0_A[0]
DDR0_A[1]
DDR0_A[2]
DDR0_A[3]
DDR0_A[4]
DDR0_A[5]
DDR0_A[6]
DDR0_A[7]
DDR0_A[8]
DDR0_A[9]
DDR0_A[10]
DDR0_A[11]
DDR0_A[12]

DDR0_DATA[0]
DDR0_DATA[1]
DDR0_DATA[2]
DDR0_DATA[3]
DDR0_DATA[4]
DDR0_DATA[5]
DDR0_DATA[6]
DDR0_DATA[7]
DDR0_DATA[8]
DDR0_DATA[9]
DDR0_DATA[10]
DDR0_DATA[11]
DDR0_DATA[12]
DDR0_DATA[13]
DDR0_DATA[14]
DDR0_DATA[15]

DDR0_CLK

DDR0_CLKN

DDR0_DQS[0]

DDR0_DQS_N[0]

DDR0_DQS[1]

DDR0_DQS_N[1]

DDR0_CKE

DDR0_WEN
DDR0_RASN
DDR0_CASN

DDR0_ODT

DDR0_DM[0]
DDR0_DM[1]
DDR0_BA[0]
DDR0_BA[1]
DDR0_BA[2]

DDR0_RESET_N

R214 240

+1.5VQ0

IC101

LG1121A

AJ33

DDR0_A[0]

J34

DDR0_A[1]

AK34

DDR0_A[2]

AG33

DDR0_A[3]

K34

DDR0_A[4]

AG34

DDR0_A[5]

K33

DDR0_A[6]

AH33

DDR0_A[7]

K32

DDR0_A[8]

AK33

DDR0_A[9]

L34

DDR0_A[10]

J33

DDR0_A[11]

L32

DDR0_A[12]

AJ34

DDR0_A[13]

J32

DDR0_A[14]

AB33

DDR0_DQ[0]

P34

DDR0_DQ[1]

AB34

DDR0_DQ[2]

P33

DDR0_DQ[3]

AC34

DDR0_DQ[4]

N33

DDR0_DQ[5]

AC33

DDR0_DQ[6]

N34

DDR0_DQ[7]

T34

DDR0_DQ[8]

Y33

DDR0_DQ[9]

R34

DDR0_DQ[10]

AA33

DDR0_DQ[11]

U33

DDR0_DQ[12]

Y34

DDR0_DQ[13]

T33

DDR0_DQ[14]

W34

DDR0_DQ[15]

M34

DDR0_CK

M33

DDR0_CK_N

W33

DDR0_DQS[0]

V34

DDR0_DQS_N[0]

V33

DDR0_DQS[1]

U34

DDR0_DQS_N[1]

M32

DDR0_CKE

AE34

DDR0_WE_N

AD33

DDR0_RAS_N

AD34

DDR0_CAS_N

AE33

DDR0_ODT

R33

DDR0_DM[0]

AA34

DDR0_DM[1]

AF33

DDR0_BA[0]

L33

DDR0_BA[1]

AF34

DDR0_BA[2]

AH34

DDR0_RST_N

AE32

AA31
AB31
AC31
AD31
AE31
AF31
AG31
AH31

W31
N31

J31
K31
L31
P31
R31
T31
U31
Y31

DDR0_ZQ_CAL

DDR0_VREF0
DDR0_VREF1

DDR0_VDDQ_1
DDR0_VDDQ_2
DDR0_VDDQ_3
DDR0_VDDQ_4
DDR0_VDDQ_5
DDR0_VDDQ_6
DDR0_VDDQ_7
DDR0_VDDQ_8
DDR0_VDDQ_9
DDR0_VDDQ_10
DDR0_VDDQ_11
DDR0_VDDQ_12
DDR0_VDDQ_13
DDR0_VDDQ_14
DDR0_VDDQ_15
DDR0_VDDQ_16

1%

DDR1_DQ[10]
DDR1_DQ[11]
DDR1_DQ[12]
DDR1_DQ[13]
DDR1_DQ[14]
DDR1_DQ[15]

DDR1_DQS[0]

DDR1_DQS_N[0]

DDR1_DQS[1]

DDR1_DQS_N[1]

DDR1_ZQ_CAL

DDR1_VDDQ_1
DDR1_VDDQ_2
DDR1_VDDQ_3
DDR1_VDDQ_4
DDR1_VDDQ_5
DDR1_VDDQ_6
DDR1_VDDQ_7
DDR1_VDDQ_8

DDR1_VDDQ_9
DDR1_VDDQ_10
DDR1_VDDQ_11
DDR1_VDDQ_12
DDR1_VDDQ_13
DDR1_VDDQ_14
DDR1_VDDQ_15
DDR1_VDDQ_16

DDR1_A[0]
DDR1_A[1]
DDR1_A[2]
DDR1_A[3]
DDR1_A[4]
DDR1_A[5]
DDR1_A[6]
DDR1_A[7]
DDR1_A[8]

DDR1_A[9]
DDR1_A[10]
DDR1_A[11]
DDR1_A[12]
DDR1_A[13]
DDR1_A[14]

DDR1_DQ[0]
DDR1_DQ[1]
DDR1_DQ[2]
DDR1_DQ[3]
DDR1_DQ[4]
DDR1_DQ[5]
DDR1_DQ[6]
DDR1_DQ[7]
DDR1_DQ[8]
DDR1_DQ[9]

DDR1_CK

DDR1_CK_N

DDR1_CKE

DDR1_WE_N
DDR1_RAS_N
DDR1_CAS_N

DDR1_ODT
DDR1_DM[0]
DDR1_DM[1]
DDR1_BA[0]
DDR1_BA[1]
DDR1_BA[2]
DDR1_RST_N

DDR1_VREF0
DDR1_VREF1

AM17
AN33
AP16
AP19
AN32
AM18
AM32
AN18
AP33
AP17
AN31
AM33
AP32
AN17
AN34

AM22
AM28
AN22
AP29
AN21
AM29
AP22
AN29
AN27
AN24
AP28
AN23
AP27
AP24
AM27
AM24

AP30
AN30
AP25
AN25
AP26
AN26
AP31
AP20
AP21
AM20
AN20
AN28
AP23
AM19
AM31
AN19
AP18
AM21

AJ22
AJ26

AK17
AK18
AK19
AK20
AK21
AK22
AK23
AK24
AK25
AK26
AK27
AK28
AK29
AK30
AK31
AK32

DDR1_A[0]
DDR1_A[1]
DDR1_A[2]
DDR1_A[3]
DDR1_A[4]
DDR1_A[5]
DDR1_A[6]
DDR1_A[7]
DDR1_A[8]
DDR1_A[9]
DDR1_A[10]
DDR1_A[11]
DDR1_A[12]

DDR1_DATA[0]
DDR1_DATA[1]
DDR1_DATA[2]
DDR1_DATA[3]
DDR1_DATA[4]
DDR1_DATA[5]
DDR1_DATA[6]
DDR1_DATA[7]
DDR1_DATA[8]
DDR1_DATA[9]

DDR1_DATA[10]
DDR1_DATA[11]
DDR1_DATA[12]
DDR1_DATA[13]
DDR1_DATA[14]
DDR1_DATA[15]

R219 240

1%

DDR1_CLK
DDR1_CLKN
DDR1_DQS[0]
DDR1_DQS_N[0]
DDR1_DQS[1]
DDR1_DQS_N[1]
DDR1_CKE
DDR1_WEN
DDR1_RASN
DDR1_CASN
DDR1_ODT
DDR1_DM[0]
DDR1_DM[1]
DDR1_BA[0]
DDR1_BA[1]
DDR1_BA[2]
DDR1_RESET_N

+1.5VQ1

DDR1_A[0-13]

DDR1_DATA[0-15]

+0.75V_VREF1_D0

+0.75V_VREF1_D1

DDR3 1.5V/0.75V Decap

- Place these caps near IC101

C279

0.1uF

C284

0.1uF

DDR1_A[0-13]

DDR1_RESET_N

DDR1_DATA[0-15]

+1.5VQ1

DDR1_A[0]
DDR1_A[1]
DDR1_A[2]
DDR1_A[3]
DDR1_A[4]
DDR1_A[5]
DDR1_A[6]
DDR1_A[7]
DDR1_A[8]
DDR1_A[9]
DDR1_A[10]
DDR1_A[11]
DDR1_A[12]

DDR1_BA[0]
DDR1_BA[1]
DDR1_BA[2]

DDR1_CLK

DDR1_CLKN

DDR1_CKE

+1.5VQ1

DDR1_ODT

DDR1_RASN

R226

DDR1_CASN

10K

DDR1_WEN

DDR1_DQS[0]DDR0_DQS[0]

DDR1_DQS_N[0]

DDR1_DQS[1]

DDR1_DQS_N[1]

DDR1_DM[0]
DDR1_DM[1]

DDR3 1.5V beCaps - Place these caps near Memory

R227

DDR1_DATA[0]
DDR1_DATA[1]
DDR1_DATA[2]
DDR1_DATA[3]
DDR1_DATA[4]
DDR1_DATA[5]
DDR1_DATA[6]
DDR1_DATA[7]

DDR1_DATA[8]
DDR1_DATA[9]
DDR1_DATA[10]
DDR1_DATA[11]
DDR1_DATA[12]
DDR1_DATA[13]DDR0_DATA[13]
DDR1_DATA[14]
DDR1_DATA[15]

100

1%

IC202

H5TQ1G63DFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

+0.75V_VREF1_M0

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

R228

240 1%

+0.75V_VREF1_M1

+1.5VQ1

C218

C204

C200

10uF
10V

0.1uF

C205

0.1uF

C208

0.1uF

C211

0.1uF

C213

0.1uF

C214

0.1uF

C216

0.1uF

DDR0 PHY VTT DDR1 PHY VTTDDR0 PHY VREF DDR1 PHY VREF

+1.5VQ0

C201
10uF

+0.75V_VTT0

CIS21J121

C202
10uF

+0.75V_VTT0

L204

C203

0.1uF
16V

R201

10K

R202

C223

10K

1000pF

VLDOIN

C287
10uF

C210

C206

10uF

10uF

C207

C209

0.1uF

0.1uF

16V

16V

REFIN

PGND

VOSNS

VO

C212

0.1uF
16V

IC200

TPS51200DRCR

1

2

3

4

5

0.1uF

C215

0.1uF
16V

11

THERMAL

C219

0.1uF

C221

0.1uF

[EP]

VIN

10

PGOOD

9

GND

8

EN

7

REFOUT

6

C217

0.1uF
16V

C225

C224

0.1uF

C288

0.1uF

0.1uF

L205

CIS21J121

C290

4700pF

C226

0.1uF

+3.3VD

C222

0.1uF

DDR0_A[0-13]

Close to REFOUT pin Close to REFOUT pin

C220

0.1uF
16V

C229

C228

C227

0.1uF

C230

0.1uF

0.1uF

0.1uF

+0.75V_VTT0

AR200

AR201

AR202

AR203

AR204

R205

68

68

68

68

68

68

DDR0_A[10]

DDR0_BA[1]

DDR0_A[12]
DDR0_A[8]

DDR0_A[6]
DDR0_A[4]
DDR0_A[1]
DDR0_A[11]

DDR0_A[0]
DDR0_A[2]
DDR0_A[9]
DDR0_A[13]

DDR0_A[7]
DDR0_A[5] DDR1_A[5]
DDR0_A[3]

DDR0_BA[2]

DDR0_BA[0]

DDR0_WEN
DDR0_ODT

DDR0_CASN

DDR0_RASN

+1.5VQ0 +0.75V_VREF0_M0

R206
1K
1%

R207
1K
1%

+1.5VQ0

0.1uF

R208

1K
1%

C1207

C244

0.1uF

C237

0.1uF

+1.5VQ0

R209
1K
1%

C247

0.1uF

C241
1000pF

C238

0.1uF

C1228

0.22uF

6.3V

R210
1K
1%

R211
1K
1%

C242

1000pF

C1229

0.22uF

6.3V

+0.75V_VREF0_M1

C249

C245

1000pF

0.1uF

+1.5VQ0

R212

1K
1%

C1225

0.1uF

C1230

0.22uF

6.3V

R213
1K
1%

C1231

0.22uF

6.3V

CIC21J501NE

C253

0.1uF
16V

+0.75V_VREF0_D1+0.75V_VREF0_D0

C246

0.1uF

L202

+1.5VQ0+1.5VQ0 +1.5V0

C250

1000pF

C257

0.1uF
16V

+1.5VQ1

C259

0.1uF

+0.75V_VREF1_M0

R217
1K
1%

R215
1K
1%

+1.5VQ1 +0.75V_VREF1_D1

R218

C1226

0.1uF

C264

C260

0.1uF

1000pF

1K
1%

R216

1K
1%

C1232

0.22uF

6.3V

R220
1K
1%

R221

1K
1%

+0.75V_VREF1_D0

C265

C261

0.1uF

1000pF

C1233

0.22uF

6.3V

+0.75V_VREF1_M1

C269

0.1uF

C1234

0.22uF

6.3V

+1.5VQ1

C1227

0.1uF

C273

1000pF

R222

1K
1%

R223
1K
1%

C1235

0.22uF

6.3V

+1.5V1+1.5VQ1

C1236

0.22uF

6.3V

CIC21J501NE

C276

0.1uF
16V

C270

0.1uF

L203

+1.5VQ1+1.5VQ1

C274

1000pF

C281

0.1uF
16V

C294
10uF

+0.75V_VTT1

+0.75V_VTT1

C289

0.1uF
16V

+1.5VQ1

R224

L206

CIS21J121

C1218
10uF

10K

R225

10K

C291

0.1uF
16V

C1219
10uF

C292

10uF
10V

C1221

1000pF

C1222
10uF

C1220
10uF

C293

0.1uF
16V

C297

0.1uF

C1200

0.1uF

VLDOIN

REFIN

PGND

VOSNS

C296

0.1uF
16V

C1202

0.1uF

VO

C1206

C1205

0.1uF

0.1uF

IC203

TPS51200DRCR

1

2

THERMAL

3

4

5

C298

0.1uF
16V

11

C1201

0.1uF
16V

C1210

0.1uF

10

9

8

7

6

C1212

0.1uF

[EP]

VIN

PGOOD

GND

EN

REFOUT

C1203

0.1uF
16V

C1215

0.1uF

DDR1_A[0-13]

C1223

0.1uF

C1237

1uF

6.3V

L207

CIS21J121

C1224
4700pF

+3.3VD

C1238

1uF

6.3V

DDR1_A[10]

DDR1_BA[1]

DDR1_A[12]
DDR1_A[8]

DDR1_A[6]
DDR1_A[4]
DDR1_A[11]
DDR1_A[1]

DDR1_A[0]
DDR1_A[2]
DDR1_A[9]
DDR1_A[13]

DDR1_A[7]

DDR1_A[3]

DDR1_BA[2]

DDR1_BA[0]

DDR1_WEN
DDR1_ODT

DDR1_CASN

DDR1_RASN

AR205

AR206

AR207

AR208

AR209

R229

68

+0.75V_VTT1

68

68

68

68

68

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LG1121 GP3

LG1121_DDR

2010. 10. 20

2

7

C300
22uF
25V

VLCD_POWER

(+12V)

L301
CIS21J121

C303

0.1uF

50V

R301
10K

C306
2200pF

C332

100pF

50V

OPT

MAX 782mA

+1.5V0

C334
22uF
10V

C336
22uF
10V

AOZ1072AI-3

PGND

VIN

AGND

FB

DCDC_Revision

IC303-*1

1

2

3

4

LX_2

8

LX_1

7

EN

6

COMP

5

+3.3VD

R306
47K

C308

0.1uF
16V

EN

6

FB

4

COMP

5

EAN60660601

50V

+1.0V_Normal

VIN

2

IC302

AOZ1024DI

3

AGND

1

PGND

LX

7

L303

3.6uH

R310

2.7K
1%

R1

R311

1.2K
1%

R312
10K

R2

1%

Vout=0.8*(1+R1/R2)

C312
3300pF
50V

OPT

MAX 2.92A

C315
22uF

10V

C318
22uF

10V

+1.0V

C321

0.1uF
16V

VLCD_POWER

(+12V)

L304

CIS21J121

C322
10uF
25V

C324
10uF
25V

C326

0.1uF
16V

+1.5V_DDR0

DCDC_Old

IC303

AOZ1072AI

PGND

AGND

1

VIN

2

3

FB

4

8

7

6

5

EAN60922901

LX_2

LX_1

EN

COMP

R302
15K

C328

0.1uF
16V

L306

3.6uH

C329
2200pF

R319
47K

+2.5V

R1

R321

6.2K
1%

R322

2.7K
1%

R323

R2

10K
1%

Vout=0.8*(1+R1/R2)

PGND

VIN

AGND

FB

DCDC_Revision

IC300-*1

AOZ1072AI-3

1

2

3

4

VLCD_POWER

+3.3V_Normal

(+12V)

L300

CIS21J121

DCDC_Old

IC300

AOZ1072AI

LX_2

8

LX_1

7

EN

6

COMP

5

R300

0

1/10W

C302
10uF
10V

+3.3VD

C301
10uF
25V

C304

0.1uF
16V

C305
10uF
25V

VLCD_POWER

R303
47K

(+12V)

PGND

1

VIN

AGND

FB

2

3

4

EAN60922901

C307

0.1uF
16V

+2.5V_Normal

AP2132MP-2.5TRG1

C309

0.1uF
16V

R304

1.5K
1%

R305

Vout=0.6*(1+R1/R2)

1K
1%

VCTRL

LX_2

8

LX_1

7

EN

6

COMP

5

1

PG

2

EN

3

VIN

4

EAN61387601

IC301

C310

0.1uF
16V

OPT

R307
43K

9

THERMAL

8

7

6

5

L302

3.6uH

C311
2200pF

[EP]

GND

ADJ

VOUT

NC

R308
18K

R309
47K

R1

R313
27K
1%

R314

4.3K
1%

R315

R2

10K
1%

Vout=0.8*(1+R1/R2)

R316

R2

16K
1%

R317
51K

R1

1%

C314
10uF
25V

C313

100pF

50V

OPT

MAX 435mA

C316
22uF
10V

MAX 405mA

C317
10uF
25V

+3.3VD

+2.5V

C319
22uF
10V

C320

0.1uF
16V

VLCD_POWER

(+12V)

VLCD_POWER

(+12V)

L305

CIS21J121

C323
10uF
25V

L308

CIS21J121

C338
10uF
25V

+1.5V_DDR1

DCDC_Old

IC304

AOZ1072AI

C325
10uF
25V

C327

0.1uF
16V

PGND

AGND

VIN

FB

1

2

3

4

EAN60922901

LX_2

8

LX_1

7

C330

EN

0.1uF

6

16V

COMP

5

R318
15K

2D to 3D LG1131 Core

DCDC_Old

IC305

AOZ1072AI

C339
10uF
25V

C340

0.1uF
16V

PGND

AGND

VIN

FB

1

2

3

4

EAN60922901

LX_2

8

LX_1

7

C341

EN

6

0.1uF
16V

COMP

5

R327

5.1K

L307

3.6uH

C331
2200pF

L309

3.6uH

C342
2200pF

R328
47K

+2.5V

R320
47K

R1

R2

Vout=0.8*(1+R1/R2)

+2.5V

R1

R329
2K
1%

R330

1.5K
1%

R324

6.2K
1%

R325

2.7K
1%

R326
10K
1%

100pF

C343

100pF

50V

OPT

C333

50V

OPT

MAX 782mA

C335
22uF
10V

MAX 467mA

+1.0V_2D3D

C344
22uF
10V

+1.5V1

C345
22uF
10V

C337
22uF
10V

PGND

VIN

AGND

FB

PGND

VIN

AGND

FB

DCDC_Revision

IC304-*1

AOZ1072AI-3

1

2

3

4

DCDC_Revision

IC305-*1

AOZ1072AI-3

1

2

3

4

LX_2

8

LX_1

7

EN

6

COMP

5

LX_2

8

LX_1

7

EN

6

COMP

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R331

R2

12K
1%

Vout=0.8*(1+R1/R2)

LG1121 GP3

LG1121_POWER

2010. 10. 20

3

7

VLCD_POWER

(+12V)

HVDD

(+8.4V)

R453

0

1/10W

C401
10uF
25V

VL

(+5V)

R408
150K

1%

R410

TH400
47k-ohm

120K

R409 0

1/10W

Place Bottom

C403
10uF
25V
OPT

R454
10

1/10W

C404
10uF
25V

R405

2.7K

C402
10uF
25V

VDD_LCM

(+16.8V)

to prevent inrush current

TCOMP

L400
22uH

D400
1N4148W

100V

C405
10uF
25V

C409

C406
10uF
25V
OPT

Place Bottom

R411

C407

0.47uF
50V

C408

0.47uF
50V

D401
1N4148W

100V

[PMIC Block]

VLCD_POWER

(+12V)

R451
1/10W

C410
10uF
25V

VL

(+5V)

1uF
25V

L401
10uH

3.1A

R412 0

D402
SMAB34

40V

C413

2.2

1000pF

C411

0.1uF
50V

C412

0.1uF
50V

0

TCOMP

C415

1uF
25V

C414
10uF
25V

VLCD_POWER

R452

0

1/10W

C417

0.1uF
50V

C416

0.01uF
50V

Place Bottom

C418
10uF
25V
OPT

(+12V)

C419

0.1uF
50V

C420
10uF
25V
OPT

EN1

TCOMP

AGND
AVIN

PVINB3

BST3
SWB3
OUT3

PGND3

C422
120pF
50V

C421
10uF
25V

MMBT3906(NXP)

R413
680

1
2

VL

3
4
5
6
7
8
9
10

C424

0.1uF
50V

R414

C425

2200pF

Q400

EBC

C427

0.1uF
50V

[EP]AGND

NC_5

40

THERMAL

11SS12

33K

50V

C423
10uF
25V

PVINB12_2

39

41

MAX17139

13

COMP

PGND_114PGND_2

C426
10uF
25V
OPT

Place Bottom

SWB

IC401

15

SW_116SW_2

C428

4.7uF
50V

NC_435SWB1_136SWB1_237BST138PVINB12_1

34

17

SWI18SWO

C429
10uF
25V
OPT

D403
SMAB34

19

NC_1

C430

4.7uF
50V

40V

LQM2HPN2R2MG0L

PGND232SWB233VLOGIC1

31

30
29
28
27
26
25
24
23
22
21

20

CTRLP

CTRLP

R415 0

1/10W

L402
22uH

2.2A

L403

2.2uH

VLOGIC2
SDA
SCL
A0
RST
NC_3
CTRLN
NC_2
VGL
VGH

R423 33
R424 33

R449 33

VGH_S

(+27V)

C431
10uF
25V

R416
18K
1/10W

VCC_LCM
(+3.3V)

R427 0

1/10W

C432

C435

1uF

22uF

25V

10V

R450 0

C457

C458

10uF

10uF

25V

25V

VCC_LCM
(+3.3V)

I2C_SDA
I2C_SCL

VGL_FB VGL_FB

VCC_LCM
(+3.3V)

R455
10K

R456
10K

OPT

C433

C434

10uF

10uF

25V

25V

VGH_S

(+27V)

R417
18K
1/10W

C438
22uF
10V

VCORE

(+1.0V)

1/10W

R448

10K

Place Bottom

C439
10uF
25V
OPT

C441

0.1uF
50V

TCON_RST

R426 680

C442
10uF
25V
OPT

B

R429 0

1/10W

R430

5.1K

C

Q401
2SC3052

E

VDD_LCM

(+16.8V)

R432

9.1K
1/8W

D404

1N4148W

100V

C444

0.22uF
50V

OPT

C445

0.22uF
50V

OPT

1N4148W

C447

0.22uF
50V

C448

0.22uF
50V

SWB

D405

100V

R435
0

R436
2K
1/8W
1%

C449

0.1uF
50V

OPT

OPT

R437 0

OPT

VCC_LCM
(+3.3V)

C450
10uF
25V

R440 0

C451
10uF
25V

1/10W

VGL

(-5V)

R442

3.6K
1/10W

[GPM Block]

OPT

VGH

(+27V)

VGH_S

(+27V)

R400 15K

1%

C400
56pF
50V

VGH_M

VGH

RE

CE

IC400

KIA3820FK

1

2

3

4

R401 33

R402 33

VCC_LCM

R403

OPT

(+3.3V)

VFLK

8

GND

7

VDPM

6

VDD

5

R404 33

GSC

FLK

VDD_LCM

(+16.8V)

R406

0

1/10W

DPM

R407

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

CTRLP

VCC_LCM
(+3.3V)

VDD_LCM

(+16.8V)

I2C_SDA

R418

10K

R419 0

R420 22

C437
1uF
10V

C436

4.7uF
50V

R425 33

C440

4.7uF
50V

DVDD

VCOM_GND

VCOM_OUT

R433

HVDD

(+8.4V)

I2C_SCL

R428 33

EP[GND]

SDA

1

THERMAL THERMAL

A0

2

21

3

IC402

BUF08630

4

0xEA

5

7

6

AVDD_1

VCOM_FB

AVDD_AVDD

0

C443

0.1uF
50V

C446
1uF
25V

NC_117HVDD18GM719GM820SCL

16

GM6

15

GM5

14

GM4

13

GM3

12

GM2

11

9

10

8

GM1

BKSEL

R431
10K

[P-Gamma Block]

V14

V13

V12

V10

V4

V3

V2

V1

VCC_LCM
(+3.3V)

VDD_LCM

(+16.8V)

I2C_SDA

R441

R438 0

R439 22

R443 33

C453
1uF

10K

10V

C452

C454

4.7uF

4.7uF

50V

50V

LG1121 GP3

T-Con Power/P-Gamma/GPM

DVDD

VCOM_GND

VCOM_OUT

SDA

A0

C455

0.1uF
50V

EP[GND]

1

2

3

4

5

VCOM_FB

I2C_SCL

R444 33

21

IC403

BUF08630

0xE8

7

6

AVDD_1

AVDD_AVDD

8

HVDD

(+8.4V)

9

BKSEL

R445
10K

C456
1uF
25V

NC_117HVDD18GM719GM820SCL

16

GM6

15

GM5

14

GM4

13

GM3

12

GM2

11

10

GM1

R446 0

R447 0

V18

V17

V16

V15

V9

V7

V6

V5

VCOMOUT

VCOMFB

2010. 10. 20

4

7

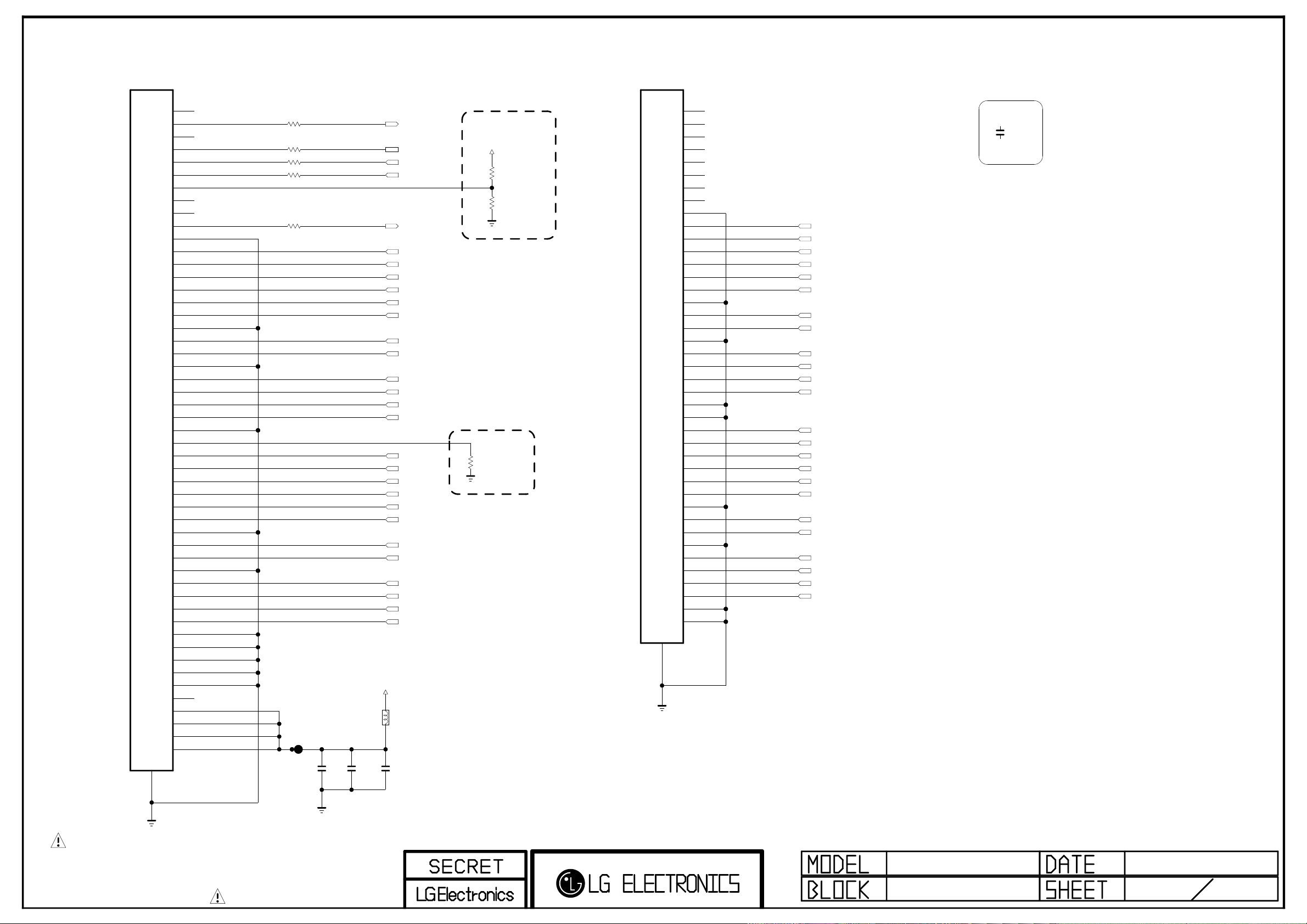

[FRC-II 51P LVDS input wafer]

P500

FI-RE51S-HFK-A

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

R500 33

R502 33

CIS21J121

C500
10uF
25V

VLCD_POWER

L500

RXB4P

RXB4N

RXB3P

RXB3N

RXBCLKP

RXBCLKN

RXB2P

RXB2N

RXB1P

RXB1N

RXB0P

RXB0N

RXA4P

RXA4N

RXA3P

RXA3N

RXACLKP

RXACLKN

RXA2P

RXA2N

RXA1P

RXA1N

RXA0P

RXA0N

I2C_SCL

I2C_SDA

3D_SYNC_Out

(+12V)

RESET

C501
10uF
25V

[FRC-II 80P mini-LVDS output wafer] [To LED Driver]

VDD_LCM

(+16V)

P503

12507WR-08L

9

P504

12507WR-08L

9

M2

MDS62110204

GASKET_5.5T

M4

MDS62110204

GASKET_5.5T

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

P501

104060-8017

81

C502

C503

0.1uF

10uF

50V

25V

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

OPT_P

GOE
GSC

VCOMFB
VCOMOUT

Z_OUT

V1
V2
V3
V4
V5
V6
V7
V9
V10
V12
V13
V14
V15
V16
V17
V18

GSP
POL

SOE
H_CONV
OPT_N

RLV0P
RLV0N
RLV1P
RLV1N
RLV2P
RLV2N

RLVCLKP
RLVCLKN

RLV4P
RLV4N
RLV5P
RLV5N
RLV6P
RLV6N

RRV0P
RRV0N
RRV1P
RRV1N
RRV2P
RRV2N

RRVCLKP
RRVCLKN

RRV4P
RRV4N
RRV5P
RRV5N
RRV6P
RRV6N

C504
10uF
25V

HVDD
(+8V)

VGL

(-5V)

VGH

(+27V)

C505
10uF
25V

C506
10uF
25V

C508
10uF
25V

C507

0.1uF
50V

VCC_LCM
(+3.3V)

C510
10uF
25V

C509

0.01uF
50V

P502

104060-8017

81

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

LLV0P
LLV0N
LLV1P
LLV1N
LLV2P
LLV2N

LLVCLKP
LLVCLKN

LLV4P
LLV4N
LLV5P
LLV5N
LLV6P
LLV6N

LRV0P
LRV0N
LRV1P
LRV1N
LRV2P
LRV2N

LRVCLKP
LRVCLKN

LRV4P
LRV4N
LRV5P
LRV5N
LRV6P
LRV6N

OPT_N
H_CONV
GSP
POL

SOE

V1
V2
V3
V4
V5
V6
V7
V9
V10
V12
V13
V14
V15
V16
V17
V18

Z_OUT

VCOMOUT
VCOMFB

GSC
GOE

C518

0.1uF
50V

VGH

(+27V)

VGL

(-5V)

VCC_LCM

(+3.3V)

HVDD

(+8V)

C519

0.01uF
50V

M1

MDS62110204

GASKET_5.5T

M3

MDS62110204

GASKET_5.5T

R503 33

R506 33

R504

R505 33

SMD Gasket 4.5TSMD Gasket 4.5T

M1-*1

MDS62110208

GASKET_4.5T

M3-*1

MDS62110208

GASKET_4.5T

L/DIM0_SCLK

L/DIM0_MOSI

I2C_SCL

I2C_SDA

L/DIM0_VS

L/DIM1_SCLK

L/DIM1_MOSI

33

I2C_SCL

I2C_SDA

L/DIM1_VS

M2-*1

MDS62110208

GASKET_4.5T

M4-*1

MDS62110208

GASKET_4.5T

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C511
10uF
25V

C512
10uF
25V

C513
10uF
25V

C514
10uF
25V

C515
10uF
25V

VDD_LCM

C516
10uF
25V

(+16V)

C517

0.1uF
50V

M5

MDS62110204

GASKET_5.5T

M7

MDS62110204

OPT

M6

MDS62110204

GASKET_5.5T

M5-*1

MDS62110208

GASKET_4.5T

M6-*1

MDS62110208

GASKET_4.5T

[LEFT FFC CONNECTOR][RIGHT FFC CONNECTOR]

LG1121 GP3

LVDS/mini-LVDS wafer

2010. 10. 20

5

7

TXA0P
TXA0N
TXA1P
TXA1N
TXA2P

TXA2N
TXACLKP
TXACLKN

TXA3P

TXA3N

TXA4P

TXA4N

TXB0P

TXB0N

TXB1P

TXB1N

TXB2P

TXB2N
TXBCLKP
TXBCLKN

TXB3P

TXB3N

TXB4P

TXB4N

TXC0P

TXC0N

TXC1P

TXC1N

TXC2P

TXC2N
TXCCLKP
TXCCLKN

TXC3P

TXC3N

TXC4P

TXC4N

TXD0P

TXD0N

TXD1P

TXD1N

TXD2P

TXD2N
TXDCLKP
TXDCLKN

TXD3P

TXD3N

TXD4P

TXD4N

TXE0P

TXE0N

TXE1P

TXE1N

TXE2P

TXE2N
TXECLKP
TXECLKN

TXE3P

TXE3N

TXE4P

TXE4N

TXF0P

TXF0N

TXF1P

TXF1N

TXF2P

TXF2N
TXFCLKP
TXFCLKN

TXF3P

TXF3N

TXF4P

TXF4N

TXG0P

TXG0N

TXG1P

TXG1N

TXG2P

TXG2N
TXGCLKP
TXGCLKN

TXG3P

TXG3N

TXG4P

TXG4N

TXH0P

TXH0N

TXH1P

TXH1N

TXH2P

TXH2N
TXHCLKP
TXHCLKN

TXH3P

TXH3N

TXH4P

TXH4N

IC601

LGE5811A

L17

RXA0P

L18

RXA0N

K18

RXA1P

K17

RXA1N

J18

RXA2P

J17

RXA2N

H16

RXACLKP

J16

RXACLKN

H17

RXA3P

H18

RXA3N

G18

RXA4P

G17

RXA4N

F16

RXB0P

G16

RXB0N

F17

RXB1P

F18

RXB1N

E18

RXB2P

E17

RXB2N

D16

RXBCLKP

E16

RXBCLKN

D17

RXB3P

D18

RXB3N

B18

RXB4P

C18

RXB4N

A17

RXC0P

B17

RXC0N

C16

RXC1P

C17

RXC1N

B16

RXC2P

A16

RXC2N

A15

RXCCLKP

B15

RXCCLKN

C14

RXC3P

C15

RXC3N

B14

RXC4P

A14

RXC4N

A13

RXD0P

B13

RXD0N

C12

RXD1P

C13

RXD1N

B12

RXD2P

A12

RXD2N

A11

RXDCLKP

B11

RXDCLKN

C10

RXD3P

C11

RXD3N

B10

RXD4P

A10

RXD4N

A9

RXE0P

B9

RXE0N

C8

RXE1P

C9

RXE1N

B8

RXE2P

A8

RXE2N

A7

RXECLKP

B7

RXECLKN

C6

RXE3P

C7

RXE3N

B6

RXE4P

A6

RXE4N

A5

RXF0P

B5

RXF0N

C4

RXF1P

C5

RXF1N

B4

RXF2P

A4

RXF2N

A3

RXFCLKP

B3

RXFCLKN

C2

RXF3P

C3

RXF3N

B2

RXF4P

A2

RXF4N

C1

RXG0P

B1

RXG0N

D1

RXG1P

D2

RXG1N

E3

RXG2P

D3

RXG2N

E2

RXGCLKP

E1

RXGCLKN

F1

RXG3P

F2

RXG3N

G3

RXG4P

F3

RXG4N

G2

RXH0P

G1

RXH0N

H1

RXH1P

H2

RXH1N

J3

RXH2P

H3

RXH2N

J2

RXHCLKP

J1

RXHCLKN

K2

RXH3P

K1

RXH3N

L1

RXH4P

L2

RXH4N

LLV0P
LLV0N
LLV1P
LLV1N
LLV2P

LLV2N
LLVCLKP
LLVCLKN

LLV3P

LLV3N

LLV4P

LLV4N

LLV5P

LLV5N

LRV0P

LRV0N

LRV1P

LRV1N

LRV2P

LRV2N
LRVCLKP
LRVCLKN

LRV3P

LRV3N

LRV4P

LRV4N

LRV5P

LRV5N

RLV0P

RLV0N

RLV1P

RLV1N

RLV2P

RLV2N
RLVCLKP
RLVCLKN

RLV3P

RLV3N

RLV4P

RLV4N

RLV5P

RLV5N

RRV0P

RRV0N

RRV1P

RRV1N

RRV2P

RRV2N
RRVCLKP
RRVCLKN

RRV3P

RRV3N

RRV4P

RRV4N

RRV5P

RRV5N

H_CONV

OPT_P

OPT_N

EEP_ADDR

LR_IND
AGP_EN

MODE_SEL

RMLVDS

TEMPSEL0
TEMPSEL1
TEMPSEL2

TMODE0
TMODE1
TMODE2
TMODE3

SCL_M

SDA_M

SCL_S

SDA_S

PORES_N

SOE
GSP
GOE
GSC
POL
FLK
DPM

RBF

I2C Slave Address : 0x72

LG5811 will be change LG5811A.
Please use LG5811 unitil revision.

R1
R2
T1
U1
U2
V2
T2
T3
V3
U3
U4
V4
T4
T5

V5
U5
U6
V6
T6
T7
V7
U7
U8
V8
T8
T9
V9
U9

U10
V10
T10
T11
V11
U11
U12
V12
T12
T13
V13
U13
U14
V14

T14
T15
V15
U15
U16
V16
T16
T17
V17
U17
U18
T18
R17
R18

M1

R614 33

M2

R600 33

N1

R601 33

P1

R602 33

N2

R603 33

P2

R604 33

L3

R605 33

M3

R606 33

N3

R607 33

P3

R608 33

K3
R3
K16

R609 33

WP

L16
P17
P18
R9

R615 15K

L4
P4
R4

M16
N16
P16
R16

N18
N17
M18
M17

R15

1%

R610 33
R611 33
R612 33
R613 33

LLV0P
LLV0N
LLV1P
LLV1N
LLV2P
LLV2N
LLVCLKP
LLVCLKN
LLV4P
LLV4N
LLV5P
LLV5N
LLV6P
LLV6N

LRV0P
LRV0N
LRV1P
LRV1N
LRV2P
LRV2N
LRVCLKP
LRVCLKN
LRV4P
LRV4N
LRV5P
LRV5N
LRV6P
LRV6N

RLV0P
RLV0N
RLV1P
RLV1N
RLV2P
RLV2N
RLVCLKP
RLVCLKN
RLV4P
RLV4N
RLV5P
RLV5N
RLV6P
RLV6N

RRV0P
RRV0N
RRV1P
RRV1N
RRV2P
RRV2N
RRVCLKP
RRVCLKN
RRV4P
RRV4N
RRV5P
RRV5N
RRV6P
RRV6N

SOE
GSP
GOE
GSC
POL
FLK
DPM
H_CONV
OPT_P
OPT_N

RBF

<- EEPROM Address = 0xA6

WP_EEPROM_TCON
LR_IND
AGP_EN
MODE_SEL

TCON_SCL
TCON_SDA
I2C_SCL
I2C_SDA

TCON_RST

SW600

JTP-1127WEM

1. RBF

- Pattern selection of No Video input
LOW : Rolling Pattern
HIGH : Black Pattern

2. LR_IND

- Left/Right frame Indicator
LOW : Left
HIGH : Right

3. AGP_EN

- NO input indicator
LOW : Normal
HIGH : No input

4. MODE_SEL

- 2D/3D mode selection
LOW : 2D mode
HIGH : 3D mode

R617
10K

+3.3VDD

+1.0VDD

+3.3AVDD_RX

+3.3AVDD_TX

[T-Con EEPROM[64KBIT)]

R618
10K

AT24C64D-SSHM-T

A0

A1

A2

GND

I2C Slave Address : 0xA6

- Write Protection
HIGH : Write Protection
LOW or NC : Normal Operation

F14

G5

G14

H5

H14

J5

J14

K5

K14

L5

L14

M5

M14

N5

F5
G7
G8

G9
G10
G11
G12

H7
H12

J7
J12

K7
K12

L7
L12

M7

M8

M9
M10
M11
M12

D6

D7

D8

D9
D10
D11
D12
D13
D14

R5

R6

R7

R8
R10
R11
R12
R13
R14

IC600

1

2

3

4

VDD_33_1
VDD_33_2
VDD_33_3
VDD_33_4
VDD_33_5
VDD_33_6
VDD_33_7
VDD_33_8
VDD_33_9
VDD_33_10
VDD_33_11
VDD_33_12
VDD_33_13
VDD_33_14

VDD_10_1
VDD_10_2
VDD_10_3
VDD_10_4
VDD_10_5
VDD_10_6
VDD_10_7
VDD_10_8
VDD_10_9
VDD_10_10
VDD_10_11
VDD_10_12
VDD_10_13
VDD_10_14
VDD_10_15
VDD_10_16
VDD_10_17
VDD_10_18
VDD_10_19
VDD_10_20
VDD_10_21

RX_AVDD33_1
RX_AVDD33_2
RX_AVDD33_3
RX_AVDD33_4
RX_AVDD33_5
RX_AVDD33_6
RX_AVDD33_7
RX_AVDD33_8
RX_AVDD33_9

TX_AVDD33_1
TX_AVDD33_2
TX_AVDD33_3
TX_AVDD33_4
TX_AVDD33_5
TX_AVDD33_6
TX_AVDD33_7
TX_AVDD33_8
TX_AVDD33_9

VCC

8

WP

7

SCL

6

SDA

5

LGE5811A

C600

0.1uF
16V

IC601

VCC_LCM
(+3.3V)

R619

10K

GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8

GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58

D4
D5
D15
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
E15
F4
F15
G4
G15
H4
H8
H9
H10
H11
H15
J4
J8
J9
J10
J11
J15
K4
K8
K9
K10
K11
K15
L8
L9
L10
L11
L15
M4
M15
N4
N14
N15
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15

+3.3VDD Decaps

VCC_LCM
(+3.3V)

C601

0.1uF
16V

L600

CIS21J121

+3.3VDD

+1.0VDD Decaps

VCORE

(+1.0V)

C602

0.1uF
16V

L601

CIS21J121

+1.0VDD

+3.3AVDD_RX Decaps

VCC_LCM
(+3.3V)

C603

0.1uF
16V

L602

CIS21J121

+3.3AVDD_RX

+3.3AVDD_TX Decaps

VCC_LCM
(+3.3V)

L603

CIS21J121

C604

0.1uF
16V

C605

0.1uF
16V

C606

0.1uF
16V

C607

0.1uF
16V

C608

0.1uF
16V

+3.3VDD

C609

0.1uF
16V

+1.0VDD

C659

0.1uF
16V

+3.3AVDD_RX

C611

0.1uF
16V

+3.3AVDD_TX+3.3AVDD_TX

C612

0.1uF
16V

C633

0.1uF
16V

C660

0.1uF
16V

C627

0.1uF
16V

C632

0.1uF
16V

C651

0.1uF
16V

C661

0.1uF
16V

C643

0.1uF
16V

C680
1uF
25V

C676

0.22uF

6.3V

C681
1uF
25V

C682
1uF
25V

C677

0.22uF

6.3V

+3.3VDD

+1.0VDD

+3.3AVDD_TX

C670

1uF

6.3V

C672

1uF

6.3V

C678

1uF

6.3V

C671
1uF

6.3V

C673
1uF

6.3V

C679
1uF

6.3V

C674

1uF

6.3V

C675

1uF

6.3V

[T-Con EEPROM Debug]

P600

12507WR-03L

R620
2K

R621
2K

WP_EEPROM_TCON

TCON_SCL

TCON_SDA

1

2

3

4

TCON_SDA

TCON_SCL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LG1121 GP3

XTR T-Con block 6

2010. 10. 20

7

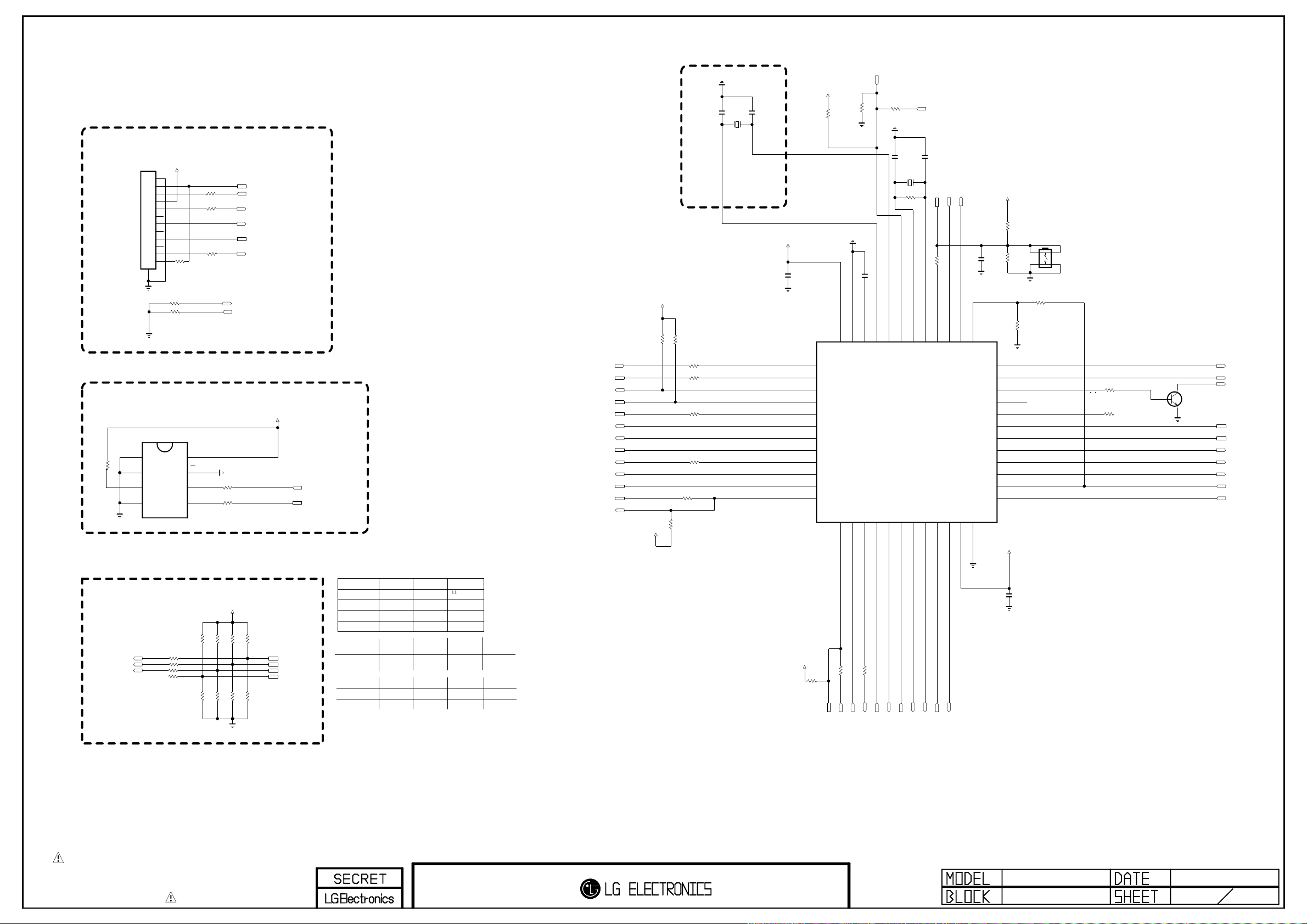

+3.3V_LG1131_LVDS_Rx

+3.3VD

RXB4P
RXB4N
RXB3P

RXB3N
RXBCLKP
RXBCLKN

RXB2P

RXB2N

RXB1P

RXB1N

RXB0P

RXB0N

RXA4P

RXA4N

RXA3P

RXA3N
RXACLKP
RXACLKN

RXA2P

RXA2N

RXA1P

RXA1N

RXA0P

RXA0N

C729

0.1uF
16V

L702

CIS21J121

C726
10uF
25V

+3.3V_LG1131_Rx

R700
100

1%

R701
100

1%

C731
1uF
25V

R702
100

1%

R703
100

1%

C703

0.1uF
16V

R704
100

1%

R705
100

1%

C705

0.1uF
16V

R706
100

1%

R707
100

1%

C701

0.1uF
16V

R708
100

1%

R709
100

1%

+3.3V_LG1131_Rx +1.0V_LG1131

R710
100

1%

R711
100

1%

VDD10_1

RXB4P
RXB4N
RXB3P

RXB3N
RXBCLKP
RXBCLKN

RXB2P

RXB2N

RXB1P

RXB1N

RXB0P

RXB0N

AVDD33_1

GND_1

RXA4P

RXA4N

RXA3P

RXA3N
RXACLKP
RXACLKN

RXA2P

RXA2N

RXA1P

RXA1N

RXA0P

RXA0N

AVDD33_6

[EP]

109

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

I2C_SDA

I2C_SCL

GND_19

107

108

THERMAL

VDD10_11

GND_18

VDD10_12

104

105

106

RESET_LG1131

R712 33

SCL

RESET

102

103

R713 33

SDA

101

VDD10_10

T_DOUT6

99

100

+3.3V_LG1131_VDD

VDD33_4

GND_17

98

IC700

LG1131A

I2C Slave Address : 0x8E

28

29

31

33

34

35

38

t_dout(4) : rst_pix2_n

R716
0

VDD33_3

GND_16

VDD10_9

TEST1

TEST2

T_DOUT4

T_DOUT5

90

91

92

93

94

95

96

97

39

40

41

44

45

EXTCLK_IN

TEST0

88

89

47

48

T_ENB

+3.3V_LG1131_TX

AVDD33_5

GND_14

VDD10_8

GND_15

83

84

85

86

87

49

50

51

52

53

AVDD33_4

82

81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55

GND_13
TXB4P
TXB4N
TXB3P
TXB3N
TXBCLKP
TXBCLKN
TXB2P
TXB2N
TXB1P
TXB1N
TXB0P
TXB0N
GND_12
AVDD33_3
TXA4P
TXA4N
TXA3P
TXA3N
TXACLKP
TXACLKN
TXA2P
TXA2N
TXA1P
TXA1N
TXA0P
TXA0N

TXB4P_2D3D
TXB4N_2D3D
TXB3P_2D3D
TXB3N_2D3D
TXBCLKP_2D3D
TXBCLKN_2D3D
TXB2P_2D3D
TXB2N_2D3D
TXB1P_2D3D
TXB1N_2D3D
TXB0P_2D3D
TXB0N_2D3D

TXA4P_2D3D
TXA4N_2D3D
TXA3P_2D3D
TXA3N_2D3D
TXACLKP_2D3D
TXACLKN_2D3D
TXA2P_2D3D
TXA2N_2D3D
TXA1P_2D3D
TXA1N_2D3D
TXA0P_2D3D
TXA0N_2D3D

RESET

R714 1K

+3.3VD

SW700

JTP-1127WEM

R715
10K

RESET_LG1131

RESET_LG1131

GND_230GND_3

AVDD33_2

+3.3V_LG1131_VDD

GND_4

VDD33_132VDD10_2

T_DIN036T_DIN137T_DIN2

VDD10_3

t_dout(0) : PLL CLOCK OUTPUT(1x)

GND_5

VDD10_4

R717

0

T_DIN3

GND_6

T_DOUT042T_DOUT143VDD10_5

T_DOUT246VDD33_2

R718
0

GND_7

+3.3V_LG1131_LVDS_Tx +3.3V_LG1131_VDD

+3.3VD +3.3V_LG1131_TX

L703

CIS21J121

C730

0.1uF
16V

C728
10uF
25V

C732
1uF
25V

C710

0.1uF
16V

C712

0.1uF
16V

C708

0.1uF
16V

+3.3VD

C714

0.1uF
16V

+3.3V_LG1131_VDD

L701

CIS21J121

C727
10uF
25V

C733
1uF
25V

C718

0.1uF
16V

C720

0.1uF
16V

C722

0.1uF
16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GND_8

GND_9

VDD10_6

C725

0.1uF
16V

GND_1054GND_11

VDD10_7

T_DOUT3

t_dout(2) : VCO CLOCK OUTPUT

+1.0V_LG1131 Decaps

+1.0V_LG1131

C700

C702

0.1uF
16V

C704

0.1uF
16V

0.1uF
16V

C707

0.1uF
16V

C709

0.1uF
16V

CIS21J121

C706

0.1uF
16V

C711

0.1uF
16V

L700

+1.0V_LG1131+1.0V_2D3D

C715

0.1uF
16V

C713

0.1uF
16V

C717

0.1uF
16V

2010. 10. 4LG1121 GP3

C719

0.1uF
16V

C721

0.1uF
16V

C723

0.1uF
16V

C724

0.1uF
16V

772D to 3D block(LG1131)

NAND FLASH MEMORY 8Gbit

+3.3V_Normal

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

LGE35230(BCM35230KFSBG)

B5
C5

A4
B4

A3
B3

A2
B2

W2

V4
W4

V3
V2

D13

E6

R106
3K

IC101

NON_BCM_CAP

HDMI0_CLKN
HDMI0_CLKP

HDMI0_D0N
HDMI0_D0P

HDMI0_D1N
HDMI0_D1P

HDMI0_D2N
HDMI0_D2P

CEC

DDC0_SCL
DDC0_SDA

HDMI0_HTPLG_IN
HDMI0_HTPLG_OUT

HDMI0_ARC
HDMI0_RESREF

LT0VCAL_MONITOR

NAND_RBb

NAND_REb

NAND_CEb

NAND_CEb2

NAND_CLE

NAND_ALE

R101

4.7K

FLASH_WP

R105

4.7K

NAND_WEb

R104

4.7K

R195

4.7K

Write Protection

- High : Normal Operation

- Low : Write Protection

+3.3V_Normal

R107 2.7K

R148

+3.3V_Normal

R103

4.7K

HDMI_CLK­HDMI_CLK+

HDMI_RX0­HDMI_RX0+

HDMI_RX1­HDMI_RX1+

HDMI_RX2­HDMI_RX2+

HDMI_ARC

16Gbit

R149 0

16Gbit

0

C102
4700pF

C101

0.1uF

OPT

IC102

TC58DVG3S0ETA00

NAND_8Gbit

TXOUT0_L0N
TXOUT0_L0P
TXOUT0_L1N
TXOUT0_L1P
TXOUT0_L2N
TXOUT0_L2P

TXCLK_LN

TXCLK_LP
TXOUT0_L3N
TXOUT0_L3P
TXOUT0_L4N
TXOUT0_L4P

TXOUT0_U0N
TXOUT0_U0P
TXOUT0_U1N
TXOUT0_U1P
TXOUT0_U2N
TXOUT0_U2P

TXCLK_UN

TXCLK_UP
TXOUT0_U3N
TXOUT0_U3P
TXOUT0_U4N
TXOUT0_U4P

TXOUT1_L0N
TXOUT1_L0P
TXOUT1_L1N
TXOUT1_L1P
TXOUT1_L2N
TXOUT1_L2P

TXCLK1_LN

TXCLK1_LP
TXOUT1_L3N
TXOUT1_L3P
TXOUT1_L4N
TXOUT1_L4P

TXOUT1_U0N
TXOUT1_U0P
TXOUT1_U1N
TXOUT1_U1P
TXOUT1_U2N
TXOUT1_U2P

TXCLK1_UN

TXCLK1_UP
TXOUT1_U3N
TXOUT1_U3P
TXOUT1_U4N
TXOUT1_U4P

GPIO_BL_ON

BL_PWM/GPIO

AE27
AE28
AF27
AF28
AG27
AG28
AE26
AF26
AH27
AG26
AF25
AE25

AH26
AG25
AE24
AD24
AH25
AF24
AE23
AD23
AG24
AF23
AC22
AD22

AG23
AH23
AE22
AE21
AF22
AH22
AG22
AF21
AG21
AF20
AD21
AC21

AG20
AH20
AD19
AE19
AF19
AH19
AE18
AD18
AG19
AF18
AG18
AF17

AC18
AH16
AG16

16Gbit

IC102-*1

TH58DVG4S0ETA20

SDA0_3.3V
SCL0_3.3V

SCL2_3.3V
SDA2_3.3V

R199 22
R197 22

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_26

NC_25

NC_24

NC_23

I/O8

I/O7

I/O6

I/O5

NC_22

PSL

NC_21

VCC_2

VSS_2

NC_20

NC_19

NC_18

I/O4

I/O3

I/O2

I/O1

NC_17

NC_16

NC_15

NC_14

+3.3V_Normal

NC_1

1

NC_28

48

NC_27

47

NC_26

46

NC_25

45

I/O8

44

NAND_DATA[7]

I/O7

43

NAND_DATA[6]

I/O6

42

NAND_DATA[5]

I/O5

41

NAND_DATA[4]

NC_24

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PSL

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

16Gbit

R151

+3.3V_Normal

C104 10uF

NAND_DATA[3]

NAND_DATA[2]

NAND_DATA[1]

NAND_DATA[0]

TXB4P
TXB4N
TXB3P
TXB3N
TXBCLKP
TXBCLKN
TXB2P
TXB2N
TXB1P
TXB1N
TXB0P
TXB0N

TXA4P
TXA4N
TXA3P
TXA3N
TXACLKP
TXACLKN
TXA2P
TXA2N
TXA1P
TXA1N
TXA0P
TXA0N

TXD4P
TXD4N
TXD3P
TXD3N
TXDCLKP
TXDCLKN
TXD2P
TXD2N
TXD1P
TXD1N
TXD0P
TXD0N

TXC4P
TXC4N
TXC3P
TXC3N
TXCCLKP
TXCCLKN
TXC2P
TXC2N
TXC1P
TXC1N
TXC0P
TXC0N

+3.3V_Normal

0

C103

0.1uF

10V

R194

2.7K

R108 10K

NAND_DATA[0-7]

RGB_DDC_SDA

RGB_DDC_SCL

BBS CONNECT

P101

TJC2508-4A

1

2

3

4

C105

2.2uF
10V

Q101
BSS83

Q102
BSS83

+3.3V_Normal

VCC

SCL

SDA

GND

A_DIM

RY/BY2

RY/BY1

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

SBD

G

SBD

G

CE1

CE2

CLE

ALE

RE

WE

WP

C106

4.7uF

DEV_NAND_16Gbit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

+3.3V_Normal

R196
10K

C118

0.1uF
16V

+3.3V_Normal

R198
10K

C119

0.1uF
16V

R110

R109

1.5K

1.5K

DVB_S Option: apply EU Satellite model

FOR HDMI STANDARD
APPLY ONLY WHEN CONNECT TO PULL-UP GPIO

Boot ROM Device Select - (FA4,FAD7,FAD2,FAD1)

+3.3V_Normal

OPT

R113
10K

R114
10K

R117
10K
OPT

R118
10K

R122
10K

R123
10K

OPT

R127
10K
OPT

R128
10K

CI_ADDR[4]
NAND_DATA[7]
NAND_DATA[2]
NAND_DATA[1]

NAND ECC (FA3, FA2, FALE)

+3.3V_Normal

R119

R115

R111
10K

OPT

R112
10K

10K

R116
10K

OPT

10K
OPT

R120
10K

CI_ADDR[3]
CI_ADDR[2]
NAND_ALE

DUAL COMPONENT

IC102 1ST : EAN61000101 2ND : T-TH58DVG4S0ETA20

IC102-*1

LGE35230(BCM35230KFSBG)

AG6

TVM_XTALIN

AF6

TVM_XTALOUT

V5

IRRXDA

AB4

FP_IN0

Y4

FP_IN1

AA4

SPARE_ADC1

Y5

SPARE_ADC2

AB2

FS_IN1

AB5

FS_IN2

U3

VGA_SDA

U2

VGA_SCL

Y2

RDA

Y1

TDA

33

AA3

BSCDATAA

AA2

BSCCLKA

H3

RDB/GPIO

H2

TDB/GPIO

H4

BSC_S_SCL

H5

BSC_S_SDA

F25

NMIB

W5

POWER_CTRL

U5

AON_HSYNC

U4

AON_VSYNC

W3

AON_GPIO_36

W1

AON_GPIO_37

AB6

AON_RESETOUTB

Y6

TVM_BYPASS

Y3

RESETB

G24

RESETOUTB

J6

TMODE

W6

TESTEN

F7

VDAC_VREG

E7

VDAC_RBIAS

BCM REFRENCE is 562ohm

R121

1.2K

C107
33pF
50V

DVB_S

+3.3V_Normal

+3.3V_Normal

R124
1K

OPT

R125
1K

R126

1.2K

C108
33pF
50V

DVB_S

R129

1.2K

C109
33pF
50V

5V_HDMI_3

R130

OPT

2K

R132 4.7K

+3.3V_Normal

C111 0.01uF
C112 0.1uF

54MHz_XTAL_P

54MHz_XTAL_N

R131

1.2K

C110
33pF
50V

PCM_5V_CTL

5V_HDMI_1

5V_HDMI_2

5V_HDMI_4

SOC_RESET

LNB_INT

SC_ID

BCM_RX
BCM_TX

R135
R136 33

+3.3V_Normal

R141 4.7K

R142 22
R143 22

R144 22
R145 22

R139 0

SRST

R140
560
1%

OPT

OPT
OPT

OPT

0000: ST Micro M25P or compatible Serial Flash
0010: 8-bit 512Mbit 512B page SLC NAND Flash devices
0100: 8-bit 128, 256Mbit 512B page SLC NAND Flash devices
0110: 8-bit 1Gbit 2KB page SLC NAND Flash devices
1000: 8-bit 2Gbit, 4Gbit, 8Gbit 2KB page SLC NAND Flash devices
1010: 8-bit 16Gbit, 32Gbit 4KB page SLC NAND Flash devices (O)
0001: 8-bit 8/16/32Gbit 2KB page MLC NAND Flash devices
0011: 8-bit 16/32Gbit 4KB page MLC NAND Flash devices
0101: 8-bit 32Gbit 8KB page MLC NAND Flash devices
0111: 3B dual IO Serial Flash
1001: BB dual IO Serial Flash
1011: fast Serail Flash > 50Mhz
1100: OneNAND Flash (always 16-bit)
1110: Reserved
1101, 1111: Reserved

000 = ECC disabled
001 = ECC 1-bit repair
010 = ECC 4-bit BCH (O)
011 = ECC 8-bit BCH, 27 byte spare
100 = ECC 12-bit BCH, 27 byte spare
101 = ECC 8-bit BCH, 16 byte spare
110, 111 = Reservedd

IC101

NON_BCM_CAP

AVS_NDRIVE_1
AVS_PDRIVE_1

FAD_7
FAD_6
FAD_5
FAD_4
FAD_3
FAD_2
FAD_1
FAD_0

FALE
FCEB_0
FCEB_1
FCEB_2
FCEB_3

NFWPB

FRDYB

FA_0

FA_1

FA_2

FA_3

FA_4

FA_5

FA_6

FA_7

FA_8

FA_9

FA_10
FA_11
FA_12
FA_13
FA_14
FA_15

TRSTB

TDI/GPIO

TMS/GPIO
TCK/GPIO

DINT/GPIO

AVS_VFB
AVS_VSENSE
AVS_RESETB

VDAC_1
VDAC_2

AB1

NAND_DATA[7]

AB3

NAND_DATA[6]

AC1

NAND_DATA[5]

AC2

NAND_DATA[4]

AC3

NAND_DATA[3]

AD2

NAND_DATA[2]

AD3

NAND_DATA[1]

AE2

NAND_DATA[0]

AG1
AF1
AC5
AE6
AG5

AF3
AG2

FWE

AE3

FRD

AA5

AF2
AE1
AC4
AD5
AD4
AE4
AE5
AD6
AH3
AF4
AH4
AG4
AF5
AG3
AH2
AH5

AD15
AF14
AH14

TDO

AD14
AG14
AC16

AH7
AG7
AD7
AF7
AH8

C6
D7

NAND_ALE
NAND_CEb
NAND_CEb2
/CI_CE1
/CI_CE2

FLASH_WP
NAND_WEb
NAND_REb
/PCM_WAIT

NAND_CLE
NAND_RBb

CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]
CI_ADDR[8]

CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

R146 10K

NAND_DATA[0-7]

R147
1K

DTV/MNT_V_OUT

Strap Setting

CI_ADDR[2-14]

+3.3V_Normal

R156

R153

R150
1K

1K

1K

SRST

+3.3V_Normal

R166
1K

R157
10K

OPT

R158
10K

R160
10K

OPT

R161
10K

R164
10K

OPT

R165
10K

R154
10K

OPT

R155
10K

NAND_DATA[0]:
0: System is LITTLE endian (O)
1: System is BIG endian

CI_ADDR[7]:
0: Disable EDID automatic Downloading from Flash (O)
1: Enable EDID automatic Downloading from Flash

NAND_DATA[6] :
0: Disable OSC clock output on chip Pin (O)
1: Enable OSC clock output on chip pin.

CI_ADDR[6]:
0: Host MIPS run at 500 MHz (O)
1: Host MIPS run at 250 MHz

NAND_CLE:
0: Differential Oscillators TVM not bypassed (O)
1: Differential Oscillators TVM bypassed

NAND_DATA[4]:
0: 27MHz TVM Crystal Frequency
1: 54MHz TVM Crystal Frequency (O)

R162

R159

1K

1K

R163
1K

R167
10K

OPT

R168
10K

R175
10K

OPT

R176
10K

R177
10K

R178
10K

OPT

R170
10K

R171
10K

OPT

CI_ADDR[9],CI_ADDR[11],CI_ADDR[12],CI_ADDR[13]
TVM Crystal oscillator bias/gain control
0000: 210uA
0001: 390uA
0010: 570uA
0011: 730uA
0100: 890uA (O)
0111: 1290uA
1000: 1416uA
1111: 2196uA
0101, 0110, 1001, 1010, 1011, 1100, 1101, 1110: Reserved

CI_ADDR[8]:
0: RESETOUTb (in On/Off only) stay asserted until software releases them.
1: Fix amount of delay for de-assertion on RESETOUTb (in On/IOff only)
at end of RESETb pulse (O)

NAND_DATA[3]:
0: MIPS will boot from external flash (O)
1: MIPS will boot from ROM

NAND_DATA[5]:
0: FLASH MODE (O)
1: BSC_SLAVE(BBS) MODE

R179
10K

OPT

R180
10K

R181
10K

OPT

R182
10K

R183
10K

R184
10K

OPT

R187
10K

OPT

R188
10K

NVRAM

+3.3V_Normal

R169
0

R173

R172

4.7K

4.7K

OPT

R174

4.7K

BCM_NVM_1M

IC103

M24M01-HRMN6TP

OPT

NC

1

E1

2

A8’h

E2

3

VSS

4

+3.3V_Normal

VCC

8

WP

7

SCL

6

SDA

5

R190 33

R191 33

54MHz X-TAL

C113
12pF

50V

3

X-TAL_2

4

GND_2

54MHz

X101

CRYSTAL_BCM_Sunny

C114
12pF

EAW58812611

50V

SUNNY ELECTRONICS CORPORATION

2

1

GND_1

X-TAL_1

R185 0

R186 0

R189
1M
OPT

54MHz_XTAL_N

54MHz_XTAL_P

R192
10K

OPT

NAND_DATA[0]
CI_ADDR[7]
NAND_DATA[6]
CI_ADDR[6]
NAND_CLE
NAND_DATA[4]
CI_ADDR[9]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[8]
NAND_DATA[3]
NAND_DATA[5]

R193
10K

BCM_NVM_256K

IC103-*1

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

Write Protection

- Low : Normal Operation

- High : Write Protection

X101-*2

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_KDS

EAW58239604

DAISHINKU CORPORATION.

X101-*1

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_Lihom

EAW60763703

LIHOM CO., LTD.

VCC

8

WP

7

SCL

6

SDA

5

SCL3_3.3V

SDA3_3.3V

GND_2

4

X-TAL_2

3

GND_2

4

X-TAL_2

3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN & NAND FLASH

2010.09.18

1

+3.3V_Normal

FHD

R252

1K

HD

R262

1K

FE_TS_DATA[0-7]

OLED

LCD

BCM
internal
FRC

00 11

1 100

HIGH

Support

CHBO_TS_CLK

CHBO_TS_SERIAL

CHBO_TS_SYNC

CHBO_TS_VAL_ERR

R251

1K

1K

1K

BCM_FRC/URSA5

R261

1K

NO_FRC/FRC2

R250

FRC2/URSA5

R260

NO_FRC/BCM_FRC

MODEL OPTION

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7 Enable Disable

NO_FRC

DDR speed

T2 Tuner

S Tuner

PHM

R253

R263

1K

1K

R254

1K

OPT

R264

1K

LG FRC2

LOW

HDFHD

LCDOLED

16001333

Not Support

Not SupportSupport

R255

1K

T2_TUNER

R265

1K

NO_T2_TUNER

external
URSA5

SIDE_USB_OCD1

SIDE_USB_OCD2

PCM_TS_DATA[0-7]

R201 0

F/NIM_EU_CN

PCM_MDI[0-7]

OPT

R202

0

R256

1K

S_TUNER

R266

1K

NO_S_TUNNER

+3.3V_Normal

R286
10K

WIFI

TU_TS_CLK

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

PHM

NO_PHM

R287
10K

WIFI

R257

1K

R267

1K

R203 0
R204 0
R205 0
R206 0

R207 0
R208 0
R209 0

C201
100pF

OPT

F/NIM_EU_CN
F/NIM_EU_CN

F/NIM_EU_CN

PCM_MDI[0]
PCM_MDI[1]
PCM_MDI[2]
PCM_MDI[3]
PCM_MDI[4]
PCM_MDI[5]
PCM_MDI[6]
PCM_MDI[7]

R211

6.04K
EPHY_TDP

EPHY_TDN
EPHY_RDP
EPHY_RDN

R210

4.87K
1%

SIDE_USB_DM
SIDE_USB_DP

SIDE_USB_CTL1

WIFI_DM
WIFI_DP

SIDE_USB_CTL2

PCM_TS_CLK

PCM_TS_DATA[0]
PCM_TS_DATA[1]
PCM_TS_DATA[2]
PCM_TS_DATA[3]
PCM_TS_DATA[4]
PCM_TS_DATA[5]
PCM_TS_DATA[6]
PCM_TS_DATA[7]

PCM_TS_SYNC

PCM_TS_VAL

F/NIM_EU_CN

F/NIM_EU_CN
F/NIM_EU_CN
F/NIM_EU_CN

TU_TS_SYNC
TS_VAL_ERR

PCM_MCLKI

PCM_MISTRT

PCM_MIVAL_ERR

/PCM_IRQA

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3
MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6
MODEL_OPT_7

LGE35230(BCM35230KFSBG)

F26
D26

F27
F28
E27
E26

F5
E5

C2
D1

E1
D2

B1
C1

C3
C4

M4
L5
M5
L6
N3
N1
N2
M3
M2
L4
N4

K6
J4
K5
J2
J3
K2
K1
K3
L1
L3
L2

P4
T2
R3
R2
P3
P2
P1
R6
N5
T4
P5

R4
U1
T3
T1
T5

IC101

NON_BCM_CAP
EPHY_VREF
EPHY_RDAC

EPHY_TDP
EPHY_TDN
EPHY_RDP
EPHY_RDN

USB_MONCDR
USB_RREF

USB_PORT1DN
USB_PORT1DP

USB_PWRFLT_1/GPIO
USB_PWRON_1/GPIO

USB_PORT2DN
USB_PORT2DP

USB_PWRFLT_2/GPIO
USB_PWRON_2/GPIO

TCLKA/GPIO
TDATA_0/GPIO
TDATA_1/GPIO
TDATA_2/GPIO
TDATA_3/GPIO
TDATA_4/GPIO
TDATA_5/GPIO
TDATA_6/GPIO
TDATA_7/GPIO
TSTRTA/GPIO
TVLDA/GPIO

TCLKD/GPIO
TDATD_0/GPIO
TDATD_1/GPIO
TDATD_2/GPIO
TDATD_3/GPIO
TDATD_4/GPIO
TDATD_5/GPIO
TDATD_6/GPIO
TDATD_7/GPIO
TSTRTD/GPIO
TVLDD/GPIO

MPEG_CLK/GPIO
MPEG_D_0/GPIO
MPEG_D_1/GPIO
MPEG_D_2/GPIO
MPEG_D_3/GPIO
MPEG_D_4/GPIO
MPEG_D_5/GPIO
MPEG_D_6/GPIO
MPEG_D_7/GPIO
MPEG_SYNC/GPIO
MPEG_DATA_EN/GPIO

MCIF_RESET/GPIO
MCIF_SCLK/GPIO
MCIF_SCTL/GPIO
MCIF_SDI/GPIO
MCIF_SDO/GPIO

PCI_DEVSELB/GPIO

PCI_FRAMEB/GPIO

C225

0.22uF

6.3V

VI_IFP0
VI_IFM0

VDDR_AGC

AGC_SDM_2
AGC_SDM_1

GPIO_0
GPIO_1
GPIO_2
GPIO_3

PCI_VIO_0
PCI_VIO_1
PCI_VIO_2

GPIO_4
GPIO_5
GPIO_6

GPIO_7
GPIO_70
GPIO_71
GPIO_72
GPIO_73
GPIO_74
GPIO_75
GPIO_76
GPIO_77
GPIO_78
GPIO_79

PCI_AD05
PCI_AD06
PCI_AD07

PCI_AD08
PCI_AD09/GPIO
PCI_AD10/GPIO
PCI_AD11/GPIO
PCI_AD12/GPIO
PCI_AD13/GPIO
PCI_AD14/GPIO
PCI_AD15/GPIO
PCI_AD16/GPIO
PCI_AD17/GPIO
PCI_AD18/GPIO
PCI_AD19/GPIO
PCI_AD20/GPIO
PCI_AD21/GPIO

PCI_AD22

PCI_AD23

PCI_AD24

PCI_AD25

PCI_CBE00
PCI_CBE01/GPIO
PCI_CBE02/GPIO

PCI_CBE03

PCI_IRDYB/GPIO

PCI_PAR/GPIO

PCI_PERRB/GPIO

PCI_REQ1B
PCI_SERRB/GPIO
PCI_STOPB/GPIO
PCI_TRDYB/GPIO

+0.9V_CORE

C221

0.1uF

C17
B17
D15

B16
A16

A15
C16
G28
G26

W14
W15
W13

J5
R5
V6
H6
AE15
AF15
AG15
AF16
AD16
AE16
AG17
AH17
AE17
AD17

AB13
AC15
AB12
AB11
AE14
AG13
AH13
AF13
AE13
AD12
AF12
AG10
AF10
AE10
AD10
AE9
AE8
AC10
AC11
AC8
AB8

AC14
AG12
AH10
AB7

AG11
AD11
AE11
AD13
AE12
AC12
AC13
AH11
AF11

C223

0.01uF

C203
10uF
10V

Non_CHB

R212
1K

closed to soc

R213 2K

+3.3V_Normal

R280
22

R214 22

R215 22
R281 22
R282 22

R216 22

R218 22

R220 22

R221 22

R222 22

R283
22

R223 22

R284 22

R224 22

R235

R225 0

R226 22

R285 22

R227 22

C207

C205

4.7uF

10uF

10V

10V

close to soc

C217

16V

100

0.1uF
R241

C218

100

0.1uF
R242

16V

C216 0.01uF

M_REMOTE_RX

CI_DET
M_RFModule_RESET
EPHY_ACTIVITY
EPHY_LINK

DTV_ATV_SELECT
RF_SWITCH_CTL_2

INSTANT_MODE

BCM_L/DIM
BCM_L/DIM

100

OPT

NFM18PS105R0J

C233

6.3V

OUTIN

GND

C232

4.7uF
10V

C209

4.7uF
10V

IF_P

IF_N

IF_AGC

3D_SYNC

MODEL_OPT_0

MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3

SC_DET/COMP2_DET

CHB_RESET

TW9910_RESET

AV2_CVBS_DET
RF_BOOSTER_CTL
DSUB_DET
PCM_RST

MODEL_OPT_4
DC_MREMOTE
DD_MREMOTE

L/DIM0_MOSI
L/DIM0_SCLK

COMP1_DET

MODEL_OPT_5

3D_GPIO_0
MODEL_OPT_6
MODEL_OPT_7

ERROR_OUT

RF_SWITCH_CTL

3D_GPIO_1

3D_GPIO_2

NFM18PS105R0J

C234

0.1uF

C211

0.1uF

+3.3V_Normal

+3.3V_Normal

R228 22
R230 22

BCM_L/DIM

R231 100

C204

6.3V

GND

C236

0.1uF

C213

0.1uF

BLM18PG121SN1D

0.1uF

R240

2.7K

R231-*1 0

FRC2_RESET

URSA_RESET

OUTIN

NFM18PS105R0J

C238

4.7uF
10V

C215

0.01uF

L201

C229

NON_NTP

PWM_DIM
L/DIM0_VS

+3.3V_Normal

4.7K

C244

6.3V

GND

C220

0.1uF

+3.3V_Normal

4.7K

R232

URSA_RESET

+0.9V_CORE

+3.3V_Normal

OUTIN

+1.5V_DDR

C222

0.01uF

R233

1.2K

C227
33pF
50V

R232-*1

FRC2_RESET

R234

1.2K

C231
33pF
50V

C247
22uF

C248
10uF

10V

NON_NTP

FRC_RESET

SDA1_3.3V
SCL1_3.3V

POWER 2.5V

+2.5V_BCM35230

+2.5V_BCM35230

Place Cap

Very close to R22 Ball

L202

BLM18PG121SN1D

C249
10uF
10V

L203

BLM18PG121SN1D

C251

0.1uF
16V

+2.5V_BCM35230

BLM18PG121SN1D

C250

4.7uF
10V

+1.5V_DDR

Place Cap
Very close to R22 Ball

C242

0.1uF

+3.3V_Normal

C253
10uF
10V

EPHY_VDD25

C252

4.7uF
10V

VAFE3_VDD25

L204

C254

4.7uF

MLG1005S22NJT

C224

L220

1uF
25V

OPT

+0.9V_CORE

AADC_AVDD25

C256

0.1uF

C255

0.1uF

C257

0.1uF

+0.9V_CORE

C226

0.1uF
16V
OPT

+3.3V_Normal

+2.5V_BCM35230

L205

BLM18PG121SN1D

C258

0.1uF

+2.5V_BCM35230

C260

C259

4.7uF

10uF
10V

+2.5V_BCM35230

+2.5V_BCM35230

NON_BCM_CAP

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23
VDDC_24
VDDC_25
VDDC_26
VDDC_27
VDDC_28
VDDC_29
VDDC_30
VDDC_31
VDDC_32
VDDC_33
VDDC_34
VDDC_35
VDDC_36
VDDC_37
VDDC_38
VDDC_39
VDDC_40
VDDC_41
VDDC_42

POR_VDD

VDDR1_1
VDDR1_2
VDDR1_3
VDDR1_4
VDDR1_5
VDDR1_6
VDDR1_7
VDDR1_8
VDDR1_9
VDDR1_10
VDDR1_11
VDDR1_12

DDR_LDO_VDDO

VDDR3_1
VDDR3_2
VDDR3_3
VDDR3_4
VDDR3_5
VDDR3_6
VDDR3_7
VDDR3_8
VDDR3_9
VDDR3_10
VDDR3_11

AON_VDDC_1
AON_VDDC_2
AON_POR_VDD

AON_VDDR3

AON_VDDR10_1
AON_VDDR10_2

IC101

LGE35230(BCM35230KFSBG)

V12

V7
M10
N10
P10
R10
T10
U10
V10
W10
V13
L11
M11
N11
P11
R11
T11
U11
V11
W11
V14
L18
M18
N18
P18
R18
T18
U18
V18
W18
V15
L19
M19
N19
P19
R19
T19
U19
V19
W19
V16
V17

L10

L22

AA28

V28
R28
M28
J28
K23
M22
T22
T23
U22
Y22

R22

G15
H22
G23
AB9

K7

AB15

L7

AB14

M7

N6

P6

AA6
AA7

Y7

U7

T7

T6

C261
10uF
10V

C262
10uF

L206

BLM18PG121SN1D

L207

BLM18PG121SN1D

K10

VSS_1

K11

VSS_2

K12

VSS_3

L12

VSS_4

M12

VSS_5

N12

VSS_6

P12

VSS_7

R12

VSS_8

T12

VSS_9

U12

VSS_10

W12

VSS_11

K13

VSS_12

L13

VSS_13

M13

VSS_14

N13

VSS_15

P13

VSS_16

R13

VSS_17

T13

VSS_18

U13

VSS_19

W16

VSS_20

K14

VSS_21

L14

VSS_22

M14

VSS_23

N14

VSS_24

P14

VSS_25

R14

VSS_26

T14

VSS_27

U14

VSS_28

K15

VSS_29

L15

VSS_30

M15

VSS_31

N15

VSS_32

P15

VSS_33

R15

VSS_34

T15

VSS_35

U15

VSS_36

K16

VSS_37

L16

VSS_38

M16

VSS_39

N16

VSS_40

P16

VSS_41

R16

VSS_42

T16

VSS_43

U16

VSS_44

K17

VSS_45

L17

VSS_46

M17

VSS_47

N17

VSS_48

P17

VSS_49

R17

VSS_50

T17

VSS_51

U17

VSS_52

W17

VSS_53

K18

VSS_54

K19

VSS_55

H7

VSS_56

G14

VSS_57

AB16

VSS_58

R7

VSS_59

M6

VSS_60

AB23

VSS_61

P7

VSS_62

W7

VSS_63

J7

VSS_64

N7

VSS_65

AB10

VSS_66

AC23

VSS_67

AC6

VSS_68

G19

VSS_69

AA22

VSS_70

J23

VSS_71

J22

VSS_72

K22

VSS_73

J25

VSS_74

N22

VSS_75

N23

VSS_76

M25

VSS_77

P22

VSS_78

R25

VSS_79

V22

VSS_80

W22

VSS_81

W23

VSS_82

V25

VSS_83

AA25

VSS_84

ADAC_AVDD25

C263

4.7uF

PLL_VAFE_AVDD25

C264

4.7uF

C271

C267

0.01uF

0.1uF

C266

C270

0.1uF

C269

0.1uF

C268

0.1uF

C272

0.01uF

4.7uF C277

VAFE2_VDD25

C265

4.7uF

CORE 0.9V

+0.9V_CORE

L209

BLM18PG121SN1D

C274
22uF

+0.9V_CORE

L210

BLM18PG121SN1D

+0.9V_CORE

L211

BLM18PG121SN1D

POWER 3.3V

+3.3V_Normal

Place as close as possible to the pad

use only for A0/B0 chip

C210-*1
220pF
50V

BCM_A0/B0

PLL_VAFE_AVDD25

+0.9V_CORE

Place as close as possible to the pad

C281

0.1uF

C282

0.1uF

L212

VAFE2_DVDD

VAFE3_DVDD

C208
390pF
50V

C206
390pF
50V

+0.9V_CORE

+0.9V_CORE

USB_AVDD33

C283

0.1uF

+3.3V_Normal

+2.5V_BCM35230

+2.5V_BCM35230

VDAC_AVDD33

BCM_C0

PLL_MIPS_AVDD

C273

0.1uF

BLM18PG121SN1D

C284
22uF

BLM18PG121SN1D

L213

BLM18PG121SN1D

ADAC_AVDD25

EPHY_VDD25

HDMI_AVDD33

C275

0.1uF
OPT

USB_AVDD33

C212
390pF
50V

C210
390pF
50V

PLL_MAIN_AVDD

C276

0.01uF

OPT

HDMI_AVDD

C280

0.1uF

PLL_AUD_AVDD

4.7uF

PLL_VAFE_AVDD

C279

4.7uF

BLM18PG121SN1D

VAFE2_VDD25

VAFE3_VDD25

Place as close as possible to the pad

PLL_VAFE_AVDD

C202
390pF
50V

L214

L215

+3.3V_Normal

AADC_AVDD25

HDMI_AVDD

USB_AVDD

C214
390pF
50V

PLL_AUD_AVDD

+3.3V_Normal

C288

0.1uF

C290

0.1uF

L216

BLM18PG121SN1D

C289

0.1uF

+0.9V_CORE

+0.9V_CORE

+0.9V_CORE

C291

4.7uF

USB_AVDD

C285

4.7uF

VAFE3_DVDD

C287

4.7uF

VDAC_AVDD33

C286

4.7uF

LGE35230(BCM35230KFSBG)

F19

AADC_AVDD25

D25

ADACA_AVDD25

D24

ADACC_AVDD25

E24

ADACD_AVDD25

F24

EPHY_BVDD25

E25

EPHY_AVDD25

D5

HDMI0_AVDD

D4

HDMI0_AVDD33

AE20

LT0VDD25_1

AD20

LT0VDD25_2

AC20

LT0VDD25_3

AB20

LT0VDD25_4

D14

SPDIF_IN_AVDD25

E4

USB_AVDD

D3

USB_AVDD33

D6

VDAC_AVDD33

D18

VAFE2_DVDD

E17

VAFE2_AVDD25_1

D16

VAFE2_AVDD25_2

D17

VAFE2_DVDD25

D9

VAFE3_DVDD

D8

VAFE3_AVDD25_1

E8

VAFE3_AVDD25_2

F9

VAFE3_AVDD25_3

E9

VAFE3_DVDD25

F8

POR_VDD25

G25

PLL_AUD_AVDD

K4

PLL_MAIN_AVDD

AD25

PLL_MIPS_AVDD

D11

PLL_VAFE_AVDD

D12

PLL_VAFE_AVDD25

AE7

TVM_OSC_AVDD

U6

AUX_AVDD33

C278

0.1uF

BLM18PG121SN1D

C292
22uF

L217

BLM18PG121SN1D

BLM18PG121SN1D

HDMI_AVDD33

C293

0.1uF

IC101

NON_BCM_CAP

HDMI0_AVSS_1
HDMI0_AVSS_2

SPDIF_IN_AVSS

VAFE2_VSS_1
VAFE2_VSS_2
VAFE2_VSS_3
VAFE2_VSS_4
VAFE2_VSS_5
VAFE2_VSS_6
VAFE2_VSS_7

VAFE3_VSS_1
VAFE3_VSS_2
VAFE3_VSS_3
VAFE3_VSS_4
VAFE3_VSS_5
VAFE3_VSS_6

PLL_MIPS_AVSS

TVM_OSC_AVSS

L219

PLL_MAIN_AVDD

L218

AADC_AVSS

ADACA_AVSS
ADACC_AVSS
ADACD_AVSS

EPHY_AVSS

LT0VSS_1
LT0VSS_2
LT0VSS_3
LT0VSS_4
LT0VSS_5
LT0VSS_6
LT0VSS_7

USB_AVSS_1
USB_AVSS_2

VDAC_AVSS

VAFE2_DVDD

C299

C296

0.1uF

4.7uF

C294

C297

4.7uF

0.1uF

PLL_MIPS_AVDD

C295

C298

4.7uF

0.1uF

F20

G22
G21
F22

F23

F6
G6

AB22
AB21
AB19
AC19
AB18
AB17
AC17

F15

G7
G8

G9

G20
E18
G18
G17
F18
G16
F16

G13
G12
F12
G11
G10
F10

AD26

AC7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN POWER

2

50

AV2_CVBS_IN

INCM_VID_AV2

INCM_VID_COMP1

C303 0.1uF
C304 0.1uF
R303

36

TU_CVBS

AV1_CVBS_IN

INCM_VID_AV1

TU_SIF

DSUB_R+

INCM_R

DSUB_B+

INCM_B

COMP1_Y
COMP1_Pr
COMP1_Pb

EU

R325-*1

10

C317 0.1uF
C318 0.1uF
R304

36

C320 0.1uF
C321 0.1uF

R311
36

C322 0.1uF
C323 0.1uF
R312

36

R310
0

SC_R/COMP2_Pr

SC_G/COMP2_Y

SC_B/COMP2_Pb

INCM_VID_SC/COMP2

SC_CVBS_IN

INCM_VID_SC

NON_EU
R325 0

INCM_TUNER

R306
75
1%

OPT

+2.5V_BCM35230

C319 0.1uF

R305
240

OPT

INCM_SIF

DSUB_G+

INCM_G

C325 0.1uF
C326 0.1uF
R316

36

R313
10K

+2.5V_BCM35230

R314
12K

C324 0.1uF
R315

120
OPT

C327 0.1uF
C328 0.1uF
R317

36

DSUB_HSYNC
DSUB_VSYNC

C329 0.1uF
C330 0.1uF
C331 0.1uF
C332 0.1uF

C333 0.1uF
C334 0.1uF
C335 0.1uF
C336 0.1uF

R318
0

SC_FB

R319
10K

OPT

R320
12K

OPT

LGE35230(BCM35230KFSBG)

B6
A6
C7
A7
B7
C8

C13
A13

C9
A9
B9
B8

C11
A10
B10
C10

D10
F13

A12
C12
B12
B11

E12
E14

E15
F17
E16
F14
E11

C18
B18
A18
C19
A19
B19
C20
B20

E19
D19
E10
F11

IC101

NON_BCM_CAP

VI_R
VI_INCM_R
VI_G
VI_INCM_G
VI_B
VI_INCM_B

HSYNC_IN
VSYNC_IN

VI_Y1
VI_PR1
VI_PB1
VI_INCM_COMP1

VI_SC_R1
VI_SC_G1
VI_SC_B1
VI_INCM_SC1

VI_FB_1/GPIO
VI_FS1

VI_SC_R2
VI_SC_G2
VI_SC_B2
VI_INCM_SC2

VI_FB_2/GPIO
VI_FS2

VI_L1
VI_C1_1
VI_INCM_LC1_1
VI_C1_2
VI_INCM_LC1_2

VI_CVBS1
VI_INCM_CVBS1
VI_CVBS2
VI_INCM_CVBS2
VI_CVBS3
VI_INCM_CVBS3
VI_CVBS4
VI_INCM_CVBS4

VI_SIF1_1
VI_INCM_SIF1_1
VI_SIF1_2
VI_INCM_SIF1_2

Near

Near

Near

Near

Near

Near

Near
Near

P801

P801

P801

JK1101

JK1104

TU2101/2
TU2201/2/3

JK1102

JK1103
JK2501

VIDEO INCM

Run Along DSUB_R Trace

Run Along DSUB_G Trace

Run Along DSUB_B Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN Trace

Run Along AV2_CVBS Trace

Run Along TUNER_CVBS_IF_P Trace

Run Along AV1_CVBS Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN/SC R,G,B Trace

INCM_R

INCM_G

INCM_B

INCM_VID_COMP1

INCM_VID_AV2

INCM_TUNER

INCM_VID_AV1

INCM_VID_SC/COMP2

BCM35230_with_CAP_220pF

IC101-*1
LGE35230

B6

BCM_CAP

VI_R

A6

VI_INCM_R

C7

VI_G

A7

VI_INCM_G

B7

VI_B

C8

VI_INCM_B

C13

HSYNC_IN

A13

VSYNC_IN

C9

VI_Y1

A9

VI_PR1

B9

VI_PB1

B8

VI_INCM_COMP1

C11

VI_SC_R1

A10

VI_SC_G1

B10

VI_SC_B1

C10

VI_INCM_SC1

D10

VI_FB_1/GPIO

F13

VI_FS1

A12

VI_SC_R2

C12

VI_SC_G2

B12

VI_SC_B2

B11

VI_INCM_SC2

E12

VI_FB_2/GPIO

E14

VI_FS2

E15

VI_L1

F17

VI_C1_1

E16

VI_INCM_LC1_1

F14

VI_C1_2

E11

VI_INCM_LC1_2

C18

VI_CVBS1

B18

VI_INCM_CVBS1

A18

VI_CVBS2

C19

VI_INCM_CVBS2

A19

VI_CVBS3

B19

VI_INCM_CVBS3

C20

VI_CVBS4

B20

VI_INCM_CVBS4

E19

VI_SIF1_1

D19

VI_INCM_SIF1_1

E10

VI_SIF1_2

F11

VI_INCM_SIF1_2

SCL3_3.3V
SDA3_3.3V

+3.3V_Normal

R301

1.2K

C301
33pF
50V

PHONE JACK

INCM_AUD_SC/COMP2

R302

1.2K
M_REMOTE_TX

C302
33pF
50V

PC_L_IN
PC_R_IN

AV1_L_IN
AV1_R_IN

INCM_AUD_AV1

AV2_L_IN
AV2_R_IN

INCM_AUD_AV2

SC/COMP2_L_IN
SC/COMP2_R_IN

C305 1uF 10V
C306 1uF 10V
C307 1uF 10V

C308 1uF 10V
C309 1uF 10V
C310 1uF 10V

C311 1uF 10V
C312 1uF 10V
C313 1uF 10V

C314 1uF 10V
C315 1uF 10V
C316 1uF 10V

NON_BCM_CAP

SPDIF_INC_P
SPDIF_INC_N

SPDIF_IND_P
SPDIF_IND_N

I2SSCK_IN/GPIO
I2SWS_IN
I2SSD_IN/GPIO

AADC_LINE_L1
AADC_LINE_R1
AADC_INCM1

AADC_LINE_L2
AADC_LINE_R2
AADC_INCM2

AADC_LINE_L3
AADC_LINE_R3
AADC_INCM3

AADC_LINE_L4
AADC_LINE_R4
AADC_INCM4

AADC_LINE_L5
AADC_LINE_R5
AADC_INCM5

AADC_LINE_L6
AADC_LINE_R6
AADC_INCM6

AADC_LINE_L7
AADC_LINE_R7
AADC_INCM7

IC101

I2SSCK_OUTA/GPIO

I2SWS_OUTA/GPIO

I2SSD_OUTA0/GPIO

I2SSOSCK_OUTA/GPIO

I2SSD_OUTA1/GPIO
I2SSD_OUTA2/GPIO

I2SSCK_OUTC/GPIO

I2SWS_OUTC/GPIO
I2SSD_OUTC/GPIO

I2SSOSCK_OUTC/GPIO

I2SSCK_OUTD/GPIO

I2SWS_OUTD/GPIO
I2SSD_OUTD/GPIO

I2SSOSCK_OUTD/GPIO

SPDIF_OUTA/GPIO

LGE35230(BCM35230KFSBG)

B15
C15

C14
B14

G4
F4
G5

C25
B24
A24

E22
E23
D23

C24
C23
B23

E21
D21
D22

B22
C22
A22

F21
D20
E20

A21
C21
B21

AUDMUTE_0/GPIO

AUDMUTE_1

ADAC_AL_N
ADAC_AL_P

ADAC_AR_N
ADAC_AR_P

ADAC_CL_N
ADAC_CL_P

ADAC_CR_N
ADAC_CR_P

ADAC_DL_N
ADAC_DL_P

ADAC_DR_N
ADAC_DR_P

AF8
AF9
AG9
AC9
AD8
AD9

E2
F2
E3
F3

G2
G3
G1
H1

B13

AG8
E13

C28
C27

D28
D27

C26
A27

B27
B28

B25
A25

A26
B26

R326 100
R327 100
R328 100
R329 100

TU_RESET_SUB

HP_DET
AV1_CVBS_DET
TU_RESET

SC_RE1
SC_RE2INCM_AUD_PC
/RST_HUB
S2_RESET

SPDIF_OUT

HP_LOUT_N
HP_LOUT_P

HP_ROUT_N
HP_ROUT_P

SCART1_Lout_N
SCART1_Lout_P

SCART1_Rout_N
SCART1_Rout_P

C337
22pF

OPT

C338
22pF

OPT

C339
22pF

OPT

C340
33pF

OPT

AUD_SCK
AUD_LRCK
AUD_LRCH
AUD_MASTER_CLK

Near

Near

Near

Near

Near

JK1102

JK1103
JK2501

JK1104
JK801

TU2101/2
TU2201/2/3

R321 0

R322 0

R323 0

R324 0

AUDIO INCM

Route Between AV1_L_IN & AV1_R_IN Trace

Route Between SC/COMP2_L_IN & SC/COMP2_R_IN Trace

Route Between AV2_L_IN & AV2_R_IN Trace

Route Between PC_L_IN & PC_R_IN Trace

Route Along With TUNER_SIF_IF_N

INCM_AUD_AV1

INCM_AUD_SC/COMP2

INCM_AUD_AV2

INCM_AUD_PC

INCM_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN AUDIO/VIDEO

3

50

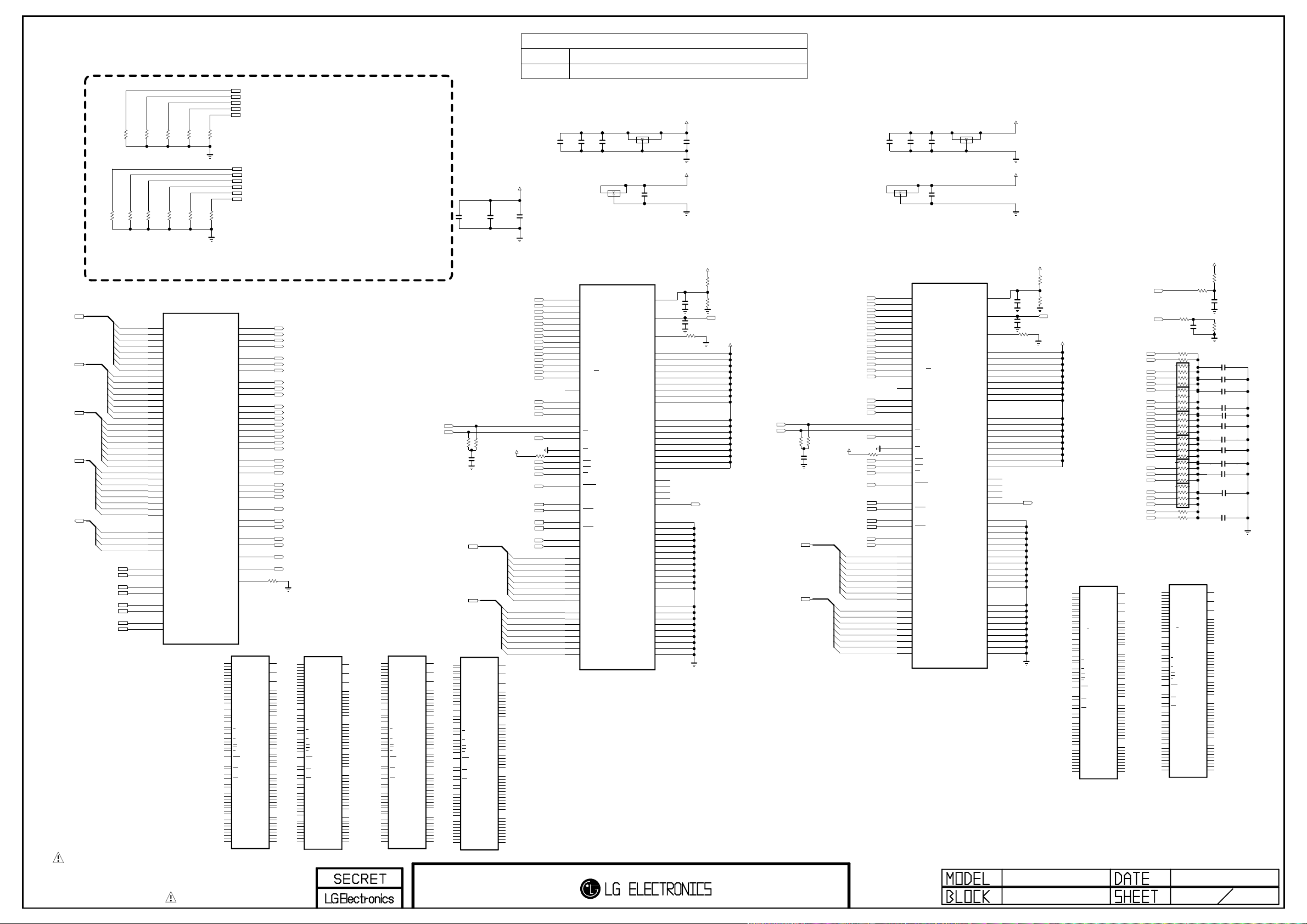

DDR STRAP

R401

4.7K

DDR_1333

R403

4.7K

R405

4.7K

DDR_1333

R407

4.7K

DDR_DQ[0]
DDR_DQ[1]
DDR_DQ[2]
DDR_DQ[3]
DDR_DQ[4]

JEDEC Types : DDR_DQ[0:4]

R409

00001 : DDR3-1333H (CasL=9)

4.7K
OPT

10101 : DDR3-1600K (CasL=11) (O)

DUAL COMPONENT

IC401,IC402 1ST : EAN61667501, 2ND : EAN61570701

IC401-*1
IC402-*1

1ST : T-K4B2G1646B_HCK0, 2ND : T-H5TQ2G63BFR-PBC

+1.5V_DDR

OUTIN

GND

C403

2.2uF

C405
10uF

C407

2.2uF

NFM18PS105R0J

C410

6.3V

C417
470pF

C421

2.2uF

C423
10uF

C425
10uF

NFM18PS105R0J

C432

6.3V

OUTIN

GND

+1.5V_DDR

DDR_DQ[10]
DDR_DQ[9]
DDR_DQ[7]
DDR_DQ[8]
DDR_DQ[6]
DDR_DQ[5]

R408

4.7K

IC101

NON_BCM_CAP

DDR_ADA_ALT_4
DDR_ADA_ALT_5
DDR_ADA_ALT_6

R410

4.7K
OPT

DDR_ADA_0
DDR_ADA_1
DDR_ADA_2
DDR_ADA_3

DDR_ADA_4
DDR_ADA_5
DDR_ADA_6

DDR_ADA_7
DDR_ADA_8

DDR_ADA_9
DDR_ADA_10
DDR_ADA_11
DDR_ADA_12
DDR_ADA_13
DDR_ADA_14

DDR_BAA_0

DDR_BAA_1

DDR_BAA_2

DDR_RASA_N
DDR_CASA_N

DDR_WEA_N

DDR_CKEA

DDR_CKA01_P
DDR_CKA01_N

DDR_CKA23_P
DDR_CKA23_N

DDR_VREFA

DDR_RST_N

DDR_ZQ

V23
AB27
Y23
Y26

AB26
Y24
AC26

AB24
AC25
AC24

AB25
AD28
Y25
AA27
AC27
AA26
AA24
AD27

Y27
AB28
W24

V24
W25
V26

U24

W27
W28

N28
N27

U23

AA23

W26

IC401-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

Bus Width : DDR_DQ[10]
0 - 16b
1 - 32b (O)
Chip Width : DDR_DQ[8]
0 - 8b
1 - 16b (O)
Chip Size : DDR_DQ[6:5]
00 - 4Gbit
01 - 2Gbit (O)
10 - 1Gbit
11 - 512Mbit

DDR_AA0
DDR_AA1
DDR_AA2
DDR_AA3

DDR01_AA4
DDR01_AA5
DDR01_AA6

DDR23_AA4
DDR23_AA5
DDR23_AA6

DDR_AA7
DDR_AA8
DDR_AA9
DDR_AA10
DDR_AA11
DDR_AA12
DDR_AA13
DDR_AA14

DDR_BAA0
DDR_BAA1
DDR_BAA2

DDR_RASb
DDR_CASb
DDR_WEb

DDR_CKE

DDR01_CLK
DDR01_CLKb

DDR23_CLK
DDR23_CLKb

DDR_VREFA

DDR_RESETb

R411 240

1%

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

C453
1uF

6.3V

DDR01_CLK

DDR01_CLKb

R412

56
1%

DDR_DQ[0-7]

DDR_DQ[8-15]

IC401-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

OPT

R432

4.7K

R404

4.7K
OPT

4.7K
OPT

R402

4.7K
OPT

R406

LGE35230(BCM35230KFSBG)

DDR_DQ[0-7]

DDR_DQ[0]
DDR_DQ[1]
DDR_DQ[2]
DDR_DQ[3]
DDR_DQ[4]
DDR_DQ[5]

DDR_DQ[24]
DDR_DQ[25]
DDR_DQ[26]
DDR_DQ[27]
DDR_DQ[28]
DDR_DQ[29]
DDR_DQ[30]
DDR_DQ[31]

DDR_DM[0]
DDR_DM[1]
DDR_DM[2]
DDR_DM[3]

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_QS2

DDR_QS2b

DDR_QS3

DDR_QS3b

DDR_DQ[6]

DDR_DQ[7]
DDR_DQ[8]
DDR_DQ[9]
DDR_DQ[10]
DDR_DQ[11]
DDR_DQ[12]
DDR_DQ[13]
DDR_DQ[14]
DDR_DQ[15]

DDR_DQ[16]
DDR_DQ[17]
DDR_DQ[18]
DDR_DQ[19]
DDR_DQ[20]
DDR_DQ[21]
DDR_DQ[22]
DDR_DQ[23]

DDR_DQ[8-15]

DDR_DQ[16-23]

DDR_DQ[24-31]

DDR_DM[0-3] DDR_QS3

U26
R26
U27
R27
V27
P26
U25
P27
R24
N24
T25
M23
R23
N25
T24
N26
L26
H27
L27
J26
M27
G27
M26
H26
L23
H25
L24
J24
M24
H23
L25
H24

T26
P25
J27
K24

T27
T28

P24
P23

K27
K28

K25
K26

DDR_DQA_0
DDR_DQA_1
DDR_DQA_2
DDR_DQA_3
DDR_DQA_4
DDR_DQA_5
DDR_DQA_6
DDR_DQA_7
DDR_DQA_8
DDR_DQA_9
DDR_DQA_10
DDR_DQA_11
DDR_DQA_12
DDR_DQA_13
DDR_DQA_14
DDR_DQA_15
DDR_DQA_16
DDR_DQA_17
DDR_DQA_18
DDR_DQA_19
DDR_DQA_20
DDR_DQA_21
DDR_DQA_22
DDR_DQA_23
DDR_DQA_24
DDR_DQA_25
DDR_DQA_26
DDR_DQA_27
DDR_DQA_28
DDR_DQA_29
DDR_DQA_30
DDR_DQA_31

DDR_DMA_0
DDR_DMA_1
DDR_DMA_2
DDR_DMA_3

DDR_DQSA_P_0
DDR_DQSA_N_0

DDR_DQSA_P_1
DDR_DQSA_N_1

DDR_DQSA_P_2
DDR_DQSA_N_2

DDR_DQSA_P_3
DDR_DQSA_N_3

R413
56
1%

C401
1000pF

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

C454
1uF

6.3V

NC_1
NC_2
NC_3
NC_4
NC_7

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_DDR

DDR_AA0
DDR_AA1
DDR_AA2

DDR_AA3
DDR01_AA4
DDR01_AA5
DDR01_AA6

DDR_AA7

DDR_AA8

DDR_AA9

DDR_AA10
DDR_AA11
DDR_AA12
DDR_AA13

DDR_BAA0
DDR_BAA1
DDR_BAA2

DDR_CKE

+1.5V_DDR

DDR_RASb
DDR_CASb

DDR_WEb

DDR_RESETb

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_DM[0]
DDR_DM[1]

DDR_DQ[0]
DDR_DQ[1]
DDR_DQ[2]
DDR_DQ[3]
DDR_DQ[4]
DDR_DQ[5]
DDR_DQ[6]
DDR_DQ[7]

DDR_DQ[8]
DDR_DQ[14]
DDR_DQ[13]
DDR_DQ[12]
DDR_DQ[9]
DDR_DQ[10]
DDR_DQ[15]
DDR_DQ[11]

C455
1uF

6.3V

R414 10K

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

NFM18PS105R0J

K4B2G1646C

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

C402

6.3V

OUTIN

GND

IC401

DDR_1333_SS

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

C412
1uF

ZQ

M8

H1

L8

R415 240

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_DDR

C415

0.01uF

C416

0.01uF

1%

+1.5V_DDR

DDR_AA14

R416

4.99K
1%

R417

4.99K
1%

DDR_VREFA

+1.5V_DDR

DDR23_CLK

DDR23_CLKb

DDR_DQ[16-23]

DDR_DQ[24-31]

R418

DDR23_AA4
DDR23_AA5
DDR23_AA6

R419

56

56

1%

1%

+1.5V_DDR

C419
1000pF

DDR_RESETb

DDR_DM[2]
DDR_DM[3]

DDR_DQ[24]
DDR_DQ[30]
DDR_DQ[29]
DDR_DQ[28]
DDR_DQ[25]
DDR_DQ[26]
DDR_DQ[31]
DDR_DQ[27]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDR_AA0
DDR_AA1
DDR_AA2
DDR_AA3

DDR_AA7
DDR_AA8

DDR_AA9
DDR_AA10
DDR_AA11
DDR_AA12
DDR_AA13

DDR_BAA0
DDR_BAA1
DDR_BAA2

DDR_CKE

R420 10K

DDR_RASb
DDR_CASb

DDR_WEb

DDR_QS2
DDR_QS2b

DDR_QS3b

DDR_DQ[16]

DDR_DQ[17]

DDR_DQ[18]

DDR_DQ[19]

DDR_DQ[20]

DDR_DQ[21]

DDR_DQ[22]

DDR_DQ[23]

NFM18PS105R0J

C433

6.3V

OUTIN

GND

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

K4B2G1646C

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

C426
1uF

IC402

DDR_1333_SS

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

ZQ

+1.5V_DDR

M8

H1

L8

R421 240

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_DDR

R422

4.99K
1%

R423

C435

4.99K

0.01uF

1%

DDR_VREFA

C436

0.01uF

+1.5V_DDR

1%

DDR_AA14

BCM35230

MAIN DDR

IC401-*1

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_SS

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

DDR23_AA6
DDR23_AA4
DDR23_AA5

DDR01_AA6
DDR01_AA4
DDR01_AA5

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

DDR_RESETb

DDR_CKE

DDR_AA13
DDR_AA14

DDR_AA2

DDR_AA11

DDR_AA3
DDR_AA7

DDR_AA9
DDR_AA8
DDR_AA0

DDR_AA1
DDR_BAA0
DDR_BAA2
DDR_BAA1
DDR_AA10
DDR_AA12

DDR_WEb

DDR_CASb
DDR_RASb

R428
82

R424 56
R425 56

AR401 56

AR402 56

AR403 56

AR404 56

AR405 56

AR406 56

R426 56
R427 56

IC402-*1

K4B2G1646C-HCK0

DDR_1600_SS

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_DDR

R429
82

C437
100pF

OPT

C438

C441 1uF

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

4

R430

4.7K
OPT

C442
100pF

R431

4.7K
OPT

1uF

0.1uF

C404

C406 0.1uF

C450

0.1uF

C408

0.1uF

C439

1uF

C409

0.1uF

0.1uF

C451

0.1uF

C411

C440

1uF

0.1uF

C452

50

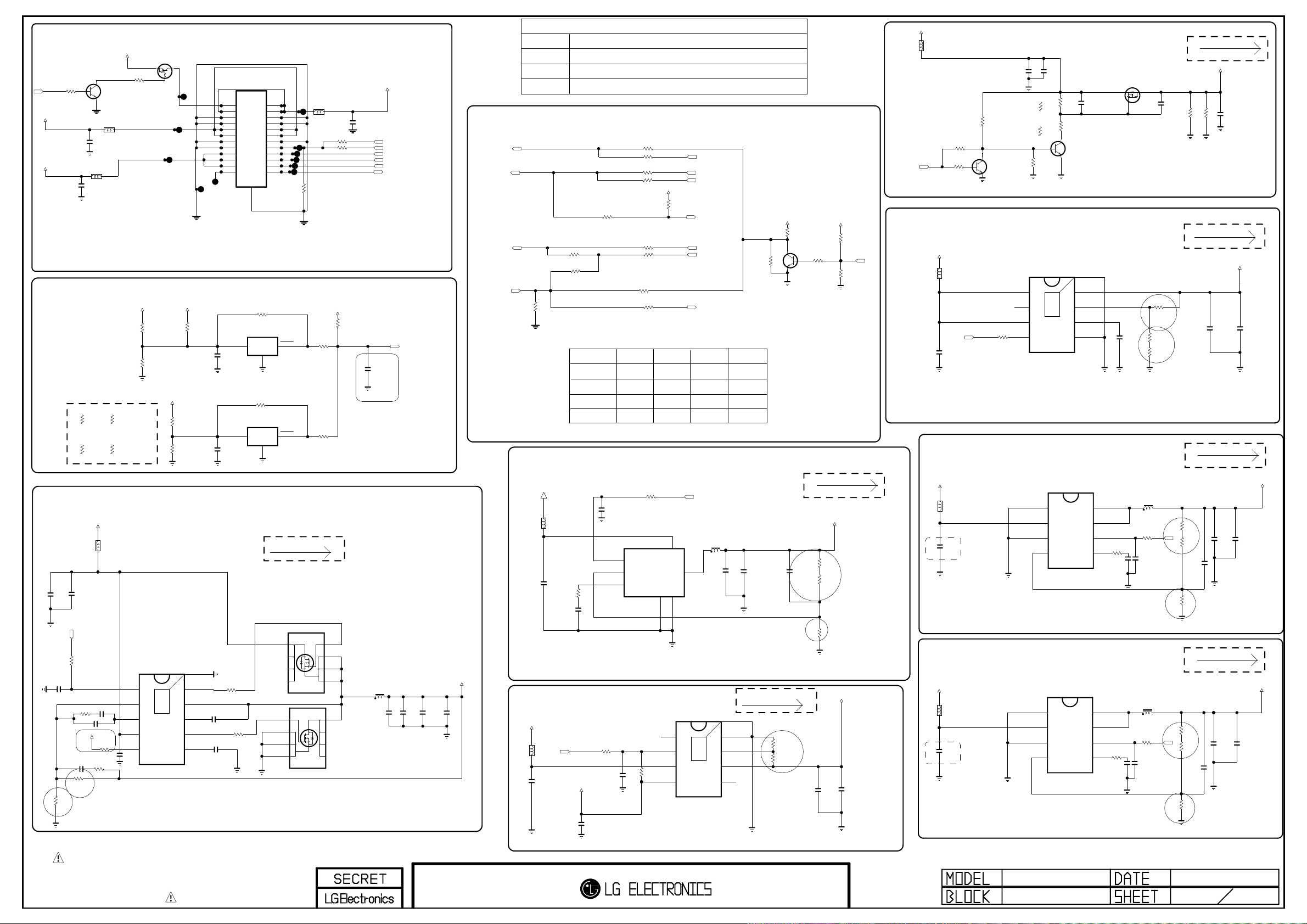

FROM LIPS & POWER B/D

+3.5V_ST

RT1P141C-T112

Q502

R502

RL_ON

10K

+3.5V_ST

+12V

MLB-201209-0120P-N2

C506

0.1uF
50V

#16/#20/#23
LD - GND OR USE
LE(N.L.D.) - OPEN
LE(L.D.) - USE

C

Q501

B

2SC3052

E

L503

MLB-201209-0120P-N2

C508

0.1uF
16V

L501

R508

4.7K

3

1

2

PWR ON

3.5V

3.5V

GND/P.DIM2

NORMAL_26~55

P502
FW20020-24S

1

1

24V

3

3

GND

5

5

GND

7

7
9

9
11

11

GND

13

13

GND

15

15

12V

17

17

12V

19

19

12V

21

21 22
23

23 24

SLIM_32~55

SMAW200-H24S2

+24V

24V

2

2

24V

4

4

GND

6

6

GND

8

8

3.5V

10

10

3.5V

12

12

GND

14

14

GND/V-sync

16

16

INV ON

18

18

A.DIM

20

20

P.DIM1

22

Err OUT

24

25

P501

L504

MLB-201209-0120P-N2

POWER_16_URSA_SCAN

R574 0
R573 0

POWER_16_BCM_SCAN

R518

0

POWER_16_GND

C519

0.1uF
50V

L_VS
L/DIM0_VS
INV_CTL_18
A_DIM_20
PWM_DIM_22
ERROR_OUT_24

Power_DET

PD_+20V
R510-*4

5.6K
1%

PD_+20V
R511-*4

1.3K
1%

PD_+18.5V
R510-*3

4.7K
1%

PD_+18.5V
R511-*3

1.21K
1%

+12V

PD_+12V
R512

2.7K
1%

NON_PD_+3.5V
R513

1.21K
1%

+24V

+3.5V_ST

PD_24V
R510

8.2K
1%

PD_24V
R511

1.5K
1%

PD_+3.5V
R515
0
5%

VCC

C580

0.1uF
16V

VCC

C581

0.1uF
16V
NON_PD_+3.5V

R517
100K

IC503

NCP803SN293

3

1

GND

NON_PD_+3.5V

R516
100K

NON_PD_+3.5V

IC502

NCP803SN293

3

1

GND

+3.5V_ST

R522
10K

OPT

R520

RESET

2

RESET

2

100

R519
100

NON_PD_+3.5V

POWER_DET

ESD

C520

0.1uF
16V

not to RESET at 8kV ESD

15V-->3.6V
20V-->3.5V
24V-->3.48V
12V-->3.58V

ST_3.5V-->3.5V

+0.9V_CORE_BCM35230

+12V

L502

BLM18PG121SN1D

Placed on SMD-TOP

C505

C503

10uF

10uF

16V

16V

POWER_ON/OFF2_2

R503

C504

100pF

50V

R501
12K
1/16W
1%

1K

R504
2K

C509

+3.3V_Normal
TEST

C507
1000pF

50V

R505

6.8K

R2

10K

R506
330

R1

50V
220pF

R507

C510

0.01uF
50V

OPT

ENABLE

COMP

VDD

PGD

C513

0.1uF
16V

FB

IC501

TPS40192DRCR

1

2

3

4

5

11

THERMAL

EP_GND

HDRV

10

9

8

7

6

SW

BOOT

LDRV

BP5

R577 4.7

C515

0.47uF

25V

R578 4.7

C516

4.7uF

Vout=0.591*(1+R1/R2)

10V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Max 7350 mA

AON7430

5D

4G

3S_3

2S_2

1S_1

AON7200

Q508

Q503

4 G

3 S_3

2 S_2

1 S_1

5 D

L505

1uH

C522
22uF
10V

Switching freq: 600K

OPT

C523

22uF

10V

C524
47uF
10V

PANEL_CTL

+12V

L511

12V_PANEL

MLB-201209-0120P-N2

OPT
R554
10K

R553
47K

+3.5V_ST

L517

BLM18PG121SN1D

C590

10uF

10V

R555
22K

C

Q505

B

2SC3052

E

+1.5V_DDR

POWER_ON/OFF1

R591
10K

PANEL_POWER

C550

0.01uF
50V

AP7173-SPG-13 HF(DIODES)

C551

0.1uF
50V

C552

10K

12V_PANEL

1.8K

C

12V_PANEL

E

Q506
2SC3052

10uF

R558-*1

22K

5V_PANEL

R559-*1

2.7K

5V_PANEL

R557

22K

R558

R559

B

IC508

[EP]

IN

1

PG

2

VCC

3

1.5A

EN

4

9

THERMAL

OUT

8

FB

7

SS

6

GND

5

Vout=0.8*(1+R1/R2)

TYP 1450mA

PANEL_VCC

Q507

AO3407A

D

S

1uF

25V

G

25V

C560

OPT

R575

PANEL_DISCHARGE_REG

C563

2K

2K

0.1uF

1/8W

1/8W

R576

50V

PANEL_DISCHARGE_REG

Max 800mA

+1.5V_DDR

R595

R1

4.3K

C593
560pF
50V

1%

R593

3.9K
1%

R592
1K
1%

R2

C594

22uF

10V

C591

0.1uF
16V

Q501,Q504,
Q505,Q506

Q502

Q507

IC502,IC503

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : 0TRIH80004A, 2ND : EBK61012501, 3RD : 0TR102009AM

1ST : EBK60752501, 2ND : EBK61011501

1ST : EAN61151001, 2ND : EAN60670101

OS Module OPT

INV_CTL_18

A_DIM_20

POWER_20_ERROR_OUT

PWM_DIM_22

ERROR_OUT_24

0

POWER_24_GND

R524

POWER_22_PWM_DIM

R526

0

0R527

POWER_24_PWM_DIM

PIN No

DUAL COMPONENT

R532
100

POWER_18_A_DIM

R533

0

POWER_20_A_DIM

R531 0

POWER_20_PWM_DIM

0R538

0R529

POWER_22_A_DIM
R535 0

0R540

NON_OPC/NON_IOP

POWER_24_INV_CTL

R537

100

0R541

POWER_24_ERROR_OUT

<OS MODULE PIN MAP>

CMO(09)

LGD

INV_ON

18

V4:VBR-A

20

V5:NC

22

PWM_DIM

Err_out

24

LED:GND

POWER_18_INV_CTL

+3.3V_Normal

R523

4.7K
ERROR_OUT_PULL_UP

A-DIM

NC

PWM_DIM

INV_ON

A_DIM

A_DIM

PWM_DIM

ERROR_OUT

A_DIM

PWM_DIM

ERROR_OUT

AUO

INV_ON

Err_out

A-DIM

PWM_DIM

SHARP

INV_ON

Err_out

PWM_DIM

GND

R543

6.8K
OPT

+3.3V_Normal

R546
1K

C

2SC3052

E

B

Q504

R547
10K

+3.5V_ST

R551
10K

OPT

R552
10K
OPT

INV_CTL

CHECK PWR/MODULE PIN MAP

+5V_Normal

Vout=0.8*(1+R1/R2)

+12V

L507
BLM18PG121SN1D

C528
10uF
16V

R525

13K

C530
3300pF

50V

+3.3V_NORMAL

OPT
C532

0.1uF
16V

COMP

EN

FB

6

4

5

EAN60660601

R542

10K

VIN

4A

IC505

AOZ1024DI

3

AGND

2

1

PGND

LX

7

POWER_ON/OFF2_2

L509

3.6uH

C534
22uF

10V

C535
22uF

10V

R2

C537
OPT

50V

MAX 2.8A

+3.3V_Normal

1%

R548

27K

1%

4.7K

R549

1%

R550

10K

+12V

L514

BLM18PG121SN1D

Placed on SMD-TOP

C546
10uF
16V

R1

AOZ1073AIL-3

PGND

1

VIN

2

AGND

3

FB

4

IC507

3A

L516

R564

3.6uH

NR8040T3R6N

R570

51K

POWER_ON/OFF2_1

R566

10K

R571

R572

3.6K

10K

C5572200pF

OPT

C559

0.1uF

12K

16V

LX_2

8

LX_1

7

EN

6

COMP

5

Vout=0.8*(1+R1/R2)

+5V_USB+WIFI

+0.9V_CORE

Vout=0.8*(1+R1/R2)

OPT

C525
10uF
10V

+2.5V_BCM35230

+3.5V_ST

OPT

+5V_Normal

C531
1uF

R528
10K

C533

0.1uF

R536

10K

120-ohm

C527
10uF

6.3V

L506

POWER_ON/OFF2_1

VCTRL

IC504

1

PG

2

EN

THERMAL

3

VIN

4

2A

EAN61387601

AP2132MP-2.5TRG1

8

9

7

6

5

[EP]

GND

ADJ

VOUT

NC

Max 960 mA

R544
18K
1%

R545
56K
1%

Switching freq: 500K

R2

R1

+2.5V_BCM35230

C539

C538

10uF

47uF

10V

6.3V

+12V

L513
BLM18PG121SN1D

Placed on SMD-TOP

C545
10uF
16V

IC506

AOZ1073AIL-3

PGND

1

VIN

2

AGND

3A

3

FB

4

Vout=0.8*(1+R1/R2)

L515

R563

12K

NR8040T3R6N

C5552700pF

3.6uH

POWER_ON/OFF2_1

R565

10K

OPT

C558

0.1uF
16V

R567

R568

R569

51K

1.5K

10K

LX_2

8

LX_1

7

EN

6

COMP

5

MAX 1A

1%

C568

R1

22uF
10V

1/16W

1%

OPT

C565

100pF

50V

1%

R2

Switching freq: 500K

MAX 1.9A

1%

C567

R1

22uF

1%

10V

OPT
C564
100pF

50V

1%

R2

Switching freq: 500K

C570
22uF
16V

C571
22uF
16V
OPT

+5V_Normal

+5V_USB

Vout=0.6*(1+R1/R2)

BCM35230

POWER

5

58

NEC MICOM

For Debug

P601

12505WS-12A00

+3.5V_ST

1

2

3

4

5

6

7

8

9

10

11

12

13

R607

R610

+3.5V_ST

R606 10K

10K

10K

R61 5 22

R61 7 22

R62 1 22

EEPROM for Micom

IC601

M24C16-WMN6T

NC/E0

1

NC/E1

R60 1

47K

NC/E2

2

3

VSS

4

VCC

8

WC

7

SCL

6

SDA

5

MICOM MODEL OPTION

+3.5V_ST

PDP/3D

R613 10K

R611 10K

LCD/OLED

R612 10K

TOUCH_KEY

TACT_KEY

R614 10K

AMP_RESET_N

PANEL_CTL

INSTANT_MODE

R604 100

R605 100
R602 100
R603 100

R619

22

R616

22

I2C LED

R622 10K

PWM_LED

R623 10K

MICOM_RESET
NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC_ISP_Rx

NEC_ISP_Tx

R624 10K

10YEAR_TOOL

R625 10K

11YEAR_TOOL

+3.5V_ST

MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
MODEL1_OPT_3

EEPROM_SCL

EEPROM_SDA

PIN NAME

MODEL_OPT_0

MODEL_OPT_1 I2C_LED

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_3

MODEL_OPT_1

MODEL_OPT_2

MODEL OPTION

PIN NO.

LCD

HIGH

10YEAR_TOOL

8

(10 SENSOR)

11

TOUCH_KEY

30

PDP/3D

31

PDP

0 0

LOW

1

0 10

10

LOW

11YEAR_TOOL
(11 SENSOR)

PWM_LED

TACT_KEY

LCD/OLED

OLED 3D

TBD

0

GND

+3.5V_ST

C602

13pF

C603

50V

50V

13pF

X601

10MHz

47K

OPT

R637

10Mhz Crystal

+3.5V_ST

C604

0.1uF

+3.5V_ST

VDD

R626 4.7K

SCL2_3.3V

SDA2_3.3V

EEPROM_SCL

EEPROM_SDA

HDMI_CEC

POWER_ON/OFF2_1

AMP_MUTE

MODEL1_OPT_0

SOC_RESET

INV_CTL

MODEL1_OPT_1

OCD1B

S/T_SCL

+3.5V_ST

R628 4.7K

R629

R630

R631 22

R632 22

R633
22

OPT

R627

4.7K

22

22

P60/SCL0
P61/SDA0

P62/EXSCL0

P33/TI51/TO51/INTP4

P73/KR3
P72/KR2
P71/KR1
P70/KR0

P32/INTP3/OCD1B

P63

P75
P74

1
2
3
4
5
6
7
8
9
10
11
12

48

13

P31/INTP2/OCD1A

OPT

1

HIGHLOW_SMALL

1

1

+3.5V_ST

4.7K

R636

R63 8 2 2

S/T_SDA

OCD1A

FLMD0

R641

R639 10K

GND

C605 0.1uF

P122/X2/EXCLK/OCD0B

P121/X1/OCD0A

REGC

VSS

44

45

46

47

IC602

uPD78F0514

NEC_MICOM

14

15

16

17

P30/INTP1

P15/TOH0

P17/TI50/TO50

P16/TOH1/INTP5

10K

R64 0

IR

POWER_DET

LED_R/BUZZ

LED_B/LG_LOGO

0

15pF

C606

MICOM_DOWNLOAD

C607 15pF

X602

32.768KHz
R642

4.7M
OPT

RESET

P124/XT2/EXCLKS

P123/XT1

FLMD0

41

42

43

18

19

20

P14/RXD6

P13/TXD6

P12/SO10

P11/SL10/RXD0

NEC_ISP_Tx

NEC_ISP_Rx

POWER_ON/OFF2_2

WIRELESS_PWR_EN

WIRELESS_DET

C608

0.1uF
16V

R643 22

P120/INTP0/EXLVI

P41

P40

37

38

39

40

36
35
34
33
32
31
30
29
28
27
26
25

21

22

23

24

AVSS

AVREF

P10/SCK10/TXD0

NEC_TXD

NEC_RXD MICOM_RESET

+3.5V_ST

47K

OPT

270K

R647 20K

R646

20K

1/16W

SW1

JTP-1127WEM

4 3

1/16W
1%

1%

12

R644

R645

P140/PCL/INTP6
P00/TI000
P01/TI010/TO00
P130
P20/ANI0
ANI1/P21
ANI2/P22
ANI3/P23
ANI4/P24
ANI5/P25
ANI6/P26
ANI7/P27

+3.5V_ST

C609 1uF

R648 10K





R649 0

OPT

RL_ON

SCART_MUTE

C

Q601

B

2SC3052

E

EDID_WP

MODEL1_OPT_3

MODEL1_OPT_2

POWER_ON/OFF1

MICOM_DOWNLOAD

SIDE_HP_MUTE

KEY2

KEY1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MICOM

6

50

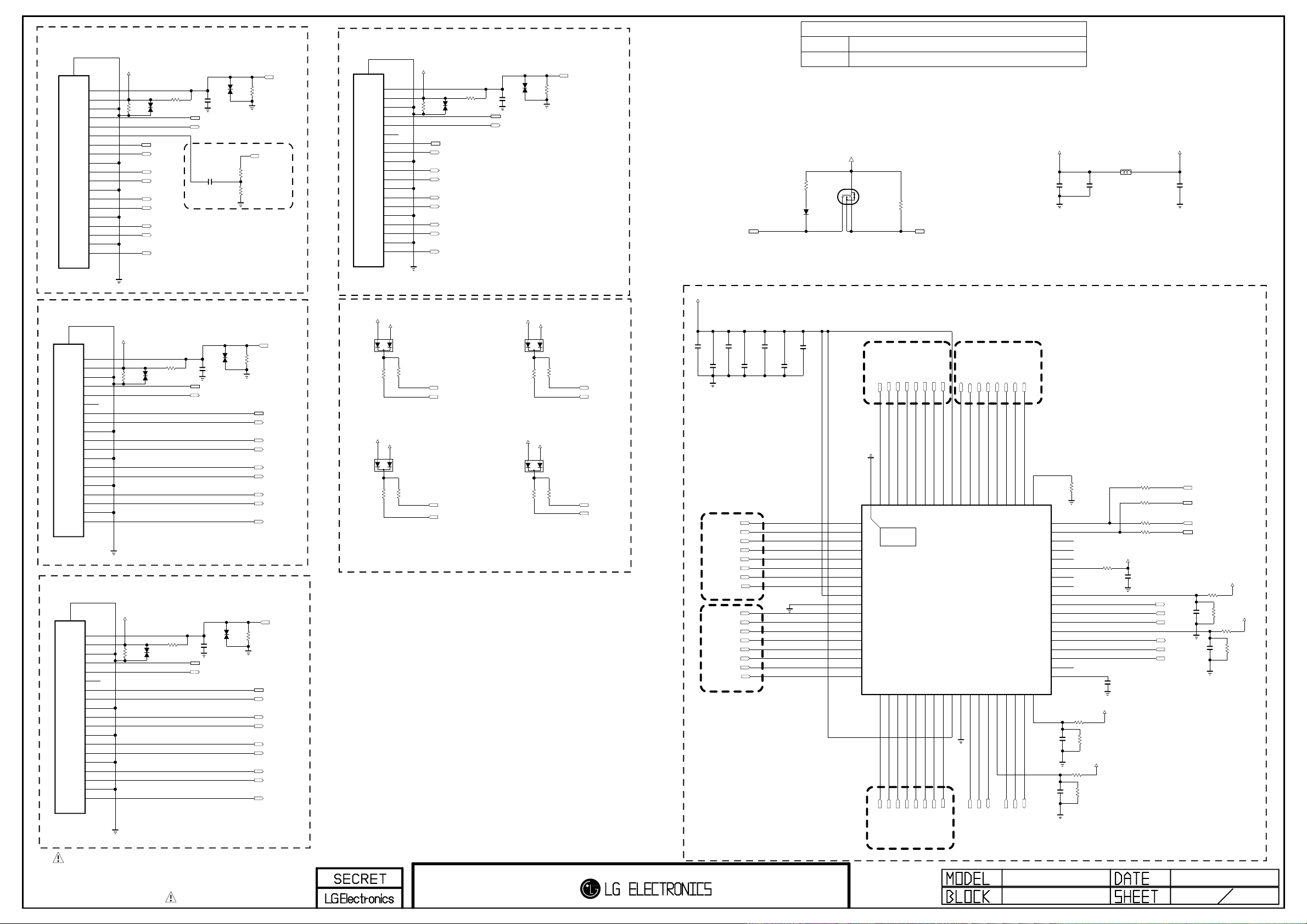

BODY_SHIELD

20

EAG62611201

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

ARC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_1

R730

3.6K
OPT

VR703

10V

OPT

CEC_REMOTE

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

R737
0

DUAL COMPONENT

D707,D708

D713

D710,D711

D713

R754
27K

BODY_SHIELD

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R735

3.6K
OPT

VR707
10V

OPT

CEC_REMOTE

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

R727
0

R729
1K

OPT

HDMI_HPD_4

* HDMI CEC

BAT54_SUZHO

CEC_REMOTE

VR708
10V

OPT

C717

OPT

0.1uF
16V
OPT

DDC_SDA_4

DDC_SCL_4

GND

20

EAG62611201

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

R77 5
150

R77 6

63. 4

R728

1K
OPT

HDMI_HPD_1

HDMI_ARC

VR706

10V

OPT

C714

OPT

0.1uF
16V

OPT

DDC_SDA_1

DDC_SCL_1

ARC

C730

0.1uF

1ST : 0DD184009AA 2ND : 0DSIH00028A

1ST : T-BAT54_SUZHO, 2ND : 0DSON00138A

+3.5V_ST

G

SBD

Q710
BSS83

R741

120K

HDMI_CEC

+3.3V_Normal +3.3V_HDMI

L701

BLM18PG121SN1D

C720

0.1uF
16V

C718
10uF

C719
10uF

JK703

RSD-105156-100

BODY_SHIELD

20

EAG62611201

JK701

RSD-105156-100

BODY_SHIELD

20

EAG62611201

JK702

RSD-105156-100

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R740

3.6K
OPT

5V_HDMI_3

R739

3.6K

OPT

VR701

10V
OPT

VR702

10V
OPT

R725
0

R731
0

HDMI1

HDMI_HPD_2

R736

VR704

1K

10V

OPT

OPT

C715

OPT

0.1uF
16V
OPT

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI2

HDMI_HPD_3

R726

VR705

1K

10V

OPT

OPT

C716

OPT

0.1uF
16V

OPT

DDC_SDA_3

DDC_SCL_3

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

RSD-105156-100

JK704

+5V_Normal

D707

R713

4.7K

+5V_Normal

D708

R714

4.7K

5V_HDMI_1

A1CA2

5V_HDMI_3

A1CA2

R715

4.7K

R716

4.7K

HDMI3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDC_SDA_1

DDC_SCL_1

DDC_SDA_3

DDC_SCL_3

HDMI4

+5V_Normal

5V_HDMI_2

A1CA2

D710

R723

R720

4.7K

4.7K

+5V_Normal

5V_HDMI_4

R721

4.7K

A1CA2

R724

4.7K

D711

EDID Pull-up

DDC_SDA_2

DDC_SCL_2

DDC_SDA_4

DDC_SCL_4

+3.3V_HDMI

C707
10uF
10V

HDMI2

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

HDMI3

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

C701
10uF
10V

D2+_HDMI2

D2+_HDMI3

C706
10uF
10V

C703

0.1uF

16V

C711

0.1uF

16V

C712

0.1uF

16V

C713

0.1uF

16V

R1XCN
R1XCP
R1X0N
R1X0P
R1X1N
R1X1P
R1X2N
R1X2P

VCC33_1

RSVD_1

R2XCN
R2XCP
R2X0N
R2X0P
R2X1N
R2X1P
R2X2N
R2X2P

HDMI1

D2-_HDMI1

D1+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D2+_HDMI1

R0X0N

R0X0P

R0X1N

R0X1P

R0X2N

R0X2P

[EP]GND

67

68

69

70

71

72

1
2

THERMAL

3

73
4
5
6
7
8
9

SII9287B

10
11
12
13
14
15
16
17
18

19

R3XCN20R3XCP21R3X0N22R3X0P23R3X1N24R3X1P25R3X2N26R3X2P

D1-_HDMI4

D0-_HDMI4

D0+_HDMI4

D1+_HDMI4

CK-_HDMI4

CK+_HDMI4

HDMI4

CK+_HDMI1

CK-_HDMI1

R0XCN

R0XCP

65

66

IC701

D2-_HDMI4

HDMI S/W OUTPUT

HDMI_CLK-

TXCP

TXCN

VCC33_3

63

64

27

28

DSDA030DSCL0

RSVD_2

VCC33_2

D2+_HDMI4

HDMI_RX0-

HDMI_CLK+

TX0N

61

62

29

DDC_SCL_1

DDC_SDA_1

HDMI_RX1-

HDMI_RX1+

HDMI_RX0+

TX1P

TX1N

TX0P

58

59

60

31

32

33

DSDA134DSCL1

R0PWR5V

CBUS_HPD0

DDC_SDA_2

HDMI_HPD_1

HDMI_RX2+

HDMI_RX2-

+5V_Normal

C708
1uF

OPT

OPT

C710

R780 33

R781 33

R778
33

R779
33

1uF
10V

TPWR_CI2CA

TX2P

TX2N

56

57

35

R1PWR5V

CBUS_HPD1

DDC_SCL_2

HDMI_HPD_2

55

54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37

36

R777

4.7K

CSCL
CSDA
INT
CEC_D
CEC_A
R4PWR5V
DSCL4
DSDA4
R3PWR5V
CBUS_HPD3
DSCL3
DSDA3
R2PWR5V
CBUS_HPD2
DSCL2
DSDA2
SBVCC
MICOM_VCC33

R712
10

1/16W

C709

R707

1K

1uF

1%

5V_HDMI_1

R708
10

1/16W

R703

C704

1K

1uF

1%

R706

0

5V_HDMI_2

BCM35230

HDMI 7

HDMI_HPD_4

DDC_SCL_4

DDC_SDA_4

HDMI_HPD_3

DDC_SCL_3

DDC_SDA_3

SCL1_3.3V

SDA1_3.3V

SCL3_3.3V

SDA3_3.3V

R717
10

C705
1uF

C702
1uF

1/16W
R711
1K

1%

5V_HDMI_4

5V_HDMI_3

R718
10

1/16W

R705
1K
1%

31

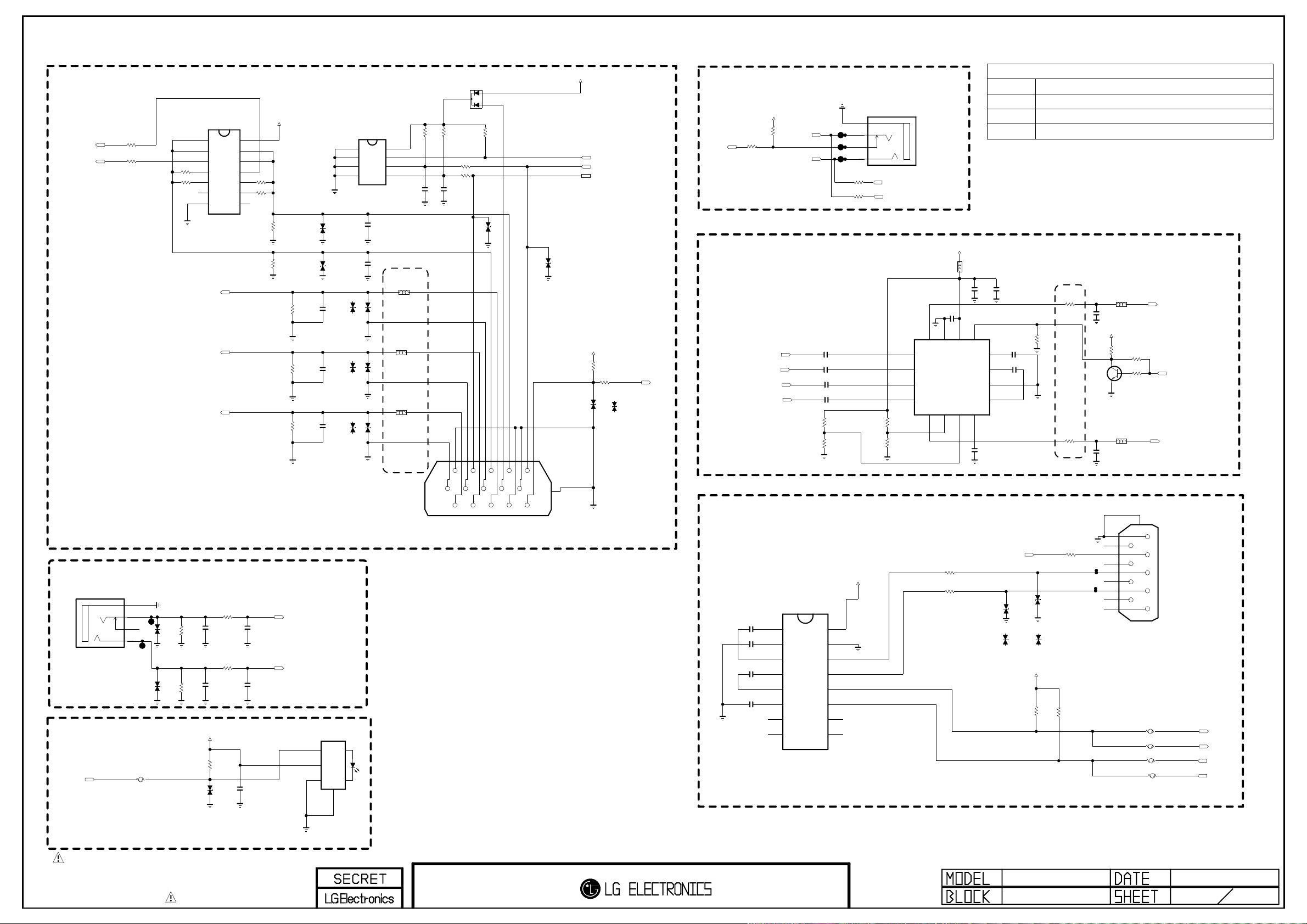

RGB/ PC AUDIO/ SPDIF/ EARPHONE/ RS232C

RGB PC

DSUB_VSYNC

DSUB_HSYNC

R868
0

R869
0

DUAL COMPONENT

L804

BG2012B080TF

C828

0.22uF
10V

+3.3V_Normal

R842

4.7K

C

Q801

E

L805

BG2012B080TF

C829

0.22uF
10V

B

2SC3052

OPT

R843
0

R844
1K

HP_LOUT

SIDE_HP_MUTE

HP_ROUT

D811

5.6V
OPT

+5V_Normal

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

R819
10K

D812

5.6V

ESD_COMMON

R8201K

D812-*1

5.6V
ESD_CERADIODE

DSUB_DET

EARPHON JACK

+3.3V_Normal

R822

2.7K
HP_LOUT

HP_DET

R8211K

HP_ROUT

EARPHONE AMP

HP_LOUT_N

HP_LOUT_P

HP_ROUT_P

HP_ROUT_N

R823

R824

4.7K

OPT

R825 0

R826 0

C816
1uF
10V

C817

1uF

10V

C818
1uF

10V

C819
1uF

10V

OPT

OPT

JK803

KJA-PH-0-0177
5GND

4L

3DETECT

1R

EAG61030001

SPK_R+_HOTEL

SPK_R-_HOTEL

R827

OPT

R828

INL-

INL+

INR+

INR-

4.7K

Close to the IC

SGND

OUTL

15

16

1

2

IC804
TPA6132A2

3

4

EAN60724701

6G07G18

5

OUTR

+3.3V_Normal

D810

KDS184

A2

C

A1

IC801

74F08D

D0A

1

D0B

R801

22

R802

22

R850 0

R851 0

2

Q0

3

D1A

4

OPT

D1B

5

OPT

Q1

6

GND

7

DSUB_B+

DSUB_G+

DSUB_R+

+5V_Normal

IC802

VCC

14

D3B

13

D3A

12

Q3

11

D2B

R852 0

10

OPT

D2A

R853 0

9

OPT

Q2

8

R807
10K
OPT

R808
10K
OPT

R812
75

R811
75

R813
75

D804

30V

D805
30V

C830
47pF
50V

C831
47pF
50V

C832
47pF
50V

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

5.6V
D808-*1

ESD_CERADIODE

5.6V
D806-*1

ESD_CERADIODE

5.6V
D807-*1

ESD_CERADIODE

VCC

8

WP

7

SCL

6

SDA

5

C807
22pF
50V

C808
22pF
50V

BLM15BD121SN1

ESD_COMMON

D808
30V

BLM15BD121SN1

ESD_COMMON

D806
30V

BLM15BD121SN1

ESD_COMMON

D807
30V

Closed to JACK

L807

L808

L806

C809
18pF

R814

R815

2.7K

2.7K

R848 22

R847 22

C810

18pF

50V

50V

R817
10K

D809

5.6V

OPT

91010

5

15

L803
120-ohm
BLM18PG121SN1D

C822
10uF
10V

C821
1uF
10V

EN14VDD

13

12

11

10

9

HPVSS

C823

2.2uF
10V

D804,D805,D806
D807,D808,D813
D814

D810

Q801

IC805

C824

0.1uF

16V

C825

2.2uF
10V

HPVDD

CPP

C826

2.2uF

PGND

10V

CPN

1ST : EAH39491601, 2ND : EAH33945901

1ST : 0DD184009AA, 2ND : 0DSIH00028A

1ST : 0TRIY80001A, 2ND : 0TR387500AA

1ST : EAN61151201, 2ND : EAN61130001

LPF READEY
(For H/P Noise Improvement)

R837
100K
OPT

PC AUDIO

JK801

KJA-PH-0-0177

5 GND

4 L

3 DETECT

1 R

SPDIF OUT

SPDIF_OUT

R803
0

D801
AMOTECH

5.6V

ESD_COMMON

D802

AMOTECH

5.6V

ESD_COMMON

R804
470K

R805
470K

R806

2.7K

R866
22

C801
560pF
50V

R867
22

C802
560pF
50V

+3.3V_Normal

D803
30V
OPT

C803

0.1uF
16V

C804
560pF
50V

C805
560pF
50V

PC_L_IN

PC_R_IN

JK802

2F11TC1-EM52-4F

VIN

A

VCC

B

GND

C

Fiber Optic

4

SHIELD

111112121313141415

6677889

112233445

JK804

SLIM-15F-D-2

16

16

RS232C

10

5

JP809

9

8

7

6

SPG09-DB-009

JK805

R862
0

R863
0

R864
0

R865
0

4

3

2

1

BCM_RX

NEC_RXD

BCM_TX

NEC_TXD

0.1uF

C8120.1uF

C813

C8140.1uF

C8150.1uF

DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC803

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

IR_OUT

100

+3.5V_ST

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

R833

100

R834

ESD_COMMON

D813-*1

D813
30V

5.6V

ESD_CERADIODE

+3.5V_ST

D814
30V

ESD_COMMON

5.6V

D814-*1

R860

4.7K
OPT

IR_OUT

ESD_CERADIODE

R861

4.7K
OPT

R8380

JP810

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

2010.10.21
8COMMON JACK

58

Q901,Q902,Q903
Q904,Q905,Q906

D903,D904
D905,D906

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EAH42720601, 2ND : EAH60994401

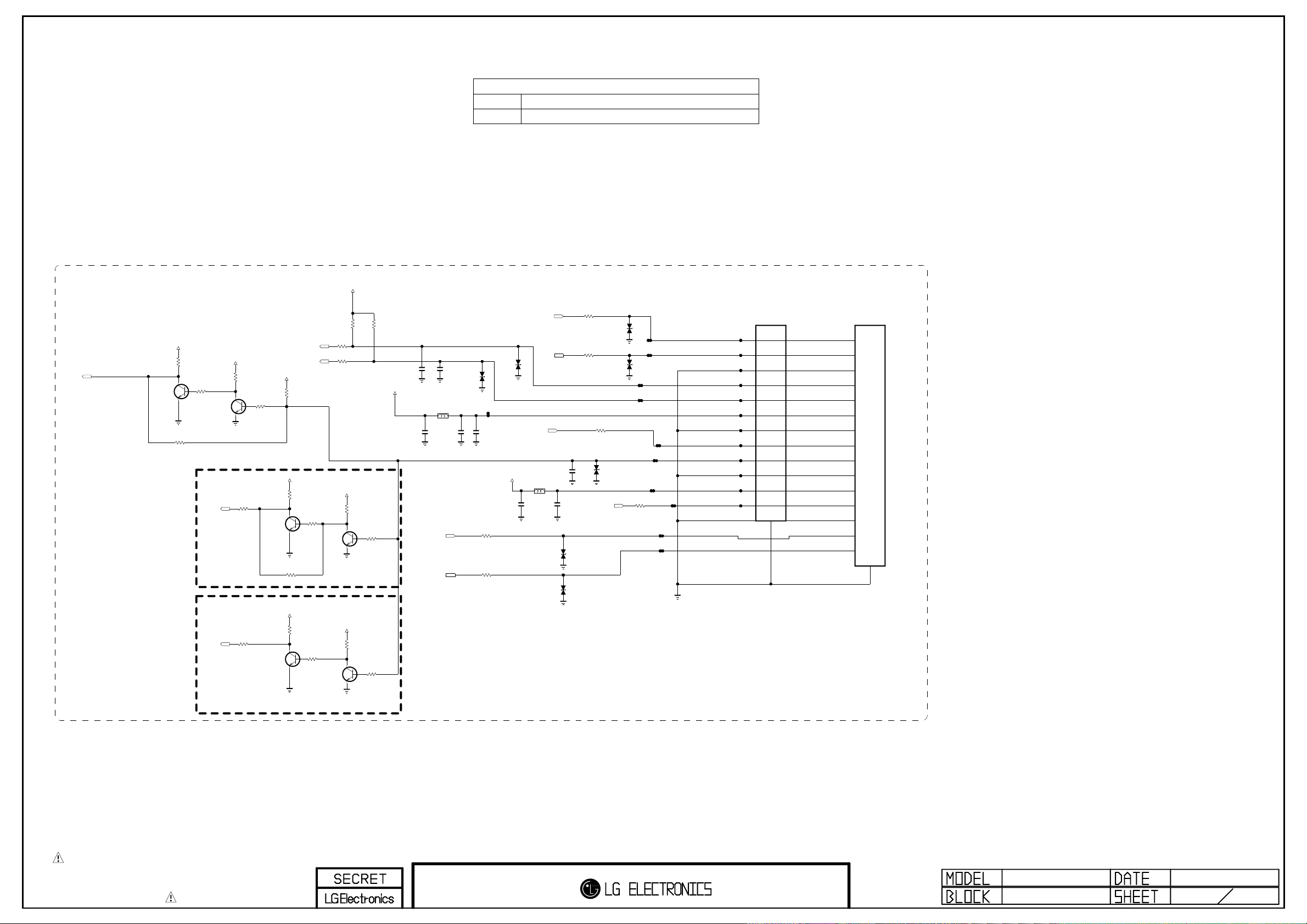

IR & KEY

IR

Q901

2SC3052

+3.5V_ST

R903

47K

R902
0

+3.5V_ST

KEY1

KEY2

3.5V

3.3V

S/T_SCL

ST_SDA

GND

GND

IR

GND

GND

IR_15P

P901

12507WR-15L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

.

IR_12P

P902

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

EEPROM_SCL

EEPROM_SDA

LED_B/LOGO

LED_R/BUZZ

C911

100pF

50V

R933
100

R934
100

R928 1.5K

D907

5.6V

AMOTECH

LED_R/BUZZ

D903

CDS3C05HDMI1

5.6V

D904

CDS3C05HDMI1

5.6V

D905

CDS3C05HDMI1

5.6V

D906

CDS3C05HDMI1

5.6V

R929

1.5K

LED_B/LG_LOGO

+3.3V_Normal

L902

BLM18PG121SN1D

16V

EEPROM_SCL

EEPROM_SDA

C913

0.1uF
16V

ESD_ATSC

R920

R919

10K

10K

1%

1%

R915
100

KEY1

R916

+3.5V_ST

R908

47K

COMMERCIAL_EU

Q903

2SC3052

COMMERCIAL_EU

WIRELESS

Q904

2SC3052

WIRELESS

+3.5V_ST

R909

3.3K
OPT

+3.5V_ST

R911

47K

C

B

E

COMMERCIAL_EU

COMMERCIAL_US

R910
0

+3.5V_ST

R912

47K

C

B

E

R905

47K

R904

C

10K

B

E

OPT

Q902

2SC3052

C

B

E

COMMERCIAL

R906

COMMERCIAL

22

IR_OUT

WIRELESS

R907

WIRELESS

22

IR_PASS

KEY2

R913
10K

R914
10K

WIRELESS

R917

COMMERCIAL

Q905

2SC3052

COMMERCIAL

R918

WIRELESS

Q906

2SC3052

WIRELESS

100

+3.5V_ST

47K

+3.5V_ST

47K

C

B

E

C

B

E

R921

47K

COMMERCIAL

R922

47K

WIRELESS

+3.5V_ST

C901

0.1uF

C902

0.1uF
OPT

BLM18PG121SN1D

16V

L901

S/T_SCL

S/T_SDA

C903

0.1uF

C904

0.1uF

D901

5.6V

AMOTECH

16V

OPT

Zener Diode is

close to wafer

C905
1000pF
50V

R935
100

R936
100

D902

5.6V

AMOTECH

ESD_ATSC

C912

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

IR/KEY

9

50

WIRELESS READY MODEL

D1001,D1002

Q1001

Q1002

DUAL COMPONENT

1ST : EAH42720601 2ND : EAH60994401

1ST : EBK61012601, 2ND : 0TRDI80002A

1ST : EBK60752501, 2ND : EBK61011501

Wireless power

+24V

R1002

22K

WIRELESS

R1003

2.2K

WIRELESS

WIRELESS_PWR_EN

R1001

10K

WIRELESS

B

C1002

2.2uF

WIRELESS

Q1002
AO3407A

WIRELESS

C

Q1001
MMBT3904(NXP)

WIRELESS

E

JK1001

KJA-PH-3-0168

DETECT

INTERRUPT

GND_1

RESET

GND_2

I2C_SCL

I2C_SDA

GND_3

UART_RX

UART_TX

GND_4

GND_5

IR

WIRELESS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20GND_6

21

SHIELD

VCC(24V/20V/17V)_1

VCC(24V/20V/17V)_2

VCC(24V/20V/17V)_3

VCC(24V/20V/17V)_4

VCC(24V/20V/17V)_1

VCC(24V/20V/17V)_1

+3.3V_Normal

S

G

D

L1001

MLB-201209-0120P-N2

WIRELESS

C1004
10uF
35V

WIRELESS

WIRELESS_DET

WIRELESS_SCL

WIRELESS_SDA

IR_PASS

R1008

WIRELESS

R1007 1K

WIRELESS

D1001

CDS3C05HDMI1

WIRELESS

10K

5.6V
WIRELESS

D1002

5.6V

CDS3C05HDMI1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Wireless I2C connection with I2C_1

Address : 0X20

WIRELESS_SCL

WIRELESS_SDA

R1005 33

WIRELESS

R1006 33

WIRELESS

SCL2_3.3V

SDA2_3.3V

BCM35230

10

50WIRELESS

CVBS 1 PHONE JACK

D1105

D1107

5.6V

5.6V

ZD1115

5.1V
ZD1116

5.1V

D1108

5.6V

R1110

JK1102

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

COMPONENT 1 PHONE JACK

D1101

JK1101

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

5.6V

ZD1117

5.1V
ZD1110

5.1V

ZD1111

5.1V
ZD1112

5.1V

ZD1113

5.1V
ZD1114

5.1V

R1109
75

1%

470K

R1111
470K

+3.3V_Normal

R1105

2.7K

R1106
75

1%

R1107
75

1%

R1108
75

1%

+3.3V_Normal

R1112

2.7K

C1106
47pF
50V

C1107
560pF
50V

C1108
560pF
50V

R1137
10

R1138
10

R1139
10

R1143
22

R1144
22

R1113
1K

R1136
10

R1114
1K

L1110

CM2012FR27KT

C1102
27pF
50V

L1111

CM2012FR27KT

C1103
27pF
50V

L1112

CM2012FR27KT

C1104
27pF
50V

FOR EMI

C1109
560pF
50V

C1110
560pF
50V

C1125
27pF
50V

C1126
27pF
50V

C1127
27pF
50V

COMP1_DET

COMP1_Y

COMP1_Pb

COMP1_Pr

AV1_CVBS_DET

AV1_CVBS_IN

AV1_L_IN

AV1_R_IN

JACK_PACK

JK1105

PPJ238-01

[RD1]E-LUG

6C

[RD1]O-SPRING

5C

[RD1]CONTACT

4C

[WH1]O-SPRING

5B

[YL1]CONTACT

4A

[YL1]O-SPRING

5A

[YL1]E-LUG

6A

[RD2]E-LUG

6H

[RD2]O-SPRING_2

5H

[RD2]CONTACT

4H

[WH2]O-SPRING

5G

[RD2]O-SPRING_1

5F

[RD2]E-LUG-S

7F

[BL2]O-SPRING

5E

[BL2]E-LUG-S

7E

[GN2]CONTACT

4D

[GN2]O-SPRING

5D

[GN2]E-LUG

6D

CVBS2 REAR JACK

JK1104

PPJ233-01

AV2_JACK

[RD]E-LUG

5C

[RD]O-SPRING

4C

[RD]CONTACT

3C

[WH]C-LUG

4B

[YL]CONTACT

3A

[YL]O-SPRING

4A

[YL]E-LUG

5A

COMP2 REAR JACK

COMP2

COMP2

COMP2

COMP2

COMP2

COMP2

ZD1103

5.1V

ZD1104

5.1V

ZD1105

5.1V

ZD1106

5.1V

ZD1107

5.1V

ZD1108

5.1V

AV2
R1141
22

D1109
AMOTECH

5.6V
AV2

D1110
AMOTECH

5.6V
AV2

ZD1101

AV2

5.1V

ZD1102

AV2

5.1V

D1111

AV2

5.6V

COMP2

R1119
0

COMP2

R1124
75

COMP2

R1120
0

COMP2

R1125
75

COMP2

R1121
0

COMP2

R1126
75

D1112

5.6V
COMP2

D1113

5.6V
COMP2

COMP2

D1114

5.6V

AV2

10

10

10

AV2

AV2

COMP2

COMP2

COMP2

R1116
470K

R1117
470K

R1118
75

R1133

R1134

R1135

+3.3V_Normal

+3.3V_Normal

R1128

2.7K

AV2

COMP2
R1122
470K

COMP2

R1123

470K

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

R1127

2.7K

C1118
560pF
50V
AV2

C1119
560pF
50V
AV2

C1120
47pF
50V

AV2

BLM18PG121SN1D

C1113
560pF
50V
COMP2

BLM18PG121SN1D

COMP2
C1114

560pF
50V

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

R11301K

COMP2

COMP2

R1142
22

R1129

1K

AV2

L1103

L1104

C1123
560pF
50V

C1121
560pF
50V

COMP2

COMP2
C1122
560pF
50V

CM2012FR27KT

C1115
27pF
50V

CM2012FR27KT

C1116
27pF
50V

CM2012FR27KT

C1117

27pF

50V

L1109

L1108

L1107

FOR EMI

AV2

C1124
560pF
50V

AV2

COMP2
R1131
22

COMP2
R1132
22

AV2
R1140
10

SC/COMP2_R_IN

SC/COMP2_L_IN

SC_R/COMP2_Pr

C1128
27pF
50V

SC_B/COMP2_Pb

C1129
27pF
50V

SC_G/COMP2_Y

C1130

27pF

50V

SC_DET/COMP2_DET

AV2

AV2_R_IN

AV2_L_IN

AV2_CVBS_IN

AV2_CVBS_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

COMP/AV 11

50

USB_WIFI

+3.3V_Normal

WIFI_DM

WIFI_DP

L1203

BLM18PG121SN1D

WIFI

+5V_USB

+3.3V_USB

L1202

MLB-201209-0120P-N2

C1234

WIFI

0.1uF
16V

For EMI

Close to BCM IC

R1232 0

WIFI

R1233 0

WIFI

CDS3C05HDMI1

WIFI

R1204

WIFI

WIFI120-ohm

WIFI

D1201

5.6V

WIFI_ESD

C1209

1uF

10V

WIFI

C1210

0.1uF

R1205
1M

WIFI

X1201
24MHz

12K

1/16W 1%

WIFI

C1211

15pF

WIFI

WIFI

C1213

1%

C1233

0.1uF
16V

WIFI

CDS3C05HDMI1

SIDE_USB_DP

15pF

C1232

100uF
16V

D1202

5.6V

WIFI_ESD

SIDE_USB_DM

R1206

WIFI

100K

12507WR-04L

VDD

DM

DP

GND

1

2

3

4

P1201

WIFI

5

.

+3.3V_USB

DUAL COMPONENT

D1201,D1202
D1203,D1204
D1205,D1206

1ST : EAH42720601 2ND : EAH60994401

USB / DVR Ready

L1205

MLB-201209-0120P-N2

120-ohm

C1220

C1231

10uF

100uF

10V

3AU04S-305-ZC-(LG)

JK1201

1234

USB D OWN STRE AM

5

16V

DEV

D1207

RCLAMP0502BATCT

D1203
CDS3C05HDMI1

5.6V

IC1204

NC
OUT_2
OUT_1

FLG

AP2191DSG

1

8
7

2

6

3

5

4

EAN61849601

D1205
CDS3C05HDMI1

5.6V

GND
IN_1
IN_2
EN

+3.3V_Normal

R1221

4.7K
OPT

USB_CTL1

R1230 0
R1231 0

NON_WIFI

R1224 0
R1225 0

NON_WIFI

NON_WIFI

NON_WIFI

R1223

2.7K

+5V_USB

C1224

0.1uF

/USB_OCD1

SIDE_USB_CTL1

SIDE_USB_OCD1

USB_DM1

USB_DP1

SIDE_USB_DM
SIDE_USB_DP

SUSP_IND/LOCAL_PWR/NON_REM[0]

VDDA33_3

USBDM_UP

USBDP_UP

XTALOUT

XTALIN/CLKIN

PLLFILT

RBIAS

VDD33_3

+3.3V_USB

C1204
1uF
10V

WIFI

C1205

0.1uF
WIFI

USB_DM1

USB_DP1

USB_DM2

USB_DP2

C1206

0.1uF
WIFI

C1207

0.1uF
WIFI

C1208

0.1uF
WIFI

USBDM_DN[1]

USBDP_DN[1]

USBDM_DN[2]

USBDP_DN[2]

VDDA33_1

NC_1

NC_2

NC_3

NC_4

[EP]VSS

36

1

THERMAL

2

3

4

5

6

7

8

9

10

VDDA33_2

32

33

34

35

37

IC1202

USB2512B-AEZG

WIFI

11

12

13

14

TEST

CRFILT

OCS_N[1]

WIFI

PRTPWR[1]/BC_EN[1]

C1212

USB_CTL1

/USB_OCD1

29

30

31

15

16

17

VDD33_1

OCS_N[2]

C1214

0.1uF
PRTPWR[2]/BC_EN[2]

1uF

10V

WIFI

USB_CTL2

/USB_OCD2

28

VBUS_DET

27

RESET_N

26

HS_IND/CFG_SEL[1]

25

SCL/SMBCLK/CFG_SEL[0]

24

VDD33_2

23

SDA/SMBDATA/NON_REM[1]

22

NC_8

21

NC_7

20

NC_6

19

18

NC_5

WIFI

R1207

100K

WIFI

C1216

0.1uF

C1215

0.1uF

WIFI

WIFI

R1208

100K

R1212
100K

R1213

WIFI

100K

R1209

OPT

100K
OPT

R1215 100K

R1214 100K

R1216 100K

+3.3V_USB

WIFI
C1217

4.7uF

C1218

0.1uF
OPT

OPT

OPT

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_USB

/RST_HUB

USB

3AU04S-305-ZC-(LG)

JK1202

1234

USB D OWN STRE AM

5

L1204

MLB-201209-0120P-N2

120-ohm

C1230

C1219

100uF

10uF

16V

10V

DEV

D1208

RCLAMP0502BATCT

BCM35230

USB + WIFI

IC1203

AP2191DSG

NC

8

OUT_2

7

OUT_1

6

FLG

5

EAN61849601

D1204
CDS3C05HDMI1

5.6V

+3.3V_Normal

GND

1

IN_1

2

IN_2

3

EN

4

D1206
CDS3C05HDMI1

5.6V

R1220

4.7K
OPT

USB_CTL2

R1228 0
R1229 0

R1226 0

R1227 0

NON_WIFI

NON_WIFI

NON_WIFI

NON_WIFI

R1222

2.7K

SIDE_USB_CTL2

SIDE_USB_OCD2

USB_DM2

USB_DP2

WIFI_DM

WIFI_DP

12

+5V_USB

C1223

0.1uF

/USB_OCD2

TI solution M_REMOTE OPTION

P1302

12507WR-12L

M_REMOTE

13

.

+3.3V_Normal

L1303

120-ohm

R1315
100

R1319
100

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

R1316
100

R1317
100

R1318
100

R1320
22

R1324
22

R1325
22

R1326
22

M_REMOTE_RX

M_REMOTE_TX

3D_GPIO_0

3D_GPIO_1

3D_GPIO_2

3D_SYNC_RF

R1321

2.7K
M_REMOTE

3.3V

1

GND

2

3

4

5

6

7

8

9

10

11

12

RX

TX

RESET

DC

DD

GND

GPIO_0

GPIO_1

GPIO_2

3D_SYNC

M_REMOTE

M_REMOTE

+3.3V_Normal

R1322

2.7K

M_REMOTE

R1323

2.7K

M_REMOTE

M_RFModule_RESET

DC_MREMOTE

DD_MREMOTE

ALL M_REMOTE OPTION

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

13

50M_REMOCON

Ethernet Block

JK1401

XRJH-01A-4-DA7-180-LG(B)

R1

1

R2

2

R3

3

R4

4

R5

5

R6

6

R7

7

R8

8

R9

9

R10[GND]

10

R11

11

YL_C

D1

YL_A

D2

GN_C

D3

GN_A

D4

12

SHIELD

R1401 240

R1402

+2.5V_BCM35230

+3.3V_Normal

240

L1401

MLB-201209-0120P-N2

C1401

0.1uF

16V

D1401

5.5V

LAN_ESD

D1405

D1403

5V

5V

LAN_ESD

LAN_ESD

D1402

5.5V

LAN_ESD

D1404

5.5V

LAN_ESD

D1401,D1402
D1403,D1404
D1405,D1406

D1406

5.5V
LAN_ESD

EPHY_ACTIVITY

EPHY_LINK

DUAL COMPONENT

1ST : EAH42720601 2ND : EAH60994401

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

14ETHERNET

50

FHD120Hz LVDS output(51pin+41Pin)

P1501

FI-RE51S-HFK-A

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

R1504 33

R1506 33

R1507 33

R1508 33

R1516 33

FRC2

FRC2

FRC2

FRC2

SHARP_60INCH

C1501
10uF
25V

OPT

PANEL_VCC

C1502
1000pF
50V

3D_SYNC_RF

SDA2_3.3V

SCL2_3.3V

FRC_RESET

PANEL_CTL

TXA0N

TXA0P

TXA1N

TXA1P

TXA2N

TXA2P

TXACLKN

TXACLKP

TXA3N

TXA3P

TXA4N

TXA4P

TXB0N

TXB0P

TXB1N

TXB1P

TXB2N

TXB2P

TXBCLKN

TXBCLKP

TXB3N

TXB3P

TXB4N

TXB4P

L1501

MLB-201209-0120P-N2

NON_SHARP_60INCH

C1503

0.1uF
16V

LVDS_SEL

+3.3V_Normal

R1513

3.3K
LVDS_SEL_HIGH

R1514
10K

LVDS_SEL_LOW

BIT_SEL

R1512

10K

BIT_SEL_LOW

P1502

FI-RE41S-HFK-A

LVDS_41P

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

1

2

3

4

5

6

7

8

9

TXC0N

TXC0P

TXC1N

TXC1P

TXC2N

TXC2P

TXCCLKN

TXCCLKP

TXC3N

TXC3P

TXC4N

TXC4P

TXD0N

TXD0P

TXD1N

TXD1P

TXD2N

TXD2P

TXDCLKN

TXDCLKP

TXD3N

TXD3P

TXD4N

TXD4P

REVERSE MARK

LVDS_41P

C1504

2.2uF
50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

2010.11.03
5015LVDS

[Local Dimming Block]

P1601

12507WR-08L

1

2

3

4

5

6

7

8

9

R1601 33

LPB_42/47/55

R1602 33

LPB_42/47/55

L/DIM0_SCLK

L/DIM0_MOSI

SCL2_3.3V

SDA2_3.3V

L/DIM0_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

L_DIMMING

16

50

Q1801

+24V

AMP_MUTE

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

+24V_AMP

L1801

MLB-201209-0120P-N2

AUD_LRCH

AUD_LRCK

AUD_SCK

SDA3_3.3V

SCL3_3.3V

R1801

10K

C1802

0.1uF
50V

+3.5V_ST

B

R1803

OPT

C1804
100pF

50V

R1807 100

R1808 100

R1802

10K

C

Q1801

2SC3052

E

0

C1801

0.1uF
50V

R1816

100

C1806
1000pF

50V

R1815

3.3K

1000pF

C1807

+3.3V_Normal

L1803

BLM18PG121SN1D

C1832

0.1uF
16V

C1814

0.1uF
16V

C1815
33pF
50V

OPT

C1819

10uF

10V

OPT
C1820
10uF

10V

C1825

0.1uF
16V

C1826

0.1uF
16V

OPT

C1810

10uF

10V

C1811
33pF

NTP

NTP

50V

50V

SUB_MUTE

AMP_RESET_N

AUD_MASTER_CLK

C1883
10uF
10V

AGND_PLL
AVDD_PLL
DVDD_PLL

LF

DGND_PLL

GND_1

DGND
DVDD

SDATA

WCK
BCK
SDA

AMP_MUTE_HOTEL

C1834

1000pF

50V

[EP]

1
2
3
4
5
6
7
8
9
10
11
12

GND_IO

CLK_I

VDD_IO

46

47

48

THERMAL

49

NTP-7400L

13

14

15

SCL

/FAULT

MONITOR0

50V

C1837

BST1A

/RESET

AD

43

44

45

IC1802

16

17

18

BST2B

MONITOR1

MONITOR2

C1838

22000pF

50V

22000pF

OUT1A_2

PGND1A

41

42

19

20

PGND2B

OUT2B_1

PVDD1_2

PVDD1_3

OUT1A_1

38

39

40

21

22

23

OUT2B_2

PVDD2_1

PVDD2_2

+24V_AMP

C1842

0.1uF
50V

PVDD1_1

37

36
35
34
33
32
31
30
29
28
27
26
25

24

PVDD2_3

C1846

0.1uF
50V

OUT1B_2
OUT1B_1
PGND1B
BST1B
VDR1
VCC_5
GND_2
VDR2
BST2A
PGND2A
OUT2A_2
OUT2A_1

+24V_AMP

C1840

0.1uF
50V

C1844

0.1uF
50V

R1851

3.3

C1848
10uF
35V

OPT

OPT

C1881

0.01uF
50V

C1850
10uF
35V

C1853
22000pF

50V

C1854
22000pF
50V

C18 56
1uF
25V

D1805

1N4148W

100V

OPT

D1806

1N4148W

100V

OPT

D1807

1N4148W

100V

OPT

D1808

1N4148W

100V

OPT

C18 58
1uF
25V

R1823

12

C1863
390pF

50V

C1864
390pF

50V

R1824

12

R1825

12

C1865
390pF

50V

C1866
390pF

50V

R1826

12

C1868
1uF
25V

R1834

12

R1832

12

R1833

12

R1830

12

L1810

10.0uH

NRS6045T100MMGK

L1811

10.0uH

NRS6045T100MMGK

L1806

10.0uH

NRS6045T100MMGK

L1807

10.0uH

NRS6045T100MMGK

C1871

0.47uF
50V

C1872

0.47uF
50V

C1877

0.1uF
50V

C1878

0.1uF
50V

C1879

0.1uF
50V

C1880

0.1uF

50V

R1839

4.7K

R1840

4.7K

R1841

4.7K

R1842

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPK_R+

SPEAKER_R

SPK_R-

WAFER-ANGLE

4

3

2

1

P1801

WOOFER AMP.

AUD_LRCH

AUD_LRCK

AUD_SCK

SDA3_3.3V

SCL3_3.3V

WOOFER

C1803
100pF

50V

WOOFER

R1811 100

WOOFER

R1812 100

WOOFER
C1805
1000pF

50V

WOOFER

R1814

3.3K

OPT

C1808

10uF

10V

C1809
33pF
50V

NTP_WOOFER

WOOFER

C1812

0.1uF
16V

C1813
33pF
50V

NTP_WOOFER

SUB_MUTE

C1816

10uF

10V

C1817
10uF

+3.3V_Normal

WOOFER

L1802

BLM18PG121SN1D

WOOFER

C1831

0.1uF
16V

WOOFER

OPT

C1822

0.1uF
16V

OPT

WOOFER

C1823

10V

0.1uF
16V

WOOFER

R1817

WOOFER

100

C1829

1000pF

50V

AMP_RESET_N

WOOFER

R1818

10K

AUD_MASTER_CLK

WOOFER

C1884
10uF
10V

AGND_PLL
AVDD_PLL
DVDD_PLL

DGND_PLL

GND_1

DGND
DVDD

SDATA

WCK
BCK
SDA

LF

WOOFER

C1833

1000pF

50V

[EP]

1
2
3
4
5
6
7
8
9
10
11
12

GND_IO

CLK_I

VDD_IO

46

47

48

THERMAL

49

NTP-7400L

13

14

15

SCL

/FAULT

MONITOR0

WOOFER

50V

C1835

BST1A

/RESET

AD

43

44

45

WOOFER

IC1801

16

17

18

BST2B

MONITOR1

MONITOR2

WOOFER
C1836

22000pF

50V

22000pF

OUT1A_2

PGND1A

41

42

19

20

PGND2B

OUT2B_1

PVDD1_2

PVDD1_3

OUT1A_1

38

39

40

21

22

23

OUT2B_2

PVDD2_1

PVDD2_2

+24V_AMP

WOOFER
C1841

0.1uF
50V

PVDD1_1

37

36
35
34
33
32
31
30
29
28
27
26
25

24

PVDD2_3

WOOFER
C1845

0.1uF
50V

OUT1B_2
OUT1B_1
PGND1B
BST1B
VDR1
VCC_5
GND_2
VDR2
BST2A
PGND2A
OUT2A_2
OUT2A_1

+24V_AMP

WOOFER
C1839

0.1uF
50V

WOOFER
C1843

0.1uF
50V

OPT

R1852

3.3

WOOFER

C1847
10uF
35V

C1882

0.01uF
50V

WOOFER

C1849
10uF
35V

OPT

SPK_WOOFER_L+

WOOFER_L

SPK_WOOFER_L-

SPK_WOOFER_R-

SPK_WOOFER_R+

SPK_WOOFER_L-

SPK_WOOFER_L+

SPK_WOOFER_R+

WOOFER_R

SPK_WOOFER_R-

P1802

SMAW250-05

WOOFER

1

2

3

4

5

WOOFER
C1851

22000pF
50V

WOOFER

C1852
22000pF
50V

OPT

WOOFER
C18 55
1uF
25V

OPT

OPT

D1801

1N4148W

100V

D1802

1N4148W

100V

OPT

D1803

1N4148W

100V

D1804

1N4148W

100V

WOOFER

C18 57
1uF
25V

WOOFER

R1819

12

WOOFER

C1859
390pF

50V

WOOFER
C1860
390pF

50V
WOOFER
R1820

12

WOOFER

R1821

12

WOOFER
C1861
390pF

50V
WOOFER

C1862
390pF

50V
WOOFER
R1822

12

WOOFER

WOOFER
C1867
1uF
25V

WOOFER

WOOFER
R1827

WOOFER

R1831

12

R1828

12

R1829

12

12

L1808

10.0uH

NRS6045T100MMGK

L1809

10.0uH

NRS6045T100MMGK

L1804

10.0uH

NRS6045T100MMGK

L1805

10.0uH

NRS6045T100MMGK

WOOFER

WOOFER

WOOFER

WOOFER

WOOFER
C1869

0.47uF
50V

WOOFER

C1870

0.47uF
50V

WOOFER
C1873

0.1uF
50V

WOOFER
C1874

0.1uF
50V

WOOFER

C1875

0.1uF
50V

WOOFER

C1876

0.1uF

50V

WOOFER
R1835

4.7K

WOOFER

R1836

4.7K

WOOFER

R1837

4.7K

WOOFER
R1838

4.7K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

AUDIO[NEO]

18

50

PCM_MDI[0-7]

BCM INT Demod

BCM INT Demod

CI TS INPUT

PCM_TS_DATA[0-7]

PCM_TS_CLK

PCM_TS_VAL
PCM_TS_SYNC

CI TS OUTPUT

/CI_CE1

NAND_REb

/PCM_OE

NAND_WEb

/PCM_WE

FE_TS_DATA[0-7]

PCM_MISTRT

PCM_MIVAL_ERR

PCM_MCLKI

CI 9

CI 15

Close to BCM35230

PCM_MDI[0]
PCM_MDI[1]

PCM_MDI[2]
PCM_MDI[3]
PCM_MDI[4]

PCM_MDI[5]
PCM_MDI[6]
PCM_MDI[7]

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

Close to BCM35230

NIM_TS_SYNC
NIM_VAL_ERR

NIM_TS_CLK

PCM_TS_DATA[0]
PCM_TS_DATA[1]
PCM_TS_DATA[2]
PCM_TS_DATA[3]

PCM_TS_DATA[4]
PCM_TS_DATA[5]
PCM_TS_DATA[6]
PCM_TS_DATA[7]

IC1901

CI

74LVC125APW

1OE

1

1A

2

1Y

3

2OE

4

2A

5

2Y

6

GND

7

R1909 22
R1910

AR1903 22

R1915 22
R1916 22

R1901 22
R1902

R1903 22
R1904 22
R1905 22
R1906
R1907 22
R1908 22

R1917
R1918
R1919

Close to Tuner

R1920
R1921
R1922

Close to CI Slot

Close to CI Slot

C1916
12pF
50V

OPT

+3.3V_CI

C1901

VCC

14

4OE

13

4A

12

4Y

11

10

9

8

CI 45

3OE

3A

3Y

CI 44

OPT

22

OPT

OPT

OPT
OPT

CI

22

CI
CI
CI
CI

22

CI
CI
CI

OPT

22

OPT

22

OPT

22

CI

22

CI

22

CI

22

AR1901 100

AR1902 100

R1923

220

R1924

100

R1925

100

0.1uF

OPT

16V

/CI_CE2

NAND_WEb

/PCM_IOWR

NAND_REb

/PCM_IORD

CI

CI

CI

CI
CI

CI_MDI[0]
CI_MDI[1]

CI_MDI[2]
CI_MDI[3]
CI_MDI[4]
CI_MDI[5]

CI_MDI[6]
CI_MDI[7]

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]

CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

/CI_CE1

/CI_CE2

/CI_EN1

/CI_EN1

/PCM_CE1

R1977
10K
OPT

+5V_CI_ON

CI

CI 7

CI_MDI[0-7]

CI_MISTRT
CI_MIVAL_ERR
CI_MCLKI

CI_TS_DATA[0-7]

CI_TS_CLK

CI_TS_VAL
CI_TS_SYNC

R1970
22

1A

1

1B

2

1Y

3

2A

4

2B

5

2Y

6

GND

7

IC1902

74AHC08PW

CI

DUAL COMPONENT

Q1901

Q1902

IC1904

OE DIR CI_DATA NAND_DATA
L L OUTPUT INPUT
L H INPUT OUTPUT
H X Z Z

CI_DATA[0-7]

+3.3V_CI

OPT

C1902

VCC

14

4B

13

4A

12

4Y

11

3B

10

3A

9

3Y

8

0.1uF

16V

NAND_RBb

CI_ADDR[1]

NAND_CLE

CI_ADDR[0]

NAND F/M Data

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EBK60752501, 2ND : EBK61011501

1ST : 0ISTLPH062A, 2ND : EAN40055001

+5V_CI_ON

R1971

10K

/PCM_IORD
/PCM_IOWR

PCM_RST

/PCM_WAIT

/CI_EN1

PCM_ADDR[2]
PCM_ADDR[3]
PCM_ADDR[4]
PCM_ADDR[7]
PCM_ADDR[9]
PCM_ADDR[11]
PCM_ADDR[12]
PCM_ADDR[13]

CI_DATA[0]
CI_DATA[1]

CI_DATA[2]

CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

/CI_EN1

R1976
R1974

R1927
R1928

R1926

OPT

CI

22

CI

22

CI

22

CI

22

OPT

22

AR1904 100

R1980 100

AR1905 100

+3.3V_CI

C1915

0.1uF
16V

R1986 22

CI

CI_MDI[0-7]

R1929

10K

OPT

+3.3V_CI

0.1uF
C1903
16V

CI

CI

CI
CI

74LVC245A

CI

R1972
10K

CI

+5V_CI_ON

R1930

10K
OPT

IC1905

VCC

20

OE

19

B0

18

B1

17

B2

16

B3

15

B4

14

B5

13

B6

12

B7

11

IC1903

74LVC245A

VCC

20

OE

19

B0

18

B1

17

B2

16

B3

15

B4

14

B5

13

B6

12

B7

11

10

/CI_CD1

CI_TS_DATA[3]

CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

CI_MDI[0]
CI_MDI[1]
CI_MDI[2]
CI_MDI[3]

CI_MDI[4]
CI_MDI[5]
CI_MDI[6]
CI_MDI[7]

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC
CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]

/CI_CD2

DIR

1

CI

A0

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

GND

10

CI

DIR

1

A0

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

GND

C1904

0.1uF
CI

R1985
10K
CI

C1905
10uF
10V

CI

NAND_DATA[0]
NAND_DATA[1]
NAND_DATA[2]
NAND_DATA[3]
NAND_DATA[4]
NAND_DATA[5]
NAND_DATA[6]
NAND_DATA[7]

CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_ADDR[7]
CI_ADDR[9]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]

R1932
10K

CI

R1931 22

+5V_CI_ON

R1933

10K

OPT

CI

R1937

R1936

OPT

10K

R1934
R1935 0

CI

R1938 62

NAND_REb

NAND_DATA[0-7]

62

/CI_DET1

CI

TS_OUT3
TS_OUT4
TS_OUT5
TS_OUT6
TS_OUT7

CARD_EN2

TS_IN_SYN

0

TS_OUT_CLK

CI_RESET

CI_WAIT

OPT

CI

TS_OUT_VAL
TS_OUT_SYN

TS_OUT0
TS_OUT1
TS_OUT2

/CI_DET2

IORD
IOWR

TS_IN0
TS_IN1
TS_IN2
TS_IN3

TS_IN4
TS_IN5
TS_IN6
TS_IN7

INPACK

GND

VS1

VCC
VPP

REG

GND

P1901

10067972-000LF CI

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

G1G2

69

CI POWER ENABLE CONTROL

+5V_Normal

PCM_5V_CTL

3,3V_CI POWER

GND

1

DAT3

2

DAT4

3

DAT5

4

DAT6

5

DAT6

6

/CARD_EN1

7

ADDR10

8

/O_EN

9

ADDR11
ADDR10
ADDR8
ADDR13
ADDR14
/WR_EN
/IRQA
VCC
VPP
TS_IN_VAL
TS_IN_CLK
ADDR12
ADDR7
ADDR6
ADDR5
ADDR4
ADDR3
ADDR2
ADDR1
ADDR0
DAT0
DAT1
DAT2
/IO_BIT
GND

+3.3V_Normal

C1906

CI

0.1uF
16V

C1907

0.1uF

R1944

R1945

R1946
10K
OPT

0

OPT

10K

OPT

L1901

BLM18PG121SN1D

CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

CI
CI
CI

CI
CI
CI
CI
CI

C1910 0.1uF

CI
CI
CI
CI
CI
CI
CI
CI
CI

CI

R1956 22

R1962
R1963
R1957 22
R1958
R1959
R1960
R1961

CI

R1947
R1948
R1949
R1950
R1951
R1952
R1953
R1954
R1955

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]

CI_MIVAL_ERR
CI_MCLKI
CI_MISTRT

R1940
10K

OPT

R1942

4.7K

CI

+3.3V_CI

C1908

CI

0.1uF

CI_DATA[0-7]

/PCM_CE1

+5V_CI_ON

R1973

22

CI_ADDR[10]

22

PCM_ADDR[11]

22

PCM_ADDR[9]

22

CI_ADDR[8]

22

PCM_ADDR[13]

22

CI_ADDR[14]

R1967 22

C1913

CI

0.1uF
16V

22
22
22
22
22
22
22
22
22

PCM_ADDR[12]
PCM_ADDR[7]
CI_ADDR[6]
CI_ADDR[5]
PCM_ADDR[4]
PCM_ADDR[3]
PCM_ADDR[2]
CI_ADDR[1]
CI_ADDR[0]

CI

CI_ADDR[10]

PCM_ADDR[11]
PCM_ADDR[9]
CI_ADDR[8]
PCM_ADDR[13]
CI_ADDR[14]

PCM_ADDR[12]
PCM_ADDR[7]
CI_ADDR[6]
CI_ADDR[5]
PCM_ADDR[4]
PCM_ADDR[3]
PCM_ADDR[2]
CI_ADDR[1]
CI_ADDR[0]

10K

+5V_CI_ON

R1968

10K

CI

/PCM_OE

R1975

10K

CI

CI

CI

R1964 22

/PCM_WE
/PCM_IRQA

+5V_CI_ON

Q1902

AO3407A

D

S

CI

G

C1909

R1943

CI

B

22K

R1987

2.2K

CI

C

Q1901
2SC3052
CI

E

4.7uF
16V
OPT

BLM18PG121SN1D

C1912

0.1uF
16V

L1902

CI

CI

C1914

CI

0.1uF
16V

+5V_CI_ON

R1969

10K

CI

CI DETECT

CI CONTROL INTERFACE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

/CI_CD2

/CI_CD1

+3.3V_CI

R1939

10K

CI

R1941

10K

74LVC1G32GW

CI

1B 5 VCC

3GND2A4 Y

BCM35230

IC1904

CI

C1911

OPT

0.1uF

16V

GND

+3.3V_CI

CI

R1965

47

+3.3V_CI

CI

R1966

10K

CI_DET

2010.11.11

CI

19

58

OPTION TABLE

H/NIM

(EU)

Non_DVB_S

H/NIM F/NIM

BOOSTER

H/NIM

(AU,Latin)

Non_DVB_S Non_DVB_S Non_DVB_S Non_DVB_S Non_DVB_S Non_DVB_S

H/NIM

BOOSTER

H/NIM

(Brazil,Taiwan)

H/NIM

BOOSTER

RF_SW_CTL

SCART

AU_ASIA_TUNER_V

TU2201
TDTJ-S131D

ANT_PWR

1

NC_1

2

+B1[5V]

3

RF_AGC

4

MOPLL_AS

5

SCL

6

SDA

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

IF_AGC_CNTL

16

DIF_1[N]

17

DIF_2[P]

18

19

SHIELD

TU2201-*2
TDVJ-H031F

19

SHIELD

CN_VERTICAL_ALTOBEAM

TU2202-*2
TDFR-C256D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SHIELD

LATIN_TUNER_H

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

RF_S/W_CNTL

BST_CNTL

+B1[+5V]

NC[RF_AGC]

NC_1

SCLT

SDAT

NC_2

SIF

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

NC_4

SCL

SDA

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

AU_ASIA_H/NIM_H

TU2201-*3
TDTJ-S101D

ANT_PWR

1

NC_1

2

+B1[5V]

3

RF_AGC

4

MOPLL_AS

5

SCL

6

SDA

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

IF_AGC

16

DIF_1[N]

17

DIF_2[P]

18

19

SHIELD

CN_HORIZONTAL_ALTOBEAM

TU2202-*3
TDFR-C236D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SHIELD

RF_S/W_CNTL

BST_CNTL

+B1[+5V]

NC[RF_AGC]

NC_1

SCLT

SDAT

NC_2

SIF

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

NC_4

SCL

SDA

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

31

SHIELD

TAIWAN_BR_V

TU2201-*1
TDTR-T056F

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

SHIELD

EU_F/NIM_DVB_T2_V

TU2202-*1
TDFR-G256D

NC_1

1

BST_CNTL

2

+B1[5V]

3

NC_2[RF_AGC]

4

NC_3

5

SCLT

6

SDAT

7

NC_4

8

SIF

9

NC_5

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

+B4[2.5V]

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

RF_S/W_CTL

BST_CNTL

+B[5V]

NC_1[RF_AGC]

NC_2

SCL

SDA

NC_3

SIF

NC_4

VIDEO

GND

+B2[1.26V]

+B3[3.3V]

RESET

IF_AGC_CNTL

DIF_1[N]

DIF_2[P]

F/NIM_T/C

BOOSTER

SCART

EU_F/NIM

TC_S_F/NIM

EU_F/NIM_DVB_TC_V

31

SHIELD

CN_VERTIAL_LG3911

TU2202-*4
TDFR-C056D

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

31

SHIELD

31

SHIELD

F/NIM_T2

F/NIM

BOOSTER

SCART

EU_F/NIM

TC_S_F/NIM

TU2202
TDFR-G156D

NC_1

1

BST_CNTL

2

+B1[5V]

3

NC_2[RF_AGC]

4

NC_3

5

SCLT

6

SDAT

7

NC_4

8

SIF

9

NC_5

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

+B4[2.5V]

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

CN_HORIZONTAL_LG3911

TU2202-*5
TDFR-C036D

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

(China)

F/NIM

BOOSTER

RF_SW_CTL

CN_F/NIM_BR

DVB_TCS_H

39

SHIELD

F/NIM_Brazil

(Brazil)

F/NIM

BOOSTER

RF_SW_CTL

CN

CN_F/NIM_BR

EU_F/NIM_DVB_TCS_V

TU2203-*1
TDFQ-G001D

NC_1

1

NC_2

2

NC_3

3

S2_TU[3.3V]

4

NC_4

5

TU_SCL

6

TU_SDA

7

T_1.8V

8

T_SIF

9

NC_5

10

T_CVBS

11

GND_1

12

TD_1.2V

13

T_3.3

14

T_TU_RESET

15

NC_6

16

TD_SCL

17

TD_SDA

18

T/C/S2_ERROR

19

T/C/S2_SYNC

20

T/C/S2_VALID

21

T/C/S2_MCL

22

T/C/S2_D0

23

T/C/S2_D1

24

T/C/S2_D2

25

T/C/S2_D3

26

T/C/S2_D4

27

T/C/S2_D5

28

T/C/S2_D6

29

T/C/S2_D7

30

S2_1.25V

31

S2_RESET

32

S2_3.3V

33

S2_F22

34

S2_SCL

35

S2_SDA

36

GND_2

37

S2_LNB

38

39

SHIELD

DVB-T/C/S2F/NIM_CN

(Eu,Aisa)

DVB_S

F/NIM

SCART

TC_S_F/NIM

TU2203
TDFQ-G031D

NC_1

1

NC_2

2

NC_3

3

S2_TU[3.3V]

4

NC_4

5

TU_SCL

6

TU_SDA

7

T_1.8V

8

T_SIF

9

NC_5

10

T_CVBS

11

GND_1

12

TD_1.2V

13

T_3.3V

14

T_TU_RESET

15

NC_6

16

TD_SCL

17

TD_SDA

18

T/C/S2_ERROR

19

T/C/S2_SYNC

20

T/C/S2_VALID

21

T/C/S2_MCL

22

T/C/S2_D0

23

T/C/S2_D1

24

T/C/S2_D2

25

T/C/S2_D3

26

T/C/S2_D4

27

T/C/S2_D5

28

T/C/S2_D6

29

T/C/S2_D7

30

S2_1.25V

31

S2_RESET

32

S2_3.3V

33

S2_F22

34

S2_SCL

35

S2_SDA

36

GND_2

37

S2_LNB

38

Close to Tuner #38 pin

C2201

0.1uF
16V

OPT

BLM18PG121SN1D

R2202
51

1/16W
5%

DVB_S

C2206
1000pF
50V
DVB_S

RF_SW_CTL

LNB_TX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

H/NIM & F/NIM & T/C/S2 Combo Tuner

NON_DVB_S: use H/NIM and F/NIM

DVB_S: use DVB-T/C/S2 combo Tuner

H/NIM: use H/NIM

F/NIM: use F/NIM and DVB-T/C/S2 combo Tuner

SCART: use Scart Jack

CN : use China F/NIM

BOOSTER: use BOOSTER_CTL

RF_SW_CTL: use RF_SWITCH_CTL

TC_S_F/NIM: use EU_DVB-T/C F/NIM

CN_F/NIM_BR: use F/NIM(China, BRZIL)

EU_F/NIM: use EU_F/NIM

R2209

0

RF_SW_CTL

C2203

close to TUNER

0.1uF
16V

C2222

C2225

0.1uF

100pF

16V

50V

NON_DVB_S

C2204
100pF
50V

DVB_S

C2205
100pF
50V

F/NIM

F/NIM

H/NIM

H/NIM

+1.25V_TU

C2223
100pF
50V
DVB_S

R2203

100

DVB_S

DVB_S

DVB_S

C2224
100pF
50V

DVB_S

Surge protectioin

C2209
33pF
OPT

NON_DVB_S

C2284

C2285

100pF

0.1uF

50V

16V

DVB_S

DVB_S

+1.8V_TU

C2208

0.1uF

16V

DVB_S

C2220
1000pF

CN

50V

C2213

0.1uF
16V

close to IF line

C2226

C2230

0.1uF

10uF

16V

10V

DVB_S

DVB_S

+3.3V_S2_LNB
R2208

2.2K
DVB_S

S2_RESET

C2207

0.1uF
DVB_S

+3.3V_S2_DE

C2228

C2232

0.1uF

10uF

16V

10V

DVB_S

DVB_S

D2201

C2212

3.0SMCJ20A(suzhougrande)

33pF

DVB_S

DVB_S

BOOSTER

0

R2206

DVB_S
R2277

0

close to TUNER

C2215

CN

10uF

16V

R2204 0

R2205 0

R2293 0
R2292 0

L2209

120-ohm

DVB_S

R2283 0

R2284 0

L2205

1uH

close to TUNER

NON_DVB_S

C2286
10uF

6.3V

DVB_S

C2219
62pF
50V

NON_DVB_S

C2218

C2210

4700pF

CN

50V

EU_F/NIM

close to Tuner

RF_SWITCH_CTL

+5V_TU

+3.3V_S2_TU

L2206-*1

DVB_S

0

close to TUNER

L2206

NON_DVB_S

270nH

L2210
270nH

NON_DVB_S

C2221

C2202

62pF

20pF

50V

50V

NON_DVB_S

NON_DVB_S

CN

C2214
100uF

0.1uF
16V

16V

R2207

2.2K
DVB_S
6432

R2291

OPT

L2210-*1

75

CN

DVB_S
0

C2211
20pF
50V

NON_DVB_S

+1.25V_TU

C2217
10uF

LNB_OUT

BOOSTER

R2231

C2234

0.01uF
50V

BOOSTER

close to TUNER

SCL0_3.3V

SDA0_3.3V

close to TUNER

+3.3V_TU

C2227
100pF
50V

16V

+5V_TU

BOOSTER

L2201

BLM18PG121SN1D

0

Q2202
MMBT3906(NXP)

E

B

C

C2231

0.1uF
16V

AR2200 47

EU_F/NIM

AR2201

47

EU_F/NIM

AR2202

47

EU_F/NIM

R2226
47

EU_F/NIM

Close to the tuner

BOOSTER

R2235

2.2K

BOOSTER

Q2203

2SC3052

+5V_TU

C2235

DVB_S

0.1uF
R2230

16V

4.7K

DVB_S

+3.3V_TU

R2229
100

close to TUNER

R2234

470

DVB_S

B

R2233
100K

C2238

0.1uF

16V

C2237
18pF
50V

OPT

BOOSTER

R2242
10K

C

B

E

E

Q2201

C

MMBT3906(NXP)

DVB_S

C2241
18pF
50V

OPT

R2246
10K

BOOSTER

R2237
82

DVB_S

TU_RESET

EU_F/NIM

R2240

H/NIM

R2241

TU_TS_ERR
TU_TS_SYNC
TU_TS_VAL
TU_TS_CLK

FE_TS_DATA[1]
FE_TS_DATA[0]
FE_TS_DATA[3]
FE_TS_DATA[2]

FE_TS_DATA[5]
FE_TS_DATA[4]
FE_TS_DATA[6]

FE_TS_DATA[7]

R2243

NON_DVB_S

R2247

SCART

0

0

R2215
22

R2216
22

RF_BOOSTER_CTL

0

0

+2.5V_TU

TU_SIF

R2250

OPT

OPT

R2248

0

R2249

OPT

AR2200-*1
0

AR2201-*1
0

AR2202-*1
0

R2226-*1
0

CN

+5V_TU

R2252

1K

220

0

B

1K

R2251

IF_AGC

SCL1_3.3V

SDA1_3.3V

IF_N

IF_P

FE_TS_DATA[0-7]

CN

CN

CN

CHBO_TS_CLK
CHBO_TS_SERIAL
CHBO_TS_SYNC
CHBO_TS_VAL_ERR

TU_RESET_SUB

RF_SWITCH_CTL_2

TW9910_RESET

R2253

220

E

Q2204

MMBT3906(NXP)

C

AR2200-*2
33

DVB_S

AR2201-*2
33

DVB_S

AR2202-*2
33

DVB_S

R2226-*2
33

DVB_S

TU_CVBS

+5V_TU

R2254
200

SCART

E

B

Q2205

MMBT3906(NXP)

C

OPTION:SCART

R2255

SCART

200

SCART

ATV_OUT

+3.3V_TU

+3.3V_TU

C2289

10uF

16V

IC2202

AZ1117BH-1.8TRE1

IN

3

DVB_S

1

ADJ/GND

+5V_Normal

C2258
22uF

16V

IC2204

1ST:T-AP2114H(EAN61573601) / 2ND:T-TJ3940S (EAN61573501)

ERROR & VALID PIN

<EU, China, Brazil,S2>

TU_TS_VAL

TU_TS_ERR

R2258
0

DVB_TC/TCS_F/NIM

Tuner to CI Slot

C2292
1uF

R2210
10K

0.1uF

C2291

OPT

POWER_ON/OFF2_1

+5V_Normal

Max 217mA

+1.8V_TU

OUT

2

R2298
1

DVB_S

C2288

C2287

0.1uF

10uF

16V

10V
DVB_S

DVB_S

+5V_TU

L2208

MLB-201209-0120P-N2

C2252

0.1uF
16V

C2260
22uF
16V

BCM35230

TUNER SINGLE

DUAL COMPONENT

R2263
0

DVB_T2/CN_F/NIM_BR

IN_B

IN_A

GND

IC2203

NL17SZ08DFT2G

1

2

3

VCC

5

OUT_Y

4

+3.3V_TU

DVB_TC/TCS_F/NIM

DVB_TC/TCS_F/NIM

R2266

IC2208

1

2

3

4

2A

EAN61387601

9

THERMAL

0

R2267
0

R2268
0

8

7

6

5

[EP]

TS_VAL_ERR

TU_TS_SYNC

TU_TS_CLK

AP2132MP-2.5TRG1

R2211

10K

OPT

VCTRL

PG

EN

VIN

Vout=0.6*(1+R1/R2)

+3.3V_TU

IC2204

AP2114H-2.5TRG1

VIN

3

1

GND

MLB-201209-0120P-N2

C2242

OPT

0.1uF

MLB-201209-0120P-N2

MLB-201209-0120P-N2

L2207

MLB-201209-0120P-N2

C2249

0.1uF
16V

C2262

0.1uF
16V

OPT

C2268

0.1uF
16V

+3.3V_TU

+3.3V_Normal

C2216
22uF

16V

CN

R2269
0

GND

ADJ

VOUT

NC

OPT

2

C2271

0.1uF
16V

VOUT

L2204

DVB_S

L2202

DVB_S

L2203

DVB_S

NIM_VAL_ERR

NIM_TS_SYNC

NIM_TS_CLK

+2.5V_TU

R2270
1

EU_F/NIM

C2276
10uF
10V
EU_F/NIM

+3.3V_S2_LNB

+3.3V_S2_DE

+3.3V_S2_TU

+3.3V_TU

C2255
22uF
16V

22

Max 1.5A

R2212
20K
1%

R2213
11K
1%
R2214
11K
1%

NON_CN

R2214-*1
10K

1/16W
1%

CN

C2245

DVB_S

C2243

10uF

DVB_S

C2244
10uF
10V

DVB_S

C2259

0.1uF
16V

TS_VAL_ERR

+1.25V_TU (EU)

+1.23V_TU (CN)

R2

R1

C2279

0.1uF
16V

EU_F/NIM

10uF

10V

10V

C2261

0.1uF
16V

+1.25V_TU

C2248

0.1uF

DVB_S

C2246

0.1uF
DVB_S

C2247

0.1uF
16V
DVB_S

C2290
10uF

16V

DVB-S2 LNB Part Allegro

(Option:LNB)

LNB_OUT

2A

D2302

US1M(suzhou)

1000V

LNB

C2301

0.22uF
25V

A_GND

LNB

D2301
SMAB34

40V

C2307

0.01uF
50V

LNB

close to Boost pin(#1)

C2302

1uF
50V

LNB

LNB_TX

C2324

68uF

35V

LNB

C2303

0.1uF
50V

LNB

C2304 0.1uF

LNB

A_GND

C2305

68uF

35V

LNB

DCDC_GND

D2303
SMAB34

40V

LNB

A_GND

C2306 22000pF

LNB

A_GND

BOOST

TCAP

NC_1

EXTM

D2304

SMAB34

VCP

TDO

TDI

40V

LNB

DCDC_GND

LNB

[EP]

1

2

3

4

5

6

7

GND

28

THERMAL

8

3A

LNB
L2301

33UH

SP-7850_33

2.4A

BFI

VIN

GNDLX

24

25

26LX27

29

IC2301

A8290SETTR-T

LNB

9

10

SDA11ADD12SCL

VREG

+12V_LNB

BFO

NC_9

23

13

IRQ

NC_2

22

14

21

20

19

18

17

16

15

C2311
10uF
25V
LNB

DCDC_GND

NC_8

NC_7

BFC

NC_6

NC_5

NC_4

NC_3

+3.3V_Normal

A_GND

A_GND

C2312

0.1uF
50V

close to VIN pin(#25)

LNB

A_GND

R2313
0

LNB

DCDC_GND

DCDC_GND and A_GND are connected
DCDC_GND and A_GND are connected in pin#27

PCB_GND and A_GND are connected

Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A

R2314
0

LNB

A_GND

A_GND

R2301 33

LNB

C2308 0.22uF

LNB

R2302 33

OPT

C2309 27pF

SDA1_3.3V

LNB

R2303 0

27pF

OPT

C2310

SCL1_3.3V

LNB

LNB_INT

R2304

4.7K

LNB

+12V

L2302

BLM18PG121SN1D

Max 1.3A

+12V_LNB

LNB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

LNB

2010.11.02

23

57

Q2502,Q2503
Q2504,Q2506
Q2507,Q2508

Q2501

Q2505

D2513

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EBK61012701, 2ND : EBK58172301

1ST : 0TRIH80004A, 2ND : EBK61012501, 3RD : 0TR102009AM

1ST : T-BAT54_SUZHO, 2ND : 0DSON00138A

Full Scart(18 Pin Gender)

D2501

5.5V

D2502

5.5V

OPT
D2503

30V

D2504

5.5V

D2505

5.5V

D2506

5.5V

D2507

5.6V
OPT

D2508

5.6V

OPT

D2509

5.6V
OPT

D2510

5.6V
OPT

EU

EU

EU

EU

EU

SHIELD

19

DA1R018H91E

JK2501

EU

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND

RGB_IO

R_OUT

R_GND

G_OUT

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

JP2501

JP2502

JP2503

JP2504

JP2505

JP2506

JP2507

JP2508

JP2509

JP2510

JP2511

JP2512

EU

R2506
75
1%

R2507
75

EU

EU
R2508
75 1%

EU

R2509

75
1%

EU

R2510

470K

EU

R2511
470K

+3.3V_Normal

R2514

CLOSE TO JUNCTION

10K

EU

R2525

1K

R251375

25V

25V

C2515
100uF
16V

R25150

R25160

R25170

L2508

EU

L2509

EU

EU

C2511

0.1uF
EU

EU

CLOSE TO JUNCTION

D2511

5.6V

R2577

C2509
560pF
50V

C2510
560pF
50V

C2536
47pF
50V

EU

EU

EU

10

EU

EU

EU

EU

EU

CLOSE TO JUNCTION

C2537

1uF

EU

C2538

1uF

EU

BLM18PG121SN1D

BLM18PG121SN1D

EU

R2504

75
1%

1%

R2522

EU

CLOSE TO SOC

COMP2_Pr

COMP2_Y

COMP2_Pb

EU

R253022

EU

R253122

EU

C2518
1000pF
50V

EU
C2519
1000pF
50V

SC_DET/COMP2_DET

0

EU
R2578
10K

MMBT3906(NXP)

Q2501

SC_CVBS_IN

Gain=1+Rf/Rg

+3.3V_Normal

B

EU
C2522
4700pF

C2523
4700pF

EU

EU

EU

R2579

10K

E

C

C

E

EU

R2532
390

R2533
390

Rf

EU
Q2509
2SC3052

B

EU

C2516
100pF
50V

EU

C2517
100pF
50V

EU

HOTEL_OPT

EU

R2536

470

EU

EU

R2537

Q2502

47K

2SC3052

C

B

E

EU

EU
R2535
180

EU
R2581
1K

R2538
15K

+3.3V_Normal

B

SC/COMP2_L_IN

SC/COMP2_R_IN

DTV/MNT_L_OUT

DTV/MNT_R_OUT

AUDIO_R

Rg

R25340

C2524
47uF
16V

EU

R2580

10K

C

E

OPT
D2512

30V

IN CASE OF SMALL= 15V

EU

L2506

EU

C2525

0.1uF
50V

EU

EU
Q2510
2SC3052

EU

R2539

9.1K

1/16W
1%

+12V

EU

C2526

0.1uF
50V

SC_FB

D2513

30V

EU

R2542

10K/1K to match ADC Full-Scale range
(1% of accruacy)

+5V_Normal

EU

R2545

10K

IC2502

NLASB3157DFT2G

SELECT

6

VCC

5

A

4

Selece = High ==> A = B1

Selece = Low ==> A = B0

REC_8

EU

1K

1%

C2528
1uF
10V

SC_ID

EU

B1

1

EU

GND

2

B0

3

ATV_OUT

C2532
180pF

50V
OPT

INCM_VID_SC

DTV_ATV_SELECT

L2507

120-ohm

BLM18PG121SN1D

NON_DTV_OUT

L2507-*1
0

DVT_OUT

CLOSE TO SOC

C2533

0.1uF
16V

C2534
180pF

50V

OPT

R2549
36

R2551

75
1%
EU

CLOSE TO SOC

CLOSE TO JACK

TP2501

DTV/MNT_V_OUT

AUD_OUT >> EU/CHINA_HOTEL_OPT

+12V

AUD_OUT

SCART1_Lout_N

SCART1_Lout_P

SCART1_Rout_P

SCART1_Rout_N

AUD_OUT

AUD_OUT

CLOSE TO soc

L2501
AUD_OUT

C2501

0.1uF
50V

R25715.6K

R25725.6K

AUD_OUT

AUD_OUT

R25735.6K

DTV/MNT_L_OUT

AUD_OUT

R25705.6K

DTV/MNT_R_OUT

C2513
10uF
16V

C2514

10uF
16V

AUD_OUT

AUD_OUT

C2535
6800pF

AUD_OUT

R2518
1K

50V

AUD_OUT

R25191K

AUD_OUT

R2524 6800pF

50V

AUD_OUT

33pF

AUD_OUT

AUD_OUT

AUD_OUT

R252633K

C2520

R252733K

C2521

33pF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

AUD_OUT

R2528
10K

AUD_OUT
R2529
10K

OUT1

IN1-

IN1+

IN2+

IN2-

OUT2

OPT
R2557
1K

OPT

R2556
1K

R2558
10K

+12V

OPT

OPT
R2561
12K

C

B

C

OPT

B

Q2506
2SC3052

E

E

Q2507
2SC3052

OPT

C

OPT

B

Q2508
2SC3052

E

REC_8

IC2501
LM324D

AUD_OUT

OUT4

14

IN4-

13

IN4+

12

VEE/GND

11

IN3+

10

IN3-

9

OUT3

8

1

2

3

VCC

4

5

6

7

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

DTV/MNT_R_OUT

EU
Q2503
2SC3052

EU
Q2504
2SC3052

R2543
2K

R2544
2K

EU

EU

EU
RT1P141C-T112
Q2505

3

2

+3.5V_ST

R2548
10K
EU

1

SCART_MUTE

[SCART PIN 8]

OPT
R2552

4.7K

SC_RE1

SC_RE2

BCM35230

SCART

25

NON CHB

TS Output

CHBO_TS_SERIAL
CHBO_TS_CLK
CHBO_TS_VAL_ERR
CHBO_TS_SYNC

CHB_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

NON CHB

28

50

DUAL COMPONENT

China Hotel Option

+3.3V_Normal

AMP_RESET_N

SPK_R+_HOTEL

SPK_R-_HOTEL

AMP_MUTE_HOTEL

AMP_MUTE_HOTEL

R2901 200
CN_HOTEL

B

R2902
10K
CN_HOTEL

C

Q2901
MMBT3904(NXP)
CN_HOTEL

E

AUDIO_R

+24V_AMP

C2901

0.1uF
CN_HOTEL

CN_HOTEL

R2903 0

R2904
CN_HOTEL

Q2901

P2901

12505WS-09A00

CN_HOTEL

0

1

2

3

4

5

6

7

8

9

10

1ST : EBK61012601 2ND : 0TRDI80002A

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

CHINA HOTEL

29

3D_SYNC

L_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

NON URSA 50

36

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SMD GASKET

M1-*3

MDS62110206
GASKET_6.5T

M2-*3

MDS62110206
GASKET_6.5T

M3-*3

MDS62110206
GASKET_6.5T

M4-*3

MDS62110206
GASKET_6.5T

M5-*3

MDS62110206
GASKET_6.5T

M6-*3

MDS62110206
GASKET_6.5T

M7-*3

MDS62110206
GASKET_6.5T

M8-*3

MDS62110206
GASKET_6.5T

M9-*3

MDS62110206
GASKET_6.5T

M10-*3

MDS62110206
GASKET_6.5T

M11-*3

MDS62110206
GASKET_6.5T

M12-*3

MDS62110206
GASKET_6.5T

SMD GASKET 6.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

MDS62110204
GASKET_5.5T

M1-*2

M2-*2

M3-*2

M4-*2

M5-*2

M6-*2

M7-*2

M8-*2

M9-*2

M10-*2

M11-*2

M12-*2

SMD GASKET 5.5T

M1-*1

MDS62110210

GASKET_5.0T

M2-*1

MDS62110210

GASKET_5.0T

M3-*1

MDS62110210

GASKET_5.0T

M4-*1

MDS62110210

GASKET_5.0T

M5-*1

MDS62110210

GASKET_5.0T

M6-*1

MDS62110210

GASKET_5.0T

M7-*1

MDS62110210

GASKET_5.0T

M8-*1

MDS62110210

GASKET_5.0T

M9-*1

MDS62110210

GASKET_5.0T

M10-*1

MDS62110210

GASKET_5.0T

M11-*1

MDS62110210

GASKET_5.0T

M12-*1

MDS62110210

GASKET_5.0T

SMD GASKET 5.0T

M1

MDS62110208

GASKET_4.5T

M2

MDS62110208
GASKET_4.5T

M3

MDS62110208
GASKET_4.5T

M4

MDS62110208
GASKET_4.5T

M5

MDS62110208
GASKET_4.5T

M6

MDS62110208
GASKET_4.5T

M7

MDS62110208
GASKET_4.5T

M8

MDS62110208
GASKET_4.5T

M9

MDS62110208
GASKET_4.5T

M10

MDS62110208
GASKET_4.5T

M11

MDS62110208
GASKET_4.5T

M12

MDS62110208
GASKET_4.5T

SMD GASKET 4.5T

SMD GASKET

BCM35230

GASKET3.5T_HEATSINK

MDS62110213

M20

GASKET3.5T_HEATSINK

MDS62110213

M21

GASKET3.5T_HEATSINK

MDS62110213

M22

GASKET3.5T_HEATSINK

MDS62110213

M23

M1-*6

MDS61887710

GASKET_9.5T

M2-*6

MDS61887710

GASKET_9.5T

M3-*6

MDS61887710

GASKET_9.5T

M4-*6

MDS61887710

GASKET_9.5T

M5-*6

MDS61887710

GASKET_9.5T

M6-*6

MDS61887710

GASKET_9.5T

M7-*6

MDS61887710

GASKET_9.5T

M8-*6

MDS61887710

GASKET_9.5T

M9-*6

MDS61887710

GASKET_9.5T

M10-*6

MDS61887710

GASKET_9.5T

M11-*6

MDS61887710

GASKET_9.5T

M12-*6

MDS61887710

GASKET_9.5T

SMD GASKET 9.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

M1-*5

M2-*5

M3-*5

M4-*5

M5-*5

M6-*5

M7-*5

M8-*5

M9-*5

M10-*5

M11-*5

M12-*5

SMD GASKET 8.5T

M1-*4

MDS62110205

GASKET_7.5T

M2-*4

MDS62110205

GASKET_7.5T

M3-*4

MDS62110205

GASKET_7.5T

M4-*4

MDS62110205

GASKET_7.5T

M5-*4

MDS62110205

GASKET_7.5T

M6-*4

MDS62110205

GASKET_7.5T

M7-*4

MDS62110205

GASKET_7.5T

M8-*4

MDS62110205

GASKET_7.5T

M9-*4

MDS62110205

GASKET_7.5T

M10-*4

MDS62110205

GASKET_7.5T

M11-*4

MDS62110205

GASKET_7.5T

M12-*4

MDS62110205

GASKET_7.5T

SMD GASKET 7.5T

2010. 09. 18

56

56

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M13-*2

MDS62110204
GASKET_5.5T

M14-*2

MDS62110204
GASKET_5.5T

M15-*2

MDS62110204
GASKET_5.5T

SMD GASKET 5.5T

M13-*1

MDS62110210

GASKET_5.0T

M14-*1

MDS62110210

GASKET_5.0T

M15-*1

MDS62110210

GASKET_5.0T

SMD GASKET 5.0T

M13

MDS62110208

GASKET_4.5T

M14

MDS62110208
GASKET_4.5T

M15

MDS62110208
GASKET_4.5T

SMD GASKET (UNDER THE TUNER)

SMD GASKET 4.5T

M13-*5

MDS62110209

GASKET_8.5T

M14-*5

MDS62110209

GASKET_8.5T

M15-*5

MDS62110209

GASKET_8.5T

SMD GASKET 8.5T

M13-*4

MDS62110205

GASKET_7.5T

M14-*4

MDS62110205

GASKET_7.5T

M15-*4

MDS62110205

GASKET_7.5T

SMD GASKET 7.5T

M13-*3

MDS62110206
GASKET_6.5T

M14-*3

MDS62110206
GASKET_6.5T

M15-*3

MDS62110206
GASKET_6.5T

M13-*6

MDS61887710

GASKET_9.5T

M14-*6

MDS61887710

GASKET_9.5T

M15-*6

MDS61887710

GASKET_9.5T

SMD GASKET 6.5T

SMD GASKET 9.5T

TUNER SMD GASKET

BCM35230

2010. 09. 18

57

57

LCD TV Repair Guide

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

`11 years New Models

< Applicable Model >

XXLW9500-SA

XXLV5500-SD

ⓒ LG Electronics. Inc.2009

Overview for ’11 Broadband Model

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

SCA (Brazil)

(Hardware)

ⓒ LG Electronics. Inc.2009

SCA - Brazil

)

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

ATS=PQ+12W(Sao Paulo 법인 창고 도착기준)

* LV5 Series 이상: PQ+13W / LV5 Series 미만: PQ+12W

DTV INFINITA

Analog

구

Tool

’10.12.1

Ultimate

Perfectionis

t

Stylish-

Design
Seeker

AV

Enthusiast

Value

Maximizer

Basic TV

Watcher

TV

Minimalist

SL90

SL80

LH70

LH90
LU50

LH50

LH45

LH40

LH35
LH30

LF20

LH20

’09 ’11

1H 2H 1H 2H

’10

LZ9700

72(5/1W)

Full LED,480Hz,M3,SmartTV

55/47(9/4W)

47/42

Edge LED,120Hz

55/47/42/32

240Hz

47/42/32

120Hz

55/47/42

LED,240Hz

26/22

FHD, 소형

55/47/42

240Hz

47/42

240Hz

47/42

FHD

42/37/32

FHD

42/32

FHD

42/32

FHD

42/37/32/26/22/19

FHD

LE5500
LE5300

LD650

LD460

LD350
LD330

LEX8
LX9500
LE8500

LX6500

LE7500

LE5600

47/42/32(5/3W)

LED Plus,120Hz

55/47/42/37(6/3W)
32(8/3W),26/22(6/1W)

LED,120Hz

LE4600
LE4300

55/47(6/4W)
42/32(5/3W)

120Hz

47/32(6/4W
)

FHD

42/37(5/4W
)

LD840

LE6500

LD420

32 (5/3W)

HD

26(6/3W).22(5/2W)

HD

Full LED Slim
480Hz

55/47(7/4W)

Full LED Slim,480Hz

42(7/4W)

Full LED Slim,240Hz

55/47/42(7/1W)

LED Plus,240Hz

55/47/42/32/32

LED Plus,120Hz

47/42(9/1W)

LED Plus,120Hz
DVR B.I

55/47/42/32
(9/3W)

LED,120Hz

42/32 (11/4W)

LED,FHD

42/37/32
(8/4W)

240Hz

26/22(9/2W)

LED,FHD,소형

42/32(7/4W)

FHD,LH30 Tool

LZ9600

LW9500

LW5700

LV5500

LV3500
LV3400

LV2500

LK450

LK330
LK310

55/47(7/1W)

55/47(3/4W)

47/42/(4/4W)

32(7/4W)

55/47/42/32(3/4W)

55/47(4/4W)
42/32(6/2W)

32/26(3/4W)
22/19(4/4W)

47/42/37/32(3/4W)

32/26(4/3W)
26/22(3/4W)

ⓒ LG Electronics. Inc.2009

Nano Full LED,480Hz,M3,SmartTV

Nano Full LED,480Hz,M3,SmartTV

LED Plus,120Hz,SmartTV

LED,120Hz,SmartTV

42/37/32(3/3W)

LED,FHD

LED,HD
LED,HD(TN Module)

FHD

HD,LD350 Tool(32”-AUO)

HD,LD350 Tool

LED,FHD(55”-120Hz

2 types of LED - Edge

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Benefit: More Clear More Real

Edge Type
w/ Local Dimming

LED Array

Upper
Metal

BLU

Cover

Edge LED

Local

Dimming

Feature

Best picture quality + thin TV

Local dimming depicts more
deep black.

structure

Local

Dimming

LED Array is on the side of Module

Model

XXLW750T/W/S/G

42inch : H(2) * V(8) = 16Block
42inch : H(2) * V(8) = 16Block
42inch : H(2) * V(8) = 16Block

2 types of LED - ALEF

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Benefit: More Clear More Real

Feature

BLU

structure

ALEF Type
Local Dimming

DBEF

Prism sheets

Diffuser plate

Light Blocking Pattern

Guiding Layer
Reflecting coating w/patterns

PCB

LED Array is on the back of Module

ALEF LED`

Local

Dimming

Best picture quality + thin TV
Slimmer depth
better picture quality

Local dimming depicts more
deep black.

Model

XXLW950T/W/S/G
47inch : H(24) * V(10) = 240Block
55inch : H(24) * V(12) = 288Block

Local

Dimming

XXLW770T/W/S/G

42inch : H(12) * V(4) = 48Block

47inch : H(12) * V(5) = 60Block
55inch : H(16) * V(6) = 96Block

Main PCB for Broadband

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

XXLW9500-SA

XXLV5500-SD

Woofer Spk (W/O LV5500)

Main + TCON all in one

Main processor, DDR Memory

1

Flash Memory

To PSU

Front Spk

To T-CON

BOARD

(W/ LV5500)

To T-CON

BOARD

wifi (W/O LV5500)

Soft touch +IR

RF assy

(W/O LV5500)

Micom for Key/IR sensing

2

3

4

1

3

2

HDMI switch (4:1)

4

Audio AMP (10W+10W)

BCM35230 Block Diagram

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Air/
ISDB-T

Cable

TUNER

(T/C)

S/W

TUNER

(T/C)

ANALOG

DEMOD

DIF(+/-)

CVBS(M)

NAND

Flash(8Gb)

ISDB-T

Demod

CVBS

SYSTEM

DDR3 X 16 X 2

(2Gb)

SYSTEM EEPROM X 1

(1Mb)

51P

CAM,
DVR
Ready

USB1
USB2

WIFI

HDMI1
HDMI2

HDMI3
HDMI4

H/P

A/V1

COMP1

PC-RGB

PC-AUDIO

OPTIC

LAN

RS-232C

USB

HUB IC

Side

HDMI

HUB IC

Rear

USB

HDMI

S/W

L/R Out

CVBS

COMP

RGB,H/V

L/R In

SPDIF OUT

Ethernet

(HDCP

EEPROM)

BCM
35230

LVDS.

I2S Out

I2C

I2C

UART

41P

Audio

AMP

Audio

AMP

Sub Micom

(sanyo)

Wireless Ready

M-Remote

Module

Jack Interface

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

PC L,R

COMP2_R/G/B

DSUB_R / G / B

DSUB_ V / HSYNC

AT24C02BN-10SU-1.8

RGB DET

EDID EEPROM

[EDID_WP] MICOM

COMP2 OPT

0 OHM

RGB_DDC_SCL
RGB_DDC_SDA

[VI_SC_R1],[VI_SC_G1],[VI_SC_B1]

[SPDIF_OUT]

BCM35230

[DSUB_R+/G+/B+]

[DSUB_V/H SYNC]

[RGB_DDC_SCL]
[RGB_DDC_SDA]

[BSC_S_SCL]

[BSC_S_SDA]

[DSUB_DET] // GPIO
[PC_L_IN]

[PC_R_IN]

[COMP1_Y]

[COMP1_Pb]

[COMP1_Pr]

[COMP1_DET]

[AV1_R_IN]

[AV1_L_IN]

SPDIF

COMP1

COMP_Y
COMP_PB
COMP_PR

COMP DET

AV1

R

L

[AV1_CVBS_IN]

[AV1_CVBS_DET]

[AV1_R_IN]

[AV1_L_IN]

[AV1_CVBS_IN]

[AV1_CVBS_DET]

CVBS

AV DET

AV2

R

L

CVBS

AV DET

Appendix. Block Diagram for Edge/ALEF Backlight

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Main SoC

(BCM)

FHD@60Hz

Dual-Link LVDS

2

2D-3D

(LGSIC)

FHD@60Hz

Dual-Link LVDS

2

FRC-II

(LG1121)

FHD@240Hz

Octa-Link LVDS

4

XTR T-Con

(LGSIC)

3D_Sync

SPI/Vsync

[ All in one main PCB for XXLW9500SA, ALEF LED Backlight]

FHD@240Hz

Quad-Link

HF mini-LVDS

8

LED BLU control

LED BLU control

Interconnection - 1

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

XXLW9500-SA

3

LED driver

2

[PCBs]

1

Main PCB

2

LED driver

6

3

WIFI ASSY

4

1

7

6

7

4

4

2

3

7

5

1

2

RF MOTION ASSY

5

Soft Touch + IR Key PCB

6

T-CON ASSY

7

PSU

[Cables]

1

Main / PSU cable
Main / Module LVDS cable 51PIN

2

3

LED driver / PSU

45

ALEF Module Assy

3

4

T-CON to Module 80pin FFC

Multi-cable:

5

IR+MOTION+WIFI +SPK

6

WOOFER SPK CABLE

7

Local dimming cable 8pin

Interconnection - 2

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

XXLV5500-SA

3

LED driver

1

3

5

[PCBs]

1

Main PCB

2

Soft Touch + IR Key PCB

3

1

2

PSU

[Cables]

4

1

Main / PSU cable

2

Edge Module Assy

Main / Module LVDS cable

2

Drive B/D Cable

3

4

Multi-cable: IR + Soft Touch

SPK CABLE

5

Interconnection - 3

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

72LZ9700-SA

2

3

7

[PCBs]

1

Main PCB

2

LED driver

RF MOTION ASSY

3

4

6

8

8

6

4

2

7

5

2

4

IR Key PCB

3

1

1

5

Soft Touch Assy

6

T-CON ASSY

7

Main PSU

8

Sub PSU

4

1

2

3

5

Main / PSU cable
Main / T-Con LVDS cable 51PIN

LED driver / PSU

4

T-CON to Module 80pin FFC

Multi-cable:

5

IR+MOTION+WIFI +SPK

6

WOOFER SPK CABLE

3

[Cables]

7

SPK CABLE

8

Main PSU/Sub PSU CABLE

Interconnection – sub PCB( LW9500 Series )

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Soft Touch + IR PCB

RF MOTION ASSY

Soft Touch

IR PCB

SPK unit

RF MOTION ASSY WIFI ASSY

WIFI ASSY

1

To Main

Interconnection – sub PCB( LV5500 Series )

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Soft Touch + IR PCB

Soft Touch

IR PCB

SPK unit

1

To Main

Interconnection – sub PCB( 72LZ9700-SA)

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

IR PCB

Soft Touch PCB

IR PCB

Soft Touch

RF Motion Assy

SPK unit

RF Motion Assy

2

To Main

1

To Main

Contents of LCD TV Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1
2 No video/No audio 2
3 Video error, video lag/stop 3
4 Color error 4

5

6

7

8
9 Wrecked audio/discontinuation/noise 9

10

A. Video error

B. Power error

C. Audio error

D. Function error

No video/Normal audio 1

Vertical/Horizontal bar, residual image,
light spot, external device color error

No power 6
Off when on, off while viewing, power auto

on/off
No audio/Normal video 8

No response in remote controller, key error,
recording error, memory error

5

7

10

11 External device recognition error 11
12 E. Noise Circuit noise, mechanical noise 12
13 F. Exterior error Exterior defect 13

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Established

date

Revised date

2010. 12 .14

LCD TV

Error

symptom

A. Video error

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)

☞A4☞A1

No video
Normal audio

Normal

audio

N

Move to No
video/No audio

Y

Check Back Light
On with naked eye

☞A2

Check Power Board 24v output

On

Normal
voltage

Repair Power
Board or parts

Y

Check Power
Board
12v,3.5v etc.

N

Replace Inverter

Y

or module

N

Normal

voltage

Repair Power
Board or parts

N

End

Y

Replace T-con
Board or module
And Adjust VCOM

☞A28

1/13

※Precaution

Always check & record S/W Version and White
Balance value before replacing the Main Board

☞A7 & A3

Replace Main Board

1

Re-enter White Balance value

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

No Video/
No audio

Error

☞A4

Check various
voltages of Power
Board ( 3.5V,12V,20V
or 24V…)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power
Board and repair
parts

Y

N

Check and
replace
MAIN B/D

Established

date

Revised date

End

2010. 12 .14
2/13

2

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

☞ A6

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Close

Y

N

Error

symptom

A. Picture Problem

Picture broken/ Freezing

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Menu→ Set up→ Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A7

Normal

Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

N

Check

S/W Version

SVC

Bulletin?

Y

S/W Upgrade

Normal

Picture?

Y

Established

date

Revised date

2010. 12 .14

■ Menu→Setup →Booster

N

Booster menu
On→Off: Check
Off→On: Check

Tuner soldering

N

Normal

Picture?

N

Check

Replace

Main B/D

3/13

Y

Close

Close

3

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

☞A8

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

☞A12

Check Test pattern

Error

symptom

Color

error?

N

Check error
color input
mode

A. Video error

☞ A10/ A11

※ Check

and replace

Y

Link Cable
(LVDS) and
contact
condition

External Input/

Component

error

Color error

Color

error?

N

Check
external
device and
cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

2010. 12 .14
4/13

Y

Replace module

N

Replace Main B/D

RGB/

HDMI/DVI

error

Check external
device and
cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main B/D

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A. Video error

LCD TV

Error

symptom

Vertical / Horizontal bar, residual image,
light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A8

Check color condition by input

-External Input

-Component

-RGB

-HDMI/DVI

☞A12

Check Test pattern

Screen

normal?

N

Replace
module

Check external

Y

device
connection
condition

Normal?

N

Request repair
for external
device

External device screen error-Color error

Check screen
condition by

Check S/W Version

Check

version

Y

S/W Upgrade

Normal

screen?

Y

End

N

N

input

-External Input

-Component

-RGB

-HDMI/DVI

☞ A10/ A11

Check and

Y

replace Link
Cable

External

Input
error

Component

error

RGB
error

HDMI/

DVI

5

Established

date

Revised date

☞ A28

Screen

normal?

End

N

Replace Main B/D
(adjust VCOM)

Y

For LGD panel

Replace Main
B/D

For other panel

Connect other external
device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

Connect other external
device and cab le

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

2010. 12 .14

Replace
Module

normal?

Screen

normal?

Request repair for
external device

Screen

normal?

N

Replace
Main B/D

Y

Y

N

ⓒ LG Electronics. Inc.2009

5/13

N

Screen

Y

End

Replace
Main B/D

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

☞A17

Check
Power LED

. Stand-By: Red
. Operating: white

Error

symptom

Power LED

On?

N

Check Power cord
was inserted properly

N

Normal?

Y

※

Close

Y

Check ST-BY 3.5V

☞A18

B. Power error

No power

DC Power on
by pressing Power Key
On Remote control

Normal

voltage?

Established

date

Revised date

2010. 12 .14
6/13

☞A19

Normal

operation?

Y

N

Check Power
On ‘”High”

OK?

N

Replace Main B/D

Y

Replace
Power
B/D

☞A4

Measure voltage of each output of Power B/D

Y

Y

N

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

Replace Power
B/D

6

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check outlet

Check A/C cord

Check for all 3- phase

power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet
and check each 3
phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A22

N

Check Power Off
Mode

☞A19

(If Power Off mode
is not displayed)
Check Power B/D
voltage

※ Caution

Check and fix exterior
of Power B/D Part

Abnormal

Abnormal

Established

date

Revised date

CPU

1

Normal

voltage?

Replace Power B/D

Y

N

2010. 12 .14

Replace Main B/D

Replace Main B/D

7/13

Normal?

Replace Power B/D

Y

N

End

* Please refer to the all cases which

can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

No audio
Screen normal

Error

C. Audio error

symptom

No audio/ Normal video

☞A24 ☞A25

Check user
menu >
Speaker off

Off

Y

Cancel OFF

Check audio B+

N

24V of Power
Board

Established

date

Revised date

Normal

voltage

Replace Power Board and repair parts

Y

N

2010. 12 .14
8/13

Check
Speaker
disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board End

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check input
signal

-RF

-External Input
signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

2010. 12 .14

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A25

Signal

normal?

Y

N

(When RF signal is not
received)
Request repair to external
cable/ANT provider

(In case of
External Input
signal error)
Check and fix
external device

Wrecked audio/
Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace
speaker and
connector

Replace Main B/D

Connect and check
other external
device

Check audio
B+ Voltage (24V)

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

Normal

audio?

Y

N

Y

9/13

End

Check and fix external device

9

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

D. General Function Problem

Remote control & Local switch checking

LCD TV

Error

symptom

1. Remote control(R/C) operating error

☞A27

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

Y

N

Check & Replace

Baterry of R/C

Normal

operating?

Replace R/C

Check & Repair
Cable connection
Connector solder

Close

N

Normal

operating?

Y

Close

☞A27

N

On Main B/D

Established

date

Revised date

Check B+

3.5V

Normal

Voltage?

N

☞A4

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

☞A27

Y

Check IR

Output signal

2010. 12 .14
10/13

Replace

Main B/D

Normal

Signal?

N

Repair/Replace

IR B/D

Y

10

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check
input
signal

Error

symptom

Y

Signal

input?

N

Check and fix
external device/cable

D. Function error

External device recognition error

Check technical
information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Established

date

Revised date

External Input and

N

Y

Component

Recognition error

RGB,HDMI/
DVI, Optical

Recognition error

2010. 12 .14
11/13

Replace Main B/D

Replace Main B/D

11

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Identify
nose
type

Error

symptom

Circuit

noise

Mechanical

noise

Circuit noise, mechanica l noise

Check
location of
noise

Check location
of noise

E. Noise

※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description
in “Part related to nose” in the Owner’s
Manual.

Replace PSU(with LED driver)

OR

Replace LED driver

※ When the nose is severe, replace the module
(For models with fix information, upgrade the
S/W or provide the description)

OR

※ If there is a “Tak Tak” noise from the
cabinet, refer to the KMS fix information and
then proceed as shown in the solution manual

OR

(For models without any fix information,
provide the description)

Established

date

Revised date

2010. 12 .14
12/13

12

ⓒ LG Electronics. Inc.2009

Standard Repair Process

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Zoom part with
exterior damage

Module

damage

Cabinet

damage

Remote

controller

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

Adjust VCOM

☞A28

2010. 12 .14
13/13

Stand

dent

Replace stand

13

ⓒ LG Electronics. Inc.2009

Contents of LCD TV Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

1
2 LED driver B+ 24V measuring method A2

A. Video error_ No video/Normal audio

3 Check White Balance value A3
4 Power Board voltage measuring method A4
6

A. Video error_ No video/Video lag/stop

7 LCD-TV Version checking method A7
9

10 Tuner Checking Part A9

A. Video error_Color error

11

12 Adjustment Test pattern - ADJ Key A12
13

A. Video error_Vertical/Horizontal bar,

14

residual image, light spot

15 Adjustment Test pattern - ADJ Key A12

Check LCD back light with naked eye A1

TUNER input signal strength checking method A6

LCD TV connection diagram A8

Check Link Cable (LVDS) reconnection
condition

LCD TV connection diagram A8
Check Link Cable (LVDS) reconnection

condition

A10
A11

A10
A11

A10 : 32/37/42/47/55
A11 : 32 AUO

A10 : 32/37/42/47/55
A11 : 32 AUO

16
17 Exchange T-Con Board (2) A-2/5

<Appendix>

18 Exchange LED driver Board (PSU) A-3/5

19 Exchange Module itself (1) A-4/5

Defected Type caused by T-Con/
Inverter/ Module

20 Exchange Module itself (2) A-5/5

Exchange T-Con Board (1) A-1/5

55” : driver board
Other : PSU

Continue to the next page

ⓒ LG Electronics. Inc.2009

Contents of LCD TV Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Continued from previous page

No. Error symptom Content Page Remarks

21
22 Check power input Voltage & ST-BY 5V A18
23 Checking method when power is ON A19
24 POWER BOARD voltage measuring method A4
25

26

27

28

29

30

31

B. Power error_No power

B. Power error_Off when on, off while
viewing

B. Power error_Off when on, off while
viewing

C. Audio error_No audio/Normal video

C. Audio error_Wrecked
audio/discontinuation

D. Function error_ No response in
remote controller, key error

Check front display LED A17

POWER OFF MODE checking method A22

POWER BOARD PIN voltage checking
method

Checking method in menu when there is no
audio

Voltage and speaker checking method when
there is no audio

Voltage and speaker checking method in
case of audio error

Remote controller operation checking
method

A19

A24

A25

A25

A27

32 D. VCOM Adjustment Sequence of the Vcom adjustment A28

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_No video/Normal audio

Check LCD back light with naked eye

Established

date

Revised

date

2010. 12 .14

A1

After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from 4 locations.

A1

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

ALEF LED

Error

symptom

Content

A. Video error_No video/Normal audio

LED driver B+ 24V measuring method

Check the DC 24V, 12V, 3.5V and Inverter on

Established

date

Revised

date

2010. 12 .14
A2

Edge LED

1~5

6~10

11
12
13
14

P202

24V

GND

Error

Inverter ON

A-dim
P-dim

1~5

6~10

11
12
13
14

P203

24V

GND

Error

Inverter ON

A-dim
P-dim

A2

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

2010. 12 .14
A4

Entry method

Entry method

1. Press the ADJ button on the remote controller for adjustment.

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 7.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp

3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A3

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_No video/ Audio

Power Board voltage measuring method

Established

date

Revised

date

2010. 12 .14
A5

ALEF LED

Edge LED

Check the DC 24V, 12V, 3.5V.

24 Pin (Power Board ↔ Main Board) - 공통

SMAW200-H24S (YEONHO)

20V (24V)2Power on1
20V (24V)420V (24V)3

GND6GND5
GND8GND7

3.5V103.5V9

3.5V123.5V11
GND14GND13
GND16GND15

Inverter On/off1812V17

2012V19

Lamp : A-Dim

LED : N.C

23

• Lamp SCANNING Model

: PWM Dim #2

A4

2212V21

PWM Dim #1

Error-out24N.C

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Established

date

Revised

date

2010. 12 .14

MENU -Æ Set up Æ support -Æ signal test

-Æ select channel

A6

A6

When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

LCD-TV Version checking method

Established

date

Revised

date

2010. 12 .14
A7

<ALL MODELS>

1. Checking method for remote controller for adjustment

Version

Press the IN-START with the
remote controller for adjustment

A7

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error _Vertical/Horizontal bar,

residual image, light spot

LCD TV connection diagram (1)

Established

date

Revised

date

2010. 12 .14

A8

As the part connecting to the external input, check
the screen condition by signal

A8

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

2010. 12 .14
A9

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

A9

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

Check Link Cable (LVDS) reconnection condition

A. Video error_Color error

Established

date

Revised

date

2010. 12 .14

A10

Check the contact condition of the Link Cable, especially dust or mis insertion.

A10

ⓒ LG Electronics. Inc.2009

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

2010. 12 .14

A12

You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A12

ⓒ LG Electronics. Inc.2009

Appendix : Exchange T-Con Board (1)

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Solder defect, CNT Broken

Solder defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

A - 1/5

ⓒ LG Electronics. Inc.2009

Appendix : Exchange T-Con Board (2)

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

A - 2/5

GRADATION

ⓒ LG Electronics. Inc.2009

Appendix : Exchange PSU(LED driver)

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No Light

Dim Light

Dim Light

Dim Light

No picture/Sound Ok

A - 3/5

ⓒ LG Electronics. Inc.2009

Appendix : Exchange the Module (1)

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Press damage

Crosstalk

Un-repairable Cases
In this case please exchange the module.

Press damage

A - 4/5

ⓒ LG Electronics. Inc.2009

Appendix : Exchange the Module (2)

Copyright ⓒ 2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect
Gate TAB IC Defect

Un-repairable Cases
In this case please exchange the module.

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

A - 5/5

ⓒ LG Electronics. Inc.2009
