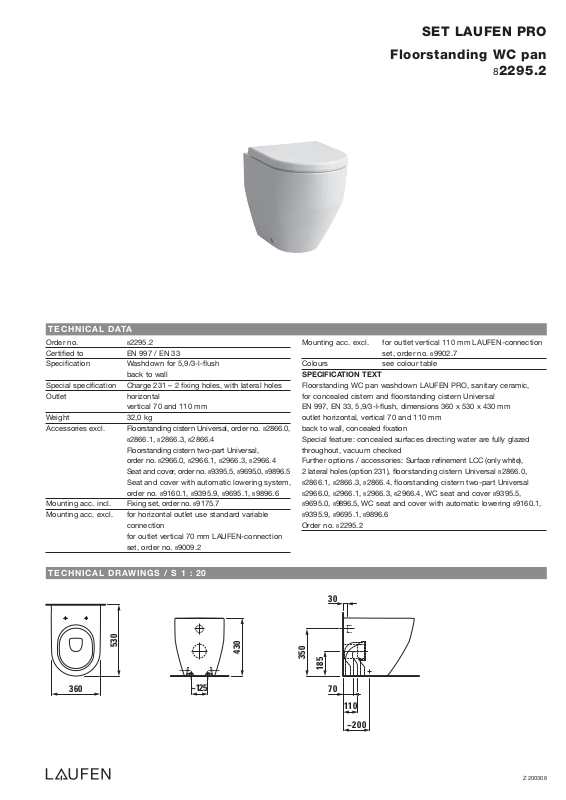

Laufen 8.2295.2 Datasheet

SET LAUFEN PRO

~125

360

530

110

185

350

70

430

30

~200

Floorstanding WC pan

82295.2

TECHNICAL DATA

Order no. 82295.2
Certified to EN 997 / EN 33
Specification Washdown for 5,9/3-l-flush
back to wall
Special specification Charge 231 – 2 fixing holes, with lateral holes
Outlet horizontal
vertical 70 and 110 mm
Weight 32,0 kg
Accessories excl. Floorstanding cistern Universal, order no.

Floorstanding cistern two-part Universal,

order no.
Seat and cover, order no.
Seat and cover with automatic lowering system,
order no. 89160.1, 89395.9, 89695.1, 89896.6
Mounting acc. incl. Fixing set, order no. 89175.7
Mounting acc. excl. for horizontal outlet use standard variable
connection
for outlet vertical 70 mm LAUFEN-connection
set, order no. 89009.2

82866.1, 82866.3, 82866.4

82966.0, 82966.1, 82966.3, 82966.4

89395.5, 89695.0, 89896.5

82866.0,

TECHNICAL DRAWINGS / S 1 : 20

Mounting acc. excl. for outlet vertical 110 mm LAUFEN-connection
set, order no. 89902.7
Colours see colour table
SPECIFICATION TEXT
Floorstanding WC pan washdown LAUFEN PRO, sanitary ceramic,
for concealed cistern and floorstanding cistern Universal
EN 997, EN 33, 5,9/3-l-flush, dimensions 360 x 530 x 430 mm
outlet horizontal, vertical 70 and 110 mm
back to wall, concealed fixation
Special feature: concealed surfaces directing water are fully glazed
throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
2 lateral holes (option 231), floorstanding cistern Universal

82866.1, 82866.3, 82866.4, floorstanding cistern two-part Universal

82966.0, 82966.1, 82966.3, 82966.4, WC seat and cover 89395.5,

89695.0, 89896.5, WC seat and cover with automatic lowering 89160.1,

89395.9, 89695.1, 89896.6

Order no. 82295.2

82866.0,

Z 200306
