Page 1
~145
360
580
125
185
350
70
400
85
~280

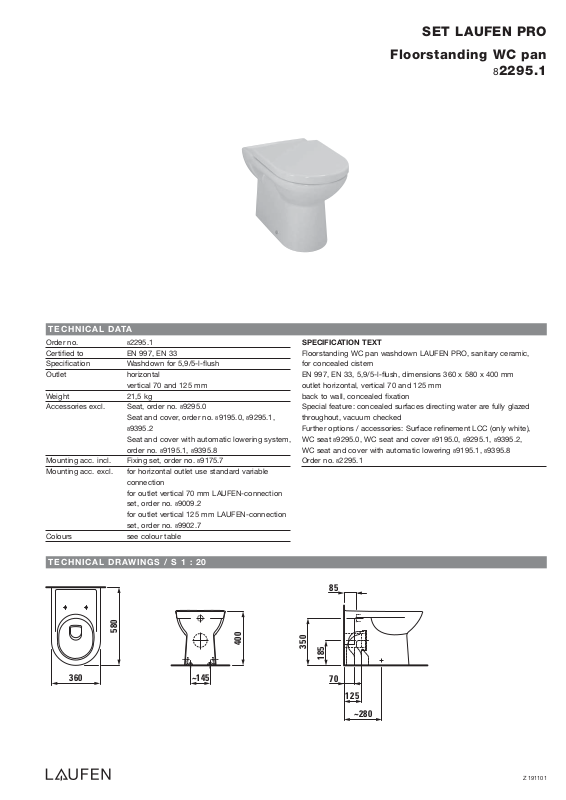

SET LAUFEN PRO
Floorstanding WC pan
82295.1
TECHNICAL DATA
Order no. 82295.1
Certified to EN 997, EN 33
Specification Washdown for 5,9/5-l-flush
Outlet horizontal
vertical 70 and 125 mm
Weight 21,5 kg
Accessories excl. Seat, order no.
Seat and cover, order no.
Seat and cover with automatic lowering system,
order no. 89195.1, 89395.8
Mounting acc. incl. Fixing set, order no. 89175.7
Mounting acc. excl. for horizontal outlet use standard variable
connection
for outlet vertical 70 mm LAUFEN-connection
set, order no.
for outlet vertical 125 mm LAUFEN-connection
set, order no. 89902.7
Colours see colour table
89395.2
89295.0
89195.0, 89295.1,
89009.2
TECHNICAL DRAWINGS / S 1 : 20
SPECIFICATION TEXT
Floorstanding WC pan washdown LAUFEN PRO, sanitary ceramic,
for concealed cistern
EN 997, EN 33, 5,9/5-l-flush, dimensions 360 x 580 x 400 mm
outlet horizontal, vertical 70 and 125 mm
back to wall, concealed fixation
Special feature: concealed surfaces directing water are fully glazed
throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
WC seat
WC seat and cover with automatic lowering
Order no. 82295.1
89295.0, WC seat and cover 89195.0, 89295.1, 89395.2,
89195.1, 89395.8
Z 191101
