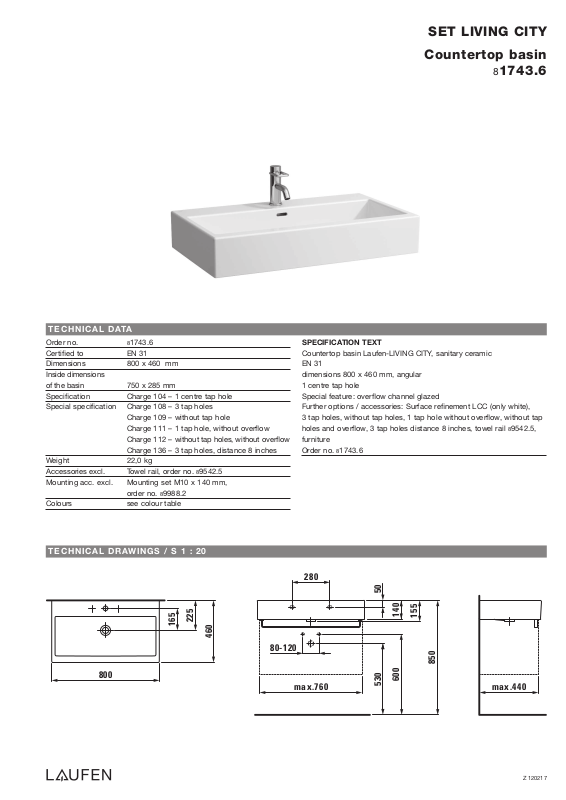

SET LIVING CITY
Countertop basin
81743.6
TECHNICAL DATA
Order no. 81743.6
Certified to EN 31
Dimensions 800 x 460 mm
Inside dimensions
of the basin 750 x 285 mm
Specification Charge 104 – 1 centre tap hole
Special specification Charge 108 – 3 tap holes
Charge 109 – without tap hole
Charge 111 – 1 tap hole, without overflow
Charge 112 – without tap holes, without overflow
Charge 136 – 3 tap holes, distance 8 inches
Weight 22,0 kg
Accessories excl. Towel rail, order no. 89542.5
Mounting acc. excl. Mounting set M10 x 140 mm,
order no. 89988.2
Colours see colour table
TECHNICAL DRAWINGS / S 1 : 20
SPECIFICATION TEXT
Countertop basin Laufen-LIVING CITY, sanitary ceramic
EN 31
dimensions 800 x 460 mm, angular
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 1 tap hole without overflow, without tap
holes and overflow, 3 tap holes distance 8 inches, towel rail
furniture
Order no. 81743.6
89542.5,
280
50
800
165
225
460
140
155
80-120
850
600
max.760 max.440
530
Z 120217
