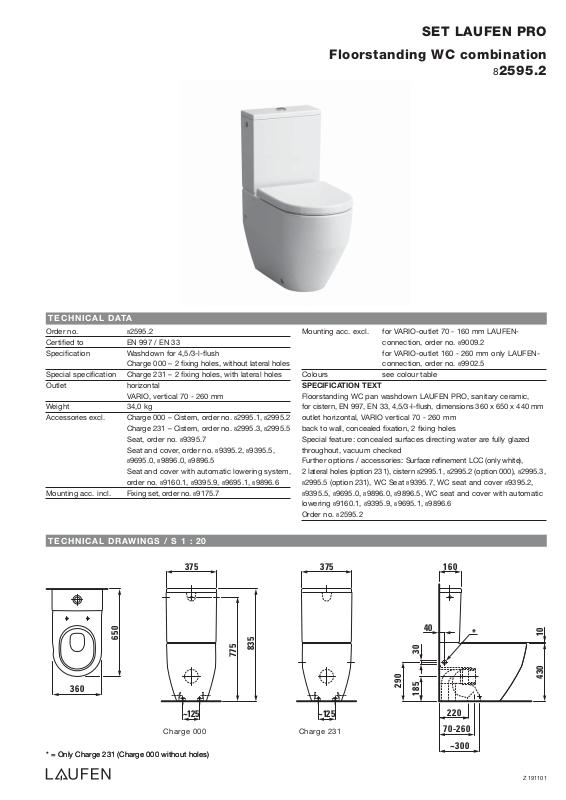

SET LAUFEN PRO
Floorstanding WC combination
82595.2
TECHNICAL DATA
Order no. 82595.2
Certified to EN 997 / EN 33
Specification Washdown for 4,5/3-l-flush
Charge 000 – 2 fixing holes, without lateral holes
Special specification Charge 231 – 2 fixing holes, with lateral holes
Outlet horizontal
VARIO, vertical 70 - 260 mm
Weight 34,0 kg
Accessories excl. Charge 000 – Cistern, order no.
Charge 231 – Cistern, order no.
Seat, order no.
Seat and cover, order no.
Seat and cover with automatic lowering system,
order no. 89160.1, 89395.9, 89695.1, 89896.6
Mounting acc. incl. Fixing set, order no. 89175.7
89695.0, 89896.0, 89896.5
89395.7
82995.1, 82995.2
82995.3, 82995.5
89395.2, 89395.5,
TECHNICAL DRAWINGS / S 1 : 20
375
Mounting acc. excl. for VARIO-outlet 70 - 160 mm LAUFEN connection, order no.
for VARIO-outlet 160 - 260 mm only LAUFEN connection, order no. 89902.5
Colours see colour table
SPECIFICATION TEXT
Floorstanding WC pan washdown LAUFEN PRO, sanitary ceramic,
for cistern, EN 997, EN 33, 4,5/3-l-flush, dimensions 360 x 650 x 440 mm
outlet horizontal, VARIO vertical 70 - 260 mm
back to wall, concealed fixation, 2 fixing holes
Special feature: concealed surfaces directing water are fully glazed
throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
2 lateral holes (option 231), cistern
82995.5 (option 231), WC Seat 89395.7, WC seat and cover 89395.2,
89395.5, 89695.0, 89896.0, 89896.5, WC seat and cover with automatic
lowering
Order no. 82595.2
89160.1, 89395.9, 89695.1, 89896.6
82995.1, 82995.2 (option 000), 82995.3,
375
89009.2
160
650
360
~125 ~125
Charge 000
* = Only Charge 231 (Charge 000 without holes) * = Only Charge 231 (Charge 000 without holes)
775
835
Charge 231
290
40
30
185
220
70-260
~300
*
10
430
Z 191101
