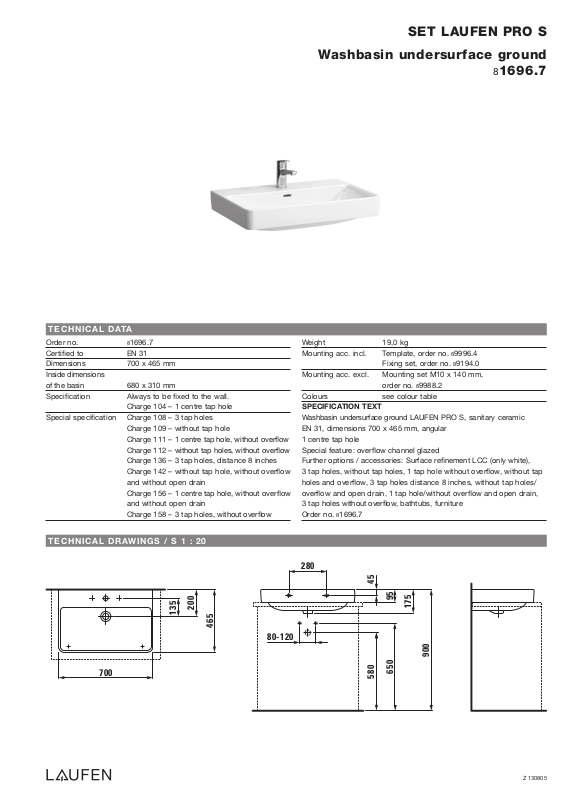

SET LAUFEN PRO S
Washbasin undersurface ground
81696.7
TECHNICAL DATA
Order no. 81696.7
Certified to EN 31
Dimensions 700 x 465 mm
Inside dimensions
of the basin 680 x 310 mm
Specification Always to be fixed to the wall.
Charge 104 – 1 centre tap hole
Special specification Charge 108 – 3 tap holes
Charge 109 – without tap hole
Charge 111 – 1 centre tap hole, without overflow
Charge 112 – without tap holes, without overflow
Charge 136 – 3 tap holes, distance 8 inches
Charge 142 – without tap hole, without overflow
and without open drain
Charge 156 – 1 centre tap hole, without overflow
and without open drain
Charge 158 – 3 tap holes, without overflow
TECHNICAL DRAWINGS / S 1 : 20
200
135
465
80-120
Weight 19,0 kg
Mounting acc. incl. Template, order no.
Fixing set, order no. 89194.0
Mounting acc. excl. Mounting set M10 x 140 mm,
order no. 89988.2
Colours see colour table
SPECIFICATION TEXT
Washbasin undersurface ground LAUFEN PRO S, sanitary ceramic
EN 31, dimensions 700 x 465 mm, angular
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 1 tap hole without overflow, without tap
holes and overflow, 3 tap holes distance 8 inches, without tap holes/
overflow and open drain, 1 tap hole/without overflow and open drain,
3 tap holes without overflow, bathtubs, furniture
Order no. 81696.7
89996.4
280
45
95
175
700
580
900
650
Z 130805
