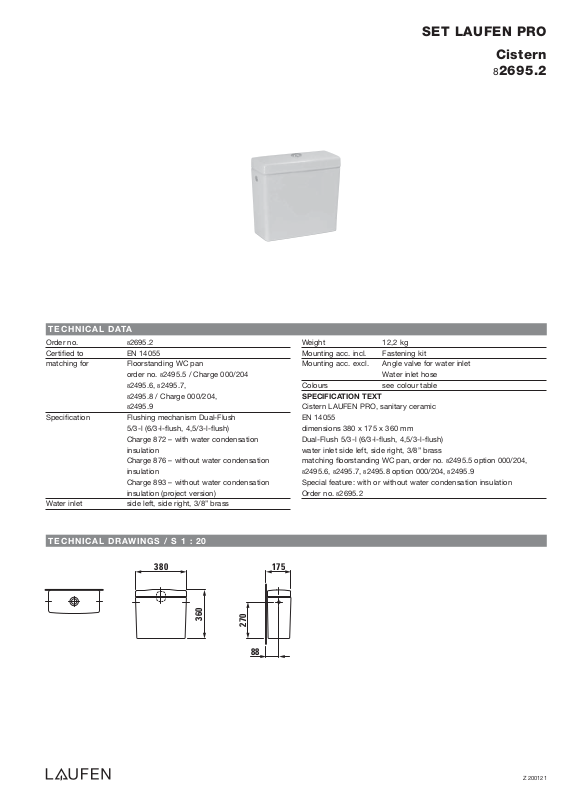

SET LAUFEN PRO
175
88
270
380
360
Cistern
82695.2
TECHNICAL DATA
Order no. 82695.2
Certified to EN 14055
matching for Floorstanding WC pan
order no.
82495.9
Specification Flushing mechanism Dual-Flush
5/3-l (6/3-l-flush, 4,5/3-l-flush)
Charge 872 – with water condensation
insulation
Charge 876 – without water condensation
insulation
Charge 893 – without water condensation
insulation (project version)
Water inlet side left, side right, 3/8” brass
82495.6, 82495.7,
82495.8 / Charge 000/204,
82495.5 / Charge 000/204
TECHNICAL DRAWINGS / S 1 : 20
Weight 12,2 kg
Mounting acc. incl. Fastening kit
Mounting acc. excl. Angle valve for water inlet
Water inlet hose
Colours see colour table
SPECIFICATION TEXT
Cistern LAUFEN PRO, sanitary ceramic
EN 14055
dimensions 380 x 175 x 360 mm
Dual-Flush 5/3-l (6/3-l-flush, 4,5/3-l-flush)
water inlet side left, side right, 3/8” brass
matching floorstanding WC pan, order no.
82495.6, 82495.7, 82495.8 option 000/204, 82495.9
Special feature: with or without water condensation insulation
Order no. 82695.2
82495.5 option 000/204,
Z 200121
