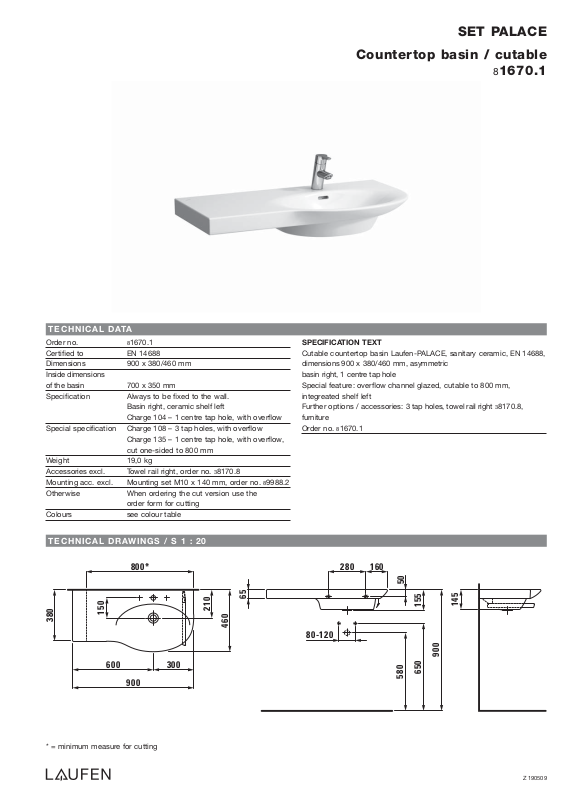

SET PALACE
145
600 300
900
460
210
380
150
580
155
650
900
50
80-120
280 160
65
800*
Countertop basin / cutable
81670.1
TECHNICAL DATA
Order no. 81670.1
Certified to EN 14688
Dimensions 900 x 380/460 mm
Inside dimensions
of the basin 700 x 350 mm
Specification Always to be fixed to the wall.
Basin right, ceramic shelf left
Charge 104 – 1 centre tap hole, with overflow
Special specification Charge 108 – 3 tap holes, with overflow
Charge 135 – 1 centre tap hole, with overflow,
cut one-sided to 800 mm
Weight 19,0 kg
Accessories excl. Towel rail right, order no. 38170.8
Mounting acc. excl. Mounting set M10 x 140 mm, order no. 89988.2
Otherwise When ordering the cut version use the
order form for cutting
Colours see colour table
SPECIFICATION TEXT
Cutable countertop basin Laufen-PALACE, sanitary ceramic, EN 14688,
dimensions 900 x 380/460 mm, asymmetric
basin right, 1 centre tap hole
Special feature: overflow channel glazed, cutable to 800 mm,
integreated shelf left
Further options / accessories: 3 tap holes, towel rail right
furniture
Order no. 81670.1
TECHNICAL DRAWINGS / S 1 : 20
38170.8,
* = minimum measure for cutting
Z 190509
