SET KARTELL BY LAUFEN
Wallhung WC rimless
82033.7
TECHNICAL DATA
Order no. 82033.7
Certified to EN 997, EN 33
Specification rimless
Washdown for min. 4,5/3-l-flush
Weight 23,0 kg
Accessories excl. Seat and cover, order no.
Seat and cover with automatic lowering system,
order no. 89133.3
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fastening kit M12
Colours see colour table
89133.2

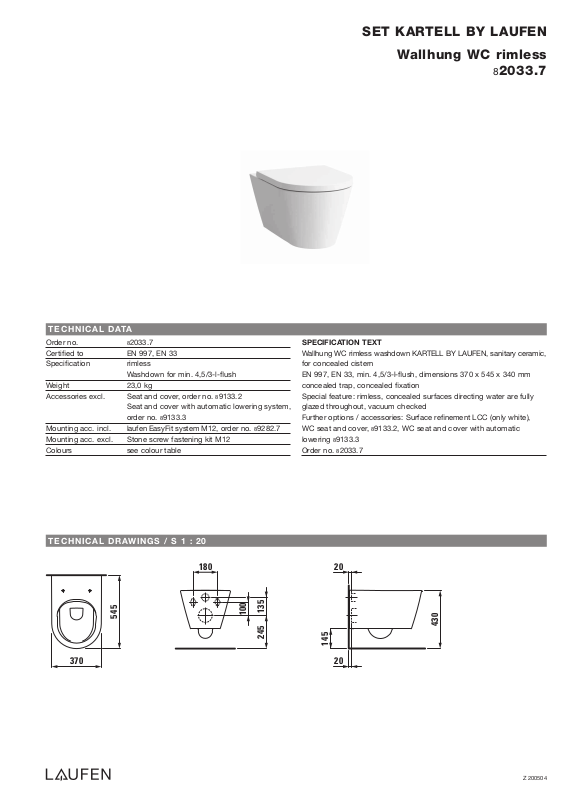

TECHNICAL DRAWINGS / S 1 : 20
180
SPECIFICATION TEXT
Wallhung WC rimless washdown KARTELL BY LAUFEN, sanitary ceramic,
for concealed cistern
EN 997, EN 33, min. 4,5/3-l-flush, dimensions 370 x 545 x 340 mm
concealed trap, concealed fixation
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
WC seat and cover,
lowering
Order no. 82033.7
89133.3
89133.2, WC seat and cover with automatic
20
370
545
100
135
245
430
145
20
Z 200504
