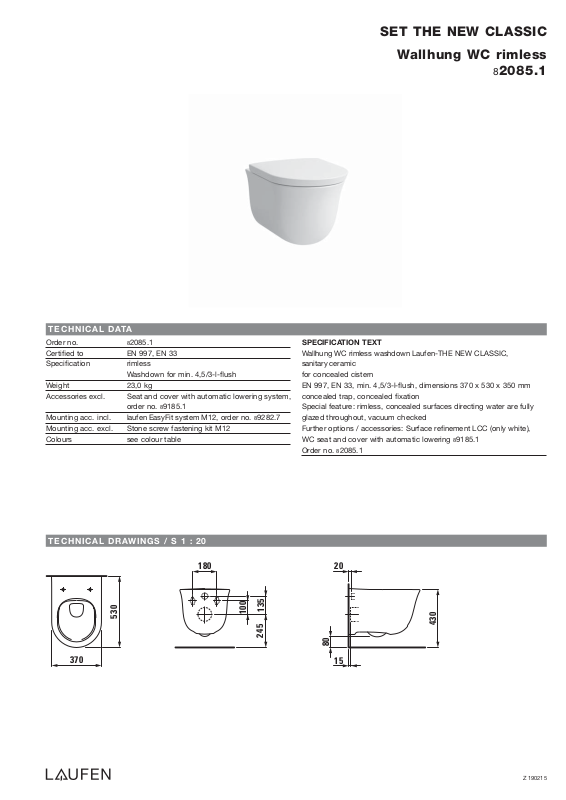

SET THE NEW CLASSIC
Wallhung WC rimless
82085.1
TECHNICAL DATA
Order no. 82085.1
Certified to EN 997, EN 33
Specification rimless
Washdown for min. 4,5/3-l-flush
Weight 23,0 kg
Accessories excl. Seat and cover with automatic lowering system,
order no. 89185.1
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fastening kit M12
Colours see colour table
TECHNICAL DRAWINGS / S 1 : 20
180
SPECIFICATION TEXT
Wallhung WC rimless washdown Laufen-THE NEW CLASSIC,
sanitary ceramic
for concealed cistern
EN 997, EN 33, min. 4,5/3-l-flush, dimensions 370 x 530 x 350 mm
concealed trap, concealed fixation
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
WC seat and cover with automatic lowering
Order no. 82085.1
89185.1
20
370
530
100
135
430
245
80
15
Z 190215
