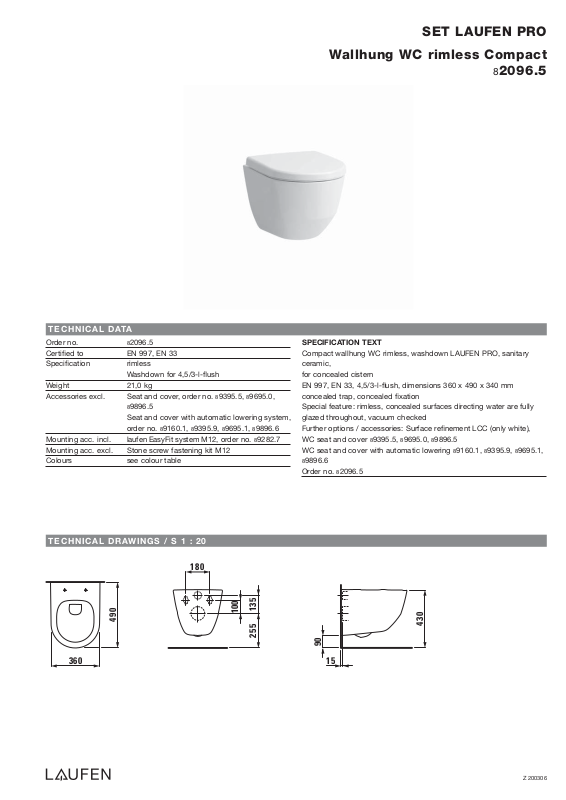

Laufen 8.2096.5 Datasheet

SET LAUFEN PRO

Wallhung WC rimless Compact

82096.5

TECHNICAL DATA

Order no. 82096.5
Certified to EN 997, EN 33
Specification rimless
Washdown for 4,5/3-l-flush
Weight 21,0 kg
Accessories excl. Seat and cover, order no.

Seat and cover with automatic lowering system,
order no. 89160.1, 89395.9, 89695.1, 89896.6
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fastening kit M12
Colours see colour table

89896.5

89395.5, 89695.0,

TECHNICAL DRAWINGS / S 1 : 20

180

SPECIFICATION TEXT
Compact wallhung WC rimless, washdown LAUFEN PRO, sanitary
ceramic,
for concealed cistern
EN 997, EN 33, 4,5/3-l-flush, dimensions 360 x 490 x 340 mm
concealed trap, concealed fixation
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
WC seat and cover
WC seat and cover with automatic lowering

89896.6

Order no. 82096.5

89395.5, 89695.0, 89896.5

89160.1, 89395.9, 89695.1,

360

490

100

135

430

255

90

15

Z 200306
