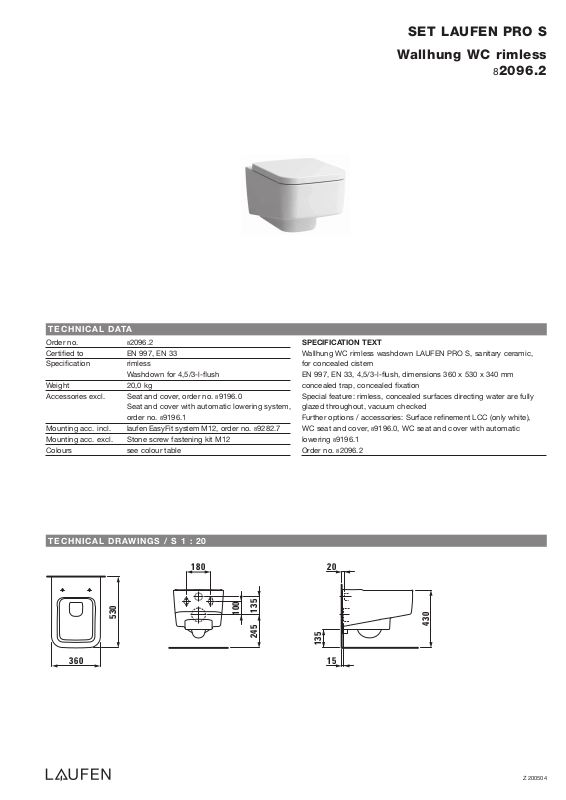

Laufen 8.2096.2 Datasheet

SET LAUFEN PRO S

Wallhung WC rimless

82096.2

TECHNICAL DATA

Order no. 82096.2
Certified to EN 997, EN 33
Specification rimless
Washdown for 4,5/3-l-flush
Weight 20,0 kg
Accessories excl. Seat and cover, order no.
Seat and cover with automatic lowering system,
order no. 89196.1
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fastening kit M12
Colours see colour table

89196.0

TECHNICAL DRAWINGS / S 1 : 20

180

SPECIFICATION TEXT
Wallhung WC rimless washdown LAUFEN PRO S, sanitary ceramic,
for concealed cistern
EN 997, EN 33, 4,5/3-l-flush, dimensions 360 x 530 x 340 mm
concealed trap, concealed fixation
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
WC seat and cover,
lowering
Order no. 82096.2

89196.1

89196.0, WC seat and cover with automatic

20

360

530

100

135

245

430

135

15

Z 200504
