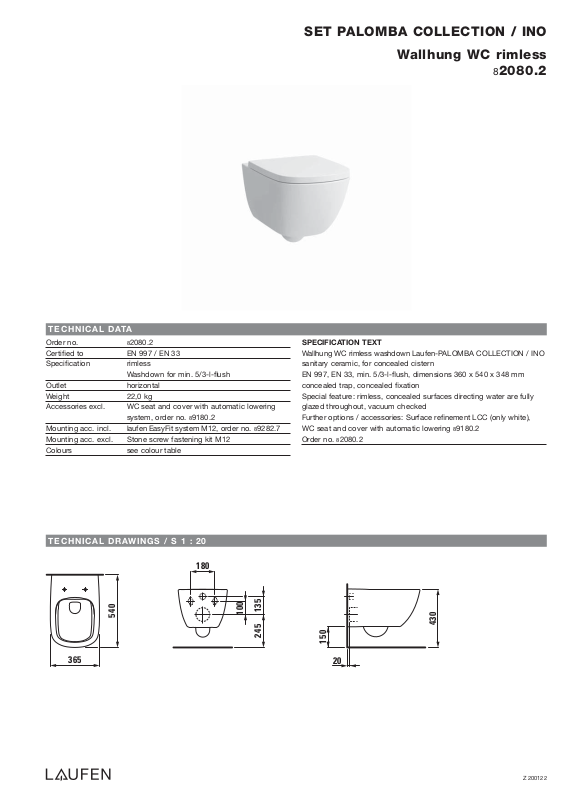

Laufen 8.2080.2 Datasheet

SET PALOMBA COLLECTION / INO

Wallhung WC rimless

82080.2

TECHNICAL DATA

Order no. 82080.2
Certified to EN 997 / EN 33
Specification rimless
Washdown for min. 5/3-l-flush
Outlet horizontal
Weight 22,0 kg
Accessories excl. WC seat and cover with automatic lowering
system, order no. 89180.2
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fastening kit M12
Colours see colour table

TECHNICAL DRAWINGS / S 1 : 20

180

SPECIFICATION TEXT
Wallhung WC rimless washdown Laufen-PALOMBA COLLECTION / INO
sanitary ceramic, for concealed cistern
EN 997, EN 33, min. 5/3-l-flush, dimensions 360 x 540 x 348 mm
concealed trap, concealed fixation
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
WC seat and cover with automatic lowering
Order no. 82080.2

89180.2

365

540

100

135

245

430

150

20

Z 200122
