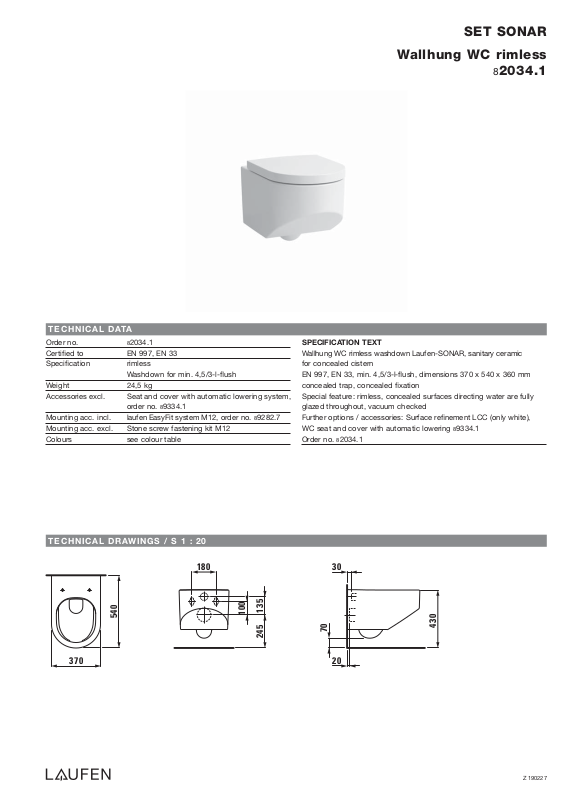

Laufen 8.2034.1 Datasheet

SET SONAR

Wallhung WC rimless

82034.1

TECHNICAL DATA

Order no. 82034.1
Certified to EN 997, EN 33
Specification rimless
Washdown for min. 4,5/3-l-flush
Weight 24,5 kg
Accessories excl. Seat and cover with automatic lowering system,
order no. 89334.1
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fastening kit M12
Colours see colour table

TECHNICAL DRAWINGS / S 1 : 20

180

SPECIFICATION TEXT
Wallhung WC rimless washdown Laufen-SONAR, sanitary ceramic
for concealed cistern
EN 997, EN 33, min. 4,5/3-l-flush, dimensions 370 x 540 x 360 mm
concealed trap, concealed fixation
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
WC seat and cover with automatic lowering
Order no. 82034.1

89334.1

30

370

540

100

135

245

70

430

20

Z 190227
