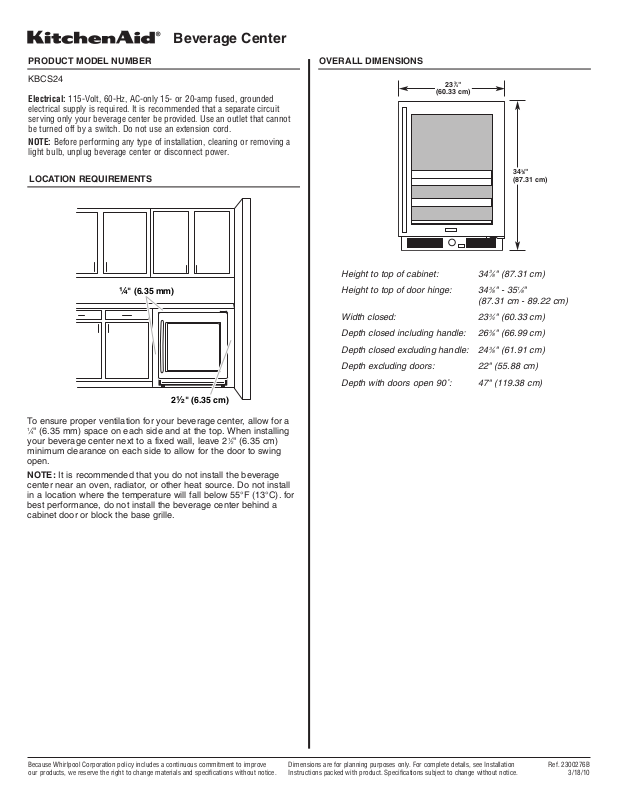

Beverage Center
PRODUCT MODEL NUMBER
KBCS24
Electrical: 115-Volt, 60-Hz, AC-only 15or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your beverage center be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
NOTE: Before performing any type of installation, cleaning or removing a light bulb, unplug beverage center or disconnect power.
LOCATION REQUIREMENTS
¹⁄ " (6.35 mm)
2¹⁄ " (6.35 cm)
To ensure proper ventilation for your beverage center, allow for a 1⁄4" (6.35 mm) space on each side and at the top. When installing your beverage center next to a fixed wall, leave 21⁄2" (6.35 cm) minimum clearance on each side to allow for the door to swing open.
NOTE: It is recommended that you do not install the beverage center near an oven, radiator, or other heat source. Do not install in a location where the temperature will fall below 55°F (13°C). for best performance, do not install the beverage center behind a cabinet door or block the base grille.
OVERALL DIMENSIONS
233⁄4"
(60.33 cm)
343⁄8"
(87.31 cm)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Height to top of cabinet: |
34 3⁄8" (87.31 cm) |
|||||
Height to top of door hinge: |
34 3⁄8" - 351⁄8" |
|||||
|
|
|
(87.31 cm - 89.22 cm) |
|||
Width closed: |
23 3⁄4" (60.33 cm) |
|||||
Depth closed including handle: |
26 3⁄8" (66.99 cm) |
|||||
Depth closed excluding handle: |
243⁄8" (61.91 cm) |
|||||
Depth excluding doors: |
22" (55.88 cm) |
|||||
Depth with doors open 90˚: |
47" (119.38 cm) |
|||||
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation |
Ref. 2300276B |
Instructions packed with product. Specifications subject to change without notice. |
3/18/10 |
