2260B Series

www.keithley.com



360W and 720W Multi-Range Programmable DC Power Supplies



Rev. A / March 2014

Programming Manual

A Tektronix Company

A Greater Measure of Confidence

Series 2260B

360W and 720W Multi-Range Programmable DC Power Supplies

PROGRAMMING MANUAL

ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent.

The information in this manual was correct at the time of printing. However, we continue to improve our products and reserve the rights to change specification, equipment, and maintenance procedures at any time without notice.

Table of Contents

SAFETY INSTRUCTIONS ................................................... 2

GETTING STARTED ........................................................... 6

2260B Series Overview ........................................... 7

Appearance ............................................................ 9

Configuration Settings ......................................... 15

REMOTE CONTROL ........................................................ 20

Interface Configuration ........................................ 21

Socket Server Examples ........................................ 32

Command Syntax ................................................. 36

Command List ...................................................... 39

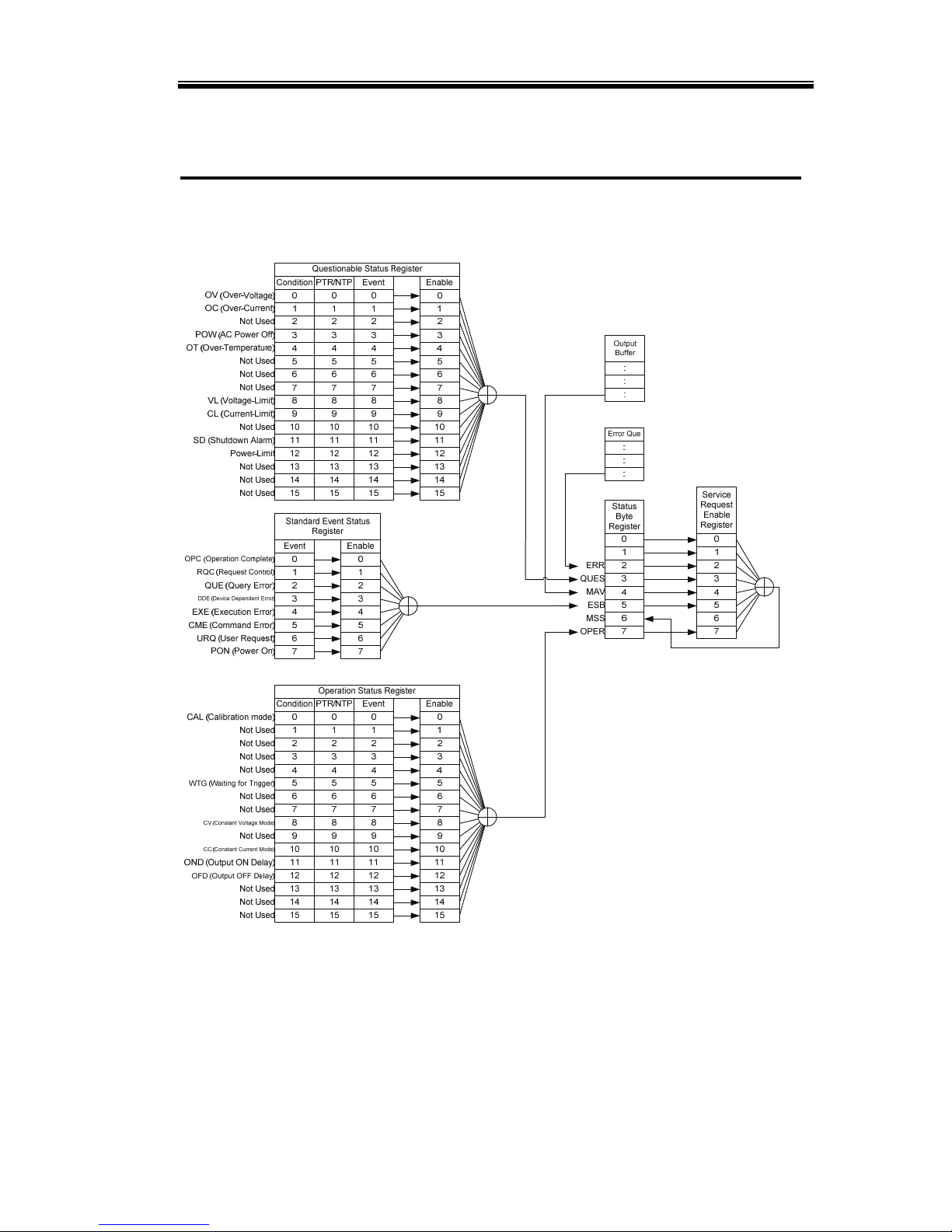

Status Register Overview ...................................... 78

Error List .............................................................. 89

APPENDIX ...................................................................... 98

2260B Default Settings ......................................... 98

Error Messages & Messages .............................. 100

LED Display Format ........................................... 100

INDEX............................................................................ 101

2260B Series Programming Manual

SAFETY INSTRUCTIONS

This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the instrument.

WARNING

Warning: Identifies conditions or practices that could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that could result in damage to the instrument or to other properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

SAFETY INSTRUCTIONS

Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.

Safety Guidelines

General Guideline

CAUTION

• Do not place any heavy object on the

instrument.

• Avoid severe impact or rough handling that

leads to damaging the instrument.

• Do not discharge static electricity to the

instrument.

• Use only mating connectors, not bare wires, for

the terminals.

• Do not block the cooling fan opening.

• Do not disassemble the instrument unless you

are qualified.

(Measurement categories) EN 61010-1:2001 specifies the measurement categories and their requirements as follows. This instrument falls under category II.

• Measurement category IV is for measurement performed at the source of low-voltage installation.

• Measurement category III is for measurement performed in the building installation.

• Measurement category II is for measurement performed on the circuits directly connected to the low voltage installation.

• Measurement category I is for measurements performed on circuits not directly connected to Mains.

Power Supply

WARNING

• AC Input voltage range: 85VAC~265VAC

• Frequency: 47Hz~63Hz

• To avoid electrical shock connect the protective

grounding conductor of the AC power cord to an earth ground.

2260B Series Programming Manual

Cleaning the Instrument

• Disconnect the power cord before cleaning.

• Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

• Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

Operation Environment

• Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

• Relative Humidity: 20%~ 85%

• Altitude: < 2000m

• Temperature: 0°C to 50°C

(Pollution Degree) EN 61010-1:2001 specifies the pollution degrees and their requirements as follows. The Instrument falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.

• Pollution degree 1: No pollution or only dry, non-conductive pollution occurs. The pollution has no influence.

• Pollution degree 2: Normally only non-conductive pollution occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.

• Pollution degree 3: Conductive pollution occurs, or dry, non- conductive pollution occurs which becomes conductive due to condensation which is expected. In such conditions, equipment is normally protected against exposure to direct sunlight, precipitation, and full wind pressure, but neither temperature nor humidity is controlled.

Storage environment

• Location: Indoor

• Temperature: -25°C to 70°C

• Relative Humidity: <90%

Disposal

Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.

SAFETY INSTRUCTIONS

Power cord for the United Kingdom

When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue: Neutral Brown: Live (Phase)

As the colours of the wires in main leads may not correspond with the coloured marking identified in your plug/appliance, proceed as follows:

The wire which is coloured Green & Yellow must be connected to the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment or contact the supplier.

This cable/appliance should be protected by a suitably rated and approved HBC mains fuse: refer to the rating information on the equipment and/or user instructions for details. As a guide, a cable of 0.75mm

should be protected by a 3A or 5A fuse. Larger conductors would normally require 13A types, depending on the connection method used.

Any exposed wiring from a cable, plug or connection that is engaged in a live socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately destroyed and replaced in accordance to the above standard.

2260B Series Programming Manual

GETTING STARTED

This chapter describes the power supply in a nutshell, including its main features and front / rear panel introduction. After going through the overview, please read the theory of operation to become familiar with the operating modes, protection modes and other safety considerations.

2260B Series Overview ....................................................... 7

Series lineup ................................................................................................................ 7

Main Features ............................................................................................................. 8

Appearance ........................................................................ 9

2260B Front Panel ..................................................................................................... 9

Rear Panel ................................................................................................................. 12

GETTING STARTED

2260B Series Overview

Series lineup

The 2260B series consists of 4 models, divided into 2 different model types covering 2 power capacities: 360W models and 720W models.

Model name Type Voltage rating Current rating Power

2260B-30-36 360W models 0~30V 0~36A 360W

2260B-80-13 360W models 0~80V 0~13.5A 360W

2260B-30-72 720W models 0~30V 0~72A 720W

2260B-80-27 720W models 0~80V 0~27A 720W

Apart from the differences in output, each unit differs in size. The 720W models are larger than the 360W models to accommodate the increase in power.

360W models

720W models

2260B Series Programming Manual

Main Features

Performance

• High performance/power

• Power efficient switching type power supply

• Low impact on load devices

• Fast transient recovery time of 1ms

• Fast output response time

Features

• OVP, OCP and OTP protection

• Adjustable voltage and current slew rates

• User adjustable bleeder control to quickly

dissipate the power after shutdown to safe levels.

• Extensive remote monitoring and control

options

• Support for serial and parallel connections

• Power on configuration settings.

• Web server monitoring and control

Interface

• Ethernet port

• Analog connector for analog voltage and current

monitoring

• USB host and device port

GETTING STARTED

Appearance

2260B Front Panel

2260B-80-27, 2260B-30-72 (720W)

2260B-80-13, 2260B-30-36 (360W)

2260B Series Programming Manual

Function Keys

The Function keys along with the Output key will light up when a key is active.

The Function key is used to configure the power supply.

Set the overcurrent or overvoltage protection levels.

Sets the current and voltage limits.

Used to run customized Test sequence for testing.

Locks or unlocks the panel keys to prevent accidentally changing panel settings.

Toggles the display from viewing V/AÆV/WÆA/W.

Display Indicators

Voltage Slew Rate Constant Voltage Mode Remote Control Mode Alarm on Delay Outpu

Constant Current Mode Current Slew Rate Power bar Indicates the current power output

as a percentage.

GETTING STARTED

Voltage Knob

Sets the voltage.

Current Knob

Sets the current.

Output

Press to turn on the output. The Output key will light up when the output is active.

USB

The USB A port is used to update the firmware. The firmware can only be updated at a service center.

Power Switch

Used to turn the power on/off.

2260B Series Programming Manual

Rear Panel

2260B-80-27, 2260B-30-72 (720W)

2260B-80-13, 2260B-30-36 (360W)

GETTING STARTED

Analog Control Connector

Standard 26 pin MIL connector (OMRON XG4 IDC plug).

The analog control connector is used to monitor current and voltage output, machine status (OVP, OCP, OTP etc.), and for analog control of the current and voltage output.

Use an OMRON XG5 IDC socket as the mating socket.

Output Terminals

Positive (+) and negative (-) output terminals.

Chassis ground

Sense (-) and Sense (+) terminals.

USB B port

The USB B port is used for remote control.

Fans

Temperature controlled fans

Ethernet Port

The Ethernet port is used for remote control and digital monitoring from a PC.

2260B Series Programming Manual

Line Voltage Input

360W models: 2260B-30-36/2260B80-13

720W models: 2260B-30-72/2260B80-27

• Voltage Input: 100~240 VAC

• Line frequency: 50Hz/60 Hz

(Automatically switchable)

GETTING STARTED

Configuration Settings

Setting Configuration Settings

Background

The normal configuration settings (F-01~F-61, F-88, F-89) are used to configure or view system settings. Use the following operation steps when configuring the interface settings used in the Remote Control chapter on page 20.

• Ensure the load is not connected.

• Ensure the output is off.

Note

Configuration settings F-90~F-95 cannot be edited in the Normal Function Settings. See the user manual for details.

The F-89 settings can only be viewed, not set.

Steps

1. Press the Function key. The

function key will light up.

2. The display will show F-01

on the top and the configuration setting for F-01 on the bottom.

3. Rotate the Voltage knob to change

the F setting.

Range

F-00~ F-61, F-88, F-89

2260B Series Programming Manual

4. Use the Current knob to set the

parameter for the chosen F setting.

5. Press the Voltage knob to save the

configuration setting. Conf will be displayed when successful.

Exit

Press the Function key again to exit the configuration settings. The function key light will turn off.

Configuration Table

Please use the configuration settings listed below when applying the configuration settings.

Normal Function Settings Setting Setting Range

Output ON delay time F-01 0.00s~99.99s Output OFF delay time F-02 0.00s~99.99s

V-I mode slew rate select F-03

0 = CV high speed priority 1 = CC high speed priority 2 = CV slew rate priority 3 = CC slew rate priority

Rising voltage slew rate F-04

0.01V/s~60.00V/s (2260B-30-XX)

0.1V/s~160.0V/s (2260B-80-XX)

Falling voltage slew rate F-05

0.01V/s~60.00V/s (2260B-30-XX)

0.1V/s~160.0V/s (2260B-80-XX)

GETTING STARTED

Rising current slew rate F-06

0.01A/s~72.00A/s (2260B-30-36)

0.1A/s~144.0A/s (2260B-30-72)

0.01A/s~27.00A/s (2260B-80-13)

0.01A/s~54.00A/s (2260B-80-27)

Falling current slew rate F-07

0.01A/s~72.00A/s (2260B-30-36)

0.1A/s~144.0A/s (2260B-30-72)

0.01A/s~27.00A/s (2260B-80-13)

0.01A/s~54.00A/s (2260B-80-27)

Internal resistance setting

F-08

0.000Ω~0.833Ω (2260B-30-36)

0.000Ω~0.417Ω (2260B-30-72)

0.000Ω~5.926Ω (2260B-80-13)

0.000Ω~2.963Ω (2260B-80-27) Bleeder circuit control F-09 0 = OFF, 1 = ON Buzzer ON/OFF control F-10 0 = ON, 1 = OFF USB/GPIB settings Front panel USB State F-20 0 = Absent, 1 = Mass Storage

Rear panel USB State F-21

0 = Absent, 2 = USB-CDC, 3 = GPIBUSB adapter

Rear panel USB mode F-22

0 = Disable, 1 = GPIB-USB adapter,

2 = USB CDC GPIB address F-23 0~30 LAN settings MAC Address-1 F-30 0x00~0xFF MAC Address-2 F-31 0x00~0xFF MAC Address-3 F-32 0x00~0xFF MAC Address-4 F-33 0x00~0xFF MAC Address-5 F-34 0x00~0xFF MAC Address-6 F-35 0x00~0xFF LAN F-36 0 = Disable, 1 = Enable DHCP F-37 0 = Disable, 1 = Enable IP Address-1 F-39 0~255 IP Address-2 F-40 0~255 IP Address-3 F-41 0~255 IP Address-4 F-42 0~255 Subnet Mask-1 F-43 0~255 Subnet Mask-2 F-44 0~255 Subnet Mask-3 F-45 0~255 Subnet Mask-4 F-46 0~255 Gateway-1 F-47 0~255 Gateway-2 F-48 0~255

Gatew

DNS a

Socket Web S

Web p

Web s

Syste

Factor

Show

Power

CV Co

CC Co

Power

Maste

y-3 y-4

dress -1 dress -2 dress-3 dress-4

s active

rver active

ssword active tting password Settings

Set Value

ersion

On Configuration

trol

ON Output

/Slave

2260

F-49 0~255 F-50 0~255 F-51 0~255 F-52 0~255 F-53 0~255 F-54 0~255 F-57 0 = Dis F-59 0 = Dis F-60 0 = Dis F-61 0000~9

F-88

0 = Dis 1 = Ret

F-89

0, 1 =

2, 3 =

4, 5 =

6, 7 =

8, 9 =

A, B =

C, D =

E, F =

ettings*

F-90

0 = Pa

1 = Ext

2 = Ext

3 = Ext

F-91

0 = Pa

1 = Ext

2 = Ext

3 = Ext

(Ex

F-92 0 = OF

F-93

0 = Ma

1 = Ma

2 = Ma

3 = Sla

4 = Sla

Series Program

able, 1 = Enable able, 1 = Enable able, 1 = Enable

999

able

rn to factory setti

ersion

uild year uild month/day eyboard CPLD ver

nalog-Control CP

eserved

ernel build year

ernel build month

el control (local)

rnal voltage contr

rnal resistance co

t-R 10kΩ = Vo,

rnal resistance co

t-R 10kΩ = 0)

el control (local)

rnal voltage contr

rnal resistance co

t-R 10kΩ = Io,

rnal resistance co

-R 10kΩ = 0) at startup, 1 = O

ter/Local ter/Parallel1 ter/Parallel2

e/Parallel e/Series

ing Manual

ion

D version

/day

ntrol

ax)

ntrol

ax)

ntrol

at startup

GETTING STARTED

External Out Logic F-94 0 = High ON, 1 = Low ON Power Switch trip F-95 0 = Enable , 1 = Disable Calibration Settings* Calibration F-00 0000 ~ 9999

*Note

Power On and Calibration settings can only be set during power up.

2260B Series Programming Manual

REMOTE CONTROL

This chapter describes basic configuration of IEEE488.2 based remote control.

Interface Configuration ..................................................... 21

Socket Server Examples .................................................... 32

Command Syntax .............................................................. 36

Command List .................................................................. 39

REMOTE CONTROL

Interface Configuration

USB Remote Interface ......................................................... 21



Configure GPIB Interface ................................................... 22

Configure Ethernet Connection ......................................... 23

USB Remote Control Function Check .............................. 25

eb Server Remote Control Function Check .................. 26

Socket Server Function Check ............................................ 26

USB Remote Interface

USB configuration

PC side connector

Type A, host

2260B side connector

Rear panel Type B, slave

Speed

1.1/2.0 (full speed/high speed)

USB Class

CDC (communications device class)

Panel operation

1. Connect the USB cable to the rear

panel USB B port.

2. Press the Function key to enter the

Normal configuration settings.

Page 9

Set the following USB settings:

F-22 = 2

Set the rear panel USB port to USB-CDC.

2260B Series Programming Manual

Configure GPIB Interface

To use GPIB, the optional GPIB to USB adapter (2260B-GPIB-USB) must be used. The GPIB to USB adapter must be connected before the 2260B is turned on. Only one GPIB address can be used at a time.

Configure GPIB

1. Ensure the 2260B is off before proceeding.

2. Connect the USB cable from the rear panel

USB B port on the 2260B to the USB A port on the GPIB to USB adapter.

3. Connect a GPIB cable from a GPIB controller to

the GPIB port on the adapter.

4. Turn the 2260B on.

5. Press the Function key to enter the

Normal configuration settings.

Page 9

Set the following GPIB settings:

F-22 = 1

Set the rear panel USB port to GPIB-USB

F-23 = 0~30 Set the GPIB address (0~30)

GPIB constraints

• Maximum 15 devices altogether, 20m cable

length, 2m between each device

• Unique address assigned to each device

• At least 2/3 of the devices turned On

• No loop or parallel connection

REMOTE CONTROL

Configure Ethernet Connection

The Ethernet interface can be configured for a number of different applications. Ethernet can be configured for basic remote control or monitoring using a web server or it can be configured as a socket server.

The 2260B series supports DHCP connections so the instrument can be automatically connected to an existing network or alternatively, network settings can be manually configured.

Ethernet configuration Parameters

For details on how to configure the Ethernet settings, please see the configuration table on page 16.

MAC Address (display only)

LAN

DHCP IP Address

Subnet Mask Gateway

DNS Address Sockets Active

Web Server Active Web Password Active

Web set password 0000~9999 (default 0000)

Web Server Configuration

Configuration

This configuration example will configure the 2260B as a web server and use DHCP to automatically assign an IP address to the 2260B.

1. Connect an Ethernet cable from the

network to the rear panel Ethernet port.

2260B Series Programming Manual

2. Press the Function key to enter the

Normal configuration settings.

Page 9

Set the following LAN settings:

F-36 = 1 Enable LAN F-37 = 1 Turn DHCP to enable F-59 = 1 Turn the web server on

Note

It may be necessary to cycle the power or refresh the web browser to connect to a network.

Sockets Server Configuration

Configuration

This configuration example will configure the 2260B for web sockets control.

The following configuration settings will manually assign the 2260B an IP address and enable web sockets. By default, the socket port number is 2268 and cannot be configured.

1. Connect an Ethernet cable from the

network to the rear panel Ethernet port.

2. Press the Function key to enter the

Normal configuration settings.

Page 9

3. Set the following LAN settings:

F-36 = 1 Enable LAN F-37 = 0 Disable DHCP F-39 = 172 IP Address part 1 of 4 F-40 = 16 IP Address part 2 of 4 F-41 = 5 IP Address part 3 of 4 F-42 = 133 IP Address part 4 of 4 F-43 = 255 Subnet Mask part 1 of 4 F-44 = 255 Subnet Mask part 2 of 4 F-45 = 128 Subnet Mask part 3 of 4

REMOTE CONTROL

F-46 = 0 Subnet Mask part 4 of 4 F-43 = 172 Gateway part 1 of 4 F-44 = 16 Gateway part 2 of 4 F-45 = 21 Gateway part 3 of 4 F-46 = 101 Gateway part 4 of 4 F-57 = 1 Enable Sockets

Note

The socket function is only available for firmware version V1.12 or above. See the user manual to check your firmware version number.

USB Remote Control Function Check

Functionality check

Invoke a terminal application such as Hyper Terminal.

To check the COM port No, see the Device Manager in the PC. For WinXP; Control panel → System → Hardware tab.

Run this query command via the terminal after the instrument has been configured for USB remote control (page 21).

*idn?

This should return the Manufacturer, Model number, Serial number, and Firmware version in the following format.

XXXXXX,AAAAAA,TW123456,01.00.20110101

Manufacturer: XXXXXX

Model number : AAAAAA

Serial number : TW123456

Firmware version : 01.00.20110101

2260B Series Programming Manual

Web Server Remote Control Function Check

Functionality check

Enter the IP address of the power supply in a web browser after the instrument has been configured as a web server (page 23).

http:// XXX.XXX.XXX.XXX

The web browser interface appears.

Socket Server Function Check

Background

To test the socket server functionality, National Instruments Measurement and Automation Explorer can be used. This program is available on the NI website, www.ni.com.

Requirements

Firmware: V1.12 Operating System: Windows XP, 7

Functionality check

1. Start the NI Measurement and Automation

Explorer (MAX) program. Using Windows, press:

Start>All Programs>National Instruments>Measurement & Automation

REMOTE CONTROL

2. From the Configuration panel access;

My System>Devices and Interfaces>Network Devices

3. Press Add New Network Device>Visa TCP/IP

Resource…

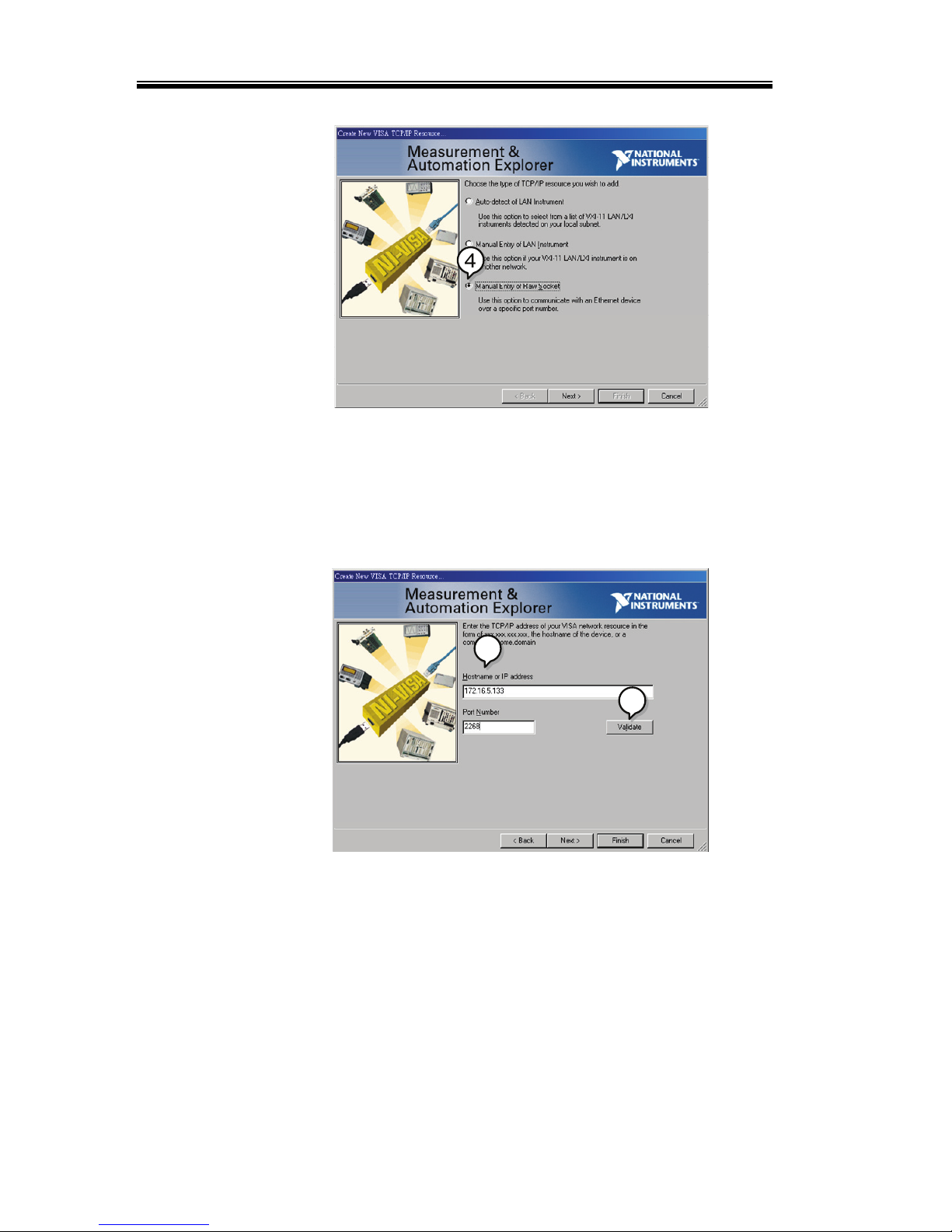

4. Select Manual Entry of Raw Socket from the

popup window.

2260B Series Programming Manual

5. Enter the IP address and the port number of the

2260B. The port number is fixed at 2268.

6. Double click the Validate button.

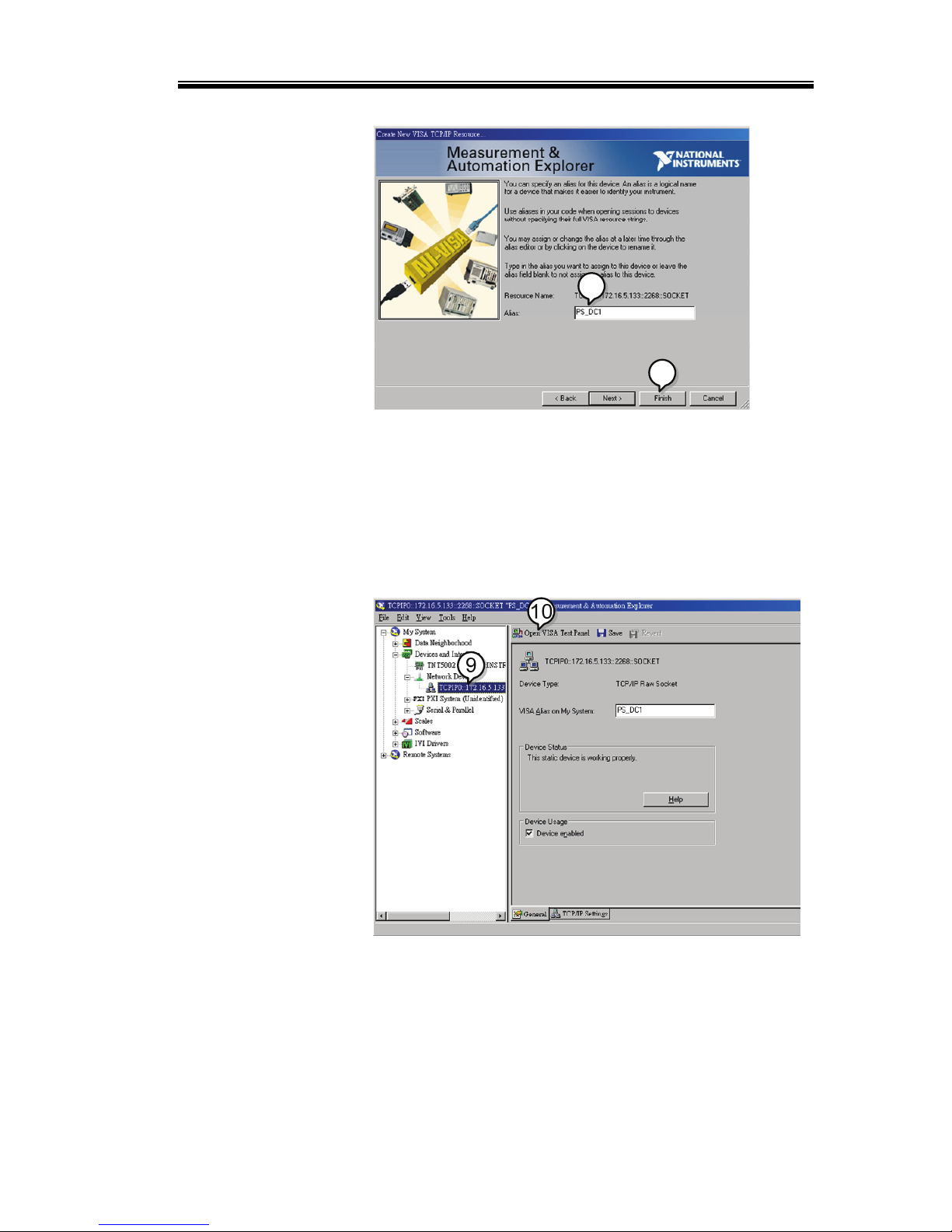

7. Next configure the Alias (name) of the 2260B

connection. In this example the Alias is: PS_DC1

8. Click finish.

REMOTE CONTROL

9. The IP address of the 2260B will now appear

under Network Devices in the configuration panel. Select this icon now.

10. Press Open VISA Test Panel.

2260B Series Programming Manual

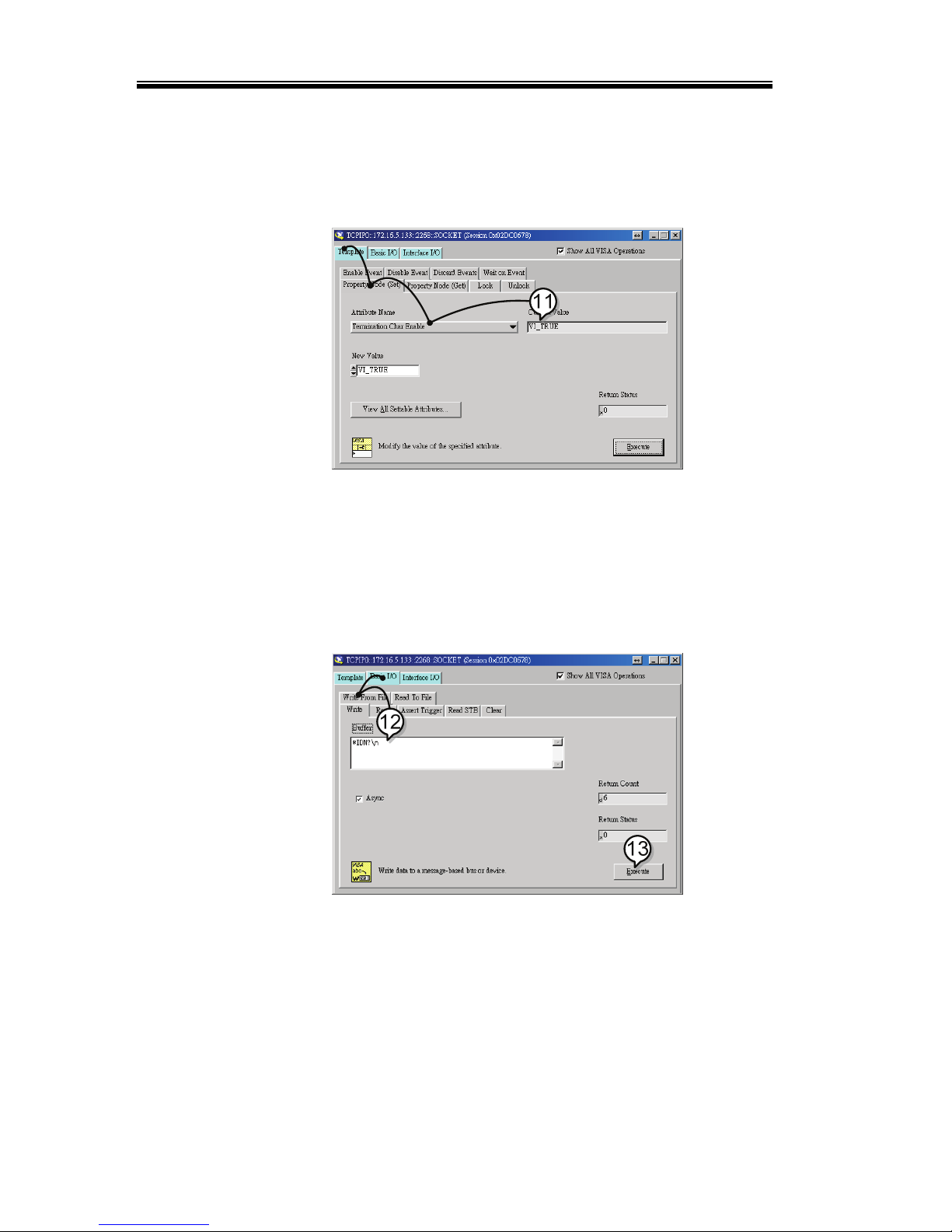

11. Under the Template > Property Node tabs, set

Termination Char Enable from the Attribute Name

list to VI_TRUE.

12. Under the Basic I/O >Write tabs, Enter the

*IDN? query into the Buffer, if it is not already there.

13. Click the Execute button.

REMOTE CONTROL

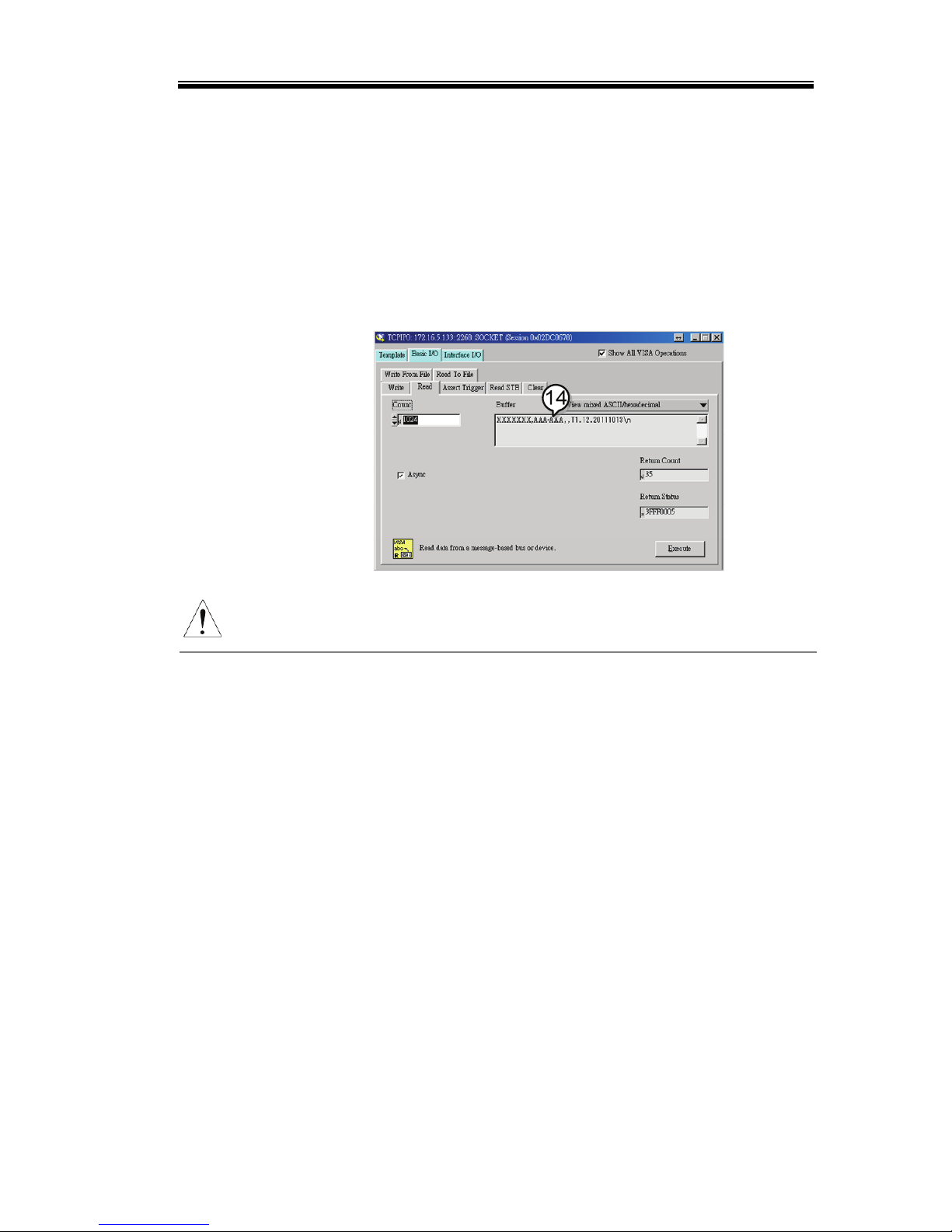

14. In the Basic I/O > Read tabs, the return

parameter for the *IDN? query should be returned to the buffer area: XXXXXXX,AAA-AAA,,T1.12.20111013

Where: XXXXXXX = Manufacturer, AAA-AAA = Model number.

Note

For further details, please see the following programming examples.

2260B Series Programming Manual

Socket Server Examples

isual Basic Example........................................................... 32

C++ Example ....................................................................... 33

LabVIEW Example .............................................................. 35

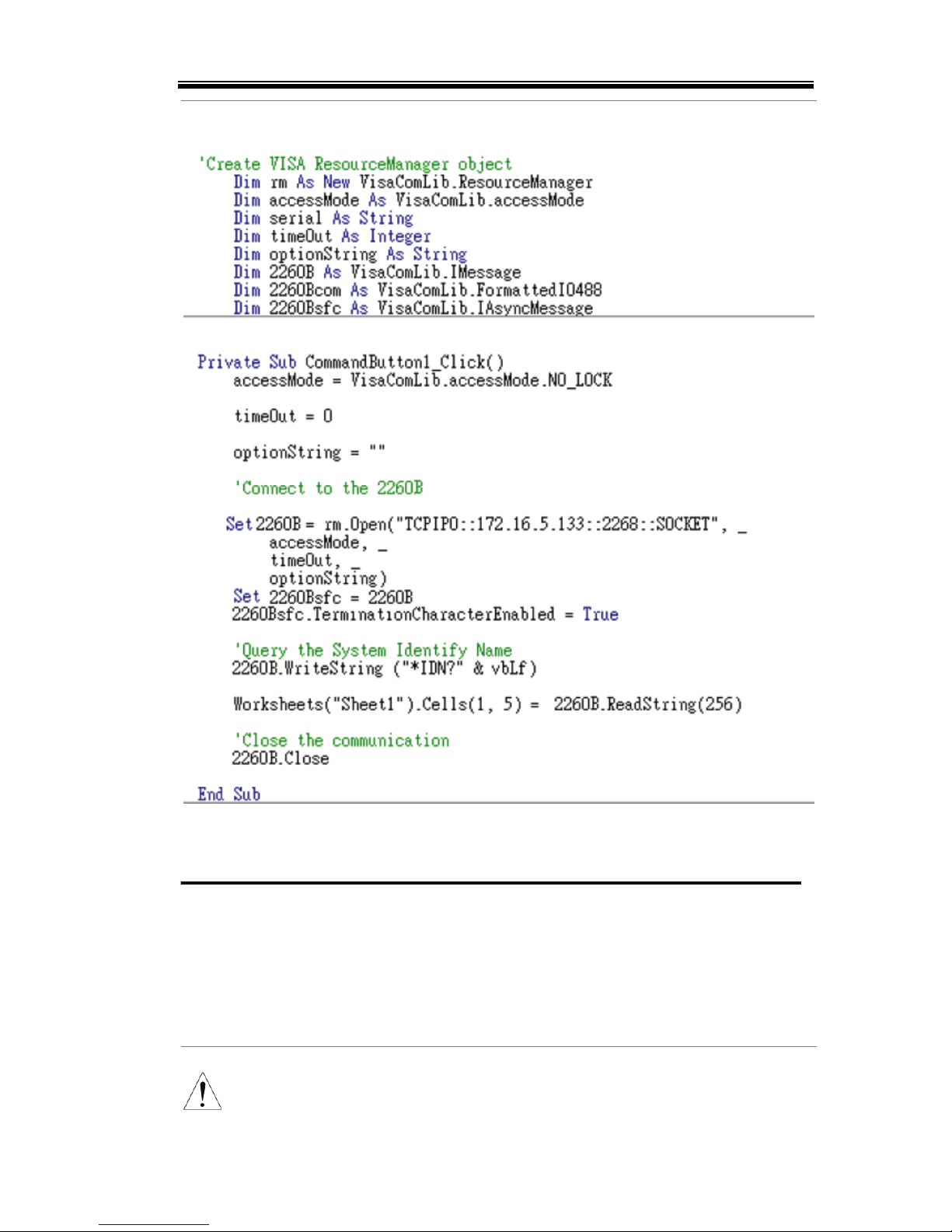

Visual Basic Example

Background

The following visual basic programming example uses the VISA COM 3.0 Type Library. The example will connect to the 2260B using the IP address of 172.15.5.133 over port 2268. The program will send the *IDN? query to the 2260B, print the return string and then close the connection.

REMOTE CONTROL

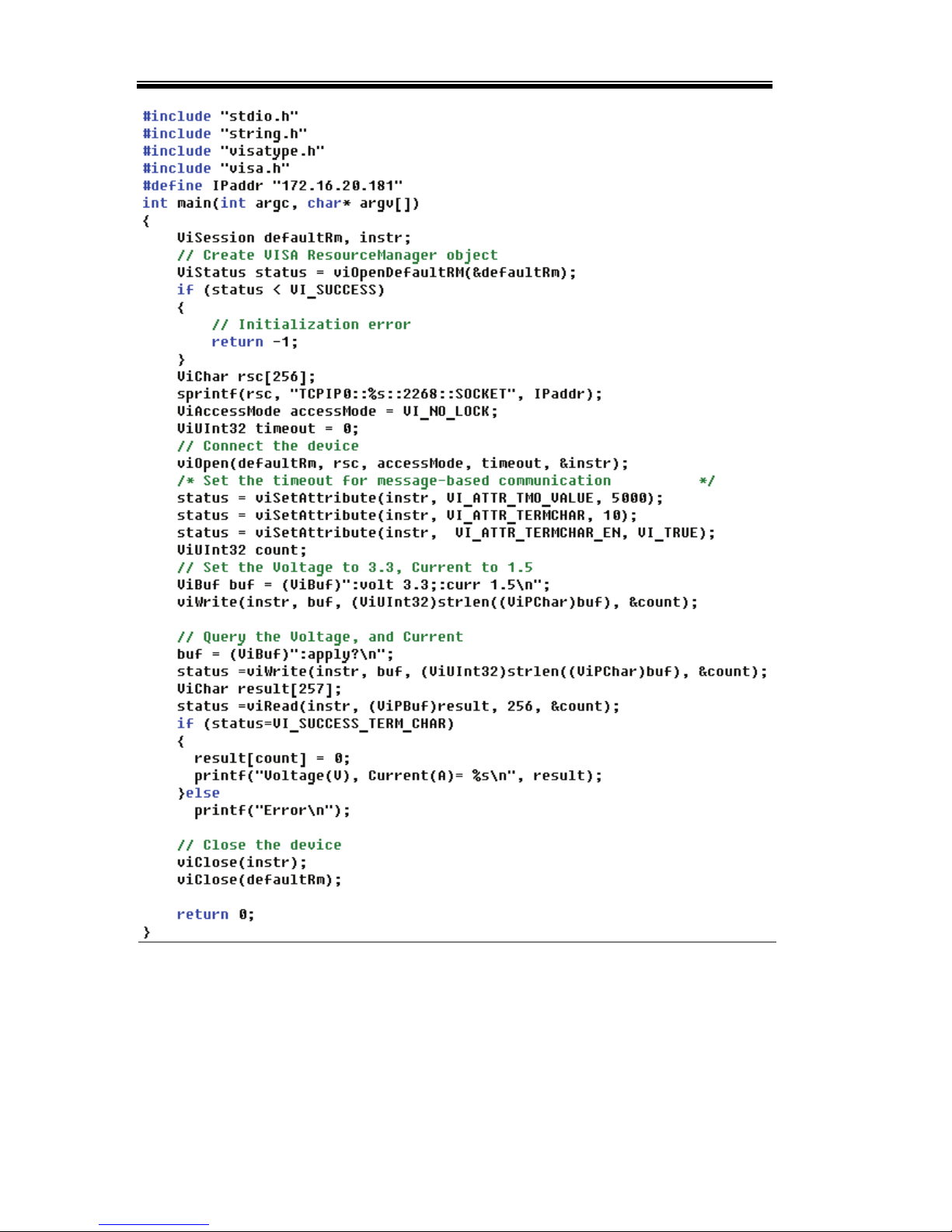

C++ Example

Background

The following program creates a connection to the 2260B and sets the voltage to 3.3 volts and the current 1.5 amps. The voltage and current reading is then read back and the connection is closed.

Note

Add visa32.lib to the project library when building the following sample program.

2260B Series Programming Manual

REMOTE CONTROL

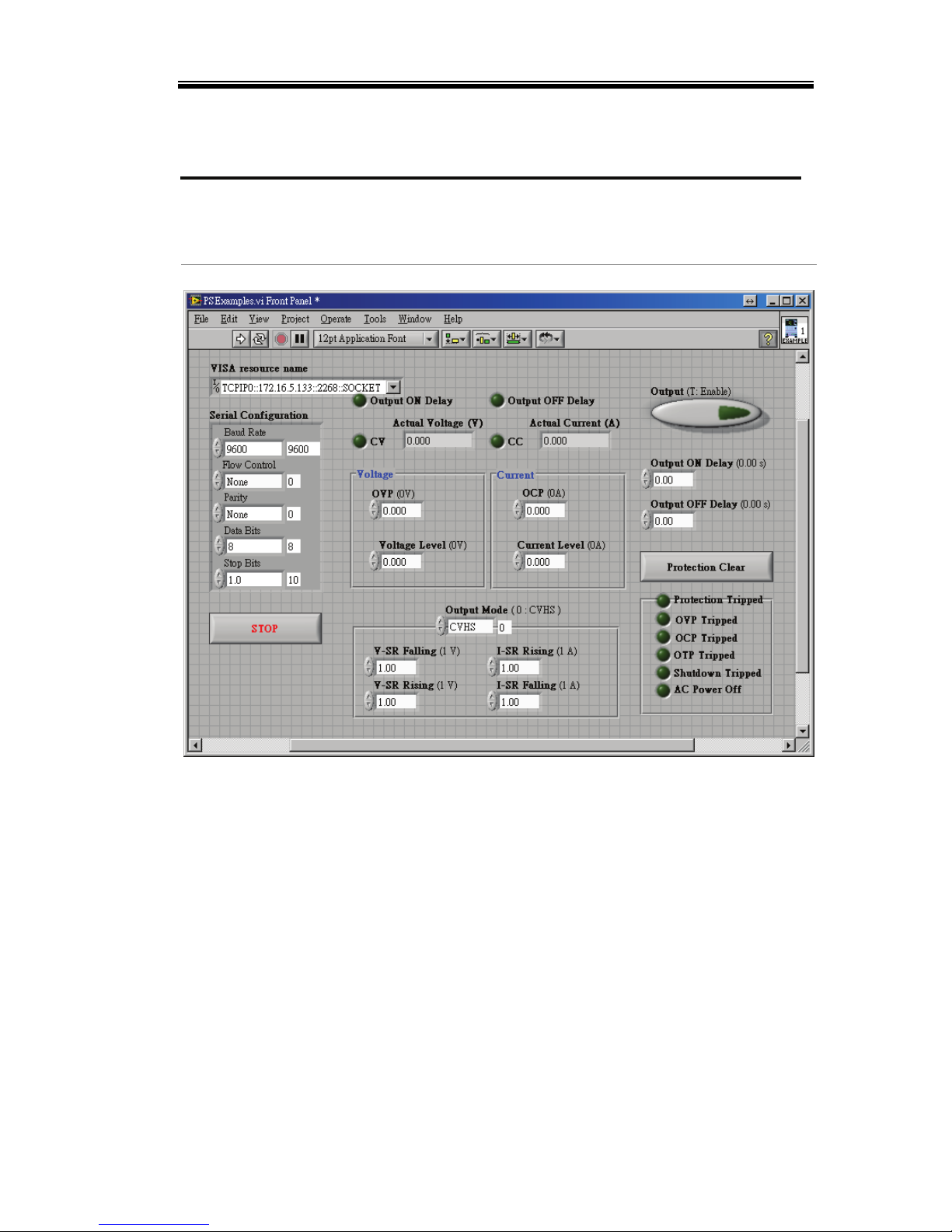

LabVIEW Example

Background

The following picture shows a LabView programming example for the 2260B.

2260B Series Programming Manual

Command Syntax

Compatible Standard

IEEE488.2

Partial compatibility

SCPI, 1999

Partial compatibility

Command Structure

SCPI commands follow a tree-like structure, organized into nodes. Each level of the command tree is a node. Each keyword in a SCPI command represents each node in the command tree. Each keyword (node) of a SCPI command is separated by a colon (:).

For example, the diagram below shows an SCPI sub-structure and a command example.

Command types

There are a number of different instrument commands and queries. A command sends instructions or data to the unit and a query receives data or status information from the unit.

Command types

Simple

A single command with/without a parameter

Example

*IDN?

REMOTE CONTROL

Query

A query is a simple or compound command followed by a question mark (?). A parameter (data) is returned.

Example

meas:curr:dc?

Compound

Two or more commands on the same command line. Compound commands are separated with either a semicolon (;) or a semi-colon and a colon (;:).

A semi-colon is used to join two related commands, with the caveat that the last command must begin at the last node of the first command.

A semi-colon and colon are used to combine two commands from different nodes.

Example

meas:volt:dc?;:meas:curr:dc?

2260B Series Programming Manual

Command Forms

Commands and queries have two different forms, long and short. The command syntax is written with the short form of the command in capitals and the remainder (long form) in lower case.

The commands can be written in capitals or lower-case, just so long as the short or long forms are complete. An incomplete command will not be recognized.

Below are examples of correctly written commands.

Long form

STATus:OPERation:NTRansition? STATUS:OPERATION:NTRANSITION?

status:operation:ntransition? Short form

STAT:OPER:NTR?

stat:oper:ntr?

Square Brackets

Commands that contain square brackets indicate that the contents are optional. The function of the command is the same with or without the square bracketed items, as shown below.

Both “DISPlay:MENU[:NAME]?” and “DISPlay:MENU?” are both valid forms.

Command Format

1. Command header

2. Space

3. Parameter 1

4. Comma (no space

before/after comma)

5. Parameter 2

Parameters Type Description Example

Boolean logic 0, 1

REMOTE CONTROL

<NR1>

integers 0, 1, 2, 3

<NR2>

decimal numbers

0.1, 3.14, 8.5

<NR3>

floating point 4.5e-1, 8.25e+1

<NRf>

any of NR1, 2, 3

1, 1.5, 4.5e-1

String parameters are any ASCII characters (ASCII: 20H to 7EH) that are enclosed in either single or double quotes. For example: ‘STRING’ or “STRING”.

Definitive length arbitrary block data. A single decimal digit followed by data. The decimal digit specifies how many 8-bit data bytes follow.

Message Te rmi na to r

LF Line feed code

Command List

Abort Commands

BORt ................................................................................... 42

Apply Commands

PPLy .................................................................................... 42

Display Commands

DISPlay:MENU[:NAME] ................................................... 43



DISPlay[:WINDow]:TEXT:CLEar .................................... 44

DISPlay[:WINDow]:TEXT[:DATA] ................................. 44

DISPlay:BLINk ..................................................................... 45

Initiate Commands

INITiate[:IMMediate]:NAME ............................................ 45

Measure Commands

MEASure[:SCALar]:CURRent[:DC] .................................. 46



MEASure[:SCALar]:VOLTage[:DC] ................................. 46

MEASure[:SCALar]:POWer[:DC] ...................................... 46

2260B Series Programming Manual

Output Commands

OUTPut:DELay:ON ........................................................... 47

OUTPut:DELay:OFF .......................................................... 47

OUTPut:MODE .................................................................. 48

OUTPut[:STATe][:IMMediate] .......................................... 48

OUTPut[:STATe]:TRIGgered ............................................ 48

OUTPut:PROTection:CLEar ............................................. 50

OUTPut:PROTection:TRIPped ......................................... 50

Status Commands

STATus:OPERation[:EVENt] ........................................... 51

STATus:OPERation:CONDition ...................................... 51

STATus:OPERation:ENABle ............................................ 51

STATus:OPERation:PTRansition ...................................... 52

STATus:OPERation:NTRansition ..................................... 52

STATus:QUEStionable[:EVENt] ...................................... 52

STATus:QUEStionable:CONDition ................................. 53

STATus:QUEStionable:ENABle ....................................... 53

STATus:QUEStionable:PTRansition................................. 53

STATus:QUEStionable:NTRansition ................................ 53

STATus:PRESet ................................................................... 54

Source Commands

[SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] 55 [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] . 56

[SOURce:]CURRent:PROTection[:LEVel] ...................... 56

[SOURce:]CURRent:PROTection:STATe ........................ 57

[SOURce:]CURRent:SLEW:RISing ................................... 57

[SOURce:]CURRent:SLEW:FALLing ............................... 57

[SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]

................................................................................................. 58

[SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]

................................................................................................. 58

[SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] 59

[SOURce:]VOLTage:PROTection[:LEVel] ...................... 59

[SOURce:]VOLTage:SLEW:RISing ................................... 60

[SOURce:]VOLTage:SLEW:FALLing .............................. 60

Trigger Commands

TRIGger:TRANsient[:IMMediate] ..................................... 61

TRIGger:TRANsient:SOURce ........................................... 61

TRIGger:OUTPut[:IMMediate] ......................................... 62

TRIGger:OUTPut:SOURce ................................................ 62

System Commands

SYSTem:CONFigure:BEEPer[:STATe] ............................ 64

SYSTem:CONFigure:BLEeder[:STATe] .......................... 65

SYSTem:CONFigure:BTRip[:IMMediate] ........................ 65

REMOTE CONTROL

SYSTem:CONFigure:BTRip:PROTection ....................... 65

SYSTem:CONFigure:CURRent:CONTrol ....................... 66

SYSTem:CONFigure:VOLTage:CONTrol ...................... 66

SYSTem:CONFigure:MSLave ............................................ 67

SYSTem:CONFigure:OUTPut:EXTernal[:MODE] ....... 67

SYSTem:CONFigure:OUTPut:PON[:STATe] ................ 67

SYSTem:COMMunicate:ENABle ...................................... 68

SYSTem:COMMunicate:GPIB[:SELF]:ADDRess .......... 69

SYSTem:COMMunicate:LAN:IPADdress ....................... 69

SYSTem:COMMunicate:LAN:GATEway ........................ 69

SYSTem:COMMunicate:LAN:SMASk .............................. 70

SYSTem:COMMunicate:LAN:MAC ................................. 70

SYSTem:COMMunicate:LAN:DHCP ............................... 70

SYSTem:COMMunicate:LAN:DNS .................................. 71

SYSTem:COMMunicate:LAN:HOSTname ...................... 71

SYSTem:COMMunicate:LAN:WEB:PACTive ................ 71

SYSTem:COMMunicate:LAN:WEB:PASSword ............. 72

SYSTem:COMMunicate:USB:FRONt:STATe ................. 72

SYSTem:COMMunicate:USB:REAR:STATe ................... 72

SYSTem:ERRor .................................................................... 72

SYSTem:KLOCk .................................................................. 73

SYSTem:INFormation ......................................................... 73

SYSTem:PRESet ................................................................... 74

SYSTem:VERSion ................................................................ 74

Common Commands

*CLS ....................................................................................... 75



*ESE ....................................................................................... 75

*ESR ....................................................................................... 75

*IDN ...................................................................................... 75

*OPC ...................................................................................... 76

*RST ....................................................................................... 76

*SRE ....................................................................................... 76

*STB ....................................................................................... 77

*TRG ...................................................................................... 77

*TST ....................................................................................... 77

*WAI ...................................................................................... 77

2260B Series Programming Manual

Abort Commands

BORt ................................................................................... 42

ABORt

Description

The ABORt command will cancel any triggered actions.

Syntax ABORt

APPLy Commands

PPLy.................................................................................... 42

APPLy

Description

The APPLy command is used to set both the voltage and current. The voltage and current will be output as soon as the function is executed if the programmed values are within the accepted range. An execution error will occur if the programmed values are not within accepted ranges.

The Apply command will set the voltage/current values but these values will not be reflected on the display until the Output is On or if the DISPlay:MENU:NAME 3 (set menu) command is used.

Syntax

Query Syntax

APPLy {<voltage>|MIN|MAX}[,{<current>|MIN|MAX}]

APPLy?

Set

Query

REMOTE CONTROL

Parameter <voltage>

<NRf> 0% ~ 105% of the rated output voltage.

<NRf> 0% ~ 105% of the rated output current.

MIN

0 volts/0 amps

MAX

Maxium value for the present range.

Return parameter <NRf> Returns the voltage and current.

Example APPL 5.05,1.1

Sets the voltage and current to 5.05V and 1.1A.

Query Example APPL?

+5.050, +1.100

Returns voltage (5.05V) and current (1.1A) setting.

Display Commands

DISPlay:MENU[:NAME] ................................................... 43

DISPlay[:WINDow]:TEXT:CLEar .................................... 44

DISPlay[:WINDow]:TEXT[:DATA] ................................. 44

DISPlay:BLINk ..................................................................... 45

DISPlay:MENU[:NAME]

Description

The DISPlay MENU command selects a screen menu or queries the current screen menu.

Syntax

Query Sytax

DISPlay:MENU[:NAME] <NR1>

DISPlay:MENU[:NAME]?

Parameter/ Return parameter

<NR1>

Description

Measurement-Voltage / MeasurementCurrent

Measurement-Voltage / Measurement-Power

Measurement-Power / Measurement-Current

Set Menu

OVP / OCP Menu

5~99

Not Used.

100~199

F-00~99 Menu.

Set

Query

2260B Series Programming Manual

Example DISP:MENU:NAME 0

Sets the display to the Voltage/Current display screen.

DISPlay[:WINDow]:TEXT:CLEar

Description

Clears the text on the main screen from the DISPlay[:WINDow]:TEXT[:DATA] command .

Syntax DISPlay[:WINDow]:TEXT:CLEar

DISPlay[:WINDow]:TEXT[:DATA]

Description

Sets or queries the data text that will be written to the display. Writing to the display will overwrite data that is currently on the screen. Overwriting a display area with a shorter string may or may not overwrite the screen. The string must be enclosed in either single or double quotes: ‘STRING’ or “STRING”. Only ASCII characters 20H to 7EH can be used in the <string>. A null string, “”, can also be used. This is the equivalent of using the DISPlay[:WINDow]:TEXT:CLEar function.

Syntax

Query Syntax

DISPlay[:WINDow]:TEXT[:DATA] <string>

DISPlay[:WINDow]:TEXT[:DATA]?

Parameter/ Return parameter

ASCII characters 20H to 7EH or a null string, “”, can be used in the string parameter.

Example DISP:WIND:TEXT:DATA ‘STRING’

Writes STRING to the display.

Query Example DISP:WIND:TEXT:DATA?

STRING

Returns the text data string on the screen.

Set

Query

REMOTE CONTROL

DISPlay:BLINk

Description

Turns blink on or off for the display.

Syntax

Query Syntax

DISPlay:BLINk { 0 | 1 | OFF | ON }

DISPlay:BLINk?

Parameter 0

<NR1>Turns blink OFF

OFF

Turns blink OFF

<NR1> Turns blink ON

Turns blink ON

Return parameter 0

<NR1>Turns blink OFF

<NR1>Turns blink ON

Example DISP:BLIN 1

Tur ns b l in k ON .

Initiate Commands

INITiate[:IMMediate]:NAME ............................................ 45

INITiate[:IMMediate]:NAME

Description

The INITiate command starts the TRANsient or OUTPut trigger.

Syntax INITiate[:IMMediate]:NAME {TRANsient|OUTPut} Parameter TRANSient

Starts the TRANsient trigger.

OUTPut

Starts the OUTPut trigger.

Example INITiate:NAME TRANient

Starts the TRANSient trigger.

Set

Query

Set

2260B Series Programming Manual

Measure Commands

MEASure[:SCALar]:CURRent[:DC].................................. 46

MEASure[:SCALar]:VOLTage[:DC] ................................. 46

MEASure[:SCALar]:POWer[:DC] ...................................... 46

MEASure[:SCALar]:CURRent[:DC]

Description

Takes a measurement and returns the average output current

Syntax MEASure[:SCALar]:CURRent[:DC]? Return parameter <NRf>

Returns the current in amps.

MEASure[:SCALar]:VOLTage[:DC]

Description

Takes a measurement and returns the average output voltage.

Syntax MEASure[:SCALar]:VOLTage[:DC]? Return <NRf>

Returns the voltage in volts.

MEASure[:SCALar]:POWer[:DC]

Description

Takes a measurement and returns the average output power.

Syntax MEASure[:SCALar]:POWer[:DC]? Return <NRf>

Returns the power measured in watts.

Query

REMOTE CONTROL

Output Commands

OUTPut:DELay:ON............................................................ 47

OUTPut:DELay:OFF .......................................................... 47

OUTPut:MODE................................................................... 48

OUTPut[:STATe][:IMMediate] .......................................... 48

OUTPut[:STATe]:TRIGgered ............................................ 48

OUTPut:PROTection:CLEar ............................................. 50

OUTPut:PROTection:TRIPped ......................................... 50

OUTPut:DELay:ON

Description

Sets the Delay Time in seconds for turning the output on. The delay is set to 0.000 by default.

Syntax

Query Syntax

OUTPut:DELay:ON <NRf>

OUTPut:DELay:ON?

Parameter <NRf>

0.00~99.99 seconds, where 0=no delay.

Return parameter <NRf>

Returns the delay on time in seconds until the output is turned on.

OUTPut:DELay:OFF

Description

Sets the Delay Time in seconds for turning the output off. The delay is set to 0.000 by default.

Syntax

Return Syntax

OUTPut:DELay:OFF <NRf>

OUTPut:DELay:OFF?

Parameter <NRf>

0.00~99.99 seconds, where 0=no delay.

Return parameter <NRf>

Returns the delay off time in seconds until the output is turned off.

Set

Query

Set

Query

2260B Series Programming Manual

OUTPut:MODE

Description

Sets the 2260B output mode. This is the equivalent to the F-03 (V-I Mode Slew Rate Select) settings.

Syntax

Return Syntax

OUTPut:MODE {<NR1>|CVHS|CCHS|CVLS|CCLS}

OUTPut:MODE?

Parameter 0

CV high speed priority

CVHS

CV high speed priority

CC high speed priority

CCHS

CC high speed priority

CV slew rate priority

CVLS

CV slew rate priority

CC slew rate priority

CCLS

CC slew rate priority

Return parameter <NR1>

Returns the output mode.

OUTPut[:STATe][:IMMediate]

Description

Turns the output on or off.

Syntax

Query Syntax

OUTPut[:STATe][:IMMediate] { OFF | ON | 0 | 1 }

OUTPut[:STATe][:IMMediate]?

Parameter 0

<NR1> Turns the output off.

OFF

Turns the output off.

<NR1> Turns the output on.

Turns the output on.

Return parameter <NR1>

Returns output status of the instrument.

OUTPut[:STATe]:TRIGgered

Description

Turns the output on or off when a software trigger is generated.

Syntax

Query Syntax

OUTPut[:STATe]:TRIGgered { OFF | ON | 0 | 1 }

OUTPut[:STATe]:TRIGgered?

Set

Query

Set

Query

Set

Query

REMOTE CONTROL

Parameter 0

<NR1>Turns the output off when a software trigger is generated.

OFF

Turns the output off when a software trigger is generated.

<NR1>Turns the output on when a software trigger is generated.

Turns the output on when a software trigger is generated.

Return parameter <NR1>

Returns output trigger status of the instrument.

2260B Series Programming Manual

OUTPut:PROTection:CLEar

Description

Clears over-voltage, over-current and overtemperature (OVP, OCP, OTP) protection circuits. It also clears the shutdown protection circuit. The AC failure protection cannot be cleared.

Syntax OUTPut:PROTection:CLEar

OUTPut:PROTection:TRIPped

Description

Returns the state of the protection circuits (OVP, OCP, OTP).

Query Syntax OUTPut:PROTection:TRIPped? Return parameter 0

<NR1>Protection circuits are not tripped.

<NR1>Protection circuits are tripped.

Set

Query

REMOTE CONTROL

Status Commands

STATus:OPERation[:EVENt] ........................................... 51

STATus:OPERation:CONDition ...................................... 51

STATus:OPERation:ENABle ............................................ 51

STATus:OPERation:PTRansition ...................................... 52

STATus:OPERation:NTRansition ..................................... 52

STATus:QUEStionable[:EVENt] ...................................... 52

STATus:QUEStionable:CONDition ................................. 53

STATus:QUEStionable:ENABle ....................................... 53

STATus:QUEStionable:PTRansition ................................. 53

STATus:QUEStionable:NTRansition ................................ 53

STATus:PRESet ................................................................... 54

STATus:OPERation[:EVENt]

Description

Queries the Operation Status Event register and

clears the contents of the register.

Syntax STATus:OPERation[:EVENt]? Return <NR1>

Returns the bit sum of the Operation Status Event register.

STATus:OPERation:CONDition

Description

Queries the Operation Status register. This query will not clear the register.

Syntax STATus:OPERation:CONDition? Return <NR1>

Returns the bit sum of the Operation Condition register.

STATus:OPERation:ENABle

Description

Sets or queries the bit sum of the Operation Status Enable register.

Syntax

Query Syntax

STATus:OPERation:ENABle <NRf>

STATus:OPERation:ENABle?

Query

Set

Query

2260B Series Programming Manual

Parameter

<NRf>

0~32767

Return parameter <NR1>

0~32767

STATus:OPERation:PTRansition

Description

Sets or queries the bit sum of the positive transition filter of the Operation Status register.

Syntax STATus:OPERation:PTRansition <NRf>

STATus:OPERation:PTRansition?

Parameter <NRf>

0~32767

Return parameter <NR1>

0~32767

STATus:OPERation:NTRansition

Description

Sets or queries the bit sum of the negative transition filter of the Operation Status register.

Syntax

Query Syntax

STATus:OPERation:NTRansition <NRf>

STATus:OPERation:NTRansition?

Parameter <NRf>

0~32767

Return parameter <NR1>

0~32767

STATus:QUEStionable[:EVENt]

Description

Queries the bit sum of the Questionable Status Event register. This query will also clear the contents of the register.

Query Syntax STATus:QUEStionable[:EVENt]? Parameter <NRf>

0~32767

Return parameter <NR1>

0~32767

Set

Query

Set

Query

REMOTE CONTROL

STATus:QUEStionable:CONDition

Description

Queries the status (bit sum) of the Questionable Status register. This query will not clear the register.

Query Syntax STATus:QUEStionable:CONDition? Parameter <NRf>

0~32767

Return parameter <NR1>

0~32767

STATus:QUEStionable:ENABle

Description

Sets or queries the bit sum of the Questionable Status Enable register.

Syntax

Query Syntax

STATus:QUEStionable:ENABle <NRf>

STATus:QUEStionable:ENABle?

Parameter <NRf>

0~32767

Return parameter <NR1>

0~32767

STATus:QUEStionable:PTRansition

Description

Sets or queries the bit sum of the positive transition filter of the Questionable Status register.

Syntax

Return Syntax

STATus:QUEStionable:PTRansition <NRf>

STATus:QUEStionable:PTRansition?

Parameter <NRf>

0~32767

Return parameter <NR1>

0~32767

STATus:QUEStionable:NTRansition

Description

Sets or queries the negative transition filter of the Questionable Status register.

Syntax

Query Syntax

STATus:QUEStionable:NTRansition <NRf>

STATus:QUEStionable:NTRansition?

Query

Set

Query

Set

Query

Set

Query

2260B Series Programming Manual

Parameter

<NRf>

0~32767

Return parameter <NR1>

0~32767

STATus:PRESet

Description

This command resets the ENABle register, the PTRansistion filter and NTRansistion filter on the Operation Status and Questionable Status Registers. The registers/filters will be reset to a default value.

Default Register/Filter Values Setting

QUEStionable Status Enable 0x0000

QUEStionable Status Positive Transition 0x7FFF

QUEStionable Status Negative Transition

0x0000

Operation Status Enable 0x0000

Operation Status Positive Transition 0x7FFF

Operation Status Negative Transition 0x0000

Summary: The Questionable Status Enable registers and the Operation Status Enable registers are both reset to 0.

The Questionable Status and Operation Status Positive Transition filters are all set high (0x7FFF) and the Negative Transition filters are all set low (0x0000). I.e., only positive transitions will be recognized for the Questionable Status and Operation Status registers.

Syntax STATus:PRESet

Set

REMOTE CONTROL

Source Commands

[SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]55 [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] . 56

[SOURce:]CURRent:PROTection[:LEVel] ...................... 56

[SOURce:]CURRent:PROTection:STATe ........................ 57

[SOURce:]CURRent:SLEW:RISing ................................... 57

[SOURce:]CURRent:SLEW:FALLing ............................... 57

[SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]

................................................................................................. 58



[SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]

................................................................................................. 58



[SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] 59

[SOURce:]VOLTage:PROTection[:LEVel] ...................... 59

[SOURce:]VOLTage:SLEW:RISing ................................... 60

[SOURce:]VOLTage:SLEW:FALLing .............................. 60

[SOURce:]CURRent[:LEVel][:IMMediate] [:AMPLitude]

Description

Sets or queries the current level in amps. For externally set current levels (from the analog control connector) the set current level is returned.

Syntax [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]

{<NRf>|MIN|MAX}

Query Syntax [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]?

[MIN|MAX]

Parameter/Return

<NRf>

0~105% of the rated current output level.

MIN

Minimum current level.

MAX

Maximum current level.

Example SOUR:CURR:LEV:IMM:AMPL? MAX

37.800

Returns the maximum possible current level in amps.

Set

Query

2260B Series Programming Manual

[SOURce:]CURRent[:LEVel]:TRIGgered [:AMPLitude]

Description

Sets or queries the current level in amps when a software trigger has been generated.

Syntax

[SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] {<NRf>|MIN|MAX}

Query Syntax [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude]?

[MIN|MAX]

Parameter/Return

<NRf>

0%~105% of the rated current output in amps.

MIN

Minimum current level.

MAX

Maximum current level.

Example SOUR:CURR:LEV:TRIG:AMPL? MAX

37.800

Returns the maximum possible current level in amps.

[SOURce:]CURRent:PROTection[:LEVel]

Description

Sets or queries the OCP (over-current protection) level in amps.

Syntax

[SOURce:]CURRent:PROTection[:LEVel] {<NRf>|MIN|MAX}

Query Syntax [SOURce:]CURRent:PROTection[:LEVel]? [MIN|MAX] Parameter/Return

<NRf>

10%~110% of the rated current output level.

MIN

Minimum current level.

MAX

Maximum current level.

Example SOUR:CURR:PROT:LEV? MIN

+3.600

Returns the minimum possible current level in amps.

Set

Query

Set

Query

REMOTE CONTROL

[SOURce:]CURRent:PROTection:STATe

Description

Turns OCP (over-current protection) on or off.

Syntax [SOURce:]CURRent:PROTection:STATe {0|1|OFF|ON}

Query Syntax [SOURce:]CURRent:PROTection:STATe? Parameter/Return

<NR1> Turns the buzzer off.

OFF

Turns the buzzer off.

<NR1> Turns the buzzer on.

Turns the buzzer on.

Return parameter <Bool>

Returns bleeder resistor status (0 or 1).

Example SOUR:CURR:PROT:STAT OFF

Tur ns O CP o ff.

[SOURce:]CURRent:SLEW:RISing

Description

Sets or queries the rising current slew rate. This is only applicable for CC slew rate priority mode.

Syntax

Query Syntax

[SOURce:]CURRent:SLEW:RISing {<NRf>|MIN|MAX}

[SOURce:]CURRent:SLEW:RISing? [MIN|MAX]

Parameter/Return <NRf>

0.01A/s~200% (2260B-30-36)

0.1A/s~200% (2260B-30-72)

0.01A/s~200% (2260B-80-13)

0.01A/s~200% (2260B-80-27)

MIN

Minimum rising current slew rate.

MAX

Maximum rising current slew rate.

Example SOUR:CURR:SLEW:RIS 72

Sets the rising current slew rate to 72A/s.

[SOURce:]CURRent:SLEW:FALLing

Description

Sets or queries the falling current slew rate. This is only applicable for CC slew rate priority mode.

Syntax [SOURce:]CURRent:SLEW:FALLing {<NRf>|MIN|MAX}

Set

Query

Set

Query

Set

Query

2260B Series Programming Manual

Query Syntax [SOURce:]CURRent:SLEW:FALLing? [MIN|MAX] Parameter/Return

NRf

0.01A/s~200% (2260B-30-36)

0.1A/s~200% (2260B-30-72)

0.01A/s~200% (2260B-80-13)

0.01A/s~200% (2260B-80-27)

MIN

Minimum falling current slew rate

MAX

Maximum falling current slew rate

Example SOUR:CURR:SLEW:FALL 1

Sets the falling current slew rate to 1A/s.

[SOURce:]RESistance[:LEVel][:IMMediate] [:AMPLitude]

Description

Sets or queries the internal resistance in ohms.

Syntax [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]

{<NRf>|MIN|DEF|MAX|?}

Query Syntax [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]

? [MIN|MAX]

Parameter/Return

<NRf>

Resistance in ohms:

0.000Ω~0.833Ω (2260B-30-36)

0.000Ω~0.417Ω (2260B-30-72)

0.000Ω~5.926Ω (2260B-80-13)

0.000Ω~2.963Ω (2260B-80-27)

MIN

Minimum internal resistance in ohms

MAX

Maximum internal resistance in ohms

Example SOUR:RES:LEV:IMM:AMPL 0.1

Sets the internal resistance to 100m

Ω.

[SOURce:]VOLTage[:LEVel][:IMMediate] [:AMPLitude]

Description

Sets or queries the voltage level in volts.

Syntax [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]

{<NRf>|MIN|MAX}

Query Syntax [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]?

[MIN|MAX]

Set

Query

Set

Query

REMOTE CONTROL

Parameter/Return <NRf>

0~105% of the rated output voltage in volts.

MIN

Minimum voltage level

MAX

Maximum voltage level

Example SOUR:VOLT:LEV:IMM:AMPL 10

Sets the voltage level to 10 volts.

[SOURce:]VOLTage[:LEVel]:TRIGgered [:AMPLitude]

Description

Sets or queries the voltage level in volts when a software trigger has been generated.

Syntax

[SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] {<NRf>|MIN|MAX}

Query Syntax [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude]?

[MIN|MAX]

Parameter/Return

<NRf>

0%~105% of the rated voltage output in volts.

MIN

Minimum current level.

MAX

Maximum current level.

Example SOUR:VOLT:LEV:TRIG:AMPL 10

Sets the voltage level to 10 volts when a software trigger is generated.

[SOURce:]VOLTage:PROTection[:LEVel]

Description

Sets or queries the overvoltage protection level.

Syntax [SOURce:]VOLTage:PROTection[:LEVel]

{<NRf>|MIN|MAX}

Query Syntax [SOURce:]VOLTage:PROTection[:LEVel]? [MIN|MAX] Parameter/Return

<NRf>

10%~110% of the rated output voltage in volts.

MIN

Minimum OVP level

MAX

Maximum OVP level

Example SOUR:VOLT:PROT:LEV MAX

Sets the OVP level to its maximum.

Set

Query

Set

Query

2260B Series Programming Manual

[SOURce:]VOLTage:SLEW:RISing

Description

Sets or queries the rising voltage slew rate. This is only applicable for CV slew rate priority mode.

Syntax

Query Syntax

[SOURce:]VOLTage:SLEW:RISing {<NRf>|MIN|MAX}

[SOURce:]VOLTage:SLEW:RISing? [MIN|MAX]

Parameter/Return <NRf>

0.01V/s--200% (2260B-30-XX)

0.1V/s--200% (2260B-80-XX)

MIN

Minimum rising voltage slew rate.

MAX

Maximum rising voltage slew rate.

Example SOUR:VOLT:SLEW:RIS MAX

Sets the rising voltage slew rate to its maximum.

[SOURce:]VOLTage:SLEW:FALLing

Description

Sets or queries the falling voltage slew rate. This is only applicable for CV slew rate priority mode.

Syntax [SOURce:]VOLTage:SLEW:FALLing {<NRf>|MIN|MAX}

Query Syntax [SOURce:]VOLTage:SLEW:FALLing? [MIN|MAX] Parameter/Return

<NRf>

0.01V/s--200% (2260B-30-XX)

0.1V/s--200% (2260B-XX)

MIN

Minimum voltage falling slew rate.

MAX

Maximum voltage falling slew rate.

Example SOUR:VOLT:SLEW:FALL MIN

Sets the falling voltage slew rate to its minimum.

Set

Query

Set

Query

REMOTE CONTROL

Trigger Commands

The trigger commands generate and configure software triggers.

This power supply supports the following two trigger functions.

• TRANsient

Specifies the current and voltage settings in advance and uses the

trigger to set them. Please refer to VOLT:TRIG, CURR:TRIG on

page 56 and 62 for details.

• OUTPut

Specifies the output on/ off settings in advance and uses the trigger

to set them. Please refer to OUTP:TRIG on page 62 for details.

RIGger:TRANsient[:IMMediate]..................................... 61

TRIGger:TRANsient:SOURce ........................................... 61

TRIGger:OUTPut[:IMMediate] ......................................... 62

TRIGger:OUTPut:SOURce ................................................ 62

TRIGger:TRANsient[:IMMediate]

Description

Generates a software trigger for the transient trigger system.

Syntax TRIGger:TRANsient[:IMMediate]

TRIGger:TRANsient:SOURce

Description

Sets or queries the trigger source for the transient system.

Syntax

Query Syntax

TRIGger:TRANsient:SOURce {BUS | IMMediate}

TRIGger:TRANsient:SOURce?

Parameter/Return BUS

Internal software trigger. Waits for the *TRG (or IEEE 488.1 “get” group execute trigger) command to start the trigger.

IMMediate

Starts the trigger immediately. (default)

Set

Query

2260B Series Programming Manual

Example: Immediate Mode

TRIG:TRAN:SOUR IMM

CURR:TRIG MAX

VOLT:TRIG 5

INIT:NAME TRAN

The current changes to the maximum, and the voltage changes to 5V.

Example: Bus Mode

TRIG:TRAN:SOUR BUS

CURR:TRIG MAX

VOLT:TRIG 5

INIT:NAME TRAN

TRIG:TRAN

The current changes to the maximum, and the voltage changes to 5V.

TRIGger:OUTPut[:IMMediate]

Description

Generates a software trigger for the output trigger system.

Syntax TRIGger:OUTPut[:IMMediate]

TRIGger:OUTPut:SOURce

Description

Sets or queries the trigger source for the output system.

Syntax TRIGger:OUTPut:SOURce [BUS | IMMediate]

Query Syntax TRIGger:OUTPut:SOURce? Parameter/Return

BUS

Internal software trigger. Waits for the *TRG (or IEEE 488.1 “get” group execute trigger) command to start the trigger.

IMMediate

Starts the trigger immediately. (default)

Set

Query

REMOTE CONTROL

Example:

Immediate Mode

TRIG:OUTP:SOUR IMM

OUTP:TRIG 1

INIT:NAME OUTP

The output changes to ON.

Example: Bus Mode

TRIG:OUTP:SOUR BUS

OUTP:TRIG 1

INIT:NAME OUTP

TRIG:OUTP

The output changes to ON.

2260B Series Programming Manual

System Function Command

SYSTem:CONFigure:BEEPer[:STATe]............................ 64

SYSTem:CONFigure:BLEeder[:STATe] .......................... 65

SYSTem:CONFigure:BTRip[:IMMediate] ........................ 65

SYSTem:CONFigure:BTRip:PROTection ....................... 65

SYSTem:CONFigure:CURRent:CONTrol ....................... 66

SYSTem:CONFigure:VOLTage:CONTrol ...................... 66

SYSTem:CONFigure:MSLave ............................................ 67

SYSTem:CONFigure:OUTPut:EXTernal[:MODE] ....... 67

SYSTem:CONFigure:OUTPut:PON[:STATe] ................ 67

SYSTem:COMMunicate:ENABle ...................................... 68

SYSTem:COMMunicate:GPIB[:SELF]:ADDRess .......... 69

SYSTem:COMMunicate:LAN:IPADdress ....................... 69

SYSTem:COMMunicate:LAN:GATEway ........................ 69

SYSTem:COMMunicate:LAN:SMASk .............................. 70

SYSTem:COMMunicate:LAN:MAC ................................. 70

SYSTem:COMMunicate:LAN:DHCP ............................... 70

SYSTem:COMMunicate:LAN:DNS .................................. 71

SYSTem:COMMunicate:LAN:HOSTname ...................... 71

SYSTem:COMMunicate:LAN:WEB:PACTive ................ 71

SYSTem:COMMunicate:LAN:WEB:PASSword ............. 72

SYSTem:COMMunicate:USB:FRONt:STATe ................. 72

SYSTem:COMMunicate:USB:REAR:STATe ................... 72

SYSTem:ERRor .................................................................... 72

SYSTem:KLOCk .................................................................. 73

SYSTem:INFormation ......................................................... 73

SYSTem:PRESet ................................................................... 74

SYSTem:VERSion ................................................................ 74

SYSTem:CONFigure:BEEPer[:STATe]

Description

Sets or queries the buzzer state on/off.

Syntax

Query Syntax

SYSTem:CONFigure:BEEPer[:STATe] {OFF|ON|0|1}

SYSTem:CONFigure:BEEPer[:STATe]?

Parameter 0

<NR1> Turns the buzzer off.

OFF

Turns the buzzer off.

<NR1> Turns the buzzer on.

Turns the buzzer on.

Set

Query

REMOTE CONTROL

Return parameter <Boolean>

Returns the buzzer status.

SYSTem:CONFigure:BLEeder[:STATe]

Description

Sets or queries the status of the bleeder resistor.

Syntax

Query Syntax

SYSTem:CONFigure:BLEeder[:STATe] {OFF|ON|0|1}

SYSTem:CONFigure:BLEeder[:STATe]?

Parameter 0

<NR1> Turns the bleeder resistor off.

OFF

Turns the bleeder resistor off.

<NR1> Turns the bleeder resistor on.

Turns the bleeder resistor on.

Return parameter <Boolean>

Returns bleeder resistor status.

SYSTem:CONFigure:BTRip[:IMMediate]

Description

Trips the power switch trip (circuit breaker) to turn the unit off (shut down the power).

Syntax SYSTem:CONFigure:BTRip[:IMMediate]

SYSTem:CONFigure:BTRip:PROTection

Description

Enables/Disables the power switch trip (circuit breaker) when the OVP or OCP protection settings are tripped. This setting only applies after power has been cycled.

Syntax SYSTem:CONFigure:BTRip:PROTection

{DISable|ENABle|0|1}

Query Syntax SYSTem:CONFigure:BTRip:PROTection? Parameter

<NR1> Enables the power switch trip for OVP or OCP.

DISable

Disables the power switch trip for OVP or OCP.

<NR1> Disables the power switch trip for OVP or OCP.

ENABle

Enables the power switch trip for OVP or OCP.

Set

Query

Set

Query

2260B Series Programming Manual

Return parameter

Returns power switch trip setting.

SYSTem:CONFigure:CURRent:CONTrol

Description

Sets or queries the CC control mode (local control (panel), external voltage control, external resistance control). This setting is applied only after the power is cycled.

Syntax

Query Syntax

SYSTem:CONFigure:CURRent:CONTrol { 0 | 1 | 2 | 3 }

SYSTem:CONFigure:CURRent:CONTrol?

Parameter/Return <NR1>

Description

Local (Panel) control

External voltage control

External resistance control; 10kΩ = Io max, 0kΩ = Io min.

External resistance control; 10kΩ = Io min, 0kΩ = Io max.

SYSTem:CONFigure:VOLTage:CONTrol

Description

Sets or queries the CV control mode (local control, external voltage control, external resistance control). This setting is applied only after the power is cycled.

Syntax

Query Syntax

SYSTem:CONFigure:VOLTage:CONTrol { 0 | 1 | 2 | 3 }

SYSTem:CONFigure:VOLTage:CONTrol?

Parameter/Return <NR1>

Description

Local (Panel) control

External voltage control

External resistance control; 10kΩ = Vo max, 0kΩ = Vo min.

External resistance control; 10kΩ = Vo min, 0kΩ = Vo max.

Set

Query

Set

Query

REMOTE CONTROL

SYSTem:CONFigure:MSLave

Description

Sets or queries the unit operation mode. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:CONFigure:MSLave { 0 | 1 | 2 | 3 | 4 }

SYSTem:CONFigure:MSLave?

Parameter/Return <NR1> Description 0

Master/Local

Master/Parallel 1 (2 units)

Master/Parallel 2 (3 units)

Slave/Parallel

Slave/Series

SYSTem:CONFigure:OUTPut:EXTernal [:MODE]

Description

Sets the external logic as active high or active low. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:CONFigure:OUTPut:EXTernal[:MODE]

SYSTem:CONFigure:OUTPut:EXTernal[:MODE]?

Parameter 0

Active high

HIGH

Active high

Active low

LOW

Active low

Return Parameter 0

<boolean>Active high

<boolean>Active low

SYSTem:CONFigure:OUTPut:PON[:STATe]

Description

Sets the unit to turn the output ON/OFF at powerup. This setting is only applied after the power has been cycled.

Set

Query

Set

Query

Set

Query

2260B Series Programming Manual

Syntax

SYSTem:CONFigure:OUTPut:PON[:STATe] {OFF|ON|0|1}

Query Syntax SYSTem:CONFigure:OUTPut:PON[:STATe]? Parameter

Output off at power up

OFF

Output off at power up

Output on at power up

Return Parameter 0

Output off at power up

Output on at power up

SYSTem:COMMunicate:ENABle

Description

Enables/Disables LAN, GPIB or USB remote interfaces as well as remote services (Sockets, Web Server). This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:ENABle <mode>,<interface>

SYSTem:COMMunicate:ENABle? <interface>

Parameter <mode> OFF

Turns the selected mode off.

Turns the selected mode on.

<interface> GPIB

Select GPIB

USB

Select USB

LAN

Select LAN

SOCKets

Select Sockets

WEB

Select the web server

Return Parameter 0

The selected mode is off.

The selected mode is on.

Example SYST:COMM:ENAB 1,USB

Turns the USB interface on.

Query Example SYST:COMM:ENAB? USB

Queries the USB state, returns 1 (USB is on).

Set

Query

REMOTE CONTROL

SYSTem:COMMunicate:GPIB[:SELF]:ADDR ess

Description

Sets or queries the GPIB address. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <NR1>

SYSTem:COMMunicate:GPIB[:SELF]:ADDRess?

Parameter/Return <NR1>

0~30

Example SYST:COMM:GPIB:SELF:ADDR 15

Sets the GPIB address to 15.

SYSTem:COMMunicate:LAN:IPADdress

Description

Sets or queries LAN IP address. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:LAN:IPADdress <string>

SYSTem:COMMunicate:LAN:IPADdress?

Parameter/Return <string>

LAN IP address in string format ( “address”) Applicable ASCII characters: 20H to 7EH

Example SYST:COMM:LAN:IPAD “172.16.5.111”

Sets the IP address to 172.16.5.111.

SYSTem:COMMunicate:LAN:GATEway

Description

Sets or queries the Gateway address. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:LAN:GATEway <string>

SYSTem:COMMunicate:LAN:GATEway?

Parameter/Return <string>

Gateway address in string format ( “address”) Applicable ASCII characters: 20H to 7EH

Example SYST:COMM:LAN:GATE “172.16.0.254”

Sets the LAN gateway to 172.16.0.254.

Set

Query

Set

Query

Set

Query

2260B Series Programming Manual

SYSTem:COMMunicate:LAN:SMASk

Description

Sets or queries the LAN subnet mask. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:LAN:SMASk <string>

SYSTem:COMMunicate:LAN:SMASk?

Parameter/Return <string>

Subnet mask in string format ( “mask”) Applicable ASCII characters: 20H to 7EH

Example SYST:COMM:LAN:SMASk “255.255.0.0”

Sets the LAN mask to 255.255.0.0.

SYSTem:COMMunicate:LAN:MAC

Description

Returns the unit MAC address as a string. The MAC address cannot be changed.

Query Syntax SYSTem:COMMunicate:LAN:MAC? Return parameter <string>

Returns the MAC address in the following format “FF-FF-FF-FF-FF-FF”

Example SYST:COMM:LAN:MAC?

02-80-AD-20-31-B1 Returns the MAC address.

SYSTem:COMMunicate:LAN:DHCP

Description

Turns DHCP on/off. Queries the DHCP status. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:LAN:DHCP {OFF | ON | 0 | 1}

SYSTem:COMMunicate:LAN:DHCP?

Parameter 0

DHCP off

OFF

DHCP off

DHCP on

Return parameter 0

<boolean>DHCP off

<boolean>DHCP on

Set

Query

Set

Query

REMOTE CONTROL

SYSTem:COMMunicate:LAN:DNS

Description

Sets or queries the DNS address. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:LAN:DNS <string>

SYSTem:COMMunicate:LAN:DNS?

Parameter/Return <string>

DNS in string format ( “mask”) Applicable ASCII characters: 20H to 7EH

Example SYST:COMM:LAN:DNS “172.16.1.252”

Sets the DNS to 172.16.1.252.

SYSTem:COMMunicate:LAN:HOSTname

Description

Queries the host name.

Query Syntax SYSTem:COMMunicate:LAN:HOSTname? Return Parameter <string>

Host name in string format

Query Example SYST:COMM:LAN:HOST?

P-160054 Returns the host name (P-160054).

SYSTem:COMMunicate:LAN:WEB:PACTive

Description

Sets or queries whether the web password is on or off. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:LAN:WEB:PACTive {OFF | ON | 0 | 1}

SYSTem:COMMunicate:LAN:WEB:PACTive?

Parameter 0

Web password off

OFF

Web password off

Web password on

Return parameter 0

<boolean> Web password off

<boolean> Web password on

Set

Query

Set

Query

2260B Series Programming Manual

SYSTem:COMMunicate:LAN:WEB:PASSword

Description

Sets or queries the web password. This setting is only applied after the power has been cycled.

Syntax

Query Syntax

SYSTem:COMMunicate:LAN:WEB:PASSword <NR1>

SYSTem:COMMunicate:LAN:WEB:PASSword?

Parameter/Return <NR1>

0 ~ 9999

Example

SYST:COMM:LAN:WEB:PASS 1234

Set the web password as 1234.

SYSTem:COMMunicate:USB:FRONt:STATe

Description

Queries the front panel USB-A port state.

Query Syntax SYSTem:COMMunicate:USB:FRONt:STATe? Return parameter 0

<NR1>Absent

<NR1>Mass Storage

SYSTem:COMMunicate:USB:REAR:STATe

Description

Queries the rear panel USB-B port state.

Query Syntax SYSTem:COMMunicate:USB:REAR:STATe? Return parameter 0

<NR1>Absent

<NR1>USB-CDC

<NR1>GPIB-USB

SYSTem:ERRor

Description

Queries the error queue. The last error message is returned and cleared. A maximum of 16 errors are stored in the error queue. Each remote interface I/O session (i.e., GPIB, USB, LAN, etc.) has its own error queue.

Query Syntax SYSTem:ERRor?

Set

Query

REMOTE CONTROL

Paramter/Return <NR1>,<string>

Returns an error code followed by an error message as a string. The string is returned as “string”.

Example SYSTem:ERRor?

-100, “Command error”

SYSTem:KLOCk

Description

Enables or disables the front panel key lock.

Syntax

Query Syntax

SYSTem:KLOCk { OFF | ON | 0 | 1}

SYSTem:KLOCk?

Parameter 0

Panel keys unlocked

OFF

Panel keys unlocked

Panel keys locked

Return parameter 0

<boolean>Panel keys unlocked

<Boolean>Panel keys locked

SYSTem:INFormation

Description

Queries the system information. Returns the machine version, build date, keyboard CPLD version and analog CPLD version.

Query Syntax SYSTem:INFormation? Return Parameter <block data>

Definite length arbitrary block response data.

Query Example SYST:INF?

#3238MFRS XXXXXX,Model AAAAAA,SN BBBBBB,Firmware-Version 01.00.20120101,KeyboardCPLD 0x030C,AnalogControl-CPLD 0x0421,KernelBuildon May 22 2011,MAC 02-80-ad-20-31-b1

Returns the system information as a block data. (XXXXXX= manufacturer, AAAAAA = model number,

BBBBBB = Serial Number)

Set

Query

2260B Series Programming Manual

SYSTem:PRESet

Description

Resets all the settings to the factory default settings. See page 98 for details. This command is identical in effect to the *RST command.

Syntax SYSTem:PRESet

SYSTem:VERSion

Description

Returns the version of the SCPI specifications that the unit complies with.

Query Syntax SYSTem:VERSion? Return <1999.0> Always returns the SCPI version: 1999.0.

IEEE 488.2 Common Commands

*CLS ....................................................................................... 75

*ESE ....................................................................................... 75

*ESR ....................................................................................... 75

*IDN ...................................................................................... 75

*OPC ...................................................................................... 76

*RST ....................................................................................... 76

*SRE ....................................................................................... 76

*STB ....................................................................................... 77

*TRG ...................................................................................... 77

*TST ....................................................................................... 77

*WAI ...................................................................................... 77

Set

Query

REMOTE CONTROL

*CLS

Description

The *CLS command clears the Standard Event Status, Operation Status and Questionable Status registers. The corresponding Enable registers in each of the above registers are not cleared.

If a <NL> newline code immediately precedes a *CLS command, the Error Que and the MAV bit in the Status Byte Register is also cleared.

Syntax *CLS

*ESE

Description

Sets or queries the Standard Event Status Enable register.

Syntax

Query Syntax

*ESE <NR1>

*ESE?

Parameter <NR1>

0~255

Return parameter <NR1>

Returns the bit sum of the Standard Event Status Enable register.

*ESR

Description

Queries the Standard Event Status (Event) register. The Event Status register is cleared after it is read.

Query Syntax *ESR? Return parameter <NR1>

Returns the bit sum of the Standard Event Status (Event) register and clears the register.

*IDN

Description

Queries the manufacturer, model name, serial number, and firmware version of the unit.

Query Syntax *IDN?

Set

Query

2260B Series Programming Manual

Return parameter

Returns the instrument identification as a string in the following format:

XXXXXX,AAAAAA,TW123456,01.00.20110101

Manufacturer: XXXXXX

Model number : AAAAAA

Serial number : TW123456 Firmware version : 01.00.20110101

*OPC

Description

The *OPC command sets the OPC bit (bit0) of the Standard Event Status Register when all current commands have been processed.

The *OPC? Query returns 1 when all the outstanding commands have completed.

Syntax

Query Syntax

*OPC

*OPC?

Return parameter 1

Returns 1 when all the outstanding commands have completed.

*RST

Description

Resets all the settings to the factory default settings. See page 98 for details. This command is identical in effect to the SYSTem:PRESet command.

Syntax *RST

*SRE

Description

Sets or queries the Service Request Enable register. The Service Request Enable register determines which registers of the Status Byte register are able to generate service requests.

Syntax

Query Syntax

*SRE <NR1>

*SRE?

Set

Query

Set

Query

REMOTE CONTROL

Parameter <NR1>

0~255

Return parameter <NR1>

Returns the bit sum of the Service Request Enable register.

*STB

Description

Queries the bit sum of the Status Byte register with MSS (Master summary Status).

Query Syntax *STB? Return parameter <NR1>

Returns the bit sum of the Status Byte register with the MSS bit (bit 6).

*TRG

Description

The *TRG command is able to generate a “get” (Group Execute Trigger). If the 2260B cannot accept a trigger at the time of the command, an error message is generated (-211, “Trigger ignored”).

Syntax *TRG

*TST

Description

Executes a self test.

Query Syntax *TST? Return parameter 0

Returns “0” if there are no errors.

<NR1>

Returns an error code <NR1> if there is an error.

*WAI

Description

Prevents any other commands or queries from being executed until all outstanding commands have completed.

Syntax *WAI

Query

Set

Query

Set

2260B Series Programming Manual

Status Register Overview

To program the 2260B power supply effectively, the Status registers need to be understood. This chapter explains in detail how the Status registers are used and how to configure them.

Introduction to the Status Registers ................................... 78

The Status Registers ............................................................. 79

Questionable Status Register Group .................................. 80

Operation Status Register Group ....................................... 82

Standard Event Status Register Group .............................. 85

Status Byte Register & Service Request Enable Register 87

Introduction to the Status Registers

Overview

The status registers are used to determine the status of the power supply. The status registers maintain the status of the protection conditions, operation conditions and instrument errors.

The 2260B Series have a number of register groups:

• Questionable Status Register Group

• Standard Event Status Register Group

• Operation Status Register Group

• Status Byte Register

• Service Request Enable Register

• Service Request Generation

• Error Queue

• Output Buffer

The next page shows the structure of the Status registers.

REMOTE CONTROL

The Status Registers

2260B Series Programming Manual

Questionable Status Register Group

Overview

The Questionable Status Register Group indicates if any protection modes or limits have been tripped.

Bit Summary

Event Bit #

Bit Weight

OV (Over-Voltage)

Over voltage protection has been tripped

0 1

OC (Over-Current)

Over current protection has been tripped

1 2

POW (AC Power Off)

AC power switch is off

3 8

REMOTE CONTROL

OT (Over Temperature)

Over temperature protection has been tripped

4 16

VL (Voltage Limit)

Voltage limit has been reached

8 256

CL (Current Limit)

Current limit has been reached

9 512

SD (Shutdown Alarm) 11 2048

PL (Power-Limit) 12 4096

Condition Register

The Questionable Status Condition Register indicates the status of the power supply. If a bit is set in the Condition register, it indicates that the event is true. Reading the condition register does not change the state of the condition register.

PTR/NTR Filters

The PTR/NTR (Positive/Negative transition) register determines the type of transition conditions that will set the corresponding bit in the Event Registers. Use the Positive transition filter to view events that change from false to positive, and use the negative transition filter to view events that change from positive to negative.

Positive Transition

0→1

Negative Transition

1→0

Event Register

The PTR/NTR Register will dictate the type of transition conditions will set the corresponding bits in the Event Register. If the Event Register is read, it will be cleared to 0.

Enable Register

The Enable register determines which Events in the Event Register will be used to set the QUES bit in the Status Byte Register.

2260B Series Programming Manual

Operation Status Register Group

Overview

The Operation Status Register Group indicates the operating status of the power supply.

Bit Summary

Event Bit #

Bit Weight

CAL (Calibration mode)

Indicates if the 2260B is in calibration mode.

0 1

WTG (Waiting for trigger)

Indicates if the 2260B is waiting for a trigger.

5 32

REMOTE CONTROL

CV (Constant voltage mode)

Indicates if the 2260B is in CV mode.

8 256

CC (Constant current mode)

Indicates if the 2260B is in CC mode.

10 1024

OND (Output ON Delay)

Indicates if Output ON delay time is active

11 2048

OFD (Output OFF Delay)

Indicates if Output OFF delay time is active

12 4096

Condition Register

The Operation Status Condition Register indicates the operating status of the power supply. If a bit is set in the Condition register, it indicates that the event is true. Reading the condition register does not change the state of the condition register.

PTR/NTR Filters

Positive Transition

0→1

Negative Transition

1→0

Event Register

The PTR/NTR Register will dictate the type of transition conditions will set the corresponding bits in the Event Register. If the Event Register is read, it will be cleared to 0.

2260B Series Programming Manual

Enable Register

The Enable register determines which registered Events in the Event Register will be used to set the OPER bit in the Status Byte Register.

REMOTE CONTROL

Standard Event Status Register Group

Overview

The Standard Event Status Register Group indicates if any errors have occurred. The bits of the Event register are set by the error event queue.

Bit Summary

Event Bit #

Bit Weight

OPC (Operation complete)

The OCP bit is set when all selected pending operations are complete. This bit is set in response to the *OPC command.

0 1

RQC (Request control)

1 2

QUE (Query Error)

The Query Error bit is set in response to an error reading the Output Queue. This can be caused by trying to read the Output Queue when there is no data present.

2 4

DDE (Device Dependent Error)

Device specific error.

3 8

2260B Series Programming Manual

EXE (Execution Error)

The EXE bit indicates an execution error due to one of the following: illegal command parameter, parameter out of range, invalid parameter, the command didn’t execute due to an overriding operation condition.

4 16

CME (Command Error)

The CME bit is set when a syntax error has occurred. The CME bit can also be set when a <GET> command is received within a program message.

5 32

URQ (User Request) 6 64

PON (Power On)

Indicates the power is turned on.

7 128

Event Register

Any bits set in the event register indicate that an error has occurred. Reading the Event register will reset the register to 0.

Enable Register

The Enable register determines which Events in the Event Register will be used to set the ESB bit in the Status Byte Register.

REMOTE CONTROL

Status Byte Register & Service Request Enable Register

Overview

The Status Byte register consolidates the status events of all the status registers. The Status Byte register can be read with the *STB? query and can be cleared with the *CLS command.

Bit Summary

Event Bit #

Bit Weight

ERR (Error Event/Queue)

If data is present in the Error queue, the ERR bit will be set.

2 4

QUES (Questionable Status

The summary bit for the Questionable Status Register group.

3 8

MAV (Message Available) This is

set when there is data in the Output Queue waiting to be read.

4 16

2260B Series Programming Manual

(ESB) Event Summary Bit. The

ESB is the summary bit for the Standard Event Status Register group.

5 32

MSS Bit

The MSS Bit is the summary of the Status Byte Register and Service Request register (bits 1-5,

7). This will be set to 1.

6 64

OPER (Operation Status Register)

OPER bit is the summary bit for the Operation Status Register Group.

7 128

Status Byte Register

Any bits set in the Status byte register acts as a summary register for all the three other status registers and indicates if there is a service request, an error in the Error Queue or data in the Output Queue. Reading the Status Byte register will reset the register to 0.

Service Request Enable Register

The Service Request Enable Register controls which bits in the Status Byte Register are able to generate service requests.

REMOTE CONTROL

Error List

Command Errors .................................................................. 89



Execution Errors .................................................................. 93

Device Specific Errors ......................................................... 95

Query Errors ......................................................................... 96

Command Errors

Overview

An <error/event number> in the range [ -199 , 100 ] indicates that an IEEE 488.2 syntax error has been detected by the instrument’s parser. The occurrence of any error in this class shall cause the command error bit (bit 5) in the event status register (IEEE 488.2, section 11.5.1) to be set. One of the following events has occurred:

• An IEEE 488.2 syntax error has been detected by

the parser. That is, a controller-to-device message was received which is in violation of the IEEE 488.2 standard. Possible violations include a data element which violates the device listening formats or whose type is unacceptable to the device.

• An unrecognized header was received.

Unrecognized headers include incorrect devicespecific headers and incorrect or unimplemented IEEE 488.2 common commands.

Events that generate command errors shall not generate execution errors, device-specific errors, or query errors; see the other error definitions in this chapter.

2260B Series Programming Manual

Error Code Description

-100 Command Error

This is the generic syntax error for devices that cannot detect more specific errors. This code indicates only that a Command Error as defined in IEEE 488.2,11.5.1.1.4 has occurred.

-102 Syntax error

An unrecognized command or data type was encountered; for example, a string was received when the device does not accept strings.

-103 Invalid separator

The parser was expecting a separator and encountered an illegal character; for example, the semicolon was omitted after a program message unit, MEAS:VOLT:DC?:MEASCURR:DC?

-104 Data type error

The parser recognized a data element different than one allowed; for example, numeric or string data was expected but block data was encountered.

-108 Parameter not allowed

More parameters were received than expected for the header; for example, the KLOCk command only accepts one parameter, so receiving SYSTem:KLOCk 1,0 is not allowed.

-109 Missing parameter

Fewer parameters were received than required for the header; for example, the KLOCk command requires one parameter, so receiving KLOCk is not allowed.

-111 Header separator error

A character which is not a legal header separator was encountered while parsing the header; for example, no blank space followed the header, thus APPL 5, 1 is an error.

REMOTE CONTROL

-112 Program mnemonic too long

The header contains more that twelve characters (see IEEE 488.2, 7.6.1.4.1).

-113 Undefined header

The header is syntactically correct, but it is undefined for this specific device; for example, *XYZ is not defined for any device.

-114 Header suffix out of range

The value of a numeric suffix attached to a program mnemonic, see Syntax and Style section 6.2.5.2, makes the header invalid.

-115 Unexpected number of parameters

The number of parameters received does not correspond to the number of parameters expected. This is typically due an inconsistency with the number of instruments in the selected group.

-120 Numeric data error

This error, as well as errors -121 through -129, are generated when parsing a data element which appears to be numeric, including the nondecimal numeric types. This particular error message should be used if the device cannot detect a more specific error.

-121 Invalid character in number

An invalid character for the data type being parsed was encountered; for example, an alpha in a decimal numeric or a “9" in octal data.

-128 Numeric data not allowed

A legal numeric data element was received, but the device does not accept one in this position for the header.

-131 Invalid suffix

The suffix does not follow the syntax described in IEEE 488.2, 7.7.3.2, or the suffix is inappropriate for this device.

2260B Series Programming Manual

-141 Invalid character data

Either the character data element contains an invalid character or the particular element received is not valid for the header.

-148 Character data not allowed

A legal character data element was encountered where prohibited by the device.

-151 Invalid string data

A string data element was expected, but was invalid for some reason (see IEEE 488.2, 7.7.5.2); for example, an END message was received before the terminal quote character.

-158 String data not allowed

A string data element was encountered but was not allowed by the device at this point in parsing.

-160 Block data error

This error, as well as errors -161 through -169, are generated when parsing a block data element. This particular error message should be used if the device cannot detect a more specific error.

-161 Invalid block data

A block data element was expected, but was invalid for some reason (see IEEE 488.2, 7.7.6.2); for example, an END message was received before the length was satisfied.

-168 Block data not allowed

A legal block data element was encountered but was not allowed by the device at this point in parsing.

-178 Expression data not allowed

A legal expression data was encountered but was not allowed by the device at this point in parsing.

REMOTE CONTROL

Execution Errors

Overview

An <error/event number> in the range [ -299 , 200 ] indicates that an error has been detected by the instrument’s execution control block. The occurrence of any error in this class shall cause the execution error bit (bit 4) in the event status register (IEEE 488.2, section 11.5.1) to be set. One of the following events has occurred:

• A <PROGRAM DATA> element following a

header was evaluated by the device as outside of its legal input range or is otherwise inconsistent with the device’s capabilities.

• A valid program message could not be properly

executed due to some device condition.

Execution errors shall be reported by the device after rounding and expression evaluation operations have taken place. Rounding a numeric data element, for example, shall not be reported as an execution error. Events that generate execution errors shall not generate Command Errors, device-specific errors, or Query Errors; see the other error definitions in this section.

Error Code Description

-200 Execution error

This is the generic syntax error for devices that cannot detect more specific errors. This code indicates only that an Execution Error as defined in IEEE 488.2, 11.5.1.1.5 has occurred.

2260B Series Programming Manual

-201 Invalid while in local

Indicates that a command is not executable while the device is in local due to a hard local control (see IEEE 488.2, 5.6.1.5); for example, a device with a rotary switch receives a message which would change the switches state, but the device is in local so the message can not be executed.

-203 Command protected

Indicates that a legal password-protected program command or query could not be executed because the command was disabled.

-211 Trigger ignored

Indicates that a GET, *TRG, or triggering signal was received and recognized by the device but was ignored because of device timing considerations; for example, the device was not ready to respond. Note: a DT0 device always ignores GET and treats *TRG as a Command Error.

-213 Init ignored

Indicates that a request for a measurement initiation was ignored as another measurement was already in progress.

-220 Parameter error

Indicates that a program data element related error occurred. This error message should be used when the device cannot detect the more specific errors described for errors -221 through

-229.

-221 Settings conflict

Indicates that a legal program data element was parsed but could not be executed due to the current device state (see IEEE 488.2, 6.4.5.3 and

11.5.1.1.5.).

REMOTE CONTROL

-222 Data out of range

Indicates that a legal program data element was parsed but could not be executed because the interpreted value was outside the legal range as defined by the device (see IEEE 488.2,

11.5.1.1.5.).

-224 Illegal parameter value

Used where exact value, from a list of possible values, was expected.

Device Specific Errors

Overview

An <error/event number> in the range [ -399 , 300 ] or [ 1 , 32767 ] indicates that the instrument has detected an error which is not a command error, a query error, or an execution error; some device operations did not properly complete, possibly due to an abnormal hardware or firmware condition. These codes are also used for self-test response errors. The occurrence of any error in this class should cause the device-specific error bit (bit 3) in the event status register (IEEE 488.2, section 11.5.1) to be set. The meaning of positive error codes is device-dependent and may be enumerated or bit mapped; the <error message>string for positive error codes is not defined by SCPI and available to the device designer.

Note that the string is not optional; if the designer does not wish to implement a string for a particular error, the null string should be sent (for example, 42,""). The occurrence of any error in this class should cause the devicespecific error bit (bit 3) in the event status register (IEEE 488.2, section 11.5.1) to be set. Events that generate device-specific errors shall not generate command errors, execution errors,

2260B Series Programming Manual

or query errors; see the other error definitions in this section.

Error Code Description

-310 System error

Indicates that some error, termed “system error” by the device, has occurred. This code is device-dependent.

-320 Storage fault

Indicates that the firmware detected a fault when using data storage. This error is not an indication of physical damage or failure of any mass storage element.

Query Errors

Overview

An <error/event number> in the range [ -499 , 400 ] indicates that the output queue control of the instrument has detected a problem with the message exchange protocol described in IEEE

488.2, chapter 6. The occurrence of any error in this class shall cause the query error bit (bit 2) in the event status register (IEEE 488.2, section

11.5.1) to be set. These errors correspond to message exchange protocol errors described in IEEE 488.2, section 6.5. One of the following is true:

• An attempt is being made to read data from the

output queue when no output is either present or pending;

• Data in the output queue has been lost.

Events that generate query errors shall not generate command errors, execution errors, or device-specific errors; see the other error definitions in this section.

REMOTE CONTROL

Error Code Description

-400 Query error

This is the generic query error for devices that cannot detect more specific errors. This code indicates only that a Query Error as defined in IEEE 488.2, 11.5.1.1.7 and 6.3 has occurred.

Keithley 2260B Series, 2260B-30-36, 2260B-80-13, 2260B-30-72, 2260B-80-27 Programming Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
